USER MANUAL PPO-E05 OLYMPUS

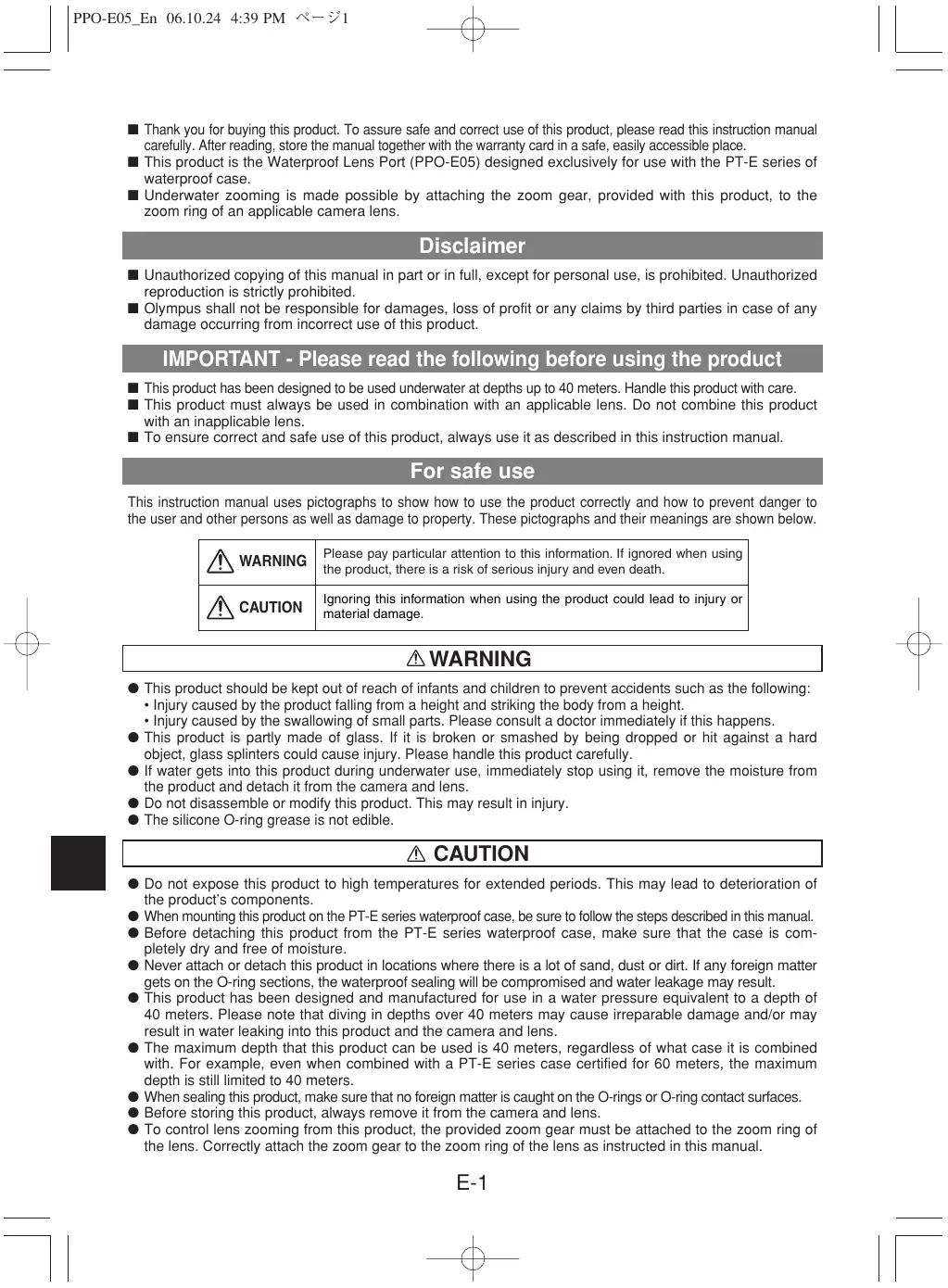

PPO-E05_En 06.10.24 4:39 PM — 21 “h M Thank you for buying this product. To assure safe and correct use of this product, please read this instruction manual carefuly. After reading, store the manual together with the warranty card in a saîe, easily accessible place. m This product is the Waterproof Lens Port (PPO-E0S) designed exclusively for use with the PT-E series of waterproof case. M Underwater zooming is made possible by attaching the zoom gear, provided with this product, to the zoom ring of an applicable camera lens. M Unauthorized copying of this manual in part or in full, except for personal use, is prohibited. Unauthorized reproduction is strictiy prohibited. M Olympus shall not be responsible for damages, loss of profit or any claims by third parties in case of any damage occurring from incorrect use of this product. IMPORTANT - Please read the following before using the product M This product has been designed to be used underwater at depths up to 40 meters. Handle this product with care. M This product must always be used in combination with an applicable lens. Do not combine this product with an inapplicable lens. m To ensure correct and safe use of this product, always use it as described in this instruction manual. For safe use This instruction manual uses pictographs to show how to use the product correctly and how to prevent danger to the user and other persons as well as damage to property. These pictographs and their meanings are shown below. A WARNING | PIe2e pay particular attention 1o {his information. If ignored when using the product, there is a risk of serious injury and even death. lgnoring this information when using the product could lead to injury or ÂÀ CAUTION | Sateriai damage. À WARNING © This product should be kept out of reach of infants and children to prevent accidents such as the following: + Injury caused by the product falling from a height and striking the body from a height. + Injury caused by the swallowing of small parts. Please consult a doctor immediately if this happens. © This product is party made of glass. If it is broken or smashed by being dropped or hit against a hard object, glass splinters could cause injury. Please handle this product carefully. @ if water gets into this product during undenwater use, immediately stop using it, remove the moisture from the product and detach it from the camera and lens. © Do not disassemble or modify this product. This may result in injury. © The silicone O-ring grease is not edible. À CAUTION © Do not expose this product to high temperatures for extended periods. This may lead to deterioration of the products components. ‘© When mounting this product on the PT-E series waterproof case, be sure to follow the steps described in this manual. © Before detaching this product from the PT-E series waterproof case, make sure that the case is com- pletely dry and free of moisture. © Never attach or detach this product in locations where there is a lot of sand, dust or dirt. If any foreign matter gets on the O-ring sections, the waterproof sealing will be compromised and water leakage may result. © This product has been designed and manufactured for use in a water pressure equivalent to a depth of 40 meters. Please note that diving in depths over 40 meters may cause irreparable damage and/or may result in water leaking into this product and the camera and lens. © The maximum depth that this product can be used is 40 meters, regardless of what case it is combined with. For example, even when combined with a PT-E series case certified for 60 meters, the maximum depth is still limited to 40 meters. © When sealing this product, make sure that no foreign matter is caught on the O-rings or O-ring contact surfaces. € Before storing this product, always remove it from the camera and lens. © To control lens zooming from this product, the provided zoom gear must be attached to the zoom ring of the lens. Correctly attach the zoom gear to the zoom ring of the lens as instructed in this manual. E-1

EI Name of Parts @ PPO-E05 main body @ Silicon O-ring (POL-E101) © Front cap © Rear cap ® Zoom gear (PPZR-E06) @ Grease tor silicone O-ring © O:ing remover

2 | Mounting the PPO-E05 on the Waterproof Case This section describes how to mount this product on the PT-E series case. Before mounting, check that no foreign matter is attached to the O-rings, the port mount thread on the PT-E series case, or the O- ring contact surfaces. Apply a thin layer of the provided silicone O-ring grease. @ Align the threaded section of the PPO-E05 with the port mount thread on the PT-E series case. © Hold the PT-E series case firmiy with one hand, hold the main body of the PPO-E05 with your other hand and screw it into the PT-E series by tuming the PPO-E05 clockwise. @ Resistance increases as the PPO- E05 is screwed in more deeply. However, be sure to screw it in all the way until there is no gap visible below the threaded section of the PPO-E05. Grease applying surface on O-rings Threaded section O-ring O-ring contact surfaces Port mount thread Screwin until there is no gap.

EX _Dismounting the PPO-E05 © If any water is on the product, wipe it completely away and make sure that the product is dry. @ Holding the PT-E series case firmly with one hand, loosen the PPO-É05 by turning it about 90 degrees counterclockwise. 1f the PPO-EOS is attached too tightiy to turn, wrap it with a piece of rubber or similar non-slip material. @ After loosening the PPO-E05, point its lens downward and turn it further counterclockwise until it is separated from the PT-E series case. Be careful not to drop the PPO-E05 or PT-E series case. CAUTION: + While dismounting the PPO- E05 from the case, water remaining on the PPO-E05 may splat- ter on the lens or camera. If this happens, wipe the water off the lens and camera with a dry cloth. + Make sure that the port is completely dry before dismounting.

[al Attaching the Zoom Gear to the Lens To use this product for lens zooming, attach the zoom gear provided with this product to the zoom ring of the lens. @ The zoom gear has two marks (A) for use in aligning its position on the lens. Use either mark to adjust the position of Aignment markings % ù the zoom gear with respect to the lens. @ Tu the lens's zoom ring to full wide-angle end and align the “14 mm” position with the index. © Attach the zoom gear to the lens from the direction of the lens mount. Be sure to attach the zoom gear in the correct orientation. @ Adjust the position of the zoom gear so that its front end is aligned with the front end of the lens’ zoom ring and the alignment mark (A) on the zoom gear is aligned with the mounting index on the lens.

PPO-E05_En 06.10.24 4:39 PM 25 an © Mount the lens/zoom gear combination on the lens. CAUTION: + If the zoom gear position in the rotation and/or front-rear directions is inappropriate, the lens cannot be zoomed smoothly. Be sure to attach the zoom gear properly and ensure that it is correctly positioned. - For details on how to load the camera into the PT-E series case, refer to the case's instruc- tion manual.

PPO-E05_En 06.10.24 4:39 PM X— 6 EX _ Maintenance For safe use of this product, always perform maintenance after each diving session. For details, refer to “Handling After Shooting” and “Maintaining the Waterproof Function” in the PT-E series case instruction manual. Apply the same procedures to this product: @ After shooting, remove the inserted cam- era and lens, then re-seal the empty case and immerse it in tap water to remove any salt as soon as possible. @ After making sure that the PT-E series case is completely dry, dismount this product from the case. © Insert the O-ring remover between the O-ring and O-ring groove so that the tip of the O-ring remover slides under the O-ring (take care not to damage the groove with the tip of the O-ring remover). When the O-ring is raised, pinch it with Your fingers and separate it from the case. © Remove any dust that you can see from the O-ring, and then pinch the O-ring with your fingers and rub it along its length to check for foreign objects such as Sand, damage and cracks. @ If any foreign matter is attached to the O-ring grooves, remove it using a clean, lint-free cloth or cotton swab. Also remove any foreign matter from the O-ring contact surfaces and from the port mount thread on the PT-E series case. © After removing foreign matter, apply the provided grease to the O-rings and fit them into the O-ring grooves. To apply grease to each O-ring, squeeze a drop of grease about the size of a grain onto your finger and lightiy rub the entire circumference of the O-ring to spread the grease thinly and evenly.

PPO-E05_En 06.10.24 4:39 PM — 27 Œ Specifications Applicable case PT- E series Applicable lens ZUIKO DIGITAL ED14-42mm F3.5-5.6 Main materials Main body Aluminum Lens window Chemically reinforced glass. O-rings Silicon rubber. Zoom gear NER rubber. Front cap NER rubber. Rear cap Polyethylene resin. Withstanding pressure _: Water depth of 40 m Dimensions Max. diameter 143 mm x Depth 80 mm Weight 739 g (excluding the conversion lens) Note) We reserve the right to change the external appearance and specifications without notice. Consumable Items This product uses the following consumable items. M Silicon O-rings Product Model Description POL-E 101 O-ring for use with the PT-E series case. M Grease for silicone O-ring Product Model Description PSOLG- 1 Grease for O-rings E-7
