Product Type	Electric Fan Heater
Brand	Hyundai
Model	CON 100
Heating Power	2000 W
Heating Element	Ceramic PTC
Fan Speed Levels	2
Thermostat	Adjustable, with frost protection
Oscillation	Yes, 80°
Dimensions (W x H x D)	25 x 30 x 20 cm
Weight	2.1 kg
Power Supply	230 V, 50 Hz
Noise Level	< 45 dB
Safety Features	Overheat protection, tip-over switch
Housing Material	High impact plastic
Cleaning	Wipe with dry cloth, do not immerse
Warranty	2 years
Certification	CE, RoHS

Frequently Asked Questions - CON 100 HYUNDAI

How do I turn on the Hyundai CON 100 heater?

Connect the heater to a power outlet, set the thermostat dial to the desired temperature, and select the fan speed using the switch. The heater will start operating.

Can I use the CON 100 in a bathroom?

No, this heater is not suitable for bathrooms or wet areas. It is rated IPX0 and should only be used in dry indoor environments.

Why does the heater turn off unexpectedly?

The heater may have activated its overheat protection or tip-over switch. Ensure the heater is on a stable surface and the air intake is not blocked. Allow it to cool before restarting.

How to clean the CON 100 heater?

Always unplug the heater before cleaning. Use a dry or slightly damp cloth to wipe the exterior. Do not use water or solvents. Clean the air inlet grilles with a vacuum cleaner brush attachment.

What is the power consumption of the Hyundai CON 100?

The heater has a maximum power of 2000 W on high setting. On low setting it consumes approximately 1000 W.

Can I leave the heater unattended?

It is not recommended to leave the heater unattended. However, the built-in tip-over switch and overheat protection will automatically shut off the unit if it falls or overheats.

How to adjust the thermostat?

Turn the thermostat knob clockwise to increase the desired temperature. The heater will maintain the room temperature by cycling on and off. For frost protection, set it to the minimum position.

Is the CON 100 suitable for heating a large room?

This heater is designed for supplementary heating of small to medium-sized rooms (up to 20 m²). For larger areas, a higher power heater may be required.

Does the fan continue after reaching temperature?

Yes, the fan may continue to run for a short time after the heating element turns off to dissipate residual heat. This is normal.

What is the noise level of the heater?

The fan produces a noise level of approximately 45 dB on high speed, similar to a quiet conversation. The low speed is quieter.

USER MANUAL CON 100 HYUNDAI

Exterior view of a Hyundai electric heater with heat exchanger and control panel (no visible text or symbols on the device itself)

NÁVOD K POUŽITÍ / NÁVOD NA POUŽITIE INSTRUKCJA OBSŁUGI / INSTRUCTION MANUAL HASZNÁLATÍ ÚTMUTATÓ

TEPLOVZDUŠNÝ KONVEKTOR / TEPLOVZDUŠNÝ KONVEKTOR OGRZEWACZ KONWEKTOROWY CIEPŁEGO POWIETRZA HOT AIR CONVECTOR / MELEG LEVEGÓS KONVEKTOR

Producent: Hyundai Corporation, Seoul, Korea

Importer: DIGISON Polska sp. z o.o., ul. Krzemieniecka 46, Wrocław 54 613 Poland

Dear customer, thank you for purchasing our product. Please read the operating instructions carefully before putting the appliance into operation and keep these instructions including the warranty, the receipt and, if possible, the box with the internal packing.

GENERAL SAFETY INSTRUCTIONS

• The appliance is designed exclusively for private use and for the envisaged purpose. This appliance is not fit for commercial use.
• This product can be used by children at the age of 8 years and older and people with reduced physical or mental abilities or lack of experience and knowledge if they are supervised or if they were instructed regarding use of the appliance in a safe way and if they understand possible risks. Children must not play with the appliance. User cleaning and maintenance must not be performed by children if they are younger than 8 year and unsupervised. Children younger than 8 years must be kept out of reach of the appliance and its power cord.
  • Always unplug the appliance from power supply if you leave it unattended and before assembly, disassembly or cleaning.
• If the power cord of the appliance is damaged, disconnect it immediately from the power supply. The power cord must be replaced by the manufacturer, its service technician or a similarly qualified person to avoid an injury caused by the electric power or fire.
• Never use the appliance if its power cord or plug is damaged, if it does not work properly, if it fell down and was damaged or if it fell into water. In this case, take the appliance to a special service to check its safety and proper function.
• WARNING: Some parts of this product may become very hot and cause burns. Special attention must be paid to this fact in the presence of children and handicapped persons.
• Keep it away from sources of heat, direct sunlight, humidity (never dip it into any liquid) and sharp edges. Do not use the appliance with wet hands. If the appliance is humid or wet, unplug it immediately. Do not put it in water.
• When cleaning or putting it away, switch off the appliance and always pull out the plug from the socket (pull on the plug, not the cable) if the appliance is not being used and remove the attached accessories.
• Do not operate the machine without supervision. If you should leave the workplace, always switch the machine off or remove the plug from the socket (pull the plug itself, not the lead).
• To protect children from the dangers posed by electrical appliances, make sure that the cable is hanging low and that children do not have access to the appliance.
• Check the appliance and the cable for damage on a regular basis. Do not use the appliance if it is damaged.
• Do not try to repair the appliance on your own. Always contact an authorized technician. To avoid the exposure to danger, always have a faulty cable be replaced only by the manufacturer, by our customer service or by a qualified person and with a cable of the same type.
• Pay careful attention to the following "Special Safety Instructions for this unit".

SPECIAL SAFETY INSTRUCTIONS FOR THIS UNIT

- Do not use the heater unless the feet are correctly attached if the heater is used as portable appliance.

• Ensure the power supply to the socket into which the heater is plugged is in accordance with the rating label on the heater and that the socket is earthed.
• Keep the mains lead away from the hot body of the heater.
• The heater is not intended for use in bathrooms, laundry areas or similar indoor locations.
• Never place the heater where it may fall into a bathtub or other water container.
• Do not cover or obstruct any of the heat outlet grilles or the air intake openings of the heater.
• Do not place the heater on carpets having a very deep pile.
• Always ensure that the heater is placed on a firm level surface. Ensure that the heater is not positioned close to curtains or furniture as this could create a fire hazard.
• Do not position the heater in front of, or immediately below, a wall socket.
• Do not insert any object through the heat outlet or air intake grilles of the heater.
• Do not use the heater in areas where flammable liquids are stored or where flammable fumes may be present.
  • Always unplug the heater when moving it from one location to another.
• Do not place the unit just below the socket.

NOTE: It is normal when the heaters are turned on for the first time or when they are turned on after having not been used for a long period of time the heaters may emit some smell and fumes. This will disappear when the heater has been on a short while.

DESCRIPTION OF THE CONTROLS

P1. Holder for transport
P2. Fan switch
P3. Power switches
P4. Thermostat
P5. Feet

INSTRUCTIONS FOR USE

Assembly of the heater (while use on the floor as portable appliance). Before using the heater, the feet (supplied in the carton), must be fitted to the main unit. These are to be attached to the base of the heater using the 4 self-tapping screws provided, taking care to ensure that they are located correctly in the bottom ends of the heater side mouldings

Operation of the heater

1) Choose a suitable location for the heater, taking into account the safety instructions above.
2) Insert the plug of the heater into a suitable socket.
3) Turn the thermostat knob fully in a clockwise direction to the maximum setting.
4) Turn on the heating elements by the power switches on the side panel. For maximum heat output turn both switch to ON.

Change of wattage:

Both switches OFF OFF

First switch ON 750 W

Seconf switch ON 1250 W

Both switches ON 2000W

0 W

750 W

1250 W

2000 W

5) When the desired room temperature has been reached, the thermostat knob should be turned slowly anti-clockwise until the thermostat is heard to click off. After this the heater will keep the air temperature in the room at the set temperature by switching on and off automatically.
6) In it's minimum (fully anti-clockwise) position, the thermostat provides a frost guard position. In this position (depending on the size of the room) the heater will maintain the temperature above freezing.

Fan Operation

This is operated by means of the fan switch with the fan symbol along side it. The fan will only operate with the thermostat in the "on" position and can be used when the heating elements are "on" to blow warm air into the room. In warm conditions the fan can be used with the heating elements "off" to blow cool air into the room.

WALL MOUNTING (while use the heater as fixed appliance)

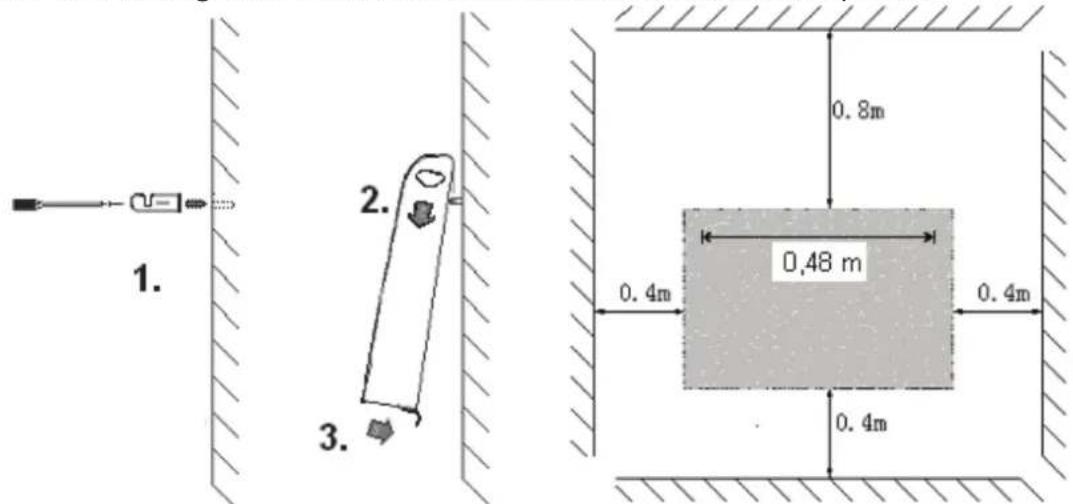

The heater is supplied with 4 off each fixing brackets, screws and plastic wall plugs to enable it to be mounted onto a wall if required. If it is decided to mount the heater on the wall, the feet should not be fitted. The position must be chosen carefully. It must not be in front of or below a power socket. It must not be below a shelf, curtains or any other obstruction. Also refer to the safety instructions overleaf. Having decided on the location of the heater it is necessary to drill 2 fixing holes 8mm diameter by 43mm deep at 0,46 m centres on a horizontal line at a minimum height of 400mm from the floor (Fig. Minimum distance). Allowance must be made for any floor coverings, carpet etc and if any skirting boards are present, the fixing holes must be a minimum of 400mm above the top edge of the skirting board. Using the plastic plugs and fixing screws provided, attach 2 of the fixing brackets to the wall (Fig. 1). The other pair of fixing brackets must be attached to the base of the heater using the feet retaining screws so that the brackets project out at the rear of the heater and space the bottom edge away from the wall. If required, these brackets may also be secured to the wall using the remaining fixing screws and plastic wall plugs.

If this option is chosen it is suggested that the heater is hung on the upper brackets and the hole positions for the lower brackets is then marked on the wall, prior to drilling the holes for attachment purposes.

Convector is not designed for installation in bathrooms and similar spaces.

Fig. 1 Minimum distance

CLEANING AND MAINTENANCE

Clearing the heater

• Always un-plug the heater from the wall socket and allow it to cool down before cleaning.
- Clean the outside of the heater by wiping with a damp cloth and buff with a dry cloth. Do not use any detergents or abrasives and do not allow any water to enter the heater.

Storing the heater

When the heater is not used for long periods of time it should be protected from dust and stored in a clean dry place.

Troubleshooting

The device is not working

• Check that the mains connection cable is firmly plugged in.
• Check the positions of the switches and thermostat.

Technical specifications

• Hot air convector
• 3 adjustment levels
• Fan
  – Power supply: 230 V \~ 50 Hz
  – Power drain: 2000 W
• Noise level: ≤ 75 dB
• Size: 59 x 42 x 20 cm
• Weight: 3,2 kg

Input in off mode is 0.00 W.

We reserve the right to change technical specifications.

WARNING: Do not use this product near water, in wet areas to avoid fire or injury of electric current. Always turn off the product when you don't use it or before a revision. There aren't any parts in this appliance which are reparable by consumer. Always appeal to a qualified authorized service. The product is under a dangerous tension.

Old electrical appliances, used batteries and accumulators disposal

This symbol appearing on the product, on the product accessories or on the product packing means that the product must not be disposed as household waste. When the product/ battery durability is over, please, deliver the product or battery (if it is enclosed) to the respective collection point, where the electrical appliances or batteries will be recycled. The places, where the used electrical appliances are collected, exist in the European Union and in other European countries as well. By proper disposal of the product you can prevent possible negative impact on environment and human health, which might otherwise occur as a consequence of improper manipulation with the product or battery/ accumulator. Recycling of materials contributes to protection of natural resources. Therefore, please, do not throw the old electrical appliances and batteries/ accumulators in the household waste. Information, where it is possible to leave the old electrical appliances for free, is provided at your local authority, at the store where you have bought the product. Information, where you can leave the batteries and accumulators for free, is provided to you at the store, at your local authority.

Licensed by Hyundai Corporation, Korea.
