Product Type	Electric Fan Heater
Model	HAL 200
Brand	Hyundai
Power Supply	220-240 V ~ 50/60 Hz
Rated Power Output	2000 W
Heat Settings	2 (1000 W / 2000 W) + Fan Only
Thermostat	Adjustable room thermostat
Dimensions (W x H x D)	250 x 350 x 170 mm
Net Weight	2.5 kg
Cable Length	Approx. 1.5 m
Safety Features	Tip-over switch, overheat protection, thermal fuse
Housing Material	High-temperature resistant plastic
Maintenance	Regular cleaning of air inlet and outlet grilles
Reparability	Spare parts available through authorized service
Protection Class	Class II (double insulation)
Noise Level	< 45 dB(A)
Certifications	CE, EAC

Frequently Asked Questions - HAL 200 HYUNDAI

How do I adjust the thermostat on the Hyundai HAL 200 heater?

Rotate the thermostat dial clockwise to increase the desired temperature. The heater will automatically cycle on and off to maintain the set temperature.

What should I do if the heater does not turn on?

Check that the power cord is plugged into a working outlet. Ensure the power switch is set to one of the heat settings. If the tip-over switch is activated (heater tilted), reset it by placing the heater upright on a level surface.

Is the heater safe to use in a bathroom?

No, the Hyundai HAL 200 is not designed for bathroom use. It should be used in dry indoor areas only and kept away from water splashes.

Can I leave the heater unattended overnight?

It is not recommended to leave the heater unattended for long periods. Always unplug the heater when not in use and ensure it is placed on a stable, non-flammable surface.

How do I clean the heater?

Unplug the heater and allow it to cool. Use a soft brush or vacuum cleaner with a brush attachment to gently clean the air inlet and outlet grilles. Do not use water or abrasive cleaners.

What does the 'Fan Only' mode do?

The 'Fan Only' mode operates the fan without heating, providing air circulation for cooling purposes during warmer months.

Why does the heater turn off suddenly during use?

The heater may have activated the overheat protection. Check if the air inlet or outlet is blocked, or if the heater is placed too close to curtains or furniture. Allow the heater to cool down for 10-15 minutes before restarting.

Where can I find spare parts for the HAL 200?

Spare parts such as the thermostat, switch, or fan motor can be ordered through the Hyundai authorized service center. Contact your local dealer for assistance.

How much electricity does the heater consume?

At the highest setting (2000 W), the heater consumes 2 kWh per hour. The actual consumption depends on the thermostat cycling and usage duration.

Does the heater have a remote control?

No, the Hyundai HAL 200 does not include a remote control. All controls are manual on the unit.

USER MANUAL HAL 200 HYUNDAI

NÁVOD K POUŽITÍ / NÁVOD NA POUŽITIE INSTRUKCJA OBSŁUGI / INSTRUCTION MANUAL HASZNÁLATÍ ÚTMUTATÓ

POKYNY K POUŽITÍ

MONTÁŽ

POKYNY NA POUŽITIE

MONTÁŽ

INSTRUKCJA OBSŁUGI

MONTAŻ

Dear customer, thank you for purchasing our product. Please read the operating instructions carefully before putting the appliance into operation and keep these instructions including the warranty, the receipt and, if possible, the box with the internal packing.

GENERAL SAFETY INSTRUCTIONS

- Consider the instructions for use as a part of the appliance and pass them on to any other user of the appliance.

- Check whether the data on the type label corresponds with the voltage in your socket. The power cord plug may only be connected to the electrical socket complying with the applicable standards.

- This appliance may only be used by children aged 8 years or older, and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision. Children younger than 8 years must be kept out of reach of the appliance and its power cord.

- Before exchanging any accessories or accessible parts that are moving during use, before assembly and disassembly, before cleaning and maintenance, when carrying, when you leave it unattended or after finishing the work, switch off the appliance and disconnect it from mains by unplugging the power cord plug from the electrical socket!

- For additional protection, install current protection (RCD) with the nominal release current not exceeding 30mA. Ask a revision technician or an electrician for advice.

- Never use the appliance if the power cord or power plug are damaged, if the appliance is not correctly operating or if it has fallen on the floor and been damaged, or if it has fallen into water. In such cases take the appliance to a professional service centre to verify its safety and correct function.

- If the power cord of the appliance is corrupted, it has to be replaced by the manufacturer, its service technician or a similarly qualified person so as to prevent dangerous situations.

- WARNING: In order to prevent overheating, never cover the appliance and the air inlets/outlets to avoid fire hazard.

- Children under 3 years of age must be kept away from the appliance unless they are constantly supervised.

- Children aged from 3 years and less than 8 years shall only switch on/off the appliance provided that it has been placed or installed in its intended normal operating position and they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children aged from 3 years and less than 8 years shall not plug in, regulate and clean the appliance or perform user maintenance.

- NOTE: Some parts of this product can become very hot and cause burns. Particular attention has to be given where children and vulnerable people are present.

- WARNING: This heater is not equipped with a device to control the room temperature. Do not use this heater in small rooms when they are occupied by persons not capable of leaving the room on their own, unless constant supervision is provided.

- Do not place the appliance under electrical socket. For safety reasons, leave the minimum distance of 1m between the appliance and any obstacle on any side (furniture, walls, etc.).

- ATTENTION: Do not use this heater in series with an external timer, remote controller or any other device that switches on the appliance automatically, since a fire risk exists when the heater is accidentally covered or displaced at the moment it switches on.

- Do not use the appliance in bathrooms in zones 0, 1 and 2! It must not be used in a close proximity of bathtub, shower or swimming pool.

- The appliance must not be immersed in water or other liquids (not even partially)! If the appliance falls in water, do not take it from the water! First disconnect the power cord plug from the electrical socket, and then take out the appliance from the water. In such cases, bring the appliance to a specialised service centre to verify its safety and proper operability.

- Do not handle the appliance with wet hands.

- Do not plug the power cord in the electrical socket and do not unplug it with wet hands or by pulling the power cord!

- The appliance must not be used in a damp or wet environment and in any environment with the danger of fire or explosion (premises where chemicals, fuels, oils, gases, paints and other flammable or volatile materials are stored).

- Only use the appliance in the working position at places with no risk of overturning and in a sufficient distance from other objects (such as curtains, drapes, etc.), heat sources (e.g. fireplace, heater, stove, cooker, radiators, hot air ovens, grills) and wet surfaces (e.g. sinks, wash basins).

- Make sure that no impurities get inside the appliance (e.g. dust clouds, hairs etc.).

- Do not put the switched on appliance on soft surfaces (e.g. on a bed, towels, wipers, carpets).

- When handling the appliance, try to prevent injury (e.g. burns).

- Ensure that no object, flammable or otherwise is closer than one metre to heat source.

- Keep the mains lead away from the hot body of the heater.

- Do not switch on the appliance if the appliance is not completely assembled or if the blade wheel covers are damaged.

- This appliance is not intended for outdoor use.

- The appliance is equipped with the heat safety lock which disconnects power supply if the steam sensor fails or if an empty pot is turned on. If it happens, unplug the appliance from power supply; let it cool down and take it to a special service to check its safety and proper function.

- Do not modify the appliance surface in any manner (e.g. by self-adhesive wallpapers, foils, etc.)!

- Always place and use the unit on a horizontal position, otherwise the tip-over switch will be activated.

- When handling the appliance, avoid causing any injury (e.g. burns). Do not move hot appliance, wait until it cools down!

- Only use original components designed for this type.

- Check the condition of the power cord of the appliance regularly.

- Never put the power cord on hot surfaces and never let it hang over table edge or worktop edge. If the cord is caught or pulled, e.g. by children, the appliance may overturn and fall down, causing a serious injury!

- Avoid winding the power cord around the appliance, otherwise the power cord service life would be reduced.

- If you need to use an extension cord for justified reasons, it must be undamaged and comply with the applicable standards.

- Only use this appliance for the purpose it was designed for, as specified in this manual. Never use the appliance for any other purpose.

• WARNING: There is a risk of injury when the appliance is not used correctly (not in accordance with the manual).
• All texts in foreign languages and pictures shown on the packaging or the product itself, are translated and explained at the end of this language mutation.
• The manufacturer assumes no responsibility for any damage caused by improper handling of the appliance and its accessories (e.g. electric shock, fire), and the appliance guarantee will become void if any of the aforementioned safety instructions are not observed.

Zone 0 = Internal space for a bathtub or a shower unit

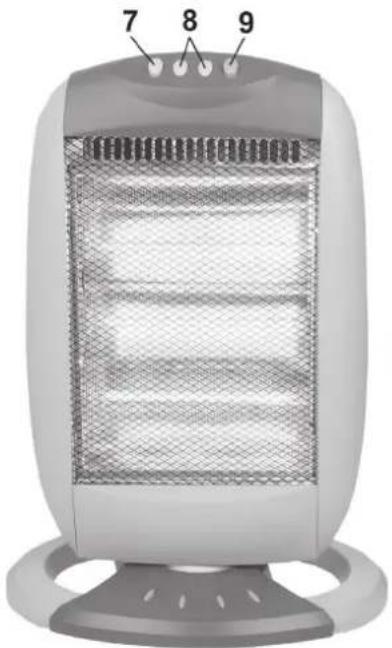

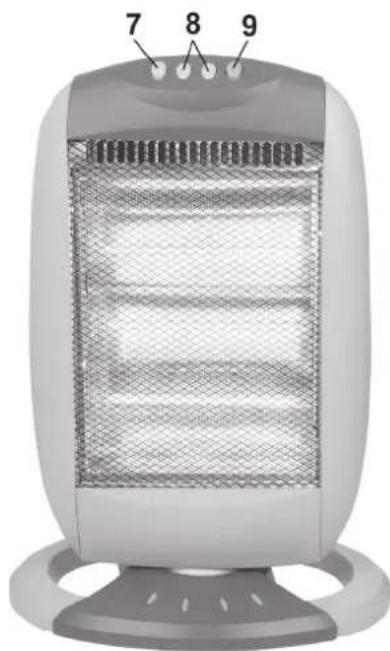

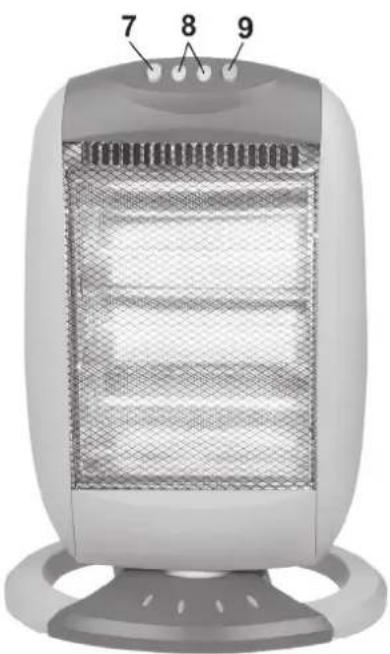

DESCRIPTION OF THE CONTROLS

1. Main body
2. Base plate
3. Butterfly nut (2 pcs)
4. Tip-over safety switch rod
5. Power cord guide
6. Power cord
7. TURN switch - oscillation
8. Power switches
9. Main switch ON

INSTRUCTIONS FOR USE ASSEMBLY

1) Undo the butterfly nuts from bottom of the frame of the body.
2) Select a level surface and place the frame of the body on its back.
3) Insert the power cable though the centre of the base plate.
4) Both butterfly nuts should be placed into the respective areas provided, screwing tightly before ready to be used.

OPERATION

1) Plug the appliance in to the power outlet and push the main switch to ON position.
Pushing the switch ON repeatedly changes the power output — 400 W, 800 W, 1200 W.
2) Using the buttons on control panel, choose the required function. This Appliance came with a remote control. The buttons on the appliance as well as on the remote control are identical.
3) To oscillate, press the TURN switch
4) To target heat direction, switch the TURN OFF, use handle and lift body and place to the required angle.
5) To switch OFF, press the appropriate function button and then switch OFF at the socket.

CHANGING THE TUBES

Changing the tubes should be performed only by authorized service center.

CLEANING AND MAINTENANCE

1) Ensure the unit is switched OFF at the socket and then remove the plug.
2) The lattice can be cleaned with a vacuum cleanerr or gently with a soft brush.
3) Do not use water for cleaning.
4) Clean and place the unit in a plastic bag and store it in a dry place when the unit is not being used.
5) If the cable is worn-out or damaged in any way, use a qualified and registered electrician to carry out replacements or repairs.

TECHNICAL SPECIFICATIONS

• 3 tubes - Power supply: 230 V \~ 50 Hz
• Operation-function switching 400/800/1200 W - Noise level < 45 dB(A) re 1 pW
• Turning function - Power drain: 1200 W
• Size: 40 × 60 × 27 cm; weight: 2.6 kg - Input in off mode is 0.00 W.

The manufacturer reserves the right to change the technical specifications and accessories for the respective models.

WARNING: DO NOT USE THIS PRODUCT NEAR WATER, IN WET AREAS TO AVOID FIRE OR INJURY OF ELECTRIC CURRENT. ALWAYS TURN OFF THE PRODUCT WHEN YOU DON'T USE IT OR BEFORE A REVISION. THERE AREN'T ANY PARTS IN THIS APPLIANCE WHICH ARE REPARABLE BY CONSUMER. ALWAYS APPEAL TO A QUALIFIED AUTHORIZED SERVICE. THE PRODUCT IS UNDER A DANGEROUS TENTION.

Disposal of old Electrical & Electronic Equipment (Applicable in the European Union and other European countries with separate collection systems).

This symbol on the product or on its packaging indicates that this product (or battery/ accumulator) shall not be treated as household waste. Instead it shall be handed over to the applicable collection point for the recycling of electrical and electronic equipment. By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product. The recycling of materials will help to conserve natural resources. For more detailed information about recycling of this product, please contact your local Civic Office, your household waste disposal service or the shop where you purchased the product.

WARNING: DO NOT COVER To prevent overheating, do not cover the heater.

HASZNÁLATI TUDNIVALÓK

ÖSSZEÁLLÍTÁS

Licensed by HYUNDAI Corporation Holdings, Korea
