Product Type	Portable Fan Heater
Model	H 501
Brand	Hyundai
Dimensions (approx.)	20 x 20 x 30 cm (7.9 x 7.9 x 11.8 in)
Weight (approx.)	2 kg (4.4 lbs)
Power Supply	220-240 V ~ 50/60 Hz
Power Consumption	2000 W (max)
Heat Settings	2 levels (1000 W / 2000 W) + Fan Only
Thermostat	Adjustable thermostat for temperature control
Oscillation	Yes, wide-angle oscillation for better heat distribution
Safety Features	Overheat protection, tip-over switch, thermal fuse
Housing Material	Heat-resistant plastic
Control Type	Rotary switches for power and thermostat
Noise Level (approx.)	45-50 dB
Cleaning	Wipe exterior with a dry cloth; ensure air vents are dust-free
Spare Parts Availability	Contact Hyundai customer service or authorized retailers
Certifications	CE, RoHS compliant

Frequently Asked Questions - H 501 HYUNDAI

What is the power consumption of the Hyundai H 501 heater?

The Hyundai H 501 has a maximum power consumption of 2000 W on the highest setting. On low, it consumes approximately 1000 W. There is also a fan-only mode with negligible heating power.

Does the Hyundai H 501 have an oscillation feature?

Yes, the H 501 features a wide-angle oscillation function to distribute heat evenly across the room. You can activate or deactivate it via a dedicated button or switch.

How do I clean the Hyundai H 501 heater?

Always unplug the heater before cleaning. Wipe the exterior with a soft, dry cloth. For the air vents, use a vacuum cleaner with a brush attachment to remove dust. Never use water or cleaning agents inside the unit.

What safety features does the Hyundai H 501 include?

The heater is equipped with overheat protection and a tip-over switch. If the unit gets too hot or accidentally falls over, it will automatically shut off to prevent fire hazards.

Can I leave the Hyundai H 501 unattended?

While the heater has safety features like tip-over protection, we recommend never leaving it unattended for long periods. Always turn it off when you leave the room or sleep.

What is the recommended room size for the H 501?

The Hyundai H 501 is suitable for small to medium-sized rooms up to 25-30 square meters (270-320 sq ft). Actual performance depends on insulation and climate.

How does the thermostat work?

The thermostat allows you to set a desired room temperature. Once the room reaches that temperature, the heater will automatically cycle on and off to maintain it. Turn the knob to adjust.

Is the Hyundai H 501 noisy?

The noise level is approximately 45-50 dB, similar to a quiet conversation or a computer fan. It is generally not disruptive but can be noticeable in silent environments.

Can I use an extension cord with the H 501?

It is not recommended to use an extension cord. Always plug the heater directly into a wall outlet. If necessary, use a heavy-duty cord rated for at least 15A and ensure it is fully unwound.

Where can I find spare parts for the Hyundai H 501?

Spare parts such as switches or fans are available through Hyundai authorized service centers or contact customer support. Refer to the manual for a list of spare parts and contact details.

USER MANUAL H 501 HYUNDAI

NÁVOD K POUŽITÍ / NÁVOD NA POUŽITIE INSTRUKCJA OBSŁUGI / INSTRUCTION MANUAL HASZNÁLATÍ ÚTMUTATÓ / NAVODILA ZA UPORABO

TEPLOVZDUŠNÝ VENTILÁTOR / TEPLOVZDUŠNÝ VENTILÁTOR WENTYLATOR CIEPŁO-POWIETRZNY / FAN HEATER / VENTILATOR ZA TOPLI ZRAK

Tento výrobek je vhodný pouze pro dobre izolované prostory nebo občasné použivání / Tento výrobok je vhodný iba pre dobre izolované priestory alebo občasné používanie / This product is only intended for well insulated premises or occasional use / A készüléket csak jól szigetelt helyiségekben használja, vagy csak alkalmi használatra / Produkt ten jest przeznaczony tylko do dobrze izolowanych pomieszczeniach lub sporadycznego użytku / Izdelek je primeren samo za izolirane prostore ali začasno uporabo

Dear customer, thank you for purchasing our product. Please read the operating instructions carefully before putting the appliance into operation and keep these instructions including the warranty, the receipt and, if possible, the box with the internal packing.

GENERAL SAFETY INSTRUCTIONS

• Consider the instructions for use as a part of the appliance and pass them on to any other user of the appliance.
• Check whether the data on the type label corresponds with the voltage in your socket. The power cord plug may only be connected to the electrical socket complying with the applicable standards.
• This appliance may only be used by children aged 8 years or older, and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision. Children younger than 8 years must be kept out of reach of the appliance and its power cord.
• Before exchanging any accessories or accessible parts that are moving during use, before assembly and disassembly, before cleaning and maintenance or after finishing the work, switch off the appliance and disconnect it from mains by unplugging the power cord plug from the electrical socket!
• For additional protection, install current protection (RCD) with the nominal release current not exceeding 30mA. Ask a revision technician or an electrician for advice.
• Never use the appliance if the power cord or power plug are damaged, if the appliance is not correctly operating or if it has fallen on the floor and been damaged, or if it has fallen into water. In such cases take the appliance to a professional service centre to verify its safety and correct function.
• If the power cord of the appliance is corrupted, it has to be replaced by the manufacturer, its service technician or a similarly qualified person so as to prevent dangerous situations.
• WARNING: In order to prevent overheating, never cover the appliance and the air inlets/outlets to avoid fire hazard.
• Children under 3 years of age must be kept away from the appliance unless they are constantly supervised.
• Children aged from 3 years and less than 8 years shall only switch on/off the appliance provided that it has been placed or installed in its intended normal operating position and they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children aged from 3 years and less than 8 years shall not plug in, regulate and clean the appliance or perform user maintenance.
• NOTE: Some parts of this product can become very hot and cause burns. Particular attention has to be given where children and vulnerable people are present.

- Do not place the appliance under electrical socket. For safety reasons, leave the minimum distance of 0.5m between the appliance and any obstacle on any side (furniture, walls, etc.).

- Do not use the appliance in bathrooms in zones 0, 1 and 2! It must not be used in a close proximity of bathtub, shower or swimming pool.

- The appliance must not be immersed in water or other liquids (not even partially)! If the appliance falls in water, do not take it from the water! First disconnect the power cord plug from the electrical socket, and then take out the appliance from the water. In such cases, bring the appliance to a specialised service centre to verify its safety and proper operability.

- The appliance must not be immersed in water or other liquids (not even partially)! If the appliance falls in water, do not take it from the water! First disconnect the power cord plug from the electrical socket, and then take out the appliance from the water. In such cases, bring the appliance to a specialised service centre to verify its safety and proper operability.

- ATTENTION: Do not use this heater in series with an external timer, remote controller or any other device that switches on the appliance automatically, since a fire risk exists when the heater is accidentally covered or displaced at the moment it switches on.

- Do not handle the appliance with wet hands

- Do not plug the power cord in the electrical socket and do not unplug it with wet hands or by pulling the power cord!

- The appliance must not be used in a damp or wet environment and in any environment with the danger of fire or explosion (premises where chemicals, fuels, oils, gases, paints and other flammable or volatile materials are stored).

- Only use the appliance in the working position at places with no risk of overturning and in a sufficient distance from other objects (such as curtains, drapes, etc.), heat sources (e.g. fireplace, heater, stove, cooker, radiators, hot air ovens, grills) and wet surfaces (e.g. sinks, wash basins).

- Make sure that no impurities get inside the appliance (e.g. dust clouds, hairs etc.). If impurities are sucked and settle inside the appliance, clean it.

- Do not put the switched on fan on soft surfaces (e.g. on a bed, towels, wipers, carpets).

- Do not switch on the fan if the appliance is not completely assembled or if the blade wheel covers are damaged.

- This appliance is not intended for outdoor use.

- The appliance is equipped with a thermal cut-out that will interrupt power supply (to the fan heating spirals), if the appliance dangerously overheats. If overheating occurs, switch off the appliance, disconnect it from the power supply, remove any obstacles preventing the air flow, and let the appliance cool down for about 10 minutes. If the cut-out occurred for reasons other than air flow reduction (e.g. motor bearing is seized), have the appliance repaired by a specialised service centre.

- Do not modify the appliance surface in any manner (e.g. by self-adhesive wallpapers, foils, etc.)!

- When handling the appliance, avoid causing any injury (e.g. burns).

- Before every connection or disconnection of the appliance from power supply make sure that switch P4 is in 0 position.

- Do not place any device with open flame in the air flow coming out from the appliance because of danger of burning process interruption.

- Never expose yourself (or animals) to the air flow for an extended period of time. It may cause health problems.

- Only use original components designed for this type.

- Never put fingers or other objects into inlet and outlet holes of the fan.

- Check the condition of the power cord of the appliance regularly.

- Never put the power cord on hot surfaces and never let it hang over table edge or worktop edge. If the cord is caught or pulled, e.g. by children, the appliance may overturn and fall down, causing a serious injury!

• Avoid winding the power cord around the appliance, otherwise the power cord service life would be reduced.
• If you need to use an extension cord for justified reasons, it must be undamaged and comply with the applicable standards.
• Only use this appliance for the purpose it was designed for, as specified in this manual. Never use the appliance for any other purpose.
• WARNING: There is a risk of injury when the appliance is not used correctly (not in accordance with the manual).
• All texts in foreign languages and pictures shown on the packaging or the product itself, are translated and explained at the end of this language mutation.
• The manufacturer assumes no responsibility for any damage caused by improper handling of the appliance and its accessories (e.g. electric shock, fire), and the appliance guarantee will become void if any of the aforementioned safety instructions are not observed.

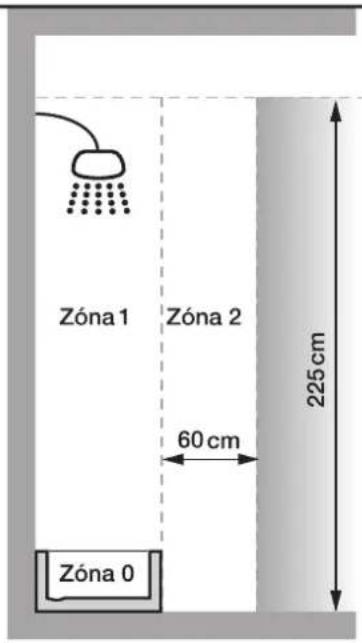

Zone 0 = Internal space for a bathtub or a shower unit

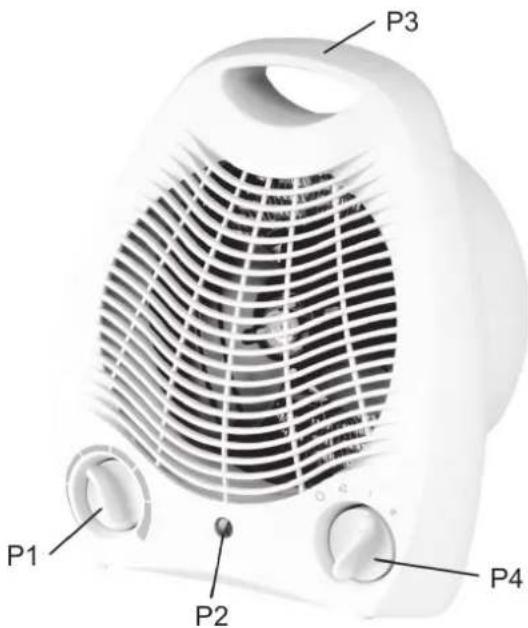

DESCRIPTION OF THE CONTROLS

P1. Thermostat
P2. Pilot lamp
P3. Handle
P4. Switch

INSTRUCTIONS FOR USE

Instalation

The appliance requires no installation, it should be used solely as a portable appliance.

Operation

• Turn the thermostat knob(right) in a clockwise direction until it reaches the required setting.
• Summer service (ventilation only): turn the knob to setting 🌿
  • Heating at reduced power: turn the knob (right) to setting I (1000 W).
  • Heating at full power: turn the (right) to setting II (2000 W).

- Switching off: turn the knob (left) to setting O.

REGULATING THE THERMOSTAT

When the room has reached the required temperature turn the thermostat knob. In an anticlockwise direction up to the point where the appliance switches off and not beyond. The temperature fixed in this way will be automatically regulated and kept at a constant level by the thermostat.

Security system

The heater is fitted with a safety device which will switch off the heater in case of accidental overheating (eg. Obstruction of air intake and outlet grilles, motor turning slowly or not at all). To reset, disconnect the plug from the power for a few minutes, remove the cause of overheating then plug the appliance in again. After a short cooling down phase, the appliance is ready for use again. If you still notice the same defect above mentioned, remove the plug from the socket and have the appliance serviced by authorized service personnel only.

CLEANING AND MAINTENANCE

• The appliance only needs regular cleaning on the outside.
• Before you clean the appliance, switch the heater off, remove the plug from socket and wait until the heater cooled down.
• Use a damp cloth to wipe off the fan heater housing.
• Do not use water, detergents, abrasive cleaning liquids or chemical agents (Alcohol, Gasoline etc...) to clean the appliance.

TECHNICAL SPECIFICATIONS

• 3 functions: fan only, hot air 1000 W, hot air 2000 W
- Termostat, pilot lamp
- Power supply: 230 V \~ 50 Hz, noise level: ≤ 45 dB(A) re 1 pW
- Power drain: 2000 W; Size: 22 x 26,5 x 14 cm; Weight: 1,1 kg Input in off mode is 0.00 W.

The manufacturer reserves the right to change the technical specifications and accessories for the respective models.

WARNING: DO NOT USE THIS PRODUCT NEAR WATER, IN WET AREAS TO AVOID FIRE OR INJURY OF ELECTRIC CURRENT. ALWAYS TURN OFF THE PRODUCT WHEN YOU DON'T USE IT OR BEFORE A REVISION. THERE AREN'T ANY PARTS IN THIS APPLIANCE WHICH ARE REPARABLE BY CONSUMER. ALWAYS APPEAL TO A QUALIFIED AUTHORIZED SERVICE. THE PRODUCT IS UNDER A DANGEROUS TENTION.

HOUSEHOLD USE ONLY. DO NOT IMMERSE IN WATER OR OTHER LIQUIDS. TO AVOID DANGER OF SUFFOCATION, KEEP THIS PLASTIC BAG AWAY FROM BABIES AND CHILDREN. DO NOT USE THIS BAG IN CRIBS, BEDS, CARRIAGES OR PLAYPENS. THIS BAG IS NOT A TOY.

Disposal of old Electrical & Electronic Equipment (Applicable in the European Union and other European countries with separate collection systems).

This symbol on the product or on its packaging indicates that this product (or battery/ accumulator) shall not be treated as household waste. Instead it shall be handed over to the applicable collection point for the recycling of electrical and electronic equipment. By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused

by inappropriate waste handling of this product.

The recycling of materials will help to conserve natural resources. For more detailed information about recycling of this product, please contact your local Civic Office, your household waste disposal service or the shop where you purchased the product.

WARNING: DO NOT COVER To prevent overheating, do not cover the heater.

NOTICE

Information requirements for electric local space heaters
Model identifier(s): HYUH501
Item Symbol	Value Unit	Item Unit
Heat output				Type of heat input, for electric storage local space heaters only
Nominal heat output	Pnom	2,0	kW	manual heat charge control, with integrated thermostat	N/A
Minimum heat output (indicative)	Pmin	1,0	kW	manual heat charge control with room and/or outdoor temperature feedback	N/A
Maximum continuous heat output	Pmax,c	2,0	kW	electronic heat charge control with room and/or outdoor temperature feedback	N/A
Auxiliary electricity consumption fan assisted				heat output	N/A
At nominal heat output	elmax	0,0	kW	type of heat output/room temperature control
At minimum heat output	elmin	0,0	kW	single stage heat output, no room temperature control	no
In standby mode	elSB	0,0	kW	two or more manual stages, no room temperature control	no
ENG				with mechanic thermostat room temperature control	yes
				with electronic room temperature control no
				with electronic room temperature control plus day timer	no
				with electronic room temperature control plus week timer	no
				Other control options
				room temperature control, with presence detection	no
				room temperature control, with open window detection	no
				with distance control option no
				with adaptive start control no
				with working time limitation no
				with black bulb sensor no

Licensed by HYUNDAI Corporation Holdings, Korea
