WG41 - Household Fan Eldom - Free user manual and instructions

Product Type	Domestic Fan
Brand	Eldom
Model	WG41
Power Consumption	40W
Voltage Supply	230V ~ 50Hz
Speed Settings	3 (I, II, III)
Oscillation	Yes, with button (G)
Protective Mesh	Removable front and rear mesh
Blade Material	Plastic
Base Assembly	Two-part base, screw together
Inclination Adjustment	Tilt up or down
Control Type	Mechanical knob (H) and oscillation button (G)
Safety Features	Do not immerse in water, keep away from curtains, supervise children
Cleaning	Unplug before cleaning, wipe with damp cloth, no abrasives
Environment	Household use only, avoid high humidity and temperatures above 40°C
Guarantee	Household use; expires with improper service
Dimensions (Approx.)	Height: 50-60 cm, Diameter: 40-45 cm (est.)
Weight (Approx.)	3-4 kg (est.)
Spare Parts	Available from authorized service centers

Frequently Asked Questions - WG41 Eldom

How do I assemble the Eldom WG41 fan?

First, couple both parts of the base (I and J) and screw them with the supplied screws (K). Then undo nuts (B) and (D). Fix the rear protective mesh (A) by aligning holes to the body clamps and secure with nut (B) clockwise. Press the airscrew (C) onto the pin and secure with nut (D) counterclockwise. Finally, attach the front mesh (E) by coupling both meshes at the bottom and securing with clamps.

How do I switch the fan on and adjust the speed?

Use the switch (H) to select the rotation speed: position '1' for low, '2' for medium, or '3' for high. Turn the knob to '0' to turn off.

Does the fan have an oscillation feature?

Yes, it has an oscillation switch (G). Press the button to enable oscillation; pull it out to disable it. This works independently of the speed setting.

Can I tilt the fan head?

Yes, you can adjust the head inclination angle by tilting the body up or down before switching on.

How should I clean the fan?

Always unplug the unit before cleaning. Do not immerse it in water. Use a soft, damp cloth without abrasive or damaging cleaning agents.

What safety precautions should I follow?

Read the manual carefully. Do not plug too many appliances into one circuit. Place on a flat, dry surface. Keep fingers and objects away from the mesh. Do not place near curtains or cushions. Supervise children and pets. Turn off when leaving the room. Do not spray insecticides near the fan. Avoid use above 40°C or in humid environments like bathrooms. Do not use until fully assembled.

What should I do if the power cord is damaged?

If the power cord is damaged, it must be replaced by the manufacturer's authorized service center. Do not attempt to repair it yourself.

What is the power consumption and voltage of the fan?

The fan has a power consumption of 40W and operates at 230V ~ 50Hz.

Is the fan suitable for professional use?

No, the fan is intended for household use only. Using it for professional purposes will void the guarantee.

How do I dispose of the fan when it's no longer usable?

The fan is made of recyclable materials. Do not dispose of it with household waste. Take it to a designated collection point for electric and electronic appliances.

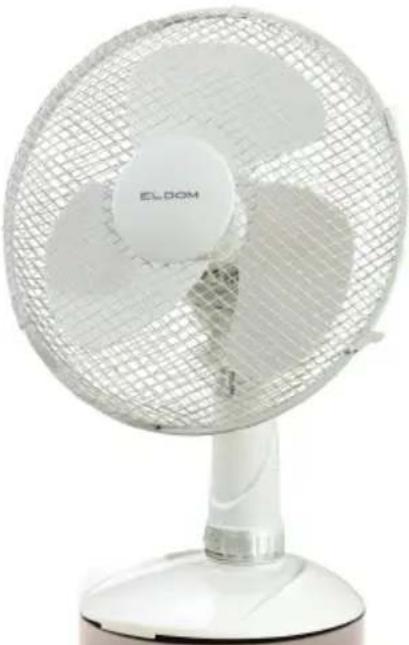

USER MANUAL WG41 Eldom

Black electric fan with mesh grille and three blades, mounted on a stand (no visible text or symbols)

White ELOOM electric fan with mesh grille and three blades, mounted on a stand (no visible text or symbols)

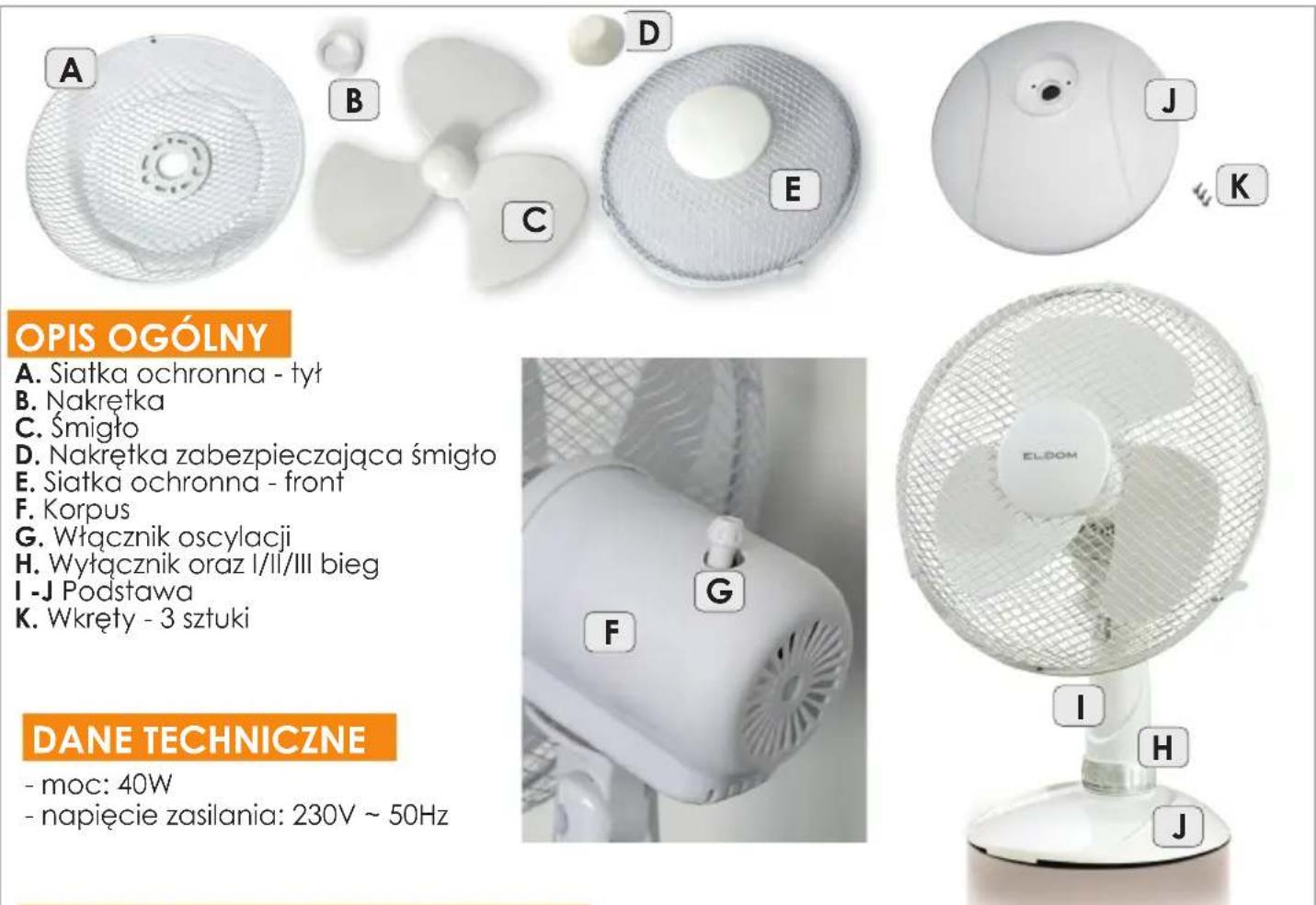

OPIS OGÓLNY

Close-up of a circular mechanical knob with red directional arrows indicating rotation or movement (no text or symbols)

fot. 01

Close-up of a metallic knob with a red curved arrow indicating rotation (no text or symbols)

fot. 02

Close-up of a white turbine or propeller with a red arrow pointing to its center (no text or symbols visible)

fot. 03 fot. 04

Close-up of a white cylindrical object with a red curved arrow indicating rotation (no text or symbols visible)

Close-up of a metallic knob attached to a grid-patterned ceiling fixture (no text or symbols visible)

fot. 05

Close-up of a metal grate with a red curved arrow indicating rotation (no text or symbols)

fot. 06

Exploded view diagram of a fan with labeled parts (A–J), showing internal structure and mounting points (no text or symbols beyond labels)

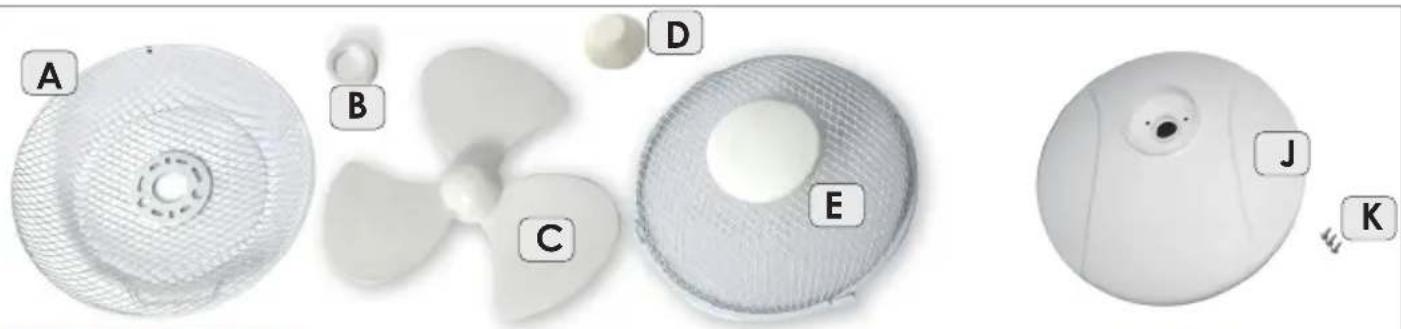

GENERAL DESCRIPTION

A. Protective mesh - rear
B. Nut
C. Airscrew
D. Nut securing the airscrew
E. Protective mesh - front

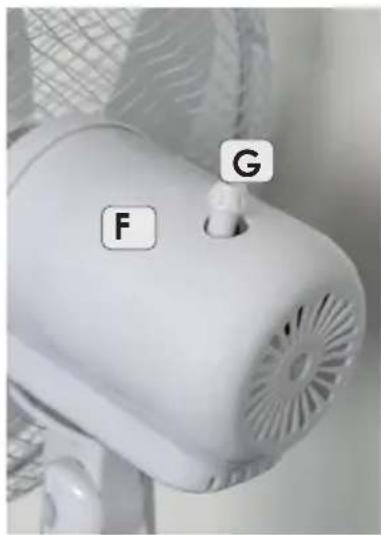

F. Body
G. Oscillation switch
H. Switch and gears: I, II and III
I-J Base
K. Screws - 3 pcs

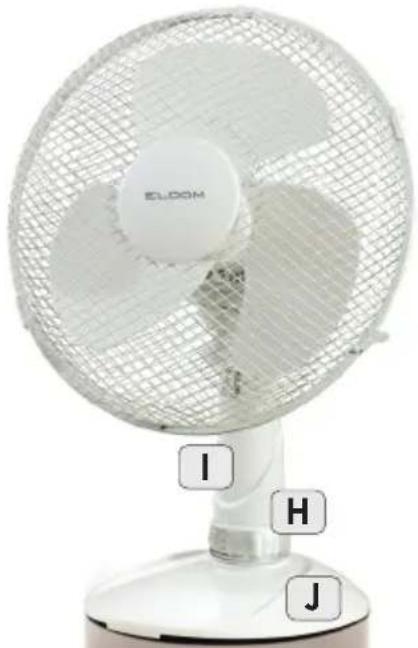

White ELOOM fan with mesh grille and labeled buttons I, H, J (no text or symbols on fan body)

GENERAL DESCRIPTION

• power: 40W
• voltage supply: 230V \~ 50Hz

ASSEMBLY AND THE APPLIANCE OPERATION

Before the first use, unpack the unit and put particular elements together.

- couple both parts of the base. Insert the base (J) in the bottom part of the base (I) and screw it with the supplied screws (K).

• undo the nuts (B) and (D)
• fix the rear protective mesh (A). Adjust the holes in the mesh to the clamps of the body, fig. 01
• fix the nut (B), twisting it clockwise, fig. 2
• press the airscrew (C) on the pin, fig. 3
• secure the airscrew with the nut (D) twisting it counter clockwise, fig. 4
• fix the front protective mesh (D). Couple both meshes in the bottom part due to a bolt, protect by clamps, fig. 5 and 6.

Before switching on, select the body inclination angle – tilt it up or down

Close-up of a mechanical knob with red directional arrows indicating rotation or movement (no text or symbols)

fig. 01

Close-up of a mechanical knob with a red arrow pointing to the center (no visible text or symbols)

fig. 02

Close-up of a white mechanical component with a red arrow pointing to a circular feature (no text or symbols visible)

fig. 03 fig. 04

Close-up of a white cylindrical object with red ribbon, possibly a fan or mechanical component (no visible text or symbols)

Close-up of a ceiling-mounted fixture with a metallic knob (no visible text or symbols)

fig. 05

Close-up of a metal grate with a red circular arrow indicating rotation (no text or symbols)

fig. 06

Select the fan rotation speed (position "1", "2" or "3") with the switch (H). After turning the knob into the "0" position, the appliance is turned off.

Undependably on selected speed, it is possible to select the circulation option after pressing the button (G). To switch the above function off, pull the button out (G).

CLEANING AND MAINTENANCE ACTIVITIES

• unplug the unit before cleaning
• do not merge the unit in water
• to not use abrasive or other damaging cleaning agents

SAFETY OPERATION INSTRUCTIONS

• read the manual carefully before use
• please, do not plug too many appliances to a single electric circuit
• the unit is designed to operate at a household
• place the unit on a flat and dry surface
• do not inert fingers or any other objects into the inlet and outlet holes
• do not place the unit near cushions or curtains
• working fan must be always supervised, especially, when there are children nearby
• leaving a room where a fan operates, switch it off
• do not spray any insect killers or similar agents near the operating fan
• do not use the appliance under high temperature (exceeding 40^ C), in localizations where the humidity rate is high (e.g. bathroom) and localizations where explosive atmosphere occurs
• before switching the unit on make sure all its elements are correctly fixed. Under no circumstances one may switch the unit on before it has been completely assembled!
• do not cover the protective mesh
• do not use the appliance as a hanger
• in case the power cord is damaged it must be replaced by the manufacturer's authorized service center
• The unit may be repaired by a manufacturer's authorized service center only (list of the centers attached and available on the website: www.eldom.eu). All modifications or use of non-original spare parts or any other elements is prohibited and makes use of the unit hazardous.
• Eldom Sp. z o. o. shall not be liable for potential damages arising from improper use of the unit.

ENVIRONMENT PROTECTION

• the unit is made of materials which may be reused or re-cycled
• they must be provided to a relevant point which specializes in collecting and recycling of electric and electronic appliances

GUARANTEE

• the unit is intended to be used in a household.
• it must not be used for professional purposes,
• the guarantee expires in case of improper service

Four white fan components labeled A, B, C, D, E, J, K, showing different sizes and surfaces (no text or symbols beyond labels)

POPIS

White circular fan with three blades and a mesh grille, no visible text or symbols on the fan body.

MONTÁŽ A PRÁCE ZAŘÍZENÍ

Close-up of a circular mechanical component with internal slots and red directional arrows (no text or symbols)

fot. 01

Close-up of a mechanical component with a red curved arrow indicating rotation (no text or symbols visible)

fot. 02

Close-up of a white wind turbine blade with a red arrow pointing to the center (no text or symbols visible)

fot. 03 fot. 04

Close-up of a white cylindrical object with a red curved arrow indicating rotation or motion, placed on a keyboard (no text or symbols visible)

Close-up of a ceiling-mounted fixture with a metallic knob (no visible text or symbols)

fot. 05

Close-up of a metal grate with a red curved arrow indicating rotation (no text or symbols)

fot. 06

White electric fan with visible blades and labeled buttons (I, H, J) on the base (no text or symbols on fan body)

GERÄTEMONTAGE UND -GEBRAUCH

Close-up of a circular mechanical component with red arrows pointing to its center (no visible text or symbols)

Bild 01

Close-up of a mechanical component with a red curved arrow indicating rotation (no text or symbols visible)

Bild 02

Close-up of a white turbine impeller with a red arrow pointing to its tip (no text or symbols visible)

Bild 03 Bild 04

Close-up of a white cylindrical object with a red curved arrow indicating rotation or movement, placed on a keyboard (no text or symbols visible)

Close-up of a metallic contact lens mounted on a white ceiling with grid pattern (no text or symbols visible)

Bild 05

Close-up of a metal panel with a red circular arrow indicating rotation (no text or symbols)

Bild 06

White ELOOM fan with visible blades and base, labeled I, H, J (no text or symbols on fan body)

Close-up of a circular mechanical knob with red arrows pointing to the center (no visible text or symbols)

фото 01

Close-up of a mechanical knob with a red curved arrow indicating rotation (no text or symbols visible)

ФОТО 02

Close-up of a white wind turbine blade with a red arrow pointing to the center (no text or symbols visible)

фото 03 фото 04

Close-up of a white cylindrical object with red ring, possibly a fan or mechanical component (no visible text or symbols)

Close-up of a metallic knob attached to a grid-patterned ceiling fixture (no text or symbols visible)

фото 05

Close-up of a metal mesh fence with a red curved arrow indicating rotation (no text or symbols)

фрото 06
