USER MANUAL Turbine Rower YRK56040A York Fitness

Technical line drawing of a stationary exercise machine with rotating wheel and leg mechanism (no text or symbols)

Table Of Contents

Congratulations on

purchasing your exercise

equipment from

YORK FITNESS®

You have chosen a high quality, safe and Innovative piece of equipment as your training partner and we are certain it will keep you motivated on the way to achieving your personal fitness goals.

Please take the time to read this owner's manual as it will help you to get the most out of your new exercise equipment.

For more information visit www.yorkfitness.com.au

Please keep your purchase receipt with this manual.

ATTENTION

THIS ROWER IS INTENDED FOR RESIDENTIAL USE ONLY AND IS WARRANTED FOR THE APPLICATION. ANY OTHER APPLICATION VOIDS THIS WARRANTY IN ITS ENTIRETY.

CONTENTS

Pack List C

Assembly Instructions 06

Console Operation 14

Parts List 17

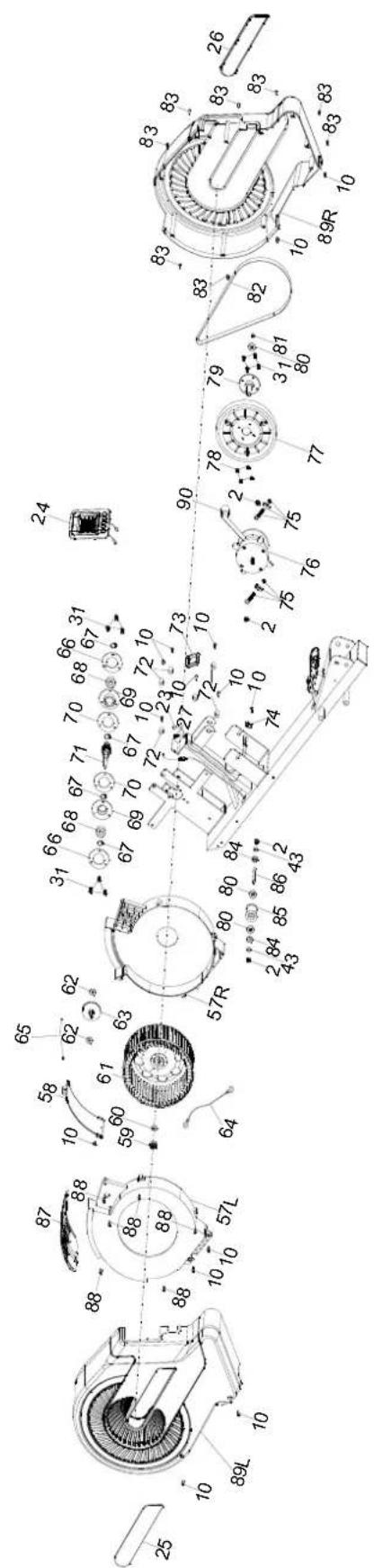

Exploded Diagram 19

Warranty

Before you begin

Thank you for selecting our revolutionary York Fitness Turbine Rower. A rower is an effective exercise for increasing cardiovascular fitness, building endurance, and toning the body. Our fitness rower provides an impressive selection of features designed to make your workouts at home more effective and enjoyable.

For your benefit, read this manual carefully before you use the York Fitness Turbine Rower. To help us assist you, note the product model number and serial number before contacting us. Before reading further, please familiarize yourself with the parts that are labeled in the drawing below.

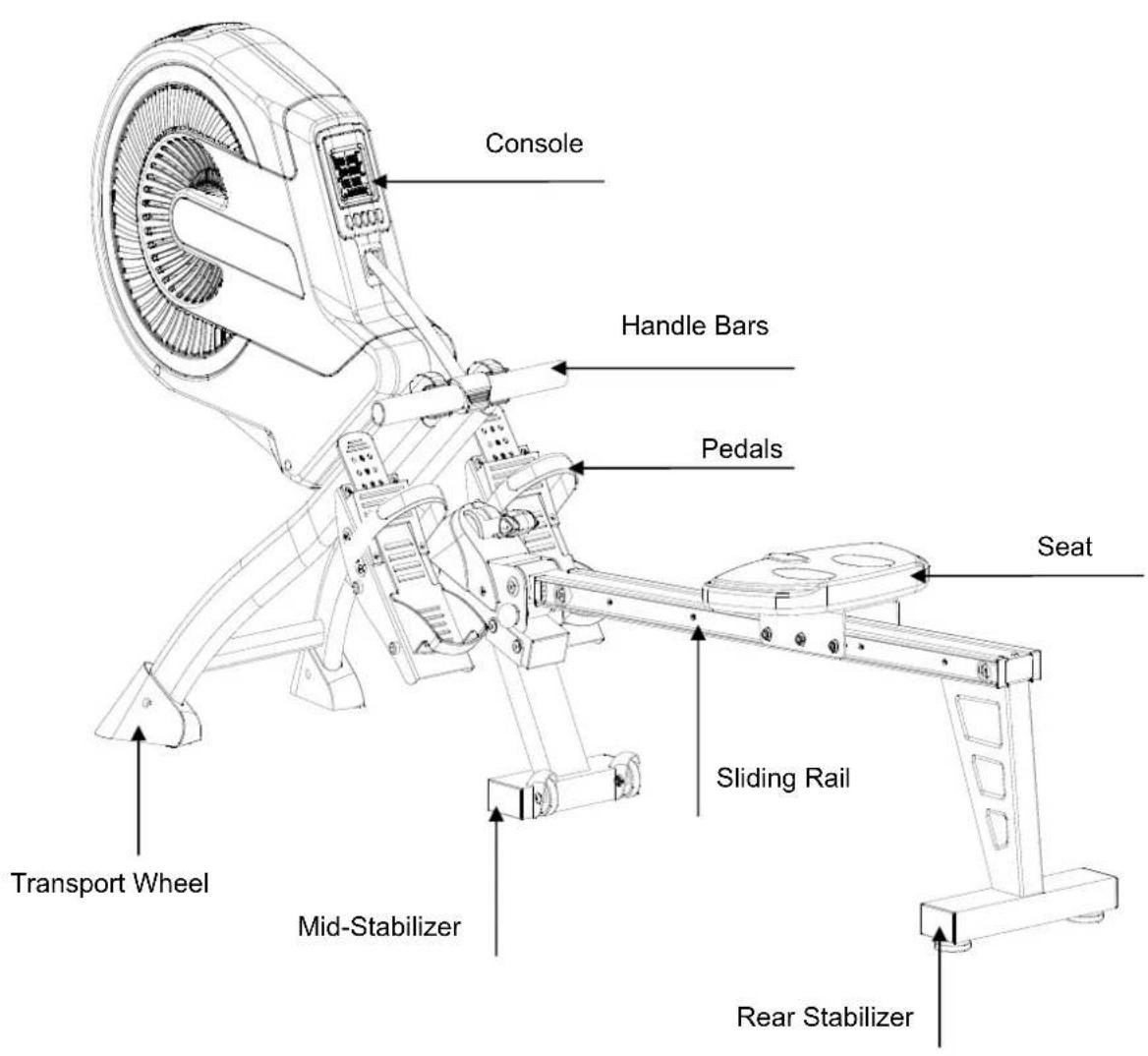

Console Handle Bars Pedals Seat Sliding Rail Rear Stabilizer Mid-Stabilizer Transport Wheel

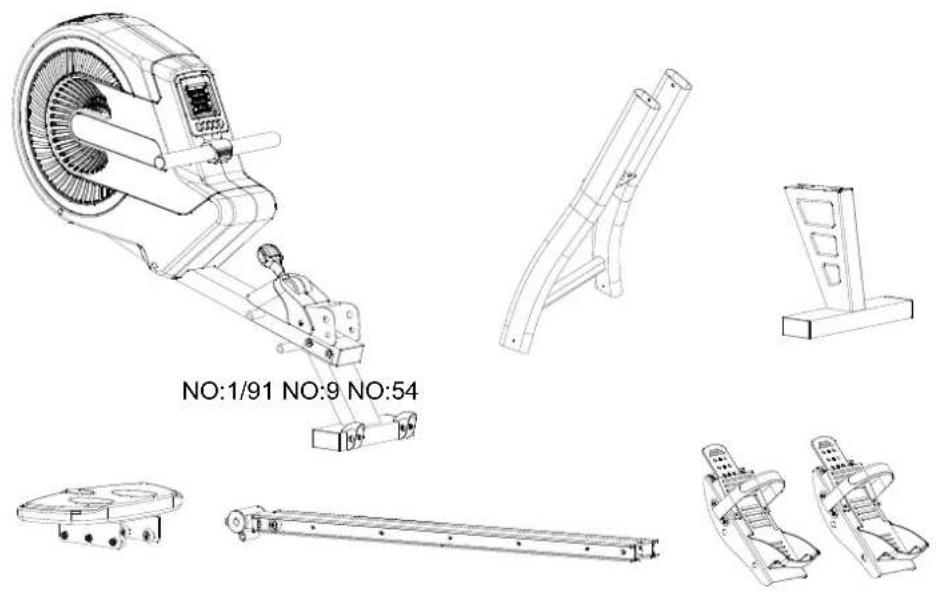

Rower Assembly Pack Checklist

NO:1/91 NO:9 NO:54

NO:53 NO:45 NO:14L/R

NO:11L/R

NO:3

NO:55 NO:13 NO:35 NO:8L/R

PART NO. DESCRIPTION Q'TY

1/91 Main frame/middle stabilizer 1

9 Front support tube 1

54 Rear support tube 1

53 Seat 1

45 Slide rail 1

14L/R Pedal (L/R) 1/1

11L/R Fixed bracket for handlebar (L/R) 1/1

3 Roller 2

55 Foot mat 2

13 Allen bolt for pedal 4

35 Ball pin 1

8L/R End cap for front stabilizer tube (L/R) 1/1

User manual 1

Hardware pack 1

Rower Assembly Pack Checklist

PART NO.	DESCRIPTION Q'TY DRAWINGS
19	Allen bolt 5
34	Allen bolt 4
36	Cushion rubber		2
37	Spring washer		2
38	Flat washer 2
40L End cap for side rail (L) 1
40R End cap for side rail (R) 1
41 Axle for slide rail 1
42	Allen bolt 2
43	Flat washer 7
92 Allen key (6MM) 2
93	Wrench (13MM)		1

Note: Above parts are all the parts needed to assemble this machine. Before you start to assemble, please check the hardware packing to make sure they are included.

Rower Assembly Instructions

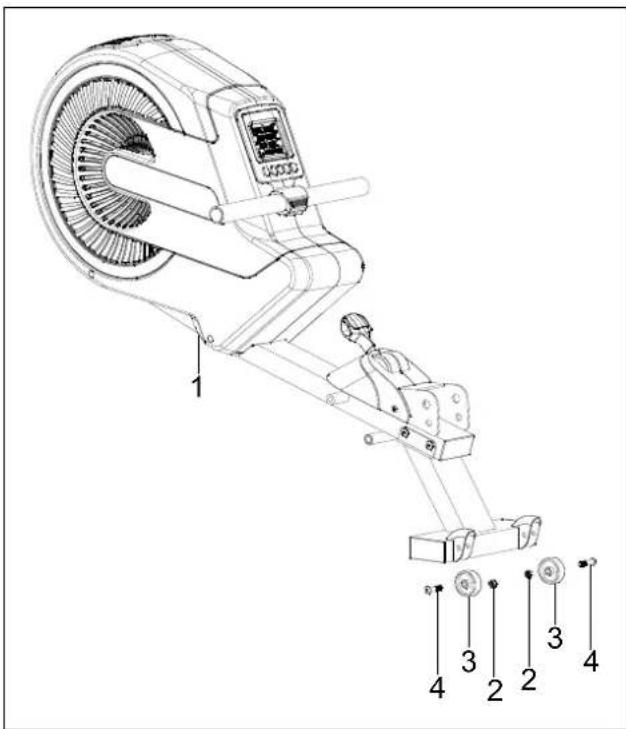

1 Middle Stabilizer Rollers

Technical diagram of a mechanical device with numbered components and labeled parts

1. Attach the rollers (3) onto middle stabilizer, fasten with two sets of allen bolt (4) and nylon nut (2) which are pre-assembled on the middle stabilizer.

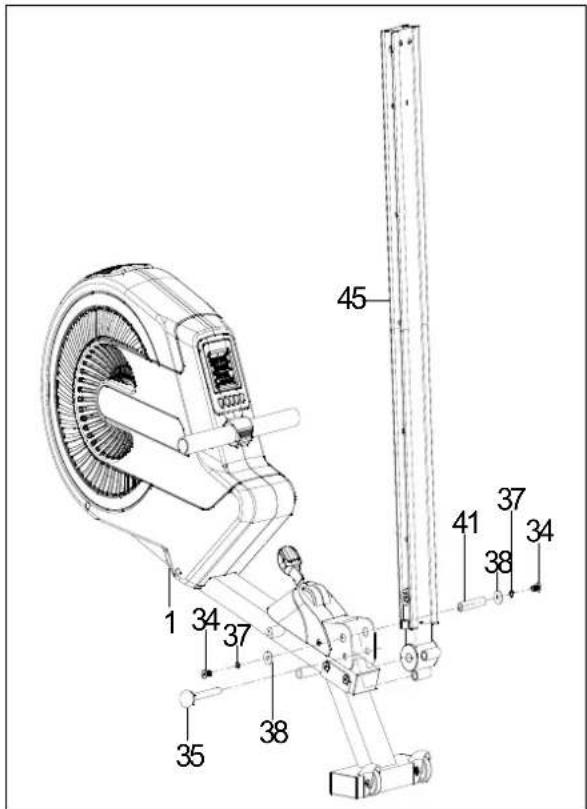

2 Attaching The Slide Rail

1 34 37 38 35 37 41 38 34 45

Hardware Step 2

2 Allen Bolts (#34)

2 Spring Washers (#37)

2 Flat Washers (#38)

1 Axle (#41)

1. Pull out the ball pin (35) from the main frame (1).

2. Insert the slide rail (45) onto the U type connect
   tube of main frame (1), fasten with one axle for slide rail (41),
   two sets of allen bolts (34), spring washers (37) and flat washers (38).

3. Then insert the ball pin (35).

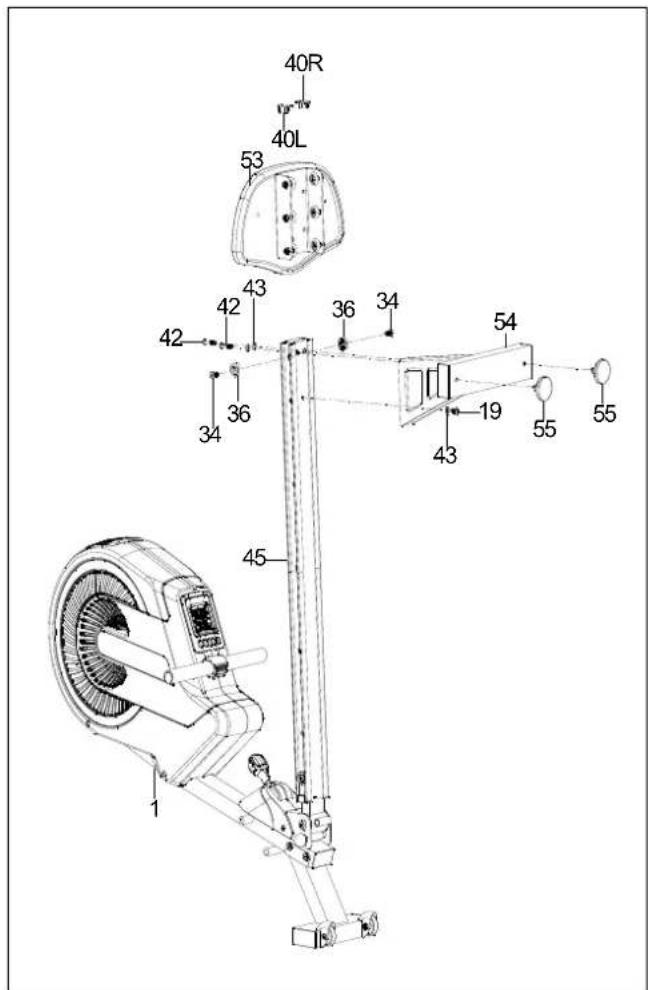

3 Attaching the Seat and Rear Stabilizer

40R 40L 53 42 43 36 34 54 42 36 34 19 55 55 43 45 1

Hardware Step 3

2 Cushioned Rubbers(#36)

2 Allen Bolts (#34)

1 Allen Bolt ((#19)

3 Flat Washers (#43)

2 Allen Bolts (#42)

2 End Caps (#40)

1. Insert the seat (53) to the slide rail (45).

2. Insert two cushion rubbers (36) to the slide rail (45), Slightly fasten with two allen bolts (34).

3. Fasten two foot mats (55) on the rear support tube (54).

4. Attach the rear support tube (54) to the slide rail (45), fasten with one allen bolt (19), three flat washers (43) and two allen bolts (42).

5. Then insert two end caps for side rail (40L/R) to the end of slide rail (45).

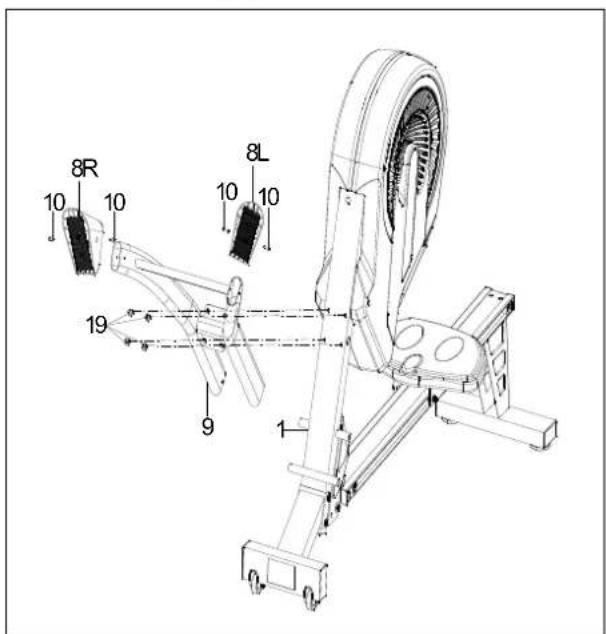

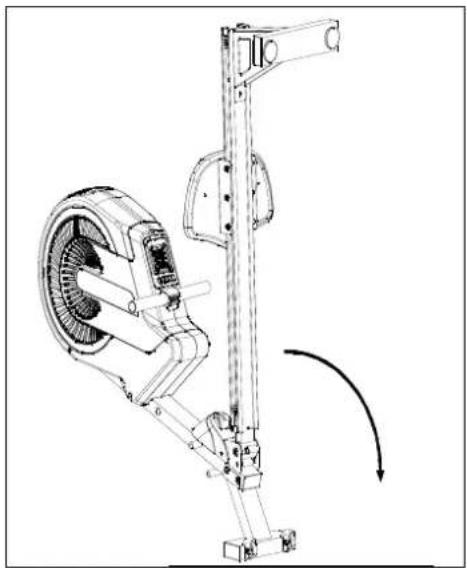

4 Attaching the Front Stabilizer

Technical line drawing of a mechanical device with rotating components and a curved arrow indicating rotation (no text or symbols)

Hardware Step 4

4 Allen Bolts (#19)

8R 10 10 10 10 8L 19 9 1

1. Turn over the main frame and place the rear support tube on the floor.

2. Take off four self-tapping screws (10) from the end caps for front stabilizer tube (8L/R) which are pre-assembled on the end caps, then attach the end caps to the front support tube (9) by four self-tapping screws (10).

3. Attach the front support tube (9) to the main frame (1), fasten with four allen bolts (19).

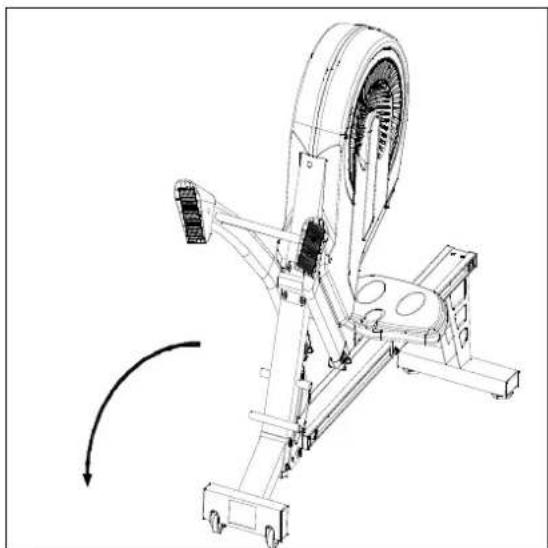

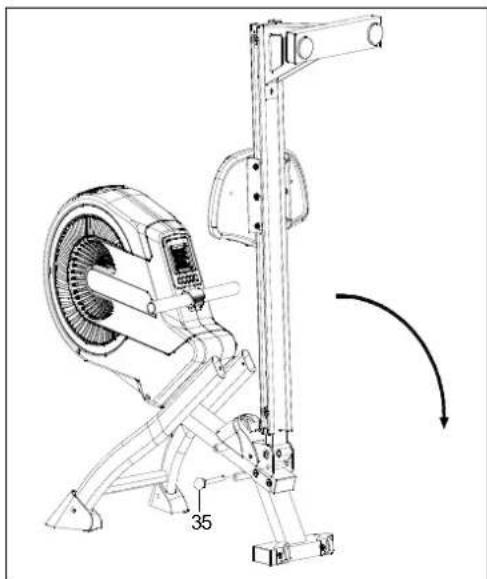

5 Using the Lock Ball Pin

Technical line drawing of a mechanical exercise machine with rotating wheel and base mount (no text or symbols)

Technical line drawing of a stationary exercise machine with a rotating arm and labeled component (no text or symbols beyond annotations)

1. Turn over the main frame and place the front support tube on the floor.
2. Pull out the ball pin (35) from the main frame and unfold the slide rail(45). Then insert the ball pin (35) to the main frame again to lock in position.

Note: Before inserting the ball pin (35).

1. Slightly lift up the main frame.
2. Make sure the ball pin holes are lined up.
3. Insert ball pin (35) into holes.

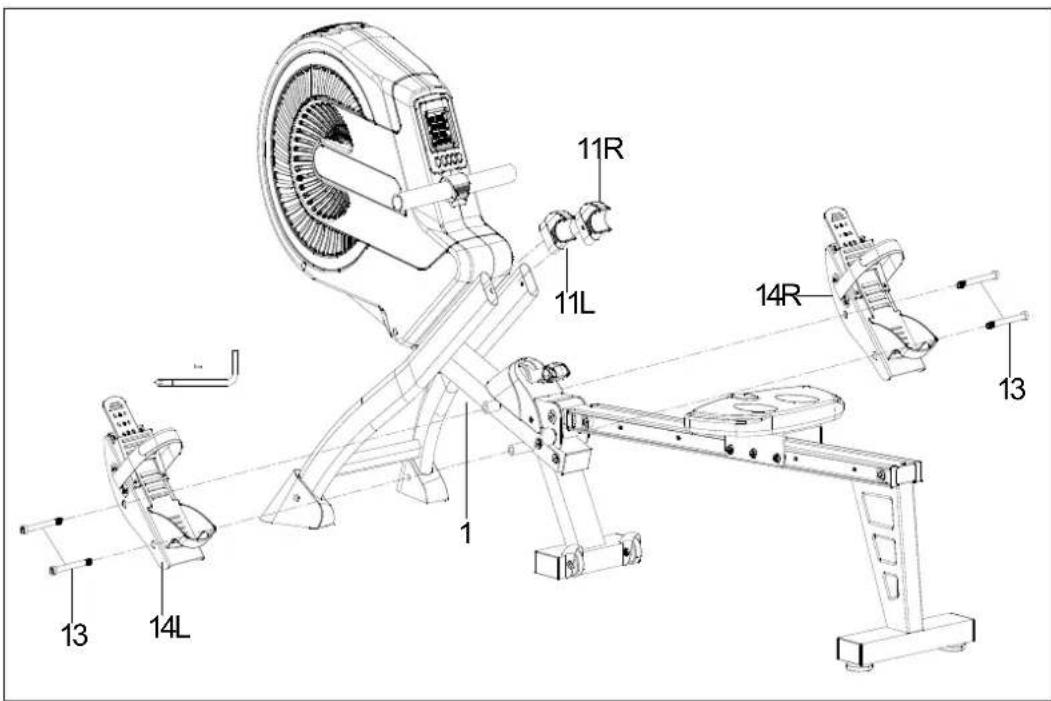

6 Attaching the Pedals

11R 11L 14R 13 13 14L

1. Insert two fixed brackets for handlebar (11L/R) into the holes on the front support tube of main frame (1).

2. Attach the left pedal (14L) to the left side of main frame (1), fasten with two allen bolts (13).

3. Repeat for the right pedal (14R) to the right side of main frame (1).

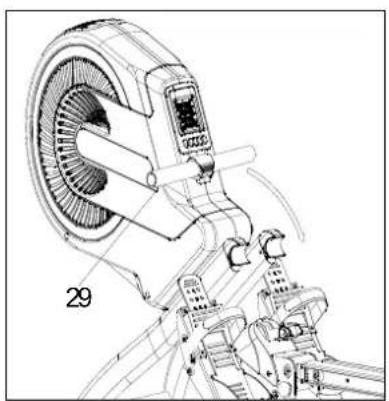

7 Attaching the Handlebar

Technical line drawing of a mechanical device with labeled part '29' (no readable text or symbols beyond label)

1. The handlebar (29) also can be placed into the

Handlebar holder.

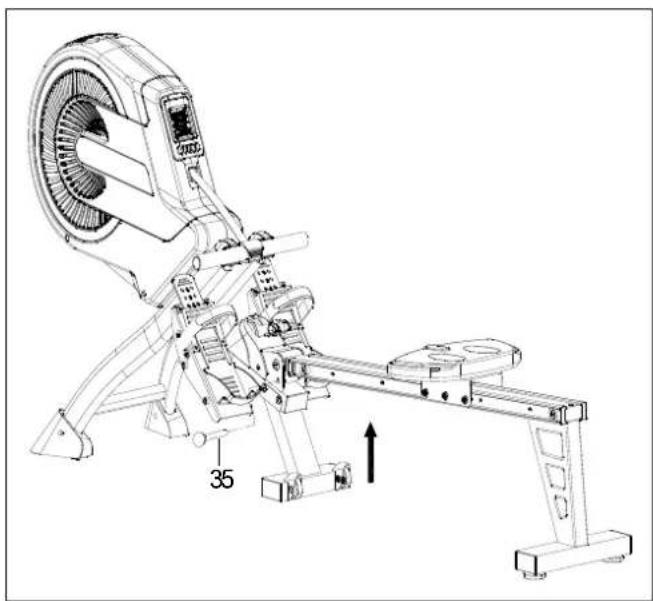

8 Folding the Rower

Technical line drawing of a mechanical exercise machine with labeled components (no text or symbols beyond labels)

1. To fold the machine for storage, the ball pin can be

removed and the slide rail can be lifted up.

Remember to replace the pin after folding the slide rail.

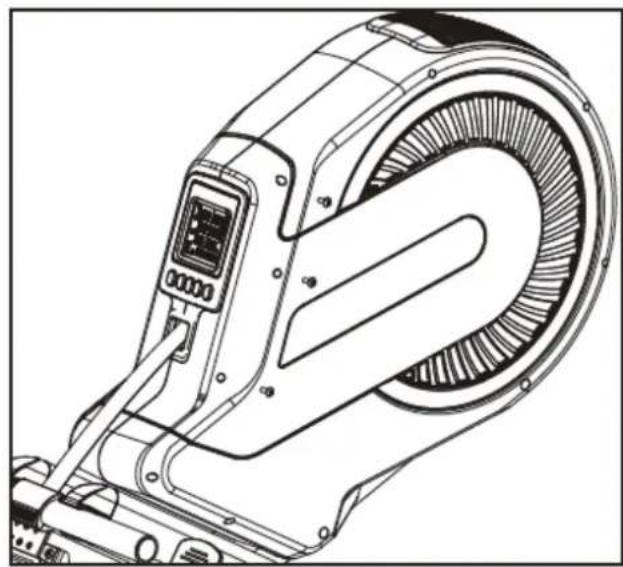

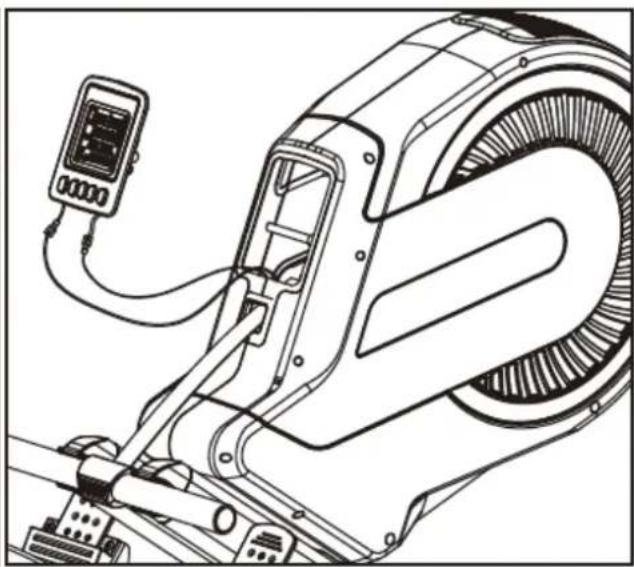

9 Battery Replacement

Technical line drawing of a mechanical device with no visible text or symbols

Technical line drawing of a mechanical device with attached sensor and motor (no text or symbols)

Technical line drawing of an electronic device casing with internal components and terminal connectors (no text or symbols)

Technical diagram of an electronic device casing with battery pack and internal components (no text or labels)

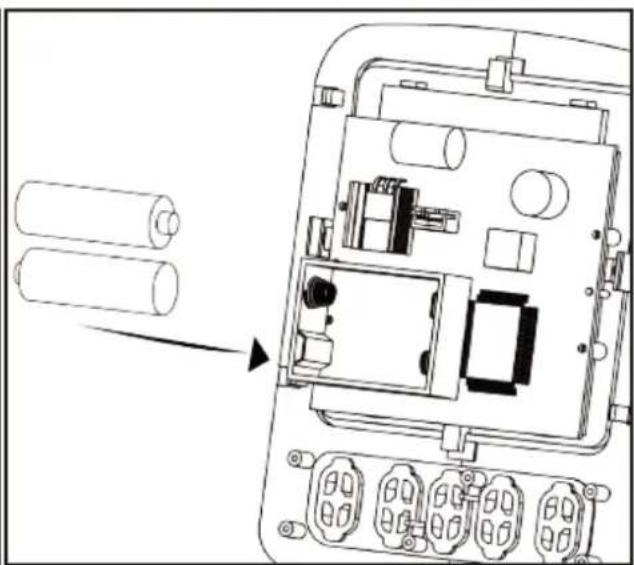

1. Loosen the 3 screws on the right side fo the console. Gently ease the console panel out of the shroud.

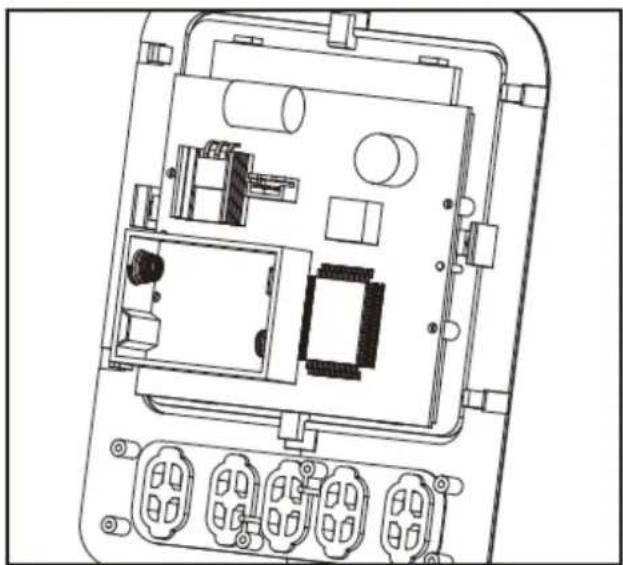

2. On the back panel, replace batteries. Make sure they fit tightly in the correct postions.
3. Place console back into shroud and retighten the 3 screws.

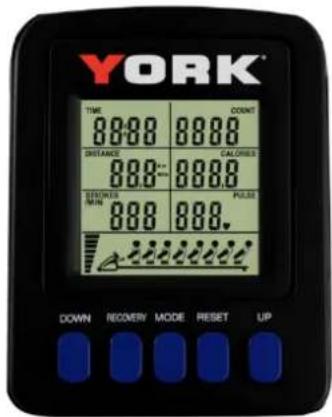

Operation of Your Console

YORK TIME 8888 COUNT 8888 DISTANCE 888" CALORIES 888" SWEET/WHE 888" PULSE 888 DOWN RECOVERY MODE RESET UP

Key Functions

BUTTONS:

MODE: Select to change between the presets TIME, COUNT, DISTANCE, CALORIES, and PULSE.

PULSE RECOVERY:

** It is functional only when used with the wireless chest belt (not included) **

The console has a Recovery Mode. This lets you monitor how quickly you recover from exercising.

After your exercise session press the Recovery button, the LCD console will then count down from 60 seconds to zero. After this, a fitness score F1 to F6 will be displayed on console.

F1.0 = Excellent F2.0 = Good F3.0 = Fair F4.0 = below average

F5.0 = No Good F6.0 = Poor

RESET: Press and hold this button for 2 seconds to reset all of the value to Zero.

UP: Increase the setting value of the following functions.

TIME, COUNT, DISTANCE, CALORIES, and PULSE.

DOWN: Decrease the setting value of the following functions.

TIME, COUNT, DISTANCE, CALORIES, and PULSE.

Functions

TIME: Accumulates total work out time from 00:00 up to 99:59. You may also select a target time before training by pressing "UP" and "DOWN" buttons. Each setting is 1:00 minute.

As soon as the target time is achieved, a 3 second alarm will sound.

DISTANCE: Accumulates training distance from 0.0 up to 99.9 KMS. You may also preset the target distance before training by pressing "UP" and "DOWN" buttons. Each

setting is 0.1KMS.

As soon as the target distance is achieved, a 3 second alarm will sound.

COUNT: Accumulates total count from 0 up to 9999. You may also preset the target count before training by pressing "UP" and "DOWN" buttons. Each setting is 10 count.

As soon as the target count is achieved, a 3 second alarm will sound.

CALORIE: Accumulates calories consumption during training from 0 up to 9999 cal with each increment 0.1 cal. You may also preset the target calorie before training by pressing "UP" and "DOWN" buttons. Each setting is 1 cal increment.

As soon as the target calorie is achieved, a 3 second alarm will sound.

(This data is a rough guide for comparison between different exercise sessions and should not be used as a medical standard.)

PULSE: Your current pulse rate from 40 to 220bpm will be displayed on the LCD console whenever you wear the wireless chest belt (optional item, not included).

If no heart rate signals are detected for 8 seconds, the console will show "P".

You can set a target heart rate before training by pressing "UP" and "DOWN" buttons within the rate zone 90 to 220. Each increment is 1 heart beat.

If you go above your target heart rate, the LCD Pulse value will flash and ask you to reduce the intensity of your exercise.

STROKES PER MINUTE: Displays the average stroke count per minute.

TRAVEL DISTANCE: Displays your stroke travel distance visually on the LCD.

NOTE: If no signal has been transmitted into console for 4 minutes, the LCD display will shut off automatically and all function data will reset to Zero. You may press any button or start training to have the console power on again.

BATTERY REPLACEMENT:

Quick release the lock on the bottom of the console, slide cover out carefully. Install two AAA batteries in the battery case inside the console.

Ensure that the batteries are correctly fitted. Battery must be correctly positioned. Make sure the battery springs have proper contact with batteries

If the display appears blank or displays only partial segments, remove the batteries and wait 15 seconds then restore them.

Whenever you remove the batteries, all the functional values will be reset to zero.

Trouble Shooting

Problem	Cause	Solut
Monitor does not display	Batteries not Installed Install Batteries
	Computer Wires not connected	Ensure the computer wires are connected properly at the upright and computer
No speed or distance displays on the monitor	Sensor wire not connected	Ensure the computer wires are connected properly at the upright and the computer
	Sensor wire not working properly Replace sensor wire
	Monitor not working properly Replace monitor
No tension	Air Damper needs Adjustment	Adjust tension lever accordingly
Squealing Belt slipping Adjust belt

Part List

Part No.	Description	Q'ty
1	Main frame 1 28
2 Nylon nut M8 12 29 Handlebar		1
3	Roller 2 30
4 Allen bolt M8*35 2 31 Allen bolt M6*15		12
5 Square end cap 80*40 5 32 Self-tapping screw
6	Non-slip pad	2
7	Self-tapping screw ST4*15	4
8L	End cap for front stabilizer tube (L)	1
8R	End cap for front stabilizer tube (R)	1
9	Front support tube	1
10	Self-tapping screw ST5*20	20
11R	Fixed bracket for handlebar (R)	1
11L	Fixed bracket for handlebar (L)	1
12	U type bracket for pedal	2
13	Allen bolt for pedal M12*140	4
14 R	Pedal (R)	1
14 L	Pedal (L)	1
15	Fixed bracket for pedal	2
16	Cross-head screw M5*12	18
17	Nylon nut M5	16
18	Fixed plate for strap	4
19	Allen bolt M8*16	9
20R	Decorative cover for tension control knob (R)	1 48
20L	Decorative cover for tension control knob (L)	1 49
21	Foam grip	2
22	Round end cap 25.4	2
23	Sensor wire 1	1
24	Meter	1
25	Decorative plate for left chain cover	1
26	Decorative plate for right chain cover	1 55
27	Sensor wire 2	1

Part No.	Description	Q'ty
	Decorative cover for handlebar (Upper)	1
	Decorative cover for handlebar (Lower)	1
ST4*20	2
33	Tension control knob	1
34	Allen bolt M8*20	6
35	Ball pin	1
36	Cushion rubber	4
37	Spring washer Φ8	2
38	Flat washer φ8*φ25	2
39	Nylon rubber jacket	2
40R	End cap for side rail (R)	2
40L	End cap for side rail (L)	2
41	Axle for slide rail	1
42	Allen bolt M8*40	2
43	Flat washer φ8*φ17	15
44	Square end cap 60*30	1
45	Slide rail	1
46L	Slide rail (L)	1
46R	Side rail (R)	1
47	Self-tapping screw	10
Axle for roller	6
Roller	6
50	Cross-head screw M5*15	6
51	Allen bolt M6*20	4
52	U type bracket for seat	1
53	Seat 1
54	Rear support tube	1
Foot mat	2
56	Strap	2
57R	Air duct (R) 1 76 Spring clutch	1
57L	Air duct (L) 1 77 Belt pulley	1
58	Air damper 1 78 Nylon nut M12 1 79 Belt pulley bracket
60	Flat washer 12.5* 25*2.2	1
61	Wind turbine	1
62	Bearing 608ZZ	2
63	Pulley	1
64	Tension rope	1
65	Guy cable	1
66	Bearing bracket	2
67	Clamp spring 17	4
68	Bearing 6003ZZ	2
69	Bearing bracket	2
70	Fixed plate for bearing	2
71	Axle for wind turbine	1
72	Bushing 6 91 Middle support tu
73	Rubber ring	1
74	Sensor bracket 1 93 Wre
75	Adjusted screw sets	2

Part No.	Description	Q'ty
4
	1
80	Bearing 6000ZZ	3
81	Clamp spring Φ10	1
82	Belt	1
83	Self-tapping screw ST5*30	8
84	Powder metal	2
85	Pulley	1
86	Axle for pulley	1
87	Air outlet	1
88	Self-tapping screw	6
89R	Chain cover (R)	1
89L	Chain cover (L)	1
90	Woven tape	1
	1
92	Allen key 6mm	2
13mm		1
	Tool Pack	1

Technical diagram of a mechanical assembly with numbered components and labeled parts

Technical diagram of a mechanical assembly with numbered components and dimension annotations

BOYLES BFE FITNESS EQUIPMENT

WARRANTY, SAFETY AND ASSEMBLY INFORMATION YRK56040A

IMPORTANT

Please read and retain this manual as it will assist with identification for parts and service.

BOYLES FITNESS warrants their Rower to be free from defects in material and workmanship under normal use and service conditions.

The various components of the Rower are warranted against defects and workmanship for the time periods specified as follows:

YRK56040A

Domestic use

Lifetime frame & 1 year on all other parts

All warranty coverage extends only to the original retail purchaser from the date of purchase. BOYLES FITNESS' obligation under this Warranty is limited to replacing or repairing, at BOYLES' option, the product or parts therein. Any enquiries relating to warranties or spare parts must be directed to Spares 07 3272 7010.

For efficient processing of your enquiry please have relevant date of purchase, retailer name you purchased the item from and the brand on the product. This warranty does not extend to any damage to a product caused by abuse, improper or abnormal usage (as detailed in this instruction manual), or repairs not provided by BOYLES. Nor does this warranty extend to products used for commercial or rental purposes. This warranty does not cover ordinary wear, tear and weathering, failure to follow directions, improper installation, improper maintenance or acts of God (such as damage caused by storms, lightning and by snow or ice). No other Warranty beyond that specifically set forth above is authorised by BOYLES.

Our sales and service centre has been set up to provide assembly assistance, replacement parts and accessories, and to efficiently handle all warranty related matters.

Phone [phone]

Hours 9:00am – 4:00pm Mon-Fri (excluding public holidays)

Email [e-mail]

Website www.yorkfitness.com.au

BFE Warranty Policy – November 1 ^st 2013

1. When purchased from an authorised BFE distributor the BFE warranty shall guarantee that all framework and components of your product are free from faulty manufacture. All faulty framework and components will be repaired or replaced as set out in this policy. All warranties in this policy apply to INDOOR HOME/DOMESTIC USE ONLY.
2. These warranties do not apply to products used in commercial use applications.
3. Warranty DOES NOT cover normal wear & tear and excludes faults due to misuse, abuse, incorrect assembly or lack of general maintenance.
4. Warranty is applicable to products sold and placed within Australia only.
5. IMPORTANT. Most of BFE products are pretested and we have inspectors checking all products prior to shipment. The number one reason for a fault is due to INCORRECT ASSEMBLY.

If you do have problems please go back to the start and double check your assembly and pay special attention to all WIRING connections. If you have accidentally cut or damaged the wiring please let us know and we will be happy to send you a new set at no-charge.

If you have done this and are confident you have double checked your assembly and are still having problems please email our service department at

[e-mail] including your best contact details, proof of purchase, serial number and a brief explanation of what is wrong.

Emailing is the quickest and most reliable way to get your service request processed. Once we have your details we will either call or email you back with the next steps. The quickest way, once we determine the problem and send you a replacement part, is that we can talk you through over the phone on how to fit it.

If it is deemed by our service tech that it is too difficult, we can arrange (where available) a service technician.

NOTE. If we arrange for a service technician ( where applicable) and it is found that it is not a manufactures fault and found to be an assembly issue , normal wear and tear, transport damage or misuse then there will be a call out fee of \$140 depending on location. (Surcharge applies for non-metro areas)

WARRANTY TERMS- Warranty commences from the date of purchase from the retail store. Warranty only applies to the original purchaser and is NON transferable. Warranty is void if the serial number of the product has been removed or tampered with.

Warranty does not apply to defects, faults or failures due to:

(a) Defects caused during assembly or failure to assemble to the assembly manual provided. Assembly errors include but are not limited to damaged wiring harness, stripped crank arms and or pedals and bolts used in the wrong locations.

(b) Lack of general maintenance and or failure to service or maintain the equipment in accordance with the user manual specifications and recommendations. This includes alack of lubrication. Only use factory supplied lubricant. DO NOT USE WD40 or anything similar. You can purchase lubricant from your retailer or contact us directly at [e-mail]
(c) Power Surges. The computers, control boards and motors are very sensitive to power fluctuations. You must use a surge protector on all items that plug into your mains power otherwise your electronics will not be covered by this warranty. You can purchase these from numerous retailers or you can call us on 07 3272 7010 to get a price.
(d) User negligence, abnormal or excessive use, misuse, abuse or transport damage.
(e) Repairs, alterations or modifications by NON BFE authorised service technician.
(f) Accident, fire, flood or malicious damage by third person.
(g) Ordinary wear and tear.
(h) Failure to keep the product in a clean, dry environment causing rust. You should wipe off any sweat and moisture after each training session.
(i) Any products sold or placed in an application or the incorrect environment that is not recommended by BFE or as not stipulated in the owner's manual such as a commercial / rental environment will void the warranty set forth by BFE
(j) BFE recommends the use of a protective rubber floor mat. This reduces the incidence of dust and lint collection around the motor, reduces noise & protects your floor. You can purchase this from your retailer or contact BFE directly on 02 4648 0800

BFE will have the option to repair or replace any product which requires attention under the warranty.

NOTE: Lifetime refers to the warranty coverage of the units expected service life. NOT the lifetime of the purchaser.

Servicing/Spare Parts- As with any mechanical equipment general maintenance should be performed on a regular basis by an authorised retailer or service technician. This will ensure longevity of the product and ensure that it is kept working in optimum condition. Failure to properly maintain your equipment may lead to safety issues and may also void the warranty.

You should only use genuine BFE replacement parts otherwise the warranty will be void.

Freight Costs:

The cost of freighting the replacement part under warranty to the customer shall be free of charge. Your requirement is to return the faulty part via the pre-paid postal service which we will supply.

Returned Goods:

The unauthorised return of parts or product shall be refused and placed in the hands of the carrier at the cost of the shipper. Return authorisations can be obtained from BFE head office only.

Additional Warranty

If you would like to extend your labour warranty by 1 year (\99), 2 years (\199), 3 years (\$299) please contact our office by emailing [e-mail] (Not available in all areas)

Service Department hours: Monday to Friday between 9.00am and 4pm Service Phone Number: 07 3272 7010 Email: [e-mail]

PLEASE NOTE: that Authorised service technicians do not reside in all areas of this vast country. If you live beyond the reasonable service area of a metropolitan area, BFE may not be able to support the labour portion of the product warranty. Alternatively you can return (at your cost) your product to the closest BFE repair centre, where it will be fixed at no charge under the warranty period.

Metropolitan Area- defined as no more that 50km from G.P.O in all capital cities.

Disclaimer:

Our goods come with guarantees that cannot be excluded under the Australian Consumer Law. You are entitled to a replacement or refund for a ‘Major failure’ and for compensation for any other Reasonable foreseeable loss or damage.

You are also entitled to have goods repaired or replaced if the goods fail to be of an acceptable quality and the failure does not amount to a major failure.

BFE does not assume, nor authorise any representative or other person to make or assume for BFE, any warranties whatsoever, whether expressed or implied, in, in connection with the sale, service, or shipment of our products.

BFE reserve the right to make changes and improvements in our products and specifications without incurring any obligation to similarly alter products previously purchased.

This warranty operates in addition to other rights and remedies available to consumer's rights under the Australian Consumer Law.

Service Department hours: Monday to Friday between 9am and 4pm Service Phone Number: 07 3272 7010

Email: [e-mail]
