USER MANUAL VN-712PC, VN-711PC, VN-713PC OLYMPUS

DIGITAL VOICE RECORDER VN-713PC VN-712PC VN-711PC DETAILED INSTRUCTIONS Thank you for purchasing an Olympus Digital Voice Recorder. Please read these instructions for information about using the product correctly and safely. Keep the instructions handy for future reference.

To ensure successful recordings, we recommend that you test the record function and volume before use.

+ _ The contents ofthis document may be changed in the future without advanced notice. Contact our Customer Support Center for the latest information relating to product names and model numbers.

The illustration of the screen and the recorder shown in this manual may differ from the actual product. The utmost care has been taken to ensure the integrity ofthis document but if you find a questionable item, error or omission, please contact our Customer Support Center.

Any liability for passive damages or damage of any kind occurred due to data loss incurred by a defect ofthe product, repair performed by the third party other than Olympus or an Olympus authorized service station, or any other reason is excluded.

Trademarks and registered trademarks

IBM and PC/AT are the trademarks or registered trademarks of International Business Machines Corporation.

Microsoft, Windows and Windows Media are registered trademarks of Microsoft Corporation.

Macintosh and iTunes are the trademarks of Apple Inc.

microSD and microSDHC are the trademarks of SD Card Association.

MPEG Layer-3 audio coding technology is licensed from Fraunhofer IIS and Thomson.

The product was developed based on noise-canceling technology under license from NEC Corporation.

Other product and brand names mentioned herein may be the trademarks or registered trademarks of their respective owners.

mSES MSC Table of contents

Introduction Table of contents . Safety precautions..

Caution for usage environment

Handling the recorder Battery handling precautions .

1 Getting started Main features Identification of parts.

Display (LCD panel) … Power supply Inserting batteries . Turning on/off the power. HOLD Setting time and date [Time & Date] Inserting and ejecting a microSD card. Inserting a microSD card. Ejecting a microSD car Selecting the folders and files. Searching for file

Recording... Changing the recording scene [Rec Scene]. 17 Recording from external microphone or other devices… ce 18

Playback. Changing the playback speed . Setting an index mark or a temp mark How to begin segment repeat playback

4 Menu setting Menu setting method

LCD/Sound Menu... Device Menu

5 Using the recorder on your

PC Operating environment … Connecting to your PC... Disconnecting from your PC.

6 Other information Troubleshooting Accessories (optional) Specifications

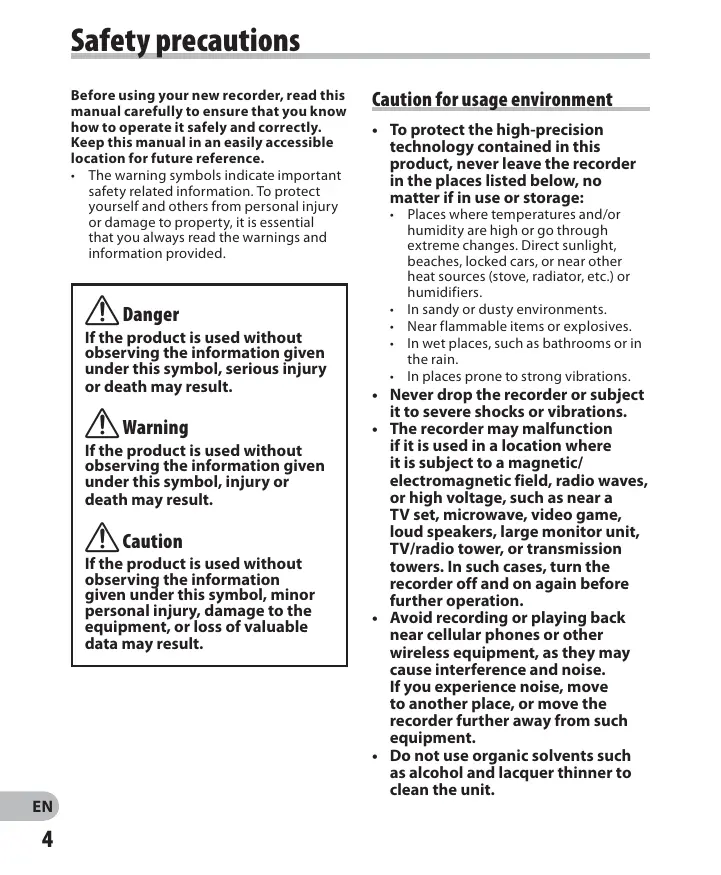

Before using your new recorder, read this

Caution for usage environment manual carefully to ensure that you know

how to operate it safely and correctly. Keep this manual in an easily accessible location for future reference.

The warning symbols indicate important safety related information. To protect yourself and others from personal injury or damage to property, it is essential that you always read the warnings and information provided.

Ifthe product is used without observing the informa under this symbol, serious injury or death may result.

Ifthe product is used without observing the information given under this symbol, injury or death may result.

Ifthe product is used without observing the information given under this symbol, minor personal injury, damage to the equipment, or loss of valuable data may result.

To protectthe high-precision technology contained in this product, never leave the recorder in the places listed below, no matter if in use or storage:

+ Places where temperatures and/or humidity are high or go through extreme changes. Direct sunlight, beaches, locked cars, or near other heat sources (stove, radiator, etc.) or humidifiers.

In sandy or dusty environments.

Near flammable items or explosives. In wet places, such as bathrooms or in the rain.

In places prone to strong vibrations. Never drop the recorder or subject it to severe shocks or vibrations. The recorder may malfunction ifitis used in a location where

it is subject to a magnetic/ electromagnetic field, radio waves, or high voltage, such as near a

TV set, microwave, video game, loud speakers, large monitor unit, TV/radio tower, or transmission towers. In such cases, turn the recorder off and on again before further operation.

Avoid recording or playing back near cellular phones or other wireless equipment, as they may cause interference and noise.

If you experience noise, move

to another place, or move the recorder further away from such equipment.

Do not use organic solvents such as alcohol and lacquer thinner to clean the unit.

Warning regarding data loss:

Recorded content in memory may be destroyed or erased by operating mistakes, unit malfunction, or during repair work. I is recommended to back up and save important content to other media such as à computer hard disk.

Any liability for passive damages or damage of any kind occurred due to data loss incurred by a defect of the product, repair performed by the third party other than Olympus or an Olympus authorized service station, or any other reasons is excluded from the Olympus liability.

Handling the recorder

Do not use the recorder near

flammable or explosive gases.

Keep young children and infants

away from the recorder.

Always use and store the recorder out of

the reach of young children and infants

to prevent the following dangerous

situations which could cause serious

@ Becoming entangled in the recorder strap, causing strangulation.

@ Accidentally swallowing the battery, cards or other small parts.

@ Accidentally being injured by the moving parts of the recorder.

Do not use or store the recorder in

dusty or humid places.

Do not disassemble, repair or

modify the unit yourself.

Use microSD/microSDHC memory

cards only. Never use other types

I you accidentally insert another type

of card into the recorder, contact an

authorized distributor or service center.

Do not try to remove the card by force

+_ Do not operate the unit while operating a vehicle (such as a bicycle, motorcycle, or car).

+ Stop using the recorder immediately if you notice any unusual odors, noise, or smoke aroundit.

Never remove the batteries with bare hands, which may cause a fire or burn your hands.

Be careful with the strap.

Be careful with the strap when you carry the recorder. It could easily catch on stray objects and cause serious damage

Do not leave the recorder in places where it may be subject to extremely high temperatures. Doing so may cause parts to deteriorate and, in some circumstances, cause the recorder to catch fire. Do not use the charger or AC adapter ifit is covered such as a blanket). This could cause overheating, resulting in fire.

Handle the recorder with care to avoid getting a low-temperature burn.

+ When the recorder contains metal parts, overheating can result in a low- temperature burn. Pay attention to the following

When used for a long period, the recorder will get hot. if you hold on to the recorder in this state, a low- temperature burn may be caused.

In places subject to extremely cold temperatures, the temperature of the recorders body may be lower than the environmental temperature. If possible, wear gloves when handling the recorder in cold temperatures.

Battery handling precautions

Follow these important guidelines to prevent batteries from leaking, overheating, burning, exploding, or g electrical shocks or burns.

Batteries should never be exposed to flame, heated, short-circuited or disassembled, + Never heat or incinerate batteries. + Take precautions when carrying or storing batteries to prevent them from coming into contact with any metal objects such as jewelry, pins, fasteners, etc. Never store batteries where they will be exposed to direct sunlight, or subjected to high temperatures in a hot vehicle, near a heat source, etc. To prevent causing battery leaks or damaging their terminals, carefully follow all instructions regarding the use of batteries. Never attempt to disassemble a battery or modify it in any way, solder, etc. Do not connect the battery directly to a power outlet or a cigarette lighter of an automobile. fa battery fluid gets into your eyes, flush your eyes immediately with clear, cold running water and seek medical attention immediately.

+ Keep batteries dry at all times. Do not use a battery ifit is cracked or broken. Never subject batteries to strong shocks or continuous vibration. If a battery leaks, becomes discolored or deformed, or becomes abnormal in any other way during operation, stop using the recorder. If a battery leaks fluid onto your clothing or skin, remove the clothing and flush the affected area with clean, running cold water immediately. If the fluid burns your skin, seek medical attention immediately. Keep battery out ofthe reach of children. If you notice anything unusual when using this product such as abnormal noise, heat, smoke, or a burning odor: remove the battery immediately while being careful not to burn yourself, and; @ call your dealer or local Olympus representative for service.

+ Please recycle batteries to help save our planes resources. When you throw away dead batteries, be sure to cover their terminals and always observe local laws and regulations.

© Supports a wide range of recording formats. Can handle the MP3 format* (MPEG-1/ MPEG- 2 Audio Layer 3) and the Windows Media Audio (WMA) format (5 P.29). *_VN-713PC, VN-712PC only.

© Supports high capacity recording media. Besides the internal memory, you can also record into a microSD card (VN-713PC, VN-712PC only) (+ P.13).

© Ithas a built-in Variable Control Voice Actuator (VCVA) function (x P.30).

© The Low Cut Filter minimizes

air conditioner noise and other

A Noise Cancel function*1

function*2 (#5 P.33) cut noise and

*2VN-713PC, VN-712PC only.

© Ithas recording scene setting function to register the best setting according to different usages (#5 P.32).

© Equipped with a calendar

search function, convenient for

searching for files (VN-713PC,

VN-712PC only) (ss P.15).

It features various repeat functions (+ P.23, P.33).

You can divide a file (MP3) that has been recorded with this recorder into two files* (ss P.28). *_VN-713PC, VN-712PC only.

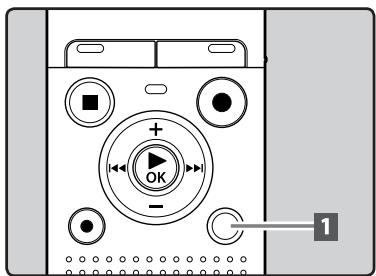

Index mark and temp mark features allow you to quickly find desired locations (1 P.22).

The playback speed can be controlled as preferred (5 P.21). Display text is larger to make

it easier to read. You can also reduce the text size as you like. This recorder is compatible with USB 2.0, enabling fast data transfer to a computer.

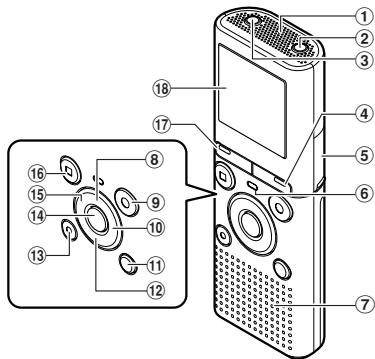

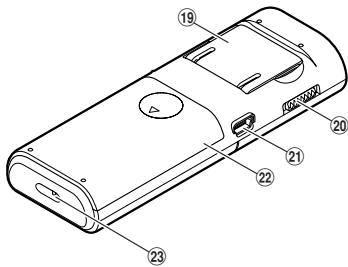

@ Built-in microphone

(7) Built-in speaker

@ REC (@) (Record) button

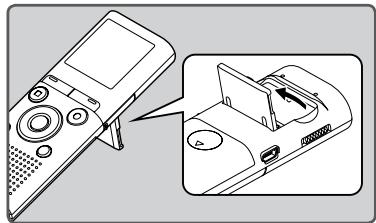

+ Usethe stand as needed.

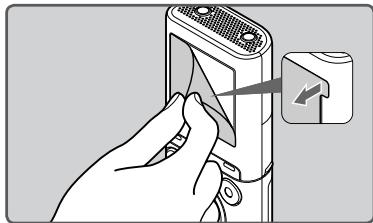

+ _ Remove the screen protector on the display.

Identification of parts

The displayed character size on the screen can be changed. See [Font Size]” (++ P.34)

When the [Font Size]is set to [Large]

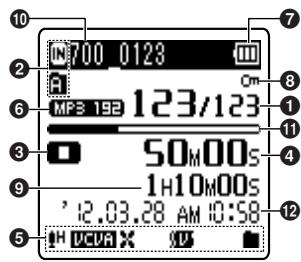

© Current file number/ Total number of recorded files in the folder @ Recording media indicator“1 F1 (®}: Built-in flash memory TE}: microSD card Folder indicator © Recorder status indicator I@] (M): Record indicator 1@) (CD: Pause indicator [@) (D): Stop indicator 1@1 (O3): Play indicator (}:F. Play indicator (C3): S. Play indicator I@] (E2):Forwarding indicator [E) (EM): Rewinding indicator © Elapsed recording time, Elapsed playback time

When the [Font Size]is set to [Small]

@ icon display IH]: Rec Level (EU: VCVA [E%}: Voice sync"2 CI: Low Cut Filter Noise Cancel*2 LM}: Voice Filter“ [M] 1: Playback mode @ Recording mode indicator ©@ Battery indicator © File Locl cator © Remaining recording time, File length © Current file name*3 ©® Remaining memory bar indicator"3, Playback position bar indicator*3 @ Recording date and time*3

#1 VN-713PC, VN-712PC only.

*3 These items will be displayed only when the [Font Size] is set to [Small]

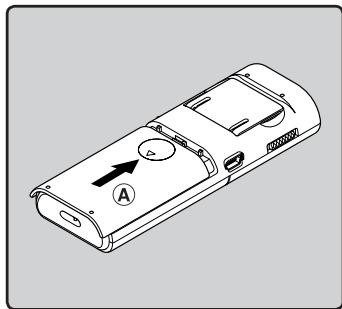

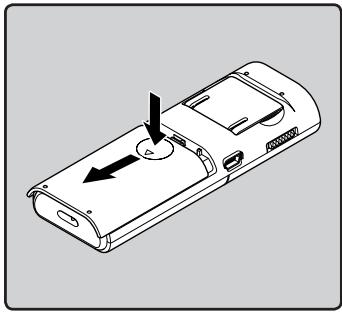

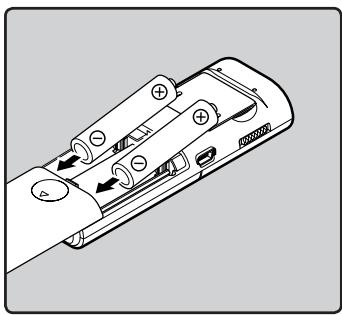

El Lightiy press down on the arrow and slide the battery cover open.

El insertthe batteries, observing the correct ® and © polarities.

El close the battery cover completely by sliding to the direction (à).

When (FAI) appears on the display, replace the batteries as soon as possible.

When the batteries are too weak, [SI and [Battery low] will appear on the display and the recorder will shut down

+ When changing the batteries, use only AAA alkaline batteries

+ Remove the batteries if you are not going to use the recorder for an extended period of time.

Turning on/off the power

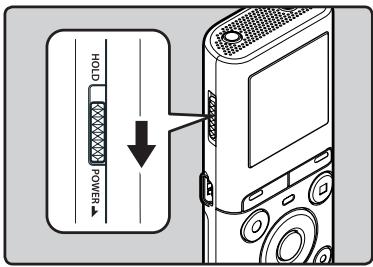

While the recorder is turned off, slide the POWER/HOLD switch to the direction of the arrow.

Turning offthe power

Slide the POWER/HOLD switch to the direction of the arrow, and hold it for 0.5 seconds or longer.

+ _ The resume function remembers the stop position before the power is turned off.

the recorder is on and stops for 5 minutes or longer, the display shuts off

and it goes into power save mode. +__ To exit power save mode, press any button.

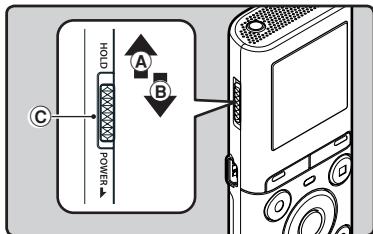

HOLD Setthe recorder to HOLD mode (A))

Slide the POWER/HOLD switch to the [HOLD] position.

+ After [Hold] appears on the display, the recorder is set to HOLD mode

Slide the POWER/HOLD switch to the © position.

+_Ifyou press any button in HOLD mode, the clock display lights for 2 seconds, but

the recorder will not operate.

IHOLD is applied during playback

(recording), operation is disabled

with the playback (recording) state

unchanged (When playback has ended

orthe recording has ended due to the

remaining memory being used up, it will

Setting time and date [Time & Date]

If you set the time and date beforehand, El Repeat steps 1 and 2 to set the the information when the file is recorded is otheritems.

automatically stored for each file. Setting the time and date beforehand enables easier file management.

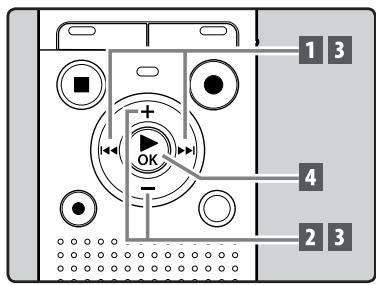

will flash. Move to the previous/next item. +or- button: Change the value. You can select between 12 and 24 hour display by pressing the FOLDER/INDEX button while setting the hour and minute. You can select the order of the “Month", "Day" and “Year” by pressing the FOLDER/INDEX button while setting them. El Press the > OK button to complete the setting. + The clock will start from the set date and time. Press the > OK button according to the time signal.

When you install batteries for the FO 41 1 EE the batteries, the “Hour” indication £ 1 or #4 button: Ê d a A à El È 8

+_Ifyou press the OK button during the

setup operation, the recorder will save CI the items that were set to that point + While the recorder is in stop mode, press El Press the Di or 44 button to and hold the STOP (I) button to display select the item to set. [Time & date] and [Remain].

+ Selectthe item from the "Hour’,

“Minute”, "Year", “Month'and'Day" POPPOPTONIEENTEE

with flashing point.

El Press the + or - button to set. Select (Time & Date] from the menu on the Device Menu]

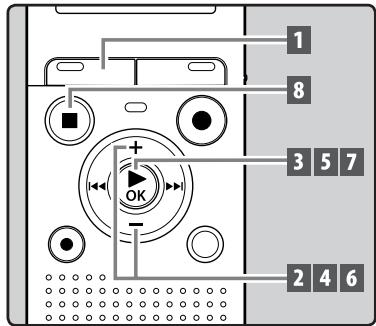

+ See "[Menu setting method]" {x P26)

Inserting and ejecting a microSD card

FH rrvn7urc, vn-7i2pc:

The "microSD" indicated in the instruction

microSDHC. With this recorder, besides the internal memory, you can store the data into

nual refers to both microSD and

commercially available microSD card

Inserting a microSD card

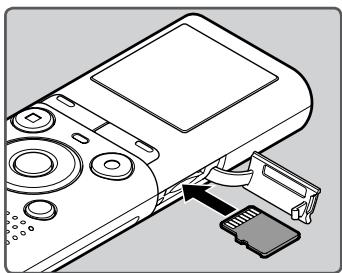

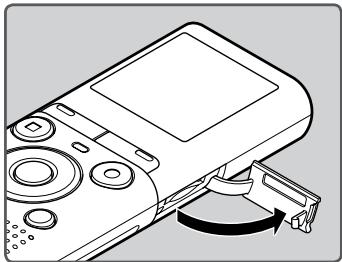

While the recorder is in stop mode, open the card cover.

Face the microSD card in the correct way and insert it into the card slot as shown in the diagram. +_Insertthe microSD card keeping it Straight.

+_Inserting the microSD card in the wrong way or at an angle could damage the contact area or cause the microSD card to jam.

Ifthe microSD card is not inserted all the way until it clicks, data may not be recorded to the microSD card.

Close the card cover securely.

+ When you insert the microSD card, the recording media changeover display will appear.

To record on a microSD card, press the + or — button and select [Yes].

Switch to microëD card?

Press the > OK button to complete the setting.

Inserting and ejecting a microSD card

+_Itis possible to switch the recording media over to the internal memory

In some cases microSD cards that have

been formatted (initialized) by another

device, such as a computer, may not be

recognized, Be sure to format microSD

cards with this recorder before using

Ejecting a microSD card

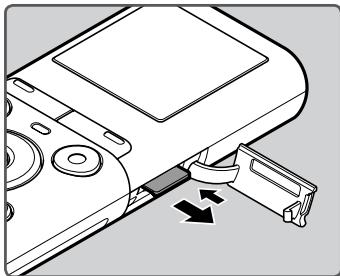

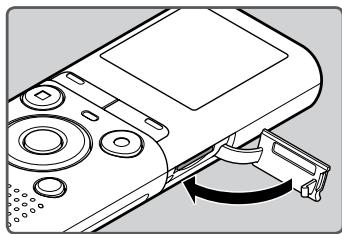

El While the recorder is in stop mode, open the card cover.

El Push the microSD card inward to unlock it, and let it eject partially.

The microSD card is visibly out of the slot and can be removed safely. Iyou ejectthe microSD card when [Memory Select] is set to

ImicroSD card), it will be automatically changed to

{internal memory selected].

Internal nenor selected

El close the card cover securely.

a EE Releasing your finger quickly after pushing the microSD card inward may cause it to eject forcefully out ofthe slot Some microSD cards or microSDHC cards may not be recognized correctly depending on the manufacturer or type of card due to compatibility issues with this recorder.

See the Olympus website for a list

of microSD cards that have been confirmed to operate with this recorder in conditions prescribed by Olympus. The website http://olympus-imaging. ip/introduces manufacturers and

types of microSD cards confirmed to be compatible. Please note, however, this is not meant to guarantee that microSD cards will operate. Some microSD cards may not be recognized correctly due

to circumstances such as changes in manufacturer specifications.

In the case when the microSD card cannot be recognized, remove the microSD card then put it in again to see if this recorder recognizes the microSD card.

Always read the instructions that come with your microSD card before using. Processing speed may be slower with some types of microSD cards. Processing performance may also be reduced due to repeated writing and deleting. f that appans, reformat he microSD card

Not all operations are guaranteed for microSD cards that have been confirmed to operate.

Selecting the folders and files

The recorder provides five folders, [EN [En 16, [®N) and [Bu]. Each folder can store up to 200 files

El While the recorder is in stop mode, press the FOLDER/INDEX button.

+ _ The folder changes each time you press the FOLDER/INDEX button.

older indicator Current file number

FH rorvn7urc, vn-712pc:

El Press the +, —,D»1or-@4

button to select the date.

Move to the previous/next day. +,- buttons: Move to the previous/next week + Dates with recorded files are shown with underbars.

El Press the» OK button. + Files recorded on the date selected are displayed in a list

200 0133.14 700-0134. 144

You can search for voice files by the date they were recorded. As long as you know the date, you can quickly find a file even if you forgot what folder it is in

El While the recorder is in stop

mode, press the CALENDAR/ SCENE button.

Current date Date when a file was recorded

El Press the + or - button to select a file.

E Press the» OK button to start playback.

+ Does not support display of national holidays.

Before starting recording, select a folder among [EN to [@. These five folders can be selectively used to distinguish the kind of recording; for example, Folder [EN might be used to store private information, while Folder [EI] might be dedicated to holding business information

El select the recording folder Us P15).

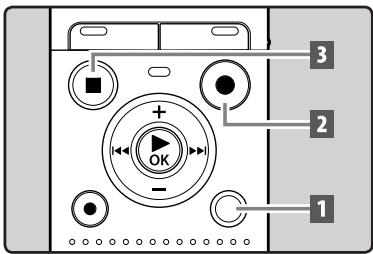

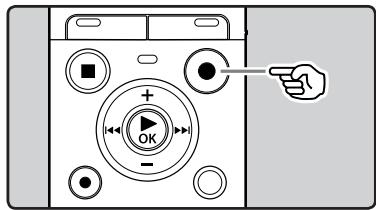

El Press the REC (@) button to start recording.

+__Tumnthe microphone in the direction ofthe source to be recorded.

@ Recording mode indicstor

Elapsed recording time

+ [Rec Mode] cannot be changed in the recording standby mode or while recording. Configure this while the recorder is stopped (ex P.29).

El Press the STOP (1) button to stop recording.

To ensure recording from the beginning, start recording after you see the display and the LED indicator light on.

+ When remaining recording time is less than 60 seconds, the LED indicator light starts flashing. When the recording time is decreasing to 30 or 10 seconds, the light flashes faster.

+ (Folder full] will appear when the recording cannot be made any further. Select other folder or delete unnecessary files before recording (+ P.25).

+ [Memory full] will appear when the memory is full. Delete unnecessary files before recording any further (ex P.25)

For VN-713PC, VN-712PC:

+ When a microSD card is inserted in the recorder, be sure to confirm the recording media as either [Internal memory] or [microSD card] so that there is no mistake (ex P.35)

+_Ifarecording is made in stereo modes

(192 kbps] or [128 kbps]), it will be a

monaural recording through the built-in

microphone, and the same audio will be recorded to both Left channel (Lch) and

Right channel (Rch).

While the recorder is in recording mode, press the REC (@) button.

+ The recorder will stop if left on pause for more than 60 minutes.

Press the REC (@) button again.

+_ Recording will resume at the point of interruption

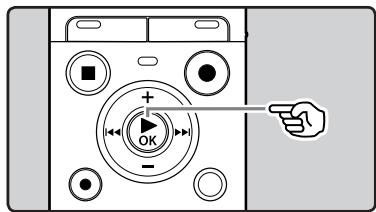

To quickly check on the recorded contents

While the recorder is in recording mode, press the OK button.

+ Recording will stop, and the file that was just recorded will be played back

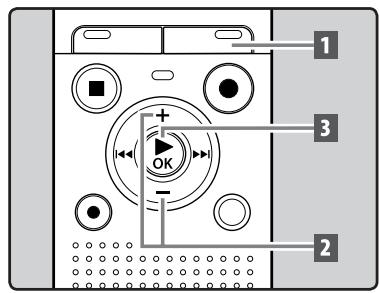

Changing the recording scene [Rec Scene] You can easily change the recording settings

by selecting the scene which best matches your usage (+ P.32).

El while the recorder is in stop mode, press and hold the CALENDAR/SCENE button.

For VN-711PC: While the recorder is in stop mode, press the SCENE button.

El Press the + or - button to select the recording scene.

El Press the» OK button.

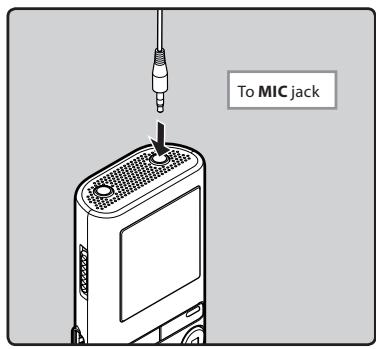

Recording from external For VN-713PC, VN-712PC: + When an external monaural microphone

microphone or other devices is used while [Rec Mode] s set to a stereo

recording mode, audio will be recorded to the L channel only (sx P.29).

The external microphone and other devices

can be connected and the sound can be

+ Donot plug and unplug devices into the recorder jack while it is recording.

Connect an external microphone to

the MIC jack of the recorder.

The built-in microphone will become inoperable when an external microphone is plugged into the recorder's MIC jack Microphones supported by plug-in power can also be used!

When external devices are connected, perform a test recording and then adjust the output level for the external devices. When recording using external microphones, the microphone’s cord may cause noise if placed close to the recorder’ display.

When the external stereo microphone

is used while [Rec Mode] is set to à monaural recording mode, it enables recording only with the L channel microphone (++ P.29).

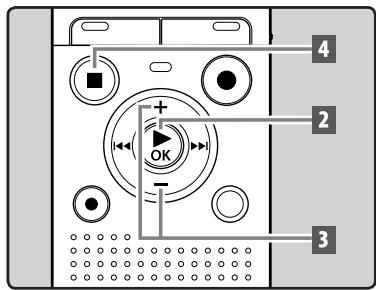

El Press the STOP (I) button at any

point you want to stop playback.

+ This will stop the file being played back midway. When the resume function is activated the stopped location will be registered, even if the power is turned off. The next time the power is turned on, playback may be resumed from the registered stopped location.

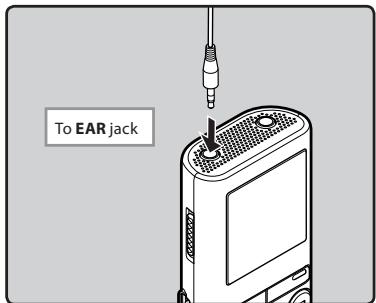

[REREEEEESEEEES Playback through earphones à The earphones can be connected to the EAR El Select the file to be played back jack of the recorder for listening, from the folder that contains it 2 When the earphones are used, the ( P.15). recorder speaker will be switched-off. E Press the > OK button to start playback.

older indicator Elapsed playback

E Press the + or - button to adjust to a comfortable listening volume.

+ To avoid irritation to the ear, insert the earphones after turning down the volume level. When you listen with the earphones during playback, do not raise the volume too much. lt may cause hearing + _ The volume can be adjusted within a impairment and decrease in hearing EN range from [00] to [30] ability. 19

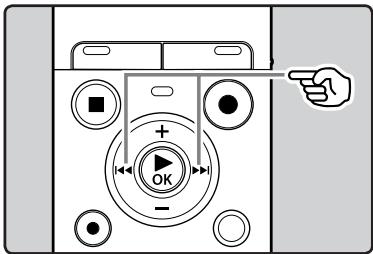

Forwarding and Rewinding

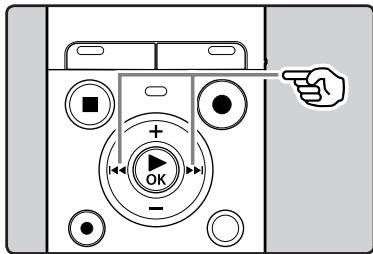

Locatingthe beginning of a fi

D While the recorder is in stop mode, press and hold the 1 or @-@ button.

+_Ifyou release the DB41 orH@4 button, it will stop. Press the OK button to start playback from where it was stopped. While the recorder is in playback mode, press and hold the B-B1 or Hé button.

+" When you release the B-B1 or @4 button the recorder will resume normal playback.

there is an index mark or temp mark in

the middle of the file, the recorder will

stop at that location (= P.22).

DB: Keeping the 1 button pressed will make the recorder fast forward the next file.

Hé: Keeping the Hé button pressed will make the recorder rewind the previous ile.

While the recorder is in stop mode or playback mode, press the D» button.

+ The recorder skips to the beginning of the next file.

While the recorder is in playback

mode, press the #4 button.

+ The recorder skips to the beginning of the current ile.

While the recorder is in stop mode,

+ The recorder skips to the beginning of the previous file. Ifthe recorder is in the middle of a file, it will return to the beginning of the file.

While the recorder is in playback

mode, press the 44 button twice.

+ The recorder skips to the beginning of the previous file.

When you attempt to skip to the beginning of a file during playback, the recorder will start playback from the index mark or temp mark if those are recorded. You will skip to the beginning ofthe file, if you perform the operation while in stop mode (ex P.22).

When [Skip Space] is set to other than [File Skip], the recorder will skip forward/ reverse the specified time, then will start playback (ex P.34).

In cases where the recorder is unable to playback music files that have been transferred to it, check to make sure that the sampling rate and bit rate are in the range where playback is possible. Combinations of sampling rates and bit rates for music files which the recorder can playback are given below.

File format Sampling Bitrate fraquensy MPEG Layerse BK MK, | rrom kbps estomat [tapes [110520 16kHz, Pr 2205 24kHe BEN à |rromskèps ke 22 vas [RE ZM, [eue 48 kHz Ps

+ Variable bitrate MP3 files (in which conversion bitrates can varÿ) may not be played back property.

Even if the file format is compatible for playback on this recorder, the recorder does not support every encoder.

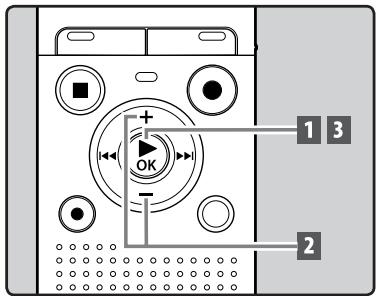

Changing the playback speed

Change the speed according to need such as listening to meeting content at a fast speed or reviewing spots that you couldn't catch in a language lesson at a slow speed.

El while the recorder is in playback mode, press the OK button.

El Press the + or - button to select playback speed.

11.0 Play] (Normal playback Playback at normal speed.

1x0.5 Play] - [x0.9 Play] (Slow playback): Playback speed slows down.

b«1.1 Play] - (x2.0 Play] (Fast playback}: Playback speed becomes faster.

El Press the OK button.

+ Even if playback is stopped, the changed playback speed will be retained. The next playback will be at that speed

About the limits of fast playback

Normal operation may not be available depending on the sampling frequency and the bit rate of the file to be played back. In such a case, reduce the speed of the fast playback.

As in normal playback mode, you can stop playback, cue a file, orinsert an index or temp mark in slow playback and fast playback modes as well

The slow playback or fast playback is available even if [Voice Filter] is set

When using the slow playback or

fast playback function, the following functions are not available

Setting an index mark or a temp mark

Windex marks and temp marks are placed, you can quickly find a location you want to listen to in fast fonward and fast rewind and when cuing a file. Index marks cannot be placed on files created on machines other than this recorder, but temp marks can be placed instead to temporarily remember desired locations.

El While the recorder is in recording mode or playback mode, press the FOLDER/INDEX button.

+ Even after an index or temp mark is placed, recording or playback will continue so you can place index or temp marks in other locations in a similar manner.

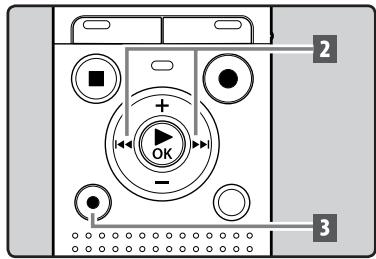

El select a file in which index or temp marks you wish to erase are contained.

El Press the »1 or #4 button to select the index or temp mark to erase.

El While the index or temp number is displayed for approximately 2 seconds on the display, press the ERASE button.

+ _ The index or temp mark is erased.

+_ Index or temp numbers afterthe erased index ortemp number will be automatically decreased by 1

Temp marks are temporary markings. They will be automatically erased ifyou move to another file or connect the recorder to a computer.

Up to 99 index and temp marks can be set in a file. f you try to place more than 99 index or temp marks, the [No more can be set] message will appear for index marks, and [No more can be set] for temp marks.

Index or temp marks cannot be set or erased in a locked file (+= P.28).

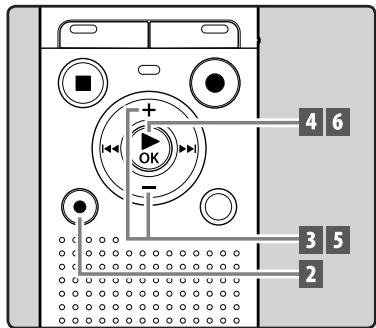

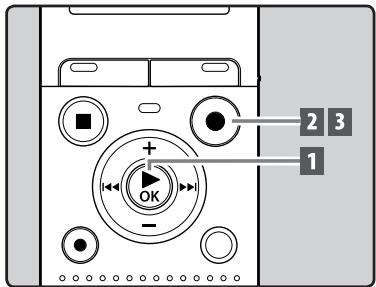

How to begin segment repeat playback

This function enables repeated playback of part ofthe file being played

Select a file that has a segment you would like to play back repeatedly, and start playback.

El Press the REC (@) button atthe point you want to start segment repeat playback.

+ [EM will flash on the display.

You can fast forward, rewind, or change playback speed as you can operate in normal mode while [[]]

is flashing to find the end position

When it reaches the end of the file

while [Œ] is flashing, point [EF]

becomes the end of the file, and repeat playback will start.

El Press the REC (@) button again at the position where you want to end segment repeat playback.

+ The recorder continuously plays back the segment until the segment repeat playback is canceled.

As in normal playback mode, playback speed can be changed during segment repeat playback as well (ex P221).Ifan index mark and temp mark are placed or cleared during segment repeat playback, segment repeat playback will be canceled and it will return to normal playback mode (ex P.22)

\gthe segment repeat playback

Pressing any of the following buttons will release the segment repeat playback.

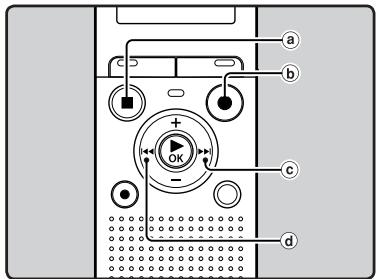

@ Press the STOP (I) button

) Press the REC (@) button

© Press the 1 button

@ Press the #4 button

A selected file can be erased from a folder. Also, al files in a folder can be erased simultaneously.

El select the file you want to erase Us P.15).

El While the recorder is in stop mode, press the ERASE button.

+_ fan action is not selected within 8 seconds, the recorder will return to stop mode.

The display changes to [Erasing!] and erasing will start.

[Erased] is displayed when the file is erased

The locked files and iles set as read-only

cannot be erased (+= P.28)

You cannot delete folders through the

Replace the battery with a new one in

order to ensure that the battery will not

run out while processing. In addition, it

may take over 10 seconds to complete

processing. Never perform operations

such as the following while processing, as

they may damage the data

DRemoving the battery while

@Remove the microSD card during processing when [microSD card] is being used as the recording media {VN-713PC, VN-712PC only)

For VN-713PC, VN-712PC:

When a microSD card is inserted in the recorder, be sure to confirm the recording media as either [Internal memory]

or [microSD card] so that there is no

mistake (ex P.35) EN

Items in menus are categorized so that you can quickly set a desired item. You can set each menu item as follows

E Press the > OK button to move the cursor to the item to set.

E Press the + or - button to move to the item you want to set.

El Press the + or - button to move to the item you want to set.

UE Press the + or - button to change the setting.

E Press the > OK button to complete the setting.

+ Pressing the 4 button without pressing the > OK button will cancel the settings and return you to the previous screen.

El Press the STOP (18) button to

close the menu screen.

+ When in the menu screen during recording or playback, pressing the Hé button will allow you to return tothe recording or playback screen without interrupting recording or playback.

The recorder will stop if you leave idle for 3 minutes during a menu setup operation, when a selected item is not applied.

When entering menu settings during recording or playback, the menu settings will be canceled if 8 seconds elapse no buttons being pressed.

IFile Lock] G IProperty] IRec Level] IRec Mode]

Locking a file keeps important data from being accidentally erased. Locked files are not erased when you select to erase all files from a folder (ex P.25).

El select the file you want to lock.

El select [File Lock] from the menu

ILock} Locks the file and prevents it from being erased.

[Unlock]: Unlocks the file and allows it to be erased.

FA or vN715PC VN-712PC:

+ Only MP3 files recorded with this recorder can be divided.

Files with large capacities and long recording times can be divided so that they are easier to manage and edit.

El stop playback at the divide position.

E select [File le] fromthe menu on the [File Menu].

E Press the + button to select [Start], and then press the > OK button + (Di will appear and file

dividing will start. + File dividing is completed when [File divide complete] appears.

The recorder cannot divide files when the number of files in the folder exceeds 199.

Ia file has an extremely short recording time, it may not be divided even ifit is a MP3 file.

Locked files cannot be divided.

After splitting the file, the front part ofthe file will be renamed as [File name_1.MP3] and the latter part of the file will be named as [File name_2.MP3] Do not remove the battery while dividing aile. This may damage the data.

Select the files for which you would like to confirm information in advance before operating the menu.

El select [Property] from the menu on the [File Menu].

+ [Name] (File name), [Date] (Time stamp), [Size] (File size) and [Bit Rate] (File format) will appear on the display.

Recording sensitivity is adjustable to meet recording needs.

El select [Rec Level] from the menu

High} High recording sensitivity suitable for conferences with many participants and recording audio at a distance or low volume.

ILow Standard recording sensitivity suitable for dictation.

ET When you would like to clearly record a speakers voice, set [Rec Level] to [Low] and hold recorder built-in microphone close to the speakers mouth (5-10 cm)

Besides stereo* and monaural recording, you can also select recording with priority to sound quality, and recording with priority to recording time. Select the recording mode appropriate to your needs. SVNTIPC VN712PC only El select [Rec Mode] from the menu on the [Rec Menu]. When [MP3]* is selected: Stereo recording 1192kbps], [128kbps] Monaural recording

148kbps] *VN-71PC, VN-712PC only When [WMA] is selected:

Monaural recording 132kbps], [16kbps), [Skbps]

a Ia recording is made in stereo modes (192 kbps] or [128 kbps]), it will be à monaural recording through the built-in microphone, and the same audio will be recorded to both Left channel (Lch) and Right channel (Rch).

To record a meeting and lecture clearly,

set other than [5kbps] in [Rec Mode].

For VN-713PC, VN-712PC:

+ When an external monaural microphone is used while [Rec Mode] is set to a stereo recording mode, audio will be recorded tothe L channel only,

The recorder has a Low Cut Filter function to imize low-frequency sounds and record voices more clearly. El select (Low Cut Filter] from the menu on the [Rec Menu]. ton) Enables the Low Cut Filter function.

When the microphone senses that

sounds have reached a preset threshold volume level, the built-in Variable Control Voice Actuator (VCVA) starts recording automatically, and stops when the volume drops below the threshold level. The VCVA feature extends recording time and conserves memory by stopping recording during silent periods, which helps the playback to be more efficient.

El select IVCVAI from the menu on the [Rec Menu].

Ion]: Enables the VCVA function.

1off]: Disables this function. Will resume recording in normal mode.

B Adjust the start/stop actuation level:

EX Press the REC (@) button to start recording.

+ Whenthe sound volume is lower than the preset threshold sound level, recording automatically stops after 1 sec approximately, and [Standby] flashes on the display. The LED indicator light turns on when recording starts and flashes when recording pauses.

adjust the start/stop actuation level.

The VCVA level can be set to any of 15 different values.

The higher the value, the more sensitive the recorder will be to sounds. At the highest value, even the faintest sound wil activate recording

Ithe start/stop actuation level is not adjusted within 2 seconds, the display will return to the previous one.

To ensure successful recordings, prior testing and adjustment of the start/stop actuation level is recommended.

When using the [VCVA] function, the following functions are not available.

+ [V-Syne. Red] (ex P.31) (VN-713PC only)

Voice sync recording starts when a voice louder than the voice sync level (detection level) is detected. When the voice becomes low, recording will automatically stop. When voice sync recording is on and the input level is equal to or below the voice sync level (detection level) for a period of at least the specified detection time, the recorder will return to the standby mode or stop mode.

El select [V-Sync. Rec] from the menu on the [Rec Menu].

El selectthe setting.

When [On/Off]is selected:

Ion]: Enables the Voice sync recording function ff]

Disables this function

When [V-sync time] is selected:

H sec.] [2 sec.] [3 sec.] [5 sec.] [10 sec.}: Ifthe input (recording level) is equal to or below the specified level for longer than the specified detection time, the recorder will return to the standby mode or stop mode.

When [Mode] is selected:

[One Time: Closes the file after recording and returns to stop mode

[Continuous] Closes the file after recording and returns to recording standby mode Isound is subsequently detected, recording will start with à new file.

H Adjust the voice sync level:

EX Press the REC (@) button to start recording.

CRE El Press the 1 or@4 button to adjust the voice sync level.

+__ The voice sync level can be set to any of 15 different values.

The higher the value, the more sensitive the recorder will be to sounds. At the highest value, even the faintest sound wil activate recording

GE Press the REC (@) button again. The recorder will go into standby. IStandby] will flash on the display and the LED indicator light will flash. When the input is at or above the voice sync level, recording will start automatically.

+_lfsound at a volume equal to or below the voice sync level continues for the specified time, voice sync recording will end automatically, and the recorder will return to the recording standby mode or stop mode. Every time the recorder enters standby mode, the file will be closed and recording will continue in a new file.

To stop the recorder during voice sync recording, press the STOP (I button.

+ When using the [V-Sync. Rec] function, the following functions are not available. + [VCVAI (ex P.30)

A recording setting can be selected

from among the [Memo], [Meeting], [Conference] or [DNS] templates to suit the recording scene or situation. You can also save a recording setting of your choice.

El select [Rec Scene] from the menu on the [Rec Menu].

El Press the + or - button to select the item to set, and press the > OK button.

When [Select] is selectec Press the + or - button to select the recording scene you want to set, and then press the OK button.

[Off] Disables this function.

[Memo}: Suitable for dictation.

[Meeting]: Suitable for recording meetings.

[Conference]: Suitable for seminars with a small number of people.

IDNS}: Suitable for voice recognition software (Dragon NaturallySpeaking) compliant recording

[User Setting]: Recording with menu settings saved using [Register]

When [Register] is selected: + _ You can save the current [Rec Menu] menu settings in [User Setting]

When a recording scene is selected, recording-related menu settings cannot

be changed. f you wish to use these HA rrn7upc vN-712pc: functions, set [Rec Scene] to [Off].

The recorder has a Voice Filter Function to cut low and high frequency tones during normal, fast, or slow playback, and enable

Play Menu clear audio playback.

D noise cancel | E select [Voice Filter] from the

menu on the [Play Menul]. (On): H For VN-713PC: Enables the Voice Filter function. loff]:

Disables this function.

recorded audio is difficult to understand because of noisy surroundings, adjust the

Noise Cancel setting level. + When using the [Voice Filter] function,

El select INoise Cancel] from the the following functions are not available. menu on the [Play Menu]. + [Noise Cancel] (VN-713PC only) THigh] [Low]: Enables the Noise Cancel function. Noise will be reduced in the D PlayMode | file when it's played back for better sound quality. You can select the playback mode that fits 1Off]: Disables this function. your preference. El select {Play Mode] from the menu on the [Play Menu]. When [Playback range] is selected:

poyou Buyures nuoyy |

+ When using the [Noise Cancel] function, the following functions are not available. fFile] + Slow/Fast speed playback (= P.21) Selects the current file. + [Voice Filter] (VN-713PC, VN-712PC {Folder only) Selects the current folder. When [Repeat] is selected: {On}: Sets to repeat playback mode. loff]:

Disables this function.

+ In [File] mode, when the recorder comes to the end of the last file in the folder, End) flashes for two seconds on the EN display and the recorder stops at the start ofthe last file. 33

In [Folder] mode, when the recorder comes to the end of the last ile in the folder, [End] flashes for two seconds on the display and the recorder stops at the start ofthe first file in the folder.

This function enables you to skip (forward) orreverse skip (rewind) a file being played for a set period. This function is convenient for quickly skipping to another playback position or repeatedly playing back short phrases.

El select [Skip Space] from the menu on the [Play Menu].

When [Forward Skip] is selected: [File Skip] [10 sec. Skip]

[File Skip] [1 sec. Skip]

[10 sec. Skip) [30 sec. S H0 min. Sp)

there is an index mark/temp mark or a cue closer than the skip space, the recorder will forward skip/reverse skip to that position

E Forward/Reverse Skip Playback: El Press the > OK button to start playback.

El Press the 1 or@4 button. + The recorder will skip (forward) or reverse skip (rewind) a set space and start playing back.

Changing the displayed character size on the display.

El select [Font Size] from the menu on the [LCD/Sound Menu]. [Large]:

Text is displayed in large characters. [Small]: Text is displayed in small characters.

+ When the [Font Size] is set to [Small], the layout ofthe display will change so that more information is displayed (ex P.9)

Display contrast can be adjusted in 12 levels.

E select [contrast] from the menu on the [LCD/Sound Menu].

+ You can adjust the LCD display contrast level from [01] to [12].

You can set it so the LED indicator light does not turn on

E select (LED] from the menu on the [LCD/Sound Menu]. CN LED light will be set. toff] LED light will be canceled.

The recorder beeps to alert you to button operations or warn you of errors. System sounds may be turned off.

El select IBeep] from the menu on the [LCD/Sound Menu]. On} Enables the Beep function. toff]

f Disables this function

You can select the display language for this recorder.

El select ILanguage(Lang)] from the menu on the [LCD/Sound Menu].

TEnglish] [Français] [Deutsch] [K LEspañol] [Pycckuü]

+ The selectable languages differ depending on the region.

When a microSD card is inserted you can select to record to either the internal memory or to the microSD card (ex P.13).

El select [Memory Select] from the menu on the [Device Menu]. [internal memory]:

Internal memory. [microSD card): microSD card.

Ifthe current time and date is not correct,

El select [Time & Date] from the menu on the [Device Menu].

+ See"Setting [Time & Date]

This returns the functions back to their initial settings (factory default)

Menu settings after resetting

IV-Syne. Rec}"3 (On/off] IV-synctime] [Mode]

tof] sec. {Continuous] tof]

#2 VN-7TIPC onby. +3 VN-713PC only.

Hyou format the recorder, all files will be removed and all function settings will return to defaults except date and time settings. Transfer any important files to a computer before formatting the recorder.

E select [Format] from the menu on the [Device Menu]. For VN-711PC: Proceed to the operation of step 3

El Press the + or - button to select the recording media to format, and press the OK button.

E Press the + button to select [Start], and press the OK button.

Al data will be erased

+ After [All data will be erased] message is on for two seconds, [Start] and [Cancel] will turn on.

E Press the + button again to :

select [Start], and press the > OK

+ Formatting begins and [Formatting!] flashes on the display.

+_ [Format done] appears when formatting ends.

(Pornat ARE YOU SURE?

Formatting on the recorder will be Quick Format. If you format the microSD card, information of file management

is refreshed and the data inside the microSD card is not deleted completely. When handing over and disposing the microSD card, be careful about the

data leakage from the microSD card

We recommend the microSD card to be destroyed when ou dispose the microSD card.

BH rorvn73Pc, vN-712pc:

The recordable capacity remaining and overall capacity of the recording media can Never format the recorder from a PC. be seen from the menu.

When the recorder is formatted,al the [] select [Memory Info.]fromthe

saved data, including locked files and read-only files, are erased.

Replace the battery with a new one in order to ensure that the battery will not run out while processing. In addition, it may take over 10 seconds to complete processing. Never perform operations such as the following while processing, as

they may damage the data. @Remove the microSD card during You can check the recorder's information on

processing when [microSD card] is

menu on the [Device Menu].

The recorder will use some capacity of the memory to keep the management file. For microSD card, the remaining capacity will be shown less than the total capacity ofthe card due to characteristic ofthe microSD card, but this is not a malfunction.

being used as the recording media El Select [System Info.] from the

{VN-713PC, VN-712PC only).

For VN-713PC, VN-712PC:

When a microSD card is inserted in the recorder, be sure to confirm the recording media as either [Internal memory]

or [microSD card] so that there is no mistake (ex P.35).

menu on the [Device Menu]. [Model] (Model Name), [Version] (System version) and [Serial No.] (Serial Number) appear on the display.

Using the recorder on your PC Apart from using this unit as a recorder, you can use it as an external memory for your computer, as a storage device.

+ _ The files recorded by this recorder can be played back on your computer using Windows Media Player. You can also transfer the WMA files downloaded with Windows Media Player to your recorder and listen to them (excluding files with copyright protection).

Operating environment

Operating System: Microsoft Windows XP/Vista/7 (Standard Installation)

Windows PCs equipped with more than one free USB port

Operating System: Mac OS X 104.11 - 10.7 (Standard Installation)

Compatible PCs Apple Macintosh series equipped with more than one free USB port

+ _ This is an operational environment for saving the files recorded by this recorder to your PC with USB connection.

The support service will not cover if your PC has been updated from Windows 95/98/Me/2000 to Windows XP/Vista/7. Any failure on a self-modified PC will not be covered under the operational warranty.

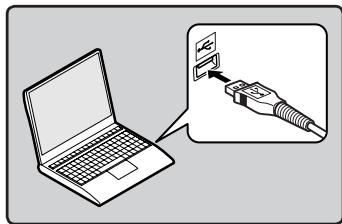

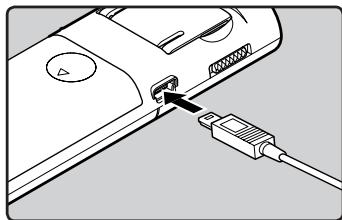

Connecting to your PC El 8ootthe pc. El connect the USB cable to the USB

Make sure that the recorder is stopped, and then connect the USB cable to the connecting port on this recorder.

+ [Remote] is displayed on the recorder ifthe USB cable is connected. Windows:

When you connect the recorder to Windows and open [My Computer], itwill be recognized by the drive

name ofthe product name. Inserting a microSD card will allow you to use it as [Removable Disk]

Macintosh: When you connect the recorder to

Mac O$, it will be recognized by the drive name ofthe product name on the desktop. fa microSD card is inserted, [Untitled] will be displayed

Refer to the user's manual for your PC regarding the USB port on your PC.

Be sure to push the cable connector all the way in. Otherwise, the recorder may not operate properly.

When connecting the recorder through an USB hub the operation may become unstable. In such cases, refrain from using a USB hub

Be sure to use the included dedicated USB cable. any other company's cable is used, it may lead to malfunction of the recorder. Also, never use this dedicated cable with any other company's products.

Disconnecting from your PC El click [#1 on the task bar located atthe lower-right corner of the screen. Click [Safely remove USB Mass Storage Device].

The drive letter will differ depending

on the PC being used.

When the window indicating that it

is safe to remove hardware window

appears, close the window.

El confirm that the recorder LED indicator light is gone before disconnecting the USB cable.

Using the recorder on your PC

ü Drag and drop the recorder's ive icon for this recorder displayed onthe desktop to the

El confirm that the recorder LED indicator light is gone before disconnecting the USB cable.

+ NEVER disconnect the USB cable while the LED indicator light is flashing. If you do, the data may be destroyed

In the Mac OS operational environment, WMA format files cannot be played back.

34 imof uo 18pao>o1 ou Bus

Nothing happens when a button is pressed.

The POWER/HOLD switch may be set to [HOLD] position.

The batteries may be depleted The batteries may be inserted incorrectiy.

No sound or quiet sound is heard from the speaker while

playing back. + The earphone plug may be plugged into the recorder.

+ The volume may be set tothe minimum level.

Recording is not possible.

+ Bypressing the STOP (I) button repeatedly while the recorder stops, check ifthe display shows: +" The remaining recording time may have reached [00:00]. Check ifthe display shows {Memory full] by pressing the REC (@) button. Check ifthe display shows {Folder full] by pressing the REC (@) button.

The playback speed is too fast (slow).

+ The recorder may be set to fast (slow) Playback

Accessories (optional)

Accessories exclusive to the Olympus voice recorder can be purchased directly from Online Shop on our company's website. Sales of accessories are different according to the country.

© Stereo microphone: ME51S

© Compact zoom microphone {unidirectional): ME32

© Highly sensitive noise- cancellation monaural microphone (unidirectional):

ME52W Carrying case: CS131

MH Sampling frequenc

MP3 format 192kbps aaïktz 128kbps aaïkHz 48kbps aaïktz WMA format 32Kbps aaïkHz 16kbps 22kHz 5 kbps kr

*VN-713PC, VN-712PC only MH Maximum working output: 250 mW (8 Q speaker) M Maximum headphone output: £150 mV (according to EN 50332-2) M Wide band characteristic headphone output: 75 mV=£ (according to EN 50332-2) M Recording medium: Internal memory. VN-713 PC:4GB VN-712 PC, VN-711 PC:2 GB microSD card*: 2GB to 32 GB *VN-713PC, VN-712PC only M Speaker: Built-in o 28 mm round dynamic speaker H MICjack: 8 3.5 mm mini-jack, impedance 2 kQ M EAR jack: 8 3.5 mm mini-jack, impedance 8 Q or more Æ Input power requirement: AAA battery (LRO3)

M External dimensions: 108 mm x 39 mm x 16.8 mm {without protrusions)

71 g (including batteries)

H Operating temperature:

0°C-42°C/32°F - 107.6°F Frequency response

M During recording mode

{Microphone jack] MP3 format* 192 kbps Toto IDE 128 kbps TO HEto 17 KE A8kbps TO Hzto 10kz WMA format 32 kbps Toto Be 16kbps ToHzto7ke Skbps ToHetoskte

*VN-713PC, VN-712PC only

M During recording mode (Built-in microphone): 70 Hz to 16 kHz (However, when recording in the MP3 format or the WMA format, the upper limit value of the frequency response depends on each recording mode)

M During playback mode: 70 Hzto 19 kHz

The following values are strictly references: M Alkaline batteries:

Built-in microphone arphone Recording mode (During recording (During playback mode) mode) MP3 format* | _192kbps 53h. 60h. WMA format | Skbps Ph. En

*VN-713PC, VN-712PC only

+ Battery life is measured by Olympus. It varies greatly according to the type of batteries 42 usedandthe conditions of use.

The following values are strictly references:

Guide to recording times

#1 VN-713PC, VN-712PC only *2 Rec Scene

available memory depending on the microSD card

Available recording time may be shorter if many short recordings are made {The displayed available recording time and recorded time are approximate indications) Variations in the available recording time will arise as there may be differences in the

+ _ The maximum capacity for a single file is limited to approx. 4 GB for WMA and MP3.

+ Regardless of the memory remaining amount, the longest sound recording time per file is restricted to the following

value. E MP3 format 192 kbps approx. 49 h. 40 min. 128 kbps approx. 74h. 30 min, a8kbps approx. 198 h.40 min.

*VN-713PC, VN-712PC only

BE WMA forma: 32kbps approx. 26 h.40 min 16kbps approx. 53 h.40 min 5kbps approx. 148 h. 40 min. pnse approx. 26h. 40 min * Rec Scene [ Specifications and design are subject to change without notice. )

Technical assistance and support

The following are contact information for technical support for Olympus recorders and software only. © Technical Hotline Number in the U.S. and Canada 1-888-553-4448 © User Support E-mail address in the U.S. and Canada distec@olympus.com © Technical Hotline Number in Europe Toll free number: 00800 67 10 83 00 available for Austria, Belgium, Denmark, Finland, France, Germany, Italy, Luxemburg, Netherlands, Norway, Portugal, Spain, Sweden, Switzerland, United Kingdom Charged numbers for the Rest of Europe +49 180 567 1083 +49 40 23773 4899 © User Support E-mail address in Europe dss.support@olympus-europa.com

For customers in Europe:

CE” mark indicates that this product complies with the European requirements for safety, health, environment and customer protection.

This symbol [crossed-out wheeled bin WEEE Annex IV] indicates separate collection of waste electrical and electronic equipment in the EU countries. Please do not throw the equipment into the domestic refuse. Please use the return and collection systems available in your country for the disposal of this product.

Applicable Product: VN-713PC/VN-712PC/VN-711PC This symbol [crossed-out wheeled bin Directive 2006/66/EC Annex li] indicates separate collection of waste batteries in the EU countries Please do not throw the batteries into the domestic refuse. Please use the return and collection systems available in your country for the disposal of the waste batteries

uodäns pue souessise poupe |
