USER MANUAL DM-3, DM-5, DM-650, DM-670 OLYMPUS

DIGITAL VOICE RECORDER DM-5 DM-3

DETAILED INSTRUCTION Thank you for purchasing an Olympus Digital Voice Recorder. Please read these instructions for information about using the product correctly and safely. Keep the instructions handy for future reference.

To ensure successful recordings, we recommend that you test the record function and volume before use.

+ The contents ofthis document may be changed in the future without advanced notice Contact our Customer Support Center for the latest information relating to product names and model numbers.

+ The screen and recorder illustrations shown in this manual were produced during the development stages and may differ from the actual product, The utmost care has been taken to ensure the integrity of the contents of this document. In the unlikely event that a questionable item, error, or omission is found, please contact our Customer Support Center.

+ Any liability for passive damages or damage of any kind occurred due to data loss incurred by a defect of the product, repair performed by the third party other than Olympus or an Olympus authorized service station, or any other reason is excluded.

Trademarks and registered trademarks

+ IBM and PC/AT are the trademarks or registered trademarks of International Business Machines Corporation.

+ Microsoft, Windows and Windows Media are registered trademarks of Microsoft Corporation.

+ Macintosh and iTunes are the trademarks of Apple Inc.

+ microSD and microSDHC are the trademarks of SD Card Association.

+ MPEG Layer-3 audio coding technology licensed from FraunhoferIS and Thomson.

+ EUPHONY MOBILE" is a trademark of DiMAGIC Corporation.

+ DVM is a trademark of DiMAGIC Corporation.

+ The product was developed based on noise-canceling technology under license from NEC Corporation.

+ Nuance, the Nuance logo, RealSpeak and VoCon are trademarks or registered trademarks of Nuance Communications, Inc. or its subsidiaries in the United States and/or other countries.

+ The Daisy OK marks a trademark of the Daisy Consortium.

Other product and brand names mentioned herein may be the trademarks or registered

trademarks of their respective owners.

Introduction INDEX Safety precaution:

Caution for usage environment Handling the recorder… Battery handling precautions . ACadapter. LCD monito

1 Getting started Main feature Identification of parts

IHome] menu display. [Recorder] mode display [Music [Podcast] mode display. [Audiobooks] mode display. Audio Diary] mode display Power supply Inserting the batter) Charge the battery. Charging by connecting to à computer via USB... nn 2 Connect to the USB connecting AC adapter optional) to charge. Turning on/offthe power. HOLD. Setting time an Changing the time and date. Inserting and ejecting a microSD card Inserting a microSD card. Ejecting a microSD car Notes on the folders About the folders for voice recordings. About the folder for music playback: About the folder for Podcast contents. About the folder for electronic book contents and text files …… About the folder for Audible contents . About the folder for picture

Recording Recording to recording folder. Specfying a keyword before recordin Recommended settings by recording

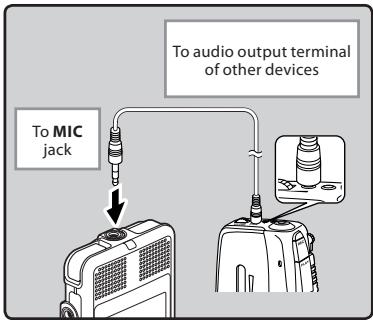

condition. Recording from external microphone or other devices …

Playback . Bookmark mode. Setting an index mark. Cearingan index mark . Howto begin segment repeat playback .

Filesearch.. Opening the fil search display from the

Erasing. Erasing from the il display. Erasing from the ile list display. Erasingal files in folder. Erasinga folder. Partialy rase ile.

Menu setting method. Making settings from [Preferences] on the [Home] screen Performing menu settings during recording, playback, and stop modes.… ST Rec Menu. ST Play Menu. T LCD/Sound Menu: ŸT File Menu. ŸT System Menu.

Setting the recording scene [Rec Scene] Timerrecording[Timer Rec] Setting the playback scene [Play Scene] Guidance [Voice Guide). Alarm playback function [Alarm] Moving/Copying fils [File Move/Copy] Dividing files [File Divide]…. Formatting the recorder [Format] Schedule settings [Audio Diary] . Displaying the calendar. Switching the calendar display. Operations at the calendar displa Add a schedule… Editng the schedule. Deleting a schedule. Formatting the schedule. Viewing images (For DM-5) . Importing images Viewing image: Erasing a images Using voice recognition (For DM-5). Using voice control. Using voice commands..

4 Using the Olympus Sonority

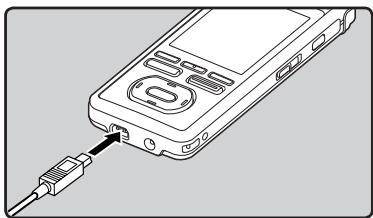

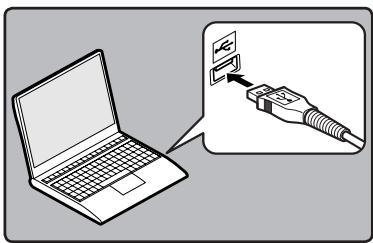

Connecting to your PC. Connecting to your PC. Disconnecting rom your PC.

Functions available in the Olympus Sonority

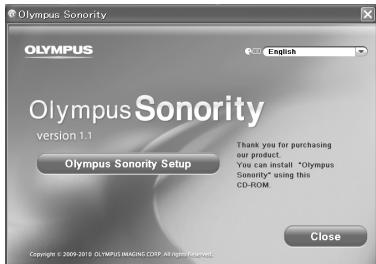

Installing software .

Running Olympus Sonority .

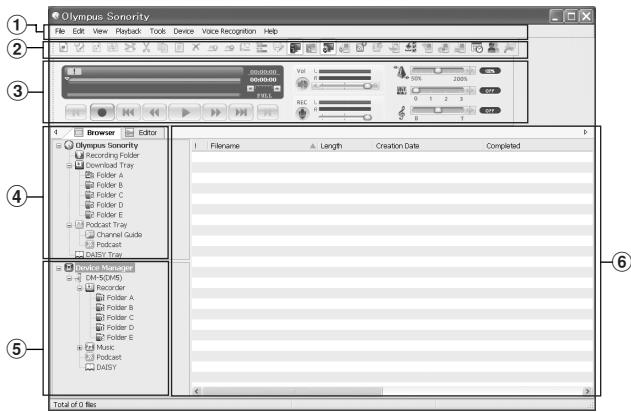

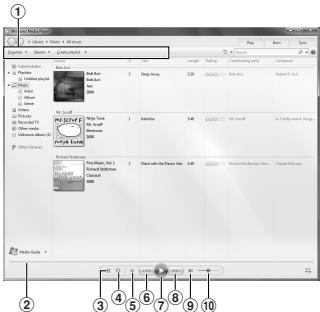

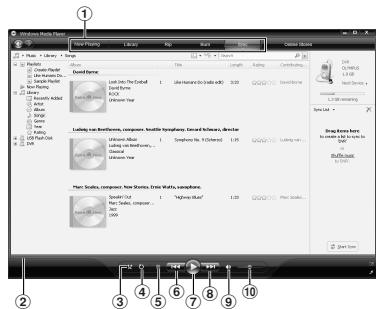

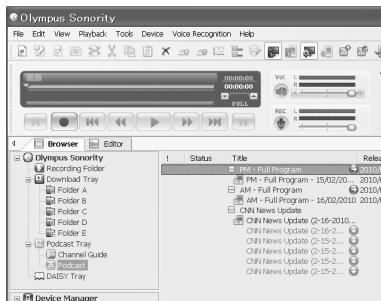

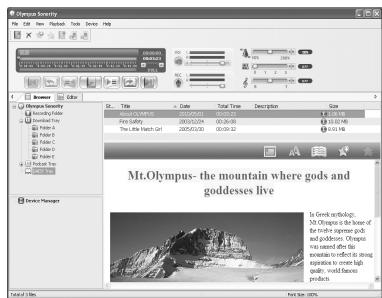

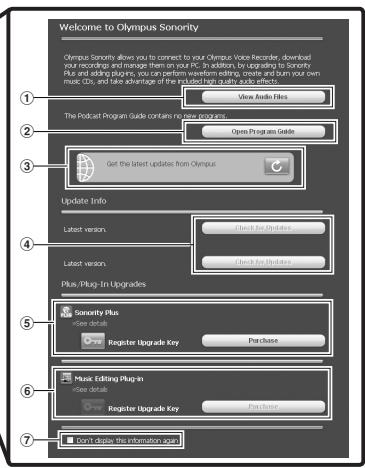

Window names (Olympus Sonority)

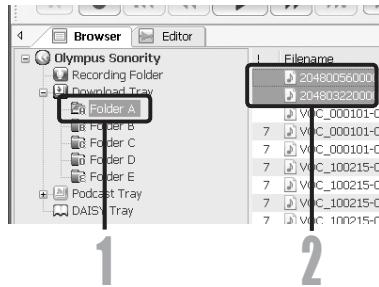

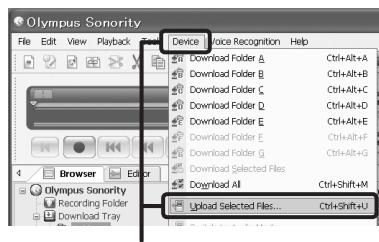

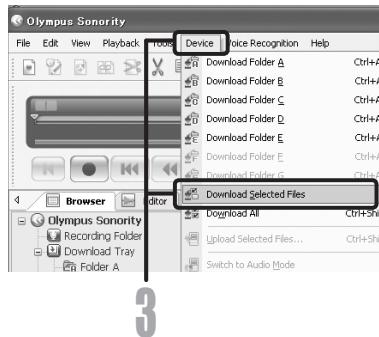

Download voice files from the recorder

Usingthe one-touch effect fun Upload voice files to the record! About Podcast Register a podcast program. Update a program Download the content … Transfer content to the recorder Program guide functions About DAISY (For DM-5). Importing contents. Playing contents. Transfer content to the recorder Upgrade functio: Functions available the Olympus Sonor Functions available with the ing plug About Windows Medi Using Windows Media Player Window names … Copying music from CD. Transfering music file to the recorde: Copying voice file to the CD. Creatinga playlist (For DM-5)

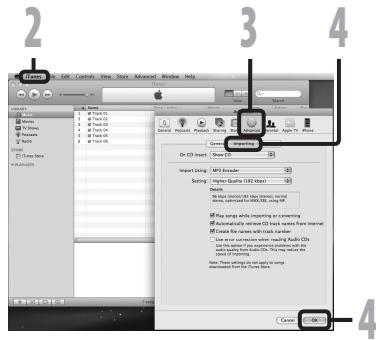

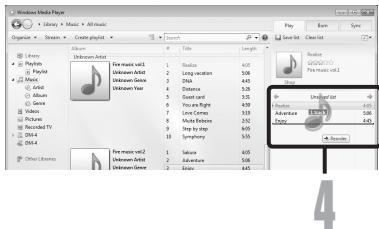

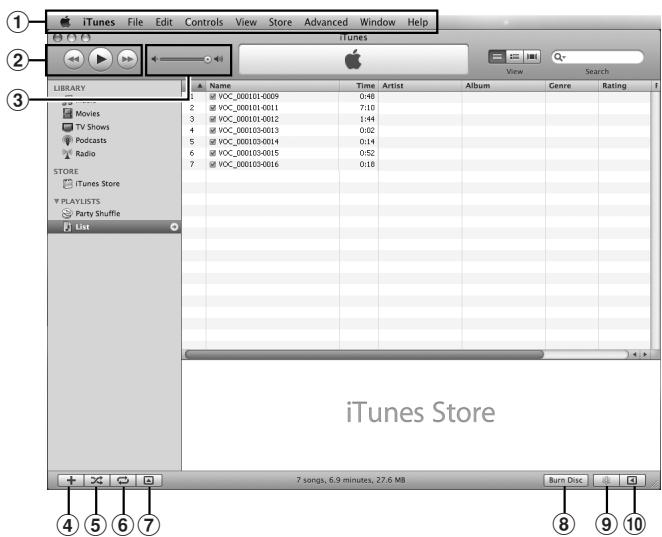

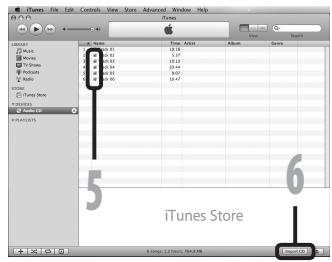

UsingiTunes. Window names 150 Copying music from CD. 151

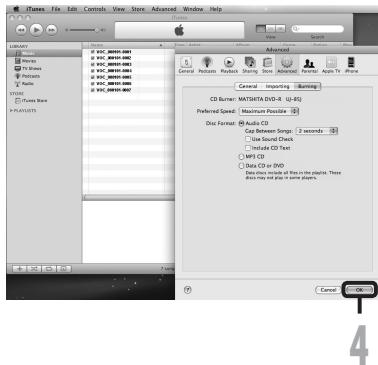

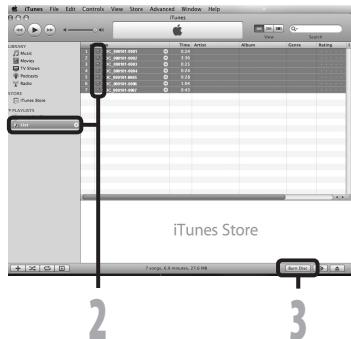

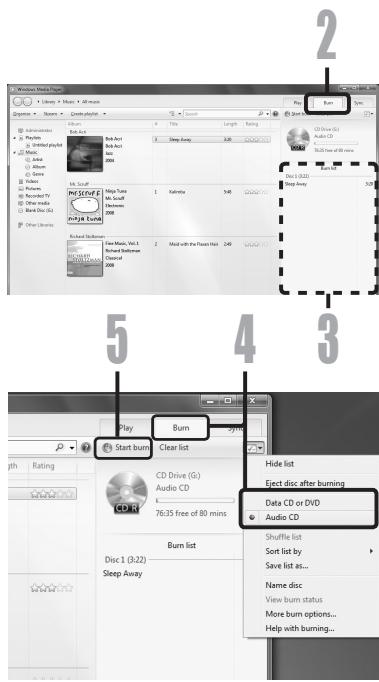

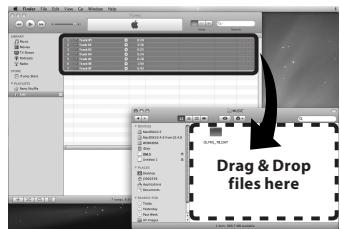

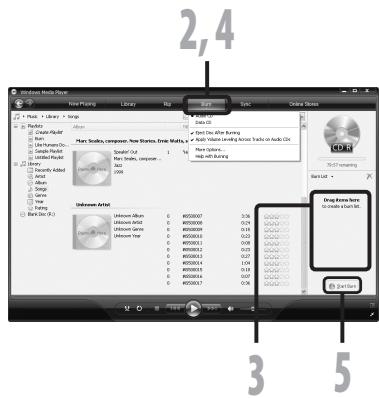

Transfering music file to the recorde: Copying voice file to the CD... Other features Playing songs in a particular ordel Creating a playlist … About Audio Books Transfer content to the recorder About Text Speech (For DM-5). Transfer tent file to the recorder Loading Audible content

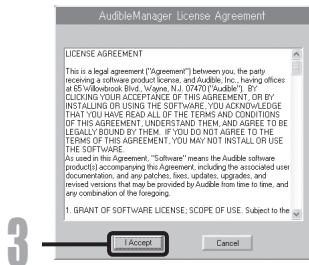

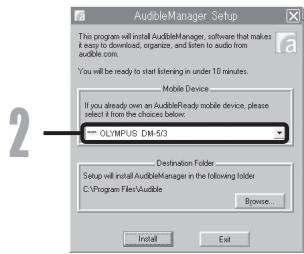

Instaling AudibleManager … Adding device to AudibleManage: Purchasing Audible content

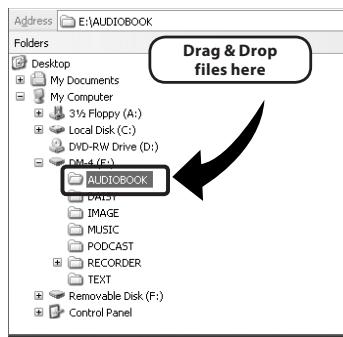

Transferring Audible content.

Enjoy Audible content with the recorder Audible mode Playback position and section. Operating recorder in Audible mode

Using as external memory ofthe P

8 Other information Alarm message list

Specifications Technical assistance and support

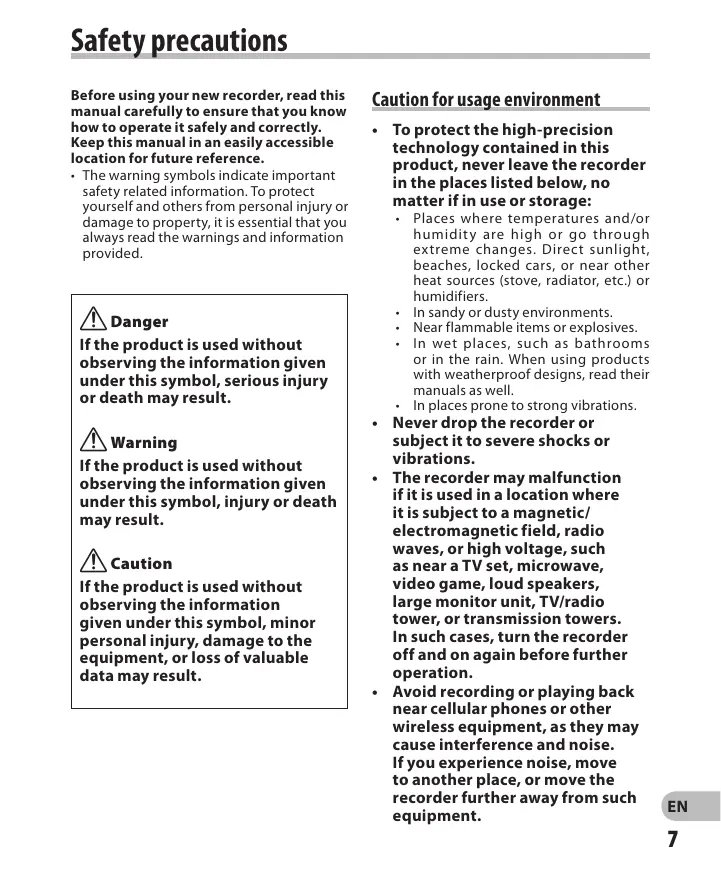

Before using your new recorder, read this manual carefully to ensure that you know how to operate it safely and correctly. Keep this manual in an easily accessible location for future reference.

+ The warning symbols indicate important safety related information. To protect yourself and others from personal injury or damage to property, it is essential that you always read the warnings and information provided.

Ifthe product is used without observing the information given under this symbol, serious injury or death may result.

Ifthe product is used without observing the information given under this symbol, injury or death may result.

Ifthe product is used without observing the information given under this symbol, minor personal injury, damage to the equipment, or loss of valuable data may result.

Caution for usage environment

To protect the high-precision technology contained in this product, never leave the recorder in the places listed below, no matter if in use or storage:

Places where temperatures and/or humidity are high or go through extreme changes. Direct sunlight, beaches, locked cars, or near other heat sources (stove, radiator, etc.) or humidifiers.

In sandy or dusty environments.

Near flammable items or explosives. In wet places, such as bathrooms or in the rain. When using products with weatherproof designs, read their manuals as well.

In places prone to strong vibrations. Never drop the recorder or subject it to severe shocks or vibrations.

The recorder may malfunction ifitis used in a location where itis subject to a magnetic/ electromagnetic field, radio waves, or high voltage, such

as near a TV set, microwave, video game, loud speakers,

large monitor unit, TV/radio tower, or transmission towers.

In such cases, turn the recorder off and on again before further operation.

Avoid recording or playing back near cellular phones or other wireless equipment, as they may cause interference and noise.

If you experience noise, move

to another place, or move the recorder further away from such equipment.

+ Do not use organic solvents such as alcohol and lacquer thinner to clean the unit.

Recorded content in memory may

be destroyed or erased by operating

mistakes, unit malfunction, or dun

recommended to back up and save

portant content to other media such as

damage of any kind occurred due to data loss incurred by a defect of the product, repair performed by the third party other than Olympus or an Olympus authorized service station, or any other reasons is excluded from the Olympus’ liabilit,

Handling the recorder

Do not use the recorder near flammable or explosive gases.

+ Keep young children and infants away from the recorder. Always use and store the recorder out of the reach of young children and infants to prevent the following dangerous situations which could cause serious

{ strap, causing strangulation. @Accidentally swallowing the battery, . cards or other small parts. @Accidentally being injured by the moving parts of the recorder. + Do not use or storethe recorder in dusty or humid places. + Do not disassemble, repair or modify the unit yourself.

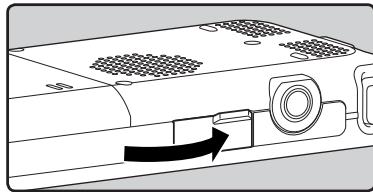

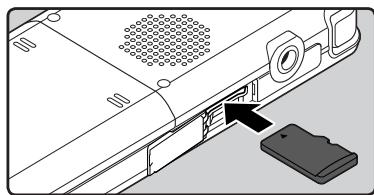

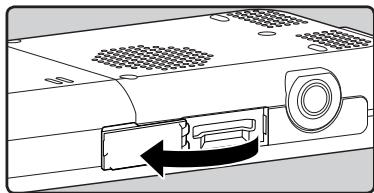

Use microSD/microSDHC memory cards only. Never use other types of cards.

Ifyou accidentlyinsertanothertype of card into the recorder, contact an authorized distributor or service center. Do not try to remove the card by force.

Do not operate the unit while operating a vehicle (such as a bicycle, motorcycle, or go-cart).

Stop using the recorder immediately if you notice any unusual odors, noise, or smoke aroundit.

Never remove the batteries with bare hands, which may cause a fire or burn your hands

Be careful with the strap.

Be careful with the strap when you carry the recorder. It could easily catch on straÿ objects and cause serious damage

Do not leave the recorder in places where it may be subject to extremely high temperatures. Doing so may cause parts to deteriorate and, in some circumstances, cause the recorder to catch fire. Do not use the charger or AC adapter ifit is covered (such as a blanket) This could cause overheating, resulting in fire.

Handle the recorder with care to avoid getting a low-temperature burn.

+ When the recorder contains metal

parts, overheating can result in a low- temperature burn. Pay attention to the following: When used for a long period, the recorder will get hot. If you hold on to the recorder in this state, a low- temperature burn may be caused.

In places subject to extremely cold temperatures, the temperature of the recorder’ body may be lower than the environmental temperature. If possible, wear gloves when handling the recorder in cold temperatures.

+ Do not touch the metallic parts of the recorder for a long period of time at low temperatures.

This may damage your skin. At low temperatures, handle the recorder while wearing gloves.

Battery handling precautions

Follow these important guidelines to prevent batteries from leal overheating: buming, exploding: or causing electrical shocks or burns.

+ The recorder uses a lithium ion battery specified by Olympus. Charge the battery with the specified AC adapter or charger. Do not use any other AC adapters or chargers.

+ Batteries should never be exposed to flame, heated, short- circuited or disassembled.

+ Never heat orincinerate batteries.

+_ Take precautions when carrying or storing batteries to prevent them from coming into contact with any metal objects such as jewelry, pins, fasteners, etc.

+ Never store batteries where they will be exposed to direct sunlight, or subjected to high temperatures in a hot vehicle, near a heat source, etc.

+ To prevent causing battery leaks or damaging theirterminals, carefully follow all instructions regarding the use of batteries. Never attempt to disassemble a battery or modify it in any way, solder, etc.

+ Do not connect the battery

directly to a power outlet

or a cigarette lighter of an

If battery fluid gets into your

eyes, flush your eyes immediately

with clear, cold running water and seek medical attention immediately.

+ Keep batteries dry at all times.

+ rechargeable batteries have not been recharged within the specified time, stop charging them and do not use them.

+ Donotuse a battery ifitis cracked or broken.

+ Never subject batteries to strong shocks or continuous vibration.

+ Ifabatteryleaks, becomes discolored or deformed, or becomes abnormal in any other way during operation, stop using the recorder.

+ _ a battery leaks fluid onto your

g or skin, remove the

g and flush the affected

th clean, running cold

water immediately. fthe fluid burns your skin, seek medical attention immediately.

+ Keep battery out ofthe reach of children.

ice anything unusual

when using this product such as

abnormal noise, heat, smoke, or a

remove the battery immediately while being careful not to burn yourself,

and; @call your dealer or local Olympus representative for service.

Please recycle batteries to help save our planet's resources. When you throw away dead batteries, be sure to cover their terminals and always observe local laws and regulations. Always charge a battery when using it for the first time, or if

has not been used for a long period. Rechargeable battery have limited lifetime. When the operating time becomes shorter even if the rechargeable battery is fully charged under the specified condition, replace it with a new one. The battery may become hot during prolonged use. To avoid minor burns, do not remove itimmediately after using the recorder.

+ Besure to use the AC adapter with the proper voltage (AC 100 - 240 V). Using it with other voltage levels may cause fire, explosion, overheating, electric shock or injury.

For safety, be sure to unplug

the AC adapter from the outlet before performing maintenance or cleaning. Also, never plug in or disconnect the power plug with a wet hand. This may cause electric shock or injury.

+_ Do not attempt to disassemble, repair or modify the AC adapter in any way.

+ Keep foreign objects including water, metal, or flammable substances from getting inside the product.

+ Do not moisten the AC adapter or touch it with a wet hand.

+ Donotusethe AC adapterin the vicinity of flammable gas {including gasoline, benzine and lacquer thinner).

+.theinternal parts ofthe ACadapter are exposed because it has been dropped or otherwise damaged:

+.the AC adapteris dropped in water, or if water, metal flammable substances or other foreign objects get inside it:

+. you notice anything unusual when using the AC adapter such as abnormal noise, heat, smoke, or a burning odor:

(D do not touch any ofthe exposed parts;

immediately disconnect the power supply plug from the power outlet, and;

@ call your dealer or local Olympus representative for servicing. Continued use of the AC adapter under these circumstances could result in electric shock, fire or injury.

+ Do not use the AC adapterifthe power plug is damaged orthe plugis not completely connected to the outlet. This may cause fire, overheating, electric shock, short circuit or damage.

+ Unplug the AC adapter from AC outlet when not using. Ifthi precaution is not followed, fire, overheating or electric shock may occur.

+ Make sure to hold the plug when removing the power plug from the outlet. Do not bend the

This may cause fire, overheating, electric shock or damage.

+_Ifsomething appears to be wrong with the AC adapter, unplug the AC adapter from the outlet and consult your nearest service center. Using the AC adapter may cause fire, overheating, electric shock or injury.

+ Do not use or keep the AC adapter in very hot places, such as in direct sunlight, in a closed car on a sunny day, near a heater, on an electric carpet, etc. Do not use the AC adapter if something is covering it (such as a blanket). This may cause fire, explosion, leakage or overheating.

+ _ The LCD used forthe monitor is made with high-precision technology. However, black spots or bright spots of light may appear constantly on the LCD

orthe angle at which you are viewing the monitor, the spot may not be uniform in color and brightness. This is not a malfunction.

© Supports the linear PCM format, which is capable of recording sound quality equivalent to or surpassing CD-level. Capable of realistically recording various different sound sources.High resolution recording at a high sampling frequency equivalent or superior to that of a music CD (Sampling frequency 44.1 kHz, Bit count 16bit) is possible (ex P.67).

© Supports a wide range of recording formats. Can handle the MP3 format (MPEG-1 Audio Layer 3), and the Windows Media Audio (WMA) format (1 P.67). This device can save files in a highly compressed manner, thereby allowing for extended recording times. In addition, when connected to an external device, the recorder can encode incoming analog audio signals without a PC (ex P.45).

recording scene setting (&r P.81) and playback scene setting (+ P.85) functions to register the recording or playback sound quality or mode according to different usages.

© The guidance feature (in English and other languages) gives audio notification of operating conditions. Various functions can be operated easily. There is also a function to read file information aloud (++ P.85) (For DM-5).

© EUPHONY MOBILE has been included to produce a natural, realistic experience wi degrading sound quality (#5 P.71). Fast forward and rewind are possible at set intervals (55 P.73). Comes with “Olympus Sonority" software for Windows and Macintosh (1 P.109). If you transfer voice files recorded with the recorder to a PC, you can easily playback, organize, and edit the files. You can perform waveform editing, file joining, and file splitting. © The “Olympus Sonority" can be upgraded to a “Olympus Sonority", which is equipped with enhanced functionality (Option) (5 P.136). In addition to the "Olympus Sonority" functions, editing of MP3 files and creation of music CDs can be performed. © This recorder is compatible with USB 2.0, enabling fast data transfer to a computer. It has a USB charging function {5 P.23). Itis compatible with DAISY {5 P.132) (For DM-5). DAISY files can be transferred from the “Olympus Sonority” software and played from this recorder. Itis compatible with Audio Book (es P.157).

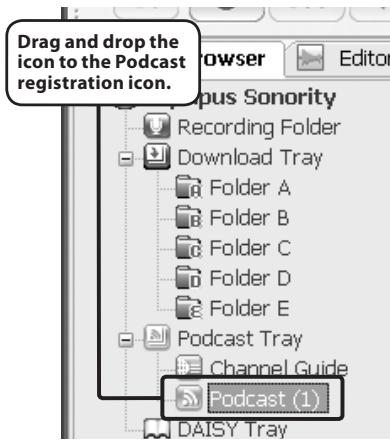

Itis compatible with Podcasting (x P.127).

If favorite Podcast URLS are registered in the "Olympus Sonority", the latest broadcasting content will be received automatically. Open the [Podcast] folder on the recorder to quickly listen to the program (file) transferred from the “Olympus Sonority”.

Compatible with Audible broadcasting (++ P.159).

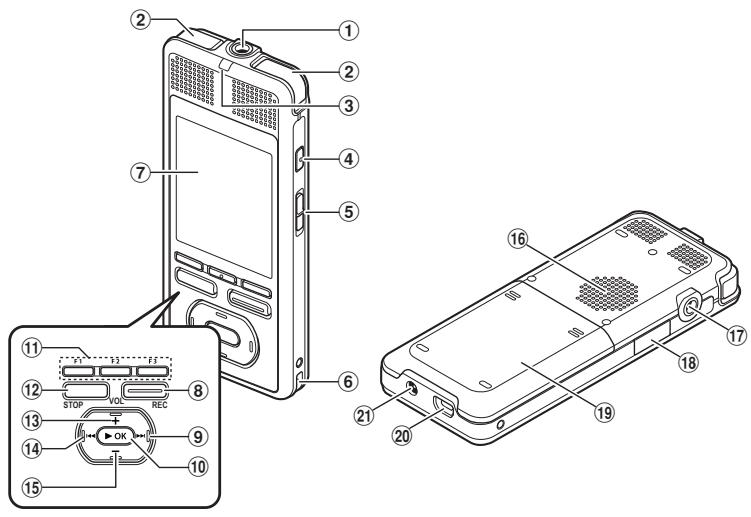

Identification of parts

(® Display(LCD Panel)

@ REC (Record) button

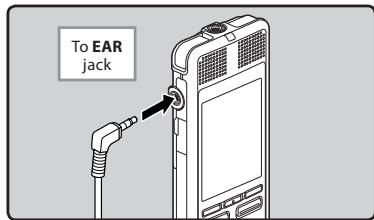

4 EAR (Earphone) jack 9 Card cover

Identification of parts

Whenthepoweristurmedon, the [Home] menus displayed. The [Home] menu provides links to various functions. For more details about these functions, refer to their respective page numbers below.

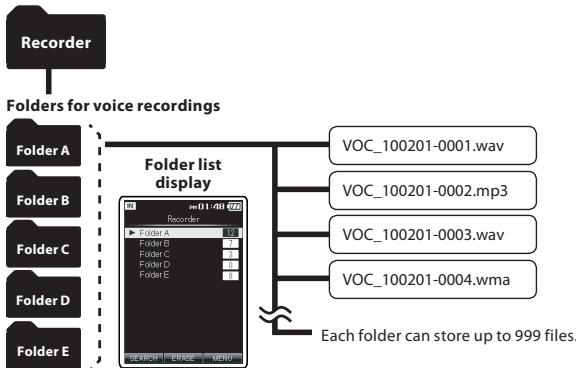

Menu Function Records files to one of five voice recording folders (Folder Recorder A through Folder E) (1x P.39). Recorded files can be tagged with keywords so that the files can be managed in a database (x P75)

Manages music files imported from music software such as A Music Windows Media Player and iTunes. This recorder can be used 5 a music player (ex P138, P.150)

@ Podcast Manages podcasts transferred to this recorder using the î supplied "Olympus Sonority” software (ex P.127). Manages DAISY books (++ P.132) (For DM-5) and Audio Books [auaiobooks {ex P.157) transferred to this recorder using the supplied “Olympus Sonority” software. Also manages text files (+= P.158) {For DM-5) directly transferred to this recorder.

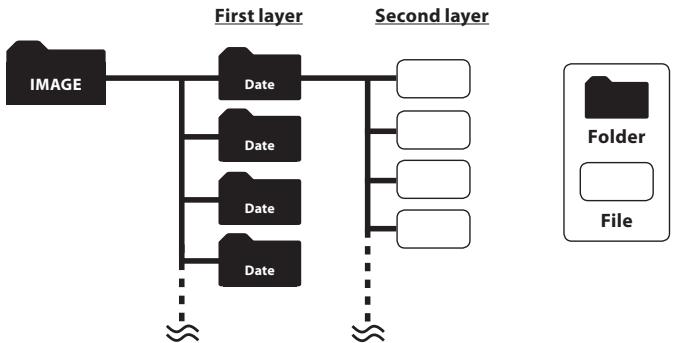

l You can import images by connecting a digital camera to this [Picture recorder (+ P.103) (For DM-5).

ft Preferences Sets various functions of the recorder.

Registers and manages schedules (+= P.96)

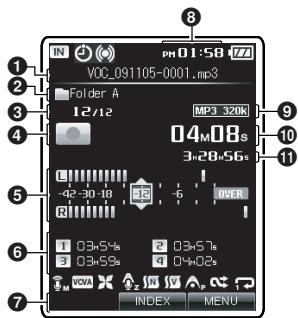

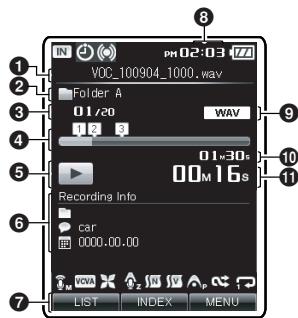

Identification of parts

® Remaining recording time

[BB] Memory indicator (O)

format © length © Elapsed playback time

Identification of parts

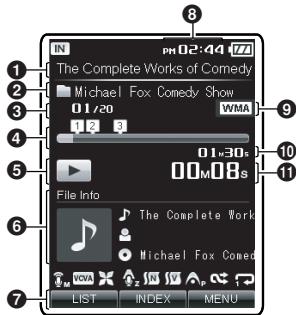

Podcast playback display

[Audiobooks] mode display

Identification of parts

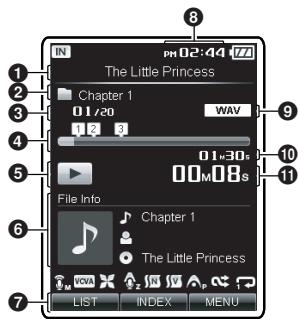

Audio book playback display

© File name @ Contents name © Current file number/Total number of recorded files in the folder @ Playback position bar indicator @ Recorder status indicator @ information display area @ Function guide indicator © Current time format © length © Elapsed playback time

Identification of parts

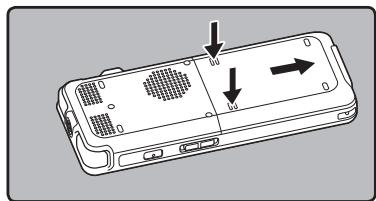

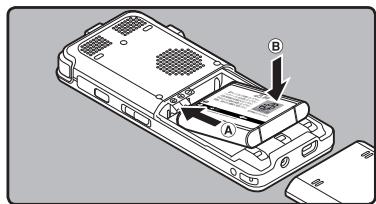

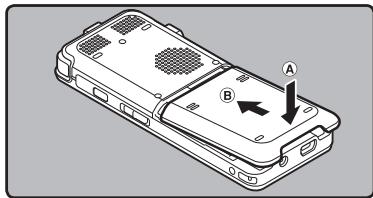

Inserting the battery

This recorder uses a lithium ion battery specified by Olympus (LI-50B). Do not use any other type of battery.

Æ while pushing down on the grooves using both thumbs, slide the battery cover in the direction indicated by the arrow.

With the back label of the battery facing up, line up the terminals of the recorder and battery. Insert the battery by sliding in direction (A) while pushing down in direction ®.

+ Be carefulofthe direction ofthe battery when inserting it

The supplied rechargeable battery is not fully charged. Before using the unitthe first time or after long periods of disuse, it is recommended that you charge it until full (x P.22).

Close the battery cover by sliding all the way in direction © while pushing down in direction (®.

+ Besureto stoptherecorderbeforereplacing the battery. Unloading the battery while the recorderis in use may corrupt the file. If you are recordinginto afile andthe battery runs out, youwill lose your currently recorded file because the file header will not be able to close.Itis crucial to change the battery once you see only one Hash mark in the battery indicator.

+ The battery cover is not attached at the time of purchase.

+ Do not use too much force when inserting the battery. Use only the method listed above to install and remove the battery. Otherwise, damage may occur.

fit takes longer than 15 minute to replace the dead battery or if you take the battery in and out repeatedly at short intervals, you may have to reset the time when you have loaded fresh batteries (sx P.28).

Remove the battery if you are not going to use the recorder for an extended period of time

When playing a voice/music file, the recorder may be reset due to the reduction of the voltage output ofthe battery depending on the volume level even if [fa] is displayed in the battery indicator. In this case, lower the volume of the recorder.

When replacing rechargeable battery, be sure to use lithium ion battery (LI-50B) specified by Olympus. The use of other manufacturers' products can damage the recorder and should be avoided.

this product, charge the suppl ium ion battery before using the recorder for the first time.

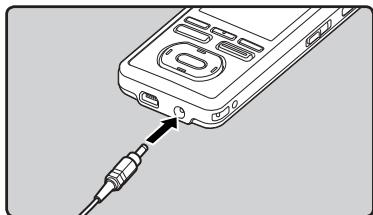

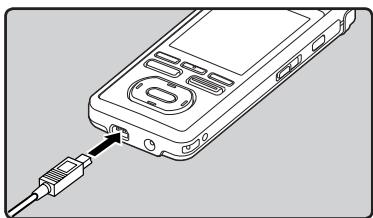

Charging using ACadapter

Theincluded ACadapter (A515) can be connected to this recorder for charging. We recommend using the AC adapter when recording or operating the recorder for long periods.

El connect the AC adapter in to an AC outlet.

Connect the AC adapter tothe recorder.

+ Charging has started when LED ndicator light is orange and the battery indicator on the display changes to the charging indicator.

+ Do not put in or take out the battery or AC adapter when the recorder power is on or when this recorder is connected to another device. It may cause problems with the values and functions set in the recorder.

+ The charger can be used withinthe range of AC 100 V to AC 240 V (50/60 Hz). When using the charger abroad, you may need a plug adapter to convert the plug to the shape of the AC wall outlet. For details, ask at your local electrical shop or travel agent

+ Donotuse travel voltage converters asthey could damage your charger.

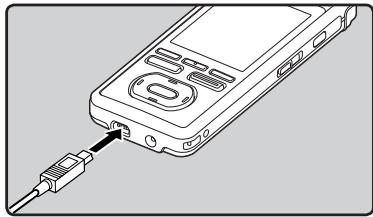

Charging by connecting to a

computer via USB You can charge the battery by connecting to a PC's USB port. When charging, be sure to correctly place the rechargeable battery (supplied) into the recorder (ea P.21).

Connect the USB connection cable to the USB port of the PC.

El while the recorder is during stop mode or hold mode, connect the USB cable to the connecting terminal on the bottom ofthis recorder. + Charging has started when LED ator light is orange andthe battery dicator on the display changes to the

Connect to the USB connecting AC adapter (optional) to charge

It can be charged by connecting to the USB connecting AC adapter (A514) (optional) Before connecting the AC adapter, switch the USB Connection setting to [ACI (+= P.77)

El Piug the AC adapter into AC outlet.

Plug the recorder's USB connecting cable into the AC adapter.

Make sure that the recorder is turned off, connect the USB cable to the connecting terminal on the bottom of this recorder.

+ Charging has started when LED indicator ightis orange and the battery indicator on the display changes to the charging indicator.

The recorder cannot be charged when the PCis not turned on. Also, it may not be charged when the PC is not switched on, orwhen it is inthe standby, hibernate or sleep mode.

+ Do not charge the recorder with the USB hub connected

+ Charging is completed when battery indication becomes [Ga] (charging time: approximately 3 hours *)

* I shows the approximate time when charging the rechargeable battery fully from no remaining power at the room temperature. The charging time will be changed depending on the remaining amount and the state of battery.

-_ You cannot charge when [@l"1 or [an"2 is displayed. Charge the battery atthe temperature from 5°C to 35°C (41°F to 95°F) #1 IG: When surrounding temperature is

#2 1@1l: When surrounding temperature is

+ When using time becomes notably short even after the battery are fully charged, replace them with new ones.

+ Be sure to push the USB connector all the way in. Otherwise, the recorder may not operate properly.

+ Be sure to use the attached dedicated

cable for the USB connection cable. If

any other company‘ cable is used, it may cause problems. Also, please do not connect this dedicated cable to any other company's product.

The battery indicator on the display changes asthe battery loses power.

When [C4] appears on the display, replace the battery as soon as possible. When the battery is too weak, [CI] and [Battery Low] appears on the display, the recorder shuts down.

+ While charging, the battery indicator constantly changes and does not show the actual amount of power remaining.

Cautions concerning the rechargeable batteries

Read the following descriptions carefully when you use the lithium ion battery (LI- 508)

Discharging: The rechargeable batteries self-discharge while this is not in use. Be sure to charge them regularly before use.

Operating temperature: The rechargeable batteries are chemical products. The rechargeable batteries efficiency may fluctuate even when operating within the recommended temperature range. This is an inherent nature of such products.

Recommended temperature range: When operating appliance: 0°C-42°C/ 32°F - 107.6°F Charging: 5°C-35°C/AVF-95°F Storage for a long period:

-20°C- 30°C/ -4°F - 86°F Power supply

Using the rechargeable battery outside the above temperature range may result in declining efficiency and shorter battery life. In order to prevent battery leakage or rust, remove the rechargeable battery from the products when you will not be using them for a long time, and store them separately.

+ This recorder is designed to fully charge batteries regardless of their energy level. However, for best results when charging newly purchased rechargeable batteries or batteries that have not been used for a long time (more than one month), itis recommended to fully charge the batteries then discharge repeatedly for 2 to 3 times.

+ When disposing rechargeable batteries, always observe the local laws and regulations. Contact your local recycling center for proper disposal methods.

+ lithium ion batteries are not fully

ischarged, protect against short

circuiting (e.g. by taping the contacts) before disposing.

For customers in Germany: Olympus has a contract with the GRS (Joint

Battery Disposal Association) in Germany to ensure environmentally friendly disposal.

Turning on/off the power

When the recorder is not being used, turn the power offto reduce battery consumption to a minimum. Even if the power is turned off, existing data, mode settings, and clock settings will be maintained!

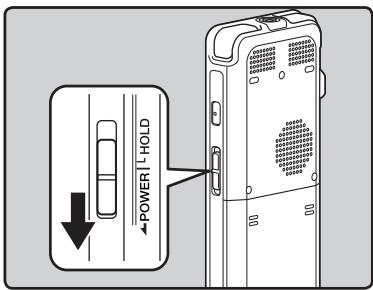

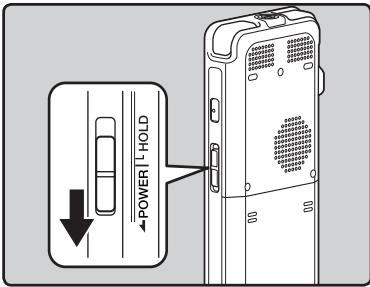

While the recorder is turned off, slide the POWER/HOLD switch in the direction indicated by the arrow for 2 seconds or longer.

+ The LED light will light up then power will be turned on and the display will turn on showing the OLYMPUS logo:

Turning offthe power

Slide the POWER/HOLD switch in the direction indicated by the arrow for 1 seconds or longer.

+ The display shuts off, and the power will be turned off.

the recorder is on and stops for 10 minutes orlonger (default setting) the recorder enters Auto Power offmode andturns offthe power. You can set the time to enter power save mode from among [5minutes], [T0minutes], (B0minutes], [1hour], [2hour], [3hour] and LOff] (ex P.77)

To exit Auto Power off mode , turn on the power again.

HOLD Hyou bring the POWER/HOLD switch to the HOLD position, the current conditions will be preserved, and all buttons and switches will be disabled. This feature is useful when the recorder has to be carried in a bag or pocket Also, you can stop to prevent accident during recording,

Setthe recorder to HOLD mode

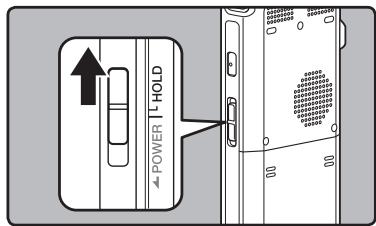

Slide the POWER/HOLD switch to the HOLD position.

+ After [Hold] appears on the display, the recorder is set to HOLD mode.

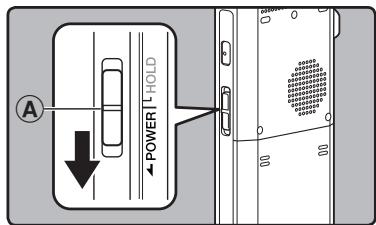

Slide the POWER/HOLD switch to the @) position.

you press any button in Hold mode, the LED indicator light flashes blue but no operation is performed

IHOLD is applied during playback (recording), operation is disabled with the playback (recording) state unchanged (When playback has ended and the recording has ended due to the remaining memory being used up, it will stop).

Ê 5 d ë Ê È È ë 3 3 È è E LA

you set the time and date beforehand, the information when the file is recorded is automatically stored for each file. Settingthe time and date beforehand enables easier file management.

When you use this recorder for the time after purchasing, or when

when exchanging batte: [Set Time & Date] will appe:

the “hour” is flashing, conduct the setup from Step 1.

El Press the 1 or #4 button to

select the item to set.

+ Selectthe item from the “hour”, minute”, “year”, "month" and "day" with a flashing point.

Setting time and date [Time & Date]

+ Followthe same steps by pressing the D>-B-1 or #4 button to select the next item, and press the + or — button to set.

You can select between 12and 24 hour display by pressing the F2 (24H) button while setting the hour and minute.

Example: 10:20 P.M You can selectthe order ofthe”month", “day” and year” by pressing the F2 (M/D/Y) button while setting them. Example: April 15, 2010

2010+ au 150 <—— {initial setting)

Press the OK button to

complete the setting.

+ _ The clock will start from the set date and time. Press the b-OK button according to the time signal

+ you press the OK button during the

setup operation, the recorder will save the items that were set to that point.

+ After setup, a message will sound saying

that ifthe guidance is not required, select Off], and the display goes into [Voice Guide] (+ P.85) setup. f you don't want the guidance feature, select [Off]

Setting time and date [Time & Date]

Changing the time and date

Ifthe current time and date is not correct, set it using the procedure below.

The voice control function can

be used with this setting {x P.107) (For DM-5).

E select [Time & Date] from the menu on the [System Menu].

+ Fordetailsonhowtoenterthemenu settings, please see "Menu setting method” (#P. 65).

Press the 1 or #4 button to select the item to set.

+ Select the item from the "hour", “minute”, “year”, "month" and “day” with a flashing point.

El Press the + or - button to set.

+ Followthe same steps by pressing the B-B1 or #4 button to select the next item, and press the + or— button to set.

El after the date and time have been set, press the OK button.

I3eq oui] s3ep pue ou Sun3es |

Inserting and ejecting a microSD card

The “microSD” indicated in the instruction manual refers to both microSD and microSDHC. This recorder can be used with commercially available microSD cards as well as the built-in memory.

Inserting a microSD card

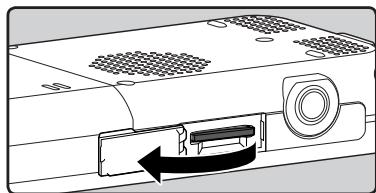

El While the recorder is during stop mode, open the card cover.

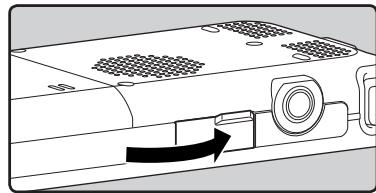

Close the card cover securely.

+ When you insert the microSD card, the recording media changeover display will appear.

El when you are recording to a

microSD card, press the + or — button and select [Yes].

Face the microSD card the correct way and insert it into the card slot as shown in the diagram.

Press the OK button to complete

+_Insertthe microSD card keeping it Straight.

Inserting the microSD card the wrong Way or at an angle could damage the contact area or cause the microSD card to jam:

Ifthe microSD card is not inserted all the way, data cannot be written to the microSD card

+ Itis possible to switch the recording media over to the built-in memory (+ P.77)

+ In some cases microSD card which have been formatted (initialized) by another device, such as a computer, cannot be recognized. Be sure to format them with this recorder before using (ex P.94)

Ejecting a microSD card

El While the recorder is during stop mode, open the card cover.

Push the microSD card inward to unlock it, and let it eject partially.

The microSD card is visibly out of the slot and can be removed safely. When [Memory Select is set to {microSD Card], [Built-in Memory Selected] will appear.

g and ejecting a microSD card

Close the card cover securely.

Releasing your finger quickly after pushing the microSD card inward may cause it to eject forcefully out ofthe slot.

Before inserting the microSD card, turn off the write protection function. Check the Olympus website regarding microSD cards which are confirmed operation with this recorder.

This recorder may not recognize correctly on some microSD cards which are not compatible with this recorder.

In the case when the microSD card cannot be recognized, remove the microSD card then put it in again to see if this recorder recognizes the microSD card

The processing performance reduces in à microSD card when you repeat writing and delete. Inthis case, format the microSD card (ex P94).

pue qsobque unpofo pue Busssul |

Notes on the folders

The built-in memory or the microSD card can be used for the recording media. Regardiess ofthe recording media, voice file, music files, and contents files are separated and saved respectively into the folders organized in à branching tree-style.

About the folders for voice recordings

[Folder A] - [Folder E] within the [Recorder] folder are the folders for voice recordings. When recording with this recorder, select any one of the five folders and then record

+ Files or folders located under the folder [Recorder] will not be indicated on the recorder.

Folders for voice recordings

A sc folder can store up 0 999 files

File names will be automatically created for files recorded by this recorder.

VOC_ 100201- 0001 .wma

D User ID: The user ID name that has been set on the Digital Voice Recorder. The user ID can be changed in the Olympus Sonority.

@ Recording date: The recording date is displayed using six digits.

Example: February 1, 2010 is displayed as “100201”. @ File number: A serial number automatically assigned by a Digital Voice Recorder. @ Extension: These are the file name extensions for the recording format when recording with this device. + Linear PCM format: wav + MP3 format: mp3 + WMA format wma

Notes on the folders

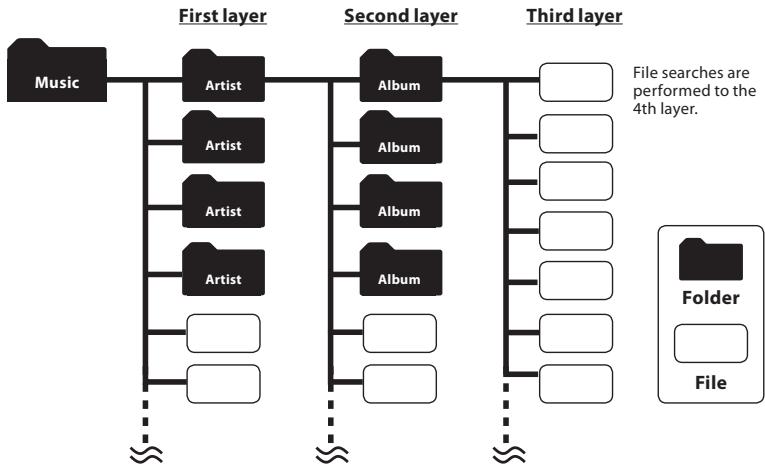

About the folder for music playback

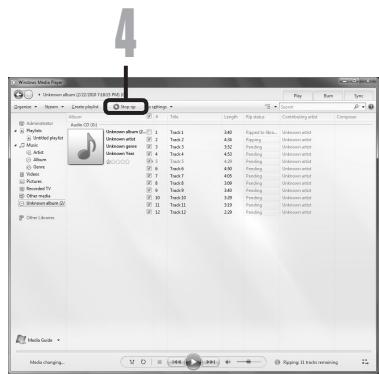

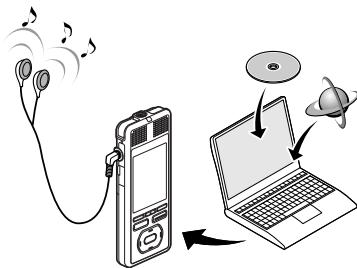

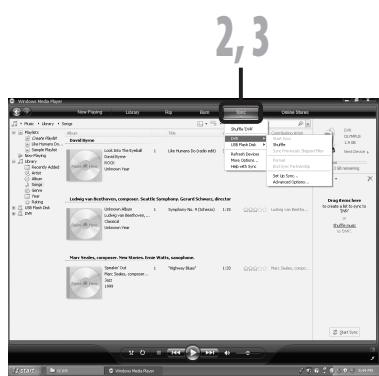

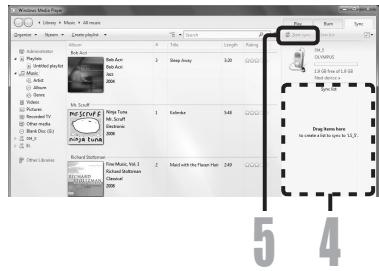

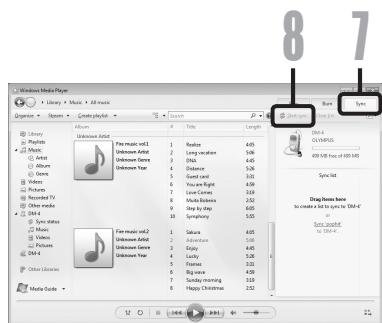

When transferring music files to the device using Windows Media Player, a folder is automatically created within the [Music] folder which has a layered structure as shown in the diagram below.

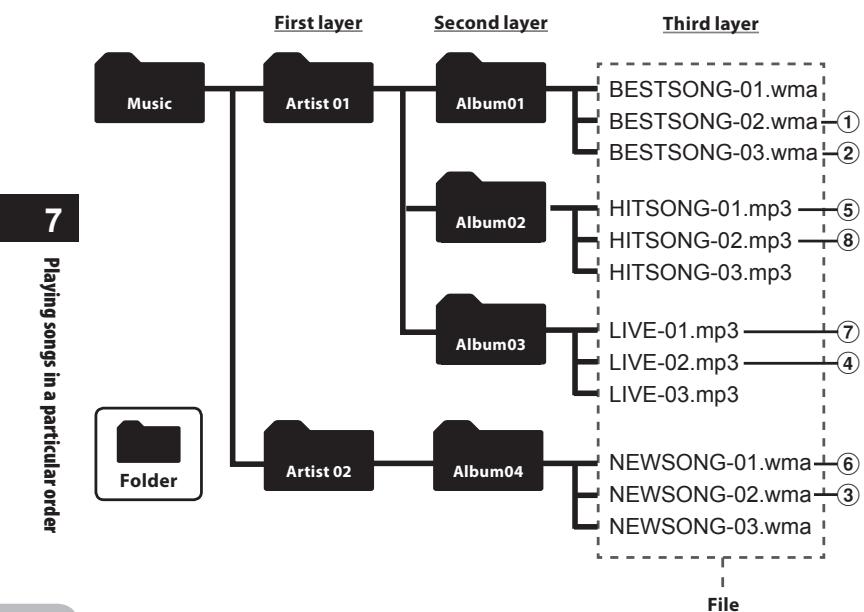

First layer Second layer Third layer

File searches are performed to the Ath layer.

: Itcan be stored a total of 999 files and folders in the each folders of [Music] folder. + Up to 8000 songs can be transferred to the [Music] folder. + Up to 1000 playlists can be transferred to the [Music] folder.

SA2pIO} au} uo s2J0N EN 33

Notes on the folders

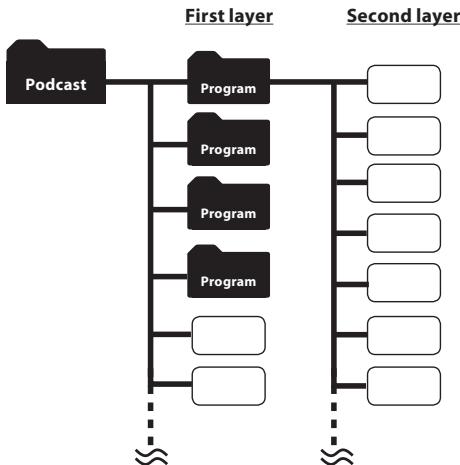

About the folder for Podcast contents

A [Podcast] folder to store podcasts is prepared in advance. Programs (files) transmitted from the "Olympus Sonority” can be played. With the recorder stopped, open the [Podcast] folder at the [Home] menu to display a list of files and folders stored in the folder.

For "Podeast” please see ex P.127.

First layer Secondlayer

File searches are performed to the Ath layer.

- Itcan be stored a total of 999 files and folders in the each folders of [Podcast folder. + Up to 8000 files can be transferred to the (Podcast) folder.

Programlist File list display display

Notes on the folders

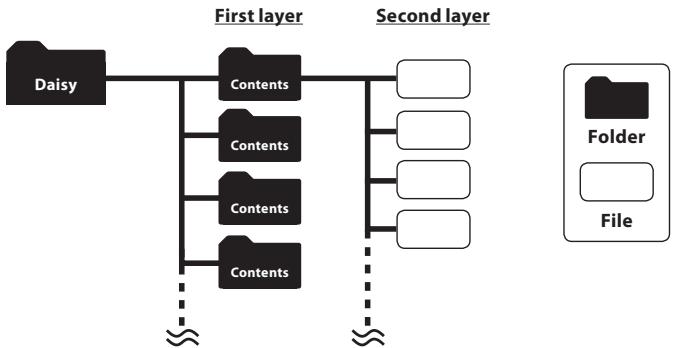

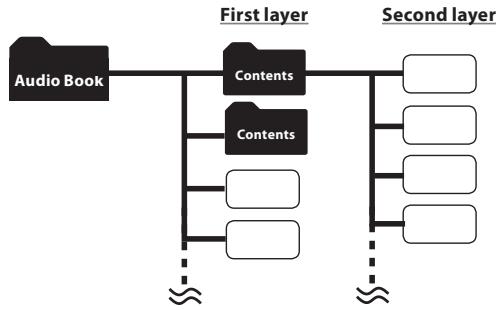

About the folder for electronic book contents and text files

A folder to store electronic book files such as DAISY content and audiobooks is prepared in advance. Electronic book files that have been transferred to the recorder can be listened to. Furthermore, a folder to manage text data imported tothe recorderis also prepared in advance. For "DAISY" please see ex P.132, for Audio Book” please see +x P.157, for “Text Speech” please seerx P.158.

First layer Second layer 4 $ $

Contents 3 5 cum Folder È £ Contents Contents : : : : : : ES ES = It can be stored a total of 999 iles and folders in the each folders of [Daisy] folder. + Up to 1000 contents can be transferred to the [Daisy] folder. Folderlist Contents list File list display display EN

: Itcan be stored a total of 999 files and folders in the each folders of [Audio Book folder.

+ Up te 1000 contents can be transferred to the [Audio Book folder.

First layer Second layer

: Itcan be stored a total of 999 files and folders in the each folders of [Text Speech folder.

+ Up to 1000 files can be transferred to the [Text Speech] folder.

Notes on the folders

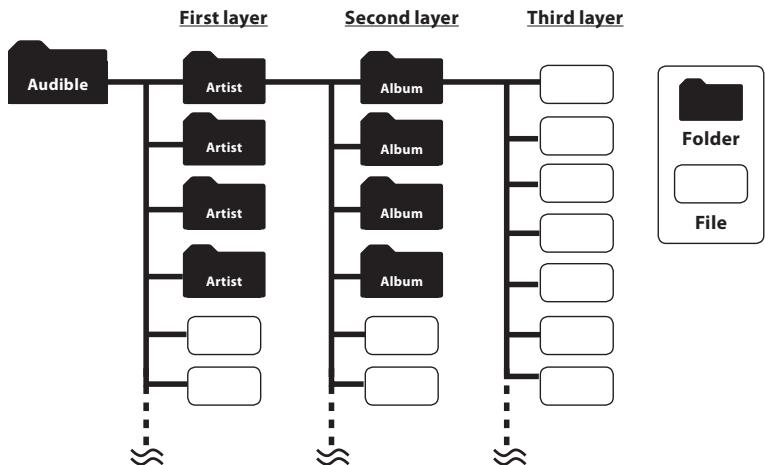

About the folder for Audible contents

Audible files can be redirected from the Audible website to the recorder using the AudibleManager (+ P.159) or Windows Media Player.

When redirecting Audible files to this recorder using the AudibleManager, an [Audible]

folder for playing Audible files will automatically be created in the [Audiobooks] folder, and

the files stored there.

When redirecting Audible files to this recorder using the Windows Media Player, an [Artist]

folder for playing will be created in the [Audiobooks] folder, just like for music files, and the

files will be stored there.

z 8 a irst layer Second layer Third layer $ d En) È È 5 C_) Folder s ! ES) : : : ES ES ES It can be stored a total of 999 files and folders in the each folders of (Audible) folder. Folderlist Artistlist Album ist Filelist display display display display EN

Notes on the folders

About the folder for picture

A folder to store images imported from a connected digital camera is prepared in advance The [IMAGE] folder is managed by the dates images were taken. For"Viewing images” please see ex P.103.

First layer Second layer

Each folder can store a total of 999 items, including files and folders. + When the recorder displays image files, only thumbnails are displayed.

Various recording settings can be made to match the recording environment (ex P.67 to P.70)

IRec Menu] Setting Items:

IMicSense] Sets the sensitivity ofthe x P.67) built-in stereo microphone. IRec Mode] Sets the recording rate for ex P.67) each recording format. IRec Level]

Er Sets the recording level. {Zoom Mic] Sets the directionally ofthe (ex P.68) built-in stereo microphone.

This function can reduce

ILow CutFilter_ | noise from air conditioners,

MPa | aeronendobersmior Sete reshodleveltor mon [évacbceonee É Res CS Save recording etingsin RE) Re Sénceforspece read CRE ing situations. FimerReel | simerrcorng

registered in the template.

+ Eachaudiorecordingis saved automatically with a generated file name (ex P.32)

+ Audio recordings can be tagged with a keyword to make file management easier {ex P.75).

Recording to a recording folder

Before starting recording, select a voice recording folder between [Folder A] to Folder E] in the [Recorder] folder. These five folders can be selectively used to distinguish the kind of recording; for example, [Folder A] might be used to store private information, while [Folder B] might be dedicated to holding business information.

El select the recording folder.

Press the REC button to start recording.

The LED indicator light glows orange

and (i] will appear on the display.

Turn the microphone in the direction

ofthe source to be recorded.

Press the STOP button to stop recording.

Specifying a keyword before recording

A keyword that matches the contents to be recorded can be specified before recording

starts. Thisfunctionisveryuseful for classifying recordings by keywords

Ein the Folder list display, press F1(SEARCH) to show the Keyword search display («5 P.53).

E Press the STOP button to stop recording.

Recorded files are automatically tagged with the specified keyword and managed using the keyword list Recorded files are saved in [Folder A] If [Folder A] is full, files are saved in Folder B]

+ When a microSD card is inserted in the

recorder, be sure to confirm the recording

media as either [Built-in] or [microSD] so

that there is no mistake (ex P.77).

Ithe REC button is pressed when a

function other than the record function is

specified, [Cannot record in this folder] is displayed. Select a folder from [Folder

A] through [Folder E] and start recording

+ To ensure recording from the beginning, start speakingafteryou see the LEDindicator light on.

+ When remaining recording time is less than 60 seconds, the LED indicator light starts flashing. When the recording time is decreasing to 30 or 10 seconds, the light flashes faster.

+ When [Folder Full] appears, the recorder will not be able to record anymore. Delete any unnecessary files before recording any further (x P.60).

+ Recorder will not be able to record anymore when [Memory Full] appears. Delete any unnecessary files before recording any further (ex P.60)

+ We recommend formatting the record media in the recorder before recording {x P94)

Whiletherecorderis duringrecording mode, press the REC button.

+ The recorder will time out after 120 minutes when left in “Rec Pause”.

Resume Recording: Press the REC button again.

+ Recording will resume at the point of interruption

To quickly check on the recorded contents

While the recorder is during recording mode, press the > OK button.

+ Stop recording and the file that was just recorded will be played back

stening while audio is recorded

f you start recording after inserting the

earphone into the EAR jack on the recorder,

you can hear the sound being recorded. The

recording monitor volume can be adjusted by

pressing the + or - button

Connectthe earphone to the EAR jack

+ After recording has started, you can hear the sound being recorded through the earphone.

Recording level cannot be controlled using the volume button.

When using the earphones, do not set the volume too high. Listening at very high volume may lead to hearing loss.

+ Donot place earphones near a microphone

as this may cause feedback

+ When the external speaker is connected while recording, there is a risk that audio feedback will occur.

Recommended settings by recording condition

itially set to the [ST XQ] mode so that you can make high quality stereo

recordings immediately after purchasing it. The various functions relating to recording can

be configured in detail to suit the recorc

The following table shows the standard recording settings with the recording environment

Recording from external microphone orother devices

The external microphone and other devices

can be connected and the sound can be

recorded. Connect as follows by the device

+ Do not plug and unplug devices into the recorder jack while it is recording.

Recording with external microphone:

Connect an external microphone to the MIC jack of the recorder.

Applicable external microphones

These are highly sensitive omni- directional microphones supported by power which are well-suited to g musical performances.

This microphone is used to record sound at a distance while minimizing

Compact Gun Mi (uni The directional microphones are useful for recordings such as outdoor recording

of wild birds singing. The metal-cut body provides a sturdiness to the high rigidity.

Small concealing microphone with à

Telephone pickup: TP7 Earphone type microphone can be plugged into your ear while phoning. The voice or conversation over the phone can be clearlÿ recorded.

+ The built-in microphone will become inoperable when an external microphone is plugged into the recorder's MIC jack.

+ Microphones supported by plug-in power can also be used.

+ When an external monaural microphone is used while [Rec Mode] is set to a stereo recording mode, it enables recording only with the L'channel microphone (ex P.67).

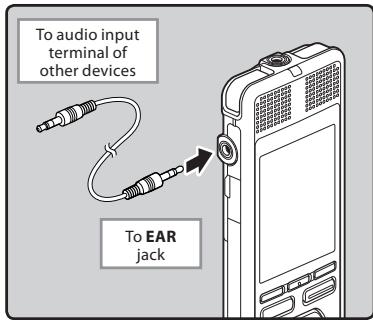

Recording the sound of other Recording the sound of this devices with this recorde: recorder with other devices:

The sound can be recorded when The sound of this recorder can be recorded connecting to the audio output terminal to other devices when connected to the

earphone jack) ofthe other device, and the audio input terminal (microphone jack) MIC jack of the recorder with the connecting …ofother devices and the EAR jack of this cord KA333 (optional) for dubbing. recorder, with the connecting cord KA333

optional) for dubbing.

of other devices other devices

ToEAR jack DE T7 + The detailed input levels cannot be + When you adjust the various sound adjusted with this recorder (x P.67). When quality settings related to playback on external devices are connected, perform a the recorder, the audio output signal sent test recording and then adjust the output out from the EAR jack will change as well

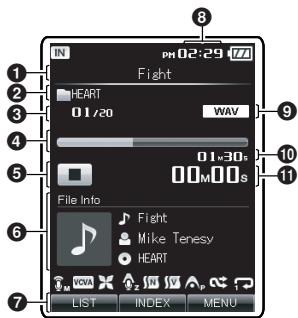

The recorder can playback WAV, MP3 and WMA format files. To playback a file recorded with other machines, you need to transfer (copy) it from a computer.

Settings relating to playback

A playback mode can be selected to match your objectives and preferences (ex P.71 toP73)

[Play Menu] Setting Items:

El ro start playback, select the file to be played, and then press the > 0K button (:* P.53 to P.59).

Ifrecorded audio is difficult to understand because of

[Noise Cancel | Soisy surroundings, adjust

ar) the Noise Cancel setting level. Level adjustments of LEUPHONY] the [EUPHONY setting can € P71) be set to four stages accord-

Therecorder has a Voice Filter Function to cut low ter] | andhighfrequencytones during normal fast, or slow playback, and enable clear audio playback.

Press the + or — button to adjust to a comfortable listening volume.

+ The volume can be adjusted within a range from [00] to [30]

Press the STOP button at any point you want to stop the

IRepeat] The repeat playback method Ur P.72) can be specified as desired IRandom] Files are searchedfor, selected Ur P.72) and played atrandom {Play Speed] Playback speed can be playback. Ur P.73) adjusted as necessary. [Skip Space] | The skipintervallength can (x P.73) beset Playback settings ofyour [Play Scene] | choice can be saved to suit Ur P.84) different sound qualities and

+ _ This will stop the file being played back midway.

While the recorder is during stop mode, press and hold the D button.

+ Hfyou release the button, it will stop. Press the D OK button to start playback from where it was stopped.

While the recorder is during

playback mode, press and hold the

+ When you release the button the recorder

will resume normal playback.

I there is an index mark in the middle

ofthe file, the recorder will stop at that

+ The recorder stops when it reaches the end of the file. Continue pressing the B-B1 button to proceed with the cue from the beginning of the next file.

While the recorder is during stop mode, press and hold the 44 button.

+ Hfyou release the button, it will stop. Press the D OK button to start playback from where it was stopped.

While the recorder is during

playback mode, press and hold the

+ When you release the button the recorder will resume normal playback

+ Ifthere is an index mark in the middle

ofthe file, the recorder will stop at that

The recorder stops when it reaches the

beginning ofthe file. Continue pressing

the #4 button to proceed with the

review from the end of the previous file.

While the recorder is during stop mode or playback mode, press the »B1 button.

+ The recorder skips to the beginning of the next file.

While the recorder is during

playback mode, press the t4

+ The recorder skips to the beginning of the current file.

While the recorder is during stop

mode, press the 44 button.

+ The recorder skips to the beginning of the previous file. Ifthe recorder stops midway ofthe file, return to the beginning ofthe file.

While the recorder is duri

playback mode, press the 144

+ The recorder skips to the beginning of the previous file.

+ When you skip to the beginning ofthe file during playback, the recorder will stop at the position of the index mark. The index mark will be skipped when you perform the operation in stop mode (x P. 51). When [Skip Space] set to other than

{File Skip], the recorder will skip forward/ reverse the specified time, then will start playback (ex P. 73)

Playbackthrough earphone

An earphone can be connected to the EAR

jackofthe recorder for listening

+ When the earphone is used, the recorder speaker will be switched-off.

In cases where the recorder is unable to playback music files that have been transferred to it, check to make sure that the sampling rate and bit rate are in the range where playback is possible. Combinations of sampling rates and bit rates for music files which the recorder can playback are given below.

+ To avoid irritation to the ear, insert the MMA Six. 22ke | from kbps up to

earphone after turning down the volume oo | 32 ii 441 ke | 320 kbps

+ When you listen with the earphone during playback, do not raise the volume too much. It may cause hearing impairment and decrease in hearing ability.

Playbackthrough Hi-fi components or Car Audi

The KA333 (optional) connects from the EAR jack of a voice recorder to the audio input of another recording device. You

will also be able to use in your car via the AUX-IN connection. Additional plug adapter to convert 3.5 to 2.5 and vice versa are included.

+ Variable bitrate MP3 files (in which conversion bitrates can vary) may not play proper,

+ This recorder does not support the Digital Rights Management system (DRM) of the Microsoft Corporation

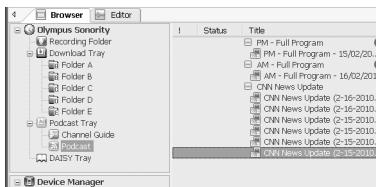

The recorder has the bookmark mode in the contents file ofthe [Podcast], TAudiobooks](Daisy, Audio Book, Text Speech, Audible) file which is transferred

to the recorder. When the recorder is in bookmark mode, it automatically memorizes the last stop position as a Playback Position Even the recorder is stopped while a file is being played back, the last stop position

is recalled from the file, and the file can be played back from that position next time.

UE Selectingthe content file inthe [Podcast], [Audiobooks](Daisy, Audio Book, Text Speech, Audible) folder.

Press the > OK button to start playback.

+ When you play the file which you have previously played back, the playback starts from the last stop position.

Press the STOP button at any point you want to stop the playback.

+ Stop afile playback at any point. The stop position is memorized as a Playback Position in the file. In this status, even if you select an empty file, move to the other folder, or turn the recorder off, the playback starts from the last memorized position when you play the same file.

EE] Piaying back the contents file which has been played back halfway.

= — ‘) D Gt TPE o038.

+ Press the b-0K button to start playing back from where it was stopped,

While the recorder is during stop mode, press and hold the bB1 button. = When you release the button, the recorder stops The Playback position is updated. Ifthe OK buttonis pressed, playback starts from this position.

While the recorder is during playback

mode, press and hold the bB1 button.

= When you release the button the recorder will resume normal playback.

+ fan index mark (ex P.51) or Playback Position is marked in the middle of the file, the playback stops once at that position.

+ The recorder stops when it reaches the end of the file. Continue pressing the B-B1 button to proceed with the cue from the beginning ofthe next file.

While the recorder is during stop mode, press and hold the #4 button.

= When you release the button, the recorder stops. The Playback position is updated. Ifthe > OK buttonis pressed, playbackstarts from this position. While the recorder is during playback mode, press and hold the #4 button. = When you release the button the recorder will resume normal playback. If an index mark (ex P.51) or Playback Position is marked in the middle ofthe ile, the playback stops once at that position. The recorder stops when it reaches the beginning of the file. Continue pressing the button to proceed with the review from the end ofthe previous file. Ithe HA button is kept pressed while the recorder is stopped at the start of the top file, the recorder will fast rewind starting from the end ofthe last file.

While the recorder is during stop mode, press the B1 button. It skips to the Playback Position ofthe next file. While the recorder is during stop mode, at the beginning of the file, press the 44 button. It skips to the Playback Position of the previous file. While the recorder is during stop mode, in the middle of the file, press the H@4 button. It skips to the head of the file.

While the recorder is during playback, slow playback, or fast playback, press the 1 button. = Thenext file is cued and playback Starts at the previously set speed. While the recorder is during playback, slow playback, or fast playback, press the #4 button. = The file being played is cued and playback starts at the previously set speed. While the recorder is during playback, slow playback or fast playback, press the 4 button twice. = The previous file is cued and playback Starts at the previously set speed

+ Han index mark (er P.51) is marked in the middle of the fie, it reproduces from the position.

+ Ifthe skip space is set at other than file skip x P73), the recorder will F. Skip (forward skip) or R. Skip (reverse skip) for a set time before playback.

+ Ifthe file is deleted with this recorder, the Playback Position information is deleted simultaneously.

Setting an index mark

Hindex marks are placed, you can quickly find a location you want to listen to in fast forward and fast rewind and when cuing afile.

This operation can be performed when the [INDEX] function has been assigned to a Fn button (F1 or F2) (x P.76)

El Press the Fn (INDEX) button during file recording, recording pause, playing, or playback pause.

Locate the index mark you want to clear.

Press the BI or #4 button to select the index mark to erase.

While the index number is displayed (approximately 2 seconds), press the Fn (ERASE) button.

+ A number and recording position appears on the display and an index mark will be placed.

Even after an index mark is placed, recording or playback will continue so you can place index marks in other locations in a similar manner.

Clearing an index mark

operation can be performed whenthe[Erase] function has been

assigned to a Fn button (F1 or F2) {x P.76).

+__ The index mark is erased. +_ Index numbers after the erased index number will automatically move up.

+ Up to 16 index marks can be set in a ile. If you try to place more than 16 index marks, the [Index Full] message will appear for index marks.

+ Index marks cannot be set or erased in a locked file (ex P.75).

How to begin segment repeat playback

This function enables repeated playback of part of the file being played.

This operation can be performed when the [A-B] function has been

assigned to a Fn button (F1 or F2) {ex P.76).

El ro start playback, select a file that has a segment you would like to playback repeatedly, and then press the > OK button (1x P.53 to P.59).

Press the Fn (A-B) button at the point you want to start segment repeat playback.

+ Fastforwarding and rewinding can be conducted when [AJ is flashing inthe same manner as during normal playback, and you can quickly proceed as far as the end position (x P47).

When it reaches to the end ofthe file

while [AJ] is flashing, the point will

become the end position, and repeat playback will start.

Press the Fn (A-B) button again at the position where you want to end segment repeat playback.

+ Therecorder repeatedly plays back the segment until the segment repeat playback is cancelled.

Cancel the segment repeat playback function

Pressing any of the following buttons will release the segment repeat playback.

@ Press the STOP button Pressing the STOP button will release segment repeat playback and stop playback.

Press the OK button Pressing the OK button will release segment repeat playback, and it will return to normal playback mode.

This recorder manages recorded files and musicfilesimported from a personal computer using a database. Files are automatically sorted using items such as date and keyword, which makes searching for files easier.

Opening the file search display from the [Recorder] folder

[Browse] Search Ur P.54)

The folder system (Folder A 0 Folder) is used to search forfiles.

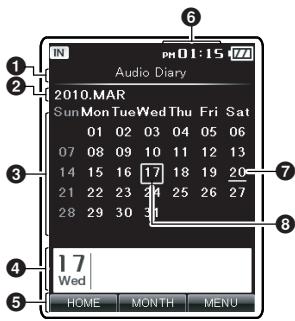

IDay] Search Ur P.54)

Files are searched for by recording date.

IKeyword] Search Ur P.55)

Files are searched for bya keyword

E From the [Home] menu display, select [Recorder], and then press theB- OK orb-B1 button to open the folder list display.

Press the F1 (SEARCH) button to open the file search display.

The search display changes every time the F1 (SEARCH) button is pressed.

Select the type of file search. Next, proceed to “File search display operations of the [Recorder] folder”.

File search display operations of the

[Recorder] folder Search fora file using the recording date. The

most recent recording date is highlighted Highlight the desired recording date.

When searching using the [Browse] search _ Press the + or - button to select the

Specify a folder to search for files recorded recording date, and then press the b OK by this recorder. orbB1 button.

(D Press the + or - button to select folder, and then press the b OK or Bb1 button.

@ Press the + or - button to select file, and @ Press the + or - button to select file, and then press the à OK or BB button. then press the OK or BB button.

+ Presstheb-0K button to start + Press theb-0K button to start playback of the file. playback of the file.

When searching using the [Keyword] search

Searchforfiles recorded by thisrecorder using à keyword. Files recorded by this recorder can be tagged using a keyword for file management purposes (ex P.75)

+ Press theb-0K button to start playback of the file.

Opening the file search display from the [Music] folder

El From the [Home] menu display, select [Music folder, and then press the 0K or 1 button to open the search display.

Tartist/ Search | les aresearchedforroma (ur PS7) list of artists

IAlbum) Search | Files are searched for from {ur P:58) lis of album names {AMusil | es are searched for from a EE, list of al songs

A list of all songs and albums

(BrowselSearch | {he (Music) folder is dis-

(rss nu Thesrdes [is ployedontharcouer

use the@4 button to return to the previous display.

Selectthe type offile search. Next, proceed to “File search display

operations ofthe [Music] folder

File search display operations of the ® Press the + or - button to select song, and [Musid folder then press the OK or BB button

When searching using the [Artist] search

Search for a specific artist.

(Press the + or - button to select artist, and then press the OK or Bb1 button.

0235 € + Presstheb-0K button to start z playback of the file 5 5 Selecting from alist of [AI Must Files are searched for from a list of [AI Music] @Press the + or - button to select album = or song, and then press the OK or 1 (D Press the + or button to select song, and button: then press the OK or BB button + Press the OK button to start + fa songis selected, playback starts. playback ofthe file. +_ fan album is selected, its songs are displayed as a list EN

Search by specific album

Press the + or- button to select album, and then press the b OK or Bb1 button.

@ Press the + or - button to select song, and then press the -0K or 1 button

+ Press theb-0K button to start playback of the file.

A list of recently played files is displayed in reverse chronological order.

® Press the + or - button to select song, and then press the OK or 41 button

+ Presstheb-0K button to start playback of the file.

When searching using the [Play Count] search

Alist of frequently played files is displayed in reverse chronological order.

® Press the + or - button to select song, and then press the OK or BB button

+ Presstheb-0K button to start playback of the file.

When searching using the [Browse] search

Browse directly from a list of all iles and folders in the [Music] folder.

@Press the + or - button to select a songto be played or to select an artist, and then press the OK or 1 button

+ Ifan artist is selected, songs in the

folder are displayed as a list. Press the + or- button to select a song, and then press the OK or b-B1 button. Press the OK button to start playback of the file.

When searching using the [Playlists] search

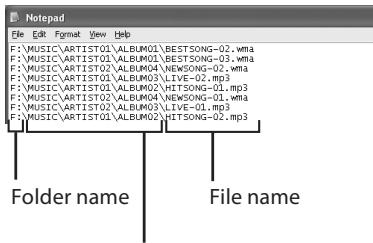

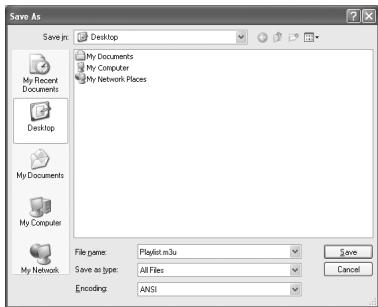

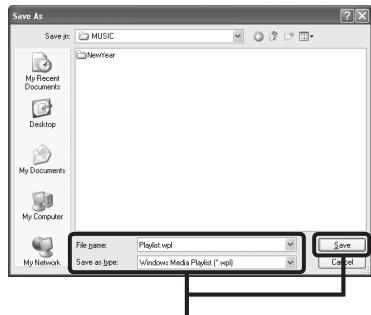

For details on importing playlists, please see 2.146.

(@Pressthe + or-button to select [Playlists], and then press the» OK or Bi button

@ Press the + or - button to select a playlists, and then press the OK or BB button

o @ Press the + or - button to select song, and 8 then press the OK or BB button H + Press the OK button to start playback of the file EN

A selected file can be erased from a folder. It is also possible to erase a selected folder or all files in a folder.

Erasing from the file display

In the File list display, press the F3 (MENU) button.

Files cannot be erased during playback.

E Press the + button to select [Start], and then press the > OK button.

+ _ The display changes to [Erasel] and erasing will start. (Erase Done] is displayed when the file is erased

Erasing from the file list display

Select the file to erased from the file list display.

While the recorder is during stop mode, press the F2 (ERASE) button.

Press the + or — button to select [File Erase], and then press the > 0K orB1 button.

displayed when the file is erased

Erasing All Files in a Folder

El select the folder to be erased

from the folder list display.

While the recorder is during stop mode, press the F2 (ERASE) button.

+ _ The display changes to [Erasel] and erasing will start. (Erase Done] is displayed when the file is erased

El select the folder to be erased from the folder list display.

Press the + or — button to select [fi rase], and then press the OK or button.

E] Press the + button to select [Start], and then press the > OK

+ _ The display changes to [Erasel] and erasing will start. (Erase Done] is

Partially erase a file

Only a PCM file recorded in the recorder can be partially erased.

A ris operation can be performed

when the [Erase] function has been assigned to a Fn button (F1 or F2) (tx P.76).

2 E Play the file you want to partial

erase. + Forward a file to the position that shall be erased. the file is long, use the BB1 button to move to the position you want to delete. In the starting position of the partial erase, press the Fn (ERASE) button.

In the position you want to end partial erase, press the Fn (ERASE) button again.

+ [Start point] and [End point] on the display flash alternatively. When the lights are flashing, playback continues and you can rewind or fast-forward as usual and fast-forward to the end of erase.IFthe file reaches the end during the flashing of the lights, that will be the position where erase ends

E Press the Fn (ERASE) button

. The dite wi such Par erasing ! and start the partial erase-The deletion is completed when [Partial erase completed.] is displayed.

Playback will stop at the end location ofthe partial erase.

+ Partial erase is not applicable to files recorded in the WMA or MP3 formats.

+ The ile created date will not change even ifthe file is partially erased.

+ An erased file cannot be restored. When a microSD Card is inserted in the recorder, be sure to confirm the recording media as either [Built-in] or [microSD] so that there is no mistake.

+ The locked files and files set as read-only cannot be erased (ex P75).

+ fan action is not selected within 8

seconds, the recorder will return to stop

Never perform operations such as the

following while processing, as they may

damage the data. In addition, carefully check the remaining battery level in order to ensure that the battery will not run out while processing

D Unplugging the AC adapter while

@ Removing the battery while processing.

@ Remove the microSD card during

processing when [microSD] is being used as the recording media. Performing any ofthese operations may damage the data.

[Recorder] folder (A-E) as well as [Music],

[Podcast], [Audiobooks](Daisy, Audi

Book, Text Speech, Audible folders cannot

You can setthe various functions of this recorder. You can set each menu item as follows.

Making settings from [Preferences] on the [Home] menu display

From menu on the [Home] menu display, following settings can be made: [Rec Menu], lay Menul, [LCD/Sound Menu], and [System Menu]. You can perform various settings on this recorder before recording or playback

E From the [Home] menu display, select [Preferences], and then press the > OK or BB] button to open the menuitem display.

TES Press the + or — button to select the setting item, and then press the OK or BI button.

+ Moves to the setting ofthe selected item

Ifyou make a mistake while performing

a setting, press the@4 or F1 (BACK)

button to return to the previous

E Press the + or — button to change thesetting, andthen presstheOK button to complete the setting.

Press the + or — button to select a menu item, and then press the »>-0K or BB button.

+ You will be informed that the settings have been established via the display.

Performing menu settings during recording, playback, and stop modes

Menu settings can be performed while this recorder is being operated.In addition to [Rec Menu] and [Play Menu] settings, [File Menu] settings for file management can also be performed from the menu during operation.

E wnile the recorder is recording, playingback, paused, and stopped, press the F3 (MENU) button.

Press the + or — button to select a menu item, and then press the > 0K orB1 button.

Press the + or — button to select the setting item, and then press the OK or 1 button.

+ Moves to the setting ofthe selected item

you make a mistake while

performing a setting, press thek@4

or F1 (BACK) button to return to the

E Press the + or — button to change

the setting, and then press > OK button to complete the setting.

Press the F3 (CLOSE) button to

close the menu display.

+ When the display is in the menu display during recording or playback, pressing the F3 (CLOSE) button will allow you to return to the playback display without interrupting recording or playback.

Microphone sensitivity is adjustable to meet recording needs.

E select [Mic Sense] from the menu on the [RecMenu].

Select [High], [Middle] or [Low]. High} Highest recording sensitivity suitable for conferences with large crowds and recording audio at a distance or low volume. [Middle]: Suitable for recording meetings and seminars with a small number of people. ILow Lowest recording sensitivity suitable for dictation. When you would like to clearly record a speakers voice, set [Mic Sense] to [Low] and hold recorder's built-in stereo microphone close to the speakers mouth (5-10 cm) before recording.

The recorder can record in the linear PCM format. High resolution recording at a high sampling rate and high bit rate equivalent or superior to that of a music CD is possible. Moreover, it also supports the MP3 and WMA formats.

E select [Rec Mode] from the menu on the [RecMenu].

Select [PCM], [MP3] or [WMA].

(PCM) This is an uncompressed audio format which is used for music CDs and the like.

[MP3}; MPEG is the international standard established by a working group of the ISO (International Organization for Standardization)

[WMAÏ: This is an audio compression encoding method that was developed by the Microsoft Corporation in the US.

Set the recording rate.

When [PCM] is selected: 148kHz/16bit] or [44.1kHz/16bit] When [MP3] is selected: 1320kbps] to [128kbps] When [WMA] is selected: IST XQ), IST HQ), [ST SP], [HQ], [SP], [LP]

+ To record a meeting and lecture clearly, set other than [LP] in Rec Rate.

+ When the external monaural microphone is used while [Rec Mode] is set to a stereo recording mode, it enables recording only with the L'channel microphone.

Setthe method for adjusting the recorc IRecLevel]

You can set the device to automatically or manually adjust the recording level.

El select [Rec Level] from the menu on the [Rec Menu].

Select [Manual] or [Auto].

[Manual]: Recording is performed by manually adjusting the recording level.

[Auto]: Recording is performed by automatically adjusting the recording level. This is useful for when you will be recording right away.

Adjust the recording level: El Press the >B>1 or @4 button

while the recorder is recording or paused to adjust the recording level.

+ Therecordinglevelwillbeautomatically adjusted when the recording level is set to [Auto]. Set the recording level to [Manual] to use the recording level adjustment feature.

When the unit is set to [Manual], the limiter function will be disabled. Distorted sound will be recorded during [OVER] is displayed. Adjust the recording level so that [OVER] is not displayed. If sound distortions do not disappear even after the recording level has been adjusted, change the setting for microphone sensitivity (ex P.67) and adjust the recording level again

TOVER] may be displayed even when the indicator of the recording level meter does not reach or is over to the right.

Inputting a very loud sound may produce noise even when the recording level is set to [Auto].

The level can be adjusted from [01] to H6]. The higher the number, the higher the level and the larger the indicator position on the level meter.

The directional microphone function utilizes DiMAGIC's (DIMAGIC Co, Ltd.) DiMAGIC Virtual Microphone (DVM) technology. DVM is an audio pickup system which allows you to record by focusing on sound from any direction. From expansive stereo recording to high directivity recording, DVM represents the latest in directional control methods that allow you to switch to a single exclusive microphone.

E select {Zoom Mid from the menu on the [Rec Menu].

Select [Zoom], [Narrow], [Wide] or [off]. [Zoom]: Recording with monaural, however you can record high directivity sound. INarrow]:

Recording by a directivity stereo sound.

[Wide]: Recording by an expansive stereo sound.

loff]: Disables this function.

(low) : Sound Sound collection = collection {narrow) (wide)

The recorder has a Low Cut Filter function to minimize low-frequency sounds and record voices more clearly. This function can reduce noise from air conditioners, projectors and other similar noises.

E select Low Cut Filter] from the menu on the [Rec Menu].

Select [On] or [Off].

Enables the Low Cut Filter function. 1off]:

Disables this function.

Whenthemicrophonesensesthat soundshave reached a preset threshold volume level, the built-in Variable Control Voice Actuator [VCVA) starts recording automatically, and stops when the volume drops below the threshold level. The VCVA feature extends recording time and conserves memory by stopping recording during silent periods, which helps the playback to be more efficient.

EE select [VCVA] from the menu on the [Rec Menu].

Select [On] or [Off]. On} Enables the VCVA function. Will start recording in VCVA mode. toff] Disables this function. Will resume recording in normal mode.

Adjust the start/stop actuation level:

Ifthe surrounding noise is loud, the starting sensitivity of the VCVA can be adjusted according to the recording situation.

A Press the REC button to start recording.

+ When the sound volume is lower than the preset threshold sound level, recording automatically stops after 1 sec approximately, and [Standby] flashes on the display. The LED indicator light glows orange when recording starts and flashes when recording pauses.

Press the b-B1 or #4 button to adjust the start/stop actuation level.

+ _ The VCVA level can be set to any of 23 different values.

+ Thehigher the value, the more sensitive the recorder to sounds. At the highest value, even the faintest sound will activate recording,

@ Level meter (varies according to the sound volume being recorded)

D) Start level (moves to the right/left according to the set level)

+ Press the F1 button to change the recording level (ex P.67) during VCVA recording. The recording level can be adjusted.

The start/stop actuation level also varies

depending on the selected microphone

sensitivity mode (+ P.67)

+ Ifthe starting level is not adjusted within 2 seconds, the display will return to the

To ensure successful recordings, prior

testing and adjustment of the start/stop

actuation level is recommended.

VCVA standby monitor setting:

When [Standby] is set to [On] with the menu setting, the recording will not be output from the earphone while in VCVA standby. When you monitor your recording with the earphone connected, you can checkwhether VCVA is launched or not by checking if an audio is output [On]:

Enables the Standby Monitor function. lof]:

Disables this function.

Refer to "Setting the recor Scene]" (+= P80).

Refer to “Timer recor! (x P.81).

Changing folder names [Folder Name]

You can change thefoldernames of [Folder A] to [Folder E] for audio recording into names preset in the template. You can also change folder names registered in the template with “Olympus Sonority”.

E select (Folder Name] from the menu on the [Rec Menu].

Press the + or — button to select the folder name you want to change, and then press the D OK or» button.

Pressthe+or—buttontoselectthe folder name you want to change from the template, and then press the 0K button.

Sets a folder name from the preset template.

Car Train Plane Work Interview | Business trip Conference Lecture Class Telephone Memo Record recording Conversation | Hobby Lesson ranguage Music Event Folder À Folder 8 Folder C Folder D FolderE The voice control function can be used with this setting {x P.107) (For DM-5).

H recorded audio is difficult to understand because of noisy surroundings, adjust the Noise Cancel setting level.

E select (Noise Cancel] from the menu on the [Play Menu].

Select [High], [Low] or [Off].

THigh] [Low]: Enables the Noise Cancel function. Noise will be reduced in the file when it's played back for better sound quality.

toff] Disables this function.

EUPHONY This recorder is equipped with “EUPHONY MOBILE” the latest in surround sound systems which combines bandwidth correction, expansion technology, and virtual acoustical source processing technology. In addition to its natural, expansive feel, the recorder is equipped with the exceptional feature wherein listeners are less prone to developing à compressed or closed-in feel, or to growing tired over extended listening.

Level adjustments of the [EUPHONY] setting can be set to four stages according to preference.

E select EUPHONY] from the menu on the [Play Menu].

Select [Power], [Wide], [Natural] or lof]. [Power]: This mode focuses more on lower sound registers.

[Wide]: This mode has an even more expansive feel.

[Natural] This mode achieves natural bandwidth correction and acoustical field expansion.

loff]: Disables this function.

The recorder has a Voice Filter Function to cut

low and high frequency tones during normal,

fast, or slow playback, and enable clear audio

The repeat playback settings can be set as

El select IRepeat] from the menu on the [Play Menu].

Select [1 File], [List] or [Off]. [1 File]: A single file is played repeatedly. [List]: The displayed file list is played repeatedly. toff] Disables this function.

Performing settings with Fn buttons:

This operation can be performed when the [Repeat] function has

been assigned to a Fn button (F1 or F2) (+* P.76).

El Press the Fn (RPT) button.

+ Everytime the Fn (RPT) button is pressed, the display switches between L£9] and (T1

The displayed file list is played repeatediy.

E select Random] from the menu on the [Play Menu].

Select [On] or [Off]. ton)

Enables the Random Playback function.

loff]: Disables this function.

Performing settings with Fn buttons:

A ris operation can be performed when the [Random] function has

been assigned to a Fn button (F1 or F2) (+x P.76).

E Press the Fn (RDM) button.

+ Ifthe Fn (RDM) button is pressed, [GX] is displayed and a random playback is enabled.

The playback speed ofthe file can be changed between [50%] and [600%] times speed. Change the speed according to need such as listening to meeting content at a fast speed or reviewing spots that you couldn't catch in a language lesson at a siow speed.

El select [Play Speed] from the menu on the [Play Menu].

Set the playback speed. [50%] to [600%]

Performing settings with Fn buttons:

This operation can be performed when the [Play Speed] function has been assigned to a Fn button (F1 or F2) (ex P.76).

El Press the Fn (SPD) button.

Press the + or - button to specify a speed setting, and then press the>-0K button.

Restrictions on double speed playback:

Normal operation may not be available

dependingonthesampling frequency andthe

bit rate ofthe file to be played back. In such a

case, reduce the speed ofthe fast playback.

+ If{Play Speed] has been assigned in the {Fn. setting] settings (x P.76), use the assigned button to enter the [Play Speed] setting display.

+ The [Play Speed] setting inthe [Voice Guide] settings (ex P86) is disabled during file playback.

This function enables you to skip (forward) or reverse skip (rewind) à file being played for a set period. This function is convenient for quickly skipping to another playback position or repeatedly playing back short phrases.

El select [Skip Space] from the menu on the [Play Menu].

Select [Forward Skip] or IReverse Skip].

When [Forward Skip] is selected:

+ Playback starts after skipping forward the specified interval. [File Skip] [10sec. Skip] [30sec. Skip] [imin. Skip] [Smin. Skip] H0min. Skip]

When [Reverse Skip] is selected:

+ Playback starts after skipping back the specified interval. [File Skip] [sec. Skip] to [Ssec. Skip] [10sec. Skip] [30sec. Skip] Limin. Skip] [Smin. Skip] H0min. Skip]

Forward/Reverse Skip Playback:

El Press the > OK button to start playback.

Press the 1 or@4 button.

The recorder will skip (forward) or reverse skip (rewind) a set space and start playing back.

Ifthere is an index mark or a cue closer than the skip space, the recorder will fonward skip/reverse skip to that position.

Refer to "Setting the playback scene [Play Scene |" (x P.84).

poyrour Buynes nue + |

The display will remain lit for about 10 (Initial setting) seconds when a button on the recorder is pressed.

El select (Backlight] from the menu on the [LCD/Sound Menu].

Select [Lighting Time], [I Time] or [Brightness]. When [Lighting Time] is selected: 15 seconds] [10 seconds] [30 seconds] [minute] [Always On]

When [Dim light Time] is selected: 130 seconds] [minute] [2minute] {Sminute] [Always On]

When [Brightness] is selected: Adjust the setting between [01] and 103).

Press the + or — button to change the setting, and then press OK button to confirm the setting.

The recorder beeps to alert you to button operations or warn you of errors. System sounds may be turned off.

EE select IBeep] from the menu on the [LCD/Sound Menu].

Select the beep level. Adjust the setting between [05] and [00].

LED You can set it so the LED indicator light does

E select LED] from the menu on the [LCD/Sound Menu].

Select [On] or [Off]. ton) LED light will be set. toff] Disables this function. LED light will be cancelled.

You can select the display language forthis recorder.

EE select Language] from the menu on the [LCD/Sound Menu].

+ The selectable language differs depending on the region.

Refer to “Alarm playback function [Alarm]" (x P.87)

Voice files recorded by this recorder can be

tagged with a keyword for file management.

File lists can be created by keyword file

El select the file you want to tag with a keyword (5 P.53 to P.59).

Select [Keyword] from the menu on the [File Menu].

Press the + or — button to select the desired keyword, and then press the > OK button.

Keyword list: Sets a keyword from the preset template.

Won | mener [unes Conference | Lecture Css

Locking a file keeps important data from being accidentally erased. Locked files are not erased when you select to erase all files from a folder (+ P.60).

El select the file you want to file lock (sx P.53 to P.59).

Select [Erase Lock] from the menu on the [File Menu].

Select [On] or [Off]. ton) Locks the file and prevents it from being erased toff] Unlocks the file and allows it to be erased.

Refer to "Moving/Copying files [File Move/ Copyl' (ex P.91)

File and folder information can be confirmed from the menu display.

El select the file or folder with information you want to view in advance (sx P.53 to P.59).

Select [Property] from the menu on the [File Menu].

Set the property. When the file is selected: IName] (File name), [Date] (Time stamp), [Size] (File size), [Bit Rate] (File format) [Artist}®2 (Artist name) and [Album]*2 {Album name) will appear on the display. +1 When a linear PCM format file has been selected, [Bit Rate] area displays the sampling frequency and bitrate +2 When a file contains no tag information, UNKNOWN _ ARTIST], TUNKNOWN_ALBUM] will appear on the display. When voice ile is selected, [Artist] and [Album] will not appear on the display. When the folder is selected: IName] (File name), [Folder] (Number of folder) and [File]*1 (Number of file) will appear on the display. *1 Files which cannot be recognized by his recorder are not included in the number of files.

+ Select the files for which you would like to confirm information in advance before operating the menu.

The Fn buttons (F1 and F2) of this recorder

can be assigned to suit your desired method

of use. Assigned buttons can be operated

during recording and playback.

[ select [Fn. setting] from the menu on the [System Menu].

Select the [F1] or [F2].

+ You can assign settings to suit the way you use the recorder.

Press the + or — button to select the item you want to assign, and then press the > OK button.

When a microSD card is inserted you can select to record to either the built-in memory or to the microSD card (ex P.30)

El select [Memory Select] from the menu on the [System Menu].

Select the [Built-in] or [i

Ithe recorder remains in stop mode for over 10 minutes (Initial setting), the power will be turned off.

E select fAuto Power Off] from the menu on the [System Menu].

Selectthe[5minutes], [10minutes], [30minutes], [hour], [2hour], [hour] or [0ff].

ISminutes] [10minutes] [30minutes] [hour] [2hour] [3hour]: Set the length of time before the power will be turned off. 10ff]: Disables this function.

Refer to ‘Setting time and date [Time & Date]" (1x P.28).

You can perform two settings for connections using the supplied USB cable. [PC] is used when connecting to a computer to transfer andreceivefiles. [AC] is used when connecting to an AC adapter (A514) (Optional) for recharging

select [USB Settings] from the menu on the [System Menu].

Select the [PC], [AC] or [EACH].

(PCI Setting for connecting to the PC using the USB cable provided! Connected as Storage. [AC]: Setting for connecting to the USB connecting AC adapter (4514) (optional) using the USB cable provided. The recorder can be operated on during charging [EACH Setting to confirm the connection method each time a USB connection is made.

+ The PC cannot recognize when the recorder is connected to the PC when setting for the [USB Settings] is set to IACI.

This returns the functions back to their initial settings (factory default).

El Select [Reset Settings] from the menu on the [System Menu].

Press the + button to select [Start], and then press the > OK button.

Returns the settings to their initial values.

TTakes you back to the [System Menu].

Menu settings after setting reset (initial settings):

Ÿ Rec Men [Mic Sense) [Midal (uma) Recording rate] _ [ST XQ] [Rec Level) Auto] {Zoom Mic] lof] Low Cut tof] [Va] (on/off] tof] IStandby] lof] [Rec Scene) tof] [Timer Rec)

lof] {Folder Name] [initial setting)

[Noise Cancel) TEUPHONY)

ISkip Space) {Forward Skip] (Reverse Skip]

[Backlight] [Lighting Time] _ [10seconds] {Dimlighttime] _ [30seconds) IBrightness] ILevel 02)

[Memory Select} lAuto Power Off] [USB Settings]

+ After resetting the settings, the time settings and file numbers will be preserved from before the reset and will not return to their initial settings.

Therecordable capacityremaining and overall capacity of the recording media can be seen from the menu display.

+ When no microSD card is inserted only information for the built-in memory will seen.

The domain area which uses the administrative files which the recorder uses is included in the remaining capacity forthe recording media. For microSD cards in particular, in addition to this administrative domain the administrative domain area for the microSD card is added in as well. Owing to this, the remaining capacity will be displayed as less than the card's specified capacity, yet this is not abnormal

You can check the recorder's information on the menu display. [Model] (Model Name), [Version] (System version) and [Serial No.] (Serial Number) appears on the display.

Refer to “Formatting the recorder [Format]" (1x P.94).

poyreu Éuyayes nuoy |

Setting the recording scene [Rec Scene]

The recording setting can be selected from the [Dictation], [Conference], [Lecture] templates to suit the recording scene or situation. You can also save a recording setting of your choice.

El seiect [Rec Scene] from the menu on the [Rec Menu]. + For details on how

settings, please se method” (er P.65)

Select [Scene Select] or [Scene Savel.

enterthe menu Menu setting

When [Scene Select] is selected: Press the + or - button to select the __ recording scene you want to set @ Press the b OK button to complete the selection.

Template for Setting a Recording scene

To confirm the respective recording scene settings, press the + or - button in the [Scene Select] display to select the item you want to confirm, then press the BB1 button to confirm in the setting confirmation display. To end the setting confirmation display, press the + button and the display will return to the [Scene Select] display.

When [Scene Save] is selected: Besides the [Rec Scene] templates found inthe recorder, you can also save the menu settings of a recording you have set to your choice [Scene Save] cannot be used during recording. While the recorder is paused, enter the menu from the [Home] menu display, and then perform this setting Press the + or - button to select the

_* [User Setting] you want to save @ Press the > OK button to complete the settings.

Press the F3 (HOME) button to complete the setting.

In [Scene Select], you can select a recording scene that is most suitable for the recording scene or situation from three templates. The recording settings for the respective recording

scenes are as follows.

Ci Dictation | Conference | Lecture

Middle Low Middle High

IRec Mode] sTxa Ha srxa sa IRecLevel) Auto Rue Auto Auro IZ00m Miel of of Wide Zoom TLow Cut Filter] Of On on on IVEVAI Of of Of Ci TStandby] Ca of Ca Ci

Timer recording [Timer Rec]

Timer recording is the function to execute a recording at a set time. You can program up to three desired settings (Preset 1-3) ([On/Off], LL , [Start Time], [Stop Time], [Rec Mode], L Sense], [MemorySelect], [Folder], and Keyword

El select ITimer Red] from the menu

+ For details on how to enter the menu settings, please see "Menu setting method” (er P.65).

+ Select items you want to set from among [On/Off], [Day], [Start Time], [Stop Time], [Rec Mode], [Mic Sense], Memory Select] [Folder], and [Keyword]

[On/off] setting: (D Press the + or button to select between On] and [ff

(On): Setting will be applied. loff]: _ Setting will not be applied @ Press the OK button to exit [On/Off] selection.

Day] setting: @ Press the + or - button to select from [One Time], [Everyday], and [Every Week]

[One Time] Records only once at the specified time.

Records every day at the specified time.

Make a recording at a set time on a specified day of the week.

Select [Every Week] and press the à OK button to move to the selection of [Day] Press the + or — button to select a day of the week. @Press the OK button to exit [Day] selection:

The voice control function can be used with this setting {x P.107) (For DM-5).

Press the 1 or #4 button to select “Hour” and “Minute” in the [Start Time] and “Hour” and “Minute” in the [Stop Time].

@ Press the + or - button to set. @ Press the à OK button to exit [Start Time] and [Stop Time] selection.

Rec Mode] setting: Regardiess ofthe regular [Rec Mode] (+= P.67), timer recording will start in a set recording mode.

Press the + or - button to select a recording mode @Press the OK or b-B1 button.

®Press the + or - button to select a __ recording rate @Press the OK button to exit Recording mode selection

Regardless ofthe recorder's microphone

sensitivity setting (ex P.67), timer recording

will start at a set microphone sensitivity.

Press the + or - button to select from

(High], [Middle], and [Low]

Press the à OK button to exit [Mic Sense] selection.

[Memory Select] setting:

Press the + or — button to select the

__ destination to save to (Memory).

@Press the OK button to exit Memory Select] setting selection.

ETS Folder] setting: Press the + or - button to select the

__ destination to save to (Folder) @Press the OK button to exit [Folder] setting selection:

HET Keyword] setting:

Tag a keyword to file to be recorded using the timer.

The voice control function can be used with this setting {x P.107) (For DM-5).

Completing the setting:

El Press the F2 (60) button to complete the setting.

Programmed settings will be applied and the display will return to the preset number selection menu. fthe [On/Off] setting is set to [On], [Ô)] will appear on the display. @ When setting to [On]

To set other preset numbers, repeat the abovementioned procedure.

When the 1 button is pressed in the Select in Advance Menu, the settings selected can be confirmed

poyrouBupses nuoy + |

CET I the recorder is in use at the preset start time, the timer recording will start directly after stopping the recorder.

Even if the power is turned off or the

recorderis put on Hold, timer recording will

start at a specified time.

I three timer recordings have the same

starting times, [Preset 1] has the highest

priority and [Preset 3] has the lowest

+ Ifthe starting time for timer recording and alarm playback (ex P.87) is set for the same time, timer recording will have priority.

+ Ifthe batteries run out while recording based on the timer setting, the recorder will stop recording. Check the battery power before starting the timer recording,

+ Ifthe [Time & Date] is not correct, timer

recording cannot be set at the specified

time, so make sure the [Time & Date] is correct before setting timer recording, If

itis not correct, reset [Time & Date] (x

The recorder will record in the built-in memory [Folder A] when the microSD cardis selected as the recording destination and the microSD card is not inserted during Timer Recording.

Setting the playback scene [Play Scene]

Voice files recorded in the recorder and music files downloaded from the PC can be saved in the playback settings of your choice to suitthe different sound qualities and playback methods.

UE Select [Play Scene] from the menu on the [Play Menu].

+ For details on how to enter the menu settings, please see "Menu setting method” (er P.65).

Press the + or — button to select the item to set, and then press the > 0K or 1 button.

When [Scene Select] is selected:

Press the + or - button to select the playback scene you want to set.

@ Press the OK button to complete the selection.

+ After purchase, all the settings from ñ ice Gui 1 to 5 of [User Setting] are the same Suidance [Voice Guide]

(initial settings). Register the user This feature gives voice announcements settings in the [Scene Save] then of recorder operating conditions and select playback scene. file tag information (For DM-5). Adjust

+ To confirmthe respective playback the speed and the volume of quidance

scene settings, press the + or button … announcements.

in the [Scene Select] display to select . the item you want to confirm, then Eü Select [Voice Guide] from the press the BB1 button to confirm in menu in [LCD/Sound Menu].

the setting confirmation display. To + For details on how to enter the menu end the setting confirmation display, settings, please see “Menu Setting press the 4 button and the display Method” (ex P.65)

will return to the [Scene Select]

display. Press the + or — button to select

the item to set, and then press the OK orB1 button. When [Scene Save] is selected: You can save the menu settings of a play back you have set to your choice. @Setting the menu of a playback in the __ recorder to your choice. @ Press the + or - button to select the __ [User Setting] you want to save. @Press the OK button to complete the settings.

[Menu Guide] setting:

Provides voice guidance for menu settings.

Press the + or - button to select between [On] and [Off].

le] will be provided.

_ Guidance will be canceled Press the F3 (HOME) button to Press the à OK button to exit [Menu complete the setting. Guide] selection.

poyrouBupses nuoy + |

le Guide] setting Provides voice guidance for file tag information. Press the + or - button to select between [On] and [Off] 1On] [File Guide] will be provided 1off]: _ Guidance will be canceled @Press the OK button to exit [File Guide]

Sets the voice guidance speed.

Press the + or - button to set the playback speed.

@Press the OK button to exit [Speed] selection

Press the F3 (HOME) button to complete the setting.

+ The starting tune/closing tune when the power is turned On/Off (er P.26) can be canceled if you set the guidance to [Off]

+ Set the starting tune/closing tune at the guidance [Volume] setting.

+ If [Play Speed] has been changed, the [Speed] setting in the [Voice Guide] settings cannot be changed

Alarm playback function [Alarm]

The alarm playbackfunction can be setto play a selected file at a pre-set time.

You can program up to three desired settings (Preset 1-3) (On/0ff}, (Day), (Start Timel, [Volume], [Alarm Sound] and [Playback File).

E select [Alarm] from the menu on the [Play Menu].

+ For details on how to enter the menu settings, please see "Menu setting method” (er P.65).

Press the + or — button to select a preset number, and then pressthe

+ Select items you want to set from among [On/Off] [Day] [Start Time] [Volume] [Alarm Sound] [Playback File]

[On/off] setting: Press the + or - button to select between __ [On] and [Off @Press the OK button to exit [On/Off] selection. (On): Setting will be applied. tof Setting will not be applied

(Day] setting: Press the + or - button to select from [One Time], [Everyday], and [Every Week] [One Time] Alarm Playback will be performed only once at the specified time [Everyday] Alarm Playback will be performed at the specified time every day. [Every Week]: Make a Alarm Playback at a set time on specified day of the week.

poyrour Buyses nuoyy ]

Select [Every Week] and press the OK or1 button to move to the selection of [Day]. Press the + or - button to select a day

@Press the OK button to exit [Day]

@Press the + or - button to set. Press the OK button to exit [Start Time]

The voice control function can

4 ith this setting {x P.107) (For DM-5).

Press the 1 or #4 button to select “Hour” and “Minute” in the [Start Time] and “Hour” and “Minute” in the [Stop

@ Press the > OK button to exit [Volume]

[Alarm Sound] setting Press the + or - button to select an alarm sound from among [Alarmi], [Alarm2] and [Alarm3]. Press the > OK button to

checkthe alarm sound @ Press the OK button to exit [Alarm Sound) selection

K File] setti ®Press the + or — button to select a @ Press the + or - button to select from [No folder, and then press the OK or Select] »1 button. [No File Play] Sounds alarm only. = If INo File Play] has been selected, rer (2

proceed to the procedure listed under "Completing the setting”. [File Select] Plays back a selected file afterthe

alarm When [File Select]is selected: k Press the + or — button to select the @Press the + or — button to select the memory with the file to be played as file to be played as an alarm, andthen 2 an alarm, and then press the OK or press the b-0K button ë »B1 button Ë Ë ä 3 2 Ou 5 Es @ Press the + or — button to select a : ing: ® Completing th gi folder, and then press the OK or -ompleting the set DB button. E Press the F2 (60) button to complete the setting. EN

Programmed settings will be applied and the display will return to the preset number selection menu. If the [On/Off] setting is set to [On], [(+)] will appear on the display.

@) When setting to [On]

‘To set other preset numbers, repeat the above mentioned procedure.

When the BB button is pressed in the Select in Advance Menu, the settings selected can be confirmed.

HlEveryday] is selected, the alarm wi sound at the scheduled time every day unless alarm playback is canceled!

The alarm will sound for five minutes

and then stop. Even if a file is selected for Alarm Playback, it will not be automatically played when the alarm sounds

three alarm playback have the same starting times, [Preset 1] has the highest priority and [Preset 3] has the lowest. the recorder is in use or if operations are being performed at the scheduled time, the Alarm Playback function will not be available.

The alarm will sound at the scheduled time even ifthe power is turned off or the recorder is set to Hold mode. The recorder begins to play the selected file when you press any button, and stops playing when you press the STOP button.

+ Ifthe selected file is moved, erased or the microSD card removed, file playback will not be performed and only the alarm will sound.

+ Ifthe starting times for timer recording and alarm playback are set for the same time, timer recording will have priority (ex P.81).

Moving/Copying files [File Move/Copy]

Files saved in the built-in memory orthe microSD card can be moved or copied within the memory. Files can also be moved or copied between memory.

El select the folder where the file you want to move or copy is saved (# P.53 to P.59).

Select [File Move/Copy] from the menu on the [File Menu].

+ For details on how to enter the menu settings, please see “Menu Setting Method” (#7P.65).

Press the + or — button to select the position to move or copy the file to.

E Press the > OK or #1 button.

Move à file in the buit-in memory or microSD card to another folder within the builtin memory.

Copy à file in the built-in memory or microSD card +0 another folder in the microSD card.

Press the + or — button to select the number of files to move or copy.

M Press the > OK or 1 button to move to the respective setting.

When you select [1file]: @Press the + or - button to selectthe file you want to move or copy. @Press the OK button to selectthe file. Proceed to Step 8

Copy a file in the built-in] memory or microSD card to another folder within the] buit-in memory.

Move à file in the Duiltin memory or microSD card to another folder in the microSD card

When you select [Selected files]: Press the + or - button to select the file you want to move or copy. @ Press the OK button to checkthe file(s) selected.

When you select [AII files]: When all files are selected, all the files in the folder will be automatically selected and the recorder will move to the [Folder to move] display. Proceed to Step 8

Press the F2 (60) button.

E Press the >»1, 44, + or — button to select the folder you want to move or copy the file to.

+ [Moving!] or [Copying!] will appear on the display and moving or copying will start. During the process, the progress status will be shown in percentage. The process is completed when [File move completed] or [File copy completed] is displayed.

+ The recorder cannot copy when the memory capacity is not sufficient.

+ The recorder cannot move or copy when the number of file exceeds 999.

+ Do not remove the battery during moving or copying. This may damage the datas.

+ Afile cannot be moved or copied to the

When the operation is cancelled during

moving or copying, only the ile that is

being moved or copied is effective, all

other files will become not effective.

Files which are locked (ex P.75) will remain

50 even after they are moved or copied.

+ DRMfiles cannot be moved or copied.

Files cannot be moved or copied directly

under the [Recorder] folder.

Dividing files [File Divide] + [Dividing!] will be displayed and file splitting will start. Splitting

Files with large capacities and long is completed when [File di

recording times can be divide so that they completedi is displayed.

are easier to manage and edit.

select the file you want to divide (5 P.53 to P.59).

Start Playback or fast-forward the file, and stop the playback at divide position. +_Inthe file display, the stop position

becomes the divide position.

During playback, press and hold the

D>B1 or #4 button to fast-forward

or rewind (sx P.47).

It is useful to set index marks on

marking in advance at the divide

The file divide cannot be done when the position (er P.51) file list is displayed.

Select [File Divide]fromthemenu _* The recorder cannot divide files when the

number of files in the folder exceeds 998. + Locked iles (ex P.75). cannot be divide. After a file has been divide, the original file

on the [File Menu]. + For details on how to enterthe menu

settings, please see "Menu setting will be renamed [File name_1.wav] and method” (ex P.65) the new file will be named [File name + Afile cannot be divide during an 2wav) operation such as playback by the + Ifa file has an extremely short recording recorder. time, it may not be divide even if itis a E Press the + button to select PCM file. [Start], andthen presstheOK - Do not remove the battery during dividing

button. file. This may damage the data

Formatting the recorder [Format]

If you format the recorder, all files will be removed and all function settingswillreturnto defaults except

date and time settings. Transfer any important files to a computer before formatting the recorder.

E seiect [Format] from the menu on the [System Menu].

For details on how to enterthe menu

settings, please see "Menu setting

+ Afterthe [Data will be cleared message is on for two seconds, [Starti, [Cancel] will turn on.

E Press the + button again to select [Start], and then press the > OK button.

+ Formatting begins and [Formatting !] flashes on the display.

+_ {Format Done] appears when formatting ends

CE When an microSD card is inserted in the recorder, be sure to confirm the recording media as either [Built-in] or [microSD] 50 that there is no mistake (ex P.77).

Never perform operations such as the following while processing, as they may damage the data. In addition, carefully check the remaining battery level in order to ensure that the battery will not run out while processing

@ Unplugging the AC adapter while processing @ Removing the battery while processing. @ Remove the microSD card during processing when [microSD] is being used as the recording media. Performing any of these operations may damage the data. Never format the recorder from a PC. When the recorder is formatted, all the saved data, including locked files and read-only files, are erased. When returning the settings for the functions to their initial settings, use Reset Settings] (ex P.78). Formatting on the recorder will be Quick Format. If you format the microSD card, information of file management is refreshed and the data inside the microSD card is not deleted completely. Formatting or deleting the contents of the microSD card or built-in memory does not completely erase the data. When you dispose of media, we recommend that you take measures to prevent the loss of sensitive data, such as destroying the media before disposal

Schedule settings [Audio Diary]

This recorder has a calendar function Switching the calendar displa: Simple scheduling can be performed 9 pay is possible to switch the calendar screen between a monthly, weekly, and daily

Displaying the calendar display. El in the calendar display, press the E From the [Home] menu display F3 (MENU) button.

select [F1 Audio Diary], and then

press the OK or 1 button. CMS

+ A monthly calendar display is displayed.

From the weekly display, move the cursor to the day you want to display. Press the OK button to switch to the

+_Ifthe calendar function is exited, the

+ The calendar does not display national monthly display is displayed the next holidays. time the calendar display is opened.

Operations at the calendar display

Operations at the monthly display:

‘The display returns to the IHome) menu display.

Changes the month that is displayed. At the popup menu display, press the + or - button to select the previous or next month,

Schedule settings [Audio Diary]

El From the calendar display, press the DB1, 4, + or — button to select the date to which you want to add a schedule, and then press the F3 (MENU) button.

The menu will appear on the display.

Operations at the weekly display:

‘The display returns to the

El move the cursor to the item you want to set, and then press the > 0K orB1 button.

The voice control function can be used with this setting {= P.107) (For DM-5).

(DPress the B-B1, #4, + or- button, set the “Year”, "Month", and “Date”. Press the > OK button.

The voice control function can be used with this setting

{x P.107) (For DM-5).

(DPress the B-B1, #4, + or- button, set the “Hour” and “Minute” in the [Start Time] or [Stop Time]. Press the D OK button.

Press the + or — button to select the item to set, and then press the OK button

- You can specify the event frequency from [One Time], [Everyday], [Every Week], [Every Month], and [Every Year]

[Alarm] setting Press the + or button to select [Alarm] setting, and then press the OK button. loff]: Disables this function. [to [3] Select the alarm sound for the alarm notification

Completing the setting:

Press the F2 (60) button to complete the setting.

+ A day with a schedule is underlined.

+ A maximum of 1000 events can be scheduled

Léaerg oipny] suryjes enpaus + |

Editing the schedule

The details of scheduled events can be

El From the calendar display, press the bi, 4, + or — button to select the day of the event you want to edit, and then press the > 0K button.

Schedule settings [Audio Diary]

E Press the + or — button to select [Edit], and then press the > OK or 1 button.

Press the + or — button to select the event you want to edit, and then press the F3 (MENU) button.

Select [F1 Audio DiaryMenu], and then press the OK or D>b1 button.

+ Forthe procedure for changing event details, please see ‘Add a schedule”.

Schedule settings [Audio Diary]

Deleting a schedule E Press the + or — button to select IDelete], and then press the >OK Delete the contents of a scheduled event or button.

E From the calendar display, press the bi, 4, + or — button to select the day of the event you want to delete, and then press the > 0K button.

Press the + button to select [Start], and then press the > OK button.

Press the + or — button to select the event you want to delete, and then press the F3 (MENU) button.

Léaerg oipny] suryjes enpaus + |

+ Asingle scheduled event is deleted

Formatting the schedule

schedule to initialize.

E From the [Home] menu display select [F1 Audio Diary], and then press the OK or 1 button.

Schedule settings [Audio Diary]

+_ {Format Done] appears when formatting ends.

Viewing images (For DM-5)

This recorder can connect to a digital camera and import images.

please visit our web site.

Press the + or — button to select microSD] or [USB], and then press the > OK or BI button to set (complete) the media you want to

+ _ JPEG image files located in the DCIM folder can be imported.

Import images stored on microSD] | à microSD card to this re- corder.

Import images stored on a {USB] connected digital camera 0 this recorder.

El Press the + or - button to select IBuilt-in] or [microSD], and press the > OK or BB button to set (complete) the memory for importing destination.

Press the + button to select [OK], and then press the OK button.

+ The display changes to [Synchronizing] and import starts.

E Seiect [IMAGE] folder, and then press the OK or] button.

+ Dates on which images were taken are displayed as a list

H Press the + or — button to select a date images were taken, and [Browse], and then press the > OK then press the OK or DB1 oræ1 button. button.

M Press the + or — button to select a image file, and then press the

Press the 1 or 44 button to move to the next image file.

E setect [IMAGE] folder, and then press the OK or] button.

Dates on which images were taken are displayed as a list

Press the + or — button to select a date images were taken, and then press the D OK orB1 button.

Viewing images (For DM-5)

M Press the + or — button to select the image file you want to erase, and then press the F2 (ERASE) button.

E Press the + button to select

[Start], and then press the > OK button.

+ The display changes to [Erasel] and erasing will start. [Erase Done] is displayed when the file is erased For details on how to erase a file,

ee Erasing from the file

ay" (ex P. 61), “Erasing AI Folder” (+P. 62) "Erasing a

Using voice recognition (For DM-5)

This recorder is equipped with a voice recognition function. This function allows complicated key inputs such as date and time settings, keyword entry, and folder name changes to be performed by voice. In addition, itis possible to use voice command Shortcuts to jump to the various modes and menu settings of the [Home] menu display.

El when the (Æ] mark is displayed at the menu setting screen, press and hold the VOICE button while saying the setting you want to entei

The following explanation ofthe

voice control function provides

examples of actual operations that can be performed using this recorder.

When you are setting the “hour”, “minute”, "year", “month”, and “day” in the {Time & Date) settings, saythe‘year’ ‘month and “day” or “time” you want to enter.

Example: When entering time entry February 10, 2010

2010 10:20 A When entering the [Start Time] and [Stop Time) in the [Timer Rec) settings, say the times. Example: When the start timeis 930

Example: When the end time is 11:00

Say a “Keyword” thatis in the template. Example: When setting “Conference”.

Example: When changing the name to "Work.

When setting the [Start Time) settinginthe [Alarm] settings, say the “time* Example: When the start timeis 630

When entering the [Start Time] and [Stop Time] while [Add Schedule] set- tings, say the ‘times’ Example: When the start timeis 930

Using voice commands

Using voice recognition (For DM-5)

E wnile the recorder is paused at the [Home] menu display, press the VOICE button and say a voice command word.

+ Voice commands cannot be used when [Recorder] mode is running or

during an operation. Voice commands list:

Recorder Music Podcast Picture Book Schedule Preferences | Audible

+ The following explanation of the voice command function provides examples of actual operations that can be performed using this recorder.

Except for recorder mode, say the name of the mode you want to launch to jump ta that mode. Exemple: When jumping to [Music] mode

The mode changes to [Music] mode.

Using the Olympus Sonority

Saving files in your PC By being connected to a PC, the recorder + Folder (directory) names displayed by enables you to do the following: file management tools such as Explorer

” in Microsoft Windows and Finder in : Playback voice files on your PC (x P124) Macintosh are different from the folder

Voice files recorded using the recorder can Lames that can be set with the recorder or be played using the "Olympus Sonority" {ke Olympus Sonority” softwareincluded onthe provided CD-ROM kéders or files stored on the recorder (> P113)0r "Windows Media Player” (= * Onetedanenamed in came e P138) file management tool in Windows + Voice files recorded on the recorder canbe Gr Macintosh, the order offiles may played and managed on the PC using the be changed or files may become 0Iympus Sonority” . unrecognizable. * Using the "Windows Media Player” the, Data can be written or uploaded to the stored WMA or MP3 files on your PC can be Lecorder even though the attribute ofthe En transferred'and played backonthisrecorder … {écarder drive is shown as Read-only by {ex P141)

. the operating system of the PC. * Man upgrade (Option tothe”"OWmpus Ai the noise may cause adverse efects on £ Sonority Plus” is executed or a Music electronics devices nearby therecorder, & ditingPlugrin is added (Option various Unplug the external microphone and 3 additional functions can be utlized (+ earphone when you connect the recorder & toape. 5 Precautions on using the recorder connected É toaPc 5 software functions à + When you are downloading a file from the recorder or uploading à file to the Function items that can be used in Windows recorder, do not remove the USB cable vil be displayed as GED and function even ifthe screen is indicating you can. items that can be used in Macintosh will be Data still being transferred while the LED displayed as RME. items that only have indicator light is blinking. When removing QIXEID or ŒHIED indicated can only be the USB cable, be sure to follow/the supported by the target system description in ex P.I11. the USB cable is removed before the drive is stopped, data may not be successfully transferred. + On a PC, do not format the drive ofthe recorder. Initialization is not successfully achieved on a PC. For initialization, follow the instructions in the [Format] display of the recorder (x P.94) EN

ausuuoaaus Guerodo |

Operating environment Ciinaous]

Microsoft® Windows® 7 (32bit/64bit)

32 bits (x86) of 1GHz and above or 64 bits (64) processor RAM: 512 MB or more Hard drive space: 300 MB or more

CD-ROM, CD-R, CD-RW, DVD-ROM drive

Microsoft Internet Explorer 6.0 later

1024 x 768 pixels or more, 65,536 colors or more (1,6770,000 colors or more is recommended)

One or more free ports

+ Environment where the Internet can be utilized.

ive CD-ROM, CD-R, CD-RW, DVD-ROM drive

Browser: Macintosh Safari 2.0 later

Display: 1024 x 768 pixels or more, 32,000 colors or more (1,6770,000 colors or more is recommended)

USB port: One or more free ports

+ Environment where the Internet can be utilized (Quick Time version 7.2 or more is recommended).

+ The support service will not cover if your PC has been updated from Windows 95/98/Me/2000 to Windows XP/Vista/7.

+ Any failure on a self-modified PC will not be covered underthe operational warranty.

+ Some functions in "Olympus Sonority" require QuickTime 7.2 and above.

The latest version of QuickTime can be obtained from the MacOS Software Update

Connecting to your PC Connecting to your PC CHED ED E Turn the recorder's power ON.

+ [Remote (Storage)] is displayed on recorder if the USB cable is Connect the USB connection connected. cable to the USB port of the PC.

When the recorder is using the USB connection setting, it will not be connected to the PC when [AC] is selected. Select [PC] in the USB connection setting (ex P.77). Windows: When you connect the recorder to a Windows and open [My Computer] it will be recognized by the drive name of the productname. Ifa microSD cardisinserted, [Removable Dis] will be displayed. Macintosh: When you connect the recorder to a Mac 05, itwill be recognized bythe drive name of the product name on the desktop. fa microSD card is inserted, [NO NAME] will be displayed.

Make sure that the recorder is stopped, and then connect the USB cable to the connecting port onthe bottom of this recorder.

+ Be sure to use the included dedicated cable for the USB connecting cable. f any other company‘ cable is used, it will be the cause trouble. Also, please do not connect this dedicated cable to any other company's product.

When connecting the recorder through an USB hub the operation may become unstable. In such cases, refrain from u a USB hub.

Disconnecting from your PC El ciick[ # ]onthe task bar located at the lower-right corner of the screen. Click [Safely remove USB Mass Storage Device].

+ The drive letter will differ depending on the PC being used.

r E confirm that the recorder LED D4mofo3Buppauuoy

indicator light is gone before

disconnecting the USB cable.

+ The LED indicator light will light up (orange) in case of charging, however

you can still disconnect the USB cable in such condition.

El Move the drive icon for this recorder that is appear on the desktop to the garbage bin by Drag & Dropit.

Connecting to your PC Confirm that the recorder LED indicator light is gone before disconnecting the USB cable.

+ The LED indicator light will light up (orange) in case of charging, however you can still disconnect the USB cable in such condition.

+ NEVER disconnect the USB cable while the LED indicator light is flashing. f you do, the data will be destroyed

+ When the recorder is connected to a PC, the power will be supplied from the USB cable.

+ Referto the user's manual for your PC

regarding the USB port on your PC.

Be sure that you connect the USB cable

either directly to the USB port on your PC.

+ Be sure to push the cable connector all the way in. Otherwise, the recorder may not operate properly.

Functions available in the Olympus Sonority

Various functions such as file management and editing are installed in the "Olympus Sonority”. For information on operating procedures and detailed settings, please refer to the respective items on online help (ex PA118)

Waveform editing function

Using the Waveform Editing Function Tab, you can easily process the voice data. In the Waveform Editing Mode, you can also delete unnecessary parts, paste and re-save the data.

One-touch effect function

Using the One-touch Effect Function, you can easily apply special effects to the voice file and carry out noise reduction in any specified area.

Send voice files with E-mail

Voice files are stored in the [Message] folder on the hard disk. Voice file can be sent as an E-mail attachment.

Changing user ID The user ID will be automatically given to files that are recorded with the recorder.

Changing a folder name

You can change a folder name. À folder name can be up to 62 characters long and cannot use Tel

When changing the folder name using an OS in a language not supported by the main device, the words may sometimes be garbled

Editing file comments

Itis possible to add comments tothe files downloaded from the recorder by usingthe “Olympus Sonority”.

Changing the file format to other format*

The current saved file format can be changed to other formats.

In ‘Olympus Sonority” , designated multiple voice files can be joined and one voice file can be created

One designated voice file can be split into the two files in "Olympus Sonority”

Import files using Olympus Sonority

+ Import Podcast content from the Internet to a computer. » Please see "About Podcast” (ex P.127) for details.

+ Import DAISY content from the Internet to a computer."* » Please see “About DAISY (For DM-5)" (+= P.132) for details.

ns available in the Olympus Sonority

* Changing to a MP3 format upgrade to the "Olympus Sonority Plus” is necessary (ex P.136) #* DAISY 2.0/2.02 content is supported (ex P. 132).

Before you connect the recorder to your PC and use it, you must first install the "Olympus Sonority” software from the included Software CD.

Be sure to confirm the following before installation:

+ Exit all running applications.

+ You need to log on as an Administrator.

El insert “Olympus Sonority" into EH confirm your acceptance of the the CD-ROM drive. terms of the Licensing Agreement. + Theinstallation program will start + You must accept the terms ofthe automatically. Once the program Licensing Agreement to install Starts, jump to step 4. Ifit does not, “Olympus Sonority”. After checking follow the procedures in steps 2 and 3. the [Agree] box, click [Next] Opening contents in the CD-ROM [Registration of User Registration with [Explorer]. Information] i : + Please enter your name, company Double-click [Setup] in the CD- name and serial number which is ROM. listed on the separate sheet. Click

El when the “Olympus Sonority" INext after entering

launch screen is displayed, click I ISelect Setup Type]

the desired language to select it. + Theinstallation destination can be

: changed. Click [Next] if you do not

When [Olympus Sonority Setup] want to change (Select (Custom) if is clicked, the Installer Opening you want to change) display will start up. Followthe E] {Start installation]

Installer Wizardinstructions. + Click Install] to start installing. Do

not carry out other operations before the installation is completed and the [Complete] display is displayed.

El tinstallation Complete]

+ Whentheinstallation is completed, the completed [Install Shield] display will be displayed.

To connect the recorder to a PC,

refer to "Connecting to your PC"

{x PAT), to start up the Olympus Sonority, refer to "Running Olympus Sonority” (ex P119).

El insert “Olympus Sonority" into

+ Proceed to step 3 when the content of CD-ROM is displayed, and go to step 2 and 3 when nothing is displayed

Opening contents in the CD-ROM

Double-click [Setup] in the CD- R(

El when the “Olympus Sonority"

launch display is displayed, click the desired language to select it.

When [0lympus Sonority Setup] is clicked, the installer opening display will start up. Follow the Installer wizard instructions.

HE confirm your acceptance of the

terms of the licensing agreement.

+" You must accept the terms ofthe licensing agreement to install “Olympus Sonority”. After checking the [Agree] box, click [Next]

[Changing the Installation

+ Theinstallation destination can be changed. Click [Next] if you do not want to change (Select (Change Installation Destination] if you want to change).

El Start installation]

+ When the installation is completed, the completed [Installer] display will be displayed.

To connect the recorder to a PC, refer to “Connecting to Your PC" (ex PA11), to start up the Olympus Sonority", refer to "Running Olympus Sonority" (ex P119).

After starting up the "Olympus Sonority", the serial number entry dialog box will appear. Serial number which is listed on the separate sheet After entering, click [OK] and the “Olympus Sonority” will start up.

Uninstalling software

To uninstall any of the software component of the “Olympus Sonority” software installed on

your PC, follow the steps below.

El exit “olympus Sonority”.

Select [Start] from [Control Panel] menu.

ck [Add/Remove programs] in the control panel window.

El when the installed application list is displayed, select [Olympus Sonority].

ick [Change/Remove]. HE confirmation of deleting the file.

Click the [OK] button to start uninstalling. An additional message may appear, if so, read it carefully and follow the instructions given.

When the [Maintenance Complete] display is displayed, click [Finish] to complete uninstalling.

The voice files you made are stored in the [MESSAGE] folder. f you don't need them, delete

El exit “olympus Sonority”.

El open fFinder] and double-click the [Sonori yuninstaller.phg] in fold

The Uninstaller will start up.

Follow the wizard instructions.

El when the administrator password is asked, enterthe password then click [OK].

Uninstall will start and when ISuccessful] is displayed, click IClosel.

You can confirm the location of the IMESSAGE] folder by clicking [Options] in the [Tools]

menu before uninstalling,

CD ŒED To open Online Help, you have the following options. + While “Olympus Sonority” is running, select [Contents] from the [Olympus Sonority Help]

El once the Online Help display appears, click the Contents tab.

Double-click the @ icon ofthe desired topic heading.

Double-click the [=] icon of the desired topic.

+ An explanation ofthe topic is displayed.

+ Matching keywords are located automatically.

+ Formore information on menus and operations, refer to Online Help. You will be able to use Online Help after Olympus Sonority is installed.

Running Olympus Sonority

By connecting the recorder to your PC, you can automatically start the application

Disabling automatic start

El right click on the [Oj ofthe taskbar on the lower right ofthe display, and select [Setting].

+ The application which enables setting will be displayed by dialog.

ŒD El From the menu bar, click 18] =>

[System Environment Setting] =}

+ Thesetting dialog box will appear. Turn the automatic start up inthe

ofthe [Olympus setting check box to [OFF].

+ The check mark on [Olympus Sonority] disappears. For automatic start, select and click"Olympus

Sonority" to reinstate again. UE From Finder, double-click d Application] > [Olympus 5. Sonority] } [0lympus Sonorityl. à EC mm ccm © serial number registration dialog box 3 El start Windows. will appear. È Click the [Start] button, select Enter the Serial Number. A [AI Programs], then [Olympus + Forthe product serial number, refer £ Sonority]. tothe serial number onthe separate & + After start up, a [[j} icon will be + The information display area will displayed in task bar in the bottom appear ifthe serial number is correct. right of the display. + You cannot run more than one "Olympus Sonority" program or multiple copies of the same program simultaneously. + When other applications such as DSS Player, etc. are opened, close these applications first before starting up the "Olympus Sonority". EN

This is the main screen of the "Olympus Sonority” (The display screen is the display screen in

D Menu Bar The OS standard menu bar.

@ Tool Bar Tool Bar to be used in the Browse Screen will be displayed.

@ Main Tree View Files downloaded from the recorder, files recorded in the "Olympus Sonority", etc., and folders containing voice/music files managed by the PC's "Olympus Sonority"

@ Device Tree View Folders in the connected device will be displayed.

@ File List Display Area Detailed information of the folders selected in the Main Treeview or Device Treeview and all voice files in the recorder will be displayed. The Information Display Area (Initial Setting) will be displayed when the “Olympus Sonority” is started up, and the basic information of the "Olympus Sonority” can be displayed, updated and upgraded (ex P.136).

Window names (0lympus Sonority)

Olympus Sonority information display area

“olympus Sonority” Information Display Area Update ofthe "Olympus Sonority” and confirmation and update ofthe firmware of the connected recorder can be carried out. Upgrade to the “Olympus Sonority Plus” and registration of Podcast programs can also be

When the "Olympus Sonority” is started up for the first time, Information Display Area will be displayed in the File List Display Area in the Browse Screen.

D Audio File List Selects Folder À in the Main Treeview and displays the File List Display Area.

@ Opening the Program Guide Displays the latest information on the Podcast Program Guide.

@ Updating latest information Updates the latest information from Olympus.

@ Viewing updated information Confirms the updated information of the “Olympus Sonority” and recorder that is connected.

® Display/Hide Select to show or hide the Information Display Area the next time “Olympus Sonority” is started. When hide is selected, the File List Display Area (ex P.120) will be shown.

(éuouos snduuéo) sowreu mopuu |

Download voice files from the recorder

CD CD There are 3 download options to transfer voice files from the recorder to the PC:

+ Download Selected Files + Download Folders + Download All

The following is an explanation of [Download Selected Files]. For explanations of [Download Folders] and [Download All] refer to Online Help (ex P. 118).

Download Selected Files

El select the folder.

+ Fromthe Device Tree View, select the folder that contains the voice file you would like to download. The illustration shows that [Folder A] has been selected.

Select the voice file.

+ Selectthe voice file you want to download from the File List Display Area.

To select more than one file:

Hold either the [Ctrl] or [Shift] key and select files.

Hold either the [Command] key and select files.

Download voice files from the recorder

Download the voice file. l'opeenens + Fromthe [Der ] Menu, select [Download Selected Files] or click 7 IE Donniead Fate à

[él on the Tool Bar. 65 Count Fee L

E] Download complete.

+ Do not disconnect the USB cable while the LED indicator light on the recorder is flashing. Disconnecting the USB cable when the LEDindicator | 22m light is flashing will result in data loss DE uns or corruption (ex P.112)

NEVER disconnect the USB while the LED indicator light is flashing. If you do, the data will

+ Depending on the size of the voice file and your PC, it may take some time to download the les.

+ The downloaded files will be stored in the download tray folder that corresponds to the folderin the recorder. {Example: À voice file downloaded from [Folder A] will be stored in download [Folder A] on the Main Treeview.)

+ When the same file name already exists, the new file is saved with another file name

only when the contents are different. When the contents are the same, it will not be

+ Selectthe folder that contains the voice file you would like to play.

ERIC LE Browser | be] Edtor

Select the voice file.

+ Selectthe file to playback from the File List Display Area.

a] Play the voice file.

+ Click the 1] (play) button ofthe

= ë Play Control Bar. a £ À Other playback control such as Rewind, 2 Fast Forward, Stop, Speed Control, Volume # Control, Time Axis and Index Skipare available from the Play Control Bar. EN

Using the waveform editing function

You can use the Waveform Editing Tab in the "

Iympus Sonority" to easily process

In the Waveform Editing Mode, you can also delete unnecessary parts, paste and re-save the

E From the Browse screen, select the file you want to edit, select [File] =} [Edit].

+ _ The waveform editing screen will appear and the waveform will be displayed.

Drag and select the waveform you want to delete.

+ Selected parts will become greyin the waveform display.

Select [Cut] from the [Edit] Menu.

+ _ The selected waveforms will be deleted.

El Giick on any waveform display part.

+ Selected waveforms in the waveform display will become grey.

Select [Paste] from the [Edit] Menu.

+ The waveforms that were cut previously will be inserted in the part selected.

EH click the Write Track Zone [*ss) + _ The Save dialog box will appear.

Using the one-touch effect function

Using the one-touch effect function, you can easily apply special effects to the voice file. Here we show you how to carry out noise reduction in a specified area.

E From the Browse screen, select the file you want to edit, select [File] =} [Edit].

+ The waveform editing screen will appear and the waveform will be displayed.

Drag and select the waveform part you want to apply special effects on.

+ Selected parts will become grey in the waveform display.

Press the noise reduction adjustment button [ + Noise will be removed from the

El ciick the start location of the selected part and press the [fn] button on the Playback Control Bar.

+ The part where noise has been reduced will start to play.

uorpuny 394 1pnoy-ouo ou3 Buisn Juoipun But1po uuoyonem ou} Butsn

Upload voice files to the recorder

“olympus Sonority” has a feature to enable you to upload files from your PC to the recorder.

El select the folder. + Select the folder that contains the voice file to upload from the Main Tree View.

Select the voice file.

+ Select the file you want to transmit

from the File List Display Area. Select the folder to upload.

+ Fromthe [Device] menu select [Upload Selected Files] or click the Upload icon [*#]. Once the folder list box where the file is to be uploaded is displayed, select the folder from which the file is to be uploaded.

E Upload the voice file.

+ Click [OK] to upload the voice file to

the recorder. Upload complete.

+ Once the transmission screen closes and the LED indicator light on the recorder is OFF, upload is completed.

You can also transmit a file by selecting the file you want to transmit from the File List Display Area, and then drag and drop it in the Device Treeview folder (move the mouse while pressing the left mouse button, and release the button atthe destination).

+ NEVER disconnect the USB while the LED indicator light is flashing. If you do, the data will be destroyed.

+ When the same file name already exists in the folder on the recorder, the new file is saved with another file name only when the contents are different. If contents are the same, it will not be uploaded.

ERCCCICE ES 2 G obnpus Sonor Wirecornaraier

You can either drag and drop the Podcast Program Icon to retrieve Podcast contents or search and retrieve it by registering the content address.

This function is not supported in Macintosh. Use iTunes, etc. to retrieve Podcast contents.

E start olympus Sonority.

Open a web browser and go to a Podcasting site.

Bi Editor s Sonority

Drag the Podcast registration icon and drop it in the [Podcast] folder in Olympus Sonority.

+ Podcast registration icons fa Folder À

depending on Podcasting sites. Æe Folder B Fease check each Podcasting site for & Folder C El Program registration will & Folder D

complete. £e Folder E

+ When a program is registered, a list of 8 {all Podcast Tray broadcasting content provided by the program will appear in the [Podcast] folder's list view. By default, the latest content at the time of registration will be automatically downloaded.

+ About the file format which can be played back with the recorder, refer to P.48.

By default, programs registeredin "Olympus Sonority" will be automatically updated. To change update intervals, go to [Tools] menu then [Options], and change them in the Options dialog's Podcast tab. Please see the Online Help for details (ex P.118).

H you don't want to update programs automatically, you can update the using the following procedure.

Program registration, update and download functions are not available in Macintosh. Use iTunes or other applications for these functions.

E setectthe [Podcast] folde:

Eee (Der 2 Oo con Lo me Greene Frais

Select a program you want to update.

Select [Update Podcast] from the [Tools] Menu or press the [t£]in the Tool Bar.

+ Updating program starts. Once the program has been updated the new content will be displayed in gray. The content displayed in gray has not yet been downloaded onto a computer.

By default ifnewr contentis found when a program is updated, the latest content will be

automatically downloaded. This setting can be changed by selecting [Tools] then [O}

and going to the Options dialog's Podcast tab. Please see the Online Help for details (+= Pnta) Hyou want to download manually, the content can be downloaded with the procedure

Program registration, update and download functions are not available in Macintosh. Use

iTunes or other applications for these functions.

El select the [Podcast] folder.

Click the [Download] button of the content you want to download. + Content downloading will start. The status is displayed by the percentage while contents are being downloaded.

Download will complete.

+ Downloaded content can be played and transferred to the recorder.

Transfer content to the recorder

In the default setting, the content automatically transferred into the [Podcast] folder on the recorder when the recorder connects to a computer. This setting can be changed by selecting [Tools] under [Options], and by selecting the [Podcast] tab displayed on the

Option dialog box. Please see the Online Help (+= P.118) for details.

Hyou want to transfer content manually, follow the procedure below. Podcast contents registered in iTunes, etc. can be transmitted to this recorder by dragging

and dropping it in the recorder's [Podcast folder.

E select the [Podcast] folder.

Select the content you want to transfer, and drag it to the [Podcast] folder of the recorder and dropit. + Content transfer will start.

A progress window will appear during transfer.

Transfer will complete. + Content transferred to the recorder will have an icon [Hÿ] indicating à completed transfer.

+ NEVER disconnect the USB while the LED indicator light is flashing. If you do, the data will be destroyed.

Program guide functions

OLYMPUS related podcast programs can be easily registered and new contents can be automatically downloaded on the "Olympus Sonority”. New contents can also be redirected to the recorder by just connecting to the PC.

Program guide functions are not available for Macintosh

Browser | [) E Q olympus Sonority

E ciick [Channel Guide] in the

online service of the Main Tree 3 Recording Folder View. & ©] Download Tray + _ Information of programs registered Gi Folder 4 online will be displayed. € Folder 8 Click the program you desire Éè Folder C from the program list. G5 Folder D + Detailed information on the program É Folder E will be displayed in the Program

Click [Subscribe] to register on the podcast.

+ Once the program is registered, the contents broadcast by the program will be displayed in the List View of the [Podcast] folder.

Under the initial settings, the latest contents being broadcast will be automatically downloaded during registration

About DAISY (For DM-5)

[Windows] What does DAISY stand for?

DAISY stands for Digital Accessible Information System. Originally intended as a replacement for audio tapes for visually impaired people, the books and information are now used

by people with various reading disabilities. DAISY is a worldwide accessible information system developed and maintained by the Daisy Consortium, an international collaborative development organization

Whatis multimedia DAISY?

While listening to audio via computer it is possible to simultaneously view drawings and pictures. Since the portion being read is highlighted, it is possible to know what section is being read. Itis also possible to change the speed of the audio and jump to different pages. There are children and students studying with multimedia DAISY as learning materials.

How do you play multimedia DAISY?

Afterinstalling the "Olympus Sonority” software supplied with this recorder onto a computer (ex P115),selectthe [DAISY tray] folder from the browserwindow, and then press the play button to experience multimedia DAISY. During playback, it is possible to skip text and headings, as well as quickly jump to a section by clicking it. If a bookmark is set in advance, start playback from that position at any time. For more details, please see (ex P134)

is also possible to laying contents”

about DAISY For more detailed information about DAISY, please visit the following web page. Official web page ofthe Daisy Consortium.

About DAISY (For DM-5)

DAISY book content can be imported into “Olympus Sonority”. The content can be played by selecting it from the [DAISY tray]. Import and playback are possible with Version 2.0/2.02 DAISY content.

[ Piace a DAISY file or folder with DAISY files on the desktop ofthe computer.

Start “Olympus Sonority".

From the [File] menu of “Olympus Sonority”, select [Import], and then [Import DAISY book].

+ Afile dialog boxis displayed.

E] select the DAISY file to be

imported and then click [Open].

+ Import starts. + Imported files are displayed as a list.

(S-WQ 104) ASIYQ inoqy |

E ciick (DAISY trayl.

+ Alist of DAISY books registered in “Olympus Sonority” is displayed.

From the list, click the title you wish to play. + Afile import window is displayed.

(S-Wa 104) AS1vQ noqy |

From the playback control bar, click [4e)u] (Play) to play the

+ _ The DAISY content starts playing.

+ Using the [ »=i button, you can skip to the previous or next section.

+ Clickthe button to display the table of contents.

Loing ut COLE CT Transfer content to the recorder

El connect the recorder to a PC, and start Olympus Sonority. + A device tree is displayed in Device Manager. Select the content you want to transfer.

+ Select the file you want to download from the File List Display Area.

To select more than one file: Windows:

Hold either the [Ctrl] or [Shift] key and select files.

Hold either the [Command] key and select files.

From the [Device] menu in “Olympus Sonority”, select [Upload DAISY book].

+ The transfer of content starts.

A progress window is displayed while

content is being transferred. E] Transfer will complete. Content transferred to the recorder will have an icon [: idicating a completed transfer. Bookmarks for DAISY books set in

“Olympus Sonority” can also be used on the recorder.

About DAISY (For DM-5)

+ NEVER disconnect the USB while the LED indicator light is flashing. If you do, the data will

CHED CMD The “Olympus Sonority” can be upgraded to the Plus Version (Optional) to expand and improve its functions. In addition, in the “Olympus Sonority Plus’, you can purchase a Music Editing Plug-in to enjoy effect editing. To add a Music Ë in, you will need to upgrade the Sonority Plus”

Purchase and upgrade

To purchase "Olympus Sonority Plus” and to upgrade from "Olympus Sonority” is shown in the following procedures.

E startthe “Olympus Sonority".

+ Please see ex PA19 forthe starting method.

Select [Purchase Olympus Sonority Plus] in the [Help] Menu or click the [ii] button in the Tool Bar.

+ The web browser will start and the purchase site of the "Olympus Sonority Plus” will be displayed. Please operate according to guidance on the screen. When the purchase procedure is completed, the Upgrade Key will be issued by mail

Select [Upgrade to Olympus Sonority Plus] from the [Help] menu.

+ _ The [Upgrade to Olympus Sonority Plus] dialog will be displayed.

Ein the [Upgrade to Olympus Sonority Plus] dialog, enter the Upgrade Key of your purchase, and click the [OK] button.

+ When starting the application next time, "Olympus Sonority" will be upgraded to "Olympus Sonority Plus”.

Upgrading to Olympus Sonority Plus

Click the root of the Main Treeview, (0lympus Sonority] in the Browse Screen to display the Information Screen. Vou can confirm that the upgrade key is registered. In addition, when [Version Information] in the [Help] Menu is selected, the upgrade key registered in "Olympus Sonority Plus” will be displayed. The Music Editing Plug-in includes more than 20 types of effect functions and spectrum analyzer functions. For details, please refer to the Online Help (= P.118).

+ To purchase the Upgrade Key, it requires: an environment where the Internet can be utilized.

+ Please see the details in the website regarding the purchase of the Upgrade Key.

Functions available in the Olympus Sonority Plus

Besides the usual functions, the "Olympus Sonority Plus” also includes various functions to edit music files. For information on operating procedures and detailed settings, please refer to the Online Help (ex P:118)

MP3 file and tag editing and writing function.

Function to create music CD from voice files registered in the CD writable folder.

Recorder menu setting

Function for settings in this recorder (detailed settings such as recording mode, alarm setting, timer recording, etc.)

Functions available with the music editing plug-in

By purchasing a music editing plug-in, you can add high-quality functions to expand the music editing range in the "Olympus Sonority Plus”. For detailed purchasing method and operating procedures, please refer to the Online Help (+ P118),

You can use more than 20 high-quality effect functions to edit your music files.

Displays in the Waveform Display Screen the waveform distribution of an voice file being played in the real time

Besides unrestricted track editing

It also removes the restriction on the number of tracks that can be edited.

Using Windows Media Player

Music files that have been imported to your s computer from music CDs and acquiredover 22 the Internet can be transferred to and played backwith this recorder. It supports WAV, MP3, and WMA format music files.

By using Windows Media Player, music files from music CDS can be converted (ripped (ex P139)

Download Audible content available from the Audible web site for a fee to a computer.

Windows Media Player 12 Windows Media Player 11

Features taskbar (Features taskbar @ Seek slider @ Seek slider @ Shuffle button @ Shuffle button @) Repeat button @)Repeat button © Stop button @) Stop button @ Previous button © Previous button @ Play button @ Play button @) Next button (8) Next button

EN (@) Mute button @) Mute button

138 40 Volume slider 40 Volume slider

Copying music from CD Windows Media Player 12

El insert CD into the CD-ROM drive, and start Windows Media Player.

From the Features taskbar, click [Rip CD] menu. + internet connectivity is available, CD information is searched. Put a check mark on the music file that you want to copy.

El Giick [Start Rip].

+ Files copied to a PC are stored in WMA format. Music files copied are categorized by artist, album, genre, etc. and added to the play list.

El insert CD into the CD-ROM drive, and start Windows Media Player.

From the Features taskbar, click

+ After clicking [Rip] menu, click [View Album Info] for Windows Media Player 10 as necessary.

+ internet connectivity is available, CD information is searched.

Put a check mark on the music file that you want to copy.

El Giick [Start Rip]. + For Windows Media Player 10 Click [Rip Music]. Files copied to a PC are stored in WMA format. Music files copied are categorized by artist, album, genre, etc. and added to the play list.

Using Windows Media Player

Transferring music file to the recorder

You can transfer the music files saved in your PC to this recorder. For how to copy the music files from the CD to your PC, please see “Copying music from CD” {ex P.139).

Windows Media Player 12

El connect the recorder to a PC, and

From the [Organize] menu, click [Options]. At the Options dialog box, click the [Devices] tab. =

on device] to check. pi

If you uncheck and syneronize the rer

file, it will be transfered under the Eee

folder (Home, and the file wil not be s

The folder with artist name or album

name is automatically created. This

will make you find the file you want to

listen to more easil

“1 IfICreate folder hierarchy on — device] is checked by defaut, click ss (Ce) to uncheck the box once, and clickit again to check.

“2 Afterthe synchronous transfer to the

Rkejgepesnopuin Sursn Fr |

recorder, a filenamed "WMPinfo.xml" || + an is created. If you delete this file, the *1 À “rem may need to be set again.

E] select the desired category from Library] on the left, and select music files or albums to transfer to the recorder, and Drag & Drop them in [Synclist] on the right.

Click [Start synd. + _Thefile is transferred to the recorder.

Using Windows Media Player

+ Refer to the online help of Windows Media Player for detail

Windows Media Player 1

El connect the recorder to a PC, and start Windows Media Player.

From the Features taskbar, click [Synd.

Click [Sync menu again to select IDVR] =} [Advanced Options] =} [Set Up Sync], and set as follows.

+ Click on the [Create folder hierarchy on device] to check.

Iyou uncheck and syncronize the file, it will be transfered under the folder [Home], and the file will not be indicated. #1 *2

The folder with artist name or album name is automatically created. This will make you find the file you want to listen to more easily.

#1 If [Create folder hierarchy on device] is checked by default, click to uncheck the box once, and click it again to check.

*2 Afterthe synchronous transfer to the recorder, a file named “WMPInfo.xml” is created. If you delete this file, the *1 may need to be set again.

E] select the desired category from Library] on the left, and select music files or albums to transfer to the recorder, and Drag & Drop them in [Sync List] on the right.

Click [Start Syndl. + _Thefile is transferred to the recorder.

Using Windows Media Player

+ Refer to the online help of Windows Media Player for det:

+ To transfer the files by using Windows Media Player 9 or 10, check the Olympus website.

+ Ifthe music files are transferred to the recorder until it reaches to the maximum memory, the message [Can’t make the system file. Connect to PC and delete unnecessary file] may appear on this recorder display. In such a case, erase the files to make free space {hundreds of KB to dozens of MB depending on the music file sizes) for the management file (The more capacity for the management file will be necessary as the number of the

music files increases).

You can transfer the voice files in the recorder to your PC and copy them to CD. For how to copy the voice files from the recorder to your PC, please see "Download voice files from the

From the Features taskbar, click the [Burn] menu.

Select the desired category from Library] on the left, and select voice files or albums to copy to the CD-R/RW, and Drag & Drop them in [Burn list] on the right.

lick the [Burn] tab, and select [Data CD or DVD] or [Audio CD]. When [Audio CD] is selected: + Afile is converted and copied in CD in order to play it by the audio equipment which can play CD-R/RW. CD or DVD] is selected: les with the format to be

g recorded. ck [Start burn].

Using Windows Media Player

From the Features taskbar, click the [Burn] menu.

Select the desired category from [Library] on the left, and select voice files or albums to copy to the CD-R/RW, and Drag & Drop them in [Burn List] on the right.

El Giick the [Burn] menu again, and select [Audio CD] or [Data CD].

When [Audio CD] is selected:

+ Afile is converted and copied in music CD in order to play it by the audio equipment which can play CD-R/RW.

When [Data CD]is selected: Copying files with the format to be recorded.

+ Referto the online help of Windows Media Player for details.

Using Windows Media Player

Creating a playlist (For DM-5)

You can create playlists using Windows Media Player. If you save the playlist to the [Music] folder on this recorder, you can play songs in the desired order.

Windows Media Player 12

El connecttherecordertoaPC,and start Windows Media Player.

+ Ifthe playeris in Now click [Go to Library] (

Click the [Play] tab to open the ss 5 list window. + Hitis necessary to delete list window s content before creating a playlist, Es click [Clear list] from the [ » ] icon. : = : LE ë 5 = - È : ë 2. Ê =— 5 2 H From the music titles displayed in = the library window, click the title . you wish to add to the playlist. Next, drag the title to the list window on the right side of the window. EN

Ein the list window, arrange the titles in the order you want to.

From the top of the list window, dickthe[Listoptions]([:") button. Fromthe menu that displays, select [Save list as].

M atthe [Save As] display, enter a file name and then select the [MUSIC] folder of the recorder as [Destination]. Click [Save].

Windows Media Player 11

El connect the recorder to a PC, and start Windows Media Player.

While the library window displayed, click [Library] and then [Create playlist].

From the musictitles displayed in the library window, click the title you wish to add to the playlist. Next, drag the title to the list window on the right side of the window.

2ekeid e1payy sMopuyi BuIsN |

El Giick [Untitled playlist]. From the menu that displays, select [Save Playlist As].

Atthe [Save As] display, enter a file name and then select the [MUSIC] folder of the recorder as [Destination]. Click [Save].

+ Songs in the built-in memory of the recorder and songs on external memory cannot be mixed in the same playlist

+ Ifthe music files on the PC are not arranged as shown on P.154 (the default ripping configuration), it may not be possible to play the playlist correctly.

Rkejgepesnopuin Sursn Fr |

Music files that have been imported to your computer from music CDs and acquired overthe Internet can be transferred to and played back with this recorder. By using iTunes, music files from music CDs can be converted (ripped) (ex P-151).

Copying music from CD El insert the CD into the CD-ROM drive, and start iTunes.

ick [iTunes] =} [Preferences].

ck [Importing] to set the file format and bit rate for copying music files to your PC, and click [OK]. This recorder is compatible with music files in the MP3 and WAV formats (sx P.48). [import Using]: Set the file format for copying music file from a CD. Please select [MP3] or [WAV]. [setting]: Set the bit rate for copying music file from a CD. You can select a bit rate between [128], [160] and [192]. Put a check mark on the music files that you want to copy.

Transferring music file to the recorder

You can transfer the music files saved in your PC to this recorder. For how to copy the music files from the CD to your PC, please see “Copying music from CD” (ex P.151).

El connect the recorder to a PC, and start iTunes.

Select the play list to be transferred to the recorder, and putthe check marks on the music files that you want to transfer.

+ The order of music pieces can be changed by Drag & Drop of the music file in the play list displayed.

Double-click the corresponding drive with the recorder, and open [Music] folder.

+ When you connect the recorder to a Mac OS, it will be recognized by the drive name of the product name on the desktop. Drag & Drop Copy to [Musie] folder of the recorder files here when transferring the music file.

E select the desired files, and Drag & Drop them to [Musid folder.

+ Music files in the AAC format purchased from a music distribution service such as the iTunes Store cannot be played by this recorder.

Copying voice file to the CD You can transfer the voice files in the recorder to your PC and copy them to CD. For how to copy the voice files from the recorder to your PC, please see "Download voice files from the recorder” (x P122)

El insert the CD-R/RW into the CD- R/RW drive, and start iTunes.

Select the desired playlist, and put a check mark on the voice iles to copy to the CD-R/RW.

E] ro set the CD format for copying voice files to CD-R/RW, and click [OK].

When [Audio CD] is selected: A file is converted and copied in music CD in order to play it by the audio equipment which can play CD-R/RW.

When [MP3 CD] is selected: Copying in MP3 format.

When [I D or DVD] is selected: Copying files with the format to be recorded.

Playing songs in a particular order

Lists created and saved as a file on a computer are called playlist files. By transferring a

playlist file to the [Music] folder of this recorder, it is possible to play songs in a particular

+ With playlists, it is possible to play multiple songs on this recorder in a freely determined order.

+ This recorder supports .m3u playlist files.

This section explains the procedure to create, transfer, and play a playlist. This explanation will use the files and folders shown in the [Music] folder below and play the files in order from © to ®).

Enter the names of files in the [Music] folder in the order you want them to be played.

+ The file names in the playlist are Folder name File name entered in the following manner Drive letter (F:}\Folder name\File name. When there are layers of + The easiest way to ensure that the folders, use the “\’ mark file names are entered correctlyis to to indicate the layers open the properties for the file you when entering informa-

want to enter into the play list, copy tion. the file name, and then paste that

name into the playlist being created

Ifthere are too many characters,

playback may not be possible. As a

guide, try to keep entries on a single

line to within 256 characters.

Instead of the drive letter “F”, any single half can be used.

A rcximum 01999 songs can be entered into a single play list.

From the [File] menu, select [Save As]. Enter a file name followed by the extension “mu” and then

El Drag the saved playlist file to the [Music] folder of the recorder to transfer it to the recorder.

+ _ Transfer the playlist file to the top

tothe fera Ce Gr For more details about playing transferred playlists, please see "1 search” (ex P.53)

+ Playing files in a specified order using playlists is limited to files in the [Music] folder (for music playback).

About Audio Books Lindows Facintosh]

Audio Books are books that can be listened to. Digital audiobooks can be played anytime and anywhere on players such as this recorder. Audio Books can be enjoyed in various ways. For example, they can be listened to while moving by train, doing housework and jogging.

Transfer content to the recorder

El connecting the recorder to your PC P111).

Select the content you want to transfer, and drag it to the [AUDIOBOOK] folder of the recorder and drop it with Explorer or Finder. + The file is transferred to the recorder. Disconnect the USB cable and select [Audio Book] from [Audiobooks] in the menu setting screen.

+ Transferred file list will appear.

+ NEVER disconnect the USB while the LED indicator light is flashing. If you do, the data will

+ Audiobooks using the Digital Rights Management system (DRM) ofthe Microsoft

Corporation are not supported.

+ This recorder can play files in MP3 and WMA formats.

About Text Speech (For DM-5) Lindows Facintosh]

If a text file is transferred to this recorder and played, the text file can be read aloud. This recorder can read aloud text created in various situations and can be used to confirm or review audio content.

Transfer text file to the recorder

El connecting the recorder to your sas (Deer PC (ex P.112).

Select the content you want to transfer, and drag it to the [TEXT] folder of the recorder and dropit with Explorer or Finder.

+ The file is transferred to the recorder.

Disconnect the USB cable and select [Text Speech] from TAudiobooks] in the menu setting screen.

s be + Transferred file list will appear. d D Cat

+ NEVER disconnect the USB while the LED indicator light is flashing. If you do, the data will be destroyed. + This recorder can play file format, which consists of only character data text file (txt) only.

Loading Audible content windows}

Use the AudibleManager to load Audible content onto the recorder. Playback, management, and transfer of Audible content to the recorder can be done using

the AudibleManager. Installing AudibleManager

When AudibleManager is not installed on a computer, install the AudibleManager according

to the procedure described below.

El access one of Audible web sites from the web browser and download the AudibleManager.

http://www.audible.com/ (United States) http//wwwaudible.co.uk

http://www.audible.fr (France) http/wwwaudible.de (Germany) Start up the downloaded

+ The AudibleManager Setup screen will be displayed. Select the name of the device in use (OLYMPUS DM-5/3) and click the [Install] button.

When the [AudibleManager License Agreement! is displayed, click the [I Accept] button.

El installation starts.

+ Waituntil process has been completed. Once the installation has been completed AudibleManager starts up automatically.

Loading Audible content

Adding device to AudibleManager

If AudibleManager has already been installed, add a device in order to handle the recorder in the AudibleManager. Follow the procedure described below.

E select [Add New Device] in the [Devices] menu.

When the dialog box displays, verify the internet connection and click the [Ves] button.

When the dialog box is displayed, check the name of the device in use (DM-5/3) and click the [OK] button.

El installation starts. Ge

+ Wait until the process has been EEE completed. Once the installation has Eee been completed, AudibleManager restarts.

Verify that the device in use has been added to the [Mobile Devices] menu.

Purchasing Audible content

Audible content can be purchased from the Audible web site. Access to the Audible web site using web browser and download the content by following the purchase procedures described on the web site.

With the existing setting, content downloads to the Library folder in the AudibleManager. When download has been completed, the AudibleManager starts up and purchased content displays on the contents list in the Library.

Transferring Audible content windows}

Audible content can be transferred into the [Au procedure described below.

le] folder on the recorder by following the

El connect the recorder to a computer.

Select [Library] in the [Audible Folders] tree listing.

+ Alistof content stored inthe [Library] displays on the right side.

Select the content to be transferred to the recorder and seems click the [Add to Device] button.

El When the [Activate Your Device] aires entry screen is displayed, enter a the user name and password for Audible and click the [OK] button.

The transfer begins.

+ Wait until the transfer ofthe content has been completed. When it has been completed, the transferred content is displayed in the contents listing ofthe device. Also, the transferred content is displayed in the Library.

+ When a content file is transferred to the recorder, a [pos] file will be automatically created for each content file in the Audible folder.

+ When the [pos] file is deleted, using Explorer, the stored Playback Position will be deleted. The next time the file is selected, playback starts from the begi

+ When a content file is transferred to the recorder, a system file file inside the Audible folder. When this file is deleted using Explorer, it is no longer possible to playback the Audible content.

eus ejppnyÉuuegsuen |

& pose uemuo ojqpny fofu |

Enjoy Audible content with the recorder

Audible content that has been transferred into the [Audible] folder on the recorder from à computer can be enjoyed with an exclusive mode optimally suited for the operation of Audible content.

When you select the [Audible] folder in the [Audiobooks] folder, the recorder automatically switches to the Audible mode. The Audible mode is an exclusive mode for enjoying Audible content (modes 3, and 4 formats”) transferred from a computer. The operating method for Audible mode differs from when other folders on the recorder are selected (Normal mode) Please see the "Operating recorder in Audible mode” (++ P.164) for details.

File Display screen in Audible mode T nDe-40 In the Audible mode, play mode becomes the file setting regardless ofthe menu settings and the recorder stops after playing back one file. In addition, icons (Cæ-) Ca) which indicate Audible files are also displayed on the File display screen.

@ Audible file indicator

Re-playable Audible files

Files of modes 3 and 4 formats can be played back in the Audible mode. Only those Audible files that have an [.aa] extension are displayed in the Audible mode (in the Audible folder on the recorder).

ACELP (16kbps) IMP3 (32kbps)

Enjoy Audible content with the recorder

Playback position and section

Inthe Audible mode, the starting position can be moved easily by referring to the Playback Position which is the positional information stored from previous stops for each file, and by referring to "Section" where the content distributor has preset the position.

Playback position The Playback Position (positional information) is stored in the [.pos] file, which is created automatically by the recorder for each Audible content file ([.aa] file).

The Playback Position is initially located at the beginning ofthe file, and the stop position will be updated by playback orthe use of S. Play (slow playback)/F. Play (fast playback).

Press the BB or 4 button to move the stop position while the recorder is stopped. The Playback Position will not be updated.

Up to a maximum 100 divisions (chapters of a story or segments of news) are set arbitrarily for each file bythe distributor of the content.

+ When a content file is transferred to the recorder, a [:pos] file will be automatically created for each content file in the Audible folder.

+ You can not setthe Index marks in the Audible mode.

When the [pos] file is deleted, using Explorer, the stored Playback Position will be deleted.

The next time the file is selected, playback starts from the beginning of the file.

+ When a content file is transferred to the recorder, a system file will be created as a hidden file inside the Audible folder. When this file is deleted using Explorer, it is no longer possible to playback the Audible content.

Enjoy Audible content with the recorder

Operating recorder in Audible mode

The operating method on the recorder is different in the Audible mode when the [Audible] folder or Audible file is selected, then while in the Normal mode.

Press and hold the B-B1 button while the recorder is stopped = When the button is released fast forwarding stops. The Playback Position is not updated. When the > OK button is pressed playback resumes from that position.

Press and hold the B-B1 button while playing a file. = When you release the BB button the recorder will resume normal playback.

+ Ifthe starting position of a section (ex P163) and the playback position are in the middle of a file, the recorder stops at that position.

+ When the 1 button is held down while

the recorder is stopped, the recorder

moves to the end ofthe file and then stops.

Ithe BB1 button is still held down,

the recorder moves to the next file and

continues fast forwarding from the

beginning ofthe file. After fast forward reaches the end ofthe last file, the recorder stops at the beginning of the last file.

When the BB1 button is held down

during playback and the end of the file

is reached, the recorder goes back to the

beginning ofthe file and stops.

Press and hold the Hé button while the recorder is stopped. = When the button is released fast rewinding stops. The Playback Position is not updated. When the OK button is pressed playback resumes from that position. Press andholdthe Hd button will playing file = When the button is released playback resumes from that position. + Ifthe starting position of a section (ex P163) and the playback position are in the middle of a file, the recorder stops at that position. When the #4 button is held down while the recorder is stopped, the recorder returns to the beginning ofthe file and then stops. Ifthe 4 button is still held down, the recorder moves back to the end of the previous file and continues fast rewinding + When the 4 button is held down during playback and the recorder reaches the beginning ofthe file, the recorder Starts playback from the beginning of that file.

+ Ifthe 4 button is kept pressed while the recorder is stopped at the start of the top file, the recorder will fast rewind starting from the end of the last file.

Enjoy Audible content with the recorder

le Skip and Section Skip

Press the BB button while the recorder is stopped.

® The recorder skips to a playback position or the starting position of a section, whichever is closer in the file, and stops.

After a stop position, if there is no playback position, or starting position of a section, the recorder will skip to a playback position in the next file and Stop. Press the #4 button when the recorder has stopped at the beginning of a file.

» The recorder skips to the Playback Position of the previous file and then stops.

Press the Hé button if the recorder has not stopped at the beginning of a file.

® The recorder skips to a playback position or the starting position of a section, whichever is closer in the file, and stops.

Press the BB button during playback. ® The recorder skips three seconds forward, or to the starting position of the next section, whichever is closer, and starts to playback the file. After reaching the end ofthe file the recorder tops at the beginning of the file. The Playback Position is updated to the beginning position of the file at this time. Press the 4 button during playback. = Therecorder skipsthree seconds back, ortothestarting position ofthe current section, whichever is closer, and starts to playbackthefile. Whenthe recorder reaches the beginning of a file the file plays from the beginning. + The [Skip Space] (e P.73) setting is invalid in the Audible mode.

puce eg gum ua ejqupny fol |

Using as external memory of the PC In addition to its uses as an IC recorder and a music player, this recorder can also be used as external memory for a computer by storing data from a computer and reading it back out With the recorder connected to your PC, you can download data from the memory to your PC and upload data stored on your PC to the memory.

El connecting the recorder to your PC P111).

Open the Explorer window.

Open the product name folder.

+ When you open [My Computer], it will be recognized by the drive name ofthe product name.

Disconnect the recorder from the PC(: p.112).

El connecting the recorder to your

+ _ When you connect the recorder to a Mac OS, it will be recognized by the drive name ofthe product name on the desktop.

Double-click the product name con on the desktop.

E] Disconnect the recorder fromthe PC{(:5 P.112).

While transmitting data, [Busy] is displayed, and the LED indicator light flashes. NEVER

disconnect the USB while the LED indicator light is flashing. you do, the data will be

I you run out of battery Battery Lon] Lowbattery power. Battery poweris getting | soon after the charge, the

battery life has ended Replace with new battery es P2D.

Tried to delete a locked file.

Unlock the file (ex P-75).

[Cannotrecord inthis folder]

Not an audio-recording folder.

Recording has been attempted with a [Music], (Podcast), TAudiobooks](Daisy, Audio Bock, Text Speech, Audible) folder.

Select a folder from {Folder A] through to {Folder E] and try record ing again (ex P.32).

The files full ofindex

Erase index marks that

index Full] index full marks (maximum of 16 are no longer required marks). er PS1). Ra Folder full The folder is full offiles | Erase unnecessary files

{maximum of 999 iles)

This is a malfunction, so go to the store where you

{Memory Error] Errorinthe memory. Errorin the memory. purchased the recorder or an Olympus service station for repair («x P174), Remove the microSD card

[Card Error] Error in the memory. microSD cardis not then put it again («x P.30

recognized correctiy.

The music iles copied illegaly.

Erase the file (ex P.60).

Zero remaining memory.

No remaining memory.

Erase unnecessary files (x P60).

No files were found in the folder.

Select another folder {ex PS3 to PS9)

There was an error while formatting the recorder's memory.

Reformat the memory x P94)

[Can't make the Connect

The management file cannot be created.

The file for management cannot be created due to 2 shortage of capacity for remaining memory.

Connect the recorderto a computer and delete any unnecessary files

File which cannotbe played.

Please confirm the file that can be played on this recorder (sx P48)

File is not selected.

Please select a file then carry outthe operation {es PS3 to PS9)

{Same folder. Can't be moved(copied)]

File cannot be moved (copied).

Attempting to move (copy) intothe same folder.

Please select another folder.

{Same files. Can'tbe moved(copied)]

File cannot be moved (copied).

File in the destination with the same name, or file with DRM.

Please select another file.

File which cannot be split.

Attempting to split aille besides the PCM files recorded in this recorder.

Please select another file.

The batteryis not loaded proper.

Checkthe direction ofthe battery. {r P21).

Battery power is getting low

Charge the battery (ex P21 to P25)

Turn the power on («+ P.26).

Battery power is getting low

Replace with new battery (er P.21 to P.25).

Turn the power on («x P.26).

The recorder is in HOLD mode.

Release the recorder from HOLD («x P.27)

Low remaining memory.

Erase unnecessary files (es P.60).

The maximum number of files has been reached

Change to the another folder * P.32, P38).

No playbacktone heard

The earphone is connected

Unplug the earphones to use the internal speaker.

The volume level is set to (00)

Adjust the volume level («+ P.46).

The recording level has not been adjusted

Adjust the recording level and then try recording once more (er P.67).

The microphone sensiivityis too low.

Set the microphone sensitivity to (High) or [Middle] mode and try again (ex P.67)

This could potentially be because the output level for the connected external devices are t00 low.

Adjust the output level for the connected devices.

The connected external microphone is monaural

When recording while an external monaural microphone is connected, sound will only be recorded by the L-channel

recorded in stereo [Rec Mode] is set to a monaural Set [Rec Mode) to the stereo recording mode. recording mode (er P.67).

Cannot find the Switch to the correct folder

Noise heard during playback

The recorder was shaken during recording.

The recorder was placed near a cell phone or fluorescent lamp while recording or during playback.

Unlock the file (ex P.75).

The file is read-only.

Unlock the file or cancel the read-only setting ofthe file on the PC.

Unable to erasethe folder

There are files which cannot be recognized with the recorder.

Connect the recorder to PC for erasing files.

Noise is audi through the recor monitor

Acoustic feedback is occurring.

When the built in speaker amps and the like are connected there sa riskthat audio feedback will occur while record ing. is recommended that you use

earphones for the recording monitor.

Conduct adjustments like separating the earphones from the microphone further, do not point the microphone atthe earphones, lower the volume on the recording monitor, and s0 on.

The maximum number of marks has been reached.

Erase unnecessary marks (ex P.51)

Unlock the file (ex P.75).

The file is read-only.

Unlock the file or cancel the read-only setting ofthe file on the PC.

Contains battery other than the specified battery.

Please insertthe chargeable battery

Accessories (optional)

Accessories exclusive to the Olympus IC recorder can be purchased directly from Online Shop on our company website. Sales of accessories are different according to the country.

© 2 channel microphone (omni-directional): ME30W Two ME30 monaural microphones come in a set with a miniature tripod and a connection adapter. These are highly sensitive omni-directional microphones supported by plug-in power which are well-suited to recording musical performances.

© Compact Gun Microphone {unidirectional): ME31 The directional microphones useful for recordings such as outdoor recording of wild birds singing. The metal-cut body provides a sturdiness to the high rigidity.

© Exclusive remote control set: RS30W When the receiver is plugged into the REMOTE jack the recorder recording and stop functions can be operated through the remote control. The receiving position can be adjusted,thereby allowing you to operate the recorder from various different angles.

© Connecting cord: KA333 Connecting cord which has stereo mini-plugs (93.5) with resistance at both ends. Use to connect from the earphone jack output ofthe recorder to the microphone input jack when recording Converting plug adapters (PA331/PA231) which convert to the monaural mini plug (03.5) or monaural mini plug (02.5) are also enclosed

Lithium ion battery: LI-50B This lithium ion rechargeable battery

is manufactured by Olympus. t is best paired with the LI-50C battery charger.

M Recording medium: Built-in memory DM-5:8GB

microSD card (512 MB to 16 GB) Æ Recording format: Linear PCM (Pulse Code Modulation) MP3 (MPEG-1 Audio Layer3) WMA (Windows Media Audio) Æ input level: {Mic Sense]:{Middle] - 60 dBv Æ Maximum working output: 280 mW (8 N speaker) Æ Maximum headphone output: < 150 mV (according to EN 50332-2) H Wide band characteristic headphone output: 75 mV < (according to EN 50332-2) Œ Speaker: Built-in 0 23 mm round dynamic speaker Æ MiCjack: 0 3.5 mm mini-jack, impedance 2.2kQ M EAR jacl 0 3.5 mm mini-jack, impedance 8 N or more Æ input power requiremen! Battery: Lithium ion battery External power supply: AC adapter(A515) sv

M External dimensions: 113.6 mm x 45.6 mm 15.2 mm {without protrusions)

98 g (including battery)

M Operating temperature:

0°C-42°C Overall frequency response

M During recording or playback mode: Linear PCM format

Recording mode response

48 kHz 40 Hz to 23 kHz 441 kHz 40 Hz to 21 KHz MP3 format

Recording mode | Overal frequency

320 kbps 40 Hz to 20 kHz

256 kbps 40 Hz to 20 kHz

192 kbps. 40 Hz to 19 kHz

STxQ 40 Hz to 19 kHz STHQ 40 Hz to 16 kHz ST SP 40 Hz to 9 kHz Ha 40 Hzto 13 kHz SP 40 Hz to 8 kHz LP 40 Hz to 3 kHz

E Built-in stereo microphone (During recording mode): DM-5: 70 Hz to 20 kHz DM-3: 70 Hz to 20 kHz + However, when recording by the MP3 format or the WMA format, the upper limit value ofthe frequency response depends on each recording mode (see above diagram).

Guide to recording times

Recording memory momo microSD card mess) uG8(DM-3) | (8GB)DM-5) 168 2 ac 48 kHz 5h.15min. 11h.05min. 1h.15min. 2h.45min._ | 5h.30min. 44.1 kHz 5h45min. 12h.05min. 1h.20min. 3h. 6h. M MP3 format: Be Eu Eu microSD card mor | _(4 GB)(DM-3) {8 GBMDM-5) 168 268 468 320 kbps 25h.30min. 53h. 6h.30min. | 13h.30min. 27h. 256 kbps 31h.30min. 66h.30min. 8h 17h. 34h. 192 kbps 42h.30min. 89h. Th. 23h. 45h. 128 kbps 63h.30min. 133h 16h.30min. 34h. 68h. H WMA format: Bu Burn microSD card aesioma | wéntoms | 168 268 468 62h.30min. 130h. 16h. 33h 66h. 125h 261h. 32h. 67h 133h. 250h. 522h. 65h. 135h. 266h. 250h. 522h. 65h. 135h. 266h. 492h. 1029h. 128h. 267h. S24h. 977h. 2043h. 255h 531h. 1042h.

+ The above values are strictly rough guides.

+ Variations in the available recording time will arise as there may be differences in the available memory depending on the microSD card.

+ Caution is required, since the differences in the available recording time will increase when

the bit count and bit rate are low.

Available recording time may be shorter if many short recordings are made (The displayed

available recording time and recorded time are approximate indications).

+ The maximum capacity for a single file is limited to approx. 4 GB for WMA and MP3. + The size limit for a ile in the Linear PCM format is approx. 2 GB,

Builtinstereo Bain Recordingmode | De | ouh au | Esrphoneplayback mode) mode) PCM 48kHz 13h. 12h 20h. MP3 128kbps 25h 12h.30min. 20h. STXQ 24h. 12h.30min. 21h. LP 29h. 13h 22h.

+ The above values are strictly rough guides. + Battery le is measured by Olympus. It varies greatly according to the type of battery used

and the conditions of use.

Specifications and design are subject to

change without notice.

Technical assistance and support

The following are contact information for technical support for Olympus recorders and software only. © Technical Hotline Number in the U.S. and Canada 1-888-553-4448 © User Support E-mail address in the U.S. and Canada distec@olympus.com © Technical Hotline Number in Europe ol free number: 00800 67 10 83 00 available for Austria, Belgium, Denmark, Finland, France, Germany, Italy, Luxemburg, Netherlands, Norway, Portugal, Spain, Sweden, Switzerland, United Kingdom Charged numbers for the Rest of Europe +49 180 567 1083 +49 40 23773 4899 © User Support E-mail address in Europe dss.support@olympus-europa.com

For customers in Europe

CE" markindicates that this product complies with the European requirements for safety, health,environment and customer protection.

This symbol [erossed-out wheeled bin WEEE AnnexIV]indicates separate collection of waste electrical and electronic equipment in the EU countries. Please do not throw the equipment into the domestic refuse. Please use the return and collection systems available in your country for the disposal of this product Applicable Product: DM-S/DM-3, AC adapter

‘This symbol [erossed-out wheeled bin Directive 2006/66/EC Annex I indicates separate collection of waste batteries in the EU countries. Please do not throw the batteries into the domestic refuse. Please use the return and collection systems available in your country for the disposal of the waste batteries.

{Lx A OLYMPUS OLYMPUS IMAGING CORP.

DM-3, DM-5, DM-650, DM-670 - Enregistreurs vocaux OLYMPUS - Free user manual and instructions

USER MANUAL DM-3, DM-5, DM-650, DM-670 OLYMPUS

Other manuals OLYMPUS

VN-8500 PC DNS, VN-8500PC, VN-8500PC ME-32, VN-850PC ME-52

VN-712PC, VN-711PC, VN-713PC

DP-20, DP-211

FE-120X

M.ZUIKO DIGITAL ED 100-400MM F5.0-6.3 IS
