Product Type	KENWOOD Car Stereo Model KDC-X592
Dimensions (W x H x D)	182 x 53 x 155 mm
Weight	1.40 kg (3.1 lbs)
Operating Voltage	14.4 V DC (11-16 V)
Maximum Current Consumption	10 A
Maximum Output Power	50 W × 4
Full Bandwidth Power	22 W × 4 (THD < 1%)
Speaker Impedance	4 - 8 Ω
Preamp Level (CD)	4000 mV / 10 kΩ
Auxiliary Input (AUX)	3.5 mm stereo mini jack, max voltage 1200 mV, impedance 100 kΩ
Supported Audio Formats	Audio CD, CD-R/RW, MP3, WMA, AAC-LC (.m4a)
USB Interface	USB 2.0, FAT16/32, max current 500 mA
iPod Compatible	Yes (via optional cable)
FM Tuner Bands	87.9 - 107.9 MHz (200 kHz steps)
AM Tuner Bands	530 - 1700 kHz (10 kHz steps)
FM/AM Station Memory	30 stations
Security Code	Yes, 4-digit code
Audio Settings	Bass, midrange, treble, balance, fader, subwoofer, Q system, contour
High-pass / Low-pass Filters	Front/rear HPF, subwoofer LPF, frequency adjustable
Dual Zone	Yes, allows secondary source (AUX) on rear channels
Display	Types A to G, with spectrum analyzer, clock, date

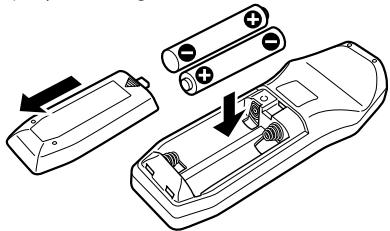

Remote Control	Included, AA batteries × 2

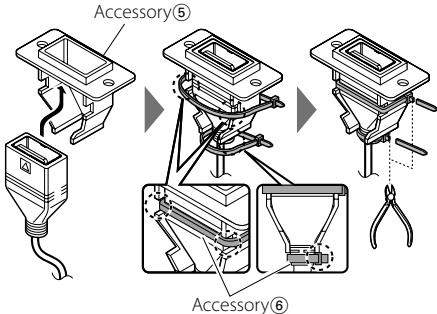

USB Connector Type	Mounting bracket included
Optional Accessories	CD changer, HD Radio tuner, SIRIUS/XM satellite tuner, KCA-BT100 Bluetooth, LX-AMP

Frequently Asked Questions - KDC-X592 KENWOOD

How to reset the car stereo?

Press the reset button located on the front panel with a pen or paperclip. The unit returns to factory settings.

How to enable or disable demo mode?

In standby mode, press [FNC], select 'DEMO Mode', then press and hold the knob for 2 seconds to toggle between ON and OFF.

Can I connect an iPod or iPhone?

Yes, via the USB port with an iPod connection cable (optional). Compatible models are iPod nano, iPod 5G, iPod classic, and iPod touch. Playback starts automatically.

How to set the security code?

In standby mode, go to [FNC] > 'MENU' > 'Security Set'. Press and hold the knob for 1 second, then enter a 4-digit code. Confirm by holding for 3 seconds. Write down the code and keep it safe.

What to do if the 'Protect' message appears?

This indicates a short circuit on a speaker wire or contact with ground. Check and isolate the speaker wires, then press the reset button.

How to clean the front panel and contacts?

Use a dry, soft cloth (silicone) for the front panel. For contacts, wipe them with a dry cloth. Never use solvent or alcohol.

The car stereo does not play my burned CD-R/RW discs. What to do?

Make sure discs are finalized and burned in ISO 9660 Level 1/2, Joliet, or Romeo format. 3-inch CDs are not supported. Try setting 'CD Read' to '2' in the MENU menu.

How to adjust balance and fader?

Press the [AUD] knob to enter audio mode. Turn to select 'BALANCE' or 'FADER', then adjust by turning the knob. Press another button to exit.

The display does not show track names. What to do?

Make sure the audio file contains ID3 tags. In 'DISP' > 'TEXT', select 'Title / Artist' or 'Album / Artist'. For CDs, enable 'DNPS' if the disc has been named.

Can I use the auxiliary input for an MP3 player?

Yes, connect your device via a 3.5 mm stereo mini-jack cable (without resistor). Enable the AUX input in 'MENU' > 'Built in AUX' to 'ON', then select the 'AUX' source.

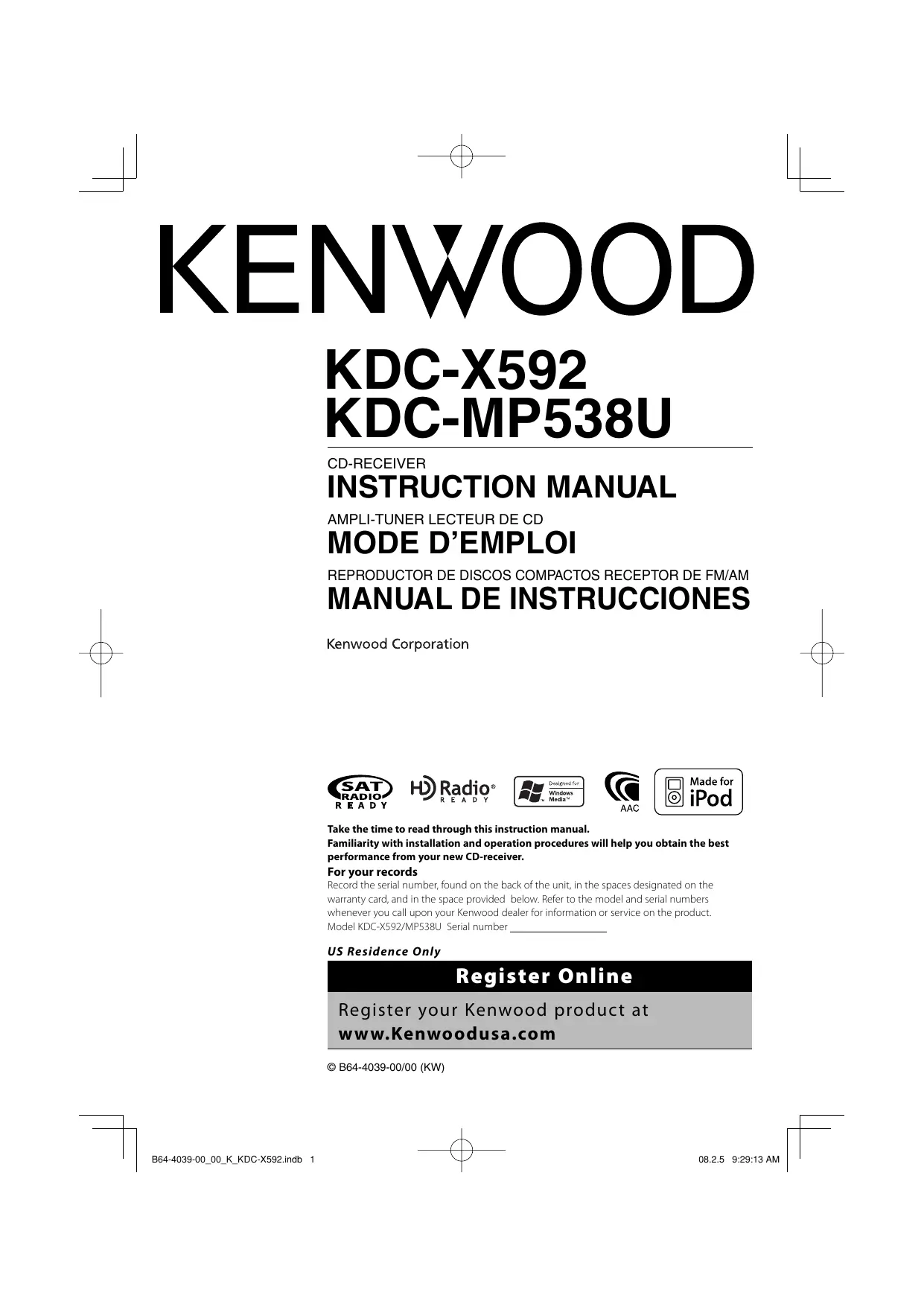

USER MANUAL KDC-X592 KENWOOD

Take the time to read through this instruction manual.

Familiarity with installation and operation procedures will help you obtain the best performance from your new CD-receiver.

For your records

Record the serial number, found on the back of the unit, in the spaces designated on the warranty card, and in the space provided below. Refer to the model and serial numbers whenever you call upon your Kenwood dealer for information or service on the product.

Model KDC-X592/MP538U Serial number

US Residence Only

Register Online

Register your Kenwood product at

www.Kenwoodusa.com

Contents

Before use 3

Basic Operation 4

General functions

Tuner functions

Disc & Audio file play functions

Function Control 6

• Read through this page first for the setting of each function.

Display Settings 8

About Display Type

Text Display Selection

Station/Disc Naming (SNPS/DNPS)

Auxiliary Input Display Setting

Music disc/Audio file Operation 11

Music Select

Direct Music Search

Direct Disc Search

Basic Operation of Disc Changer (Optional)

Tuner Operation 12

Station Preset Memory

Preset Tuning

Direct Access Tuning

Other Functions 13

Activating Security Code

Deactivating Security Code

Manual Clock Adjustment

Date Adjustment

AMP Control

Demonstration mode setting

Audio Adjustments 15

Audio Control

Adjusting the detail of Audio Control

Audio Setup

Speaker Setting

Audio Preset Memory

Audio Preset Recall

Satellite Radio tuning control (Optional) 18

Basic Operation

Category and Channel Search

Direct Access Tuning

Preset Memory

Preset Tuning

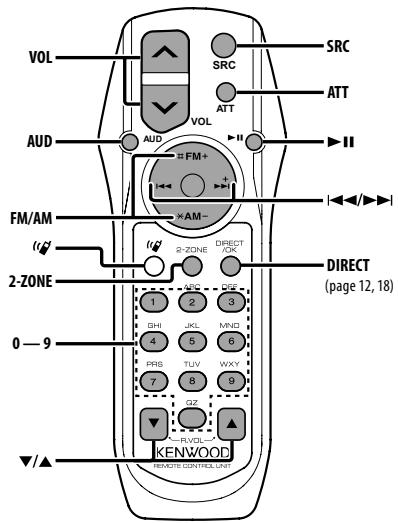

Basic Operations of remote control 20

Appendix 22

Accessories/ Installation Procedure 25

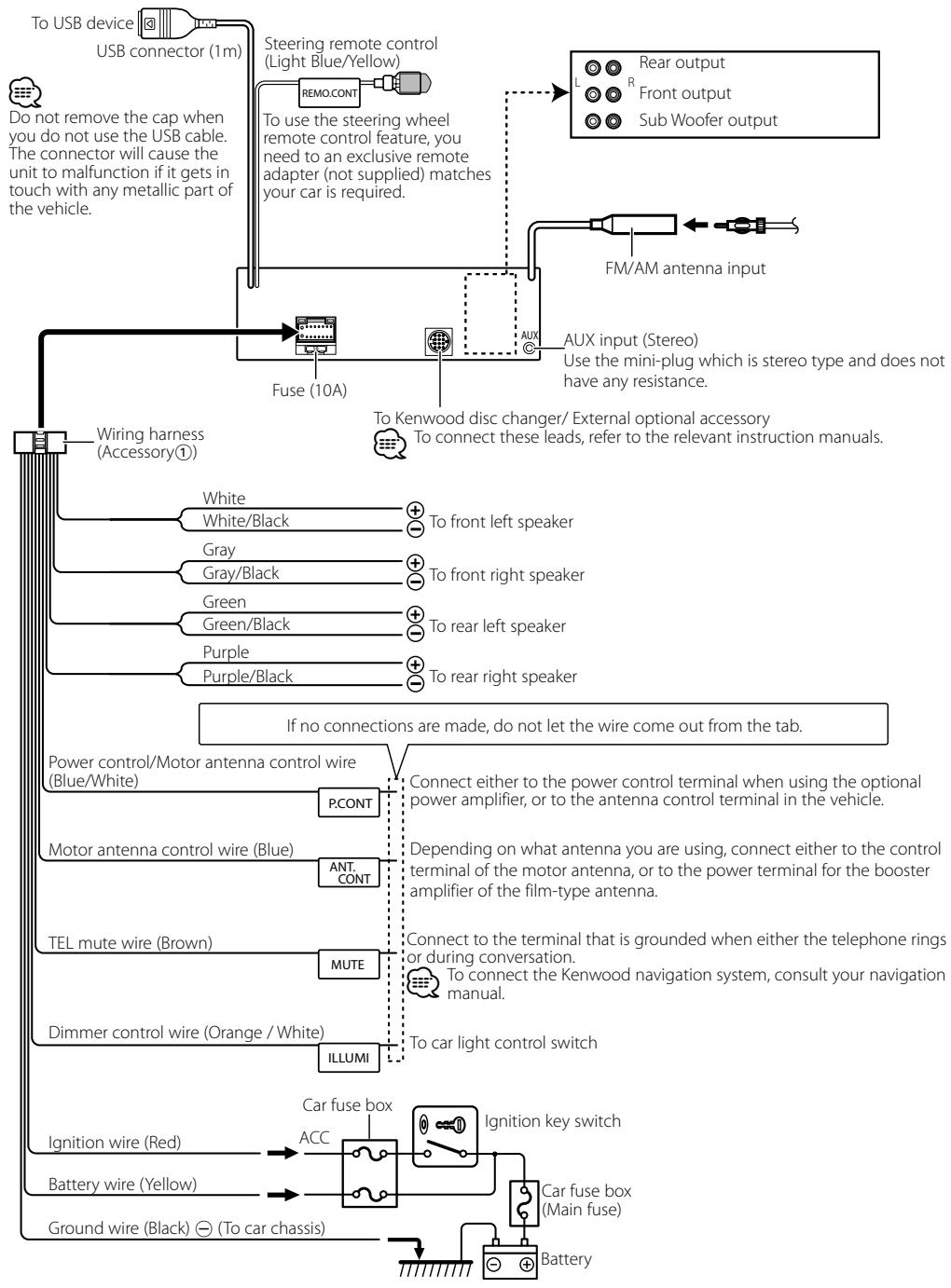

Connecting Wires to Terminals 26

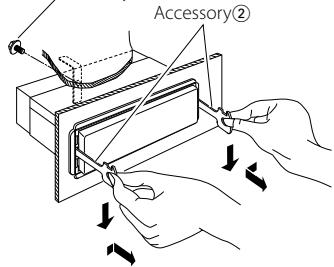

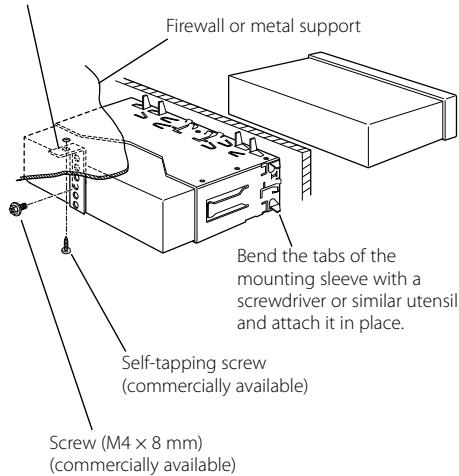

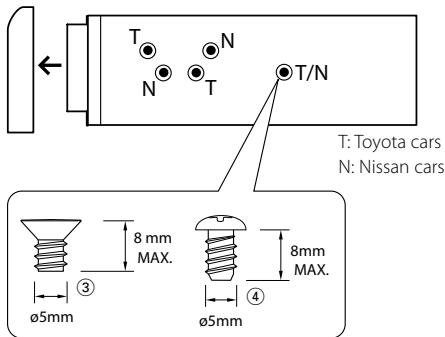

Installation/Removing the Unit 27

Troubleshooting Guide 29

Specifications 31

• iPod is a trademark of Apple, Inc., registered in the U.S. and other countries.
• The "AAC" logo is trademark of Dolby Laboratories.

WARNING

To prevent injury or fire, take the following precautions:

• To prevent a short circuit, never put or leave any metallic objects (such as coins or metal tools) inside the unit.

Before using this unit for the first time

This unit is initially set on the Demonstration mode. When using this unit for the first time, cancel the (page 14).

How to reset your unit

• If this unit or the connected unit (disc auto changer, etc.) fails to operate properly, press the Reset button. The unit returns to factory settings when the Reset button is pressed.

Cleaning the Unit

If the faceplate of this unit is stained, wipe it with a dry soft cloth such as a silicon cloth. If the faceplate is stained badly, wipe the stain off with a cloth moistened with neutral cleaner, then wipe it again with a clean soft dry cloth.

• Applying spray cleaner directly to the unit may affect its mechanical parts. Wiping the faceplate with a hard cloth or using a volatile liquid such as thinner or alcohol may scratch the surface or erases characters.

Cleaning the Faceplate Terminals

If the terminals on the unit or faceplate get dirty, wipe them with a clean soft dry cloth.

Lens Fogging

When you turn on the car heater in cold weather, dew or condensation may form on the lens in the CD player of the unit. Called lens fogging, this condensation on the lens may not allow CDs to play. In such a situation, remove the disc and wait for the condensation to evaporate. If the unit still does not operate normally after a while, consult your Kenwood dealer.

• If you experience problems during installation, consult your Kenwood dealer.
• When you purchase optional accessories, check with your Kenwood dealer to make sure that they work with your model and in your area.
• Characters that conform to ISO 8859-1 can be displayed.
• In this document, the description indicator will light means a status is displayed. Refer to (page 8) for the details of the status display.
• The illustrations of the display, the function icon and the panel appearing in this manual are examples used to explain more clearly how the controls are used. Therefore, what appears on the display in the illustrations may differ from what appears on the display on the actual equipment, and some of the illustrations on the display may be inapplicable.

Handling CDs

• Do not touch the recording surface of the CD.
• Do not stick tape etc. on the CD, or use a CD with tape stuck on it.
• Do not use disc type accessories.
• Clean from the center of the disc and move outward.
• When removing CDs from this unit, pull them out horizontally.
• If the CD center hole or outside rim has burrs, use the CD only after removing the burrs with a ballpoint pen etc.

CDs that cannot be used

• CDs that are not round cannot be used.

• CDs with coloring on the recording surface or CDs that are dirty cannot be used.
  This unit can only play the CDs with This unit may not correctly play discs which do not have the mark.
• You cannot play a CD-R or CD-RW that has not been finalized. (For the finalization process refer to your CD-R/CD-RW writing software, and your CD-R/CD-RW recorder instruction manual.)

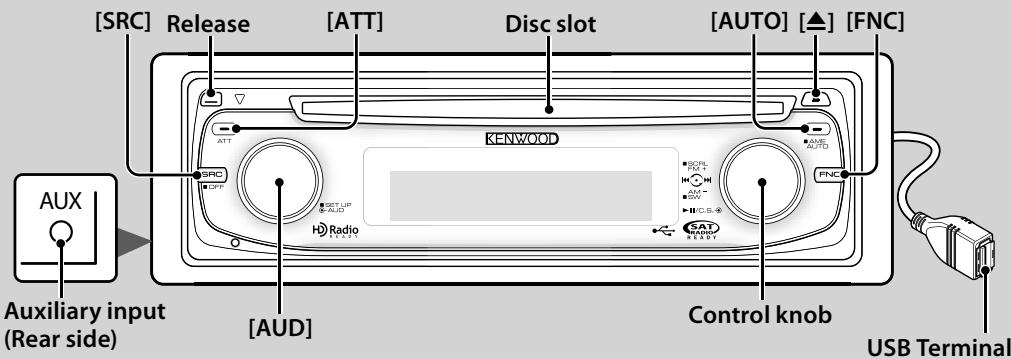

Basic Operation

General functions

Power/Source Select button

[SRC]

Turns on the power.

When the power is ON, select a source.

SRC Select mode 1: Press the [SRC] button and then turn the Control knob or push it toward left or right.

To determine the selected source, press the Control knob.

SRC Select mode 2: Pressing this button each time switches between sources.

Tuner ("TUNER"), USB or iPod ("USB" or "iPod"), CD

("Compact Disc"), Auxiliary input ("AUX"), and Standby ("STANDBY")

Press at least 1 second to turn off the power.

• The SRC Select mode can be set in "MENU" > "SRC Select" of (page 6).
• When an optional accessory is connected, the source name for each device appears.
• When connection of the iPod is recognized, the source display changes from "USB" to "iPod".

Volume control

[AUD]

Turn the knob to adjust the volume.

Attenuator

[ATT]

Turning the volume down quickly.

When the volume is reduced, the "ATT" indicator flashes.

Muting volume upon reception of phone call

When there is a call, "CALL" is displayed and the audio system is paused.

When the call ends, "CALL" disappears and the audio system comes back on.

The audio system comes back on when [SRC] is

pressed during a call.

• To use the TEL Mute feature, you need to hook up the MUTE wire to your telephone using a commercial telephone accessory. Refer to (page 26).

Faceplate release

Release

Releases the faceplate lock so that it can be removed. Refer to the following diagram when reattaching the faceplate.

• The faceplate is a precision piece of equipment and can be damaged by shocks or jolts.
• Keep the faceplate in its faceplate case while detached.
• Do not place the faceplate (and the faceplate case) in areas exposed to direct sunlight, excessive heat or humidity. Also avoid places with too much dust or the possibility of water splashing.
• To prevent deterioration, do not touch the terminals of the unit or faceplate with your fingers.

Auxiliary input

Auxiliary input

Connect a portable audio device with mini-plug cable (3.5).

• Use the mini-plug cable which is stereo type and does not have any resistance.
• The auxiliary input requires the setting made in "MENU" > "Built in AUX" of (page 6).

Subwoofer output

Control knob

Switches between ON ("SUBWOOFER ON") and OFF ("SUBWOOFER OFF") each time pushing toward down for at least 2 seconds.

Function Control

[FNC]

Pressing this button allows you to set various functions using the Control knob. Refer to (page 6).

Category	Function of setup item
MENU	Allows you to set up the environment.
DISP	Allows you to set up the display.

Text/Title scroll

Control knob

Scrolls the CD and audio file text display when pushing toward up for at least 2 seconds.

Tuner functions

Band select

Control knob

Switches between FM1, FM2, and FM3 each time pushing toward up.

Switches to AM when pushing toward down.

Tuning

Control knob

Changes the frequency when pushing toward left or right.

• During reception of stereo stations the "ST" indicator is ON.

Tuning mode select

[AUTO]

Switches as follows each time this button is pressed.

Tuning mode	Display	Operation
Auto seek	"Auto1"	Automatic search for a station.
Preset station seek	"Auto2"	Search in order of the stations in the Preset memory. (page 12)
Manual	"Manual"	Normal manual tuning control.

Auto memory entry

[AUTO]

Memorizes six stations with good reception automatically when pressed for at least 2 seconds.

Disc & Audio file play functions

Disc play

Disc slot

Starts playing when a disc is inserted.

When a CD is inserted, the "IN" indicator is ON.

• 3 inch CD cannot be used. Attempt to insert using an adapter can cause malfunction.

Discejection

[△]

• You can eject the disc for 10 minutes after switching off the engine.

USB device/iPod play

USB Terminal

Connecting a USB device starts playback.

• For the playable audio file, media, and devices, refer to (page 22).

Pause and play

Control knob

Switches between pause and play each time the center is pressed.

USB device removing

[△]

Press this button for 2 seconds or longer to select the remove mode, and the remove the USB device. During the remove mode, the "USB REMOVE" indicator is ON.

Music search

Control knob

Changes the music when pushing toward left or right. Fast reverses or forwards the music while keeping pushing toward left or right. (No sound is output while playing audio file.)

Folder search

Control knob

Changes the folder containing the audio file when pushing toward up or down.

Function Control

Functions in the table below can be set up by using Function Control.

Category	Item	Setting	Entry	Setting overview	Condition	Page
MENU	"Security Set"/"Security Clear"		1 sec.	Sets/Resetssecurity code	SB	13
	"SRC Select"	"1"*/*2"		Sets the source selection method.	SB	23
	"IPod Mode"	"OFF"/"ON"*		When set to "ON", allows you to select music in the manner similar to that of the iPod.	iPod	11
	"Beep"	"OFF"/"ON"*		Setting the operation check sound (beep sound) ON/OFF.	SB
	"Clock Adjust"		1 sec.	Sets the clock.	SB	14
	"Date Adjust"		1 sec.	Sets the date.	SB	14
	"Date Mode"	7 types	1 sec.	Sets the date display mode.	SB
	"Display"	"OFF"/"ON"*		Turns off the display when no operation is performed.	—	23
	"Dimmer"	"OFF"/"ON"*		Dims the display part in conjunction with the light switch of the vehicle.	SB
	"ILM Dimmer"	"AUTO"*/“MNAL1"/"MNAL2"/"OFF"		Sets whether the key illumination is dimmed in conjunction with the light switch of the vehicle or it is dimmed constantly.	SB	23
	"ILM Effect"	"OFF"/"ON"*		Sets whether the key illumination brightness is changed in conjunction with the key operation.	SB
	"ILM MSC SYNC"	"OFF"*/“ON”		Sets whether the key illumination brightness is changed in conjunction with the sound volume.	—
	"AMP"	"OFF"/"ON"*		Turns on/off the built-in amplifier.	SB	23
	"Zone2"	"Real"*/“Front”		Specifies the destination of AUX input sound when the Dual Zone function is turned on.	2ZONE	23
	"Supreme"	"OFF"/"ON"*		Turns ON/OFF the Supreme function.	AF2	23
	"AMS Control"*1		1 sec.	Controls the connected LX amplifier.	—	14
	"CRSC"	"OFF"/"ON"*		Switches to Monaural to decrease noise when reception is poor.	FM
	"Receive Mode"	"Auto"*/“Digital"/"Analog"	1 sec.	Sets the receive mode of HD Radio.	HDR	23
	"ESN="			Displays the Electronic Serial Number of satellite radio.	SAT
	"Name Set"		1 sec.	Sets the station name (SNPS)/ disc name (DNPS)/ AUX name.	→	10
	"Scroll"	"Auto"*/“Manual”		Specifies whether the text is scrolled automatically.	—
	"Built in AUX"	"OFF"*/“ON”		Sets whether to display AUX during source selection.	SB
	"CD Read"	"1"*/*2"		Sets the CD read mode.	SB	23
	"Audio Preset"		1 sec.	Presents the setting value of the audio control. The preset value is retained after resetting.	SB	17
	"DEMO Mode"	"OFF"/"ON"*	2 sec.	Specifies whether to enable demonstration.	—	14
DISP	> TYPE	A/B/C/D/E/F/G		Sets the display pattern.	—	8
	> GRAPH	Spectrum Analyzer 1-2		Sets the Type E spectrum analyzer display.	E
	> SIDE	Text icon/ Source icon		Sets the Type A side icon display.	A
	> TEXT			Sets the text display.	ABCDF	8
PMEM				Presents a station.	→	12, 19
SCAN		"ON"/—		When set to "ON", plays the intro of the music in the folder successively.	AF2
RDM		"ON"/—		When set to "ON", plays the music in the folder randomly.	AF1
FiREP		"ON"/—		When set to "ON", plays the music repeatedly.	AF1
FoREP		"ON"/—		When set to "ON", plays the music in the folder repeatedly.	AF2
SCAN		"ON"/—		When set to "ON", plays the intro of the music on the disc successively.	DISC
RDM		"ON"/—		When set to "ON", plays the music on the disc randomly.	DISC
M.RDM		“ON”/ —		When set to “ON”, plays the music in the disc changer randomly.	CH
T.REP		“ON”/ —		When set to “ON”, plays the music repeatedly.	DISC
D.REP		“ON”/ —		When set to “ON”, plays the music on the disc repeatedly.	CH

Factory setting
1 Function of KDC-X592.

Displayed item is depending on currently selected source or mode. The mark in Condition column shows the condition to which the item is displayed.

SB: Can be set in other than standby state.

SB : Can be set in standby state.
AF1 : Can be set while Audio file source of CD/USB/iPod.
AF2: Can be set while Audio file source of CD/USB (excluding iPod).

DISC: Can be set while CD/ Disc changer source.
CH : Can be set while Disc changer source.
Tuner : Can be set during Tuner source.
FM : Can be set during FM reception.
AUX : Can be set while accessing AUX source.
HDR : Can be set while HD Radio source.
SAT : Can be set during Satellite radio source.
iPod : Can be set only during playback of the iPod source. (USB source used when the iPod is connected)
2ZONE : Can be set for sources other than the standby source by setting "2 ZONE" of

• Refer to the respective page for information on how to set the items with reference page number.
• Only the items available to the current source are displayed.
• Strong electrical fields (such as from power lines) may cause unstable sound quality when CRSC is turned ON. In such a situation, turn it OFF.

1 Enter Function Control mode Press the [FNC] button.

Function icon is displayed.

2 Select your desired setup item

Operation type	Operation
Movement between items	Turn the Control knob.
Selection of item	Press the Control knob.
Return to previous item	Press the [FNC] button or “\” icon

Repeat selection and determination until your desired setup item is selected.

3 Make a setting

Turn the Control knob to select a setting value, and then press the Control knob.

Some items require you to keep pressing the Control knob for 1 or 2 seconds so that you can make a setting. For these items, the time during which you need to keep pressing the Control knob is displayed in the Entry column in seconds. For the functions accompanied by the description of the setting procedure and so forth, the reference page numbers are displayed.

4 Exit Function Control mode

Press the [FNC] button for at least 1 second.

About Display Type

Shown below are examples of display types.

Display	Display Type
"TYPE [A]"	③	①
		①
		①
"TYPE [B]"	①
	①
	①
"TYPE [C]"	②
	③	①
		①
"TYPE [D]"	②
	①
	①
"TYPE [E]"	④
"TYPE [F]"	①
	⑥
"TYPE [G]"	⑤

• ① Text display part
  ② Status display
  ③ Icon display part
  ④ Spectrum Analyzer display
  ⑤ Clock display
  ⑥ Display (varied depending on the source)

Text Display Selection

Changing the text display.

In Tuner source

Information	Display
Station name	"SNPS"
Frequency	"Frequency"
Spectrum Analyzer & Clock	"Speana/Clock"
Clock	"Clock"
Date	"Date"
Blank	"Blank"

In CD & External disc source

Information	Display
Disc title	"Disc Title"
Track title	"Track Title"
Play time & Track number	"P-Time"
Disc name	"DNPS"
Spectrum Analyzer & Clock	"Speana/Clock"
Clock	"Clock"
Date	"Date"
Blank	"Blank"

In Audio file source

Information	Display
Music title & Artist name	"Title / Artist"
Album name & Artist name	"Album / Artist"
Folder name	"Folder Name"
File name	"File Name"
Play time & Music number	"P-Time"
Spectrum Analyzer & Clock	"Speana / Clock"
Clock	"Clock"
Date	"Date"
Blank	"Blank"

In Standby

Information	Display
Standby	“Source Name”
Clock	“Clock”
Date	“Date”
Blank	“Blank”

In Auxiliary input source

Information	Display
Auxiliary input name	“Source Name”
Spectrum Analyzer & Clock	“Speana/Clock”
Clock	“Clock”
Date	“Date”
Blank	“Blank”

In HD Radio source (Optional)

Information	Display
Station name	"Station Name"
Title	"Title"
Frequency	"Frequency"
Spectrum Analyzer & Clock	"Speana/Clock"
Clock	"Clock"
Date	"Date"
Blank	"Blank"

In SIRIUS/ SAT source (Optional)

Information	Display
Channel Name	"Channel Name"
Music Title	"Song Title"
Artist Name	"Artist Name"
Composer name	"Composer Name"
Category Name	"Category Name"
Label Name	"Label Name"
Comment	"Comment"
Band & Channel Number	"Channel Number"
Spectrum Analyzer & Clock	"Speana/Clock"
Clock	"Clock"
Date	"Date"
Blank	"Blank"

In XM source (Optional)

Information	Display
Channel Name	"CHANNEL NAME"
Title	"TITLE"
Name	"NAME"
Category Name	"C CATEGORY"
Band & Channel Number	"CHANNEL NUMBER"
Spectrum Analyzer & Clock	"Speana/Clock"
Clock	"Clock"
Date	"Date"
Blank	"Blank"

1 Enter Text Display Selection mode (In Display Type A/B/C/D/F)

Select "DISP" > "TEXT".

For how to select Function Control item, refer to (page 6).

2 Select the text display part (Display Type A/B/C/D only)

Push the Control knob towards up or down.

The selected text display part blinks.

3 Select the text

Turn the Control knob or push it towards left or right.

4 Exit Text Display Selection mode Press the Control knob.

• If the selected display item does not have any information, alternative information is displayed.
• Some items cannot be selected depending on the display type and row.
• When LX-AMP is connected, the item setup by the Display mode of LX-AMP is displayed. (KDC-X592 only)
• When selecting "Folder Name" while playing with iPod, names will be displayed depending on currently selected browsing items.

Station/Disc Naming (SNPS/DNPS)

Attaching a title to a Station or CD.

1 Receive/play the station/disc you want to attach a title to

2 Select Name set mode item during Menu mode

Select the "Name Set" display. For how to select Function Control items, refer to (page 6).

3 Enter Name set mode Press the Control knob for at least 1 second.

4 Enter the name

Operation type	Operation
Move the cursor to the enter character position	Push the Control knob towards right or left.
Select the character type*	Press the Control knob.
Select the characters	Turn the Control knob or push it towards up or down.

• Each time you press the knob, the character type alternates between the types shown in the table below.

Character type	Alphabet upper case
	Alphabet lower case
	Numbers and symbols
	Special characters (Accent characters)

• Enter characters by using a remote control with numbers buttons.

Example: If you are entering "DANCE".

Character	“D”	“A”	“N”	“C”	“E”
Button	[3]	[▶→]	[2]	[▶→]	[6]
				[6]	[▶→]
				[2]	[▶→]
Times pressed	1	1	2	3	2

5 Exit Menu mode

Press the [FNC] button.

• A title cannot be attached to Audio file media.
• When operation stops for 10 seconds the name at that time is registered, and Name Set mode closes.
  Memory numbers

FM/AM:30 stations
- Internal CD player: 10 discs
- External CD changer/ player: Varies according to the CD changer/ player. Refer to the CD changer/ player manual.
- Change the title of station/CD by the same operation used to name it.

Auxiliary Input Display Setting

Selects the display below when changing to Auxiliary input source.

1 Select Auxiliary input display setting item during Menu mode (In AUX mode)

Select the "Name Set" display. For how to select Function Control items, refer to (page 6).

2 Enter Auxiliary input display setting mode Press the Control knob for at least 1 second.

The presently selected Auxiliary input display is displayed.

3 Select the Auxiliary input display Turn the Control knob or push it towards up or down.

"AUX"/"DVD"/PORTABLE"/"GAME"/"VIDEO"/"TV"

4 Exit Auxiliary input display setting mode Press the [FNC] button.

• When operation stops for 10 seconds, the name at that time is registered, and the Auxiliary input display setting mode closes.
• The Auxiliary input display can be set only when the built-in auxiliary input or the auxiliary input of optional KCA-S220A is used. On the KCA-S220A, "AUX EXT" is displayed by default.

Function of Audio file/ Internal CD source

Music Select

Selecting the music you want to listen to from the device or media being played now.

1 Enter Music Select mode Turn the Control knob.

The music list is displayed.

2 Search for music Select the category item using the Control knob.

iPod source ("iPod Mode: ON")

Operation type	Operation
Movement between items	Turn the Control knob.
Selection of item	Press the Control knob.
Return to previous item	Push the Control knob towards up.
Return to first item	Push the Control knob towards up for at least 1 second.

Other source
Audio file

Operation type	Operation
Movement between items	Turn the Control knob or push it towards up or down.
Selection of item	Push the Control knob towards right.
Return to previous item	Push the Control knob towards left.
Return to first item	Push the Control knob towards left for at least 1 second.

Internal CD source

Operation type	Operation
Movement between track	Turn the Control knob or push it towards up or down.
Selection of track	Press the Control knob.
Return to first track	Push the Control knob towards left for at least 1 second.

The " " or " " symbol shown beside the displayed item indicates that the item is preceded or followed by another item.

Selecting a music will play it from the beginning.

Cancelling Music Select

Press the [FNC] button.

• Music Select cannot be performed during Random play.
• Set the iPod mode in "MENU" > "Pod Mode" of (page 6).

Function of remote control

Direct Music Search

Searchs the music by entering the track number.

1 Enter the music number

Press the number buttons on the remote control.

2 Search the music

Press the [I>] button.

Cancelling Direct Music Search

Press the [▶II] button.

• Direct Music Search cannot be performed during playing of iPod, "Music Editor" media, Random play, or scan play.

Function of disc changers with remote control

Direct Disc Search

Searchs the disc by entering the disc number.

1 Enter the disc number

Press the number buttons on the remote control.

2 Search the disc

Press the [FM] or [AM] button.

Cancelling Direct Disc Search

Press the [▶II] button.

• Direct Disc Search cannot be performed during playing of Random play or scan play.

Basic Operation of Disc Changer (Optional)

Selecting CD changer source

Press the [SRC] button.

Select the "CD Changer" display.

For how to select source item, refer to <Power/

Source Select button> of (page 4).

Music search

Push the Control knob towards right or left.

Disc Search

Push the Control knob towards up or down.

Station Preset Memory

Putting a station in the memory.

1 Select the frequency to put in the memory Push the Control knob towards right or left.
2 Enter Preset Memory mode Select "P.MEM".

For how to select Function Control item, refer to (page 6).

3 Select the number to put in the memory. Turn the Control knob.
4 Determine the number to put in the memory Press the Control knob.
5 Allow the determined number to take effect Press the Control knob.

Cancelling the Preset Memory mode Press the [FNC] button.

Preset Tuning

Recalling the stations in the memory.

1 Enter Preset Tuning Select mode
Turn the Control knob.
A station list is displayed.
2 Select a desired station in the memory Turn the Control knob.
3 Recall the station Press the Control knob.

Cancelling Preset Tuning Press the [FNC] button.

Function of remote control

Direct Access Tuning

Entering the frequency and tuning.

1 Enter Direct Access Tuning mode

Press the [DIRECT] button on the remote control.

"-- -- " is displayed.

2 Enter the frequency

Press the number buttons on the remote control.

Example:

Desired frequency	Press button
92.1 MHz (FM)	[0], [9], [2], [1]
810 kHz (AM)	[0], [8], [1], [0]

Cancelling Direct Access Tuning

Press the [DIRECT] button on the remote control.

• You can enter the FM band frequency in steps of a minimum of 0.1 MHz.

Activating Security Code

• You can set the Security Code with a 4 digit number of your choice.
• The Security Code cannot be displayed or referenced. Make a note of the Security Code and treasure it up.

1 Select Security Code item during Menu mode (In Standby mode)

"Security Set" is displayed. For how to select Function Control items, refer to (page 6).

2 Enter Security Code mode Press the Control knob for at least 1 second.

When "Enter" is displayed, "SECURITY SET" is also displayed.

3 Enter Security Code

Operation type	Operation
Select the digits to enter	Push the Control knob towards right or left.
Select the Security Code numbers	Turn the Control knob or push it towards up or down.

4 Confirm the Security Code Press the Control knob for at least 3 seconds.

When "Re-Enter" is displayed, "SECURITY SET" is also displayed.

5 Do the step 3 through 4 operation, and reenter the Security Code.

"Approved" is displayed.
The Security Code function activates.

• If you enter the wrong Code in steps 3 through 4, repeat from step 3.

6 Exit Security Code mode Press the [FNC] button.

Entering Security Code

The Security Code is required to use the audio unit when the unit is first used after removed from the battery power source or the Reset button is pressed.

1 Turn the power ON.

2 Do the step 3 through 4 operation, and enter the Security Code.

"Approved" is displayed. Now, you can use the unit.

Deactivating Security Code

To deactivate the Security Code function.

1 Select Security Code item during Menu mode (In Standby mode)

Select the "Security Clear" display. For how to select Function Control items, refer to (page 6).

2 Enter Security Code mode Press the Control knob for at least 1 second. When "Enter" is displayed, "SECURITY CLEAR" is also displayed.

3 Enter Security Code

Operation type	Operation
Select the digits to enter	Push the Control knob towards right or left.
Select the Security Code numbers	Turn the Control knob or push it towards up or down.

4 Press the Control knob for at least 3 seconds.

"Clear" is displayed.
The Security Code function deactivates.

5 Exit Security Code mode Press the [FNC] button.

• If a wrong security code is entered, "Error" is displayed. Enter a correct security code.

Manual Clock Adjustment

1 Select Clock Adjustment item during Menu mode (In Standby mode)

Select the "Clock Adjust" display.

For how to select Function Control items, refer to (page 6).

2 Enter Clock adjustment mode

Press the Control knob for at least 1 second.

The clock display blinks.

3 Adjusting Clock

Operation type	Operation
Selecting the item (hours or minutes)	Push the Control knob towards right or left.
Adjust each item	Turn the Control knob or push it towards up or down.

4 Exit Clock adjustment mode

Press the [FNC] button.

Date Adjustment

1 Select Date Adjustment item during Menu mode (In Standby mode)

Select the "Date Adjust" display.

For how to select Function Control items, refer to (page 6).

2 Enter Date adjustment mode

Press the Control knob for at least 1 second.

The date display blinks.

3 Adjusting Date

Operation type	Operation
Selecting the item (month, day, or year)	Push the Control knob towards right or left.
Adjust each item	Turn the Control knob or push it towards up or down.

4 Exit Date adjustment mode

Press the [FNC] button.

Function of KDC-X592

When LX AMP unit connecting

AMP Control

You can control the LX AMP connected to the unit.

1 Select AMP Control item during Menu mode

Select the "AMS Control" display.

For how to select Function Control items, refer to (page 6).

2 Enter AMP Control mode

Press the Control knob for at least 1 second.

3 Select the AMP Control item for adjustment

Push the Control knob towards up or down.

• For the details on the AMP Control item, see the Instruction manual attached to the LX AMP.

4 Adjust the AMP Control item

Push the Control knob towards right or left.

5 Exit AMP Control mode

Press the [FNC] button.

Demonstration mode setting

Turning the demonstration mode ON/OFF.

1 Select Demonstration item during Menu mode

Select the "DEMO Mode" display.

For how to select Function Control items, refer to (page 6).

2 Set the Demonstration mode

Press the Control knob for at least 2 seconds.

Pressing this button for 2 seconds or longer toggles the setting between "ON" and "OFF".

3 Exit Demonstration mode

Press the [FNC] button.

Audio Control

You can adjust following Audio Control items;

Adjustment Item	Display	Range
Rear volume	“REAR VOLUME”	0 — 35
Subwoofer level	“SUB-W LEVEL”	-15 — +15
System Q	“NATURAL”/“USER”/“ROCK”/“POPS”/“EASY”/“TOP40”/“JAZZ”/	Natural/User setting/Rock/Pops/Easy/Top 40/Jazz (The indicator turns on according to the setting.)
Bass level*	“BASS LEVEL”	-8 — +8
Middle level*	“MIDDLE LEVEL”	-8 — +8
Treble level*	“TREBLE LEVEL”	-8 — +8
Balance	“BALANCE”	Left 15 — Right 15
Fader	“FADER”	Rear 15 — Front 15
Exit Audio Control mode (Volume control mode)

• You can adjust these items in detail. Refer to (Page 15). (Function of KDC-X592)
• Source tone memory: Puts the set up value in the memory per source. (Detail Audio item is included)

• "USER": The ranges selected lastly for Bass level, Middle level, and Treble level are recalled automatically.

1 Select the source to adjust

For how to select source item, refer to of (page 4).

2 Enter Audio Control mode Press the [AUD] knob.

3 Select the Audio item to adjust Press the [AUD] knob.

4 Adjust the Audio item Turn the [AUD] knob.

5 Exit Audio Control mode Press any button.

Press a button other than the [AUD] knob or [] and [ATT] button.

Function of KDC-X592

Adjusting the detail of Audio Control

Among the Basic Audio items, you can adjust the Bass level, Middle level, and Treble level in detail.

Bass level

Adjustment Item	Display	Range
Bass Center Frequency	"BASS FRO"	40/50/60/70/80/100/120/150 Hz
Bass Q Factor	"BASS Q FACTOR"	1.00/1.25/1.50/2.00
Bass Extend	"BASS EXT"	OFF/ON

Middle level

Adjustment Item	Display	Range
Middle Center Frequency	"MIDDLE FRQ"	0.5/1.0/1.5/2.0 kHz
Middle Q Factor	"MIDDLE Q FACTOR"	1.00/2.00

Treble level

Adjustment Item	Display	Range
Treible Center Frequency	“TREBLE FRQ”	10.0/12.5/15.0/17.5 kHz

1 Select the Basic Audio item

Select the desired item to be set in detail from followings;

Bass level
- Middle level
Treible level

For how to select Basic Audio items, see

2 Enter Detail adjustment mode of Audio Control

Press the [AUD] knob for at least 1 second.

3 Select the Detail Audio item to adjust Press the [AUD] knob.

4 Adjust the Detail Audio item Turn the [AUD] knob.

5 Exit the Detail Audio Control mode Press the [AUD] knob for at least 1 second.

• When you set the Bass Extend to ON, low frequency response is extended by 20% .
• You can exit the Audio Control mode at anytime by pressing any button except for [AUD] knob, [▲] and [ATT] button.

Audio Setup

You can set Sound system, such as follows;

Adjustment Item	Display	Range
Front High Pass Filter	"HPF-F"	Through/40*1/60*1/80/100/120/150/180/220*1 Hz
Rear High Pass Filter	"HPF-R"	Through/40*1/60*1/80/100/120/150/180/220*1 Hz
Low Pass Filter	"LPF"	50*1/60/80/100*1/120/Through Hz
Subwoofer Phase	"SW PHASE"	Reverse (180°)/Normal (0°)
Volume offset	"VOL-OFFSET"	-8—±0 (AUX:-8—+8)
Loudness	"LOUD"	OFF/ON
Dual Zone System	"2 ZONE"	OFF/ON

*1 KDC-X592 only.

• Volume offset: Sets each source's volume as a difference from the basic volume.
• Loudness: Compensates for low and high tones during low volume. (Only the low tone is compensated for when the tuner is selected as a source.)

• Dual Zone System Main source and sub source (Auxiliary input) output Front channel and Rear channel separately.

• Set up the channel of sub source by "Zone2" of (page 6).

• Select Main source by [SRC] button.
• Adjust the volume of Front channel by [AUD] knob.
• Adjust the volume of Rear channel by
• The Audio Control has no effect on sub source.

1 Select the source to adjust

For how to select source item, refer to of (page 4).

2 Enter Audio Setup mode

Press the [AUD] knob for at least 1 second.

3 Select the Audio Setup item to adjust

Press the [AUD] knob.

4 Adjust the Audio setup item

Turn the [AUD] knob.

5 Exit Audio Setup mode

Press the [AUD] knob for at least 1 second.

Speaker Setting

Fine-tuning so that the System Q value is optimal when setting the speaker type as follows;

Speaker type	Display
OFF	"OFF"
For 5 & 4 in. speaker	"5/4inch"
For 6 & 6x9 in. speaker	"6x9/6inch"
For the OEM speaker	"O.E.M."

1 Enter Standby

Select the "STANDBY" display. For how to select source item, refer to of (page 4).

2 Enter Speaker Setting mode Press the [AUD] knob.

"SP SEL" is displayed.

3 Select the Speaker type Turn the [AUD] knob.

4 Exit Speaker Setting mode Press the [AUD] knob.

Audio Preset Memory

Registering the value setup by Sound Control. The memory cannot be erased by the Reset button.

1 Setup Sound Control

Refer to the following operations to setup the Sound Control.
-

2 Select Audio Preset item during Menu mode (Other than Standby mode)

Select the "Audio Preset" display.

For how to select Function Control items, refer to (page 6).

3 Enter Audio Preset mode

Press the Control knob for at least 1 second.

4 Select the Audio Preset Memory Turn the Control knob.

Select the "Memory" display.

5 Determine whether to put the Audio Preset in the memory

Press the Control knob.

"Memory?" is displayed.

6 Put the Audio Preset in the memory Turn the Control knob to select "YES", press the Control knob.

"Memory Completed" is displayed.

7 Exit Audio Preset mode Press the [FNC] button.

• Register 1 pair of Audio Preset Memory. You cannot register by the source.
• When you press the Reset, all the sources will be the setting value which is registered.
• The following items cannot be registered.
  Volume, Balance, Fader, Loudness, Volume offset, Dual Zone System, Rear Volume

Audio Preset Recall

Recalling the sound setup registered by

1 Select the source

For how to select source item, refer to of (page 4).

2 Select Audio Preset item during Menu mode (Other than Standby mode)

Select the "Audio Preset" display. For how to select Function Control items, refer to (page 6).

3 Enter Audio Preset mode

Press the Control knob for at least 1 second.

4 Select the Audio Preset Recall Turn the Control knob.

Select the "Recall" display.

5 Determine whether to recall the Audio Preset Press the Control knob.

"Recall?" is displayed.

6 Recall the Audio Preset

Turn the Control knob to select "YES", and then press the Control knob.

"Recall Completed" is displayed.

7 Exit Audio Preset mode Press the [FNC] button.

• The User memory of "SYSTEM Q" in
• The source tone memory item of

Basic Operation

Selecting Satellite Radio source

Press the [SRC] button.

Select the "SAT"/"SIRIUS"/"XM" display. For how to select source item, refer to of (page 4).

• You need to register to the service provider to receive the service by Satellite Radio. Consult the service provider if "CALL ... TO SUBSCRIBE" appears.
• The radio may take a little time to start receiving after you select the Satellite Radio source.
• If the signal reception fails, "Acquiring Signal"/"No Signal" appears.

Switching Seek Mode

Press the [AUTO] button.

Display	Operation
"Channel"	Normal manual seeking control.
"Preset"	Search in order of the channels in the Preset memory.

Select the channel

Push the Control knob towards right or left.

Selecting the Preset Band

Push the Control knob toward up.

Each time you push the knob, the preset band alternates between the SR1, SR2, SR3 and SR4.

Channel Scan

Press the [AUTO] button for at least 2 seconds.

Pressing this button for 2 seconds or longer allows you to check individual channel for 10 seconds each. Pressing this button again for 2 seconds or longer allows you to exit this mode.

Category and Channel Search

Selecting the channel and category you want to receive.

1 Enter Category and Channel Search mode Press the Control knob.
2 Select the Category Push the Control knob towards up or down.
3 Select the Channel Push the Control knob towards right or left.

Cancelling Category and Channel Search mode Press the Control knob.

• You cannot Channel search until the category information is acquired.

Function of remote control

Direct Access Tuning

Entering the channel and tuning.

1 Enter Direct Access Tuning mode Press the [DIRECT] button on the remote control.
2 Enter the channel Press the number buttons.
3 Do Channel Search Press the [1 ] button.

Cancelling Direct Access Tuning Press the [DIRECT] button on the remote control.

• If you make no button operation for 10 seconds, the Direct Access Tuning mode is automatically canceled.
• If you cannot receive any signal in the input Channel due to bad conditions on radio wave or other such problems, "Acquiring Signal"/"No Signal" appears.

Preset Memory

Putting the channel in the memory.

1 Select the channel to put in the memory Push the Control knob towards right or left.
2 Enter Preset Memory mode Select "P.MEM". For how to select Function Control item, refer to (page 6).
3 Select the number to put in the memory Turn the Control knob.
4 Determine the number to put in the memory Press the Control knob.
5 Allow the determined number to take effect Press the Control knob.

Cancelling the Preset Memory mode

Press the [FNC] button.

• Only the channel number is stored. Category information is not stored.

Preset Tuning

Recalling the channels in the memory.

1 Enter Preset Tuning Select mode

Turn the Control knob.

A list is displayed.

2 Select a desired station in the memory

Turn the Control knob.

3 Recall the station

Press the Control knob.

Cancelling Preset Tuning

Press the [FNC] button.

Basic Operations of remote control

General control

Volume control	[VOL]
Source select	[SRC]
Volume reduce	[ATT]

In Audio control

Audio item select	[AUD]
Adjusts the Audio item	[VOL]

• Refer to

Dual Zone control

Dual zone system on and off	[2-ZONE]
Rear channel volume control	[▲]/[▼]

In Tuner/HD Radio source

In CD/USB source

In Satellite Radio tuner source

About[ ]

This button is used when Bluetooth HANDS FREE BOX is connected. For more information, refer to the instruction manual of Bluetooth HANDS FREE BOX.

• Do not set the remote control in hot places such as on the dashboard.

Loading and Replacing battery

Use two "AA"/"R6"-size batteries.

Slide the cover while pressing downwards to remove it as illustrated.

Insert the batteries with the + and - poles aligned properly, following the illustration inside the case.

About Audio file

Although the audio files are complied with the standards listed above, the play maybe impossible depending on the types or conditions of media or device.

• Playing order of the Audio file

• Playable Audio file
  AAC-LC (.m4a), MP3 (.mp3), WMA (.wma)

• Playable disc media
  CD-R/RW/ROM
• Playable disc file format
  ISO 9660 Level 1/2, Joliet, Romeo, Long file name.
• Playable USB device
  USB mass storage class
• Playable USB device file system
  FAT16, FAT32

In the example of folder/file tree shown below, the files are played in the order from ① to ⑩.

An online manual about audio files is put on the site, www.kenwood.com/audiofile/. On this online manual, detailed information and notes which are not written in this manual are provided. Make sure to read through the online manual as well.

• In this manual, the word "USB device" is used for flash memories and digital audio players which have USB terminals.
• The word "iPod" appearing in this manual indicates the iPod connected with the iPod connection cable (optional accessory). The iPod connected with the iPod connection cable can be controlled from this unit. iPods that can be connected with the iPod connection cable are the iPod nano, Fifth Generation iPod, iPod classic, and iPod touch. Other iPods cannot be connected.

About USB device

• If you start playback after connecting the iPod, the music that has been played by the iPod is played first. In this case, "RESUMING" is displayed without displaying a folder name, etc. Changing the browse item will display a correct title, etc.
• When the iPod is connected to this unit, "KENWOOD" or "✔" is displayed on the iPod to indicate that you cannot operate the iPod.
• When the USB device is connected to this unit, it can be charged up provided that this unit is powered.
• Install the USB device in the place where it will not prevent you from driving your vehicle properly.
• You cannot connect a USB device via a USB hub and Multi Card Reader.
• Take backups of the audio files used with this unit. The files can be erased depending on the operating conditions of the USB device.

We shall have no compensation for any damage arising out of erasure of the stored data.

• No USB device comes with this unit. You need to purchase a commercially available USB device.
• When connecting the USB device, usage of the CAU1EX (option) is recommended.

Normal playback is not guaranteed when a cable other than the USB compatible cable is used.

Connecting a cable whose total length is longer than 5m can result in abnormal playback.

About KENWOOD "Music Editor" of PC application

• "Music Editor" is recorded in the CD-ROM attached to this unit.
  Refer to the user's manual recorded in the installation CD-ROM and Help of "Music Editor" for the operation method of "Music Editor".
• The unit can play USB device created by "Music Editor".
  Information about "Music Editor" upgrade is put on the site, www.kenwood.com.

About Satellite Radio tuner (Optional)

This unit supports Satellite Radio tuners which are released by SIRIUS and XM.

Refer to the instruction manual of Satellite radio tuner.

About HD Radio (Optional)

When you connect an HD Radio, Tuner features of the unit are disabled and changed to HD Radio tuner features.

With the HD Radio tuner, you can use the similar functions of Tuner features. Refer to Tuner features for how to use the functions.

For operating KCA-BT100 (Optional)

However, the following control methods of the function for this unit may be different from the Instruction manual; therefore, refer to the following supplemental instruction.

1. Press the Control knob. Select the "DIAL" display.
2. Press the [FNC] button.
3. Select the number to recall by turning the Control knob.
4. Press the Control knob.

1. Operation is the same. Refer to the instruction manual of KCA-BT100.
2. Press the [FNC] button.
3. Select the number to memory by turning the Control knob.
4. Press the Control knob for at least 1 second.

1-3. Operation is the same. Refer to the instruction manual of KCA-BT100.

1. Press the Control knob.
2. Select "YES" using the Control knob.
3. Press the Control knob.
4. Press the [FNC] button.

For how to operate Menu, refer to <Function

Control> in this instruction manual.

About display

Cell-Phone Status is displayed in the status display of this unit.

Moreover, some displays are different from the description of KCA-BT100 Instruction Manual.

Displays of KCA-BT100 Instruction Manual	Actual displays on this unit
"Disconnect"	"HF Disconnect"
"Connect"	"HF Connect"
"Phone Delete"	"Device Delete"
"Phone Status"	"BT DVC Status"

BT: Displays the bluetooth connection status. This indicator turns on when a cell-phone is connected to this unit.

Menu Glossary

SRC Select

Setting up the Source Select mode.

1: Displays source icons for your choice.
2 : Allows you to select sources one after another.

- Display

If this unit is not operated at least 5 seconds with "OFF" selected, the display turns off. During a setup mode, the display will not turn off even if 5 seconds lapse.

- ILM Dimmer (illumination dimmer)

Reduces the key Illumination brightness.

AUTO: Dims the illumination in conjunction with the Light switch of the vehicle.

MNAL1: Dims the illumination constantly.

MNAL2: Turns off the upper and lower illuminations, and dims the left and right illuminations.

OFF: Does not dim the illumination.

- AMP

Selecting "OFF" turns off the built-in amplifier. Turning off the built-in amplifier improves the quality of the sound from Preout.

Zone2 (Dual Zone)

Set the destination (front speaker "Front" or rear speaker "Rear") of the sub source (AUX IN) when the Dual Zone function is turned on.

- Supreme

Technology to extrapolate and supplement with proprietary algorithm, the high-frequency range that is cut off when encoding at low bit rate (less than 128Kbps, Sampling frequency is 44.1kHz ). Supplementing is optimized by compression format (AAC, MP3 or WMA) and processed according to bit rate.

The effect is negligible with music that is encoded at high bit rate, variable bit rate or has minimal high frequency range.

- Receive Mode (Receive mode Setting)

Sets the receive mode of the HD Radio.

Auto: Automatically tunes to analog broadcast when there is no digital broadcast.

Digital: Digital broadcasts only.

Analog: Analog broadcasts only.

CD Read

Sets the method for reading CD.

When unable to play special format CD, set this function to "2" to force playing. Note that some music CD may be unplayable even when set to "2". In addition, audio files cannot be played when set to "2". Normally, keep this set to "1".

1: Automatically distinguishes between audio file disc and music CD when playing disc.
2: Forces playing as music CD.

Appendix

CAUTION

Use of controls or adjustments or performance of procedures other than those specified herein may result in hazardous radiation exposure. In compliance with Federal Regulations, following are reproductions of labels on, or inside the product relating to laser product safety.

This equipment may generate or use radio frequency energy. Changes or modifications to this equipment may cause harmful interference unless the modifications are expressly approved in the instruction manual. The user could lose the authority to operate this equipment if an unauthorized change or modification is made.

FCC NOTE

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment may cause harmful interference to radio communications, if it is not installed and used in accordance with the instructions. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.

Accessories/ Installation Procedure

Accessories

* KDC-X592 only.

Installation Procedure

1. To prevent a short circuit, remove the key from the ignition and disconnect the battery.
2. Make the proper input and output wire connections for each unit.
3. Connect the speaker wires of the wiring harness.
4. Connect the wiring harness wires in the following order: ground, battery, ignition.
5. Connect the wiring harness connector to the unit.
6. Install the unit in your car.
7. Reconnect the battery.
8. Press the reset button.

WARNING

If you connect the ignition wire (red) and the battery wire (yellow) to the car chassis (ground), you may cause a short circuit, that in turn may start a fire. Always connect those wires to the power source running through the fuse box.

• Mounting and wiring this product requires skills and experience. For safety's sake, leave the mounting and wiring work to professionals.
• Make sure to ground the unit to a negative 12V DC power supply.

• Do not install the unit in a spot exposed to direct sunlight or excessive heat or humidity. Also avoid places with too much dust or the possibility of water splashing.

• Do not use your own screws. Use only the screws provided. If you use the wrong screws, you could damage the unit.

• If the power is not turned ON ("Protect" is displayed), the speaker wire may have a short-circuit or touched the chassis of the vehicle and the protection function may have been activated. Therefore, the speaker wire should be checked.
• If your car's ignition does not have an ACC position, connect the ignition wires to a power source that can be turned on and off with the ignition key. If you connect the ignition wire to a power source with a constant voltage supply, as with battery wires, the battery may die.
• If the console has a lid, make sure to install the unit so that the faceplate will not hit the lid when closing and opening.
• If the fuse blows, first make sure the wires aren't touching to cause a short circuit, then replace the old fuse with one with the same rating.
• Insulate unconnected wires with vinyl tape or other similar material. To prevent a short circuit, do not remove the caps on the ends of the unconnected wires or the terminals.
• Connect the speaker wires correctly to the terminals to which they correspond. The unit may be damaged or fail to work if you share the wires or ground them to any metal part in the car.
• When only two speakers are being connected to the system, connect the connectors either to both the front output terminals or to both the rear output terminals (do not mix front and rear). For example, if you connect the connector of the left speaker to a front output terminal, do not connect the connector to a rear output terminal.
• After the unit is installed, check whether the brake lamps, blinkers, wipers, etc. on the car are working properly.
• Mount the unit so that the mounting angle is 30^ or less.

About CD players/disc changers connected to this unit

If the CD player/disc changer has the "O-N" switch, set it to the "N" position.

The functions you can use and the information that can be displayed may differ depending on the models being connected.

non-Japanese cars

Metal mounting strap (commercially available)

• Make sure that the unit is installed securely in place. If the unit is unstable, it may malfunction (for example, the sound may skip).

Japanese cars

1 Refer to the section and then remove the hard rubber frame.
2 Align the holes in the unit (two locations on each side) with the vehicle mounting bracket and secure the unit with the accessory screws.

Accessory ③ ..for Nissan car
Accessory ④ ..for Toyota car

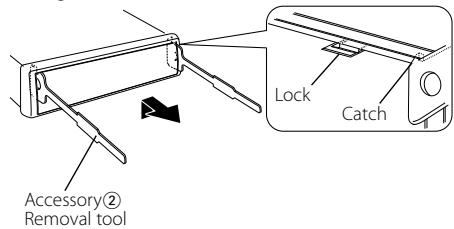

Removing the hard rubber frame

1 Engage the catch pins on the removal tool and remove the two locks on the upper level. Upper the frame and pull it forward as shown in the figure.

2 When the upper level is removed, remove the lower two locations.

• The frame can be removed from the bottom side in the same manner.

Removing the Unit

1 Refer to the section and then remove the hard rubber frame.
2 Remove the screw (M4× 8) on the back panel.
3 Insert the two removal tools deeply into the slots on each side, as shown.
4 Lower the removal tool toward the bottom, and pull out the unit halfway while pressing towards the inside.

Screw (M4× 8mm)

(commercially available)

• Be careful to avoid injury from the catch pins on the removal tool.
  5 Pull the unit all the way out with your hands, being careful not to drop it.

Accessory of KDC-X592

Mounting the USB Bracket

1 Make an opening to mount the bracket.

2 Pass the USB connector through the opening.
3 Fit the USB connector in the bracket, and secure it with a band.

4 Mount the assembled bracket using screws.

• Do not set the unit in hot places such as on the dashboard.
• Do not install near the dashboard, rear tray, or air bag safety parts.
• Install the unit in the place where it will not prevent you from driving your vehicle properly.

Troubleshooting Guide

Some functions of this unit may be disabled by some settings made on this unit.

Cannot set up the subwoofer.

• Cannot set up the High Pass Filter.
• Cannot set up the Fader.

• No Audio control effect on AUX.

• of (page 4) is not set to On.

The Dual zone function is enabled.

Cannot set up the subwoofer phase.

The Low Pass Filter is set to Through.

Cannot select the output destination of the subsourc in the Dual zone.

• Cannot adjust the volume of the rear speakers.

The Dual zone function is disabled.

Cannot register a security code.

• Cannot set up Display Illumination Control.
  (page 14) is not turned off.

What might seem to be a malfunction in your unit may just be the result of slight misoperation or miswiring. Before calling service, first check the following table for possible problems.

General

The Touch Sensor Tone does not sound.

The preout jack is being used.

The Touch Sensor Tone cannot be output from the preout jack.

The illumination flashes when the knob or button is operated.

This is the key illumination effect.

You set this effect in "MENU"> "ILM Effect" of (page 6).

The key illumination effect brought about in conjunction with the sound volume is small.

The key illumination effect may be insufficient depending on the sound volume and sound quality.

Tuner source

Radio reception is poor.

The car antenna is not extended.

Pull the antenna out all the way.

Disc source

The specified disc does not play, but another one plays instead.

The specified CD is quite dirty.

Clean the CD, referring to the CD cleaning of the section on (page 3).

• The disc is loaded in a different slot from that specified.

Eject the disc magazine and check the number for the specified disc.

The disc is severely scratched.

Try another disc instead.

Audio file source

The sound skips when an Audio file is being played.

The media is scratched or dirty.

Clean the media, referring to the CD cleaning of the section on (page 3).

The recording condition is bad.

Record the media again or use another media.

Noise is heard when carrying out Folder Search.

Noise may be produced if folders without audio files exist continuously in the playing media.

Do not make folders without audio files.

Troubleshooting Guide

The messages shown below display your systems condition.

TOC Error: No disc has been loaded in the disc magazine.
- The CD is quite dirty. The CD is upside-down. The CD is scratched a lot.

Error 05: The disc is unreadable.

Error 77: The unit is malfunctioning for some reason.

Press the reset button on the unit. If the "Error 77" code does not disappear, consult your nearest service center.

Mecha Error: Something is wrong with the disc magazine. Or the unit is malfunctioning for some reason.

Check the disc magazine. And then press the reset button on the unit. If the "Mecha Error" code does not disappear, consult your nearest service center.

IN (Blink): The CD player section is not operating properly.

Reinsert the CD. If the CD cannot be ejected or the display continues to flash even when the CD has been properly reinserted, please switch off the power and consult your nearest service center.

Protect: The speaker wire has a short-circuit or touches the chassis of the vehicle, and then the protection function is activated.

Wire or insulate the speaker cable properly and press the reset button. If the "Protect" code does not disappear, consult your nearest service center.

Unsupported File:

An Audio file is played with a format that this unit can't support.

Copy Protect:

Copy Protection:

A copy-protected file is played.

Read Error: The file system of the connected USB device is broken.

Copy the files and folders for the USB device again. If the error message is still displayed, initialize the USB device or use other USB devices.

No Device: The USB device is selected as a source although no USB device is connected.

Change the source to any source other than USB. Connect an USB device, and change the source to USB again.

N/A Device: An unsupported USB device is connected.

No Music Data/ Error 15:

• The connected USB device contains no playable audio file.
  Media was played that does not have data recorded that the unit can play.

USB ERROR (Blink):

Some trouble may have occurred to the connected USB device.

Remove the USB device, then cycle the power switch to ON. If the same display is repeated, use another USB device.

iPod Error: Connection to the iPod has failed.

Check that the connected iPod is an iPod that is supported. See (page 22) for information on supported iPods.
Remove the USB device and then reconnect it.
Confirm that the software for the iPod is the latest version.

USB REMOVE: The Remove mode has been selected for the USB device/iPod. You can remove the USB device/iPod safely.

Specifications

FM tuner section

Frequency range (200 kHz space)

: 87.9 MHz - 107.9 MHz

Usable sensitivity (S / N = 30dB)

: 9.3dBf (0.8 V/75 Ω)

Quieting Sensitivity (S / N = 50dB)

: 15.2dBf (1.6 μV/75 Ω)

Frequency response (± 3dB)

:30Hz-15kHz

Signal to Noise ratio (MONO)

:70dB

Selectivity (± 400kHz)

:≥80dB

Stereo separation (1 kHz)

:40dB

AM tuner section

Frequency range (10 kHz space)

: 530 kHz - 1700 kHz

Usable sensitivity (S / N = 20dB)

: 28 dBμ (25 μV)

CD player section

Laser diode

:GaAlAs

Digital filter (D/A)

: 8 Times Over Sampling

D/A Converter

:24Bit

Spindle speed

: 500 - 200 rpm (CLV)

Wow & Flutter

: Below Measurable Limit

Frequency response (± 1 dB)

: 10 Hz - 20 kHz

Total harmonic distortion (1 kHz)

KDC-X592：0.008%

KDC-MP538U : 0.01 %

Signal to Noise ratio (1 kHz)

KDC-X592:110 dB

KDC-MP538U : 105 dB

Dynamic range

:93dB

MP3decode

: Compliant with MPEG-1/2 Audio Layer-3

WMAdecode

: Compliant with Windows Media Audio

AACdecode

: AAC-LC".m4a" files

USB Interface

USB Standard

: USB1.1/ 2.0 (Full speed)

Maximum Supply current

: 500 mA

File System

:FAT16/32

MP3decode

: Compliant with MPEG-1/2 Audio Layer-3

WMA decode

: Compliant with Windows Media Audio

AACdecode

: AAC-LC".m4a" files

Audio section

Maximum output power

:50W×4

Full Bandwidth Power (at less than 1% THD)

:22W×4

Speaker Impedance

:4-8Ω

Tone action

Bass:100Hz±8dB

Middle:1kHz±8dB

Treble: 10kHz± 8 dB

Preout level / Load (CD)

KDC-X592 : 4000 mV/10 kΩ

KDC-MP538U:2500mV/10kΩ

Preout impedance

≤ 600

Auxiliary input

Frequency response (± 1 dB)

: 20 Hz - 20 kHz

Input Maximum Voltage

: 1200 mV

Input Impedance

: 100 kΩ

General

Operating voltage (11 - 16V allowable)

:14.4V

Current consumption

:10A

Installation Size (W x H x D)

: 182 x 53 x 155 mm

7-3/16 x 2-1/16 x 6-1/8 inch

Weight

:3.1 lbs (1.40 kg)

Table des matieres

• iPod is a trademark of Apple, Inc., registered in the U.S. and other countries.
• The "AAC" logo is trademark of Dolby Laboratories.

AVENTISSEMENT

Section Disque Compact

Diode laser

:GaAlAs

: USB1.1/ 2.0 (Full speed)

• iPod is a trademark of Apple, Inc., registered in the U.S. and other countries.
• The "AAC" logo is trademark of Dolby Laboratories.

ADVERTENCIA

: USB1.1/ 2.0 (Full speed)
