Product Type	Electric Contact/Horizontal Grill
Brand	Eldom
Model	Plaat GK130
Power	1600 W
Voltage	220-240 V ~ 50/60 Hz
Cooking Modes	Contact grill (two-sided) and horizontal grill (180° opening)
Heating Plates	Non-stick coated, removable (implied)
Temperature Control	Adjustable thermostat with indicator lights
Indicator Lights	Red (power) and green (heating)
Safety Features	Automatic temperature regulation, lock for 180° position, cool-touch handle
Cleaning	Wipe with damp cloth; fat container dishwasher-safe (hand wash recommended); do not immerse
Included Accessories	Fat container, spatula
Dimensions (approx.)	30 x 30 x 15 cm
Weight (approx.)	2.5 kg
Material	Plastic body, metal heating plates with non-stick coating
Cord Length (approx.)	0.8 m

Frequently Asked Questions - Plaat GK130 Eldom

How do I use the grill as a contact grill?

Close the cover, set the temperature using the thermostat, wait for the green lamp to turn off indicating it's ready, open the cover, place food, and gently close the cover. The top plate adjusts to the thickness of the food. Do not press down.

How do I use the grill as a horizontal grill?

Ensure the grill is cold. Press the lock button and open the top cover fully until it lies flat (180°). Route the power cord away from the hot surface. Then plug in, set temperature, and place food on both heated plates. Turn food occasionally.

How do I clean the grill?

Disconnect and let it cool completely. Wipe the heating plates with paper towels to remove grease, then clean with a damp cloth. Do not use abrasive cleaners or immerse in water. The fat container can be washed in warm soapy water.

What do the indicator lights mean?

The red lamp lights up when the grill is connected to power. The green lamp indicates the grill is heating; it turns off when the set temperature is reached and cycles on/off to maintain temperature.

Can I use metal utensils on the cooking plates?

No, use only wooden, plastic, or heat-resistant utensils to avoid damaging the non-stick coating.

Is the grill suitable for outdoor use?

No, the grill is designed for indoor household use only and should not be used outdoors or near flammable materials.

What should I do if the power cord is damaged?

Do not use the grill. Contact an authorized service center for repair or replacement. Do not attempt to repair yourself.

Why is there a smell during first use?

A slight odor is normal due to manufacturing residues. Ensure good ventilation (e.g., open a window) and run the grill empty for a few minutes to burn off any residues.

Can children use this grill?

Children aged 8 and above can use it under supervision. Children under 8 must be kept away from the appliance and its cord. Cleaning and maintenance should not be done by children.

How do I store the grill?

Ensure it is clean and completely dry. Store in a cool, dry place. If storing with the cord wrapped, do not wrap tightly around the appliance to avoid damage.

USER MANUAL Plaat GK130 Eldom

Black and white photo of a Elclom grater with no visible text or symbols on the appliance surface

/PL/

The disposal of used electrical and electronic equipment (applies to European Union countries and other European countries with separate waste-collection systems). This symbol on the product or its packaging indicates that it should not be classified as household waste. It should be handed over to an appropriate company dealing with the collection and recycling of electrical and electronic equipment. The correct disposal of the product will prevent potential negative consequences for the environment and human health resulting from hazardous substances present in the product. Electrical devices must be handed over to restrict their re-use and further treatment. If the device contains batteries, remove them, and hand them over to a storage point separately. DO NOT THROW EQUIPMENT INTO THE MUNICIPAL WASTE BIN. Material recycling helps to preserve natural resources. For detailed information on how to recycle this product, please contact your local authority, the recycling company, or the shop where you bought it.

/DE/

PRZEZNACZENIE

Close-up of a mechanical component with a hand cursor pointing to a button, labeled 'zdj.1' (no other text or symbols)

GRILL KONTAKTOWY

Read the whole content of this user manual before using the appliance for the first time.

1. Connect the connection cord to a socket which complies with the specification provided in the manual.

2. Always disconnect the appliance from the mains by pulling the plug, not the power cord.

3. Disconnect the appliance from the mains whenever it is not used or before cleaning it.

4. Do not immerse the cord or the appliance in water.

5. Do not hang the cord on sharp edges and do not let it touch hot surfaces.

6. Do not use in open air.

7. Do not use nearby inflammable materials such as furniture, bedding, paper, clothes, lace curtains, linings etc.

8. Do not leave children without care nearby the appliance parts of the appliance become hot when the appliance is being used.

9. You should hold the appliance only by the handgrip.

10. Be careful when taking out the sandwiches. Ready made sandwiches are hot and can burn.

11. Do not leave the appliance unattended when it is being used.

12. The device can be used by children aged 8 and older and by persons with limited physical, sensory or mental capabilities, or persons without sufficient experience and knowledge only under supervision or if previously instructed on the safe use of the appliance and the possible risks. Children shall not play with the appliance. Cleaning and maintenance that are the responsibility of the user shall not be carried out by children without supervision. Protect the appliance and the power cord against children under 8 years old.

13. Pay attention to make sure that the appliance is not played with by children.

14. Do not carry or move the appliance when it is being used.

15. Do not cover the appliance when it is being used,

16. Do not put any products in metal foils into the appliance.

17. Do not grasp the appliance with wet hands.
18. The appliance is intended for household use only.
19. A very hot stream of steam may come out of the appliance when the cover is being opened do not use the appliance.
20. If the power cord has been damages or when the appliance has fallen down or was damaged in another way.
21. The Appliance should be repaired by an authorized service shop; see the annexe or visit the site www.eldom.eu for the list of authorized service shops.
22. The appliance may be repaired only by an authorized service outlet.
23. Modernizing the appliance or using other spare parts or components for the appliance with the genuine ones is forbidden and threatens the safety of use.
24. Eldom Sp. z o. o. is not responsible for any potential damages caused by improper use of the appliance.

WARNING

• Opening the top cover is only allowed when the device is cold. Otherwise, there is a risk of burns.
• When opening the device route the power cord in such a way that it does not come into contact with the top cover.

This symbol is a warning against the high temperature of the appliance surface.

INSTRUCTION MANUAL

CONTACT GRILL GK130

EN

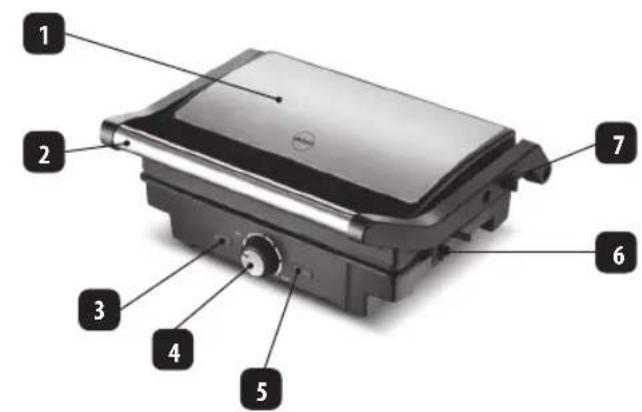

GENERAL DESCRIPTION

1. Top cover
2. Handle
3. Control lamp - connection
4. Thermostat
5. Control lamp - work
6. Plate lock
7. "180 degrees" lock
8. Base
9. Fat container
10. Spout
11. Heating plates
12. Spatula

SPECIFICATION

• Power: 1600W
• Voltage: 220-240 V\~ 50/60 Hz

DESIGNATION

GK130 electric grill is designed for grilling, frying, heating, etc. of different types of food. Thanks to the moveable top cover, the device can be used as a contact grill (simultaneous, two-sided roasting of different thickness products) or as a traditional, horizontal grill (after opening to 180 degrees).

- SETTING UP THE APPLIANCE

• Before using the appliance, make sure that the appliance, the plug and the power cable are in good technical order and whether all parts of the package were removed.
• Before the first use, all parts of the appliance that are in contact with food must be thoroughly washed (see: Cleaning and maintenance).

Specific smell may be sensed during the first use, which results from the production process. It is a normal process and it will go away after a time. Ensure the proper ventilation in the room, e.g. opening the window. The first use of the appliance should be without products.

USE

Before using the device and plugging it in to the power supply mains with the parameters compliant with the ones indicated on the device, set the thermostat (4) in the "0" position.

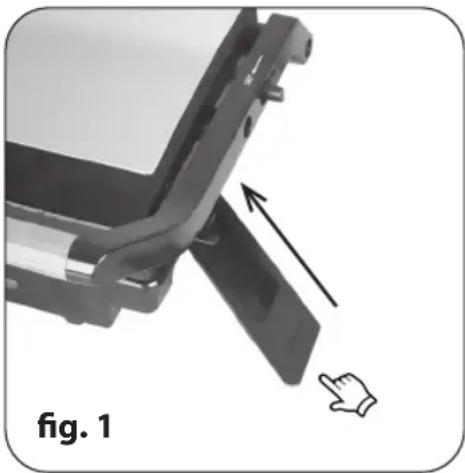

Close-up of a mechanical component with an arrow indicating direction, labeled 'fig. 1' (no text or symbols on the object itself)

CONTACT GRILL

• Set the device on a flat, stable and heat-resistant surface.
• Close the cover (1).
• Install the grease collector (9) in the base (8) - fig. 1.
• Connect the device to a power supply. A red control lamp (3) will come on.
• Set the temperature using the thermostat (4). A green control lamp (5) is lit when the device is heating up, and it turns off, when the device reaches the desired temperature.
• Open the cover (1) holding it by the holder (2). Place the products and gently close the cover (1). Do not push the cover (1) down, as you may crush the products, and do not block it during operation (6). The cover (1) will automatically adjust to the thickness of the products.
• The green control lamp turns on and off during frying. The thermostat maintains a proper temperature.
• Remove the products when they are done frying. In order not to damage the heating plates, use spatula (12), wooden or plastic, heat-resistant utensils.
• During the preparation of new portions of products, close the cover (1) in order to maintain the temperature.
• Empty the container (9) regularly.
• After the full completion of roasting, disconnect the device from the power supply.

HORIZONTAL GRILL

- Set the device on a flat, stable and heat-resistant surface.

- Push the lock button (7) and open the top cover holding it by the holder (2).

WARNING

Opening the top cover is only allowed when the device is cold. Otherwise, there is a risk of burns. Route the power cord in such a way that it does not come into contact with the top cover.

• Connect the device to a power supply. A red control lamp (3) will come on.
• Set the temperature using the thermostat (4). A green control lamp (5) is lit when the device is heating up, and it turns off, when the device reaches the desired temperature.
• Place the products on the plates and grill turning them once in a while.
• The green control lamp turns on and off during frying. The thermostat maintains a proper temperature.
• Remove the products when they are done frying. In order not to damage the heating plates, use spatula (12), wooden or plastic, heat-resistant utensils.
• Empty the container (9) regularly.
• After the full completion of roasting, disconnect the device from the power supply.

• CLEANING AND MAINTENANCE

• disconnect the appliance from the mains and let it cool down before cleaning it,
• do not immerse any part of the appliance in water or other liquids
• first, rub the cooking plates with paper towels in order to remove grease,
• then, clean the appliance and the cord gently with a wet cloth
• do not use cleaning agents and dissolvents,
• in case of residue which is difficult to be removed, do not use sharp tools as they can destroy coatings on the plates of the appliance. The best way to remove dirt is to cover them with a wet cloth to dissolve the residue,
• clean and empty the tray (9) regularly. The tray can be taken out and washed in warm water with some washing liquid.

ENVIRONMENTAL PROTECTION

• the device is made of materials which can be reused or recycled,
• the device should be handled to a special point which deals with collecting and recycling of electric and electronic equipment

WARRANTY

• this appliance is designed for domestic use only,
• it cannot be used for professional purposes or for other than the intended use,
• improper use will nullify the guarantee.
