USER MANUAL KDC-DAB34U KENWOOD

© 2013 JVC KENWOOD Corporation

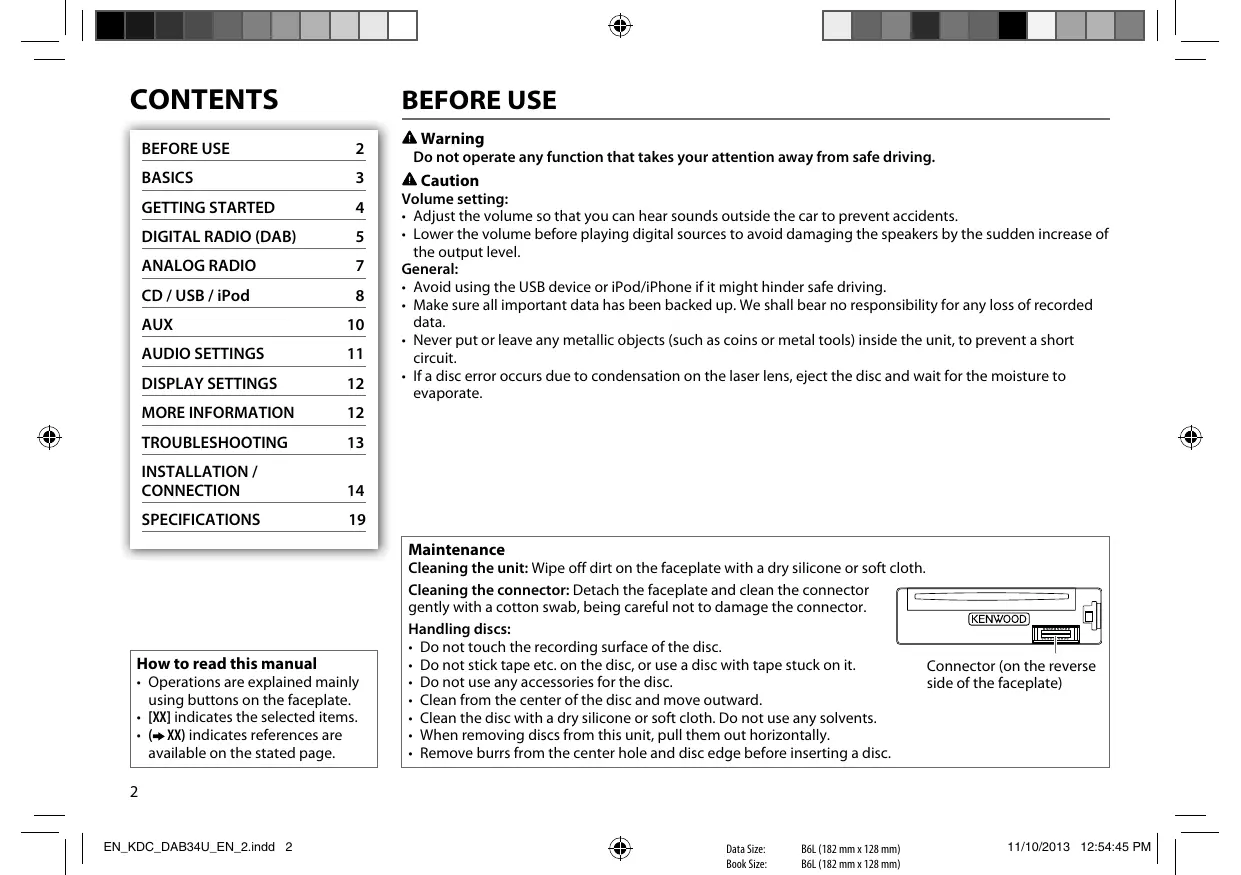

Do not operate any function that takes your attention away from safe driving.

Volume setting: • Adjust the volume so that you can hear sounds outside the car to prevent accidents. • Lower the volume before playing digital sources to avoid damaging the speakers by the sudden increase of the output level. General: • Avoid using the USB device or iPod/iPhone if it might hinder safe driving. • Make sure all important data has been backed up. We shall bear no responsibility for any loss of recorded data. • Never put or leave any metallic objects (such as coins or metal tools) inside the unit, to prevent a short circuit. • If a disc error occurs due to condensation on the laser lens, eject the disc and wait for the moisture to evaporate.

How to read this manual

• Operations are explained mainly using buttons on the faceplate. • [XX] indicates the selected items. • ( XX) indicates references are available on the stated page.

Cleaning the unit: Wipe off dirt on the faceplate with a dry silicone or soft cloth.

Cleaning the connector: Detach the faceplate and clean the connector gently with a cotton swab, being careful not to damage the connector. Handling discs: • Do not touch the recording surface of the disc. • Do not stick tape etc. on the disc, or use a disc with tape stuck on it. Connector (on the reverse • Do not use any accessories for the disc. side of the faceplate) • Clean from the center of the disc and move outward. • Clean the disc with a dry silicone or soft cloth. Do not use any solvents. • When removing discs from this unit, pull them out horizontally. • Remove burrs from the center hole and disc edge before inserting a disc.

Your preset adjustments will also be erased.

Do this (on the faceplate)

• Press and hold to turn off the power.

Press B SRC repeatedly.

Press DISP SCRL repeatedly.

• Press and hold to scroll the current display information.

Muting upon the reception of a phone call

Connect the MUTE wire to your telephone using a commercial telephone accessory. ( 15) When a call comes in, “CALL” appears. (The audio system pauses.) • To continue listening to the audio system during a call, press B SRC. “CALL” disappears and the audio system resumes. When the call ends, “CALL” disappears. (The audio system resumes.)

GETTING STARTED While in clock display screen...

Press and hold DISP SCRL to enter clock adjustment mode directly. Then, perform step 4 to set the clock.

Select the display language and cancel the demonstration

When you turn on the power (or after you reset the unit), the display shows: “SEL LANGUAGE” “PRESS” “VOLUME KNOB”

1 Turn the volume knob to select [ENG] (English) or [RUS] (Russian), then press the knob. [ENG] is selected for the initial setup. Then, the display shows: “CANCEL DEMO” “PRESS” “VOLUME KNOB” 2 Press the volume knob. [YES] is selected for the initial setup. 3 Press the volume knob again. “DEMO OFF” appears.

Set the initial settings

1 Press B SRC to enter STANDBY. 2 Press the volume knob to enter [FUNCTION]. 3 Turn the volume knob to make a selection (see the following table), then press the knob.

To return to the previous setting item or hierarchy, press

AUDIO CONTROL SWITCH PREOUT REAR/ SUB-W: Selects whether rear speakers or a subwoofer are connected to the line out terminals on the rear (through an external amplifier).

SP SELECT OFF/ 5/4/ 6 × 9/6/ OEM: Selects according to the speaker size (5 inches or 4 inches, 6×9 inches or 6 inches) or OEM speakers for optimum performance.

Press the volume knob to enter [FUNCTION].

Turn the volume knob to select [CLOCK], then press the knob. Turn the volume knob to select [CLOCK ADJUST], then press the knob. Turn the volume knob to make the settings, then press the knob. Day Hour Minute 5 Turn the volume knob to select [CLOCK FORMAT], then press the knob. 6 Turn the volume knob to select [12H] or [24H], then press the knob. 7 Press and hold to exit. To return to the previous setting item or hierarchy, press .

ON: Both display and button illumination change to white color when entering [FUNCTION]. ; OFF: Both display and button illumination remain as [COLOR SELECT] color. ( 12)

About DAB (Digital Audio Broadcasting)

ON: Receives L-BAND ensemble during digital audio reception. ; OFF: Cancels.

DAB ANT POWER ON: Supplies power to the DAB antenna. Selects when using the supplied antenna (for KDC-DAB34U ). ; OFF: Does not supply power. Selects when using passive antenna without booster. ( 16)

PRESET TYPE NORMAL: Memorizes one station for each preset button in each band (FM1/

FM2/ FM3/ MW/ LW/ DB1/ DB2/ DB3). ; MIX: Memorizes one station (digital radio or analog radio) for each preset button, regardless of the selected band.

ON: Activates the keypress tone. ; OFF: Deactivates.

SOURCE SELECT BUILT-IN AUX DIGITAL RADIO (DAB)

ON: Enables AUX in source selection. ; OFF: Disables. ( 10)

RUSSIAN SET Selects the display language for [FUNCTION] menu and Tag information

(folder name, file name, song title, artist name, album name) if applicable. RUSSIAN OFF: Display language is English. ; РУССКИЙ BКЛ: Display language is Russian.

P-OFF WAIT Applicable only when the demonstration mode is turned off.

Sets the duration when the unit will automatically turns off (while in standby mode) to save the battery. 20M: 20 minutes ; 40M: 40 minutes ; 60M: 60 minutes ; OFF – – –: Cancels

1: Automatically distinguishes between audio file disc and music CD. ;

2: ;Forces to play as an music CD. No sound can be heard if an audio file disc is played.

F/W UPDATE UPDATE SYSTEM/ UPDATE DAB1/ UPDATE DAB2

F/W UP xx.xx/ YES: Starts upgrading the firmware. ; NO: Cancels (upgrading is not F/W UP xx.x.x/ activated). F/W UP Vxxx For details on how to update the firmware, see: www.kenwood.com/cs/ce/

DAB is one of the digital radio broadcasting systems available today. It can deliver digital quality sound without any annoying interference or signal distortion. Furthermore, it can carry text, pictures and data.

In contrast to FM broadcast, where each program is transmitted on its own frequency, DAB combines several programs (called “services”) to form one “ensemble.” The “primary component” (main radio station) is sometimes accompanied by a “secondary component” which can contain extra programs or other information. Preparation: 1 Connect a DAB antenna to the DAB input terminal. ( 16) 2 Press B SRC or DAB to select DAB. 3 Press and hold DAB to start the Service List update. “LIST UPDATE” appears and update starts. “UPDATED” appears when update completes. Updates take up to 3 minutes. No interruption (such as traffic information) is possible during updates. • To cancel the Service List update: Press and hold DAB again.

1 Press B SRC or DAB to select DAB. 2 Press J BAND repeatedly to select DB1/ DB2/ DB3. 3 Press and hold S / T to search for an ensemble. 4 Press S / T to select an ensemble, service or component to listen.

• To change the tuning method for S / T: Press K SEEK repeatedly. AUTO1: Press S / T: Select an ensemble, service or component. Press and hold S / T: Automatically search for an ensemble. AUTO2: Press S / T: Search for a preset service. MANUAL: Press S / T: Select an ensemble, service or component. Press and hold S / T: Manually search for an ensemble. • To store a service: Press and hold one of the number buttons (1 to 6). • To select a stored service: Press one of the number buttons (1 to 6).

1 Press DAB to enter Service Search mode. 2 Turn the volume knob or press J / K to select a service, then press

While listening to DAB... Automatically switch to FM broadcasting the same program if the DAB signal becomes weak. It will switch back to DAB sound when the signal becomes strong again. While listening to FM... Automatically switch to DAB source broadcasting the same program (if available). ; OFF: Cancels.

TI ON: Allows the unit to temporarily switch to Traffic Information. ;

To cancel the Service Search mode, press

PTY SEARCH Press the volume knob to enter PTY language selection. Turn the volume knob to select the PTY language (ENGLISH/ FRENCH/ GERMAN), then press the knob.

Selects the available Program Type ( 7), then, press S / T to start.

ASW SELECT TRAVEL, WARNINGS, NEWS, WEATHER, EVENT, SPECIAL, RAD INFO,

SPORTS, FINANCE: Turn the volume knob to make a selection, then press the knob. “ ” appears in front of the activated announcement type. Automatically switch from any source to Digital radio ensembles broadcasting an activated announcement type. • Multiple announcement can be activated simultaneously. • To deactivate, press the volume knob again (“ ” goes off).

Select a service by name

1 Press DAB to enter Service Search mode. 2 Turn the volume knob quickly to enter Alphabet Search mode. 3 Turn the volume knob or press S / T to select the character to be searched for. Press J / K to go to the previous/next page. 4 Press the volume knob to start searching. 5 Turn the volume knob to select a service, then press the knob. To cancel the Alphabet Search mode, press .

1 Press the volume knob to enter [FUNCTION]. 2 Turn the volume knob to make a selection (see the following table), then press the knob.

To return to the previous setting item or hierarchy, press

AUTO: Automatically update the DAB Service List when the power is turned on. ; MANUAL: Updates the DAB Service List by pressing and holding DAB.

PTY WATCH Automatically switch from any source to Digital Radio ensembles broadcasting a selected type of program.

NEWS, AFFAIRS, INFO, SPORT, EDUCATE, DRAMA, CULTURE, SCIENCE, VARIED, POP M (music), ROCK M (music), EASY M (music), LIGHT M (music), CLASSICS, OTHER M (music), WEATHER, FINANCE, CHILDREN, SOCIAL, RELIGION, PHONE IN, TRAVEL, LEISURE, JAZZ, COUNTRY, NATION M (music), OLDIES, FOLK M (music), DOCUMENT OFF: Cancels.

ANALOG RADIO ON: Synchronizes the unit’s time to the Digital Radio signal station time. ;

• Available Program Type:

SPEECH: NEWS, AFFAIRS, INFO (information), SPORT, EDUCATE, DRAMA, CULTURE, SCIENCE, VARIED, WEATHER, FINANCE, CHILDREN, SOCIAL, RELIGION, PHONE IN, TRAVEL, LEISURE, DOCUMENT MUSIC: POP M (music), ROCK M (music), EASY M (music), LIGHT M (music), CLASSICS, OTHER M (music), JAZZ, COUNTRY, NATION M (music), OLDIES, FOLK M (music) The unit will search for the Program Type categorized under [SPEECH] or [MUSIC] if selected. • If the volume is adjusted during reception of traffic information, announcement or alarm, the adjusted volume is memorized automatically. It will be applied the next time traffic information, announcement or alarm function is turned on.

Press and hold K SEEK. “REPLAY MODE” appears and replay starts from the live position. You can replay a certain length of time of the current service (depending on the audio bit rate). During Replay... • To pause or resume playback, press 6 IW. • To skip the current song backward/forward, press S / T. • To rewind/fast-forward, press and hold S / T. • To exit from Replay and go to live, press and hold K SEEK.

Search for a station

1 Press B SRC to select TUNER. 2 Press J BAND repeatedly to select FM1/ FM2/ FM3/ MW (or LW). 3 Press S / T to search for a station. • To change the searching method for S / T: Press K SEEK repeatedly. AUTO1: Automatically search for a station. AUTO2: Search for a preset station. MANUAL: Manually search for a station. • To store a station: Press and hold one of the number buttons (1 to 6). • To select a stored station: Press one of the number buttons (1 to 6).

1 Press the volume knob to enter [FUNCTION]. 2 Turn the volume knob to make a selection ( 8), then press the knob.

To return to the previous setting item or hierarchy, press

ON: Searches only FM stations with good reception. ; OFF: Cancels.

The source changes automatically and playback starts.

AUTO MEMORY YES: Automatically starts memorizing 6 stations with good reception. ; NO: Cancels. (Selectable only if

[NORMAL] is selected for [PRESET TYPE].) ( 5)

CD MONO SET ON: Improves the FM reception, but the stereo effect may be lost. ; OFF: Cancels.

NEWS SET ON: The unit will temporarily switch to News Programme if available. ; OFF: Cancels.

REGIONAL ON: Switches to another station only in the specific region using the “AF” control. ; OFF: Cancels.

AF SET ON: Automatically searches for another station broadcasting the same program in the same Radio Data

System network with better reception when the current reception is poor. ; OFF: Cancels.

ON: Allows the unit to temporarily switch to Traffic Information. ; OFF: Cancels.

PTY SEARCH Press the volume knob to enter PTY language selection. Turn the volume knob to select the PTY language (ENGLISH/ FRENCH/ GERMAN), then press the knob.

Selects the available Program Type (see the following), then, press S / T to start.

USB USB input terminal

CA-U1EX (max.: 500 mA) (optional accessory)

• [LOCAL SEEK]/ [MONO SET]/ [NEWS SET]/ [REGIONAL]/ [AF SET]/ [PTY SEARCH] is selectable only when the band is FM1/ FM2/ FM3.

• Available Program Type: SPEECH: NEWS, AFFAIRS, INFO (information), SPORT, EDUCATE, DRAMA, CULTURE, SCIENCE, VARIED, WEATHER, FINANCE, CHILDREN, SOCIAL, RELIGION, PHONE IN, TRAVEL, LEISURE, DOCUMENT MUSIC: POP M (music), ROCK M (music), EASY M (music), LIGHT M (music), CLASSICS, OTHER M (music), JAZZ, COUNTRY, NATION M (music), OLDIES, FOLK M (music) The unit will search for the Program Type categorized under [SPEECH] or [MUSIC] if selected. • If the volume is adjusted during reception of traffic information, alarm or news bulletin, the adjusted volume is memorized automatically. It will be applied the next time traffic information, alarm or news bulletin function is turned on. * [TI] in MW/LW band is for enabling traffic interruption to DAB source only.

KCA-iP102 (optional accessory) or accessory cable of the iPod/iPhone*1

Press 5 iPod to select the control mode while in iPod source. MODE ON: From the iPod. ( 9, *2) MODE OFF: From the unit.

Select a track/file from a list

Pause or resume playback

Reverse/Fast-forward

Press and hold S / T.

• Audio CD: TRACK REPEAT, REPEAT OFF • MP3/WMA/WAV file or iPod: FILE REPEAT, FOLDER REPEAT, REPEAT OFF • KENWOOD Music Editor Light (KME Light)/ KENWOOD Music Control (KMC) file ( 12): FILE REPEAT, REPEAT OFF Press 3 repeatedly. • Audio CD: DISC RANDOM, RANDOM OFF • MP3/WMA/WAV file or iPod or KME Light/ KMC file: FOLDER RANDOM, RANDOM OFF Press and hold 3

to select “ALL RANDOM”. *5

Do not leave the cable inside the car when not using.

You can still play/pause, file skip, fast-forward or reverse files from the unit. Only for MP3/WMA/WAV files. This does not work for iPod. For iPod: Applicable only when [MODE OFF] is selected. For CD: Only for MP3/WMA files.

For iPod: Applicable only when [MODE OFF] is selected. ( 8)

1 Press . 2 Turn the volume knob to make a selection, then press the knob. • MP3/WMA/WAV file: Select the desired folder, then a file. • iPod or KME Light/ KMC file: Select the desired file from the list (PLAYLISTS, ARTISTS, ALBUMS, SONGS, PODCASTS*, GENRES, COMPOSERS*). * Only for iPod. • To return to the root folder (or first file), press number button 5. • To return to the previous setting item or hierarchy, press . • To cancel, press and hold . If you have many files.... You can search through them quickly (on step 2 above) at a preset skip search ratio by pressing S / T. • See also “Set the skip search ratio.” ( 10) • Pressing and holding S / T skip songs at the maximum ratio (10%) regardless of the setting made. • For USB: Only for files registered in the database created with KME Light/ KMC. • Not applicable for audio CD.

If you connect the iPod/iPhone to the USB input terminal of the unit (while listening to TuneIn

Radio, TuneIn Radio Pro or Aupeo), the unit will output the sound from these apps.

Select a song by name While listening to iPod... 1 Press . 2 Turn the volume knob to select a category, then press the knob. 3 Turn the volume knob quickly to enter character search. 4 Turn the volume knob to select the character to be searched for. 5 Press S / T to move to the entry position. You can enter up to 3 characters. 6 Press the volume knob to start searching. 7 Turn the volume knob to make a selection, then press the knob. Repeat step 7 until the desired item is selected. • To search for a character other than A to Z and 0 to 9, enter only “ ”. • To return to the previous hierarchy, press . • To return to the top menu, press number button 5. • To cancel, press and hold .

Select [ON] for [BUILT-IN AUX]. ( 5)

Set the skip search ratio

While listening to iPod or KME Light/ KMC file... 1 Press the volume knob to enter [FUNCTION]. 2 Turn the volume knob to select [USB], then press the knob. 3 Turn the volume knob to select [SKIP SEARCH], then press the knob. 4 Turn the volume knob to make a selection, then press the knob. 0.5% (default)/ 1%/ 5%/ 10%: Skip search ratio over the total files. 5 Press and hold to exit.

1 Connect a portable audio player (commercially available). Auxiliary input jack

3.5 mm stereo mini plug with “L” shaped connector (commercially available)

Change the USB drive

When a smartphone (Mass Storage Class) is connected to the USB input terminal, you can select its internal memory or external memory (such as an SD card) to playback the stored songs. You can also select the desired drive to playback when a multiple drives device is connected. Press number button 5 repeatedly to select the desired drive. (or) 1 Press the volume knob to enter [FUNCTION]. 2 Turn the volume knob to select [USB], then press the knob. 3 Turn the volume knob to select [MUSIC DRIVE], then press the knob. 4 Press the volume knob to select [DRIVE CHANGE]. The next drive is selected automatically. Repeat steps 1 to 4 to select the following drives. Selectable items: [DRIVE 1] to [DRIVE 5]

Portable audio player

2 Press B SRC to select AUX.

3 Turn on the portable audio player and start playback.

While listening to a portable audio player connected to the unit... 1 Press the volume knob to enter [FUNCTION]. 2 Turn the volume knob to select [SYSTEM], then press the knob. 3 Turn the volume knob to select [AUX NAME SET], then press the knob. 4 Turn the volume knob to make a selection, then press the knob. AUX (default)/ DVD/ PORTABLE/ GAME/ VIDEO/ TV 5 Press and hold to exit.

AUDIO SETTINGS While listening to any source...

1 Press the volume knob to enter [FUNCTION]. 2 Turn the volume knob to select [AUDIO CONTROL], then press the knob. 3 Turn the volume knob to make a selection (see the following table), then press the knob. Repeat step 3 until the desired item is selected or activated. 4 Press and hold to exit. To return to the previous setting item or hierarchy, press .

PRESET EQ DRIVE EQ/ TOP40/ POWERFUL/ ROCK/ POPS/ EASY/ JAZZ/

NATURAL/ USER: Selects a preset equalizer suitable to the music genre. (Select [USER] to use the customized bass, middle, and treble settings.) [DRIVE EQ] is a preset equalizer that reduces noise from the road.

BASS BOOST LV1/ LV2/ LV3: Selects your preferred bass boost level. ; OFF: Cancels.

LOUDNESS LV1/ LV2: Selects your preferred low and high frequencies boost to produce a well-balanced sound at a low volume level. ; OFF: Cancels.

SUBWOOFER SET ON: Turns on the subwoofer output. ; OFF: Cancels.

LPF SUBWOOFER Adjusts the level to memorize for each source. (Before making an adjustment, select the source you want to adjust.)

THROUGH: All signals are sent to the subwoofer. ; 85HZ/ 120HZ/

160HZ: Audio signals with frequencies lower than 85 Hz/ 120 Hz/ 160 Hz are sent to the subwoofer.

SUB-W PHASE REVERSE (180°)/ NORMAL (0°): Selects the phase of the subwoofer output to be in line with the speaker output for optimum performance.

(Selectable only if a setting other than [THROUGH] is selected for [LPF SUBWOOFER].)

Default: XX SUB-W LEVEL

Adjusts the subwoofer output level.

EQ PRO BASS ADJUST BASS CTR FRQ MID ADJUST TRE ADJUST

60/ 80/ 100/ 200: Selects the center frequency.

FADER R15 to F15 (0): Adjusts the rear and front speaker output balance.

–8 to +8 (+6): Adjusts the level.

BALANCE L15 to R15 (0): Adjusts the left and right speaker output balance.

1.00/ 1.25/ 1.50/ 2.00: Adjusts the quality factor.

BASS EXTEND ON: Turns on the extended bass. ; OFF: Cancels.

–8 to +8 (for AUX) ; –8 to 0 (for other sources): Presets the volume adjustment level of each source. (Before adjustment, select the source you want to adjust.)

0.5/ 1.0/ 1.5/ 2.5K: Selects the center frequency.

–8 to +8 (+5): Adjusts the level.

0.75/ 1.00/ 1.25: Adjusts the quality factor.

(Sound reconstruction)

ON: Creates realistic sound by compensating the high-frequency components and restoring the rise-time of the waveform that are lost in audio data compression. ; OFF: Cancels.

10.0/ 12.5/ 15.0/ 17.5K: Selects the center frequency.

–8 to +8 (0): Adjusts the level.

• [SUB-W LEVEL]/ [SUBWOOFER SET]/ [LPF SUBWOOFER]/ [SUB-W PHASE] is selectable only if [SWITCH PREOUT] is set to [SUB-W]. ( 4)

• [SUB-W LEVEL]/ [LPF SUBWOOFER]/ [SUB-W PHASE] is selectable only if [SUBWOOFER SET] is set to [ON].

1 Press the volume knob to enter [FUNCTION].

2 Turn the volume knob to select [DISPLAY], then

About KENWOOD Music Editor Light and KENWOOD Music Control

• This unit can only play the following CDs:

3 Turn the volume knob to make a selection

(see the following table), then press the knob. Repeat step 3 until the desired item is selected or activated. 4 Press and hold to exit. To return to the previous setting item or hierarchy, press . Default: XX COLOR SELECT*

DIMMER BRIGHTNESS TEXT SCROLL

VARIABLE SCAN/ COLOR 01 — COLOR 24/

USER: Selects your preferred button illumination color. You can create your own color (when [COLOR 01] — [COLOR 24] or [USER] is selected). The color you have created can be selected when you select [USER]. 1 Press and hold the volume knob to enter the detailed color adjustment. 2 Press S / T to select the color (R/ G/ B) to adjust. 3 Turn the volume knob to adjust the level (0 — 9), then press the knob. ON: Dims the display illumination (and button illumination*). ; OFF: Illuminates according to the [BRIGHTNESS] settings. LVL 0 — LVL 31: Selects your preferred brightness level for display illumination (and button illumination*). AUTO/ ONCE: Selects whether to scroll the display information automatically, or scroll only once. ; OFF: Cancels.

• Detailed information and notes about the playable audio files are stated in an online manual on the following web site: www.kenwood.com/cs/ce/audiofile/

• Playable audio file: MP3 (.mp3), WMA (.wma) • Playable disc media: CD-R/CD-RW/CD-ROM • Playable disc file format: ISO 9660 Level 1/2, Joliet, Long file name. • Playable USB device file system: FAT12, FAT16, FAT32 Even when audio files comply with the standards listed above, playback may be impossible depending on the types or conditions of media or device.

• Discs that are not round. • Discs with coloring on the recording surface or discs that are dirty. • Recordable/ReWritable discs that have not been finalized. • 8 cm CD. Attempting to insert using an adapter may cause malfunction.

• This unit supports the PC application KENWOOD Music

Editor Light and Android™ application KENWOOD Music Control. • When you play audio files with song data added using the KENWOOD Music Editor Light or KENWOOD Music Control, you can search for audio files by Genres, Artists, Albums, Playlists, and Songs. • KENWOOD Music Editor Light and KENWOOD Music Control are available on the following web site: www.kenwood.com/cs/ce/

Made for - iPod touch (1st, 2nd, 3rd, 4th, and 5th generation) - iPod classic - iPod nano (3rd, 4th, 5th, 6th, and 7th generation) - iPhone, iPhone 3G, 3GS, 4, 4S, 5 • For the latest compatible list and software versions of iPhone/iPod, see: www.kenwood.com/cs/ce/ipod • You cannot operate iPod if “KENWOOD” or “ ” is displayed on iPod.

• This unit can play MP3/WMA/WAV files stored on a USB mass storage class device. • You cannot connect a USB device via a USB hub. • Connecting a cable whose total length is longer than 5 m may result in abnormal playback. • This unit cannot recognize a USB device whose rating is other than 5 V and exceeds 1 A.

TROUBLESHOOTING Symptom

Sound cannot be heard. “PROTECT” appears and no operations can be done. • Sound cannot be heard. • The unit does not turn on. • Information shown on the display is incorrect.

• Adjust the volume to the optimum level. • Check the cords and connections. Check to be sure the terminals of the speaker wires are insulated properly, then reset the unit. If this does not solve the problem, consult your nearest service center. Clean the connectors. ( 2)

“READ ERROR” appears.

Copy the files and folders onto the USB device again. If this does not solve the problem, reset the USB device or use another USB device.

“NO DEVICE” appears.

Connect a USB device, and change the source to USB again.

A copy-protected file is played.

“NA DEVICE” appears.

Connect a supported USB device, and check the connections.

Connect a USB device that contains playable audio files.

“iPod ERROR” appears.

• Reconnect the iPod.

The unit does not work at all.

Reset the unit. ( 3)

Skip to another track or change the disc.

DAB reception is poor.

Make sure [ON] is selected for [DAB ANT POWER]. ( 5)

Tracks do not play back as you intended them to play.

Playback order is determined when files are recorded.

“DAB ANT ERR” appears.

Check the DAB antenna. If a passive antenna (without a booster) is used, set [DAB ANT POWER] to [OFF]. ( 5)

“READING” keeps flashing.

Do not use too many hierarchical levels or folders.

Elapsed playing time is not correct.

This is caused by how the tracks are recorded.

Correct characters are not displayed (e.g. album name).

This unit can only display uppercase letters, numbers, and a limited number of symbols. Uppercase Cyrillic letters can also be displayed if [RUSSIAN SET] is set to [РУССКИЙ BКЛ].

• Radio reception is poor.

• Static noise while listening to the radio.

• Connect the antenna firmly.

• Pull the antenna out all the way.

Make sure the disc contains supported audio files. ( 12)

Insert a playable disc into the loading slot.

“TOC ERROR” appears.

Make sure the disc is clean and inserted properly.

“PLEASE EJECT” appears.

Reset the unit. If this does not solve the problem, consult your nearest service center.

Disc cannot be ejected.

Press and hold to forcibly eject the disc. Be careful not to drop the disc when it is ejected. If this does not solve the problem, reset the unit. ( 3)

• The unit can only be used with a 12 V DC power supply, negative ground. • Disconnect the battery’s negative terminal before wiring and mounting. • Do not connect Battery wire (yellow) and Ignition wire (red) to the car chassis or Ground wire (black) to prevent a short circuit. • Insulate unconnected wires with vinyl tape to prevent a short circuit. • Be sure to ground this unit to the car’s chassis again after installation.

Installing the unit (in-dash mounting)

Do the required wiring.

• For safety’s sake, leave wiring and mounting to professionals. Consult the car audio dealer. • Install this unit in the console of your vehicle. Do not touch the metal parts of this unit during and shortly after use of the unit. Metal parts such as the heat sink and enclosure become hot. • Do not connect the [ wires of speakers to the car chassis or Ground wire (black), or connect them in parallel. • Mount the unit at an angle of less than 30º. • If your vehicle wiring harness does not have the ignition terminal, connect Ignition wire (red) to the terminal on the vehicle’s fuse box which provides 12 V DC power supply and is turned on and off by the ignition key. • After the unit is installed, check whether the brake lamps, blinkers, wipers, etc. on the car are working properly. • If the fuse blows, first make sure the wires are not touching car’s chassis, then replace the old fuse with one that has the same rating.

1 Remove the key from the ignition switch, then disconnect the [ terminal of the car battery. KDC-DAB34U ) Install the DAB antenna. See Installing the DAB antenna. ( 16) Connect the wires properly. See Wiring connection. ( 15) Install the unit to your car. See Installing the unit (in-dash mounting). Connect the [ terminal of the car battery. Reset the unit. ( 3)

Hook on the top side

Orientate the trim plate as illustrated before fitting.

Dashboard of your car

Bend the appropriate tabs to hold the mounting sleeve firmly in place.

How to remove the unit

1 Detach the faceplate. 2 Fit the catch pin on the extraction keys into the holes on both sides of the trim plate, then pull it out. 3 Insert the extraction keys deeply into the slots on each side, then follow the arrows as shown on the right.

Part list for installation

Rear/subwoofer output

DAB input terminal ( 16) Connecting the ISO connectors on some VW/ Audi or Opel (Vauxhall) automobiles You may need to modify the wiring of the supplied wiring harness as illustrated below.

STEERING WHEEL REMOTE INPUT

(Steering remote control wire)

REMOTE CONT Default wiring

Color and function Yellow : Battery Blue/White : Power control Red : Ignition (ACC) Black : Earth (ground) connection Purple ] : Rear speaker (right) Purple/black [ Gray ] : Front speaker (right) Gray/black [ White ] : Front speaker (left) White/black [ Green ] : Rear speaker (left) Green/black [

To the steering wheel remote control adapter

Battery wire (Yellow)

If no connections are made, do not let the wire come out from the tab.

Yellow (Battery wire)

Red (A7) Yellow (A4)

(Power control wire/ Antenna control wire)

MUTE To the power control terminal when using the optional power amplifier, or to the antenna control terminal in the vehicle.

To the terminal that is grounded when either the telephone rings or during conversation. (To connect the Kenwood navigation system, consult your navigation manual.)

Installing the DAB antenna

: Connect the supplied DAB antenna.

KDC-DAB361U : Connect CX-DAB1 (optional accessory).

• The film antenna (F) is exclusively for use inside the vehicle. • Do not install at the following locations: – where it may block the driver’s view. – where it may obstruct the operation of safety devices such as air bags. – on movable glass surfaces such as the rear hatch. – at side of vehicle (e.g. door, front quarter window). – on rear window. • Signal strength will weaken when installed at the following locations: – on IR reflecting glass or locations covered with mirror type glass film. – where it overlaps with genuine radio antenna (pattern). – where it overlaps with window heating wires. – on glass that blocks radio signals (e.g. IR reflecting glass, thermal insulation glass). • Poor reception may occur: – due to noise when windscreen wiper, air conditioner, or motor is turned on. – depending on the direction of the broadcast station with respect to the vehicle (antenna). • Thoroughly wipe oil and dirt from the pasting surface with the supplied cleaner (I). • Do not bend or damage the film antenna (F). • It may not be possible to install on certain vehicles. • Check the cable routing of the film antenna (F) and amplifier unit (G) before pasting. • Do not apply any glass cleaner after pasting the film antenna (F).

Determine the antenna installation position

• The direction of the film antenna (F) changes depending on whether the film antenna (F) is installed on the right side or left side. • Be sure to check the installation location of film antenna (F) before installing. Film antenna cannot be re-pasted. • Separate from other antennas by at least 100 mm. • Do not paste the amplifier unit (G) on the ceramic line (black part) around the front glass. Because there is not enough adhesion. o Installing the antenna on the left side

o Installing the antenna on the right side

Ceramic line (black part)

* Paste the earth sheet of the amplifier unit (G) on the metal part of the front pillar.

Part list for installation

(cable with booster, 3.5 m)

When installing the antenna cable inside the front pillar with the air bag installed

The antenna should be installed on the passenger side for safety.

• The front pillar cover is secured with a special clip which may need to be replaced when it is removed.

Contact your vehicle dealer for details on removing the front pillar cover and availability of replacement parts.

– Wait until the glass surface is completely dry before proceeding.

– Warm the surface of the windscreen with defroster if it is cold (during winter). 3 Remove the separator (tag I) of film antenna (F) horizontally and paste the antenna on the windscreen. Separator (tag I)

Antenna installation

1 Remove the front pillar cover of your car. • Install the amplifier unit (G) above the air bag so that it does not obstruct the operation of the air bag.

Do not touch the pasting surface (adhesive side) of the film antenna (F).

4 Remove the separator (tag II) of film antenna (F) vertically and paste the antenna on the windscreen. Separator (tag II) (F)

5 Rub the film antenna gently onto the

windscreen in the direction of the arrow shown to allow it to stick firmly.

2 Clean the windscreen with the supplied cleaner (I).

6 Remove the application film (tag III).

• When installing the antenna on the left side

Application film (tag III)

Do not touch the lead terminal of film antenna (F). 7 Set the postion of the protrusion of the amplifier unit (G) with the K on the film antenna (F) and paste. Do not touch the lead terminal or the pasting surface (adhesive side) of the amplifier unit (G). • When installing the antenna on the right side Set the position of the protrusion with K mark Earth sheet

Set the position of the protrusion with J mark

8 Remove the film covering the earth sheet and paste the earth sheet on the metal part of the vehicle.

Provide sufficient leeway for the earth sheet so that it does not interfere with the interior parts (front pillar cover). Also take care that the interior parts do not interfere with the amplifier unit (G). Windscreen

Lead contact of the amplifier unit (metal part) Lead terminal of the film antenna (F)

9 Wire the antenna cables.

Use cable clamper (H) to secure the antenna to the pillar at several positions. 10 Attach the front pillar cover back to its original position. Be sure not to damage the earth sheet and amplifier unit (G) when covering. 11 Connect the amplifier unit (G) to the DAB input terminal on the rear of the unit. 12 Set [DAB ANT POWER] to [ON]. ( 5)

Usable Sensitivity (S/N = 26 dB) Quieting Sensitivity (DIN S/N = 46 dB) Frequency Response (±3 dB) Signal-to-Noise Ratio (MONO) Stereo Separation (1 kHz) MW Frequency Range Usable Sensitivity (S/N = 20 dB) LW Frequency Range Usable Sensitivity (S/N = 20 dB)

87.5 MHz — 108.0 MHz (50 kHz space)

9.3 dBf (1 μV/75 Ω) 10.2 dBf (1.13 μV/75 Ω) 30 Hz — 15 kHz 75 dB 45 dB 531 kHz — 1 611 kHz (9 kHz space) 28 dBμV (25 μV) 153 kHz — 279 kHz (9 kHz space) 33 dBμV (45 μV)

Digital Filter (D/A) Spindle Speed Wow & Flutter Frequency Response (±1 dB) Total Harmonic Distortion (1 kHz) Signal-to-Noise Ratio (1 kHz) Dynamic Range Channel Seperation MP3 Decode WMA Decode

8 times over sampling 500 rpm — 200 rpm (CLV) Below measurable limit 20 Hz — 20 kHz 0.01 % 105 dB 90 dB 85 dB Compliant with MPEG-1/2 Audio Layer-3 Compliant with Windows Media Audio

USB 1.1, USB 2.0 (Full speed)

FAT12/16/ 32 DC 5 V 1 A Compliant with MPEG-1/2 Audio Layer-3 Compliant with Windows Media Audio

Linear-PCM Maximum Output Power

Output Power (DIN 45324, +B = 14.4 V) Speaker Impedance Tone Action

Preout Level/Load (CD)

Bass 200 Hz ±8 dB Middle 2.5 kHz ±8 dB Treble 12.5 kHz ±8 dB 2 500 mV/10 kΩ ≤ 600 Ω

Frequency Response (±3 dB)

Input Maximum Voltage Input Impedance

Maximum Current Consumption Operational Temperature Range Installation Size (W × H × D) Weight

File System Maximum Supply Current MP3 Decode WMA Decode WAV Decode

Signal-to-Noise Ratio Antenna Connector Type Antenna Output Voltage Antenna Maximum Current

USB SPECIFICATIONS Subject to change without notice.

SOURCE SELECT BUILT-IN AUX Data Size:

TUNER SETTING AF SET Data Size:

EQ PRO BASS ADJUST BASS CTR FRQ MID ADJUST TRE ADJUST OFF: Annulation.

STEERING WHEEL REMOTE INPUT Data Size:

30 W × 4 4Ω—8Ω Graves Médiums Aiguës

2,5 kHz ±8 dB 12,5 kHz ±8 dB

14,4 V (10,5 V — 16 V admissible)

10 A 0oC — +40oC 182 mm × 53 mm × 159 mm 1,3 kg

Über DAB (Digital Audio Broadcasting)

SOURCE SELECT BUILT-IN AUX DIGITAL RADIO (DAB)

TUNER SETTING AF SET Data Size:

ANALOG RADIO Data Size:

EQ PRO BASS ADJUST BASS CTR FRQ MID ADJUST TRE ADJUST

BASS BOOST VOLUME OFFSET

STEERING WHEEL REMOTE INPUT

(LekungsFernbedienungskabel)

REMOTE CONT Data Size:

Trägerblatt (Zapfen I)

12,5 kHz ±8 dB Data Size:

Meer over DAB (Digital Audio Broadcasting)

SOURCE SELECT BUILT-IN AUX Data Size:

AF SET TI PTY SEARCH LIST UPDATE PTY WATCH

EQ PRO BASS ADJUST BASS CTR FRQ MID ADJUST TRE ADJUST VOLUME OFFSET

(Basisinstelling: 0)

• [SUB-W LEVEL]/ [SUBWOOFER SET]/ [LPF SUBWOOFER]/ [SUB-W PHASE] is alleen kiesbaar wanneer [SWITCH PREOUT] op [SUB-W] is gesteld. ( 4)

• [SUB-W LEVEL]/ [LPF SUBWOOFER]/ [SUB-W PHASE] is alleen kiesbaar wanneer [SUBWOOFER SET] op [ON] is gesteld.

STEERING WHEEL REMOTE INPUT Data Size:

531 kHz — 1 611 kHz (9 kHz stap) 28 dBμV (25 μV) 153 kHz — 279 kHz (9 kHz stap) 33 dBμV (45 μV)

87,5 MHz — 108,0 MHz (50 kHz stap)

9,3 dBf (1 μV/75 Ω) 10,2 dBf (1,13 μV/75 Ω)

12,5 kHz ±8 dB Data Size:

SOURCE SELECT BUILT-IN AUX Data Size:

TUNER SETTING AF SET NEWS, AFFAIRS, INFO, SPORT, EDUCATE, DRAMA, CULTURE,

SCIENCE, VARIED, POP M (musica), ROCK M (musica), EASY M (musica), LIGHT M (musica), CLASSICS, OTHER M (musica), WEATHER, FINANCE, CHILDREN, SOCIAL, RELIGION, PHONE IN, TRAVEL, LEISURE, JAZZ, COUNTRY, NATION M (musica), OLDIES, FOLK M (musica), DOCUMENT OFF: annulla.

• CD audio: TRACK REPEAT, REPEAT OFF

• File MP3, WMA, WAV o iPod: FILE REPEAT, FOLDER REPEAT, REPEAT OFF • File KENWOOD Music Editor Light (KME Light) o KENWOOD Music Control (KMC) ( 12): FILE REPEAT, REPEAT OFF Riproduzione casuale *4

• CD audio: DISC RANDOM, RANDOM OFF

• File MP3, WMA, WAV, iPod o file KME Light o KMC: FOLDER RANDOM,

RANDOM OFF Data Size:

EQ PRO BASS ADJUST BASS CTR FRQ MID ADJUST TRE ADJUST Data Size:

STEERING WHEEL REMOTE INPUT Data Size:

30 W × 4 Da 4 Ω a 8 Ω Bassi Toni medi Alti

12,5 kHz ±8 dB Data Size:

SOURCE SELECT BUILT-IN AUX Data Size:

TUNER SETTING AF SET Data Size:

RADIO ANALÓGICA Data Size:

EQ PRO BASS ADJUST BASS CTR FRQ MID ADJUST TRE ADJUST Data Size:

STEERING WHEEL REMOTE INPUT Data Size:

2,5 kHz ±8 dB 12,5 kHz ±8 dB

182 mm × 53 mm × 159 mm

• “Made for iPod,” and “Made for iPhone” mean that an electronic accessory has been designed to connect specifically to iPod, or iPhone, respectively, and has been certified by the developer to meet Apple performance standards. Apple is not responsible for the operation of this device or its compliance with safety and regulatory standards. Please note that the use of this accessory with iPod or iPhone may affect wireless performance.

• iPhone, iPod, iPod classic, iPod nano, and iPod touch are trademarks of Apple Inc., registered in the U.S. and other countries. • Lightning is a trademark of Apple Inc. • Android is trademark of Google Inc.
