Piko WK310 - Kitchen scale Eldom - Free user manual and instructions

Product Type	Kitchen Scale
Brand	Eldom
Model	Piko WK310
Dimensions (approx.)	20 x 15 x 3 cm
Weight (approx.)	300 g
Power Supply	2 x AAA batteries (not included)
Maximum Capacity	5 kg
Graduation	1 g
Units	g, kg, oz, lb, ml (for water)
Tare Function	Yes
Auto-Off	Yes, after 2 minutes of inactivity
Display	LCD screen with backlight
Platform Material	Stainless steel
Housing Material	Plastic
Overload Indication	Yes
Low Battery Indication	Yes
Cleaning	Wipe with a damp cloth; do not immerse
Storage	Store in a dry place
Safety	Use on a flat, stable surface; avoid overloading
Spare Parts Availability	Contact Eldom customer service for replacement parts
Warranty	2 years (check local regulations)

Frequently Asked Questions - Piko WK310 Eldom

How do I change the battery in my Eldom Piko WK310 scale?

Open the battery compartment on the bottom of the scale. Remove the old batteries and insert two new AAA batteries with correct polarity. Close the compartment.

Why does my scale show 'Err' or 'Lo'?

'Err' indicates overload or unstable surface. Reduce weight or place scale on a flat surface. 'Lo' means low battery; replace batteries.

Can I use the scale to measure liquids?

Yes, the scale has a ml mode for water. Place a container, press tare, then select ml mode. The reading is an approximation for water density.

How do I tare the scale?

Place an empty container on the scale, press the Tare button (usually labeled 'T' or 'ZERO'). The display resets to zero, then add ingredients.

What is the maximum weight capacity?

The maximum capacity is 5 kg. Overloading may damage the scale or cause inaccurate readings.

How do I switch between weight units?

Press the Unit button repeatedly to cycle through gram (g), kilogram (kg), ounce (oz), pound (lb), and milliliter (ml).

Why does the scale turn off automatically?

The scale has an auto-off feature to save battery. It powers off after about 2 minutes of no activity. Press any button to turn it back on.

How do I clean the scale?

Wipe the surface with a damp cloth and mild detergent. Do not immerse in water or use abrasive cleaners. Avoid getting moisture into the battery compartment.

My scale is not turning on. What could be wrong?

Check if batteries are installed correctly and have enough charge. Try replacing with new AAA batteries. Also ensure the battery contacts are clean.

Is the scale repairable?

Minor issues like battery replacement can be done by the user. For other repairs, contact Eldom customer service. Do not attempt to disassemble the scale yourself.

USER MANUAL Piko WK310 Eldom

The disposal of used electrical and electronic equipment (applies to European Union countries and other European countries with separate waste-collection systems).

This symbol on the product or its packaging indicates that it should not be classified as household waste. It should be handed over to an appropriate company dealing with the collection and recycling of electrical and electronic equipment. The correct disposal of the product will prevent potential negative consequences for the environment and human health resulting from hazardous substances present in the product. Electrical devices must be handed over to restrict their re-use and further treatment. If the device contains batteries, remove them, and hand them over to a storage point separately. DO NOT THROW EQUIPMENT INTO THE MUNICIPAL WASTE BIN. Material recycling helps to preserve natural resources. For detailed information on how to recycle this product, please contact your local authority, the recycling company, or the shop where you bought it.

/CZ/

- The device can be used by children aged 8 and older and by persons with limited physical, sensory or mental capabilities, or persons without sufficient experience and knowledge only under supervision or if previously instructed on the safe use of the appliance and the possible risks. Children shall not play with the appliance. Cleaning and maintenance that are the responsibility of the user shall not be carried out by children without supervision. Protect the appliance and the power cord against children under 8 years old.

- For home use only

- Keep the scale in dark and dry place

- While storing do not press with other objects

- The precision of the scales measurements depends on the way of its maintenance

- Repairs can be made only by authorized service center. All modifications or use of parts other than original is forbidden and may have adverse effects on the operational safety of the appliance

• TECHNICAL DETAILS

• weight capacity: 5kg
• weight resolution: 1g, 1ml, 1/8 oz,
• accuracy of measurement: 15g
• power: CR2032 battery

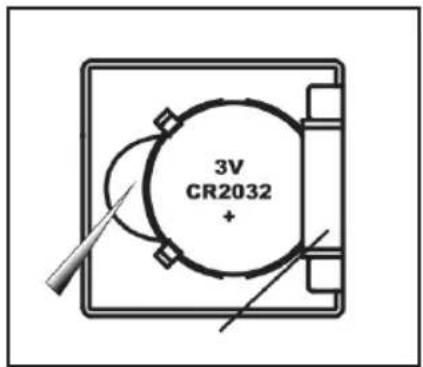

BATTERY

CR2032 lithium baterry (icluded). Remove isolation sheet before use.

1. Open the battery case cover at the bottom of scale.
2. Take out the used battery
3. Install new baterry by putting one side of the battery bebeath the battery baffle and then pressing down the other side.

Used batteries should be thrown away the containers specially designed for this purpose.

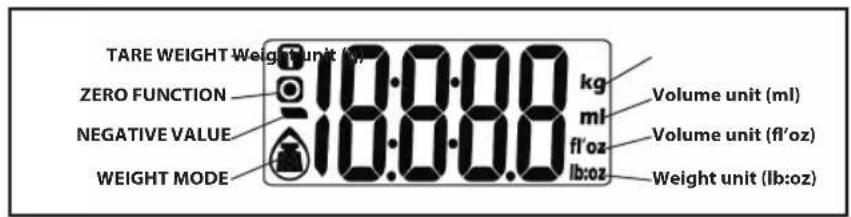

• LCD DISPLAY


WEIGHING MODE

1. Please put the scale on a hard and flat surface.
2. Place bowl (if used) on the scale before turning on the unit.
3. Press and release [ZERO] button to turn on the unit.
4. Wait until LCD shows all information.
5. Load weighing object on to start weighing, LCD will show the weight reading
6. If the weighing object is water or milk, pres [MODE] button to choose volume and view the volume of weighing object.

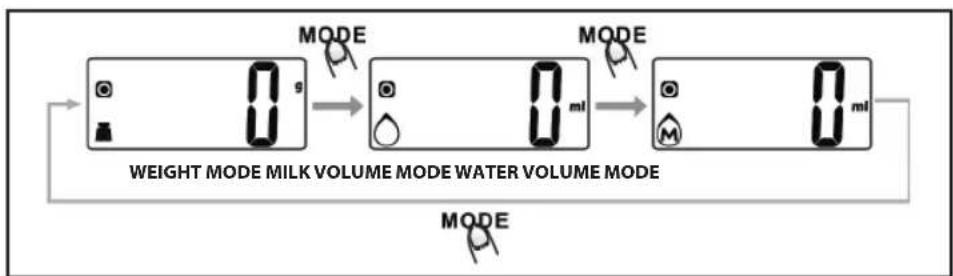

Changes of measurement units:

In order to change measurement units from g/ml to pouns/ounce, after switching on the scales, the button [MODE] should be pressed at the bottom of the device. Another pushing the [MODE] button will cause the repeated change of the units.

● "ZERO" OR "TARE" FUNCTION

To weigh different loads consecutively without removing loads from the scale. Put first Load on the scale, get weight reading.

Press [ZERO] button to reset the LCD reading to "0" before adding next load. You can repeat this operation.

1. "ZERO" function

When total sum of all loads on scale ≤ 4% of scale's max weight capacity (4% = 200g when capacity is 5 kg). LCD will show “_ _” or “0g” each time [ZERO] button is pressed.

“ _” means not stable, please wait for a moment.

"0g" and meanwhile an icon "o" on lower left corner of LCD mean "ZERO" function is active. Max weight capacity remains unchanged.

2. "TARE" function

When total sum of all loads on scale > 4% of scale's max weight capacity. (4% = 200g when capacity is 5 kg). LCD will show “____” lub “0g” each time [ZERO] button is pressed. “____” means not stable, please wait for a moment. “0g” and meanwhile an icon “TARE” on lower left corner of LCD mean “TARE” function is active.

Max weight capacity is reduced by total weight of all loads.

By pressing [ZERO] you can see the total weight of all loads on the scale. If you want to weight more loads, just press [ZERO] to reset LCD reading to „0” again.

● AUTO SHUT OFF

Auto shut-off occurs if display shows '0' or shows the same weight reading for 2 minutes.

● WARNING INDICATORS

1. Replace new battery

2. Scale overload. Remove item to avoid damage.

- CLEANING

1. DO NOT immerse the scale in water.

2. Clean with soft moist cloth without detergents, wipe dry

● SAFETY INSTRUCTIONS

- For home use only

- Keep the scale in dark and dry place

- While storing do not press with other objects

- The precision of the scales measurements depends on the way of its maintenance

- Repairs can be made only by authorized service center. All modifications or use of parts other than original is forbidden and may have adverse effects on the operational safety of the appliance

● ENVIRONMENTAL PROTECTION

- the appliance is made of materials which can be recycled,

- it should be handed over to the applicable collection point for the recycling of electrical and electronic equipment

WARRANTY

- this appliance is designed for domestic use only,

- it cannot be used for professional purposes or for other than the intended use,

- improper use will nullify the guarantee. Warranty details in the appendix

BEZPEČNOSTNÍ DOPORUČENÍ

To weigh different loads consecutively without removing loads from the scale. Put first Load on the scale, get weight reading. Press [ZERO] button to reset the LCD reading to "0" before adding next load. You can repeat this operation.
