USER MANUAL KDC-138 KENWOOD

Take the time to read through this instruction manual.

Familiarity with installation and operation procedures will help you obtain the best performance from your new CD-receiver.

For your records

Record the serial number, found on the back of the unit, in the spaces designated on the warranty card, and in the space provided below. Refer to the model and serial numbers whenever you call upon your Kenwood dealer for information or service on the product.

Model KDC-MP238/CR/MP208/138/CR Serial number

US Residence Only

Register Online

Register your Kenwood product at

www.Kenwoodusa.com

Contents

Before use 3

Basic Operation 4

General functions

Tuner functions

Disc play functions

General Operation 6

Audio Control

Audio Setup

Speaker Setting

Switching Display

Tuner Operation 8

Frequency Step Setting

Music disc/Audio file Operation 9

Direct Music Search

Direct Disc Search

Folder Select

Menu Operation 10

Menu System

Activating Security Code

Deactivating Security Code

Manual Clock Adjustment

Auxiliary Input Display Setting

Receive mode Setting

Demonstration mode Setting

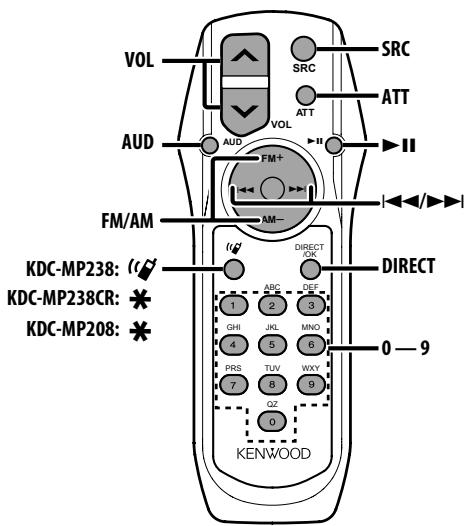

Basic Operations of remote control 13

Appendix 14

Accessories/ Installation Procedure 15

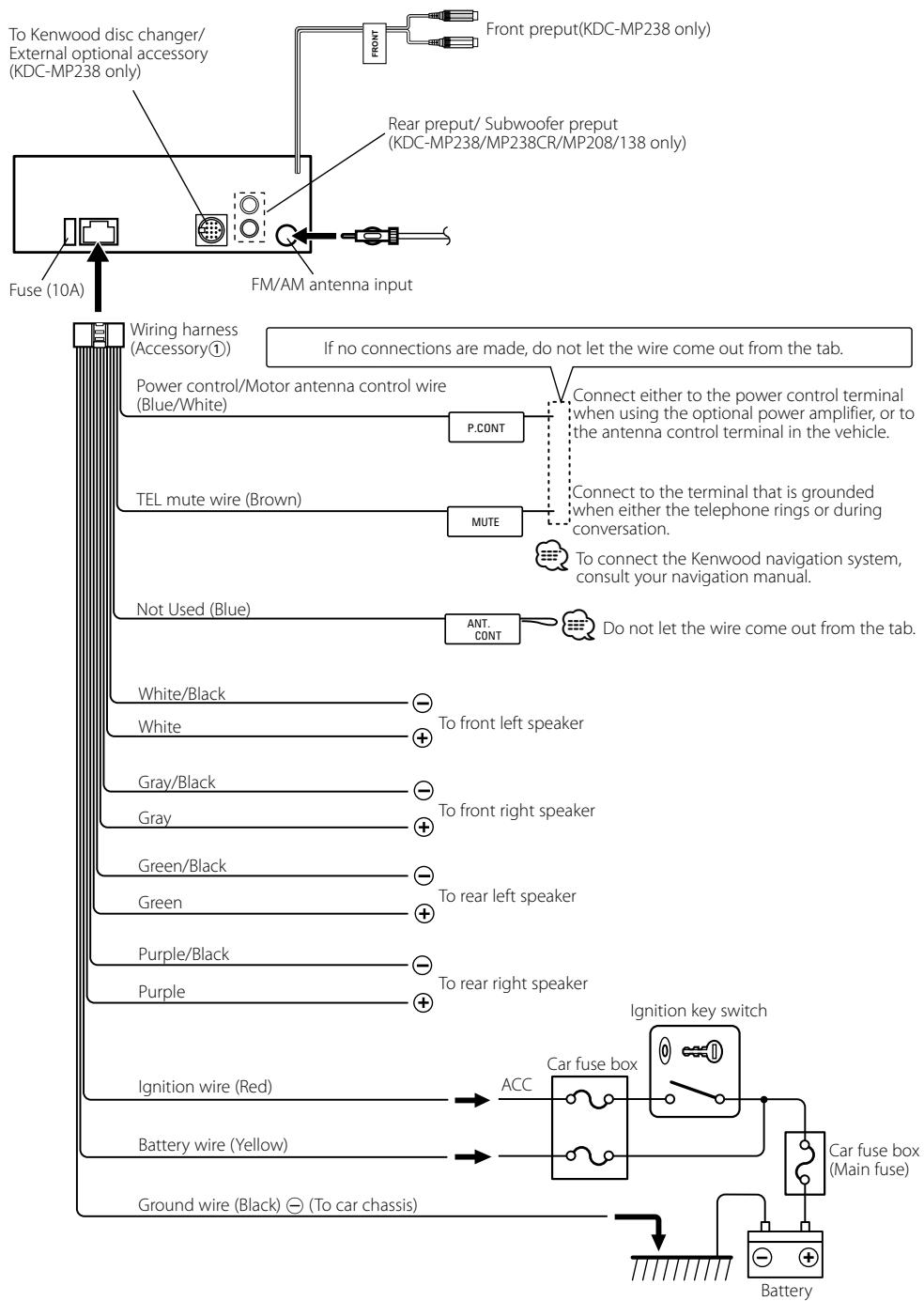

Connecting Wires to Terminals 16

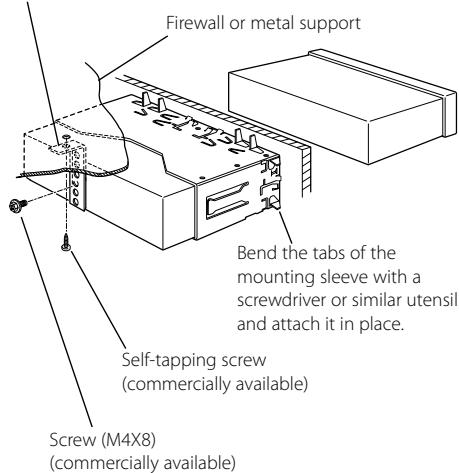

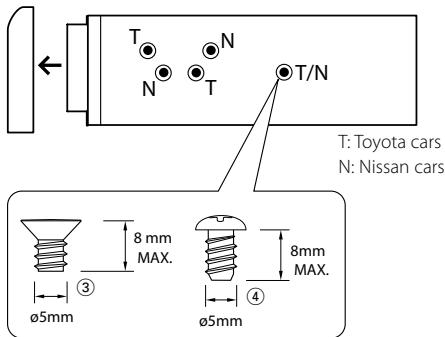

Installation 17

Troubleshooting Guide 18

Specifications 19

Before use

WARNING

To prevent injury or fire, take the following precautions:

- To prevent a short circuit, never put or leave any metallic objects (such as coins or metal tools) inside the unit.

Before using this unit for the first time

This unit is initially set on the Demonstration mode. When using this unit for the first time, cancel the (page 12).

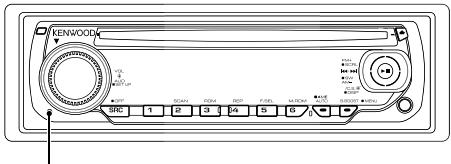

How to reset your unit

• If the unit fails to operate properly, press the Reset button. The unit returns to factory settings when the Reset button is pressed.
• Press the reset button if the disc auto changer fails to operate correctly. Normal operation should be restored.

KENWOOD 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 56 57 58 59 60 61 62 63 64 65 66 67 68 69 70 71 72 73 74 75 76 77 78 79 80

Reset button

Cleaning the Unit

If the faceplate of this unit is stained, wipe it with a dry soft cloth such as a silicon cloth. If the faceplate is stained badly, wipe the stain off with a cloth moistened with neutral cleaner, then wipe it again with a clean soft dry cloth.

- Applying spray cleaner directly to the unit may affect its mechanical parts. Wiping the faceplate with a hard cloth or using a volatile liquid such as thinner or alcohol may scratch the surface or erases characters.

Cleaning the Faceplate Terminals

If the terminals on the unit or faceplate get dirty, wipe them with a clean soft dry cloth.

Lens Fogging

When you turn on the car heater in cold weather, dew or condensation may form on the lens in the CD player of the unit. Called lens fogging, this condensation on the lens may not allow CDs to play. In such a situation, remove the disc and wait for the condensation to evaporate. If the unit still does not operate normally after a while, consult your Kenwood dealer.

• If you experience problems during installation, consult your Kenwood dealer.
• When you purchase optional accessories, check with your Kenwood dealer to make sure that they work with your model and in your area.
• The characters which can be displayed by this unit are A-Z 0-9 @"‘ % & * + - = , . / \ < > [ ] ( ) : ; ^ - { } | \~ . (KDC-MP238/KDC-MP238CR/KDC-MP208)
• The illustrations of the display and the panel appearing in this manual are examples used to explain more clearly how the controls are used. Therefore, what appears on the display in the illustrations may differ from what appears on the display on the actual equipment, and some of the illustrations on the display may be inapplicable.

Handling CDs

• Do not touch the recording surface of the CD.
• Do not stick tape etc. on the CD, or use a CD with tape stuck on it.
• Do not use disc type accessories.
• Clean from the center of the disc and move outward.
• When removing CDs from this unit, pull them out horizontally.
• If the CD center hole or outside rim has burrs, use the CD only after removing the burrs with a ballpoint pen etc.

CDs that cannot be used

• CDs that are not round cannot be used.

Two abstract geometric shapes: a circular ring with concentric rings and a heart-shaped cross-section (no text or symbols)

• CDs with coloring on the recording surface or CDs that are dirty cannot be used.
- This unit can only play the CDs with This unit may not correctly play discs which do not have the mark.

- You cannot play a CD-R or CD-RW that has not been finalized. (For the finalization process refer to your CD-R/CD-RW writing software, and your CD-R/CD-RW recorder instruction manual.)

Basic Operation

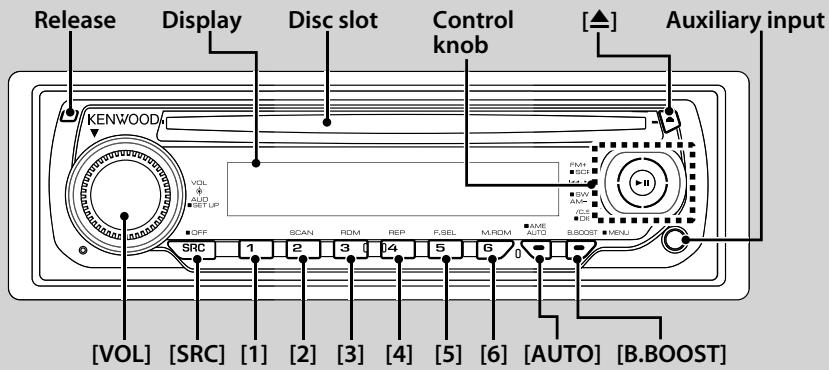

Release Display Disc slot Control knob [A★] Auxiliary input KENWOOD VOL AUD SET_UP OFF SCAN ROM REF F-SEL MROM AME AUTO BBOOST MENU [SRC] [VOL] [1] [2] [3] [4] [5] [6] [AUTO] [B.BOOST]

General functions

Power/Source Select button

Turns on the power.

When the power is on, the source switches between Tuner ("TUNER"/ "TUnE"), CD ("CD"), Auxiliary input ("AUX"/ "AUH"), and Standby ("STANDBY"/ "STBy") each time this button is pressed.

Press at least 1 second to turn off the power.

- When an optional accessory is connected, the source name for each device appears (KDC-MP238 only).

Volume control

Bass boost

[B.BOOST]

Switches between Boost 1 ("BB-L L1"/ "L1 BB-L"), Boost 2 ("BB-L L2"/ "L2 BB-L"), and Boost off ("BB-L OFF"/ "OFF BB-L") each time this button is pressed.

Faceplate release

Release

Releases the faceplate lock so that it can be removed. Refer to the following diagram when reattaching the faceplate.

Diagram of a device with labeled parts and directional arrows indicating flow or movement

• The faceplate is a precision piece of equipment and can be damaged by shocks or jolts.
• Keep the faceplate in its faceplate case while detached. (KDC-MP238/KDC-238CR/KDC-138CR)
• Do not place the faceplate (and the faceplate case) in areas

exposed to direct sunlight, excessive heat or humidity. Also avoid places with too much dust or the possibility of water splashing.

- To prevent deterioration, do not touch the terminals of the unit or faceplate with your fingers.

Auxiliary input

Auxiliary input

Connect a portable audio device with mini-plug cable (3.5 ).

- Use the mini-plug cable which is stereo type and does not have any resistance.

Muting volume upon reception of phone call

When there is a call, "CALL" is displayed and the audio system is paused.

When the call ends, "CALL" disappears and the audio system comes back on.

The audio system comes back on when [SRC] is pressed during a call.

Subwoofer output (KDC-MP238/KDC-MP238CR/

KDC-MP208/KDC-138)

Control knob

Switches between ON ("SW ON"/ "On SUB") and OFF ("SW OFF"/ "OFF SUB") each time the bottom side is pressed for at least 2 seconds.

Clock display (KDC-138/KDC-138CR)

Control knob

Switches between ON and OFF each time the center is pressed at least one second.

Tuner functions

Band select

Control knob

Switches between FM1, FM2, and FM3 each time the top side is pressed.

Switches to AM when the bottom side is pressed.

Tuning

Control knob

Changes the frequency when the left or right side is pressed.

- During reception of stereo stations the "ST" indicator is ON.

Tuning mode select

[AUTO]

Switches as follows each time this button is pressed.

Tuning mode	Display	Operation
Auto seek	"AUTO 1"	Automatic search for a station.
Preset station seek	"AUTO 2"	Search in order of the stations in the Preset memory.
Manual	"MANUAL"/ "MAnU"	Normal manual tuning control.

Preset memory

[1] - [6]

Memorize the station selected when pressing for at least 2 seconds.

Auto memory entry

[AUTO]

Memorizes six stations with good reception automatically when pressed for at least 2 seconds.

Preset tuning

[1] - [6]

Recalls the memorized station.

Disc play functions

Disc play

Disc slot

Starts playing when a disc is inserted. When a CD is inserted, the "IN" indicator is ON.

• 3 inch CD cannot be used. Attempt to insert using an adapter can cause malfunction.
• Refer to (page 14) for the Audio file by models you can play.

Pause and play

Control knob

Switches between pause and play each time the center is pressed.

Disc ejection

- You can eject the disc for 10 minutes after switching off the engine.

Music search

Control knob

Changes the music when the left or right side is pressed.

Fast reverses or forwards the music while pressing the left or right side.

Folder/Disc search (KDC-MP238/KDC-MP238CR/

KDC-MP208)

Control knob

Switches the folder containing the audio file or the disc in the disc changer when pressing the top or bottom side.

Track/ File/ Disc/ Folder repeat play

[4]

Switches between Track Repeat ("TRAC REP") "REP"), Disc Repeat ("DISC REP") (In Disc Changer), and OFF ("REP OFF") when pressed while playing a CD. Switches between File Repeat ("FILE REP"), Folder Repeat ("FOLD REP"), and OFF ("REP OFF") when pressed while playing an audio file.

Scan play

[2]

Successively plays the intro of the music in the disc or folder.

"TRAC SCN"/ "FILE SCN"/ "SCN" is displayed during Scan Play.

Random play

[3]

Randomly plays the music in the disc or folder. "DISC RDM"/ "FOLD RDM"/ "RDM" is displayed during Random Play.

Magazine random play (KDC-MP238)

[6]

Randomly plays the music in the disc changer. "MGZN RDM" is displayed during Magazine Random Play.

Text/Title scroll (KDC-MP238/KDC-MP238CR/

KDC-MP208)

Control knob

Scrolls the CD and audio file text display when pressing the top side for at least 2 seconds.

Audio Control

1 Select the source to adjust Press the [SRC] button.
2 Enter Audio Control mode Press the [VOL] knob.
3 Select the Audio item to adjust Press the [VOL] knob.

Adjustment Item	Display	Range
Subwoofer level*	"SW L"/"L SUB"	-15 — +15
System Q	"NATURAL/FLAT"/"ROCK"/"POPS"/"EASY"/"TOP40/TP40"/"JAZZ"/"USER"	Natural/Rock/Pops/Easy/Top 40/Jazz/User setting
Bass level	"BAS L"/"L BAS"	-8 — +8
Middle level	"MID L"/"L MID"	-8 — +8
Treble level	"TRE L"/"L TRE"	-8 — +8
Balance	"BAL"/"BL"	Left 15 — Right 15
Fader	"FAD"/"FD"	Rear 15 — Front 15
Exit Audio Control mode (Volume control mode)

*Function of KDC-MP238/MP238CR/MP208/138.

- "USER": This appears when Bass level, Middle level, and Treble level are adjusted. When "USER" is selected, these levels are recalled.

4 Adjust the Audio item Turn the [VOL] knob.
5 Exit Audio Control mode Press any button. Press a button other than the [VOL] knob.

Audio Setup

Setting the Sound system.

1 Select the source to adjust Press the [SRC] button.
2 Enter Audio Setup mode Press the [VOL] knob for at least 1 second.
3 Select the Audio Setup item to adjust Press the [VOL] knob.

Adjustment Item	Display	Range
Low Pass Filter*	“LPF”	80/120/160/Through(OFF) Hz
Volume offset	“V-OFF”/“V-OF”	-8 — ±0 (AUX: -8 — +8)

*Function of KDC-MP238/MP238CR/MP208/138.

- Volume offset: Sets each source's volume as a difference from the basic volume.

4 Adjust the Audio setup item Turn the [VOL] knob.
5 Exit Audio Setup mode Press the [VOL] knob for at least 1 second.

Speaker Setting

Fine-tuning so that the System Q value is optimal when setting the speaker type.

1 Enter Standby Press the [SRC] button. Select the "STANDBY"/"STBy" display.
2 Enter Speaker Setting mode Press the [VOL] knob.
3 Select the Speaker type Turn the [VOL] knob.

Speaker type	Display
OFF	“SP OFF”/“SP-F”
For 5 & 4 in. speaker	“SP 5/4”/“SP-5”
For 6 & 6x9 in. speaker	“SP 6*9/6”/“SP-6”
For the OEM speaker	“SP OEM”/“SP-0”

4 Exit Speaker Setting mode Press the [VOL] knob.

Function of KDC-MP238/KDC-MP238CR/KDC-MP208

Switching Display

Changing the information displayed.

1 Enter Switching Display mode Press the center of the Control knob for at least 1 second. "DISP SEL" is displayed.
2 Select the Display item Press the right or left side of the Control knob.

In Tuner source

Information	Display
Frequency	“FREQ”
Clock	“CLOCK”

In CD & External disc source

Information	Display
Disc title	“D-TITLE”
Track title	“T-TITLE”
Play time & Track number	“P-TIME”
Clock	“CLOCK”

In Audio file source

Information	Display
Music title & Artist name	"TITLE"
Album name & Artist name	"ALBUM"
Folder name	"FOLDER"
File name	"FILE"
Play time & Music number	"P-TIME"
Clock	"CLOCK"

In HD Radio source (KDC-MP238)

Information	Display
Station name	“ST NAME”
Music title/ Artist name/ Album name/ Genre	“TITLE”
Frequency	“FREQ”
Clock	“CLOCK”

In Standby/ Auxiliary input source

Information	Display
Source name	“SRC NAME”
Clock	“CLOCK”

3 Exit Switching Display mode

Press the center of the Control knob.

• When you select the clock display, the display setting of each source will be changed to the clock display.
• Album name cannot be displayed in WMA file.
• If the selected display item does not have any information, alternative information is displayed.

Tuner Operation

Function of KDC-MP238CR/KDC-MP138CR

Frequency Step Setting

Changing the tuning frequency step.

The original setting is FM band 50 kHz.

1 Turn the power OFF

Press the [SRC] button for at least 1 second.

2 Switch the frequency step

While pressing the [1] and [5] buttons, press the [SRC] button.

Release your fingers from the button after the display appears.

The frequency step changes to FM band 200 kHz.

• When the same operation is repeated, the frequency step returns to the original setting.
• When the frequency step is changed, the frequencies in the memory are deleted.

Music disc/Audio file Operation

Function of KDC-MP238/KDC-MP238CR/KDC-MP208 Function of remote control

Direct Music Search

Doing Music Search by entering the music number.

1 Enter the music number

Press the number buttons on the remote control.

2 Do music Search

Press the [◀◀] or [▶▶] button.

Cancelling Direct Music Search

Press the [▶II] button.

Function of KDC-MP238

Function of disc changers with remote control

Direct Disc Search

Doing Disc Search by entering the disc number.

1 Enter the disc number

Press the number buttons on the remote control.

2 Do Disc Search

Press the [+] or [-] button.

Cancelling Direct Disc Search

Press the [▶II] button.

- Input "0" to select disc 10.

Function of KDC-MP238/KDC-MP238CR/KDC-MP208 Function of Audio file

Folder Select

Quickly selecting the folder you want to hear.

1 Enter Folder Select mode

Press the [5] button.

"FLD SEL" is displayed.

Displays the current folder name.

2 Select the folder

Operation type	Operation
Movement between folders	Press the right or left side of the Control knob.
Selection of folder	Press the top side of the Control knob.
Return to previous folder	Press the bottom side of the Control knob.
Return to root folder	Press the [3] button.

3 Decide the folder to play

Press the center of the Control knob.

Cancelling the Folder Select mode

Press the [5] button.

Menu System

Setting various functions.

1 Enter Menu mode

Press the [B.BOOST] button for at least 1 second.

"MENU"/"MEnU" is displayed.

2 Select the menu item

Press the top or bottom side of the Control knob.

KDC-MP238/MP238CR/MP208

Display	Setting	Setting overview	Source
“CODE SET”/ “CODE CLR”	Refer to page 10/11	Sets/Resets security code. (Function of KDC-MP238)	SB
“CLK ADJ”	Refer to page 11	Sets the clock.	SB
“DIM”	ON/OFF*	Adjusts the brightness of the display according to the surrounding illumination.
“SWPRE”	R*/ SW	Sets the preout output.	SB
“SPRM”	ON*/OFF	Turns ON/OFF the Supreme function.	AF
“CRSC”	OFF/ON*	Switches to Monaural to decrease noise when reception is poor.	FM
“NAME SET”	Refer to page 12	Sets the display when switched to AUX source.	AUX
“SCL”	AUTO*/ MANU	Specifies whether the text is scrolled automatically.
“HDR MODE”	Refer to page 12	Sets the receive mode of HR radio. (Function of KDC-MP238)	HDR
“AUX”	OFF/ON1*/ ON2	Sets whether to display AUX during source selection.	SB
“CD READ”	1*/2	Sets the CD read mode.	SB
“DEMO”	Refer to page 12	Specifies whether to enable demonstration.	SB

KDC-138/138CR

Display	Setting	Setting overview	Source
“CLCK”	Refer to page 11	Sets the clock.	SB
“REAR”/“SUB”	REAR*/SUB	Sets the preout output.(Function of KDC-138)	SB
“CRSC”	On*/OFF	Switches to Monaural to decrease noise when reception is poor.	FM
“AUH”	OFF/On*	Sets whether to display AUX during source selection.	SB

*Factory setting

SB : Can be set in standby state.

AF : Can be set while Audio file source.

FM : Can be set during FM reception.

AUX : Can be set while accessing AUX source.

HDR : Can be set while HD Radio source.

• Refer to the respective page for information on how to set the items with reference page number.
• Refer to the (page 14) for the details of the menu items.

3 Set the menu item

Press the right or left side of the Control knob.

4 Exit Menu mode

Press the [B.BOOST] button.

Function of KDC-MP238

Activating Security Code

When Security Code is set, possibility of theft is reduced because input of Security Code is prompted to turn on the unit once it is turned off.

• You can set the Security Code with a 4 digit number of your choice.
• The Security Code cannot be displayed or referenced. Make a note of the Security Code and treasure it up.

1 Enter Standby

Press the [SRC] button.

Select the "STANDBY" display.

2 Enter Menu mode

Press the [B.BOOST] button for at least 1 second.

When "MENU" is displayed, "CODE SET" is also displayed.

3 Enter Security Code mode

Press the center of the control knob for at least 1 second.

When "ENTER" is displayed, "CODE" is also displayed.

4 Select the digits to enter

Press the right or left side of the Control knob.

5 Select the Security Code numbers

Press the top or bottom side of the Control knob.

6 Repeat steps 4 and 5, and complete the Security Code.

7 Confirm the Security Code

Press the center of the Control knob for at least

3 seconds.

When "RE-ENTER" is displayed, "CODE" is also displayed.

8 Do the step 4 through 7 operation, and reenter the Security Code.

"APPROVED" is displayed.

The Security Code function activates.

- If you enter the wrong Code in steps 4 through 6, repeat from step 4.

9 Exit Security Code mode

Press the [B.BOOST] button.

Resetting the Security Code function when the audio unit is first used after removed from the battery power source or the Reset button is pressed

1 Turn the power ON.
2 Do the step 4 through 7 operation, and enter the Security Code.

"APPROVED" is displayed.

Now, you can use the unit.

• When the Security Code function is activated, "CODE SET" changes to "CODE CLR".
• To deactivate the Security Code function, see the next section .

Function of KDC-MP238

Deactivating Security Code

To deactivate the Security Code function.

1 Select Security Code mode

Press the top or bottom side of the Control knob.

Select the "CODE CLR" display.

2 Enter Security Code mode

Press the center of the Control knob for at least 1 second.

When "ENTER" is displayed, "CODE CLR" is also displayed.

3 Select the digits to enter

Press the right or left side of the Control knob.

4 Select the Security Code numbers

Press the top or bottom side of the Control knob.

5 Repeat steps 3 and 4, and complete the Security Code.
6 Press the center of the Control knob for at least 3 seconds.

"CLEAR" is displayed.

The Security Code function deactivates.

7 Exit Security Code mode

Press the [B.BOOST] button.

- If a wrong security code is entered, "ERROR" is displayed. Enter a correct security code.

Manual Clock Adjustment

1 Select Clock Adjustment mode Press the top or bottom side of the Control knob.

Select the "CLK ADJ"/"CLCK" display.

2 Enter Clock Adjust mode

Press the center of the Control knob for at least 1 second.

The clock display blinks.

3 Adjust the hours

Press the top or bottom side of the Control knob.

Adjust the minutes

Press the right or left side of the Control knob.

4 Exit Clock adjustment mode

Press the [B.BOOST] button.

Function of KDC-MP238/KDC-MP238CR/KDC-MP208

Auxiliary Input Display Setting

Selecting the display when changing to Auxiliary input source.

1 Select Auxiliary input source Press the [SRC] button.

Select the "AUX" display.

2 Enter Menu mode

Press the [B.BOOST] button for at least 1 second.

"MENU" is displayed.

3 Select Auxiliary input display setting mode Press the top or bottom side of the Control knob.

Select the "NAME SET" display.

4 Enter Auxiliary input display setting mode Press the center of the Control knob for at least 1 second.

The presently selected Auxiliary input display is displayed.

5 Select the Auxiliary input display

Press the right or left side of the Control knob.

Each time you push the knob, the display alternates as listed below.

• "AUX"
• "DVD"
- "PORTABLE"
• "GAME"
• "VIDEO"
• "TV"

6 Exit Auxiliary input display setting mode Press the [B.BOOST] button.

• When operation stops for 10 seconds, the name at that time is registered, and the Auxiliary input display setting mode closes.
• The Auxiliary input display can be set only when the built-in auxiliary input or the auxiliary input of optional KCA-S220A is used.

Function of KDC-MP238

Receive mode Setting

Setting the receiver mode.

1 Select the Receive mode

Press the top or bottom side of the Control knob.

Select the "HDR MODE" display.

2 Enter Receive mode

Press the center of the Control knob for at least 1 second.

3 Set the Receive mode

Press the top or bottom side of the Control knob.

Receive mode	Display	Operation
Auto mode	“AUTO”	Automatically tunes to analog broadcast when there is no digital broadcast.
Digital	“DIGITAL”	Digital broadcasts only.
Analog	“ANALOG”	Analog broadcasts only.

4 Exit Receive mode

Press the [B.BOOST] button.

Function of KDC-MP238/KDC-MP238CR/KDC-MP208

Demonstration mode Setting

Sets the demonstration mode.

1 Select the Demonstration mode

Press the top or bottom side of the Control knob.

Select the "DEMO" display.

2 Set the Demonstration mode

Press the center of the Control knob for at least 2 seconds.

Each time you press the knob at least 2 seconds, the Demonstration mode alternates between the settings shown in the table below.

Display	Setting
“DEMO ON”	The Demonstration mode function is ON.
“DEMO OFF”	Exit Demonstration mode (Normal mode).

Basic Operations of remote control

VOL SRC ATT AUD VOL FM+ FM/AM AM- DIRECT KDC-MP238: (c) KDC-MP238CR: * KDC-MP208: * ABC DEF 1 2 3 GHI JKL MNO 4 5 6 PRS TUV WXY 7 8 9 C2 0 KENWOOD DIRECT 0 — 9

General control

Volume control

[VOL]

Source select

[ SRC ]

Volume reduce

[ATT]

When the button is pressed again, the volume returns to the previous level.

In Audio control

Audio item select

[AUD]

Adjusts the Audio item

[VOL]

- Refer to

In Tuner/HD Radio source

Band select

[FM]/[AM]

Station select

[|◀◀]/[▶▶]

Recall preset stations

[1] — [6]

In Disc source

Music select

[|◀◀]/[▶▶]

Folder/Disc select

[FM]/[AM]

Pause/Play

[▶II]

In Satellite Radio tuner source

Preset band select

[FM]

Channel select

[|◀◀]/[▶▶]

Recall preset channels

[1] — [6]

About [ ] (KDC-MP238)

This button is used when Bluetooth HANDS FREE BOX is connected. For more information, refer to the instruction manual of Bluetooth HANDS FREE BOX.

About [ * ] (KDC-MP238CR/KDC-MP208)

Not used.

About [DIRECT]

Not used.

- Do not set the remote control in hot places such as on the dashboard.

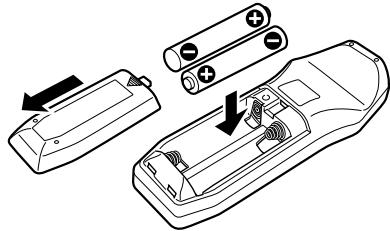

Loading and Replacing the battery

Use two "AA"/"R6"-size batteries.

Slide the cover while pressing downwards to remove it as illustrated.

Insert the batteries with the + and – poles aligned properly, following the illustration inside the case.

Diagram of a remote control panel with battery pack and switch mechanism (no text or symbols)

Appendix

About Audio file

- Playable Model

KDC-MP238, KDC-MP238CR, KDC-MP208

- Playable Audio file

MP3 (.mp3), WMA (.wma)

- Playable disc media

CD-R/RW/ROM

- Playable disc file format

ISO 9660 Level 1/2, Joliet, Romeo, Long file name. Although the audio files are complied with the standards listed above, the play maybe impossible depending on the types or conditions of media or device.

- Playing order of the Audio file

In the example of folder/file tree shown below, the files are played in the order from ① to ⑩.

An online manual about audio files is put on the site, www.kenwood.com/audiofile/. On this online manual, detailed information and notes which are not written in this manual are provided. Make sure to read through the online manual as well.

About Satellite Radio tuner

This unit supports Satellite Radio tuners which are released by SIRIUS and XM.

Refer to the instruction manual of Satellite radio tuner.

About HD Radio

When you connect an HD Radio, Tuner features of the unit are disabled and changed to HD Radio tuner features.

With the HD Radio tuner, you can use the similar functions of Tuner features. Refer to Tuner features for how to use the functions.

For operating KCA-BT100

To control KCA-BT100, operate as follows; To make setting for , select

(page 10). Pressing the [▶▶] button for at least 1 second after selecting the "D.MODE" item allows you to enter the dialing method selection mode. To exit from dialing method selection mode, press [B.BOOST] button. To make , , and , press [AUTO] button for at least 1 second.

Menu Glossary

• SWPRE (Switching Preout)

Switches the preout between rear output ("R"/ "REAR") and subwoofer output ("SW"/ "SUB").

- SPRM (Supreme)

Technology to extrapolate and supplement with proprietary algorithm, the high-frequency range that is cut off when encoding at low bit rate. Supplementing is optimized by compression format (MP3 or WMA) and processed according to bit rate.

The effect is negligible with music that is encoded at high bit rate, variable bit rate or has minimal high frequency range.

- CD READ

Sets the method for reading CD.

When unable to play special format CD, set this function to "2" to force playing. Note that some music CD may be unplayable even when set to "2". In addition, audio files cannot be played when set to "2". Normally, keep this set to "1".

1 : Automatically distinguishes between audio file disc and music CD when playing disc.

2 : Forces playing as music CD.

- AUX

When this is set to ON, AUX source can be selected.

ON1: Outputs the sound of external unit connected to the AUX terminal when switched to AUX source.

ON2: Activates the attenuator function when switched to AUX source.

Turn off the attenuator function when listening to output from external unit. This prevents the noise when no external unit is connected to AUX terminal.

OFF: Disables the selection of AUX source. Set to OFF when not using the AUX terminal.

Accessories/ Installation Procedure

Accessories

①

......1

②

......2

③

......4

④

......4

Installation Procedure

1. To prevent a short circuit, remove the key from the ignition and disconnect the battery.
2. Make the proper input and output wire connections for each unit.
3. Connect the speaker wires of the wiring harness.
4. Connect the wiring harness wires in the following order: ground, battery, ignition.
5. Connect the wiring harness connector to the unit.
6. Install the unit in your car.
7. Reconnect the battery.
8. Press the reset button.

WARNING

If you connect the ignition wire (red) and the battery wire (yellow) to the car chassis (ground), you may cause a short circuit, that in turn may start a fire. Always connect those wires to the power source running through the fuse box.

• Mounting and wiring this product requires skills and experience. For safety's sake, leave the mounting and wiring work to professionals.
• Make sure to ground the unit to a negative 12V DC power supply.
• Do not install the unit in a spot exposed to direct sunlight or excessive heat or humidity. Also avoid places with too much dust or the possibility of water splashing.
• Do not use your own screws. Use only the screws provided.

If you use the wrong screws, you could damage the unit.

• If the power is not turned ON ("PROTECT"/"DCER" is displayed), the speaker wire may have a short-circuit or touched the chassis of the vehicle and the protection function may have been activated. Therefore, the speaker wire should be checked.
• If your car's ignition does not have an ACC position, connect the ignition wires to a power source that can be turned on and off with the ignition key. If you connect the ignition wire to a power source with a constant voltage supply, as with battery wires, the battery may die.
• If the console has a lid, make sure to install the unit so that the faceplate will not hit the lid when closing and opening.
• If the fuse blows, first make sure the wires aren't touching to cause a short circuit, then replace the old fuse with one with the same rating.
• Insulate unconnected wires with vinyl tape or other similar material. To prevent a short circuit, do not remove the caps on the ends of the unconnected wires or the terminals.
• Connect the speaker wires correctly to the terminals to which they correspond. The unit may be damaged or fail to work if you share the wires or ground them to any metal part in the car.
• When only two speakers are being connected to the system, connect the connectors either to both the front output terminals or to both the rear output terminals (do not mix front and rear). For example, if you connect the connector of the left speaker to a front output terminal, do not connect the connector to a rear output terminal.
• After the unit is installed, check whether the brake lamps, blinkers, wipers, etc. on the car are working properly.
• Mount the unit so that the mounting angle is 30^ or less.

About CD players/disc changers connected to this unit

Kenwood disc changers/ CD players released in 1998 or later can be connected to this unit.

Refer to the catalog or consult your Kenwood dealer for connectable models of disc changers/ CD players. Note that any Kenwood disc changers/ CD players released in 1997 or earlier and disc changers made by other makers cannot be connected to this unit.

Connecting unsupported disc changers/CD players to this unit may result in damage.

Set the "O-N" Switch to the "N" position for the applicable Kenwood disc changers/ CD players.

The functions you can use and the information that can be displayed may differ depending on the models being connected.

Connecting Wires to Terminals

To Kenwood disc changer/ External optional accessory (KDC-MP238 only) Fuse (10A) FM/AM antenna input Front preput(KDC-MP238 only) Rear preput/ Subwoofer preput (KDC-MP238/MP238CR/MP208/138 only) Wiring harness (Accessory①) If no connections are made, do not let the wire come out from the tab. Power control/Motor antenna control wire (Blue/White) P.CONT Connect either to the power control terminal when using the optional power amplifier, or to the antenna control terminal in the vehicle. TEL mute wire (Brown) MUTE Connect to the terminal that is grounded when either the telephone rings or during conversation. To connect the Kenwood navigation system, consult your navigation manual. Not Used (Blue) ANT. CONT Do not let the wire come out from the tab. White/Black To front left speaker White To front left speaker Gray/Black To front right speaker Gray To front right speaker Green/Black To rear left speaker Green To rear left speaker Purple/Black To rear right speaker Purple To rear right speaker Ignition key switch Ignition wire (Red) ACC Battery wire (Yellow) Ground wire (Black) ⊖ (To car chassis) Car fuse box Car fuse box (Main fuse) Battery

non-Japanese cars

Metal mounting strap (commercially available)

Firewall or metal support Bend the tabs of the mounting sleeve with a screwdriver or similar utensil and attach it in place. Self-tapping screw (commercially available) Screw (M4X8) (commercially available)

- Make sure that the unit is installed securely in place. If the unit is unstable, it may malfunction (for example, the sound may skip).

Japanese cars

1 Refer to the section and then remove the hard rubber frame.
2 Align the holes in the unit (two locations on each side) with the vehicle mounting bracket and secure the unit with the accessory screws.

T: Toyota cars N: Nissan cars T/N 8 mm MAX. 8mm MAX. ③ ④ ø5mm ø5mm

Accessory③...for Nissan car Accessory④...for Toyota car

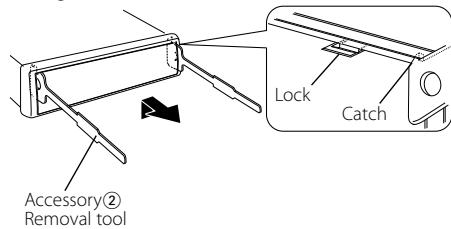

Removing the hard rubber frame

1 Engage the catch pins on the removal tool and remove the two locks on the upper level. Upper the frame and pull it forward as shown in the figure.

Accessory② Removal tool Lock Catch

2 When the upper level is removed, remove the lower two locations.

- The frame can be removed from the bottom side in the same manner.

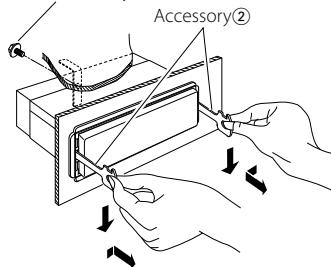

Removing the Unit

1 Refer to the section and then remove the hard rubber frame.
2 Remove the screw (M4 × 8) on the back panel.
3 Insert the two removal tools deeply into the slots on each side, as shown.
4 Lower the removal tool toward the bottom, and pull out the unit halfway while pressing towards the inside.

Screw (M4X8) (commercially available)

Accessory②

• Be careful to avoid injury from the catch pins on the removal tool.
  5 Pull the unit all the way out with your hands, being careful not to drop it.

Troubleshooting Guide

Some functions of this unit may be disabled by some settings made on this unit.

! Cannot display the user of System Q.

▶

! • Cannot set up the subwoofer.

- No output from the subwoofer.

- Cannot set up the low pass filter.

- Preout is not set to subwoofer.

(page 10)

- (page 4) is not set to On.

! • Cannot register a security code.

- Cannot set up Display.

▶ (page 12) is not turned off.

! Cannot play audio files.

▶ "CD READ" is set to "2". ☐

(page 10)

What might seem to be a malfunction in your unit may just be the result of slight misoperation or miswiring. Before calling service, first check the following table for possible problems.

Tuner source

? Radio reception is poor.

√ The car antenna is not extended.
Pull the antenna out all the way.

Disc source

The specified disc does not play, but another one plays instead.

√ The specified CD is quite dirty.
Clean the CD.
√ The disc is loaded in a different slot from that specified.
Eject the disc magazine and check the number for the specified disc.

√ The disc is severely scratched.

Try another disc instead.

Audio file source

? The sound skips when an Audio file is being played.

√ The media is scratched or dirty.
Clean the media, referring to the CD cleaning of the section on (page 3).

√ The recording condition is bad.

Record the media again or use another media.

The messages shown below display your systems condition.

TOC ERR/E-04: • No disc has been loaded in the disc magazine.
- The CD is quite dirty. The CD is upside-down. The CD is scratched a lot.

E-05: The disc is unreadable.

E-15: Media was played that doesn't have data recorded that the unit can play.

E-77: The unit is malfunctioning for some reason.

Press the reset button on the unit. If the "E-77" code does not disappear, consult your nearest service center.

E-99: Something is wrong with the disc magazine. Or the unit is malfunctioning for some reason.

Check the disc magazine. And then press the reset button on the unit. If the "E-99" code does not disappear, consult your nearest service center.

IN (Blink): The CD player section is not operating properly.

Reinsert the CD. If the CD cannot be ejected or the display continues to flash even when the CD has been properly reinserted, please switch off the power and consult your nearest service center.

PROTECT/DCER: The speaker wire has a short-circuit or touches the chassis of the vehicle, and then the protection function is activated.

→ Wire or insulate the speaker cable properly and press the reset button. If the "PROTECT"/"DCER" code does not disappear, consult your nearest service center.

NA FILE: An Audio file is played with a format that this unit can't support.

→ ---

COPY PRO: A copy-protected file is played.

→ ---

Specifications

FM tuner section

Frequency range

200 kHz space

: 87.9 MHz - 107.9 MHz

50 kHz space (KDC-MP238CR/138CR)

: 87.5 MHz - 108.0 MHz

Usable sensitivity (S/N = 30dB)

: 9.3dBf (0.8 μV/75 Ω)

Quieting Sensitivity (S/N = 50dB)

: 15.2dBf (1.6 μV/75 Ω)

Frequency response (±3 dB)

: 30 Hz - 15 kHz

Signal to Noise ratio (MONO)

: 70 dB

Selectivity (±400 kHz)

:≥80dB

Stereo separation (1 kHz)

: 40 dB

AM tuner section

Frequency range (10 kHz space)

: 530 kHz - 1700 kHz

Usable sensitivity (S/N = 20dB)

: 28 dBμ (25 μV)

CD player section

Laser diode

: GaAlAs

Digital filter (D/A)

: 8 Times Over Sampling

D/A Converter

: 1 Bit

Spindle speed

: 500 - 200 rpm (CLV)

Wow & Flutter

: Below Measurable Limit

Frequency response (±1 dB)

: 20 Hz - 20 kHz

Total harmonic distortion (1 kHz)

: 0.01 %

Signal to Noise ratio (1 kHz)

KDC-MP238/CR/MP208:105 dB

KDC-138/CR:93 dB

Dynamic range

: 93 dB

MP3 decode (KDC-MP238/CR/MP208)

: Compliant with MPEG-1/2 Audio Layer-3

WMA decode (KDC-MP238/CR/MP208)

: Compliant with Windows Media Audio

Audio section

Maximum output power

: 50 W × 4

Full Bandwidth Power (at less than 1% THD)

: 22 W × 4

Speaker Impedance

: 4 - 8 Ω

Tone action

Bass : 100 Hz ±8 dB

Middle : 1 kHz ±8 dB

Treble : 10 kHz ±8 dB

Preout level / Load (CD)

: 2000 mV/10 kΩ

Preout impedance

: ≤ 600 Ω

Auxiliary input

Frequency response (±3 dB)

: 20 Hz - 20 kHz

Input Maximum Voltage

: 1200 mV

Input Impedance

: 100 kΩ

General

Operating voltage (11 - 16V allowable)

: 14.4 V

Current consumption

: 10 A

Installation Size (W x H x D)

: 182 x 53 x 155 mm

7-3/16 × 2-1/16 × 6-1/8 inch

Weight

: 2.9 lbs (1.30 kg)

Table des matières

Avant l'utilisation 21

Fonctionnement basique 22

Fonctions générales

Fonctions du tuner

Fonctions de la lecture de disque

Fonctionnement général 24

Commande du son

Réglage audio

Réglage des enceintes

Commutation de l'affichage

Fonctionnement du tuner 26

Réglage de l'intervalle de fréquence

Fonctionnement des disques audio/fichiers audio 27

Recherche directe d'un morceau

Recherche directe d'un disque

Sélection de dossier

Fonctionnement du menu 28

Système de menu

Activation du code de sécurité

Désactivation du code de sécurité

Réglage manuel de l'horloge

Réglage de l'affichage d'entrée auxiliaire

Réglage du mode de réception

Réglage du mode de démonstration

Fonctionnement basique de la télécommande 31

Appendice 32

Accessoires/ Procédure d'installation 33

Connexion des câbles aux bornes 34

Installation 35

Guide de depannage 36

Spécifications 37

Avant l'utilisation

▲AVERTISSEMENT

Pour éviter toute blessure et/ou incendie, veuillez prendre les précautions suivantes:

- Pour éviter les court-circuits, ne jamais mettre ou laisser d'objets métalliques (comme une pièce de monnaie ou un outil en métal) à l'intérieur de l'appareil.

Avant d'utiliser l'appareil pour la première fois

Cet appareil est réglé au préalable sur le mode de démonstration.

Lors de la première utilisation de cet appareil, annuler le (page 30).

Comment réinitialiser votre appareil

Two abstract geometric shapes: a circular ring with concentric rings and a heart-shaped symbol enclosed in a circle with a diagonal line (no text or symbols)

Technical diagram of a device with labeled parts and directional arrows indicating flow or movement.

Diagram showing battery pack installation with two batteries and a motor casing (no text or symbols)

Appendice

Section Disque Compact

Diodes laser

: GaAlAs

KDC-MP238/CR/MP208:105 dB

KDC-MP138/CR:93dB

Gamme dynamique

: 93 dB

Technical diagram of a mechanical component with labeled parts ① and ②, showing directional flow arrows.

Diagram of a remote control panel with battery pack and switch, showing internal components (no text or symbols)

KDC-MP238/CR/MP208:105dB

KDC-MP138/CR:93 dB

Gama dinámica

: 93 dB

Use of controls or adjustments or performance of procedures other than those specified herein may result in hazardous radiation exposure. In compliance with Federal Regulations, following are reproductions of labels on, or inside the product relating to laser product safety.

Kenwood Corporation

2967-3, ISHIKAWA-MACHI,

HACHIOJI-SHI

TOKYO, JAPAN

KENWOOD CORP. CERTIFIES THIS EQUIPMENT CONFORMS TO DHHS REGULATIONS N0.21 CFR 1040. 10, CHAPTER 1, SUBCHAPTER J.

Location : Bottom Panel

FCC WARNING

This equipment may generate or use radio frequency energy. Changes or modifications to this equipment may cause harmful interference unless the modifications are expressly approved in the instruction manual. The user could lose the authority to operate this equipment if an unauthorized change or modification is made.

NOTE

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment may cause harmful interference to radio communications, if it is not installed and used in accordance with the instructions. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.
