GF346 - Measurement FLIR - Free user manual and instructions
Find the device manual for free GF346 FLIR in PDF.
| Brand | FLIR |
| Model | GF346 |
| Product Type | Optical Gas Imaging (OGI) Camera |
| Detectable Gases | Carbon monoxide (CO) and other harmful gases (see manual for full list) |
| Detector Type | Cooled InSb (3–5 µm) |
| Thermal Sensitivity (NETD) | < 15 mK |
| Temperature Measurement | Yes, with annual re-calibration recommended |
| Temperature Range | -40°C to +350°C (characteristic range) |
| Accuracy | ±1°C or ±1% (for temperature measurement) |
| Lens Options | 14.5° and 24° (interchangeable) |
| Focus | Manual, autofocus, and HSM mode |
| Display | Bright LCD, tiltable viewfinder |
| Image Storage | SD/SDHC memory cards (up to 4 GB included) |
| Video Recording | MPEG-4 (.mp4) and radiometric video sequences (.seq) |
| Wireless Connectivity | Wi-Fi (via USB adapter), Bluetooth (optional) |
| Battery | Li-Ion 7.4V, 33Wh, rechargeable |
| Battery Life | Approximately 4 hours continuous use |
| Laser Pointer | Class 2, 635 nm, < 1 mW |
| Heatshield | Optional for high-temperature applications |
| Weight | Approximately 2.3 kg (with battery and lens) |
| Dimensions (L x W x H) | Approximately 300 x 200 x 150 mm |
| Operating Temperature | -15°C to +50°C (battery discharge), 0°C to +45°C (charging) |
| Ingress Protection | IP54 (with all covers installed) |
| Warranty | 2 years (camera), 10 years (detector) upon registration |
| Accessories Included | Battery, charger, SD card, hand strap, lens cap, USB cable, power supply |
Frequently Asked Questions - GF346 FLIR
User questions about GF346 FLIR
0 question about this device. Answer the ones you know or ask your own.
Ask a new question about this device
Download the instructions for your Measurement in PDF format for free! Find your manual GF346 - FLIR and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. GF346 by FLIR.
USER MANUAL GF346 FLIR

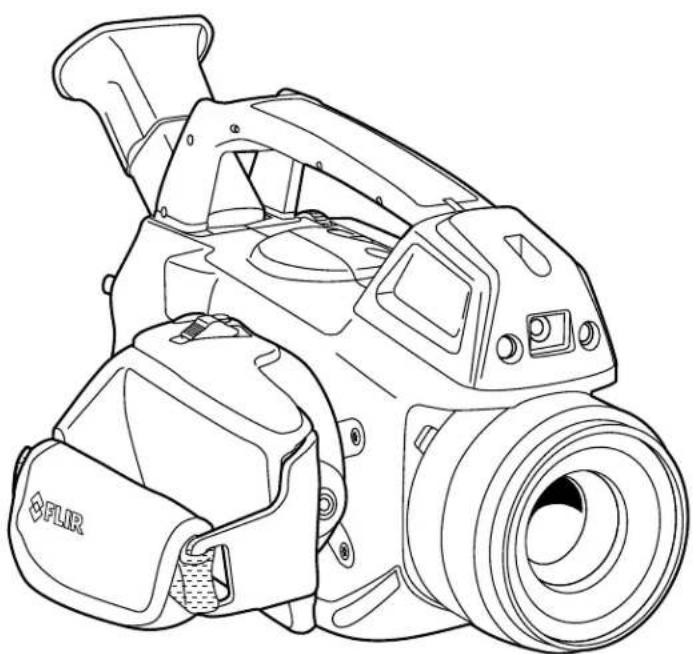

User's manual FLIR GF3xx series
Table of contents
1 Disclaimers ....1
1.1 Legal disclaimer ....1
1.2 U.S. Government Regulations....1
1.3 Level 1 statement....1
1.4 Copyright 2
1.5 Quality assurance ....2
1.6 Patents....2
1.7 EULA Terms ......2
1.8 EULA Terms ......3
2 Safety information ....5
3 Notice to user 10
3.1 User-to-user forums 10
3.2 Calibration.... 10
3.3 Accuracy 10
3.4 Disposal of electronic waste 10
3.5 Training 10
3.6 Documentation updates 11
3.7 Note about authoritative versions.... 11

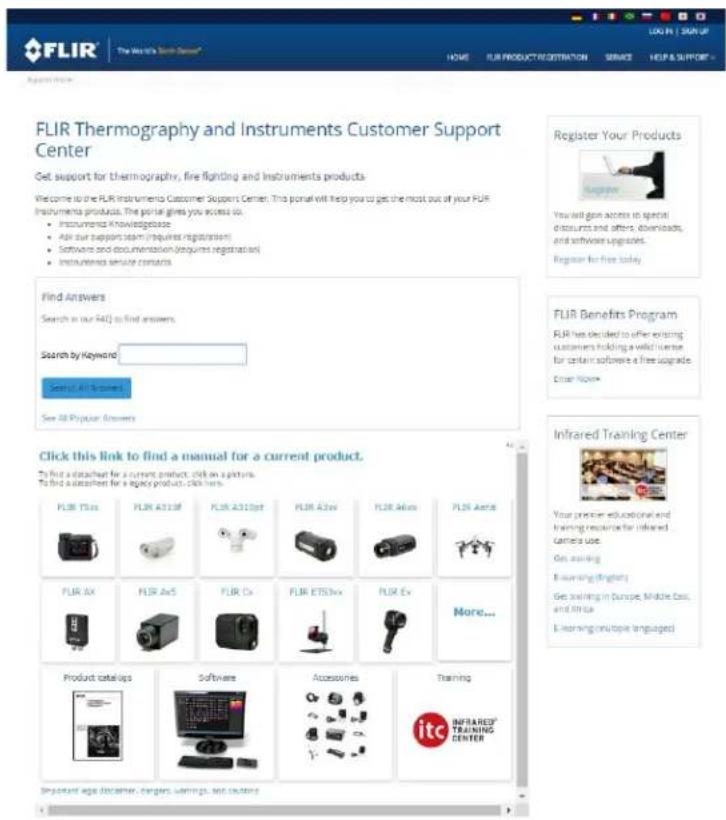

4 Customer help 12
4.1 General 12
4.2 Submitting a question 12
4.3 Downloads 13
5 Important note about training and applications.... 14
5.1 General 14
6 List of accessories and services 15
7 Introduction.... 17
7.1 FLIR GF300.... 17
7.1.1 Optical gas imaging of methane and other volatile organic compounds (VOCs).... 17
7.1.2 Benefits 17
7.2 FLIR GF304.... 17
7.2.1 Optical gas imaging of refrigerant gases.... 17
7.2.2 Benefits 17
7.3 FLIR GF306.... 18
7.3.1 Optical gas imaging especially of SF6 and ammonia.... 18
7.3.2 Benefits 18
7.4 FLIR GF309.... 18
7.4.1 IR camera for furnace and high temperature inspection.... 18
7.4.2 Benefits 19
7.5 FLIR GF320.... 19
7.5.1 Optical gas imaging of methane and other volatile organic compounds (VOCs).... 19
7.5.2 Benefits 19
7.6 FLIR GF335.... 20
7.6.1 Benefits 20
7.7 FLIR GF343.... 20
7.7.1 The new FLIR GF343 is an optical gas camera for visualizing carbon dioxide (CO _2 ..... 20
7.7.2 Main applications 20
7.8 FLIR GF346.... 21
7.8.1 Optical gas imaging especially of carbon monoxide (CO) and other harmful gases 21
7.8.2 Benefits 21
8 Example images 22
8.1 General 22
8.2 Images 22
9 Quick Start Guide 23
9.1 Detecting a temperature 23
9.1.1 Procedure 23
9.1.2 Related topics 24
9.2 Detecting a gas leak 24
9.2.1 Procedure 24
9.2.2 Related topics 25
10 FLIR GF3xx series series general instrument check.... 26

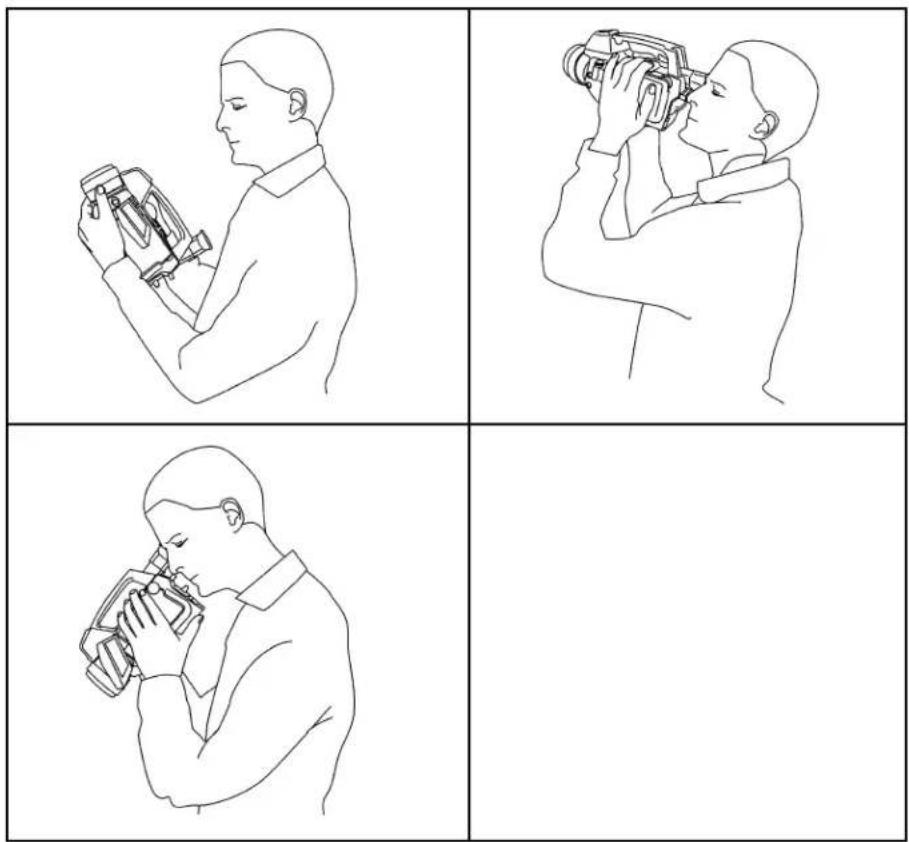

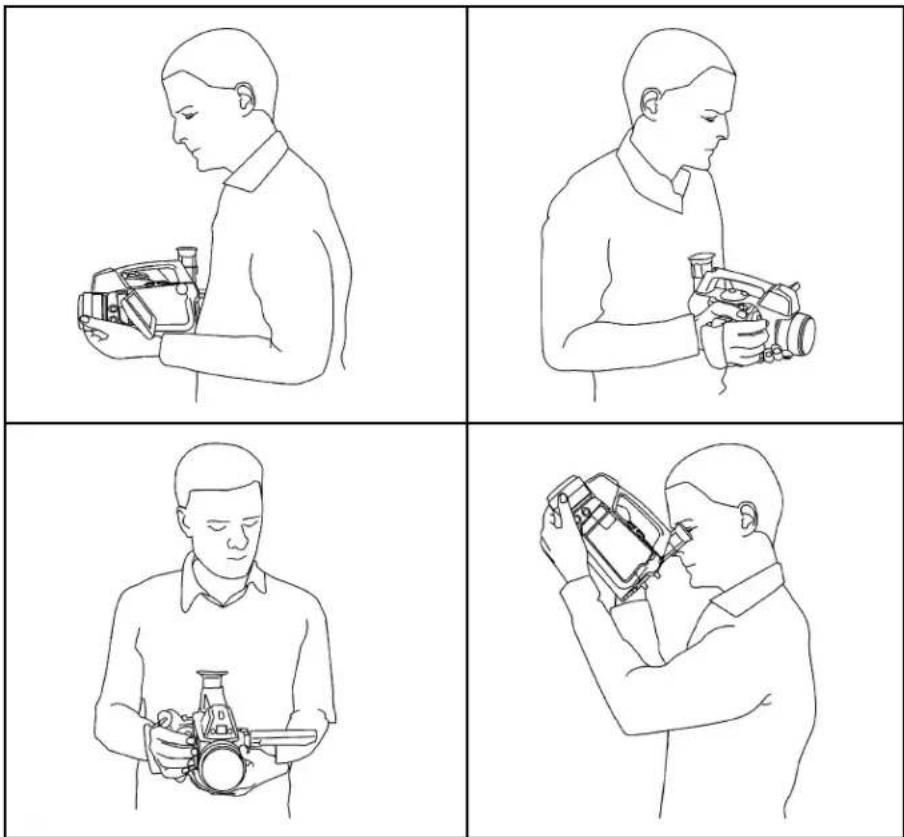

11 A note about ergonomics 27
11.1 General 27
11.2 Figure 27
11.3 Related topics 28
12 Camera parts 29

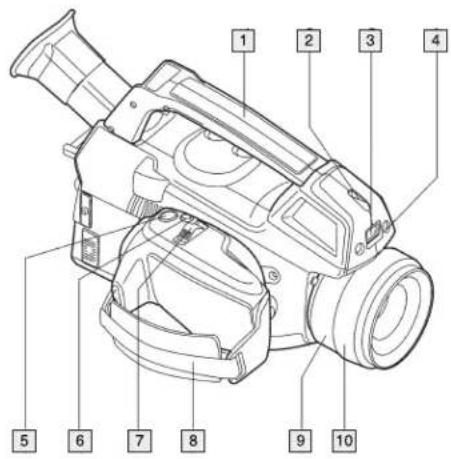

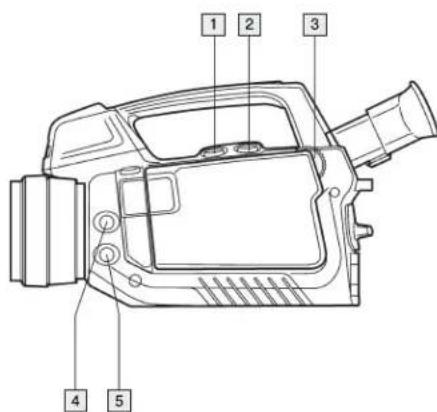

12.1 View from the left 29
12.1.1 Figure.... 29
12.1.2 Explanation.... 29
12.2 View from the right 30
12.2.1 Figure.... 30
12.2.2 Explanation.... 30

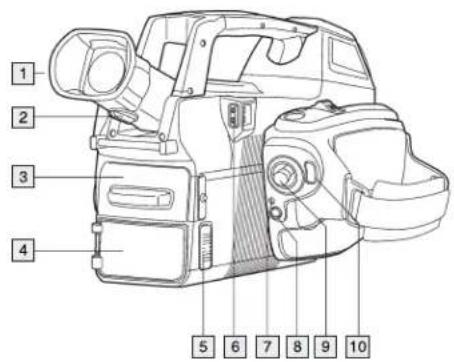

12.3 View from the rear.... 31
12.3.1 Figure.... 31
12.3.2 Explanation.... 31
12.4 Battery condition LED indicator.... 32
12.4.1 Figure.... 32
12.4.2 Explanation.... 32
12.5 Power LED indicator 32
12.5.1 Figure.... 32
12.5.2 Explanation.... 33
12.6 Laser pointer 33
12.6.1 General.... 33
12.6.2 Figure.... 33
12.6.3 Laser warning label.... 33
12.6.4 Laser rules and regulations 33
13 Screen elements 34

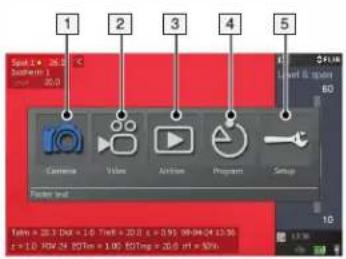

13.1 Mode selector 34
13.1.1 Figure.... 34
13.1.2 Explanation.... 34
13.2 Result table and measurement tools 34
13.2.1 Figure.... 34
13.2.2 Explanation.... 34
13.3 Toolbox, indicators, and other objects.... 35
13.3.1 Figure.... 35
13.3.2 Explanation.... 35
14 Achieving a good image 36
14.1 General 36

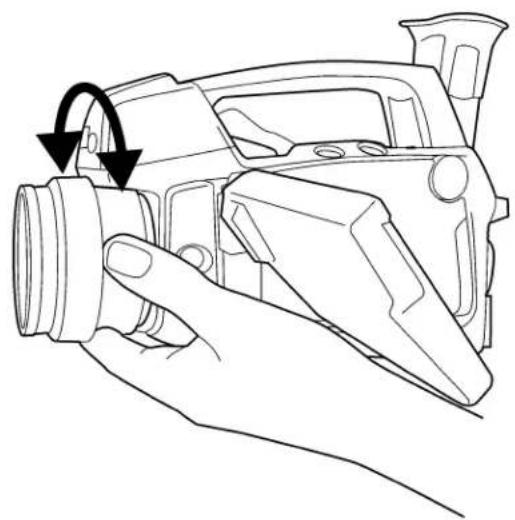

14.2 Adjusting the infrared camera focus manually 36
14.2.1 Figure.... 36
14.2.2 Procedure 36
14.3 Adjusting the infrared camera focus 37
14.3.1 Figure.... 37
14.3.2 Procedure 37
14.4 Adjusting an image.... 37
14.4.1 General.... 37
14.4.2 Explanation of the adjustment methods.... 37
14.4.3 Procedure (Auto) 37
14.4.4 Figure.... 38
14.4.5 Procedure (HSM) 38
14.4.6 Procedure (Manual) 38
14.5 Selecting a suitable temperature range.... 38
14.5.1 About temperature ranges.... 38
14.5.2 Understanding the temperature scale 39
14.5.3 Changing the temperature range 40
14.6 Selecting a suitable color palette 40
14.6.1 Procedure 40
14.7 Enabling or disabling histogram mode 40
14.7.1 General.... 40
14.7.2 Procedure 40
14.8 Enabling or disabling inverted color palette.... 41
14.8.1 Procedure 41
14.9 Changing object parameters 41
14.9.1 General.... 41
14.9.2 Types of parameters 41
14.9.3 Recommended values.... 41
14.9.4 Procedure 42
14.9.5 Related topics 42
15 Connecting external devices.... 43
15.1 General 43
15.2 Related topics.... 43

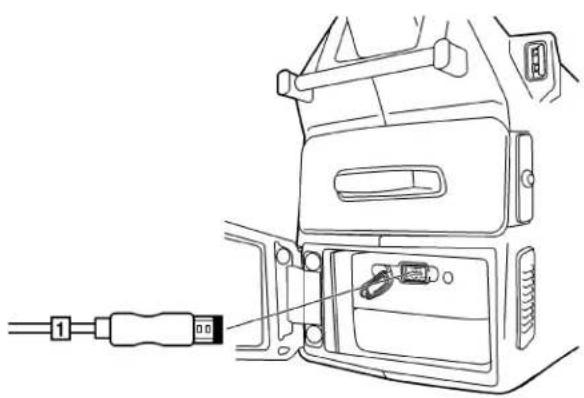

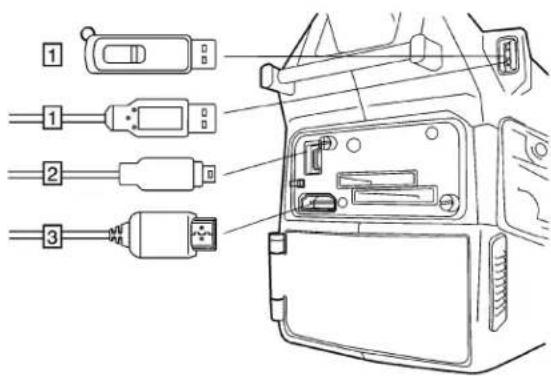

15.3 Connecting devices to the rear connectors 43
15.3.1 Figure.... 43
15.3.2 Explanation.... 43
15.3.3 Figure.... 44
15.3.4 Explanation.... 44

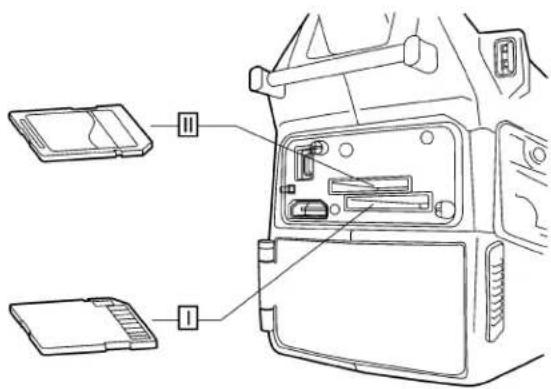

15.4 Inserting SD Memory Cards 44
15.4.1 Figure.... 44
15.4.2 Explanation.... 44
15.4.3 Formatting memory cards 45
16 Handling the camera.... 46
16.1 Charging the camera battery 46
16.1.1 Charging the battery using the power supply cable 46

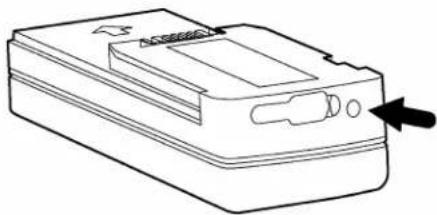

16.1.2 Charging the battery using the stand-alone battery charger 46
16.2 Installing and removing the camera battery.... 47
16.2.1 Installing the battery.... 47
16.2.2 Removing the battery 48
16.3 Turning on the camera 49
16.3.1 Procedure 49
16.4 Turning off the camera 49
16.4.1 Procedure 49

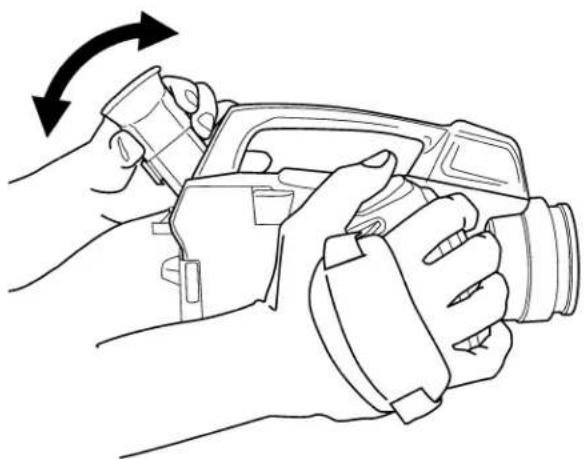

16.5 Adjusting the viewing angle of the viewfinder.... 49
16.5.1 General.... 49
16.5.2 Figure.... 49
16.5.3 Procedure 49
16.6 Adjusting the viewfinder's dioptric correction 50
16.6.1 General.... 50
16.6.2 Figure.... 50
16.6.3 Procedure 50

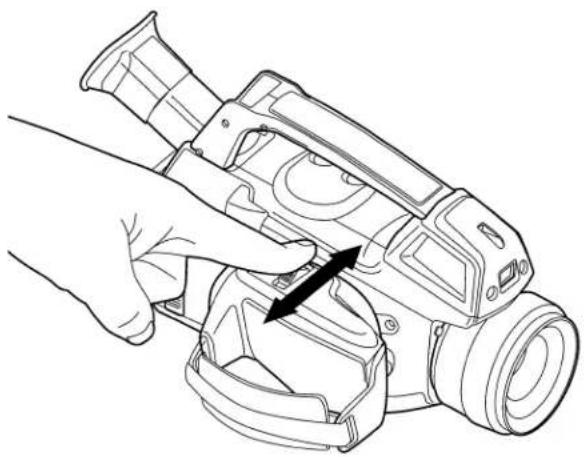

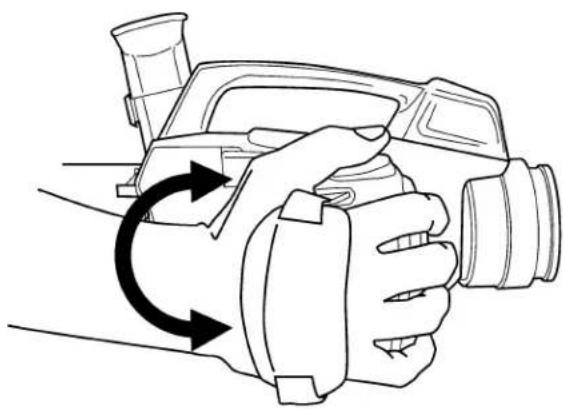

16.7 Adjusting the camera grip 50
16.7.1 General.... 50
16.7.2 Figure.... 51
16.7.3 Procedure 51

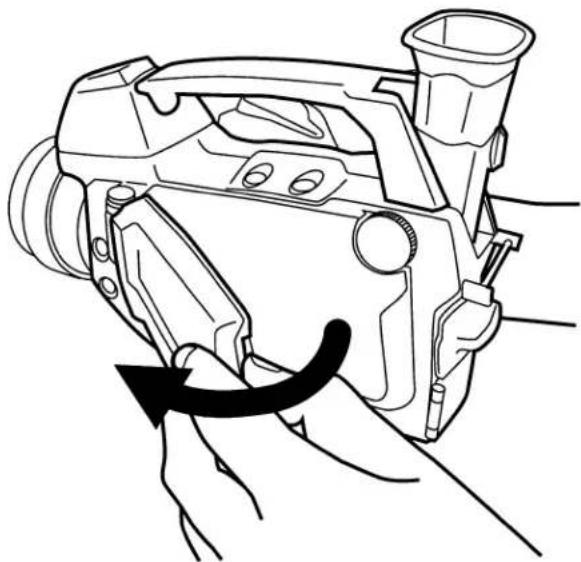

16.8 Opening the display.... 51
16.8.1 Figure.... 51
16.9 Adjusting the viewing angle of the display.... 52
16.9.1 General.... 52
16.9.2 Figure.... 52
16.9.3 Procedure 52
16.10 Installing an infrared lens 52
16.10.1 Procedure 52
16.11 Removing an infrared lens 53
16.11.1 Procedure 53
16.12 Mounting the heatshield 54
16.12.1 General.... 54
16.12.2 Procedure 54
16.13 Adjusting the infrared camera focus manually 56
16.13.1 Figure 56
16.13.2 Procedure 56
16.14 Adjusting the infrared camera focus 57
16.14.1 Figure.... 57
16.14.2 Procedure 57

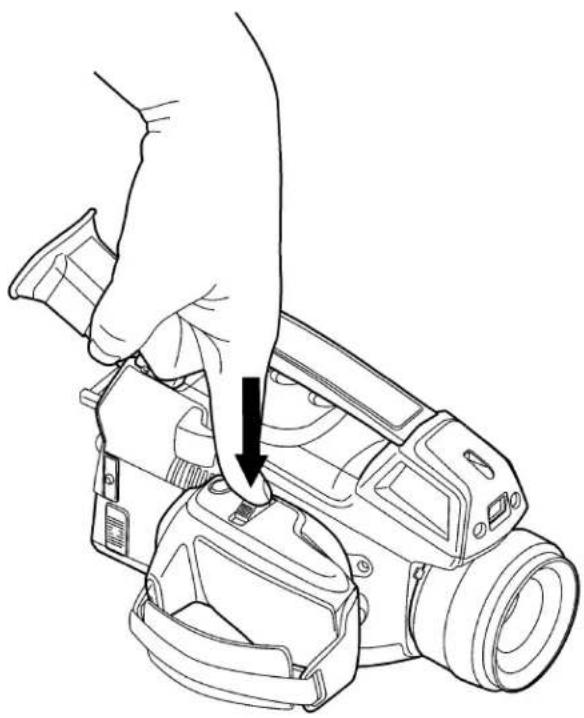

16.15 Autofocusing the infrared camera and the digital camera 58
16.15.1 Figure.... 58
16.15.2 Procedure 58
16.16 Operating the laser pointer.... 59
16.16.1 Figure.... 59
16.16.2 Procedure 59
16.16.3 Laser warning label.... 59
16.17 Using the zoom function 59
16.17.1 General.... 59
16.17.2 Procedure 59
17 Working with views and images.... 60
17.1 Saving infrared images.... 60
17.1.1 General.... 60
17.1.2 Image capacity 60
17.1.3 Saving an infrared image directly to an SD Memory Card....60
17.1.4 Previewing and saving an infrared image to an SD Memory Card 60
17.2 Opening an image.... 61
17.2.1 General.... 61
17.2.2 Procedure 61
17.3 Changing settings related to image presentation.... 61
17.3.1 General.... 61
17.3.2 Procedure 62
17.4 Editing a saved image.... 62
17.4.1 General.... 62
17.4.2 Procedure 62
17.5 Deleting a file 63
17.5.1 Procedure 63
18 Working with measurement tools 64
18.1 Laying out a measurement tool 64
18.1.1 General.... 64
18.1.2 Procedure 64
18.2 Moving or resizing a measurement tool.... 64
18.2.1 General.... 64
18.2.2 Procedure 64
18.3 Creating & setting up a difference calculation 64
18.3.1 General.... 64
18.3.2 Procedure 65
18.4 Changing object parameters 65
18.4.1 General 65
18.4.2 Types of parameters 65
18.4.3 Recommended values.... 66
18.4.4 Procedure 66
18.4.5 Related topics 67
19 Programming the camera 68
19.1 General 68
19.2 Procedure 68
20 Recording video clips 69
20.1 General 69
20.2 Procedure 69
21 Changing settings 70
21.1 General 70
21.2 Procedure 70
21.3 Connecting the camera using a peer-to-peer (ad hoc) WLAN network 7
21.3.1 General.... 70
21.3.2 Procedure 70
21.3.3 Related topics 71
21.4 Connecting the camera using a infrastructure WLAN network ..... 71
21.4.1 General.... 71
21.4.2 Procedure 71
21.4.3 Related topics 71
21.5 Changing Wi-Fi settings 71
21.5.1 General.... 71
21.5.2 Procedure 71
21.5.3 Related topics 72
22 Technical data.... 73
22.1 Online field-of-view calculator 73
22.2 Note about technical data 73
22.3 Note about authoritative versions.... 74
22.4 FLIR GF300 14.5° 75
22.5 FLIR GF300 14.5° Fixed lens....80
22.6 FLIR GF300 24° 85
22.7 FLIR GF300 24° Fixed lens 90
22.8 FLIR GF304 14.5° 95
22.9 FLIR GF304 14.5° Fixed lens.... 101
22.10 FLIR GF304 24° 106
22.11 FLIR GF304 24° Fixed lens 112
22.12 FLIR GF306 14.5° 117
22.13 FLIR GF306 14.5° Fixed lens.... 123
22.14 FLIR GF306 24° 129
22.15 FLIR GF306 24° Fixed lens 135
22.16 FLIR GF309 14.5° 141
22.17 FLIR GF309 14.5° Fixed lens.... 147
22.18 FLIR GF309 24° 152
22.19 FLIR GF309 24° Fixed lens 158
22.20 FLIR GF320 14.5° 163
22.21 FLIR GF320 14.5° Fixed lens.... 169
22.22 FLIR GF320 24° 175
22.23 FLIR GF320 24° Fixed lens 181
22.24 FLIR GF335 24° 187
22.25 FLIR GF343 24° Fixed lens 192
22.26 FLIR GF346 14.5°.... 197
22.27 FLIR GF346 14.5° Fixed lens.... 203
22.28 FLIR GF346 24° 209
22.29 FLIR GF346 24° Fixed lens 215

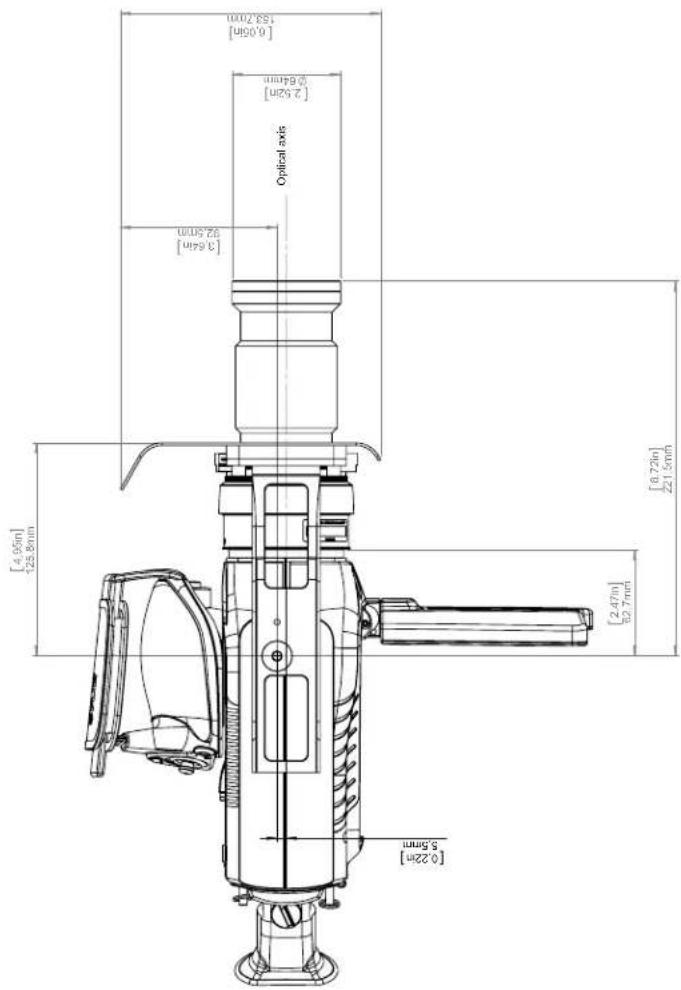

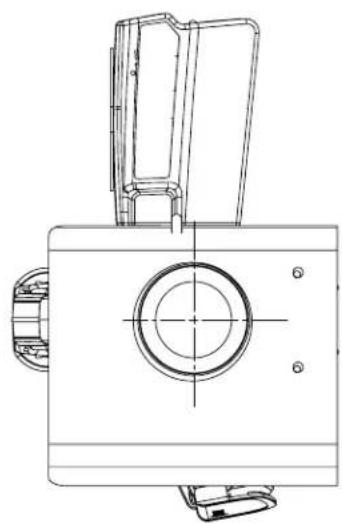

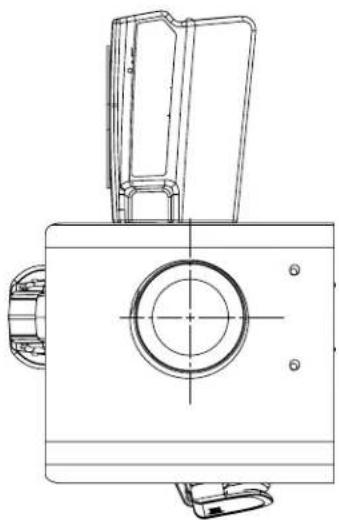

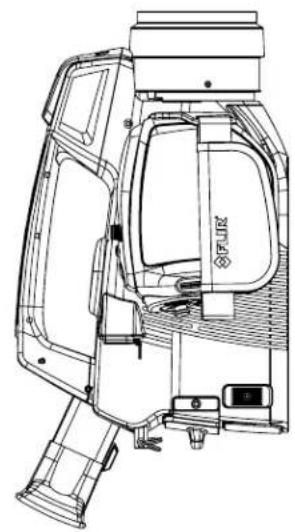

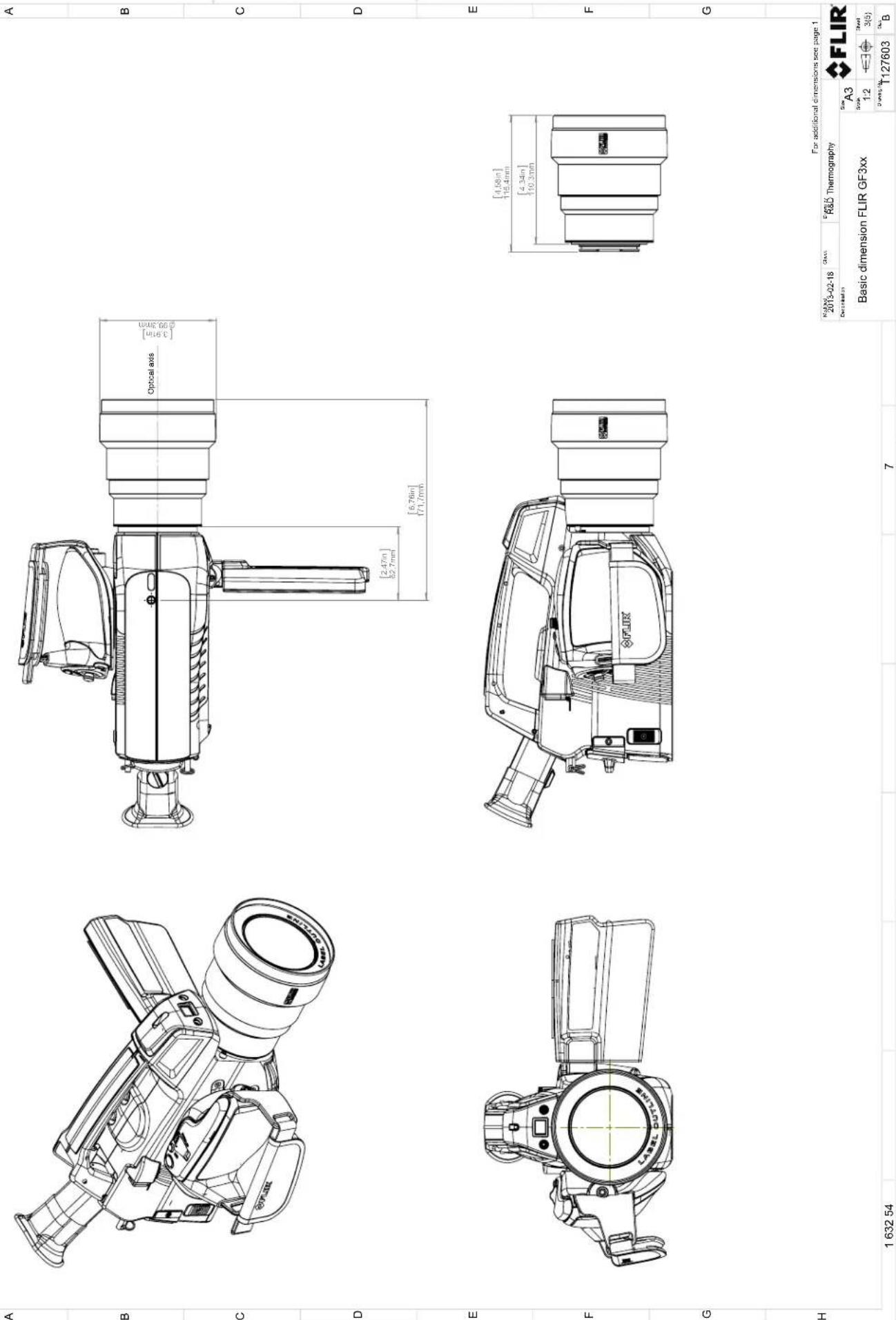

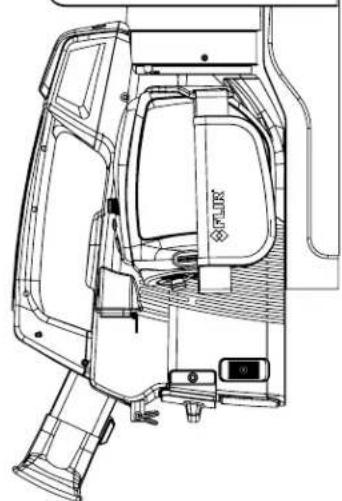

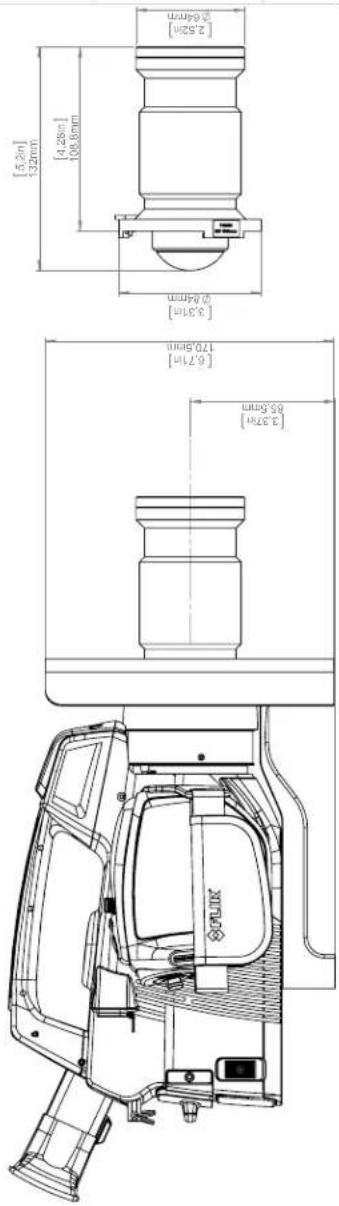

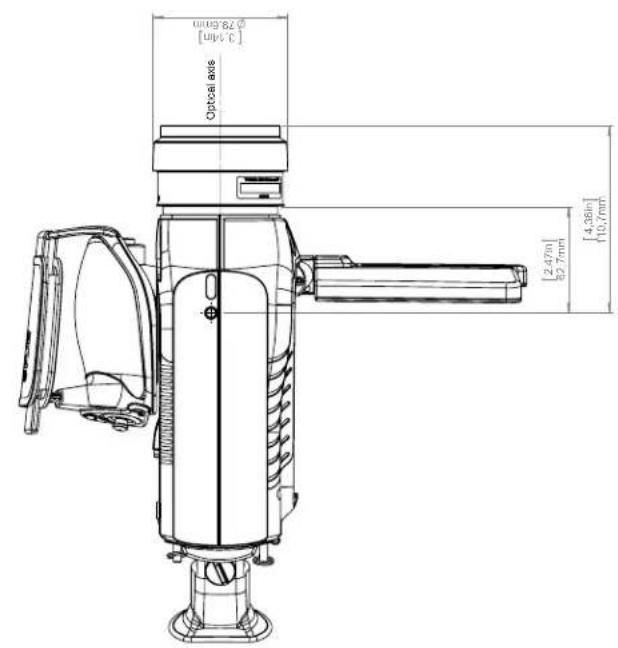

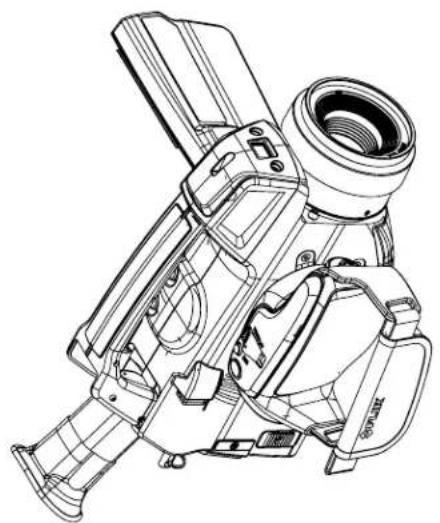

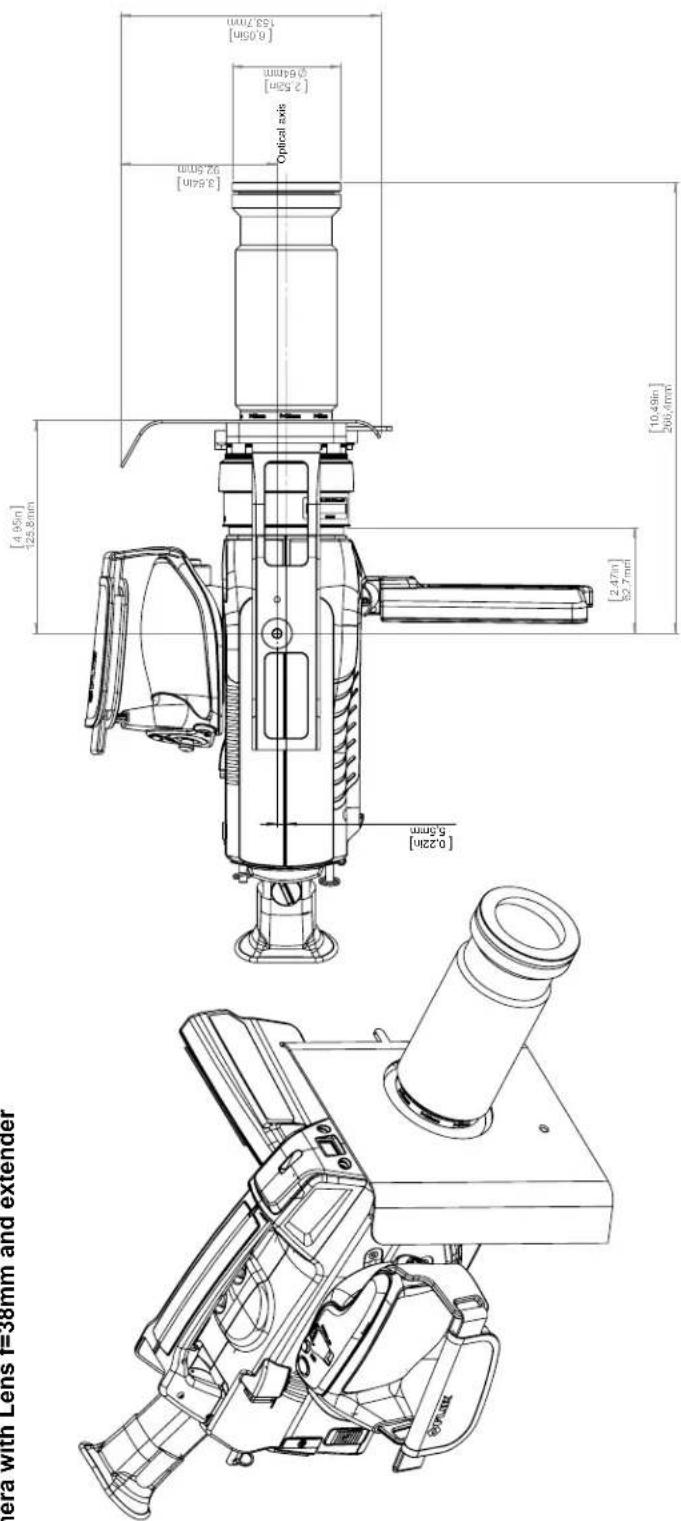

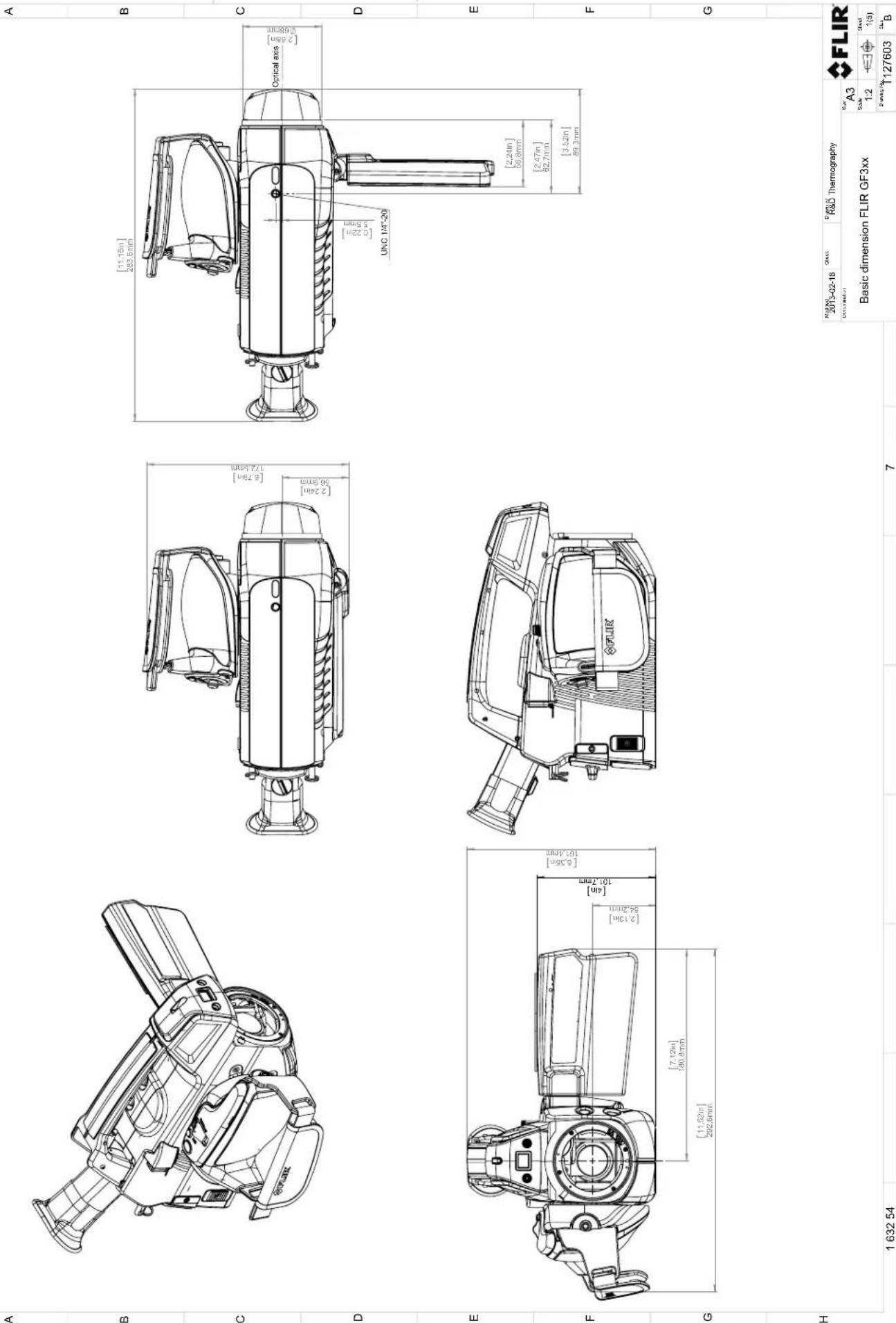

23 Mechanical drawings 221
24 CE Declaration of conformity 227
25 Cleaning the camera 229
25.1 Camera housing, cables, and other items.... 229
25.1.1 Liquids.... 229
25.1.2 Equipment 229
25.1.3 Procedure 229
25.2 Infrared lens 229
25.2.1 Liquids.... 229
25.2.2 Equipment 229
25.2.3 Procedure 229
26 Cooler maintenance.... 231
26.1 General 231
26.2 Signs to watch for 231
27 Detectable gases.... 232
27.1 General 232
27.2 Gases that can be detected by FLIR GF300.... 232
27.3 Coolants that can be detected by FLIR GF304 235
27.4 Gases that can be detected by FLIR GF306.... 235
27.5 Gases that can be detected by FLIR GF320.... 239
27.6 Gases that can be detected by FLIR GF343.... 242
27.7 Gases that can be detected by FLIR GF346.... 242
28 Why do some gases absorb infrared energy? 246
29 About FLIR Systems 249
29.1 More than just an infrared camera 250
29.2 Sharing our knowledge 251
29.3 Supporting our customers.... 251
30 Terms, laws, and definitions.... 252
31 About calibration.... 254
31.1 Introduction 254
31.2 Definition—what is calibration? 254
31.3 Camera calibration at FLIR Systems 254
31.4 The differences between a calibration performed by a user and that performed directly at FLIR Systems.... 255
31.5 Calibration, verification and adjustment.... 255
31.6 Non-uniformity correction.... 256
31.7 Thermal image adjustment (thermal tuning) 256
32 Thermographic measurement techniques 257
32.1 Introduction 257
32.2 Emissivity.... 257
32.2.1 Finding the emissivity of a sample.... 257
32.3 Reflected apparent temperature.... 261
32.4 Distance 261
32.5 Relative humidity 261
32.6 Other parameters.... 261
33 History of infrared technology.... 262
34 Theory of thermography.... 265
34.1 Introduction 265
34.2 The electromagnetic spectrum.... 265
34.3 Blackbody radiation.... 266
34.3.1 Planck's law 267
34.3.2 Wien's displacement law.... 268
34.3.3 Stefan-Boltzmann's law 269
34.3.4 Non-blackbody emitters.... 270
34.4 Infrared semi-transparent materials.... 272
35 The measurement formula.... 273
36 Emissivity tables 277
36.1 References.... 277
36.2 Tables 277
1
Disclaimers
1.1 Legal disclaimer
All products manufactured by FLIR Systems are warranted against defective materials and workmanship for a period of one (1) year from the delivery date of the original purchase, provided such products have been under normal storage, use and service, and in accordance with FLIR Systems instruction.
Uncooled handheld infrared cameras manufactured by FLIR Systems are warranted against defective materials and workmanship for a period of two (2) years from the delivery date of the original purchase, provided such products have been under normal storage, use and service, and in accordance with FLIR Systems instruction, and provided that the camera has been registered within 60 days of original purchase.
Detectors for uncooled handheld infrared cameras manufactured by FLIR Systems are warranted against defective materials and workmanship for a period of ten (10) years from the delivery date of the original purchase, provided such products have been under normal storage, use and service, and in accordance with FLIR Systems instruction, and provided that the camera has been registered within 60 days of original purchase.
Products which are not manufactured by FLIR Systems but included in systems delivered by FLIR Systems to the original purchaser, carry the warranty, if any, of the particular supplier only. FLIR Systems has no responsibility whatsoever for such products.
The warranty extends only to the original purchaser and is not transferable. It is not applicable to any product which has been subjected to misuse, neglect, accident or abnormal conditions of operation. Expendable parts are excluded from the warranty.
In the case of a defect in a product covered by this warranty the product must not be further used in order to prevent additional damage. The purchaser shall promptly report any defect to FLIR Systems or this warranty will not apply.
FLIR Systems will, at its option, repair or replace any such defective product free of charge if, upon inspection, it proves to be defective in material or workmanship and provided that it is returned to FLIR Systems within the said one-year period.
FLIR Systems has no other obligation or liability for defects than those set forth above.
No other warranty is expressed or implied. FLIR Systems specifically disclaims the implied warranties of merchantability and fitness for a particular purpose.
FLIR Systems shall not be liable for any direct, indirect, special, incidental or consequential loss or damage, whether based on contract, tort or any other legal theory.
This warranty shall be governed by Swedish law.
Any dispute, controversy or claim arising out of or in connection with this warranty, shall be finally settled by arbitration in accordance with the Rules of the Arbitration Institute of the Stockholm Chamber of Commerce. The place of arbitration shall be Stockholm. The language to be used in the arbitral proceedings shall be English.
1.2 U.S. Government Regulations
This product may be subject to U.S. Export Regulations. Please send any inquiries to exportquestions@flir.com.
1.3 Level 1 statement
Applicability: Flir GF3xx.
This document is controlled to Flir Technology Level 1. The information contained in this document pertains to a defense article controlled for export by the International Traffic in
Arms Regulations (ITAR). Flir trade secrets contained herein are subject to disclosure restrictions as a matter of law. Diversion contrary to US law is prohibited. US Government authorization for public release has been obtained from the Office of Security Review, authorization No. 10-S-2672. Additional US Department of State authorization is not required prior to export or transfer to foreign persons or parties, unless otherwise prohibited.
1.4 Copyright
© 2016, FLIR Systems, Inc. All rights reserved worldwide. No parts of the software including source code may be reproduced, transmitted, transcribed or translated into any language or computer language in any form or by any means, electronic, magnetic, optical, manual or otherwise, without the prior written permission of FLIR Systems.
The documentation must not, in whole or part, be copied, photocopied, reproduced, translated or transmitted to any electronic medium or machine readable form without prior consent, in writing, from FLIR Systems.
Names and marks appearing on the products herein are either registered trademarks or trademarks of FLIR Systems and/or its subsidiaries. All other trademarks, trade names or company names referenced herein are used for identification only and are the property of their respective owners.
1.5 Quality assurance
The Quality Management System under which these products are developed and manufactured has been certified in accordance with the ISO 9001 standard.
FLIR Systems is committed to a policy of continuous development; therefore we reserve the right to make changes and improvements on any of the products without prior notice.

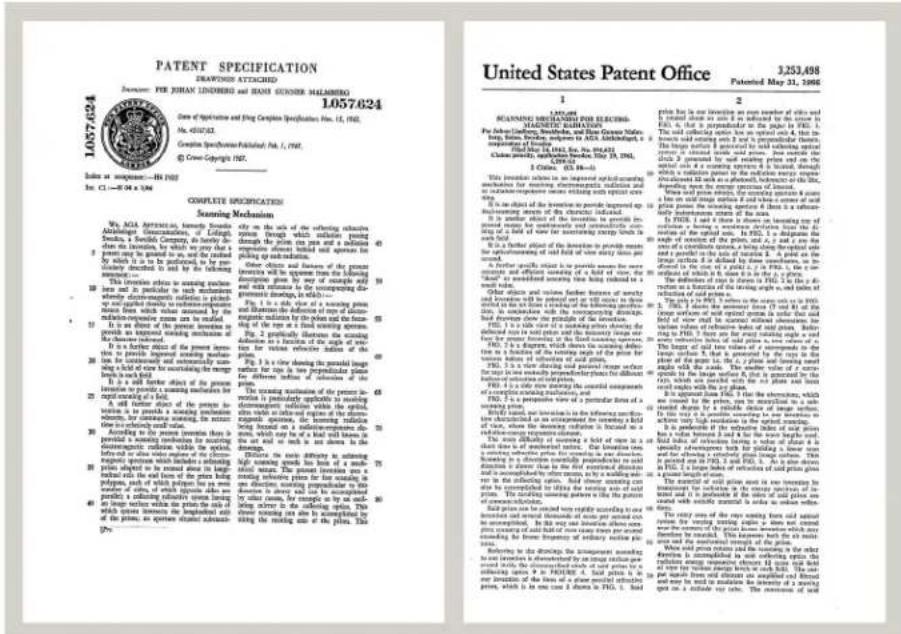

1.6 Patents
000439161; 000653423; 000726344; 000859020; 001707738; 001707746; 001707787; 001776519; 001954074; 002021543; 002021543-0002; 002058180; 002249953; 002531178; 002816785; 002816793; 011200326; 014347553; 057692; 061609; 07002405; 100414275; 101796816; 101796817; 101796818; 102334141; 1062100; 11063060001; 11517895; 1226865; 12300216; 12300224; 1285345; 1299699; 1325808; 1336775; 1391114; 1402918; 1404291; 1411581; 1415075; 1421497; 1458284; 1678485; 1732314; 17399650; 1880950; 1886650; 2007301511414; 2007303395047; 2008301285812; 2009301900619; 20100060357; 2010301761271; 2010301761303; 2010301761572; 2010305959313; 2011304423549; 2012304717443; 2012306207318; 2013302676195; 2015202354035; 2015304259171; 204465713; 204967995; 2106017; 2107799; 2115696; 2172004; 2315433; 2381417; 2794760001; 3006596; 3006597; 303330211; 4358936; 483782; 484155; 4889913; 4937897; 4995790001; 5177595; 540838; 579475; 584755; 599392; 60122153; 6020040116815; 602006006500.0; 6020080347796; 6020110003453; 615113; 615116; 664580; 664581; 665004; 665440; 67023029; 6707044; 677298; 68657; 69036179; 70022216; 70028915; 70028923; 70057990; 7034300; 710424; 7110035; 7154093; 7157705; 718801; 723605; 7237946; 7312822; 7332716; 7336823; 734803; 7544944; 7606484; 7634157; 7667198; 7809258; 7826736; 8018649; 8153971; 8212210; 8289372; 8340414; 8354639; 8384783; 8520970; 8565547; 8595689; 8599262; 8654239; 8680468; 8803093; 8823803; 8853631; 8933403; 9171361; 9191583; 9279728; 9280812; 9338352; 9423940; 9471970; 9595087; D549758.
1.7 EULA Terms
- You have acquired a device ("INFRARED CAMERA") that includes software licensed by FLIR Systems AB from Microsoft Licensing, GP or its affiliates ("MS"). Those installed software products of MS origin, as well as associated media, printed materials, and
"online" or electronic documentation ("SOFTWARE") are protected by international intellectual property laws and treaties. The SOFTWARE is licensed, not sold. All rights reserved.
- IF YOU DO NOT AGREE TO THIS END USER LICENSE AGREEMENT ("EULA"), DO NOT USE THE DEVICE OR COPY THE SOFTWARE. INSTEAD, PROMPTLY CONTACT FLIR Systems AB FOR INSTRUCTIONS ON RETURN OF THE UNUSED DEVICE(S) FOR A REFUND. ANY USE OF THE SOFTWARE, INCLUDING BUT NOT LIMITED TO USE ON THE DEVICE, WILL CONSTITUTE YOUR AGREEMENT TO THIS EULA (OR RATIFICATION OF ANY PREVIOUS CONSENT).
- GRANT OF SOFTWARE LICENSE. This EULA grants you the following license:
- You may use the SOFTWARE only on the DEVICE.
NOT FAULT TOLERANT. THE SOFTWARE IS NOT FAULT TOLERANT. FLIR Systems AB HAS INDEPENDENTLY DETERMINED HOW TO USE THE SOFTWARE IN THE DEVICE, AND MS HAS RELIED UPON FLIR Systems AB TO CONDUCT SUFFICIENT TESTING TO DETERMINE THAT THE SOFTWARE IS SUITABLE FOR SUCH USE.
NO WARRANTIES FOR THE SOFTWARE. THE SOFTWARE is provided "AS IS" and with all faults. THE ENTIRE RISK AS TO SATISFACTORY QUALITY, PERFORMANCE, ACCURACY, AND EFFORT (INCLUDING LACK OF NEGLIGENCE) IS WITH YOU. ALSO, THERE IS NO WARRANTY AGAINST INTERFERENCE WITH YOUR ENJOYMENT OF THE SOFTWARE OR AGAINST INFRINGEMENT. IF YOU HAVE RECEIVED ANY WARRANTIES REGARDING THE DEVICE OR THE SOFTWARE, THOSE WARRANTIES DO NOT ORIGINATE FROM, AND ARE NOT BINDING ON, MS.
No Liability for Certain Damages. EXCEPT AS PROHIBITED BY LAW, MS SHALL HAVE NO LIABILITY FOR ANY INDIRECT, SPECIAL, CONSEQUENTIAL OR INCIDENTAL DAMAGES ARISING FROM OR IN CONNECTION WITH THE USE OR PERFORMANCE OF THE SOFTWARE. THIS LIMITATION SHALL APPLY EVEN IF ANY REMEDY FAILS OF ITS ESSENTIAL PURPOSE. IN NO EVENT SHALL MS BE LIABLE FOR ANY AMOUNT IN EXCESS OF U.S. TWO HUNDRED FIFTY DOLLARS (U.S.\$250.00).
Limitations on Reverse Engineering, Decompilation, and Disassembly. You may not reverse engineer, decompile, or disassemble the SOFTWARE, except and only to the extent that such activity is expressly permitted by applicable law notwithstanding this limitation. - SOFTWARE TRANSFER ALLOWED BUT WITH RESTRICTIONS. You may permanently transfer rights under this EULA only as part of a permanent sale or transfer of the Device, and only if the recipient agrees to this EULA. If the SOFTWARE is an up grade, any transfer must also include all prior versions of the SOFTWARE.
- EXPORT RESTRICTIONS. You acknowledge that SOFTWARE is subject to U.S. export jurisdiction. You agree to comply with all applicable international and national laws that apply to the SOFTWARE, including the U.S. Export Administration Regulations, as well as end-user, end-use and destination restrictions issued by U.S. and other governments. For additional information see http://www.microsoft.com/exporting/.
1.8 EULA Terms
Qt4 Core and Qt4 GUI, Copyright ©2013 Nokia Corporation and FLIR Systems AB. This Qt library is a free software; you can redistribute it and/or modify it under the terms of the GNU Lesser General Public License as published by the Free Software Foundation; either version 2.1 of the License, or (at your option) any later version. This library is distributed in the hope that it will be useful, but WITHOUT ANY WARRANTY; without even the implied warranty of MERCHANTABILITY or FITNESS FOR A PARTICULAR PURPOSE. See the GNU Lesser General Public License, http://www.gnu.org/licenses/lgpl-2.1.html. The
Disclaimers1
source code for the libraries Qt4 Core and Qt4 GUI may be requested from FLIR Systems AB.
2
Safety information
WARNING
Applicability: Class A digital devices.
This equipment generates, uses, and can radiate radio frequency energy and if not installed and used in accordance with the instruction manual, may cause interference to radio communications. It has been tested and found to comply with the limits for a Class A computing device pursuant to Subpart J of Part 15 of FCC Rules, which are designed to provide reasonable protection against such interference when operated in a commercial environment. Operation of this equipment in a residential area is likely to cause interference in which case the user at his own expense will be required to take whatever measures may be required to correct the interference.
WARNING
Applicability: Class B digital devices.
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
- Consult the dealer or an experienced radio/TV technician for help.
WARNING
Applicability: Digital devices subject to 15.19/RSS-210.
NOTICE: This device complies with Part 15 of the FCC Rules and with RSS-210 of Industry Canada. Operation is subject to the following two conditions:
- this device may not cause harmful interference, and
- this device must accept any interference received, including interference that may cause undesired operation.
WARNING
Applicability: Digital devices subject to 15.21.
NOTICE: Changes or modifications made to this equipment not expressly approved by FLIR Systems may void the FCC authorization to operate this equipment.
WARNING
Applicability: Digital devices subject to 2.1091/2.1093/OET Bulletin 65.
Radiofrequency radiation exposure Information: The radiated output power of the device is below the FCC/IC radio frequency exposure limits. Nevertheless, the device shall be used in such a manner that the potential for human contact during normal operation is minimized.
WARNING
Applicability: Cameras with one or more laser pointers.
Do not look directly into the laser beam. The laser beam can cause eye irritation.
 | WARNING |
| Applicability: Cameras with one or more batteries.Do not disassemble or do a modification to the battery. The battery contains safety and protection devices which, if damage occurs, can cause the battery to become hot, or cause an explosion or an ignition. | |
 | WARNING |
| Applicability: Cameras with one or more batteries.If there is a leak from the battery and you get the fluid in your eyes, do not rub your eyes. Flush water and immediately get medical care. The battery fluid can cause injury to your eyes if you do this. | |
 | WARNING |
| Applicability: Cameras with one or more batteries.Do not continue to charge the battery if it does not become charged in the specified charging time. If you continue to charge the battery, it can become hot and cause an explosion or ignition. Injury to persons can occur. | |
 | WARNING |
| Applicability: Cameras with one or more batteries.Only use the correct equipment to remove the electrical power from the battery. If you do not use the correct equipment, you can decrease the performance or the life cycle of the battery. If you do not use the correct equipment, an incorrect flow of current to the battery can occur. This can cause the battery to become hot, or cause an explosion. Injury to persons can occur. | |
| [ADBW] | WARNING |
| Make sure that you read all applicable MSDS (Material Safety Data Sheets) and warning labels on containers before you use a liquid. The liquids can be dangerous. Injury to persons can occur. | |
 | CAUTION |
| Do not point the infrared camera (with or without the lens cover) at strong energy sources, for example, devices that cause laser radiation, or the sun. This can have an unwanted effect on the accuracy of the camera. It can also cause damage to the detector in the camera. | |
 | CAUTION |
| Do not use the camera in temperatures more than +50°C (+122°F), unless other information is specified in the user documentation or technical data. High temperatures can cause damage to the camera. | |
 | CAUTION |
| Applicability: Cameras with one or more laser pointers.To prevent damage, put the protective cap on the laser pointer when you do not operate the laser pointer. Damage to the laser pointer can occur if you do not do this. | |
 | CAUTION |
| Applicability: Cameras with one or more batteries.Do not attach the batteries directly to a car's cigarette lighter socket, unless FLIR Systems supplies a specific adapter to connect the batteries to a cigarette lighter socket. Damage to the batteries can occur. | |
| CAUTION | |
| Applicability: Cameras with one or more batteries.Do not connect the positive terminal and the negative terminal of the battery to each other with a metal object (such as wire). Damage to the batteries can occur. | |
| CAUTION | |
| Applicability: Cameras with one or more batteries.Do not get water or salt water on the battery, or permit the battery to become wet. Damage to the batteries can occur. | |
| CAUTION | |
| Applicability: Cameras with one or more batteries.Do not make holes in the battery with objects. Damage to the battery can occur. | |
| CAUTION | |
| Applicability: Cameras with one or more batteries.Do not hit the battery with a hammer. Damage to the battery can occur. | |
| CAUTION | |
| Applicability: Cameras with one or more batteries.Do not put your foot on the battery, hit it or cause shocks to it. Damage to the battery can occur | |
| CAUTION | |
| Applicability: Cameras with one or more batteries.Do not put the batteries in or near a fire, or into direct sunlight. When the battery becomes hot, the built-in safety equipment becomes energized and can stop the battery charging procedure. If the battery becomes hot, damage can occur to the safety equipment and this can cause more heat, damage or ignition of the battery. | |
| CAUTION | |
| Applicability: Cameras with one or more batteries.Do not put the battery on a fire or increase the temperature of the battery with heat. Damage to the battery and injury to persons can occur. | |
| CAUTION | |
| Applicability: Cameras with one or more batteries.Do not put the battery on or near fires, stoves, or other high-temperature locations. Damage to the battery and injury to persons can occur. | |
| CAUTION | |
| Applicability: Cameras with one or more batteries.Do not solder directly onto the battery. Damage to the battery can occur. | |
 | CAUTION |
| Applicability: Cameras with one or more batteries.Do not use the battery if, when you use, charge, or put the battery in storage, there is an unusual smell from the battery, the battery feels hot, changes color, changes shape, or is in an unusual condition. Speak with your sales office if one or more of these problems occurs. Damage to the battery and injury to persons can occur. | |
 | CAUTION |
| Applicability: Cameras with one or more batteries.Only use a specified battery charger when you charge the battery. Damage to the battery can occur if you do not do this. | |
 | CAUTION |
| Applicability: Cameras with one or more batteries.Only use a specified battery for the camera. Damage to the camera and the battery can occur if you do not do this. | |
 | CAUTION |
| Applicability: Cameras with one or more batteries.The temperature range through which you can charge the battery is 0°C to +45°C (+32°F to +113°F). If you charge the battery at temperatures out of this range, it can cause the battery to become hot or to break. It can also decrease the performance or the life cycle of the battery. | |
 | CAUTION |
| Applicability: Cameras with one or more batteries.The temperature range through which you can remove the electrical power from the battery is -15°C to +50°C (+5°F to +122°F), unless other information is specified in the user documentation or technical data. If you operate the battery out of this temperature range, it can decrease the performance or the life cycle of the battery. | |
 | CAUTION |
| Applicability: Cameras with one or more batteries.When the battery is worn, apply insulation to the terminals with adhesive tape or equivalent materials before you discard it. Damage to the battery and injury to persons can occur if you do not do this. | |
 | CAUTION |
| Applicability: Cameras with one or more batteries.Remove any water or moisture on the battery before you install it. Damage to the battery can occur if you do not do this. | |
 | CAUTION |
| Do not apply solvents or equivalent liquids to the camera, the cables, or other items. Damage to the battery and injury to persons can occur. | |
 | CAUTION |
| Be careful when you clean the infrared lens. The lens has an anti-reflective coating which is easily damaged. Damage to the infrared lens can occur. | |
| CAUTION | |
| Do not use too much force to clean the infrared lens. This can cause damage to the anti-reflective coating. | |
| CAUTION |
| Applicability: Cameras with a heatshield.When you operate the camera in high-temperature conditions, you must install a heatshield on the era. If you use the camera in high-temperature conditions without a heatshield, damage to the cam can occur. |
Note The encapsulation rating is only applicable when all the openings on the camera are sealed with their correct covers, hatches, or caps. This includes the compartments for data storage, batteries, and connectors.
| ! | CAUTION |
Applicability: FLIR GF309.
The exceptionally wide temperature range of the FLIR GF309 infrared camera is designed for performing highly accurate electrical and mechanical inspections and can also "see through flames" for inspecting gas-fired furnaces, chemical heaters and coal-fired boilers. IN ORDER TO DERIVE ACCURATE TEMPERATURE MEASUREMENTS IN THESE ENVIRONMENTS THE FLIR GF309 OPERATOR MUST HAVE A STRONG UNDERSTANDING OF RADIOMETRIC FUNDAMENTALS AS WELL AS THE PRODUCTS AND CONDITIONS OF COMBUSTION THAT IMPACT REMOTE TEMPERATURE MEASUREMENT. The Infrared Training Center (ITC) offers a wide range of world class infrared training for thermography professionals including FLIR GF309 operators. For more information about obtaining the training and certification you require, contact your FLIR Systems sales representative or ITC at http://www.infraredtraining.com.
| ! | CAUTION |
Applicability: Cameras with a viewfinder.
Make sure that the beams from the intensive energy sources do not go into the viewfinder. The beams can cause damage to the camera. This includes the devices that emit laser radiation, or the sun.
3.1 User-to-user forums
Exchange ideas, problems, and infrared solutions with fellow thermographers around the world in our user-to-user forums. To go to the forums, visit:
http://forum.infraredtraining.com/
3.2 Calibration
Gas detection: no re-calibration recommendation. The ability to detect gases is not influenced by the calibration and will not degrade over time.
Temperature measurement: annual re-calibration recommended.
3.3 Accuracy
For very accurate results, we recommend that you wait 5 minutes after you have started the camera before measuring a temperature.
For cameras where the detector is cooled by a mechanical cooler, this time period excludes the time it takes to cool down the detector.
3.4 Disposal of electronic waste
Electrical and electronic equipment (EEE) contains materials, components and substances that may be hazardous and present a risk to human health and the environment when waste electrical and electronic equipment (WEEE) is not handled correctly.
Equipment marked with the below crossed-out wheeled bin is electrical and electronic equipment. The crossed-out wheeled bin symbol indicates that waste electrical and electronic equipment should not be discarded together with unseparated household waste, but must be collected separately.
For this purpose all local authorities have established collection schemes under which residents can dispose waste electrical and electronic equipment at a recycling centre or other collection points, or WEEE will be collected directly from households. More detailed information is available from the technical administration of the relevant local authority.
3.5 Training
To read about infrared training, visit:
- http://www.infraredtraining.com
- http://www.irtraining.com
- http://www.irtraining.eu
3.6 Documentation updates
Our manuals are updated several times per year, and we also issue product-critical notifications of changes on a regular basis.
To access the latest manuals, translations of manuals, and notifications, go to the Download tab at:
http://support.flir.com
It only takes a few minutes to register online. In the download area you will also find the latest releases of manuals for our other products, as well as manuals for our historical and obsolete products.
3.7 Note about authoritative versions
The authoritative version of this publication is English. In the event of divergences due to translation errors, the English text has precedence.
Any late changes are first implemented in English.
4
Customer help
4.1 General
For customer help, visit:
http://support.flir.com
4.2 Submitting a question
To submit a question to the customer help team, you must be a registered user. It only takes a few minutes to register online. If you only want to search the knowledgebase for existing questions and answers, you do not need to be a registered user.
When you want to submit a question, make sure that you have the following information to hand:
• The camera model
• The camera serial number
- The communication protocol, or method, between the camera and your device (for example, SD card reader, HDMI, Ethernet, USB, or FireWire)
• Device type (PC/Mac/iPhone/iPad/Android device, etc.)
- Version of any programs from FLIR Systems
• Full name, publication number, and revision number of the manual
4.3 Downloads
On the customer help site you can also download the following, when applicable for the product:
- Firmware updates for your infrared camera.
- Program updates for your PC/Mac software.
• Freeware and evaluation versions of PC/Mac software. - User documentation for current, obsolete, and historical products.
- Mechanical drawings (in *.dxf and *.pdf format).
- Cad data models (in *.stp format).
- Application stories.
- Technical datasheets.
- Product catalogs.
5
Important note about training and applications
5.1 General
Infrared inspection of gas leaks, furnaces, and high-temperature applications—including infrared image and other data acquisition, analysis, diagnosis, prognosis, and reporting—is a highly advanced skill. It requires professional knowledge of thermography and its applications, and is, in some countries, subject to certification and legislation.
Consequently, we strongly recommend that you seek the necessary training before carrying out inspections. Please visit the following site for more information:
http://www.infraredtraining.com
List of accessories and services
| Product name Part number | |
| Battery charger, incl. power supply with multi plugs | T197692 |
| Calibration including General maintenance GF3xx series | T199834 |
| Cigarette lighter adapter kit, 12 VDC, 1.2 m/3.9 ft. | T198509 |
| FLIR IR Camera Player DSW-10000 | |
| FLIR Reporter Professional (license only) T198586 | |
| FLIR ResearchIR 3 (license only) T198578 | |
| FLIR ResearchIR 3 Max (license only) T198574 | |
| FLIR ResearchIR Max + HSDR 4 T198697 | |
| FLIR ResearchIR Max 4 T198696 | |
| FLIR ResearchIR Standard 4 | T198731 |
| FLIR Tools | T198584 |
| FLIR Tools Mobile (Android Application) | APP-10002 |
| FLIR Tools Mobile (iPad/iPhone Application) | APP-10003 |
| FLIR Tools+ (license only) | T198583 |
| FLIR VideoReport | T198585 |
| Furnace IR lens extender, 14.5° with case for GF309 | T198361 |
| Furnace IR lens extender, 24° with case for GF309 | T198360 |
| Hard transport case for FLIR GF3xx-Series | T197555 |
| HDMI to DVI cable 1.5 m | T910816ACC |
| HDMI to HDMI cable 1.5 m | T910815ACC |
| Heat Shield for FLIR GF309 | T197482 |
| IR lens, 14.5° with case for GF300, GF309, GF320 | T197385 |
| IR lens, 14.5° with case for GF304, GF306 | T197384 |
| IR lens, 14.5° with case for GF335, GF346 | T198298 |
| IR lens, 24° with case for GF300, GF309, GF320 | T197387 |
| IR lens, 24° with case for GF304, GF306 | T197386 |
| IR lens, 24° with case for GF335, GF346 | T198267 |
| IR lens, 6° with case for GF300, GF309, GF320, GF346. | T197388 |
| ITC Advanced Furnace Application Course - additional student to on site class | ITC-ADV-3055 |
| ITC Advanced Furnace Application Course - attendance, 1 pers. (3 days) | ITC-ADV-3051 |
| ITC Advanced Furnace Applications Course - group up to 10 pers. (3 days) | ITC-ADV-3059 |
| ITC Advanced Furnace Applications Course - group up to 6 persons (3 days) | ITC-ADV-3056 |
| ITC Advanced Gas Detection Course - additional student to on site class, 1 pers. | ITC-ADV-3035 |
| ITC Advanced Gas Detection Course - attendance 1 pers. | ITC-ADV-3031 |
| ITC Advanced Gas Detection Course - group of to 6 pers. (3 days) | IPTC-ADV-3036 |
| ITC Advanced Gas Detection Course - group of pers. | IPTC-ADV-3039 |
| ITC Advanced training - group of max. 6 pers, additional day 4 for on-site training | IPTC-ADV-4006 |
| ITC conference fee ITC-CON-1001 | |
| ITC Customized workshop - per person (per day) | ITC-EXP-1041 |
| ITC In-house training - additional attendance 1 pers. (per day) | ITC-EXP-1021 |
| ITC In-house training - group up to 10 pers. (per day) | ITC-EXP-1029 |
| ITC Infrared application and system consultancy (per day) | ITC-EXP-1050 |
| ITC Software course - attendance 1 pers. (per day) | ITC-SOW-0001 |
| ITC Software course - group up to 10 pers. (per day) | ITC-SOW-0009 |
| ITC Training 1 day - attendance 1 pers. ITC-EXP-1001 | |
| ITC Training 1 day - group up to 10 pers. ITC-EXP-1009 | |
| ITC Training 2 days - attendance 1 pers. ITC-EXP-2001 | |
| ITC Training 2 days - group up to 10 pers. ITC-EXP-2009 | |
| ITC Training 3 days - attendance 1 pers. ITC-EXP-3001 | |
| ITC Training 3 days - group up to 10 pers. ITC-EXP-3009 | |
| ITC travel time for instructor ITC-TFT-0100 | |
| Li-Ion Battery pack 7.4V 33Wh T198511 | |
| Memory card SDHC 4 GB T911230ACC | |
| One year extended warranty for GF3xx series | T199825 |
| Power supply, incl. multi plugs | T910814 |
| ThermoVisionTM LabVIEW® Digital Toolkit Ver. 3.3 | T198566 |
| ThermoVisionTM System Developers Kit Ver. 2.6 | T198567 |
| Travel and lodging expenses instructor (Center and South Africa) | ITC-TOL-1003 |
| Travel and lodging expenses instructor (Europe, Balcans, Turkey, Cyprus) | ITC-TOL-1001 |
| Travel and lodging expenses instructor (other) | ITC-TOL-1005 |
| Travel and lodging expenses instructor (Russia/ GUS, Middle East, North Africa) | ITC-TOL-1002 |
| Travel and lodging expenses instructor (various) | ITC-TOL-1004 |
| USB cable Std A <-> Mini-B | 1910423 |
| Wi-Fi USB micro adapter | T951387 |
Note FLIR Systems reserves the right to discontinue models, parts or accessories, and other items, or to change specifications at any time without prior notice.
7.1 FLIR GF300
7.1.1 Optical gas imaging of methane and other volatile organic compounds (VOCs)
The FLIR GF300 is an IR camera for optical gas imaging (OGI) that visualizes and pin-points leaks of VOCs, without the need to shut down the operation. The portable camera also greatly improves operator safety, by detecting emissions at a safe distance, and helps to protect the environment by tracing leaks of environmentally harmful gases.
The FLIR GF300 is used in industrial settings such as oil refineries, natural gas processing plants, offshore platforms, chemical/petrochemical industries, and biogas and power generation plants.
7.1.2 Benefits
- Improved efficiency: The FLIR GF300 reduces revenue loss by pinpointing even small gas leaks quickly and efficiently, and from a distance. It also reduces the inspection time by allowing a broad area to be scanned rapidly and without the need to interrupt the industrial process.
- Increased worker safety: OGI allows gas leaks to be detected in a non-contact mode and from a safe distance. This reduces the risk of the inspector being exposed to invisible and potentially harmful or explosive chemicals. With a FLIR GF300 gas imaging camera it is easy to scan areas of interest that are difficult to reach with conventional methods. The camera is ergonomically designed, with a bright LCD and tiltable viewfinder, which facilitates its use over a full working day.
- Protecting the environment: Several VOCs are dangerous to human health or cause harm to the environment, and are usually governed by regulations. Even small leaks can be detected and documented using theFLIR GF300 camera.
7.2 FLIR GF304
7.2.1 Optical gas imaging of refrigerant gases
The FLIR GF304 is an IR camera for optical gas imaging (OGI) that visualizes and pin-points leaks of refrigerant gases, without the need to shut down the operation. This portable camera also greatly improves operator safety, by detecting gases at a safe distance, and helps to protect the environment by tracing leaks of environmentally harmful gases.
Refrigerant gases are found in, for example, the food, chemical/petrochemical and automotive industries, as well as in air-conditioning systems.
7.2.2 Benefits
- Improved efficiency: The FLIR GF304 reduces revenue loss by pinpointing even small gas leaks quickly and efficiently, and from a distance. It also reduces the inspection time by being able to scan a broad area rapidly without the need to interrupt the industrial process. The wireless connectivity of the camera allows you to connect to smart phones or tablet PCs for the wireless transfer of images or the remote control of the camera. The FLIR GF304 can also be used for temperature measurement, which makes it even more useful for predictive maintenance.
- Increased worker safety: The leak detection of gases can be performed in noncontact mode, and from a safe distance. This reduces the risk of the inspector being exposed to invisible and potentially harmful or explosive chemicals. With a FLIR GF304 gas-imaging camera it is easy to scan areas of interest that are difficult to reach with
conventional methods. The camera is ergonomically designed with a bright LCD and a tiltable viewfinder, which facilitates its use over a full working day.
- Protecting the environment: Several refrigerant gases have a high global warming potential and are usually governed by regulations. Even small leaks can be detected and documented using the FLIR GF304 camera.
7.3 FLIR GF306
7.3.1 Optical gas imaging especially of SF6 and ammonia
The FLIR GF306 is an IR camera for optical gas imaging (OGI) that visualizes and pin-points gas leaks of SF6 and ammonia, without the need to de-energize high-voltage equipment or shut down the operation. The portable camera also greatly improves operator safety, by detecting emissions at a safe distance, and helps to protect the environment by tracing leaks of environmentally harmful gases.
SF6 is used in the electric power industry as an insulator and quenching medium for gas-insulated substations and circuit breakers. The gas is also used in magnesium production and semiconductor manufacture. Ammonia is produced in ammonia plants, and is used mainly for the production of fertilizers.
7.3.2 Benefits
- Improved efficiency: The FLIR GF306 reduces revenue loss by pinpointing even small gas leaks quickly and efficiently, and from a distance. It also reduces the inspection time by allowing a broad area to be scanned rapidly and without the need to de-ener-gize components in the high-voltage area. The wireless connectivity of the camera allows you to connect to smart phones or tablet PCs for the wireless transfer of images o remote control of the camera. The FLIR GF306 can also be used for temperature measurement, which makes it even more useful for predictive maintenance of high-voltage equipment.
- Increased worker safety: OGI allows gas leaks to be detected in a non-contact mode and from a safe distance. This prevents electrical exposure to personnel working in a high-voltage area. With a FLIR GF306 gas imaging camera it is easy to scan areas of interest that are difficult to reach with conventional methods. The camera is ergonomically designed, with a bright LCD and tiltable viewfinder, which facilitates its use over a full working day.
- Protecting the environment: SF6 is a well-known greenhouse gas that can cause harm to the environment, and is usually governed by regulations. SF6 has a global warming potential 24,000 times higher than CO2. Even small leaks can be detected and documented using the FLIR GF306 camera.
7.4 FLIR GF309
7.4.1 IR camera for furnace and high temperature inspection
The FLIR GF309 is an IR camera for the high-temperature measurement of industrial furnaces, chemical heaters, and coal-fired boilers, without the need to shut down the operation. The portable camera also greatly improves operator safety, by measuring through flames at a safe distance, for all types of furnaces. A good knowledge of the furnace condition can avert failures and unscheduled shutdowns
Industrial furnaces, heaters, and boilers are found in the chemical, petrochemical, and utility industries.
7.4.2 Benefits
- Improved efficiency: The FLIR GF309 reduces inspection time by measuring the temperature through flames without the need to interrupt the industrial process or await scheduled service shutdowns. A furnace camera can help you to determine how to run a furnace/boiler efficiently to give the best fuel economy and maximize production output and quality. As the FLIR GF309 has a wide temperature range, high-accuracy electrical and mechanical inspections can be performed, which makes the camera even more useful for predictive maintenance.
- The wireless connectivity of the camera allows you to connect to smart phones or tablet PCs for the wireless transfer of images or the remote control of the camera—a useful function if regulations require a second person to accompany the furnace inspector or thermal images needs to be sent quickly for a second opinion.
- Increased worker safety: High-temperature measurement can be performed through flames in a non-contact mode, and from a safe distance. Custom-built, the FLIR GF309 also features a detachable heat-shield designed to reflect heat away from the camera and the camera operator, providing increased protection. The camera is ergonomically designed with a bright LCD and tiltable viewfinder, which facilitates its use over a full working day.
- Increased furnace safety: Good knowledge of furnace/boiler condition and operating parameters can provide the information needed to avert catastrophic failures and prevent unscheduled shutdowns.
7.5 FLIR GF320
7.5.1 Optical gas imaging of methane and other volatile organic compounds (VOCs)
The FLIR GF320 is an IR camera for optical gas imaging (OGI) that visualizes and pin-points leaks of VOCs, without the need to shut down the operation. The portable camera also greatly improves operator safety, by detecting emissions at a safe distance, and helps to protect the environment by tracing leaks of environmentally harmful gases.
The FLIR GF320 is used in industrial settings such as oil refineries, natural gas processing plants, offshore platforms, chemical/petrochemical industries, and biogas and power generation plants.
7.5.2 Benefits
- Improved efficiency: The FLIR GF320 reduces revenue loss by pinpointing even small gas leaks quickly and efficiently, and from a distance. It also reduces the inspection time by allowing a broad area to be scanned rapidly and without the need to interrupt the industrial process. The wireless connectivity of the camera allows you to connect to smart phones or tablet PCs for the wireless transfer of images or remote control of the camera. The FLIR GF320 is also used for temperature measurement, which makes it even more useful for predictive maintenance.
- Increased worker safety: OGI allows gas leaks to be detected in a non-contact mode and from a safe distance. This reduces the risk of the inspector being exposed to invisible and potentially harmful or explosive chemicals. With a FLIR GF320 gas imaging camera it is easy to scan areas of interest that are difficult to reach with conventional methods. The camera is ergonomically designed, with a bright LCD and tiltable viewfinder, which facilitates its use over a full working day.
- Protecting the environment: Several VOCs are dangerous to human health or cause harm to the environment, and are usually governed by regulations. Even small leaks can be detected and documented using the FLIR GF320 camera.
7.6 FLIR GF335
The FLIR GF335 is a high-sensitivity, low-noise, cooled infrared camera for applications requiring a portable camera able to detect very subtle temperature differences. The high performance of the camera makes it perfect for the detection of faint heat signatures as well as for non-destructive testing and quality control applications.
7.6.1 Benefits
- High performance: The FLIR GF335 features a cooled 3–5 µm InSb detector that produces razor-sharp thermal images. Its high sensitivity of <15 mK and high accuracy of ±1°C (±1.8°F) or 1% allow the user to detect very subtle temperature differences with astounding clarity.
- Improved efficiency: The wireless connectivity of the FLIR GF335 allows connection to smart phones and tablets for the wireless transfer of images or the remote control of the camera—a useful function if a second person is required to accompany the inspector. The camera also features built-in radiometric video recording, and can store MPEG-4 thermal and/or standard video on an SD card. The camera has an integrated GPS and a digital camera, and is compatible with Flir Tools, Flir Reporter, and Flir Researcher software.
- Thought-through ergonomics for everyday use: The FLIR GF335 is ergonomically designed, with a bright LCD and tiltable viewfinder, which facilitates its use over a full working day. A multi-angle handle with integrated direct access buttons also improves the ergonomics.
7.7 FLIR GF343
7.7.1 The new FLIR GF343 is an optical gas camera for visualizing carbon dioxide (CO₂)
With this camera you can quickly and easily find gas leaks where the main component.
Key features:
- Visualizes gas leaks in real time.
- Inspects without interruption of process.
- Traces leaks to its source.
7.7.2 Main applications
Carbon capture and storage—stop the escalation of global warming:
- A global transition to sustainable low-carbon economy.
- A global energy demand still dominated by fossil fuels being combusted in quantities incompatible with levels required to stabilize greenhouse gases concentrations at safe levels in the atmosphere.
CO _2 (R744)—the new environmental friendly refrigerant:
• Air-conditioning for cars—replaces R134a.
- CO2 based heat pumps.
• Electrical power—replaces SF6 .
CO_2 —a harmless tracer gas:
- H_2S applications often use a large amount of CO
- Use CO_2 to trace leaks.
7.8 FLIR GF346
7.8.1 Optical gas imaging especially of carbon monoxide (CO) and other harmful gases
The FLIR GF346 is an IR camera for optical gas imaging (OGI) that visualizes and pin-points gas leaks of CO, without the need to shut down the operation. The portable camera also greatly improves operator safety, by detecting emissions at a safe distance, and helps to protect the environment by tracing leaks of environmentally harmful gases.
CO is an industrial gas with applications in the steel industry and bulk chemicals manufacturing. It is also used for packaging systems for fresh meat and fish.
7.8.2 Benefits
- Improved efficiency: The FLIR GF346 reduces revenue loss by pinpointing even small gas leaks quickly and efficiently, and from a distance. It also reduces the inspection time by allowing a broad area to be scanned rapidly and without the need to interrupt the industrial process. The wireless connectivity of the camera allows you to connect to smart phones or tablet PCs for the wireless transfer of images or remote control of the camera. The FLIR GF346 can also be used for temperature measurement, which makes it even more useful for predictive maintenance.
- Increased worker safety: CO can be toxic to humans when encountered in higher concentrations. OGI allows gas leaks to be detected in a non-contact mode and from a safe distance. This reduces the risk of the inspector being exposed to invisible and highly toxic gases or explosive chemicals. With a FLIR GF346 gas imaging camera it is easy to scan areas of interest that are difficult to reach with conventional methods. The camera is ergonomically designed, with a bright LCD and tiltable viewfinder, which facilitates its use over a full working day.
- Protecting the environment: Several gases, like CO, have a high global warming potential, and are usually governed by regulations. Even small leaks can be detected and documented using the FLIR GF346 camera.
Example images
8.1 General
This section contains example images from various applications.
Note Gas leaks are easier to see in live image mode, which is the reason the leaks are indicated with a red dot in the images below.
8.2 Images
Quick Start Guide
9.1 Detecting a temperature
CAUTION
In furnace and other high-temperature applications, you must mount the heatshield on the camera. Using the camera in furnace and other high-temperature applications without the heatshield can cause damage to the camera.
For instructions on how to mount the heatshield, see 16.12 Mounting the heatshield, page 54.
9.1.1 Procedure
Follow this procedure to get started right away:
- Charge the battery for four hours, or until the green battery condition LED glows continuously, before starting the camera for the first time.
Note Do this at room temperature, with the camera turned off.
-
Insert an SD Memory Card into a card slot
-
To turn on the camera, push the button.
Note When you turn on the camera, a mechanical cooler will begin cooling down the infrared detector. The cooler has a sound that resembles a subdued motor. This sound is normal. The cooling procedure will typically take 7 minutes for FLIR GF300, FLIR GF309, FLIR GF320, and 10 minutes for FLIR GF306. In high ambient temperatures the cooling times may increase 30% or more.
- Turn the mode wheel
- For furnace and other high-temperature applications, mount the heatshield on the camera. You must also enter the correct external optics transmission value of the heatshield into the camera. The external optics transmission value is printed on a label on the inside of the heatshield. You enter the external optics transmission value in the object parameters dialog on the Edit tab.
When you remove the heatshield you must reset the external optics transmission to 1.0.
- Push the temperature range button, then do the following:
6.1. Move the joystick up/down to choose a suitable temperature range for your object.
6.2. Push the temperature range button to confirm and leave the setup mode.
-
Aim the camera towards the object of interest.
-
Autofocus the camera by pushing the center of FOCUS | ZOOM button.
-
Push the button.
-
Move the joystick left/right to the Edit tab.
- Move the joystick up/down to Add spot.
- Push the joystick. A spotmeter is now displayed in the middle of the screen. The temperature is displayed in the result table in the top left corner of the screen.
-
To save an image directly, push and hold a button for more than one second.
-
To move the image to a computer, do one of the following:
-
Remove the SD Memory Card and insert it in a card reader connected to a computer.
-
Connect a computer to the camera using a USB mini-B cable.
-
Move the image from the card or camera, respectively, using a drag-and-drop operation.
9.1.2 Related topics
• 16.1.1 Charging the battery using the power supply cable, page 46
• 16.1.2 Charging the battery using the stand-alone battery charger, page 46
• 16.2.1 Installing the battery, page 47
• 15.4 Inserting SD Memory Cards, page 44
• 16.3 Turning on the camera, page 49
• 18.1 Laying out a measurement tool, page 64
• 17.1 Saving infrared images, page 60
9.2 Detecting a gas leak
9.2.1 Procedure
Follow this procedure to get started right away:
-
Charge the battery for four hours, or until the green battery condition LED glows continuously, before starting the camera for the first time.
Note Do this at room temperature, with the camera turned off. -
Insert an SD Memory Card into a card slot.
-
To turn on the camera, push the button.
Note When you turn on the camera, a mechanical cooler will begin cooling down the infrared detector. The cooler has a sound that resembles a subdued motor. This sound is normal. The cooling procedure will typically take 7 minutes for FLIR GF300, FLIR GF309, FLIR GF320, and 10 minutes for FLIR GF306. In high ambient temperatures the cooling times may increase 30% or more.
- Turn the mode wheel
- Push the temperature range button, then do the following:
5.1. Move the joystick up/down to choose a suitable temperature range for your object.
5.2. Push the temperature range button to confirm and leave the setup mode.
-
Aim the camera towards the target of interest.
-
Autofocus the camera by pushing the center of FOCUS | ZOOM button.
-
If there is a gas leak, and the gas is one of the gases that the camera can detect, you will now see the leak on the screen. The leak will resemble smoke plume emanating from the point of the leak.
-
To start recording a video clip, push 📄 button.
-
To stop recording a video clip, push a rebutton again.
-
To move the video clip to a computer, do one of the following:
-
Remove the SD Memory Card and insert it in a card reader connected to a computer.
-
Connect a computer to the camera using a USB mini-B cable.
-
Move the video clip from the card or camera, respectively, using a drag-and-drop operation.
9.2.2 Related topics
• 16.1.1 Charging the battery using the power supply cable, page 46
• 16.1.2 Charging the battery using the stand-alone battery charger, page 46
• 16.2.1 Installing the battery, page 47
• 15.4 Inserting SD Memory Cards, page 44
• 16.3 Turning on the camera, page 49
• 18.1 Laying out a measurement tool, page 64
• 17.1 Saving infrared images, page 60
• 20 Recording video clips, page 69
10
FLIR GF3xx series series general instrument check
The following general instrument check process ensures that the camera can detect the intended gas compounds with the same sensitivity as when originally manufactured.
- Make sure that the camera powers on.
- Make sure that the camera completes the cool-down process and produces a live infrared image.
- Make sure that the camera does not report any error messages on startup.
- Make sure that the camera focuses properly.
- Make sure that the camera is able to engage HSM mode.
11
A note about ergonomics
11.1 General
To prevent overstrain injuries, it is important that you hold the camera ergonomically correct. This section gives advice and examples on how to hold the camera.
Note Please note the following:
• Always tilt the viewfinder to fit your work position.
• Always adjust the viewing angle of the display to fit your work position.
• Always adjust the camera grip to fit your work position.
- When you hold the camera, make sure that you support the camera housing with your left hand too. This decreases the strain on your right hand.
11.2 Figure
11.3 Related topics
• 16.5 Adjusting the viewing angle of the viewfinder, page 49
• 16.7 Adjusting the camera grip, page 50
• 16.9 Adjusting the viewing angle of the display, page 52
Camera parts
12.1 View from the left
12.1.1 Figure
12.1.2 Explanation
-
Programmable button for one of the following functions:
-
Change the zoom factor.
- Hide/show graphics.
- Change the polarity.
- Change the palette.
You program the button in setup mode in the Preferences tab.
-
Temperature range button.
-
Mode wheel with the following modes:
-
Camera mode: Save images.
• Video mode: Record video clips and video sequences. - Archive mode: View saved images, video clips, and video sequences.
- Program mode: Set up periodical saving of images.
-
Setup mode: Change the general settings.
-
Laser button.
-
Button to go between infrared mode and digital camera mode.
12.2 View from the right
12.2.1 Figure
12.2.2 Explanation
- Camera handle.
- Laser pointer.
- Digital video camera.
-
Digital camera lamps. When you are in digital camera mode, you turn on the lamps by pushing the joystick.
-
S button (Preview/Save).
The S button has the following functions (not applicable to video clips and video sequences):
• To preview an image before saving it, push and release the button.
- To save an image directly, push and hold the button for more than 1 second.
The A/M button has the following functions:
- Push and release the button to change the image adjustment method between Auto, Manual, and HSM.
Note HSM mode does not apply to the FLIR GF309.
- Push and hold down the button for more than 1 second to calibrate the camera.
Note This is typically not needed during normal operating procedures.
- FOCUS | ZOOM button.
The FOCUS | ZOOM button has the following functions:
When an image is in live mode:
- To adjust the focus, push the button left/right.
• To autofocus, push the center of the FOCUS | ZOOM button.
When an image is in preview or saved mode:
• To adjust the zoom, push the FOCUS | ZOOM button left/right.
-
Hand strap.
-
Focus ring on the infrared lens.
-
Infrared lens.
-
Hand strap.
- Focus ring on the infrared lens.
- Infrared lens.
12.3 View from the rear
12.3.1 Figure
12.3.2 Explanation
- Viewfinder.
- Adjustment knob for the viewfinder's diopter correction.
- Cover for the connector compartment.
- Cover for the battery compartment.
- Release button for the battery compartment cover.
- USB-A connector for external USB devices.
-
Power LED indicator.
-
Ⓑ button (On/off).
The ① button has the following functions:
- When the camera is off, push and release to turn on the camera.
- When the camera is on, push and hold for more than 0.2 second to turn off the camera.
9. Joystick.
The joystick has the following functions:
-
To navigate in menus and dialog boxes, move the joystick up/down/left/right.
• To change values, move the joystick up/down/left/right.
• To select or confirm choices, push the joystick. -
button (Menu/Back).
12.4 Battery condition LED indicator
12.4.1 Figure
This table gives an explanation of the battery condition LED indicator:
| Type of signal Explanation | |
| The LED is red and glows continuously. The battery needs to be charged.. | |
| The LED is green and flashes. The battery is being charged. | |
| The LED is green and glows continuously. The battery is fully charged. | |
| The LED is off. | The power supply or the stand-alone battery charger is disconnected from the battery. |
12.5 Power LED indicator
12.5.1 Figure
This table gives an explanation of the power LED indicator:
| Type of signal Explanation | |
| The LED is off. The camera is off. | |
| The LED is green. The camera is on. |
12.6 Laser pointer
12.6.1 General
The camera has a laser pointer. When the laser pointer is on, you will see a laser dot approximately 80 mm (3.15") above the target.
12.6.2 Figure
This figure shows the difference in position between the laser pointer and the optical center of the infrared lens:
| WARNING |
| Do not look directly into the laser beam. The laser beam can cause eye irritation. |
Note The symbol is displayed on the screen when the laser pointer is on.
12.6.3 Laser warning label
A laser warning label with the following information is attached to the camera:
12.6.4 Laser rules and regulations
Wavelength: 635 nm. Maximum output power: 1 mW.
This product complies with 21 CFR 1040.10 and 1040.11 except for deviations pursuant to Laser Notice No. 50, dated June 24, 2007.
Screen elements
13.1 Mode selector
Note To select the mode, turn the mode when on the left side of the camera.
13.1.1 Figure
13.1.2 Explanation
- Camera mode.
- Video mode: Record video clips (*.mp4) and video sequences (*.seq).
- Archive mode: View saved images and video sequences.
- Program mode: Set up periodical saving of images.
- Setup mode: Change the general settings.
13.2 Result table and measurement tools
Note To access the measurement tools, push the button.
13.2.1 Figure
13.2.2 Explanation
- Status bar.
- Result table.
- Area (measurement tool).
- Spotmeter (measurement tool).
- Line (measurement tool).
-
Adjustment method indicator.
-
Temperature scale.
13.3 Toolbox, indicators, and other objects
13.3.1 Figure
13.3.2 Explanation
- Menu tab.
- Mode indicator.
- Menu tab name.
- Menu item.
-
Status indicators:
-
Time.
- Date.
- GPS indicator.
- USB indicator.
• Power indicator (battery or mains supply). - SD memory card indicator ("I" or "II"). The indicator also shows the amount of free space on the SD memory card. As a warning, the indicator will turn yellow and then red as the amount of free space decreases.
Achieving a good image
14.1 General
A good image depends on several different settings, although some settings affect the image more than other.
These are the settings you need to experiment with:
- Adjusting the infrared camera focus.
- Adjusting the image, using Auto, Manual, or HSM (= High Sensitivity Mode).
- Selecting a suitable temperature range.
- Selecting a suitable color palette.
- Enabling or disabling histogram mode.
- Enabling or disabling inverted color palette.
- Changing object parameters.
This section explains how to change these settings.
14.2 Adjusting the infrared camera focus manually
Note Do not touch the lens surface when you adjust the infrared camera focus manually. If this happens, clean the lens according to the instructions in 25.2 Infrared lens, page 229.
14.2.1 Figure
Do one of the following:
- For far focus, rotate the focus ring counter-clockwise (looking at the front of the lens)
- For near focus, rotate the focus ring clock-wise (looking at the front of the lens)
14.3 Adjusting the infrared camera focus
14.3.1 Figure
Follow this procedure to adjust the infrared camera focus:
-
Make sure that the image is in live mode.
-
To adjust the camera focus, push the FOCUS | ZOOM button left/right.
14.4 Adjusting an image
14.4.1 General
Depending on camera model, an image can be adjusted in several different ways.
14.4.2 Explanation of the adjustment methods
| Auto An adjustment | method that will automatically adjust the image for best brightness and contrast. |
| HSM HSM = High | Sensitivity Mode.An adjustment method that is specifically designed for gas detection applicationWorking in this mode, you can change the sensitivity to optimize the image qu |
| Manual An adjustment | method where you manually set the suitable temperature level and temperature span according to the temperature of the objects in the scene.For gas detection applications, this mode lets you center on the temperatures around the background of the gas, so as to make the gas appear more clearly |
14.4.3 Procedure (Auto)
Follow this procedure to adjust an image using the Auto method:
- Turn the mode wheel
- Push the A/M button to select Auto. The image will now be continuously adjusted for best image brightness and contrast.
14.4.4 Figure
This figure shows the HSM slider:
14.4.5 Procedure (HSM)
Follow this procedure to adjust an image using the HSM method:
- Turn the mode wheel
- Push the A/M button to select HSM. To change the sensitivity, move the joystick left/right.
You will need to experiment with this setting until you get a clear image of a verified gag leak.
14.4.6 Procedure (Manual)
Follow this procedure to adjust an image using the Manual method:
- Turn the mode wheel
-
Push the A/M button to select Manual, then do one of the following:
-
To change the temperature level, move the joystick up/down.
- To change the temperature span, move the joystick left/right.
14.5 Selecting a suitable temperature range
14.5.1 About temperature ranges
14.5.1.1 General
The camera has three different types of ranges. Within each type of range, there are several subranges. You must choose a suitable range for your object.
14.5.1.2 Types of temperature ranges
| Type | Name | Example Explanation | |
| 1 | Characteristic temperature range | -40^ to +350^ ( -40^ to +662^ ) | All temperatures the camera can register.This range is the total sum of the temperature ranges (type no. 2 below). |
| 2 Temperature range + | 0^ to +50^ ( +50^ | to +122^ ) | The span of temperatures that the camera can register with the current settings.This type of range is a subrange to type no. 1 above. |
| 3 Temperature span | +23.8^ to +25.9^ ( +74.8^ to +78.6^ ) | The range of temperatures that the camera registers when aimed at a particular scene with a particular temperature range set. |
14.5.2 Understanding the temperature scale
14.5.2.1 Figure
14.5.2.2 Explanation
- Currently set minimum temperature in the temperature span (= range of type 3 in the table 14.5.1.2 Types of temperature ranges, page 39).
- Currently set maximum temperature in the temperature span (= range of type 3 in the table 14.5.1.2 Types of temperature ranges, page 39).
- Currently set maximum temperature in the range that the camera can register with the current settings (= range of type 2 in the table 14.5.1.2 Types of temperature ranges, page 39).
- Indicator that represents the temperature range (= range of type 2 in the table 14.5.1.2 Types of temperature ranges, page 39).
-
Indicator that represents the temperature span (= range of type 3 in the table 14.5.1.2 Types of temperature ranges, page 39).
-
Currently set minimum temperature in the range that the camera can register with the current settings (= range of type 2 in the table 14.5.1.2 Types of temperature ranges, page 39).
14.5.3 Changing the temperature range
14.5.3.1 Procedure
Follow this procedure to change the temperature range:
- Do one of the following:
- Push the temperature range button on the left side of the camera.
- Push the button, then select Adjust temp. range.
- Move the joystick up/down to choose a suitable temperature range for your object.
- Push the temperature range button to confirm and leave the setup mode.
14.6 Selecting a suitable color palette
14.6.1 Procedure
- Turn the mode wheel
- Push the button to display a menu.
- Move the joystick left/right to go to the Image tab.
- Move the joystick up/down to go to select Color palette.
- Push the joystick to enable the list of palettes.
- Move the joystick up/down to select a new palette.
- Push the joystick.
- Push the button to leave the setup mode.
14.7 Enabling or disabling histogram mode
14.7.1 General
Histogram mode is an image-displaying method that evenly distributes the color information over the existing temperatures of the image.
14.7.2 Procedure
- Turn the mode wheel
- Push the button to display a menu.
- Move the joystick left/right to go to the Image tab.
- Move the joystick up/down to go to select Histogram.
- Push the joystick to enable/disable the setting.
- Push the button to leave the setup mode.
14.8 Enabling or disabling inverted color palette
14.8.1 Procedure
- Turn the mode wheel
- Push the button to display a menu.
- Move the joystick left/right to go to the Image tab.
- Move the joystick up/down to go to select Invert palette.
- Push the joystick to enable/disable the setting.
- Push the button to leave the setup mode.
14.9 Changing object parameters
14.9.1 General
For accurate measurements, you must set the object parameters. You can do this locally or globally. This procedure describes how to change the object parameters globally.
14.9.2 Types of parameters
The camera can use these object parameters:
- Emissivity, i.e., how much radiation an object emits, compared to the radiation of a theoretical reference object of the same temperature (called a “blackbody”). The opposite of emissivity is reflectivity. The emissivity determines how much of the radiation originates from the object as opposed to being reflected by it.
- Reflected apparent temperature, which is used when compensating for the radiation from the surroundings reflected by the object into the camera. This property of the object is called reflectivity.
- Object distance, i.e., the distance between the camera and the object of interest.
- Atmospheric temperature, i.e., the temperature of the air between the camera and the object of interest.
- Relative humidity, i.e., the relative humidity of the air between the camera and the object of interest.
- External optics temperature, i.e., the temperature of any protective windows etc. that are set up between the camera and the object of interest. If no protective window or protective shield is used, this value is irrelevant.
- External optics transmission, i.e., the optical transmission of any protective windows, etc. that are set up between the camera and the object of interest.
Note For furnace and other high-temperature applications, mount the heatshield on the camera. You must also enter the correct external optics transmission value of the heatshield into the camera. The external optics transmission value is printed on a label on the inside of the heatshield. You enter the external optics transmission value in the object parameters dialog on the Edit tab.
When you remove the heatshield you must reset the external optics transmission to 1.0.
14.9.3 Recommended values
If you are unsure about the values, the following values are recommended:
| Emissivity 0.95 | |
| Distance 1.0 m (3.3 ft.) | |
| Reflected apparent temperature | +20°C (+69°F) |
| Relative humidity 50% | |
| Atmospheric temperature | +20°C (+69°F) |
14.9.4 Procedure
Follow this procedure to change the object parameters globally:
- Turn the mode wheel to or
- Push the button to display a menu.
- Move the joystick left/right to go to the Edit tab.
- Move the joystick up/down to select Object parameters.
- Push the joystick to display a dialog box.
- Move the joystick up/down to select the parameter you want to change, then push the joystick.
- Move the joystick up/down to change the value, then push the joystick.
- Push the button to confirm and leave the setup mode.
Note
- Of the seven parameters above, emissivity and reflected apparent temperature are the two most important to set correctly in the camera.
- To change object parameters locally, first select a measurement tool in the toolbox, then select Use local parameters. Change the local parameters by selecting Edit local parameters, then edit them in the same way as for global object parameters.
14.9.5 Related topics
- For in-depth information about parameters, and how to correctly set emissivity and reflected apparent temperature, see 32 Thermographic measurement techniques.
Connecting external devices
15.1 General
You can connect the following external devices to the camera:
- A power supply.
- A video monitor or projector, connected using a HDMI cable.
- A computer to move images and other files to and from the camera.
- An external USB device, such as a USB keyboard, USB memory stick, USB-Bluetooth micro adapter (to connect to a headset), or a USB-WLAN micro adapter (to connect the camera to a remote control (P/N T197230)).
• One or two SD Memory Cards.
• One or two SDHC Memory cards.
15.2 Related topics
• 15.3 Connecting devices to the rear connectors, page 43
• 15.4 Inserting SD Memory Cards, page 44
15.3 Connecting devices to the rear connectors
15.3.1 Figure
15.3.2 Explanation
- To connect an external USB device to the camera, use a USB-A cable and this connector. You can also plug in a USB memory stick in this connector, or a USB-Bluetooth micro adapter. For WLAN connectivity to a remote control (P/N T197230), use a USB-WLAN micro adapter.
- To connect a computer to the camera to move images and files to and from the camera, use a USB mini-B cable and this connector. This connector is also used when pairing the camera to the remote control (P/N T197230).
- To play live video from the camera on an external video monitor using the HDMI protocol (High Definition Multimedia Interface), use a HDMI cable and this connector.
15.3.3 Figure
To connect the power supply to the camera, use the power supply cable and this connector. The power connector is protected by a rubber cover.
15.4 Inserting SD Memory Cards
15.4.1 Figure
15.4.2 Explanation
I. To insert an SD Memory Card (identified with Roman numeral 'I' in the camera program), use this card slot.
Note The connectors on the card shall face up when inserting the card.
II. To insert an SD Memory Card (identified with Roman numeral 'II' in the camera program), use this card slot.
Note The connectors on the card shall face down when inserting the card.
15.4.3 Formatting memory cards
For best performance, memory cards should be formatted to the FAT (FAT16) file system. Using FAT32-formatted memory cards may result in inferior performance. To format a memory card to FAT (FAT16), follow this procedure:
- Insert the memory card into a card reader that is connected to a computer running Microsoft Windows.
- In Windows Explorer, select My Computer and right-click the memory card.
- Select Format.
- Under File system, select FAT.
- Click Start.
Note
- SDHC memory cards that are 4 GB or larger can only be formatted to the FAT32 file system.
16.1 Charging the camera battery
16.1.1 Charging the battery using the power supply cable
Note
- You must charge the battery for four hours before starting the camera the first time. After that, you must charge the battery whenever a warning message for low battery power is displayed on the screen.
- The battery has a battery condition LED indicator. When the green LED glows continuously, the battery is fully charged.
- Charge the battery at room temperature. If you charge the battery when it is inside the camera, the camera should be turned off. Charging the battery when it is inside the camera will not result in a fully charged battery.
16.1.1.1 Procedure
Follow this procedure to charge the battery using the power supply cable:
- Connect the power supply cable plug to the connector on the battery.
- Connect the power supply wall plug to a mains supply.
- When the green LED of the battery condition indicator glows continuously, disconnect the power supply cable.
16.1.1.2 Related topics
- For information about the battery condition LED indicator, see 12.4 Battery condition LED indicator, page 32.
- For information on how to install and remove the battery, see 16.2.1 Installing the battery, page 47 and 16.2.2 Removing the battery, page 48.
16.1.2 Charging the battery using the stand-alone battery charger
Note
- You must charge the battery for 4 hours before starting the camera for the first time. After that, you must charge the battery whenever a warning message for low battery power is displayed on the screen.
- The battery has a battery condition LED indicator. When the green LED glows continuously, the battery is fully charged.
- Charge the battery at room temperature.
16.1.2.1 Procedure
Follow this procedure to charge the battery using the stand-alone battery charger:
- Put the battery in the stand-alone battery charger.
- Connect the power supply cable plug to the connector on the stand-alone battery charger.
- Connect the power supply wall plug to a mains supply.
- When the green LED of the battery condition indicator glows continuously, disconnect the power supply cable.
16.1.2.2 Related topics
- For information about the battery condition LED indicator, see 12.4 Battery condition LED indicator, page 32.
- For information on how to install and remove the battery, see 16.2.1 Installing the battery, page 47 and 16.2.2 Removing the battery, page 48.
16.2 Installing and removing the camera battery
16.2.1 Installing the battery
Note Use a clean, dry cloth to remove any water or moisture on the battery before you install it.
16.2.1.1 Procedure
Follow this procedure to install the battery:
- Push the release button for the battery compartment upwards.
16.2.2.1 Procedure
Follow this procedure to remove the battery:
- Push the release button for the battery compartment upwards.
Note In this image, the thumb obscures the actual release lever. The mechanism to the right of the thumb is the locking mechanism for the battery compartment.
16.3.1 Procedure
To turn on the camera, push and release a button.
Note When you turn on the camera, a mechanical cooler will begin cooling down the infrared detector. The cooler has a sound that resembles a subdued motor. This sound is normal. The cooling procedure will typically take 7 minutes for FLIR GF300, FLIR GF309, FLIR GF320, and 10 minutes for FLIR GF306. In high ambient temperatures the cooling times may increase 30% or more.
16.4 Turning off the camera
16.4.1 Procedure
To turn off the camera, push and hold ⏻ button for more than 0.2 seconds.
16.5 Adjusting the viewing angle of the viewfinder
16.5.1 General
To make your working position as comfortable as possible, you can adjust the viewing angle of the viewfinder.
16.5.2 Figure
To adjust the viewfinder, tilt the viewfinder up or down.
16.6 Adjusting the viewfinder's dioptric correction
16.6.1 General
The viewfinder's dioptric correction can be adjusted for your eyesight.
16.6.2 Figure
To adjust the viewfinder's dioptric correction, look at the displayed text or graphics on the screen and rotate the adjustment knob clockwise or counter-clockwise for best sharpness.
Note
• Maximum dioptric correction: +2
• Minimum dioptric correction: -2
16.7 Adjusting the camera grip
16.7.1 General
To make your working position as comfortable as possible, you can adjust the angle of the camera grip.
16.7.2 Figure
To adjust the camera grip, rotate the camera grip clockwise or counter-clockwise.
16.8 Opening the display
16.8.1 Figure
16.9.1 General
To make your working position as comfortable as possible, you can adjust the viewing angle of the display.
16.9.2 Figure
To adjust the viewing angle of the display, rotate the display clockwise or counterclockwise.
16.10 Installing an infrared lens
Note
- Do not touch the lens surface when you install an infrared lens. If this happens, clean the lens according to the instructions in 25.2 Infrared lens, page 229.
- Depending on license and export procedures, lenses may be permanently fixed to cameras shipped to customers outside United States. Interchangeable lenses fall under U.S. Department of State jurisdiction.
16.10.1 Procedure
Follow this procedure to install an infrared lens:
- Align the index mark on the lens with the index mark on the bayonet ring.
Note
- Do not touch the lens surface when you remove an infrared lens. If this happens, clean the lens according to the instructions in 25.2 Infrared lens, page 229.
- When you have removed the lens, put the lens caps on the lens to protect it from dust and fingerprints.
- Depending on license and export procedures, lenses may be permanently fixed to cameras shipped to customers outside United States. Interchangeable lenses fall under U.S. Department of State jurisdiction.
16.11.1 Procedure
Follow this procedure to remove an infrared lens:
- Push the release button for the infrared lens forward.
16.12.1 General
In furnace and other high-temperature applications, you must mount the heatshield on the camera.
You must also enter the correct external optics transmission value of the heatshield into the camera. The external optics transmission value is printed on a label on the inside of the heatshield. You enter the external optics transmission value in the object parameters dialog on the Edit tab.
CAUTION
Using the camera in furnace and other high-temperature applications without the heatshield can cause damage to the camera.
16.12.2 Procedure
Follow this procedure to mount a heatshield:
- Remove the two nuts from the heatshield.
16.13 Adjusting the infrared camera focus manually
Note Do not touch the lens surface when you adjust the infrared camera focus manually. If this happens, clean the lens according to the instructions in 25.2 Infrared lens, page 229.
16.13.1 Figure
Do one of the following:
- For far focus, rotate the focus ring counter-clockwise (looking at the front of the lens)
- For near focus, rotate the focus ring clock-wise (looking at the front of the lens)
16.14 Adjusting the infrared camera focus
16.14.1 Figure
Follow this procedure to adjust the infrared camera focus:
- Make sure that the image is in live mode.
- To adjust the camera focus, push the FOCUS | ZOOM button left/right.
16.15 Autofocusing the infrared camera and the digital camera
16.15.1 Figure
Follow this procedure to autofocus the infrared camera and the digital camera:
- Make sure that the image is in live mode.
- To autofocus, push the center of the FOCUS | ZOOM button.
16.16 Operating the laser pointer
16.16.1 Figure
Follow this procedure to operate the laser pointer:
- To turn on the laser pointer, push and hold the laser button.
- To turn off the laser pointer, release the laser button.
WARNING
Do not look directly into the laser beam. The laser beam can cause eye irritation.
Note The symbol is displayed on the screen when the laser pointer is on.
16.16.3 Laser warning label
A laser warning label with the following information is attached to the camera:
16.17 Using the zoom function
16.17.1 General
You can zoom in on infrared images in preview or recall mode. This enables you to view details in an image.
16.17.2 Procedure
Do one of the following:
- To zoom into a live image, choose Zoom on the second tab in the menu system, then use the joystick.
- To zoom into a image in recall mode, push FOCUS | ZOOM button left/right.
Working with views and images
17.1 Saving infrared images
17.1.1 General
You can save one or more images to an SD Memory Card.
17.1.2 Image capacity
The approximate number of images that can be saved on an SD Memory Card is 2,000 per GB.
17.1.3 Saving an infrared image directly to an SD Memory Card
17.1.3.1 General
You can save an image directly to an SD Memory Card, without previewing the image first.
17.1.3.2 Procedure
Follow this procedure to save an image directly to an SD Memory Card:
- Turn the mode wheel
- To save an image without previewing, push and hold a button for more than one second.
17.1.4 Previewing and saving an infrared image to an SD Memory Card
17.1.4.1 General
You can preview an image before you save it to an SD Memory Card. This lets you do or or more of the following tasks before you save the image:
- Edit measurements.
- Adjust the image.
- Add a digital photo.
- Delete an image.
17.1.4.2 Procedure
Follow this procedure to preview and save an image to an SD Memory Card:
- Turn the mode wheel
-
Push and release the S button. This will display a preview dialog box.
-
You can now do one or more of the following tasks before you save the image. Move the joystick to go to a task and push the joystick to select the task.
-
Select to edit measurement tools.
- Select + to adjust the image.
- Select 📄 to add a digital photo to the image. You turn on the digital camera lamps by pushing the joystick. Push 🎨 button to take a digital photo.
- Select to delete the image.
- Select H to save the image.
17.2 Opening an image
17.2.1 General
When you save an image, you store the image on an SD Memory Card. To display the image again, you can open it from the SD Memory Card.
17.2.2 Procedure
Follow this procedure to open an image:
- Turn the mode wheel to enter archive mode. This displays the archive overview or an image at full size.
-
In the archive overview, you can do the following:
-
Move the joystick up/down/left/right to select the image you want to view.
-
Push the joystick. This displays the selected image at full size.
-
When an image is displayed at full size, you can do the following:
-
Push the joystick or the button to edit the measurements, adjust the image, or delete the image. This displays a menu.
- Move the joystick left/right to view the previous/next image.
-
Move the joystick up to return to the archive overview.
-
To leave the archive mode, turn the mode wheel and select another mode.
17.3 Changing settings related to image presentation
17.3.1 General
In live mode, you can enable/disable a variety of settings relating to image presentation. These settings include:
- Zoom, i.e., zoom into or out of images.
- Hide/show graphics, i.e. hide or show the on-screen graphics.
-
Change the color palette, i.e. the colors that are used to display the temperatures in the infrared image.
-
Invert polarity, i.e. change the image polarity from white = hot to black = hot.
- Histogram equalization, i.e., an image-displaying method that evenly distributes the color information over the existing temperatures of the image.
Note In preview and archive mode, you can do the following related to image presentation:
ZOOM
- Push the ZOOM button left/right to zoom into or out of the image.
- Depending on the function you have assigned to the programmable button, you can hide/show graphics, change the polarity, or change the palette. For more information, see section, page.
17.3.2 Procedure
- Turn the mode wheel
-
Push the button to display a menu.
-
Move the joystick left/right to go to the Image tab.
- Move the joystick up/down to go to select the setting that you want to change.
- Push the joystick to enable/disable the setting.
(If you select Zoom you can change the zoom factor by moving the joystick up/down.)
- Push the button to leave the setup mode.
17.4 Editing a saved image
17.4.1 General
You can edit a saved image. You can do one or more of the following tasks:
- Edit measurements.
- Adjust the image.
- Delete the image.
17.4.2 Procedure
Follow this procedure:
- Open the image at full size in the archive. For more information, see section 17.2 Opening an image, page 61.
- Push the joystick or the 📋. This displays a menu.
-
You can now do one or more of the following tasks. Move the joystick to go to a task and push the joystick to select the task.
-
Select to edit measurement tools.
- Select + to adjust the image.
Note You can only adjust an image that has been saved in Auto or Manual mode. An image saved in HSM mode cannot be adjusted. For more information, see section 14.4 Adjusting an image, page 37.
- Select to delete the image.
- Select to save any changes and exit edit mode.
17.5 Deleting a file
17.5.1 Procedure
Follow this procedure to delete an image file, a video clip, or a video sequence:
- Turn the mode wheel to enter archive mode. This displays the archive overview or an image at full size.
- If an image is displayed at full size, move the joystick up to go to the archive overview.
-
Move the joystick up/down/left/right to select the image you want to delete.
-
Push the button to display a menu.
-
Move the joystick up/down to select one of the following:
-
Delete
-
Delete all
-
Push the joystick.
-
Confirm the deletion and push the joystick.
Working with measurement tools
18.1 Laying out a measurement tool
18.1.1 General
To measure a temperature, you use one or several measurement tools, such as a spot-meter, a box, etc.
18.1.2 Procedure
Follow this procedure to lay out measurement tool:
- Turn the mode wheel to or
- Push the button to display a menu.
- Move the joystick left/right to go to the Edit tab.
- Move the joystick up/down to select the measurement tool you want to lay out.
- Push the joystick. The measurement tool has now been created on the screen.
18.2 Moving or resizing a measurement tool
18.2.1 General
You can move and resize a measurement tool.
18.2.2 Procedure
Note This procedure assumes that you have previously laid out a measurement tool on the screen.
Follow this procedure to move or resize a measurement tool:
- Turn the mode wheel to or
- Push the button to display a menu.
- Move the joystick left/right to go to the Edit tab.
- Move the joystick up/down to select the measurement tool that you want to move or resize.
- Push the joystick to display a menu.
- Move the joystick up/down to select Move or Resize.
- Move the joystick up/down and left/right to move or resize the measurement tool.
- Push the joystick to confirm.
- Push the button to leave the setup mode.
18.3 Creating & setting up a difference calculation
18.3.1 General
A difference calculation returns the difference between the values of two known measurement results, or between the value of a measurement result and the reference temperature.
18.3.2 Procedure
Note This procedure assumes that you have previously laid out at least two measurement tools on the screen.
Follow this procedure to create and set up a difference calculation:
- Turn the mode wheel
-
Push the button to display a menu.
-
Move the joystick left/right to go to the Edit tab.
-
Move the joystick up/down to select Add difference.
-
Push the joystick to display a dialog box.
-
Do the following and push the joystick to confirm each choice:
6.1. To select the first function in the difference calculation, select Function 1 and push the joystick. Move the joystick up/down to select the measurement tool you want to use for this function.
6.2. (Not applicable if there is only one measurement tool.) To select the ID of the measurement tool, select Id and push the joystick. Move the joystick up/down to select the ID.
6.3. (Not applicable to spotmeter and reference temperature.) To select the result type of the measurement tool (Min., Max., Avg.), select Type and push the joystick. Move the joystick up/down to select the result type of the measurement tool.
- Do the following and push the joystick to confirm each choice:
7.1. To select the second function in the difference calculation, select Function 2 and push the joystick. Move the joystick up/down to select the measurement tool you want to use for this function.
7.2. (Not applicable if there is only one measurement tool.) To select the ID of the measurement tool, select Id and push the joystick. Move the joystick up/down to select the ID.
7.3. (Not applicable to spotmeter.) To select the result type of the measurement tool (Min., Max., Avg.), select Type and push the joystick. Move the joystick up/down to select the result type of the measurement tool.
- Push the button to confirm and leave the setup mode.
18.4 Changing object parameters
18.4.1 General
For accurate measurements, you must set the object parameters. You can do this locally or globally. This procedure describes how to change the object parameters globally.
18.4.2 Types of parameters
The camera can use these object parameters:
- Emissivity, i.e., how much radiation an object emits, compared to the radiation of a theoretical reference object of the same temperature (called a "blackbody"). The opposite of emissivity is reflectivity. The emissivity determines how much of the radiation originates from the object as opposed to being reflected by it.
- Reflected apparent temperature, which is used when compensating for the radiation from the surroundings reflected by the object into the camera. This property of the object is called reflectivity.
- Object distance, i.e., the distance between the camera and the object of interest.
- Atmospheric temperature, i.e., the temperature of the air between the camera and the object of interest.
- Relative humidity, i.e., the relative humidity of the air between the camera and the object of interest.
- External optics temperature, i.e., the temperature of any protective windows etc. that are set up between the camera and the object of interest. If no protective window or protective shield is used, this value is irrelevant.
- External optics transmission, i.e., the optical transmission of any protective windows, etc. that are set up between the camera and the object of interest.
Note For furnace and other high-temperature applications, mount the heatshield on the camera. You must also enter the correct external optics transmission value of the heatshield into the camera. The external optics transmission value is printed on a label on the inside of the heatshield. You enter the external optics transmission value in the object parameters dialog on the Edit tab.
When you remove the heatshield you must reset the external optics transmission to 1.0.
18.4.3 Recommended values
If you are unsure about the values, the following values are recommended:
| Emissivity 0.95 | |
| Distance 1.0 m (3.3 ft.) | |
| Reflected apparent temperature | +20°C (+69°F) |
| Relative humidity 50% | |
| Atmospheric temperature | +20°C (+69°F) |
18.4.4 Procedure
Follow this procedure to change the object parameters globally:
-
Turn the mode wheel to or
-
Push the button to display a menu.
-
Move the joystick left/right to go to the Edit tab.
-
Move the joystick up/down to select Object parameters.
-
Push the joystick to display a dialog box.
-
Move the joystick up/down to select the parameter you want to change, then push the joystick.
-
Move the joystick up/down to change the value, then push the joystick.
-
Push the button to confirm and leave the setup mode.
Note
- Of the seven parameters above, emissivity and reflected apparent temperature are the two most important to set correctly in the camera.
- To change object parameters locally, first select a measurement tool in the toolbox, then select Use local parameters. Change the local parameters by selecting Edit local parameters, then edit them in the same way as for global object parameters.
18.4.5 Related topics
- For in-depth information about parameters, and how to correctly set emissivity and reflected apparent temperature, see 32 Thermographic measurement techniques.
Programming the camera
19.1 General
You can program the camera to save images periodically.
19.2 Procedure
Follow this procedure to make the camera save images periodically:
- Turn the mode wheel to . This will display the following dialog box:
-
Move the joystick up/down to select Setup.
-
Push the joystick. This will display the following dialog box:
-
Push the joystick.
-
Use the joystick to set the following:
-
The type of images to save (IR image, Digital photo, IR and digital).
- The time period between which the camera will save an image (hours, minutes, seconds).
• The stop condition (timer, counter, manual) -
The timer or counter settings, if you selected one of these as stop condition.
-
Push the button.
-
Move the joystick up/down to select Start.
- Push the joystick to start the periodic saving.
Recording video clips
20.1 General
You can record infrared or visual video clips (*.mp4), as well as radiometric video sequence files (*.seq). In this mode, the camera can be regarded as an ordinary digital video camera. The video clips can be edited and played back in FLIR VideoReport.
*.seq video clips can also be handled and edited in FLIR Reporter.
20.2 Procedure
- Turn the mode wheel
-
Push the S button. The recording has now begun. A timer in the top right corner of the screen displays the elapsed recording time.
-
To stop the recording, push the button. This will display a preview dialog box.
-
You can now do one or more of the following tasks before you save the video clip.
-
Select to add a digital photo to the video clip. You turn on the digital camera lamps by pushing the joystick. Push button to take a digital photo.
- Select ▶ to play the video clip.
- Select to stop the playback of the video clip. This will also reset the playback counter to the beginning of the video clip.
- Select □ to pause/resume the playback of the video clip.
- Select to discard the video clip.
- Select H to keep the video clip.
21.1 General
You can change a variety of settings for the camera:
- Regional settings, such as language, date, time, etc.
- Camera settings, such as digital camera color, display intensity, etc.
- Preferences, such as user-configurable buttons, image overlay information, text size, etc. Here you can also set the camera to stamp the temperature scale into the image.
- Camera information, such as serial number, part number, used and free memory, etc. No changes are possible here, only presentation of information.
21.2 Procedure
Follow this procedure to change settings:
- Turn the mode wheel to enter setup mode.
- Move the joystick left/right to go to the desired tab.
- Move the joystick up/down to select the desired menu item.
- Push the joystick. This will highlight a setting (or display a submenu, depending on the context).
- Move the joystick up/down to change the setting.
-
Push the joystick to confirm the choice.
-
(To close a submenu, push the button.)
-
To leave the setup mode, turn the mode wheel and select another mode.
21.3 Connecting the camera using a peer-to-peer (ad hoc) WLAN network
21.3.1 General
You can set up a peer-to-peer (ad hoc) WLAN network in order to let other devices connect to the camera.
Note
- This procedure shall be used when connecting the camera to Apple iPhone and iPad apps that are developed by FLIR Systems.
- The command Wi-Fi settings will only be available when a WLAN SD-Card, a USB-WLAN micro adapter, or a USB Wi-Fi micro adapter is inserted into the camera.
21.3.2 Procedure
Follow this procedure:
-
Insert a USB Wi-Fi micro adapter into the camera.
-
Turn on the camera.
-
Turn the mode wheel
-
In the toolbox, select Camera.
-
Under Wi-Fi, change the setting to Connect to device.
-
Under Wi-Fi settings, take note of the SSID parameter. This is the unique identifier of the network and will be displayed in the list of available devices when you have set up the other device for WLAN communication.
- Set up your other device for WLAN communication and select the camera (i.e., its SSID name).
21.3.3 Related topics
For locations of camera buttons, see 12 Camera parts, page 29.
21.4 Connecting the camera using a infrastructure WLAN network
21.4.1 General
You can set up a infrastructure WLAN network in order to communicate with other devices.
Note
- This procedure shall be used when connecting the camera to Android apps that are developed by FLIR Systems.
- Android phones and tablets can also be set up as Wi-Fi hotspots, to which you can connect the camera in the same way as you connect to a WLAN. Refer to the user documentation for your Android phone/tablet for more information.
- The command Wi-Fi settings will only be available when a WLAN SD-Card, a USB-WLAN micro adapter, or a USB Wi-Fi micro adapter is inserted into the camera.
21.4.2 Procedure
Follow this procedure:
- Insert a USB Wi-Fi micro adapter into the camera.
-
Turn on the camera.
-
Turn the mode wheel
- In the toolbox, select Camera.
- Under Wi-Fi, change the setting to Connect to WLAN.
- Under Wi-Fi settings, select the network that you want to connect to.
- Set up your other device to connect to the WLAN network and select the camera (i.e., its SSID name).
21.4.3 Related topics
For locations of camera buttons, see 12 Camera parts.
21.5 Changing Wi-Fi settings
21.5.1 General
If you experience transmission or interference problems, you may need to change the Wi-Fi settings in the camera.
21.5.2 Procedure
Follow this procedure to change Wi-Fi settings:
- Turn the mode wheel
- In the toolbox, select Camera.
- Select Wi-Fi settings and push the joystick.
- To select a different channel, use the joystick. Push the joystick to confirm each choice. You can use channels 1 to 11. However, since the channels overlap, only channels 1, 6, and 11 are normally used.
- In the other device, refresh the list of devices and try to connect to the camera again
- To confirm and leave the dialog box, push button.
Note The command Wi-Fi settings will only be available when a WLAN SD-Card, a USB-WLAN micro adapter, or a USB Wi-Fi micro adapter is inserted into the camera.
21.5.3 Related topics
For locations of camera buttons, see 12 Camera parts.
Table of contents
22.1 Online field-of-view calculator.... 73
22.2 Note about technical data.... 73
22.3 Note about authoritative versions.... 74
22.4 FLIR GF300 14.5° 75
22.5 FLIR GF300 14.5° Fixed lens 80
22.6 FLIR GF300 24° 85
22.7 FLIR GF300 24° Fixed lens 90
22.8 FLIR GF304 14.5° 95
22.9 FLIR GF304 14.5° Fixed lens 101
22.10 FLIR GF304 24° 106
22.11 FLIR GF304 24° Fixed lens 112
22.12 FLIR GF306 14.5°.... 117
22.13 FLIR GF306 14.5° Fixed lens 123
22.14 FLIR GF306 24° 129
22.15 FLIR GF306 24° Fixed lens 135
22.16 FLIR GF309 14.5°.... 141
22.17 FLIR GF309 14.5° Fixed lens 147
22.18 FLIR GF309 24° 152
22.19 FLIR GF309 24° Fixed lens 158
22.20 FLIR GF320 14.5° 163
22.21 FLIR GF320 14.5° Fixed lens 169
22.22 FLIR GF320 24° 175
22.23 FLIR GF320 24° Fixed lens 181
22.24 FLIR GF335 24° 187
22.25 FLIR GF343 24° Fixed lens 192
22.26 FLIR GF346 14.5°.... 197
22.27 FLIR GF346 14.5° Fixed lens 203
22.28 FLIR GF346 24° 209
22.29 FLIR GF346 24° Fixed lens 215
22.1 Online field-of-view calculator
Please visit http://support.flir.com and click the photo of the camera series for field-of-view tables for all lens-camera combinations.
22.2 Note about technical data
FLIR Systems reserves the right to change specifications at any time without prior notice. Please check http://support.flir.com for latest changes.
22.3 Note about authoritative versions
The authoritative version of this publication is English. In the event of divergences due to translation errors, the English text has precedence.
Any late changes are first implemented in English.
22.4 FLIR GF300 14.5°
P/N: 44401-0201
Rev.: 45202
| General description | |
| The FLIR GF300 is an infrared camera for optical gas imaging (OGI) that visualizes and pinpoints leaks of methane and other volatile organic compounds (VOCs), without the need to shut down the operation. The portable camera also greatly improves operator safety, by detecting emissions at a safe distance, and helps to protect the environment by tracing leaks of environmentally harmful gases.The FLIR GF300 is used in industrial settings such as oil refineries, natural gas processing plants, offshore platforms, chemical/petrochemical industries, and biogas and power generation plants. | |
| Benefits: | |
| Improved efficiency: The FLIR GF300 reduces revenue loss by pinpointing even small gas leaks quickly and efficiently, and from a distance. It also reduces the inspection time by allowing a broad area to be scanned rapidly and without the need to interrupt the industrial process.Increased worker safety: OGI allows gas leaks to be detected in a non-contact mode and from a safe distance. This reduces the risk of the user being exposed to invisible and potentially harmful or explosive chemicals. With a FLIR GF300 gas imaging camera it is easy to scan areas of interest that are difficult to reach with conventional methods. The camera is ergonomically designed, with a bright LCD and tiltable viewfinder, which facilitates its use over a full working day.Protecting the environment: Several VOCs are dangerous to human health or cause harm to the environment, and are usually governed by regulations. Even small leaks can be detected and documented using the FLIR GF300 camera. | |
| Detects the following gases: benzene, ethanol, ethylbenzene, heptane, hexane, isoprene, methanol, MEK, MIBK, octane, pentane, 1-pentene, toluene, xylene, butane, ethane, methane, propane, ethylene, propylene. | |
| Licensing and classification | |
| License information Interchangeable lens version | of the FLIR GF3XXseries requires US Department of State License and will be subject to limitations on resale, except inside US. Allow a minimum of 90 days after application submittal for approval. |
| Imaging and optical data | |
| IR resolution 320 × 240 pixels | |
| Thermal sensitivity/NETD <15 mK @ +30°C (+86°F) | |
| Field of view (FOV) | 14.5° × 10.8° |
| Minimum focus distance 0.5 m (1.64 ft.) | |
| Focal length 38 mm (1.49 in.) | |
| Lens identification Automatic | |
| F-number 1.5 | |
| Focus | Automatic (one touch) or manual (electric or on the lens) |
| Zoom | 1-8x continuous, digital zoom |
| Digital image enhancement | Noise reduction filter, high sensitivity mode (HSM) |
| Detector data | |
| Detector type | Focal plane array (FPA), cooled InSb |
| Spectral range | 3.2-3.4 μm |
| Detector data | |
| Detector pitch 30 μm | |
| Sensor cooling Stirling Microcooler (FLIR MC-3) | |
| Detects following gases Benzene, Ethanol, Ethylbenzene, Heptane, Hexane, Isoprene, Methanol, MEK, MIBK, Octane, Pentane, 1-Pentene, Toluene, Xylene, Butane, Ethane, Methane, Propane, Ethylene, Propylene | |
| Electronics and data rate | |
| Full frame rate 60 Hz | |
| Image presentation | |
| Display Built-in widescreen, 4.3 in. LCD, 800 × 480 pixels | |
| Viewfinder Built-in, tiltable OLED, 800 × 480 pixels | |
| Automatic image adjustment Continuous/manual; linear or histogram based | |
| Manual image adjustment Level/span | |
| Image presentation modes | |
| Image modes IR image, visual image, high sensitivity mode (HSM) | |
| Measurement | |
| Temperature range -20°C to +350°C (-4°F to +62°F) | |
| Set-up | |
| Menu commands | Level, spanAuto adjust continuous/manual/semi-automaticZoomPaletteStart/stop recordingStore imagePlayback/recall image |
| Color palettes Iron, Gray, Rainbow, Arctic, Lava, Rainbow HC | |
| Set-up commands | 1 programmable button, overlay recording mode, local adaptation of units, language, date and time formats |
| Storage of images | |
| Storage media | Removable SD or SDHC memory card, two caslots |
| Image storage capacity | >1200 images (JPEG) with post process capab per GB on memory card |
| Image storage mode | IR/visual imagesVisual image can automatically be associated with corresponding IR image |
| Periodic image storage | Every 10 seconds up to 24 hours |
| File formats | Standard JPEG, 14 bit measurement data included |
| Geographic Information System | |
| GPS | Location data automatically added to every image from built-in GPS |
| Video recording in camera | |
| Radiometric IR video recording *.seq video clips | to memory card (7.5 and 15 Hz). |
| Non-radiometric IR video recording | MPEG4 (up to 60 minutes/clip) to memory card. Visual image can automatically be associated with corresponding recording of non-radiometric IR video. |
| Visual video recording | MPEG4 (25 minutes/clip) to memory card |
| Video streaming | |
| Radiometric IR video streaming | Full dynamic to PC using USB cable or to mobile devices using Wi-Fi. PC software capable of displaying the video stream include the following:FLIR IR Camera PlayerFLIR ResearchIRFLIR Tools |
| Non-radiometric IR video streaming RTP/MPEG4 | |
| Digital camera | |
| Built-in digital camera 3.2 Mpixels, auto focus, and two video lamps | |
| Laser pointer | |
| Laser Activated by dedicated button | |
| Laser classification Class 2 | |
| Laser type Semiconductor AlGaInP diode laser, 1 | mW, 635nm (red) |
| USB | |
| USB | USB-A: Connect external USB deviceUSB Mini-B: Data transfer to and from PC |
| USB, standard USB Mini-B: 2.0 high speed | |
| Composite video | |
| Video out Digital video output (image) | |
| Power system | |
| Battery type | Rechargeable Li ion battery |
| Battery voltage | 7.2 V |
| Battery capacity | 4.4 Ah |
| Battery operating time | >3 hours at 25°C (+77°F) and typical use |
| Charging system | In camera (AC adapter or 12 V from a vehicle) bay charger |
| Charging time | 2.5 h to 95% capacity, charging status indicated LED's |
| External power operation | AC adapter 90-260 VAC, 50/60 Hz or 12 V from vehicle (cable with standard plug, optional) |
| DC operation | 10.8 to 16 V DC, polarity protected (proprietary protected) |
| Power system | |
| Power 8.5 W typically | |
| Start-up time Typically 7 min. @ 25°C (+77°F) | |
| Environmental data | |
| Operating temperature range -20°C to +50°C (-4°F to +122°F) | |
| Storage temperature range -30°C to +60°C (-22°F to +140°F) | |
| Humidity (operating and storage) IEC 68-2-30/24 | h 95% relative humidity +25°C to +40°C (+77°F to +104°F) (2 cycles) |
| Directives | 73/23EEC2004/108/EC2002/95/EC2002/96/EC |
| EMC | EN61000-6-4 (Emission)EN61000-6-2 (Immunity)FCC 47 CFR Part 15 class A (Emission)EN 61 000-4-8, L5 |
| Encapsulation IP 54 (IEC 60529) | |
| Shock 25 g (IEC 60068-2-27) | |
| Vibration 2 g (IEC 60068-2-6) | |
| Safety Power supply: EN/UL/IEC 60950-1 | |
| Physical data | |
| Camera weight, excl. lens and battery 1.94 kg (4.27 lb.) | |
| Camera weight, incl. lens and excl. battery 2.24 kg (4.94 lb.) | |
| Camera weight, incl. lens and battery | 2.48 kg (5.47 lb.) |
| Battery weight 0.24 kg (0.52 lb.) | |
| Camera size, excl. lens (L × W × H) | 284 × 169 × 161 mm (11.2 × 6.7 × 6.3 in.) |
| Cameras size, incl. lens (L × W × H) | 305 × 169 × 161 mm (12.0 × 6.7 × 6.3 in.) |
| Battery size (L × W × H) | 141 × 47 × 28 mm (5.5 × 1.8 × 1.1 in.) |
| Battery charger size (L × W × H) | 158 × 122 × 25 mm (6.2 × 4.8 × 1.0 in.) |
| Tripod mounting | UNC 1⁄4"-20 |
| Housing material | Aluminum, magnesium |
| Grip material TPE thermoplastic elastomers | |
| Shipping information | |
| Packaging, type | Cardboard box |
| List of contents | Infrared camera with lensBattery chargerBattery, 2 ea.Hard transport caseHDMI-DVI cableHDMI-HDMI cableLens cap (2 ea.)Lens cap (mounted on lens)Memory cardPower supply, incl. multi-plugsPrinted documentationShoulder strapUSB cable |
| Packaging, weight | |
| Packaging, size 400 × 190 × 510 mm ( 15.7 × 7.5 × 20.1 in.) | |
| EAN-13 7332558002704 | |
| UPC-12 | 845188001964 |
| Country of origin Sweden | |
Supplies & accessories:
• T197387; IR lens, 24° with case for GF300, GF309, GF320
• T197388; IR lens, 6° with case for GF300, GF309, GF320, GF346.
• T197385; IR lens, 14.5° with case for GF300, GF309, GF320
• T197692; Battery charger, incl. power supply with multi plugs
• T910814; Power supply, incl. multi plugs
• T198511; Li-Ion Battery pack 7.4V 33Wh
• T199367ACC; Battery Li-ion 7.2 V, 4.4 Ah, 32 Wh
• T911650ACC; Memory card SD Card 8 GB
• 1910423; USB cable Std A <-> Mini-B
• T198509; Cigarette lighter adapter kit, 12 VDC, 1.2 m/3.9 ft.
• T910815ACC; HDMI to HDMI cable 1.5 m
• T910816ACC; HDMI to DVI cable 1.5 m
• T197555; Hard transport case for FLIR GF3xx-Series
• T198585; FLIR VideoReport
- DSW-10000; FLIR IR Camera Player
• T199233; FLIR Atlas SDK for .NET
• T199234; FLIR Atlas SDK for MATLAB
• T198567; ThermoVision™ System Developers Kit Ver. 2.6
• T198566; ThermoVision™ LabVIEW® Digital Toolkit Ver. 3.3
22.5 FLIR GF300 14.5° Fixed lens
P/N: 44402-0201
Rev.: 45202
| General description | |
| The FLIR GF300 is an infrared camera for optical gas imaging (OGI) that visualizes and pinpoints leaks of methane and other volatile organic compounds (VOCs), without the need to shut down the operation. The portable camera also greatly improves operator safety, by detecting emissions at a safe distance, and helps to protect the environment by tracing leaks of environmentally harmful gases.The FLIR GF300 is used in industrial settings such as oil refineries, natural gas processing plants, offshore platforms, chemical/petrochemical industries, and biogas and power generation plants. | |
| Benefits: | |
| Improved efficiency: The FLIR GF300 reduces revenue loss by pinpointing even small gas leaks quickly and efficiently, and from a distance. It also reduces the inspection time by allowing a broad area to be scanned rapidly and without the need to interrupt the industrial process.Increased worker safety: OGI allows gas leaks to be detected in a non-contact mode and from a safe distance. This reduces the risk of the user being exposed to invisible and potentially harmful or explosive chemicals. With a FLIR GF300 gas imaging camera it is easy to scan areas of interest that are difficult to reach with conventional methods. The camera is ergonomically designed, with a bright LCD and tiltable viewfinder, which facilitates its use over a full working day.Protecting the environment: Several VOCs are dangerous to human health or cause harm to the environment, and are usually governed by regulations. Even small leaks can be detected and documented using the FLIR GF300 camera. | |
| Detects the following gases: benzene, ethanol, ethylbenzene, heptane, hexane, isoprene, methanol, MEK, MIBK, octane, pentane, 1-pentene, toluene, xylene, butane, ethane, methane, propane, ethylene, propylene. | |
| Imaging and optical data | |
| IR resolution 320 × 240 pixels | |
| Thermal sensitivity/NETD <15 mK @ +30°C (+86°F) | |
| Field of view (FOV) | 14.5° × 10.8° |
| Minimum focus distance 0.5 m (1.64 ft.) | |
| Focal length 38 mm (1.49 in.) | |
| Lens identification Automatic | |
| F-number 1.5 | |
| Focus | Automatic (one touch) or manual (electric or on the lens) |
| Zoom | 1-8× continuous, digital zoom |
| Digital image enhancement | Noise reduction filter, high sensitivity mode (HSM) |
| Detector data | |
| Detector type | Focal plane array (FPA), cooled InSb |
| Spectral range | 3.2-3.4 μm |
| Detector pitch | 30 μm |
| Sensor cooling | Stirling Microcooler (FLIR MC-3) |
| Detects following gases | Benzene, Ethanol, Ethylbenzene, Heptane, Hexane, Isoprene, Methanol, MEK, MIBK, Octane, Pentane, 1-Pentene, Toluene, Xylene, Butane, Ethane, Methane, Propane, Ethylene, Propylene |
| Electronics and data rate | |
| Full frame rate 60 Hz | |
| Image presentation | |
| Display Built-in widescreen, 4.3 in. LCD, 800 × 480 pixels | |
| Viewfinder Built-in, tiltable OLED, 800 × 480 pixels | |
| Automatic image adjustment Continuous/manual; | linear or histogram based |
| Manual image adjustment Level/span | |
| Image presentation modes | |
| Image modes IR image, visual image, high sensitivity mode (HSM) | |
| Measurement | |
| Temperature range -20°C to +350°C (-4°F to +62°F) | |
| Set-up | |
| Menu commands Level, span | Auto adjust continuous/manual/semi-automatic Zoom Palette Start/stop recording Store image Playback/recall image |
| Color palettes Iron, Gray, Rainbow, Arctic, Lava, | Rainbow HC |
| Set-up commands | 1 programmable button, overlay recording mode, local adaptation of units, language, date and time formats |
| Storage of Images | |
| Storage media Removable SD or SDHC memory | card, two card slots |
| Image storage capacity | >1200 images (JPEG) with post process capable per GB on memory card |
| Image storage mode | IR/visual images Visual image can automatically be associated with corresponding IR image |
| Periodic image storage | Every 10 seconds up to 24 hours |
| File formats | Standard JPEG, 14 bit measurement data included |
| Geographic Information System | |
| GPS | Location data automatically added to every image from built-in GPS |
| Video recording in camera | |
| Radiometric IR video recording *.seq video clips | to memory card (7.5 and 15 Hz). |
| Non-radiometric IR video recording MPEG4 (up to | 60 minutes/clip) to memory card.Visual image can automatically be associated with corresponding recording of non-radiometric IR video. |
| Visual video recording | MPEG4 (25 minutes/clip) to memory card |
| Video streaming | |
| Radiometric IR video streaming Full dynamic to | PC using USB cable or to mobile devices using Wi-Fi. PC software capable of displaying the video stream include the following:FLIR IR Camera PlayerFLIR ResearchIRFLIR Tools |
| Non-radiometric IR video streaming RTP/MPEG4 | |
| Digital camera | |
| Built-in digital camera 3.2 Mpixels, auto focus, and two video lamps | |
| Laser pointer | |
| Laser Activated by dedicated button | |
| Laser classification Class 2 | |
| Laser type Semiconductor AlGaInP diode laser, | mW, 635nm (red) |
| USB | |
| USB | USB-A: Connect external USB deviceUSB Mini-B: Data transfer to and from PC |
| USB, standard | USB Mini-B: 2.0 high speed |
| Composite video | |
| Video out | Digital video output (image) |
| Power system | |
| Battery type | Rechargeable Li ion battery |
| Battery voltage | 7.2 V |
| Battery capacity | 4.4 Ah |
| Battery operating time | >3 hours at 25°C (+77°F) and typical use |
| Charging system | In camera (AC adapter or 12 V from a vehicle) bay charger |
| Charging time | 2.5 h to 95% capacity, charging status indicated LED's |
| External power operation | AC adapter 90–260 VAC, 50/60 Hz or 12 V fro vehicle (cable with standard plug, optional) |
| DC operation | 10.8 to 16 V DC, polarity protected (proprietary protected) |
| Power | 8.5 W typically |
| Start-up time | Typically 7 min. @ 25°C (+77°F) |
| Environmental data | |
| Operating temperature range -20°C to +50°C (-4°F to +122°F) | |
| Storage temperature range -30°C to +60°C (-22°F to +140°F) | |
| Humidity (operating and storage) IEC 68-2-30/24 | h 95% relative humidity +25°C to +40°C (+77°F to +104°F) (2 cycles) |
| Directives | 73/23EEC2004/108/EC2002/95/EC2002/96/EC |
| EMC | EN61000-6-4 (Emission)EN61000-6-2 (Immunity)FCC 47 CFR Part 15 class A (Emission)EN 61 000-4-8, L5 |
| Encapsulation | IP 54 (IEC 60529) |
| Shock 25 g (IEC 60068-2-27) | |
| Vibration 2 g (IEC 60068-2-6) | |
| Safety Power supply: EN/UL/IEC 60950-1 | |
| Physical data | |
| Camera weight, excl. lens and battery 1.94 kg (4.27 lb.) | |
| Camera weight, incl. lens and excl. battery 2.24 kg (4.94 lb.) | |
| Camera weight, incl. lens and battery 2.48 kg (5.47 lb.) | |
| Battery weight 0.24 kg (0.52 lb.) | |
| Camera size, excl. lens (L × W × H) | 284 × 169 × 161 mm (11.2 × 6.7 × 6.3 in.) |
| Cameras size, incl. lens (L × W × H) | 305 × 169 × 161 mm (12.0 × 6.7 × 6.3 in.) |
| Battery size (L × W × H) | 141 × 47 × 28 mm (5.5 × 1.8 × 1.1 in.) |
| Battery charger size (L × W × H) | 158 × 122 × 25 mm (6.2 × 4.8 × 1.0 in.) |
| Tripod mounting | UNC 1⁄4"-20 |
| Housing material | Aluminum, magnesium |
| Grip material | TPE thermoplastic elastomers |
| Shipping information | |
| Packaging, type | Cardboard box |
| List of contents | Infrared camera with lensBattery chargerBattery, 2 ea.Hard transport caseHDMI-DVI cableHDMI-HDMI cableLens cap (mounted on lens)Memory cardPower supply, incl. multi-plugsPrinted documentationShoulder strapUSB cable |
| Packaging, weight | |
| Packaging, size | 400 × 190 × 510 mm (15.7 × 7.5 × 20.1 in.) |
| EAN-13 | 7332558002711 |
| Shipping information | |
| UPC-12 | 845188001971 |
| Country of origin Sweden | |
Supplies & accessories:
• T197692; Battery charger, incl. power supply with multi plugs
• T910814; Power supply, incl. multi plugs
• T198511; Li-Ion Battery pack 7.4V 33Wh
• T199367ACC; Battery Li-ion 7.2 V, 4.4 Ah, 32 Wh
• T911650ACC; Memory card SD Card 8 GB
• 1910423; USB cable Std A <-> Mini-B
• T198509; Cigarette lighter adapter kit, 12 VDC, 1.2 m/3.9 ft.
• T910815ACC; HDMI to HDMI cable 1.5 m
• T910816ACC; HDMI to DVI cable 1.5 m
• T197555; Hard transport case for FLIR GF3xx-Series
• T198585; FLIR VideoReport
- DSW-10000; FLIR IR Camera Player
• T199233; FLIR Atlas SDK for .NET
• T199234; FLIR Atlas SDK for MATLAB
• T198567; ThermoVision™ System Developers Kit Ver. 2.6
• T198566; ThermoVision™ LabVIEW® Digital Toolkit Ver. 3.3
22.6 FLIR GF300 24°
P/N: 44401-0202
Rev.: 45202
| General description | |
| The FLIR GF300 is an infrared camera for optical gas imaging (OGI) that visualizes and pinpoints leaks of methane and other volatile organic compounds (VOCs), without the need to shut down the operation. The portable camera also greatly improves operator safety, by detecting emissions at a safe distance, and helps to protect the environment by tracing leaks of environmentally harmful gases.The FLIR GF300 is used in industrial settings such as oil refineries, natural gas processing plants, offshore platforms, chemical/petrochemical industries, and biogas and power generation plants. | |
| Benefits: | |
| Improved efficiency: The FLIR GF300 reduces revenue loss by pinpointing even small gas leaks quickly and efficiently, and from a distance. It also reduces the inspection time by allowing a broad area to be scanned rapidly and without the need to interrupt the industrial process.Increased worker safety: OGI allows gas leaks to be detected in a non-contact mode and from a safe distance. This reduces the risk of the user being exposed to invisible and potentially harmful or explosive chemicals. With a FLIR GF300 gas imaging camera it is easy to scan areas of interest that are difficult to reach with conventional methods. The camera is ergonomically designed, with a bright LCD and tiltable viewfinder, which facilitates its use over a full working day.Protecting the environment: Several VOCs are dangerous to human health or cause harm to the environment, and are usually governed by regulations. Even small leaks can be detected and documented using the FLIR GF300 camera. | |
| Detects the following gases: benzene, ethanol, ethylbenzene, heptane, hexane, isoprene, methanol, MEK, MIBK, octane, pentane, 1-pentene, toluene, xylene, butane, ethane, methane, propane, ethylene, propylene. | |
| Licensing and classification | |
| License information Interchangeable lens version | of the FLIR GF3XXseries requires US Department of State License and will be subject to limitations on resale, except inside US. Allow a minimum of 90 days after application submittal for approval. |
| Imaging and optical data | |
| IR resolution 320 × 240 pixels | |
| Thermal sensitivity/NETD <15 mK @ +30°C (+86°F) | |
| Field of view (FOV) | 24° × 18° |
| Minimum focus distance 0.3 m (1.0 ft.) | |
| Focal length 23 mm (0.89 in.) | |
| Lens identification Automatic | |
| F-number 1.5 | |
| Focus | Automatic (one touch) or manual (electric or on the lens) |
| Zoom | 1-8x continuous, digital zoom |
| Digital image enhancement | Noise reduction filter, high sensitivity mode (HSM) |
| Detector data | |
| Detector type | Focal plane array (FPA), cooled InSb |
| Spectral range | 3.2-3.4 μm |
| Detector data | |
| Detector pitch 30 μm | |
| Sensor cooling Stirling Microcooler (FLIR MC-3) | |
| Detects following gases Benzene, Ethanol, Ethylbenzene, Heptane, Hexane, Isoprene, Methanol, MEK, MIBK, Octane, Pentane, 1-Pentene, Toluene, Xylene, Butane, Ethane, Methane, Propane, Ethylene, Propylene | |
| Electronics and data rate | |
| Full frame rate 60 Hz | |
| Image presentation | |
| Display Built-in widescreen, 4.3 in. LCD, 800 × 480 pixels | |
| Viewfinder Built-in, tiltable OLED, 800 × 480 pixels | |
| Automatic image adjustment Continuous/manual; linear or histogram based | |
| Manual image adjustment Level/span | |
| Image presentation modes | |
| Image modes IR image, visual image, high sensitivity mode (HSM) | |
| Measurement | |
| Temperature range -20°C to +350°C (-4°F to +62°F) | |
| Set-up | |
| Menu commands | Level, spanAuto adjust continuous/manual/semi-automaticZoomPaletteStart/stop recordingStore imagePlayback/recall image |
| Color palettes Iron, Gray, Rainbow, Arctic, Lava, Rainbow HC | |
| Set-up commands | 1 programmable button, overlay recording mode, local adaptation of units, language, date and time formats |
| Storage of images | |
| Storage media | Removable SD or SDHC memory card, two caslots |
| Image storage capacity | >1200 images (JPEG) with post process capab per GB on memory card |
| Image storage mode | IR/visual imagesVisual image can automatically be associated with corresponding IR image |
| Periodic image storage | Every 10 seconds up to 24 hours |
| File formats | Standard JPEG, 14 bit measurement data included |
| Geographic Information System | |
| GPS | Location data automatically added to every image from built-in GPS |
| Video recording in camera | |
| Radiometric IR video recording *.seq video clips | to memory card (7.5 and 15 Hz). |
| Non-radiometric IR video recording | MPEG4 (up to 60 minutes/clip) to memory card. Visual image can automatically be associated with corresponding recording of non-radiometric IR video. |
| Visual video recording | MPEG4 (25 minutes/clip) to memory card |
| Video streaming | |
| Radiometric IR video streaming | Full dynamic to PC using USB cable or to mobile devices using Wi-Fi. PC software capable of displaying the video stream include the following:FLIR IR Camera PlayerFLIR ResearchIRFLIR Tools |
| Non-radiometric IR video streaming RTP/MPEG4 | |
| Digital camera | |
| Built-in digital camera 3.2 Mpixels, auto focus, and two video lamps | |
| Laser pointer | |
| Laser Activated by dedicated button | |
| Laser classification Class 2 | |
| Laser type Semiconductor AlGaInP diode laser, 1 | mW, 635nm (red) |
| USB | |
| USB | USB-A: Connect external USB deviceUSB Mini-B: Data transfer to and from PC |
| USB, standard USB Mini-B: 2.0 high speed | |
| Composite video | |
| Video out Digital video output (image) | |
| Power system | |
| Battery type | Rechargeable Li ion battery |
| Battery voltage | 7.2 V |
| Battery capacity | 4.4 Ah |
| Battery operating time | >3 hours at 25°C (+77°F) and typical use |
| Charging system | In camera (AC adapter or 12 V from a vehicle) bay charger |
| Charging time | 2.5 h to 95% capacity, charging status indicated LED's |
| External power operation | AC adapter 90-260 VAC, 50/60 Hz or 12 V from vehicle (cable with standard plug, optional) |
| DC operation | 10.8 to 16 V DC, polarity protected (proprietary protected) |
| Power system | |
| Power 8.5 W typically | |
| Start-up time Typically 7 min. @ 25°C (+77°F) | |
| Environmental data | |
| Operating temperature range -20°C to +50°C (-4°F to +122°F) | |
| Storage temperature range -30°C to +60°C (-22°F to +140°F) | |
| Humidity (operating and storage) IEC 68-2-30/24 | h 95% relative humidity +25°C to +40°C (+77°F to +104°F) (2 cycles) |
| Directives | 73/23EEC2004/108/EC2002/95/EC2002/96/EC |
| EMC | EN61000-6-4 (Emission)EN61000-6-2 (Immunity)FCC 47 CFR Part 15 class A (Emission)EN 61 000-4-8, L5 |
| Encapsulation IP 54 (IEC 60529) | |
| Shock 25 g (IEC 60068-2-27) | |
| Vibration 2 g (IEC 60068-2-6) | |
| Safety Power supply: EN/UL/IEC 60950-1 | |
| Physical data | |
| Camera weight, excl. lens and battery 1.94 kg (4.27 lb.) | |
| Camera weight, incl. lens and excl. battery 2.24 kg (4.94 lb.) | |
| Camera weight, incl. lens and battery | 2.48 kg (5.47 lb.) |
| Battery weight 0.24 kg (0.52 lb.) | |
| Camera size, excl. lens (L × W × H) | 284 × 169 × 161 mm (11.2 × 6.7 × 6.3 in.) |
| Cameras size, incl. lens (L × W × H) | 306 × 169 × 161 mm (12.0 × 6.7 × 6.3 in.) |
| Battery size (L × W × H) | 141 × 47 × 28 mm (5.5 × 1.8 × 1.1 in.) |
| Battery charger size (L × W × H) | 158 × 122 × 25 mm (6.2 × 4.8 × 1.0 in.) |
| Tripod mounting | UNC 1⁄4"-20 |
| Housing material | Aluminum, magnesium |
| Grip material TPE thermoplastic elastomers | |
| Shipping information | |
| Packaging, type | Cardboard box |
| List of contents | Infrared camera with lensBattery chargerBattery, 2 ea.Hard transport caseHDMI-DVI cableHDMI-HDMI cableLens cap (2 ea.)Lens cap (mounted on lens)Memory cardPower supply, incl. multi-plugsPrinted documentationShoulder strapUSB cable |
| Packaging, weight | |
| Packaging, size 400 × 190 × 510 mm ( 15.7 × 7.5 × 20.1 in.) | |
| EAN-13 7332558002728 | |
| UPC-12 | 845188001988 |
| Country of origin Sweden | |
Supplies & accessories:
• T197387; IR lens, 24° with case for GF300, GF309, GF320
• T197388; IR lens, 6° with case for GF300, GF309, GF320, GF346.
• T197385; IR lens, 14.5° with case for GF300, GF309, GF320
• T197692; Battery charger, incl. power supply with multi plugs
• T910814; Power supply, incl. multi plugs
• T198511; Li-Ion Battery pack 7.4V 33Wh
• T199367ACC; Battery Li-ion 7.2 V, 4.4 Ah, 32 Wh
• T911650ACC; Memory card SD Card 8 GB
• 1910423; USB cable Std A <-> Mini-B
• T198509; Cigarette lighter adapter kit, 12 VDC, 1.2 m/3.9 ft.
• T910815ACC; HDMI to HDMI cable 1.5 m
• T910816ACC; HDMI to DVI cable 1.5 m
• T197555; Hard transport case for FLIR GF3xx-Series
• T198585; FLIR VideoReport
- DSW-10000; FLIR IR Camera Player
• T199233; FLIR Atlas SDK for .NET
• T199234; FLIR Atlas SDK for MATLAB
• T198567; ThermoVision™ System Developers Kit Ver. 2.6
• T198566; ThermoVision™ LabVIEW® Digital Toolkit Ver. 3.3
22.7 FLIR GF300 24° Fixed lens
P/N: 44402-0202
Rev.: 45202
| General description | |
| The FLIR GF300 is an infrared camera for optical gas imaging (OGI) that visualizes and pinpoints leaks of methane and other volatile organic compounds (VOCs), without the need to shut down the operation. The portable camera also greatly improves operator safety, by detecting emissions at a safe distance, and helps to protect the environment by tracing leaks of environmentally harmful gases.The FLIR GF300 is used in industrial settings such as oil refineries, natural gas processing plants, offshore platforms, chemical/petrochemical industries, and biogas and power generation plants. | |
| Benefits: | |
| Improved efficiency: The FLIR GF300 reduces revenue loss by pinpointing even small gas leaks quickly and efficiently, and from a distance. It also reduces the inspection time by allowing a broad area to be scanned rapidly and without the need to interrupt the industrial process.Increased worker safety: OGI allows gas leaks to be detected in a non-contact mode and from a safe distance. This reduces the risk of the user being exposed to invisible and potentially harmful or explosive chemicals. With a FLIR GF300 gas imaging camera it is easy to scan areas of interest that are difficult to reach with conventional methods. The camera is ergonomically designed, with a bright LCD and tiltable viewfinder, which facilitates its use over a full working day.Protecting the environment: Several VOCs are dangerous to human health or cause harm to the environment, and are usually governed by regulations. Even small leaks can be detected and documented using the FLIR GF300 camera. | |
| Detects the following gases: benzene, ethanol, ethylbenzene, heptane, hexane, isoprene, methanol, MEK, MIBK, octane, pentane, 1-pentene, toluene, xylene, butane, ethane, methane, propane, ethylene, propylene. | |
| Imaging and optical data | |
| IR resolution 320 × 240 pixels | |
| Thermal sensitivity/NETD <15 mK @ +30°C (+86°F) | |
| Field of view (FOV) | 24° × 18° |
| Minimum focus distance 0.3 m (1.0 ft.) | |
| Focal length 23 mm (0.89 in.) | |
| Lens identification Automatic | |
| F-number 1.5 | |
| Focus | Automatic (one touch) or manual (electric or on the lens) |
| Zoom | 1-8× continuous, digital zoom |
| Digital image enhancement | Noise reduction filter, high sensitivity mode (HSM) |
| Detector data | |
| Detector type | Focal plane array (FPA), cooled InSb |
| Spectral range | 3.2-3.4 μm |
| Detector pitch | 30 μm |
| Sensor cooling | Stirling Microcooler (FLIR MC-3) |
| Detects following gases | Benzene, Ethanol, Ethylbenzene, Heptane, Hexane, Isoprene, Methanol, MEK, MIBK, Octane, Pentane, 1-Pentene, Toluene, Xylene, Butane, Ethane, Methane, Propane, Ethylene, Propylene |
| Electronics and data rate | |
| Full frame rate 60 Hz | |
| Image presentation | |
| Display Built-in widescreen, 4.3 in. LCD, 800 × 480 pixels | |
| Viewfinder Built-in, tiltable OLED, 800 × 480 pixels | |
| Automatic image adjustment Continuous/manual; | linear or histogram based |
| Manual image adjustment Level/span | |
| Image presentation modes | |
| Image modes IR image, visual image, high sensitivity mode (HSM) | |
| Measurement | |
| Temperature range -20°C to +350°C (-4°F to +62°F) | |
| Set-up | |
| Menu commands Level, span | Auto adjust continuous/manual/semi-automatic Zoom Palette Start/stop recording Store image Playback/recall image |
| Color palettes Iron, Gray, Rainbow, Arctic, Lava, | Rainbow HC |
| Set-up commands | 1 programmable button, overlay recording mode, local adaptation of units, language, date and time formats |
| Storage of Images | |
| Storage media Removable SD or SDHC memory | card, two card slots |
| Image storage capacity | >1200 images (JPEG) with post process capable per GB on memory card |
| Image storage mode | IR/visual images Visual image can automatically be associated with corresponding IR image |
| Periodic image storage | Every 10 seconds up to 24 hours |
| File formats | Standard JPEG, 14 bit measurement data included |
| Geographic Information System | |
| GPS | Location data automatically added to every image from built-in GPS |
| Video recording in camera | |
| Radiometric IR video recording *.seq video clips | to memory card (7.5 and 15 Hz). |
| Non-radiometric IR video recording MPEG4 (up to | 60 minutes/clip) to memory card.Visual image can automatically be associated with corresponding recording of non-radiometric IR video. |
| Visual video recording | MPEG4 (25 minutes/clip) to memory card |
| Video streaming | |
| Radiometric IR video streaming Full dynamic to | PC using USB cable or to mobile devices using Wi-Fi. PC software capable of displaying the video stream include the following:FLIR IR Camera PlayerFLIR ResearchIRFLIR Tools |
| Non-radiometric IR video streaming RTP/MPEG4 | |
| Digital camera | |
| Built-in digital camera 3.2 Mpixels, auto focus, and two video lamps | |
| Laser pointer | |
| Laser Activated by dedicated button | |
| Laser classification Class 2 | |
| Laser type Semiconductor AlGaInP diode laser, | mW, 635nm (red) |
| USB | |
| USB | USB-A: Connect external USB deviceUSB Mini-B: Data transfer to and from PC |
| USB, standard | USB Mini-B: 2.0 high speed |
| Composite video | |
| Video out | Digital video output (image) |
| Power system | |
| Battery type | Rechargeable Li ion battery |
| Battery voltage | 7.2 V |
| Battery capacity | 4.4 Ah |
| Battery operating time | >3 hours at 25°C (+77°F) and typical use |
| Charging system | In camera (AC adapter or 12 V from a vehicle) bay charger |
| Charging time | 2.5 h to 95% capacity, charging status indicated LED's |
| External power operation | AC adapter 90-260 VAC, 50/60 Hz or 12 V fro vehicle (cable with standard plug, optional) |
| DC operation | 10.8 to 16 V DC, polarity protected (proprietary protected) |
| Power | 8.5 W typically |
| Start-up time | Typically 7 min. @ 25°C (+77°F) |
| Environmental data | |
| Operating temperature range -20°C to +50°C (-4°F to +122°F) | |
| Storage temperature range -30°C to +60°C (-22°F to +140°F) | |
| Humidity (operating and storage) IEC 68-2-30/24 | h 95% relative humidity +25°C to +40°C (+77°F to +104°F) (2 cycles) |
| Directives | 73/23EEC2004/108/EC2002/95/EC2002/96/EC |
| EMC | EN61000-6-4 (Emission)EN61000-6-2 (Immunity)FCC 47 CFR Part 15 class A (Emission)EN 61 000-4-8, L5 |
| Encapsulation | IP 54 (IEC 60529) |
| Shock 25 g (IEC 60068-2-27) | |
| Vibration 2 g (IEC 60068-2-6) | |
| Safety Power supply: EN/UL/IEC 60950-1 | |
| Physical data | |
| Camera weight, excl. lens and battery 1.94 kg (4.27 lb.) | |
| Camera weight, incl. lens and excl. battery 2.24 kg (4.94 lb.) | |
| Camera weight, incl. lens and battery 2.48 kg (5.47 lb.) | |
| Battery weight 0.24 kg (0.52 lb.) | |
| Camera size, excl. lens (L × W × H) | 284 × 169 × 161 mm (11.2 × 6.7 × 6.3 in.) |
| Cameras size, incl. lens (L × W × H) | 306 × 169 × 161 mm (12.0 × 6.7 × 6.3 in.) |
| Battery size (L × W × H) | 141 × 47 × 28 mm (5.5 × 1.8 × 1.1 in.) |
| Battery charger size (L × W × H) | 158 × 122 × 25 mm (6.2 × 4.8 × 1.0 in.) |
| Tripod mounting | UNC 1⁄4"-20 |
| Housing material | Aluminum, magnesium |
| Grip material | TPE thermoplastic elastomers |
| Shipping information | |
| Packaging, type | Cardboard box |
| List of contents | Infrared camera with lensBattery chargerBattery, 2 ea.Hard transport caseHDMI-DVI cableHDMI-HDMI cableLens cap (mounted on lens)Memory cardPower supply, incl. multi-plugsPrinted documentationShoulder strapUSB cable |
| Packaging, weight | |
| Packaging, size | 400 × 190 × 510 mm (15.7 × 7.5 × 20.1 in.) |
| EAN-13 | 7332558002735 |
| Shipping information | |
| UPC-12 | 845188001995 |
| Country of origin Sweden | |
Supplies & accessories:
• T197692; Battery charger, incl. power supply with multi plugs
• T910814; Power supply, incl. multi plugs
• T198511; Li-Ion Battery pack 7.4V 33Wh
• T199367ACC; Battery Li-ion 7.2 V, 4.4 Ah, 32 Wh
• T911650ACC; Memory card SD Card 8 GB
• 1910423; USB cable Std A <-> Mini-B
• T198509; Cigarette lighter adapter kit, 12 VDC, 1.2 m/3.9 ft.
• T910815ACC; HDMI to HDMI cable 1.5 m
• T910816ACC; HDMI to DVI cable 1.5 m
• T197555; Hard transport case for FLIR GF3xx-Series
• T198585; FLIR VideoReport
- DSW-10000; FLIR IR Camera Player
• T199233; FLIR Atlas SDK for .NET
• T199234; FLIR Atlas SDK for MATLAB
• T198567; ThermoVision™ System Developers Kit Ver. 2.6
• T198566; ThermoVision™ LabVIEW® Digital Toolkit Ver. 3.3
22.8 FLIR GF304 14.5°
P/N: 59601-0101
Rev.: 45202
| General description | |
| The FLIR GF304 is an infrared camera for optical gas imaging (OGI) that visualizes and pinpoints leaks of refrigerant gases, without the need to shut down the operation. This portable camera also greatly improves operator safety, by detecting gases at a safe distance, and helps to protect the environment by tracing leaks of environmentally harmful gases.Refrigerant gases are found in, for example, the food, chemical/petrochemical, and automotive industries, as well as in air-conditioning systems. | |
| Benefits: | |
| Improved efficiency: The FLIR GF304 reduces revenue loss by pinpointing even small gas leaks quickly and efficiently, and from a distance. It also reduces the inspection time by being able to scan a broad area rapidly without the need to interrupt the industrial process. The wireless connectivity of the camera allows you to connect to smart phones or tablets for the wireless transfer of images on the remote control of the camera. The FLIR GF304 can also be used for temperature measurement, which makes it even more useful for predictive maintenance.Increased worker safety: The leak detection of gases can be performed in non-contact mode, and from a safe distance. This reduces the risk of the user being exposed to invisible and potentially harmful or explosive chemicals. With a FLIR GF304 gas-imaging camera it is easy to scan areas of interest that are difficult to reach with conventional methods. The camera is ergonomically designed, with a bright LCD and a tiltable viewfinder, which facilitates its use over a full working day.Protecting the environment: Several refrigerant gases have a high global warming potential and are usually governed by regulations. Even small leaks can be detected and documented using the FLIR GF304 camera. | |
| Detects the following refrigerant gases: R404A, R407C, R410A, R134A, R417A, R422A, R507A, R143A, R125, R245fa. | |
| Licensing and classification | |
| License information Interchangeable lens version | of the FLIR GF3XXseries requires US Department of State License and will be subject to limitations on resale, except inside US. Allow a minimum of 90 days after application submittal for approval. |
| Imaging and optical data | |
| IR resolution 320 × 240 pixels | |
| Thermal sensitivity/NETD <15 mK @ +30°C (+86°F) | |
| Field of view (FOV) | 14.5° × 10.8° |
| Minimum focus distance 0.5 m (1.64 ft.) | |
| Focal length 38 mm (1.49 in.) | |
| Lens identification Automatic | |
| F-number 1.5 | |
| Focus | Automatic (one touch) or manual (electric or on the lens) |
| Zoom | 1-8× continuous, digital zoom |
| Digital image enhancement | Noise reduction filter, high sensitivity mode (HSM) |
| Detector data | |
| Detector type Focal plane array (FPA), cooled Q | WIP |
| Spectral range | 8.0–8.6 μm |
| Detector pitch 30 μm | |
| Sensor cooling Stirling Microcooler (FLIR MC-3) | |
| Detects following gases R404A, R407C, R410A, | R417A, R422A, R507A,R143A, R125, R134A, R245fa |
| Electronics and data rate | |
| Full frame rate 60 Hz | |
| Image presentation | |
| Display Built-in widescreen, 4.3 in. LCD, 800 × 480 pixels | |
| Viewfinder Built-in, tiltable OLED, 800 × 480 pixels | |
| Automatic image adjustment Continuous/manual; linear or histogram based | |
| Manual image adjustment | Level/span |
| Image presentation modes | |
| Image modes IR image, visual image, high sensitivity mode (HSM) |
| Measurement | |
| Temperature range | -20°C to +250°C (-4°F to +482°F) |
| Accuracy | ±1°C (±1.8°F) for temperature range (0°C, to +100°C, +32°F to +212°F) or ±2% of reading for temperature range (>+100°C, >+212°F) |
| Measurement analysis | |
| Spotmeter | 10 |
| Area | 5 boxes with max./min./average |
| Profile | 1 live line (horizontal or vertical) |
| Difference temperature | Delta temperature between measurement functions or reference temperature |
| Reference temperature | Manually set or captured from any measurement function |
| Emissivity correction | Variable from 0.01 to 1.0 or selected from edita materials list |
| Reflected apparent temperature correction | Automatic, based on input of reflected tempera |
| Measurement corrections | Reflected temperature, distance, atmospheric transmission, humidity, external optics |
| Set-up | |
| Menu commands Level, span | Auto adjust continuous/manual/semi-automaticZoomPaletteStart/stop recordingStore imagePlayback/recall image |
| Color palettes Iron, Gray, Rainbow, Arctic, Lava, | Rainbow HC |
| Set-up commands | 1 programmable button, overlay recording mode, local adaptation of units, language, date and time formats |
| Storage of Images | |
| Storage media Removable SD or SDHC memory | card, two card slots |
| Image storage capacity | >1200 images (JPEG) with post process capability per GB on memory card |
| Image storage mode | IR/visual imagesVisual image can automatically be associated with corresponding IR image |
| Periodic image storage Every 10 seconds up to | 24 hours |
| File formats Standard JPEG, 14 bit measurement | data included |
| Geographic Information System | |
| GPS Location data automatically added to every image from built-in GPS |
| Video recording in camera | |
| Radiometric IR video recording *.seq video clips | to memory card (7.5 and 15 Hz). |
| Non-radiometric IR video recording MPEG4 (up to | 60 minutes/clip) to memory card.Visual image can automatically be associated with corresponding recording of non-radiometric IR video. |
| Visual video recording MPEG4 (25 minutes/clip) | to memory card |
| Video streaming | |
| Radiometric IR video streaming Full dynamic to | PC using USB cable or to mobile devices using Wi-Fi. PC software capable of displaying the video stream include the following:FLIR IR Camera PlayerFLIR ResearchIRFLIR Tools |
| Non-radiometric IR video streaming | RTP/MPEG4 |
| Digital camera | |
| Built-in digital camera | 3.2 Mpixels, auto focus, and two video lamps |
| Laser pointer | |
| Laser Activated by dedicated button | |
| Laser classification Class 2 | |
| Laser type Semiconductor AlGaInP diode laser, 1 | mW, 635nm (red) |
| USB | |
| USB | • USB-A: Connect external USB device• USB Mini-B: Data transfer to and from PC |
| USB, standard USB Mini-B: 2.0 high speed | |
| Composite video | |
| Video out Digital video output (image) | |
| Power system | |
| Battery type Rechargeable Li ion battery | |
| Battery voltage 7.2 V | |
| Battery capacity 4.4 Ah | |
| Battery operating time | >3 hours at 25°C (+77°F) and typical use |
| Charging system | In camera (AC adapter or 12 V from a vehicle) bay charger |
| Charging time | 2.5 h to 95% capacity, charging status indicated LED's |
| External power operation | AC adapter 90–260 VAC, 50/60 Hz or 12 V from a vehicle (cable with standard plug, optional) |
| DC operation | 10.8 to 16 V DC, polarity protected (proprietary protected) |
| Power | 8.5 W typically |
| Start-up time | Typically 8 min. @ 25°C (+77°F) |
| Environmental data | |
| Operating temperature range | -20°C to +40°C (-4°F to +104°F) |
| Storage temperature range | -30°C to +60°C (-22°F to +140°F) |
| Humidity (operating and storage) | IEC 68-2-30/24 h 95% relative humidity +25°C +40°C (+77°F to +104°F) (2 cycles) |
| Directives | • 73/23EEC• 2004/108/EC• 2002/95/EC• 2002/96/EC |
| EMC | • EN61000-6-4 (Emission)• EN61000-6-2 (Immunity)• FCC 47 CFR Part 15 class A (Emission)• EN 61 000-4-8, L5 |
| Encapsulation | IP 54 (IEC 60529) |
| Shock | 25 g (IEC 60068-2-27) |
| Vibration | 2 g (IEC 60068-2-6) |
| Safety | Power supply: EN/UL/IEC 60950-1 |
| Physical data | |
| Camera weight, excl. lens and battery 1.94 kg (4.27 lb.) | |
| Camera weight, incl. lens and excl. battery 2.24 kg (4.94 lb.) | |
| Camera weight, incl. lens and battery 2.48 kg (5.47 lb.) | |
| Battery weight 0.24 kg (0.52 lb.) | |
| Camera size, excl. lens (L × W × H) 284 × 169 × 161 mm (11.2 × 6.7 × 6.3 in.) | |
| Cameras size, incl. lens (L × W × H) 305 × 169 × 161 mm (12.0 × 6.7 × 6.3 in.) | |
| Battery size (L × W × H) 141 × 47 × 28 mm (5.5 × 1.8 × 1.1 in.) | |
| Battery charger size (L × W × H) 158 × 122 × 25 mm (6.2 × 4.8 × 1.0 in.) | |
| Tripod mounting | UNC 14 "-20 |
| Housing material Aluminum, magnesium | |
| Grip material | TPE thermoplastic elastomers |
| Shipping information | |
| Packaging, type | Cardboard box |
| List of contents | Infrared camera with lensBattery chargerBattery, 2 ea.Hard transport caseHDMI-DVI cableHDMI-HDMI cableLens cap (2 ea.)Lens cap (mounted on lens)Memory cardPower supply, incl. multi-plugsPrinted documentationShoulder strapUSB cableWi-Fi USB micro adapter (depending on CE and FCC regulations regarding wireless equipment for your country) |
| Packaging, weight | |
| Packaging, size | 400 × 190 × 510 mm (15.7 × 7.5 × 20.1 in.) |
Supplies & accessories:
• T197386; IR lens, 24° with case for GF304, GF306
• T197384; IR lens, 14.5° with case for GF304, GF306
• T197692; Battery charger, incl. power supply with multi plugs
• T910814; Power supply, incl. multi plugs
• T198511; Li-Ion Battery pack 7.4V 33Wh
• T199367ACC; Battery Li-ion 7.2 V, 4.4 Ah, 32 Wh
• T911650ACC; Memory card SD Card 8 GB
• 1910423; USB cable Std A <-> Mini-B
• T198509; Cigarette lighter adapter kit, 12 VDC, 1.2 m/3.9 ft.
• T910815ACC; HDMI to HDMI cable 1.5 m
• T910816ACC; HDMI to DVI cable 1.5 m
• T197555; Hard transport case for FLIR GF3xx-Series
• T951387; Wi-Fi USB micro adapter
• T198586; FLIR Reporter Professional (license only)
• T198584; FLIR Tools
• T198583; FLIR Tools+ (download card incl. license key)
• T198585; FLIR VideoReport
• DSW-10000; FLIR IR Camera Player
- APP-10002; FLIR Tools Mobile (Android Application)
• T198697; FLIR ResearchIR Max + HSDR 4 (hardware sec. dev.)
• T199014; FLIR ResearchIR Max + HSDR 4 (printed license key)
• T199044; FLIR ResearchIR Max + HSDR 4 Upgrade (printed license key)
• T198696; FLIR ResearchIR Max 4 (hardware sec. dev.)
• T199013; FLIR ResearchIR Max 4 (printed license key)
• T199043; FLIR ResearchIR Max 4 Upgrade (printed license key)
• T198731; FLIR ResearchIR Standard 4 (hardware sec. dev.)
• T199012; FLIR ResearchIR Standard 4 (printed license key)
• T199042; FLIR ResearchIR Standard 4 Upgrade (printed license key)
• T199233; FLIR Atlas SDK for .NET
• T199234; FLIR Atlas SDK for MATLAB
• T198567; ThermoVision™ System Developers Kit Ver. 2.6
• T198566; ThermoVision™ LabVIEW® Digital Toolkit Ver. 3.3
22.9 FLIR GF304 14.5° Fixed lens
P/N: 59602-0101
Rev.: 45202
| General description |
| The FLIR GF304 is an infrared camera for optical gas imaging (OGI) that visualizes and pinpoints leaks of refrigerant gases, without the need to shut down the operation. This portable camera also greatly improves operator safety, by detecting gases at a safe distance, and helps to protect the environment by tracing leaks of environmentally harmful gases.Refrigerant gases are found in, for example, the food, chemical/petrochemical, and automotive industries, as well as in air-conditioning systems. |
| Benefits:Improved efficiency: The FLIR GF304 reduces revenue loss by pinpointing even small gas leaks quickly and efficiently, and from a distance. It also reduces the inspection time by being able to scan a broad area rapidly without the need to interrupt the industrial process. The wireless connectivity of the camera allows you to connect to smart phones or tablets for the wireless transfer of images or the remote control of the camera. The FLIR GF304 can also be used for temperature measurement, which makes it even more useful for predictive maintenance.Increased worker safety: The leak detection of gases can be performed in non-contact mode, and from a safe distance. This reduces the risk of the user being exposed to invisible and potentially harmful or explosive chemicals. With a FLIR GF304 gas-imaging camera it is easy to scan areas of interest that are difficult to reach with conventional methods. The camera is ergonomically designed, with a bright LCD and a tiltable viewfinder, which facilitates its use over a full working day.Protecting the environment: Several refrigerant gases have a high global warming potential and are usually governed by regulations. Even small leaks can be detected and documented using the FLIR GF304 camera. |
| Detects the following refrigerant gases: R404A, R407C, R410A, R134A, R417A, R422A, R507A, R143A, R125, R245fa. |
| Imaging and optical data | |
| IR resolution 320 × 240 pixels | |
| Thermal sensitivity/NETD <15 mK @ +30°C (+86°F) | |
| Field of view (FOV) | 14.5° × 10.8° |
| Minimum focus distance 0.5 m (1.64 ft.) | |
| Focal length 38 mm (1.49 in.) | |
| Lens identification Automatic | |
| F-number 1.5 | |
| Focus | Automatic (one touch) or manual (electric or on lens) |
| Zoom | 1-8× continuous, digital zoom |
| Digital image enhancement | Noise reduction filter, high sensitivity mode (HSM |
| Detector data | |
| Detector type | Focal plane array (FPA), cooled QWIP |
| Spectral range | 8.0–8.6 μm |
| Detector pitch | 30 μm |
| Sensor cooling | Stirling Microcooler (FLIR MC-3) |
| Detects following gases | R404A, R407C, R410A, R417A, R422A, R507A, R143A, R125, R134A, R245fa |
| Electronics and data rate | |
| Full frame rate 60 Hz | |
| Image presentation | |
| Display Built-in widescreen, 4.3 in. LCD, 800 × 480 pixels | |
| Viewfinder Built-in, tiltable OLED, 800 × 480 pixels | |
| Automatic image adjustment Continuous/manual; | linear or histogram based |
| Manual image adjustment Level/span | |
| Image presentation modes | |
| Image modes IR image, visual image, high sensitivity mode (HSM) | |
| Measurement | |
| Temperature range -20°C to +250°C (-4°F to +482°F) | |
| Accuracy | ±1°C (±1.8°F) for temperature range (0°C, to +100°C, +32°F to +212°F) or ±2% of reading for temperature range (>+100°C, >+212°F) |
| Measurement analysis | |
| Spotmeter | 10 |
| Area 5 boxes with max./min./average | |
| Profile 1 live line (horizontal or vertical) | |
| Difference temperature Delta temperature between measurement functions or reference temperature | |
| Reference temperature | Manually set or captured from any measurement function |
| Emissivity correction | Variable from 0.01 to 1.0 or selected from edita materials list |
| Reflected apparent temperature correction | Automatic, based on input of reflected tempera |
| Measurement corrections | Reflected temperature, distance, atmospheric transmission, humidity, external optics |
| Set-up | |
| Menu commands | Level, spanAuto adjust continuous/manual/semi-automaticZoomPaletteStart/stop recordingStore imagePlayback/recall image |
| Color palettes | Iron, Gray, Rainbow, Arctic, Lava, Rainbow HC |
| Set-up commands | 1 programmable button, overlay recording mode, local adaptation of units, language, date and time formats |
| Storage of images | |
| Storage media Removable SD or SDHC memory | card, two card slots |
| Image storage capacity > 1200 images (JPEG) with post process capability per GB on memory card | |
| Image storage mode | IR/visual imagesVisual image can automatically be associated with corresponding IR image |
| Periodic image storage Every 10 seconds up to 24 hours | |
| File formats Standard JPEG, 14 bit measurement data included | |
| Geographic Information System | |
| GPS Location data automatically added to every image from built-in GPS | |
| Video recording in camera | |
| Radiometric IR video recording *.seq video clips to memory card (7.5 and 15 Hz). | |
| Non-radiometric IR video recording MPEG4 (up to 60 minutes/clip) to memory card.Visual image can automatically be associated with corresponding recording of non-radiometric IR video. | |
| Visual video recording MPEG4 (25 minutes/clip) to memory card | |
| Video streaming | |
| Radiometric IR video streaming Full dynamic to PC using USB cable or to mobile devices using Wi-Fi. PC software capable of displaying the video stream include the following:FLIR IR Camera PlayerFLIR ResearchIRFLIR Tools | |
| Non-radiometric IR video streaming | RTP/MPEG4 |
| Digital camera | |
| Built-in digital camera | 3.2 Mpixels, auto focus, and two video lamps |
| Laser pointer | |
| Laser | Activated by dedicated button |
| Laser classification | Class 2 |
| Laser type | Semiconductor AlGaInP diode laser, 1 mW, 635 nm (red) |
| USB | |
| USB | USB-A: Connect external USB deviceUSB Mini-B: Data transfer to and from PC |
| USB, standard USB Mini-B: 2.0 high speed | |
| Composite video | |
| Video out | Digital video output (image) |
| Power system | |
| Battery type Rechargeable Li ion battery | |
| Battery voltage 7.2 V | |
| Battery capacity 4.4 Ah | |
| Battery operating time | >3 hours at 25°C (+77°F) and typical use |
| Charging system In camera (AC adapter or 12 V) | from a vehicle) or 2-bay charger |
| Charging time 2.5 h to 95% capacity, charging status indicated by LED's | |
| External power operation | AC adapter 90-260 VAC, 50/60 Hz or 12 V from vehicle (cable with standard plug, optional) |
| DC operation 10.8 to 16 V DC, polarity protected (proprietary protected) | |
| Power 8.5 W typically | |
| Start-up time Typically 8 min. @ 25°C (+77°F) | |
| Environmental data | |
| Operating temperature range -20°C to +40°C (-4°F to +104°F) | |
| Storage temperature range -30°C to +60°C (-22°F to +140°F) | |
| Humidity (operating and storage) | IEC 68-2-30/24 h 95% relative humidity +25°C +40°C (+77°F to +104°F) (2 cycles) |
| Directives | 73/23EEC2004/108/EC2002/95/EC2002/96/EC |
| EMC | EN61000-6-4 (Emission)EN61000-6-2 (Immunity)FCC 47 CFR Part 15 class A (Emission)EN 61 000-4-8, L5 |
| Encapsulation | IP 54 (IEC 60529) |
| Shock 25 g (IEC 60068-2-27) | |
| Vibration | 2 g (IEC 60068-2-6) |
| Safety | Power supply: EN/UL/IEC 60950-1 |
| Physical data | |
| Camera weight, excl. lens and battery | 1.94 kg (4.27 lb.) |
| Camera weight, incl. lens and excl. battery | 2.24 kg (4.94 lb.) |
| Camera weight, incl. lens and battery | 2.48 kg (5.47 lb.) |
| Battery weight | 0.24 kg (0.52 lb.) |
| Camera size, excl. lens (L × W × H) | 284 × 169 × 161 mm (11.2 × 6.7 × 6.3 in.) |
| Cameras size, incl. lens (L × W × H) | 305 × 169 × 161 mm (12.0 × 6.7 × 6.3 in.) |
| Battery size (L × W × H) | 141 × 47 × 28 mm (5.5 × 1.8 × 1.1 in.) |
| Battery charger size (L × W × H) | 158 × 122 × 25 mm (6.2 × 4.8 × 1.0 in.) |
| Tripod mounting | UNC 1⁄4"-20 |
| Housing material Aluminum, magnesium | |
| Grip material TPE thermoplastic elastomers | |
| Shipping information | |
| Packaging, type | Cardboard box |
| List of contents | Infrared camera with lensBattery chargerBattery, 2 ea.Hard transport caseHDMI-DVI cableHDMI-HDMI cableLens cap (mounted on lens)Memory cardPower supply, incl. multi-plugsPrinted documentationShoulder strapUSB cableWi-Fi USB micro adapter (depending on CE and FCC regulations regarding wireless equipment for your country) |
| Packaging, weight | |
| Packaging, size 400 × 190 × 510 mm ( 15.7 × 7 ) | 5 × 20.1 in.) |
Supplies & accessories:
• T197692; Battery charger, incl. power supply with multi plugs
• T910814; Power supply, incl. multi plugs
• T198511; Li-Ion Battery pack 7.4V 33Wh
• T199367ACC; Battery Li-ion 7.2 V, 4.4 Ah, 32 Wh
• T911650ACC; Memory card SD Card 8 GB
• 1910423; USB cable Std A <-> Mini-B
• T198509; Cigarette lighter adapter kit, 12 VDC, 1.2 m/3.9 ft.
• T910815ACC; HDMI to HDMI cable 1.5 m
• T910816ACC; HDMI to DVI cable 1.5 m
• T197555; Hard transport case for FLIR GF3xx-Series
• T951387; Wi-Fi USB micro adapter
• T198586; FLIR Reporter Professional (license only)
• T198584; FLIR Tools
• T198583; FLIR Tools+ (download card incl. license key)
• T198585; FLIR VideoReport
• DSW-10000; FLIR IR Camera Player
- APP-10002; FLIR Tools Mobile (Android Application)
• T198697; FLIR ResearchIR Max + HSDR 4 (hardware sec. dev.)
• T199014; FLIR ResearchIR Max + HSDR 4 (printed license key)
• T199044; FLIR ResearchIR Max + HSDR 4 Upgrade (printed license key)
• T198696; FLIR ResearchIR Max 4 (hardware sec. dev.)
• T199013; FLIR ResearchIR Max 4 (printed license key)
• T199043; FLIR ResearchIR Max 4 Upgrade (printed license key)
• T198731; FLIR ResearchIR Standard 4 (hardware sec. dev.)
• T199012; FLIR ResearchIR Standard 4 (printed license key)
• T199042; FLIR ResearchIR Standard 4 Upgrade (printed license key)
• T199233; FLIR Atlas SDK for .NET
• T199234; FLIR Atlas SDK for MATLAB
• T198567; ThermoVision™ System Developers Kit Ver. 2.6
• T198566; ThermoVision™ LabVIEW® Digital Toolkit Ver. 3.3
22.10 FLIR GF304 24°
P/N: 59601-0102
Rev.: 45202
| General description | |
| The FLIR GF304 is an infrared camera for optical gas imaging (OGI) that visualizes and pinpoints leaks of refrigerant gases, without the need to shut down the operation. This portable camera also greatly improves operator safety, by detecting gases at a safe distance, and helps to protect the environment by tracing leaks of environmentally harmful gases.Refrigerant gases are found in, for example, the food, chemical/petrochemical, and automotive industries, as well as in air-conditioning systems. | |
| Benefits: | |
| Improved efficiency: The FLIR GF304 reduces revenue loss by pinpointing even small gas leaks quickly and efficiently, and from a distance. It also reduces the inspection time by being able to scan a broad area rapidly without the need to interrupt the industrial process. The wireless connectivity of the camera allows you to connect to smart phones or tablets for the wireless transfer of images or the remote control of the camera. The FLIR GF304 can also be used for temperature measurement, which makes it even more useful for predictive maintenance.Increased worker safety: The leak detection of gases can be performed in non-contact mode, and from a safe distance. This reduces the risk of the user being exposed to invisible and potentially harmful or explosive chemicals. With a FLIR GF304 gas-imaging camera it is easy to scan areas of interest that are difficult to reach with conventional methods. The camera is ergonomically designed, with a bright LCD and a tiltable viewfinder, which facilitates its use over a full working day.Protecting the environment: Several refrigerant gases have a high global warming potential and are usually governed by regulations. Even small leaks can be detected and documented using the FLIR GF304 camera. | |
| Detects the following refrigerant gases: R404A, R407C, R410A, R134A, R417A, R422A, R507A, R143A, R125, R245fa. | |
| Licensing and classification | |
| License information Interchangeable lens version | of the FLIR GF3XXseries requires US Department of State License and will be subject to limitations on resale, except inside US. Allow a minimum of 90 days after application submittal for approval. |
| Imaging and optical data | |
| IR resolution 320 × 240 pixels | |
| Thermal sensitivity/NETD <15 mK @ +30°C (+86°F) | |
| Field of view (FOV) | 24° × 18° |
| Minimum focus distance 0.3 m (1.0 ft.) | |
| Focal length 23 mm (0.89 in.) | |
| Lens identification Automatic | |
| F-number 1.5 | |
| Focus | Automatic (one touch) or manual (electric or on the lens) |
| Zoom | 1-8× continuous, digital zoom |
| Digital image enhancement | Noise reduction filter, high sensitivity mode (HSM) |
| Detector data | |
| Detector type Focal plane array (FPA), cooled Q | WIP |
| Spectral range | 8.0–8.6 μm |
| Detector pitch 30 μm | |
| Sensor cooling Stirling Microcooler (FLIR MC-3) | |
| Detects following gases R404A, R407C, R410A, | R417A, R422A, R507A,R143A, R125, R134A, R245fa |
| Electronics and data rate | |
| Full frame rate 60 Hz | |
| Image presentation | |
| Display Built-in widescreen, 4.3 in. LCD, 800 × 480 pixels | |
| Viewfinder Built-in, tiltable OLED, 800 × 480 pixels | |
| Automatic image adjustment Continuous/manual; linear or histogram based | |
| Manual image adjustment | Level/span |
| Image presentation modes | |
| Image modes IR image, visual image, high sensitivity mode (HSM) |
| Measurement | |
| Temperature range | -20°C to +250°C (-4°F to +482°F) |
| Accuracy | ±1°C (±1.8°F) for temperature range (0°C, to +100°C, +32°F to +212°F) or ±2% of reading for temperature range (>+100°C, >+212°F) |
| Measurement analysis | |
| Spotmeter | 10 |
| Area | 5 boxes with max./min./average |
| Profile | 1 live line (horizontal or vertical) |
| Difference temperature | Delta temperature between measurement functions or reference temperature |
| Reference temperature | Manually set or captured from any measurement function |
| Emissivity correction | Variable from 0.01 to 1.0 or selected from edita materials list |
| Reflected apparent temperature correction | Automatic, based on input of reflected tempera |
| Measurement corrections | Reflected temperature, distance, atmospheric transmission, humidity, external optics |
| Set-up | |
| Menu commands Level, span | Auto adjust continuous/manual/semi-automaticZoomPaletteStart/stop recordingStore imagePlayback/recall image |
| Color palettes Iron, Gray, Rainbow, Arctic, Lava, | Rainbow HC |
| Set-up commands | 1 programmable button, overlay recording mode, local adaptation of units, language, date and time formats |
| Storage of Images | |
| Storage media Removable SD or SDHC memory | card, two card slots |
| Image storage capacity | >1200 images (JPEG) with post process capability per GB on memory card |
| Image storage mode | IR/visual imagesVisual image can automatically be associated with corresponding IR image |
| Periodic image storage Every 10 seconds up to | 24 hours |
| File formats Standard JPEG, 14 bit measurement | data included |
| Geographic Information System | |
| GPS Location data automatically added to every image from built-in GPS |
| Video recording in camera | |
| Radiometric IR video recording *.seq video clips | to memory card (7.5 and 15 Hz). |
| Non-radiometric IR video recording MPEG4 (up to | 60 minutes/clip) to memory card.Visual image can automatically be associated with corresponding recording of non-radiometric IR video. |
| Visual video recording MPEG4 (25 minutes/clip) | to memory card |
| Video streaming | |
| Radiometric IR video streaming Full dynamic to | PC using USB cable or to mobile devices using Wi-Fi. PC software capable of displaying the video stream include the following:FLIR IR Camera PlayerFLIR ResearchIRFLIR Tools |
| Non-radiometric IR video streaming | RTP/MPEG4 |
| Digital camera | |
| Built-in digital camera | 3.2 Mpixels, auto focus, and two video lamps |
| Laser pointer | |
| Laser Activated by dedicated button | |
| Laser classification Class 2 | |
| Laser type Semiconductor AlGaInP diode laser, 1 | mW, 635nm (red) |
| USB | |
| USB | • USB-A: Connect external USB device• USB Mini-B: Data transfer to and from PC |
| USB, standard USB Mini-B: 2.0 high speed | |
| Composite video | |
| Video out Digital video output (image) | |
| Power system | |
| Battery type Rechargeable Li ion battery | |
| Battery voltage 7.2 V | |
| Battery capacity 4.4 Ah | |
| Battery operating time | >3 hours at 25°C (+77°F) and typical use |
| Charging system | In camera (AC adapter or 12 V from a vehicle) bay charger |
| Charging time | 2.5 h to 95% capacity, charging status indicated LED's |
| External power operation | AC adapter 90–260 VAC, 50/60 Hz or 12 V from a vehicle (cable with standard plug, optional) |
| DC operation | 10.8 to 16 V DC, polarity protected (proprietary protected) |
| Power | 8.5 W typically |
| Start-up time | Typically 8 min. @ 25°C (+77°F) |
| Environmental data | |
| Operating temperature range | -20°C to +40°C (-4°F to +104°F) |
| Storage temperature range | -30°C to +60°C (-22°F to +140°F) |
| Humidity (operating and storage) | IEC 68-2-30/24 h 95% relative humidity +25°C +40°C (+77°F to +104°F) (2 cycles) |
| Directives | • 73/23EEC• 2004/108/EC• 2002/95/EC• 2002/96/EC |
| EMC | • EN61000-6-4 (Emission)• EN61000-6-2 (Immunity)• FCC 47 CFR Part 15 class A (Emission)• EN 61 000-4-8, L5 |
| Encapsulation | IP 54 (IEC 60529) |
| Shock | 25 g (IEC 60068-2-27) |
| Vibration | 2 g (IEC 60068-2-6) |
| Safety | Power supply: EN/UL/IEC 60950-1 |
| Physical data | |
| Camera weight, excl. lens and battery 1.94 kg (4.27 lb.) | |
| Camera weight, incl. lens and excl. battery 2.24 kg (4.94 lb.) | |
| Camera weight, incl. lens and battery 2.48 kg (5.47 lb.) | |
| Battery weight 0.24 kg (0.52 lb.) | |
| Camera size, excl. lens (L × W × H) 284 × 169 × 161 mm (11.2 × 6.7 × 6.3 in.) | |
| Cameras size, incl. lens (L × W × H) 306 × 169 × 161 mm (12.0 × 6.7 × 6.3 in.) | |
| Battery size (L × W × H) 141 × 47 × 28 mm (5.5 × 1.8 × 1.1 in.) | |
| Battery charger size (L × W × H) 158 × 122 × 25 mm (6.2 × 4.8 × 1.0 in.) | |
| Tripod mounting | UNC 14 "-20 |
| Housing material Aluminum, magnesium | |
| Grip material | TPE thermoplastic elastomers |
| Shipping information | |
| Packaging, type | Cardboard box |
| List of contents | Infrared camera with lensBattery chargerBattery, 2 ea.Hard transport caseHDMI-DVI cableHDMI-HDMI cableLens cap (2 ea.)Lens cap (mounted on lens)Memory cardPower supply, incl. multi-plugsPrinted documentationShoulder strapUSB cableWi-Fi USB micro adapter (depending on CE and FCC regulations regarding wireless equipment for your country) |
| Packaging, weight | |
| Packaging, size | 400 × 190 × 510 mm (15.7 × 7.5 × 20.1 in.) |
Supplies & accessories:
• T197386; IR lens, 24° with case for GF304, GF306
• T197384; IR lens, 14.5° with case for GF304, GF306
• T197692; Battery charger, incl. power supply with multi plugs
• T910814; Power supply, incl. multi plugs
• T198511; Li-Ion Battery pack 7.4V 33Wh
• T199367ACC; Battery Li-ion 7.2 V, 4.4 Ah, 32 Wh
• T911650ACC; Memory card SD Card 8 GB
• 1910423; USB cable Std A <-> Mini-B
• T198509; Cigarette lighter adapter kit, 12 VDC, 1.2 m/3.9 ft.
• T910815ACC; HDMI to HDMI cable 1.5 m
• T910816ACC; HDMI to DVI cable 1.5 m
• T197555; Hard transport case for FLIR GF3xx-Series
• T951387; Wi-Fi USB micro adapter
• T198586; FLIR Reporter Professional (license only)
• T198584; FLIR Tools
• T198583; FLIR Tools+ (download card incl. license key)
• T198585; FLIR VideoReport
• DSW-10000; FLIR IR Camera Player
- APP-10002; FLIR Tools Mobile (Android Application)
• T198697; FLIR ResearchIR Max + HSDR 4 (hardware sec. dev.)
• T199014; FLIR ResearchIR Max + HSDR 4 (printed license key)
• T199044; FLIR ResearchIR Max + HSDR 4 Upgrade (printed license key)
• T198696; FLIR ResearchIR Max 4 (hardware sec. dev.)
• T199013; FLIR ResearchIR Max 4 (printed license key)
• T199043; FLIR ResearchIR Max 4 Upgrade (printed license key)
• T198731; FLIR ResearchIR Standard 4 (hardware sec. dev.)
• T199012; FLIR ResearchIR Standard 4 (printed license key)
• T199042; FLIR ResearchIR Standard 4 Upgrade (printed license key)
• T199233; FLIR Atlas SDK for .NET
• T199234; FLIR Atlas SDK for MATLAB
• T198567; ThermoVision™ System Developers Kit Ver. 2.6
• T198566; ThermoVision™ LabVIEW® Digital Toolkit Ver. 3.3
22.11 FLIR GF304 24° Fixed lens
P/N: 59602-0102
Rev.: 45202
| General description |
| The FLIR GF304 is an infrared camera for optical gas imaging (OGI) that visualizes and pinpoints leaks of refrigerant gases, without the need to shut down the operation. This portable camera also greatly improves operator safety, by detecting gases at a safe distance, and helps to protect the environment by tracing leaks of environmentally harmful gases.Refrigerant gases are found in, for example, the food, chemical/petrochemical, and automotive industries, as well as in air-conditioning systems. |
| Benefits:Improved efficiency: The FLIR GF304 reduces revenue loss by pinpointing even small gas leaks quickly and efficiently, and from a distance. It also reduces the inspection time by being able to scan a broad area rapidly without the need to interrupt the industrial process. The wireless connectivity of the camera allows you to connect to smart phones or tablets for the wireless transfer of images or the remote control of the camera. The FLIR GF304 can also be used for temperature measurement, which makes it even more useful for predictive maintenance.Increased worker safety: The leak detection of gases can be performed in non-contact mode, and from a safe distance. This reduces the risk of the user being exposed to invisible and potentially harmful or explosive chemicals. With a FLIR GF304 gas-imaging camera it is easy to scan areas of interest that are difficult to reach with conventional methods. The camera is ergonomically designed, with a bright LCD and a tiltable viewfinder, which facilitates its use over a full working day.Protecting the environment: Several refrigerant gases have a high global warming potential and are usually governed by regulations. Even small leaks can be detected and documented using the FLIR GF304 camera. |
| Detects the following refrigerant gases: R404A, R407C, R410A, R134A, R417A, R422A, R507A, R143A, R125, R245fa. |
| Imaging and optical data | |
| IR resolution 320 × 240 pixels | |
| Thermal sensitivity/NETD <15 mK @ +30°C (+86°F) | |
| Field of view (FOV) | 24° × 18° |
| Minimum focus distance 0.3 m (1.0 ft.) | |
| Focal length 23 mm (0.89 in.) | |
| Lens identification Automatic | |
| F-number 1.5 | |
| Focus | Automatic (one touch) or manual (electric or on lens) |
| Zoom | 1-8× continuous, digital zoom |
| Digital image enhancement | Noise reduction filter, high sensitivity mode (HSM |
| Detector data | |
| Detector type | Focal plane array (FPA), cooled QWIP |
| Spectral range | 8.0–8.6 μm |
| Detector pitch | 30 μm |
| Sensor cooling | Stirling Microcooler (FLIR MC-3) |
| Detects following gases | R404A, R407C, R410A, R417A, R422A, R507A, R143A, R125, R134A, R245fa |
| Electronics and data rate | |
| Full frame rate 60 Hz | |
| Image presentation | |
| Display Built-in widescreen, 4.3 in. LCD, 800 × 480 pixels | |
| Viewfinder Built-in, tiltable OLED, 800 × 480 pixels | |
| Automatic image adjustment Continuous/manual; linear or histogram based | |
| Manual image adjustment Level/span | |
| Image presentation modes | |
| Image modes IR image, visual image, high sensitivity mode (HSM) | |
| Measurement | |
| Temperature range -20°C to +250°C (-4°F to +482°F) | |
| Accuracy | ±1°C (±1.8°F) for temperature range (0°C, to +100°C, +32°F to +212°F) or ±2% of reading for temperature range (>+100°C, >+212°F) |
| Measurement analysis | |
| Spotmeter | 10 |
| Area 5 boxes with max./min./average | |
| Profile 1 live line (horizontal or vertical) | |
| Difference temperature Delta temperature between measurement functions or reference temperature | |
| Reference temperature | Manually set or captured from any measurement function |
| Emissivity correction | Variable from 0.01 to 1.0 or selected from edita materials list |
| Reflected apparent temperature correction | Automatic, based on input of reflected tempera |
| Measurement corrections | Reflected temperature, distance, atmospheric transmission, humidity, external optics |
| Set-up | |
| Menu commands | Level, spanAuto adjust continuous/manual/semi-automaticZoomPaletteStart/stop recordingStore imagePlayback/recall image |
| Color palettes | Iron, Gray, Rainbow, Arctic, Lava, Rainbow HC |
| Set-up commands | 1 programmable button, overlay recording mode, local adaptation of units, language, date and time formats |
| Storage of images | |
| Storage media Removable SD or SDHC memory | card, two card slots |
| Image storage capacity > 1200 images (JPEG) with post process capability per GB on memory card | |
| Image storage mode | IR/visual imagesVisual image can automatically be associated with corresponding IR image |
| Periodic image storage Every 10 seconds up to 24 hours | |
| File formats Standard JPEG, 14 bit measurement data included | |
| Geographic Information System | |
| GPS Location data automatically added to every image from built-in GPS | |
| Video recording in camera | |
| Radiometric IR video recording *.seq video clips to memory card (7.5 and 15 Hz). | |
| Non-radiometric IR video recording MPEG4 (up to 60 minutes/clip) to memory card.Visual image can automatically be associated with corresponding recording of non-radiometric IR video. | |
| Visual video recording MPEG4 (25 minutes/clip) to memory card | |
| Video streaming | |
| Radiometric IR video streaming Full dynamic to PC using USB cable or to mobile devices using Wi-Fi. PC software capable of displaying the video stream include the following:FLIR IR Camera PlayerFLIR ResearchIRFLIR Tools | |
| Non-radiometric IR video streaming | RTP/MPEG4 |
| Digital camera | |
| Built-in digital camera | 3.2 Mpixels, auto focus, and two video lamps |
| Laser pointer | |
| Laser | Activated by dedicated button |
| Laser classification | Class 2 |
| Laser type | Semiconductor AlGaInP diode laser, 1 mW, 635 nm (red) |
| USB | |
| USB | USB-A: Connect external USB deviceUSB Mini-B: Data transfer to and from PC |
| USB, standard USB Mini-B: 2.0 high speed | |
| Composite video | |
| Video out | Digital video output (image) |
| Power system | |
| Battery type Rechargeable Li ion battery | |
| Battery voltage 7.2 V | |
| Battery capacity 4.4 Ah | |
| Battery operating time | >3 hours at 25°C (+77°F) and typical use |
| Charging system In camera (AC adapter or 12 V) | from a vehicle) or 2-bay charger |
| Charging time 2.5 h to 95% capacity, charging status indicated by LED's | |
| External power operation | AC adapter 90-260 VAC, 50/60 Hz or 12 V from vehicle (cable with standard plug, optional) |
| DC operation 10.8 to 16 V DC, polarity protected (proprietary protected) | |
| Power 8.5 W typically | |
| Start-up time Typically 8 min. @ 25°C (+77°F) | |
| Environmental data | |
| Operating temperature range -20°C to +40°C (-4°F to +104°F) | |
| Storage temperature range -30°C to +60°C (-22°F to +140°F) | |
| Humidity (operating and storage) | IEC 68-2-30/24 h 95% relative humidity +25°C +40°C (+77°F to +104°F) (2 cycles) |
| Directives | 73/23EEC2004/108/EC2002/95/EC2002/96/EC |
| EMC | EN61000-6-4 (Emission)EN61000-6-2 (Immunity)FCC 47 CFR Part 15 class A (Emission)EN 61 000-4-8, L5 |
| Encapsulation | IP 54 (IEC 60529) |
| Shock 25 g (IEC 60068-2-27) | |
| Vibration | 2 g (IEC 60068-2-6) |
| Safety | Power supply: EN/UL/IEC 60950-1 |
| Physical data | |
| Camera weight, excl. lens and battery | 1.94 kg (4.27 lb.) |
| Camera weight, incl. lens and excl. battery | 2.24 kg (4.94 lb.) |
| Camera weight, incl. lens and battery | 2.48 kg (5.47 lb.) |
| Battery weight | 0.24 kg (0.52 lb.) |
| Camera size, excl. lens (L × W × H) | 284 × 169 × 161 mm (11.2 × 6.7 × 6.3 in.) |
| Cameras size, incl. lens (L × W × H) | 306 × 169 × 161 mm (12.0 × 6.7 × 6.3 in.) |
| Battery size (L × W × H) | 141 × 47 × 28 mm (5.5 × 1.8 × 1.1 in.) |
| Battery charger size (L × W × H) | 158 × 122 × 25 mm (6.2 × 4.8 × 1.0 in.) |
| Tripod mounting | UNC 1⁄4"-20 |
| Housing material Aluminum, magnesium | |
| Grip material TPE thermoplastic elastomers | |
| Shipping information | |
| Packaging, type | Cardboard box |
| List of contents | Infrared camera with lensBattery chargerBattery, 2 ea.Hard transport caseHDMI-DVI cableHDMI-HDMI cableLens cap (mounted on lens)Memory cardPower supply, incl. multi-plugsPrinted documentationShoulder strapUSB cableWi-Fi USB micro adapter (depending on CE and FCC regulations regarding wireless equipment for your country) |
| Packaging, weight | |
| Packaging, size 400 × 190 × 510 mm ( 15.7 × 7 ) | 5 × 20.1 in.) |
Supplies & accessories:
• T197692; Battery charger, incl. power supply with multi plugs
• T910814; Power supply, incl. multi plugs
• T198511; Li-Ion Battery pack 7.4V 33Wh
• T199367ACC; Battery Li-ion 7.2 V, 4.4 Ah, 32 Wh
• T911650ACC; Memory card SD Card 8 GB
• 1910423; USB cable Std A <-> Mini-B
• T198509; Cigarette lighter adapter kit, 12 VDC, 1.2 m/3.9 ft.
• T910815ACC; HDMI to HDMI cable 1.5 m
• T910816ACC; HDMI to DVI cable 1.5 m
• T197555; Hard transport case for FLIR GF3xx-Series
• T951387; Wi-Fi USB micro adapter
• T198586; FLIR Reporter Professional (license only)
• T198584; FLIR Tools
• T198583; FLIR Tools+ (download card incl. license key)
• T198585; FLIR VideoReport
• DSW-10000; FLIR IR Camera Player
- APP-10002; FLIR Tools Mobile (Android Application)
• T198697; FLIR ResearchIR Max + HSDR 4 (hardware sec. dev.)
• T199014; FLIR ResearchIR Max + HSDR 4 (printed license key)
• T199044; FLIR ResearchIR Max + HSDR 4 Upgrade (printed license key)
• T198696; FLIR ResearchIR Max 4 (hardware sec. dev.)
• T199013; FLIR ResearchIR Max 4 (printed license key)
• T199043; FLIR ResearchIR Max 4 Upgrade (printed license key)
• T198731; FLIR ResearchIR Standard 4 (hardware sec. dev.)
• T199012; FLIR ResearchIR Standard 4 (printed license key)
• T199042; FLIR ResearchIR Standard 4 Upgrade (printed license key)
• T199233; FLIR Atlas SDK for .NET
• T199234; FLIR Atlas SDK for MATLAB
• T198567; ThermoVision™ System Developers Kit Ver. 2.6
• T198566; ThermoVision™ LabVIEW® Digital Toolkit Ver. 3.3
22.12 FLIR GF306 14.5°
P/N: 44201-0101
Rev.: 45202
| General description | |
| The FLIR GF306 is an infrared camera for optical gas imaging (OGI) that visualizes and pinpoints leaks—especially of sulfur hexafluoride ( SF and ammonia—without the need to de-energize high-voltage equipment or shut down the operation. The portable camera also greatly improves operator safety by detecting emissions at a safe distance, and helps to protect the environment by tracing leaks of environmentally harmful gases. SF_6 is used in the electric power industry as an insulator and quenching medium for gas-insulated substances and circuit breakers. The gas is also used in magnesium production and semiconductor manufacture. Ammonia is produced in ammonia plants, and is used mainly for the production of fertilizers. | |
| Benefits: | |
| Improved efficiency: The FLIR GF306 reduces revenue loss by pinpointing even small gas leaks quickly and efficiently, and from a distance. It also reduces inspection time by allowing a broad area to be scanned rapidly and without the need to de-energize components in the high-voltage area. The wireless connectivity of the camera allows you to connect to smart phones or tablets for the wireless transfer of images or the remote control of the camera. The FLIR GF306 can also be used for temperature measurement, which makes it even more useful for the predictive maintenance of high-voltage equipment.Increased worker safety: OGI allows gas leaks to be detected in a non-contact mode and from a safe distance. This prevents electrical exposure to personnel working in a high-voltage area. With a GF306 gas imaging camera, it is easy to scan areas of interest that are difficult to reach with conventional methods. The camera is ergonomically designed, with a bright LCD and tiltable viewfinder, which facilitates its use over a full working day.Protecting the environment: SF_6 is a well-known greenhouse gas that causes harm to the environment, and is usually governed by regulations, SF_6 is a global warming potential 24 000 times higher than carbon dioxide. Even small leaks can be detected and documented using the FLIR GF306 camera. | |
| Detects the following gases: sulfur hexafluoride, acetyl chloride, acetic acid, allyl bromide, allyl chloride, allyl fluoride, ammonia, bromomethane, chlorine dioxide, ethyl cyanoacrylate, ethylene, furan, hydrazine, methylsilane, methyl ethyl ketone, methyl vinyl ketone, propenal, propene, R-134a, tetrahydrofuran, tri-chloroethylene, uranyl fluoride, vinyl chloride, vinyl cyanide, vinyl ether. | |
| Licensing and classification | |
| License information Interchangeable lens version | of the FLIR GF3XX series requires US Department of State License and will be subject to limitations on resale, except inside US. Allow a minimum of 90 days after application submittal for approval. |
| Imaging and optical data | |
| IR resolution 320 × 240 pixels | |
| Thermal sensitivity/NETD <15 mK @ +30°C (+86°F) | |
| Field of view (FOV) | 14.5° × 10.8° |
| Minimum focus distance 0.5 m (1.64 ft.) | |
| Focal length 38 mm (1.49 in.) | |
| Lens identification Automatic | |
| F-number | 1.5 |
| Focus | Automatic (one touch) or manual (electric or on the lens) |
| Imaging and optical data | |
| Zoom 1-8× continuous, digital zoom | |
| Digital image enhancement Noise reduction filter, | high sensitivity mode (HSM) |
| Detector data | |
| Detector type Focal plane array (FPA), cooled Q | WIP |
| Spectral range | 10.3-10.7 μm |
| Detector pitch 30 μm | |
| Sensor cooling Stirling Microcooler (FLIR MC-3) | |
| Detects following gases Sulfur Hexafluoride (SF6) | Acetyl Chloride, Acetic Acid, Allyl Bromide, Allyl Chloride, Allyl Fluoride, Ammonia (NH3), Bromomethane, Chlorine Dioxide Ethyl Cyanoacrylate, Ethylene, Furan, Hydrazine, Methylsilane, Methyl Ethyl Ketone, Methyl Vinyl K tone, Propenal, Propene, R 134a, Tetrahydrofuran Trichloroethylene, Uranyl Fluoride, Vinyl Chloride, Vinyl Cyanide, Vinyl Ether |
| Electronics and data rate | |
| Full frame rate 60 Hz | |
| Image presentation | |
| Display | Built-in widescreen, 4.3 in. LCD, 800 × 480 pixe |
| Viewfinder Built-in, tiltable OLED, 800 × 480 pixels | |
| Automatic image adjustment | Continuous/manual; linear or histogram based |
| Manual image adjustment Level/span | |
| Image presentation modes | |
| Image modes | IR image, visual image, high sensitivity mode (HSM) |
| Measurement | |
| Temperature range | -40°C to +500°C (-40°F to +932°F) |
| Accuracy | ±1°C (±1.8°F) for temperature range (0°C, to +100°C, +32°F to +212°F) or ±2% of reading for temperature range (>100°C, >+212°F) |
| Measurement analysis | |
| Spotmeter | 10 |
| Area | 5 boxes with max./min./average |
| Profile | 1 live line (horizontal or vertical) |
| Difference temperature | Delta temperature between measurement functions or reference temperature |
| Reference temperature | Manually set or captured from any measurement function |
| Emissivity correction | Variable from 0.01 to 1.0 or selected from edita materials list |
| Reflected apparent temperature correction | Automatic, based on input of reflected tempera |
| Measurement corrections | Reflected temperature, distance, atmospheric transmission, humidity, external optics |
| Set-up | |
| Menu commands Level, span | Auto adjust continuous/manual/semi-automaticZoomPaletteStart/stop recordingStore imagePlayback/recall image |
| Color palettes Iron, Gray, Rainbow, Arctic, Lava, | Rainbow HC |
| Set-up commands | 1 programmable button, overlay recording mode, local adaptation of units, language, date and time formats |
| Storage of Images | |
| Storage media Removable SD or SDHC memory | card, two card slots |
| Image storage capacity | >1200 images (JPEG) with post process capability per GB on memory card |
| Image storage mode | IR/visual imagesVisual image can automatically be associated with corresponding IR image |
| Periodic image storage Every 10 seconds up to | 24 hours |
| File formats Standard JPEG, 14 bit measurement | data included |
| Geographic Information System | |
| GPS Location data automatically added to every image from built-in GPS |
| Video recording in camera | |
| Radiometric IR video recording *.seq video clips | to memory card (7.5 and 15 Hz). |
| Non-radiometric IR video recording MPEG4 (up to | 60 minutes/clip) to memory card.Visual image can automatically be associated with corresponding recording of non-radiometric IR video. |
| Visual video recording MPEG4 (25 minutes/clip) | to memory card |
| Video streaming | |
| Radiometric IR video streaming Full dynamic to | PC using USB cable or to mobile devices using Wi-Fi. PC software capable of displaying the video stream include the following:FLIR IR Camera PlayerFLIR ResearchIRFLIR Tools |
| Non-radiometric IR video streaming | RTP/MPEG4 |
| Digital camera | |
| Built-in digital camera | 3.2 Mpixels, auto focus, and two video lamps |
| Laser pointer | |
| Laser Activated by dedicated button | |
| Laser classification Class 2 | |
| Laser type Semiconductor AlGaInP diode laser, 1 | mW, 635nm (red) |
| USB | |
| USB | • USB-A: Connect external USB device• USB Mini-B: Data transfer to and from PC |
| USB, standard USB Mini-B: 2.0 high speed | |
| Composite video | |
| Video out Digital video output (image) | |
| Power system | |
| Battery type Rechargeable Li ion battery | |
| Battery voltage 7.2 V | |
| Battery capacity 4.4 Ah | |
| Battery operating time | >2 hours at 25°C (+77°F) and typical use |
| Charging system | In camera (AC adapter or 12 V from a vehicle) bay charger |
| Charging time | 2.5 h to 95% capacity, charging status indicated LED's |
| External power operation | AC adapter 90–260 VAC, 50/60 Hz or 12 V from a vehicle (cable with standard plug, optional) |
| DC operation | 10.8 to 16 V DC, polarity protected (proprietary protected) |
| Power | 12.5 W typically |
| Start-up time | Typically 10 min. @ 25°C (+77°F) |
| Environmental data | |
| Operating temperature range | -20°C to +40°C (-4°F to +104°F) |
| Storage temperature range | -30°C to +60°C (-22°F to +140°F) |
| Humidity (operating and storage) | IEC 68-2-30/24 h 95% relative humidity +25°C +40°C (+77°F to +104°F) (2 cycles) |
| Directives | • 73/23EEC• 2004/108/EC• 2002/95/EC• 2002/96/EC |
| EMC | • EN61000-6-4 (Emission)• EN61000-6-2 (Immunity)• FCC 47 CFR Part 15 class A (Emission)• EN 61 000-4-8, L5 |
| Encapsulation | IP 54 (IEC 60529) |
| Shock | 25 g (IEC 60068-2-27) |
| Vibration | 2 g (IEC 60068-2-6) |
| Safety | Power supply: EN/UL/IEC 60950-1 |
| Physical data | |
| Camera weight, excl. lens and battery 1.94 kg (4.27 lb.) | |
| Camera weight, incl. lens and excl. battery 2.24 kg (4.94 lb.) | |
| Camera weight, incl. lens and battery 2.48 kg (5.47 lb.) | |
| Battery weight 0.24 kg (0.52 lb.) | |
| Camera size, excl. lens (L × W × H) 284 × 169 × 161 mm (11.2 × 6.7 × 6.3 in.) | |
| Cameras size, incl. lens (L × W × H) 305 × 169 × 161 mm (12.0 × 6.7 × 6.3 in.) | |
| Battery size (L × W × H) 141 × 47 × 28 mm (5.5 × 1.8 × 1.1 in.) | |
| Battery charger size (L × W × H) 158 × 122 × 25 mm (6.2 × 4.8 × 1.0 in.) | |
| Tripod mounting | UNC 14 "-20 |
| Housing material Aluminum, magnesium | |
| Grip material | TPE thermoplastic elastomers |
| Shipping information | |
| Packaging, type | Cardboard box |
| List of contents | Infrared camera with lensBattery chargerBattery, 2 ea.Hard transport caseHDMI-DVI cableHDMI-HDMI cableLens cap (2 ea.)Lens cap (mounted on lens)Memory cardPower supply, incl. multi-plugsPrinted documentationShoulder strapUSB cableWi-Fi USB micro adapter (depending on CE and FCC regulations regarding wireless equipment for your country) |
| Packaging, weight | |
| Packaging, size | 400 × 190 × 510 mm (15.7 × 7.5 × 20.1 in.) |
Supplies & accessories:
• T197386; IR lens, 24° with case for GF304, GF306
• T197384; IR lens, 14.5° with case for GF304, GF306
• T197692; Battery charger, incl. power supply with multi plugs
• T910814; Power supply, incl. multi plugs
• T198511; Li-Ion Battery pack 7.4V 33Wh
• T199367ACC; Battery Li-ion 7.2 V, 4.4 Ah, 32 Wh
• T911650ACC; Memory card SD Card 8 GB
• 1910423; USB cable Std A <-> Mini-B
• T198509; Cigarette lighter adapter kit, 12 VDC, 1.2 m/3.9 ft.
• T910815ACC; HDMI to HDMI cable 1.5 m
• T910816ACC; HDMI to DVI cable 1.5 m
• T197555; Hard transport case for FLIR GF3xx-Series
• T951387; Wi-Fi USB micro adapter
• T198586; FLIR Reporter Professional (license only)
• T198584; FLIR Tools
• T198583; FLIR Tools+ (download card incl. license key)
• T198585; FLIR VideoReport
- DSW-10000; FLIR IR Camera Player
- APP-10002; FLIR Tools Mobile (Android Application)
• T198697; FLIR ResearchIR Max + HSDR 4 (hardware sec. dev.)
• T199014; FLIR ResearchIR Max + HSDR 4 (printed license key)
• T199044; FLIR ResearchIR Max + HSDR 4 Upgrade (printed license key)
• T198696; FLIR ResearchIR Max 4 (hardware sec. dev.)
• T199013; FLIR ResearchIR Max 4 (printed license key)
• T199043; FLIR ResearchIR Max 4 Upgrade (printed license key)
• T198731; FLIR ResearchIR Standard 4 (hardware sec. dev.)
• T199012; FLIR ResearchIR Standard 4 (printed license key)
• T199042; FLIR ResearchIR Standard 4 Upgrade (printed license key)
• T199233; FLIR Atlas SDK for .NET
• T199234; FLIR Atlas SDK for MATLAB
• T198567; ThermoVision™ System Developers Kit Ver. 2.6
• T198566; ThermoVision™ LabVIEW® Digital Toolkit Ver. 3.3
22.13 FLIR GF306 14.5° Fixed lens
P/N: 44202-0101
Rev.: 45202
| General description |
| The FLIR GF306 is an infrared camera for optical gas imaging (OGI) that visualizes and pinpoints gas leaks—especially of sulfur hexafluoride ( SF and ammonia—without the need to de-energize high-voltage equipment or shut down the operation. The portable camera also greatly improves operator safety by detecting emissions at a safe distance, and helps to protect the environment by tracing leaks of environmentally harmful gases. SF_6 is used in the electric power industry as an insulator and quenching medium for gas-insulated substation and circuit breakers. The gas is also used in magnesium production and semiconductor manufacture. Ammonia is produced in ammonia plants, and is used mainly for the production of fertilizers. |
| Benefits: |
| Improved efficiency: The FLIR GF306 reduces revenue loss by pinpointing even small gas leaks quickly and efficiently, and from a distance. It also reduces inspection time by allowing a broad area to be scanned rapidly and without the need to de-energize components in the high-voltage area. The wireless connectivity of the camera allows you to connect to smart phones or tablets for the wireless transfer of images or the remote control of the camera. The FLIR GF306 can also be used for temperature measurement, which makes it even more useful for the predictive maintenance of high-voltage equipment.Increased worker safety: OGI allows gas leaks to be detected in a non-contact mode and from a safe distance. This prevents electrical exposure to personnel working in a high-voltage area. With a GF306 gas imaging camera, it is easy to scan areas of interest that are difficult to reach with conventional methods. The camera is ergonomically designed, with a bright LCD and tiltable viewfinder, which facilitates its use over a full working day.Protecting the environment: SF_6 is a well-known greenhouse gas that causes harm to the environment, and is usually governed by regulations, SF_6 as a global warming potential 24 000 times higher than carbon dioxide. Even small leaks can be detected and documented using the FLIR GF306 camera. |
| Detects the following gases: sulfur hexafluoride, acetyl chloride, acetic acid, allyl bromide, allyl chloride, allyl fluoride, ammonia, bromomethane, chlorine dioxide, ethyl cyanoacrylate, ethylene, furan, hydrazine, methylsilane, methyl ethyl ketone, methyl vinyl ketone, propenal, propene, R-134a, tetrahydrofuran, tri-chloroethylene, uranyl fluoride, vinyl chloride, vinyl cyanide, vinyl ether. |
| Imaging and optical data | |
| IR resolution 320 × 240 pixels | |
| Thermal sensitivity/NETD <15 mK @ +30°C (+86°F) | |
| Field of view (FOV) | 14.5° × 10.8° |
| Minimum focus distance 0.5 m (1.64 ft.) | |
| Focal length 38 mm (1.49 in.) | |
| Lens identification Automatic | |
| F-number | 1.5 |
| Focus | Automatic (one touch) or manual (electric or on the lens) |
| Zoom | 1-8× continuous, digital zoom |
| Digital image enhancement | Noise reduction filter, high sensitivity mode (HSM) |
| Detector data | |
| Detector type | Focal plane array (FPA), cooled QWIP |
| Spectral range | 10.3–10.7 μm |
| Detector pitch | 30 μm |
| Sensor cooling Stirling Microcooler (FLIR MC-3) | |
| Detects following gases Sulfur Hexafluoride (SF6) | Acetyl Chloride, Acetic Acid, Allyl Bromide, Allyl Chloride, Allyl Fluoride, Ammonia (NH3), Bromomethane, Chlorine Dioxide Ethyl Cyanoacrylate, Ethylene, Furan, Hydrazine, Methylsilane, Methyl Ethyl Ketone, Methyl Vinyl K tone, Propenal, Propene, R 134a, Tetrahydrofuran Trichloroethylene, Uranyl Fluoride, Vinyl Chloride, Vinyl Cyanide, Vinyl Ether |
| Electronics and data rate | |
| Full frame rate 60 Hz | |
| Image presentation | |
| Display Built-in widescreen, 4.3 in. LCD, 800 × 480 pixels | |
| Viewfinder Built-in, tiltable OLED, 800 × 480 pixels | |
| Automatic image adjustment Continuous/manual; linear or histogram based | |
| Manual image adjustment | Level/span |
| Image presentation modes | |
| Image modes IR image, visual image, high sensitivity mode (HSM) | |
| Measurement | |
| Temperature range | -40°C to +500°C (-40°F to +932°F) |
| Accuracy | ±1°C (±1.8°F) for temperature range (0°C, to +100°C, +32°F to +212°F) or ±2% of reading for temperature range (>+100°C, >+212°F) |
| Measurement analysis | |
| Spotmeter | 10 |
| Area 5 boxes with max./min./average | |
| Profile 1 live line (horizontal or vertical) | |
| Difference temperature Delta temperature between measurement functions or reference temperature | |
| Reference temperature | Manually set or captured from any measurement function |
| Emissivity correction | Variable from 0.01 to 1.0 or selected from edita materials list |
| Reflected apparent temperature correction | Automatic, based on input of reflected tempera |
| Measurement corrections | Reflected temperature, distance, atmospheric transmission, humidity, external optics |
| Set-up | |
| Menu commands Level, span | Auto adjust continuous/manual/semi-automaticZoomPaletteStart/stop recordingStore imagePlayback/recall image |
| Color palettes Iron, Gray, Rainbow, Arctic, Lava, | Rainbow HC |
| Set-up commands | 1 programmable button, overlay recording mode, local adaptation of units, language, date and time formats |
| Storage of Images | |
| Storage media Removable SD or SDHC memory | card, two card slots |
| Image storage capacity | >1200 images (JPEG) with post process capability per GB on memory card |
| Image storage mode | IR/visual imagesVisual image can automatically be associated with corresponding IR image |
| Periodic image storage Every 10 seconds up to | 24 hours |
| File formats Standard JPEG, 14 bit measurement | data included |
| Geographic Information System | |
| GPS Location data automatically added to every image from built-in GPS |
| Video recording in camera | |
| Radiometric IR video recording *.seq video clips | to memory card (7.5 and 15 Hz). |
| Non-radiometric IR video recording MPEG4 (up to | 60 minutes/clip) to memory card.Visual image can automatically be associated with corresponding recording of non-radiometric IR video. |
| Visual video recording MPEG4 (25 minutes/clip) | to memory card |
| Video streaming | |
| Radiometric IR video streaming Full dynamic to | PC using USB cable or to mobile devices using Wi-Fi. PC software capable of displaying the video stream include the following:FLIR IR Camera PlayerFLIR ResearchIRFLIR Tools |
| Non-radiometric IR video streaming | RTP/MPEG4 |
| Digital camera | |
| Built-in digital camera | 3.2 Mpixels, auto focus, and two video lamps |
| Laser pointer | |
| Laser Activated by dedicated button | |
| Laser classification Class 2 | |
| Laser type Semiconductor AlGaInP diode laser, 1 | mW, 635nm (red) |
| USB | |
| USB | • USB-A: Connect external USB device• USB Mini-B: Data transfer to and from PC |
| USB, standard USB Mini-B: 2.0 high speed | |
| Composite video | |
| Video out Digital video output (image) | |
| Power system | |
| Battery type Rechargeable Li ion battery | |
| Battery voltage 7.2 V | |
| Battery capacity 4.4 Ah | |
| Battery operating time | >2 hours at 25°C (+77°F) and typical use |
| Charging system | In camera (AC adapter or 12 V from a vehicle) bay charger |
| Charging time | 2.5 h to 95% capacity, charging status indicated LED's |
| External power operation | AC adapter 90–260 VAC, 50/60 Hz or 12 V from a vehicle (cable with standard plug, optional) |
| DC operation | 10.8 to 16 V DC, polarity protected (proprietary protected) |
| Power | 12.5 W typically |
| Start-up time | Typically 10 min. @ 25°C (+77°F) |
| Environmental data | |
| Operating temperature range | -20°C to +40°C (-4°F to +104°F) |
| Storage temperature range | -30°C to +60°C (-22°F to +140°F) |
| Humidity (operating and storage) | IEC 68-2-30/24 h 95% relative humidity +25°C +40°C (+77°F to +104°F) (2 cycles) |
| Directives | • 73/23EEC• 2004/108/EC• 2002/95/EC• 2002/96/EC |
| EMC | • EN61000-6-4 (Emission)• EN61000-6-2 (Immunity)• FCC 47 CFR Part 15 class A (Emission)• EN 61 000-4-8, L5 |
| Encapsulation | IP 54 (IEC 60529) |
| Shock | 25 g (IEC 60068-2-27) |
| Vibration | 2 g (IEC 60068-2-6) |
| Safety | Power supply: EN/UL/IEC 60950-1 |
| Physical data | |
| Camera weight, excl. lens and battery 1.94 kg (4.27 lb.) | |
| Camera weight, incl. lens and excl. battery 2.24 kg (4.94 lb.) | |
| Camera weight, incl. lens and battery 2.48 kg (5.47 lb.) | |
| Battery weight 0.24 kg (0.52 lb.) | |
| Camera size, excl. lens (L × W × H) 284 × 169 × 161 mm (11.2 × 6.7 × 6.3 in.) | |
| Cameras size, incl. lens (L × W × H) 305 × 169 × 161 mm (12.0 × 6.7 × 6.3 in.) | |
| Battery size (L × W × H) 141 × 47 × 28 mm (5.5 × 1.8 × 1.1 in.) | |
| Battery charger size (L × W × H) 158 × 122 × 25 mm (6.2 × 4.8 × 1.0 in.) | |
| Tripod mounting | UNC 14 "-20 |
| Housing material Aluminum, magnesium | |
| Grip material | TPE thermoplastic elastomers |
| Shipping information | |
| Packaging, type | Cardboard box |
| List of contents | Infrared camera with lensBattery chargerBattery, 2 ea.FLIR Tools downloadHard transport caseHDMI-DVI cableHDMI-HDMI cableLens cap (mounted on lens)Memory cardPower supply, incl. multi-plugsPrinted documentationShoulder strapUSB cableWi-Fi USB micro adapter (depending on CE and FCC regulations regarding wireless equipment for your country) |
| Packaging, weight | 8.4 kg (18.5 lb.) |
| Packaging, size | 400 × 190 × 510 mm (15.7 × 7.5 × 20.1 in.) |
Supplies & accessories:
• T197692; Battery charger, incl. power supply with multi plugs
• T910814; Power supply, incl. multi plugs
• T198511; Li-Ion Battery pack 7.4V 33Wh
• T199367ACC; Battery Li-ion 7.2 V, 4.4 Ah, 32 Wh
• T911650ACC; Memory card SD Card 8 GB
• 1910423; USB cable Std A <-> Mini-B
• T198509; Cigarette lighter adapter kit, 12 VDC, 1.2 m/3.9 ft.
• T910815ACC; HDMI to HDMI cable 1.5 m
• T910816ACC; HDMI to DVI cable 1.5 m
• T197555; Hard transport case for FLIR GF3xx-Series
• T951387; Wi-Fi USB micro adapter
• T198586; FLIR Reporter Professional (license only)
• T198584; FLIR Tools
• T198583; FLIR Tools+ (download card incl. license key)
• T198585; FLIR VideoReport
• DSW-10000; FLIR IR Camera Player
- APP-10002; FLIR Tools Mobile (Android Application)
• T198697; FLIR ResearchIR Max + HSDR 4 (hardware sec. dev.)
• T199014; FLIR ResearchIR Max + HSDR 4 (printed license key)
• T199044; FLIR ResearchIR Max + HSDR 4 Upgrade (printed license key)
• T198696; FLIR ResearchIR Max 4 (hardware sec. dev.)
• T199013; FLIR ResearchIR Max 4 (printed license key)
• T199043; FLIR ResearchIR Max 4 Upgrade (printed license key)
• T198731; FLIR ResearchIR Standard 4 (hardware sec. dev.)
• T199012; FLIR ResearchIR Standard 4 (printed license key)
• T199042; FLIR ResearchIR Standard 4 Upgrade (printed license key)
• T199233; FLIR Atlas SDK for .NET
• T199234; FLIR Atlas SDK for MATLAB
• T198567; ThermoVision™ System Developers Kit Ver. 2.6
• T198566; ThermoVision™ LabVIEW® Digital Toolkit Ver. 3.3
22.14 FLIR GF306 24°
P/N: 44201-0102
Rev.: 45202
| General description | |
| The FLIR GF306 is an infrared camera for optical gas imaging (OGI) that visualizes and pinpoints leaks—especially of sulfur hexafluoride ( SF and ammonia—without the need to de-energize high-voltage equipment or shut down the operation. The portable camera also greatly improves operator safety by detecting emissions at a safe distance, and helps to protect the environment by tracing leaks of environmentally harmful gases. SF_6 is used in the electric power industry as an insulator and quenching medium for gas-insulated substances and circuit breakers. The gas is also used in magnesium production and semiconductor manufacture. Ammonia is produced in ammonia plants, and is used mainly for the production of fertilizers. | |
| Benefits: | |
| Improved efficiency: The FLIR GF306 reduces revenue loss by pinpointing even small gas leaks quickly and efficiently, and from a distance. It also reduces inspection time by allowing a broad area to be scanned rapidly and without the need to de-energize components in the high-voltage area. The wireless connectivity of the camera allows you to connect to smart phones or tablets for the wireless transfer of images or the remote control of the camera. The FLIR GF306 can also be used for temperature measurement, which makes it even more useful for the predictive maintenance of high-voltage equipment.Increased worker safety: OGI allows gas leaks to be detected in a non-contact mode and from a safe distance. This prevents electrical exposure to personnel working in a high-voltage area. With a GF306 gas imaging camera, it is easy to scan areas of interest that are difficult to reach with conventional methods. The camera is ergonomically designed, with a bright LCD and tiltable viewfinder, which facilitates its use over a full working day.Protecting the environment: SF_6 is a well-known greenhouse gas that causes harm to the environment, and is usually governed by regulations, SF_6 is a global warming potential 24 000 times higher than carbon dioxide. Even small leaks can be detected and documented using the FLIR GF306 camera. | |
| Detects the following gases: sulfur hexafluoride, acetyl chloride, acetic acid, allyl bromide, allyl chloride, allyl fluoride, ammonia, bromomethane, chlorine dioxide, ethyl cyanoacrylate, ethylene, furan, hydrazine, methylsilane, methyl ethyl ketone, methyl vinyl ketone, propenal, propene, R-134a, tetrahydrofuran, tri-chloroethylene, uranyl fluoride, vinyl chloride, vinyl cyanide, vinyl ether. | |
| Licensing and classification | |
| License information Interchangeable lens version | of the FLIR GF3XX series requires US Department of State License and will be subject to limitations on resale, except inside US. Allow a minimum of 90 days after application submittal for approval. |
| Imaging and optical data | |
| IR resolution 320 × 240 pixels | |
| Thermal sensitivity/NETD <15 mK @ +30°C (+86°F) | |
| Field of view (FOV) | 24° × 18° |
| Minimum focus distance 0.3 m (1.0 ft.) | |
| Focal length 23 mm (0.89 in.) | |
| Lens identification Automatic | |
| F-number | 1.5 |
| Focus | Automatic (one touch) or manual (electric or on the lens) |
| Imaging and optical data | |
| Zoom 1-8× continuous, digital zoom | |
| Digital image enhancement Noise reduction filter, | high sensitivity mode (HSM) |
| Detector data | |
| Detector type Focal plane array (FPA), cooled Q | WIP |
| Spectral range | 10.3-10.7 μm |
| Detector pitch 30 μm | |
| Sensor cooling Stirling Microcooler (FLIR MC-3) | |
| Detects following gases Sulfur Hexafluoride (SF6) | Acetyl Chloride, Acetic Acid, Allyl Bromide, Allyl Chloride, Allyl Fluoride, Ammonia (NH3), Bromomethane, Chlorine Dioxide Ethyl Cyanoacrylate, Ethylene, Furan, Hydrazine, Methylsilane, Methyl Ethyl Ketone, Methyl Vinyl K tone, Propenal, Propene, R 134a, Tetrahydrofuran Trichloroethylene, Uranyl Fluoride, Vinyl Chloride, Vinyl Cyanide, Vinyl Ether |
| Electronics and data rate | |
| Full frame rate 60 Hz | |
| Image presentation | |
| Display | Built-in widescreen, 4.3 in. LCD, 800 × 480 pixe |
| Viewfinder Built-in, tiltable OLED, 800 × 480 pixels | |
| Automatic image adjustment | Continuous/manual; linear or histogram based |
| Manual image adjustment Level/span | |
| Image presentation modes | |
| Image modes | IR image, visual image, high sensitivity mode (HSM) |
| Measurement | |
| Temperature range | -40°C to +500°C (-40°F to +932°F) |
| Accuracy | ±1°C (±1.8°F) for temperature range (0°C, to +100°C, +32°F to +212°F) or ±2% of reading for temperature range (>100°C, >+212°F) |
| Measurement analysis | |
| Spotmeter | 10 |
| Area | 5 boxes with max./min./average |
| Profile | 1 live line (horizontal or vertical) |
| Difference temperature | Delta temperature between measurement functions or reference temperature |
| Reference temperature | Manually set or captured from any measurement function |
| Emissivity correction | Variable from 0.01 to 1.0 or selected from edita materials list |
| Reflected apparent temperature correction | Automatic, based on input of reflected tempera |
| Measurement corrections | Reflected temperature, distance, atmospheric transmission, humidity, external optics |
| Set-up | |
| Menu commands Level, span | Auto adjust continuous/manual/semi-automaticZoomPaletteStart/stop recordingStore imagePlayback/recall image |
| Color palettes Iron, Gray, Rainbow, Arctic, Lava, | Rainbow HC |
| Set-up commands | 1 programmable button, overlay recording mode, local adaptation of units, language, date and time formats |
| Storage of Images | |
| Storage media Removable SD or SDHC memory | card, two card slots |
| Image storage capacity | >1200 images (JPEG) with post process capability per GB on memory card |
| Image storage mode | IR/visual imagesVisual image can automatically be associated with corresponding IR image |
| Periodic image storage Every 10 seconds up to | 24 hours |
| File formats Standard JPEG, 14 bit measurement | data included |
| Geographic Information System | |
| GPS Location data automatically added to every image from built-in GPS |
| Video recording in camera | |
| Radiometric IR video recording *.seq video clips | to memory card (7.5 and 15 Hz). |
| Non-radiometric IR video recording MPEG4 (up to | 60 minutes/clip) to memory card.Visual image can automatically be associated with corresponding recording of non-radiometric IR video. |
| Visual video recording MPEG4 (25 minutes/clip) | to memory card |
| Video streaming | |
| Radiometric IR video streaming Full dynamic to | PC using USB cable or to mobile devices using Wi-Fi. PC software capable of displaying the video stream include the following:FLIR IR Camera PlayerFLIR ResearchIRFLIR Tools |
| Non-radiometric IR video streaming | RTP/MPEG4 |
| Digital camera | |
| Built-in digital camera | 3.2 Mpixels, auto focus, and two video lamps |
| Laser pointer | |
| Laser Activated by dedicated button | |
| Laser classification Class 2 | |
| Laser type Semiconductor AlGaInP diode laser, 1 | mW, 635nm (red) |
| USB | |
| USB | • USB-A: Connect external USB device• USB Mini-B: Data transfer to and from PC |
| USB, standard USB Mini-B: 2.0 high speed | |
| Composite video | |
| Video out Digital video output (image) | |
| Power system | |
| Battery type Rechargeable Li ion battery | |
| Battery voltage 7.2 V | |
| Battery capacity 4.4 Ah | |
| Battery operating time | >2 hours at 25°C (+77°F) and typical use |
| Charging system | In camera (AC adapter or 12 V from a vehicle) bay charger |
| Charging time | 2.5 h to 95% capacity, charging status indicated LED's |
| External power operation | AC adapter 90–260 VAC, 50/60 Hz or 12 V from a vehicle (cable with standard plug, optional) |
| DC operation | 10.8 to 16 V DC, polarity protected (proprietary protected) |
| Power | 12.5 W typically |
| Start-up time | Typically 10 min. @ 25°C (+77°F) |
| Environmental data | |
| Operating temperature range | -20°C to +40°C (-4°F to +104°F) |
| Storage temperature range | -30°C to +60°C (-22°F to +140°F) |
| Humidity (operating and storage) | IEC 68-2-30/24 h 95% relative humidity +25°C +40°C (+77°F to +104°F) (2 cycles) |
| Directives | • 73/23EEC• 2004/108/EC• 2002/95/EC• 2002/96/EC |
| EMC | • EN61000-6-4 (Emission)• EN61000-6-2 (Immunity)• FCC 47 CFR Part 15 class A (Emission)• EN 61 000-4-8, L5 |
| Encapsulation | IP 54 (IEC 60529) |
| Shock | 25 g (IEC 60068-2-27) |
| Vibration | 2 g (IEC 60068-2-6) |
| Safety | Power supply: EN/UL/IEC 60950-1 |
| Physical data | |
| Camera weight, excl. lens and battery 1.94 kg (4.27 lb.) | |
| Camera weight, incl. lens and excl. battery 2.24 kg (4.94 lb.) | |
| Camera weight, incl. lens and battery 2.48 kg (5.47 lb.) | |
| Battery weight 0.24 kg (0.52 lb.) | |
| Camera size, excl. lens (L × W × H) 284 × 169 × 161 mm (11.2 × 6.7 × 6.3 in.) | |
| Cameras size, incl. lens (L × W × H) 306 × 169 × 161 mm (12.0 × 6.7 × 6.3 in.) | |
| Battery size (L × W × H) 141 × 47 × 28 mm (5.5 × 1.8 × 1.1 in.) | |
| Battery charger size (L × W × H) 158 × 122 × 25 mm (6.2 × 4.8 × 1.0 in.) | |
| Tripod mounting | UNC 14 "-20 |
| Housing material Aluminum, magnesium | |
| Grip material | TPE thermoplastic elastomers |
| Shipping information | |
| Packaging, type | Cardboard box |
| List of contents | Infrared camera with lensBattery chargerBattery, 2 ea.Hard transport caseHDMI-DVI cableHDMI-HDMI cableLens cap (2 ea.)Lens cap (mounted on lens)Memory cardPower supply, incl. multi-plugsPrinted documentationShoulder strapUSB cableWi-Fi USB micro adapter (depending on CE and FCC regulations regarding wireless equipment for your country) |
| Packaging, weight | |
| Packaging, size | 400 × 190 × 510 mm (15.7 × 7.5 × 20.1 in.) |
Supplies & accessories:
• T197386; IR lens, 24° with case for GF304, GF306
• T197384; IR lens, 14.5° with case for GF304, GF306
• T197692; Battery charger, incl. power supply with multi plugs
• T910814; Power supply, incl. multi plugs
• T198511; Li-Ion Battery pack 7.4V 33Wh
• T199367ACC; Battery Li-ion 7.2 V, 4.4 Ah, 32 Wh
• T911650ACC; Memory card SD Card 8 GB
• 1910423; USB cable Std A <-> Mini-B
• T198509; Cigarette lighter adapter kit, 12 VDC, 1.2 m/3.9 ft.
• T910815ACC; HDMI to HDMI cable 1.5 m
• T910816ACC; HDMI to DVI cable 1.5 m
• T197555; Hard transport case for FLIR GF3xx-Series
• T951387; Wi-Fi USB micro adapter
• T198586; FLIR Reporter Professional (license only)
• T198584; FLIR Tools
• T198583; FLIR Tools+ (download card incl. license key)
• T198585; FLIR VideoReport
- DSW-10000; FLIR IR Camera Player
- APP-10002; FLIR Tools Mobile (Android Application)
• T198697; FLIR ResearchIR Max + HSDR 4 (hardware sec. dev.)
• T199014; FLIR ResearchIR Max + HSDR 4 (printed license key)
• T199044; FLIR ResearchIR Max + HSDR 4 Upgrade (printed license key)
• T198696; FLIR ResearchIR Max 4 (hardware sec. dev.)
• T199013; FLIR ResearchIR Max 4 (printed license key)
• T199043; FLIR ResearchIR Max 4 Upgrade (printed license key)
• T198731; FLIR ResearchIR Standard 4 (hardware sec. dev.)
• T199012; FLIR ResearchIR Standard 4 (printed license key)
• T199042; FLIR ResearchIR Standard 4 Upgrade (printed license key)
• T199233; FLIR Atlas SDK for .NET
• T199234; FLIR Atlas SDK for MATLAB
• T198567; ThermoVision™ System Developers Kit Ver. 2.6
• T198566; ThermoVision™ LabVIEW® Digital Toolkit Ver. 3.3
22.15 FLIR GF306 24° Fixed lens
P/N: 44202-0102
Rev.: 45202
| General description |
| The FLIR GF306 is an infrared camera for optical gas imaging (OGI) that visualizes and pinpoints gas leaks—especially of sulfur hexafluoride ( SF and ammonia—without the need to de-energize high-voltage equipment or shut down the operation. The portable camera also greatly improves operator safety by detecting emissions at a safe distance, and helps to protect the environment by tracing leaks of environmentally harmful gases. SF_6 is used in the electric power industry as an insulator and quenching medium for gas-insulated substation and circuit breakers. The gas is also used in magnesium production and semiconductor manufacture. Ammonia is produced in ammonia plants, and is used mainly for the production of fertilizers. |
| Benefits: |
| Improved efficiency: The FLIR GF306 reduces revenue loss by pinpointing even small gas leaks quickly and efficiently, and from a distance. It also reduces inspection time by allowing a broad area to be scanned rapidly and without the need to de-energize components in the high-voltage area. The wireless connectivity of the camera allows you to connect to smart phones or tablets for the wireless transfer of images or the remote control of the camera. The FLIR GF306 can also be used for temperature measurement, which makes it even more useful for the predictive maintenance of high-voltage equipment.Increased worker safety: OGI allows gas leaks to be detected in a non-contact mode and from a safe distance. This prevents electrical exposure to personnel working in a high-voltage area. With a GF306 gas imaging camera, it is easy to scan areas of interest that are difficult to reach with conventional methods. The camera is ergonomically designed, with a bright LCD and tiltable viewfinder, which facilitates its use over a full working day.Protecting the environment: SF_6 is a well-known greenhouse gas that causes harm to the environment, and is usually governed by regulations, SF_6 as a global warming potential 24 000 times higher than carbon dioxide. Even small leaks can be detected and documented using the FLIR GF306 camera. |
| Detects the following gases: sulfur hexafluoride, acetyl chloride, acetic acid, allyl bromide, allyl chloride, allyl fluoride, ammonia, bromomethane, chlorine dioxide, ethyl cyanoacrylate, ethylene, furan, hydrazine, methylsilane, methyl ethyl ketone, methyl vinyl ketone, propenal, propene, R-134a, tetrahydrofuran, tri-chloroethylene, uranyl fluoride, vinyl chloride, vinyl cyanide, vinyl ether. |
| Imaging and optical data | |
| IR resolution 320 × 240 pixels | |
| Thermal sensitivity/NETD <15 mK @ +30°C (+86°F) | |
| Field of view (FOV) | 24° × 18° |
| Minimum focus distance 0.3 m (1.0 ft.) | |
| Focal length 23 mm (0.89 in.) | |
| Lens identification Automatic | |
| F-number | 1.5 |
| Focus | Automatic (one touch) or manual (electric or on the lens) |
| Zoom | 1-8× continuous, digital zoom |
| Digital image enhancement | Noise reduction filter, high sensitivity mode (HSM) |
| Detector data | |
| Detector type | Focal plane array (FPA), cooled QWIP |
| Spectral range | 10.3–10.7 μm |
| Detector pitch | 30 μm |
| Sensor cooling Stirling Microcooler (FLIR MC-3) | |
| Detects following gases Sulfur Hexafluoride (SF6) | Acetyl Chloride, Acetic Acid, Allyl Bromide, Allyl Chloride, Allyl Fluoride, Ammonia (NH3), Bromomethane, Chlorine Dioxide Ethyl Cyanoacrylate, Ethylene, Furan, Hydrazine, Methylsilane, Methyl Ethyl Ketone, Methyl Vinyl K tone, Propenal, Propene, R 134a, Tetrahydrofuran Trichloroethylene, Uranyl Fluoride, Vinyl Chloride, Vinyl Cyanide, Vinyl Ether |
| Electronics and data rate | |
| Full frame rate 60 Hz | |
| Image presentation | |
| Display Built-in widescreen, 4.3 in. LCD, 800 × 480 pixels | |
| Viewfinder Built-in, tiltable OLED, 800 × 480 pixels | |
| Automatic image adjustment Continuous/manual; linear or histogram based | |
| Manual image adjustment | Level/span |
| Image presentation modes | |
| Image modes IR image, visual image, high sensitivity mode (HSM) | |
| Measurement | |
| Temperature range | -40°C to +500°C (-40°F to +932°F) |
| Accuracy | ±1°C (±1.8°F) for temperature range (0°C, to +100°C, +32°F to +212°F) or ±2% of reading for temperature range (>+100°C, >+212°F) |
| Measurement analysis | |
| Spotmeter | 10 |
| Area 5 boxes with max./min./average | |
| Profile 1 live line (horizontal or vertical) | |
| Difference temperature Delta temperature between measurement functions or reference temperature | |
| Reference temperature | Manually set or captured from any measurement function |
| Emissivity correction | Variable from 0.01 to 1.0 or selected from edita materials list |
| Reflected apparent temperature correction | Automatic, based on input of reflected tempera |
| Measurement corrections | Reflected temperature, distance, atmospheric transmission, humidity, external optics |
| Set-up | |
| Menu commands Level, span | Auto adjust continuous/manual/semi-automaticZoomPaletteStart/stop recordingStore imagePlayback/recall image |
| Color palettes Iron, Gray, Rainbow, Arctic, Lava, | Rainbow HC |
| Set-up commands | 1 programmable button, overlay recording mode, local adaptation of units, language, date and time formats |
| Storage of Images | |
| Storage media Removable SD or SDHC memory | card, two card slots |
| Image storage capacity | >1200 images (JPEG) with post process capability per GB on memory card |
| Image storage mode | IR/visual imagesVisual image can automatically be associated with corresponding IR image |
| Periodic image storage Every 10 seconds up to | 24 hours |
| File formats Standard JPEG, 14 bit measurement | data included |
| Geographic Information System | |
| GPS Location data automatically added to every image from built-in GPS |
| Video recording in camera | |
| Radiometric IR video recording *.seq video clips | to memory card (7.5 and 15 Hz). |
| Non-radiometric IR video recording MPEG4 (up to | 60 minutes/clip) to memory card.Visual image can automatically be associated with corresponding recording of non-radiometric IR video. |
| Visual video recording MPEG4 (25 minutes/clip) | to memory card |
| Video streaming | |
| Radiometric IR video streaming Full dynamic to | PC using USB cable or to mobile devices using Wi-Fi. PC software capable of displaying the video stream include the following:FLIR IR Camera PlayerFLIR ResearchIRFLIR Tools |
| Non-radiometric IR video streaming | RTP/MPEG4 |
| Digital camera | |
| Built-in digital camera | 3.2 Mpixels, auto focus, and two video lamps |
| Laser pointer | |
| Laser Activated by dedicated button | |
| Laser classification Class 2 | |
| Laser type Semiconductor AlGaInP diode laser, 1 | mW, 635nm (red) |
| USB | |
| USB | • USB-A: Connect external USB device• USB Mini-B: Data transfer to and from PC |
| USB, standard USB Mini-B: 2.0 high speed | |
| Composite video | |
| Video out Digital video output (image) | |
| Power system | |
| Battery type Rechargeable Li ion battery | |
| Battery voltage 7.2 V | |
| Battery capacity 4.4 Ah | |
| Battery operating time | >2 hours at 25°C (+77°F) and typical use |
| Charging system | In camera (AC adapter or 12 V from a vehicle) bay charger |
| Charging time | 2.5 h to 95% capacity, charging status indicated LED's |
| External power operation | AC adapter 90–260 VAC, 50/60 Hz or 12 V from a vehicle (cable with standard plug, optional) |
| DC operation | 10.8 to 16 V DC, polarity protected (proprietary protected) |
| Power | 12.5 W typically |
| Start-up time | Typically 10 min. @ 25°C (+77°F) |
| Environmental data | |
| Operating temperature range | -20°C to +40°C (-4°F to +104°F) |
| Storage temperature range | -30°C to +60°C (-22°F to +140°F) |
| Humidity (operating and storage) | IEC 68-2-30/24 h 95% relative humidity +25°C +40°C (+77°F to +104°F) (2 cycles) |
| Directives | • 73/23EEC• 2004/108/EC• 2002/95/EC• 2002/96/EC |
| EMC | • EN61000-6-4 (Emission)• EN61000-6-2 (Immunity)• FCC 47 CFR Part 15 class A (Emission)• EN 61 000-4-8, L5 |
| Encapsulation | IP 54 (IEC 60529) |
| Shock | 25 g (IEC 60068-2-27) |
| Vibration | 2 g (IEC 60068-2-6) |
| Safety | Power supply: EN/UL/IEC 60950-1 |
| Physical data | |
| Camera weight, excl. lens and battery 1.94 kg (4.27 lb.) | |
| Camera weight, incl. lens and excl. battery 2.24 kg (4.94 lb.) | |
| Camera weight, incl. lens and battery 2.48 kg (5.47 lb.) | |
| Battery weight 0.24 kg (0.52 lb.) | |
| Camera size, excl. lens (L × W × H) 284 × 169 × 161 mm (11.2 × 6.7 × 6.3 in.) | |
| Cameras size, incl. lens (L × W × H) 306 × 169 × 161 mm (12.0 × 6.7 × 6.3 in.) | |
| Battery size (L × W × H) 141 × 47 × 28 mm (5.5 × 1.8 × 1.1 in.) | |
| Battery charger size (L × W × H) 158 × 122 × 25 mm (6.2 × 4.8 × 1.0 in.) | |
| Tripod mounting | UNC 14 "-20 |
| Housing material Aluminum, magnesium | |
| Grip material | TPE thermoplastic elastomers |
| Shipping information | |
| Packaging, type | Cardboard box |
| List of contents | Infrared camera with lensBattery chargerBattery, 2 ea.Hard transport caseHDMI-DVI cableHDMI-HDMI cableLens cap (mounted on lens)Memory cardPower supply, incl. multi-plugsPrinted documentationShoulder strapUSB cableWi-Fi USB micro adapter (depending on CE and FCC regulations regarding wireless equipment for your country) |
| Packaging, weight | |
| Packaging, size | 400 × 190 × 510 mm (15.7 × 7.5 × 20.1 in.) |
Supplies & accessories:
• T197692; Battery charger, incl. power supply with multi plugs
• T910814; Power supply, incl. multi plugs
• T198511; Li-Ion Battery pack 7.4V 33Wh
• T199367ACC; Battery Li-ion 7.2 V, 4.4 Ah, 32 Wh
• T911650ACC; Memory card SD Card 8 GB
• 1910423; USB cable Std A <-> Mini-B
• T198509; Cigarette lighter adapter kit, 12 VDC, 1.2 m/3.9 ft.
• T910815ACC; HDMI to HDMI cable 1.5 m
• T910816ACC; HDMI to DVI cable 1.5 m
• T197555; Hard transport case for FLIR GF3xx-Series
• T951387; Wi-Fi USB micro adapter
• T198586; FLIR Reporter Professional (license only)
• T198584; FLIR Tools
• T198583; FLIR Tools+ (download card incl. license key)
• T198585; FLIR VideoReport
• DSW-10000; FLIR IR Camera Player
• APP-10002; FLIR Tools Mobile (Android Application)
• T198697; FLIR ResearchIR Max + HSDR 4 (hardware sec. dev.)
• T199014; FLIR ResearchIR Max + HSDR 4 (printed license key)
• T199044; FLIR ResearchIR Max + HSDR 4 Upgrade (printed license key)
• T198696; FLIR ResearchIR Max 4 (hardware sec. dev.)
• T199013; FLIR ResearchIR Max 4 (printed license key)
• T199043; FLIR ResearchIR Max 4 Upgrade (printed license key)
• T198731; FLIR ResearchIR Standard 4 (hardware sec. dev.)
• T199012; FLIR ResearchIR Standard 4 (printed license key)
• T199042; FLIR ResearchIR Standard 4 Upgrade (printed license key)
• T199233; FLIR Atlas SDK for .NET
• T199234; FLIR Atlas SDK for MATLAB
• T198567; ThermoVision™ System Developers Kit Ver. 2.6
• T198566; ThermoVision™ LabVIEW® Digital Toolkit Ver. 3.3
22.16 FLIR GF309 14.5°
P/N: 44601-0101
Rev.: 45202
| General description |
| The FLIR GF309 is an infrared camera for furnace and high temperature inspection (e.g., of industrial furnaces, chemical heaters, and coal-fired boilers), without the need to shut down the operation. The portable camera also greatly improves operator safety, by measuring through flames at a safe distance, for all types of furnaces. A good knowledge of the furnace condition can avert failures and unscheduled shutdownsIndustrial furnaces, heaters, and boilers are found in the chemical, petrochemical, and utility industries. |
| Benefits: |
| Improved efficiency: The FLIR GF309 reduces inspection time by measuring the temperature through flames without the need to interrupt the industrial process or await scheduled service shutdowns. A furnace camera can help you to determine how to run a furnace/boiler efficiently to give the best fuel economy and maximize production output and quality. As the FLIR GF309 has a wide temperature range, high-accuracy electrical and mechanical inspections can be performed, which makes the camera even more useful for predictive maintenance.The wireless connectivity of the camera allows you to connect to smart phones or tablets for the wireless transfer of images or the remote control of the camera—a useful function if regulations require a second person to accompany the furnace inspector or thermal images needs to be sent quickly for a second opinion.Increased worker safety: High-temperature measurement can be performed through flames in a non-contact mode, and from a safe distance. Custom-built, the FLIR GF309 also features a detachable heat-shield designed to reflect heat away from the camera and the camera operator, providing increased protection. The camera is ergonomically designed, with a bright LCD and tiltable viewfinder, which facilitates its use over a full working day.Increased furnace safety: Good knowledge of furnace/boiler condition and operating parameters can provide the information needed to avert catastrophic failures and prevent unscheduled shutdowns. |
| Licensing and classification | |
| License information Interchangeable lens version | of the FLIR GF3XXseries requires US Department of State Licenseand will be subject to limitations on resale, exceptinside US. Allow a minimum of 90 days after application submittal for approval. |
| Imaging and optical data | |
| IR resolution 320 × 240 pixels | |
| Thermal sensitivity/NETD <15 mK @ +30°C (+86°F) | |
| Field of view (FOV) | 14.5° × 10.8° |
| Minimum focus distance 0.5 m (1.64 ft.) | |
| Focal length 38 mm (1.49 in.) | |
| Lens identification Automatic | |
| F-number 1.5 | |
| Focus | Automatic (one touch) or manual (electric or on lens) |
| Zoom | 1-8× continuous, digital zoom |
| Digital image enhancement | Noise reduction filter |
| Detector data | |
| Detector type Focal plane array (FPA), cooled InSb | |
| Spectral range | 3.8–4.05 μm |
| Detector pitch 30 μm | |
| Sensor cooling Stirling Microcooler (FLIR MC-3) | |
| Electronics and data rate | |
| Full frame rate 60 Hz | |
| Image presentation | |
| Display Built-in widescreen, 4.3 in. LCD, 800 × 480 pixels | |
| Viewfinder Built-in, tiltable OLED, 800 × 480 pixels | |
| Automatic image adjustment Continuous/manual; linear or histogram based | |
| Manual image adjustment | Level/span |
| Image presentation modes | |
| Image modes IR image, visual image | |
| Measurement | |
| Temperature range -20°C to +1500°C (-4°F to +2732°F) | |
| Accuracy | ±1°C (±1.8°F) for temperature range (0°C, to +100°C, +32°F to +212°F) or ±2% of reading for temperature range (> +100°C, > +212°F) |
| Measurement analysis | |
| Spotmeter | 10 |
| Area | 5 boxes with max./min./average |
| Profile | 1 live line (horizontal or vertical) |
| Isotherm | Above/below/interval |
| Difference temperature | Delta temperature between measurement functions or reference temperature |
| Reference temperature | Manually set or captured from any measurement function |
| Emissivity correction | Variable from 0.01 to 1.0 or selected from edita materials list |
| Reflected apparent temperature correction | Automatic, based on input of reflected tempera |
| Measurement corrections | Reflected temperature, distance, atmospheric transmission, humidity, external optics |
| Set-up | |
| Menu commands Level, span | Auto adjust continuous/manual/semi-automaticZoomPaletteStart/stop recordingStore imagePlayback/recall image |
| Color palettes Iron, Gray, Rainbow, Arctic, Lava, | Rainbow HC |
| Set-up commands 1 programmable button, local | adaptation of units, language, date and time formats |
| Storage of images | |
| Storage media Removable SD or SDHC memory | card , two card slots |
| Image storage capacity | > 1200 images (JPEG) with post process capabi per GB on memory card |
| Image storage mode | IR/visual imagesVisual image can automatically be associated with corresponding IR image |
| Periodic image storage Every 10 seconds up to | 24 hours |
| File formats Standard JPEG, 14 bit measurement | data included |
| Geographic Information System | |
| GPS Location data automatically added to every | image from built-in GPS |
| Video recording in camera | |
| Radiometric IR video recording *.seq video clips | to memory card (7.5 and 15 Hz). |
| Non-radiometric IR video recording MPEG4 (up to | 60 minutes/clip) to memory card.Visual image can automatically be associated with corresponding recording of non-radiometric IR video. |
| Visual video recording | MPEG4 (25 minutes/clip) to memory card |
| Video streaming | |
| Radiometric IR video streaming Full dynamic to PC using USB cable or to mobile devices using Wi-Fi. PC software capable of displaying the video stream include the following:FLIR IR Camera PlayerFLIR ResearchIRFLIR Tools | |
| Non-radiometric IR video streaming | RTP/MPEG4 |
| Digital camera | |
| Built-in digital camera | 3.2 Mpixels, auto focus, and two video lamps |
| Laser pointer | |
| Laser Activated by dedicated button | |
| Laser classification Class 2 | |
| Laser type Semiconductor AlGaInP diode laser, 1 | mW, 635nm (red) |
| USB | |
| USB | • USB-A: Connect external USB device• USB Mini-B: Data transfer to and from PC |
| USB, standard USB Mini-B: 2.0 high speed | |
| Composite video | |
| Video out Digital video output (image) | |
| Power system | |
| Battery type Rechargeable Li ion battery | |
| Battery voltage 7.2 V | |
| Battery capacity 4.4 Ah | |
| Battery operating time | >3 hours at 25°C (+77°F) and typical use |
| Charging system | In camera (AC adapter or 12 V from a vehicle) bay charger |
| Charging time | 2.5 h to 95% capacity, charging status indicated LED's |
| External power operation | AC adapter 90–260 VAC, 50/60 Hz or 12 V from a vehicle (cable with standard plug, optional) |
| DC operation | 10.8 to 16 V DC, polarity protected (proprietary protected) |
| Power | 8.5 W typically |
| Start-up time | Typically 7 min. @ 25°C (+77°F) |
| Environmental data | |
| Operating temperature range | -20°C to +50°C (-4°F to +122°F) |
| Storage temperature range | -30°C to +60°C (-22°F to +140°F) |
| Humidity (operating and storage) | IEC 68-2-30/24 h 95% relative humidity +25°C +40°C (+77°F to +104°F) (2 cycles) |
| Directives | • 73/23EEC• 2004/108/EC• 2002/95/EC• 2002/96/EC |
| EMC | • EN61000-6-4 (Emission)• EN61000-6-2 (Immunity)• FCC 47 CFR Part 15 class A (Emission)• EN 61 000-4-8, L5 |
| Encapsulation | IP 54 (IEC 60529) |
| Shock | 25 g (IEC 60068-2-27) |
| Vibration | 2 g (IEC 60068-2-6) |
| Safety | Power supply: EN/UL/IEC 60950-1 |
| Physical data | |
| Camera weight, excl. lens and battery 1.94 kg (4.27 lb.) | |
| Camera weight, incl. lens and excl. battery 2.24 kg (4.94 lb.) | |
| Camera weight, incl. lens and battery 2.48 kg (5.47 lb.) | |
| Battery weight 0.24 kg (0.52 lb.) | |
| Heat shield weight 0.50 kg (1.09 lb.) | |
| Camera size, excl. lens (L × W × H) 284 × 169 | × 161 mm (11.2 × 6.7 × 6.3 in.) |
| Cameras size, incl. lens (L × W × H) 305 × 169 | × 161 mm (12.0 × 6.7 × 6.3 in.) |
| Cameras size, incl. heat shield (L × W × H) 320 | × 243 × 195 mm (12.6 × 9.6 × 7.7 in.) |
| Battery size (L × W × H) 141 × 47 × 28 mm (5.5 × 1.8 × 1.1 in.) | |
| Battery charger size (L × W × H) | 158 × 122 × 25 mm (6.2 × 4.8 × 1.0 in.) |
| Tripod mounting | UNC 1⁄4"-20 |
| Housing material | Aluminum, magnesium |
| Grip material | TPE thermoplastic elastomers |
| Shipping information | |
| Packaging, type | Cardboard box |
| List of contents | Infrared camera with lensBattery chargerBattery, 2 ea.Hard transport caseHDMI-DVI cableHDMI-HDMI cableHeat shieldLens cap (2 ea.)Lens cap (mounted on lens)Memory cardPower supply, incl. multi-plugsPrinted documentationShoulder strapUSB cableWi-Fi USB micro adapter (depending on CE and FCC regulations regarding wireless equipment for your country) |
| Packaging, weight | |
| Packaging, size | 400 × 190 × 510 mm (15.7 × 7.5 × 20.1 in.) |
Supplies & accessories:
• T197387; IR lens, 24° with case for GF300, GF309, GF320
• T197388; IR lens, 6° with case for GF300, GF309, GF320, GF346.
• T197385; IR lens, 14.5° with case for GF300, GF309, GF320
• T198361; Furnace IR lens extender, 14.5° with case for GF309
• T197692; Battery charger, incl. power supply with multi plugs
• T910814; Power supply, incl. multi plugs
• T198511; Li-Ion Battery pack 7.4V 33Wh
• T199367ACC; Battery Li-ion 7.2 V, 4.4 Ah, 32 Wh
• T911650ACC; Memory card SD Card 8 GB
• 1910423; USB cable Std A <-> Mini-B
• T198509; Cigarette lighter adapter kit, 12 VDC, 1.2 m/3.9 ft.
• T910815ACC; HDMI to HDMI cable 1.5 m
• T910816ACC; HDMI to DVI cable 1.5 m
• T197555; Hard transport case for FLIR GF3xx-Series
• T951387; Wi-Fi USB micro adapter
• T197482; Heat Shield for FLIR GF309
• T198586; FLIR Reporter Professional (license only)
• T198584; FLIR Tools
• T198583; FLIR Tools+ (download card incl. license key)
• DSW-10000; FLIR IR Camera Player
- APP-10002; FLIR Tools Mobile (Android Application)
• T198697; FLIR ResearchIR Max + HSDR 4 (hardware sec. dev.)
• T199014; FLIR ResearchIR Max + HSDR 4 (printed license key)
• T199044; FLIR ResearchIR Max + HSDR 4 Upgrade (printed license key)
• T198696; FLIR ResearchIR Max 4 (hardware sec. dev.)
• T199013; FLIR ResearchIR Max 4 (printed license key)
• T199043; FLIR ResearchIR Max 4 Upgrade (printed license key)
• T198731; FLIR ResearchIR Standard 4 (hardware sec. dev.)
• T199012; FLIR ResearchIR Standard 4 (printed license key)
• T199042; FLIR ResearchIR Standard 4 Upgrade (printed license key)
• T199233; FLIR Atlas SDK for .NET
• T199234: FLIR Atlas SDK for MATLAB
• T198567; ThermoVision™ System Developers Kit Ver. 2.6
• T198566; ThermoVision™ LabVIEW® Digital Toolkit Ver. 3.3
22.17 FLIR GF309 14.5° Fixed lens
P/N: 44602-0101
Rev.: 45202
| General description |
| The FLIR GF309 is an infrared camera for furnace and high temperature inspection (e.g., of industrial furnaces, chemical heaters, and coal-fired boilers), without the need to shut down the operation. The portable camera also greatly improves operator safety, by measuring through flames at a safe distance, for all types of furnaces. A good knowledge of the furnace condition can avert failures and unscheduled shutdowns |
| Industrial furnaces, heaters, and boilers are found in the chemical, petrochemical, and utility industries. |
| Benefits: |
| Improved efficiency: The FLIR GF309 reduces inspection time by measuring the temperature through flames without the need to interrupt the industrial process or await scheduled service shutdowns. A furnace camera can help you to determine how to run a furnace/boiler efficiently to give the best fuel economy and maximize production output and quality. As the FLIR GF309 has a wide temperature range, high-accuracy electrical and mechanical inspections can be performed, which makes the camera even more useful for predictive maintenance.The wireless connectivity of the camera allows you to connect to smart phones or tablets for the wireless transfer of images or the remote control of the camera—a useful function if regulations require a second person to accompany the furnace inspector or thermal images needs to be sent quickly for a second opinion.Increased worker safety: High-temperature measurement can be performed through flames in a non-contact mode, and from a safe distance. Custom-built, the FLIR GF309 also features a detachable heat-shield designed to reflect heat away from the camera and the camera operator, providing increased protection. The camera is ergonomically designed, with a bright LCD and tiltable viewfinder, which facilitates its use over a full working day.Increased furnace safety: Good knowledge of furnace/boiler condition and operating parameters can provide the information needed to avert catastrophic failures and prevent unscheduled shutdowns. |
| Imaging and optical data | |
| IR resolution 320 × 240 pixels | |
| Thermal sensitivity/NETD <15 mK @ +30°C (+86°F) | |
| Field of view (FOV) | 14.5° × 10.8° |
| Minimum focus distance 0.5 m (1.64 ft.) | |
| Focal length 38 mm (1.49 in.) | |
| Lens identification Automatic | |
| F-number 1.5 | |
| Focus Automatic (one touch) or manual (electric lens) | or on the lens) |
| Zoom | 1-8× continuous, digital zoom |
| Digital image enhancement | Noise reduction filter |
| Detector data | |
| Detector type | Focal plane array (FPA), cooled InSb |
| Spectral range | 3.8-4.05 μm |
| Detector pitch | 30 μm |
| Sensor cooling | Stirling Microcooler (FLIR MC-3) |
| Electronics and data rate | |
| Full frame rate | 60 Hz |
| Image presentation | |
| Display Built-in widescreen, 4.3 in. LCD, 800 × 4 | 80 pixels |
| Viewfinder Built-in, tiltable OLED, 800 × 480 pixels | |
| Automatic image adjustment Continuous/manual; linear or histogram based | |
| Manual image adjustment | Level/span |
| Image presentation modes | |
| Image modes IR image, visual image | |
| Measurement | |
| Temperature range -20°C to +1500°C (-4°F to +2732°F) | |
| Accuracy ±1°C (±1.8°F) for temperature range (0°C, to +100°C, +32°F to +212°F) or ±2% of reading for temperature range (>+100°C, >+212°F) | |
| Measurement analysis | |
| Spotmeter | 10 |
| Area | 5 boxes with max./min./average |
| Profile 1 live line (horizontal or vertical) | |
| Isotherm | Above/below/interval |
| Difference temperature Delta temperature between measurement functions or reference temperature | |
| Reference temperature Manually set or captured from any measurement function | |
| Emissivity correction Variable from 0.01 to 1.0 or selected from editable materials list | |
| Reflected apparent temperature correction Automatic, based on input of reflected temperature | |
| Measurement corrections | Reflected temperature, distance, atmospheric transmission, humidity, external optics |
| Set-up | |
| Menu commands | Level, spanAuto adjust continuous/manual/semi-automaticZoomPaletteStart/stop recordingStore imagePlayback/recall image |
| Color palettes | Iron, Gray, Rainbow, Arctic, Lava, Rainbow HC |
| Set-up commands | 1 programmable button, local adaptation of units language, date and time formats |
| Storage of images | |
| Storage media | Removable SD or SDHC memory card, two card slots |
| Image storage capacity | >1200 images (JPEG) with post process capability per GB on memory card |
| Storage of images | |
| Image storage mode | IR/visual imagesVisual image can automatically be associated with corresponding IR image |
| Periodic image storage Every 10 seconds up to | 24 hours |
| File formats Standard JPEG, 14 bit measurement | data included |
| Geographic Information System | |
| GPS Location data automatically added to every | image from built-in GPS |
| Video recording in camera | |
| Radiometric IR video recording *.seq video clips | to memory card (7.5 and 15 Hz). |
| Non-radiometric IR video recording MPEG4 (up to | 60 minutes/clip) to memory card.Visual image can automatically be associated with corresponding recording of non-radiometric IR video. |
| Visual video recording | MPEG4 (25 minutes/clip) to memory card |
| Video streaming | |
| Radiometric IR video streaming Full dynamic to | PC using USB cable or to mobile devices using Wi-Fi. PC software capable of displaying the video stream include the following:FLIR IR Camera PlayerFLIR ResearchIRFLIR Tools |
| Non-radiometric IR video streaming | RTP/MPEG4 |
| Digital camera | |
| Built-in digital camera 3.2 Mpixels, auto focus, and two video lamps | |
| Laser pointer | |
| Laser Activated by dedicated button | |
| Laser classification | Class 2 |
| Laser type | Semiconductor AlGaInP diode laser, 1 mW, 635 nm (red) |
| USB | |
| USB | USB-A: Connect external USB deviceUSB Mini-B: Data transfer to and from PC |
| USB, standard | USB Mini-B: 2.0 high speed |
| Composite video | |
| Video out | Digital video output (image) |
| Power system | |
| Battery type | Rechargeable Li ion battery |
| Battery voltage | 7.2 V |
| Battery capacity | 4.4 Ah |
| Battery operating time | >3 hours at 25°C (+77°F) and typical use |
| Power system | |
| Charging system In camera (AC adapter or 12 V | from a vehicle) or 2-bay charger |
| Charging time | 2.5 h to 95% capacity, charging status indicated LED's |
| External power operation AC adapter 90-260 VAC | C, 50/60 Hz or 12 V from a vehicle (cable with standard plug, optional) |
| DC operation 10.8 to 16 V DC, polarity protected | (proprietary protected) |
| Power 8.5 W typically | |
| Start-up time Typically 7 min. @ 25°C (+77°F) | |
| Environmental data | |
| Operating temperature range -20°C to +50°C (-4°F to +122°F) | |
| Storage temperature range -30°C to +60°C (-22°F to +140°F) | |
| Humidity (operating and storage) IEC 68-2-30/24 | h 95% relative humidity +25°C to +40°C (+77°F to +104°F) (2 cycles) |
| Directives | 73/23EEC2004/108/EC2002/95/EC2002/96/EC |
| EMC | EN61000-6-4 (Emission)EN61000-6-2 (Immunity)FCC 47 CFR Part 15 class A (Emission)EN 61 000-4-8, L5 |
| Encapsulation | IP 54 (IEC 60529) |
| Shock 25 g (IEC 60068-2-27) | |
| Vibration 2 g (IEC 60068-2-6) | |
| Safety | Power supply: EN/UL/IEC 60950-1 |
| Physical data | |
| Camera weight, excl. lens and battery | 1.94 kg (4.27 lb.) |
| Camera weight, incl. lens and excl. battery | 2.24 kg (4.94 lb.) |
| Camera weight, incl. lens and battery | 2.48 kg (5.47 lb.) |
| Battery weight | 0.24 kg (0.52 lb.) |
| Heat shield weight | 0.50 kg (1.09 lb.) |
| Camera size, excl. lens (L × W × H) | 284 × 169 × 161 mm (11.2 × 6.7 × 6.3 in.) |
| Cameras size, incl. lens (L × W × H) | 305 × 169 × 161 mm (12.0 × 6.7 × 6.3 in.) |
| Cameras size, incl. heat shield (L × W × H) | 320 × 243 × 195 mm (12.6 × 9.6 × 7.7 in.) |
| Battery size (L × W × H) | 141 × 47 × 28 mm (5.5 × 1.8 × 1.1 in.) |
| Battery charger size (L × W × H) | 158 × 122 × 25 mm (6.2 × 4.8 × 1.0 in.) |
| Tripod mounting | UNC 1⁄4"-20 |
| Housing material Aluminum, magnesium | |
| Grip material | TPE thermoplastic elastomers |
| Shipping information | |
| Packaging, type | Cardboard box |
| List of contents | Infrared camera with lensBattery chargerBattery, 2 ea.Hard transport caseHDMI-DVI cableHDMI-HDMI cableHeat shieldLens cap (mounted on lens)Memory cardPower supply, incl. multi-plugsPrinted documentationShoulder strapUSB cableWi-Fi USB micro adapter (depending on CE and FCC regulations regarding wireless equipment for your country) |
| Packaging, weight | |
| Packaging, size 400 × 190 × 510 mm ( 15.7 × 7 ) | 5 × 20.1 in.) |
Supplies & accessories:
• T198361; Furnace IR lens extender, 14.5° with case for GF309
• T197692; Battery charger, incl. power supply with multi plugs
• T910814; Power supply, incl. multi plugs
• T198511; Li-Ion Battery pack 7.4V 33Wh
• T199367ACC; Battery Li-ion 7.2 V, 4.4 Ah, 32 Wh
• T911650ACC; Memory card SD Card 8 GB
• 1910423; USB cable Std A <-> Mini-B
• T198509; Cigarette lighter adapter kit, 12 VDC, 1.2 m/3.9 ft.
• T910815ACC; HDMI to HDMI cable 1.5 m
• T910816ACC; HDMI to DVI cable 1.5 m
• T197555; Hard transport case for FLIR GF3xx-Series
• T951387; Wi-Fi USB micro adapter
• T197482; Heat Shield for FLIR GF309
• T198586; FLIR Reporter Professional (license only)
• T198584; FLIR Tools
• T198583; FLIR Tools+ (download card incl. license key)
- DSW-10000; FLIR IR Camera Player
- APP-10002; FLIR Tools Mobile (Android Application)
• T198697; FLIR ResearchIR Max + HSDR 4 (hardware sec. dev.)
• T199014; FLIR ResearchIR Max + HSDR 4 (printed license key)
• T199044; FLIR ResearchIR Max + HSDR 4 Upgrade (printed license key)
• T198696; FLIR ResearchIR Max 4 (hardware sec. dev.)
• T199013; FLIR ResearchIR Max 4 (printed license key)
• T199043; FLIR ResearchIR Max 4 Upgrade (printed license key)
• T198731; FLIR ResearchIR Standard 4 (hardware sec. dev.)
• T199012; FLIR ResearchIR Standard 4 (printed license key)
• T199042; FLIR ResearchIR Standard 4 Upgrade (printed license key)
• T199233; FLIR Atlas SDK for .NET
• T199234; FLIR Atlas SDK for MATLAB
• T198567; ThermoVision™ System Developers Kit Ver. 2.6
• T198566; ThermoVision™ LabVIEW® Digital Toolkit Ver. 3.3
22.18 FLIR GF309 24°
P/N: 44601-0102
Rev.: 45202
| General description |
| The FLIR GF309 is an infrared camera for furnace and high temperature inspection (e.g., of industrial furnaces, chemical heaters, and coal-fired boilers), without the need to shut down the operation. The portable camera also greatly improves operator safety, by measuring through flames at a safe distance, for all types of furnaces. A good knowledge of the furnace condition can avert failures and unscheduled shutdownsIndustrial furnaces, heaters, and boilers are found in the chemical, petrochemical, and utility industries. |
| Benefits: |
| Improved efficiency: The FLIR GF309 reduces inspection time by measuring the temperature through flames without the need to interrupt the industrial process or await scheduled service shutdowns. A furnace camera can help you to determine how to run a furnace/boiler efficiently to give the best fuel economy and maximize production output and quality. As the FLIR GF309 has a wide temperature range, high-accuracy electrical and mechanical inspections can be performed, which makes the camera even more useful for predictive maintenance.The wireless connectivity of the camera allows you to connect to smart phones or tablet PCs for the wireless transfer of images or the remote control of the camera—a useful function if regulations require a second person to accompany the furnace inspector or thermal images needs to be sent quickly for a second opinion.Increased worker safety: High-temperature measurement can be performed through flames in a non-contact mode, and from a safe distance. Custom-built, the FLIR GF309 also features a detachable heat-shield designed to reflect heat away from the camera and the camera operator, providing increased protection. The camera is ergonomically designed with a bright LCD and tiltable viewfinder, which facilitates its use over a full working day.Increased furnace safety: Good knowledge of furnace/boiler condition and operating parameters can provide the information needed to avert catastrophic failures and prevent unscheduled shutdowns. |
| Licensing and classification | |
| License information Interchangeable lens version | of the FLIR GF3XXseries requires US Department of State Licenseand will be subject to limitations on resale, exceptinside US. Allow a minimum of 90 days after application submittal for approval. |
| Imaging and optical data | |
| IR resolution 320 × 240 pixels | |
| Thermal sensitivity/NETD <15 mK @ +30°C (+86°F) | |
| Field of view (FOV) | 24° × 18° |
| Minimum focus distance 0.3 m (1.0 ft.) | |
| Focal length 23 mm (0.89 in.) | |
| Lens identification Automatic | |
| F-number 1.5 | |
| Focus | Automatic (one touch) or manual (electric or on lens) |
| Zoom | 1-8× continuous, digital zoom |
| Digital image enhancement | Noise reduction filter |
| Detector data | |
| Detector type Focal plane array (FPA), cooled InSb | |
| Spectral range | 3.8–4.05 μm |
| Detector pitch 30 μm | |
| Sensor cooling Stirling Microcooler (FLIR MC-3) | |
| Electronics and data rate | |
| Full frame rate 60 Hz | |
| Image presentation | |
| Display Built-in widescreen, 4.3 in. LCD, 800 × 480 pixels | |
| Viewfinder Built-in, tiltable OLED, 800 × 480 pixels | |
| Automatic image adjustment Continuous/manual; linear or histogram based | |
| Manual image adjustment | Level/span |
| Image presentation modes | |
| Image modes IR image, visual image | |
| Measurement | |
| Temperature range -20°C to +1500°C (-4°F to +2732°F) | |
| Accuracy | ±1°C (±1.8°F) for temperature range (0°C, to +100°C, +32°F to +212°F) or ±2% of reading for temperature range (> +100°C, > +212°F) |
| Measurement analysis | |
| Spotmeter | 10 |
| Area | 5 boxes with max./min./average |
| Profile | 1 live line (horizontal or vertical) |
| Isotherm | Above/below/interval |
| Difference temperature | Delta temperature between measurement functions or reference temperature |
| Reference temperature | Manually set or captured from any measurement function |
| Emissivity correction | Variable from 0.01 to 1.0 or selected from edita materials list |
| Reflected apparent temperature correction | Automatic, based on input of reflected tempera |
| Measurement corrections | Reflected temperature, distance, atmospheric transmission, humidity, external optics |
| Set-up | |
| Menu commands Level, span | Auto adjust continuous/manual/semi-automaticZoomPaletteStart/stop recordingStore imagePlayback/recall image |
| Color palettes Iron, Gray, Rainbow, Arctic, Lava, | Rainbow HC |
| Set-up commands 1 programmable button, local | adaptation of units, language, date and time formats |
| Storage of images | |
| Storage media Removable SD or SDHC memory | card , two card slots |
| Image storage capacity | > 1200 images (JPEG) with post process capabi per GB on memory card |
| Image storage mode | IR/visual imagesVisual image can automatically be associated with corresponding IR image |
| Periodic image storage Every 10 seconds up to | 24 hours |
| File formats Standard JPEG, 14 bit measurement | data included |
| Geographic Information System | |
| GPS Location data automatically added to every | image from built-in GPS |
| Video recording in camera | |
| Radiometric IR video recording *.seq video clips | to memory card (7.5 and 15 Hz). |
| Non-radiometric IR video recording MPEG4 (up to | 60 minutes/clip) to memory card.Visual image can automatically be associated with corresponding recording of non-radiometric IR video. |
| Visual video recording | MPEG4 (25 minutes/clip) to memory card |
| Video streaming | |
| Radiometric IR video streaming Full dynamic to PC using USB cable or to mobile devices using Wi-Fi. PC software capable of displaying the video stream include the following:FLIR IR Camera PlayerFLIR ResearchIRFLIR Tools | |
| Non-radiometric IR video streaming | RTP/MPEG4 |
| Digital camera | |
| Built-in digital camera | 3.2 Mpixels, auto focus, and two video lamps |
| Laser pointer | |
| Laser Activated by dedicated button | |
| Laser classification Class 2 | |
| Laser type Semiconductor AlGaInP diode laser, 1 | mW, 635nm (red) |
| USB | |
| USB | • USB-A: Connect external USB device• USB Mini-B: Data transfer to and from PC |
| USB, standard USB Mini-B: 2.0 high speed | |
| Composite video | |
| Video out Digital video output (image) | |
| Power system | |
| Battery type Rechargeable Li ion battery | |
| Battery voltage 7.2 V | |
| Battery capacity 4.4 Ah | |
| Battery operating time | >3 hours at 25°C (+77°F) and typical use |
| Charging system | In camera (AC adapter or 12 V from a vehicle) bay charger |
| Charging time | 2.5 h to 95% capacity, charging status indicated LED's |
| External power operation | AC adapter 90–260 VAC, 50/60 Hz or 12 V from a vehicle (cable with standard plug, optional) |
| DC operation | 10.8 to 16 V DC, polarity protected (proprietary protected) |
| Power | 8.5 W typically |
| Start-up time | Typically 7 min. @ 25°C (+77°F) |
| Environmental data | |
| Operating temperature range | -20°C to +50°C (-4°F to +122°F) |
| Storage temperature range | -30°C to +60°C (-22°F to +140°F) |
| Humidity (operating and storage) | IEC 68-2-30/24 h 95% relative humidity +25°C +40°C (+77°F to +104°F) (2 cycles) |
| Directives | • 73/23EEC• 2004/108/EC• 2002/95/EC• 2002/96/EC |
| EMC | • EN61000-6-4 (Emission)• EN61000-6-2 (Immunity)• FCC 47 CFR Part 15 class A (Emission)• EN 61 000-4-8, L5 |
| Encapsulation | IP 54 (IEC 60529) |
| Shock | 25 g (IEC 60068-2-27) |
| Vibration | 2 g (IEC 60068-2-6) |
| Safety | Power supply: EN/UL/IEC 60950-1 |
| Physical data | |
| Camera weight, excl. lens and battery 1.94 kg (4.27 lb.) | |
| Camera weight, incl. lens and excl. battery 2.24 kg (4.94 lb.) | |
| Camera weight, incl. lens and battery 2.48 kg (5.47 lb.) | |
| Battery weight 0.24 kg (0.52 lb.) | |
| Heat shield weight 0.50 kg (1.09 lb.) | |
| Camera size, excl. lens (L × W × H) 284 × 169 | × 161 mm (11.2 × 6.7 × 6.3 in.) |
| Cameras size, incl. lens (L × W × H) 306 × 169 | × 161 mm (12.0 × 6.7 × 6.3 in.) |
| Cameras size, incl. heat shield (L × W × H) 320 | × 243 × 195 mm (12.6 × 9.6 × 7.7 in.) |
| Battery size (L × W × H) 141 × 47 × 28 mm (5.5 × 1.8 × 1.1 in.) | |
| Battery charger size (L × W × H) | 158 × 122 × 25 mm (6.2 × 4.8 × 1.0 in.) |
| Tripod mounting | UNC 1⁄4"-20 |
| Housing material | Aluminum, magnesium |
| Grip material | TPE thermoplastic elastomers |
| Shipping information | |
| Packaging, type | Cardboard box |
| List of contents | Infrared camera with lensBattery chargerBattery, 2 ea.Hard transport caseHDMI-DVI cableHDMI-HDMI cableHeat shieldLens cap (2 ea.)Lens cap (mounted on lens)Memory cardPower supply, incl. multi-plugsPrinted documentationShoulder strapUSB cableWi-Fi USB micro adapter (depending on CE and FCC regulations regarding wireless equipment for your country) |
| Packaging, weight | |
| Packaging, size | 400 × 190 × 510 mm (15.7 × 7.5 × 20.1 in.) |
Supplies & accessories:
• T197387; IR lens, 24° with case for GF300, GF309, GF320
• T197388; IR lens, 6° with case for GF300, GF309, GF320, GF346.
• T197385; IR lens, 14.5° with case for GF300, GF309, GF320
• T198360; Furnace IR lens extender, 24° with case for GF309
• T197692; Battery charger, incl. power supply with multi plugs
• T910814; Power supply, incl. multi plugs
• T198511; Li-Ion Battery pack 7.4V 33Wh
• T199367ACC; Battery Li-ion 7.2 V, 4.4 Ah, 32 Wh
• T911650ACC; Memory card SD Card 8 GB
• 1910423; USB cable Std A <-> Mini-B
• T198509; Cigarette lighter adapter kit, 12 VDC, 1.2 m/3.9 ft.
• T910815ACC; HDMI to HDMI cable 1.5 m
• T910816ACC; HDMI to DVI cable 1.5 m
• T197555; Hard transport case for FLIR GF3xx-Series
• T951387; Wi-Fi USB micro adapter
• T197482; Heat Shield for FLIR GF309
• T198586; FLIR Reporter Professional (license only)
• T198584; FLIR Tools
• T198583; FLIR Tools+ (download card incl. license key)
• DSW-10000; FLIR IR Camera Player
- APP-10002; FLIR Tools Mobile (Android Application)
• T198697; FLIR ResearchIR Max + HSDR 4 (hardware sec. dev.)
• T199014; FLIR ResearchIR Max + HSDR 4 (printed license key)
• T199044; FLIR ResearchIR Max + HSDR 4 Upgrade (printed license key)
• T198696; FLIR ResearchIR Max 4 (hardware sec. dev.)
• T199013; FLIR ResearchIR Max 4 (printed license key)
• T199043; FLIR ResearchIR Max 4 Upgrade (printed license key)
• T198731; FLIR ResearchIR Standard 4 (hardware sec. dev.)
• T199012; FLIR ResearchIR Standard 4 (printed license key)
• T199042; FLIR ResearchIR Standard 4 Upgrade (printed license key)
• T199233; FLIR Atlas SDK for .NET
• T199234: FLIR Atlas SDK for MATLAB
• T198567; ThermoVision™ System Developers Kit Ver. 2.6
• T198566; ThermoVision™ LabVIEW® Digital Toolkit Ver. 3.3
22.19 FLIR GF309 24° Fixed lens
P/N: 44602-0102
Rev.: 45202
| General description |
| The FLIR GF309 is an infrared camera for furnace and high temperature inspection (e.g., of industrial furnaces, chemical heaters, and coal-fired boilers), without the need to shut down the operation. The portable camera also greatly improves operator safety, by measuring through flames at a safe distance, for all types of furnaces. A good knowledge of the furnace condition can avert failures and unscheduled shutdownsIndustrial furnaces, heaters, and boilers are found in the chemical, petrochemical, and utility industries. |
| Benefits: |
| Improved efficiency: The FLIR GF309 reduces inspection time by measuring the temperature through flames without the need to interrupt the industrial process or await scheduled service shutdowns. A furnace camera can help you to determine how to run a furnace/boiler efficiently to give the best fuel economy and maximize production output and quality. As the FLIR GF309 has a wide temperature range, high-accuracy electrical and mechanical inspections can be performed, which makes the camera even more useful for predictive maintenance.The wireless connectivity of the camera allows you to connect to smart phones or tablets for the wireless transfer of images or the remote control of the camera—a useful function if regulations require a second person to accompany the furnace inspector or thermal images needs to be sent quickly for a second opinion.Increased worker safety: High-temperature measurement can be performed through flames in a non-contact mode, and from a safe distance. Custom-built, the FLIR GF309 also features a detachable heat-shield designed to reflect heat away from the camera and the camera operator, providing increased protection. The camera is ergonomically designed, with a bright LCD and tiltable viewfinder, which facilitates its use over a full working day.Increased furnace safety: Good knowledge of furnace/boiler condition and operating parameters can provide the information needed to avert catastrophic failures and prevent unscheduled shutdowns. |
| Imaging and optical data | |
| IR resolution 320 × 240 pixels | |
| Thermal sensitivity/NETD <15 mK @ +30°C (+86°F) | |
| Field of view (FOV) | 24° × 18° |
| Minimum focus distance 0.3 m (1.0 ft.) | |
| Focal length 23 mm (0.89 in.) | |
| Lens identification Automatic | |
| F-number 1.5 | |
| Focus Automatic (one touch) or manual (electric lens) | or on the lens) |
| Zoom | 1-8× continuous, digital zoom |
| Digital image enhancement | Noise reduction filter |
| Detector data | |
| Detector type | Focal plane array (FPA), cooled InSb |
| Spectral range | 3.8-4.05 μm |
| Detector pitch | 30 μm |
| Sensor cooling | Stirling Microcooler (FLIR MC-3) |
| Electronics and data rate | |
| Full frame rate | 60 Hz |
| Image presentation | |
| Display Built-in widescreen, 4.3 in. LCD, 800 × 4 | 80 pixels |
| Viewfinder Built-in, tiltable OLED, 800 × 480 pixels | |
| Automatic image adjustment Continuous/manual; linear or histogram based | |
| Manual image adjustment | Level/span |
| Image presentation modes | |
| Image modes IR image, visual image | |
| Measurement | |
| Temperature range -20°C to +1500°C (-4°F to +2732°F) | |
| Accuracy ±1°C (±1.8°F) for temperature range (0°C, to +100°C, +32°F to +212°F) or ±2% of reading for temperature range (>+100°C, >+212°F) | |
| Measurement analysis | |
| Spotmeter | 10 |
| Area | 5 boxes with max./min./average |
| Profile 1 live line (horizontal or vertical) | |
| Isotherm | Above/below/interval |
| Difference temperature Delta temperature between measurement functions or reference temperature | |
| Reference temperature Manually set or captured from any measurement function | |
| Emissivity correction Variable from 0.01 to 1.0 or selected from editable materials list | |
| Reflected apparent temperature correction Automatic, based on input of reflected temperature | |
| Measurement corrections | Reflected temperature, distance, atmospheric transmission, humidity, external optics |
| Set-up | |
| Menu commands | Level, spanAuto adjust continuous/manual/semi-automaticZoomPaletteStart/stop recordingStore imagePlayback/recall image |
| Color palettes | Iron, Gray, Rainbow, Arctic, Lava, Rainbow HC |
| Set-up commands | 1 programmable button, local adaptation of units language, date and time formats |
| Storage of images | |
| Storage media | Removable SD or SDHC memory card, two card slots |
| Image storage capacity | >1200 images (JPEG) with post process capability per GB on memory card |
| Storage of images | |
| Image storage mode | IR/visual imagesVisual image can automatically be associated with corresponding IR image |
| Periodic image storage Every 10 seconds up to | 24 hours |
| File formats Standard JPEG, 14 bit measurement | data included |
| Geographic Information System | |
| GPS Location data automatically added to every | image from built-in GPS |
| Video recording in camera | |
| Radiometric IR video recording *.seq video clips | to memory card (7.5 and 15 Hz). |
| Non-radiometric IR video recording MPEG4 (up to | 60 minutes/clip) to memory card.Visual image can automatically be associated with corresponding recording of non-radiometric IR video. |
| Visual video recording | MPEG4 (25 minutes/clip) to memory card |
| Video streaming | |
| Radiometric IR video streaming Full dynamic to | PC using USB cable or to mobile devices using Wi-Fi. PC software capable of displaying the video stream include the following:FLIR IR Camera PlayerFLIR ResearchIRFLIR Tools |
| Non-radiometric IR video streaming | RTP/MPEG4 |
| Digital camera | |
| Built-in digital camera 3.2 Mpixels, auto focus, and two video lamps | |
| Laser pointer | |
| Laser Activated by dedicated button | |
| Laser classification | Class 2 |
| Laser type | Semiconductor AlGaInP diode laser, 1 mW, 635 nm (red) |
| USB | |
| USB | USB-A: Connect external USB deviceUSB Mini-B: Data transfer to and from PC |
| USB, standard | USB Mini-B: 2.0 high speed |
| Composite video | |
| Video out | Digital video output (image) |
| Power system | |
| Battery type | Rechargeable Li ion battery |
| Battery voltage | 7.2 V |
| Battery capacity | 4.4 Ah |
| Battery operating time | >3 hours at 25°C (+77°F) and typical use |
| Power system | |
| Charging system In camera (AC adapter or 12 V | from a vehicle) or 2-bay charger |
| Charging time | 2.5 h to 95% capacity, charging status indicated LED's |
| External power operation AC adapter 90-260 VAC | C, 50/60 Hz or 12 V from a vehicle (cable with standard plug, optional) |
| DC operation 10.8 to 16 V DC, polarity protected | (proprietary protected) |
| Power 8.5 W typically | |
| Start-up time Typically 7 min. @ 25°C (+77°F) | |
| Environmental data | |
| Operating temperature range -20°C to +50°C (-4°F to +122°F) | |
| Storage temperature range -30°C to +60°C (-22°F to +140°F) | |
| Humidity (operating and storage) IEC 68-2-30/24 | h 95% relative humidity +25°C to +40°C (+77°F to +104°F) (2 cycles) |
| Directives | 73/23EEC2004/108/EC2002/95/EC2002/96/EC |
| EMC | EN61000-6-4 (Emission)EN61000-6-2 (Immunity)FCC 47 CFR Part 15 class A (Emission)EN 61 000-4-8, L5 |
| Encapsulation | IP 54 (IEC 60529) |
| Shock 25 g (IEC 60068-2-27) | |
| Vibration 2 g (IEC 60068-2-6) | |
| Safety | Power supply: EN/UL/IEC 60950-1 |
| Physical data | |
| Camera weight, excl. lens and battery | 1.94 kg (4.27 lb.) |
| Camera weight, incl. lens and excl. battery | 2.24 kg (4.94 lb.) |
| Camera weight, incl. lens and battery | 2.48 kg (5.47 lb.) |
| Battery weight | 0.24 kg (0.52 lb.) |
| Heat shield weight | 0.50 kg (1.09 lb.) |
| Camera size, excl. lens (L × W × H) | 284 × 169 × 161 mm (11.2 × 6.7 × 6.3 in.) |
| Cameras size, incl. lens (L × W × H) | 306 × 169 × 161 mm (12.0 × 6.7 × 6.3 in.) |
| Cameras size, incl. heat shield (L × W × H) | 320 × 243 × 195 mm (12.6 × 9.6 × 7.7 in.) |
| Battery size (L × W × H) | 141 × 47 × 28 mm (5.5 × 1.8 × 1.1 in.) |
| Battery charger size (L × W × H) | 158 × 122 × 25 mm (6.2 × 4.8 × 1.0 in.) |
| Tripod mounting | UNC 1⁄4"-20 |
| Housing material Aluminum, magnesium | |
| Grip material | TPE thermoplastic elastomers |
| Shipping information | |
| Packaging, type | Cardboard box |
| List of contents | Infrared camera with lensBattery chargerBattery, 2 ea.Hard transport caseHDMI-DVI cableHDMI-HDMI cableHeat shieldLens cap (mounted on lens)Memory cardPower supply, incl. multi-plugsPrinted documentationShoulder strapUSB cableWi-Fi USB micro adapter (depending on CE and FCC regulations regarding wireless equipment for your country) |
| Packaging, weight 9.45 kg (20.8 lb.) | |
| Packaging, size 400 × 190 × 510 mm (15.7 × 7 | 5 × 20.1 in.) |
Supplies & accessories:
• T198360; Furnace IR lens extender, 24° with case for GF309
• T197692; Battery charger, incl. power supply with multi plugs
• T910814; Power supply, incl. multi plugs
• T198511; Li-Ion Battery pack 7.4V 33Wh
• T199367ACC; Battery Li-ion 7.2 V, 4.4 Ah, 32 Wh
• T911650ACC; Memory card SD Card 8 GB
• 1910423; USB cable Std A <-> Mini-B
• T198509; Cigarette lighter adapter kit, 12 VDC, 1.2 m/3.9 ft.
• T910815ACC; HDMI to HDMI cable 1.5 m
• T910816ACC; HDMI to DVI cable 1.5 m
• T197555; Hard transport case for FLIR GF3xx-Series
• T951387; Wi-Fi USB micro adapter
• T197482; Heat Shield for FLIR GF309
• T198586; FLIR Reporter Professional (license only)
• T198584; FLIR Tools
• T198583; FLIR Tools+ (download card incl. license key)
- DSW-10000; FLIR IR Camera Player
- APP-10002; FLIR Tools Mobile (Android Application)
• T198697; FLIR ResearchIR Max + HSDR 4 (hardware sec. dev.)
• T199014; FLIR ResearchIR Max + HSDR 4 (printed license key)
• T199044; FLIR ResearchIR Max + HSDR 4 Upgrade (printed license key)
• T198696; FLIR ResearchIR Max 4 (hardware sec. dev.)
• T199013; FLIR ResearchIR Max 4 (printed license key)
• T199043; FLIR ResearchIR Max 4 Upgrade (printed license key)
• T198731; FLIR ResearchIR Standard 4 (hardware sec. dev.)
• T199012; FLIR ResearchIR Standard 4 (printed license key)
• T199042; FLIR ResearchIR Standard 4 Upgrade (printed license key)
• T199233; FLIR Atlas SDK for .NET
• T199234; FLIR Atlas SDK for MATLAB
• T198567; ThermoVision™ System Developers Kit Ver. 2.6
• T198566; ThermoVision™ LabVIEW® Digital Toolkit Ver. 3.3
22.20 FLIR GF320 14.5°
P/N: 44401-0101
Rev.: 45202
| General description | |
| The FLIR GF320 is an infrared camera for optical gas imaging (OGI) that visualizes and pinpoints of methane and other volatile organic compounds (VOCs), without the need to shut down the operation. The portable camera also greatly improves operator safety, by detecting emissions at a safe distance, and helps to protect the environment by tracing leaks of environmentally harmful gases.The FLIR GF320 is used in industrial settings such as oil refineries, natural gas processing plants, offshore platforms, chemical/petrochemical industries, and biogas and power generation plants. | |
| Benefits: | |
| Improved efficiency: The FLIR GF320 reduces revenue loss by pinpointing even small gas leaks quickly and efficiently, and from a distance. It also reduces the inspection time by allowing a broad area to be scanned rapidly and without the need to interrupt the industrial process. The wireless connectivity of the camera allows you to connect to smart phones or tablets for the wireless transfer of images or remote control of the camera. The FLIR GF320 is also used for temperature measurement, which makes it even more useful for predictive maintenance.Increased worker safety: OGI allows gas leaks to be detected in a non-contact mode and from a safe distance. This reduces the risk of the user being exposed to invisible and potentially harmful or explosive chemicals. With a FLIR GF320 gas imaging camera it is easy to scan areas of interest that are difficult to reach with conventional methods. The camera is ergonomically designed, with a bright LCD and tiltable viewfinder, which facilitates its use over a full working day.Protecting the environment: Several VOCs are dangerous to human health or cause harm to the environment, and are usually governed by regulations. Even small leaks can be detected and documented using the FLIR GF320 camera. | |
| Detects the following gases: benzene, ethanol, ethylbenzene, heptane, hexane, isoprene, methanol, MEK, MIBK, octane, pentane, 1-pentene, toluene, xylene, butane, ethane, methane, propane, ethylene, propylene. | |
| Licensing and classification | |
| License information Interchangeable lens version | of the FLIR GF3XXseries requires US Department of State License and will be subject to limitations on resale, except inside US. Allow a minimum of 90 days after application submittal for approval. |
| Imaging and optical data | |
| IR resolution 320 × 240 pixels | |
| Thermal sensitivity/NETD <15 mK @ +30°C (+86°F) | |
| Field of view (FOV) | 14.5° × 10.8° |
| Minimum focus distance 0.5 m (1.64 ft.) | |
| Focal length 38 mm (1.49 in.) | |
| Lens identification Automatic | |
| F-number 1.5 | |
| Focus | Automatic (one touch) or manual (electric or on the lens) |
| Zoom | 1-8× continuous, digital zoom |
| Digital image enhancement | Noise reduction filter, high sensitivity mode (HSM) |
| Detector data | |
| Detector type Focal plane array (FPA), cooled InSb | |
| Spectral range | 3.2-3.4 μm |
| Detector pitch 30 μm | |
| Sensor cooling Stirling Microcooler (FLIR MC-3) | |
| Detects following gases Benzene, Ethanol, Ethylbenzene, Heptane, Hexane, Isoprene, Methanol, MEK, MIBK, Octane, Pentane, 1-Pentene, Toluene, Xylene, Butane, Ethane, Methane, Propane, Ethylene, Propylene | |
| Electronics and data rate | |
| Full frame rate 60 Hz | |
| Image presentation | |
| Display Built-in widescreen, 4.3 in. LCD, 800 × 480 pixels | |
| Viewfinder Built-in, tiltable OLED, 800 × 480 pixels | |
| Automatic image adjustment | Continuous/manual; linear or histogram based |
| Manual image adjustment | Level/span |
| Image presentation modes | |
| Image modes IR image, visual image, high sensitivity mode (HSM) | |
| Measurement | |
| Temperature range | -20°C to +350°C (-4°F to +662°F) |
| Accuracy | ±1°C (±1.8°F) for temperature range (0°C, to +100°C, +32°F to +212°F) or ±2% of reading for temperature range (>+100°C, >+212°F) |
| Measurement analysis | |
| Spotmeter | 10 |
| Area 5 boxes with max./min./average | |
| Profile | 1 live line (horizontal or vertical) |
| Difference temperature | Delta temperature between measurement functions or reference temperature |
| Reference temperature | Manually set or captured from any measurement function |
| Emissivity correction | Variable from 0.01 to 1.0 or selected from edita materials list |
| Reflected apparent temperature correction | Automatic, based on input of reflected tempera |
| Measurement corrections | Reflected temperature, distance, atmospheric transmission, humidity, external optics |
| Set-up | |
| Menu commands Level, span | Auto adjust continuous/manual/semi-automaticZoomPaletteStart/stop recordingStore imagePlayback/recall image |
| Color palettes Iron, Gray, Rainbow, Arctic, Lava, | Rainbow HC |
| Set-up commands | 1 programmable button, overlay recording mode, local adaptation of units, language, date and time formats |
| Storage of Images | |
| Storage media Removable SD or SDHC memory | card, two card slots |
| Image storage capacity | >1200 images (JPEG) with post process capability per GB on memory card |
| Image storage mode | IR/visual imagesVisual image can automatically be associated with corresponding IR image |
| Periodic image storage Every 10 seconds up to | 24 hours |
| File formats Standard JPEG, 14 bit measurement | data included |
| Geographic Information System | |
| GPS Location data automatically added to every image from built-in GPS |
| Video recording in camera | |
| Radiometric IR video recording *.seq video clips | to memory card (7.5 and 15 Hz). |
| Non-radiometric IR video recording MPEG4 (up to | 60 minutes/clip) to memory card.Visual image can automatically be associated with corresponding recording of non-radiometric IR video. |
| Visual video recording MPEG4 (25 minutes/clip) | to memory card |
| Video streaming | |
| Radiometric IR video streaming Full dynamic to | PC using USB cable or to mobile devices using Wi-Fi. PC software capable of displaying the video stream include the following:FLIR IR Camera PlayerFLIR ResearchIRFLIR Tools |
| Non-radiometric IR video streaming | RTP/MPEG4 |
| Digital camera | |
| Built-in digital camera | 3.2 Mpixels, auto focus, and two video lamps |
| Laser pointer | |
| Laser Activated by dedicated button | |
| Laser classification Class 2 | |
| Laser type Semiconductor AlGaInP diode laser, 1 | mW, 635nm (red) |
| USB | |
| USB | • USB-A: Connect external USB device• USB Mini-B: Data transfer to and from PC |
| USB, standard USB Mini-B: 2.0 high speed | |
| Composite video | |
| Video out Digital video output (image) | |
| Power system | |
| Battery type Rechargeable Li ion battery | |
| Battery voltage 7.2 V | |
| Battery capacity 4.4 Ah | |
| Battery operating time | >3 hours at 25°C (+77°F) and typical use |
| Charging system | In camera (AC adapter or 12 V from a vehicle) bay charger |
| Charging time | 2.5 h to 95% capacity, charging status indicated LED's |
| External power operation | AC adapter 90–260 VAC, 50/60 Hz or 12 V from a vehicle (cable with standard plug, optional) |
| DC operation | 10.8 to 16 V DC, polarity protected (proprietary protected) |
| Power | 8.5 W typically |
| Start-up time | Typically 7 min. @ 25°C (+77°F) |
| Environmental data | |
| Operating temperature range | -20°C to +50°C (-4°F to +122°F) |
| Storage temperature range | -30°C to +60°C (-22°F to +140°F) |
| Humidity (operating and storage) | IEC 68-2-30/24 h 95% relative humidity +25°C +40°C (+77°F to +104°F) (2 cycles) |
| Directives | • 73/23EEC• 2004/108/EC• 2002/95/EC• 2002/96/EC |
| EMC | • EN61000-6-4 (Emission)• EN61000-6-2 (Immunity)• FCC 47 CFR Part 15 class A (Emission)• EN 61 000-4-8, L5 |
| Encapsulation | IP 54 (IEC 60529) |
| Shock | 25 g (IEC 60068-2-27) |
| Vibration | 2 g (IEC 60068-2-6) |
| Safety | Power supply: EN/UL/IEC 60950-1 |
| Physical data | |
| Camera weight, excl. lens and battery 1.94 kg (4.27 lb.) | |
| Camera weight, incl. lens and excl. battery 2.24 kg (4.94 lb.) | |
| Camera weight, incl. lens and battery 2.48 kg (5.47 lb.) | |
| Battery weight 0.24 kg (0.52 lb.) | |
| Camera size, excl. lens (L × W × H) 284 × 169 × 161 mm (11.2 × 6.7 × 6.3 in.) | |
| Cameras size, incl. lens (L × W × H) 305 × 169 × 161 mm (12.0 × 6.7 × 6.3 in.) | |
| Battery size (L × W × H) 141 × 47 × 28 mm (5.5 × 1.8 × 1.1 in.) | |
| Battery charger size (L × W × H) 158 × 122 × 25 mm (6.2 × 4.8 × 1.0 in.) | |
| Tripod mounting | UNC 14 "-20 |
| Housing material Aluminum, magnesium | |
| Grip material | TPE thermoplastic elastomers |
| Shipping information | |
| Packaging, type | Cardboard box |
| List of contents | Infrared camera with lensBattery chargerBattery, 2 ea.Hard transport caseHDMI-DVI cableHDMI-HDMI cableLens cap (2 ea.)Lens cap (mounted on lens)Memory cardPower supply, incl. multi-plugsPrinted documentationShoulder strapUSB cableWi-Fi USB micro adapter (depending on CE and FCC regulations regarding wireless equipment for your country) |
| Packaging, weight | |
| Packaging, size | 400 × 190 × 510 mm (15.7 × 7.5 × 20.1 in.) |
Supplies & accessories:
• T197387; IR lens, 24° with case for GF300, GF309, GF320
• T197388; IR lens, 6° with case for GF300, GF309, GF320, GF346.
• T197385; IR lens, 14.5° with case for GF300, GF309, GF320
• T197692; Battery charger, incl. power supply with multi plugs
• T910814; Power supply, incl. multi plugs
• T198511; Li-Ion Battery pack 7.4V 33Wh
• T199367ACC; Battery Li-ion 7.2 V, 4.4 Ah, 32 Wh
• T911650ACC; Memory card SD Card 8 GB
• 1910423; USB cable Std A <-> Mini-B
• T198509; Cigarette lighter adapter kit, 12 VDC, 1.2 m/3.9 ft.
• T910815ACC; HDMI to HDMI cable 1.5 m
• T910816ACC; HDMI to DVI cable 1.5 m
• T197555; Hard transport case for FLIR GF3xx-Series
• T951387; Wi-Fi USB micro adapter
• T198586; FLIR Reporter Professional (license only)
• T198584; FLIR Tools
• T198583; FLIR Tools+ (download card incl. license key)
• T198585; FLIR VideoReport
• DSW-10000; FLIR IR Camera Player
- APP-10002; FLIR Tools Mobile (Android Application)
• T198697; FLIR ResearchIR Max + HSDR 4 (hardware sec. dev.)
• T199014; FLIR ResearchIR Max + HSDR 4 (printed license key)
• T199044; FLIR ResearchIR Max + HSDR 4 Upgrade (printed license key)
• T198696; FLIR ResearchIR Max 4 (hardware sec. dev.)
• T199013; FLIR ResearchIR Max 4 (printed license key)
• T199043; FLIR ResearchIR Max 4 Upgrade (printed license key)
• T198731; FLIR ResearchIR Standard 4 (hardware sec. dev.)
• T199012; FLIR ResearchIR Standard 4 (printed license key)
• T199042; FLIR ResearchIR Standard 4 Upgrade (printed license key)
• T199233; FLIR Atlas SDK for .NET
• T199234; FLIR Atlas SDK for MATLAB
• T198567; ThermoVision™ System Developers Kit Ver. 2.6
• T198566; ThermoVision™ LabVIEW® Digital Toolkit Ver. 3.3
22.21 FLIR GF320 14.5° Fixed lens
P/N: 44402-0101
Rev.: 45202
| General description |
| The FLIR GF320 is an infrared camera for optical gas imaging (OGI) that visualizes and pinpoints of methane and other volatile organic compounds (VOCs), without the need to shut down the operation. The portable camera also greatly improves operator safety, by detecting emissions at a safe distance, and helps to protect the environment by tracing leaks of environmentally harmful gases.The FLIR GF320 is used in industrial settings such as oil refineries, natural gas processing plants, offshore platforms, chemical/petrochemical industries, and biogas and power generation plants. |
| Benefits: |
| Improved efficiency: The FLIR GF320 reduces revenue loss by pinpointing even small gas leaks quickly and efficiently, and from a distance. It also reduces the inspection time by allowing a broad area to be scanned rapidly and without the need to interrupt the industrial process. The wireless connectivity of the camera allows you to connect to smart phones or tablets for the wireless transfer of images or remote control of the camera. The FLIR GF320 is also used for temperature measurement, which makes it even more useful for predictive maintenance.Increased worker safety: OGI allows gas leaks to be detected in a non-contact mode and from a safe distance. This reduces the risk of the user being exposed to invisible and potentially harmful or explosive chemicals. With a FLIR GF320 gas imaging camera it is easy to scan areas of interest that are difficult to reach with conventional methods. The camera is ergonomically designed, with a bright LCD and tiltable viewfinder, which facilitates its use over a full working day.Protecting the environment: Several VOCs are dangerous to human health or cause harm to the environment, and are usually governed by regulations. Even small leaks can be detected and documented using the FLIR GF320 camera. |
| Detects the following gases: benzene, ethanol, ethylbenzene, heptane, hexane, isoprene, methanol, MEK, MIBK, octane, pentane, 1-pentene, toluene, xylene, butane, ethane, methane, propane, ethylene, propylene. |
| Imaging and optical data | |
| IR resolution 320 × 240 pixels | |
| Thermal sensitivity/NETD <15 mK @ +30°C (+86°F) | |
| Field of view (FOV) | 14.5° × 10.8° |
| Minimum focus distance 0.5 m (1.64 ft.) | |
| Focal length 38 mm (1.49 in.) | |
| Lens identification Automatic | |
| F-number 1.5 | |
| Focus | Automatic (one touch) or manual (electric or on lens) |
| Zoom | 1-8× continuous, digital zoom |
| Digital image enhancement | Noise reduction filter, high sensitivity mode (HS) |
| Detector data | |
| Detector type | Focal plane array (FPA), cooled InSb |
| Spectral range | 3.2–3.4 μm |
| Detector pitch | 30 μm |
| Sensor cooling Stirling Microcooler (FLIR MC-3) | |
| Detects following gases Benzene, Ethanol, Ethylbenzene, Heptane, Hexane, Isoprene, Methanol, MEK, MIBK, Octane, Pentane, 1-Pentene, Toluene, Xylene, Butane, Ethane, Methane, Propane, Ethylene, Propylene | |
| Electronics and data rate | |
| Full frame rate 60 Hz | |
| Image presentation | |
| Display Built-in widescreen, 4.3 in. LCD, 800 × 480 pixels | |
| Viewfinder Built-in, tiltable OLED, 800 × 480 pixels | |
| Automatic image adjustment | Continuous/manual; linear or histogram based |
| Manual image adjustment | Level/span |
| Image presentation modes | |
| Image modes IR image, visual image, high sensitivity mode (HSM) | |
| Measurement | |
| Temperature range | -20°C to +350°C (-4°F to +662°F) |
| Accuracy | ±1°C (±1.8°F) for temperature range (0°C, to +100°C, +32°F to +212°F) or ±2% of reading for temperature range (>+100°C, >+212°F) |
| Measurement analysis | |
| Spotmeter | 10 |
| Area 5 boxes with max./min./average | |
| Profile 1 live line (horizontal or vertical) | |
| Difference temperature Delta temperature between measurement functions or reference temperature | |
| Reference temperature Manually set or captured from any measurement function | |
| Emissivity correction | Variable from 0.01 to 1.0 or selected from edita materials list |
| Reflected apparent temperature correction | Automatic, based on input of reflected tempera |
| Measurement corrections | Reflected temperature, distance, atmospheric transmission, humidity, external optics |
| Set-up | |
| Menu commands Level, span | Auto adjust continuous/manual/semi-automaticZoomPaletteStart/stop recordingStore imagePlayback/recall image |
| Color palettes Iron, Gray, Rainbow, Arctic, Lava, | Rainbow HC |
| Set-up commands | 1 programmable button, overlay recording mode, local adaptation of units, language, date and time formats |
| Storage of Images | |
| Storage media Removable SD or SDHC memory | card, two card slots |
| Image storage capacity | >1200 images (JPEG) with post process capability per GB on memory card |
| Image storage mode | IR/visual imagesVisual image can automatically be associated with corresponding IR image |
| Periodic image storage Every 10 seconds up to | 24 hours |
| File formats Standard JPEG, 14 bit measurement | data included |
| Geographic Information System | |
| GPS Location data automatically added to every image from built-in GPS |
| Video recording in camera | |
| Radiometric IR video recording *.seq video clips | to memory card (7.5 and 15 Hz). |
| Non-radiometric IR video recording MPEG4 (up to | 60 minutes/clip) to memory card.Visual image can automatically be associated with corresponding recording of non-radiometric IR video. |
| Visual video recording MPEG4 (25 minutes/clip) | to memory card |
| Video streaming | |
| Radiometric IR video streaming Full dynamic to | PC using USB cable or to mobile devices using Wi-Fi. PC software capable of displaying the video stream include the following:FLIR IR Camera PlayerFLIR ResearchIRFLIR Tools |
| Non-radiometric IR video streaming | RTP/MPEG4 |
| Digital camera | |
| Built-in digital camera | 3.2 Mpixels, auto focus, and two video lamps |
| Laser pointer | |
| Laser Activated by dedicated button | |
| Laser classification Class 2 | |
| Laser type Semiconductor AlGaInP diode laser, 1 | mW, 635nm (red) |
| USB | |
| USB | • USB-A: Connect external USB device• USB Mini-B: Data transfer to and from PC |
| USB, standard USB Mini-B: 2.0 high speed | |
| Composite video | |
| Video out Digital video output (image) | |
| Power system | |
| Battery type Rechargeable Li ion battery | |
| Battery voltage 7.2 V | |
| Battery capacity 4.4 Ah | |
| Battery operating time | >3 hours at 25°C (+77°F) and typical use |
| Charging system | In camera (AC adapter or 12 V from a vehicle) bay charger |
| Charging time | 2.5 h to 95% capacity, charging status indicated LED's |
| External power operation | AC adapter 90–260 VAC, 50/60 Hz or 12 V from a vehicle (cable with standard plug, optional) |
| DC operation | 10.8 to 16 V DC, polarity protected (proprietary protected) |
| Power | 8.5 W typically |
| Start-up time | Typically 7 min. @ 25°C (+77°F) |
| Environmental data | |
| Operating temperature range | -20°C to +50°C (-4°F to +122°F) |
| Storage temperature range | -30°C to +60°C (-22°F to +140°F) |
| Humidity (operating and storage) | IEC 68-2-30/24 h 95% relative humidity +25°C +40°C (+77°F to +104°F) (2 cycles) |
| Directives | • 73/23EEC• 2004/108/EC• 2002/95/EC• 2002/96/EC |
| EMC | • EN61000-6-4 (Emission)• EN61000-6-2 (Immunity)• FCC 47 CFR Part 15 class A (Emission)• EN 61 000-4-8, L5 |
| Encapsulation | IP 54 (IEC 60529) |
| Shock | 25 g (IEC 60068-2-27) |
| Vibration | 2 g (IEC 60068-2-6) |
| Safety | Power supply: EN/UL/IEC 60950-1 |
| Physical data | |
| Camera weight, excl. lens and battery 1.94 kg (4.27 lb.) | |
| Camera weight, incl. lens and excl. battery 2.24 kg (4.94 lb.) | |
| Camera weight, incl. lens and battery 2.48 kg (5.47 lb.) | |
| Battery weight 0.24 kg (0.52 lb.) | |
| Camera size, excl. lens (L × W × H) 284 × 169 × 161 mm (11.2 × 6.7 × 6.3 in.) | |
| Cameras size, incl. lens (L × W × H) 305 × 169 × 161 mm (12.0 × 6.7 × 6.3 in.) | |
| Battery size (L × W × H) 141 × 47 × 28 mm (5.5 × 1.8 × 1.1 in.) | |
| Battery charger size (L × W × H) 158 × 122 × 25 mm (6.2 × 4.8 × 1.0 in.) | |
| Tripod mounting | UNC 14 "-20 |
| Housing material Aluminum, magnesium | |
| Grip material | TPE thermoplastic elastomers |
| Shipping information | |
| Packaging, type | Cardboard box |
| List of contents | Infrared camera with lensBattery chargerBattery, 2 ea.Hard transport caseHDMI-DVI cableHDMI-HDMI cableLens cap (mounted on lens)Memory cardPower supply, incl. multi-plugsPrinted documentationShoulder strapUSB cableWi-Fi USB micro adapter (depending on CE and FCC regulations regarding wireless equipment for your country) |
| Packaging, weight | |
| Packaging, size | 400 × 190 × 510 mm (15.7 × 7.5 × 20.1 in.) |
Supplies & accessories:
• T197692; Battery charger, incl. power supply with multi plugs
• T910814; Power supply, incl. multi plugs
• T198511; Li-Ion Battery pack 7.4V 33Wh
• T199367ACC; Battery Li-ion 7.2 V, 4.4 Ah, 32 Wh
• T911650ACC; Memory card SD Card 8 GB
• 1910423; USB cable Std A <-> Mini-B
• T198509; Cigarette lighter adapter kit, 12 VDC, 1.2 m/3.9 ft.
• T910815ACC; HDMI to HDMI cable 1.5 m
• T910816ACC; HDMI to DVI cable 1.5 m
• T197555; Hard transport case for FLIR GF3xx-Series
• T951387; Wi-Fi USB micro adapter
• T198586; FLIR Reporter Professional (license only)
• T198584; FLIR Tools
• T198583; FLIR Tools+ (download card incl. license key)
• T198585; FLIR VideoReport
• DSW-10000; FLIR IR Camera Player
• APP-10002; FLIR Tools Mobile (Android Application)
• T198697; FLIR ResearchIR Max + HSDR 4 (hardware sec. dev.)
• T199014; FLIR ResearchIR Max + HSDR 4 (printed license key)
• T199044; FLIR ResearchIR Max + HSDR 4 Upgrade (printed license key)
• T198696; FLIR ResearchIR Max 4 (hardware sec. dev.)
• T199013; FLIR ResearchIR Max 4 (printed license key)
• T199043; FLIR ResearchIR Max 4 Upgrade (printed license key)
• T198731; FLIR ResearchIR Standard 4 (hardware sec. dev.)
• T199012; FLIR ResearchIR Standard 4 (printed license key)
• T199042; FLIR ResearchIR Standard 4 Upgrade (printed license key)
• T199233; FLIR Atlas SDK for .NET
• T199234; FLIR Atlas SDK for MATLAB
• T198567; ThermoVision™ System Developers Kit Ver. 2.6
• T198566; ThermoVision™ LabVIEW® Digital Toolkit Ver. 3.3
22.22 FLIR GF320 24°
P/N: 44401-0102
Rev.: 45204
| General description | |
| The FLIR GF320 is an infrared camera for optical gas imaging (OGI) that visualizes and pinpoints of methane and other volatile organic compounds (VOCs), without the need to shut down the operation. The portable camera also greatly improves operator safety, by detecting emissions at a safe distance, and helps to protect the environment by tracing leaks of environmentally harmful gases.The FLIR GF320 is used in industrial settings such as oil refineries, natural gas processing plants, offshore platforms, chemical/petrochemical industries, and biogas and power generation plants. | |
| Benefits: | |
| Improved efficiency: The FLIR GF320 reduces revenue loss by pinpointing even small gas leaks quickly and efficiently, and from a distance. It also reduces the inspection time by allowing a broad area to be scanned rapidly and without the need to interrupt the industrial process. The wireless connectivity of the camera allows you to connect to smart phones or tablets for the wireless transfer of images or remote control of the camera. The FLIR GF320 is also used for temperature measurement, which makes it even more useful for predictive maintenance.Increased worker safety: OGI allows gas leaks to be detected in a non-contact mode and from a safe distance. This reduces the risk of the user being exposed to invisible and potentially harmful or explosive chemicals. With a FLIR GF320 gas imaging camera it is easy to scan areas of interest that are difficult to reach with conventional methods. The camera is ergonomically designed, with a bright LCD and tiltable viewfinder, which facilitates its use over a full working day.Protecting the environment: Several VOCs are dangerous to human health or cause harm to the environment, and are usually governed by regulations. Even small leaks can be detected and documented using the FLIR GF320 camera. | |
| Detects the following gases: benzene, ethanol, ethylbenzene, heptane, hexane, isoprene, methanol, MEK, MIBK, octane, pentane, 1-pentene, toluene, xylene, butane, ethane, methane, propane, ethylene, propylene. | |
| Licensing and classification | |
| License information Interchangeable lens version | of the FLIR GF3XX series requires US Department of State License and will be subject to limitations on resale, except inside US. Allow a minimum of 90 days after application submittal for approval. |
| Imaging and optical data | |
| IR resolution 320 × 240 pixels | |
| Thermal sensitivity/NETD <15 mK @ +30°C (+86°F) | |
| Field of view (FOV) | 24° × 18° |
| Minimum focus distance 0.3 m (1.0 ft.) | |
| Focal length 23 mm (0.89 in.) | |
| Lens identification Automatic | |
| F-number 1.5 | |
| Focus | Automatic (one touch) or manual (electric or on the lens) |
| Zoom | 1-8× continuous, digital zoom |
| Digital image enhancement | Noise reduction filter, high sensitivity mode (HSM) |
| Detector data | |
| Detector type Focal plane array (FPA), cooled InSb | |
| Spectral range | 3.2-3.4 μm |
| Detector pitch 30 μm | |
| Sensor cooling Stirling Microcooler (FLIR MC-3) | |
| Detects following gases Benzene, Ethanol, Ethylbenzene, Heptane, Hexane, Isoprene, Methanol, MEK, MIBK, Octane, Pentane, 1-Pentene, Toluene, Xylene, Butane, Ethane, Methane, Propane, Ethylene, Propylene | |
| Electronics and data rate | |
| Full frame rate 60 Hz | |
| Image presentation | |
| Display Built-in widescreen, 4.3 in. LCD, 800 × 480 pixels | |
| Viewfinder Built-in, tiltable OLED, 800 × 480 pixels | |
| Automatic image adjustment | Continuous/manual; linear or histogram based |
| Manual image adjustment | Level/span |
| Image presentation modes | |
| Image modes IR image, visual image, high sensitivity mode (HSM) | |
| Measurement | |
| Temperature range | -20°C to +350°C (-4°F to +662°F) |
| Accuracy | ±1°C (±1.8°F) for temperature range (0°C, to +100°C, +32°F to +212°F) or ±2% of reading for temperature range (>+100°C, >+212°F) |
| Measurement analysis | |
| Spotmeter | 10 |
| Area 5 boxes with max./min./average | |
| Profile | 1 live line (horizontal or vertical) |
| Difference temperature | Delta temperature between measurement functions or reference temperature |
| Reference temperature | Manually set or captured from any measurement function |
| Emissivity correction | Variable from 0.01 to 1.0 or selected from edita materials list |
| Reflected apparent temperature correction | Automatic, based on input of reflected tempera |
| Measurement corrections | Reflected temperature, distance, atmospheric transmission, humidity, external optics |
| Set-up | |
| Menu commands Level, span | Auto adjust continuous/manual/semi-automaticZoomPaletteStart/stop recordingStore imagePlayback/recall image |
| Color palettes Iron, Gray, Rainbow, Arctic, Lava, | Rainbow HC |
| Set-up commands | 1 programmable button, overlay recording mode, local adaptation of units, language, date and time formats |
| Storage of Images | |
| Storage media Removable SD or SDHC memory | card, two card slots |
| Image storage capacity | >1200 images (JPEG) with post process capability per GB on memory card |
| Image storage mode | IR/visual imagesVisual image can automatically be associated with corresponding IR image |
| Periodic image storage Every 10 seconds up to | 24 hours |
| File formats Standard JPEG, 14 bit measurement | data included |
| Geographic Information System | |
| GPS Location data automatically added to every image from built-in GPS |
| Video recording in camera | |
| Radiometric IR video recording *.seq video clips | to memory card (7.5 and 15 Hz). |
| Non-radiometric IR video recording MPEG4 (up to | 60 minutes/clip) to memory card.Visual image can automatically be associated with corresponding recording of non-radiometric IR video. |
| Visual video recording MPEG4 (25 minutes/clip) | to memory card |
| Video streaming | |
| Radiometric IR video streaming Full dynamic to | PC using USB cable or to mobile devices using Wi-Fi. PC software capable of displaying the video stream include the following:FLIR IR Camera PlayerFLIR ResearchIRFLIR Tools |
| Non-radiometric IR video streaming | RTP/MPEG4 |
| Digital camera | |
| Built-in digital camera | 3.2 Mpixels, auto focus, and two video lamps |
| Laser pointer | |
| Laser Activated by dedicated button | |
| Laser classification Class 2 | |
| Laser type Semiconductor AlGaInP diode laser, 1 | mW, 635nm (red) |
| USB | |
| USB | • USB-A: Connect external USB device• USB Mini-B: Data transfer to and from PC |
| USB, standard USB Mini-B: 2.0 high speed | |
| Composite video | |
| Video out Digital video output (image) | |
| Power system | |
| Battery type Rechargeable Li ion battery | |
| Battery voltage 7.2 V | |
| Battery capacity 4.4 Ah | |
| Battery operating time | >3 hours at 25°C (+77°F) and typical use |
| Charging system | In camera (AC adapter or 12 V from a vehicle) bay charger |
| Charging time | 2.5 h to 95% capacity, charging status indicated LED's |
| External power operation | AC adapter 90–260 VAC, 50/60 Hz or 12 V from a vehicle (cable with standard plug, optional) |
| DC operation | 10.8 to 16 V DC, polarity protected (proprietary protected) |
| Power | 8.5 W typically |
| Start-up time | Typically 7 min. @ 25°C (+77°F) |
| Environmental data | |
| Operating temperature range | -20°C to +50°C (-4°F to +122°F) |
| Storage temperature range | -30°C to +60°C (-22°F to +140°F) |
| Humidity (operating and storage) | IEC 68-2-30/24 h 95% relative humidity +25°C +40°C (+77°F to +104°F) (2 cycles) |
| Directives | • 73/23EEC• 2004/108/EC• 2002/95/EC• 2002/96/EC |
| EMC | • EN61000-6-4 (Emission)• EN61000-6-2 (Immunity)• FCC 47 CFR Part 15 class A (Emission)• EN 61 000-4-8, L5 |
| Encapsulation | IP 54 (IEC 60529) |
| Shock | 25 g (IEC 60068-2-27) |
| Vibration | 2 g (IEC 60068-2-6) |
| Safety | Power supply: EN/UL/IEC 60950-1 |
| Physical data | |
| Camera weight, excl. lens and battery 1.94 kg (4.27 lb.) | |
| Camera weight, incl. lens and excl. battery 2.24 kg (4.94 lb.) | |
| Camera weight, incl. lens and battery 2.48 kg (5.47 lb.) | |
| Battery weight 0.24 kg (0.52 lb.) | |
| Camera size, excl. lens (L × W × H) 284 × 169 × 161 mm (11.2 × 6.7 × 6.3 in.) | |
| Cameras size, incl. lens (L × W × H) 306 × 169 × 161 mm (12.0 × 6.7 × 6.3 in.) | |
| Battery size (L × W × H) 141 × 47 × 28 mm (5.5 × 1.8 × 1.1 in.) | |
| Battery charger size (L × W × H) 158 × 122 × 25 mm (6.2 × 4.8 × 1.0 in.) | |
| Tripod mounting | UNC 14 "-20 |
| Housing material Aluminum, magnesium | |
| Grip material | TPE thermoplastic elastomers |
| Shipping information | |
| Packaging, type | Cardboard box |
| List of contents | Infrared camera with lensBattery chargerBattery, 2 ea.Hard transport caseHDMI-DVI cableHDMI-HDMI cableLens cap (2 ea.)Lens cap (mounted on lens)Memory cardPower supply, incl. multi-plugsPrinted documentationShoulder strapUSB cableWi-Fi USB micro adapter (depending on CE and FCC regulations regarding wireless equipment for your country) |
| Packaging, weight | |
| Packaging, size | 400 × 190 × 510 mm (15.7 × 7.5 × 20.1 in.) |
Supplies & accessories:
• T197387; IR lens, 24° with case for GF300, GF309, GF320
• T197388; IR lens, 6° with case for GF300, GF309, GF320, GF346.
• T197385; IR lens, 14.5° with case for GF300, GF309, GF320
• T197692; Battery charger, incl. power supply with multi plugs
• T910814; Power supply, incl. multi plugs
• T198511; Li-Ion Battery pack 7.4V 33Wh
• T199367ACC; Battery Li-ion 7.2 V, 4.4 Ah, 32 Wh
• T911650ACC; Memory card SD Card 8 GB
• 1910423; USB cable Std A <-> Mini-B
• T198509; Cigarette lighter adapter kit, 12 VDC, 1.2 m/3.9 ft.
• T910815ACC; HDMI to HDMI cable 1.5 m
• T910816ACC; HDMI to DVI cable 1.5 m
• T197555; Hard transport case for FLIR GF3xx-Series
• T951387; Wi-Fi USB micro adapter
• T198586; FLIR Reporter Professional (license only)
• T198584; FLIR Tools
• T198583; FLIR Tools+ (download card incl. license key)
• T198585; FLIR VideoReport
• DSW-10000; FLIR IR Camera Player
- APP-10002; FLIR Tools Mobile (Android Application)
• T198697; FLIR ResearchIR Max + HSDR 4 (hardware sec. dev.)
• T199014; FLIR ResearchIR Max + HSDR 4 (printed license key)
• T199044; FLIR ResearchIR Max + HSDR 4 Upgrade (printed license key)
• T198696; FLIR ResearchIR Max 4 (hardware sec. dev.)
• T199013; FLIR ResearchIR Max 4 (printed license key)
• T199043; FLIR ResearchIR Max 4 Upgrade (printed license key)
• T198731; FLIR ResearchIR Standard 4 (hardware sec. dev.)
• T199012; FLIR ResearchIR Standard 4 (printed license key)
• T199042; FLIR ResearchIR Standard 4 Upgrade (printed license key)
• T199233; FLIR Atlas SDK for .NET
• T199234; FLIR Atlas SDK for MATLAB
• T198567; ThermoVision™ System Developers Kit Ver. 2.6
• T198566; ThermoVision™ LabVIEW® Digital Toolkit Ver. 3.3
22.23 FLIR GF320 24° Fixed lens
P/N: 44402-0102
Rev.: 45202
| General description |
| The FLIR GF320 is an infrared camera for optical gas imaging (OGI) that visualizes and pinpoints of methane and other volatile organic compounds (VOCs), without the need to shut down the operation. The portable camera also greatly improves operator safety, by detecting emissions at a safe distance, and helps to protect the environment by tracing leaks of environmentally harmful gases.The FLIR GF320 is used in industrial settings such as oil refineries, natural gas processing plants, offshore platforms, chemical/petrochemical industries, and biogas and power generation plants. |
| Benefits: |
| Improved efficiency: The FLIR GF320 reduces revenue loss by pinpointing even small gas leaks quickly and efficiently, and from a distance. It also reduces the inspection time by allowing a broad area to be scanned rapidly and without the need to interrupt the industrial process. The wireless connectivity of the camera allows you to connect to smart phones or tablets for the wireless transfer of images or remote control of the camera. The FLIR GF320 is also used for temperature measurement, which makes it even more useful for predictive maintenance.Increased worker safety: OGI allows gas leaks to be detected in a non-contact mode and from a safe distance. This reduces the risk of the user being exposed to invisible and potentially harmful or explosive chemicals. With a FLIR GF320 gas imaging camera it is easy to scan areas of interest that are difficult to reach with conventional methods. The camera is ergonomically designed, with a bright LCD and tiltable viewfinder, which facilitates its use over a full working day.Protecting the environment: Several VOCs are dangerous to human health or cause harm to the environment, and are usually governed by regulations. Even small leaks can be detected and documented using the FLIR GF320 camera. |
| Detects the following gases: benzene, ethanol, ethylbenzene, heptane, hexane, isoprene, methanol, MEK, MIBK, octane, pentane, 1-pentene, toluene, xylene, butane, ethane, methane, propane, ethylene, propylene. |
| Imaging and optical data | |
| IR resolution 320 × 240 pixels | |
| Thermal sensitivity/NETD <15 mK @ +30°C (+86°F) | |
| Field of view (FOV) | 24° × 18° |
| Minimum focus distance 0.3 m (1.0 ft.) | |
| Focal length 23 mm (0.89 in.) | |
| Lens identification Automatic | |
| F-number 1.5 | |
| Focus | Automatic (one touch) or manual (electric or on lens) |
| Zoom | 1-8× continuous, digital zoom |
| Digital image enhancement | Noise reduction filter, high sensitivity mode (HS) |
| Detector data | |
| Detector type | Focal plane array (FPA), cooled InSb |
| Spectral range | 3.2–3.4 μm |
| Detector pitch | 30 μm |
| Sensor cooling Stirling Microcooler (FLIR MC-3) | |
| Detects following gases Benzene, Ethanol, Ethylbenzene, Heptane, Hexane, Isoprene, Methanol, MEK, MIBK, Octane, Pentane, 1-Pentene, Toluene, Xylene, Butane, Ethane, Methane, Propane, Ethylene, Propylene | |
| Electronics and data rate | |
| Full frame rate 60 Hz | |
| Image presentation | |
| Display Built-in widescreen, 4.3 in. LCD, 800 × 480 pixels | |
| Viewfinder Built-in, tiltable OLED, 800 × 480 pixels | |
| Automatic image adjustment | Continuous/manual; linear or histogram based |
| Manual image adjustment | Level/span |
| Image presentation modes | |
| Image modes IR image, visual image, high sensitivity mode (HSM) | |
| Measurement | |
| Temperature range | -20°C to +350°C (-4°F to +662°F) |
| Accuracy | ±1°C (±1.8°F) for temperature range (0°C, to +100°C, +32°F to +212°F) or ±2% of reading for temperature range (>+100°C, >+212°F) |
| Measurement analysis | |
| Spotmeter | 10 |
| Area 5 boxes with max./min./average | |
| Profile 1 live line (horizontal or vertical) | |
| Difference temperature Delta temperature between measurement functions or reference temperature | |
| Reference temperature Manually set or captured from any measurement function | |
| Emissivity correction | Variable from 0.01 to 1.0 or selected from edita materials list |
| Reflected apparent temperature correction | Automatic, based on input of reflected tempera |
| Measurement corrections | Reflected temperature, distance, atmospheric transmission, humidity, external optics |
| Set-up | |
| Menu commands Level, span | Auto adjust continuous/manual/semi-automaticZoomPaletteStart/stop recordingStore imagePlayback/recall image |
| Color palettes Iron, Gray, Rainbow, Arctic, Lava, | Rainbow HC |
| Set-up commands | 1 programmable button, overlay recording mode, local adaptation of units, language, date and time formats |
| Storage of Images | |
| Storage media Removable SD or SDHC memory | card, two card slots |
| Image storage capacity | >1200 images (JPEG) with post process capability per GB on memory card |
| Image storage mode | IR/visual imagesVisual image can automatically be associated with corresponding IR image |
| Periodic image storage Every 10 seconds up to | 24 hours |
| File formats Standard JPEG, 14 bit measurement | data included |
| Geographic Information System | |
| GPS Location data automatically added to every image from built-in GPS |
| Video recording in camera | |
| Radiometric IR video recording *.seq video clips | to memory card (7.5 and 15 Hz). |
| Non-radiometric IR video recording MPEG4 (up to | 60 minutes/clip) to memory card.Visual image can automatically be associated with corresponding recording of non-radiometric IR video. |
| Visual video recording MPEG4 (25 minutes/clip) | to memory card |
| Video streaming | |
| Radiometric IR video streaming Full dynamic to | PC using USB cable or to mobile devices using Wi-Fi. PC software capable of displaying the video stream include the following:FLIR IR Camera PlayerFLIR ResearchIRFLIR Tools |
| Non-radiometric IR video streaming | RTP/MPEG4 |
| Digital camera | |
| Built-in digital camera | 3.2 Mpixels, auto focus, and two video lamps |
| Laser pointer | |
| Laser Activated by dedicated button | |
| Laser classification Class 2 | |
| Laser type Semiconductor AlGaInP diode laser, 1 | mW, 635nm (red) |
| USB | |
| USB | • USB-A: Connect external USB device• USB Mini-B: Data transfer to and from PC |
| USB, standard USB Mini-B: 2.0 high speed | |
| Composite video | |
| Video out Digital video output (image) | |
| Power system | |
| Battery type Rechargeable Li ion battery | |
| Battery voltage 7.2 V | |
| Battery capacity 4.4 Ah | |
| Battery operating time | >3 hours at 25°C (+77°F) and typical use |
| Charging system | In camera (AC adapter or 12 V from a vehicle) bay charger |
| Charging time | 2.5 h to 95% capacity, charging status indicated LED's |
| External power operation | AC adapter 90–260 VAC, 50/60 Hz or 12 V from a vehicle (cable with standard plug, optional) |
| DC operation | 10.8 to 16 V DC, polarity protected (proprietary protected) |
| Power | 8.5 W typically |
| Start-up time | Typically 7 min. @ 25°C (+77°F) |
| Environmental data | |
| Operating temperature range | -20°C to +50°C (-4°F to +122°F) |
| Storage temperature range | -30°C to +60°C (-22°F to +140°F) |
| Humidity (operating and storage) | IEC 68-2-30/24 h 95% relative humidity +25°C +40°C (+77°F to +104°F) (2 cycles) |
| Directives | • 73/23EEC• 2004/108/EC• 2002/95/EC• 2002/96/EC |
| EMC | • EN61000-6-4 (Emission)• EN61000-6-2 (Immunity)• FCC 47 CFR Part 15 class A (Emission)• EN 61 000-4-8, L5 |
| Encapsulation | IP 54 (IEC 60529) |
| Shock | 25 g (IEC 60068-2-27) |
| Vibration | 2 g (IEC 60068-2-6) |
| Safety | Power supply: EN/UL/IEC 60950-1 |
| Physical data | |
| Camera weight, excl. lens and battery 1.94 kg (4.27 lb.) | |
| Camera weight, incl. lens and excl. battery 2.24 kg (4.94 lb.) | |
| Camera weight, incl. lens and battery 2.48 kg (5.47 lb.) | |
| Battery weight 0.24 kg (0.52 lb.) | |
| Camera size, excl. lens (L × W × H) 284 × 169 × 161 mm (11.2 × 6.7 × 6.3 in.) | |
| Cameras size, incl. lens (L × W × H) 306 × 169 × 161 mm (12.0 × 6.7 × 6.3 in.) | |
| Battery size (L × W × H) 141 × 47 × 28 mm (5.5 × 1.8 × 1.1 in.) | |
| Battery charger size (L × W × H) 158 × 122 × 25 mm (6.2 × 4.8 × 1.0 in.) | |
| Tripod mounting | UNC 14 "-20 |
| Housing material Aluminum, magnesium | |
| Grip material | TPE thermoplastic elastomers |
| Shipping information | |
| Packaging, type | Cardboard box |
| List of contents | Infrared camera with lensBattery chargerBattery, 2 ea.Hard transport caseHDMI-DVI cableHDMI-HDMI cableLens cap (mounted on lens)Memory cardPower supply, incl. multi-plugsPrinted documentationShoulder strapUSB cableWi-Fi USB micro adapter (depending on CE and FCC regulations regarding wireless equipment for your country) |
| Packaging, weight | 8.4 kg (18.5 lb.) |
| Packaging, size | 400 × 190 × 510 mm (15.7 × 7.5 × 20.1 in.) |
Supplies & accessories:
• T197692; Battery charger, incl. power supply with multi plugs
• T910814; Power supply, incl. multi plugs
• T198511; Li-Ion Battery pack 7.4V 33Wh
• T199367ACC; Battery Li-ion 7.2 V, 4.4 Ah, 32 Wh
• T911650ACC; Memory card SD Card 8 GB
• 1910423; USB cable Std A <-> Mini-B
• T198509; Cigarette lighter adapter kit, 12 VDC, 1.2 m/3.9 ft.
• T910815ACC; HDMI to HDMI cable 1.5 m
• T910816ACC; HDMI to DVI cable 1.5 m
• T197555; Hard transport case for FLIR GF3xx-Series
• T951387; Wi-Fi USB micro adapter
• T198586; FLIR Reporter Professional (license only)
• T198584; FLIR Tools
• T198583; FLIR Tools+ (download card incl. license key)
• T198585; FLIR VideoReport
• DSW-10000; FLIR IR Camera Player
• APP-10002; FLIR Tools Mobile (Android Application)
• T198697; FLIR ResearchIR Max + HSDR 4 (hardware sec. dev.)
• T199014; FLIR ResearchIR Max + HSDR 4 (printed license key)
• T199044; FLIR ResearchIR Max + HSDR 4 Upgrade (printed license key)
• T198696; FLIR ResearchIR Max 4 (hardware sec. dev.)
• T199013; FLIR ResearchIR Max 4 (printed license key)
• T199043; FLIR ResearchIR Max 4 Upgrade (printed license key)
• T198731; FLIR ResearchIR Standard 4 (hardware sec. dev.)
• T199012; FLIR ResearchIR Standard 4 (printed license key)
• T199042; FLIR ResearchIR Standard 4 Upgrade (printed license key)
• T199233; FLIR Atlas SDK for .NET
• T199234; FLIR Atlas SDK for MATLAB
• T198567; ThermoVision™ System Developers Kit Ver. 2.6
• T198566; ThermoVision™ LabVIEW® Digital Toolkit Ver. 3.3
22.24 FLIR GF335 24°
P/N: 57501-0102
Rev.: 45202
| General description |
| The FLIR GF335 is a high-sensitivity, low-noise, cooled infrared camera for applications requiring a portable camera able to detect very subtle temperature differences. The high performance of the camera makes it perfect for the detection of faint heat signatures as well as for non-destructive testing and quality control applications. |
| Benefits: |
| ·High performance: The FLIR GF335 features a cooled 3–5 μm InSb detector that produces razor-sharp thermal images. Its high sensitivity of <15 mK and high accuracy of ±1°C (±1.8°F) or 1% allow the user to detect very subtle temperature differences with astounding clarity.·Improved efficiency: The wireless connectivity of the FLIR GF335 allows connection to smart phones and tablets for the wireless transfer of images or the remote control of the camera—a useful function if a second person is required to accompany the user. The camera also features built-in radiometric video recording, and can store MPEG-4 thermal and/or standard video on an SD card. The camera has integrated GPS and a digital camera, and is compatible with FLIR Tools, FLIR Reporter, and FLIR Researcher software.·Thought-through ergonomics for everyday use: The FLIR GF335 is ergonomically designed, with a bright LCD and tiltable viewfinder, which facilitates its use over a full working day. A multi-angle handle with integrated direct access buttons also improves the ergonomics. |
| Licensing and classification | |
| License information Interchangeable lens version | of the FLIR GF3XX series requires US Department of State License and will be subject to limitations on resale, except inside US. Allow a minimum of 90 days after application submittal for approval. |
| Imaging and optical data | |
| IR resolution 320 × 240 pixels | |
| Thermal sensitivity/NETD <15 mK @ +30°C (+86°F) | |
| Field of view (FOV) | 24° × 18° |
| Minimum focus distance 0.3 m (1.0 ft.) | |
| Focal length 23 mm (0.89 in.) | |
| Lens identification Automatic | |
| F-number 1.5 | |
| Focus | Automatic (one touch) or manual (electric or on lens) |
| Zoom | 1-8× continuous, digital zoom |
| Digital image enhancement | Noise reduction filter |
| Detector data | |
| Detector type | Focal plane array (FPA), cooled InSb |
| Spectral range | 3–5 μm |
| Detector pitch | 30 μm |
| Sensor cooling | Stirling Microcooler (FLIR MC-3) |
| Electronics and data rate | |
| Full frame rate 60 Hz | |
| Image presentation | |
| Display Built-in widescreen, 4.3 in. LCD, 800 × 480 pixels | |
| Viewfinder Built-in, tiltable OLED, 800 × 480 pixels | |
| Automatic image adjustment Continuous/manual; linear or histogram based | |
| Manual image adjustment Level/span | |
| Image presentation modes | |
| Image modes IR image, visual image | |
| Measurement | |
| Temperature range | -20°C to +120°C (-4°F to +248°F) |
| Accuracy | ±1°C (±1.8°F) or ±1% of reading for temperature range 0°C to +120°C (+32°F to +248°F) |
| Measurement analysis | |
| Spotmeter | 10 |
| Area | 5 boxes with max./min./average |
| Profile 1 live line (horizontal or vertical) | |
| Isotherm Above/below/interval | |
| Difference temperature Delta temperature between measurement functions or reference temperature | |
| Reference temperature Manually set or captured from any measurement function | |
| Emissivity correction | Variable from 0.01 to 1.0 or selected from edita materials list |
| Reflected apparent temperature correction | Automatic, based on input of reflected tempera |
| Measurement corrections | Reflected temperature, distance, atmospheric transmission, humidity, external optics |
| Set-up | |
| Menu commands | Level, spanAuto adjust continuous/manual/semi-automaticZoomPaletteStart/stop recordingStore imagePlayback/recall image |
| Color palettes | Iron, Gray, Rainbow, Arctic, Lava, Rainbow HC |
| Set-up commands | 1 programmable button, local adaptation of units language, date and time formats |
| Storage of Images | |
| Storage media | Removable SD or SDHC memory card, two caslots |
| Image storage capacity | >1200 images (JPEG) with post process capabiper GB on memory card |
| Storage of images | |
| Image storage mode | IR/visual imagesVisual image can automatically be associated with corresponding IR image |
| Periodic image storage Every 10 seconds up to | 24 hours |
| File formats Standard JPEG, 14 bit measurement | data included |
| Geographic Information System | |
| GPS Location data automatically added to every | image from built-in GPS |
| Video recording in camera | |
| Radiometric IR video recording *.seq video clips | to memory card (7.5 and 15 Hz). |
| Non-radiometric IR video recording MPEG4 (up to | 60 minutes/clip) to memory card.Visual image can automatically be associated with corresponding recording of non-radiometric IR video. |
| Visual video recording | MPEG4 (25 minutes/clip) to memory card |
| Video streaming | |
| Radiometric IR video streaming Full dynamic to | PC using USB cable or to mobile devices using Wi-Fi. PC software capable of displaying the video stream include the following:FLIR IR Camera PlayerFLIR ResearchIRFLIR Tools |
| Non-radiometric IR video streaming | RTP/MPEG4 |
| Digital camera | |
| Built-in digital camera 3.2 Mpixels, auto focus, and two video lamps | |
| Laser pointer | |
| Laser Activated by dedicated button | |
| Laser classification | Class 2 |
| Laser type | Semiconductor AlGaInP diode laser, 1 mW, 635 nm (red) |
| USB | |
| USB | USB-A: Connect external USB deviceUSB Mini-B: Data transfer to and from PC |
| USB, standard | USB Mini-B: 2.0 high speed |
| Composite video | |
| Video out | Digital video output (image) |
| Power system | |
| Battery type | Rechargeable Li ion battery |
| Battery voltage | 7.2 V |
| Battery capacity | 4.4 Ah |
| Battery operating time | >3 hours at 25°C (+77°F) and typical use |
| Power system | |
| Charging system In camera (AC adapter or 12 V | from a vehicle) or 2-bay charger |
| Charging time | 2.5 h to 95% capacity, charging status indicated LED's |
| External power operation AC adapter 90-260 VAC | C, 50/60 Hz or 12 V from a vehicle (cable with standard plug, optional) |
| DC operation 10.8 to 16 V DC, polarity protected | (proprietary protected) |
| Power 8.5 W typically | |
| Start-up time Typically 7 min. @ 25°C (+77°F) | |
| Environmental data | |
| Operating temperature range -20°C to +50°C (-4°F to +122°F) | |
| Storage temperature range -30°C to +60°C (-22°F to +140°F) | |
| Humidity (operating and storage) IEC 68-2-30/24 | h 95% relative humidity +25°C to +40°C (+77°F to +104°F) (2 cycles) |
| Directives | 73/23EEC2004/108/EC2002/95/EC2002/96/EC |
| EMC | EN61000-6-4 (Emission)EN61000-6-2 (Immunity)FCC 47 CFR Part 15 class A (Emission)EN 61 000-4-8, L5 |
| Encapsulation | IP 54 (IEC 60529) |
| Shock 25 g (IEC 60068-2-27) | |
| Vibration 2 g (IEC 60068-2-6) | |
| Safety | Power supply: EN/UL/IEC 60950-1 |
| Physical data | |
| Camera weight, excl. lens and battery | 1.94 kg (4.27 lb.) |
| Camera weight, incl. lens and excl. battery | 2.24 kg (4.94 lb.) |
| Camera weight, incl. lens and battery | 2.48 kg (5.47 lb.) |
| Battery weight | 0.24 kg (0.52 lb.) |
| Heat shield weight | 0.50 kg (1.09 lb.) |
| Camera size, excl. lens (L × W × H) | 284 × 169 × 161 mm (11.2 × 6.7 × 6.3 in.) |
| Cameras size, incl. lens (L × W × H) | 306 × 169 × 161 mm (12.0 × 6.7 × 6.3 in.) |
| Cameras size, incl. heat shield (L × W × H) | 320 × 243 × 195 mm (12.6 × 9.6 × 7.7 in.) |
| Battery size (L × W × H) | 141 × 47 × 28 mm (5.5 × 1.8 × 1.1 in.) |
| Battery charger size (L × W × H) | 158 × 122 × 25 mm (6.2 × 4.8 × 1.0 in.) |
| Tripod mounting | UNC 1⁄4"-20 |
| Housing material Aluminum, magnesium | |
| Grip material | TPE thermoplastic elastomers |
| Shipping information | |
| Packaging, type | Cardboard box |
| List of contents | Infrared camera with lensBattery chargerBattery, 2 ea.FLIR ResearchIR Standard 4Hard transport caseHDMI-DVI cableHDMI-HDMI cableLens cap (2 ea.)Lens cap (mounted on lens)Memory cardPower supply, incl. multi-plugsPrinted documentationShoulder strapUSB cableWi-Fi USB micro adapter (depending on CE and FCC regulations regarding wireless equipment for your country) |
| Packaging, weight 8.35 kg (18.4 lb.) | |
| Packaging, size 400 × 190 × 510 mm (15.7 × 7 | 5 × 20.1 in.) |
Supplies & accessories:
• T198267; IR lens, 24° with case for GF335, GF346
• T198298; IR lens, 14.5° with case for GF335, GF346
• T197692; Battery charger, incl. power supply with multi plugs
• T910814; Power supply, incl. multi plugs
• T198511; Li-Ion Battery pack 7.4V 33Wh
• T199367ACC; Battery Li-ion 7.2 V, 4.4 Ah, 32 Wh
• T911650ACC; Memory card SD Card 8 GB
• 1910423; USB cable Std A <-> Mini-B
• T198509; Cigarette lighter adapter kit, 12 VDC, 1.2 m/3.9 ft.
• T910815ACC; HDMI to HDMI cable 1.5 m
• T910816ACC; HDMI to DVI cable 1.5 m
• T197555; Hard transport case for FLIR GF3xx-Series
• T951387; Wi-Fi USB micro adapter
• T198586; FLIR Reporter Professional (license only)
• T198584; FLIR Tools
• T198583; FLIR Tools+ (download card incl. license key)
- DSW-10000; FLIR IR Camera Player
- APP-10002; FLIR Tools Mobile (Android Application)
• T198697; FLIR ResearchIR Max + HSDR 4 (hardware sec. dev.)
• T199014; FLIR ResearchIR Max + HSDR 4 (printed license key)
• T199044; FLIR ResearchIR Max + HSDR 4 Upgrade (printed license key)
• T198696; FLIR ResearchIR Max 4 (hardware sec. dev.)
• T199013; FLIR ResearchIR Max 4 (printed license key)
• T199043; FLIR ResearchIR Max 4 Upgrade (printed license key)
• T198731; FLIR ResearchIR Standard 4 (hardware sec. dev.)
• T199012; FLIR ResearchIR Standard 4 (printed license key)
• T199042; FLIR ResearchIR Standard 4 Upgrade (printed license key)
• T199233; FLIR Atlas SDK for .NET
• T199234; FLIR Atlas SDK for MATLAB
• T198567; ThermoVision™ System Developers Kit Ver. 2.6
• T198566; ThermoVision™ LabVIEW® Digital Toolkit Ver. 3.3
22.25 FLIR GF343 24° Fixed lens
P/N: 65702-0102
Rev.: 45202
| General description | |
| The new FLIR GF343 is an optical gas camera for visualizing carbon dioxide with this camera you can quickly and easily find gas leaks where the main component. | |
| Key features:Visualizes gas leaks in real time.Inspects without interruption of process.Traces leaks to their source. | |
| Carbon capture and storage—stop the escalation of global warming:A global transition to a sustainable low-carbon economy is a necessity.Global energy demand is still dominated by fossil fuels being combusted in quantities incompatible with levels required to stabilize greenhouse gases concentrations at safe levels in the atmosphere. CO_2 (R744)—the new environmental friendly refrigerant:Air-conditioning for cars—replaces R134a. CO_2 -based heat pumps.Electrical power—replaces sulfur hexafluoride. CO_2 —a harmless tracer gas:Use CO_2 to trace leaks. | |
| NoteThe CO_2 background level in the atmosphere varies between about 400 ppm (e.g., outdoors) to 5000 ppm (e.g., very high levels indoors), and the ability to see using the FLIR GF343 depends on this gas concentration and also on the distance to the target. For example, an outdoor leak at a distance of 10 m (33') adds 4000 ppm × m to the gas concentration length. | |
| Imaging and optical data | |
| IR resolution 320 × 240 pixels | |
| Thermal sensitivity/NETD <15 mK @ +30°C (+86°F) | |
| Field of view (FOV) | 24° × 18° |
| Minimum focus distance 0.3 m (1.0 ft.) | |
| Focal length 23 mm (0.89 in.) | |
| Lens identification Automatic | |
| F-number 1.5 | |
| Focus Automatic (one touch) or manual (electric lens) | or on the |
| Zoom | 1–8× continuous, digital zoom |
| Digital image enhancement | Noise reduction filter, high sensitivity mode (HSM) |
| Detector data | |
| Detector type | Focal plane array (FPA), cooled InSb |
| Spectral range | Built-in cold band pass filter 4.2–4.4 μm |
| Detector pitch | 30 μm |
| Sensor cooling | Stirling Microcooler (FLIR MC-3) |
| Detects following gases | Carbon dioxide |
| Electronics and data rate | |
| Full frame rate 60 Hz | |
| Image presentation | |
| Display Built-in widescreen, 4.3 in. LCD, 800 × 480 pixels | |
| Viewfinder Built-in, tiltable OLED, 800 × 480 pixels | |
| Automatic image adjustment Continuous/manual; linear or histogram based | |
| Manual image adjustment Level/span | |
| Image presentation modes | |
| Image modes IR image, visual image, high sensitivity mode (HSM) | |
| Set-up | |
| Menu commands Level, span | Auto adjust continuous/manual/semi-automatic Zoom Palette Start/stop recording Store image Playback/recall image |
| Color palettes Iron, Gray, Rainbow, Arctic, Lava, Rainbow HC | |
| Set-up commands | 1 programmable button, overlay recording mode, local adaptation of units, language, date and time formats |
| Storage of Images | |
| Storage media Removable SD or SDHC memory | card, two card slots |
| Image storage capacity | >1200 images (JPEG) with post process capabi per GB on memory card |
| Image storage mode | IR/visual images Visual image can automatically be associated with corresponding IR image |
| Periodic image storage | Every 10 seconds up to 24 hours |
| File formats | Standard JPEG, 14 bit measurement data included |
| Geographic Information System | |
| GPS | Location data automatically added to every image from built-in GPS |
| Video recording in camera | |
| Radiometric IR video recording | *.seq video clips to memory card (7.5 and 15 - |
| Non-radiometric IR video recording | MPEG4 (up to 60 minutes/clip) to memory card Visual image can automatically be associated with corresponding recording of non-radiometric IR video. |
| Visual video recording | MPEG4 (25 minutes/clip) to memory card |
| Video streaming | |
| Radiometric IR video streaming Full dynamic to PC using USB cable or to mobile devices using Wi-Fi. PC software capable of displaying the video stream include the following:FLIR IR Camera PlayerFLIR ResearchIRFLIR Tools | |
| Non-radiometric IR video streaming | RTP/MPEG4 |
| Digital camera | |
| Built-in digital camera 3.2 Mpixels, auto focus, and two video lamps | |
| Laser pointer | |
| Laser Activated by dedicated button | |
| Laser classification Class 2 | |
| Laser type | Semiconductor AlGaInP diode laser, 1 mW, 635 nm (red) |
| USB | |
| USB | USB-A: Connect external USB deviceUSB Mini-B: Data transfer to and from PC |
| USB, standard USB Mini-B: 2.0 high speed | |
| Composite video | |
| Video out Digital video output (image) | |
| Power system | |
| Battery type Rechargeable Li ion battery | |
| Battery voltage 7.2 V | |
| Battery capacity | 4.4 Ah |
| Battery operating time | >3 hours at 25°C (+77°F) and typical use |
| Charging system | In camera (AC adapter or 12 V from a vehicle) bay charger |
| Charging time | 2.5 h to 95% capacity, charging status indicated LED's |
| External power operation | AC adapter 90-260 VAC, 50/60 Hz or 12 V fro vehicle (cable with standard plug, optional) |
| DC operation | 10.8 to 16 V DC, polarity protected (proprietary protected) |
| Power | 8.5 W typically |
| Start-up time | Typically 7 min. @ 25°C (+77°F) |
| Environmental data | |
| Operating temperature range | -20°C to +50°C (-4°F to +122°F) |
| Storage temperature range | -30°C to +60°C (-22°F to +140°F) |
| Humidity (operating and storage) | IEC 68-2-30/24 h 95% relative humidity +25°C +40°C (+77°F to +104°F) (2 cycles) |
| Environmental data | |
| Directives | 73/23EEC2004/108/EC2002/95/EC2002/96/EC |
| EMC | EN61000-6-4 (Emission)EN61000-6-2 (Immunity)FCC 47 CFR Part 15 class A (Emission)EN 61 000-4-8, L5 |
| Encapsulation IP 54 (IEC 60529) | |
| Shock 25 g (IEC 60068-2-27) | |
| Vibration | 2 g (IEC 60068-2-6) |
| Safety Power supply: EN/UL/IEC 60950-1 | |
| Physical data | |
| Camera weight, excl. lens and battery 1.94 kg (4.27 lb.) | |
| Camera weight, incl. lens and excl. battery 2.24 kg (4.94 lb.) | |
| Camera weight, incl. lens and battery 2.48 kg (5.47 lb.) | |
| Battery weight 0.24 kg (0.52 lb.) | |
| Camera size, excl. lens (L × W × H) 284 × 169 × 161 mm (11.2 × 6.7 × 6.3 in.) | |
| Cameras size, incl. lens (L × W × H) 306 × 169 × 161 mm (12.0 × 6.7 × 6.3 in.) | |
| Battery size (L × W × H) | 141 × 47 × 28 mm (5.5 × 1.8 × 1.1 in.) |
| Battery charger size (L × W × H) | 158 × 122 × 25 mm (6.2 × 4.8 × 1.0 in.) |
| Tripod mounting | UNC 1⁄4"-20 |
| Housing material | Aluminum, magnesium |
| Grip material | TPE thermoplastic elastomers |
| Shipping information | |
| Packaging, type | Cardboard box |
| List of contents | Infrared camera with lensBattery chargerBattery, 2 ea.Hard transport caseHDMI-DVI cableHDMI-HDMI cableLens cap (mounted on lens)Memory cardPower supply, incl. multi-plugsPrinted documentationShoulder strapUSB cableWi-Fi USB micro adapter (depending on CE and FCC regulations regarding wireless equipment for your country) |
| Packaging, weight | |
| Packaging, size | 400 × 190 × 510 mm (15.7 × 7.5 × 20.1 in.) |
| EAN-13 | 7332558008485 |
| UPC-12 | 845188008840 |
| Country of origin | Sweden |
Supplies & accessories:
• T198511; Li-Ion Battery pack 7.4V 33Wh
• T199367ACC; Battery Li-ion 7.2 V, 4.4 Ah, 32 Wh
• T199233; FLIR Atlas SDK for .NET
• T199234; FLIR Atlas SDK for MATLAB
22.26 FLIR GF346 14.5°
P/N: 59801-0101
Rev.: 45202
| General description | |
| The FLIR GF346 is an infrared camera for optical gas imaging (OGI) that visualizes and pinpoints leaks of carbon monoxide (CO) and other harmful gases, without the need to shut down the operation. The portable camera also greatly improves operator safety, by detecting emissions at a safe distance, and helps to protect the environment by tracing leaks of environmentally harmful gases.CO is an industrial gas with applications in the steel industry and bulk chemicals manufacturing. It is also used for packaging systems for fresh meat and fish. | |
| Benefits: | |
| Improved efficiency: The FLIR GF346 reduces revenue loss by pinpointing even small gas leaks quickly and efficiently, and from a distance. It also reduces the inspection time by allowing a broad area to be scanned rapidly and without the need to interrupt the industrial process. The wireless connectivity of the camera allows you to connect to smart phones or tablets for the wireless transfer of images or remote control of the camera. The FLIR GF346 can also be used for temperature measurement, which makes it even more useful for predictive maintenance.Increased worker safety: CO can be toxic to humans when encountered in higher concentrations. OGI allows gas leaks to be detected in a non-contact mode and from a safe distance. This reduces the risk of the user being exposed to invisible and highly toxic gases or explosive chemicals. With a FLIR GF346 gas imaging camera it is easy to scan areas of interest that are difficult to reach with conventional methods. The camera is ergonomically designed, with a bright LCD and tiltable viewfinder, which facilitates its use over a full working day.Protecting the environment: Several gases, such as CO, have a high global warming potential, and are usually governed by regulations. Even small leaks can be detected and documented using the FLIR GF346 camera. | |
| Detects the following gases: carbon monoxide, nitrous oxide, ketene, ethenone, butyl isocyanide, hexyl isocyanide, cyanogen bromide, acetonitrile, acetyl cyanide, chlorine isocyanate, bromine isocyanate, methyl thiocyanate, ethyl thiocyanate, chlorodimethylsilane, dichloromethylsilane, silane, germane, arsine. | |
| Licensing and classification | |
| License information Interchangeable lens version | of the FLIR GF3XXseries requires US Department of State License and will be subject to limitations on resale, except inside US. Allow a minimum of 90 days after application submittal for approval. |
| Imaging and optical data | |
| IR resolution 320 × 240 pixels | |
| Thermal sensitivity/NETD <15 mK @ +30°C (+86°F) | |
| Field of view (FOV) | 14.5° × 10.8° |
| Minimum focus distance 0.5 m (1.64 ft.) | |
| Focal length 38 mm (1.49 in.) | |
| Lens identification Automatic | |
| F-number | 1.5 |
| Focus | Automatic (one touch) or manual (electric or on the lens) |
| Zoom | 1-8× continuous, digital zoom |
| Digital image enhancement | Noise reduction filter, high sensitivity mode (HSM) |
| Detector data | |
| Detector type Focal plane array (FPA), cooled InSb | |
| Spectral range Built-in cold band pass filter 4.52-4.67 μm | |
| Detector pitch 30 μm | |
| Sensor cooling Stirling Microcooler (FLIR MC-3) | |
| Detects following gases Carbon Monoxide, Nitrous Oxide, Ketene, Ethenone, Butyl Isocyanide, Hexyl Isocyanide, Cyano-gen Bromide, Acetonitrile, Acetyl Cyanide, Chlorine Isocyanate, Bromine Isocyanate, Methyl Thiocyanate, Ethyl Thiocyanate, Chlorodimethylsilane, Dichloromethylsilane, Silane, Germane, Arsine | |
| Electronics and data rate | |
| Full frame rate 60 Hz | |
| Image presentation | |
| Display | Built-in widescreen, 4.3 in. LCD, 800 × 480 pixe |
| Viewfinder Built-in, tiltable OLED, 800 × 480 pixels | |
| Automatic image adjustment | Continuous/manual; linear or histogram based |
| Manual image adjustment | Level/span |
| Image presentation modes | |
| Image modes IR image, visual image, high sensitivity mode (HSM) | |
| Measurement | |
| Temperature range | -20°C to +300°C (-4°F to +572°F) |
| Accuracy | ±1°C (±1.8°F) or ±1% of reading for temperature range 0°C to +300°C (+32°F to +572°F) |
| Measurement analysis | |
| Spotmeter | 10 |
| Area | 5 boxes with max./min./average |
| Profile 1 live line (horizontal or vertical) | |
| Difference temperature | Delta temperature between measurement functions or reference temperature |
| Reference temperature | Manually set or captured from any measurement function |
| Emissivity correction | Variable from 0.01 to 1.0 or selected from edita materials list |
| Reflected apparent temperature correction | Automatic, based on input of reflected tempera |
| Measurement corrections | Reflected temperature, distance, atmospheric transmission, humidity, external optics |
| Set-up | |
| Menu commands Level, span | Auto adjust continuous/manual/semi-automaticZoomPaletteStart/stop recordingStore imagePlayback/recall image |
| Color palettes Iron, Gray, Rainbow, Arctic, Lava, | Rainbow HC |
| Set-up commands | 1 programmable button, overlay recording mode, local adaptation of units, language, date and time formats |
| Storage of Images | |
| Storage media Removable SD or SDHC memory | card, two card slots |
| Image storage capacity | >1200 images (JPEG) with post process capability per GB on memory card |
| Image storage mode | IR/visual imagesVisual image can automatically be associated with corresponding IR image |
| Periodic image storage Every 10 seconds up to | 24 hours |
| File formats Standard JPEG, 14 bit measurement | data included |
| Geographic Information System | |
| GPS Location data automatically added to every image from built-in GPS |
| Video recording in camera | |
| Radiometric IR video recording *.seq video clips | to memory card (7.5 and 15 Hz). |
| Non-radiometric IR video recording MPEG4 (up to | 60 minutes/clip) to memory card.Visual image can automatically be associated with corresponding recording of non-radiometric IR video. |
| Visual video recording MPEG4 (25 minutes/clip) | to memory card |
| Video streaming | |
| Radiometric IR video streaming Full dynamic to | PC using USB cable or to mobile devices using Wi-Fi. PC software capable of displaying the video stream include the following:FLIR IR Camera PlayerFLIR ResearchIRFLIR Tools |
| Non-radiometric IR video streaming | RTP/MPEG4 |
| Digital camera | |
| Built-in digital camera | 3.2 Mpixels, auto focus, and two video lamps |
| Laser pointer | |
| Laser Activated by dedicated button | |
| Laser classification Class 2 | |
| Laser type Semiconductor AlGaInP diode laser, 1 | mW, 635nm (red) |
| USB | |
| USB | • USB-A: Connect external USB device• USB Mini-B: Data transfer to and from PC |
| USB, standard USB Mini-B: 2.0 high speed | |
| Composite video | |
| Video out Digital video output (image) | |
| Power system | |
| Battery type Rechargeable Li ion battery | |
| Battery voltage 7.2 V | |
| Battery capacity 4.4 Ah | |
| Battery operating time | >3 hours at 25°C (+77°F) and typical use |
| Charging system | In camera (AC adapter or 12 V from a vehicle) bay charger |
| Charging time | 2.5 h to 95% capacity, charging status indicated LED's |
| External power operation | AC adapter 90–260 VAC, 50/60 Hz or 12 V from a vehicle (cable with standard plug, optional) |
| DC operation | 10.8 to 16 V DC, polarity protected (proprietary protected) |
| Power | 8.5 W typically |
| Start-up time | Typically 7 min. @ 25°C (+77°F) |
| Environmental data | |
| Operating temperature range | -20°C to +50°C (-4°F to +122°F) |
| Storage temperature range | -30°C to +60°C (-22°F to +140°F) |
| Humidity (operating and storage) | IEC 68-2-30/24 h 95% relative humidity +25°C +40°C (+77°F to +104°F) (2 cycles) |
| Directives | • 73/23EEC• 2004/108/EC• 2002/95/EC• 2002/96/EC |
| EMC | • EN61000-6-4 (Emission)• EN61000-6-2 (Immunity)• FCC 47 CFR Part 15 class A (Emission)• EN 61 000-4-8, L5 |
| Encapsulation | IP 54 (IEC 60529) |
| Shock | 25 g (IEC 60068-2-27) |
| Vibration | 2 g (IEC 60068-2-6) |
| Safety | Power supply: EN/UL/IEC 60950-1 |
| Physical data | |
| Camera weight, excl. lens and battery 1.94 kg (4.27 lb.) | |
| Camera weight, incl. lens and excl. battery 2.24 kg (4.94 lb.) | |
| Camera weight, incl. lens and battery 2.48 kg (5.47 lb.) | |
| Battery weight 0.24 kg (0.52 lb.) | |
| Camera size, excl. lens (L × W × H) 284 × 169 × 161 mm (11.2 × 6.7 × 6.3 in.) | |
| Cameras size, incl. lens (L × W × H) 305 × 169 × 161 mm (12.0 × 6.7 × 6.3 in.) | |
| Battery size (L × W × H) 141 × 47 × 28 mm (5.5 × 1.8 × 1.1 in.) | |
| Battery charger size (L × W × H) 158 × 122 × 25 mm (6.2 × 4.8 × 1.0 in.) | |
| Tripod mounting | UNC 14 "-20 |
| Housing material Aluminum, magnesium | |
| Grip material | TPE thermoplastic elastomers |
| Shipping information | |
| Packaging, type | Cardboard box |
| List of contents | Infrared camera with lensBattery chargerBattery, 2 ea.Hard transport caseHDMI-DVI cableHDMI-HDMI cableLens cap (2 ea.)Lens cap (mounted on lens)Memory cardPower supply, incl. multi-plugsPrinted documentationShoulder strapUSB cableWi-Fi USB micro adapter (depending on CE and FCC regulations regarding wireless equipment for your country) |
| Packaging, weight | |
| Packaging, size | 400 × 190 × 510 mm (15.7 × 7.5 × 20.1 in.) |
Supplies & accessories:
• T197388; IR lens, 6° with case for GF300, GF309, GF320, GF346.
• T198267; IR lens, 24° with case for GF335, GF346
• T198298; IR lens, 14.5° with case for GF335, GF346
• T197692; Battery charger, incl. power supply with multi plugs
• T910814; Power supply, incl. multi plugs
• T198511; Li-Ion Battery pack 7.4V 33Wh
• T199367ACC; Battery Li-ion 7.2 V, 4.4 Ah, 32 Wh
• T911650ACC; Memory card SD Card 8 GB
• 1910423; USB cable Std A <-> Mini-B
• T198509; Cigarette lighter adapter kit, 12 VDC, 1.2 m/3.9 ft.
• T910815ACC; HDMI to HDMI cable 1.5 m
• T910816ACC; HDMI to DVI cable 1.5 m
• T197555; Hard transport case for FLIR GF3xx-Series
• T951387; Wi-Fi USB micro adapter
• T198586; FLIR Reporter Professional (license only)
• T198584; FLIR Tools
• T198583; FLIR Tools+ (download card incl. license key)
• T198585; FLIR VideoReport
• DSW-10000; FLIR IR Camera Player
- APP-10002; FLIR Tools Mobile (Android Application)
• T198697; FLIR ResearchIR Max + HSDR 4 (hardware sec. dev.)
• T199014; FLIR ResearchIR Max + HSDR 4 (printed license key)
• T199044; FLIR ResearchIR Max + HSDR 4 Upgrade (printed license key)
• T198696; FLIR ResearchIR Max 4 (hardware sec. dev.)
• T199013; FLIR ResearchIR Max 4 (printed license key)
• T199043; FLIR ResearchIR Max 4 Upgrade (printed license key)
• T198731; FLIR ResearchIR Standard 4 (hardware sec. dev.)
• T199012; FLIR ResearchIR Standard 4 (printed license key)
• T199042; FLIR ResearchIR Standard 4 Upgrade (printed license key)
• T199233; FLIR Atlas SDK for .NET
• T199234; FLIR Atlas SDK for MATLAB
• T198567; ThermoVision™ System Developers Kit Ver. 2.6
• T198566; ThermoVision™ LabVIEW® Digital Toolkit Ver. 3.3
22.27 FLIR GF346 14.5° Fixed lens
P/N: 59802-0101
Rev.: 45202
| General description |
| The FLIR GF346 is an infrared camera for optical gas imaging (OGI) that visualizes and pinpoints gas leaks of carbon monoxide (CO) and other harmful gases, without the need to shut down the operation. The portable camera also greatly improves operator safety, by detecting emissions at a safe distance, and helps to protect the environment by tracing leaks of environmentally harmful gases.CO is an industrial gas with applications in the steel industry and bulk chemicals manufacturing. It is also used for packaging systems for fresh meat and fish. |
| Benefits: |
| Improved efficiency: The FLIR GF346 reduces revenue loss by pinpointing even small gas leaks quickly and efficiently, and from a distance. It also reduces the inspection time by allowing a broad area to be scanned rapidly and without the need to interrupt the industrial process. The wireless connectivity of the camera allows you to connect to smart phones or tablets for the wireless transfer of images or remote control of the camera. The FLIR GF346 can also be used for temperature measurement, which makes it even more useful for predictive maintenance.Increased worker safety: CO can be toxic to humans when encountered in higher concentrations. OGI allows gas leaks to be detected in a non-contact mode and from a safe distance. This reduces the risk of the user being exposed to invisible and highly toxic gases or explosive chemicals. With a FLIR GF346 gas imaging camera it is easy to scan areas of interest that are difficult to reach with conventional methods. The camera is ergonomically designed, with a bright LCD and tiltable viewfinder, which facilitates its use over a full working day.Protecting the environment: Several gases, such as CO, have a high global warming potential, and are usually governed by regulations. Even small leaks can be detected and documented using the FLIR GF346 camera. |
| Detects the following gases: carbon monoxide, nitrous oxide, ketene, ethenone, butyl isocyanide, hexyl isocyanide, cyanogen bromide, acetonitrile, acetyl cyanide, chlorine isocyanate, bromine isocyanate, methyl thiocyanate, ethyl thiocyanate, chlorodimethylsilane, dichloromethylsilane, silane, germane, arsine. |
| Imaging and optical data | |
| IR resolution 320 × 240 pixels | |
| Thermal sensitivity/NETD <15 mK @ +30°C (+86°F) | |
| Field of view (FOV) | 14.5° × 10.8° |
| Minimum focus distance 0.5 m (1.64 ft.) | |
| Focal length 38 mm (1.49 in.) | |
| Lens identification Automatic | |
| F-number 1.5 | |
| Focus | Automatic (one touch) or manual (electric or on lens) |
| Zoom | 1-8× continuous, digital zoom |
| Digital image enhancement | Noise reduction filter, high sensitivity mode (HSM |
| Detector data | |
| Detector type | Focal plane array (FPA), cooled InSb |
| Spectral range | Built-in cold band pass filter 4.52–4.67 μm |
| Detector pitch | 30 μm |
| Sensor cooling Stirling Microcooler (FLIR MC-3) | |
| Detects following gases Carbon Monoxide, Nitrous Oxide, Ketene, Ethenone, Butyl Isocyanide, Hexyl Isocyanide, Cyano-gen Bromide, Acetonitrile, Acetyl Cyanide, Chlorine Isocyanate, Bromine Isocyanate, Methyl Thiocyanate, Ethyl Thiocyanate, Chlorodimethylsilane, Dichloromethylsilane, Silane, Germane, Arsine | |
| Electronics and data rate | |
| Full frame rate 60 Hz | |
| Image presentation | |
| Display | Built-in widescreen, 4.3 in. LCD, 800 × 480 pixe |
| Viewfinder Built-in, tiltable OLED, 800 × 480 pixels | |
| Automatic image adjustment | Continuous/manual; linear or histogram based |
| Manual image adjustment | Level/span |
| Image presentation modes | |
| Image modes IR image, visual image, high sensitivity mode (HSM) | |
| Measurement | |
| Temperature range | -20°C to +300°C (-4°F to +572°F) |
| Accuracy | ±1°C (±1.8°F) or ±1% of reading for temperature range 0°C to +300°C (+32°F to +572°F) |
| Measurement analysis | |
| Spotmeter | 10 |
| Area | 5 boxes with max./min./average |
| Profile 1 live line (horizontal or vertical) | |
| Difference temperature Delta temperature between measurement functions or reference temperature | |
| Reference temperature Manually set or captured from any measurement function | |
| Emissivity correction Variable from 0.01 to 1.0 or selected from editable materials list | |
| Reflected apparent temperature correction Automatic, based on input of reflected temperature | |
| Measurement corrections | Reflected temperature, distance, atmospheric transmission, humidity, external optics |
| Set-up | |
| Menu commands Level, span | Auto adjust continuous/manual/semi-automaticZoomPaletteStart/stop recordingStore imagePlayback/recall image |
| Color palettes Iron, Gray, Rainbow, Arctic, Lava, | Rainbow HC |
| Set-up commands | 1 programmable button, overlay recording mode, local adaptation of units, language, date and time formats |
| Storage of Images | |
| Storage media Removable SD or SDHC memory | card, two card slots |
| Image storage capacity | >1200 images (JPEG) with post process capability per GB on memory card |
| Image storage mode | IR/visual imagesVisual image can automatically be associated with corresponding IR image |
| Periodic image storage Every 10 seconds up to | 24 hours |
| File formats Standard JPEG, 14 bit measurement | data included |
| Geographic Information System | |
| GPS Location data automatically added to every image from built-in GPS |
| Video recording in camera | |
| Radiometric IR video recording *.seq video clips | to memory card (7.5 and 15 Hz). |
| Non-radiometric IR video recording MPEG4 (up to | 60 minutes/clip) to memory card.Visual image can automatically be associated with corresponding recording of non-radiometric IR video. |
| Visual video recording MPEG4 (25 minutes/clip) | to memory card |
| Video streaming | |
| Radiometric IR video streaming Full dynamic to | PC using USB cable or to mobile devices using Wi-Fi. PC software capable of displaying the video stream include the following:FLIR IR Camera PlayerFLIR ResearchIRFLIR Tools |
| Non-radiometric IR video streaming | RTP/MPEG4 |
| Digital camera | |
| Built-in digital camera | 3.2 Mpixels, auto focus, and two video lamps |
| Laser pointer | |
| Laser Activated by dedicated button | |
| Laser classification Class 2 | |
| Laser type Semiconductor AlGaInP diode laser, 1 | mW, 635nm (red) |
| USB | |
| USB | • USB-A: Connect external USB device• USB Mini-B: Data transfer to and from PC |
| USB, standard USB Mini-B: 2.0 high speed | |
| Composite video | |
| Video out Digital video output (image) | |
| Power system | |
| Battery type Rechargeable Li ion battery | |
| Battery voltage 7.2 V | |
| Battery capacity 4.4 Ah | |
| Battery operating time | >3 hours at 25°C (+77°F) and typical use |
| Charging system | In camera (AC adapter or 12 V from a vehicle) bay charger |
| Charging time | 2.5 h to 95% capacity, charging status indicated LED's |
| External power operation | AC adapter 90–260 VAC, 50/60 Hz or 12 V from a vehicle (cable with standard plug, optional) |
| DC operation | 10.8 to 16 V DC, polarity protected (proprietary protected) |
| Power | 8.5 W typically |
| Start-up time | Typically 7 min. @ 25°C (+77°F) |
| Environmental data | |
| Operating temperature range | -20°C to +50°C (-4°F to +122°F) |
| Storage temperature range | -30°C to +60°C (-22°F to +140°F) |
| Humidity (operating and storage) | IEC 68-2-30/24 h 95% relative humidity +25°C +40°C (+77°F to +104°F) (2 cycles) |
| Directives | • 73/23EEC• 2004/108/EC• 2002/95/EC• 2002/96/EC |
| EMC | • EN61000-6-4 (Emission)• EN61000-6-2 (Immunity)• FCC 47 CFR Part 15 class A (Emission)• EN 61 000-4-8, L5 |
| Encapsulation | IP 54 (IEC 60529) |
| Shock | 25 g (IEC 60068-2-27) |
| Vibration | 2 g (IEC 60068-2-6) |
| Safety | Power supply: EN/UL/IEC 60950-1 |
| Physical data | |
| Camera weight, excl. lens and battery 1.94 kg (4.27 lb.) | |
| Camera weight, incl. lens and excl. battery 2.24 kg (4.94 lb.) | |
| Camera weight, incl. lens and battery 2.48 kg (5.47 lb.) | |
| Battery weight 0.24 kg (0.52 lb.) | |
| Camera size, excl. lens (L × W × H) 284 × 169 × 161 mm (11.2 × 6.7 × 6.3 in.) | |
| Cameras size, incl. lens (L × W × H) 305 × 169 × 161 mm (12.0 × 6.7 × 6.3 in.) | |
| Battery size (L × W × H) 141 × 47 × 28 mm (5.5 × 1.8 × 1.1 in.) | |
| Battery charger size (L × W × H) 158 × 122 × 25 mm (6.2 × 4.8 × 1.0 in.) | |
| Tripod mounting | UNC 14 "-20 |
| Housing material Aluminum, magnesium | |
| Grip material | TPE thermoplastic elastomers |
| Shipping information | |
| Packaging, type | Cardboard box |
| List of contents | Infrared camera with lensBattery chargerBattery, 2 ea.Hard transport caseHDMI-DVI cableHDMI-HDMI cableLens cap (mounted on lens)Memory cardPower supply, incl. multi-plugsPrinted documentationShoulder strapUSB cableWi-Fi USB micro adapter (depending on CE and FCC regulations regarding wireless equipment for your country) |
| Packaging, weight | |
| Packaging, size | 400 × 190 × 510 mm (15.7 × 7.5 × 20.1 in.) |
Supplies & accessories:
• T197692; Battery charger, incl. power supply with multi plugs
• T910814; Power supply, incl. multi plugs
• T198511; Li-Ion Battery pack 7.4V 33Wh
• T199367ACC; Battery Li-ion 7.2 V, 4.4 Ah, 32 Wh
• T911650ACC; Memory card SD Card 8 GB
• 1910423; USB cable Std A <-> Mini-B
• T198509; Cigarette lighter adapter kit, 12 VDC, 1.2 m/3.9 ft.
• T910815ACC; HDMI to HDMI cable 1.5 m
• T910816ACC; HDMI to DVI cable 1.5 m
• T197555; Hard transport case for FLIR GF3xx-Series
• T951387; Wi-Fi USB micro adapter
• T198586; FLIR Reporter Professional (license only)
• T198584; FLIR Tools
• T198583; FLIR Tools+ (download card incl. license key)
• T198585; FLIR VideoReport
• DSW-10000; FLIR IR Camera Player
• APP-10002; FLIR Tools Mobile (Android Application)
• T198697; FLIR ResearchIR Max + HSDR 4 (hardware sec. dev.)
• T199014; FLIR ResearchIR Max + HSDR 4 (printed license key)
• T199044; FLIR ResearchIR Max + HSDR 4 Upgrade (printed license key)
• T198696; FLIR ResearchIR Max 4 (hardware sec. dev.)
• T199013; FLIR ResearchIR Max 4 (printed license key)
• T199043; FLIR ResearchIR Max 4 Upgrade (printed license key)
• T198731; FLIR ResearchIR Standard 4 (hardware sec. dev.)
• T199012; FLIR ResearchIR Standard 4 (printed license key)
• T199042; FLIR ResearchIR Standard 4 Upgrade (printed license key)
• T199233; FLIR Atlas SDK for .NET
• T199234; FLIR Atlas SDK for MATLAB
• T198567; ThermoVision™ System Developers Kit Ver. 2.6
• T198566; ThermoVision™ LabVIEW® Digital Toolkit Ver. 3.3
22.28 FLIR GF346 24°
P/N: 59801-0102
Rev.: 45203
| General description | |
| The FLIR GF346 is an infrared camera for optical gas imaging (OGI) that visualizes and pinpoints leaks of carbon monoxide (CO) and other harmful gases, without the need to shut down the operation. The portable camera also greatly improves operator safety, by detecting emissions at a safe distance, and helps to protect the environment by tracing leaks of environmentally harmful gases.CO is an industrial gas with applications in the steel industry and bulk chemicals manufacturing. It is also used for packaging systems for fresh meat and fish. | |
| Benefits: | |
| Improved efficiency: The FLIR GF346 reduces revenue loss by pinpointing even small gas leaks quickly and efficiently, and from a distance. It also reduces the inspection time by allowing a broad area to be scanned rapidly and without the need to interrupt the industrial process. The wireless connectivity of the camera allows you to connect to smart phones or tablets for the wireless transfer of images or remote control of the camera. The FLIR GF346 can also be used for temperature measurement, which makes it even more useful for predictive maintenance.Increased worker safety: CO can be toxic to humans when encountered in higher concentrations. OGI allows gas leaks to be detected in a non-contact mode and from a safe distance. This reduces the risk of the user being exposed to invisible and highly toxic gases or explosive chemicals. With a FLIR GF346 gas imaging camera it is easy to scan areas of interest that are difficult to reach with conventional methods. The camera is ergonomically designed, with a bright LCD and tiltable viewfinder, which facilitates its use over a full working day.Protecting the environment: Several gases, such as CO, have a high global warming potential, and are usually governed by regulations. Even small leaks can be detected and documented using the FLIR GF346 camera. | |
| Detects the following gases: carbon monoxide, nitrous oxide, ketene, ethenone, butyl isocyanide, hexyl isocyanide, cyanogen bromide, acetonitrile, acetyl cyanide, chlorine isocyanate, bromine isocyanate, methyl thiocyanate, ethyl thiocyanate, chlorodimethylsilane, dichloromethylsilane, silane, germane, arsine. | |
| Licensing and classification | |
| License information Interchangeable lens version | of the FLIR GF3XXseries requires US Department of State License and will be subject to limitations on resale, except inside US. Allow a minimum of 90 days after application submittal for approval. |
| Imaging and optical data | |
| IR resolution 320 × 240 pixels | |
| Thermal sensitivity/NETD <15 mK @ +30°C (+86°F) | |
| Field of view (FOV) | 24° × 18° |
| Minimum focus distance 0.3 m (1.0 ft.) | |
| Focal length 23 mm (0.89 in.) | |
| Lens identification Automatic | |
| F-number | 1.5 |
| Focus | Automatic (one touch) or manual (electric or on the lens) |
| Zoom | 1-8× continuous, digital zoom |
| Digital image enhancement | Noise reduction filter, high sensitivity mode (HSM) |
| Detector data | |
| Detector type Focal plane array (FPA), cooled InSb | |
| Spectral range Built-in cold band pass filter 4.52-4.67 μm | |
| Detector pitch 30 μm | |
| Sensor cooling Stirling Microcooler (FLIR MC-3) | |
| Detects following gases Carbon Monoxide, Nitrous Oxide, Ketene, Ethenone, Butyl Isocyanide, Hexyl Isocyanide, Cyano-gen Bromide, Acetonitrile, Acetyl Cyanide, Chlorine Isocyanate, Bromine Isocyanate, Methyl Thiocyanate, Ethyl Thiocyanate, Chlorodimethylsilane, Dichloromethylsilane, Silane, Germane, Arsine | |
| Electronics and data rate | |
| Full frame rate 60 Hz | |
| Image presentation | |
| Display | Built-in widescreen, 4.3 in. LCD, 800 × 480 pixe |
| Viewfinder Built-in, tiltable OLED, 800 × 480 pixels | |
| Automatic image adjustment | Continuous/manual; linear or histogram based |
| Manual image adjustment | Level/span |
| Image presentation modes | |
| Image modes IR image, visual image, high sensitivity mode (HSM) | |
| Measurement | |
| Temperature range | -20°C to +300°C (-4°F to +572°F) |
| Accuracy | ±1°C (±1.8°F) or ±1% of reading for temperature range 0°C to +300°C (+32°F to +572°F) |
| Measurement analysis | |
| Spotmeter | 10 |
| Area | 5 boxes with max./min./average |
| Profile 1 live line (horizontal or vertical) | |
| Difference temperature | Delta temperature between measurement functions or reference temperature |
| Reference temperature | Manually set or captured from any measurement function |
| Emissivity correction | Variable from 0.01 to 1.0 or selected from edita materials list |
| Reflected apparent temperature correction | Automatic, based on input of reflected tempera |
| Measurement corrections | Reflected temperature, distance, atmospheric transmission, humidity, external optics |
| Set-up | |
| Menu commands Level, span | Auto adjust continuous/manual/semi-automaticZoomPaletteStart/stop recordingStore imagePlayback/recall image |
| Color palettes Iron, Gray, Rainbow, Arctic, Lava, | Rainbow HC |
| Set-up commands | 1 programmable button, overlay recording mode, local adaptation of units, language, date and time formats |
| Storage of Images | |
| Storage media Removable SD or SDHC memory | card, two card slots |
| Image storage capacity | >1200 images (JPEG) with post process capability per GB on memory card |
| Image storage mode | IR/visual imagesVisual image can automatically be associated with corresponding IR image |
| Periodic image storage Every 10 seconds up to | 24 hours |
| File formats Standard JPEG, 14 bit measurement | data included |
| Geographic Information System | |
| GPS Location data automatically added to every image from built-in GPS |
| Video recording in camera | |
| Radiometric IR video recording *.seq video clips | to memory card (7.5 and 15 Hz). |
| Non-radiometric IR video recording MPEG4 (up to | 60 minutes/clip) to memory card.Visual image can automatically be associated with corresponding recording of non-radiometric IR video. |
| Visual video recording MPEG4 (25 minutes/clip) | to memory card |
| Video streaming | |
| Radiometric IR video streaming Full dynamic to | PC using USB cable or to mobile devices using Wi-Fi. PC software capable of displaying the video stream include the following:FLIR IR Camera PlayerFLIR ResearchIRFLIR Tools |
| Non-radiometric IR video streaming | RTP/MPEG4 |
| Digital camera | |
| Built-in digital camera | 3.2 Mpixels, auto focus, and two video lamps |
| Laser pointer | |
| Laser Activated by dedicated button | |
| Laser classification Class 2 | |
| Laser type Semiconductor AlGaInP diode laser, 1 | mW, 635nm (red) |
| USB | |
| USB | • USB-A: Connect external USB device• USB Mini-B: Data transfer to and from PC |
| USB, standard USB Mini-B: 2.0 high speed | |
| Composite video | |
| Video out Digital video output (image) | |
| Power system | |
| Battery type Rechargeable Li ion battery | |
| Battery voltage 7.2 V | |
| Battery capacity 4.4 Ah | |
| Battery operating time | >3 hours at 25°C (+77°F) and typical use |
| Charging system | In camera (AC adapter or 12 V from a vehicle) bay charger |
| Charging time | 2.5 h to 95% capacity, charging status indicated LED's |
| External power operation | AC adapter 90-260 VAC, 50/60 Hz or 12 V from a vehicle (cable with standard plug, optional) |
| DC operation | 10.8 to 16 V DC, polarity protected (proprietary protected) |
| Power | 8.5 W typically |
| Start-up time | Typically 7 min. @ 25°C (+77°F) |
| Environmental data | |
| Operating temperature range | -20°C to +50°C (-4°F to +122°F) |
| Storage temperature range | -30°C to +60°C (-22°F to +140°F) |
| Humidity (operating and storage) | IEC 68-2-30/24 h 95% relative humidity +25°C +40°C (+77°F to +104°F) (2 cycles) |
| Directives | • 73/23EEC• 2004/108/EC• 2002/95/EC• 2002/96/EC |
| EMC | • EN61000-6-4 (Emission)• EN61000-6-2 (Immunity)• FCC 47 CFR Part 15 class A (Emission)• EN 61 000-4-8, L5 |
| Encapsulation | IP 54 (IEC 60529) |
| Shock | 25 g (IEC 60068-2-27) |
| Vibration | 2 g (IEC 60068-2-6) |
| Safety | Power supply: EN/UL/IEC 60950-1 |
| Physical data | |
| Camera weight, excl. lens and battery 1.94 kg (4.27 lb.) | |
| Camera weight, incl. lens and excl. battery 2.24 kg (4.94 lb.) | |
| Camera weight, incl. lens and battery 2.48 kg (5.47 lb.) | |
| Battery weight 0.24 kg (0.52 lb.) | |
| Camera size, excl. lens (L × W × H) 284 × 169 × 161 mm (11.2 × 6.7 × 6.3 in.) | |
| Cameras size, incl. lens (L × W × H) 306 × 169 × 161 mm (12.0 × 6.7 × 6.3 in.) | |
| Battery size (L × W × H) 141 × 47 × 28 mm (5.5 × 1.8 × 1.1 in.) | |
| Battery charger size (L × W × H) 158 × 122 × 25 mm (6.2 × 4.8 × 1.0 in.) | |
| Tripod mounting | UNC 14 "-20 |
| Housing material Aluminum, magnesium | |
| Grip material | TPE thermoplastic elastomers |
| Shipping information | |
| Packaging, type | Cardboard box |
| List of contents | Infrared camera with lensBattery chargerBattery, 2 ea.Hard transport caseHDMI-DVI cableHDMI-HDMI cableLens cap (2 ea.)Lens cap (mounted on lens)Memory cardPower supply, incl. multi-plugsPrinted documentationShoulder strapUSB cableWi-Fi USB micro adapter (depending on CE and FCC regulations regarding wireless equipment for your country) |
| Packaging, weight | |
| Packaging, size | 400 × 190 × 510 mm (15.7 × 7.5 × 20.1 in.) |
Supplies & accessories:
• T197388; IR lens, 6° with case for GF300, GF309, GF320, GF346.
• T198267; IR lens, 24° with case for GF335, GF346
• T198298; IR lens, 14.5° with case for GF335, GF346
• T197692; Battery charger, incl. power supply with multi plugs
• T910814; Power supply, incl. multi plugs
• T198511; Li-Ion Battery pack 7.4V 33Wh
• T199367ACC; Battery Li-ion 7.2 V, 4.4 Ah, 32 Wh
• T911650ACC; Memory card SD Card 8 GB
• 1910423; USB cable Std A <-> Mini-B
• T198509; Cigarette lighter adapter kit, 12 VDC, 1.2 m/3.9 ft.
• T910815ACC; HDMI to HDMI cable 1.5 m
• T910816ACC; HDMI to DVI cable 1.5 m
• T197555; Hard transport case for FLIR GF3xx-Series
• T951387; Wi-Fi USB micro adapter
• T198586; FLIR Reporter Professional (license only)
• T198584; FLIR Tools
• T198583; FLIR Tools+ (download card incl. license key)
• T198585; FLIR VideoReport
• DSW-10000; FLIR IR Camera Player
- APP-10002; FLIR Tools Mobile (Android Application)
• T198697; FLIR ResearchIR Max + HSDR 4 (hardware sec. dev.)
• T199014; FLIR ResearchIR Max + HSDR 4 (printed license key)
• T199044; FLIR ResearchIR Max + HSDR 4 Upgrade (printed license key)
• T198696; FLIR ResearchIR Max 4 (hardware sec. dev.)
• T199013; FLIR ResearchIR Max 4 (printed license key)
• T199043; FLIR ResearchIR Max 4 Upgrade (printed license key)
• T198731; FLIR ResearchIR Standard 4 (hardware sec. dev.)
• T199012; FLIR ResearchIR Standard 4 (printed license key)
• T199042; FLIR ResearchIR Standard 4 Upgrade (printed license key)
• T199233; FLIR Atlas SDK for .NET
• T199234; FLIR Atlas SDK for MATLAB
• T198567; ThermoVision™ System Developers Kit Ver. 2.6
• T198566; ThermoVision™ LabVIEW® Digital Toolkit Ver. 3.3
22.29 FLIR GF346 24° Fixed lens
P/N: 59802-0102
Rev.: 45202
| General description |
| The FLIR GF346 is an infrared camera for optical gas imaging (OGI) that visualizes and pinpoints gas leaks of carbon monoxide (CO) and other harmful gases, without the need to shut down the operation. The portable camera also greatly improves operator safety, by detecting emissions at a safe distance, and helps to protect the environment by tracing leaks of environmentally harmful gases.CO is an industrial gas with applications in the steel industry and bulk chemicals manufacturing. It is also used for packaging systems for fresh meat and fish. |
| Benefits: |
| Improved efficiency: The FLIR GF346 reduces revenue loss by pinpointing even small gas leaks quickly and efficiently, and from a distance. It also reduces the inspection time by allowing a broad area to be scanned rapidly and without the need to interrupt the industrial process. The wireless connectivity of the camera allows you to connect to smart phones or tablets for the wireless transfer of images or remote control of the camera. The FLIR GF346 can also be used for temperature measurement, which makes it even more useful for predictive maintenance.Increased worker safety: CO can be toxic to humans when encountered in higher concentrations. OGI allows gas leaks to be detected in a non-contact mode and from a safe distance. This reduces the risk of the user being exposed to invisible and highly toxic gases or explosive chemicals. With a FLIR GF346 gas imaging camera it is easy to scan areas of interest that are difficult to reach with conventional methods. The camera is ergonomically designed, with a bright LCD and tiltable viewfinder, which facilitates its use over a full working day.Protecting the environment: Several gases, such as CO, have a high global warming potential, and are usually governed by regulations. Even small leaks can be detected and documented using the FLIR GF346 camera. |
| Detects the following gases: carbon monoxide, nitrous oxide, ketene, ethenone, butyl isocyanide, hexyl isocyanide, cyanogen bromide, acetonitrile, acetyl cyanide, chlorine isocyanate, bromine isocyanate, methyl thiocyanate, ethyl thiocyanate, chlorodimethylsilane, dichloromethylsilane, silane, germane, arsine. |
| Imaging and optical data | |
| IR resolution 320 × 240 pixels | |
| Thermal sensitivity/NETD <15 mK @ +30°C (+86°F) | |
| Field of view (FOV) | 24° × 18° |
| Minimum focus distance 0.3 m (1.0 ft.) | |
| Focal length 23 mm (0.89 in.) | |
| Lens identification Automatic | |
| F-number 1.5 | |
| Focus | Automatic (one touch) or manual (electric or on lens) |
| Zoom | 1-8× continuous, digital zoom |
| Digital image enhancement | Noise reduction filter, high sensitivity mode (HSM |
| Detector data | |
| Detector type | Focal plane array (FPA), cooled InSb |
| Spectral range | Built-in cold band pass filter 4.52–4.67 μm |
| Detector pitch | 30 μm |
| Sensor cooling Stirling Microcooler (FLIR MC-3) | |
| Detects following gases Carbon Monoxide, Nitrous Oxide, Ketene, Ethenone, Butyl Isocyanide, Hexyl Isocyanide, Cyano-gen Bromide, Acetonitrile, Acetyl Cyanide, Chlorine Isocyanate, Bromine Isocyanate, Methyl Thiocyanate, Ethyl Thiocyanate, Chlorodimethylsilane, Dichloromethylsilane, Silane, Germane, Arsine | |
| Electronics and data rate | |
| Full frame rate 60 Hz | |
| Image presentation | |
| Display | Built-in widescreen, 4.3 in. LCD, 800 × 480 pixe |
| Viewfinder Built-in, tiltable OLED, 800 × 480 pixels | |
| Automatic image adjustment | Continuous/manual; linear or histogram based |
| Manual image adjustment | Level/span |
| Image presentation modes | |
| Image modes IR image, visual image, high sensitivity mode (HSM) | |
| Measurement | |
| Temperature range | -20°C to +300°C (-4°F to +572°F) |
| Accuracy | ±1°C (±1.8°F) or ±1% of reading for temperature range 0°C to +300°C (+32°F to +572°F) |
| Measurement analysis | |
| Spotmeter | 10 |
| Area | 5 boxes with max./min./average |
| Profile 1 live line (horizontal or vertical) | |
| Difference temperature Delta temperature between measurement functions or reference temperature | |
| Reference temperature Manually set or captured from any measurement function | |
| Emissivity correction Variable from 0.01 to 1.0 or selected from editable materials list | |
| Reflected apparent temperature correction Automatic, based on input of reflected temperature | |
| Measurement corrections | Reflected temperature, distance, atmospheric transmission, humidity, external optics |
| Set-up | |
| Menu commands Level, span | Auto adjust continuous/manual/semi-automaticZoomPaletteStart/stop recordingStore imagePlayback/recall image |
| Color palettes Iron, Gray, Rainbow, Arctic, Lava, | Rainbow HC |
| Set-up commands | 1 programmable button, overlay recording mode, local adaptation of units, language, date and time formats |
| Storage of Images | |
| Storage media Removable SD or SDHC memory | card, two card slots |
| Image storage capacity | >1200 images (JPEG) with post process capability per GB on memory card |
| Image storage mode | IR/visual imagesVisual image can automatically be associated with corresponding IR image |
| Periodic image storage Every 10 seconds up to | 24 hours |
| File formats Standard JPEG, 14 bit measurement | data included |
| Geographic Information System | |
| GPS Location data automatically added to every image from built-in GPS |
| Video recording in camera | |
| Radiometric IR video recording *.seq video clips | to memory card (7.5 and 15 Hz). |
| Non-radiometric IR video recording MPEG4 (up to | 60 minutes/clip) to memory card.Visual image can automatically be associated with corresponding recording of non-radiometric IR video. |
| Visual video recording MPEG4 (25 minutes/clip) | to memory card |
| Video streaming | |
| Radiometric IR video streaming Full dynamic to | PC using USB cable or to mobile devices using Wi-Fi. PC software capable of displaying the video stream include the following:FLIR IR Camera PlayerFLIR ResearchIRFLIR Tools |
| Non-radiometric IR video streaming | RTP/MPEG4 |
| Digital camera | |
| Built-in digital camera | 3.2 Mpixels, auto focus, and two video lamps |
| Laser pointer | |
| Laser Activated by dedicated button | |
| Laser classification Class 2 | |
| Laser type Semiconductor AlGaInP diode laser, 1 | mW, 635nm (red) |
| USB | |
| USB | • USB-A: Connect external USB device• USB Mini-B: Data transfer to and from PC |
| USB, standard USB Mini-B: 2.0 high speed | |
| Composite video | |
| Video out Digital video output (image) | |
| Power system | |
| Battery type Rechargeable Li ion battery | |
| Battery voltage 7.2 V | |
| Battery capacity 4.4 Ah | |
| Battery operating time | >3 hours at 25°C (+77°F) and typical use |
| Charging system | In camera (AC adapter or 12 V from a vehicle) bay charger |
| Charging time | 2.5 h to 95% capacity, charging status indicated LED's |
| External power operation | AC adapter 90–260 VAC, 50/60 Hz or 12 V from a vehicle (cable with standard plug, optional) |
| DC operation | 10.8 to 16 V DC, polarity protected (proprietary protected) |
| Power | 8.5 W typically |
| Start-up time | Typically 7 min. @ 25°C (+77°F) |
| Environmental data | |
| Operating temperature range | -20°C to +50°C (-4°F to +122°F) |
| Storage temperature range | -30°C to +60°C (-22°F to +140°F) |
| Humidity (operating and storage) | IEC 68-2-30/24 h 95% relative humidity +25°C +40°C (+77°F to +104°F) (2 cycles) |
| Directives | • 73/23EEC• 2004/108/EC• 2002/95/EC• 2002/96/EC |
| EMC | • EN61000-6-4 (Emission)• EN61000-6-2 (Immunity)• FCC 47 CFR Part 15 class A (Emission)• EN 61 000-4-8, L5 |
| Encapsulation | IP 54 (IEC 60529) |
| Shock | 25 g (IEC 60068-2-27) |
| Vibration | 2 g (IEC 60068-2-6) |
| Safety | Power supply: EN/UL/IEC 60950-1 |
| Physical data | |
| Camera weight, excl. lens and battery 1.94 kg (4.27 lb.) | |
| Camera weight, incl. lens and excl. battery 2.24 kg (4.94 lb.) | |
| Camera weight, incl. lens and battery 2.48 kg (5.47 lb.) | |
| Battery weight 0.24 kg (0.52 lb.) | |
| Camera size, excl. lens (L × W × H) 284 × 169 × 161 mm (11.2 × 6.7 × 6.3 in.) | |
| Cameras size, incl. lens (L × W × H) 306 × 169 × 161 mm (12.0 × 6.7 × 6.3 in.) | |
| Battery size (L × W × H) 141 × 47 × 28 mm (5.5 × 1.8 × 1.1 in.) | |
| Battery charger size (L × W × H) 158 × 122 × 25 mm (6.2 × 4.8 × 1.0 in.) | |
| Tripod mounting | UNC 14 "-20 |
| Housing material Aluminum, magnesium | |
| Grip material | TPE thermoplastic elastomers |
| Shipping information | |
| Packaging, type | Cardboard box |
| List of contents | Infrared camera with lensBattery chargerBattery, 2 ea.Hard transport caseHDMI-DVI cableHDMI-HDMI cableLens cap (mounted on lens)Memory cardPower supply, incl. multi-plugsPrinted documentationShoulder strapUSB cableWi-Fi USB micro adapter (depending on CE and FCC regulations regarding wireless equipment for your country) |
| Packaging, weight | |
| Packaging, size | 400 × 190 × 510 mm (15.7 × 7.5 × 20.1 in.) |
Supplies & accessories:
• T197692; Battery charger, incl. power supply with multi plugs
• T910814; Power supply, incl. multi plugs
• T198511; Li-Ion Battery pack 7.4V 33Wh
• T199367ACC; Battery Li-ion 7.2 V, 4.4 Ah, 32 Wh
• T911650ACC; Memory card SD Card 8 GB
• 1910423; USB cable Std A <-> Mini-B
• T198509; Cigarette lighter adapter kit, 12 VDC, 1.2 m/3.9 ft.
• T910815ACC; HDMI to HDMI cable 1.5 m
• T910816ACC; HDMI to DVI cable 1.5 m
• T197555; Hard transport case for FLIR GF3xx-Series
• T951387; Wi-Fi USB micro adapter
• T198586; FLIR Reporter Professional (license only)
• T198584; FLIR Tools
• T198583; FLIR Tools+ (download card incl. license key)
• T198585; FLIR VideoReport
• DSW-10000; FLIR IR Camera Player
• APP-10002; FLIR Tools Mobile (Android Application)
• T198697; FLIR ResearchIR Max + HSDR 4 (hardware sec. dev.)
• T199014; FLIR ResearchIR Max + HSDR 4 (printed license key)
• T199044; FLIR ResearchIR Max + HSDR 4 Upgrade (printed license key)
• T198696; FLIR ResearchIR Max 4 (hardware sec. dev.)
• T199013; FLIR ResearchIR Max 4 (printed license key)
• T199043; FLIR ResearchIR Max 4 Upgrade (printed license key)
• T198731; FLIR ResearchIR Standard 4 (hardware sec. dev.)
• T199012; FLIR ResearchIR Standard 4 (printed license key)
• T199042; FLIR ResearchIR Standard 4 Upgrade (printed license key)
• T199233; FLIR Atlas SDK for .NET
• T199234; FLIR Atlas SDK for MATLAB
• T198567; ThermoVision™ System Developers Kit Ver. 2.6
• T198566; ThermoVision™ LabVIEW® Digital Toolkit Ver. 3.3
Mechanical drawings
[See next page]
| Riding 2013-02-18 | Class | Damping R&D Thermography | FLIR |
| Description | |||
| Basic dimension FLIR GF3xx | |||
| Scale A3 | Scale 1:2 | ||
| Scale 1:5 | Scale 1/5 | ||
| Damping B | Damping 1127603 | ||
![Optical axis [3.14in] [79.5mm] [2.47in] 52.7mm [4.36in] 10.7mm](/content/2026/05/836637/images/e6bda32532336928eac615fbecdc03d10f2d87fa617a18d23b038c3763026859.jpg)
| Rohst 2013-02-18 | Class | Dredy R&D Thermography | For additional dimensions see page 1 | ||
| Description: Basic dimension FLIR GF3xx | Size A3 Scale 1:2 Dreding No. T127603 | Dred 2(5) B | |||
12345678910
Camera with Lens IR f=92 mm (6°)
![A B C D E F G H 1 632 54 7 Optical axis [3.9in] [2.47in] 82.7mm [6.76in] [7.17mm] [4.58in] 116.4mm [4.34in] 110.3mm FLIR For additional dimensions see page 1 Klital 2013-02-18 Class R&D Thermography Description: Basic dimension FLIR GF3xx S A3 FLIR Size 1:2 3(5) Drawing ID: T127603 B](/content/2026/05/836637/images/d07cc5416db10db77c7a8340562181130002a497ab541b182e024eccf999d058.jpg)
- No 30% of the company has acted as a executive member of the company, and is not a member of the company, which is not a member of the company, which is not a member of the company, which is not a member of the company, which is not a member of the company, which is not a member of the company, which is not a member of the company, which is not a member of the company, which is not a member of the company, which is not a member of the company, which is not a member of the company, which is not a member of the company, which
Camera with Lens f=23mm and extender
![[4.95in] 125.8mm [0.22in] 5.5mm [2.47in] 82.7mm [8.72in] 221.5mm [3.64in] 92.5mm Optical axis [2.52in] 0.64mm [6.05in] 153.7mm](/content/2026/05/836637/images/923ffe0395d129db33e6b25754d74b00880229c2ee78aa77880dcd2bddca89e4.jpg)
Camera with Lens f=38mm and extender
![Camera with Lens I=38mm and extender [4.95in] -125.8mm [0.22in] 5.5mm [3.64in] 92.5mm Optical axis [7.56in] -0.64mm [6.05in] 153.7mm [2.47in] 52.7mm [10.49in] 266.4mm](/content/2026/05/836637/images/fcd118b959926c72439932213671c7ba5608a6dbfdc48b05cbacc593012f8dcf.jpg)
![[6.47in] 164.3mm [6.05in] 153.7mm [3.31in] 284mm [2.52in] 264mm](/content/2026/05/836637/images/a61f7cf9dcbde619a8f6a65326ed83f069564b5c19925664b6f423c945e4d037.jpg)
| Basic dimension FLIR GF3xx |
24
CE Declaration of conformity
[See next page]
October 17, 2012 AQ125905
CE Declaration of Conformity
This is to certify that the System listed below has been designed and manufactured to meet the requirements, as applicable, of the following EU-Directives and corresponding harmonising standards. The systems consequently meet the requirements for the CE-mark.
Directives:
Directive 2004/108/EC; Electromagnetic Compatibility
Directive 2006/95/EC; "Low voltage Directive" (Power Supply)
Directive 2002/96/EC Waste electrical and electronic equipment; WEEE (As applicable)
Standards:
Emission: EN 61000-6-3; Electro magnetic Compatibility Generic standards - Emission
Immunity: EN 61000-6-2; Electro magnetic Compatibility; Generic standards - Immunity
Safety (Power Supply): EN 60950 (or other) Safety of information technology equipment
System(s): FLIR GF3xx
FLIR Systems AB
Quality Assurance
Cleaning the camera
25.1 Camera housing, cables, and other items
25.1.1 Liquids
Use one of these liquids:
- Warm water
• A weak detergent solution
25.1.2 Equipment
A soft cloth
25.1.3 Procedure
Follow this procedure:
- Soak the cloth in the liquid.
- Twist the cloth to remove excess liquid.
- Clean the part with the cloth.
CAUTION
Do not apply solvents or similar liquids to the camera, the cables, or other items. This can cause damage.
25.2 Infrared lens
25.2.1 Liquids
Use one of these liquids:
- A commercial lens cleaning liquid with more than 30% isopropyl alcohol.
• 96% ethyl alcohol ( GH_5OH ).
25.2.2 Equipment
Cotton wool
| CAUTION |
| If you use a lens cleaning cloth it must be dry. Do not use a lens cleaning cloth with the liquids that are given in section 25.2.1 above. These liquids can cause material on the lens cleaning cloth to become loose.This material can have an unwanted effect on the surface of the lens. |
25.2.3 Procedure
Follow this procedure:
- Soak the cotton wool in the liquid.
- Twist the cotton wool to remove excess liquid.
- Clean the lens one time only and discard the cotton wool.
| WARNING |
| Make sure that you read all applicable MSDS (Material Safety Data Sheets) and warning labels on containers before you use a liquid: the liquids can be dangerous. |
CAUTION
- Be careful when you clean the infrared lens. The lens has a delicate anti-reflective coating.
- Do not clean the infrared lens too vigorously. This can damage the anti-reflective coating.
Cooler maintenance
26.1 General
The microcooler is designed to provide maintenance-free operation for many thousands of hours. The microcooler contains pressurized helium gas.
After several thousand hours of operation the gas pressure decreases, and cooler service is required to restore cooler performance. The cooler also contains micro ball bearings, which may exhibit wear by becoming louder.
26.2 Signs to watch for
The FLIR Systems microcooler is equipped with a closed-loop speed regulator, which adjusts the cooler motor speed to regulate the detector temperature.
Typically, the cooler runs at maximum speed for 7–10 minutes (depending on model), and then slows to about 40% of maximum speed. As the gas pressure degrades, the motor continues at maximum speed for longer and longer periods to attain operating temperature
Eventually, as the helium pressure decreases, the motor will lose the ability to achieve and/or maintain operating temperature. When this occurs, the camera must be returned to FLIR Systems Customer Service Department for service.
27.1 General
The FLIR GF3xx series range of cameras has been engineered and designed to detect various gases, such as hydrocarbons, sulfur hexafluoride, and carbon dioxide. Within the laboratory, FLIR Systems has tested numerous gases for detection at varying concentrations.
27.2 Gases that can be detected by FLIR GF300
| Common name Molecular formula | Structural formula | |
| 1-Pentene | C_5H_10 |  |
| Benzene | C_6H_6 |  |
| Butane | C_4H_10 |  |
| Ethane | C_2H_6 | — |
| Ethanol | C_2H_6O |  |
| Common name Molecular formula Structural formula | ||
| Ethylbenzene | C_8H_10 |  |
| Ethylene | C_2H_4 |  |
| Heptane C | _7H_16 |  |
| Hexane C | _6H_14 |  |
| Isoprene C | _5H_8 |  |
| m-Xylene C | _8H_10 |  |
| Methane CH | 4 |  |
| Methanol | CH_4O |  |
| Methyl ethyl ketone | C_4H_8O |  |
| MIBK C | _6H_10O |  |
| Octane C | _8H_18 |  |
| Pentane C | _5H_12 |  |
| Propane C | _3H_8 |  |
| Propylene | C_3H_6 |  |
| Toluene | C_7H_8 |  |
27.3 Coolants that can be detected by FLIR GF304
• R404A
• R407C
• R410A
• R134A
• R417A
• R422A
• R507A
• R143A
• R125
• R245fa
27.4 Gases that can be detected by FLIR GF306
| Common name Molecular formula Structural formula | ||
| Acetic acid | C_2H_4O_2 |  |
| Acetyl chloride C | _2H_3ClO |  |
| Allyl bromide | C_3H_5Br |  |
| Allyl chloride | C_3H_5Cl |  |
| Allyl fluoride C | _3H_5F |  |
| Ammonia H | _3N |  |
| Bromomethane CH | _3Br |  |
| Chlorine dioxide CIO | 2 |  |
| Ethyl cyanoacrylate C | _6H_7NO_2 |  |
| Ethylene | C_2H_4 |  |
| Furan | C_4H_4O |  |
| Hydrazine H | _4N_2 |  |
| Methyl ethyl ketone C | _4H_8O |  |
| Methyl vinyl ketone C | _4H_6O |  |
| Methylsilane CH | _6Si |  |
| Propenal C | _3H_4O |  |
| Propylene | C_3H_6 |  |
| R 134a | N/A N/A | |
| Sulfur hexafluoride SF | δ |  |
| Tetrahydrofuran C | _4H_8O |  |
| Trichloroethylene | C_2HCl_3 |  |
| Uranyl fluoride F | _2O_2U |  |
| Vinyl chloride C | _2H_3Cl |  |
| Common name Molecular formula | Structural formula | |
| Vinyl cyanide | C_3H_3N |  |
| Vinyl ether | C_4H_6O |  |
27.5 Gases that can be detected by FLIR GF320
| Common name Molecular formula | Structural formula | |
| 1-Pentene | C_5H_10 |  |
| Benzene | C_6H_6 |  |
| Butane | C_4H_10 |  |
| Ethane | C_2H_6 | — |
| Common name Molecular formula Structural formula | ||
| Ethanol | C_2H_6O |  |
| Ethylbenzene | C_8H_10 |  |
| Ethylene | C_2H_4 |  |
| Heptane C | _7H_16 |  |
| Hexane C | _6H_14 |  |
| Isoprene C | _5H_8 |  |
| m-Xylene C | _8H_10 |  |
| Methane | CH_4 |  |
| Methanol | CH_4O |  |
| Methyl ethyl ketone C | _4H_8O |  |
| MIBK C | _6H_10O |  |
| Octane C | _8H_18 |  |
| Pentane C | _5H_12 |  |
| Propane C | _3H_8 |  |
| Common name Molecular formula | Structural formula | |
| Propylene | C_3H_6 |  |
| Toluene | C_7H_8 |  |
27.6 Gases that can be detected by FLIR GF343
| Common name Molecular formula Structural formula | ||
| Carbon dioxide CO | 2 |  |
27.7 Gases that can be detected by FLIR GF346
| Common name Molecular formula | Structural formula | |
| Acetonitrile C | _2H_3N |  |
| Acetyl cyanide C | _3H_3NO |  |
| Common name Molecular formula Structural formula | ||
| Arsine H | _3As |  |
| Bromine isocyanate | CBrNO |  |
| Butyl isocyanide C | _5H_9 N |  |
| Carbon monoxide CO |  | |
| Chlorine isocyanate CCINO |  | |
| Chlorodimethylsilane C | _2H_7ClSi |  |
| Cyanogen bromide CBrN |  | |
| Cyanogen chloride CCIN |  | |
| Dichloromethylsilane | CH_4Cl_2Si |  |
| Ethenone C | _2H_2O |  |
| Ethyl thiocyanate C | _3H_5NS |  |
| Germane H | _4Ge |  |
| Hexyl isocyanide C | _7H_11N |  |
| Ketene C | _2H_2O |  |
| Methyl thiocyanate | C_2H_3NS |  |
| Nitrous oxide | N_2O |  |
| Silane H | _4Si |  |
Why do some gases absorb infrared energy?
From a simplistic mechanical point of view, molecules in a gas could be compared to weights (the balls in the figures below), connected together via springs. Depending on the number of atoms, their respective size and mass, the elastic constant of the springs, molecules may move in given directions, vibrate along an axis, rotate, twist, stretch, rock, wag, etc.
The simplest gas molecules are single atoms, like helium, neon or krypton. They have no way to vibrate or rotate, so they can only move by translation in one direction at a time.
Figure 28.1 Single atom
The next most complex category of molecules is diatomic, made of two atoms such as hydrogen (H), nitrogen (N) and oxygen (O). They have the ability to tumble around their axes in addition to translational motion.
Figure 28.2 Two atoms
Then there are complex diatomic molecules, such as carbon dioxide) (C6H4) (CH4), sulfur hexafluoride (SF), and styrene (CH5CH=CH2) (these are just a few examples).
Figure 28.3 Simple mechanical model of carbon dioxide OB atoms per molecule
This assumption is valid for multi-atomic molecules.
chemical
Molecular structure of methane (CH₄) showing a central carbon atom bonded to four surrounding atomsFigure 28.4 Methane (CH), 5 atoms per molecule
Figure 28.5 Sulfur hexafluoride (SF, 7 atoms per molecule
Figure 28.6 Molecular orbitals of Styrene [C5 CH=CH2] , 16 atoms per molecule
Their increased degrees of freedom allow multiple rotational and vibrational transitions. Because they are built from multiple atoms, they can absorb and emit heat more effectively than simple molecules. Depending on the frequency of the transitions, some of them fall into energy ranges that are located in the infrared region where the infrared camera is sensitive.
| Transition type Frequency | Spectral range | |
| Rotation of heavy molecules 10 | ^9-10^11 Hz Microwaves, above | 3 mm/0.118 in. |
| Rotation of light molecules and vibration of heavy molecules | 10^11-10^13 Hz Far infrared, between | 30 μm and 3 mm/0.118 in. |
| Vibration of light molecules. Rotation and vibration of the structure | 10^13-10^14 Hz Infrared, between | μm and 30 μm |
| Electronic transitions 10 | ^14-10^16 Hz UV-visible |
In order for a molecule to absorb or emit a photon via a transition from one state to another the molecule must have a dipole moment capable of briefly oscillating at the same frequency as the interacting photon. This quantum mechanical interaction allows the electromagnetic field energy of the photon to be captured or emitted by the molecule.
FLIR GF3xx series cameras take advantage of the absorbing and emitting nature of certain molecules, to visualize them in black or white in their native environments. The gas visualization contrast is a function of the gas concentration multiplied by the path length (CL), the temperature difference between to background (e.g. a wall) and the gas plume temperature.
FLIR GF3xx series focal plane arrays and optical systems are specifically tuned to very narrow spectral ranges, in the order of hundreds of nanometers, and are therefore selective. Only gases with sufficient signal strength active in the infrared region that is delimited by a narrow band pass filter can be detected.
Since the energy from the gases is very weak, all camera components are optimized to emit as little energy as possible. This is a very effective solution to provide a sufficient signal-to-noise ratio. Hence, the filter itself is maintained at a cryogenic temperature.
Below, are the measured transmittance spectra of two gases, source: Pacific Northwest National Laboratory (PNNL):
- Benzene (C 6 H 6 ), concentration length: CL=5000 ppmxm—absorbent in the MW region
- Sulfur hexafluoride (SF₆), concentration length: CL=50 ppmxm—absorbent in the LW region
line
| Wavelength, micrometers | Transmittance (%) | | ---------------------- | ----------------- | | 2500 | 100.0 | | 2950 | 100.0 | | 3500 | 100.0 | | 3666 | 100.0 | | 4000 | 100.0 | | 4500 | 100.0 | | 5300 | 100.0 |Figure 28.7 Benzene (CH₆). Strong absorption around 3.2 - 3.3 μm, CL=5000 ppmxm, Source: PNNL
line
| Wavelength, micrometers | Transmittance (%) | | ---------------------- | ----------------- | | 9,000 | 1111.9 | | 5,750 | 1826.9 | | 10,940 | 940.0 | | 13,000 | 769.0 |Figure 28.8 Sulfur hexafluoride (SF). Strong absorption around 10.6 μm, CL=50 ppmxm, Source: PNNL
About FLIR Systems
FLIR Systems was established in 1978 to pioneer the development of high-performance infrared imaging systems, and is the world leader in the design, manufacture, and marketing of thermal imaging systems for a wide variety of commercial, industrial, and government applications. Today, FLIR Systems embraces five major companies with outstanding achievements in infrared technology since 1958—the Swedish AGEMA Infrared Systems (formerly AGA Infrared Systems), the three United States companies Indigo Systems, FSI, and Inframetrics, and the French company Cedip.
Since 2007, FLIR Systems has acquired several companies with world-leading expertise in sensor technologies:
• Extech Instruments (2007)
• Ifara Tecnologías (2008)
• Salvador Imaging (2009)
• OmniTech Partners (2009)
• Directed Perception (2009)
• Raymarine (2010)
• ICx Technologies (2010)
• TackTick Marine Digital Instruments (2011)
• Aerius Photonics (2011)
- Lorex Technology (2012)
- Traficon (2012)
• MARSS (2013)
• DigitalOptics micro-optics business (2013)
• DVTEL (2015)
- Point Grey Research (2016)
• Prox Dynamics (2016)
Figure 29.1 Patent documents from the early 1960s
FLIR Systems has three manufacturing plants in the United States (Portland, OR, Boston, MA, Santa Barbara, CA) and one in Sweden (Stockholm). Since 2007 there is also a
manufacturing plant in Tallinn, Estonia. Direct sales offices in Belgium, Brazil, China, France, Germany, Great Britain, Hong Kong, Italy, Japan, Korea, Sweden, and the USA—together with a worldwide network of agents and distributors—support our international customer base.
FLIR Systems is at the forefront of innovation in the infrared camera industry. We anticipate market demand by constantly improving our existing cameras and developing new ones. The company has set milestones in product design and development such as the introduction of the first battery-operated portable camera for industrial inspections, and the first uncooled infrared camera, to mention just two innovations.
FLIR Systems manufactures all vital mechanical and electronic components of the camera systems itself. From detector design and manufacturing, to lenses and system electronics, to final testing and calibration, all production steps are carried out and supervised by our own engineers. The in-depth expertise of these infrared specialists ensures the accuracy and reliability of all vital components that are assembled into your infrared camera.
29.1 More than just an infrared camera
At FLIR Systems we recognize that our job is to go beyond just producing the best infrared camera systems. We are committed to enabling all users of our infrared camera systems to work more productively by providing them with the most powerful camera-software combination. Especially tailored software for predictive maintenance, R & D, and process monitoring is developed in-house. Most software is available in a wide variety of languages.
We support all our infrared cameras with a wide variety of accessories to adapt your equipment to the most demanding infrared applications.
29.2 Sharing our knowledge
Although our cameras are designed to be very user-friendly, there is a lot more to thermography than just knowing how to handle a camera. Therefore, FLIR Systems has founded the Infrared Training Center (ITC), a separate business unit, that provides certified training courses. Attending one of the ITC courses will give you a truly hands-on learning experience.
The staff of the ITC are also there to provide you with any application support you may need in putting infrared theory into practice.
29.3 Supporting our customers
FLIR Systems operates a worldwide service network to keep your camera running at all times. If you discover a problem with your camera, local service centers have all the equipment and expertise to solve it within the shortest possible time. Therefore, there is no need to send your camera to the other side of the world or to talk to someone who does not speak your language.
Terms, laws, and definitions
| Term Definition | |
| Absorption and emission | The capacity or ability of an object to absorb incident radiated energy is always the same as the capacity to emit its own energy as radiation |
| Apparent temperature uncompensated | reading from an infrared instrument, containing all radiation incident on the instrument, regardless of its sources2 |
| Color palette assigns different colors to | indicate specific levels of apparent temperature. Palettes can provide high or low contrast, depending on the colors used in them |
| Conduction direct transfer of thermal energy | energy from molecule to molecule, caused by collisions between the molecules |
| Convection heat transfer mode where a fluid is brought into motion, either by gravity or another force, thereby transferring heat from one place to another | |
| Diagnostics examination of symptoms and syndromes to determine the nature of faults or failures | |
| Direction of heat transfer | Heat will spontaneously flow from hotter to colder, thereby transferring thermal energy from one place to another |
| Emissivity ratio of the power radiated by real bodies to the power that is radiated by a blackbody at the same temperature and at the same wavelength | |
| Energy conservation7 | The sum of the total energy contents in a closed system is constant |
| Exitant radiation radiation that leaves the surface of an object, regardless of its original sources | |
| Heat thermal energy that is transferred | between two objects (systems) due to their difference in temperature |
| Heat transfer rate | The heat transfer rate under steady state conditions is directly proportional to the thermal conductivity of the object, the cross-sectional area of the object through which the heat flows, and the temperature difference between the two ends of the object. It is inversely proportional to the length, or thickness, of the object |
| Incident radiation | radiation that strikes an object from its surroundings |
| IR thermography | process of acquisition and analysis of thermal information from non-contact thermal imaging devices |
| Isotherm | replaces certain colors in the scale with a contrasting color. It marks an interval of equal apparent temperature |
| Qualitative thermography thermography | that relies on the analysis of thermal patterns to reveal the existence of and to locate the position of anomalies11 |
| Quantitative thermography | thermography that uses temperature measurement to determine the seriousness of an anomaly, in order to establish pair priorities1 |
| Radiative heat transfer Heat transfer by | the emission and absorption of thermal radiation |
| Reflected apparent temperature apparent | temperature of the environment that is reflected by the target into the IR camèra |
| Spatial resolution ability of an IR camèra | to resolve small objects or details |
| Temperature measure of the average k | kinetic energy of the molecules and atoms that make up the substance |
| Thermal energy total kinetic energy of | the molecules that make up the object 13 |
| Thermal gradient gradual change in tem | perature over distance 12 |
| Thermal tuning process of putting the | colors of the image on the object of analysis, in order to maximize contrast |
31.1 Introduction
Calibration of a thermal camera is a prerequisite for temperature measurement. The calibration provides the relationship between the input signal and the physical quantity that the user wants to measure. However, despite its widespread and frequent use, the term "calibration" is often misunderstood and misused. Local and national differences as well as translation-related issues create additional confusion.
Unclear terminology can lead to difficulties in communication and erroneous translations, and subsequently to incorrect measurements due to misunderstandings and, in the worst case, even to lawsuits.
31.2 Definition—what is calibration?
The International Bureau of Weights and Measures defines calibration ^15 in the following way:
an operation that, under specified conditions, in a first step, establishes a relation between the quantity values with measurement uncertainties provided by measurement standards and corresponding indications with associated measurement uncertainties and, in a second step, uses this information to establish a relation for obtaining a measurement result from an indication.
The calibration itself may be expressed in different formats: this can be a statement, calibration function, calibration diagram, calibration curve ^7 , or calibration table.
Often, the first step alone in the above definition is perceived and referred to as being "calibration." However, this is not (always) sufficient.
Considering the calibration procedure of a thermal camera, the first step establishes the relation between emitted radiation (the quantity value) and the electrical output signal (the indication). This first step of the calibration procedure consists of obtaining a homogeneous (or uniform) response when the camera is placed in front of an extended source of radiation.
As we know the temperature of the reference source emitting the radiation, in the second step the obtained output signal (the indication) can be related to the reference source's temperature (measurement result). The second step includes drift measurement and compensation.
To be correct, calibration of a thermal camera is, strictly, not expressed through temperature. Thermal cameras are sensitive to infrared radiation: therefore, at first you obtain a radiance correspondence, then a relationship between radiance and temperature. For bolometer cameras used by non-R&D customers, radiance is not expressed: only the temperature is provided.
31.3 Camera calibration at FLIR Systems
Without calibration, an infrared camera would not be able to measure either radiance or temperature. At FLIR Systems, the calibration of uncooled microbolometer cameras with a
measurement capability is carried out during both production and service. Cooled cameras with photon detectors are often calibrated by the user with special software. With this type of software, in theory, common handheld uncooled thermal cameras could be calibrated by the user too. However, as this software is not suitable for reporting purposes, most users do not have it. Non-measuring devices that are used for imaging only do not need temperature calibration. Sometimes this is also reflected in camera terminology when talking about infrared or thermal imaging cameras compared with thermography cameras, where the latter are the measuring devices.
The calibration information, no matter if the calibration is done by FLIR Systems or the user, is stored in calibration curves, which are expressed by mathematical functions. As radiation intensity changes with both temperature and the distance between the object and the camera, different curves are generated for different temperature ranges and exchangeable lenses.
31.4 The differences between a calibration performed by a user and that performed directly at FLIR Systems
First, the reference sources that FLIR Systems uses are themselves calibrated and traceable. This means, at each FLIR Systems site performing calibration, that the sources are controlled by an independent national authority. The camera calibration certificate is confirmation of this. It is proof that not only has the calibration been performed by FLIR Systems but that it has also been carried out using calibrated references. Some users own or have access to accredited reference sources, but they are very few in number.
Second, there is a technical difference. When performing a user calibration, the result is often (but not always) not drift compensated. This means that the values do not take into account a possible change in the camera's output when the camera's internal temperature varies. This yields a larger uncertainty. Drift compensation uses data obtained in climate-controlled chambers. All FLIR Systems cameras are drift compensated when they are first delivered to the customer and when they are recalibrated by FLIR Systems service departments.
31.5 Calibration, verification and adjustment
A common misconception is to confuse calibration with verification or adjustment. Indeed, calibration is a prerequisite for verification, which provides confirmation that specified requirements are met. Verification provides objective evidence that a given item fulfills specified requirements. To obtain the verification, defined temperatures (emitted radiation) of calibrated and traceable reference sources are measured. The measurement results, including the deviation, are noted in a table. The verification certificate states that these measurement results meet specified requirements. Sometimes, companies or organizations offer and market this verification certificate as a “calibration certificate.”
Proper verification—and by extension calibration and/or recalibration—can only be achieved when a validated protocol is respected. The process is more than placing the camera in front of blackbodies and checking if the camera output (as temperature, for instance) corresponds to the original calibration table. It is often forgotten that a camera is not sensitive to temperature but to radiation. Furthermore, a camera is an imaging system, not just a single sensor. Consequently, if the optical configuration allowing the camera to "collect" radiance is poor or misaligned, then the "verification" (or calibration or recalibration) is worthless.
For instance, one has to ensure that the distance between the blackbody and the camera as well as the diameter of the blackbody cavity are chosen so as to reduce stray radiation and the size-of-source effect.
To summarize: a validated protocol must comply with the physical laws for radiance, and not only those for temperature.
Calibration is also a prerequisite for adjustment, which is the set of operations carried out on a measuring system such that the system provides prescribed indications corresponding to given values of quantities to be measured, typically obtained from measurement standards. Simplified, adjustment is a manipulation that results in instruments that measure correctly within their specifications. In everyday language, the term “calibration” is widely used instead of “adjustment” for measuring devices.
31.6 Non-uniformity correction
When the thermal camera displays "Calibrating..." it is adjusting for the deviation in response of each individual detector element (pixel). In thermography, this is called a "non-uniformity correction" (NUC). It is an offset update, and the gain remains unchanged.
The European standard EN 16714-3, Non-destructive Testing—Thermographic Testing—Part 3: Terms and Definitions, defines an NUC as “Image correction carried out by the camera software to compensate for different sensitivities of detector elements and other optical and geometrical disturbances.”
During the NUC (the offset update), a shutter (internal flag) is placed in the optical path, and all the detector elements are exposed to the same amount of radiation originating from the shutter. Therefore, in an ideal situation, they should all give the same output signal. However, each individual element has its own response, so the output is not uniform. This deviation from the ideal result is calculated and used to mathematically perform an image correction, which is essentially a correction of the displayed radiation signal. Some cameras do not have an internal flag. In this case, the offset update must be performed manually using special software and an external uniform source of radiation.
An NUC is performed, for example, at start-up, when changing a measurement range, or when the environment temperature changes. Some cameras also allow the user to trigger it manually. This is useful when you have to perform a critical measurement with as little image disturbance as possible.
31.7 Thermal image adjustment (thermal tuning)
Some people use the term “image calibration” when adjusting the thermal contrast and brightness in the image to enhance specific details. During this operation, the temperature interval is set in such a way that all available colors are used to show only (or mainly) the temperatures in the region of interest. The correct term for this manipulation is “thermal image adjustment” or “thermal tuning”, or, in some languages, “thermal image optimization.” You must be in manual mode to undertake this, otherwise the camera will set the lower and upper limits of the displayed temperature interval automatically to the coldest and hottest temperatures in the scene.
Thermographic measurement techniques
32.1 Introduction
An infrared camera measures and images the emitted infrared radiation from an object. The fact that radiation is a function of object surface temperature makes it possible for the camera to calculate and display this temperature.
However, the radiation measured by the camera does not only depend on the temperature of the object but is also a function of the emissivity. Radiation also originates from the surroundings and is reflected in the object. The radiation from the object and the reflected radiation will also be influenced by the absorption of the atmosphere.
To measure temperature accurately, it is therefore necessary to compensate for the effects of a number of different radiation sources. This is done on-line automatically by the camera. The following object parameters must, however, be supplied for the camera:
• The emissivity of the object
• The reflected apparent temperature
• The distance between the object and the camera
• The relative humidity
• Temperature of the atmosphere
32.2 Emissivity
The most important object parameter to set correctly is the emissivity which, in short, is a measure of how much radiation is emitted from the object, compared to that from a perfect blackbody of the same temperature.
Normally, object materials and surface treatments exhibit emissivity ranging from approximately 0.1 to 0.95. A highly polished (mirror) surface falls below 0.1, while an oxidized or painted surface has a higher emissivity. Oil-based paint, regardless of color in the visible spectrum, has an emissivity over 0.9 in the infrared. Human skin exhibits an emissivity 0.97 to 0.98.
Non-oxidized metals represent an extreme case of perfect opacity and high reflexivity, which does not vary greatly with wavelength. Consequently, the emissivity of metals is low – only increasing with temperature. For non-metals, emissivity tends to be high, and decreases with temperature.
32.2.1 Finding the emissivity of a sample
32.2.1.1 Step 1: Determining reflected apparent temperature
Use one of the following two methods to determine reflected apparent temperature:
32.2.1.1.1 Method 1: Direct method
Follow this procedure:
- Look for possible reflection sources, considering that the incident angle = reflection angle (a = b).

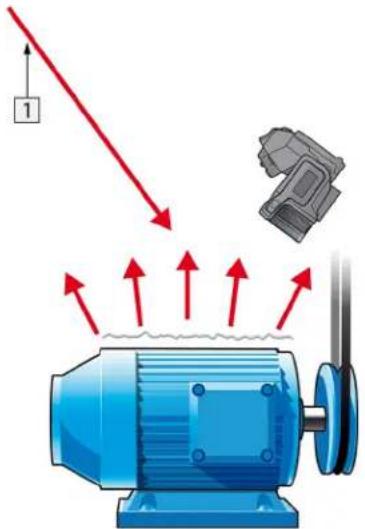

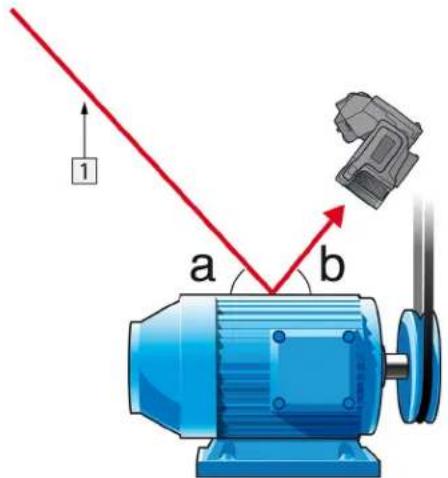

Figure 32.1 1 = Reflection source
- If the reflection source is a spot source, modify the source by obstructing it using a piece if cardboard.

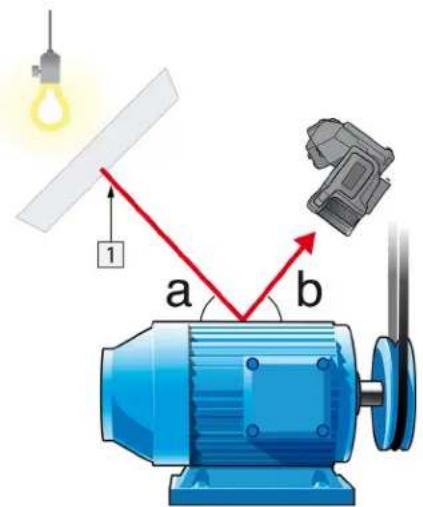

Figure 32.2 1 = Reflection source
-
Measure the radiation intensity (= apparent temperature) from the reflection source using the following settings:
-
Emissivity: 1.0
- D_obj : 0
You can measure the radiation intensity using one of the following two methods:

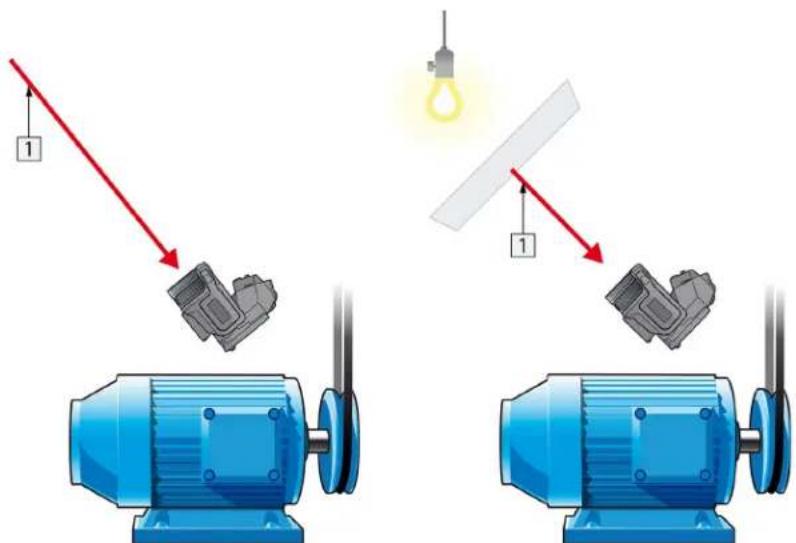

Figure 32.3 1 = Reflection source
Figure 32.4 1 = Reflection source
You can not use a thermocouple to measure reflected apparent temperature, because a thermocouple measures temperature, but apparent temperature is radiation intensity.
32.2.1.1.2 Method 2: Reflector method
Follow this procedure:
- Crumble up a large piece of aluminum foil.
- Uncrumble the aluminum foil and attach it to a piece of cardboard of the same size.
- Put the piece of cardboard in front of the object you want to measure. Make sure that the side with aluminum foil points to the camera.
-
Set the emissivity to 1.0.
-
Measure the apparent temperature of the aluminum foil and write it down. The foil is considered a perfect reflector, so its apparent temperature equals the reflected apparent temperature from the surroundings.
Figure 32.5 Measuring the apparent temperature of the aluminum foil.
32.2.1.2 Step 2: Determining the emissivity
Follow this procedure:
- Select a place to put the sample.
- Determine and set reflected apparent temperature according to the previous procedure.
- Put a piece of electrical tape with known high emissivity on the sample.
- Heat the sample at least 20 K above room temperature. Heating must be reasonably even.
- Focus and auto-adjust the camera, and freeze the image.
- Adjust Level and Span for best image brightness and contrast.
- Set emissivity to that of the tape (usually 0.97).
- Measure the temperature of the tape using one of the following measurement functions:
- Isotherm (helps you to determine both the temperature and how evenly you have heated the sample)
- Spot (simpler)
-
Box Avg (good for surfaces with varying emissivity).
-
Write down the temperature.
- Move your measurement function to the sample surface.
- Change the emissivity setting until you read the same temperature as your previous measurement.
- Write down the emissivity.
Note
- Avoid forced convection
- Look for a thermally stable surrounding that will not generate spot reflections
- Use high quality tape that you know is not transparent, and has a high emissivity you are certain of
- This method assumes that the temperature of your tape and the sample surface are the same. If they are not, your emissivity measurement will be wrong.
32.3 Reflected apparent temperature
This parameter is used to compensate for the radiation reflected in the object. If the emissivity is low and the object temperature relatively far from that of the reflected it will be important to set and compensate for the reflected apparent temperature correctly.
32.4 Distance
The distance is the distance between the object and the front lens of the camera. This parameter is used to compensate for the following two facts:
- That radiation from the target is absorbed by the atmosphere between the object and the camera.
- That radiation from the atmosphere itself is detected by the camera.
32.5 Relative humidity
The camera can also compensate for the fact that the transmittance is also dependent on the relative humidity of the atmosphere. To do this set the relative humidity to the correct value. For short distances and normal humidity the relative humidity can normally be left at a default value of 50%.
32.6 Other parameters
In addition, some cameras and analysis programs from FLIR Systems allow you to compensate for the following parameters:
- Atmospheric temperature – i.e. the temperature of the atmosphere between the camera and the target
- External optics temperature – i.e. the temperature of any external lenses or windows used in front of the camera
- External optics transmittance – i.e. the transmission of any external lenses or windows used in front of the camera
History of infrared technology
Before the year 1800, the existence of the infrared portion of the electromagnetic spectrum wasn't even suspected. The original significance of the infrared spectrum, or simply 'the infrared' as it is often called, as a form of heat radiation is perhaps less obvious today than was at the time of its discovery by Herschel in 1800.
The discovery was made accidentally during the search for a new optical material. Sir William Herschel – Royal Astronomer to King George III of England, and already famous for his discovery of the planet Uranus – was searching for an optical filter material to reduce the brightness of the sun's image in telescopes during solar observations. While testing different samples of colored glass which gave similar reductions in brightness he was intrigued to find that some of the samples passed very little of the sun's heat, while others passed so much heat that he risked eye damage after only a few seconds' observation.
Herschel was soon convinced of the necessity of setting up a systematic experiment, with the objective of finding a single material that would give the desired reduction in brightness as well as the maximum reduction in heat. He began the experiment by actually repeating Newton's prism experiment, but looking for the heating effect rather than the visual distribution of intensity in the spectrum. He first blackened the bulb of a sensitive mercury-in-glass thermometer with ink, and with this as his radiation detector he proceeded to test the heating effect of the various colors of the spectrum formed on the top of a table by passing sunlight through a glass prism. Other thermometers, placed outside the sun's rays, served as controls.
As the blackened thermometer was moved slowly along the colors of the spectrum, the temperature readings showed a steady increase from the violet end to the red end. This was not entirely unexpected, since the Italian researcher, Landriani, in a similar experiment in 1777 had observed much the same effect. It was Herschel, however, who was the first to recognize that there must be a point where the heating effect reaches a maximum, and that measurements confined to the visible portion of the spectrum failed to locate this point.
Moving the thermometer into the dark region beyond the red end of the spectrum, Herschel confirmed that the heating continued to increase. The maximum point, when he found it, lay well beyond the red end – in what is known today as the 'infrared wavelength:
When Herschel revealed his discovery, he referred to this new portion of the electromagnetic spectrum as the 'thermometrical spectrum'. The radiation itself he sometimes referred to as 'dark heat', or simply 'the invisible rays'. Ironically, and contrary to popular opinion, it wasn't Herschel who originated the term 'infrared'. The word only began to appear in print around 75 years later, and it is still unclear who should receive credit as the originator.
Herschel's use of glass in the prism of his original experiment led to some early controversies with his contemporaries about the actual existence of the infrared wavelengths. Different investigators, in attempting to confirm his work, used various types of glass indiscriminately, having different transparencies in the infrared. Through his later experiments, Herschel was aware of the limited transparency of glass to the newly-discovered thermal radiation, and he was forced to conclude that optics for the infrared would probably be doomed to the use of reflective elements exclusively (i.e. plane and curved mirrors). Fortunately, this proved to be true only until 1830, when the Italian investigator, Melloni, made his great discovery that naturally occurring rock salt (NaCl) – which was available in large enough natural crystals to be made into lenses and prisms – is remarkably transparent to the infrared. The result was that rock salt became the principal infrared optical material, and remained so for the next hundred years, until the art of synthetic crystal growing was mastered in the 1930's.
Thermometers, as radiation detectors, remained unchallenged until 1829, the year Nobili invented the thermocouple. (Herschel's own thermometer could be read to 0.2 °C (0.036 °F), and later models were able to be read to 0.05 °C (0.09 °F)). Then a breakthrough occurred; Melloni connected a number of thermocouples in series to form the first thermopile. The new device was at least 40 times as sensitive as the best thermometer of the day for detecting heat radiation – capable of detecting the heat from a person standing three meters away.
The first so-called 'heat-picture' became possible in 1840, the result of work by Sir John Herschel, son of the discoverer of the infrared and a famous astronomer in his own right. Based upon the differential evaporation of a thin film of oil when exposed to a heat pattern focused upon it, the thermal image could be seen by reflected light where the interference effects of the oil film made the image visible to the eye. Sir John also managed to obtain primitive record of the thermal image on paper, which he called a 'thermograph'.
The improvement of infrared-detector sensitivity progressed slowly. Another major break-through, made by Langley in 1880, was the invention of the bolometer. This consisted of a thin blackened strip of platinum connected in one arm of a Wheatstone bridge circuit upon which the infrared radiation was focused and to which a sensitive galvanometer responded. This instrument is said to have been able to detect the heat from a cow at a distance of 400 meters.
An English scientist, Sir James Dewar, first introduced the use of liquefied gases as cooling agents (such as liquid nitrogen with a temperature of -196^ ( -320.8^ )) in low temperature research. In 1892 he invented a unique vacuum insulating container in which it is possible to store liquefied gases for entire days. The common ‘thermos bottle’, used for storing hot and cold drinks, is based upon his invention.
Between the years 1900 and 1920, the inventors of the world 'discovered' the infrared. Many patents were issued for devices to detect personnel, artillery, aircraft, ships – and even icebergs. The first operating systems, in the modern sense, began to be developed during the 1914–18 war, when both sides had research programs devoted to the military exploitation of the infrared. These programs included experimental systems for enemy intrusion/detection, remote temperature sensing, secure communications, and 'flying torpedo' guidance. An infrared search system tested during this period was able to detect an approaching airplane at a distance of 1.5 km (0.94 miles), or a person more than 300 meters (984 ft.) away.
The most sensitive systems up to this time were all based upon variations of the bolometer idea, but the period between the two wars saw the development of two revolutionary new infrared detectors: the image converter and the photon detector. At first, the image converter received the greatest attention by the military, because it enabled an observer for the first time in history to literally 'see in the dark'. However, the sensitivity of the image converter was limited to the near infrared wavelengths, and the most interesting military targets (i.e. enemy soldiers) had to be illuminated by infrared search beams. Since this involved the risk of giving away the observer's position to a similarly-equipped enemy observer, it is understandable that military interest in the image converter eventually faded.
The tactical military disadvantages of so-called 'active' (i.e. search beam-equipped) thermal imaging systems provided impetus following the 1939–45 war for extensive secret military infrared-research programs into the possibilities of developing 'passive' (no search beam) systems around the extremely sensitive photon detector. During this period, military secrecy regulations completely prevented disclosure of the status of infrared-imaging technology. This secrecy only began to be lifted in the middle of the 1950's, and from that time adequate thermal-imaging devices finally began to be available to civilian science and industry.
Theory of thermography
34.1 Introduction
The subjects of infrared radiation and the related technique of thermography are still new to many who will use an infrared camera. In this section the theory behind thermography will be given.
34.2 The electromagnetic spectrum
The electromagnetic spectrum is divided arbitrarily into a number of wavelength regions, called bands, distinguished by the methods used to produce and detect the radiation. There is no fundamental difference between radiation in the different bands of the electromagnetic spectrum. They are all governed by the same laws and the only differences are those due to differences in wavelength.
other
| Segment | Value | |---|---| | 1 | 10 nm | | 2 | 100 nm | | 3 | 1 μm | | 4 | 10 μm | | 5 | 100 μm | | 6 | 1 m | | 7 | 10 m | | 8 | 100 m | | 9 | 1 km | | 10 | 2 μm | | 11 | 13 μm |Figure 34.1 The electromagnetic spectrum. 1: X-ray; 2: UV; 3: Visible; 4: IR; 5: Microwaves; 6: Radiowaves.
Thermography makes use of the infrared spectral band. At the short-wavelength end the boundary lies at the limit of visual perception, in the deep red. At the long-wavelength end it merges with the microwave radio wavelengths, in the millimeter range.
The infrared band is often further subdivided into four smaller bands, the boundaries of which are also arbitrarily chosen. They include: the near infrared (0.75–3 m), the middle infrared (3–6 m), the far infrared (6–15 m) and the extreme infrared (15–100 m). Although the wavelengths are given in m (micrometers), other units are often still used to measure wavelength in this spectral region, e.g. nanometer (nm) and Ångström (Å).
The relationships between the different wavelength measurements is:
$$ 1 0 0 0 0 \mathrm {\AA} = 1 0 0 0 \mathrm{nm} = 1 \mu = 1 \mu \mathrm{m} $$
34.3 Blackbody radiation
A blackbody is defined as an object which absorbs all radiation that impinges on it at any wavelength. The apparent misnomer black relating to an object emitting radiation is explained by Kirchhoff's Law (after Gustav Robert Kirchhoff, 1824–1887), which states that a body capable of absorbing all radiation at any wavelength is equally capable in the emission of radiation.
The construction of a blackbody source is, in principle, very simple. The radiation characteristics of an aperture in an isotherm cavity made of an opaque absorbing material represents almost exactly the properties of a blackbody. A practical application of the principle to the construction of a perfect absorber of radiation consists of a box that is light tight except for an aperture in one of the sides. Any radiation which then enters the hole is scattered and absorbed by repeated reflections so only an infinitesimal fraction can possibly escape. The blackness which is obtained at the aperture is nearly equal to a blackbody and almost perfect for all wavelengths.
By providing such an isothermal cavity with a suitable heater it becomes what is termed a cavity radiator. An isothermal cavity heated to a uniform temperature generates blackbody radiation, the characteristics of which are determined solely by the temperature of the cavity. Such cavity radiators are commonly used as sources of radiation in temperature reference standards in the laboratory for calibrating thermographic instruments, such as a FLIR Systems camera for example.
If the temperature of blackbody radiation increases to more than 525°C (977°F), the source begins to be visible so that it appears to the eye no longer black. This is the incipient red heat temperature of the radiator, which then becomes orange or yellow as the temperature increases further. In fact, the definition of the so-called color temperature of an object is the temperature to which a blackbody would have to be heated to have the same appearance.
Now consider three expressions that describe the radiation emitted from a blackbody.
34.3.1 Planck's law
Max Planck (1858–1947) was able to describe the spectral distribution of the radiation from a blackbody by means of the following formula:
$$ W _ {\lambda b} = \frac {2 \pi h c ^ {2}}{\lambda^ {5} \left(e ^ {h c / \lambda k T} - 1\right)} \times 1 0 ^ {- 6} [ W a t t / m ^ {2}, \mu m ] $$
where:
| W_ b | Blackbody spectral radiant emittance at wavelength . |
| c | Velocity of light = 3 × ^8 h/s |
| h Planck's constant = 6.6 × 10 | ^-34 Joule sec. |
| k Boltzmann's constant = 1.4 × | 10 ^-23 Joule/K. |
| T Absolute temperature (K) of a | blackbody. |
| Wavelength ( m). |
Note The factor 10-6 is used since spectral emittance in the curves is expressed in Watt/m², μm.
Planck's formula, when plotted graphically for various temperatures, produces a family of curves. Following any particular Planck curve, the spectral emittance is zero at = 0 , then increases rapidly to a maximum at a wavelength and after passing it approaches zero again at very long wavelengths. The higher the temperature, the shorter the wavelength at which maximum occurs.
line
| Temperature | Peak Value | | ----------- | ---------- | | 900 K | ~7.5 | | 800 K | ~4.2 | | 700 K | ~2.1 | | 600 K | ~1.3 | | 500 K | ~0.8 |Figure 34.4 Blackbody spectral radiant emittance according to Planck's law, plotted for various absolute temperatures. 1: Spectral radiant emittance (W/6m 10^3( m) ); 2: Wavelength ( m )
34.3.2 Wien's displacement law
By differentiating Planck's formula with respect to , and finding the maximum, we have:
$$ \lambda_ {\max} = \frac {2 8 9 8}{T} [ \mu m ] $$
This is Wien's formula (after Wilhelm Wien, 1864–1928), which expresses mathematically the common observation that colors vary from red to orange or yellow as the temperature of a thermal radiator increases. The wavelength of the color is the same as the wavelength calculated for _max . A good approximation of the value of for a given blackbody temperature is obtained by applying the rule-of-thumb 3 000/T m. Thus, a very hot star such as Sirius (11 000 K), emitting bluish-white light, radiates with the peak of spectral radiant emittance occurring within the invisible ultraviolet spectrum, at wavelength 0.27 m.
The sun (approx. 6 000 K) emits yellow light, peaking at about 0.5 m in the middle of the visible light spectrum.
At room temperature (300 K) the peak of radiant emittance lies at 9.7 m, in the far infrared, while at the temperature of liquid nitrogen (77 K) the maximum of the almost insignificant amount of radiant emittance occurs at 38 m, in the extreme infrared wavelengths.
line
| Temperature (K) | Value | | --------------- | ----- | | 1000 | 10^4 | | 800 | 10^3 | | 700 | 10^2 | | 600 | 10^1 | | 500 | 10^0 | | 400 | 10^-1 | | 300 | 10^-2 | | 200 | 10^-3 | | 100 | 10^-4 |Figure 34.6 Planckian curves plotted on semi-log scales from 100 K to 1000 K. The dotted line represents the locus of maximum radiant emittance at each temperature as described by Wien's displacement law. 1: Spectral radiant emittance (W/cm(μm)); 2: Wavelength (μm).
34.3.3 Stefan-Boltzmann's law
By integrating Planck's formula from = 0 to = , we obtain the total radiant emittance (W_b) of a blackbody:
$$ W _ {b} = \sigma T ^ {4} [ \mathrm{Watt/m} ^ {2} ] $$
This is the Stefan-Boltzmann formula (after Josef Stefan, 1835–1893, and Ludwig Boltzmann, 1844–1906), which states that the total emissive power of a blackbody is proportional to the fourth power of its absolute temperature. Graphically represents the area below the Planck curve for a particular temperature. It can be shown that the radiant emittance in the interval = 0 max is only 25% of the total, which represents about the amount of the sun's radiation which lies inside the visible light spectrum.
Using the Stefan-Boltzmann formula to calculate the power radiated by the human body, at a temperature of 300 K and an external surface area of approx. we obtain 1 kW. This power loss could not be sustained if it were not for the compensating absorption of radiation from surrounding surfaces, at room temperatures which do not vary too drastically from the temperature of the body – or, of course, the addition of clothing.
34.3.4 Non-blackbody emitters
So far, only blackbody radiators and blackbody radiation have been discussed. However, real objects almost never comply with these laws over an extended wavelength region – although they may approach the blackbody behavior in certain spectral intervals. For example, a certain type of white paint may appear perfectly white in the visible light spectrum but becomes distinctly gray at about 2 m, and beyond 3 m it is almost black.
There are three processes which can occur that prevent a real object from acting like a blackbody: a fraction of the incident radiation may be absorbed, a fraction may be reflected, and a fraction may be transmitted. Since all of these factors are more or less wavelength dependent, the subscript is used to imply the spectral dependence of their definitions. Thus:
- The spectral absorptance = the ratio of the spectral radiant power absorbed by an object to that incident upon it.
- The spectral reflectance = the ratio of the spectral radiant power reflected by an object to that incident upon it.
- The spectral transmittance = the ratio of the spectral radiant power transmitted through an object to that incident upon it.
The sum of these three factors must always add up to the whole at any wavelength, so we have the relation:
$$ \alpha_ {\lambda} + \rho_ {\lambda} + \tau_ {\lambda} = 1 $$
For opaque materials =0 and the relation simplifies to:
$$ \varepsilon_ {\lambda} + \rho_ {\lambda} = 1 $$
Another factor, called the emissivity, is required to describe the fraction of the radiant emittance of a blackbody produced by an object at a specific temperature. Thus, we have the definition:
The spectral emissivity the ratio of the spectral radiant power from an object to that from a blackbody at the same temperature and wavelength.
Expressed mathematically, this can be written as the ratio of the spectral emittance of the object to that of a blackbody as follows:
$$ \varepsilon_ {\lambda} = \frac {W _ {\lambda o}}{W _ {\lambda b}} $$
Generally speaking, there are three types of radiation source, distinguished by the ways in which the spectral emittance of each varies with wavelength.
- A blackbody, for which = = 1
- A graybody, for which = = constant less than 1
- A selective radiator, for which varies with wavelength
According to Kirchhoff's law, for any material the spectral emissivity and spectral absorptance of a body are equal at any specified temperature and wavelength. That is:
$$ \varepsilon_ {\lambda} = \alpha_ {\lambda} $$
From this we obtain, for an opaque material (since = 1 ):
$$ \varepsilon_ {\lambda} + \rho_ {\lambda} = 1 $$
For highly polished materials, approaches zero, so that for a perfectly reflecting material (i.e. a perfect mirror) we have:
$$ \rho_ {\lambda} = 1 $$
For a graybody radiator, the Stefan-Boltzmann formula becomes:
$$ W = \varepsilon \sigma T ^ {4} [ \mathrm{Watt/m} ^ {2} ] $$
This states that the total emissive power of a graybody is the same as a blackbody at the same temperature reduced in proportion to the value of from the graybody.
line
| Curve | Peak Position | Value | |-------|---------------|-------| | 3 | First Peak | High | | 4 | Second Peak | Medium| | 5 | Third Peak | Low |Figure 34.8 Spectral radiant emittance of three types of radiators. 1: Spectral radiant emittance; 2: Wavelength; 3: Blackbody; 4: Selective radiator; 5: Graybody.
line
| x | y | | ---- | ----- | | 0 | 0.0 | | 1 | 1.0 | | 2 | 0.5 | | 3 | 1.0 | | 4 | 0.5 | | 5 | 0.0 |Figure 34.9 Spectral emissivity of three types of radiators. 1: Spectral emissivity; 2: Wavelength; 3: Blackbody; 4: Graybody; 5: Selective radiator.
34.4 Infrared semi-transparent materials
Consider now a non-metallic, semi-transparent body – let us say, in the form of a thick flat plate of plastic material. When the plate is heated, radiation generated within its volume must work its way toward the surfaces through the material in which it is partially absorbed. Moreover, when it arrives at the surface, some of it is reflected back into the interior. The back-reflected radiation is again partially absorbed, but some of it arrives at the other surface, through which most of it escapes; part of it is reflected back again. Although the progressive reflections become weaker and weaker they must all be added up when the total emittance of the plate is sought. When the resulting geometrical series is summed, the effective emissivity of a semi-transparent plate is obtained as:
$$ \varepsilon_ {\lambda} = \frac {(1 - \rho_ {\lambda}) (1 - \tau_ {\lambda})}{1 - \rho_ {\lambda} \tau_ {\lambda}} $$
When the plate becomes opaque this formula is reduced to the single formula:
$$ \varepsilon_ {\lambda} = 1 - \rho_ {\lambda} $$
This last relation is a particularly convenient one, because it is often easier to measure reflectance than to measure emissivity directly.
The measurement formula
As already mentioned, when viewing an object, the camera receives radiation not only from the object itself. It also collects radiation from the surroundings reflected via the object surface. Both these radiation contributions become attenuated to some extent by the atmosphere in the measurement path. To this comes a third radiation contribution from the atmosphere itself.
This description of the measurement situation, as illustrated in the figure below, is so far a fairly true description of the real conditions. What has been neglected could for instance be sun light scattering in the atmosphere or stray radiation from intense radiation sources outside the field of view. Such disturbances are difficult to quantify, however, in most cases they are fortunately small enough to be neglected. In case they are not negligible, the measurement configuration is likely to be such that the risk for disturbance is obvious, at least to a trained operator. It is then his responsibility to modify the measurement situation to avoid the disturbance e.g. by changing the viewing direction, shielding off intense radiation sources etc.
Accepting the description above, we can use the figure below to derive a formula for the calculation of the object temperature from the calibrated camera output.


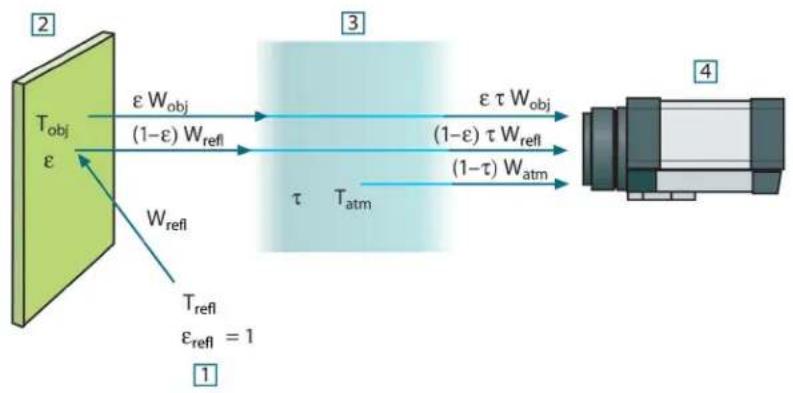

Figure 35.1 A schematic representation of the general thermographic measurement situation.1: Surroundings; 2: Object; 3: Atmosphere; 4: Camera
Assume that the received radiation power W from a blackbody source of temperature T_source on short distance generates a camera output signal that is proportional to the power input (power linear camera). We can then write (Equation 1):
$$ U _ {\text { source }} = C W (T _ {\text { source }}) $$
or, with simplified notation:
$$ U _ {\text { source }} = C W _ {\text { source }} $$
where C is a constant.
Should the source be a graybody with emittance , the received radiation would consequently be W_source .
We are now ready to write the three collected radiation power terms:
-
Emission from the object = ετW, where ε is the emittance of the object and τ is the transmittance of the atmosphere. The object temperature is T
-
Reflected emission from ambient sources = (1 - ) where (1 - ) is the reflectance of the object. The ambient sources have the temperature T. It has here been assumed that the temperature is the same for all emitting surfaces within the halfsphere seen from a point on the object surface. This is of course sometimes a simplification of the true situation. It is, however, a necessary simplification in order to derive a workable formula, and can - at least theoretically - be given a value that represents an efficient temperature of a complex surrounding.
Note also that we have assumed that the emittance for the surroundings = 1. This is correct in accordance with Kirchhoff's law: All radiation impinging on the surrounding surfaces will eventually be absorbed by the same surfaces. Thus the emittance = 1. (Note though that the latest discussion requires the complete sphere around the object to be considered.)
- Emission from the atmosphere = (1 - τ)W where (1 - τ) is the emittance of the atmosphere. The temperature of the atmosphere is T
The total received radiation power can now be written (Equation 2):
$$ W _ {t o t} = \varepsilon \tau W _ {o b j} + (1 - \varepsilon) \tau W _ {r e f l} + (1 - \tau) W _ {a t m} $$
We multiply each term by the constant C of Equation 1 and replace the CW products by the corresponding U according to the same equation, and get (Equation 3):
$$ U _ {t o t} - \varepsilon \tau U _ {o b j} + (1 - \varepsilon) \tau U _ {r c f l} + (1 - \tau) U _ {a t m} $$
Solve Equation 3 for _obj (Equation 4):
$$ U _ {o b j} = \frac {1}{\varepsilon \tau} U _ {t o t} - \frac {1 - \varepsilon}{\varepsilon} U _ {r c f l} - \frac {1 - \tau}{\varepsilon \tau} U _ {a t m} $$
This is the general measurement formula used in all the FLIR Systems thermographic equipment. The voltages of the formula are:
Table 35.1 Voltages
| U_obj | Calculated camera output voltage for a blackbody of temperature T_i.e. a voltage that can be directly converted into true requested object temperature. |
| U_tot | Measured camera output voltage for the actual case. |
| U_refl | Theoretical camera output voltage for a blackbody of temperature T_refl according to the calibration. |
| U_atm | Theoretical camera output voltage for a blackbody of temperature T_atm according to the calibration. |
The operator has to supply a number of parameter values for the calculation:
• the object emittance ε,
• the relative humidity,
- T_atm
- object distance (D_obj)
- the (effective) temperature of the object surroundings, or the reflected ambient temperature T_eff , and
- the temperature of the atmosphere _atm
This task could sometimes be a heavy burden for the operator since there are normally no easy ways to find accurate values of emittance and atmospheric transmittance for the
actual case. The two temperatures are normally less of a problem provided the surroundings do not contain large and intense radiation sources.
A natural question in this connection is: How important is it to know the right values of these parameters? It could though be of interest to get a feeling for this problem already here by looking into some different measurement cases and compare the relative magnitudes of the three radiation terms. This will give indications about when it is important to use correct values of which parameters.
The figures below illustrates the relative magnitudes of the three radiation contributions for three different object temperatures, two emittances, and two spectral ranges: SW and LW. Remaining parameters have the following fixed values:
• = 0.88
• T_refl = +20^ (+68^)
- T_atm = +20^ (+68^)
It is obvious that measurement of low object temperatures are more critical than measuring high temperatures since the 'disturbing' radiation sources are relatively much stronger in the first case. Should also the object emittance be low, the situation would be still more difficult.
We have finally to answer a question about the importance of being allowed to use the calibration curve above the highest calibration point, what we call extrapolation. Imagine that we in a certain case measure _tot 4.5 volts. The highest calibration point for the camera was in the order of 4.1 volts, a value unknown to the operator. Thus, even if the object has been to be a blackbody, i.e. _tot , we are actually performing extrapolation of the calibration curve when converting 4.5 volts into temperature.
Let us now assume that the object is not black, it has an emittance of 0.75, and the transmittance is 0.92. We also assume that the two second terms of Equation 4 amount to 0.5 volts together. Computation of by means of Equation 4 then results in 14.5 / 0.75
/ 0.92 - 0.5 = 6.0. This is a rather extreme extrapolation, particularly when considering that the video amplifier might limit the output to 5 volts! Note, though, that the application of the calibration curve is a theoretical procedure where no electronic or other limitations exist.
We trust that if there had been no signal limitations in the camera, and if it had been calibrated far beyond 5 volts, the resulting curve would have been very much the same as our real curve extrapolated beyond 4.1 volts, provided the calibration algorithm is based on radiation physics, like the FLIR Systems algorithm. Of course there must be a limit to such extrapolations.

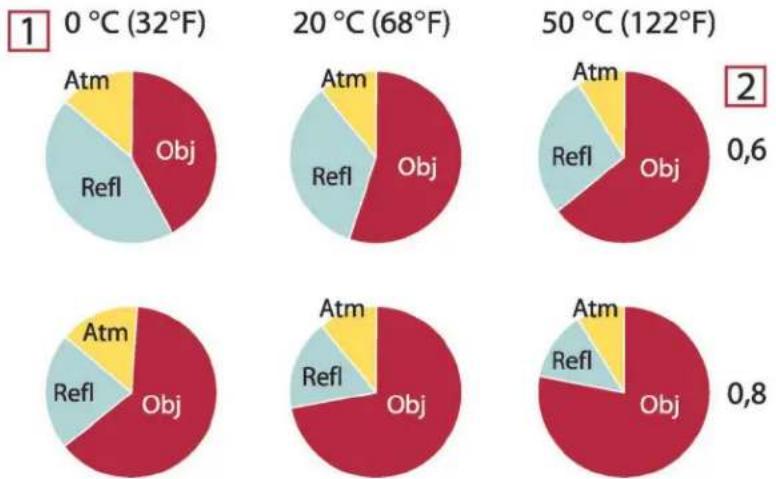

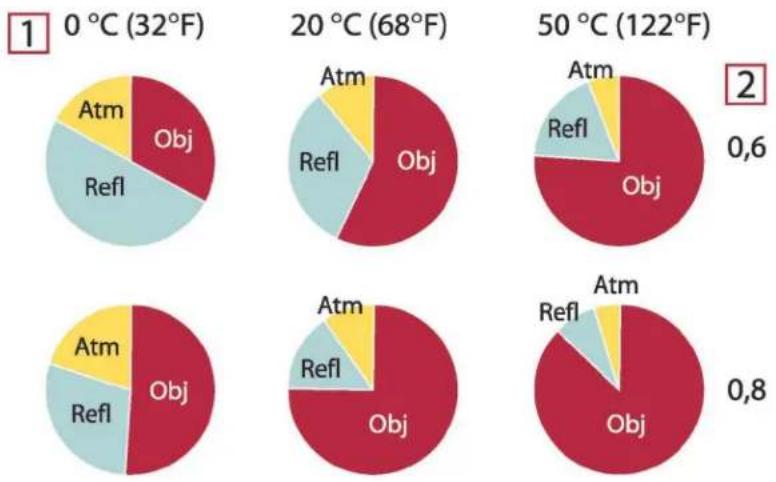

Figure 35.2 Relative magnitudes of radiation sources under varying measurement conditions (SW camera).
1: Object temperature; 2: Emittance; Obj: Object radiation; Refl: Reflected radiation; Atm: atmosphere radiation. Fixed parameters: = 0.88_eff = 20^ (+68^) ; T_m = 20^ (+68^) .
Figure 35.3 Relative magnitudes of radiation sources under varying measurement conditions (LW camera).
1: Object temperature; 2: Emittance; Obj: Object radiation; Refl: Reflected radiation; Atm: atmosphere radiation. Fixed parameters: = 0.88eT = 20^ (+68°F); _m = 20^ (+68°F).
This section presents a compilation of emissivity data from the infrared literature and measurements made by FLIR Systems.
36.1 References
- Mikaël A. Bramson: Infrared Radiation, A Handbook for Applications, Plenum press, N.Y.
- William L. Wolfe, George J. Zissis: The Infrared Handbook, Office of Naval Research, Department of Navy, Washington, D.C.
- Madding, R. P.: Thermographic Instruments and systems. Madison, Wisconsin: University of Wisconsin – Extension, Department of Engineering and Applied Science.
- William L. Wolfe: Handbook of Military Infrared Technology, Office of Naval Research, Department of Navy, Washington, D.C.
- Jones, Smith, Probert: External thermography of buildings..., Proc. of the Society of Photo-Optical Instrumentation Engineers, vol.110, Industrial and Civil Applications of Infrared Technology, June 1977 London.
- Paljak, Pettersson: Thermography of Buildings, Swedish Building Research Institute, Stockholm 1972.
- Vlcek, J: Determination of emissivity with imaging radiometers and some emissivities at = 5 m . Photogrammetric Engineering and Remote Sensing.
- Kern: Evaluation of infrared emission of clouds and ground as measured by weather satellites, Defence Documentation Center, AD 617 417.
- Öhman, Claes: Emittansmätningar med AGEMA E-Box. Teknisk rapport, AGEMA 1999. (Emittance measurements using AGEMA E-Box. Technical report, AGEMA 1999.)
- Matteï, S., Tang-Kwor, E: Emissivity measurements for Nextel Velvet coating 811-21 between -36^ AND 82^ .
- Lohrengel & Todtenhaupt (1996)
- ITC Technical publication 32.
- ITC Technical publication 29.
- Schuster, Norbert and Kolobrodov, Valentin G. Infrarotthermographie. Berlin: Wiley-VCH, 2000.
Note The emissivity values in the table below are recorded using a shortwave (SW) camera. The values should be regarded as recommendations only and used with caution.
36.2 Tables
Table 36.1 T: Total spectrum; SW: 2–5 μm; LW: 8–14 μm, LLW: 6.5–20 μm; 1: Material; 2: Specification; 3: Temperature in °C; 4: Spectrum; 5: Emissivity: 6: Reference
| 1 2 3 4 5 | 6 | ||||
| 3M type 35 | Vinyl electrical tape (several colors) | < 80 | LW | ≈ 0.96 | 13 |
| 3M type 88 | Black vinyl electrical tape | < 105 | LW | ≈ 0.96 | 13 |
| 3M type 88 | Black vinyl electrical tape | < 105 | MW | < 0.96 | 13 |
| 3M type Super 33 + | Black vinyl electrical tape | < 80 | LW | ≈ 0.96 | 13 |
| Aluminum1 2 3 4 5 6 | anodized sheet | 100 | T | 0.55 | 2 |
| Aluminum anodized, black, dull | 70 | SW | 0.67 9 | ||
| Aluminum anodized, black, dull | 70 LW 0.95 9 | ||||
| Aluminum anodized, light gray, dull | 70 | SW | 0.61 9 | ||
| Aluminum anodized, light gray, dull | 70 LW 0.97 9 | ||||
| Aluminum as received, plate 100 T 0.09 4 | |||||
| Aluminum as received, sheet 100 T 0.09 2 | |||||
| Aluminum cast, blast cleaned | 70 | SW | 0.47 9 | ||
| Aluminum cast, blast cleaned | 70 LW 0.46 9 | ||||
| Aluminum dipped in HNO 3, plate | 100 T 0.05 4 | ||||
| Aluminum foil | 27 10 μm 0.04 | 3 | |||
| Aluminum foil | 27 3 μm 0.09 | 3 | |||
| Aluminum | oxidized, strongly | 50-500 | T | 0.2-0.3 | 1 |
| Aluminum polished | 50-100 | T 0.04-0.06 1 | |||
| Aluminum polished | plate 100 T 0.05 4 | ||||
| Aluminum polished | sheet 100 T 0.05 2 | ||||
| Aluminum rough surface | 20-50 | T 0.06-0.07 1 | |||
| Aluminum roughened | 27 10 μm 0.18 3 | ||||
| Aluminum roughened | 27 3 μm 0.28 3 | ||||
| Aluminum sheet, 4 | samples differently scratched | 70 | SW | 0.05-0.08 9 | |
| Aluminum sheet, 4 | samples differently scratched | 70 LW 0.03-0.06 9 | |||
| Aluminum vacuum deposited | 20 T 0.04 2 | ||||
| Aluminum weathered, heavily | 17 | SW | 0.83-0.94 5 | ||
| Aluminum bronze | 20 T 0.60 1 | ||||
| Aluminum hydroxide | powder | T 0.28 1 | |||
| Aluminum oxide | activated, powder | T 0.46 1 | |||
| Aluminum oxide | pure, powder (alumina) | T 0.16 1 | |||
| Asbestos | board | 20 T 0.96 1 | |||
| Asbestos | fabric | T 0.78 1 | |||
| Asbestos | floor tile | 35 | SW | 0.94 7 | |
| Asbestos | paper | 40-400 | T 0.93-0.95 1 | ||
| Asbestos powder T | 0.40–0.60 1 | ||||
| Asbestos slate 20 | T 0.96 1 | ||||
| Asphalt paving | 4 LLW 0.967 | 8 | |||
| Brass | dull, tarnished | 20–350 | T 0.22 1 | ||
| Brass | oxidized | 100 | T 0.61 2 | ||
| Brass | oxidized | 70 | SW | 0.04–0.09 9 | |
| Brass | oxidized | 70 LW 0.03–0.07 9 | |||
| Brass | oxidized at 600°C | 200–600 | T 0.59–0.61 1 | ||
| Brass | polished | 200 | T 0.03 1 | ||
| Brass | polished, highly | 100 | T 0.03 2 | ||
| Brass | rubbed with 80-grit emery | 20 T 0.20 2 | |||
| Brass | sheet, rolled | 20 T 0.06 1 | |||
| Brass | sheet, worked with emery | 20 T 0.2 | 1 | ||
| Brick | alumina | 17 | SW | 0.68 5 | |
| Brick | common | 17 | SW | 0.86–0.81 5 | |
| Brick | Dinas silica, glazed, rough | 1100 | T 0.85 1 | ||
| Brick | Dinas silica, refractory | 1000 | T 0.66 1 | ||
| Brick | Dinas silica, un-glazed, rough | 1000 | T 0.80 1 | ||
| Brick | firebrick | 17 | SW | 0.68 5 | |
| Brick | fireclay | 1000 | T 0.75 1 | ||
| Brick | fireclay | 1200 | T 0.59 1 | ||
| Brick | fireclay | 20 T 0.85 1 | |||
| Brick | masonry | 35 | SW | 0.94 7 | |
| Brick | masonry, plastered | 20 T 0.94 1 | |||
| Brick | red, common | 20 T 0.93 2 | |||
| Brick | red, rough | 20 T 0.88–0.93 1 | |||
| Brick | refractory, corundum | 1000 | T 0.46 1 | ||
| Brick | refractory, magnesite | 1000–1300 | T 0.38 1 | ||
| Brick | refractory, strongly radiating | 500–1000 T 0.8–0.9 | 1 | ||
| Brick | refractory, weakly radiating | 500–1000 T 0.65–0.75 1 | |||
| Brick | silica, 95% SiO | 1230 | T 0.66 1 | ||
| Brick | sillimanite, 33% SiO2, 64% AlO3 | 1500 | T 0.29 1 | ||
| Brick waterproof | 17 | SW | 0.87 5 | ||
| Bronze phosphor bronze 70 | SW | 0.08 9 | |||
| Bronze phosphor bronze 70 LW 0.06 9 | |||||
| Bronze polished 50 T 0.1 | 1 | ||||
| Bronze porous, rough 50–150 | T | 0.55 1 | |||
| Bronze powder | T | 0.76–0.80 | 1 | ||
| Carbon | candle soot | 20 T 0.95 | 2 | ||
| Carbon | charcoal powder | T | 0.96 1 | ||
| Carbon | graphite powder | T | 0.97 1 | ||
| Carbon | graphite, filed surface | 20 T 0.98 | 2 | ||
| Carbon | lampblack | 20–400 | T | 0.95–0.97 | 1 |
| Chipboard | untreated | 20 | SW | 0.90 6 | |
| Chromium | polished 50 T | 0.10 1 | |||
| Chromium | polished | 500–1000 | T | 0.28–0.38 | 1 |
| Clay | fired | 70 T 0.91 | 1 | ||
| Cloth | black | 20 T 0.98 | 1 | ||
| Concrete | 20 T 0.92 | 2 | |||
| Concrete | dry | 36 SW | 0.95 7 | ||
| Concrete | rough | 17 SW | 0.97 5 | ||
| Concrete | walkway | 5 | LLW | 0.974 | 8 |
| Copper | commercial, burnished | 20 T 0.07 | 1 | ||
| Copper | electrolytic, carefully polished | 80 T 0.018 | 1 | ||
| Copper | electrolytic, polished | -34 | T | 0.006 | 4 |
| Copper | molten | 1100–1300 | T | 0.13–0.15 | 1 |
| Copper | oxidized | 50 T 0.6–0.7 | 1 | ||
| Copper | oxidized to blackness | T | 0.88 1 | ||
| Copper | oxidized, black | 27 T 0.78 | 4 | ||
| Copper | oxidized, heavily | 20 T 0.78 | 2 | ||
| Copper | polished 50–100 | T | 0.02 1 | ||
| Copper | polished 100 | T | 0.03 2 | ||
| Copper | polished, commercial | 27 T 0.03 | 4 | ||
| Copper | polished, mechanical | 22 T 0.015 | 4 | ||
| Copper | pure, carefully prepared surface | 22 T 0.008 | 4 | ||
| Copper | scraped | 27 T 0.07 | 4 | ||
| Copper dioxide | powder T 0.84 1 | ||||
| Copper oxide | red, powder T 0.70 1 | ||||
| Ebonite T 0.89 1 | |||||
| Emery | coarse 80 T 0.85 1 | ||||
| Enamel | 20 T 0.9 | 1 | |||
| Enamel | lacquer | 20 T 0.85–0.95 | 1 | ||
| Fiber board | hard, untreated | 20 | SW | 0.85 6 | |
| Fiber board | masonite | 70 | SW | 0.75 9 | |
| Fiber board | masonite | 70 LW 0.88 | 9 | ||
| Fiber board | particle board | 70 | SW | 0.77 9 | |
| Fiber board | particle board | 70 LW 0.89 | 9 | ||
| Fiber board | porous, untreated | 20 | SW | 0.85 6 | |
| Glass pane (float glass) | non-coated | 20 LW 0.97 | 14 | ||
| Gold | polished | 130 | T 0.018 | 1 | |
| Gold | polished, carefully | 200–600 | T 0.02–0.03 | 1 | |
| Gold | polished, highly | 100 | T 0.02 2 | ||
| Granite | polished | 20 LLW 0.849 | 8 | ||
| Granite | rough | 21 | LLW | 0.879 | 8 |
| Granite | rough, 4 different samples | 70 | SW | 0.95–0.97 | 9 |
| Granite | rough, 4 different samples | 70 LW 0.77–0.87 | 9 | ||
| Gypsum | 20 T 0.8–0.9 | 1 | |||
| Ice: See Water | |||||
| Iron and steel | cold rolled | 70 | SW | 0.20 9 | |
| Iron and steel | cold rolled | 70 LW 0.09 | 9 | ||
| Iron and steel | covered with red rust | 20 T 0.61–0.85 | 1 | ||
| Iron and steel | electrolytic | 100 | T | 0.05 | 4 |
| Iron and steel | electrolytic | 22 T 0.05 4 | |||
| Iron and steel | electrolytic | 260 | T | 0.07 | 4 |
| Iron and steel | electrolytic, carefully polished | 175–225 | T 0.05–0.06 | 1 | |
| Iron and steel | freshly worked with emery | 20 T 0.24 1 | |||
| Iron and steel | ground sheet | 950–1100 | T | 0.55–0.61 | 1 |
| Iron and steel | heavily rusted sheet | 20 T 0.69 2 | |||
| Iron and steel | hot rolled | 130 | T 0.60 | 1 | |
| Iron and steel | hot rolled | 20 T 0.77 1 | |||
| Iron and steel | oxidized | 100 | T 0.74 | 4 | |
| Iron and steel oxidized 100 T 0.74 1 | |||||
| Iron and steel oxidized 1227 T 0.89 4 | |||||
| Iron and steel oxidized 125-525 T 0.78-0.82 | 1 | ||||
| Iron and steel oxidized 200 T 0.79 2 | |||||
| Iron and steel oxidized 200-600 T 0.80 1 | |||||
| Iron and steel oxidized strongly 50 | T 0.88 1 | ||||
| Iron and steel oxidized strongly 500 | T 0.98 1 | ||||
| Iron and steel polished 100 | T 0.07 2 | ||||
| Iron and steel polished | 400-1000 | T | 0.14-0.38 | 1 | |
| Iron and steel polished sheet | 750-1050 | T | 0.52-0.56 | 1 | |
| Iron and steel rolled sheet 50 | T 0.56 1 | ||||
| Iron and steel rolled, freshly | 20 | T 0.24 1 | |||
| Iron and steel rough, plane surface | 50 | T 0.95-0.98 1 | |||
| Iron and steel rusted red, sheet 22 | T 0.69 4 | ||||
| Iron and steel rusted, heavily 17 | SW | 0.96 5 | |||
| Iron and steel rusty, red 20 | T 0.69 1 | ||||
| Iron and steel shiny oxide layer, sheet, | 20 | T 0.82 1 | |||
| Iron and steel shiny, etched 150 | T 0.16 1 | ||||
| Iron and steel wrought, carefully polished | 40-250 | T 0.28 1 | |||
| Iron galvanized | heavily oxidized | 70 | SW | 0.64 9 | |
| Iron galvanized | heavily oxidized | 70 | LW | 0.85 | 9 |
| Iron galvanized | sheet | 92 | T 0.07 4 | ||
| Iron galvanized | sheet, burnished | 30 | T | 0.23 | 1 |
| Iron galvanized | sheet, oxidized | 20 | T | 0.28 | 1 |
| Iron tinned | sheet | 24 | T | 0.064 | 4 |
| Iron, cast | casting | 50 | T 0.81 1 | ||
| Iron, cast | ingots | 1000 T 0.95 1 | |||
| Iron, cast | liquid | 1300 T 0.28 1 | |||
| Iron, cast | machined | 800-1000 | T | 0.60-0.70 | 1 |
| Iron, cast | oxidized 100 T 0.64 2 | ||||
| Iron, cast | oxidized 260 T 0.66 4 | ||||
| Iron, cast | oxidized 38 | T 0.63 4 | |||
| Iron, cast | oxidized 538 T 0.76 4 | ||||
| Iron, cast | oxidized at 600°C | 200-600 T 0.64-0.78 | 1 | ||
| Iron, cast | polished | 200 T 0.21 1 | |||
| Iron, cast | polished | 38 | T 0.21 4 | ||
| Iron, cast | polished | 40 | T 0.21 2 | ||
| Iron, cast unworked | 900-1100 T 0.87-0.95 1 | ||||
| Krylon Ultra-flat black 1602 | Flat black Room temperature up to 175 | LW ≈ 0.96 12 | |||
| Krylon Ultra-flat black 1602 | Flat black Room temperature up to 175 | MW | ≈ 0.97 12 | ||
| Lacquer | 3 colors sprayed on Aluminum | 70 | SW | 0.50-0.53 9 | |
| Lacquer | 3 colors sprayed on Aluminum | 70 | LW 0.92 | -0.94 9 | |
| Lacquer | Aluminum on rough surface | 20 | T 0.4 | 1 | |
| Lacquer | bakelite | 80 | T | 0.83 | 1 |
| Lacquer | black, dull 40-100 | T 0.96-0.98 1 | |||
| Lacquer | black, matte 100 | T 0.97 | 2 | ||
| Lacquer | black, shiny, sprayed on iron | 20 | T 0.87 | 1 | |
| Lacquer | heat-resistant 100 | T 0.92 | 1 | ||
| Lacquer | white | 100 | T | 0.92 | 2 |
| Lacquer | white | 40-100 | T | 0.8-0.95 | 1 |
| Lead | oxidized at 200°C | 200 | T 0.63 | 1 | |
| Lead | oxidized, gray | 20 | T | 0.28 | 1 |
| Lead | oxidized, gray | 22 | T | 0.28 | 4 |
| Lead | shiny | 250 | T | 0.08 | 1 |
| Lead | unoxidized, polished | 100 | T 0.05 | 4 | |
| Lead red | 100 | T 0.93 | 4 | ||
| Lead red, powder | 100 | T 0.93 | 1 | ||
| Leather | tanned | T 0.75-0.80 1 | |||
| Lime | T 0.3-0.4 | 1 | |||
| Magnesium | 22 | T 0.07 | 4 | ||
| Magnesium | 260 | T 0.13 | 4 | ||
| Magnesium | 538 | T 0.18 | 4 | ||
| Magnesium | polished | 20 | T | 0.07 | 2 |
| Magnesium powder | T 0.86 | 1 | |||
| Molybdenum | 1500-2200 | T 0.19-0.26 1 | |||
| Molybdenum | 600-1000 T 0.08-0.13 1 | ||||
| Molybdenum | filament | 700-2500 T 0.1-0.3 | 1 | ||
| Mortar | 17 | SW | 0.87 | 5 | |
| Mortar | dry | 36 | SW | 0.94 | 7 |
| Nextel Velvet 811-21 Black | Flat black -60-150 | LW > 0 | 97 10 and | 11 | |
| Nichrome rolled 700 T 0.25 1 | |||||
| Nichrome sandblasted 700 T 0.70 1 | |||||
| Nichrome wire, clean 50 | T 0.65 1 | ||||
| Nichrome wire, clean 500-1000 | T 0.71-0.79 | 1 | |||
| Nichrome | wire, oxidized | 50-500 | T | 0.95-0.98 | 1 |
| Nickel | bright matte | 122 T 0.041 | 4 | ||
| Nickel | commercially pure, polished | 100 T 0.045 | 1 | ||
| Nickel | commercially pure, polished | 200-400 | T 0.07-0.09 | 1 | |
| Nickel | electrolytic 22 | T 0.04 | 4 | ||
| Nickel | electrolytic 260 T 0.07 4 | ||||
| Nickel | electrolytic 38 | T 0.06 | 4 | ||
| Nickel | electrolytic 538 T 0.10 4 | ||||
| Nickel | electroplated on iron, polished | 22 | T 0.045 | 4 | |
| Nickel | electroplated on iron, unpolished | 20 | T 0.11-0.40 | 1 | |
| Nickel | electroplated on iron, unpolished | 22 | T 0.11 4 | ||
| Nickel | electroplated, polished | 20 | T 0.05 2 | ||
| Nickel | oxidized | 1227 | T 0.85 4 | ||
| Nickel | oxidized | 200 T 0.37 2 | |||
| Nickel | oxidized | 227 T 0.37 4 | |||
| Nickel | oxidized at 600°C | 200-600 | T 0.37-0.48 | 1 | |
| Nickel | polished | 122 T 0.045 | 4 | ||
| Nickel | wire | 200-1000 | T | 0.1-0.2 | 1 |
| Nickel oxide | 1000-1250 | T 0.75-0.86 | 1 | ||
| Nickel oxide | 500-650 | T 0.52-0.59 | 1 | ||
| Oil, lubricating | 0.025 mm film | 20 | T 0.27 2 | ||
| Oil, lubricating | 0.050 mm film | 20 | T 0.46 2 | ||
| Oil, lubricating | 0.125 mm film | 20 | T 0.72 2 | ||
| Oil, lubricating | film on Ni base: Ni base only | 20 | T 0.05 2 | ||
| Oil, lubricating | thick coating | 20 | T 0.82 2 | ||
| Paint | 8 different colors and qualities | 70 | SW | 0.88-0.96 | 9 |
| Paint | 8 different colors and qualities | 70 | LW | 0.92-0.94 | 9 |
| Paint | Aluminum, various ages | 50-100 | T 0.27-0.67 | 1 | |
| Paint | cadmium yellow | T 0.28-0.33 | 1 | ||
| Paint chrome green | T 0.65–0.70 1 | ||||
| Paint cobalt blue T | 0.7–0.8 1 | ||||
| Paint oil 17 | SW | 0.87 | 5 | ||
| Paint oil based, average of 16 colors | 100 | T 0.94 | 2 | ||
| Paint oil, black flat | 20 | SW | 0.94 | 6 | |
| Paint oil, black gloss | 20 | SW | 0.92 | 6 | |
| Paint oil, gray flat | 20 | SW | 0.97 | 6 | |
| Paint oil, gray gloss | 20 | SW | 0.96 | 6 | |
| Paint oil, various colors | 100 | T 0.92–0.96 | 1 | ||
| Paint plastic, black | 20 | SW | 0.95 | 6 | |
| Paint plastic, white | 20 | SW | 0.84 | 6 | |
| Paper | 4 different colors | 70 | SW | 0.68–0.74 9 | |
| Paper | 4 different colors | 70 | LW | 0.92–0.94 9 | |
| Paper | black | T 0.90 | 1 | ||
| Paper | black, dull | T 0.94 | 1 | ||
| Paper | black, dull 70 | SW | 0.86 | 9 | |
| Paper | black, dull | 70 | LW | 0.89 | 9 |
| Paper | blue, dark | T 0.84 | 1 | ||
| Paper | coated with black lacquer | T 0.93 | 1 | ||
| Paper | green | T 0.85 | 1 | ||
| Paper | red | T 0.76 | 1 | ||
| Paper | white | 20 | T 0.7–0.9 | 1 | |
| Paper | white bond | 20 | T | 0.93 | 2 |
| Paper | white, 3 different glosses | 70 | SW | 0.76–0.78 9 | |
| Paper | white, 3 different glosses | 70 | LW | 0.88–0.90 9 | |
| Paper | yellow | T 0.72 | 1 | ||
| Plaster | 17 | SW | 0.86 | 5 | |
| Plaster | plasterboard, untreated | 20 | SW | 0.90 | 6 |
| Plaster | rough coat | 20 | T | 0.91 | 2 |
| Plastic | glass fibre laminate (printed circ. board) | 70 | SW | 0.94 | 9 |
| Plastic | glass fibre laminate (printed circ. board) | 70 | LW | 0.91 | 9 |
| Plastic | polyurethane isolation board | 70 | LW | 0.55 | 9 |
| Plastic polyurethane | iso-lation board | 70 | SW | 0.29 9 | |
| Plastic PVC, plastic | floor,dull, structured | 70 | SW | 0.94 9 | |
| Plastic PVC, plastic | floor,dull, structured | 70 LW 0.93 9 | |||
| Platinum 100 T 0.05 4 | |||||
| Platinum 1000–1500 | T 0.14–0.18 1 | ||||
| Platinum 1094 | T 0.18 4 | ||||
| Platinum 17 T 0.016 | 4 | ||||
| Platinum 22 T 0.03 4 | |||||
| Platinum 260 T 0.06 4 | |||||
| Platinum 538 T 0.10 4 | |||||
| Platinum | pure, polished | 200–600 | T | 0.05–0.10 | 1 |
| Platinum | ribbon | 900–1100 | T | 0.12–0.17 | 1 |
| Platinum | wire | 1400 | T 0.18 1 | ||
| Platinum | wire | 500–1000 | T | 0.10–0.16 | 1 |
| Platinum | wire | 50–200 | T | 0.06–0.07 | 1 |
| Porcelain | glazed 20 T 0.92 | ||||
| Porcelain | white, shiny | T 0.70–0.75 | 1 | ||
| Rubber | hard | 20 T 0.95 1 | |||
| Rubber | soft, gray, rough | 20 T 0.95 1 | |||
| Sand | T 0.60 1 | ||||
| Sand | 20 T 0.90 2 | ||||
| Sandstone | polished | 19 | LLW | 0.909 | 8 |
| Sandstone | rough | 19 LLW 0.935 | 8 | ||
| Silver | polished | 100 T 0.03 2 | |||
| Silver | pure, polished | 200–600 | T | 0.02–0.03 | 1 |
| Skin | human | 32 T 0.98 2 | |||
| Slag | boiler | 0–100 | T 0.97–0.93 | 1 | |
| Slag | boiler | 1400–1800 | T 0.69–0.67 | 1 | |
| Slag | boiler | 200–500 | T | 0.89–0.78 | 1 |
| Slag | boiler | 600–1200 | T | 0.76–0.70 | 1 |
| Snow: See Water | |||||
| Soil | dry | 20 T 0.92 2 | |||
| Soil saturated with water | 20 T 0.95 2 | ||||
| Stainless steel | alloy, 8% Ni, 18% Cr | 500 T 0.35 1 | |||
| Stainless steel | rolled | 700 T 0.45 | 1 | ||
| Stainless steel | sandblasted | 700 T 0.70 1 | |||
| Stainless steel | sheet, polished | 70 SW | 0.18 9 | ||
| Stainless steel | sheet, polished 70 | LW 0.14 9 | |||
| Stainless steel sheet, untreated, somewhat scratched | 70 | SW | 0.30 9 | ||
| Stainless steel | sheet, untreated, somewhat scratched | 70 LW 0.28 9 | |||
| Stainless steel type | 18-8, buffed | 20 T 0.16 2 | |||
| Stainless steel type | 18-8, oxidized at 800°C | 60 T 0.85 2 | |||
| Stucco rough, lime | 10-90 | T 0.91 1 | |||
| Styrofoam | insulation | 37 SW | 0.60 7 | ||
| Tar | T 0.79-0.84 | 1 | |||
| Tar | paper | 20 T 0.91-0.93 | 1 | ||
| Tile | glazed | 17 | SW | 0.94 5 | |
| Tin | burnished | 20-50 | T | 0.04-0.06 | 1 |
| Tin | tin-plated sheet iron | 100 | T 0.07 2 | ||
| Titanium | oxidized at 540°C | 1000 | T 0.60 1 | ||
| Titanium | oxidized at 540°C | 200 | T 0.40 1 | ||
| Titanium | oxidized at 540°C | 500 | T 0.50 1 | ||
| Titanium | polished | 1000 | T 0.36 1 | ||
| Titanium | polished | 200 | T 0.15 1 | ||
| Titanium | polished | 500 | T 0.20 1 | ||
| Tungsten | 1500-2200 | T 0.24-0.31 | 1 | ||
| Tungsten | 200 | T 0.05 1 | |||
| Tungsten | 600-1000 | T 0.1-0.16 | 1 | ||
| Tungsten | filament | 3300 | T 0.39 1 | ||
| Varnish | flat | 20 | SW | 0.93 6 | |
| Varnish | on oak parquet floor | 70 | SW | 0.90 9 | |
| Varnish | on oak parquet floor | 70 LW 0.90-0.93 | 9 | ||
| Wallpaper | slight pattern, light gray | 20 | SW | 0.85 6 | |
| Wallpaper | slight pattern, red | 20 | SW | 0.90 6 | |
| Water | distilled | 20 T 0.96 2 | |||
| Water | frost crystals | -10 | T 0.98 2 | ||
| Water | ice, covered with heavy frost | 0 T 0.98 1 | |||
| Water | ice, smooth | 0 T 0.97 1 | |||
| Water | ice, smooth | -10 | T 0.96 2 | ||
| Water | layer >0.1 mm thick | 0-100 | T 0.95-0.98 | 1 | |
| Water | snow | T 0.8 1 | |||
| Water | snow -10 T 0.85 2 | ||||
| Wood 17 | SW | 0.98 5 | |||
| Wood 19 LLW | 0.962 | 8 | |||
| Wood | ground | T 0.5-0.7 | 1 | ||
| Wood | pine, 4 different samples | 70 | SW | 0.67-0.75 | 9 |
| Wood | pine, 4 different samples | 70 LW 0.81-0.89 | 9 | ||
| Wood | planed | 20 T 0.8-0.9 | 1 | ||
| Wood | planed oak | 20 T 0.90 2 | |||
| Wood | planed oak | 70 | SW | 0.77 9 | |
| Wood | planed oak | 70 LW 0.88 | 9 | ||
| Wood | plywood, smooth, dry | 36 | SW | 0.82 7 | |
| Wood | plywood, untreated | 20 | SW | 0.83 6 | |
| Wood | white, damp 20 T | 0.7-0.8 | 1 | ||
| Zinc | oxidized at 400°C | 400 | T 0.11 1 | ||
| Zinc | oxidized surface | 1000-1200 | T 0.50-0.60 | 1 | |
| Zinc | polished | 200-300 | T | 0.04-0.05 | 1 |
| Zinc | sheet | 50 T 0.20 1 | |||
A note on the technical production of this publication
This publication was produced using XML — the eXtensible Markup Language. For more information about XML, please visit http://www.w3.org/XML/
A note on the typeface used in this publication
This publication was typeset using Linotype Helvetica™ World. Helvetica™ was designed by Max Miedinger (1910–1980)
LOEF (List Of Effective Files)
| T501012.xml; en-US; AH; 45951; 2017-10-23 |
| T505777.xml; en-US; 17617; 2014-09-24 |
| T505778.xml; en-US; 39860; 2017-01-31 |
| T505776.xml; en-US; 39513; 2017-01-18 |
| T505013.xml; en-US; 39689; 2017-01-25 |
| T505251.xml; en-US; 39513; 2017-01-18 |
| T505252.xml; en-US; 39860; 2017-01-31 |
| T505236.xml; en-US; 39860; 2017-01-31 |
| T505307.xml; en-US; 39860; 2017-01-31 |
| T505237.xml; en-US; 39860; 2017-01-31 |
| T505401.xml; en-US; 39860; 2017-01-31 |
| T505249.xml; en-US; 39860; 2017-01-31 |
| T505402.xml; en-US; 39860; 2017-01-31 |
| T505238.xml; en-US; 39860; 2017-01-31 |
| T505240.xml; en-US; 39860; 2017-01-31 |
| T505241.xml; en-US; 39860; 2017-01-31 |
| T505310.xml; en-US; 39513; 2017-01-18 |
| T505403.xml; en-US; 39513; 2017-01-18 |
| T505404.xml; en-US; 39860; 2017-01-31 |
| T505243.xml; en-US; 39859; 2017-01-31 |
| T505470.xml; en-US; 39513; 2017-01-18 |
| T505485.xml; en-US; 39513; 2017-01-18 |
| T505427.xml; en-US; 39860; 2017-01-31 |
| T505432.xml; en-US; 39513; 2017-01-18 |
| T505007.xml; en-US; 42810; 2017-05-23 |
| T506125.xml; en-US; 40753; 2017-03-02 |
| T506051.xml; en-US; 40460; 2017-02-20 |
| T505000.xml; en-US; 39687; 2017-01-25 |
| T505005.xml; en-US; 43349; 2017-06-14 |
| T505001.xml; en-US; 41563; 2017-03-23 |
| T505006.xml; en-US; 41563; 2017-03-23 |
| T505002.xml; en-US; 39512; 2017-01-18 |
Website
http://www.flir.com
Customer support
http://support.flir.com
Copyright
© 2017, FLIR Systems, Inc. All rights reserved worldwide.
Disclaimer
Specifications subject to change without further notice. Models and accessories subject to regional market considerations. License procedures may apply. Products described herein may be subject to US Export Regulations. Please refer to exportquestions@flir.com with any questions.
- User's manual FLIR GF3xx series
- Table of contents
- Disclaimers ....1
- Safety information ....5
- Notice to user 10
- Customer help 12
- Important note about training and applications.... 14
- List of accessories and services 15
- Introduction.... 17
- Achieving a good image 36
- Connecting external devices.... 43
- Handling the camera.... 46
- Technical data.... 73
- Mechanical drawings 221
- CE Declaration of conformity 227
- Cleaning the camera 229
- Cooler maintenance.... 231
- Detectable gases.... 232
- Why do some gases absorb infrared energy? 246
- About FLIR Systems 249
- Terms, laws, and definitions.... 252
- About calibration.... 254
- Thermographic measurement techniques 257
- History of infrared technology.... 262
- Theory of thermography.... 265
- The measurement formula.... 273
- Emissivity tables 277
- 1
- Disclaimers
- Legal disclaimer
- U.S. Government Regulations
- Level 1 statement
- Copyright
- Quality assurance
- Patents
- EULA Terms
- EULA Terms
- Disclaimers1
- 2
- Safety information
- WARNING
- User-to-user forums
- Calibration
- Accuracy
- Disposal of electronic waste
- Training
- Documentation updates
- Note about authoritative versions
- 4
- Customer help
- General
- Submitting a question
- Downloads
- Important note about training and applications
- General
- List of accessories and services
- FLIR GF300
- Optical gas imaging of methane and other volatile organic compounds (VOCs)
- Benefits
- FLIR GF304
- Optical gas imaging of refrigerant gases
- Benefits
- FLIR GF306
- Optical gas imaging especially of SF6 and ammonia
- Benefits
- FLIR GF309
- IR camera for furnace and high temperature inspection
- Benefits
- FLIR GF320
- Optical gas imaging of methane and other volatile organic compounds (VOCs)
- Benefits
- FLIR GF335
- Benefits
- FLIR GF343
- The new FLIR GF343 is an optical gas camera for visualizing carbon dioxide (CO₂)
- Main applications
- FLIR GF346
- Optical gas imaging especially of carbon monoxide (CO) and other harmful gases
- Benefits
- Example images
- General
- Images
- Quick Start Guide
- Detecting a temperature
- CAUTION
- Procedure
- Related topics
- Detecting a gas leak
- Procedure
- Related topics
- FLIR GF3xx series series general instrument check
- A note about ergonomics
- General
- Figure
- Related topics
- Camera parts
- View from the left
- Figure
- Explanation
- View from the right
- Figure
- Explanation
- View from the rear
- Figure
- Explanation
- Joystick.
- Battery condition LED indicator
- Figure
- Explanation
- Power LED indicator
- Figure
- Explanation
- Laser pointer
- General
- Figure
- Laser warning label
- Laser rules and regulations
- Screen elements
- Mode selector
- Figure
- Explanation
- Result table and measurement tools
- Figure
- Explanation
- Toolbox, indicators, and other objects
- Figure
- Explanation
- Achieving a good image
- General
- Adjusting the infrared camera focus manually
- Figure
- Procedure
- Adjusting the infrared camera focus
- Figure
- Procedure
- Adjusting an image
- General
- Explanation of the adjustment methods
- Procedure (Auto)
- Figure
- Procedure (HSM)
- Procedure (Manual)
- Selecting a suitable temperature range
- About temperature ranges
- General
- Understanding the temperature scale
- Explanation
- Changing the temperature range
- Procedure
- Selecting a suitable color palette
- Procedure
- Enabling or disabling histogram mode
- General
- Procedure
- Enabling or disabling inverted color palette
- Procedure
- Changing object parameters
- General
- Types of parameters
- Recommended values
- Procedure
- Note
- Related topics
- Connecting external devices
- General
- Related topics
- Connecting devices to the rear connectors
- Explanation
- Explanation
- Inserting SD Memory Cards
- Explanation
- Formatting memory cards
- Charging the camera battery
- Charging the battery using the power supply cable
- Procedure
- Related topics
- Charging the battery using the stand-alone battery charger
- Procedure
- Related topics
- Installing and removing the camera battery
- Installing the battery
- Procedure
- Removing the battery
- Procedure
- Turning on the camera
- Procedure
- Turning off the camera
- Procedure
- Adjusting the viewing angle of the viewfinder
- General
- Figure
- Procedure
- Adjusting the viewfinder's dioptric correction
- Adjusting the camera grip
- Procedure
- Opening the display
- Adjusting the viewing angle of the display
- General
- Figure
- Procedure
- Installing an infrared lens
- Procedure
- Removing an infrared lens
- Procedure
- Mounting the heatshield
- General
- Procedure
- Adjusting the infrared camera focus manually
- Figure
- Procedure
- Adjusting the infrared camera focus
- Procedure
- Autofocusing the infrared camera and the digital camera
- Procedure
- Operating the laser pointer
- Figure
- Procedure
- Laser warning label
- Using the zoom function
- General
- Procedure
- Working with views and images
- Saving infrared images
- General
- Image capacity
- Saving an infrared image directly to an SD Memory Card
- General
- Procedure
- Previewing and saving an infrared image to an SD Memory Card
- General
- Procedure
- Opening an image
- General
- Procedure
- Changing settings related to image presentation
- General
- ZOOM
- Procedure
- Editing a saved image
- General
- Procedure
- Deleting a file
- Procedure
- Working with measurement tools
- Laying out a measurement tool
- General
- Procedure
- Moving or resizing a measurement tool
- General
- Procedure
- Creating & setting up a difference calculation
- General
- Procedure
- Changing object parameters
- General
- Types of parameters
- Recommended values
- Procedure
- Related topics
- Programming the camera
- General
- Procedure
- Recording video clips
- General
- Procedure
- General
- Procedure
- Connecting the camera using a peer-to-peer (ad hoc) WLAN network
- General
- Procedure
- Related topics
- Connecting the camera using a infrastructure WLAN network
- General
- Procedure
- Related topics
- Changing Wi-Fi settings
- General
- Procedure
- Related topics
- Online field-of-view calculator
- Note about technical data
- Note about authoritative versions
- FLIR GF300 14.5°
- Supplies & accessories:
- FLIR GF300 14.5° Fixed lens
- FLIR GF300 24°
- FLIR GF300 24° Fixed lens
- FLIR GF304 14.5°
- FLIR GF304 14.5° Fixed lens
- FLIR GF304 24°
- FLIR GF304 24° Fixed lens
- FLIR GF306 14.5°
- FLIR GF306 14.5° Fixed lens
- FLIR GF306 24°
- FLIR GF306 24° Fixed lens
- FLIR GF309 14.5°
- FLIR GF309 14.5° Fixed lens
- FLIR GF309 24°
- FLIR GF309 24° Fixed lens
- FLIR GF320 14.5°
- FLIR GF320 14.5° Fixed lens
- FLIR GF320 24°
- FLIR GF320 24° Fixed lens
- FLIR GF335 24°
- FLIR GF343 24° Fixed lens
- FLIR GF346 14.5°
- FLIR GF346 14.5° Fixed lens
- FLIR GF346 24°
- FLIR GF346 24° Fixed lens
- Mechanical drawings
- CE Declaration of conformity
- Cleaning the camera
- Camera housing, cables, and other items
- Liquids
- Equipment
- Procedure
- Infrared lens
- Liquids
- Equipment
- Procedure
- Cooler maintenance
- General
- Signs to watch for
- General
- Gases that can be detected by FLIR GF300
- Coolants that can be detected by FLIR GF304
- Gases that can be detected by FLIR GF306
- Gases that can be detected by FLIR GF320
- Gases that can be detected by FLIR GF343
- Gases that can be detected by FLIR GF346
- Why do some gases absorb infrared energy?
- About FLIR Systems
- More than just an infrared camera
- Sharing our knowledge
- Supporting our customers
- Terms, laws, and definitions
- Introduction
- Definition—what is calibration?
- Camera calibration at FLIR Systems
- The differences between a calibration performed by a user and that performed directly at FLIR Systems
- Calibration, verification and adjustment
- Non-uniformity correction
- Thermal image adjustment (thermal tuning)
- Thermographic measurement techniques
- Introduction
- Emissivity
- Finding the emissivity of a sample
- Step 1: Determining reflected apparent temperature
- Method 1: Direct method
- Method 2: Reflector method
- Step 2: Determining the emissivity
- Reflected apparent temperature
- Distance
- Relative humidity
- Other parameters
- History of infrared technology
- Theory of thermography
- Introduction
- The electromagnetic spectrum
- Blackbody radiation
- Wien's displacement law
- Stefan-Boltzmann's law
- Non-blackbody emitters
- Infrared semi-transparent materials
- The measurement formula
- References
- Tables
- A note on the technical production of this publication
- A note on the typeface used in this publication
- LOEF (List Of Effective Files)
