Fres PJ300 - Juicer Eldom - Free user manual and instructions

Product Type	Juicer (Centrifugal)
Brand	Eldom
Model	Fres PJ300
Power Consumption	200W
Voltage / Frequency	230V ~ 50Hz
Maximum Continuous Operation	10 minutes
Maximum Operation for Heavy Loads	40 seconds
Required Break Between Operations	5 minutes
Body Material	Stainless steel
Control Method	Rotary knob (On, Off, Reverse)
Microswitch Safety Lock	Yes, prevents operation if not properly assembled
Capacity: Pulp Container	Not specified in manual
Capacity: Juice Jug	Not specified in manual
Included Accessories	Pusher, lid, juice collector, filter, extracting bolt, pulp container, juice jug, cleaning brush, apple slicer
Cleaning: Detachable Parts	Dishwasher safe (top rack, away from heating element)
Cleaning: Motor Unit	Wipe with damp cloth; never immerse in water
Warranty	Household use only; warranty void if used commercially or improperly
Environmental Compliance	Made of recyclable materials; dispose at electronic waste facility
Safety Features	Microswitch, overheating protection via max time limits
Usage Limitations	Not suitable for hard/starchy foods (e.g., sugar cane) or frozen fruits

Frequently Asked Questions - Fres PJ300 Eldom

How to assemble the Eldom Fres PJ300 juicer?

First ensure the cup (8b) on the bottom of the collector is pushed in. Place the juice collector into the main body and turn right. Insert the filter and extracting bolt into the collector. Place containers under the spouts. Put the lid on the collector, aligning indicators, and turn right. Finally slide the pusher into the feeding tube.

What should I do if the extracting bolt becomes locked?

Set the control knob to the 'R' (reverse) position for 3 to 5 seconds. Repeat two to three times. If still locked, turn off, disassemble, and remove the blocking element. Then reassemble and try again.

Can I process frozen fruits or ice?

No, do not process ice or frozen fruits. They can damage the appliance and affect performance. Use only fresh fruits and vegetables.

How long can I continuously operate the juicer?

The maximum continuous operation time is 10 minutes. For heavy loads (e.g., dense vegetables), do not operate for more than 40 seconds at a time. After each operation, allow the appliance to cool for at least 5 minutes before using again.

How do I clean the juicer?

Unplug the appliance first. Disassemble all removable parts. Clean them with warm water and washing-up liquid using the included brush, then rinse. These parts are dishwasher safe (top rack only, away from heating element). Wipe the motor unit with a damp cloth; never immerse it in water.

What fruits and vegetables should I avoid juicing?

Avoid very hard and starchy items like sugar cane. Remove thick peels from oranges, pineapples, and raw beetroots. For small seeds (e.g., chokeberry, raspberry), process in small batches of about 0.5 kg and clean between batches.

Why won't the juicer start?

The juicer has a microswitch safety lock that prevents operation if not properly assembled. Ensure all parts are correctly in place: juice collector inserted, lid aligned and turned right, pusher in place. Also check that the power cord is plugged in and the control knob is set to 'On'.

Can I use the juicer without the pulp container?

No, always place the pulp container under the pulp spout and the juice jug under the juice spout before operation. The pulp container collects leftover pulp; operating without it may cause clogging or mess.

Is the juicer suitable for commercial use?

No, the Eldom Fres PJ300 is designed for household use only. Using it for commercial purposes will void the warranty and may damage the appliance.

What is the purpose of the reverse (R) function?

The reverse function helps to unblock the extracting bolt if it gets jammed. Activate it by turning the knob to 'R' for a few seconds to release the blockage. Do not use it during normal operation.

USER MANUAL Fres PJ300 Eldom

Black and white photo of a modern electric juice maker with a stainless steel body and handle (no visible text or symbols)

WSKAZÓWKI BEZPIECZEŃSTWA

Exploded view diagram of a kitchen appliance showing internal components like blender, brush, and fan (no text or labels)

Please acquaint precisely with whole of this instruction before using the blender for the first time.

1. The power cable must be plugged in the socket with parameters the same as those given in that instruction manual.
2. Do not immerse the cable or the appliance in water.
3. Only intended for household use.
4. Do not use the appliance outdoors.
5. Before switching the appliance on, make sure that all of its elements are appropriately assembled.
6. Do not leave your device without supervision.
7. Always unplug the appliance after operation.
8. The device can be used by children aged 8 and older and by persons with limited physical, sensory or mental capabilities, or persons without sufficient experience and knowledge only under supervision or if previously instructed on the safe use of the appliance and the possible risks. Children shall not play with the appliance. Cleaning and maintenance that are the responsibility of the user shall not be carried out by children without supervision. Protect the appliance and the power cord against children under 8 years old.
9. Do not touch the appliance with wet hands.
10. Always pull the plug of the socket before cleaning.
11. Do not use the juicer when the filter is damaged.
12. Do not exceed the maximum time of continuous operation of the appliance.
13. Do not move during use.
14. Never reach into the feeding tube with your fingers or an object while the appliance is running. Only the pusher is to be used for this purpose.

15. Do not operate the juicer for more than 40 seconds at a time when juicing heavy loads and let it cool down sufficiently afterwards.

16. Never use the appliance if the supply cord is damaged. If found dama ged in any way, consult the producer's authorized service centre. The list of service centres is to be found in the appendix and on www.eldom.eu.

17. The appliance can be used only with the originally included accessories.
18. Refer servicing to an authorized service centre. Modifying the appliance or using spare parts or elements other than the original ones is forbidden and can expose the user to hazard.

GENERAL DESCRIPTION

1. Pusher
2. Lid
3. Plastic tab
4. Extracting bolt
5. Filter
6. Juicer collector
7. Pulp spout
8. Juice spout
   8a. Cap I
   8b. Cap II
9. Microswitch
10. Control knob (On, Off, R)
11. Main body
12. Drive spindle
13. Pulp container
14. Juice jug
15. Brush for
16. Apple slicer

TECHNICAL DATA

• power: 200W
• mains voltage: 230V \~ 50Hz
• maximum time of continuous operation: 10 minutes
• break before continuation of operation: 5 minutes

PERFECT JUICER is designed for processing most of fruits and vegetables in a more efficient way than traditional juicer.

Before using the appliance:

• Read these instructions for use carefully before using the appliance.
• Make sure that none of elements are demaged.
• Wash all detachable parts.
• Assemble the appliance.

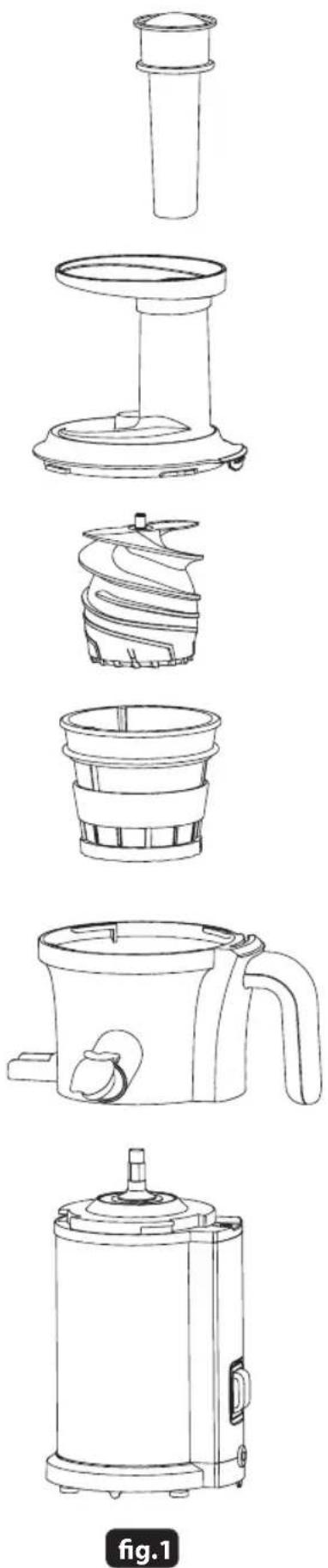

MONTAGE (fig.1)

• Ensure that the cup (8b) on the bottom of the collector (6) is pushed in.
• Place the juice collector (6) into main body (11) and turn right.
• In juicer collector (6) set: filter (5) and extracting bolt (4).
• Set the containers (13,14) under the spouts (7,8).

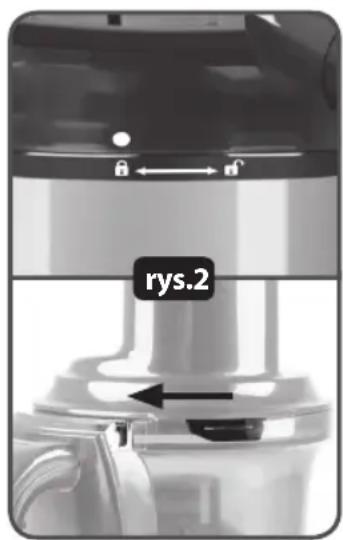

• On the juicer collector (6) put the lid (2) according with the indicators, and turn it right.
• Slide the pusher into the feeding tube in the lid (2).

USING THE APPLIANCE

The appliance will only function if all parts have been properly assembled and only than the microswitch will be unlocked.

• Always operate the product on a flat, stable surface.
• Put the plug in the wall socket.
• Slice products into pieces which fit into the feeding tube that is in the lid (2).
• Make sure the juice jug (14) has been placed under the juice spout (8).
• Make sure that pulp container (13) has been placed under the pulp spout (7).
• Switch the appliance on by turning the control knob (10) to the position „ON”.
• Put prepared fruits/vegetables in the feeding tube and gently press them down towards.
• The rotating bolt by means of the pusher. Do not exert too much pressure on the pusher, as that could affect the quality of the end result or even blocked the appliance.

Never insert your fingers or an object into the feeding tube.

• The juice will flow directly in the juice jug (14), and the pulp will be collected in the pulp container (13).
• If the Extracting bolt is locked, you need to set the switch (10) to "R" for 3 to 5 seconds. Repeat the process two to three times, then turn off, and disassemble items of PERFECT JUICER (see CLEANING section) to remove the blcking element.
• After you have processed all ingredients and the juice flow has stopped, switch the appliance off and wait until the filter has stopped rotating.
• Make sure you observe the maximum time of continuous operation of the appliance. Exceeding the time limit and failing to provide appropriate breaks during the operation

of the appliance may cause irreparable damage to the engine.

TIPS

- Clean fruits and vegetables, before juicing.

- Use fresh fruit and vegetables, as they contain more juice.

- Thick peels, e.g. those of oranges, pineapples and uncooked beetroots need to be removed.

- products should be sliced into pieces which fit into the feeding tube that is in the lid (2). Do not cut the food into too small pieces.

- Do not process the ice or frozen fruits.

- If juicing herbs or leafy vegetables, wrap them together to form a bundle before placing in the juicer or combine them with other ingredients.

- Apple juice turns brown very quickly. You can slow down this process by adding a few drops of lemon juice.

- Fruit with small seeds (e.g. chokeberry, raspberry, blackcurrant) must be processed in small batches only, about 0.5 kg. Before putting the next batch, turn the device off and remove the components for cleaning (see CLEANING).

- The juicer is not suitable for juicing very hard and starchy fruits or vegetables such as sugar cane.

- When juicing fruit and vegetables of different consistency it may help to juice first soft products, and than hard.

CLEANING

When device is not used or before cleaning, disconnect it from the network.

The appliance is easier to clean if you do so immediately after use.

Do not use abrasive cleaning agents, scourers, acetone, alcohol etc. to clean the appliance. Place the detachable plastic parts on the top tray of the dishwasher. Make sure they are placed well away from the heating element.

Switch the appliance off, remove the plug from the wall socket. Next dissassemble the appliance in the following order:

- Remove the pusher (1).

- Unlock (turn to the left) and remove the lid (2).

- Unlock (turn to the left) and remove the juice collector (6) together with filter (5) and extracting bolt (4) and disassemble the appliance.

- Clean these parts with a cleaning brush in warm water with some washing-up liquid and rinse them under the tap.

- Clean the motor unit with a damp cloth.

Never immerse the motor unit in water nor rinse it under the tap.

WARRANTY

- Only intended for household use.

- It cannot be used for commercial purposes.

- The warranty loses validity in case of inappropriate use.

ENVIRONMENTAL PROTECTION

• The device is made of materials that can be reused or recycled.
• It should be handed to the special collection point, that deals with collection and recycling of electronic and electric devices.
