KBIO3954 - Oven Kunft - Free user manual and instructions

Product Type	Built-in Electric Oven
Model	KBIO3954
Brand	Kunft
Power Supply	220-240 V~, 16 A
Energy Class	A
Energy Consumption (Conventional)	0.85 kWh/cycle
Oven Volume	64 L
Weight	26.3 kg (±2)
Cooking Functions	Static (upper+lower), Lower heat, Upper heat, Grill
Control Type	Mechanical knobs (function + thermostat)
Oven Light	Yes, replaceable (230 V, 25 W, E14, T300)
Child Lock	Yes
Accessories Included	Wire grill, deep tray, grid
Interior Coating	Catalytic enamel (rear/side walls)
Installation	Built-in, requires authorized service
Cleaning	Manual cleaning, no steam cleaners
Safety Features	Auto shut-off? (not specified), overheat protection, child lock
Warranty	2 years (manufacturing defects)

Frequently Asked Questions - KBIO3954 Kunft

What should I do when first using the oven?

Run the oven empty at maximum temperature for 45 minutes to burn off manufacturing residues. Ventilate the room during this process.

How do I clean the oven interior?

Unplug the oven and allow it to cool. Wipe with a soft cloth dampened with soapy water, then rinse and dry. For stubborn stains, use a non-abrasive cleaner. Do not use steam cleaners.

Why is the oven not heating?

Check that the oven function knob and thermostat knob are set correctly. Ensure the timer (if fitted) is programmed. Also verify the power supply and circuit breaker.

How do I replace the oven light?

The oven lamp must be replaced by an authorized technician. The bulb is 230 V, 25 W, type E14, T300. Switch off and unplug the oven before replacement.

Can I use the oven with the door open?

No, the oven door must be closed during operation, especially for grilling. Opening the door can cause heat loss and potential burns from steam.

What is the correct way to install the oven?

Installation must be performed by an authorized technician. Ensure the cabinet can withstand at least 100 °C. Follow the cut-out dimensions in the manual and connect to a 220-240 V supply with a 16 A circuit breaker.

How can I prevent food from sticking to the grill?

Lightly brush the wire grid with oil before grilling. Place a tray underneath to catch drips and add a little water to the tray for easier cleaning.

What is the maximum temperature for the oven?

The thermostat goes up to 250 °C (as typical for electric ovens). The manual does not specify an exact maximum, but the highest setting is suitable for grilling at 190 °C recommended.

Are there any safety precautions for children?

Keep children under 8 away unless continuously supervised. The oven and its accessible parts become hot. Use the child lock feature if available.

What should I do if the oven door glass cracks?

Switch off the appliance immediately to avoid electric shock. Do not use the oven. Contact authorized service for replacement.

USER MANUAL KBIO3954 Kunft

Exterior view of a modern kitchen oven with dual control knobs and a closed door (no visible text or symbols)

built-in oven

is perfectly enough

KBIO3954

kunft.®

Dear client,

Thank you for purchasing this product.

The quality of this appliance has been certified by several laboratory tests. This instructions manual is provided to simplify the use of the appliance as well as to guarantee a safe use.

Please read carefully the instructions and safety measures described in this manual.

We sincerely hope you will be satisfied when using your new appliance.

2

built-in oven

KBIO3954

EN

INDEX

1. SAFETY INSTRUCTIONS .... 4

1.1. Power Supply 5
1.2. Power Cord and Other Cables .... 5
1.3. Humidity and Water 6
1.4. Cleaning 6
1.5. General Precautions ...... 6

1. OPERATING INSTRUCTIONS ..... 7

2.1. Product Description.... 10
2.2. Product usage ..... 11
2.3. Maintenance 19
2.4. Troubleshooting 20

1. TECHNICAL SPECIFICATIONS 21

2. POST-SALE SERVICE 22

3. ENVIRONMENTAL PROTECTION 22

kunft.®

1. SAFETY INSTRUCTIONS

	WARNING
	Risk of Electric ShockDo Not Open
Warning: to avoid the risk of electric shock, do not remove the cover.The interior does not contain any parts that can be repaired by the user.Ask for assistance from the Customer Support Service.

Important Warnings

Before using your appliance read these instructions manual carefully and keep it in a safe place as you may need to consult it in the future.

Before turning on your appliance, and to ensure a safe and correct operation, do not use if:

• It has fallen to the ground;
• You notice any evidence of damage;
• Any anomaly occurs during its operation.

To avoid hazards or deterioration of your appliance through incorrect use it is advisable to read these instructions thoroughly.

Your appliance should not be used for other purposes than the ones intended and solely for household use. Any damage resulting from using the appliance outside this scope, any incorrect use, as well as any manual

modifications to the product will not be co- vered and automatically voids the warranty.

Assistance

In case of malfunction, take your appliance to the Customer Support Service for assistance.

This appliance can be used by children from the age of 8 and by people with reduced physical, sensorial or mental capabilities and/or lack of experience and knowledge if they have been given instructions on using the appliance safely and if they understand the hazards involved. Children may not play with the appliance. Cleaning and maintenance must not be carried out by children without supervision.

These instructions are also available at www.suporteworten.pt

1.1. Power Supply

Make sure the main voltage is compatible with the appliance's. If this is not the case, please consult the Customer Support Service.

1.2. Power Cord and Other Cables

Do not tangle the cord or pull it to disconnect the appliance. Also, keep the cord away from warm surfaces.

kunft.®

Never use the appliance if it has a damaged cable or socket.

Take it to the Customer Support Service for replacement.

1.3. Humidity and Water

Do not use your appliance in humid places. Do not allow the appliance to become wet under any circumstances as this may be dangerous. To avoid fire hazard or electric shock do not expose your appliance to humidity or water. Furthermore, do not place your appliance under water (e.g. for cleaning).

1.4. Cleaning

Before cleaning, be sure to switch off the appliance and remove the plug from the main power supply. Always allow the unit to cool down before cleaning.

To clean the exterior of the product, use a dry soft cloth only.

1.5. General Precautions

• Please follow the instructions in the user manual which will help you to properly install and operate this product and enjoy its advanced features. Please keep the instructions for future reference.
• Read all instructions before using the product.
• Maintenance and service operations are only to be carried out by authorized professionals.

built-in oven

KBIO3954

EN

- Any damage caused by manual modifications to the product is not covered by the warranty.

- If this product is used for other purposes than the ones originally intended, or if it is not correctly connected, the product may become damaged and the warranty will be voided.

- WARNING: The appliance and its accessible parts become hot during use. Please be careful and avoid touching heating elements. Children less than 8 years of age shall be kept away unless continuously supervised.

- WARNING: Danger of fire: do not store items on the cooking surfaces.

- WARNING: If the surface is cracked, switch off the appliance to avoid the possibility of an electric shock.

- This appliance was not designed to be operated by means of an external timer or separate remote-control system.

- During use, handles held for short periods in normal use can get hot.

- Do not use harsh abrasive cleaners or sharp metal scrapers to clean the oven door glass and other surface since they can scratch the surface, which may result in shattering the glass or damaging the surface.

- Do not use steam cleaners for cleaning the appliance.

kunft.®

- WARNING: Please ensure that the appliance is switched off before replacing the lamp to avoid the possibility of an electric shock.

- CAUTION: Accessible parts may be hot when the cooking or grilling is in use. Young children should be kept away from the unit.

- Your appliance is produced in accordance with all applicable local and international standards and regulations.

- Maintenance and repair work must be made only by authorized service technicians. Installation and repair work that is carried out by unauthorized technicians may put you at risk. It is dangerous to tamper or modify the specifications of the appliance in any way.

- Prior to installation, please ensure that the local distribution conditions (nature of the gas and gas pressure or electricity voltage and frequency) and the requirements of the appliance are compatible. The requirements for this appliance are stated on the label.

- CAUTION: This appliance is designed only for cooking food and is intended for indoor domestic household use only and should not be used for any other purpose or in any other application, such as for non-domestic use or in a commercial environment or for heating rooms.

built-in oven

KBIO3954

EN

- Do not try to lift or move the appliance by pulling the door handle.

- All possible security measures have been taken to ensure your safety. Since the glass may break, you should be careful while cleaning to avoid scratching it. Avoid hitting or knocking on the glass with accessories.

- Please ensure that the supply cord is not wedged during the installation. If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to prevent a hazard.

- While the oven door is open, do not let children climb on the door or sit on it.

kunft.®

2. OPERATING INSTRUCTIONS

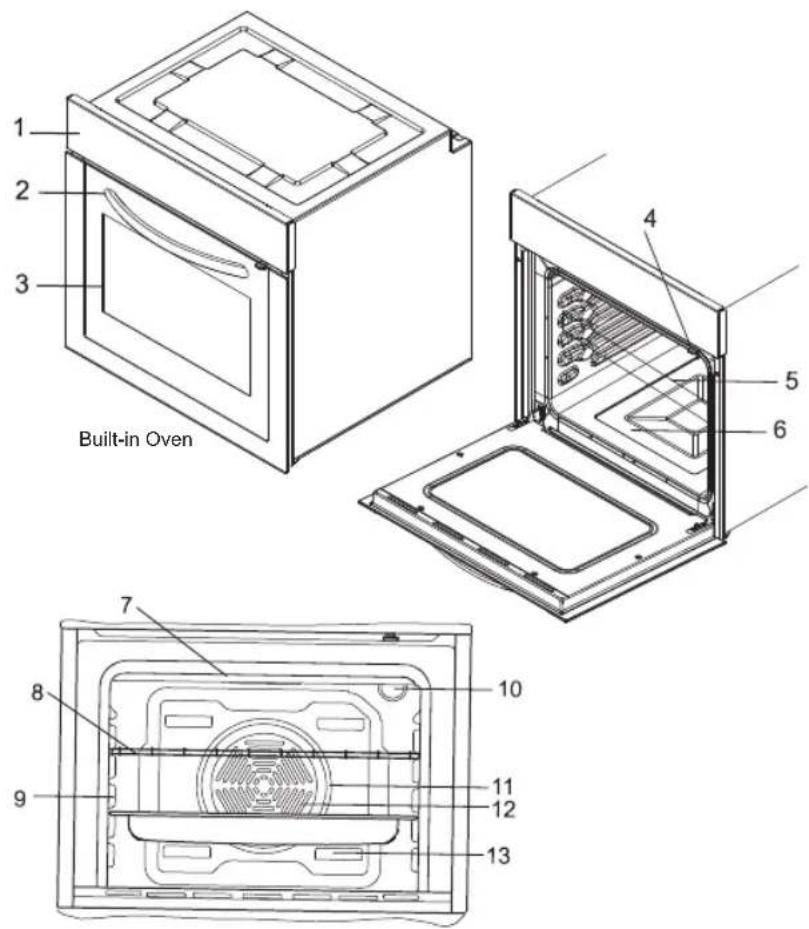

2.1. Product Description

LIST OF COMPONENTS:

1. Control panel
2. Handle
3. Oven Door
4. Child Lock
5. Tray
6. Lower Heating Element (behind the plate)

7. Upper Heating Element (behind the plate)

8. Wire Grill

9. Racks
10. Oven Light
11. Turbo Heating Element (behind the plate)
12. Fan (behind the plate)
13. Air Outlet Shutters

2.2. Product usage

Installation warnings

• Do not operate the appliance before it is fully installed.
• The appliance must be installed by an authorized technician and put into use. The manufacturer is not responsible for any damage that might be caused by defective placement and installation by unauthorized people.
• When you unpack the appliance, please make sure that it was not damaged during transportation. In case of any defect; do not use the appliance and contact a qualified service agent immediately. As the materials used for packaging (nylon, staplers, Styrofoam...etc.) may cause harmful effects to children, they should be collected and removed immediately.
• Protect your appliance from the elements. Do not expose it to weather conditions such as sun, rain, snow, etc.
• The surrounding materials of the appliance (cabinet) must be able to withstand a temperature of at least 100 °C.

During usage

• When you first run your oven, a certain smell will emanate from the insulation materials and the heater elements. For this reason, before using your oven, run it empty at maximum temperature for 45 minutes. At the same time, you need to properly ventilate the room in which the product is installed.
• During usage, the outer and inner surfaces of the oven get hot. While opening the oven door, step back to avoid the hot steam coming out of the oven. There may be a risk of burns.
• Do not put flammable or combustible materials, in or near the appliance when it is operating.
  • Always use oven gloves to remove and replace food in the oven.
• Do not leave the cooker while cooking with solid or liquid fat. They may catch fire on condition of extreme heating. Never pour water on to flames that are caused by fat or oil. Cover the saucepan or fry pan with its cover to choke the flame that has occurred in this case and turn the cooker off.
• If you will not use the appliance for a long time, switch it off and unplug from the socket. Also, when you do not use the appliance, keep the gas valve off.
• Make sure the appliance control knobs are always in the "0" (stop) position when it is not used.
• The trays tilt when pulled out. Be careful not to let hot liquid spill over.

kunft.®

• When the oven door or drawer is open, do not leave anything on it. You may unbalance your appliance or break the cover.
• Do not put heavy things or flammable or ignitable goods (nylon, plastic bag, paper, cloth...etc.) into the drawer. This includes cookware with plastic accessories (e.g. handles).
• Do not hang towels, dishcloths or clothes from the appliance or its handles.

During cleaning and maintenance

• Always turn the appliance off before operations such as cleaning or maintenance. You can do it after plugging the appliance off or turning the main switches off.
• Do not remove the control knobs to clean the control panel.

TO MAINTAIN THE EFFICIENCY AND SAFETY OF YOUR APPLIANCE, WE RECOMMEND YOU ALWAYS USE ORIGINAL SPARE PARTS AND THAT YOU ONLY CONTACT OUR AUTHORIZED SERVICE AGENTS IN CASE OF NEED.

PREPARATION FOR INSTALLATION AND USE

Manufactured with the best quality parts and materials, this modern, functional and practical oven will meet your needs at every level. Please make sure you read the manual to obtain successful results and not to experience any problems in the future. The information given below contain rules that are necessary for correct positioning and service operations. They should be thoroughly read, especially by the technician who will position the appliance.

PLEASE CONTACT THE AUTHORIZED SERVICE FOR INSTALLING YOUR OVEN!

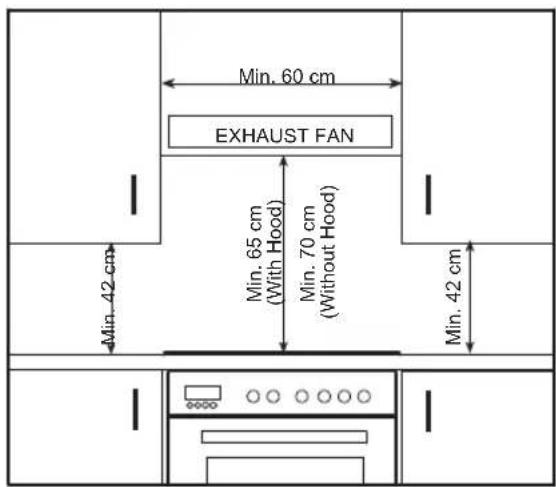

Choosing a place for the oven

There are several points to pay attention to when choosing a place for your oven. Make sure to take into account our recommendations below so to avoid any problems and dangerous situations, which might occur later!

• When choosing a place for the oven, please pay attention not to have any flammable or combustible materials in the immediate vicinity, such as curtains, oil, cloth, etc. which will quickly catch fire.
• Furnitures surrounding the oven must be made of heat-resistant materials, withstanding more than 50 C° regarding the room temperature.
• Required changes to wall cabinets and exhaust fans above the built-in combined product as well as minimum heights from the oven board are shown in Figure 1. Accordingly, the exhaust fan should be at a minimum height of 65~cm from the hob board. If there is no exhaust fan the height should not be less than 70~cm .

Figure 1

Installing the built-in oven

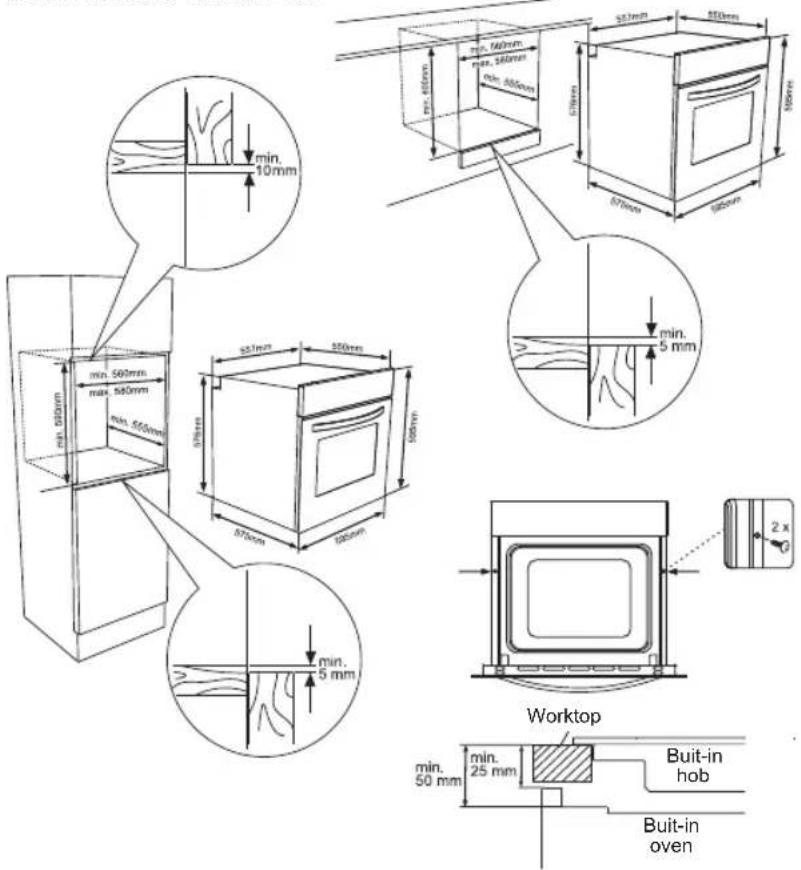

Cabinet cut-out sizes

Insert the oven into the cabinet by pushing it forward. Open the oven door and insert 2 screws in the holes located on the oven frame. When the product frame touches the wooden surface of cabinet, tighten the screws.

If the oven is installed under a hob, the distance between the worktop and the top panel of the oven must be at least 50 mm and the distance between the worktop and the top of control panel must be at least 25 mm.

The dimensions and materials of the cabinet in which the cooker is to be installed must be resistant to high temperatures. In a correct installation, please avoid any contact with electrical or insulating parts. The insulation parts must be placed in such a way that they cannot be removed regardless of the used tool. Installing the appliance near a refrigerator or freezer is not recommended. The performance of the above devices will be affected by the heat emanating from the cooker.

After removing the cooker from the package, check it for damage. If any damage is found, do not use the appliance and contact the authorized service centre immediately.

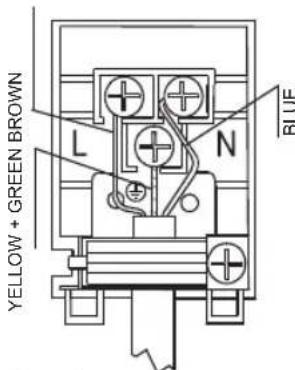

Wiring and safety of built-in oven

The instructions given below must be strictly followed during wiring:

• The earthing cable must be connected via the screw with the earthing mark (⊕). Supply cable connection must be as shown in Figure 2. If there is no earthed outlet conforming to regulations in the installation environment, call the Authorized Service immediately.
• The earthed outlet must be in the appliance's immediate vicinity. Never use an extension cord.
• The supply cable should not contact the product's hot surface.
• In case of any damage to the supply cable, make sure to call the Authorized Service, as the cable must be replaced by them.
• Wiring of the appliance must be performed by the Authorized Service and a H05VV-F type supply cable must be used.
• Faulty wiring may damage the appliance, which will not be covered by the unit's warranty.
• The appliance is designed to connect to 220-240 V\~ power. If your electricity is different than the value given above, call the Authorized Service immediately.

The Manufacturer shall not be responsible for any kind of damage and loss whatsoever arising from any non-compliance with the safety standards!

Connection and safety of the built-in stove

Figure 2

This appliance must be connected by authorized service personnel and it must be used with 220-240 V power. If the electricity in the sector differs from the value stated above, contact the Authorized Service immediately. Please keep in mind the appliance must be connected as shown in Figure 2, as it is designed for a fixed connection to the power cabinet. A circuit breaker must be installed in the electrical circuit with a contact opening of at least 3 mm (16 A power, type of delayed operation).

General recommendations and precautions

Your appliance has been designed in accordance with the safety regulations for electrical appliances. Maintenance and repair operations must be carried out by authorized technicians trained at the plant where the appliance was built. Installation and repair operations that do not comply with these standards can be dangerous. Please be aware that exterior surfaces become hot when the appliance is used. The elements that heat the oven's inner surface and the steam that is evacuated are extremely hot. These sections remain hot for some time even if the appliance is switched off. Please be careful not to touch hot surfaces. Children should not get near the stove. Do not leave the cooker unattended when cooking fat or oil, as these may ignite in the event of overheating. Do not throw water into the flames that result from overheating the fat or oil. To muffle the flame, place the lid on the pan and turn the knob off. To cook in your oven, the oven function buttons and temperature control knobs must be set and programmed in the oven timer, if available. Otherwise, the oven will not operate. When the oven door or drawer is open, do not put anything on top of it. You may unbalance the appliance or break the door. Switch off the appliance when it is not in use. Protect your device from the elements and do not expose to sunlight, rain, snow, dust, etc.

USING THE STOVE

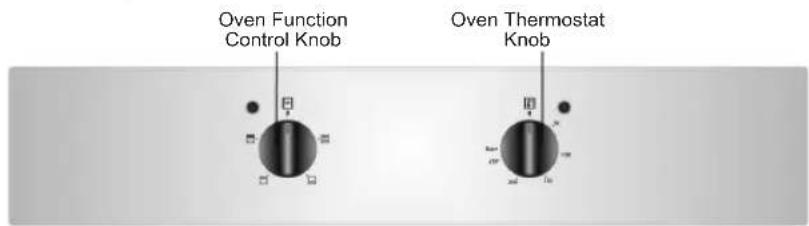

Control panels

Figure 3

15

kunft.®

Using the oven

Oven Function Control Knob:

To select the desired cooking function, turn the knob to the related symbol (Figure 4). The details of the oven functions have been explained in Table 1 and on the next section.

Diagram of a circular object with internal components and a small circle above, labeled 'Figure 4' (no text or symbols on the object itself)

Oven Thermostat Knob:

After the cooking function is set, the desired temperature can be adjusted with the oven thermostat knob (Figure 5) and the oven starts to operate (the timer must be adjusted, if available). The thermostat indicator light will be on or off according to the thermostat operation. Figure 5

USING YOUR PRODUCT

Using the oven function control button

The functions of your oven may be different due to the model of your product.

Static Cooking Function

The oven lights will be turned on, the lower and upper heating elements will start operating.

The static cooking function emits heat, ensuring cooking on the lower and upper positions. This is ideal for making pastries, cakes, baked pasta, lasagne and pizza. Preheating the oven for 10 minutes is recommended and it is best to cook on only one shelf at a time in this function.

Lower Heating Function

The oven's thermostat and warning lights will be turned on, the lower heating element will start operating.

The lower heating function is ideal for baking pizza, as the heat rises from the bottom of the oven and warms the food up. This function is suitable for heating the food instead of cooking.

Upper Heating Function

The oven's thermostat and warning lights will be turned on, the upper heating element will start operating.

In this type of cooking, the heat emanating from upper heating element cooks the upper side of the food. The upper heating function is ideal for frying the upper side of already cooked food and to heat it.

Grilling Function

The oven's thermostat and warning lights will be turned on, the grill heating element will start operating.

This function is used for grilling and toasting food. For that, use the upper shelves of oven. Lightly brush the wire grid with oil to stop food from sticking and place the food in the centre of the grid. Always place a tray beneath to catch any drips of oil or fat. It is recommended to pre-heat the oven for about 10 minutes.

Warning: When grilling, the oven door must be closed, and the oven temperature should be adjusted to 190 °C.

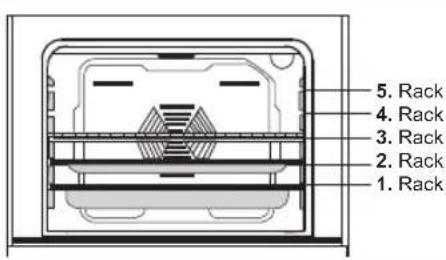

DISHES	LOWER-UPPER GRILL
	Thermostat pos. (°C)	Rack pos.	Cooking period (min)	Thermostat pos. (°C)	Rack pos.	Cooking period (min)
Layered pastry	170 - 190 1 - 2 35 - 45
Cake 170 - 190 1 - 2 30 - 40
Cookie 170 - 190 1 - 2 30 - 40
Grilled meatballs				200 4 10 - 15
Watery food	175 - 200 2 40 - 50
Chicken 200 1 - 2 45 - 60 200					*	50 - 60
Chop 200 3 - 4 15 - 25
Beefstake				200 4 15 - 25
Two-tray cake
Two-tray pastry

Cooked with skewer

kunft.®

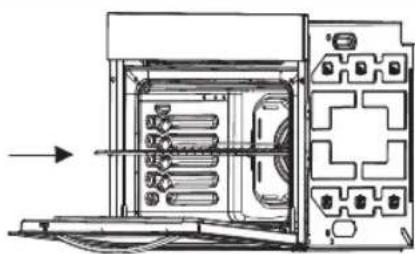

accessories used in the oven

It is recommended that you use the containers stated on the table depending on the food you will cook in your oven. You can also use glass containers, cake cutters, special oven trays suitable for use in your oven, available in the market. Pay attention to the information given by the manufacturer concerning this issue. If small sized containers are used, place this container on the inner grill wire so it will be precisely on the middle of the wire. The information given below should be implemented for enamelled containers.

If the food to be cooked does not completely cover the oven tray, if the food is taken out of the deep-freezer or if the tray is used to collect the dripping juices of food during the grill operation, deformation might be observed on the tray due to high temperatures during the cooking/frying operation, which is normal. Do not leave a glass tray or container in a cold environment immediately after cooking in them. Do not place them on cold and wet surfaces. Please ensure that they slowly cool off placing them on a dry piece of cloth. Otherwise, the glass tray or container might break. If you are going to perform a grill operation in your oven, we recommend that use the grill tray, supplied together with your product (if your product includes this equipment). This way, splattering and dripping oils will not make the oven interior dirty. If you are going to use the large wire grill, insert a tray into one of the lower racks to avoid oil or fat accumulation. To make cleaning easier, add some water into it as well. In a grilling operation, use the #3 or the #4 rack and ail the unit to avoid the food to be grilled from sticking to the grill.

Wire grid: Used for grilling or placing different containers other than the cooking tray on it.

Deep tray: Used for baking stews.

Figure 6

WARNING - Fit the grid correctly into any correspondent rack in the oven cavity and push it to the end.

Technical line drawing of an internal device with labeled components and an arrow indicating direction (no text or symbols present)

Figure 7

2.3. Maintenance

Cleaning

Before starting to clean your oven, please make sure that all control buttons are off and your appliance is cooled off and then unplug it from the socket.

Do not use cleaning materials containing particles that might scratch the enamelled and painted parts of your oven. Use cream cleaners or liquid cleaners, which do not contain particles. As they might harm the surfaces, do not use caustic creams, abrasive cleaning powders, rough wire wool or hard tools. In the event the excess liquids spilling over your oven should burn, it may cause a damage to the enamel. Immediately clean up the split liquids. Please do not use steam cleaners for cleaning the oven.

Cleaning the oven's interior

Please make sure to unplug the oven before starting to clean it. You will obtain best results if you clean the oven interior while the oven is slightly warm. Wipe your oven with a soft piece of cloth dampened with soap water after each use. Then wipe it again, this time with a wetted cloth, and wipe it dry. For a complete cleaning, use dry and powder type cleaners. For products with catalytic enamel frames, the rear and side walls of the inner frame do not require cleaning. However, depending on usage, it is recommended that you replace them after a certain period.

Cleaning the hobs of the Built-in Oven

For built-in combined products, hobs should be cleaned and wiped with a dampened cloth. The stainless-steel parts should be cleaned only with water and such parts should be wiped dry with a soft cloth or chamois. Gaps and corners should be cleaned using liquid detergents or lukewarm vinegar. When cleaning the lids of models with upper glass lids, use hot water and a rough cloth. Try to clean them up without rubbing / scrubbing them. You can use liquid detergents if necessary. Also, please pay attention to the glass lid - it should not be closed until the job board is completely cooled off.

Cleaning the vitro ceramic glass burner

• Unplug the appliance before starting to clean it.
• Wait for the vitro ceramic glass to completely cool off before starting to clean it.
• Please make sure that the cleaning materials you will use do not contain particles that might scratch the glass. Use cream detergents or liquids detergents.
• The vitro ceramic surface should be wiped with cold water and wiped dry with a soft piece of cloth until no cleaning material is left on the surface.
• You can use the cleaning spatula supplied together with your product to clean spilt food and residues.

kunft.®

• Dessert type of food should be immediately cleaned after each spill without waiting for the vitro ceramic glass to cool off.
• Scrubbing with steel cleaning scrubs may harm the vitro ceramic glass surface. Formation of dust on the surface should be cleaned up using a dampened cloth.
• Changes in colour which might occur on the vitro ceramic glass surface do not affect its functional structure or performance. The reason for this change in colour does not mean a change in material; it may be due to burnt residues on the surface, which were not cleaned up, or if the used pots have worn the glass surface or due to unsuitable cleaning materials used.
• The cleaning spatula should always be used prior to chemical cleaning substances. With this spatula, you can clean up the tiniest of dirt on the vitro ceramic surface. Dirt that is difficult to remove, such as melted plastic, heavy oils, sweet substances, can be easily removed with the spatula. As the spatula includes a razor, it is considered dangerous and must be kept out of reach of children.
• When cleaning with a spatula, please pay attention not to scrape off the silicon adhesives found on the sides of the glass.

Maintenance

Replacing the Oven's Light

The change of oven lamp must be done by authorized technician. The rating of the bulb should be 230 V, 25-Watt, Type E14, T300. Before changing the lamp, the oven should be plugged off and it should be cool.

The lamp design is specific for being used in household cooking appliances and it is not suitable for household room illumination.

2.4. Troubleshooting

Requirements before contacting our Customer Support Service

If the oven does not operate:

The oven may be plugged off, there has been a black out. On models fitted with a timer, time may not be regulated.

If the oven does not heat:

The heat may be not adjusted with oven's heater control switch.

If the inner lighting lamp does not light:

Check your electricity. It must be checked whether the lamps are defective. If they are defective, you can change them by following the manual.

Cooking (if the lower-upper part does not cook equally):

Control the shelf locations; the cooking period and heat values should be followed according to the manual.

If you experience other problems other than these and the problem persists, please call your "Authorized Service".

built-in oven

KBIO3954

EN

Transport-related information

If you need any transport:

Keep the original package of the product and carry it with its original package when needed. Please follow the transport signs on the package. Tape the cooker on upper parts, hats and heads and saucepan carriers to the cooking panels. Place a paper between the upper cover and cooking panel, cover the upper cover, then tape to the side surfaces of the oven. Tape carboard or paper onto the front cover on the inner glass of the oven to avoid grills and trays from damaging the oven's interior during transport. Also, please tape the oven's covers to the side walls.

If you do not have the original package:

Protect the unit's external surfaces (glass and painted surfaces) against possible blows.

3. TECHNICAL SPECIFICATIONS

Type of Oven ELECTRIC
Mass kg 26.3 (+/-2)
Energy efficiency index- conventional	103.8
Energy efficiency index- forced with fan	-
Energy class A A
Power consumption (electricity)- conventional	kilowatt-hour / cycle 0.85
Power consumption (electricity)- forced with fan	kilowatt-hour / cycle -
Number of cavities 1
Electrical heat supply ELECTRIC
Volume l	64 dB

This oven complies with EN 60350-1

Energy saving tips:

Oven

• Cook meals together if possible.
- Keep the preheat time brief.
- Do not attempt to prolong the cooking time.
- Do not forget to switch off the oven at the end of cooking.
- Do not open the oven door during the cooking period.

kunft.®

4. PoSt-SaLE SErVlcE

KUNFT has designed this appliance in order to guarantee maximum reliability. However, if a problem occurs do not attempt to open the appliance - there is a risk of electrical shock. If you are not able to solve the problem, please contact the Customer Support Service of any Worten, Modelo or Continente store in order to be assisted. Worten Equipamentos para o Lar provides a 2-year warranty for manufacturing defects from the date of purchase of the appliance.

WARNING: any attempt to repair the appliance without contacting the manufacturer or seller will void the warranty.

All users must be familiar with these instructions. Knowing what could go wrong can help prevent problems from occurring.

5. ENViroNMENtaL ProtEctIoN

In order to protect the environment, we strive to reduce the volume of packaging used, limiting it to three easily sorted materials: cardboard, paper and plastic.

The appliance is manufactured using recyclable materials after disassembled by a specialized company. Please comply with local regulations concerning the recycling of all materials.

horno integrado

KBIO3954

ES

Technical line drawing of an internal storage unit with multiple ports and a central shaft (no text or symbols)

Figura 7

2.3. Mantenimiento

Limpieza

Diagram showing a central black sphere with surrounding icons and a small circle above, labeled 'Figura 4' (no text or symbols on the main diagram)

Cross-sectional diagram of a device casing with internal components and ventilation grilles (no text or labels)

1. Tabuleiro
2. Tabuleiro
3. Tabuleiro
4. Tabuleiro
5. Tabuleiro

Technical line drawing of a mechanical or electronic device interior with internal components and an arrow indicating direction (no text or symbols present)

Figura 7

2.3. Manutenção

Limpeza

Color palette bar with grayscale shades and a central crosshair symbol (no text or labels)

NOTES / NOTAS

67

kunft.®

built-in oven

is perfectly enough

KBIO3954
