Brand	Kunft
Model	KKM7521
Product Type	Stand Mixer (Food Processor)
Power Supply	220-240V ~ 50Hz
Power Consumption	700 W
Bowl Capacity	3.5 L
Bowl Material	Stainless Steel
Accessories Included	1 Stainless Steel Bowl, 1 Transparent Bowl Cover, 1 Spatula, 1 Dough Hook, 1 Flat Beater, 1 Whisk
Speed Settings	6 speeds (1-4 for dough/beating, 5-6 for whisking)
Maximum Continuous Operation	5 minutes
Rest Period Between Cycles	At least 10 minutes
Maximum Flour Capacity (Dough Hook)	600 g
Maximum Egg Whites (Whisk)	At least 3 egg whites
Bowl Lock	Clockwise rotation to lock
Head Tilt Mechanism	Yes, with tilt button
Speed Selector Position	OFF (0) after use
Cleaning Instructions	Wipe exterior with damp cloth; bowl and accessories washable in warm soapy water. Do not immerse mixer base.
Warranty	2 years against manufacturing defects (for Worten, Modelo, Continente stores)
Safety Features	Auto shut-off when lifting head? Not specified; manual warns to unplug before cleaning/assembly

Frequently Asked Questions - KKM7521 Kunft

What is the maximum continuous operation time for the KKM7521 stand mixer?

The maximum continuous operation time is 5 minutes. After that, allow a rest period of at least 10 minutes before using it again.

Can I mix hard or dry substances with this stand mixer?

No, the stand mixer cannot be used for mixing hard or dry substances, as this might blunt the blade and damage the appliance.

How do I clean the stand mixer?

First, unplug the mixer and let it cool down. Wipe the head and base with a damp cloth and polish with a dry soft cloth. The bowl, flat beater, whisk, dough hook, and spatula can be washed in warm soapy water, rinsed, and dried. Do not immerse the mixer base in water.

What is the maximum flour weight for dough kneading?

The maximum flour weight is 600 g. The recommended flour-to-water ratio is 1 g flour to 0.6 mL water (water at 35-45°C).

How do I attach the bowl properly?

Place the bowl on the base, then turn it clockwise until it locks into position. A clicking sound confirms it is secure.

Can children use this stand mixer?

Children aged 8 years and above can use it if supervised and instructed on safe use. Cleaning and maintenance should not be done by children under 8. Keep the appliance and cord out of reach of children under 8.

What should I do if the mixer malfunctions?

Do not attempt to open the appliance. Contact the Customer Support Service at any Worten, Modelo, or Continente store for assistance.

How do I remove the attachments (flat beater, dough hook, whisk)?

Ensure the speed selector is at OFF (0) and the mixer is unplugged. Pull the attachment out by grabbing the washer on the attachment.

What is the recommended speed for whisking egg whites?

Use speed settings 5-6 for whisking. Whisk for 5-7 minutes with at least 3 egg whites for best results.

Can I use metal utensils in the bowl while the mixer is running?

No, do not stick knives, metal spoons, forks or other objects into the bowl when the stand mixer is in operation. Use only a plastic spatula to scrape excess food.

USER MANUAL KKM7521 Kunft

Black kupon mixer with whisk inside a stainless steel bowl, no visible text or symbols on the device itself.

Two metallic wire cage devices and a black tool, no text or symbols visible

stand mixer

kunft.®

stand mixer

KKM7521

EN

Dear client,

Thank you for purchasing this product.

The quality of this appliance has been certified by several laboratory tests. This instructions manual is provided to simplify the use of the appliance as well as to guarantee a safe use.

Please read carefully the instructions and safety measures described in this manual.

We sincerely hope you will be satisfied when using your new appliance.

INDEX

1. SAFETY INSTRUCTIONS......4

1.1. Power Supply....6
1.2. Power Cord and Other Cables......6
1.3. Humidity and Water 6
1.4. Cleaning....6
1.5. General Precautions ...... 7

1. OPERATING INSTRUCTIONS....10

2.1. Product Description.... 10
2.2. Product usage....10
2.3. Maintenance 12

1. TECHNICAL SPECIFICATIONS....13
2. POST-SALE SERVICE....14
3. ENVIRONMENTAL PROTECTION .... 14

2

3

kunft®

1. SAFETY INSTRUCTIONS

	WARNING
	Risk of Electric ShockDo Not Open
Warning: to avoid the risk of electric shock, do not remove the cover.The interior does not contain any parts that can be repaired by the user.Ask for assistance from the Customer Support Service.

Important Warnings

Before using your appliance read these instructions manual carefully and keep it in a safe place as you may need to consult it in the future.

Before turning on your appliance, and to ensure a safe and correct operation, do not use if:

• It has fallen to the ground;
• You notice any evidence of damage;
• Any anomaly occurs during its operation.

To avoid hazards or deterioration of your appliance through incorrect use it is advisable to read these instructions thoroughly.

Your appliance should not be used for other purposes than the ones intended and solely for household use. Any damage resulting from using the appliance outside this scope,

stand mixer

KKM7521

EN

any incorrect use, as well as any manual modifications to the product will not be covered and automatically voids the warranty.

Assistance

In case of malfunction, take your appliance to the Customer Support Service for assistance.

This appliance can be used by children aged from 8 years and above if they have been given supervision or instruction concerning use of the appliance in a safe way and if they understand the hazards involved. Cleaning and user maintenance shall not be made by children unless they are older than 8 and supervised. Keep the appliance and its cord out of reach of children aged less than 8 years.

Appliances can be used by persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.

kunft®

Children shall not play with the appliance.

These instructions are also available at www.suporteworten.pt

1.1. Power Supply

Make sure the main voltage is compatible with the appliance's. If this is not the case, please consult the Customer Support Service.

1.2. Power Cord and Other Cables

Do not tangle the cord or pull it to disconnect the appliance. Also, keep the cord away from warm surfaces.

Never use the appliance if it has a damaged cable or socket.

Take it to the Customer Support Service for replacement.

1.3. Humidity and Water

Do not use your appliance in humid places. Do not allow the appliance to become wet under any circumstances as this may be dangerous. To avoid fire hazard or electric shock do not expose your appliance to humidity or water. Furthermore, do not place your appliance under water (e.g. for cleaning).

1.4. Cleaning

Before cleaning, be sure to switch off the appliance and remove the plug from the main

stand mixer

KKM7521

EN

power supply. Always allow the unit to cool down before cleaning.

To clean the exterior of the product, use a dry soft cloth only.

1.5. General Precautions

• Please follow the instructions in the user manual which will help you to properly install and operate this product and enjoy its advanced features. Please keep the instructions for future reference.
• Read all instructions before using the product.
• Save these instructions.
• Maintenance and service operations are only to be carried out by authorised professionals.
• Any damage caused by manual modifications to the product is not covered by the warranty.
• If this product is used for other purposes than the ones originally intended, or if it is not correctly connected, the product may become damaged and the warranty will be voided.
• Make sure that your outlet voltage matches the value stated on the stand mixer's rating label.
• Do not operate the stand mixer with a damaged cord or plug, after the stand mixer

kunft®

malfunctions, or if it is dropped or damaged in any manner. Return the stand mixer to the nearest Worten store for inspection, repair or electrical or mechanical adjustment.

• Do not leave the stand mixer unattended while it is in use.
• Do not let the cord hang over the edge of a table or counter or on a hot surface.
• To protect against the risk of electrical shock, do not place the stand mixer or the power cord in water or any other liquid. This may cause personal injury or damage the product.
• Avoid contact with moving parts. Keep hands, clothing, spatulas and other utensils away from the beaters during use to reduce the risk of injury to people, and/or damage to the stand mixer.
• The stand mixer cannot be used for mixing hard or dry substances, as this might blunt the blade.
• Be sure to return the speed selector to the 0 position after each use. Before disassembly, ensure the motor has stopped and remove the power supply cord plug from the outlet.
• Do not place the stand mixer on or near a hot gas flame or a heated oven.
• Never pull out the flat beater/dough hook/whisk when the stand mixer is in operation.

stand mixer

KKM7521

EN

• Unplug the stand mixer from the outlet while not in use, before putting on or taking off parts, and before cleaning.
• Do not operate the stand mixer in any way other than for its intended use.
• Do not use the stand mixer outdoors.
• Keep the stand mixer and its power cord out of reach from children.
  • Children or handicapped persons require supervision while using the stand mixer.
• Always disconnect the stand mixer from the supply if it is left unattended and before assembling, disassembling or cleaning.
• Switch off the stand mixer and disconnect it from the power supply before changing accessories or approaching moving parts in use.
• Handle with care.

kunft®

2. OPERATING INSTRUCTIONS

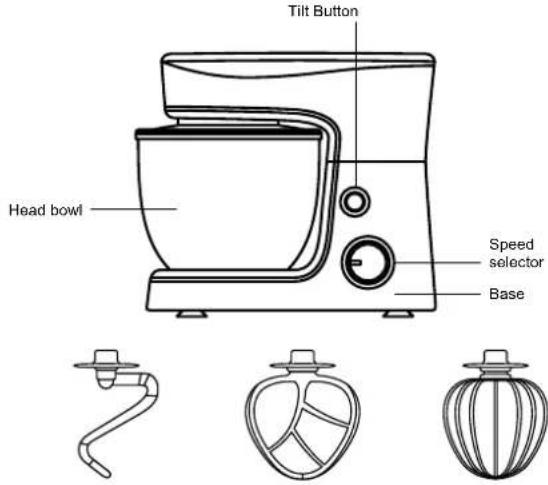

2.1. Product Description

Dough hook Flat beater Whisk Fig.1

2.2. Product usage

Before using your stand mixer

Before assembling the stand mixer, make sure the power cord is unplugged from the power outlet and the speed selector is on the OFF position.

1. By pressing the tilt button, the head of the stand mixer will automatically release and lock into the tilt position.
2. Select the desired attachments, depending on the intended tasks: the flat bealer for mixing and beating eggs and butter, the dough hook for kneading, the whisk for beating and frothing egg whites/milk/liquid food.
3. Insert the flat beater/dough hook/whisk, pressing until it locks into position.
   Note: Ensure the flat beater, dough hook or whisk are fully inserted into the socket, as this may affect your mixing results.
4. Place the mixing bowl in position. Start by placing the bowl on the base, then turn it clockwise until it locks into the right position (see fig. 2).

stand mixer

KKM7521

EN

1. Lower the head to place the flat beater/dough hook/whisk into the bowl by holding the head with one hand and easing the head down. A clicking sound will be heard when the head has reached the correct position.
2. Make sure the bowl cover is in place (see fig. 3).

Fig.2 Fig.3

Using your stand mixer for mixing

1. Ensure that the speed selector is on the OFF position, and the plug is connected to the power source.
2. Turn the speed selector to your desired setting. Warning: Do not stick knives, metal spoons, forks and other such objects into the bowl when the stand mixer is in operation.

3. The maximum continuous operation time must not exceed 5 minutes and a minimum rest time of 10 is required between 2 consecutive cycles.

4. SPEED GUIDE

Accessory Fig.		Speed selection range	Time Max. volume
1. Dough hook		1~4	Speed 1 for 30sSpeed 2-3 for 30sSpeed 4 for 2~4 mins	Maximum weight of flour: 600 gMaximum ratio of flour and water: 1 g flour: 0.6 mL (35-45°C)
2. Flat bealer		1~4	Speed 1-2 for 1 minthen speed 3-4 for 3~4 mins
3. Whisk		5~6	5-7 mins	At least 3 egg whites

kunft®

1. When mixing is completed, turn the speed selector to the OFF position, and unplug the cord from the power outlet.
2. Press the tilt button. The head of the stand mixer will automatically lift and lock into the tilt position.

Caution: Before pressing the tilt button (namely before lifting the head of the stand mixer), make sure the flat beater/whisk/dough hook are correctly in place on both sides of the head of the stand mixer, otherwise they will get caught in the mixing bowl when lifting the head of the stand mixer. If the flat beater/whisk/dough hook is resting on the front of the head of the stand mixer, turn on the speed selector again, let the stand mixer rotate for a few seconds, then turn off the speed selector to stop the flat beater/whisk/dough hook on both sides.

1. If necessary, can scrape the excess food from the flat beater or dough hook using a plastic spatula.
2. Apply a small amount of force to pull out the flat beater/dough hook/whisk by grabbing onto the washer on the flat beater/dough hook/whisk.

Caution: The speed selector must be set to the OFF position and the stand mixer must be disconnected from the power outlet before pulling out the flat beater/ dough hook/whisk.

After using the stand mixer, please allow 40 to 45 minutes before using it again.

COOKING TIPS

1. Refrigerated ingredients, such as butter and eggs should be at room temperature before mixing. These ingredients should be taken out of refrigeration ahead of time.
2. Break eggs into a separate container before adding them to the mixture, to prevent pieces of shell or rotten eggs from being added to the mixture.
3. Do not over-beat the mixture. Be careful to only mix/blend mixtures as recommended in your recipe. Fold mixtures into dry ingredients only until just combined. Always use the lowest speed setting.
4. Environmental conditions, seasonal temperature changes, the temperature of ingredients and their texture vary from area to area and all play a part in the required mixing time and the results achieved.
5. Always start mixing at a lower speed, and gradually increase to the recommended speed as stated in the recipe.

2.3. Maintenance

1. Unplug the stand mixer and wait for it to completely cool down before cleaning.

Caution: The stand mixer cannot be immersed in water or any other liquid.

stand mixer

KKM7521

EN

1. Wipe the outside surface of the head and base with a damp cloth and polish with a soft dry cloth.
2. Wipe any excess food particles from the power cord.
3. Immerse the mixing bowl, flat beater, spatula, dough hook and whisk in warm soapy water before rinsing them under running water, and then wipe them dry.

3. TECHNICAL SPECIFICATIONS

Features:

Voltage: 220-240V

Frequency: 50Hz

Power: 700W

3.5 L stainless steel bowl

Accessories: 1 stainless steel bowl, 1 transparent bowl cover,

1 spatula, 1 dough hook, 1 flat beater, 1 whisk

kunft®

stand mixer

KKM7521

EN

4. PoSt-SalE SErvIcE

KUNFT has designed this appliance in order to guarantee maximum reliability. However, if a problem occurs do not attempt to open the appliance - there is a risk of electrical shock. If you are not able to solve the problem, please contact the Customer Support Service of any Worten, Modelo or Continente store in order to be assisted. Worten Equipamentos para o Lar provides a 2-year warranty for manufacturing defects from the date of purchase of the appliance.

WARNING: any attempt to repair the appliance without contacting the manufacturer or seller will void the warranty.

All users must be familiar with these instructions. Knowing what could go wrong can help prevent problems from occurring.

5.ENvIroNMENtal ProtEctIoN

In order to protect the environment, we strive to reduce the volume of packaging used, limiting it to three easily sorted materials: cardboard, paper and plastic.

The appliance is manufactured using recyclable materials after disassembled by a specialized company. Please comply with local regulations concerning the recycling of all materials.

Estimado cliente:

Line drawings of two kitchen appliances: one with a bowl and lid, the other with a side bowl (no text or symbols)

Fig.2 Fig.3

Line drawing of a kitchen mixer with a bowl and fan (no text or symbols)

Fig.2

Line drawing of a modern toaster oven with control panel and side buttons (no text or symbols)

Fig.3
