Product Type	Satellite Receiver (DVB-S/S2)
Model	HD 660 Twin
Brand	Megasat
Dimensions (W x H x D)	168 x 40 x 95 mm
Weight	262 g
Power Supply	AC 100-240V, 50/60Hz; DC 12V, 1.5A
Power Consumption	Max 18W (operation), <1W (standby)
Tuner	Twin tuner, DVB-S/S2
Maximum Resolution	1920x1080p (1080p)
Video Decoding	MPEG-2/4, H.264, H.265 (HEVC)
Audio Playback Formats	MP3, AAC, WMA, WAV
Photo Playback Formats	BMP, PNG, JPG, JPEG
Video Playback Formats	3GP, AVI, DAT, DIV, DIVX, M2TS, MKV, MOV, MP4, MPG, TS, VOB, etc.
Connections	1x HDMI, 1x AV (3.5mm jack), 1x LAN (RJ45), 2x USB 2.0, 2x LNB input, DC input
DiSEqC Support	1.0, 1.1, 1.2, USALS
Unicable Support	EN 50494 / EN 50607
Recording Features	USB recording, timeshift, timer recording
EPG	7 days electronic program guide
Menu Languages	German, English, Italian, Spanish, Polish, French, Russian, Indonesian, Portuguese, Turkish
Child Lock	Yes (password protected)
Sleep Timer	Yes (1-6 hours)
Remote Control	Included with batteries
Accessories Included	Remote control, batteries, mini AV adapter, power supply, user manual

Frequently Asked Questions - HD 660 Twin MEGASAT

How do I connect the receiver to my TV?

Use an HDMI cable to connect the receiver's HDMI port to your TV's HDMI input. Alternatively, use the mini AV adapter for composite video/audio. Make sure your TV is set to the correct input source.

How can I record a program?

Connect a USB storage device (hard disk or USB stick) to the USB port. Press the REC button on the remote during a live program to start recording. Stop by pressing STOP. You can also set timer recordings via the menu: Menu > Programme list > Timer list.

What is Timeshift and how do I enable it?

Timeshift allows you to pause and resume live TV. Enable it in Menu > Mediaplayer > PVR settings. Set Timeshift to On. A USB storage device must be connected.

How do I update the firmware?

Download the latest firmware from the Megasat website. Copy it to a USB stick. Insert the USB into the receiver. Go to Menu > Installation > USB update. Choose the update file and press Start.

How do I reset the receiver to factory settings?

Go to Menu > Installation > Factory setting. You will be prompted for the password (default: 0000). Confirm to reset all settings.

How do I change the parental lock password?

Navigate to Menu > System > Child lock. Enter the current password (default 0000) and then set a new password.

Can I use Unicable with this receiver?

Yes, it supports Unicable systems (EN 50494 and EN 50607). In Menu > Installation > LNB, set LNB type to Unicable A/B (for up to 4 users) or SCD2 A/B (for up to 32 users). Configure the IF channel and frequency according to your system.

How do I play media files from a USB drive?

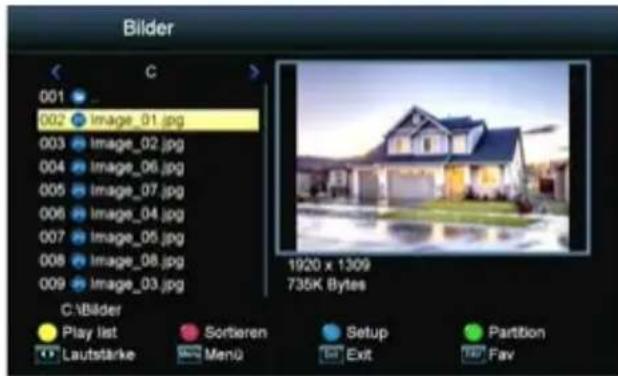

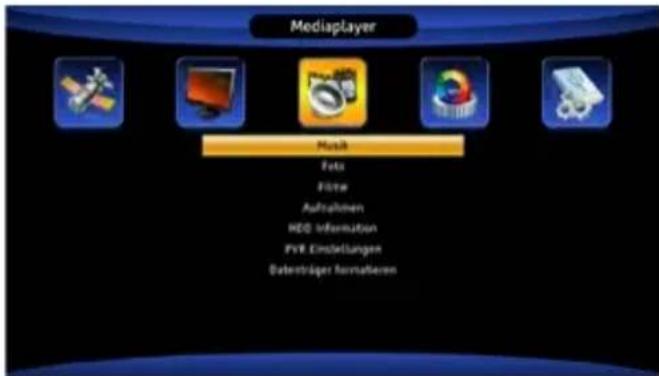

Insert the USB drive. Press MENU and select Mediaplayer. Choose Music, Pictures, or Movies. Navigate to the file and press OK to play. Use color buttons for sorting and playlist options.

How do I set up a timer recording?

Press MENU > Programme list > Timer setting. Select a slot and press OK. Set the date, start/end time, channel, and mode (record or switch). Press Save to confirm. Up to 20 timers can be set.

No picture or weak signal, what should I check?

Ensure the dish is correctly aligned. Check the LNB and coaxial cable connections. Go to Menu > Installation > Signal to check signal strength and quality. Also verify your TV is on the correct HDMI/AV input.

USER MANUAL HD 660 Twin MEGASAT

Koaxialkabel 1

Koaxialkabel 2

4. Hauptmenü

Safety instructions 03

1. General information

1.1 General Features 04
1.2 Delivery....04

2. Designations and key assignment

2.1 Front view 05
2.2 Rear view 05
2.3 Remote control....06

3. Connecting the receiver....07

4. Main menu

4.1 Program list 08
4.2 Installation 11
4.3 System....17
4.4 Network....19
4.5 Mediaplayer 20

5. Recording options

5.1 Direct recording 24
5.2 Manual recording via the timer list 24
5.3 Recording via the EPG....24

6. Additional information

6.1 Troubleshooting....25
6.2 Specifications....26

Safety instructions

Please read the operating instructions carefully before putting the device into operation. Incorrect or improper handling will void the warranty.

Power supply:

Before commissioning, please check the correct operating voltage of your power supply. The operating voltage of the device is AC 100\~240 V, 50/60Hz, DC 12 V, 1.5A.

Overload:

Do not overload the wall outlet, extension cord, or adapter. Do not use a damaged power cord or touch it with a wet hand as this may result in electric shock.

Liquid:

The device must not be exposed to dripping, splashing or other liquids.

Ventilation:

Keep the ventilation slots on the top of the unit free to allow sufficient air circulation inside the unit. Do not expose the unit to direct sunlight or other sources of heat, such as a heater. Do not place any other electrical devices on top of the unit.

Danger of suffocation:

Do not allow children to play with foils or other packaging parts, as there is a danger of suffocation.

Cleaning:

Unplug the appliance from the wall outlet before cleaning. Clean the appliance with a soft cloth.

Opening the device:

Do not open the enclosure to avoid the risk of electric shock. Contact qualified and licensed service personnel to repair the unit or contact your dealer.

1. General information

1.1 General features

• DVB-S/DVB-S2 Satellite Compliant
- Twin tuner
- Recording and timeshift function
• LAN connection for various network apps
• DiSEqC 1.0, 1.1, 1.2, USALS
- 4-digit display
- Unicable suitable (EN 50494 / EN 50607)
• PAL / NTSC conversion
• Resolution: 576i, 576p, 720p, 1080i, 1080p
- Favorites listschild safety lock
- Various sorting functions for channels
• Full color resolution on-screen menu
- Teletext and subtitle support (OSD)
• 7 days EPG (Electronic Program Guide)
- Multilingual menu
- Multi-channel sorting
• 2x USB 2.0 port (for recording and media playback)
- Analog audio/video output (3.5 mm jack)
• 12/230 Volt power supply unit

• Variable aspect ratio (4:3, 16:9) with Pan Vector or Letter Box

• HDMI with upscale function to improve image quality

1.2 Delivery

• Megasat HD 660 Twin
- Remote control
- Batteries
- Mini AV Adapter
• 230/12 Volt power supply
- User manual

2. Designations and key assignment

2.1 Front view

2.2 Rear view

2. Designations and key assignment

2.3 Remote control

Area 1

POWER Turn on/off the unit (Standby)

MUTE Muting the sound

RED Function key

GREEN Function key

YELLOW Function key

BLUE Function key / Timer list

◀◀ / ▶▶ Fast forward / reverse

Chapter forward / backward

REC Start recording

Start / Pause

■ Stop

LIST Access to the recording menu

SUB Displaying subtitles (if available)

GOTO Function key in different sub-menus

SAT Switches to the satellite selection

AUDIO Selection or change the audio track

Area 2

MENU Enter the main menu

FAV Displays the favorite list (if favourites available)

RECALL Switches between last and current program

EXIT Exits the current menu step by step

◀ / ▶ Volume control / Navigation in the menu

▲/▼ Change TV/Radio programs (up/down) / Navigation in the menu

OK Confirm the current selection / opening the program list

Area 3

VOL +/- Adjust the volume

INFO Displays information about the current program (press again for more informations)

EPG Displays the EPG (Electronic Program Guide)

PG +/- Switches TV / radio programs (up / down)

NUMERIC KEYS (0\~9) Program change / Enter numbers

TXT Displays the teletext of the respective program

TV/RADIO Switches between TV and radio receptio

3. Connecting the receiver

1. Connect the coaxial cable to the LNB. (You can connect an LNB directly to the LNB IN, or several LNBs via a DiSEqC switch or multi-switch.
2. Connect the HDMI cable to your TV.
3. Make sure that your television set is equipped with the the corresponding input channel is selected (e.g. HDMI 1).
4. Now connect the power cable and start the receiver. The device is already programmed with a station list at the factory. and immediately ready for use.

Coax cable 1

Coax cable 2

External USB storage device (hard disk or USB stick)

4. Main menu

Switch on the receiver. You can select the desired language and time zone during initial commissioning. Press EXIT to complete the initial installation and load the programmed station list. Now press the MENU button to enter the main menu.

The main menu consists of:

• Programme list
• Installation
• System
• Network
• Mediaplayer

With the ◀▶ keys you can select between the respective menu items. Use the ▲▼ buttons to navigate through the submenus. Use the OK key to switch to a submenu. Press the EXIT key to exit the respective menu.

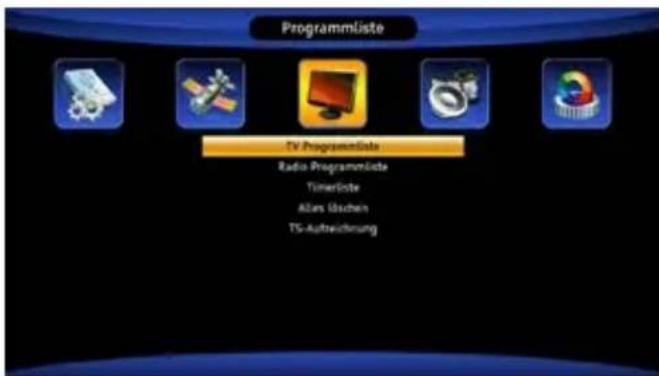

4.1 Programm list

The following submenus are available in the menu item Program list:

1. TV program list
2. Radio program List
3. Timer setting
4. Delete all

Select the TV channel list and confirm with OK. A TV channel list is already programmed in the factory setting, which you can now change.

Note: Press the SAT button to select your favorite satellites. Below are the options for changing them:

FAV (FAV button)

Press the FAV button to add stations to a specific favorite group. Select a channel and confirm with OK. A window will then appear in which you can add the station to a group. Select between the preset favourite groups and confirm with OK. The selection is indicated by a heart symbol. Repeat the procedure until all the desired stations have been assigned to a favourite group. Press EXIT to return to the TV channel list.

4. Main menu

LOCK (Red button)

Press the RED button to activate the lock mode. Now select the channel you want to lock and confirm with OK. A password prompt will appear. The default password is „0000“ at delivery. After entering the password, the transmitter is locked. This is indicated by a lock symbol. Repeat the procedure for all transmitters you want to lock. From now on, the password must always be entered when you switch to this station. The password can be changed in the MENU under System -> Parental lock. Exit the lock mode with EXIT.

SKIP (Green button)

Press the GREEN button to activate the skip mode. Select the station you want to skip and press OK to confirm. The mark is indicated by an arrow symbol. In the future, the selected stations will be skipped when you scroll through the station list. Press EXIT to exit the skip mode.

MOVE (Yellow button)

Press the YELLOW button to activate the move mode. Now select one or more stations you want to move. This is indicated by a double arrow symbol. Then use the ▲▼ buttons to move to the desired position in the station list. Press the INFO button (i) to move the previously marked stations to this position. Repeat the process with all the stations you want to move. Press EXIT to exit the move mode.

EDIT (Blue button)

Press the BLUE button to make further settings.

Red button: To sort the channels, e.g. from A-Z, Z-A, Free, Encrypted, ...

Green button: To rename a station. Use the color buttons on the remote control to select various functions are available to you.

Blue button: To delete channels. Press OK to highlight all the stations you want to delete from the list. This is indicated by an X symbol. To delete the stations, exit the menu with EXIT.

A message box will appear indicating whether you really want to delete. Press YES to delete, NO to cancel.

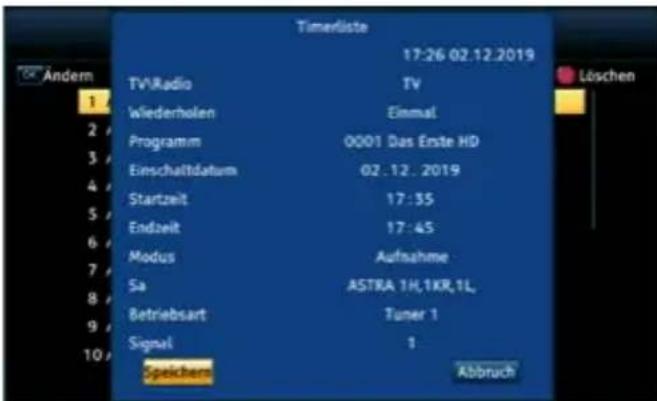

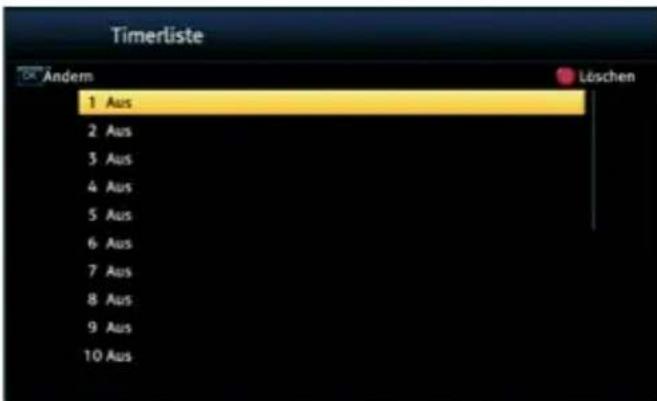

Here you can set one or more timers to recall or record the programme you have selected at a certain time. The receiver automatically switches to this channel at the selected time or records it on the external USB storage medium.

Select the first timer slot and confirm with OK. Then a new window opens to set the respective data such as date and time.

TV/Radio Select whether to turn on a TV or radio program.

Repeat Select when the timer should be active (Once, Daily, Weekly).

Channel Select which program the receiver should switch to.

Wakeup Select on which day (date) the timer should be active.

Start time Select when (time) the receiver should turn on.

End time Select when (time) the receiver should switch off again.

Mode Select whether to start a recording with this timer or to switch to the programme only.

Once you have made all the settings, press „Save“ at the bottom of the screen to transfer the timer to the timer list. Repeat the procedure if you want to set more timers. A total of 20 different timers are available.

4. Main menu

4. Delete all

Select this item to delete all programs. You will be asked for the password first. The default password is 0000.

You can change the password in the menu under „System“ ▶ „Parental Lock“.

WARNING:

If you delete all programs, this process cannot be undone!

4.2 Installation

The following submenus are available in the Installation menu item:

1. Installation
2. Information
3. Factory setting
4. USB update
5. USB backup
6. Games

This menu lists all available satellites. Use the ▲▼ buttons to select one or more satellites that you want to receive with the receiver and confirm them with OK. The selection is marked with a hack symbol.

Add satellite

Press the red button to add a satellite. A window appears, enter a name and the longitude. With the colored buttons on the remote control, various functions are available.

Edit satellite

With the green button you can change a satellite. A window will appear where you can change the name and the longitude. With the colored buttons on the remote control, various functions are available.

Delete satellite

With the yellow button you can delete a satellite.

Transponder

Press the GOTO button on the remote control to add or edit a transponder. The list shows all available transponders of each satellite are listed. From time to time new transponder will be added or changed by satellite operators.

With the colored buttons on the remote control, various functions are available. The procedure is the (add, modify, or delete) the same as in the satellite.

4. Main menu

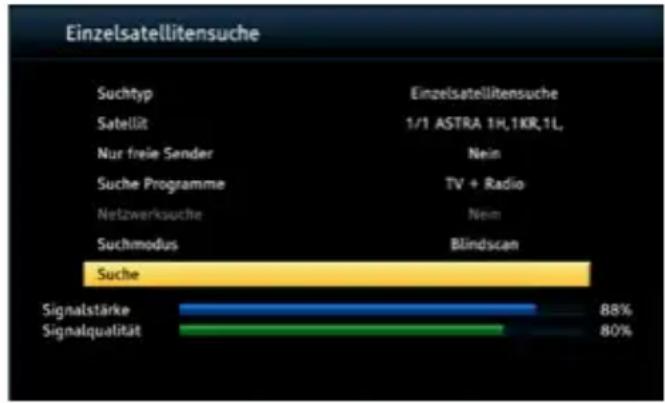

Channel search

With the blue button you can scan a satellite for programs. Here you can choose between single satellite search and multi-satellite search.

Satellit: Select the desired satellite (eg Astra 19.2° East).

Only free: Choose whether only free to air or all encrypted channels are to be searched.

Program search: Choose between TV or radio programs

Network search: Select YES to look for transponders on satellites that are not contained in the transponder table. (The network search is only active when "Full Scan" is selected in the search mode.

Multi satellite search

Here are all marked satellites can be searched simultaneously. The search settings above can also be applied here.

Once you have made all the settings, use the arrow keys to switch to „Search“ and confirm with OK to start the search process.

4. Main menu

To make various settings for your satellite system, select the desired satellite and then press the ▶ key to enter the right setting window.

LNB

Here you can set the LNB type according to your satellite system. The default setting (Universal 9750-10600) is applicable in most cases. If you select Unicable as the LNB type, please follow the steps below:

Unicable (EN 50494 and EN 50607):

Under the menu item LNB type you can make the settings for single cable systems (Unicable and Unicable 2). The receiver can be programmed for different Unicable systems. Depending on the system, up to 32 receivers can be connected.

Unicable A / B (EN 50494)

This setting is suitable for Unicable systems with up to 4 participants. Under IF channel you can select up to 4 different channels. Each IF channel is assigned a frequency. Select the desired IF channel (1-4). Then select the main frequency and confirm with OK. Now enter the frequency corresponding to your Unicable system. With the Unicable A/B option you can control up to 2 satellites.

SCD2 A / B (EN 50607)

This setting is suitable for Unicable 2 systems with up to 32 subscribers. Under IF channel you can select up to 32 channels, each IF channel is assigned a frequency. Select the desired IF channel (1-32). Then select the main frequency and confirm with OK. Now enter the frequency corresponding to your Unicable system. With the option SCD2 A/B you can control up to 2 satellites.

Note:

Basically, one uses the lowest frequency for the longest cable path to the set-top box. Note that each frequency may only be present once in your system. The frequencies depend on your single-cable system and can not be allocated as desired. IF program and IF frequency must compulsorily match your Unicable system.

DiSEqC 1.0 / DiSEqC 1.1

If the antenna is operated with a DiSEqC switch, here you can configure the DiSEqC input of the selected satellite.

22KHz

In case you are using two antennas connected to a 22KHz tone switch box. You can supply either 22KHz by setting "OFF" to select antenna.

4. Main menu

LNB (Polarisation)

The polarization switches at Universal LNBs between the vertical and horizontal plane. The default setting (Auto) is correct in most cases.

Motor settings

If you operate your satellite dish with a motor, use the ◀▶ buttons to select between USALS, DiSEqC 1.2 or None. At the bottom of the screen other settings appear. Use the corresponding color buttons to get to the detailed engine settings.

USALS settings

Set limit (red button): Choose between „Limitation off“, „West border“ and „East border“.

Limitation: The mirror has no fixed limit to stop at a certain point.

West limit: Press the t u buttons to turn the mirror to the east or west. Press until the desired position of the western boundary is reached. Then save the settings.

East border: Press the t u buttons to turn the mirror to the east or west. Press until the desired position of the east border is reached. Then save the settings.

Go to reference: Press OK to get to the 0° starting point.

Set limit (green button): Enter the latitude and longitude of the respective satellite here.

DiSEqC 1.2 settings

Set limit (red button): see USALS settings

Delete all (green button): Deletes all satellite positions of the motor.

Operating mode

Select the tuner assignment here. If you only want to use one tuner, please set the operating mode to „Tuner 1“ or „Tuner 2“. Depending on which tuner input you have connected the coaxial cable to.

If you want to use the receiver as a twin tuner, set the operating mode to „Twin Tuner“. You can then record one channel (via tuner 1) while watching another (via tuner 2).

Signal

Check the signal strength and quality of Tuner 1 and/or Tuner 2.

4. Main menu

2. Information

Information about the software and hardware status of the receiver is displayed here.

3. Factory setting

With this function the receiver is set to the delivery state. First a password request is made to access the submenu. The default password is „0000“.

You will then be asked whether you really want to delete all settings. Confirm with YES or with NO to cancel the process.

Note:

All data you have set will be lost! This process cannot be undone!

4. USB-Update

Copy the appropriate firmware to a USB stick and plug it into the USB socket of the receiver. In the „Upgrade Mode“ you can choose whether to update ALL, only the program list or only the main code. Please select the new firmware under „Update file“. Press „Start“ to start the upgrade process. After the upgrade the receiver will restart if necessary.

5. USB backup

You can use this function to save your data. Under the item „Backup mode“ you can choose whether ALL, only the program list or only the default setting should be saved. Start the backup process with „Start“. To restore data, follow step „4. USB update“.

6. Games

Various games classics for entertainment.

4. Main menu

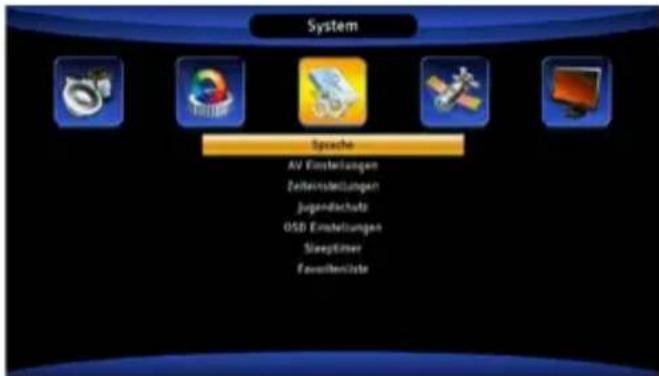

4.3 System

The following submenus are available in the Installation menu item:

1. Language
2. AV settings
3. Time settings
4. Child lock
5. OSD settings
6. Sleep timer
7. Favourite list

Set the main language of the menu here. You can also set the language of the first and second audio channels as well as the subtitle language and Teletext. Use the ◀▶ buttons to select the language. Press EXIT to save and exit the submenu.

2. AV settings

TV setting: Select your TV system (Auto, PAL or NTSC)

Video resolution: Select the resolution of the set-top box (576i to 1080p)

Format: Select the screen size (Auto, 4:3 LB, 4:3 PS, 16:9)

Video effect: Select the sharpness of the image (sharp, normal or soft)

Audio output: Choose between LPCM out (default), BS out and Convert.

3. Time settings

GMT Usage: Select if you want to use the automatic GMT setting.

GMT Difference: Select the time zone you are in

Summer time: Select whether daylight saving time should be activated or deactivated.

Date: Set the current date here (only if GMT usage is disabled)

Time display: Set the current time here (only with deactivated GMT usage)

4. Main menu

4. Child lock

Here you can assign a password to various menu items or channels to prevent children from changing the settings or watching unwanted programmes.

The default password is „0000“ and can be changed here.

5. OSD settings

With the ◀▶ keys you can change according to each point on your needs. It can be set as follows:

Subtitle: On or Off

OSD time: Menu display time (3-10 sec.)

OSD transparency: Menu transparency

6. Sleep-Timer

Set here when the receiver should turn off automatically when no operation is performed on the unit or on the remote control. You can turn off the sleep timer or choose between 1-6 hours.

7. Favoritenliste

Here you will find a list of favorites that you can create in the channel list setting. The bookmark name can be changed arbitrarily. Access a list with the OK button and change the name using the color and number buttons on the remote control.

4. Main menu

4.4 Network

The following submenus are available in the Network menu item:

1. Network settings
2. Internet applications

Note:

The menu item Network contains optional functions that require an Internet connection.

The „WiFi“ option is only available if a suitable WiFi USB stick has been inserted. You can then connect the receiver to your Internet router.

LAN

With a LAN cable plugged in and a connection to the Internet router, you can view the connection details here. Under „Mode“ you can select between „DHCP“ and „Static IP“. With „DHCP“, the receiver is automatically assigned an IP address in the network. With „Static IP“, you can assign an IP address yourself (this is only recommended for experienced users).

2. Internet applications

Here you will find various internet applications. Prerequisite is an existing connection with your Internet router and access to the Internet.

4. Main menu

4.5 Mediaplayer

The following submenus are available in the menu item Mediaplayer:

1. Music
2. Pictures
3. Movies
4. Recording
5. HDD information
6. PVR settings
7. Formatting data volumes

Note: The menu item Mediaplayer can only be selected if a suitable USB medium has been inserted and detected.

1. Music

On the left side of the screen you will see the contents of your USB storage device. Navigate with the ▲▼ buttons to select a folder in which you saved songs. Press the OK button to enter the folder.

Title playback:

Select a title with the ▲▼ buttons and start play-back by pressing OK. You can control the playback mode by pressing the „BLUE“ button on the remote control. Choose between the following playback modes:

• Play the selected track 1x
• Repeat the selected track continuously
• Play all tracks randomly

The respective playback mode is indicated by the icon to the right of the playback bar.

4. Main menu

Sort tracks:

You can sort all tracks in the playlist by pressing the „RED“ button. Select between „Name A-Z“, „Name Z-A“ or the original arrangement (default).

Create a playlist:

Select a track from the playback with ▲▼ buttons. Press the „FAV“ button on the remote control to highlight the title as favorite. If you have selected all the titles as a favorite, you can enter the playlist with the „YELLOW“ button. Title can be deleted from the playlist by pressing the „YELLOW“ button. Highlight the title you want to remove and leave the playlist with EXIT. Do you want to delete the entire playlist, press the „GREEN“ button to select all tracks. Then exit the playlist with EXIT.

2. Pictures

On the left side of the screen you will see the contents of your USB storage device. Navigate with the ▲▼ buttons to select a folder in which you saved images. Then press the OK button to access the folder.

Start slideshow:

Select an image with the ▲▼ buttons and start playback by pressing OK. You can

change the slideshow settings by pressing the

„BLUE“ button (Setup) on the remote control. Choose between the following options:

• Slideshow time: OFF, 1-9 sec. (Period until the next image)
• Slideshow repeat: ON or OFF

Note: If you set the slideshow time to OFF, only the selected image is displayed. You can now play all the images manually with ◀▶ buttons. With the ▲▼ buttons, the image can be rotated by 90°.

Sort pictures:

You can sort all pictures in the playlist by pressing the „RED“ button. Select between „Name A-Z“, „Name Z-A“ or the original arrangement (default).

4. Main menu

3. Movies

On the left side of the screen you can see the contents of your USB storage device. Use the ▲▼ buttons to navigate to a folder where you have saved videos. Then press the OK button to enter the folder. Select a video with the ▲▼ buttons and press OK to start playback. You can see the playback in advance in the small preview window. Press the „YELLOW“ button to play the video in full screen mode.

Note:

A general control, such as start, stop, forward or rewind, is carried out via the upper keypad on the remote control.

4. Recording

On the left side of the screen you can see the contents of your recordings. Navigate with the ▲▼ buttons to select a recording. Select a recording with the ▲▼ buttons and start playback with OK. You can see the playback in advance in the small preview window. Press the OK button again to play the video in full screen mode.

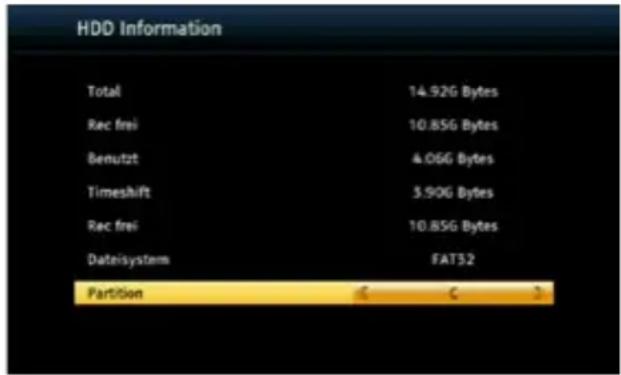

Here you see all important information about the inserted USB medium.

In this menu you can activate or deactivate Timershift. If Timeshift is enabled (On), the USB media is permanently recorded in the background. This allows you to pause a running program and start it again at a later time. If several partitions have been created on the USB device, you can select the respective drive under „PVR Partition“.

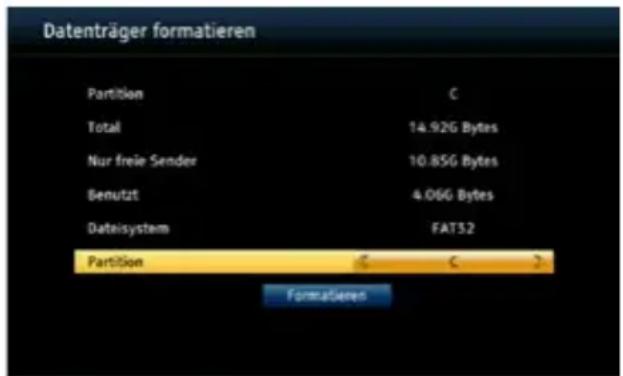

7. Formatting data volume

Here you can see information about the total capacity, the used capacity and the still available capacity of the USB medium. If there are several partitions on the USB device, you can select them under „Partition“. To format a partition, select the „Format“ button and confirm with OK.

All files on the selected partition will be deleted irrevocably!

5. Recording options

There are several ways to start a record or program a recording.

5.1 Direct recording

Press the REC button on the remote control while the programme is running. A message that recording has started will then appear at the bottom of the screen. To stop recording, press the STOP button on the remote control. You will be asked if you really want to stop recording. Confirm with YES or NO to cancel.

5.2 Manual recording via the timer list

You can also program a recording manually with start and end times. To do this, switch to the following menu item:

Menu ▶ Programme list ▶ Timer list

Then follow the instructions as described on page 10 (Timer list).

5.3 Recording via the EPG

Press the EPG button on the remote control. Select the programme you want to record. Use the navigation keys ▲▼◀▶ to switch between the station, the day of the week and the time. Once you have selected a programme, press the GREEN button to add it to the timer list. Then follow the instructions as described on page 10 (Timer list).

6. Additional information

6.1 Troubleshooting

If you experience problems with the receiver, check the following situations to determine the source of the error.

Problem Possible causes What do you have to do?
The LED light does not light up.	Power cord is not connected or not plugged in properly.	Check that the power cord is properly connected.
No picture or sound The dish is not correctly aligned to the satellite and therefore receives a weak or no signal. The LNB or coaxial cable is defective. You are not on the correct TV channel. (AV or HDMI)		Check the adjustment of the dish to get a better signal. Switch to the respective submenu to check the signal strength. Check the connection from the LNB to the receiver or replace the components if necessary.
Bad, jerky picture. The dish does not point exactly to the satellite, the signal is too strong, the mirror is too small or the noise figure of the LNB is too high.		Adjust the dish correctly. If necessary, use a damping controller. Use a larger dish. Change the LNB.
No start screen when starting the receiver.	The receiver is connected via HDMI, but the TV is not in the correct HDMI mode.	Switch the TV to the correct HDMI mode (e.g. HDMI 1).
The remote control does not work.	The batteries are empty or the remote control is not pointing exactly at the receiver.	Replace the batteries. Make sure there is nothing between the receiver and the remote control. Obstacles can reduce reception.
Have you forgotten your password?		The default password is 0000. If this does not work, it has probably been changed. Contact your dealer. We will help you here.

6.2 Specifications

Features

■ DVB-S/-S2 reception (MPEG-2/4 / H.264 / H.265 - HEVC)
■ Reception of all free HD programmes
■ Processor: Mounting M88CS8051T00D
■ Flash memory: 8 MB
■ Memory: 128 MB DDR 2
■ Input frequency: 950\~2150 MHz
■ Input signal level: -80 \~ -25 dBM
■ Resolution: 1920 x 1080 pixels (up to 1080p)
■ Image formats: 4:3, 16:9
■ DiSEqC 1.0 / 1.1 / 1.2 / USALS
■ Unicable compatible (EN 50494 / EN 50607)
■ 2 USB ports for recording and media playback
■ Timeshift function
■ Menu languages: german, english, italian, spanish, polish, french, russian, indonesian, portuguese, turkish
■ Audio playback formats: MP3, AAC, WMA, WAV
■ Photo playback formats: BMP, PNG, JPG, JPEG, JPE, PNG
■ Video playback formats: 3GP, AVI, DAT, DIV, DIVX, M2T1, M2TS, MKV, MOV, MP4, MPA, MPE, MPEG, MPG, TP, TRP, TS, VOB, MKV, MOV
■ 7 days EPG (Electronic Program Guide)
■ 16 favorite groups
■ Child safety lock
■ Multilingual audio support and subtitles
- Teletext
- Sleeptimer

Other

■ Power supply:
AC 100\~240 V, 50/60 Hz / DC 12 V, 1.5 A
■ Power consumption in use: max. 18 Watt
■ Power consumption in standby: < 1 Watt
■ Dimesions: 168×40×95 mm (W/H/D)
■ Weight: 262 g

Connections

■ 1x HDMI (up to 1080p)
■ 1x Audio/Video (3,5 mm jack)
■ 1x LAN (RJ45)
2x USB 2.0
■ 1x DC power supply
■ 2x LNB-input

Note: Technical details are subject to change without notice.

Conformity information

Megasat Werke GmbH hereby declares that the following device complies with the essential requirements and other relevant provisions of Directives 2014/30/EU (EMC), 2014/35/EU (LVD) and 2014/53/EU (RED):

Megasat HD 660 Twin (Art-No. 0201138)

The declaration of conformity for this product is available to the company: Megasat Werke GmbH, Industriestraße 4a, D-97618 Niederlauer

You can download the declaration of conformity on our homepage: www.megasat.tv/support/downloads

Notes

Version: 1.0 (December 2019) // Technical changes, misprints and errors reserved.
Megasat Werke GmbH | Industriestraße 4a | D-97618 Niederlauer | www.megasat.tv | [e-mail]
