Product Type	DVB-S/DVB-S2 Satellite Receiver
Dimensions (W x H x D)	280 x 55 x 210 mm
Weight (net)	986 g
Power Supply	AC 100-240 V, 50/60 Hz
Power Consumption	Max. 10 W (use), < 0.5 W (standby)
Tuner Type	Twin tuner (2x F-type inputs)
Video Output Resolution	Up to 1080p
Recording	Direct recording, timer recording via EPG, timeshift; supports up to 20 timers, simultaneous recording on both tuners
Streaming	Via G-MScreen app (iOS/Android) for smartphone/tablet; requires LAN or Wi-Fi USB stick (optional)
DiSEqC / Unicable	DiSEqC 1.0, 1.1, USALS; Unicable (EN 50494 / EN 50607) and JESS certified
USB Ports	3x USB 2.0 (1 internal for HDD, 2 external; front port can be activated via internal jumper)
HDD Support	Internal slot for 2.5" SATA HDD/SSD (max. 850 mA); supports up to 2 TB (see tested list online)
Media Playback	Video: 3GP, AVI, MKV, MP4, etc.; Audio: MP3, AAC, WMA; Pictures: BMP, JPG, PNG
Display	4-digit front panel display
Remote Control	Included, with IR
Maintenance	Unplug before cleaning; use soft cloth and mild washing-up liquid (no solvents)
Safety	Do not remove cover; avoid liquid exposure; ensure adequate ventilation; do not overload power outlets
Spare Parts / Repairability	Contact qualified service personnel for repairs; user-replaceable HDD (2.5" SATA); warranty void on improper handling
General Features	Multilingual menu, 7-day EPG, teletext, subtitle support, parental control, 8 favorite lists, sorting functions
Package Contents	Receiver, remote control, batteries, user manual

Frequently Asked Questions - HD 935 Twin V2 MEGASAT

How do I set up the receiver for the first time?

Connect the coaxial cable to LNB input 1. Connect the HDMI cable to your TV. Turn on the TV and select the correct HDMI input. Turn on the receiver with the power switch. Select your language. The receiver is now ready. For twin mode, you need a second coaxial cable connected to LNB input 2. If using only one cable, change the antenna connection to 'Single (LNB1)' in the installation menu.

Can I record a program while watching another channel?

Yes, if you have two coaxial cables connected (twin mode). Go to Installation > Antenna connection and select Dual (Different). Then set the tuner mode to Tuner 1/2. If you have only one cable, you can only watch channels on the same transponder as the recording.

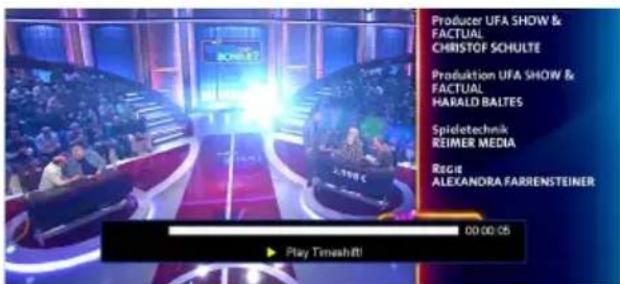

How do I use the timeshift function?

Press the PAUSE button on the remote to pause live TV. The program continues recording in the background. Press PLAY to resume from the paused point. Press STOP to exit timeshift. You can also enable auto timeshift in the USB menu under PVR settings.

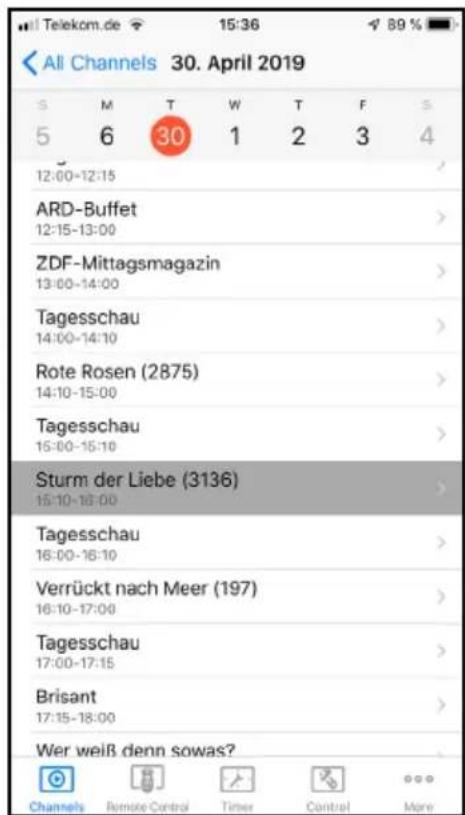

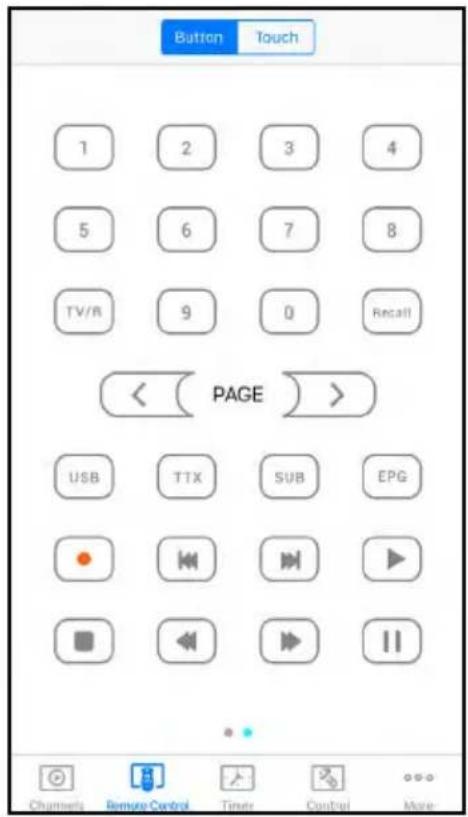

How can I stream TV to my smartphone or tablet?

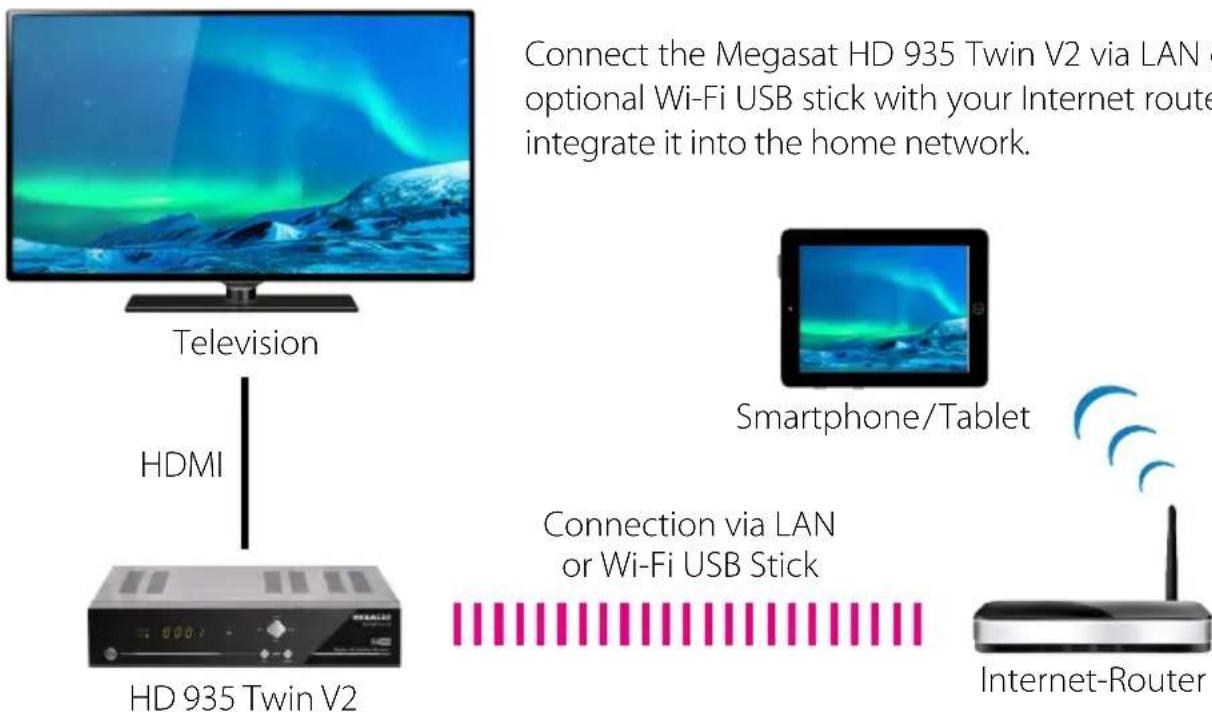

Install the G-MScreen app (free from AppStore or Google Play). Connect the receiver to your home network via LAN or optional Wi-Fi USB stick (art. no. 1200224). Ensure both devices are on the same network. Open the app, select your receiver from the STB list, and you can control and watch TV on your mobile device.

What should I do if I get no signal or poor picture?

Check that your satellite dish is correctly aligned. Use the signal strength indicator in the Antenna settings menu to adjust. Ensure the LNB and cables are not faulty. If signal is too strong, connect an attenuator. Replace the LNB if necessary. Also check that the correct satellite is selected.

How do I update the firmware?

Download the latest firmware from www.megasat.tv. Unzip the file and copy the *.bin file to a formatted USB stick. Insert the USB stick into the receiver, press the USB button on the remote, select the firmware file, and confirm update. After update, perform a factory reset (save your channel list first).

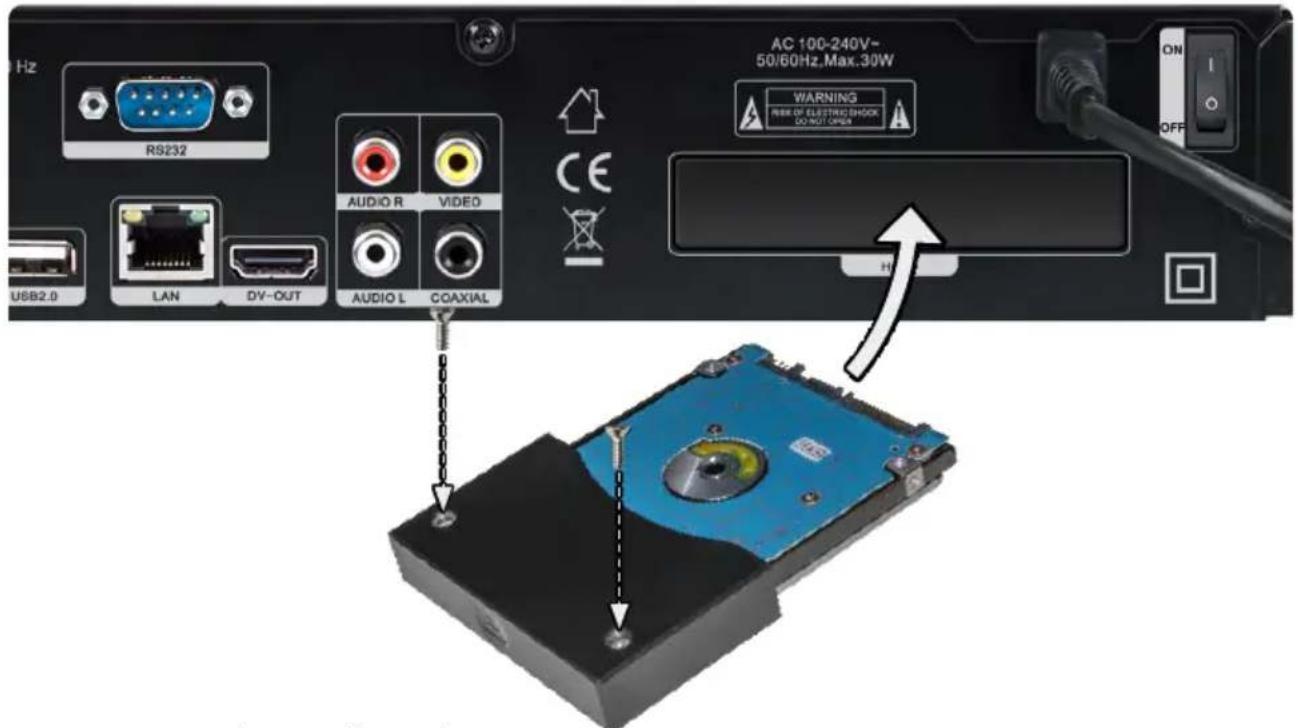

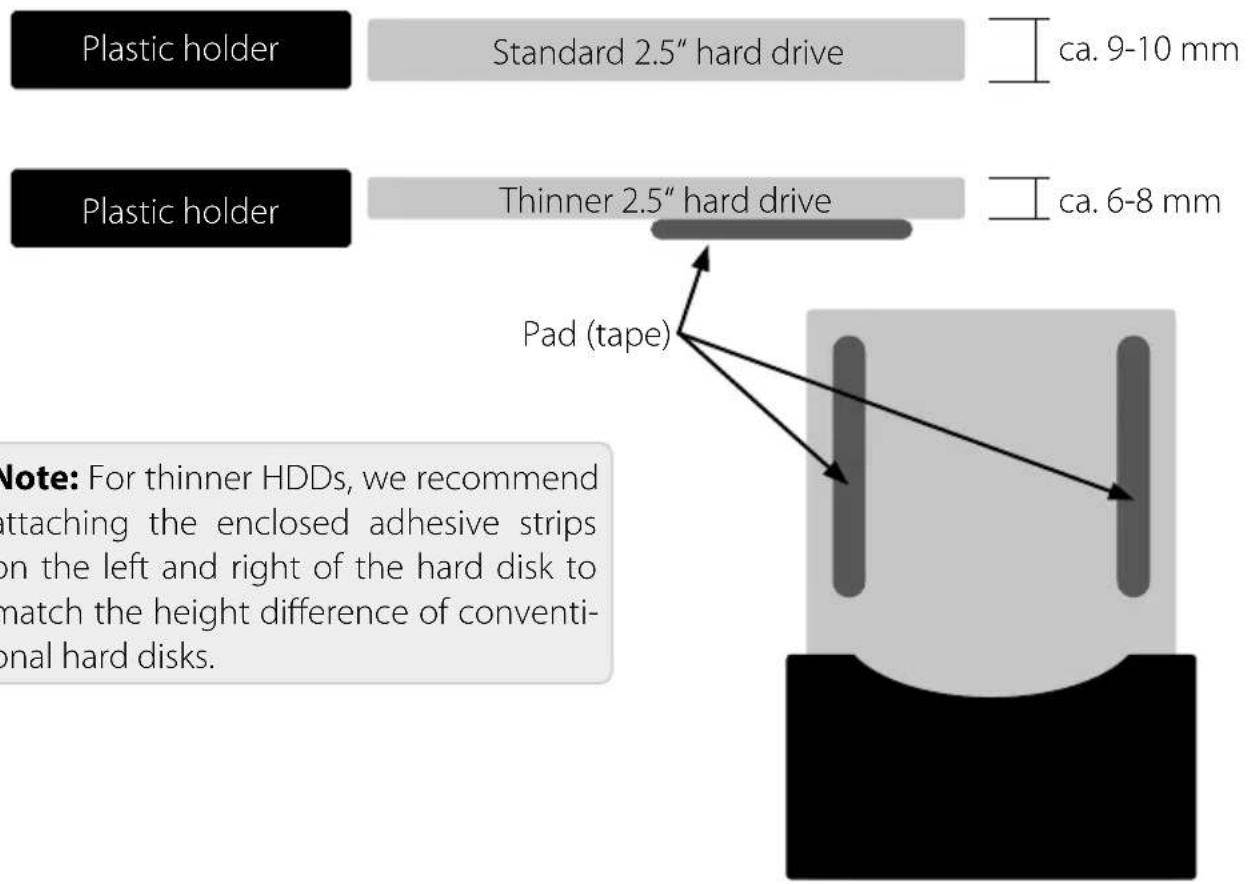

How do I add a hard disk drive (HDD) for recording?

Disconnect power. Remove the plastic holder from the HDD slot. Attach the holder to a 2.5" SATA HDD (max. 850 mA) using the screws. For thinner drives, use the adhesive pads. Slide the HDD into the slot until it clicks. Power on, then format the HDD via USB menu > Tools > Format (recommended FAT for up to 1TB).

How do I activate the front USB port?

Disconnect power and open the housing by loosening the three screws on the back. Inside, locate the two connector cables (front and rear USB). Release the clip on the connector and swap the cables so that the front USB cable is connected. Close the housing and screw it back. The front USB port is now active.

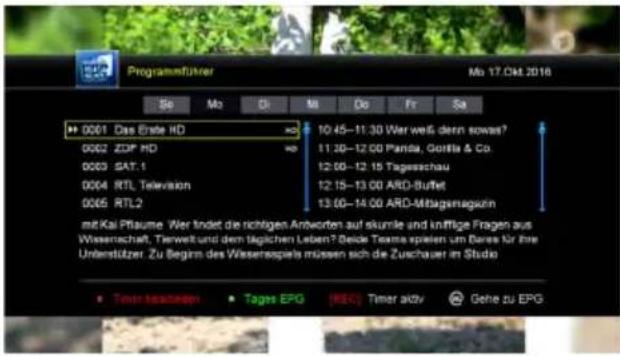

How do I program a timer recording?

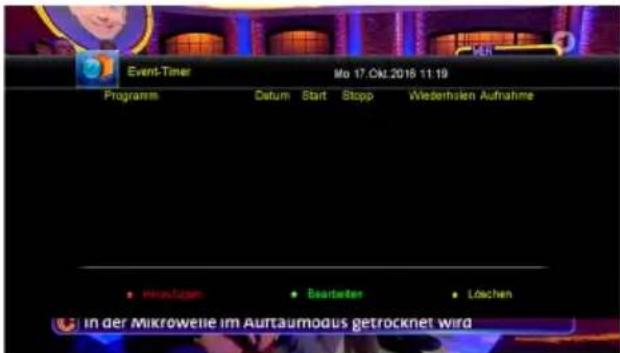

Press MENU and go to Time settings > Event Timer. Press the RED button to add a timer. Set the channel, date, start/stop time, repeat option (once, daily, etc.), and whether to record or just switch channel. Confirm with OK. Alternatively, use the EPG: press EPG, select a program, and press RED to transfer to timer.

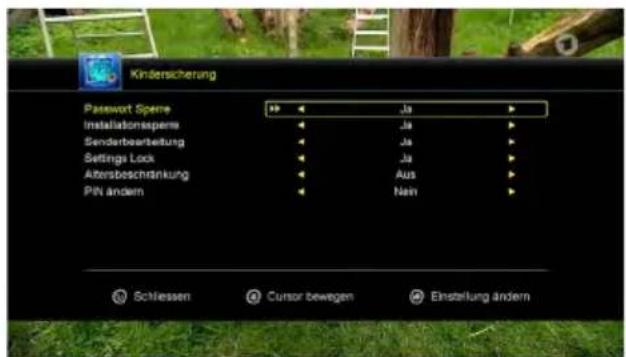

What is the default password? How do I change it?

The default password is 0000. To change it, go to Settings > Childlock > Change PIN. Enter the current password, then enter and confirm your new password. This password is used for parental control and menu locks.

USER MANUAL HD 935 Twin V2 MEGASAT

Erstinstallation

Safety instructions 03

1. Genareal

1.1 Genareal Features 04
1.2 Delivery....04

2. Names and key assignment

2.1 Front view 05
2.2 Rear view 05
2.3 Remote Control 06

3. Connecting the set-top box & first installation 07

4. Main Menu

4.1 Installation 08
4.2 Channel edit....14
4.3 Settings....16
4.4 Time settings....20
4.5 Advanced 21
4.6 About Receiver....23

5. HDD slot 24

6. Recording / Playback / Timeshift / Twin Tuner

6.1 Recording....26
6.2 Playback....28
6.3 Timeshift....29
6.4 Twin Tuner 29

7. Stream to Smartphone and Tablet

7.1 App for Smartphone and Tablet 30
7.2 Program list, TV playback and EPG 31
7.3 Control buttons (Page 1).... 32
7.4 Control buttons (Page 2)....33
7.5 Control via the touchpad 34
7.6 Add Timer 35

8. Additional Information

8.1 Troubleshooting....36
8.2 Specifications 37
8.3 Update firmware 38
8.4 USB port switch....40

Safety instructions

Please read the manual thoroughly before operating the equipment. In case of incorrect or improper handling, the warranty becomes void.

Power supply:

Before start please check the correct operation voltage of the power point. The operating voltage of this device is AC 100\~240 V, 50/60Hz.

Overload:

Do not overload a wall outlet, extension cord or adapter, neither use damaged power cord or touch it with wet hand as this may result in electric shock.

Liquid:

The device shall not be exposed to dripping or splashing water, and that no objects filled with liquids, such as base, shall be placed on the apparatus.

Ventilation:

Keep the slots on top of the receiver uncover to allow sufficient airflow to the unit. Do not expose the receiver to direct light or do not place it near a heater or in humid conditions. Do no stack other electronic equipments on top of the receiver.

Risk of suffocation:

Do not let children play with films or other packaging components, there is a risk of suffocation.

Cleaning:

Plug out the receiver from the wall outlet before cleaning. Clean the receiver by a soft cloth or mild solution of washing-up liquid (no solvents).

Uncover:

Do not remove the cover, to reduce the risk of electric shock. Contact qualified and licensed service personnel to repair the receiver, or contact your dealer.

1.1 General Features

• DVB-S/DVB-S2 Satellite Compliant (MPEG-II / MPEG-IV / H.264)
• DiSEqC 1.0, 1.1, (USALS) compatible
- 4-digit display
• Support SCPC & MCPC receivable from C / Ku-band satellite LNB
• Universal, Single, Single S & C band wideband LNBs
- Sensitive Tuner
• PAL / NTSC conversion
• Unicable kompatibel (EN 50494 / EN 50607)
• JESS zertifiziert (EN 50494 / EN 50607)
- Variable aspect ratio (4:3, 16:9) with Pan Vector or Letter Box
• Output resolution: up to 1080p
• To improve DVI with Upscalefunktion to picture quality
- Recording function via the optional inserted 2.5 inch hard disk or via one of the two USB ports
• Real-Timeshift-function
- 8 favorite lists
• Parental Control function
- 5 types of sorting function for channels
- Screen display with full color resolution
- Teletext and subtitle support (OSD)
• 7 days EPG (Electronic Program Guide) for On-Screen Program Information
- Multilingual menu
- Multichannel order
- 3x USB 2.0 (1x intern for HDD, 2x extern)

1.2 Delivery

• Megasat HD 935 Twin V2.1
- Remote control
- Batteries
- User manual

2. Names and key assignment

2.1 Front view

2.2 Rear view

2. Names and key assignment

2.3 Remote control

Zone 1

TV/R Switches between TV and radio reception

POWER Turn on/off the unit (Standby)

MUTE Muting the sound

DVI Change the TV resolution

FORMAT Switching between different display formats

TIME Timer settings

F1 Function key (optional)

NUMERIC KEYS (0\~9) Program Change / Enter numbers

RECALL Switches between the last and current program

SAT Displays the stored satellite list

AUDIO Selection or change the audio track

PAUSE Pauses the current TV picture (still picture)

ZOOM Zoom function of the current program

INFO Displays information of the current program

Zone 2

MENU To access the main menu

EXIT Exits the current menu step by step

CH +/- Switches TV/radio programs (up/down)

VOL +/- Adjust the volume

OK Confirm the current selection / Open the program list

SUB Displaying subtitles (if available)

EPG Displays the EPG (Electronic Program Guide)

FAV Displays the Favorites list (if favorites available)

TXT Displays the teletext of the respective program

Zone 3

VOL +/- Adjust the volume

FIND Quick search of individual programs

OPT option button

PAGE ▲/▼ Scroll page by page

SLEEP Activate Off-Timer (15, 30, 45, 60, 90, 120 min.)

USB Display menus of the USB if a USB device is connected

◀◀ / ▶▶ Fast forward / reverse

|◀◀ / ▶▶| Chapter forward / backward

▶ Start / Opens the playback list

■ Stop

|| Pause / Timeshift

- Start recording

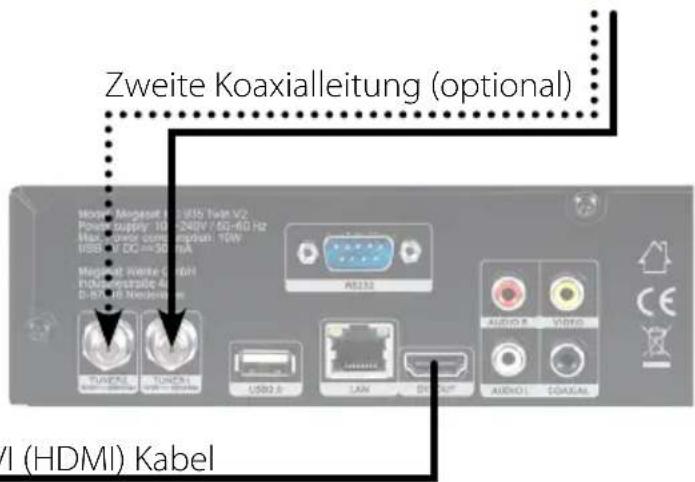

3. Connecting the set-top box & first installation

1. Connect the coaxial cable to the LNB input (tuner 1). You can connect one LNB directly, or multiple LNBs via a DiSEqC or multiswitch.
2. Connect the HDMI cable to your TV.
3. Make sure your TV has the appropriate input channel selected (for example, HDMI 1).

First installation

If you have connected the receiver to a conventional universal LNB or to a multiswitch, proceed as follows:

1. Turn on the receiver with the power switch.
2. After the receiver has started, select your language (e.g. English).
3. The receiver is now ready for operation.

The receiver has a pre-installed channel list for Astra 19.2° East and Hotbird 13° East. The default DiSEqC assignment is: DiSEqC 1 = Astra 1 / DiSEqC 2 = Hotbird

Note: By default, the receiver is pre-set for twin operation. This means that the receiver is connected to tuner 1 and tuner 2 with a coax cable. If you operate the receiver with only one coax cable, you must change the tuner mode as follows:

Switch to the menu Installation ▶ Antenna connection. There are two types of connectors available: Single (LNB1) or Dual (Different). If you are using only one coax cable, select Single (LNB1) and exit the menu with Exit. Make sure the coax cable is plugged into Tuner 1 as well.

After connecting to all other required components, turn on the receiver at the power switch.

4. Main Menu

Press the MENU button to enter the menu. The main menu consists of:

• Installation
• Channel edit
• Settings
• Time settings
• Advanced
  • Information

Use the ◀▶ button to select your subject and press OK to confirm your selection and enter that sub menu, press EXIT button you can return to the previous menu.

Note: The default password for the menu access is: 0000

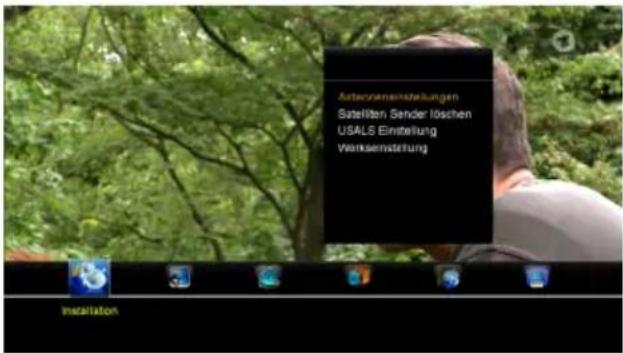

4.1 Installation

The submenu Installation consists of:

1. Antenna settings
2. Antenna connection
3. Delete satellite channels
4. USALS setup
5. Factory setting

1. Antenna settings

Press OK to Enter Dish setup, here you can make Satellite Scan, Satellite Edit, TP Search, TP Edit and other related Functions.

Satellite

Press the OK button to enter the list of preset satellites. Use the ▲▼ buttons to select a satellite, with the ◀▶ buttons you can at select the symbol of the bottom of the screen for editing and to the respective satellite edit.

4. Main Menu

Add satellite:

Add satellite by using the Red key. Here you can input new Satellite angle, Satellite Direction (east, west), Band (ku,c). OK to confirm the setting and this new satellite will be added to the end of the Satellite list.

Move satellite:

Select the satellite and press the OK button. You can now enter to move the position of the satellite in a desired position.

You can delete the user's satellite. Select the satellite that you want to delete from the satellite list. You will be asked to confirm whether delete the satellite or not. If you press ok key, all the channels in the selected satellite and transponder will be deleted, and the selected satellite will disappear.

Select the satellite then press green button. You can change the satellite's name, angle, direction and band. Input the characters which you want to edit using the browser.

Press the OK button to enter the list of preset transponders. Use the ▲▼ buttons to select a transponder, with the ◀▶ buttons you can at select the symbol of the bottom of the screen for editing and to the respective transponder. The processing is performed in the same manner as the processing of the satellite.

Note: It often happens that tv channel change their frequency or a new transponder is provided which is not in the stored list. To receive the stations continue, they must be searched manually.

Search Individual tv channels according to a transponder:

Select Antenna Setting -> Transponder and press the OK button. Select from the list the corresponding frequency of the tv channel you want to find and confirm with OK. The frequency of the respective transmitters can be found for example on the website: www.satindex.de. Then go with ▲▼ buttons to the point „Start Scan“ and then select with the ◀▶ buttons „TP Scan“. Confirm with OK. If a message box appears asking if you want to delete existing programs, select „No“ and confirm with OK. The tv channels found are then stored as a last resort in the program list.

Add new transponder:

Select Antenna Setting -> Transponder and press the OK button. Use the ◀▶ buttons do select „Add“ (at the bottom left of the screen) and press OK to confirm. Now enter the data for the new transponder. The data you will see eg. on the website: www.satindex.de. Confirm your entries with OK and go back with the ◀▶ buttons to option „Select“. Confirm with OK. To search for channels of the new transponder, please follow the instructions in the previous section.

Tuner

Select Tuner 1/2 if you use the receiver in Twin-Mode. Here you need a coaxial line to each of Tuner 1 and Tuner 2. With this connection method, you can record a program while you look independently of each other. Select Tuner 1 or Tuner 2 if you use the receiver in single mode with only one coaxial cable. Here you can only watch other programs that are on the same transponder when recording.

Signal Detection

The menu item „Signal Detection“ is only active if you have selected Tuner mode 1/2.

Then you can set different tunes for Tuner 1 or Tuner 2

(e.g. Tuner 1 = Universal LNB, Tuner 2 = Unicable).

LNB Typ

Here you need to check the LNB typ according to your antenna, set the correct frequency or define yourself. The default setting (Universal) is true in most cases.

Unicable System:

In the menu item LNB Type, you can make the settings for single-cable systems (Unicable, Unicable 2, SCD2, JESS). The set-top box is programmable for different Unicable systems.

Depending on the system, up to 32 set-top box can be connected.

Unicable A/B/C (EN 50494)

This setting is suitable for Unicable systems with up to 8 users. IF programs allow you to select up to 8 different programs, each IF program being assigned a frequency. Select the desired IF program (1-8). Then select the main frequency and confirm with OK. Now enter the frequency according to your Unicable system.

SCD2 A/B/C/D/E/F/G/H (EN 50607)

This setting is suitable for Unicable 2 (JESS) systems with up to 32 users. IF programs allow you to select up to 32 programs, each IF program being assigned a frequency. Select the desired IF program (1-32). Then select the main frequency and confirm with OK. Now enter the frequency according to your Unicable system.

Use the SCD2 A/B/C/D/E/F/G/H option to control up to 8 satellites.

Note: Basically, one uses the lowest frequency for the longest cable path to the set-top box. Note that each frequency may only be present once in your system. The frequencies depend on your single-cable system and can not be allocated as desired. IF program and IF frequency must compulsorily match your Unicable system.

LNB Power

Here you need to check the LNB power according to your antenna, set the correct frequency or define yourself. The default setting (13V/18V) is true in most cases.

22KHz

In case you are using two antennas connected to a 22KHz tone switch box. You can supply either 22KHz by setting "OFF" to select antenna.

4. Main Menu

DiSEqC 1.0 / DiSEqC 1.1

If you connect antenna to DiSEqC Switch, you need to specify the DiSEqC input to which your selected satellite have been configured.

Motor

Use the ◀▶ buttons to select the control of your motor. If you enable this option and then press OK, you can make further adjustments to the position of the mirror adjust:

Move Auto [W/E]

Press RIGHT/LEFT button, the dish will be motorized to East/West continuously, it will stop until it find the best signal.

Move Continue

Press RIGHT/LEFT button, the dish will be motorized to East/West continuously until you press LEFT/RIGHT again.

Move Step

Press RIGHT/LEFT button, the dish will be motorized to East/West by step.

Store Position

Save the current position you searched for the selected satellite.

Go to Position

Press OK button to move the dish to the stored position.

Go to Reference

Press OK button to move the dish to 0 position.

Set West Limit

Enable West limit.

Set East Limit

Enable East limit.

Disable Limit

Disable West limit and East limit.

Channel search

In this menu item you can select different search options:

• All programs
• Free programs
• HD programs
• SD programs
• TV programs
• Radio programs
• FTA TV programs
• FTA Radio Programs

4. Main Menu

Start channel search

After you have set all the relevant positions in the antenna menu, you can now search for programs. You can use various search functions:

Transponder:

Just look on the selected Transponder.

Satellit:

Searches all stored transponders of the selected satellite.

Multi-Sat:

Scans all selected satellites.

Blind Scan:

Finds the satellites from all transponders, even those that are not stored in the list. This process will take some time to complete.

Multi-Transponer:

Searches for all satellites on the selected transponder.

2. Antenna connection

Single (LNB1): Select this type of connection if you have only one coaxial cable connected to the receiver. With this variant, you can only watch other channels of the same transponder during a recording.

Dual (Different): Select this type of connection if you have two coaxial cables connected to the receiver. With this variant you can also watch a different channel during a recording. This feature is preset by default.

3. Delete satellite channels

In this menu, you can delete unwanted channels lists matching the selection.

4. USALS setup

In this menu you can adjust to your USALS to operate your antenna with a motor.

5. Factory setting

If the option is selected and confirmed with OK, you will be asked to confirm. Select "Yes" to reset all data and settings. Select "No" to cancel.

4.2 Channel edit

Here you can move programs, delete, lock, rename, replace and create favorites lists.

The submenu Channel edit consists of:

1. TV channels
2. Radio channels
3. TV favorites
4. Radio favorites
5. Sort channels
6. Manage program list

1. TV programmes

Select the menu item TV programs and confirm with OK. At the bottom of the screen there are 5 different symbols available. Use the ◀▶ buttons to select the options.

Move

Press OK to select a program you want to move. To move the program to the position you want, simply press the ▲▼ buttons until you have reached the desired position, or enter the numerical number of the desired court and then confirm with the OK button. Multiple programs to move appears simultaneously, select the program and press the blue button on the remote control. Repeat this process until all desired stations are instantly highlighted. Now select the desired program number and confirm with the OK button.

Delete

Move the cursor to the desired program, which is to be deleted and press the OK button. The selected program is marked with a cross. Repeat the process until all programs are marked to be deleted and then press the Exit button. Confirm the deletion of the programs by selecting "Yes". If you select "No" is deselected and no change is made.

Lock

You can lock a channel. After press OK button, you are prompted to enter a password.

4. Main Menu

Rename

Select the desired program that you want to rename. Press OK to open the editing window. Use the cursor and color keys to select the desired characters. Press OK to confirm your choice.

Exchange

You can replace a program that you select from the Channel List, with another program. Press the OK button, then you will be asked which program you want to the current interchange. Use the number keys to select the desired program number and confirm with OK.

2. Radio programs

Editing the radio programs are in accordance with the instructions of TV programs.

3. Favorites

Here you can create channels in 8 different favorite groups such as news, movies, music, or sports. Select at the bottom of the desired favorite group with the ◀▶ buttons. Then select the desired channel using the ▲▼ buttons and press OK. An icon appears next to the selected program. Repeat the process until all desired channels are assigned the appropriate favorite group.

Note:

To rename a favorite group, press the RED button on the remote control.

4. Favorits Radio

The create the radio favorites list is according to the instructions favorites list.

5. Sort channels

In this menu item you can choose different sorting functions:

• Alphabetically
• Favorites
• Transponder
• Provider
• FTA / encrypted
• Service ID
• Standard

4. Main Menu

6. Manage program list

With this option, you can save and load your self-created channel list to the internal memory of the device.

Save channel list:

Select this option with OK. Confirm with „YES“ to save the current station list on the receiver. Select „No“ to cancel the process. Alternatively, you can also save the station list to a USB medium.

(check page 22 ▶ 4.5 Advanced ▶ USB ▶ Upload)

Load channel list:

If you make a factory setting, or the channel list accidentally deleted, you can load the previously stored channel list from memory here.

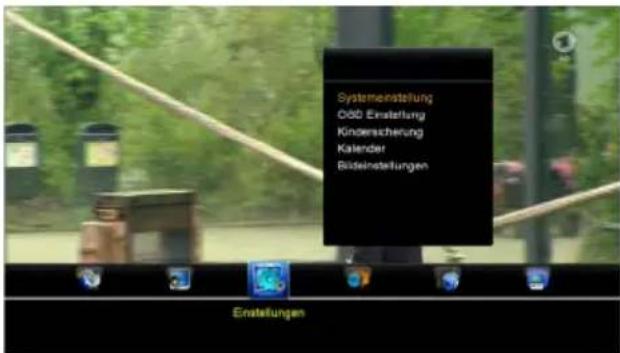

4.3 Settings

Here you can change basic settings of the set-top box. The Submenu Settings consists of:

1. System settings
2. OSD settings
3. Childlock
4. Calendar
5. Picture settings

Use the ▲▼ buttons to navigate the menu. With the ◀▶ buttons you change accordingly each point according to your needs. It can be set as follows:

Menu language Select the desired menu language (e.g. English).

Audio 1 Select the preferred audio language of the TV program.

Audio 2 Select the second audio language if the first one is not available.

4. Main Menu

Subtitle language Select the preferred subtitle language of the TV program.

EPG language Select the preferred EPG language (Electronic Program Guide).

TXT language Choose the preferred Teletext language.

Digital Audio When connecting a Surround system via the S / PDIF audio output, select which audio mode you prefer. PCM will only pass stereo signals to the surround system. RAW delivers the „real“ surround sound to the music system.

Automatic program change If this item is activated with „On“, the respective program will automatically be switched when you scroll through the program list without having to confirm with OK.

Automatic exit the program list If you are in the program list (OK button in current TV mode) and have activated this item with „On“, the program list is closed after a short time if no operation is performed.

Start Last Viewed program If this item is activated with „On“ and you press the „Recall” button on the remote control, the last viewed channels are listed in a window. If this item is deactivated with „Off“, pressing the „Recall“ key only switches between the current and the last channel.

Low Power Standby If this item is activated with „On“, the receiver requires less power during standby. However, it requires a longer time when it is ready for use again when it is switched on. If this item is deactivated with „Off“, it requires more power in standby, but it is ready for use more quickly.

PLSN Super Scan If this item is activated with „On“, the multistream scan is performed on supported transponders.

Display lighting Adjusts the brightness of the front panel of the receiver.

M3U Lademodus Automatically loads M3U lists from USB.

Timer 3Min. befor If this item is activated with „On“, recording will be started 3 minutes earlier during timer programming.

Reboot Play First Channel If the receiver is switched on, it automatically starts at program position 1. Regardless of which slot it was previously switched off.

4. Main Menu

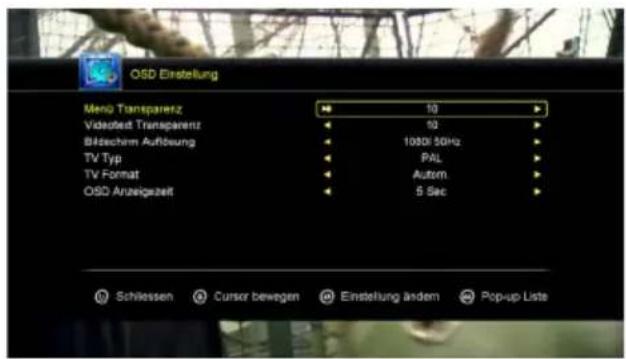

2. OSD settings

Use the ▲▼ buttons to navigate the menu. With the ◀▶ buttons you change accordingly each point according to your needs. It can be set as follows:

• Menu transparency
• Teletext transparency
• Screen resolution
  • TV Typ
• TV format
• OSD display time

Here you can assign a password to various menu items and programs to prevent unauthorized persons from changing the settings or not seeing desired channels. Note: The default password for the menu access is: 0000

Password lock Enables or disables the complete parental control.

Installation lock If this item is activated, no installation settings can be made on the receiver.

Edit Channel lock If this item is activated, stations can not be edited (e.g. move, rename, etc.)

Settings lock If this item is activated, no settings can be made in the menu.

Age rating Select "Off" to disable the age rating. Choose between 3 and 18 (years) to activate the age rating.

Example: If a channel is broadcast with an age restriction of 12 years and you have set this in advance to 8 years, a password query will appear to unlock the channel.

Change PIN Select "YES" to enter a new code. Then repeat the new code entry. The new

4. Main Menu

4. Calenderalid.

Displays a calendar with the current date. Use the ▲▼ buttons to change the year. Use the ◀▶ buttons to change the months. With 2, 4, 6, 8 the days can be chosen. GREEN button: Add note, BLUE button: Displays the weather.

5. Picture settings

Use the ▲▼ buttons to navigate the menu. With the ◀▶ buttons you change accordingly each point according to your needs. It can be set as follows:

• Brightness
• Contrast
• Saturation
• Hue
• sharpness
• Standard (resets the settings to the default values .)

4. Main Menu

4.4 Time settings

The Submenu Time settings consists of:

1. Time settings
2. Event-Timer
3. Sleep Timer
4. Clock in standby
5. Automatic shut-off

1. Time settings

The default time is set to automatic, but it can also be entered manually. Select the time zone of your country and you will get the current time based on TDT (Time and Data Table) in the data stream of the current program.

2. Event-Timer

Here you can set the timer to access the program you have selected to determine a time. The set-top box switches automatically to the selected time on this channel or starts a recording. Use the color buttons to enter any settings:

For more information about timer programming, check page 27.

3. Sleep Timer

Set the desired time after the set-top box should turn off. You can choose between OFF, 15, 30, 45, 60, 90, 120, 180, 240, or 300 minutes.

4. Clock in standby

Here you can select whether the time should be displayed in the standby mode on the display. You can choose between ON (active) or OFF (inactive).

4. Main Menu

5. Automatic shut-off

Here you can set the time after the set-top box should turn off if no operation was performed on the set-top box. You can choose between 15 min., 30 min., 1, 2, 3 or 4 hours.

Note: The factory setting of the set-top box, the automatic shutdown is enabled and the set-top box switches off after 3 hours automatically if no operation was performed.

4.5 Advanced

The submenu Advanced consists of:

1. Games
2. USB
3. Remove USB safely
4. Wi-Fi
5. IP settings
6. VPN
7. Network Apps

1. Games

Here are some classic games for your pleasure.

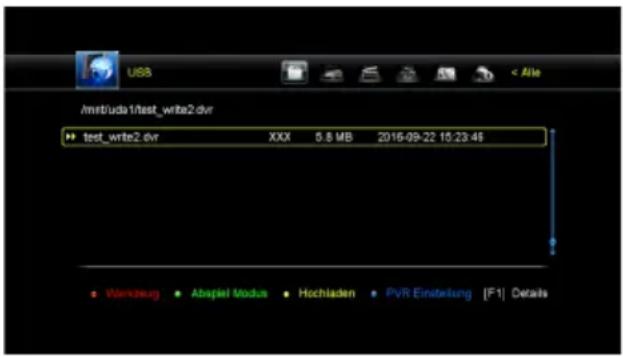

2. USB

USB menu is only active when a suitable USB device is connected.

You can limit the data that is displayed by selecting with the ◀▶ buttons at the top of one of the symbols:

• All
- Movies
- Music
- Pictures
- Software

To play a file, highlight it with the arrow keys and then press the OK button.

Note: The receiver can manage max. two USB devices at the same time. If you have currently plugged in a hard disk, you can use the front or the rear USB port with a USB stick, depending on the internal connection plugged in. (see page 40)

4. Main Menu

For more options on the color keys on the remote control. At the bottom of the screen there are four choices available. Then follow the information in the relevant information window.

Tools (RED)

Press the RED button to enter the tool list. Here you may rename, delete, move, copy, create a new folder, sort, and format your USB device.

Playback mode (GREEN)

Press the GREEN button to adjust settings such as repeat and slideshow interval of your photos.

Upload (YELLOW)

Press the YELLOW button to enter the upload mode. Then you can upload data or the current station list on your USB medium.

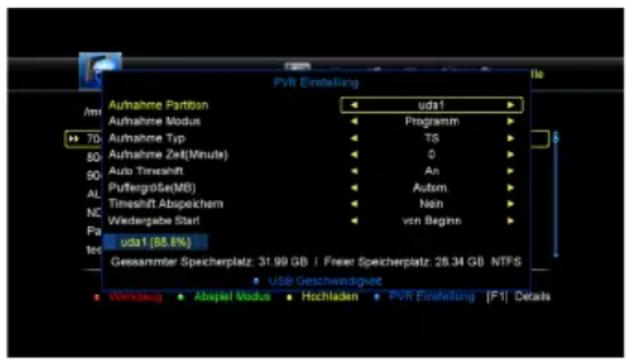

PVR settings (BLUE)

Press the BLUE button to make various settings for your recordings. The following items are available:

• Recording partition choose the location of the recordings
• Recording mode choose between program and transponder
• Recording typ TS = Recording video and all soundtrack, as well EPG, teletext and subtitles PS = Recording video and current soundtrack
• Recording time set the max. recording time
• Auto Timeshift a recording is running constantly in the background. By pressing the PAUSE button on the remote control you can stopped a running program and resume it later
• Buffer size set the max size of the time shift function
• Save timeshift should timeshift recordings are saved or not
• Start playback where to start playback, from the beginning or where you have stopped from the last position

Details (F1)

Displays the media formats you can play with the set-top box.

3. Remove USB safely

Before you remove the external storage media (eg hard disk or USB stick), confirm this option with OK in order to avoid any damage to the storage medium. Then a message appears indicating that the medium was removed successfully.

4. Main Menu

4. Wi-Fi

If you have the Megasat Wi-Fi USB stick (art. no. 1200224), you can plug it into a USB port and connect to the Internet. As soon as the Wi-Fi USB stick is recognized, you can select the network you want to connect to from the list. Then enter the Wi-Fi network password. After successful connection you are now connected to the Internet.

Note: The wireless setting is only active if a suitable Wi-Fi USB stick is connected.

5. IP Einstellungen

Plug an Ethernet cable into the LAN port on the back of the set-top box. If you connect the receiver for the first time to the Internet, press the RED button (IP autom.) And then press the GREEN button (TestLink). If the following is displayed: „The connection to the Internet is OK“, it means that the connection is successful. If you want to assign the IP address manually, turn off the DHCP point and enter your network data accordingly. The factory default setting of DHCP is OFF, that mean the set-top box to automatically obtain an IP address of your home network.

Note: IP settings are only active if a LAN cable is connected from your Internet router to the receiver or if there is a connection with the Megasat Wi-Fi USB stick.

6. VPN

In this menu, you can set up a VPN network. VPN stands for „Virtual Private Network“.

7. Netzwerk APPs

Some Internet applications are available in this menu.

4.6 About STB

Information about the software and hardware status of the receiver is displayed here.

5. HDD slot

1. Disconnect the unit from the power.
2. Remove the plastic holder from the hard drive slot.
3. Make sure that the thickness of the hard drives is different:

5. HDD slot

1. Fasten the plastic holder for the hard disk with the enclosed screws.

2. Slide the hard drive upside down in the hard drive bay. When the end of the hard disk firmly until it snaps into place.

Make sure that you push the hard disk straight into the slot!

The plastic holder must be flush with the housing of the receiver and must not be able to survive!

1. Turn on the set-top box and wait until the drive is recognized. Press the USB button on the remote, then the RED button for the tools. Now select the option medium format and indicate in which format you want to format the hard drive (FAT or NTFS). For hard drives up to 1TB in size, we recommend „FAT“. Confirm to format the hard drive with OK.

2. To check the hard drive settings and speed you now press the BLUE button. Press the BLUE button again to check the speed of your disk. Press EXIT to exit the menu.

Note: Please note that brand-new disks must first be partitioned and formatted so that the hard disk (HDD or SSD) is detected in the set-top box.

Please only use 2.5-inch SATA hard drives with a maximum power consumption of 850 mA. A list of recommended and tested disks can be found on our website

www.megasat.tv.

6. Recording / Playback / Timeshift / Twin Tuner

6.1 Record

There are three different ways to start recording: direct recording, manual programming a timer, or a timer programming via the EPG. Up to 20 timers can be programmed. In Twin operation simultaneous recording of 2 timers is possible.

NOTE: During a recording, NO playback of an existing recording via USB or hard disk is possible!

Note: The set-top box switches in standby mode for about 5 minutes before the start, and start recording at the programmed time. In normal operation, the set-top box switches to the programmed channel and start recording.

When using two connections, you can see any program while recording. When using only one coaxial line is a limited program selection. Please refer to the settings of your connection. Only correct setting both tuners are used.

1. Directly record

Press the record button on the remote control. The set-top box will start recording on the current program. The recording is set by default to 2 hours. Again to press the record button, you can adjust the recording time.

To stop the current recording, press the stop button on the remote control. You will then be asked if you want to exit. Press OK (Yes) to stop, or use the ◀▶ buttons to switch to No.

2. Programming timer manually

Press the Menu button, select the „Timer" option and confirm with OK. Select „Event Timer" and confirm with OK. Press the RED button to add a timer. The timer options appear. Enter now step by step your timer options and press OK to save the timer. With Exit you can cancel.

Program: Press OK and the channel list appears to select the desired program or use the ◀▶ buttons to select the desired program.

Date: Use the numeric buttons on the remote control to enter the required date.

Start: Use the numeric buttons on the remote control to enter the desired start time.

Stop: Use the numeric buttons on the remote control to enter the End time of the recording.

Repeat: Choose how often the recording should be repeated. You can choose between: 1 times, daily, weekly, Mon-Fri, Sat-Sun.

Standby after end: Select whether the set-top box after record is switch to standby mode.

Record: Select whether the programmed timer should be switched on the program, to example a program not missing or if an external recording device (DVD/Video recorder) is connected, or whether the device must start a record on an attached hard drive.

(YES for recording and NO to toggle)

Confirm: Confirm the settings with OK.

6. Recording / Playback / Timeshift / Twin Tuner

3. Timer programming via EPG

Select the desired program and then press the EPG button on the remote control to open the electronic program guide. The current station is outlined in yellow. Use the ◀▶ buttons to select the desired day. Press the OK button to go to the right side to select the desired program. Use the ▲▼ buttons to select the program. Press the RED button to transfer the program to the timer list. If necessary, you can adjust the timer setting (see manual programming of a timer). The programmed program is then highlighted in green.

The recordings are located on your USB medium in the folder ALIDVRS2. To start recording, switch to the USB menu with the USB key. Then switch to the ALIDV-RS2 folder with the OK button (alternatively, you can also press the play button (▶) in normal TV mode). Now select a recording with the arrow keys and press OK to start the playback.

With the Timeshift feature, you can pause a TV show and resume it later. During the TV program, press the pause 📄 button on the remote control. Then the TV program is paused and continued in the background. If you want to continue watching from this point, press the PLAY button on the remote

6. Recording / Playback / Timeshift / Twin Tuner

control. Now you also have the option of fast forwarding or rewinding the TV program (only within the time that was recorded in the background). To stop Timeshift completely, press the Stop button on the remote.

You can also customize the timeshift options. To do this, press the USB button on the remote control. Then use the BLUE button to change to the PVR settings. Choose z. For example, set „Auto Timeshift“ to ON to enable permanent timeshift. Under „Save Timeshift“, select whether the recordings should be saved or not.

6.4 Twin Tuner operation

In the menu change to Installation (Password: 0000) ▶ Antenna connection. There are two connector types to choose from: Dual (Different) or Single. When operating with two coaxial cables, the operating mode „Dual Different“ must be selected. With Exit you exit the menu and then select the antenna settings. Select the item Tuner and set the selection to „Tuner 1/2" to activate both tuners for the twin mode. The „LNB Type" setting is set according to your system. The default is Universal.

Note: It is possible to assign Tuner 1 and Tuner 2 with different operating modes. Example: Tuner 1 (Universal) and Tuner 2 (Unicable).

Note: Please note, if you operate the receiver with a Unicable system and want to use the Twin mode, both tuners must also be connected. Use a 2-way splitter or power-pass splitter for this purpose.

7. Stream to Smartphone or Tablet

In order to transmit the TV program to a Smartphone or Tablet, all you need is the app G-MScreen. You can download it for free from the AppStore or GooglePlay Store.

More information about the app you will find on our website www.megasat.tv

Note: The set-top box and the mobile device must be on the same network. A direct transfer from the receiver to a smartphone or tablet is not possible.

After you start the app, the receiver appears in the „STB list“. Touch the name to get to the control.

7. Stream to Smartphone or Tablet

7.2 Program list, TV playback and EPG

To select a channel, double tap on the desired program name.

Tapping the PLAY icon opens the TV picture on your mobile device in full screen mode.

If you tap the EPG icon, the current channel preview of the respective channel opens.

7. Stream to Smartphone or Tablet

7.3 Control buttons (Page 1)

This page offers the following control buttons:

• Off button
• Mute button
• Menu button
• Exit button
• Color buttons
• Navigation buttons

No.	Function Description
1		Sends on/off to the set-top box (switched in or out of the standby mode).
2		Sends volume mute to the set-top box.
3		Sends the menu command to the set-top box.
4		Sends the exit command to the set-top box.
5	[TCTX][XZH0][84ZY][6HH7]	In various menu levels these hot keys can be used.
6		Navigation keys (provides the same function as the conventional remote control -> channel up/down, volume up/down, OK for confirmation).

7. Stream to Smartphone or Tablet

7.4 Control buttons (Page 1)

This page offers the following control buttons:

• Number buttons
  • TV / radio button
• Recall button
• USB button
• TTX button
• SUB button
• EPG button
• Scroll page by page
• Buttons for recording / playback

No.	Function Description
1		Click these buttons to send thenumbercommands to the set-top box.
2		Sends theTV / RadioorRecallcommand to the receiver.
3		Sends theUSBorTTXcommand to the receiver.
4		Sends theSUBorEPGcommand to the receiver.
5		Sends the commandscroll page by pageto the receiver.
6		Click these buttons (Record, Play, Pause, Stop, Last, Next, Fast-back, Fast-forward)to send corresponding IR commands to the set-top box.

7. Stream to Smartphone or Tablet

7.5 Control via the touchpad

On the touchpad, the receiver can be controlled with gesture movements.

There are different gestures on the touchpad:

• simple click
  • from top to bottom
  • from the bottom up
• from right to left
• left to right

No.	Function Description
1	simple click Sends OK to the receiver.
2	from top to bottom Sends down to the receiver (e.g. channel down).
3	from bottom to top Sends up to the receiver (e.g. channel up).
6	from right to left	Sends left to the receiver (e.g. volume down).
7	from left to right	Sends right to the receiver (e.g. volume up).

7. Stream to Smartphone or Tablet

7.6 Add Timer

Touch the + icon to add a timer.

On the following page you can adjust the timer settings.

No.	Function Description
1	Channel	Select the program you want to record or the program you want to switch to at the selected time.
2	Start Select the start date	and start time.
3	Stop Select the stop time.
4	Repeat	Select whether the action should be one-time, daily, weekly, on weekdays or on weekends.
5	Standby	When standby is activated, the receiver will automatically switch to standby at the specified time.
6	Record	If Record is activated, the receiver will record the selected program at the specified time.

Note: If a new timer conflicts with an existing one, further addition will not work (e.g. when time overlaps).

8.1 Troubleshooting

You might meet abnormal working of this STB with various reasons. Check the following which may help you.

Problem Possible causes What to do
LED on the front panel fail to light up/is not lit.	Main supply cable is not connected.	Check if the main supply cable is plugged into the power socket.
No picture or sound. Satellite dish	is not aiming to satellite accurately. No signal or weak signal. The LNB is faulty. The cable is faulty.	Adjust the dish. Check the signal strength indicator in one of the channels search submenus. Check the cable connections, LNB and other equipment connected to LNB & receiver, or adjust dish. Replace the LNB. Replace the cable.
Bad picture/blocking error Satellite	dish is not aiming to the satellite accurately. Signal too strong. Satellite dish is too small. LNB noise factor too high. The LNB is faulty.	Adjust the dish. Connect an attenuator to LNB input. Change to a larger dish. Change LNB with lower noise factor. Replace the LNB.
No startup menu on screen after turning on STB for the first time.	The system is connected by HDMI cable and the TV is not in HDMI mode.	Switch the TV to the appropriate AV input.
The remote control is not working.	Battery exhausted. Remote control is not aimed correctly STB is in standby mode.	Change the batteries (both). Aim the remote control at the STB. Check that nothing blocks the front panel. Check if LED indicator on the front panel is showing the time, press the power button to switch off standby mode.
You have forgotten your password.		Contact the dealer or Service Provider. They will help you set it up again.
Poor picture quality or Less channels in scanning.	Low LNB power or signal loss in cable.	If necessary, replace the coaxial cable with a higher quality one with more shielding (dB).
I can not watch another channel during a recording.	You only have one coaxial cable connected. The receiver is not in twin mode.	To record one program and watch another, you need a coaxial line to tuner 1 and tuner 2. Make sure the receiver is in twin mode (check page 10, Tuner)

8.2 Specifications

Tuner & Demodulator
Frequency range 950 MHz to 2150	MHz
Input connector F-Type, IEC 169-24, female
Input level -100 dBm to -5 dBm
RF impedance 75Ω, unbalanced
IF band width 55 MHz / 8 Hz (per 5 Msps)
LNB power & polarization Vertical :	+13 V, 14 V +/-5 % / Horizontal: +18 V, 19 V +/-5 %: max. 500 mA overload protection
LNB tone switch 22 KHz +/- 2 KHz	0.6 V +/- 0.2 V
DiSEqC control Version 1.0/1.2 compatibel, Tone Burst A/B
Unicable 1 and 2 / JESS certified EN	50494 / EN 50607
Demodulation QPSK / 8PSK
Symbol rate 2-45 MS/s
FEC decode 1/2, 2/3, 3/4, 5/6, 7/8,	AUTO
MPEG
Transport stream & Profile level	MPEG1, MPEG-2 MP@ML, H.264, H.265, VC1, DV, DivX and MPEG4
Input rate	max. 15 Mbit/s
Aspect ratio 4:3, 16:9
Video resolution	720 x 576, 720 x 480, 1280 x 720, 1920 x 1080
Audio decoding MPEG / Musiccam Layer I & II / MPEG4 / AAC and MPEG4 AAC-HE (AAC+), AC-3, MP3
Audio mode	Single channel / Dual channel / Joint stereo / Stereo
Sampling	32, 44.1 and 48 KHz
Main system
CPU	ALI-M3526
Flash memory	16 MB
SDram memory	2 GB DDR3
USB playback formats
Audio	MP3, AAC, WMA, WAV
Video	3GP, AVI, DAT, DIV, DIVX, M2T1, M2TS, MKV, MOV, MP4, MPA, MPE, MPEG, MPG, TP, TRP, TS, VOB
Pictures	BMP, PNG, JPG, JPEG, JPE
Data In/Out Connector
LNB IF Input	2x F type, IEC 169-24 female
Audio / Video	1x S/PDIF output coaxial, 1x Video/Audio (R/L) output coaxial
Power supply
Input voltage	100 - 240 V AC, 50/60 Hz,
Power in use / standby	max. 10 W / < 0,5 W
Protection	Separate internal fuse. Input shall have lightening Protection
Physical Specifications
Dimensions / Weight (net)	280 x 55 x 210 mm / 986 g
Operating / Storage temperature	5°C to +40°C / -20°C to +70°C

Note: Weight and dimensions are not absolutely exact values.
Technical details can be changed at any time and without prior notice.

8.3 Updating the Firmware

From time to time the firmware of the set-top box will be changed and improved. To update the set-top box with a new firmware version, proceed as followss:

Firmware-Update via USB:

On our Homepage www.megasat.tv the latest firmware is available as download. Download the ZIP file, unpack the archive and copy the *.bin file to a previously formatted USB stick.

Note: When downloading the firmware, always pay attention to the correct name of the file that matches your device (e.g. megasat_hd_935_twin_v2_firmware.zip)

1. Plug the USB stick into the receiver and press the USB button on the remote control to enter the USB menu.
2. Select the file and confirm with OK.
3. You will be asked if you really want to upgrade? Confirm with „Yes“.
4. The firmware will be updated now.
5. After successful update the receiver will be restarted.

To accept all settings of the new firmware, you must perform a factory reset (check „5. Factory settings“ on page 13).

Attention: After a factory reset, all settings and the current channel list are lost. You can save the channel list BEFORE the factory setting and then restore it (check „6. Managing the program list“ on page 16).

Hereby, Megasat Werke GmbH declares that the following product is in compliance with the essential requirements and other relevant provisions of directives 2014/30/EU (EMC), 2014/35/EU (LVD) and 2014/53/EU (RED):

Megasat HD 935 Twin V2 (Art-No. 0201130)

Megasat HD 935 Twin V2 (500 GB HDD) (Art-No. 0201132)

Megasat HD 935 Twin V2 (1000 GB HDD) (Art-No. 0201133)

Megasat HD 935 Twin V2 (2000 GB HDD) (Art-No. 0201134)

Megasat HD 935 Twin V2 (250 GB SSD) (Art-No. 0201135)

Megasat HD 935 Twin V2 (500 GB SSD) (Art-No. 0201136)

Megasat HD 935 Twin V2 (1000 GB SSD) (Art-No. 0201137)

The Declaration of Conformity for these products is located at the company: Megasat Werke GmbH, Industriestraße 4a, D-97618 Niederlauer

The declaration of conformity can be downloaded from our homepage: www.megasat.tv/support/downloads

PRODUCT REGISTRATION

Registering your Megasat product gives you access to our automatic e-mail notifications. If your product requires new firmware, you will be notified by e-mail.

For registration please visit our homepage www.megasat.tv

You can find the form in Support → Product registration

8. USB Port Switch

8.4 Change USB Port

The Megasat HD 935V2.1 offers you two USB ports and a hard drive slot. The USB port on the back and the hard drive are activated ex works. The front USB port is without function!

If you want to activate the front USB port, you have to reconnect the connection cables inside the receiver. Disconnect the receiver from the power supply and then open the housing by loosening the three screws on the back.

Press the clip on the connector to release the lock and pull the connector off. You can then plug the required connector back in.

Close the housing and screw the device back in place.

Notice:

If the seal is damaged, it will not affect your warranty.

Notes
