| Product Type | Monoblock Car Audio Amplifier (Subwoofer) |
| Brand | JL Audio |
| Model | XD6001 |
| Category | Hi-Fi System |
| Amplifier Class | NexD (Class D) |
| RMS Power @ 4 Ohms | 400W x 1 |
| RMS Power @ 2 Ohms | 600W x 1 |
| RMS Power @ 1 Ohm | Not rated (stable to 1.5 ohms) |
| Frequency Response | 7 Hz – 500 Hz |
| Signal-to-Noise Ratio | >104 dB (A-weighted, referenced to rated power) |

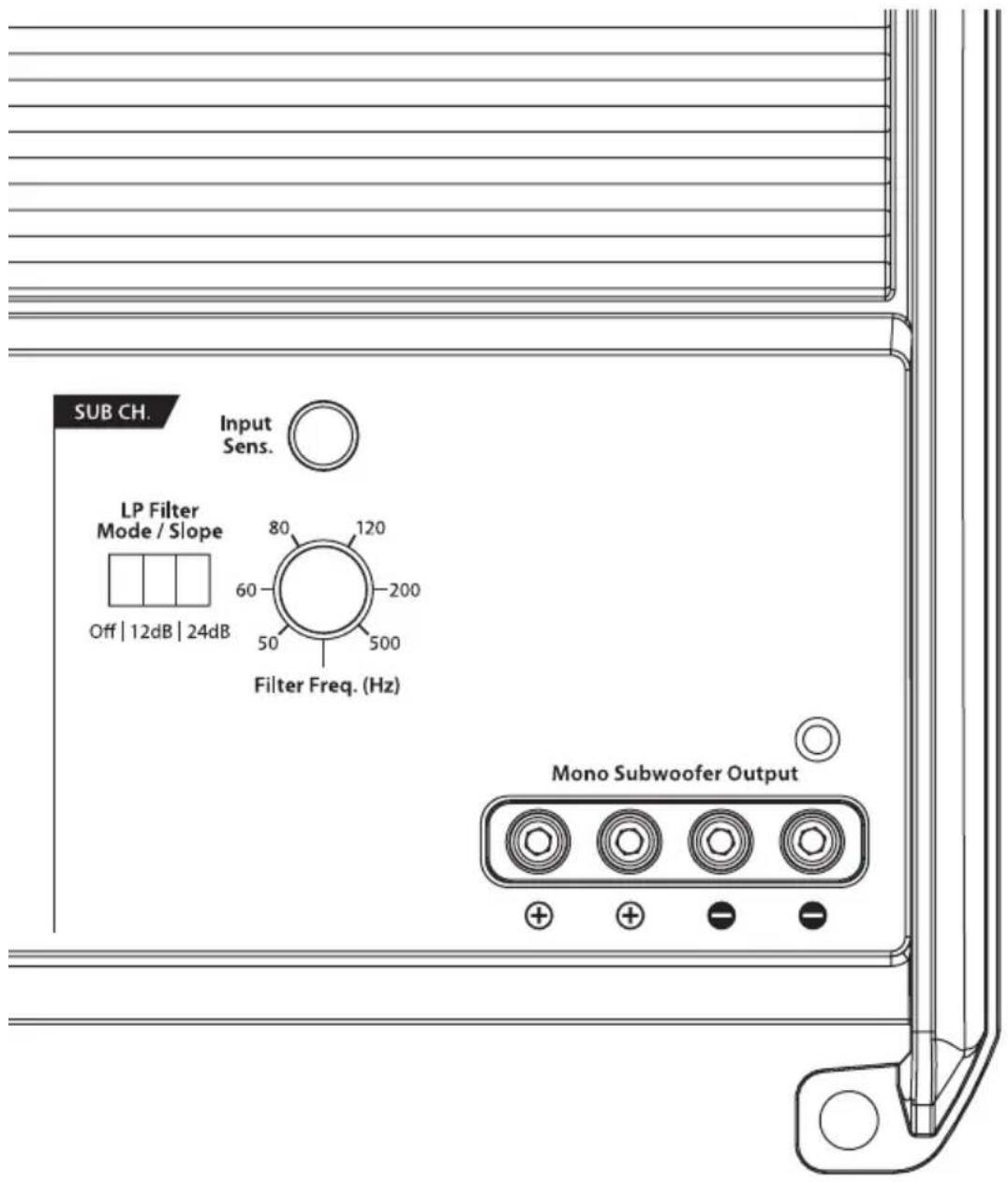

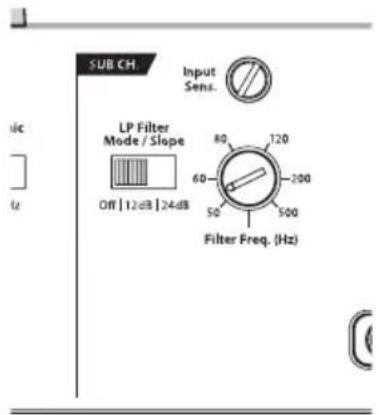

| Low-Pass Filter | Variable 50–500 Hz, 12 dB/octave |
| Subsonic Filter | Variable 10–150 Hz, 12 dB/octave |
| Input Voltage Range | 10 – 16 V DC |
| Dimensions (L x W x H) | 10.0 in x 7.5 in x 2.0 in |
| Weight | 5.5 lb |
| Protection Circuits | Thermal, short circuit, overcurrent, reverse polarity |
| Remote Level Control | Optional (sold separately) |
| Input Sensitivity | 200 mV – 4 V |
| Speaker Level Inputs | Yes, via RCA adapter |
| Fuse Rating | 80A (IT-1 style) |
| Wiring Gauge Recommended | 4 AWG power and ground |
| Mounting | Screw terminals with #8 hardware |
| Operating Temperature | 0°C to 60°C |
| Country of Origin | USA |
Frequently Asked Questions - XD6001 JL Audio
What is the maximum RMS power output of the JL Audio XD6001?
The XD6001 delivers 600W RMS at 2 ohms and 400W RMS at 4 ohms. It is not rated for 1 ohm operation.
Can I bridge two XD6001 amplifiers?
The XD6001 is a monoblock amplifier and cannot be bridged. However, multiple units can be used with a summing device.
What is the recommended power wire gauge?
Use 4 AWG power and ground cables. The amplifier includes an 80A fuse.
Does the XD6001 have a subsonic filter?
Yes, it has a variable subsonic filter from 10 to 150 Hz at 12 dB/octave to protect subwoofers from infrasonic frequencies.
What is the input sensitivity range?
The input sensitivity is adjustable from 200 mV to 4 V, compatible with most head units.
Can I use speaker-level inputs?
Yes, using an optional RCA adapter. The XD6001 accepts speaker-level signals.
What protection features does it have?
It includes thermal, short circuit, overcurrent, and reverse polarity protection.
Is a remote level control included?
No, the remote level control is sold separately. It allows convenient gain adjustment from the driver's seat.
What are the dimensions of the XD6001?
Dimensions are 10.0 in (L) x 7.5 in (W) x 2.0 in (H), and it weighs 5.5 lb.
Can I use a 1 ohm load with this amplifier?
The XD6001 is designed to be stable down to 1.5 ohms. Running a 1 ohm load is not recommended and may cause overheating.
