Product Type	3-Channel Car Audio Amplifier
Brand	JL Audio
Model	MX600/3
Number of Channels	3
Power Output (RMS)	75W x 2 (front) + 300W x 1 (subwoofer) @ 4 ohms
Power Output (Peak)	150W x 2 + 600W x 1
Frequency Response	10 Hz – 30 kHz
Total Harmonic Distortion (THD)	< 0.1%
Signal-to-Noise Ratio	> 100 dB
Input Sensitivity	200 mV – 8 V
Input Impedance	20 kΩ
Dimensions (L x W x H)	13.5 in x 7.5 in x 2.1 in (343 mm x 191 mm x 54 mm)
Weight	6.8 lbs (3.1 kg)
Power Supply	12 V DC (min 11V, max 15V)
Fuse Rating	30 A (AGT or ATC type)
Low Pass Filter	50 Hz – 500 Hz (subwoofer channel)
High Pass Filter	50 Hz – 500 Hz (front channels)
Remote Turn-On	+12 V remote input
Speaker Impedance	2 – 8 Ω (stable to 2 Ω per channel)
Cooling	Convection with heatsink fins
Maintenance	Clean with dry cloth; ensure adequate ventilation
Safety	Protection against short circuit, thermal overload, and reverse polarity
Spare Parts	Contact JL Audio authorized dealers for fuses and connectors
Warranty	2 years from date of purchase

Frequently Asked Questions - MX600/3 JL Audio

What is the power output of the MX600/3?

The MX600/3 delivers 75 watts RMS per front channel and 300 watts RMS for the subwoofer channel at 4 ohms, with peak power of 150W x 2 + 600W x 1.

What is the recommended speaker impedance?

The amplifier is stable into 2 ohms per channel, but recommended impedance is 4 ohms for optimal performance. Minimum impedance is 2 ohms.

How do I connect the remote turn-on wire?

Connect the remote turn-on wire (blue) to a +12V switched signal from the head unit or an accessory wire. It requires at least 3V to turn on.

What fuse should I use?

The amplifier requires a 30A fuse (AGT or ATC type) installed on the power wire near the battery. Do not use a higher rating.

Can I bridge the channels?

The MX600/3 is designed as a 3-channel amplifier; bridging is not recommended. Use the dedicated sub channel for low frequencies.

What are the crossover settings?

The sub channel has a low-pass filter adjustable from 50 Hz to 500 Hz. The front channels have a high-pass filter (50-500 Hz) and can be set to full-range if needed.

How do I adjust input sensitivity?

Turn the gain control clockwise to increase sensitivity. Use a multimeter or oscilloscope to set it correctly, matching the head unit's output voltage (200 mV – 8 V).

What is the frequency response of the amplifier?

The frequency response is 10 Hz to 30 kHz, ensuring clear reproduction from deep bass to high frequencies.

Does it have protection against short circuits?

Yes, the amplifier features protection circuitry for short circuits, thermal overload, and reverse polarity. It will shut down if a fault is detected.

How do I clean and maintain the amplifier?

Clean the exterior with a soft, dry cloth. Ensure the heatsink fins are free of dust and provide adequate airflow. Do not use liquids or solvents.

USER MANUAL MX600/3 JL Audio

MX600/3
600W 3-Channel Class D System Amplifier

Thank you for purchasing a FL Audio amplifier for
your sound system

Your amplifier has been designed and manufactured to exacting standards in order to ensure years of musical enjoyment. For maximum

performance, we highly recommend that you have

your new amplifier installed by an authorized IL Audio dealer. Your authorized dealer has the training expertise and installation equipment

to ensure optimum performance from this product. Should you

decide to install the amplifier yourself, please take the lim

to read this manual thoroughly to familiarize yourself

with its installation requirements and setup procedures

If you have any questions regarding the instructions in this manual or any aspect of your amplifier's operation, please contact your authorized JL Audio dealer for assistance. If you need further assistance,

please call the 1L Audio Technical Support Department

at [e-mail] or call [phone] during business hours.

What's Included

(1) Amplifier

(4) Stainless steel mounting screws

(1) User manual

Product Description

This is a three-channel, system amplifier utilizing Class D technology for all channels.

Installation Applications

This amplifier is designed for operation with 12 volt, negative-ground electrical systems. Using this product in systems with positive ground and/or voltages other than 12V may result in damage to the product and will void the warranty. This product is not certified or approved for use in aircraft.

Safety Considerations

- Whenever possible, mount the amplifier in a dry, well-ventilated location that does not interfere with other factory installed electronic devices. If a dry environment is not available, a location that is not exposed to heavy splashing may be used.

- While this amplifier is designed to be water-resistant, it should never be submerged under water or subjected to high-pressure water spray. Do not install where it will be directly exposed to the elements.

- Do not mount the amplifier in the engine compartment or in any areas of extreme heat.

- Securely mount the amplifier so that it does not come loose in the event of a collision/sudden jolt or as a result of repeated vibrations during normal operation.

- Check before drilling to make sure that you will not be drilling into an exterior panel/hull, fuel tank, gas/brake line, wiring harness, or other vital system.

- Do not run system wiring outside or underneath the vehicle/vessel. This is an extremely dangerous practice, which can result in severe damage/injury.

- Protect all system wires from sharp edges (metal, fiberglass, etc.) by carefully routing them, tying them down and using grommets and loom where appropriate.

- Secure all wiring as needed, using cable ties or wire clamps to protect them from moving parts and sharp edges.

IPX7 Water Resistance Rating

This product has been tested to withstand immersion in water, up to 1 meter (3.28 ft.) deep, for up to 30 minutes (with control panel cover properly installed). Note - while designed to be water resistant, this product should never be submerged under water for prolonged periods or subjected to activity that creates pressure on it that exceeds its depth rating.

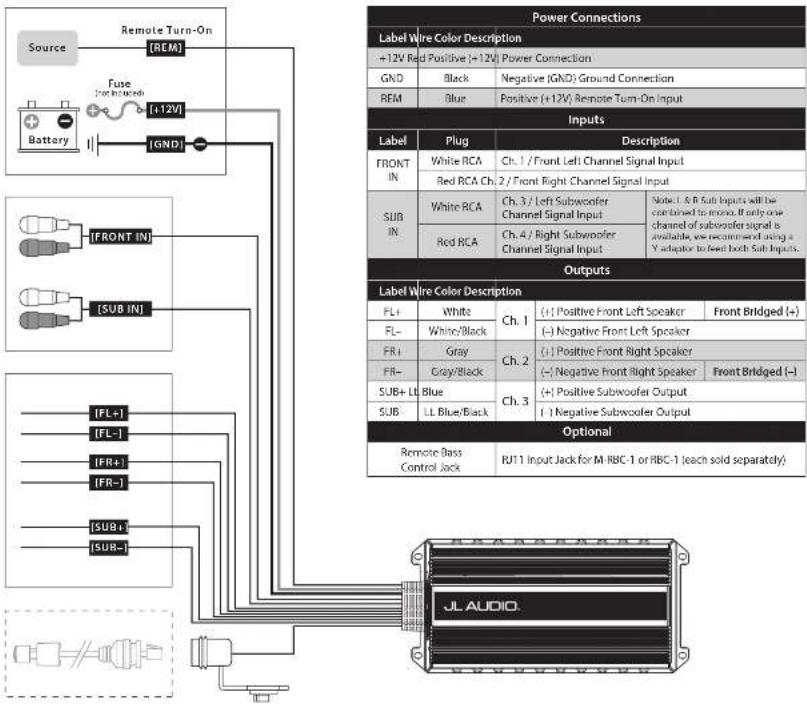

Wiring Diagram
Power Connections
Inputs: High-Level < or > Low-Level (spectable via Input Voltage switch far each channel part
Outputs: To Speakers
Optional: M-RBC-1 Remote Bass Control (sold separately)

Connections

Power Connections
Label Wire Color Description
+12V Red Positive (-) 12V			Power Connection
GND	Black		Negative (GND) Ground Connection
REM	Blue		Positive (+12V) Remote Turn-On Input
Inputs
Label	Plug	Description
FRONT IN	White RCA	Ch. 1 / Front Left Channel Signal Input
	Red RCA Ch. 2 / Front Right Channel Signal Input
SUB IN	White RCA	Ch. 3 / Left Subwoofer Channel Signal Input	Note 1 & R Sub Inputs will be combined to mean. If only one channel of subwoofer signal is available, we recommend using a Y adaptor to feed both Sub Inputs.
	Red RCA	Ch. 4 / Right Subwoofer Channel Signal Input
Outputs
Label Wire Color Description
FL+	White	Ch. 1	(+) Positive Front Left Speaker	Front Bridged (+)
FL-	White/Black		(-) Negative Front Left Speaker
FRI	Gray	Ch. 2	(+) Positive Front Right Speaker
FR-	Gray/Black		(-) Negative Front Right Speaker	Front Bridged (-)
SUB+ Lt	Blue	Ch. 3	(+) Positive Subwoofer Output
SUB	LL Blue/Black		(-) Negative Subwoofer Output
Optional
Remote Bass Control Jack		RUT Input Jack for M-RBC-1 or RBC-1 (each sold separately)

Installation Procedure/Connections

1. Disconnect the NEGATIVE battery post connection and secure the disconnected cable to prevent accidental reconnection during installation. This is an essential safety precaution during installation!

2. Connect the RED power lead to the positive (+12V) battery post. 4 AWG is the minimum power wire size for this amplifier.

3. An appropriate fuse (sold separately), such as the JL Audio Water-Resistant Master MAX™ Fuse Block (XD-MFBW MAXI), at the main power wire(s) to the amplifier(s) is vital for vehicle/vessel safety. This fuse must be installed within 18 inches (45 cm) of the positive battery post connection. If this is the only device connected to this main wire, use a 60A fuse. Do not install the fuse until the power wire has been securely connected to the amplifier

4. Connect the BLACK negative ground lead to a clean, solid metal grounding point near the amplifier. This can be to metal chassis ground, if available. If no metal chassis ground is available, it may be necessary to make this connection to the NEGATIVE battery post. 4 AWG is the minimum ground wire size for this amplifier. All ground connections (source unit and amplifiers) should be made at the same location.

5. Connect the BLUE remote turn-on lead to the source unit's positive (+12V) remote turn-on output. If your source unit does not have a dedicated remote turn-on output, the amplifier's turn-on lead can be connected to +12V via a switch that derives power from an ignition-switched circuit.

6. Signal Input (Low-Level): Connect the amplifier's RCA input jacks to the source unit's preamp level output jacks.

7. Signal Input (High-Level): If your source unit does not offer preamp level signal outputs, you can splice the speaker output wires of the source unit onto a pair of RCA plugs for each input pair or use the JL Audio ECS Speaker Wire to RCA adaptor (XD-CLRAIC2-SW). Make sure to observe correct polarity in making "High-Level Input" connections. Failure to do so will result in a loss of signal (poor performance).

8. Connect the speaker output leads to the corresponding speaker wires.

9. Make necessary adjustments to the filter controls and input sensitivity.

10. The amplifier's subwoofer output level can be controlled from the front of the vehicle/vessel with an optional remote level controller (sold separately). Use the RBC-1 for standard (dry) installations or the M-RBC-1 for applications exposed to moisture. Connect the remote's plug to the amplifier's harness-mounted RJ11 input jack. (Refer to Appendix B)

WARNING! Failure to make safe, tight, high-integrity power connections can result in fire and extensive damage!

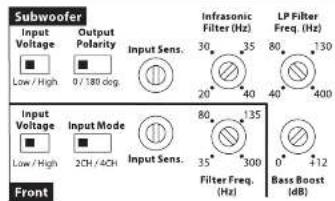

Control Panel Settings and Adjustments

The amplifier's settings and controls are located on the bottom panel beneath a gasketed, protective cover. Remove the four Phillips head screws from the center panel to access the controls and make adjustments. Replace cover when finished and mount the amplifier.

Control Setting Mode / Function
Front / Subwoofer	Input Voltage	Low RC	A/Preamp Level Range (250 mV - 4 V)
		High RC	A/Preamp or Speaker Level Range (580 mV - 14 V)
	Input Sens.	Variable	Adjusts the input stage of each pair of amplifier channels to match the source unit's output voltage for maximum clean output (refer to Appendix A);
Front	Input Mode	2CH	Applies two channels of Input to all three amplifier channels. Main input signals will be combined to mono for the subwoofer channel.	Use Front Inputs Only
		4CH	Sends four discrete channels to all four inputs. L & R Sub Inputs will be combined to mono. If only one channel of subwoofer signal is available, we recommend using a Y-adaptor to feed both Sub Inputs.	Use Front and Sub Inputs
	Filter Freq. (Hz)	Variable	Adjusts the high-pass filter cutoff frequency, variable from 35-300 Hz, 12 dB/Octave
Subwoofer	Output Polarity	0 Normal speaker polarity
		180 deg.	Polarity reversed 180 degrees
	Infrasonic Filter (Hz)	Variable	Adjusts the high-pass filter cutoff frequency, variable from 20-40 Hz, 12 dB/Octave
	I.P Filter Freq. (Hz)	Variable	Adjusts the low-pass filter cutoff frequency, variable from 40-400 Hz, 24 dB/Octave
	Bass Boost (dB)	Variable	Boost-Only Bass Equalizer:Boost range from 0dB (full-counterclockwise) to + 12dB (full-clockwise), centered at 43 Hz.

Status LED's / Protection Circuitry

There are two status indicator lights on the wiring end panel of the amplifier. 1. "POWER" (Green): Lights to indicate that the amplifier is turned on and operating normally.

1. "PROTECT" (Red): Lights to indicate the amplifier's protection circuitry has been triggered to prevent product failure due to any conditions noted in the chart below. When a protection mode is activated, the amplifier will shut down to protect its circuitry. For Thermal Protection, Over Current and Short Circuit conditions, the amplifier will resume normal operation once the problem is corrected, with the "Protect" LED turning off. For Over Voltage conditions, the amplifier must be turned off/on to return to normal operation. Note: connecting the speaker outputs to impedances lower than 2 ohms (4 ohms bridged) will also cause this protection mode to activate.

POWER(Green LED)	PROTECT(Red LED)	Status/Condition	Note
ON	OFF	Normal Operation
OFF	ON	Thermal Protection	Lasts until temp cools to normal
OFF/ON	ON/OFF	Over Current	Green/Red LEDs alternate for 1 second
OFF	ON	Short Circuit	Possible audible "popping" noise
OFF	ON	Over Voltage	Turn amp off/on to restart

Specifications MX600/3
Rated RMS Power @ 14.4V, <1% THD+N	Main p 4Ω	Main p 2Ω	Main p 4Ω Bridged	Sub p 4Ω	Sub p 3Ω	Sub p 2Ω
	75W x 2	100W x 2	200W x 1	250W x 1	300W x 1	400W x 1
Rated RMS Power @ 12.5V, <1% THD+N	Main p 4Ω	Main p 2Ω	Main p 4Ω Bridged	Sub p 4Ω	Sub p 3Ω	Sub p 2Ω
	30W x 2	80W x 2	100W x 1	200W x 1	250W x 1	300W x 1
Frequency Response	20 Hz - 20 kHz (+0, -1dB), 6.3 Hz - 30 kHz (+0, -3dB)
S/N Ratio, A-weighted, 20 kHz noise bandwidth	88 dB (Referred to rated power), 68 dB (Referred to 1 W)
Damping Factor	>92 / 50 Hz @ 4 Ω, >43 / 50 Hz @ 2 Ω
Input Voltage Range	250 mV - 4 V (Low) or 580 mV - 14 V (High)
Input Mode Switch	2 / 4 Channel
Front High-Pass Filter	Freq. Range: 35 - 300 Hz			Slope: 12 dB/Octave
Sub Low-Pass Filter	Freq. Range: 40 - 400 Hz			Slope: 24 dB/Octave
Infrasonic Filter	Freq. Range: 20 - 40 Hz			Slope: 12 dB/Octave
Sub Output Polarity	0 or 180 degrees
Bass Boost EQ	0 to 112 dB @ 43 Hz
Remote Bass Controller (M-RBC-1 or RBC-1 (solid separately))
Input Operating Voltage	11 - 15 VDC
Min Power/GND Wire	4 AWG
Fuse Rating	60A
Dimensions	9.33 in x 4.50 in x 1.77 in / 237 mm x 114.5 mm x 45 mm

Troubleshooting

Problem Possible Cause Solution
How to properly set input sensitivity		Please refer to Appendix A to set the input sensitivity for maximum, low-distortion output.
Amplifier doesn't turn on	Faulty fuse	Remove fuse and check with continuity meter, replace if necessary.
	Poor connection integrity	Check "112V", "Ground", and "Remote" leads for pinched wires; ensure light connections.
	Insufficient "Remote" input	Make sure there is a sufficient +12V supply at the "Remote" connection; if not a relay may be required.
Intermittent output, fluctuates when I tap on it or hit a bump	Poor connection integrity	Make sure insulation has been properly stripped back at connection points for good contact area.
		Make sure input connectors are making good contact with input jacks of the amplifier.
Distorted, attenuated, or popping sound	Faulty speaker connection (Short Circuit / Over Current Protection)	Inspect speaker wires for possible short-circuit, either together or shorted to the vehicle's chassis ground.
		Check the nominal load impedance at the amplifier is equal to or greater than: Ch.1 & 2: 2 ohms stereo Ch.1 & 2: 4 ohms bridged Sub Ch.: 2 ohms
Output shuts off after a while	Overheating condition (Thermal Protection)	Make sure amplifier mounting area has adequate space for ventilation and heat dissipation.
No or low subwoofer output	Remote Bass Control (optional) is connected and turned down	Adjust IIBC-1 or M-RBC-1 accordingly

Appendix A:

Input Sensitivity Level Setting

Following the directions below will allow the installer to adjust the input sensitivity of each amplifier channel pair in just a few minutes using equipment commonly available in installation bays.

Necessary Equipment

• Digital AC Voltmeter

- CD or file with a sine-wave test tone recorded at 0 dB reference level in the frequency range to be amplified for that set of channels (50 Hz for subwoofer channels, 1 kHz for a midrange application). Do not use attenuated test tones (-10 dB, -20 dB, etc.).

The Nine-Step Procedure

1) Disconnect the speakers from the amplifier's speaker output connectors (you need only disconnect one speaker wire).
2) Turn off all processing (bass/treble, loudness, EQ, etc.) on the source unit, processors (if used) and amplifier. Set the source unit's fader control to center position and its subwoofer level control to 3/4 of maximum.
3) Set both "Input Voltage" switches to "Low" and turn both "Input Sens." controls all the way down.
4) Set the source unit volume to 3/4 of full volume. This will allow for reasonable gain overlap with moderate clipping at full volume.
5) Using the Target AC Voltage chart (at right), determine the target voltage for input sensitivity adjustment according to the nominal impedance of the speaker system connected to the amplifier outputs.
6) Verify that you have disconnected the speakers before proceeding. Play a track with an appropriate sine wave (within the frequency range to be amplified) at 3/4 source unit volume.
7) Connect the AC voltmeter to the speaker output connectors of the amplifier. Make sure you test the voltage at the correct connectors (+ and -).
8) Increase the "Input Sens." control until the target voltage is observed with the voltmeter. Note: If excessive voltage is measured with the control set at minimum (full counterclockwise), change the "Input Voltage" switch setting to "High" and re-adjust.
9) Once you have adjusted the amplifier to its maximum low-distortion output level, reconnect the speaker(s) and listen to the system. The "Input Sens." controls can now be adjusted downward if the amplifier requires attenuation to achieve the desired system balance.

Target AC Voltage - MX600/3
Nom. Impedance	Ch.1 & 2 (Stereo)	Ch.1 & 2 (Bridged)
40 17.3 28.3
20 14.1 not recommended
Nom. Impedance	Ch.3/Subwoofer
40 11.5
30 30.0
20 28.3

IMPORTANT

Do not increase any "Input Sens." setting for any amplifier channel or channel pair in the system beyond the maximum level established during this procedure. Doing so will result in audible distortion and possible speaker damage.

It will be necessary to re-adjust the "Input Sens." for the affected channels if any equalizer boost is activated after setting the "Input Sens." with this procedure. This applies to any EQ boost circuit, including source unit tone controls or EQ circuits. EQ cuts will not require re-adjustment.

Appendix B

Remote Bass Control

With the optional RBC-1 or M-RBC-1 Remote Bass Control (each sold separately), you can control the subwoofer volume from the front of the vehicle/vessel. The remote's plug connects to the amplifier's harness-mounted RJ11 input jack. When connected to the amplifier, the Remote Bass Control operates as follows. At full counter-clockwise rotation, the audio will mute completely. At full clockwise rotation the level will be the same as if the remote was not connected at all. In other words, it operates strictly as a subwoofer level attenuator. This control will not affect the "Bass Boost" feature of the amplifier. Care should be taken to securely mount this control in a manner that does not interfere with vehicle/vessel operation. When setting the amplifier's input sensitivity, the Remote Bass Control should be unplugged or at full clockwise rotation (maximum level).

Limited Warranty - Amplifiers (USA)

JL Audio warrants this product to be free of defects in materials and workmanship for a period of two (2) years from the original date of purchase. This warranty is not transferrable and applies only to the original purchaser from an authorized JL Audio dealer. Should service be necessary under this warranty for any reason due to manufacturing defect or malfunction, JL Audio will (at its discretion), repair or replace the defective product with new or remanufactured product at no charge. Damage caused by the following is not covered under warranty: accident, misuse, abuse, product modification or neglect, failure to follow installation instructions, unauthorized repair attempts, misrepresentations by the seller. This warranty does not cover incidental or consequential damages and does not cover the cost of removing or reinstalling the unit(s). Cosmetic damage due to accident or normal wear and tear is not covered under warranty.

Warranty is void if the product's serial number has been removed or defaced. Any applicable implied warranties are limited in duration to the period of the express warranty as provided herein beginning with the date of the original purchase at retail, and no warranties, whether express or implied, shall apply to this product thereafter. Some states do not allow limitations on implied warranties, therefore these exclusions may not apply to you. This warranty gives you specific legal rights, and you may also have other rights, which vary from state to state.

If you need service on your JL AUDIO product:

All warranty returns should be sent to JL Audio's Amplifier Service Facility freight prepaid through an authorized JL Audio dealer and must be accompanied by proof of purchase (a copy of the original sales receipt). Direct returns from consumers or non-authorized dealers will be refused unless specifically authorized by JL Audio with a valid return authorization number. Warranty expiration on products returned without proof of purchase will be determined from the manufacturing date code. Coverage may be invalidated as this date is previous to purchase date. Non-defective items received will be returned freight collect. Customer is responsible for shipping charges and insurance in sending the product to JL Audio. Freight damage on returns is not covered under warranty.

For Service Information in the U.S.A. please call

JL Audio Customer Service:

(554) 4 43-1100

9:00 AM - 5:30 PM (Eastern Time Zone)

JL Audio, Inc.

10369 North Commerce Pkwy.

viramar, FL 3302

(Do not send product for repair to this address)

International Warranties:

Products purchased outside the United States of America are covered only by that country's distributor and not by JL Audio, Inc.
