Product Type	Air Cooler (Evaporative)
Brand	Emerio
Model	AC-125507.1
Power Supply	220-240 V ~ 50/60 Hz
Power Consumption	75 W
Fan Speeds	3 (Low, Medium, High)
Cooling Function	Yes (requires ice boxes)
Swing Function	Yes (horizontal oscillation)
Ice Boxes Included	2
Water Tank	Removable with level window
Air Filter	Washable cooling pad
Control Type	Manual buttons
Wheels	4 (2 with brake)
Standby Power Consumption	0.39 W
Fan Sound Power Level	62.4 dB(A)
Maximum Air Velocity	4.34 m/s
Maximum Fan Flow Rate	3.72 m³/min
Service Value	0.07 (m³/min)/W
Maintenance	Clean filter and cooling pad regularly; clean water tank

Frequently Asked Questions - AC-125507.1 Emerio

How do I use the cooling function?

Fill the water tank with water up to the MAX line, add frozen ice boxes, then press the cooling button. Ensure the water level is above MIN.

How often should I clean the air filter?

Clean the air filter and cooling pad regularly, especially after long operation. Use a neutral cleaner and soft brush, rinse with clear water.

Can I use the air cooler without water?

Yes, you can use it as a fan without water. Just select a fan speed without activating the cooling function.

How do I install the wheels?

Insert the four wheels into the corner holes. Ensure the two wheels with brake are assembled at the front side. Press the brake lever to lock.

What should I do if the water pump stops working?

Check the water level; it may be below MIN. Fill water and ensure the cooling function is on. If problem persists, contact customer service.

How should I store the appliance?

Empty and clean the water tank and cooling pad before storage. Keep in a dry place away from direct sunlight.

Can I use homemade ice packs instead of the included ice boxes?

It is recommended to use the provided ice boxes. They are designed to fit and freeze properly. Homemade packs may leak or deform.

How do I clean the water tank?

Pull out the water tank, clean with a soft cloth and mild detergent, then rinse with clear water. Dry before reinserting.

What is the recommended water level?

The water level should be between the MIN and MAX lines, visible on the water level window. Do not exceed MAX when ice boxes are added.

Is the appliance safe for children?

Children aged 8 and above can use it under supervision. Do not let children play with the appliance. Keep ice boxes away from children to prevent ingestion.

USER MANUAL AC-125507.1 Emerio

White air conditioner unit with black ventilation grilles and wheels (no visible text or symbols)

Air cooler (EN)

Õhujahuti (EE)

Instruction manual – English ...... - 2 -

Kasutusjuhend – Estonian ....- 10 -

Instrukciju rokasgrāmata – Latvian.... - 18 -

Instrukciju vadovas – Lithuanian ...... - 26 -

SAFETY INSTRUCTIONS

Before use make sure to read all of the below instructions in order to avoid injury or damage, and to get the best results from the appliance. Make sure to keep this manual in a safe place. If you give or transfer this appliance to someone else make sure to also include this manual.

In case of damage caused by user failing to follow the instructions in this manual the warranty will be void. The manufacturer/importer accepts no liability for damages caused by failure to follow the manual, a negligent use or use not in accordance with the requirements of this manual.

1. This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.

2. Children shall not play with the appliance.

3. Cleaning and user maintenance shall not be made by children without supervision.

4. If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.

5. Unplug the appliance during filling and cleaning.

6. Do not permit the area around the appliance to become damp or wet. If dampness occurs, turn the output of the appliance down. If the appliance output volume cannot be turned down, use the appliance intermittently. Do not allow absorbent materials, such as carpeting, curtains, drapes, or tablecloths, to become damp.

7. Never leave water in the reservoir when the appliance is not in use.

8. Empty and clean the appliance before storage. Clean the appliance before next use.

9. Before inserting the plug into the mains socket, please check that the voltage and frequency comply with the specifications on the rating label.

10. If an extension cord is used it must be suited to the power consumption of the appliance, otherwise overheating of the extension cord and/or plug may occur. There is a potential risk of injuries from tripping over the extension cord. Be careful to avoid dangerous situations.
11. Disconnect the mains plug from the socket when the appliance is not in use and before cleaning.
12. Ensure that the mains cable is not hung over sharp edges and keep it away from hot objects and open flames.
13. Do not immerse the appliance or the mains plug in water or other liquids. There is danger to life due to electric shock!
14. To remove the plug from the plug socket, pull the plug. Do not pull the power cord.
15. Do not plug or unplug the appliance from the electrical outlet with a wet hand.
16. Never attempt to open the housing of the appliance, or to repair the appliance yourself. This could cause electric shock.
17. Never leave the appliance unattended during use.
18. This appliance is not designed for commercial use.
19. Do not use the appliance for other than intended use.
20. Do not wind the cord around the appliance and do not bend it.
21. Never insert fingers, pencils or any other object through the holes of the plastic shell.
22. The appliance should be placed on a flat and stable surface when operating to avoid overturning.
23. Do not let the air inlet be too close to the wall, curtain and other objects. Otherwise, it will block the air flow and affect the wind effect.

24. Choose the socket that is up to more than 10A current. Do not use the same socket with other machines.

25. Please turn off the power before pulling out the plug. Do not pull the plug directly in order to avoid a short-circuit, fire or electric shock.

26. Do not use the appliance outdoors or around the bath, shower or pool.
27. At anytime, the water level of the water tank must be less than “MAX”. When the cooling function is used, the water level of the water tank must be more than “MIN”.
28. After the water tank is filled with water, please do not tilt or bump the appliance while moving it.
29. Do not put anything on the appliance. Do not cover the air inlet and air outlet of the appliance.
30. Pour out the water when the appliance is not is use.

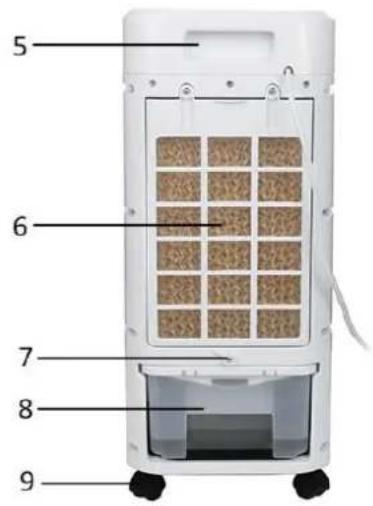

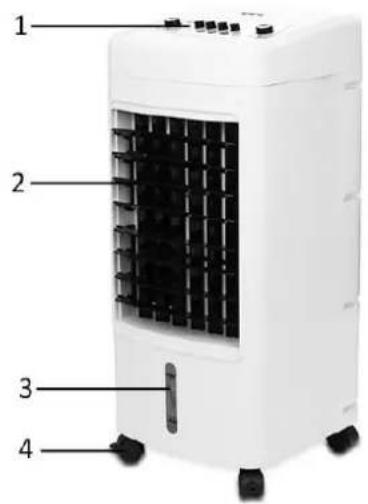

PARTS DESCRIPTION

1. Control panel
2. Air outlet
3. Water level window
4. Front wheels with brake
5. Handle
6. Air inlet
7. Water tank lock
8. Water tank
9. Rear wheels without brake
10. Ice boxes

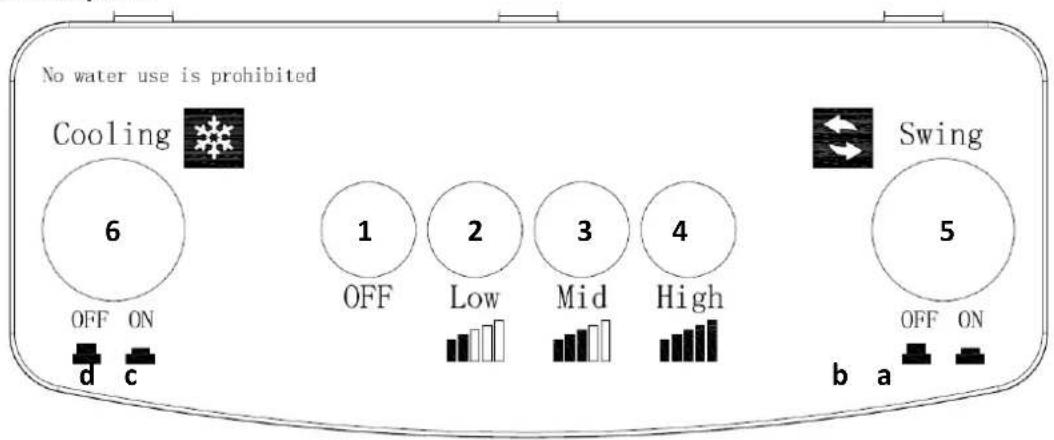

Control panel

1. Power off button
2. Low wind speed button
3. Medium wind speed button
4. High wind speed button
5. Swing button
   a. Position "ON" - function is on
   b. Position "OFF" – function is off
6. Cooling button
   c. Position "ON" – function is on
   d. Position "OFF" – function is off

BEFORE USE

1. Pull the appliance out from the carton and place it on a solid heat-resistant horizontal surface.
2. Check if the accessories are complete including: two ice boxes, two wheels with brake and two wheels without brake.
3. Insert four wheels into the corner holes and ensure the wheels are assembled tightly. Make sure the two wheels with brake are assembled at the front side of the appliance. (If you need to lock the wheels, just press down the brake lever.)

HOW TO USE

1. Turn the water tank lock to the horizontal position. Pull out the water tank slowly to leave 1/3 of the water tank in the appliance body. Add water into the water tank. If you need the air sent out much cooler, put the ice boxes (add water and frozen first) into the water. Make sure the water level is between the MIN and MAX line. Check the water level from the water level window in the front side of the appliance.

Important! Use of the ice boxes:

Add water into the ice boxes; do not exceed the MAX line on the ice box when adding water into it. Screw the cap tightly to make sure there is no leakage of water droplet. Keep the ice boxes away from children to prevent ingestion. Freeze the ice boxes by placing them horizontally instead of standing vertically in the freezer to avoid deformation.

Warning: the water level of the water tank must be less than "MAX" after the ice boxes are put into the water tank.

1. Plug the appliance into the appropriate power outlet.
2. Turn on the appliance by pressing the wind speed buttons directly. "Low" = low wind speed; "Mid" = medium wind speed; "High" = high wind speed.
3. Press the swing button to turn on the swing function. The air flow will swing left and right. Press the swing button again to cancel the swing and fix the air flow at a specific direction horizontally. To adjust the air flow direction vertically, just lift up or press down the louver outside.
4. Press the cooling button to turn on the cooling function. Press the button again to turn off the function. This function is only effective when the water tank has ice box(es) inside. Do not activate this function when the water in the water tank is below the "MIN" level; add enough water into the water tank first.
5. After use, press the cooling button and the swing button to position "OFF"; press the power off button and unplug the appliance.

NOTES:

1. It is recommended to change water and clean water tank frequently.
2. Activating the cooling function with insufficient water may cause malfunction of the water pump inside the water tank.
3. Do not take out the water tank immediately after the appliance is just turned off. Wait several minutes to avoid the water dripping out from the cooling pad.

CLEANING AND MAINTENANCE

Unplug the appliance during filling and cleaning.

Make sure there is no water on the control panel.

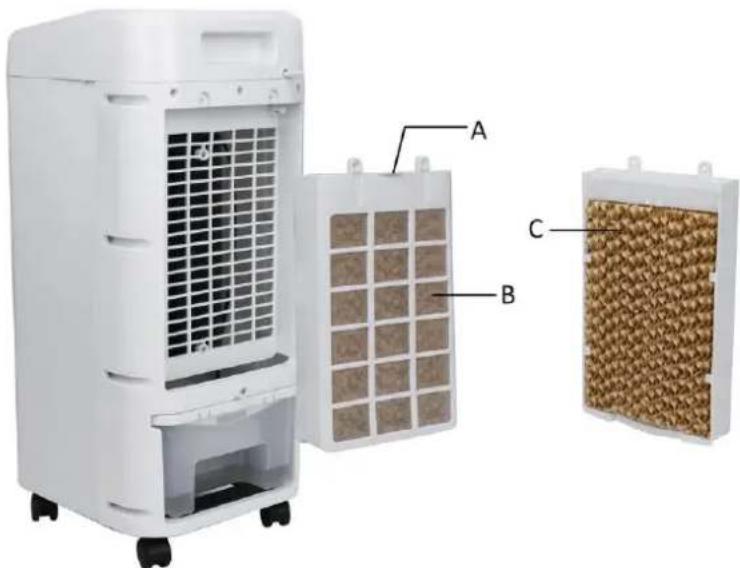

■ Clean the air filter and cooling pad

1. Loosen and take off the screws on the air filter.

2. Pull the tab (A) to take off the air filter (B) and the cooling pad (C).

3. Use a neutral cleaner and a soft brush to clean the air filter and the cooling pad. Rinse with clear water thoroughly.

4. Put back the cooling pad and air filter in place after cleaning. If you will not use the appliance immediately after cleaning, please dry them before putting back.

Important: in order to avoid leak, the cooling pad must be installed smoothly.

Exterior view of a white air purifier with labeled components A, B, and C showing internal structure (no text or symbols beyond labels)

Note: After long time operation, the cooling pad becomes clogged with dust and dirt, which will greatly affect the performance of the appliance. It is recommended to clean the cooling pad frequently.

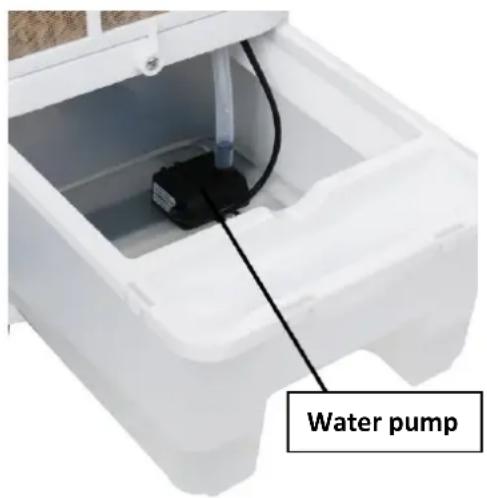

■ Clean the water tank (The water pump is fixed by screws in the water tank. Under normal operation, there is no need to detach it from the water tank.)

1. Pull out the water tank.
2. Clean the water tank with a soft cloth and a little mild detergent, then clean it with clear water.
3. Put back the water tank in place after cleaning.

Note: After some time of operation, the water tank may have dust and dirt. It is recommended to change water and clean the water tank frequently.

■ Clean the main body

1. For slight dirt, wipe if off with a soft damp cloth. For greasy dirt, squeeze a little mild detergent on a soft damp cloth, then wipe the dirt off.
2. Let the main body dry completely before next use.

TECHNICAL DATA

Mains voltage: 220-240V \~ 50-60Hz

Power consumption: 75W

GUARANTEE AND CUSTOMER SERVICE

Before delivery our devices are subjected to rigorous quality control. If, despite all care, damage has occurred during production or transportation, please return the device to your dealer. In addition to statutory legal rights, the purchaser has an option to claim under the terms of the following guarantee:

For the purchased device we provide 2 years guarantee, commencing from the day of sale. If you have a defective product, you can directly go back to the point of purchase.

Defects which arise due to improper handling of the device and malfunctions due to interventions and repairs by third parties or the fitting of non-original parts are not covered by this guarantee. Always keep your receipt, without the receipt you can't claim any form of warranty. Damage caused by not following the instruction manual, will lead to a void of warranty, if this results in consequential damages then we will not be liable.

Neither can we hold responsible for material damage or personal injury caused by improper use if the instruction manual are not properly executed. Damage to accessories does not mean free replacement of the whole appliance. In such case please contact our service department. Broken glass or breakage of plastic parts is always subject to a charge. Defects to consumables or parts subjected to wearing, as well as cleaning, maintenance or the replacement of said parts are not covered by the warranty and are to be paid.

ENVIRONMENT FRIENDLY DISPOSAL

Recycling – European Directive 2012/19/EU

This marking indicates that this product should not be disposed with other household wastes. To prevent possible harm to the environment or human health from uncontrolled waste disposal, recycle it responsibly to promote the sustainable reuse of material resources. To return your used device, please use the return and collection systems or contact the retailer where the product was

purchased. They can take this product for environmental safe recycling.

Emerio Deutschland GmbH (no service address)

Lerchenweg 3

40789 Monheim am Rhein

Deutschland

Customer service:

T: [phone]

E: [e-mail]

ERP information (EN)

Declare that the product detailed below:

Information requirements

Information to identify the AC-125507 (FSL-600) to which the information relates to [Air Cooler]
Description	Symbol	Value	Unit
Maximum fan flow rate	F	3,72	m^3/min
Fan power input	P	54,2	W
Service value	SV	0,07	(m^3/min)/W
Standby power consumption	P_SB	0,39	W
Fan sound power level	L_WA	62,4	dB(A)
Maximum air velocity	C	4,34	meters/sec
Measurement standard for service value	(EU) No 206/2012 + (EU) 2016/2282ISO 5801:2017EN 50564:2011EN 60704-1:2010+A11:2012EN 60704-2-7:1998
Contact details for obtaining more information	Emerio Deutschland GmbHLerchenweg 340789 Monheim am RheinDeutschland

Satisfies the requirement of the Council Directives:

COMMISSION REGULATION (EU) No 206/2012 of 6 March 2012 and Amending COMMISSION REGULATION (EU) 2016/2282 implementing Directive 2009/125/EC of the European Parliament and of the Council with regard to ecodesign requirements for air conditioners and comfort fans

Regarding information for consumers on how to install, use and maintain the product, WEEE information, please check the instruction manual provided with packaging.
