Product Type	Citrus Juicer
Model	CP-122601
Brand	Emerio
Power Consumption	30 W
Operating Voltage	220-240 V ~ 50 Hz
Juice Jug Capacity	1000 ml
Motor Type	Rotating shaft with automatic start when pressing fruit
Extractor Cones	Small and large cones for different citrus sizes
Filter System	Two filter trays with adjustable hole size (turning knob)
Assembly	Juice jug, filter trays, extractor cones, lid
Dishwasher Safe Parts	Yes (extractor cones, filter trays, juice jug, lid)
Motor Base Cleaning	Wipe with damp cloth, do not immerse
Operating Cycle	15 seconds on, 15 seconds off; max 10 cycles then 30 min rest
Safety Features	Automatic stop when releasing hand; overfilling protection (max 1000 ml)
Intended Use	Household only
Weight	Approx. 1.2 kg (estimated)
Dimensions	Approx. 20 x 15 x 25 cm (estimated)

Frequently Asked Questions - CP-122601 Emerio

How do I assemble the citrus juicer?

Place the juice jug on the motor base, aligning the rotating shaft. Then add the filter trays (adjustment tray underneath) with handles aligned over the jug handle. Finally, place the small or large extractor cone onto the shaft.

Can I adjust the pulp in the juice?

Yes, turn the knob on the adjustment filter tray clockwise to reduce hole size (less pulp) or counterclockwise to enlarge holes (more pulp).

What is the maximum capacity of the juice jug?

The juice jug has a maximum capacity of 1000 ml. Do not overfill to avoid spillage or motor strain.

How do I clean the parts?

Unplug and let cool. Wash the extractor cones, filter trays, juice jug, and lid in warm soapy water or in the dishwasher. Wipe the motor base with a damp cloth; never immerse it.

Why does the motor stop when I remove my hand?

The motor automatically stops when you release pressure from the extractor cone. This is a safety feature to prevent continuous operation without fruit.

How long can I use the juicer continuously?

Operate for 15 seconds on, then 15 seconds off. After 10 such cycles, rest the appliance for 30 minutes to prevent overheating.

What fruits can I juice with this appliance?

This juicer is designed for citrus fruits like oranges, lemons, limes, and grapefruits. Use the large cone for bigger fruits and the small cone for smaller ones.

Is the juicer safe to use for children?

Children aged 8 and above can use it under supervision. Keep the appliance and cord out of reach of children under 8. Cleaning should be done by children 8+ with supervision.

What should I do if the power cord is damaged?

If the supply cord is damaged, it must be replaced by the manufacturer, its service agent, or a similarly qualified person to avoid hazard. Do not use the appliance.

Can I use the juicer without the filter trays?

No, the filter trays are essential to separate pulp and seeds from the juice. Without them, the juice may contain large solids and the motor may be blocked.

USER MANUAL CP-122601 Emerio

Instruction manual – English

SAFETY INSTRUCTIONS

Before use make sure to read all of the below instructions in order to avoid injury or damage, and to get the best results from the appliance. Make sure to keep this manual in a safe place. If you give or transfer this appliance to someone else make sure to also include this manual.

In case of damage caused by user failing to follow the instructions in this manual the warranty will be void. The manufacturer/importer accepts no liability for damages caused by failure to follow the manual, a negligent use or use not in accordance with the requirements of this manual.

1. Always disconnect the appliance from the supply if it is left unattended and before assembling, disassembling or cleaning.
2. This appliance can be used by children aged from 8 years and above if they have been given supervision or instruction concerning use of the appliance in a safe way and if they understand the hazards involved.
3. Cleaning and user maintenance shall not be made by children unless they are aged from 8 years and above and supervised.
4. Keep the appliance and its cord out of reach of children aged less than 8 years.
5. Appliances can be used by persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and if they understand the hazards involved.
6. Children shall not play with the appliance.
7. Switch off the appliance and disconnect from supply before changing accessories or approaching parts that move in use.
8. There is a potential risk of injuries from misuse.
9. Regarding the instructions for cleaning the surfaces which come in contact with food, please refer to the paragraph "CLEANING AND MAINTENANCE" of the manual.
10. If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.
11. Warning: Potential risk of injuries from misuse.
12. Before inserting the plug into the mains socket, please check that the voltage and frequency comply with the specifications on the rating label.
13. If an extension cord is used it must be suited to the power consumption of the appliance, otherwise overheating of the extension cord and/or plug may occur. There is a potential risk of injuries from tripping over the extension cord. Be careful to avoid dangerous situations.
14. Disconnect the mains plug from the socket when the appliance is not in use and before cleaning.
15. Ensure that the mains cable is not hung over sharp edges and keep it away from hot objects and open flames.
16. Do not immerse the appliance or the mains plug in water or other liquids. There is danger to life due to electric shock!
17. To remove the plug from the plug socket, pull the plug. Do not pull the power cord.
18. Do not touch the appliance if it falls into water. Remove the plug from its socket and send it to an authorized service center for repair.
19. Do not plug or unplug the appliance from the electrical outlet with a wet hand.
20. Never attempt to open the housing of the appliance, or to repair the appliance yourself. This could cause electric shock.
21. Never leave the appliance unattended during use.
22. This appliance is not designed for commercial use.
23. Do not use the appliance for other than intended use.
24. This appliance can only be used to squeeze the citrus fruit. Never use it to juicing other kinds of fruit.

25. Do not wind the cord around the appliance and do not bend it.

26. The use of accessory attachment not recommended by the appliance manufacturer may cause injuries.

27. Place the appliance on a stable, level surface and not close to hot objects or open flames (e.g. hotplates).
28. Close supervision is necessary for any appliance being used by or near children.
29. It is necessary to keep this appliance clean because it is in direct contact with food.
30. Unplug from outlet while not in use and let the appliance cool down, before putting on or taking off parts, and before cleaning. Never use the appliance outside and always place it in a dry environment.
31. Never use accessories, which are not recommended by the producer. They could constitute a danger to the user and risk to damage the appliance.
32. Avoid contact with moving parts. Keep hands, clothing, as well as spatulas and other utensils away from moving parts during operation to reduce the risk of injury to persons, and/or damage to the appliance.
33. Regarding the instructions for operating time, please refer to the below paragraph of the manual.

HOUSEHOLD USE ONLY

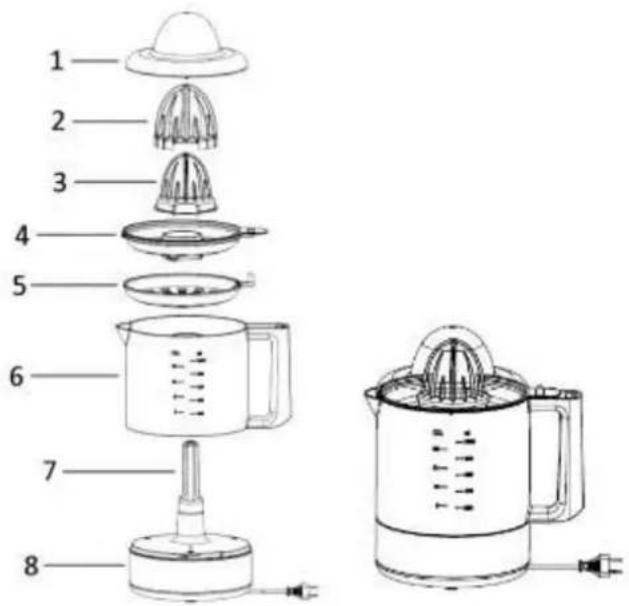

PARTS DESCRIPTION

1. Lid
2. Big extractor cone
3. Small extractor cone
4. Filter tray
5. Adjustment filter tray
6. Juice jug
7. Rotating shaft
8. Motor base

PREPARING THE APPLIANCE FOR USE

1. Clean the lid, extractor cones, filter trays and juice jug thoroughly before the first use. Check the section "CLEANING AND MAINTENANCE".
2. Assemble the appliance by the following order. See the line drawing in "PARTS DESCRIPTION" for reference.

1) Put the juice jug above the motor base by passing the rotating shaft through the center. Align the bulge and groove; turn the juice jug clockwise to fix it upon the motor base.
2) Place the filter trays by order above the juice jug (adjustment filter tray is underneath). The handles of the filter trays should stay above the jug handle, and the rotating shaft should pass through the center of the filter trays.
3) The adjustment filter tray allows to adjust the size of filter holes by the small knob. Turn the knob clockwise and the holes will be reduced. Turn the knob reversely and the holes will be enlarged.

Line drawing of a frying pan with a handle and lid (no text or symbols)

4) Place the extractor cone(s) above the filter trays, and let the rotating shaft insert into the center of the small extractor cone. Decide to use small or big extractor cone depending on the size of citrus fruit. The big extractor cone should cover the small extractor cone for use.

1. Put the appliance on a firm and level surface out of reach for children.

HOW TO USE THE APPLIANCE

1. Put the plug into an appropriate power outlet.
2. Halve the citrus fruit, put the halved fruit upon the extractor cone, press it lightly and the motor starts running. The extracted juice will flop into the jug through the filter trays, and the rough flesh will remain on the filter trays. The motor may rotate in different directions.
3. Release the hand from the extractor cone, the motor stops running.

Caution:

• Never use excessive force when pressing the fruit to prevent the motor from being blocked and damaged.
- Make the appliance work for 15 seconds and rest for 15 seconds. This is one cycle. After 10 consecutive cycles, the appliance must rest for 30 minutes.
• The max capacity of the juice jug is 1000 ml. Do not overfill the juice jug.

1. When the juice squeezing is finished: if you don't pour out the juice at once, place the lid on the top; if you need to pour out the juice, just remove the extractor cone(s) and the filter trays, rotate the juice jug anticlockwise to release it from the motor base.

2. After use, take out the plug from the power outlet.

Caution: When the appliance is not in use, never hold the two pins of the plug while turning the rotating shaft as this may result in electric shock.

CLEANING AND MAINTENANCE

1. Unplug the appliance and allow the appliance to cool off before cleaning.
2. Clean the extractor cone(s), filter trays, juice jug and lid in warm soapy water. Rinse and dry them thoroughly before use. These parts are also dishwasher-safe.
3. Wipe the motor base with a soft moist cloth, and then dry it with a soft dry cloth. Never immerse the motor base in water nor rinse it under the tap.
4. Assemble all the parts.

TECHNICAL DATA

Operating voltage: 220-240V \~ 50Hz

Power consumption: 30W

The crossed out wheelie bin symbol means that this product shall not be disposed of with normal household waste. Electronic and Electrical Equipment not included in the selective sorting process are potentially dangerous for the environment and human health due to the presence of hazardous substances. Please dispose of responsibly at an approved waste or recycling facility.
