Product Type	Solid State Drive (SSD)
Brand	XPG
Model	ATOM 30
Capacity	512 GB
Form Factor	2.5-inch
Interface	SATA III (6 Gb/s)
Sequential Read Speed	Up to 550 MB/s
Sequential Write Speed	Up to 520 MB/s
Dimensions (L x W x H)	100 x 69.85 x 7 mm
Weight	~45 g
Operating Temperature	0°C to 70°C
Storage Temperature	-40°C to 85°C
Power Consumption (Active)	~2.5 W
Power Consumption (Idle)	~0.3 W
Warranty	3 years
Supported Features	TRIM, S.M.A.R.T., NCQ
Maintenance	No mechanical parts, no cleaning required
Safety	Low power consumption, no hazardous materials
Spare Parts & Repairability	Not user-serviceable; contact support for warranty
General Information	Compatible with most desktops and laptops with SATA interface

Frequently Asked Questions - ATOM 30 XPG

How do I install the XPG ATOM 30 SSD?

Power off your system, open the case, connect the SATA data and power cables to the SSD, secure it in a 2.5-inch bay, then boot up and initialize the drive in Disk Management.

Does the ATOM 30 support TRIM?

Yes, the ATOM 30 supports TRIM command, which helps maintain performance over time by clearing unused data blocks.

How can I check the health of my SSD?

Use S.M.A.R.T. monitoring tools like CrystalDiskInfo or the XPG proprietary software to check drive health, temperature, and estimated lifespan.

Can I use the ATOM 30 as an external SSD?

Yes, with a USB-to-SATA adapter or enclosure, you can use the ATOM 30 as an external drive for data transfer or backup.

Is the ATOM 30 compatible with PS4 or PS5?

The ATOM 30 is compatible with PS4 via SATA connection; for PS5, it can be used externally but not as internal storage due to form factor.

How do I clone my old drive to the new ATOM 30?

Use cloning software like EaseUS Todo Backup or Acronis True Image. Connect both drives, select clone source and target, then follow the wizard.

Is the ATOM 30 compatible with Mac computers?

Yes, the ATOM 30 works with Macs that have a SATA interface. Format it as APFS or HFS+ for use as a boot drive or storage.

What is the typical lifespan of the ATOM 30?

With typical use, the SSD can last over 3-5 years. The endurance rating (TBW) varies by capacity; for 512GB, it is usually around 300 TBW.

Why is my SSD not detected?

Ensure cables are properly connected, check BIOS for detection, and try a different SATA port. If still undetected, test on another system.

Can I update the firmware on the ATOM 30?

Yes, check the XPG website for firmware updates. Download the firmware tool, run it as administrator, and follow the on-screen instructions.

USER MANUAL ATOM 30 XPG

Chinese traditional 03 Portuguese 27
Chinese simple 07 Russian 31
English 11 Romanian 35
German 15 Spanish 39
Japanese 19 Turkish 43
Korean 23

INSTALLING AN M.2 SSD ON A LAPTOP PC

Chinese traditional 47 Portuguese 71
Chinese simple 51 Russian 75
English 55 Romanian 79
German 59 Spanish 83
Japanese 63 Turkish 87
Korean 67

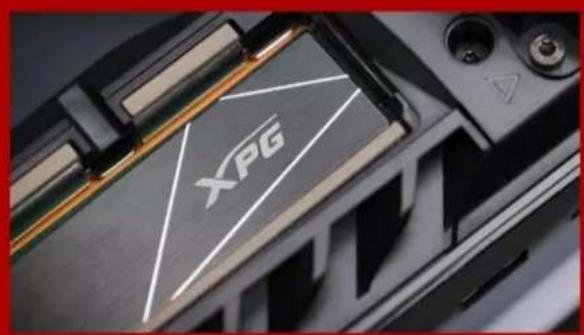

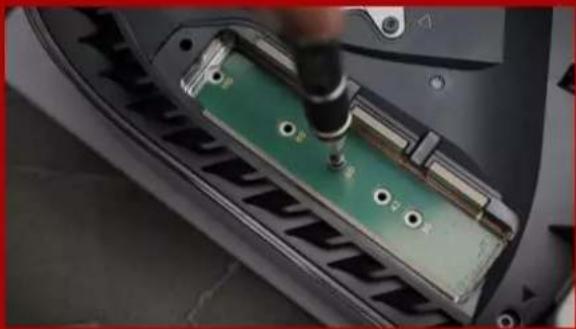

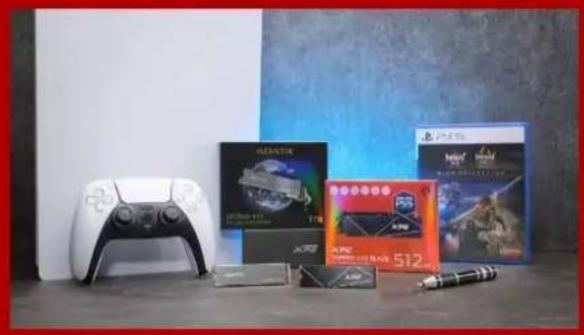

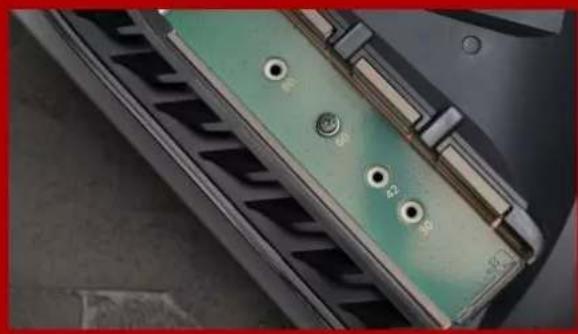

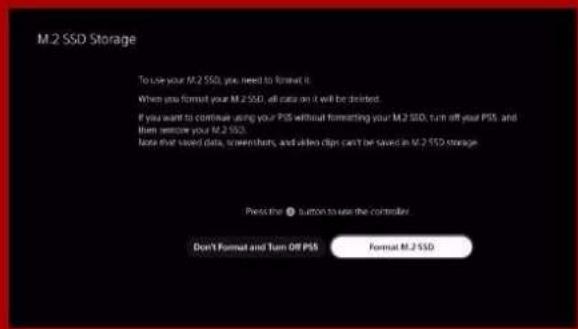

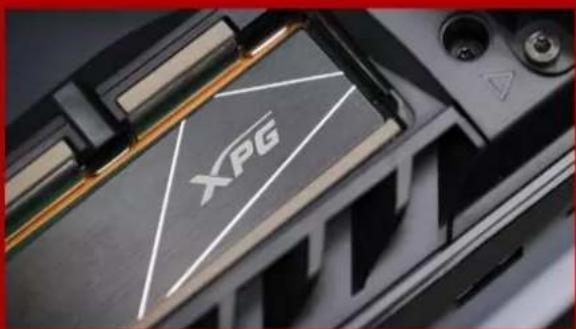

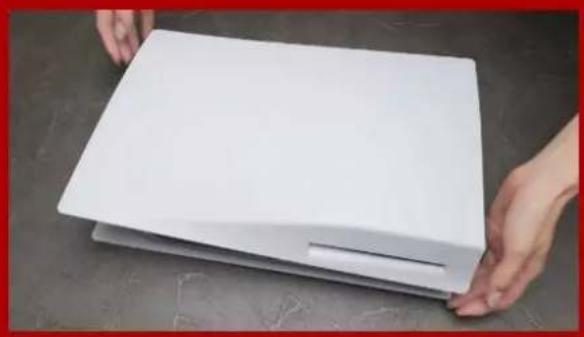

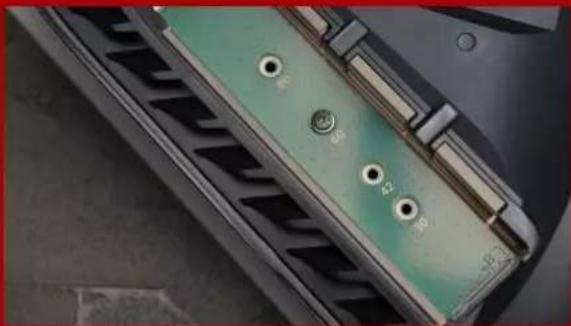

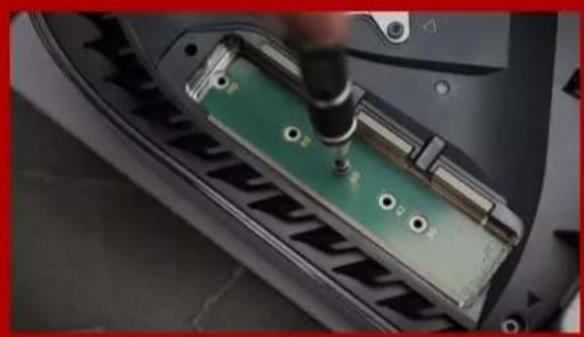

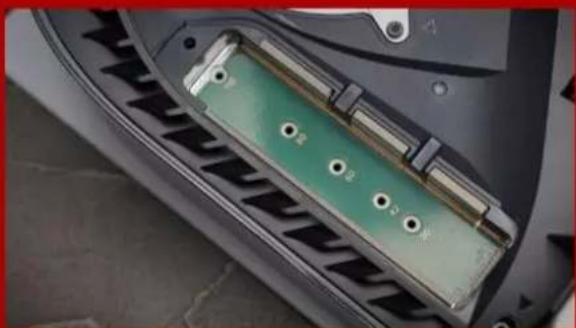

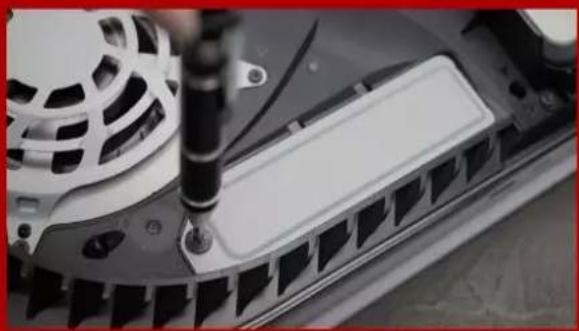

HOW TO INSTALL AN M.2 SSD ON PLAYSTATION 5

Chinese traditional 91 Portuguese 127
Chinese simple 97 Russian 133
English 103 Romanian 139
German 109 Spanish 145
Japanese 115 Turkish 151
Korean 121

如何在桌機安裝

M.2 固態硬碟

Exterior view of a computer monitor displaying a colorful circular light pattern, next to a black GPU RAM module labeled XPG (no text or symbols on the device itself)

更換前準備步驟

Interior view of a computer case with visible internal components and wiring (no text or symbols)

1. 準備工具

2. 備份資料

Hand inserting a socket into a server rack (no visible text or labels)

Hand placing a hard drive into a black internal computer tower case (no visible text or symbols)

1. 將主機機殼卸下

Interior view of a computer motherboard with CPU socket, RAM slots, and visible wiring (no text or symbols)

Close-up of a hand holding a computer mouse, with visible circuit board and hardware components (no readable text or symbols)

3. 對準 M.2 插槽、插上固態硬碟

Close-up of hands installing or adjusting a computer motherboard with a USB drive (no visible text or symbols)

4. 拴上螺絲固態硬碟

再以螺絲起子固定M.2固態硬碟。

Close-up of a hand inserting a component into a black server rack (no visible text or symbols)

5.重新裝上機殼

Close-up of a hand inserting a black rack into a server rack with multiple drive bays (no visible text or labels)

Exterior view of a computer RAM module with a colorful circular lens and XPG chip, set against a red background (no text or symbols on main components)

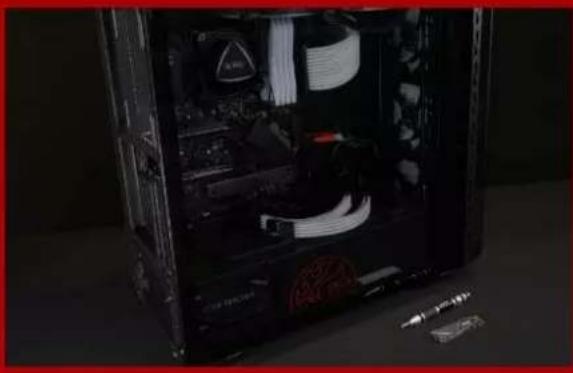

更换前准备步骤

Interior view of a computer tower case showing exposed wiring and internal components (no visible text or labels)

1. 准备工具

2.备份数据

Hand inserting a rack into a server rack with ventilation grilles (no visible text or labels)

Hand placing a hard drive into a black internal computer tower case (no visible text or symbols)

1. 将机箱侧板卸下

Interior view of a computer motherboard with CPU socket, RAM slots, and visible wiring (no text or symbols)

Close-up of a hand holding a computer monitor with visible circuit board and hardware (no readable text or symbols)

3.对准M.2插槽、插上固态硬盘

Close-up of hands installing or adjusting a computer motherboard with a USB drive (no visible text or symbols)

4.拧上螺丝以固定固态硬盘

再以螺丝起子固定M.2固态硬盘。

Close-up of a hand inserting a component into a black server rack (no visible text or symbols)

5.重新装上机箱侧板

Close-up of a hand inserting a black rack into a server rack with multiple drive bays (no visible text or labels)

Exterior view of a computer RAM module with a colorful circular lens and XPG chip, set against a red background (no text or symbols on main components)

BEFORE INSTALLATION

Interior view of a computer case with visible internal components and connectors (no text or symbols)

1. GATHER THE THINGS YOU'LL NEED

PC, Phillips screwdrivers, and XPG M.2 SSD

*Please use a standard Phillips screwdriver (3.5mm) for disassembling the case; and a smaller Phillips screwdriver for installing the M.2 solid state drive as it uses screws with a diameter of 1.85-1.98mm

Make sure to backup the important data on your PC to an external device, such as an external HDD, before starting installation.

After backing up your data, power off your PC to avoid data loss or damage to other components during installation.

Hand inserting a rack into a server rack unit (no visible text or labels)

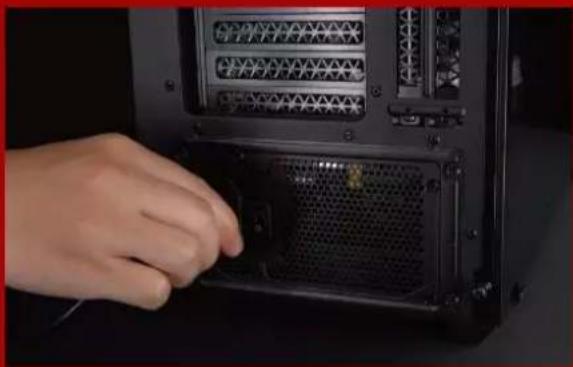

4. SWITCH OFF THE POWER SWITCH AND UNPLUG POWER CORD

This action is necessary to discharge residual power that can damage your PC and its components.

*The location of the power switch may vary by PC, please check your user manual.

INSTALLATION

Hand placing a hard disk into a black computer tower case with visible internal components (no text or symbols)

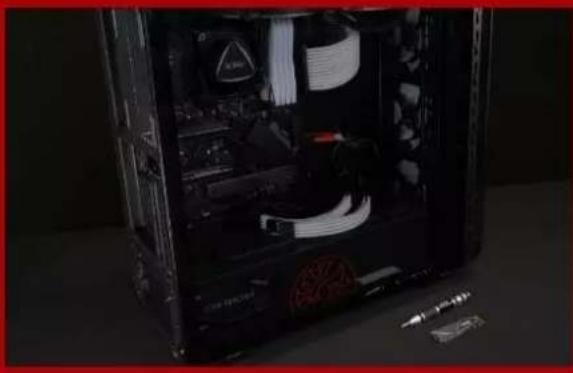

1. REMOVE THE PC CASE

Use the standard Philips screwdriver to remove the screws and then remove the PC case

Interior view of a computer motherboard showing CPU socket, RAM slots, and drive bays (no visible text or symbols)

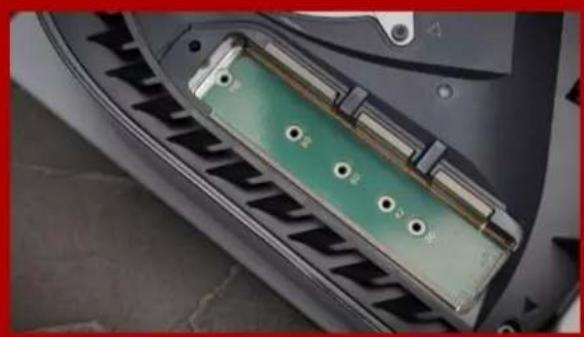

2. LOCATE THE M.2 PCIE SLOT AND CONFIRM THERE ARE SCREWS

Locate the M.2 PCIe slot, ensure the SSD will fit, and confirm there are screws present.

*The location of slots may vary by PC. Please check your PC's user manual for more information.
**Generally speaking, the screws that secure the SSD in place will be installed on the motherboard when the PC is shipped from the factory.

Close-up of a hand holding a computer motherboard with visible CPU socket and drive lights (no text or symbols)

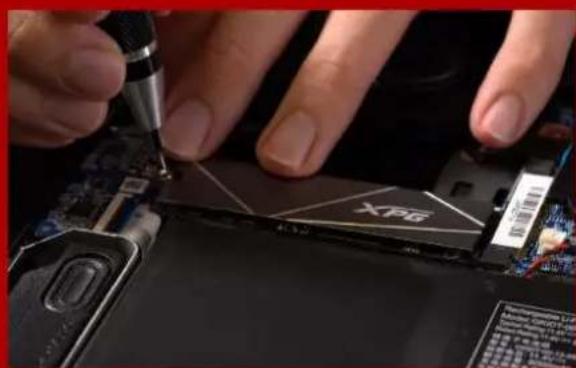

3. ALIGN THE M.2 SLOT AND INSERT THE SOLID STATE DRIVE

Use your small Phillips screwdriver to remove the screws on the motherboard. Align the notches in the SSD with the ridges in the PCIe slot, then insert at a an angle. Give it a final push to ensure it is securely in place.

* The slot has a foolproof design. Please insert the SSD in the direction corresponding to the pins on the solid state drive and the slot. Do not insert it forcibly to avoid damage to the product.

Close-up of hands assembling a computer motherboard with a tool (no visible text or symbols)

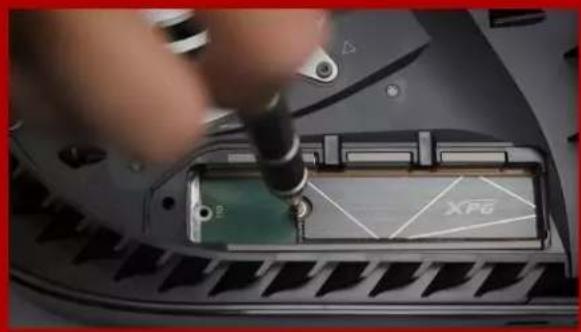

4. FASTEN THE SCREWS TO SECURE THE SSD

Use your small Phillips screwdriver to secure the SSD into place.

Close-up of a hand inserting a component into a black server rack (no visible text or symbols)

5. RESEMBLE THE CASE

*Do not overtighten the screws as it may damage the screws ad back plate

Close-up of a hand inserting a black rack into a server rack with multiple drive bays (no visible text or labels)

6. PLUG IN THE POWER CORD AND POWER ON THE PC TO COMPLETE INSTALLATION

EINE M.2-SSD AN EINEM

DESKTOP-PC INSTALLIEREN

Exterior view of a computer RAM module with a colorful circular lens and XPG chip, set against a red background (no text or symbols on main components)

VOR DER INSTALLATION

1. ALLES NÖ TIGE ZUSAMMENTRAGEN

Interior view of a computer case with visible internal components and connectors (no text or symbols)

2. IHRE DATEN SICHERN

Hand inserting a rack into a server rack unit (no visible text or labels)

Hand placing a hard drive into a black internal computer tower case (no visible text or symbols)

1. PC-GEHÄ USE ENTFERNEN

Interior view of a computer motherboard showing CPU socket, RAM slots, and motherboard (no visible text or symbols)

2. M.2-PCIE-STECKPLATZ AUSFINDIG MACHEN UND SICHERSTELLEN, DASS SCHRAUBENVORHANDENSIND

Close-up of a hand holding a computer monitor, with visible CPU socket and motherboard (no text or symbols)

Close-up of a hand inserting a component into a computer motherboard (no visible text or symbols)

Close-up of a hand inserting a device into a black server rack (no visible text or symbols)

5. GEHÄ USE WIEDER ZUSAMMENBAUEN

Close-up of a hand pressing a black rack-mounted server unit with multiple drive bays (no visible text or labels)

Exterior view of a computer RAM module next to a colorful circular display with a glowing ring, set against a red background (no text or symbols visible on the main components)

交換前の準備

Interior view of a computer tower case showing exposed wiring and internal components (no visible text or symbols)

1. 準備するもの

2. データのバックアップ

Hand inserting a rack into a server rack with ventilation grilles (no visible text or labels)

Hand placing a hard drive into a black internal computer tower case (no visible text or symbols)

1. パソコン本体のケースを取り外す

Interior view of a computer motherboard with CPU socket, RAM slots, and visible wiring (no text or symbols)

Close-up of a hand holding a computer mouse, with visible circuit board and hardware components (no readable text or symbols)

3. M.2スロットにSSDを差し込む

Close-up of hands operating a computer motherboard with a USB drive (no visible text or symbols)

4. SSDをねじで 固 定する

Close-up of a hand inserting a device into a black server rack (no visible text or symbols)

5. ケースを元の位置に取り付ける

Close-up of a hand inserting a black rack into a server rack with multiple drive bays (no visible text or labels)

Interior view of a computer tower case showing exposed circuitry and internal components (no visible text or labels)

1.필요한 도구 준비

2.데이터 백업

Hand inserting a rack into a server rack with ventilation grilles (no visible text or labels)

Hand placing a hard drive into a black internal computer tower case (no visible text or symbols)

1.PC케이스 제거

Interior view of a computer motherboard with CPU socket, RAM slots, and visible wiring (no text or symbols)

Close-up of a hand holding a computer mouse, with visible circuit board and hardware components (no readable text or symbols)

Close-up of hands installing or adjusting a computer motherboard with a USB drive (no visible text or symbols)

4. 나사를 조여서 SSD 고정

Close-up of a hand holding a black server rack with visible internal components and a small tool nearby (no text or symbols)

5.케이스 재조립

Close-up of a hand pressing a button on a black server rack with multiple ports (no visible text or labels)

Exterior view of a computer RAM module with a colorful circular lens and XPG chip, set against a red background (no text or symbols on main components)

Interior view of a computer case with visible internal components and connectors (no text or symbols)

1. REÚ NA AS COISAS QUE VOCÊ PRECISA

PC, chaves de fenda Phillips e SSD XPG M.2

2. FAÇ A BACKUP DE SEUS DADOS

Hand inserting a rack into a server rack unit (no visible text or labels)

Hand placing a hard drive into a black internal computer tower case (no visible text or symbols)

1. REMOVA O GABINETE DO PC

Interior view of a computer motherboard showing CPU socket, RAM slots, and motherboard (no visible text or labels)

2. LOCALIZE O SLOT M.2 PCIE E CONFIRME SE HÁ PARAFUSOS

Close-up of a hand holding a computer monitor, with visible CPU socket and motherboard (no text or symbols)

3. ALINHE O SLOT M.2 E INSIRA A UNIDADE DE ESTADO SÓ LIDO

Close-up of a hand inserting a component into a computer motherboard (no visible text or symbols)

4. APERTE OS PARAFUSOS PARA PRENDER O SSD

Close-up of a hand inserting a device into a black server rack (no visible text or symbols)

Close-up of a hand pressing a black rack-mounted server unit with multiple drive bays (no visible text or labels)

Interior view of a computer case with visible internal components and wiring (no text or symbols)

2.ЗАРЕЗЕРВИРУЙТЕ ДАННЫЕ

Hand inserting a rack into a server rack unit (no visible text or labels)

4.ОТКЛЮЧИТЕ ШНУР ПИТАНИЯ БАТАРЕЮ

Hand placing a hard drive into a black internal computer tower case (no visible text or symbols)

1. СНИМИТЕ ЗАДНЮЮ ПЛАСТИНУ ПК

Interior view of a computer motherboard with CPU socket, RAM slots, and visible wiring (no text or symbols)

Close-up of a hand holding a computer mouse, with visible circuit board and hardware components (no readable text or symbols)

Close-up of hands assembling electronic components with a USB drive (no visible text or symbols)

Close-up of a hand inserting a device into a black server rack (no visible text or symbols)

5.ЗАКРЕПИТЕ ЗАДНЮЮ ПЛАСТИН НА МЕСТЕ

Close-up of a hand pressing a black rack-mounted server unit with multiple drive bays (no visible text or labels)

Exterior view of a computer RAM module next to a colorful circular display with a glowing ring (no text or symbols visible)

Î NAINTE DE INSTALARE

Interior view of a computer case with visible internal components and a small tool on the right (no text or symbols)

1. ADUNATI LUCRURILE DE CARE VEȚI AVEA NEVOIE

2. FACETI O COPIE DE REZERVĂ A DATELOR

Hand inserting a black rack into a server rack with multiple drive bays (no visible text or labels)

4. DECONECTATI ALIMENTAREA CU ENERGIE ŞI CABLUL DE ALIMENTARE

Hand placing a hard drive into a black computer tower case (no visible text or symbols)

1. SCOATEȚI CARCASA PC-ULUI

Interior view of a computer motherboard showing CPU socket, RAM slots, and drive bays (no visible text or symbols)

2. LOCALIZATI FANTA M.2 PCIE ŞI CONFIRMAȚI CĂ EXISTĂ ŞURUBURI

Close-up of a hand holding a computer motherboard with CPU socket and monitor (no visible text or symbols)

3.ALINIATI FANTA M.2 ŞI INTRODUCETI UNITATEA SOLID STATE

Close-up of hands operating a computer motherboard with a computer monitor and keyboard (no visible text or symbols)

4. STRÂ NGETI ŞURUBURILE PENTRU À FIXA SSD

Close-up of a hand inserting a device into a black server tower case, with visible internal components and no text or symbols.

5.REASAMBLATICARCASA

Close-up of a hand inserting a rack-mounted server into a black rack unit (no visible text or labels)

6.CONECTATICABLULDE ALIMENTARE ŞI PORNITI PC-UL PENTRUAFINALIZA INSTALAREA

INSTALARUNAUNIDAD

DEESTADOSÓLIDOM.2

ENUNEQUIPODE

SOBREMESA

Interior view of a computer case with visible internal components and connectors (no text or symbols)

1. REUNIR LOS ELEMENTOS QUE NECESITARÁ

Hand inserting a rack into a server rack unit (no visible text or labels)

Hand placing a hard drive into a black internal computer tower case (no visible text or symbols)

1. QUITAR LA CARCASA DELEQUIPO

Interior view of a computer motherboard with CPU socket, RAM slots, and visible wiring (no text or symbols)

Close-up of a hand holding a computer mouse, with visible circuit board and hardware components (no readable text or symbols)

3. ALINEARLARANURAM.2EINSERTA LA UNIDAD DE ESTADO SÓLIDO

Close-up of hands installing or adjusting a computer motherboard with a USB drive (no visible text or symbols)

Close-up of a hand inserting a device into a black server rack (no visible text or symbols)

5. VOLVER A MONTAR LA CARCASA

Close-up of a hand pressing a black rack-mounted server unit with multiple drive bays (no visible text or labels)

Exterior view of a computer RAM module with a colorful circular light source on its screen, next to a black GPU RAM card labeled 'XPG' (no text or symbols on the hardware itself)

KURULUM

Interior view of a computer case with visible internal components and connectors (no text or symbols)

1. İHTIYACINIZ OLACAK ŞEYLERI TOPLAYIN

PC, Phillips tornavidalar ve XPG M.2 SSD

2. VERILERINIZI YEDEKLEYIN

Hand inserting a rack into a server rack unit (no visible text or labels)

4. GÜ Ç ANAHTARINI KAPATIN VE GÜ Ç KABLOSUNU Ç IKARIN

Hand placing a hard drive into a black internal computer tower case (no visible text or symbols)

1. PC KASASINI Ç IKARIN

Interior view of a computer motherboard showing CPU socket, RAM slots, and motherboard (no visible text or symbols)

2. M.2 PCIE YUVASINI BULUN VE VIDALARIN BULUNDUĞUNU DOĞRULAYIN

Close-up of a hand holding a computer monitor, with visible CPU socket and motherboard (no text or symbols)

3. M.2 YUVASINI HIZALAYIN VE KATI HAL SÜ RÜ CÜ SÜ NÜ TAKIN

Close-up of a hand inserting a component into a computer motherboard (no visible text or symbols)

4. SSD'YI SABITLEMEK IÇ IN VIDALARI SIKIN

Close-up of a hand inserting a device into a black server rack (no visible text or symbols)

5. DAVAYA BENZEYEN

Close-up of a hand pressing a black rack-mounted server unit with multiple drive bays (no visible text or labels)

6. KURULUMU TAMAMLAMAK IÇ IN GÜ Ç KABLOSUNU TAKIN VE BILGISAYARI AÇ IN

如何在筆電安裝

M.2固態硬碟

更換前準備步驟

1. 準備工具

2. 備份資料

Close-up of human hands and foot resting on a dark surface, with no visible text or symbols

4.將電源線及電池拔除

Close-up of hands installing a small electronic component on a laptop back (no visible text or symbols)

1. 將主機背板卸下

Top-down view of a laptop showing internal circuit board and ventilation ducts (no text or symbols visible)

Close-up of a hand inserting a XPG into a computer motherboard with visible circuit board (no text or symbols)

3.對準M.2插槽、插上固態硬碟

Close-up of hands using a screwdriver to adjust or install electronic components on a circuit board (no visible text or symbols)

4.拴上螺絲以固定固態硬碟

再以螺絲起子固定M.2固態硬碟。

5.重新蓋上背板

Close-up of a person's lower body and upper leg resting on a dark surface, with no visible text or symbols.

2.备份数据

Close-up of human hands and foot resting on a dark surface, with no visible text or symbols

4. 将电源线及电池拔除

Close-up of hands installing a small electronic component on a laptop back (no visible text or symbols)

1. 将电脑背板卸下

Top-down view of a laptop showing internal circuit board and ventilation ducts (no text or symbols visible)

Close-up of a hand inserting a XPG into a computer motherboard with visible circuit board (no text or symbols)

3. 对准M.2插槽、插上固态硬盘

Close-up of hands using a screwdriver to adjust or install a XPG chip on a computer motherboard (no visible text or symbols)

4.拴上螺丝以固定固态硬盘

再以螺丝起子固定M.2固态硬盘。

5.重新盖上背板

Close-up of human hands resting on a dark surface, no visible text or symbols

1. GATHER THE THINGS YOU'LL NEED

PC, Phillips screwdrivers, and XPG M.2 SSD

*Please use a standard Phillips screwdriver (3.5mm) for disassembling the case; and a smaller Phillips screwdriver for installing the M.2 solid state drive as it uses screws with a diameter of 1.85-1.98mm.

Make sure to backup the important data on your PC to an external device, such as an external HDD, before starting installation.

After backing up your data, power off your PC to avoid data loss or damage to other components during installation.

Close-up of human hands and foot resting on a dark surface, with a small triangular symbol in the background (no readable text or symbols)

4. UNPLUG POWER CORD AND BATTERY

This action is necessary to discharge residual power that can damage your PC and its components.

*The battery removal step applies only to laptops when it's possible to remove the battery. To see how to remove the battery, refer to your user manual.

INSTALLATION

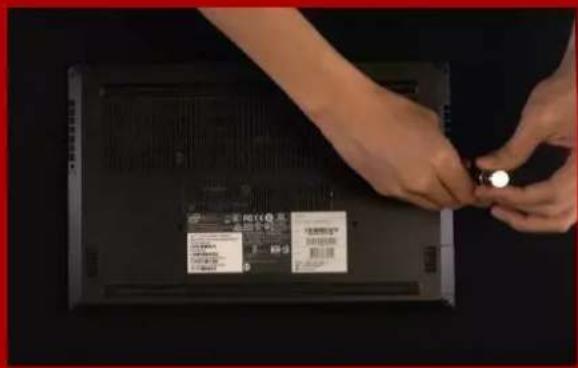

1. REMOVE YOUR PC'S BACK PLATE

Use your standard Phillips screwdriver to remove the screws from the back plate.

*If you are unsure how to do this, refer to your user manual

Top-down view of a laptop's front open showing internal circuitry and ventilation (no visible text or symbols)

2. LOCATE THE M.2 PCIe SLOT AND CONFIRM THERE ARE SCREWS

Locate the M.2 PCIe slot, ensure the SSD will fit and confirm there are screws present.

*The location of slots may vary by PC. Please check your PC's user manual for more information.

**Generally speaking, the screws that secure the SSD in place will be installed on the motherboard when the laptop is shipped from the factory.

Close-up of a hand pressing a component labeled 'XPG' on a computer motherboard (no readable text or symbols beyond label)

3. ALIGN THE M.2 SLOT AND INSERT THE SOLID STATE DRIVE

Use your small Phillips screwdriver to remove the screws on the motherboard. Align the notches in the SSD with the ridges in the PCIe slot, then insert at a an angle. Give it a final push to ensure it is securely in place.

*The slot has a foolproof design. Please insert the SSD in the direction corresponding to the pins on the solid state drive and the slot. Do not insert it forcibly to avoid damage to the product.

Close-up of hands using a screwdriver to adjust a device into a black plastic chip (no visible text or symbols)

4. FASTEN THE SCREWS TO SECURE THE SSD

Use your small Phillips screwdriver to secure the SSD into place.

*Do not overtighten the screws

5. SECURE THE BACK PLATE INTO PLACE

*Do not overtighten the screws as it may cause damage

Close-up of a person's lower legs and hands resting on a dark surface, with no visible text or symbols.

6. PLUG IN THE POWER CORD AND POWER ON THE PC TO COMPLETE INSTALLATION

EINE M.2-SSD AN EINEM LAPTOP-PC INSTALLIEREN

VOR DER INSTALLATION

1. ALLES NÖ TIGE ZUSAMMENTRAGEN

2.IHRE DATEN SICHERN

3.IHREN PC ABSCHALTEN

Close-up of human hands and foot resting on a dark surface, with a small triangular symbol in the background (no readable text or symbols)

4.NETZKABEL UND AKKU TRENNEN

1. RÜ CKPLATTE IHRES PCS ENTFERNEN

Top-down view of a laptop showing internal circuit board and ventilation system (no text or symbols visible)

2.M.2-PCIE-STECKPLATZ AUSFINDIG MACHENUND SICHERSTELLEN, DASS SCHRAUBEN VORHANDEN SIND

Close-up of a hand inserting a XPG into a computer motherboard (no visible text or symbols)

Close-up of hands using a screwdriver to adjust a XPG chip on a computer motherboard (no visible text or symbols)

5.RÜCKPLATTE WIEDER EINSETZEN

Close-up of human hands resting on a dark surface, no visible text or symbols

2. データのバックアップ

Close-up of human hands resting on a dark surface, no visible text or symbols

4. 電源ーブルとバッテリーを取り外す

1. パソコンのバックパネルを取り外す

Top-down view of a laptop's internal circuit board showing components like CPU, memory, and drive lights (no text or symbols visible)

Close-up of a hand pressing a black XPG chip into a computer motherboard (no visible text or symbols)

3. M.2スロットにSSDを差し込む

Close-up of hands using a tool to adjust or repair a device component labeled 'XPG' (no readable text beyond label)

4. SSDをねじで固定する

Close-up of a person's lower legs and hands resting on a dark surface, with no visible text or symbols.

2.데이터 백업

Close-up of human hands resting on a dark surface, no visible text or symbols

4.전원 코드와 배터리 분리

1.PC뒤판 제거

Top-down view of a laptop's internal circuit board showing components like CPU, memory, and drive bays (no text or symbols visible)

Close-up of a hand pressing a black XPG chip into a computer motherboard (no visible text or symbols)

Close-up of hands using a tool to adjust or repair a device component labeled 'XPG' (no readable text beyond label)

4.나사를 조여서SSD고정

5.뒤판 제자리에 고정

Close-up of a person's lower body and upper leg resting on a dark surface, with no visible text or symbols.

1. REÚ NA AS COISAS QUE VOCÊ PRECISA

PC, chaves de fenda Phillips e SSD XPG M.2

2. FAÇ A BACKUP DE SEUS DADOS

Close-up of human hands and foot resting on a dark surface, with no visible text or symbols

1. REMOVA A PLACA TRASEIRA DO SEU PC

Top-down view of a laptop showing internal circuit board and ventilation system (no visible text or symbols)

2. LOCALIZE O SLOT M.2 PCIE E CONFIRME SE HÁ PARAFUSOS

Close-up of a hand inserting a XPG into a computer motherboard (no visible text or symbols)

3. ALINHE O SLOT M.2 E INSIRA A UNIDADE DE ESTADO SÓ LIDO

Close-up of hands using a screwdriver to adjust a 3D graphics card into a circuit board (no visible text or symbols)

4.APERTE OS PARAFUSOS PARA PRENDER O SSD

5. PRENDA A PLACA TRASEIRA NO LUGAR

Close-up of human hands resting on a dark surface, no visible text or symbols

2.ЗАРЕЗЕРВИРУЙТЕ ДАННЫЕ

Close-up of human hands and foot resting on a dark surface, with a small triangular symbol in the background (no readable text or symbols)

Top-down view of a laptop showing internal circuit board and fan components (no text or symbols visible)

Close-up of a hand inserting a CPU into a motherboard with visible components and a logo (no readable text or symbols)

Close-up of hands using a screwdriver to adjust a XPG chip on a circuit board (no visible text or symbols)

5.ЗАКРЕПИТЕ ЗАДНЮЮ ПЛАСТИН НА МЕСТЕ

Close-up of human hands resting on a dark surface, no visible text or symbols

2. FACETI O COPIE DE REZERVĂ A DATELOR

3.OPRITI PC-UL

Close-up of human hands resting on a dark surface, no visible text or symbols

4. DECONECTATI CABLUL DE ALIMENTARE ŞI BATERIA

Close-up of hands installing a small electronic component on a black laptop case (no visible text or symbols)

1. SCOATEȚI PLACA DIN SPATE A PC-ULUI

Top-down view of a laptop chassis showing internal circuitry and ventilation (no text or symbols visible)

Close-up of a hand pressing a component labeled 'XPG' on a computer motherboard (no readable text or symbols beyond label)

3. ALINIATI FANTA M.2 Ş INTRODUCETI UNITATEA SOLID STATE

Close-up of hands using a screwdriver to adjust or repair a device on a circuit board (no visible text or symbols)

4. STRÂ NGETI ŞURUBURILE PENTRU À FIXA SSD

5. FIXAREA PLĂCII DIN SPATE ÎN POZIȚIE

Close-up of hands performing a physical maneuver on a dark surface, no visible text or symbols

6.CONECTATI CABLUL DE ALIMENTARE ŞI PORNITI PC-UL PENTRU A FINALIZA INSTALAREA

INSTALAR UNA UNIDAD DE ESTADO SÓ LIDO M.2 EN UN EQUIPO PORTÁTIL

Close-up of human hands and foot resting on a dark surface, with a small triangular symbol in the background (no readable text or symbols)

1. RETIRAR LA PLACA POSTERIOR DE SU PC

Top-down view of a laptop showing internal circuit board and ventilation system (no visible text or symbols)

2. LOCALIZAR LA RANURA PCIE M.2 Y CONFIRMAR QUE TIENE TORNILLOS

Close-up of a hand inserting a XPG into a computer motherboard (no visible text or symbols)

3.ALINEAR LA RANURA M.2 E INSERTAR LA UNIDAD DE ESTADO SÓ LIDO

Close-up of hands using a screwdriver to adjust a XPG chip on a computer motherboard (no visible text or symbols)

5. ASEGURAR LA PLACA POSTERIOR EN SU LUGAR

Close-up of human hands resting on a dark surface, no visible text or symbols

6. ENCHUFAR EL CABLE DE ALIMENTACIÓ N Y ENCENDER EL EQUIPO PARA COMPLETAR LA INSTALACIÓ N

2. VERILERINIZI YEDEKLEYIN

Close-up of human hands and foot resting on a dark surface, with a small triangular symbol in the background (no readable text or symbols)

4. GÜ Ç KABLOSUNU VE PILI Ç IKARIN

Top-down view of a laptop showing internal circuit board and ventilation system (no visible text or symbols)

2. M.2 PCIE YUVASINI BULUN VE VIDALARIN BULUNDUĞUNU DOĞRULAYIN

Close-up of a hand inserting a XPG into a computer motherboard (no visible text or symbols)

3. M.2 YUVASINI HIZALAYIN VE KATI HAL SÜ RÜ CÜ SÜ NÜ TAKIN

Close-up of hands using a screwdriver to adjust a XPG chip on a computer motherboard (no visible text or symbols)

4. SSD'YI SABITLEMEK IÇ IN VIDALARI SIKIN

5. ARKA PLAKAYI YERINE SABITLEYIN

Close-up of human hands resting on a dark surface, no visible text or symbols

4. KURULUMU TAMAMLAMAK IÇ IN GÜ Ç KABLOSUNU TAKIN VE BILGISAYARI AÇ IN

如何在PS5主機安裝

M.2固態硬碟

Blue-tinted image of a PlayStation 3 console with a Sony logo, next to a game controller (no visible text or symbols on the device body)

安裝前準備步驟

Product display featuring PlayStation 5.12, Xbox Series 10.3, and various video game consoles on a table (no visible text or symbols)

需要的工具有：

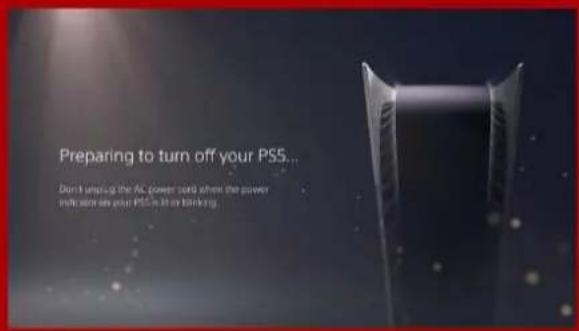

2.將PS5主機關機。

Close-up of a white gaming controller next to a black Sony PC, with cable inserted (no visible text or symbols)

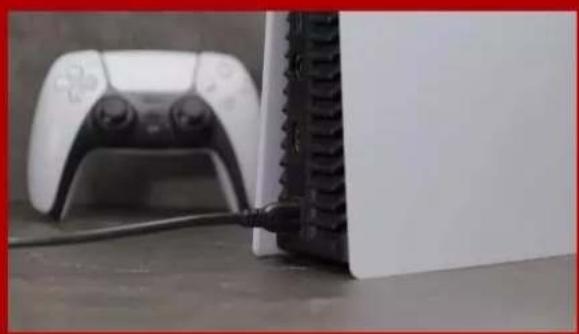

3.移除所有主機上的線材跟裝置。

安裝固態硬碟步驟

Hands holding a white rectangular object on a dark surface, no visible text or symbols

Close-up of a white plastic panel edge with a slot, resting on a gray surface (no text or symbols visible)

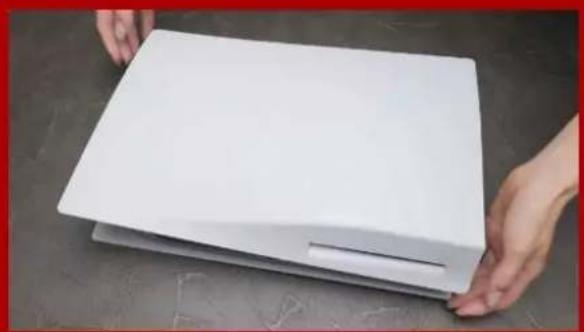

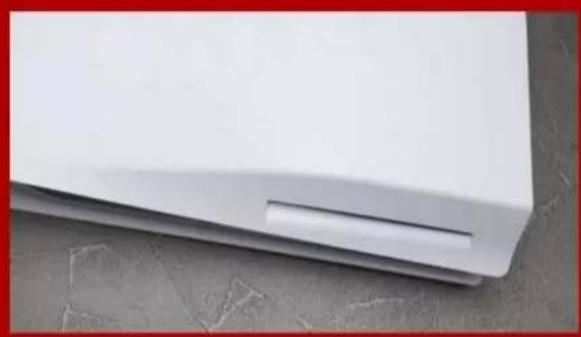

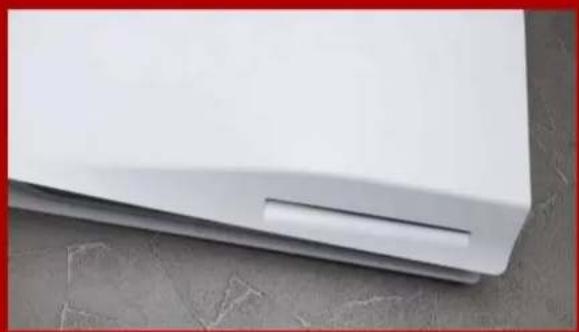

2.用左手緊握PS5主機的左上角。

Hand holding a white sheet of paper against a dark tiled background (no text or symbols visible)

Close-up of a mechanical component with a screwdriver inserted, showing internal structure (no text or symbols visible)

Close-up of a mechanical component with mounting holes and a green panel, mounted on a metal frame (no visible text or symbols)

1. 接著會看到綠色底的固態硬碟擴充插槽。

Close-up of a car's front panel with a green circuit board being inserted, no visible text or symbols

Close-up of a car's front panel showing internal components and battery pack (no text or symbols visible)

Close-up of a 3D printer's internal structure with XPG logo and metallic frame (no readable text or symbols beyond branding)

Close-up of a hand using a screwdriver to adjust internal components on a device (no visible text or symbols)

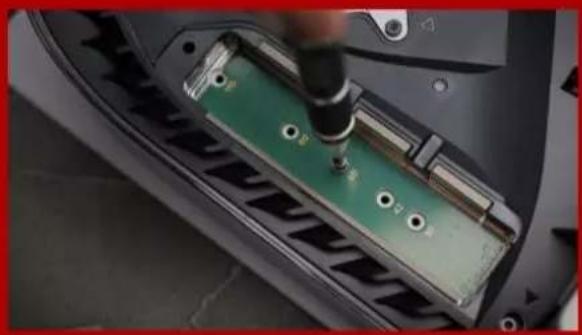

1. 再將螺絲旋緊，固定固態硬碟。

Close-up of a mechanical component with a screwdriver inserted, showing internal structure (no visible text or symbols)

1. 重新蓋上擴充插上蓋。

Close-up of a mechanical device with a circular fan and mounting base (no visible text or symbols)

Close-up of a white gaming device with black buttons and a game controller on a textured floor (no visible text or symbols)

1. 重新連接電線並啟動您的PS5主機。

13. 按照重新格式化說明操作。

14. 您已完成！

Blue-tinted image of a PlayStation 3 console with a Sony logo, next to a game controller (no visible text or symbols on the device body)

安装前准备步骤

Product display featuring a game controller, multiple video cards, and a pen on a table (no visible text or symbols)

需要的工具有：

-XPG M.2固态硬盘

-十字型螺丝刀

-PS5主机

1. 将PS5主机关机。

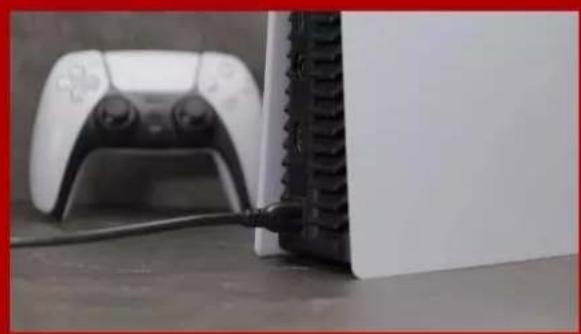

Close-up of a white game controller and a black Sony PC connected to a cable, no visible text or symbols

1. 移除所有主机上的线材跟装置。

安装固态硬盘步骤

Hands holding a white rectangular object on a dark surface, no visible text or symbols

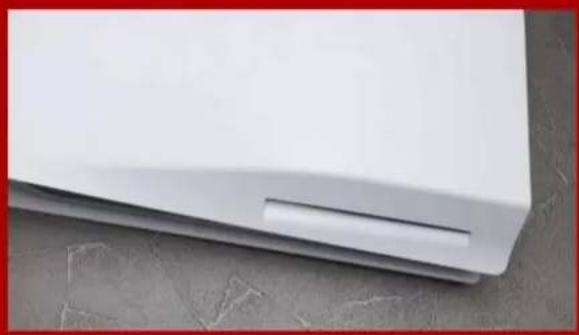

Close-up of a white plastic panel edge with a slot, resting on a gray surface (no text or symbols visible)

1. 用左手紧握PS5主机的左上角。

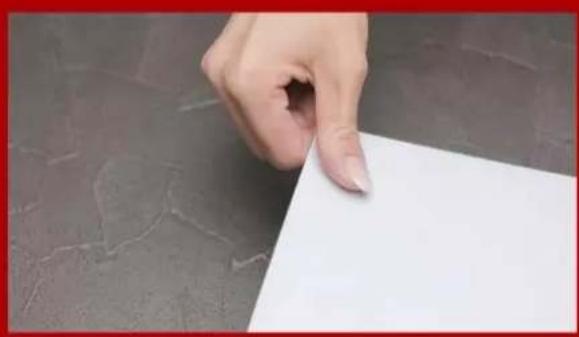

Hand holding a white sheet of paper against a dark tiled background (no text or symbols visible)

1. 用右手拉动，然后向左滑动背板以拆除机壳上盖。

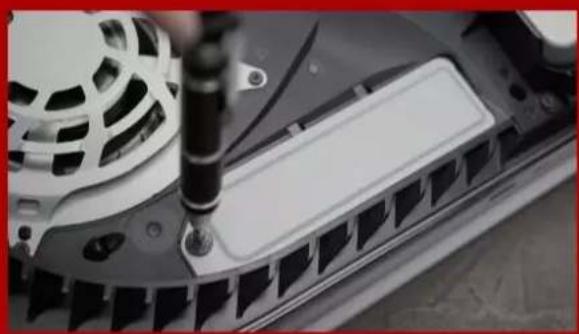

Close-up of a mechanical component with a screwdriver inserted, showing internal structure (no text or symbols visible)

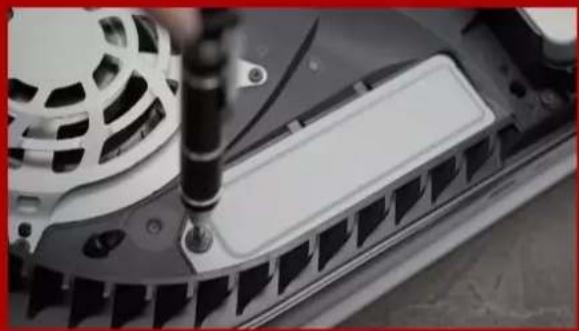

1. 松开螺丝以拆除固态硬盘扩充槽的盖子。

Close-up of a mechanical component with mounting holes and a green panel, mounted on a metal frame (no visible text or symbols)

1. 接着会看到绿色底的固态硬盘扩充插槽。

Close-up of a car's front panel with a green circuit board being inserted, no visible text or symbols

Close-up of a car's front panel showing internal components and battery pack (no text or symbols visible)

Close-up of a 3D printer's internal structure with XPG logo and metallic frame (no readable text or symbols beyond branding)

Close-up of a hand using a screwdriver to adjust internal components on a device (no visible text or symbols)

1. 再将螺丝旋紧，固定固态硬盘。

Close-up of a mechanical component with a screwdriver inserted, showing internal structure (no visible text or symbols)

1. 重新盖上扩充插上盖。

Close-up of a black electronic device with a circular fan and ventilation grille, placed on a flat surface (no visible text or symbols)

Close-up of a white gaming device with black buttons and a game controller on a textured floor (no visible text or symbols)

1. 重新连接电线并启动您的PS5主机。

13. 按照重新格式化说明操作。

Blue-tinted image of PlayStation 5 with a Sony logo, next to a PlayStation controller and a branded console (no visible text or symbols on the device itself)

BEFORE INSTALLATION

Product display of PlayStation 5.12 and Xbox consoles on a table, including a game controller, hard drives, and a pen (no visible text or symbols)

WHAT YOU'LL NEED :

• XPG M.2 SSD
• Phillips head screwdriver
• PS5

1. ENSURE YOU HAVE THE LATESTPS5 SOFTWARE UPDATES.

1. TURN OFF YOUR PS5.

Close-up of a white gaming controller connected to a black electronic device with cable (no visible text or symbols)

1. DISCONNECT ALL CABLES AND DEVICES.

INSTALLATION

Hands holding a white rectangular object on a dark surface (no text or symbols visible)

1. LAY THE PS5 FLAT WITH THE LOGO SIDE FACING DOWNWARDS.

Close-up of a white plastic panel edge with a small slot, resting on a gray surface (no text or symbols visible)

1. FIRMLY GRAB THE UPPER LEFT HAND CORNER OF THE PS5 WITH YOUR LEFT HAND.

Hand holding a white sheet of paper against a dark textured background (no text or symbols visible)

3.WITH YOUR RIGHT HAND, PULL AND THEN SLIDE THE BACKING PLATE TO THE LEFT TO REMOVE.

Close-up of a mechanical component with a screwdriver inserted, showing internal structure (no visible text or symbols)

1. LOOSEN THE SCREW TO REMOVE THE EXPANSION SLOT COVER.

Close-up of a car's front panel with visible battery, screw holes, and mounting bracket (no text or symbols)

Close-up of a green printed circuit board being inserted into a black plastic component, with no visible text or symbols.

1. REMOVE THE SINGLE SCREW AND THE WASHER-LIKE STANDOFF UNDERNEATH.

Close-up of a car's front panel showing internal components and battery modules (no text or symbols visible)

1. PLACE THE STANDOFF IN THE HOLE THAT CORRESPONDS TO THE M.2 FORM FACTOR.

1. CLICK THE GOLD CONNECTOR OF THE SSD INTO THE MATCHING INPUT NOTCH.

Close-up of a hand using a screwdriver to adjust or install electronic components on a device casing (no visible text or symbols)

1. FASTEN THE SSD WITH THE SCREW.

Close-up of a mechanical component with a screwdriver inserted, showing internal structure (no visible text or symbols)

10.REINSTALL THE EXPANSION SLOT COVER.

Close-up of a black electronic device with a circular fan and ventilation grille, placed on a flat surface (no visible text or symbols)

1. REINSTALL THE BACKING PLATE BY SLIDING IT BACK AND PUSHING DOWNWARDS.

Close-up of a white electronic device with black buttons and a game controller on a textured floor (no visible text or symbols)

1. RE-ATTACH CABLES AND TURN ON YOUR PS5.

13. FOLLOW THE REFORMATTING INSTRUCTIONS.

14. YOU'RE DONE! YOU CAN NOW STORE GAMES AND APPS ONTO THE ADATA LEGEND 840.

INSTALLATION EINER M.2 SSD AUF PLAYSTATION®5

Blue-tinted image of a PlayStation 3 console with a Sony logo, next to a game controller (no visible text or symbols on the device body)

VOR DER INSTALLATION

Product display of gaming consoles including a controller, 512x7 video card, and a pen on a table against a blue-and-white backdrop (no visible text or symbols)

WAS SIE BENÖ TIGEN:

1. STELLEN SIE SICHER, DASS SIE DIE NEUESTEN PS5-SOFTWARE-UPDATES INSTALLLIERT HABEN.

1. SCHALTEN SIE IHRE PS5 AUS.

Close-up of a white gaming controller next to a black Sony PC, with cable inserted (no visible text or symbols)

1. TRENNEN SIE ALLE KABEL UND GERÄ TE AB.

INSTALLATION

Hands holding a white rectangular object on a dark surface (no text or symbols visible)

1. LEGEN SIE DIE PS5 FLACH HIN, SO DASS DAS LOGO NACH UNTEN ZEIGT.

Close-up of a white plastic panel edge with a small slot, resting on a gray surface (no text or symbols visible)

1. GREIFEN SIE MIT IHRER LINKEN HAND FEST IN DIE LINKE OBERE ECKE DER PS5.

Hand holding a white sheet of paper against a dark textured background (no text or symbols visible)

1. ZIEHEN SIE MIT DER RECHTEN HAND AN DER TRÄ GERPLATTE UND SCHIEBEN SIE DIESE NACH LINKS, UM SIE ZU ENTFERNEN.

Close-up of a mechanical component with a screwdriver inserted, showing internal structure (no visible text or symbols)

Close-up of a mechanical component with mounting holes and a green panel, no visible text or symbols

Close-up of a green electronic component being inserted into a car's door panel, with a hand using a screwdriver (no visible text or symbols)

Close-up of a car's front panel showing internal components and battery pack (no text or symbols visible)

1. SETZEN SIE DEN ABSTANDHALTER IN DAS LOCH IM M.2-FORMFAKTOR.

Close-up of a 3D printer's internal structure with XPG logo and warning symbol (no readable text beyond logo)

1. SETZEN SIE DEN GOLDENEN STECKER DER SSD IN DIE ENTSPRECHENDE AUSSPARUNG AM EINGANG EIN

Close-up of a hand using a screwdriver to adjust or install electronic components on a device casing (no visible text or symbols)

1. BEFESTIGEN SIE DIE SSD MITHILFE DER SCHRAUBE.

Close-up of a mechanical component with a screwdriver inserted, showing internal structure (no visible text or symbols)

Close-up of a black electronic device with a circular fan and ventilation grille, placed on a flat surface (no visible text or symbols)

Close-up of a white electronic device with black buttons and a game controller on a textured floor (no visible text or symbols)

Blue-tinted image of a PlayStation 3 console with a Sony logo, next to a game controller (no visible text or symbols on the device body)

設置前の準備

Product display of gaming consoles including a game controller, video games, and a 512-inch CD (no visible text or symbols)

必要なもの：

- XPG M.2 SSD

- プラスドライバー

- PS5

1. PS5の電源を切ります。

Close-up of a white game controller next to a black Sony 3.0 video player with cable (no visible text or symbols)

Hands holding a white rectangular object on a dark surface, no visible text or symbols

Close-up of a white plastic panel edge with a small slot, resting on a dark surface (no text or symbols visible)

Hand holding a white sheet of paper against a dark tiled background (no text or symbols visible)

Close-up of a mechanical component with a screwdriver inserted, showing internal structure (no visible text or symbols)

Close-up of a mechanical component with mounting holes and a green panel, mounted on a metal frame (no visible text or symbols)

Close-up of a car's front panel with a green circuit board being inserted, no visible text or symbols

Close-up of a car's front panel showing internal components and battery pack (no text or symbols visible)

Close-up of a 3D printer's internal structure with XPG logo and metallic frame (no readable text or symbols beyond branding)

Close-up of a hand using a screwdriver to adjust internal components on a device casing (no visible text or symbols)

1. SSDをネジで固定します。

Close-up of a mechanical component with a screwdriver inserted, showing internal structure (no visible text or symbols)

1. 拡張スロットカバーを元に戻します。

Close-up of a black electronic device with a circular fan and ventilation grille, placed on a flat surface (no visible text or symbols)

Close-up of a gaming controller next to a white gaming device with visible ports and cable (no text or symbols)

1. 再フォーマットの指示に従ってください。

Blue-tinted image of a PlayStation 3 console with Sony logo, next to a game controller (no visible text or symbols on device)

설치하기 전에

Product display of gaming consoles including a game controller, 512x700X898, and a Sony 512 hard drive on a table (no visible text or symbols)

준비물:

1. PS5를 꿈니다.

Close-up of a white gaming controller next to a black Sony PC with visible cord and cable (no text or symbols)

Hands holding a white rectangular object on a dark surface (no text or symbols visible)

Close-up of a white plastic panel edge with a small slot, resting on a gray surface (no text or symbols visible)

Hand holding a white sheet on a dark surface, with no visible text or symbols

Close-up of a mechanical component with a screwdriver inserted, showing internal structure (no visible text or symbols)

Close-up of a mechanical component with green and black surfaces, no visible text or symbols

5.이제 녹색 확장 슬롯이 보입니다

Close-up of a green printed circuit board being inserted into a car's seat, with a hand using a tool (no visible text or symbols)

Close-up of a car's front panel showing internal components and battery pack (no text or symbols visible)

Close-up of a 3D printer's internal structure with XPG logo and warning symbol (no readable text beyond logo)

Close-up of a hand using a screwdriver to adjust internal components on a device (no visible text or symbols)

1. 나사를 조여서 SSD를 고정합니다

Close-up of a mechanical component with a screwdriver inserted, showing internal structure (no visible text or symbols)

Close-up of a black electronic device with a circular fan and ventilation grille, placed on a flat surface (no visible text or symbols)

Close-up of a gaming controller next to a white gaming device with visible ports and cable (no text or symbols)

Blue-tinted image of a PlayStation 3 console with a Sony logo, next to a game controller (no visible text or symbols on the device body)

Product display of gaming consoles including a controller, 512x7 video card, and a pen on a table against a blue-and-white backdrop (no visible text or symbols)

1. CERTIFIQUE-SE DE TER AS ATUALIZAÇÃO ES DE SOFTWARE DO PS5 MAIS RECENTES.

1. DESLIGUE SEU PS5.

Close-up of a white gaming controller next to a black Sony PC, with cable inserted (no visible text or symbols)

1. DESCONECTE TODOS OS CABOS E DISPOSITIVOS.

Hands holding a white rectangular object on a dark surface (no text or symbols visible)

1. COLOQUE O PS5 NA HORIZONTAL COM O LADO DO LOGOTIPO VOLTADO PARA BAIXO.

Close-up of a white plastic panel edge with a small slot, resting on a concrete surface (no text or symbols visible)

1. SEGURE FIRMEMENTE O CANTO SUPERIOR ESQUERDO DO PS5 COM A MÃ O ESQUERDA.

Hand holding a white sheet of paper against a dark textured background (no text or symbols visible)

1. COM A MÃ O DIREITA, PUXE E DESLIZE A PLACA TRASEIRA PARA A ESQUERDA PARA RETIRA-LA.

Close-up of a mechanical component with a screwdriver inserted, showing internal structure (no visible text or symbols)

1. AFROUXE O PARAFUSO PARA RETIRAR A TAMPA DO SLOT DE EXPANSÃ O.

Close-up of a mechanical component with mounting holes and a green panel, mounted on a metal frame (no visible text or symbols)

1. VOCÊ DEVERÁ VER AGORA O SLOT DE EXPANSÃ O VERDE.

Close-up of a car tire repair operation showing a green circuit board being inserted into a mechanical component (no visible text or symbols)

1. REMOVA O Ú NICO PARAFUSO E O ESPAÇ ADOR EM FORMA DE ARRUELA EMBAIXO.

Close-up of a car's front panel showing internal components and battery pack (no text or symbols visible)

1. COLOQUE O ESPAÇ ADOR NO ORIFÍ CIO QUE CORRESPONDE AO FATOR DE FORMA M.2.

Close-up of a black CPU socket with a white XPG logo on its side (no readable text or symbols beyond branding)

1. CLIQUE NO CONECTOR DOURADO DO SSD NO ENTALHE DE ENTRADA CORRESPONDENTE.

Close-up of a hand using a screwdriver to adjust or install electronic components on a device casing (no visible text or symbols)

1. FIXE O SSD COM O PARAFUSO.

Close-up of a mechanical component with a screwdriver inserted, showing internal structure (no visible text or symbols)

1. RECOLOQUE A TAMPA DO SLOT DE EXPANSÃ O.

Close-up of a black electronic device with a circular fan and ventilation grille, placed on a flat surface (no visible text or symbols)

1. RECOLOQUE A PLACA TRASEIRA DESLIZANDO-A PARA TRÁ S E EMPURRANDO PARA BAIXO.

Close-up of a white electronic device with black buttons and a game controller on a textured floor (no visible text or symbols)

1. RECONECTE OS CABOS E LIGUE SEU PS5.

1. SIGA AS INSTRUÇ Ô ES DE REFORMATAÇ Â O.

1. PRONTO! AGORA VOCÊ PODE ARMAZENAR JOGOS E APLICATIVOS NO SSD.

Blue-tinted image of a PlayStation 3 console with a Google controller, no visible text or symbols on the device itself.

Product display of PlayStation 5.12 and Xbox consoles on a table, including a game controller, hard drives, and a pen (no visible text or symbols)

1. ВЫКЛЮЧИТЕ PS5.

Close-up of a white gaming controller connected to a black electronic device (no visible text or symbols)

1. ОТСОЕДИНИТЕ ВСЕ КАБЕЛИ И УСТРОЙСТВА.

УСТАНОВКА

Hands holding a white rectangular object on a dark surface, no visible text or symbols

Close-up of a white plastic panel with a slot, resting on a textured surface (no text or symbols visible)

1. ВОЗЬМИТЕСЬ ЗА ВЕРХНИЙ ЛЕВЫЙ УГОЛ PS5 ЛЕВОЙ РУКОЙ.

Hand holding a white sheet on a dark surface, with no visible text or symbols

Close-up of a mechanical component with a screwdriver inserted, showing internal structure (no text or symbols visible)

Close-up of a car's front wheel and battery panel with mounting holes (no visible text or symbols)

Close-up of a green printed circuit board being inserted into a black plastic component, with no visible text or symbols.

Close-up of a car's front panel showing internal components and battery modules (no text or symbols visible)

Close-up of a hand using a screwdriver to adjust internal components on a device casing (no visible text or symbols)

Close-up of a mechanical component with a screwdriver inserted, showing internal structure (no visible text or symbols)

Close-up of a black electronic device with a circular fan and ventilation grille, placed on a flat surface (no visible text or symbols)

Close-up of a white gaming device with black buttons and a game controller on a textured floor (no visible text or symbols)

1. ПОДКЛЮЧИТЕ КАБЕЛИ И ВКЛЮЧИТЕ PS5.

Blue-tinted image of a PlayStation 3 console with a Sony logo, next to a game controller (no visible text or symbols on the device body)

Product display of gaming consoles including a controller, 512x7 video card, and a pen on a table against a blue-and-white backdrop (no visible text or symbols)

DE CE AVETI NEVOIE:

1. ASIGURATI-VĂ CĂ AVETI CELE MAI RECENTE ACTUALIZĂRI DE SOFTWARE PS5.

1. OPRITI PS5.

Close-up of a white gaming controller next to a black Sony PC, with cable inserted (no visible text or symbols)

1. DECONECTAȚI TOATE CABLURILE ȘI DISPOZITIVELE.

INSTALARE

Hands holding a white rectangular object on a dark surface (no text or symbols visible)

1. AŞEZATI PS5 LA ORIZONTALĂ, CU PARTEA CU SIGLA ORIENTATĂ ÎN JOS.

Close-up of a white plastic panel or cover with a small slot, resting on a concrete surface (no text or symbols visible)

1. PRINDEȚI FERM COLȚUL DIN STĂ NGA SUS AL PS5 CĂ MĂ NA STĂNGĂ.

Hand holding a white sheet of paper against a dark tiled background (no text or symbols visible)

1. CU MÂNA DREAPTĂ, TRAGEȚI ȘI APOI GLISAȚI PLACA DE SUPPORT SPRE STĂ NGA PENTRU A O SCOATE.

Close-up of a mechanical component with a screwdriver inserted, showing internal slots and a textured surface (no visible text or symbols)

1. SLĂBIȚI ȘURUBUL PENTRU A SCOATE CAPACUL FANTEI DE EXPANSIUNE.

Close-up of a car's front panel with visible battery, screw holes, and mounting bracket (no text or symbols)

1. ACUM AR TREBUI SĂ VEDEȚI SLOTUL DE EXPANSIUNE VERDE.

Close-up of a green printed circuit board being inserted into a black plastic component, with no visible text or symbols.

1. ÎNDEPĂRTAȚI UN SINGUR ȘURUB ȘI DISTANȚIERUL DE TIP ȘAIBĂ DE DEDESUBT.

Close-up of a car's front panel showing internal components and battery modules (no text or symbols visible)

1. AŞEZATI DISTANTIERUL ÎN ORIFICIUL CARE CORESPUNDE FORMEI M.2.

1. FACETI CLIC PE CONECTORUL AURIU AL SSD- ULUI ÎN CRESTĂTURA DE INTRARE CORESPUNZĂTOARE.

Close-up of a hand using a screwdriver to adjust or install electronic components on a device casing (no visible text or symbols)

1. FIXATI SSD-UL CU AJUTORUL ŞURUBULUI.

Close-up of a mechanical component with a screwdriver inserted, showing internal structure (no visible text or symbols)

1. REINSTALATI CAPACUL FANTEI DE EXPANSIUNE.

Close-up of a black electronic device with a circular fan and ventilation grille, placed on a flat surface (no visible text or symbols)

Close-up of a white electronic device with black buttons and a game controller on a textured floor (no visible text or symbols)

1. RECONECTAȚI CABLURILE ȘI PÓRNITI PS5.

1. URMAȚI INSTRUCTIUNILE DE REFORMATARE.

1. AȚI TERMINAT! ACUM PUTETI STOCA JOCURI ȘI APLICATII PE SSD.

Blue-tinted image of a PlayStation 3 console with a Sony logo, next to a game controller (no visible text or symbols on the device body)

Product display of gaming consoles including a controller, 512x7 video card, and a pen on a table against a blue-and-white backdrop (no visible text or symbols)

LO QUE VAS A NECESITAR:

• SSD M.2 DE XPG
• Destornillador Phillips
• PS5

1. APAGA TU PS5.

Close-up of a white gaming controller next to a black Sony PC, with cable inserted (no visible text or symbols)

1. DESCONECTE TODOS LOS CABLES Y DISPOSITIVOS.

INSTALACIÓ N

Hands holding a white rectangular object on a dark surface (no text or symbols visible)

1. APOYA EL PS5 EN POSICIÓ N HORIZONTAL CON EL LOGOTIPO HACIA ABAJO.

Close-up of a white plastic panel edge with a small slot, resting on a concrete surface (no text or symbols visible)

1. AGARRE FIRMEMENTE LA ESQUINA SUPERIOR IZQUIERDA DEL PS5 CON LA MANO IZQUIERDA.

Hand holding a white sheet of paper against a dark textured background (no text or symbols visible)

1. TIRE DE LA PLACA DE APOYO CON LA MANO DERECHA Y DESLÍ CELA HACIA LA IZQUIERDA PARA EXTRAERLA.

Close-up of a mechanical component with a screwdriver inserted, showing internal structure (no visible text or symbols)

1. AFLOJE EL TORNILLO PARA RETIRAR LA TAPA DE LA RANURA DE EXPANSIÓ N.

Close-up of a car's front panel with visible battery, screw holes, and mounting bracket (no text or symbols)

1. AHORA VERÁ S LA RANURA DE EXPANSIÓ N DE COLOR VERDE.

Close-up of a green printed circuit board being inserted into a black plastic component, with no visible text or symbols.

Close-up of a car's front panel showing internal components and battery modules (no text or symbols visible)

Close-up of a hand using a screwdriver to adjust or install electronic components on a device casing (no visible text or symbols)

1. SUJETE EL SSD CON EL TORNILLO.

Close-up of a mechanical component with a screwdriver inserted, showing internal structure (no visible text or symbols)

1. REINSTALE LA TAPA DE LA RANURA DE EXPANSIÓ N.

Close-up of a black electronic device with a circular fan and ventilation grille, placed on a flat surface (no visible text or symbols)

1. REINSTALE LA PLACA DE APOYO DESLIZÁ NDOLA HACIA ATRÁ S Y EMPUJÁ NDOLA HACIA ABAJO.

Close-up of a white electronic device with black buttons and a game controller on a textured floor (no visible text or symbols)

1. VUELVE A CONECTAR LOS CABLES Y ENCIENDE TU PS5.

1. SIGA LAS INSTRUCCIONES DE REFORMATEO.

Blue-tinted image of a PlayStation 3 console with a Google controller, no visible text or symbols on the device itself.

KURULUMDAN Ö NCE

Product display of gaming consoles including a controller, 512x7 video card, and a pen on a table against a blue-and-white backdrop (no visible text or symbols)

GEREKENLER:

1. EN SON PS5 YAZILIM GÜ NCELLEMELERINE SAHIP OLDUĞUNUZDAN EMIN OLUN.

1. PS5'INIZI KAPATIN.

Close-up of a white gaming controller next to a black Sony PC, with cable inserted (no visible text or symbols)

1. TÜ M KABLOLARI VE CIHAZLARI Ç IKARIN.

KURULUM

Hands holding a white rectangular object on a dark surface (no text or symbols visible)

1. PS5'I LOGOLU TARAFI AŞAĞI BAKACAK ŞEKILDE DÜZ BIR ŞEKİLDE YATIRIN.

Close-up of a white plastic panel or cover with a small slot, resting on a concrete surface (no text or symbols visible)

1. SOL ELINIZLE PS5'IN SOL ÜST KÖŞESINI SIKICA TUTUN.

Hand holding a white sheet of paper against a dark tiled background (no text or symbols visible)

1. SAĞ ELINIZLE DESTEK PLAKASINI Ç EKIP Ç IKARMAK İÇ IN SOLA KAYDIRIN.

Close-up of a mechanical component with a screwdriver inserted, showing internal slots and a textured surface (no visible text or symbols)

1. GENİŞLETME YUVASI KAPAĞINI ÇIKARMAK IÇIN VIDAYI GEVŞETIN.

Close-up of a car's front wheel and battery panel with mounting holes (no visible text or symbols)

1. ARTIK YEŞIL GENİŞLETME YUVASINI GÖ RMELISINIZ.

Close-up of a hand using a screwdriver to adjust a green printed circuit board (no visible text or symbols)

1. TEK VIDAYI VE ALTINDAKI RONDELA BENZERI AYIRICIYI Ç IKARIN.

Close-up of a car's front panel showing internal components and battery pack (no text or symbols visible)

1. AYIRICIYI M.2 FORM FAKTÖRÜNE KARŞILIK GELEN DELIĞE YERLEŞTIRIN.

Close-up of a 3D printer's internal structure with XPG logo and triangular design (no readable text or symbols beyond branding)

1. SSD'NIN ALTIN KONEKTÖRÜNÜ EŞLEŞEN GIRİŞ ÇENTIĞINE TIKLAYIN.

Close-up of a hand using a screwdriver to adjust or install electronic components on a device casing (no visible text or symbols)

1. SSD'YI VIDAYLA SABITLEYIN.

Close-up of a mechanical component with a screwdriver inserted, showing internal structure (no visible text or symbols)

1. GENİŞLETME YUVASI KAPAĞINI YENIDEN TAKIN.

Close-up of a black electronic device with a circular fan and paper base, placed on a surface (no visible text or symbols)

1. DESTEK PLAKASINI GERIYE DOĞRU KAYDIRIP AŞAĞI DOĞRU ITEREK YENIDEN TAKIN.

Close-up of a white gaming device with visible ports and a black game controller on a textured floor (no text or symbols)

1. KABLOLARI YENIDEN TAKIN VE PS5'INIZI AÇ IN.

1. YENIDEN BIÇ IMLENDIRME TALIMATLARINI IZLEYIN.

1. TAMAMLADINIZ! ARTIK OYUNLARI VE UYGULAMALARI SSD'DE DEPOLAYABILIRSINIZ.
