JD2507T - Angle Grinder Cotech - Free user manual and instructions

Product Type	Random Orbital Sander
Brand	Cotech
Model	JD2507T (also JD2507T-UK)
Voltage	230 V AC, 50 Hz
Power Output	430 W
Orbits per Minute	12,000 – 26,000
Sanding Pad Diameter	125 mm
Sound Pressure Level (LpA)	81 dB(A) (K=3 dB)
Sound Power Level (LwA)	92 dB(A) (K=3 dB)
Vibration Level	10.8 m/s² (K=1.5 m/s²)
Pad Attachment	Hook and loop (Velcro)
Dust Collection	Included dust bag with coupling sleeve
Speed Adjustment	Dial on top (continuous variable)
Handle Adjustment	Angled handle with locking knob (tool-free)
Power Switch	Trigger with lock-on button for continuous operation
Motor Cooling	Vents on top; reduce pressure at low speeds to avoid overheating
Safety Features	Double insulation (no earthing required); safety instructions in manual
Maintenance	Keep ventilation openings clean; wipe with damp cloth; no abrasive cleaners
Spare Parts / Service	Contact Customer Services (address in manual); use only original spare parts
Disposal	Follow local ordinances for electrical waste
Included Accessories	Dust bag, sanding paper (not explicitly listed but recommended)

Frequently Asked Questions - JD2507T Cotech

How do I attach sandpaper to the sander?

Use 125 mm hook and loop (Velcro) sandpaper with the correct hole pattern. Align the holes in the sandpaper with those on the sanding pad and press firmly together.

How do I adjust the sanding speed?

Rotate the speed selector (dial on top) to choose between 12,000 and 26,000 orbits per minute. This can be done even while the sander is running.

How do I adjust the handle angle?

Loosen the locking knob on the handle, set the desired angle, then tighten the knob securely.

What is the lock button for?

The lock button allows you to keep the power switch in the ON position for continuous operation. Press the lock button and trigger together, release the trigger first, then release the lock button. To unlock, press and release the trigger.

What safety precautions should I take?

Always wear safety glasses, ear protection, and a dust mask. Keep the work area clean, avoid loose clothing, and do not use the sander in explosive atmospheres.

Why does my sander run slowly?

Possible causes: overloading (reduce downward pressure) or motor overheating (do not press too hard). If the problem persists, the sanding pad bearings may be worn – contact Customer Services.

How do I attach the dust bag?

Push the dust bag onto the coupling sleeve at the back of the sander until it clicks into place.

What should I do if the sander does not start?

Check that the wall socket works. If power is present, there may be a faulty switch, worn brushes, or a short circuit. Contact Customer Services for repair.

How do I clean the sander?

Keep the motor ventilation openings free of dust. Clean the housing with a lightly moistened cloth and mild detergent if needed. Do not use abrasive cleaners or solvents.

Where can I get spare parts or service?

Contact Customer Services at the address or phone number listed in the manual. Only use original spare parts to maintain safety.

USER MANUAL JD2507T Cotech

Read the entire instruction manual carefully and make sure that you fully understand it before you use the equipment. Keep the manual for future reference.

Viktig information:

Illustration of a hairdryer with a headrest and side arm, lying down (no text or symbols)

ART.NO

18-3112

30-1002

MODEL

JD2507T-UK

JD2507T

Ver. 20150120

Original instructions

Bruksanvisning i original

Please read the entire instruction manual before using the product and save it for future reference. We reserve the right for any errors in text or images and any necessary changes made to technical data. If you have any questions regarding technical problems please contact our Customer Services (see address on reverse).

Safety

General Safety Instructions for Hand-Held Motor-Operated Electric Tools

Warning! Read all the instructions. Failure to adhere to the following instructions may lead to electric shocks, fires and/or serious injury. The term “electrical hand tools” in the warning text below refers to your mains operated or battery operated hand tool.

SAVE THE INSTRUCTIONS.

1) The work space

a) Keep the work space clean and well illuminated. Cluttered and poorly lit areas invite accidents.
b) Do not use electrical hand tools in explosive environments, i.e. nearby flammable liquids, gas or dust. Electrical hand tools generate sparks that could easily ignite dust or fumes.
c) Keep away from children and other spectators while using the electrical hand tool. Distractions can make you lose your concentration and control.

2) Electrical safety

a) The electrical hand tool's plug must fit correctly in the wall socket. Never modify the plug in any way. Never use an adaptor together with earthed electrical hand tools. Unmodified plugs and suitable wall sockets decrease the risk of electric shock.
b) Avoid body contact with earthed objects, such as pipes, radiators, ovens or refrigerators. There is an increased risk of electrical shock if your body is earthed.
c) Do not expose the electrical hand tool to rain or other wet conditions. If water gets inside an electrical hand tool it increases the risk of electrical shock.
d) Do not misuse the lead. Never use the lead to carry, drag or pull the plug out of the wall socket. Keep the lead away from heat, oil, sharp edges and movable parts. Damaged or tangled leads increase the risk of electrical shock.
e) When you use an electrical hand tool outdoors; use an extension cord suitable for this purpose. Use of an extension cord for outdoor use decreases the risk of electrical shock.

3) Personal safety

a) Pay attention to what you do and use common sense when using electrical hand tools. Never use an electrical hand tool if you are tired or under the influence of drugs, alcohol or medication. One moment of not paying attention while using an electrical hand tool may result in serious injury.
b) Use protective equipment. Always use safety glasses. Using protective equipment such as a face mask, slip resistant protective shoes, a helmet and ear defenders when needed decreases the risk of injury.
c) Avoid unexpected starts. Make sure that the switch is set to OFF before you connect the device to the wall socket. Never carry an electrical hand tool with one finger on the trigger or never connect the hand tool to a wall socket when the switch is set to ON, since it may result in injury.
d) Remove all service tools/keys before switching on the hand tool. A forgotten service tool on a rotating part of the electrical hand tool may result in injury.
e) Do not overreach. Make sure you stand steady and well balanced at all times. This gives better control in unexpected situations.

f) Wear suitable clothing. Do not wear loose fitting clothes or jewellery. Keep hair, clothes and gloves away from moving parts. Loose fitting clothes, jewellery or long hair could get caught in moving parts.

g) If the equipment for suctioning or collecting dust is available make sure it is connected and used properly. Using technical aids may reduce dust related hazards.

4) Use and maintenance of the electrical hand tool

a) Do not overload the hand tool. Use a hand tool suitable for the work you are to perform. At the correct rate of feed, the correct tool will carry out the work better and more safely.
b) Never use the electrical hand tool if the switch does not work properly to turn on and shut off the tool. All electrical hand tools that cannot be operated by the switch are dangerous and must be repaired.
c) Unplug the lead from the wall socket before making any adjustments, changing accessories or storing the electrical hand tool away. These precautions reduce the risk of the electrical hand tool starting unexpectedly.
d) Store electrical hand tools that are not being used out of children's reach. Do not let people unfamiliar with the electrical hand tool or its instructions use it. Electrical hand tools can be dangerous if they get into the hands of inexperienced users.
e) Inspect electrical hand tools regularly. Check that all settings are correct, that no moving parts are getting jammed, that no parts are broken and for other reasons that might cause the electrical hand tool to malfunction. If something is damaged it must be repaired before use. Many accidents are caused by poorly maintained electrical hand tools.

f) Keep the tools sharp and clean. Properly maintained cutting tools with sharp blades are less likely to jam and are easier to control.
g) Use the electrical hand tool, accessories and such according to the instructions and in a way suitable for the type of electrical hand tool used.
Using the electrical hand tool for work other than that for which it is intended could result in a dangerous situation.

5) Service

a) Repairs and service should only be performed by qualified persons, and only with original spare parts. This guarantees the safety of the electrical hand tool.

Specific Safety Instructions for Random Orbital Sanders

• A dust mask should always be worn whilst sanding and the use of a dust extractor connected to the machine is recommended.
• Extra caution should be taken when sanding paint containing lead or when sanding wood, metal or other material which produces toxic dust. Make sure that anyone in the vicinity of the workplace wears a dust mask.
• Wood dust can be very flammable when mixed with air in the right proportions.

Safety Symbol Guide

Please read the entire instruction manual before using and save it for future use.

Always use ear protection, safety glasses or a visor and wear a dust mask.

Product Description

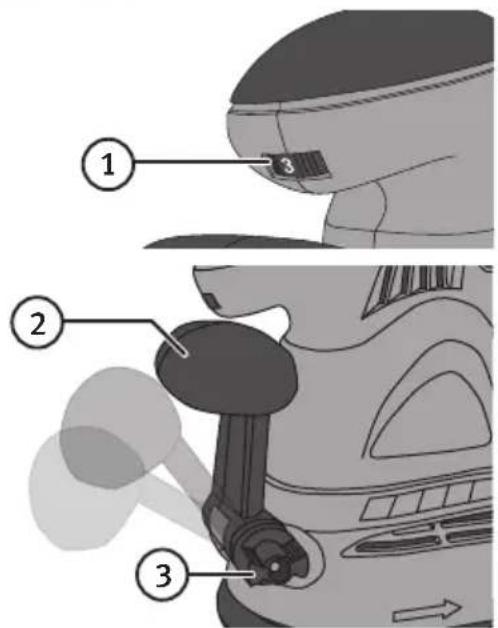

1. Speed selector
2. Adjustable handle
3. Adjustable handle locking knob
4. Hook and loop sanding pad
5. Motor cooling vents

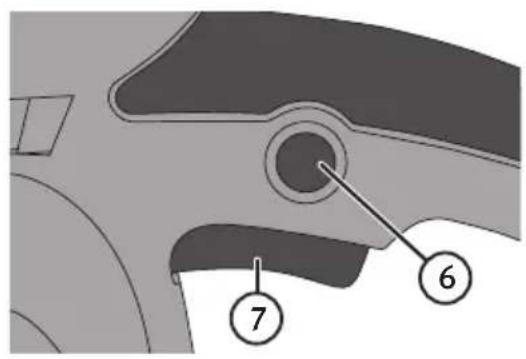

6. Lock button
7. Power switch
8. Dust bag
9. Dust bag coupling sleeve

Operation

Switching the sander on/off

The machine is started and stopped by holding or releasing the power switch (7).

To lock the power trigger (7) in the on position: Press the lock button (6) and trigger simultaneously and then release the trigger before the lock button.

To disengage the trigger lock: Press only the power trigger and then release it.

Attaching sandpaper

Make sure that the sandpaper is the right size (125 mm), has the correct hole pattern and is of the hook and loop (velcro) type. Line the holes in the sandpaper up with the holes on the sanding pad and press them firmly together.

Attaching the dust bag

The dust bag (8) pushes onto the sander's coupling sleeve (9).

Setting the speed

The speed can be set from 12000 to 26000 orbits/minute. The speed can be adjusted using the speed selector (1), even during operation. Do not to exert too much pressure on the sander, especially at lower speeds when the motor is not cooled as much by the lower speed of the cooling fan.

Setting the angle of the handle

To adjust the handle (2), first loosen the locking knob (3), set the desired angle and then tighten the locking knob (3).

Illustration of hands holding a circular sand pad with holes, no text or symbols present

Care and Maintenance

• Always keep the motor's ventilation openings free of dust and debris.
• Clean the machine as needed using a lightly moistened cloth and mild detergent if necessary. Avoid using abrasive cleaning agents and solvents.

Troubleshooting Guide

Problem Possible Cause Possible solution
The machine does not start.	No power. Check that the wall socket works.
	Worn brushes. Contact Customer Services if there is a motor or electrical fault.
	Short circuit.
	Faulty power switch.
The machine runs slowly.	Overloading.	Reduce downward pressure on sander.
	The motor is overheated. Do not press down too hard.
	The sanding pad bearings are worn.	Contact our Customer Services.
Strange noise.	Mechanical fault. Contact our Customer Services.
	Faulty windings.
Heavy vibration.	Loose sanding pad. Tighten the sanding pad and make sure it is attached correctly.
Sparks in the motor.	Stuck carbon brushes. Contact our Customer Services.
	Winding short circuited.
	Commutator short-circuited.

Disposal

Follow local ordinances when disposing of this product. If you are unsure about how to dispose of this product contact your municipality.

Specifications

Voltage 230 V AC, 50 Hz

Output power 430 W

Orbits/min. 12000–26000

Sanding pad diam. 125 mm

Sound Pressure LpA = 81 dB(A) (K: 3 dB)

Sound Power LwA = 92 dB(A) (K: 3 dB)

Vibration Value 10.8 m/s ^2 (K: 1.5 m/s ^2 )

Excenterslipmaskin

ART.NR 18-3112 MODELL JD2507T-UK

30-1002 JD2507T

Illustration of hands holding a circular sand pad with holes, no text or symbols present

Illustration of hands holding a circular object with holes, no text or symbols present

Declaration of Conformity

Machinery directive 2006/42/EC

EN 60745-1:2009 EN 60745-2-4:2009

EMC directive 2004/108/EC

EN 55014-1:2006 EN 55014-2:1997+A1 EN 61000-3-2:2006 EN 61000-3-3:1995 +A1+A2

Klas Balkow President

Insjön, Sweden, 2011-11-10

SVERIGE

KUNDTJÄNST Tel: [phone]

Fax: [phone]

E-post: [e-mail]

INTERNET www.clasohlson.se

BREV Clas Ohlson AB, 793 85 INSJÖN
