Type	Oscillating Fan Heater
Brand	Cotech
Model	FH09B
Rated Voltage	230 V, 50 Hz
Power Settings	1000 W (I) / 2000 W (II)
Oscillation Function	Yes
Thermostat	Adjustable, with auto shut-off
Indicator Light	Yes, operation indicator
Tip-over Protection	Yes, automatic shut-off
Overheat Protection	Yes, thermal cut-off with fuse
Usage	Indoor only
Placement	Hard, level surface; min. 15 cm from walls
Safety Features	Do not cover; do not use damaged
Cleaning	Do not immerse in water; unplug before cleaning
Dimensions (approx.)	25 x 15 x 20 cm
Weight (approx.)	2.0 kg
Color	White
Power Cord	Fixed; do not use extension cord
Waste Disposal	Follow local regulations

Frequently Asked Questions - FH09B Cotech

How do I adjust the thermostat?

Turn the thermostat dial clockwise to maximum when the heater is on. Then slowly turn it back until you hear a click; the heater will stop and the indicator light goes off. The heater will then automatically cycle on and off to maintain the set temperature.

What should I do if the fan heater does not start?

Check that the heater is on a level surface (tip-over switch may be tripped). Ensure the plug is securely connected to a live socket. Also check if the thermostat has turned the heater off; if so, adjust the thermostat setting.

Can I use an extension cord with this fan heater?

No, do not use extension cords. Connect the heater directly to a mains outlet.

How do I clean the fan heater?

Unplug the heater before cleaning. Use a dry or slightly damp cloth to wipe the exterior. Do not immerse in water or use abrasive cleaners.

Why does the fan heater turn off by itself?

This can be due to the thermostat reaching the set temperature (normal), or the overheat protection tripping if the airflow is blocked. Ensure the heater is placed on a level surface and not covered.

Where should I place the fan heater?

Place it on a hard, level surface at least 15 cm from walls or furniture. Do not place on soft surfaces like beds or carpets. Keep away from water and flammable objects.

What should I do if the mains lead is damaged?

If the mains lead is damaged, it must be replaced by the manufacturer, a qualified service facility, or a qualified technician to avoid risk of electric shock or fire.

Can the fan heater be used in a bathroom?

No, do not use the fan heater in bathrooms, laundry rooms, or near baths or showers. It is for indoor use only in dry locations.

How do I activate the oscillation function?

Set the power switch (4) to position 1 to start the oscillating function. Position 0 is off, position I is warm air (1000 W), position II is hot air (2000 W).

Is it safe to leave the fan heater unattended?

The heater has safety features like tip-over and overheat protection, but it is recommended to never leave it unattended, especially around children or pets. Always follow the safety instructions.

USER MANUAL FH09B Cotech

Read the entire instruction manual carefully and make sure that you fully understand it before you use the equipment. Keep the manual for future reference.

Viktig information:

Line drawing of a portable electric heater with ventilation slots and a handle (no text or symbols)

ART.NO

18-2784

36-5144

MODEL

FH09B-UK

FH09B

Ver. 20130515

Original instructions

Bruksanvisning i original

2000 W Oscillating Fan Heater

ART.NO. 18-2784 MODEL FH09B-UK

36-5144 FH09B

Please read the entire instruction manual before use and save it for future reference. We reserve the right for any errors in text or images and for making any necessary technical changes to this document. If you should have any questions concerning technical problems please contact our Customer Services.

Safety

• This product must not be used by anyone (including children) suffering from physical or mental impairment. This product should not be used by anyone that has not read the instruction manual unless they have been instructed in its use by someone who will take responsibility for their safety.
• Never let children play with the fan heater.
• The fan heater is only intended for normal domestic use and only in the manner described in this instruction manual.
• Never cover the fan heater.
• Never use the fan heater if it is in any way damaged or malfunctioning. Do not use the fan heater if the mains lead or plug is damaged in any way.
• The fan heater should only be connected to a 230 V, 50 Hz power supply.
• Before connecting the fan heater to the mains, make sure that it is turned off and that your hands are completely dry.
• Do not use extension leads for this product. Connect it directly to a mains outlet.
• The fan heater is intended for indoor use only.
• Never immerse the product in water.
• The product should not be taken apart or modified. The casing houses dangerous current-carrying non-insulated components. Contact with these can lead to fire or electric shock.
• The mains lead must be changed if damaged. This is to prevent the risk of electric shock or fire and should only be carried out by the manufacturer, a qualified service facility or qualified technician.

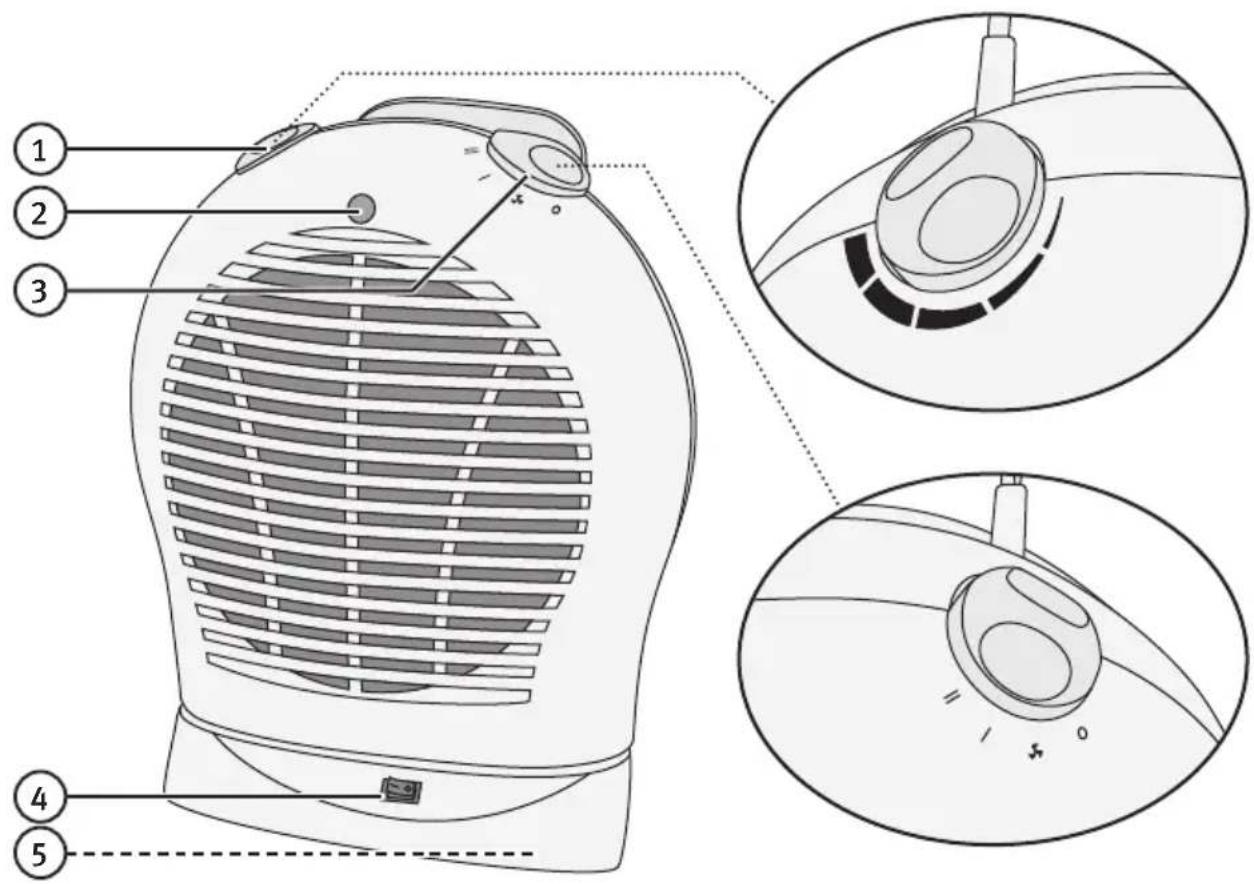

Buttons and functions

1. Thermostat control
2. Indicator light
3. Function selector
4. Oscillating function
5. Tip-over switch

Function selector

0 Off

Fan

I Warm air (1000 W)

II Hot air (2000 W)

Operation

Placement

• Place the fan heater on a hard and level surface.
• Never place the fan heater on soft surfaces such as beds, blankets, thick rugs, etc.
• Do not place the fan heater in a bathroom, laundry room, or in the near vicinity of the bath or shower.
• Do not use the fan heater in damp or dusty environments.
• Place the fan heater some distance away from furniture, curtains or other easily flammable objects. Make sure that fan heater is at least 15 cm from walls or any other objects.

Thermostat

With the fan heater turned on to one of the heat settings:

1. Turn the thermostat dial clockwise to maximum.
2. Turn the dial back slowly when the room has reached the desired temperature. Continue turning until there is an audible click. The fan heater stops and the indicator lamp switches off.
3. No further adjustment is required. The fan heater will then automatically turn on once the temperature falls below the setting and turn off once the set temperature is reached.
4. Set the power switch (4) to position 1 to start the oscillating function.

Tip-over switch

The tip-over switch at the bottom of the fan heater will shut off the fan automatically should it tip over.

Overheating protection

The fan heater has a built-in thermal overheating protection device. If the overheating protection is triggered, the heating element switches off. When the overheating protection has cooled down, the heating element and the heater work normally again. As an extra safety measure the heater is also fitted with a thermal fuse safety cut-off. This thermal fuse cannot be reset, so if it has blown the fan heater cannot be reused. The fan heater should then be discarded.

Troubleshooting guide

The fan heater does not start.

The tip-over protection can be tripped if the fan heater sits on an uneven surface. Make sure the fan heater is level.Is the plug securely connected to the wall socket?Check that the wall socket is live.Has the thermostat tripped and turned off the fan heater?See the Thermostat section above.

Waste disposal

This product should be disposed of in accordance with local regulations. If you are unsure what to do, contact your local authority.

Specifications

Rated voltage 230 V, 50 Hz

Power setting I 1000 W

Power setting II 2000 W

1. Termostatvred
2. Indikatorlampa
3. Funktionsvred
4. Svepande funktion
5. Tippskydd

1. Termostatinnstilling
2. Indikatorlampe
3. Funksjonsinnstilling
4. Bryter
5. Veltesikring
