HM 1600-C - Concrete Mixer Cocraft - Free user manual and instructions

Product Type	Cement Mixer / Paddle Mixer
Brand	Cocraft
Model	HM 1600-C
Power Input	1600 W
Voltage	230 V, 50 Hz
Number of Gears	2
No-Load Speed (Gear 1)	180–460 rpm
No-Load Speed (Gear 2)	300–700 rpm
Protection Class	II
Certification	CE, GS
Mixer Paddle Thread	M14
Sound Pressure Level (LpA)	87 dB(A), K=3 dB(A)
Sound Power Level (LwA)	98 dB(A), K=3 dB(A)
Vibration Level	3.02 m/s², K=1.5 m/s²
Speed Control	Continuously variable
Lock-on Button	Yes, for continuous operation
Safety Features	Read manual, use ear/eye/respiratory protection, keep children away, unplug before maintenance
Maintenance	Unplug, wipe with clean cloth or compressed air, clean paddle after use
Spare Parts	Only original spare parts; contact customer service
Repairability	Service only by qualified tradesmen

Frequently Asked Questions - HM 1600-C Cocraft

How do I start the mixer?

Connect to a 230 V wall socket, then press the On/off button (5) to start. For continuous operation, use the lock-on button (4).

How do I change the speed?

Use the speed control (1) for continuously variable speed. To change gears, ensure the paddle is completely motionless, then use the gear selector (3) between 1 (low) and 2 (high).

What safety precautions should I take?

Always read the entire manual. Wear ear protection, eye protection, and respiratory protection. Keep children and bystanders away. Do not use in explosive environments.

How do I clean the mixer?

Unplug the mixer. Wipe with a clean cloth or blow with compressed air. Never use solvents or corrosive cleaners. Clean the paddle head and shaft immediately after use.

What should I do if the mixer doesn't start?

Check that the power cord is properly connected to a 230 V socket and that the socket is working. If the on/off button does not work, the tool may be damaged and should be repaired by a qualified technician.

Can I use the mixer for food?

No, this mixer is designed for construction materials like cement or mortar. Do not use it for food or any flammable liquids with a flash point below 21 °C.

How do I attach the mixing paddle?

Screw the paddle head (7) onto the shaft (6), then screw the assembly onto the M14 fitting (2). Use the provided spanners and tighten securely without overtightening.

What is the best way to mix?

To maximize motor cooling, hold the paddle so the head is inside the mixture but not submerged. Start at low speed, lower into mixture, then increase speed. Move the paddle around for even mixing. When removing, reduce speed first.

Does the mixer require lubrication?

No, the mixer does not require lubrication. Simply keep it clean and store in a dry place.

How do I dispose of the mixer responsibly?

Do not dispose with household waste. Take it to a local collection facility for recycling to prevent environmental harm as per EU regulations.

USER MANUAL HM 1600-C Cocraft

Coconut whisker with blue and black casing, mounted on a metal stand against a textured gray background (no text or symbols visible)

Art.no Model

18-3200

40-7995

R6301C

R6301C

Important!

Read the entire instruction manual carefully and make sure that you fully understand it before you use the equipment. Keep the manual for future reference.

Viktig information:

Original instructions

Bruksanvisning i original

Originalbruksanvisning

Please read the entire instruction manual before using the product and save it for future reference. We reserve the right for any errors in text or images and any necessary changes made to technical data. If you have any questions regarding technical problems please contact Customer Services.

Safety

General Safety Requirements - EN 60745-1

Warning!

Read all the instructions. Failure to adhere to the following instructions may lead to electric shocks, fires and/or serious injury. The term “power tools” in the warning text below refers to your handheld mains operated or battery operated tool.

SAVE THESE INSTRUCTIONS!

1) Work area

a) Keep the work area clean and well illuminated. Cluttered and poorly lit areas invite accidents.
b) Do not use power tools in explosive environments, e.g. near flammable liquids, gases or dust. Power tools generate sparks that can easily ignite dust or fumes.
c) Keep children and other bystanders away from the area where you are using the power tool. Distractions can cause you to lose control.

2) Electrical safety

a) The power tool's plug must fit correctly into the wall socket. Never modify the plug in any way. Never use an adaptor together with earthed power tools. Unmodified plugs and suitable wall sockets decrease the risk of electric shock.
b) Avoid physical contact with earthed objects, such as pipes, radiators, ovens or refrigerators. There is an increased risk of receiving an electrical shock if your body is earthed.
c) Do not expose the power tool to rain or other wet conditions. If water gets inside a power tool it increases the risk of electric shock.
d) Do not abuse the lead. Never use the lead to carry the tool or pull the plug from the wall socket. Keep the lead away from heat, oil, sharp edges and movable parts. Damaged or tangled leads increase the risk of electric shock.
e) When using power tools outdoors, use an extension lead that is suitable for this purpose. Use of an extension lead designed for outdoor use decreases the risk for electric shock.

f) If for some reason you must use a power tool in a wet environment, always connect it to the mains via an earth-fault circuit breaker such as an RCD (residual current device). Using an RCD significantly reduces the chances of you receiving an electric shock.

3) Personal safety

a) Pay attention to your actions and use common sense when using power tools. Never use power tools if you are tired or under the influence of drugs, alcohol or medication. One moment of inattention while using a power tool may result in serious injury.
b) Use protective equipment. Always wear safety glasses. Using protective clothing such as dust masks, non-slip safety shoes, helmets and ear defenders when needed decreases the risk of injury.
c) Avoid accidental starts. Make sure that the power switch is set to OFF before plugging the tool into a wall socket. Never carry a power tool with your finger on the trigger and never connect the power tool to a wall socket when the switch is set to ON, since it may result in injury.
d) Remove all service tools/keys before switching on the power tool.

A service tool left on a moving part of the power tool may result in injury.

e) Do not overreach. Make sure you stand steady and well balanced at all times.

This enables you to have more control in case of unexpected events.

f) Wear suitable attire. Do not wear loose-fitting clothing or jewellery. Keep hair, clothes and gloves away from moving parts. Loose-fitting clothes, jewellery or long hair could become caught in moving parts.
g) If equipment for dust extraction or collection is available, make sure that it is connected and used properly. Using technical aids may decrease dust related hazards.

4) Use and maintenance of power tools

a) Do not force the power tool. Use a power tool suitable for the work you are about to perform. The proper power tool will perform the task better and safer if used at the correct feed rate.
b) Never use the power tool if the power switch does not switch the tool on and off properly. All power tools that cannot be controlled by the power switch are dangerous and must be repaired.
c) Unplug the lead from the wall socket before making any adjustments, changing accessories or storing the power tool. These precautions reduce the risk of the power tool starting unexpectedly.
d) Store any power tools that are not being used out of children's reach. Do not allow people who are unfamiliar with the tool or its functions to operate the tool. Power tools can be dangerous if they fall into the hands of inexperienced users.
e) Maintaining power tools. Check for any incorrect settings, parts that catch, broken parts or anything else which may cause the power tool to malfunction. If something is damaged it must be repaired before use. Many accidents are caused by poorly maintained power tools.

f) Keep tools sharp and clean. Properly maintained cutting tools with sharp blades are less likely to jam and are easier to control.

g) Use the power tool, accessories and similar according to the instructions and in an appropriate way suitable for the type of power tool used. Also take into consideration your work environment and the type of work to be done.

Using the power tool for a purpose other than that for which it is intended could result in a dangerous situation.

5) Service

a) Repairs and service should only be performed by qualified tradesmen, and only with original spare parts. This guarantees that the safety of the power tool is maintained.

Specific safety instructions for paddle mixers

• Never use a paddle mixer on a liquid with a flash point below 21 °C.
• Mixers must only be started when the paddle is inside the mixing container. Make sure that the mixing container is on a firm, level surface.
• Hands or other objects must never be inserted into the mixing container whilst the mixer is rotating.
• Be prepared to counteract a certain amount of torque when the mixer is switched on.

Safety symbols

Read the entire instruction manual before use.

Always use ear protection.

Always use eye protection.

Always use respiratory protection.

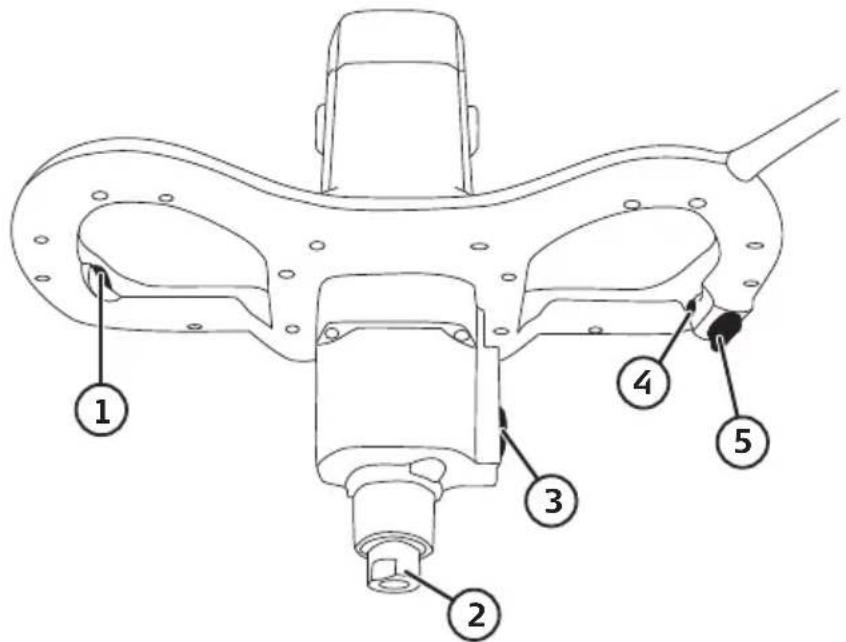

Buttons and functions

1. Continuously variable speed control
2. M14 threaded mixer paddle fitting
3. Gear selector
4. On/off button lock for continuous operation
5. On/off button

Assembly

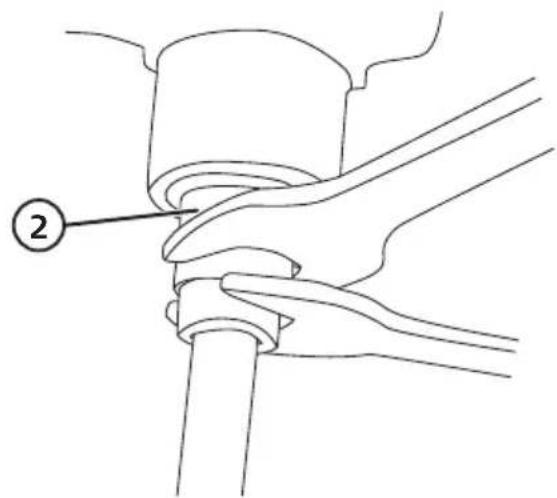

Screw the head of the mixer paddle (7) onto the shaft (6).

Screw the assembled paddle onto the fitting (2). Screw on securely, but do not overtighten. Use the provided spanners.

Use

Note: Connect the mains lead to a 230 V wall socket.

1. Switch the mixer on using the On/off button (5).
2. For continuous operation, lock the ON button using the lock-on button (4).
3. Adjust the speed using the speed control (1).
4. The gear selector (3) changes gear between 1 (low gear) and 2 (high gear), see the button markings.

Note: Do not use the gear selector until the mixer paddle is completely motionless.

• To maximize motor cooling: Hold the mixer paddle so that the head is inside the mixing container but not in the mixture itself. Run the mixer at low speed before lowering it into the mixture. Increase the speed of rotation only once the head is down inside the mixture. Run the mixer at low speed again when removing the paddle from the mixture and do not switch the motor off until the paddle is completely out of the mixture.
• For best results: Move the mixer paddle around in the mixture so that it is not in the same place all the time.

Care and maintenance

• Always unplug the mains lead before changing the mixer paddle or servicing the mixer.
• The mixer does not require lubrication.
• Store the mixer in a dry place.
• Clean the mixer by wiping it with a clean cloth or blowing it compressed air. Never use solvents or corrosive cleaning agents. Make sure that the ventilation openings are not clogged.
• Thoroughly clean the head and shaft of the mixing paddle immediately after use.

Responsible disposal

This symbol indicates that this product should not be disposed of with general household waste. This applies throughout the entire EU. In order to prevent any harm to the environment or health hazards caused by incorrect waste disposal, the product must be handed in for recycling so that the material can be disposed of in a responsible manner. When recycling your product, take it to your local collection facility or contact the place of purchase. They will ensure that the product is disposed of in an environmentally sound manner.

Symbol of a trash bin crossed out by two crossed lines, with no text or labels present.

Specifications

Input power 1600 W

Voltage 230 V, 50 Hz

Number of gears 2

No-load speed 180–460/300–700 rpm

Protection class ||

Certification CE, GS

Coupling thread M14

Sound power LpA: 87 dB(A), K: 3 dB(A)

LwA: 98 dB(A), K: 3 dB(A)

Vibration 3,02 m/s ^2 , K: 1,5 m/s ^2

Blandare

Art.nr 18-3200 Modell R6301C

40-7995

R6301C

Four circular icons representing different user behaviors: person reading, hand holding, sunglasses, and mask (no text or symbols)

Montering

Symbol of a trash bin crossed with no visible text or labels

Specifikationer

Ineffekt 1600 W

Spänning 230 V, 50 Hz

Antal växlar 2

Varvtal, obelastad 180–460/300–700 v/min

Skyddsklass ||

Certifiering CE, GS

Montering

Line drawing of hands operating a cylindrical tool with a numbered label (2) pointing to the handle (no text or symbols beyond label)

Skru sammen blanderstav (6) og visp (7). Blandestaven kobles til festet (2).

Symbol of a trash bin crossed with no text or labels, representing waste sorting or recycling (no text present)

Spesifikasjoner

Effekt inn 1600 W

Spenning 230 V AC, 50 Hz

Antall gir 2

Turtall, ubelastet 180–460 / 300–700 o/min

Asennus

Symbol of a trash bin crossed with no visible text or labels

Tekniset tiedot

Teho 1600 W

Jännite 230 V, 50 Hz

Vaihteita 2

Einbau

Line drawing of hands performing a mechanical press or tooling operation (no text or symbols present)

Symbol of a trash bin crossed with no visible text or labels

Technische Daten

Declaration of Conformity

Declares that this product complies with the requirements of the following directives and standards

Cocraft 18-3200 / 40-7995

R6301C / R6301C

Machinery Directive 2006/42/EC

EN 60745-1:2009

+A11:2010

EN 60745-2-1:2010

EMC Directive 2014/30/EU

EN 55014-1:2006

+A1:2009+A2:2011

EN 55014-2:2015

EN 61000-3-2:2014

EN 61000-3-3:2013

Henrik Alfredsson

Manager Technique & Quality

Insjön, Sweden, 2016-05-09
