USER MANUAL DNR-1000U KENWOOD

Take the time to read through this instruction manual.

Familiarity with installation and operation procedures will help you obtain the best performance from your new GPS Navigation System.

For your records

Record the serial number, found on the back of the unit, in the spaces designated on the warranty card, and in the space provided below. Refer to the model and serial numbers whenever you call upon your Kenwood dealer for information or service on the product.

Model DNR-1000U Serial number

Safety precautions 3

Notes 4

General features 6

Power

Selecting the Source

Volume

Attenuator

Audio Control

Audio Setup

Bass Boost

Speaker Setting

Switching Display

TEL Mute

Tuner features 10

Tuning

Tuning Mode

Station Preset Memory

Auto Memory Entry

Preset Tuning

CD/Audio file/External disc control features 12

Playing CD & Audio file

Playing External Disc

Fast Forwarding and Reversing

Track/File Search

Disc Search/Folder Search

Track/File/Disc/Folder Repeat

Scan Play

Random Play

Magazine Random Play

Text/Title Scroll

Folder Select

HD Radio control features 15

About HD Radio

Tuning

Menu system 16

Menu System

Touch Sensor Tone

Manual Clock Adjustment

SI (System Indicator)

Display Illumination Control

Dimmer

Supreme Setting

CRSC (Clean Reception System Circuit)

Receive mode Setting

Electronic Serial Number (ESN) display

Text Scroll

Built-in Auxiliary input Setting

CD Read Setting

Troubleshooting Guide 21

Specifications 23

WARNING

To prevent injury or fire, take the following precautions:

• To prevent a short circuit, never put or leave any metallic objects (such as coins or metal tools) inside the unit.
• Mounting and wiring this product requires skills and experience. For safety's sake, leave the mounting and wiring work to professionals.

CAUTION

To prevent damage to the machine, take the following precautions:

• Make sure to ground the unit to a negative 12V DC power supply.
• Do not install the unit in a spot exposed to direct sunlight or excessive heat or humidity. Also avoid places with too much dust or the possibility of water splashing.
• When replacing a fuse, only use a new fuse with the prescribed rating. Using a fuse with the wrong rating may cause your unit to malfunction.
• Do not use your own screws. Use only the screws provided. If you use the wrong screws, you could damage the unit.

Do Not Load 3-in. CDs in the CD slot

If you try to load a 3 in. CD with its adapter into the unit, the adapter might separate from the CD and damage the unit.

About CD players/disc changers connected to this unit

Kenwood disc changers/ CD players released in 1998 or later can be connected to this unit.

Refer to the catalog or consult your Kenwood dealer for connectable models of disc changers/ CD players. Note that any Kenwood disc changers/ CD players released in 1997 or earlier and disc changers made by other makers cannot be connected to this unit.

Connecting unsupported disc changers/CD players to this unit may result in damage.

Set the "O-N" Switch to the "N" position for the applicable Kenwood disc changers/ CD players. The functions you can use and the information that can be displayed may differ depending on the models being connected.

• You can damage both your unit and the CD changer if you connect them incorrectly.

Lens Fogging

When you turn on the car heater in cold weather, dew or condensation may form on the lens in the CD player of the unit. Called lens fogging, this condensation on the lens may not allow CDs to play. In such a situation, remove the disc and wait for the condensation to evaporate. If the unit still does not operate normally after a while, consult your Kenwood dealer.

The "AAC" logo is trademark of Dolby Laboratories.

• When you purchase optional accessories, check with your Kenwood dealer to make sure that they work with your model and in your area.
  The characters which can be displayed by this unit are A-Z 0-9 @''\% &* + - =,./\< > [ ] ();^-{} ~.
• The illustrations of the display and the panel appearing in this manual are examples used to explain more clearly how the controls are used. Therefore, what appears on the display in the illustrations may differ from what appears on the display on the actual equipment, and some of the illustrations on the display may be inapplicable.

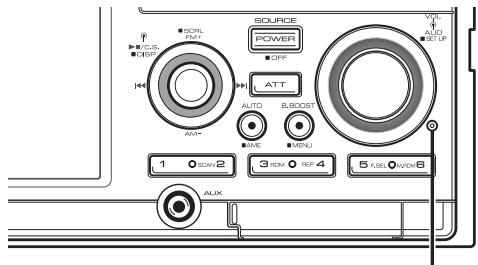

How to reset your unit

• If the unit fails to operate properly, press the Reset button. The unit returns to factory settings when the Reset button is pressed.
• Press the Reset button if the disc auto changer fail to operate correctly. Normal operation should be restored.

Reset button

Cleaning the Unit

If the faceplate of this unit is stained, wipe it with a dry soft cloth such as a silicon cloth.

If the faceplate is stained badly, wipe the stain off with a cloth moistened with neutral cleaner, then wipe it again with a clean soft dry cloth.

• Applying spray cleaner directly to the unit may affect its mechanical parts. Wiping the faceplate with a hard cloth or using a volatile liquid such as thinner or alcohol may scratch the surface or erases characters.

About Audio file

- Playable Audio file

AAC (.m4a), MP3 (.mp3), WMA (.wma)

- Playable disc media

CD-R/RW/ROM

- Playable disc file format

ISO 9660 Level 1/2, Joliet, Romeo, Long file name. Although the audio files are complied with the standards listed above, the play maybe impossible depending on the types or conditions of media or device.

- Playing order of the Audio file

In the example of folder/file tree shown below, the files are played in the order from ① to ⑩.

An online manual about audio files is put on the site, www.kenwood.com/audiofile/. On this online manual, detailed information and notes which are not written in this manual are provided. Make sure to read through the online manual as well.

Handling CDs

• Do not touch the recording surface of the CD.
• Do not stick tape etc. on the CD, or use a CD with tape stuck on it.
• Do not use disc type accessories.
• Clean from the center of the disc and move outward.
• When removing CDs from this unit, pull them out horizontally.
• If the CD center hole or outside rim has burrs, use the CD only after removing the burrs with a ballpoint pen etc.

CDs that cannot be used

• CDs that are not round cannot be used.

• CDs with coloring on the recording surface or CDs that are dirty cannot be used.
  This unit can only play the CDs with

This unit may not correctly play discs which do not have the mark.

• You cannot play a CD-R or CD-RW that has not been finalized. (For the finalization process refer to your CD-R/CD-RW writing software, and your CD-R/CD-RW recorder instruction manual.)

About Satellite Radio tuner

This unit supports Satellite Radio tuners which are released by SIRIUS and XM.

Refer to the instruction manual of Satellite radio tuner.

CAUTION

Use of controls or adjustments or performance of procedures other than those specified herein may result in hazardous radiation exposure. In compliance with Federal Regulations, following are reproductions of labels on, or inside the product relating to laser product safety.

Location: Bottom Panel

FCC WARNING

This equipment may generate or use radio frequency energy. Changes or modifications to this equipment may cause harmful interference unless the modifications are expressly approved in the instruction manual. The user could lose the authority to operate this equipment if an unauthorized change or modification is made.

NOTE

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment may cause harmful interference to radio communications, if it is not installed and used in accordance with the instructions. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.

Auxiliary input B.BOOST

Power

Turning ON the Power

Press the [POWER] button.

Turning OFF the Power

Press the [POWER] button for at least 1 second.

Selecting the Source

Press the [POWER] button.

Source required	Display
Satellite radio (Optional accessory)	"SAT"
Tuner or HD Radio (Optional accessory)	"TUNER" or "HD RADIO"
CD	"CD"
External disc (Optional accessory)	"CD CH"
Auxiliary input	"AUX"
Auxiliary input (Optional accessory)	"AUX EXT"
Standby (Illumination only mode)	"STANDBY"

• An equipment such as a portable audio player can be connected to the auxiliary input terminal using a commercially available mini Plug (3.5ø).

• Use the mini-plug which is stereo type and does not have any resistance.

• The navigation unit outputs audio guidance together with the sound of the audio source. The volume of the audio guidance can be adjusted with the navigation unit. For more details, refer to the Instruction Manual for the navigation unit.

Volume

Increasing Volume

Turn the [VOL] knob clockwise.

Decreasing Volume

Turn the [VOL] knob counterclockwise.

Attenuator

Turning the volume down quickly.

Press the [ATT] button.

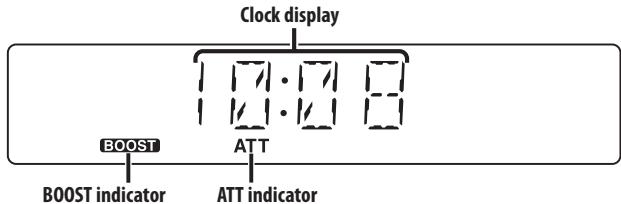

Each time you press the button, the Attenuator turns ON and OFF.

When the Attenuator is ON, the "ATT" indicator blinks.

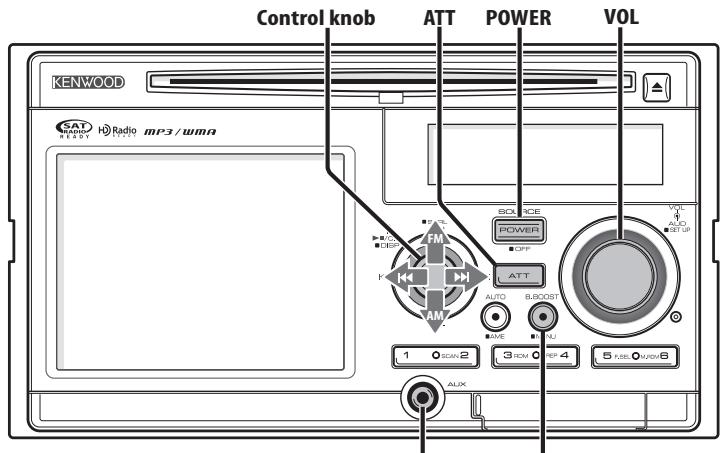

Audio Control

1 Select the source to adjust Press the [POWER] button.
2 Enter Audio Control mode Press the [VOL] knob.
3 Select the Audio item to adjust Press the [VOL] knob.

Each time you press the knob, the item to be adjusted alternates between the items shown in the table below.

4 Adjust the Audio item Turn the [VOL] knob.

Adjustment Item	Display	Range
System Q	"NATURAL"/"ROCK"/"POPS"/"EASY"/"TOP40"/"JAZZ"	Natural/Rock/Pops/Easy/Top 40/Jazz
Bass level	"BAS L"	-8 — +8
Middle level	"MID L"	-8 — +8
Treble level	"TRE L"	-8 — +8
Balance	"BAL"	Left 15 — Right 15
Fader	"FAD"	Rear 15 — Front 15

Exit Audio Control mode (Volume control mode)

About System Q

• You can recall the best sound setting preset for different types of music.
• Change each setting value with the (page 8). First, select the speaker type with the Speaker setting.
• "USER". The ranges selected lastly for Bass level, Middle level, and Treble level are recalled automatically.

5 Exit Audio Control mode Press any button.

Press a button other than the [VOL] knob and [ATT] button.

Audio Setup

Setting the Sound system, such as Volume offset.

1 Select the source to adjust Press the [POWER] button.
2 Enter Audio Setup mode Press the [VOL] knob for at least 1 second.
3 Adjust the Audio setup item Turn the [VOL] knob.

Adjustment Item	Display	Range
Volume offset	"V-OFF"	-8 — ±0 (AUX: -8 — +8)

• Volume offset: Sets each source's volume as a difference from the basic volume.

4 Exit Audio Setup mode Press the [VOL] knob for at least 1 second.

Bass Boost

Bass sound can be enhanced by one-touch operation.

Press the [B.BOOST] button.

When you press the button once, the current Bass Boost setting is displayed. Each time you press the button, the Bass Boost setting alternates.

Setting	Display
Bass Boost 1	"BB-L L1"
Bass Boost 2	"BB-L L2"
Bass Boost off	"BB-L OFF"

Speaker Setting

Fine-tuning so that the System Q value is optimal when setting the speaker type.

1 Enter Standby

Press the [POWER] button.

Select the "STANDBY" display.

2 Enter Speaker Setting mode Press the [VOL] knob.

3 Select the Speaker type Turn the [VOL] knob.

Each time you turn the knob, the setting alternates between the settings shown in the table below.

Speaker type	Display
OFF	"SP OFF"
For 5 & 4 in. speaker	"SP 5/4"
For 6 & 6x9 in. speaker	"SP 6*9/6"
For the OEM speaker	"SP OEM"

4 Exit Speaker Setting mode Press the [VOL] knob.

Switching Display

Changing the information displayed.

1 Enter Switching Display mode

Press the Control knob for at least 1 second.

"DISP SEL" is displayed.

2 Select the Display item

Push the Control knob towards [I_←] or [▶▶].

In Tuner source

Information	Display
Frequency	"FREQ"
Clock	"CLOCK"

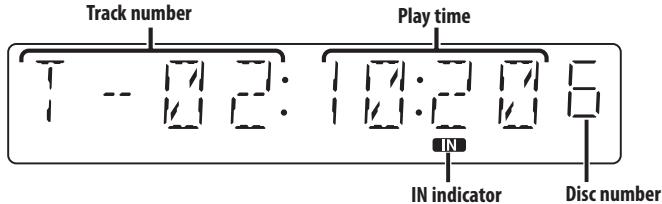

In CD & External disc source

Information	Display
Disc title	"D-TITLE"
Track title	"T-TITLE"
Track number & Play time	"P-TIME"
Clock	"CLOCK"

In Audio file source

Information	Display
Song title & Artist name	"TITLE"
Album name & Artist name	"ALBUM"
Folder name	"FOLDER"
File name	"FILE"
Track number & Play time	"P-TIME"
Clock	"CLOCK"

In HD Radio source

Information	Display
Station name	"ST NAME"
Song title/ Artist name/Album name/ Genre	"TITLE"
Frequency	"FREQ"
Clock	"CLOCK"

In Satellite radio source

Information	Display
Channel name	"CH NAME"
Song title	"SONG"
Artist name	"ARTIST"
Composer name	"COMPOSER"
Category name	"C CATEGORY"
Label name	"LABEL"
Comment	"COMMENT"
Band & Channel number	"CH NUM"
Clock	"CLOCK"

In Standby/Auxiliary input source

Information	Display
Source name	"SRC NAME"
Clock	"CLOCK"

3 Exit Switching Display mode Press the Control knob.

• If the selected display item does not have any information, alternative information is displayed.
• When you select the clock display, the display setting of each source will be changed to the clock display.
• Album name cannot be displayed in WMA file.

TEL Mute

The audio system automatically mutes when a call comes in.

When a call comes in

"CALL" is displayed.

The audio system pauses.

Listening to the audio during a call

Press the [POWER] button.

The "CALL" display disappears and the audio system comes back ON.

When the call ends

Hang up the phone.

The "CALL" display disappears and the audio system comes back ON.

• To use the TEL Mute feature, you need to hook up the MUTE wire to your telephone using a commercial telephone accessory.

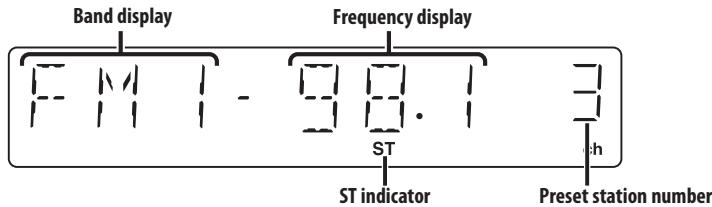

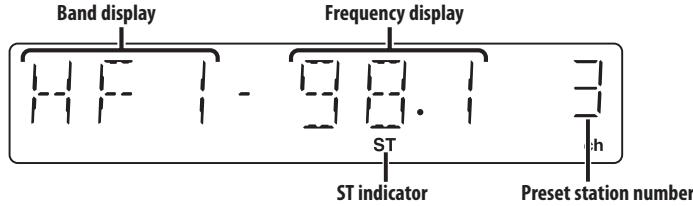

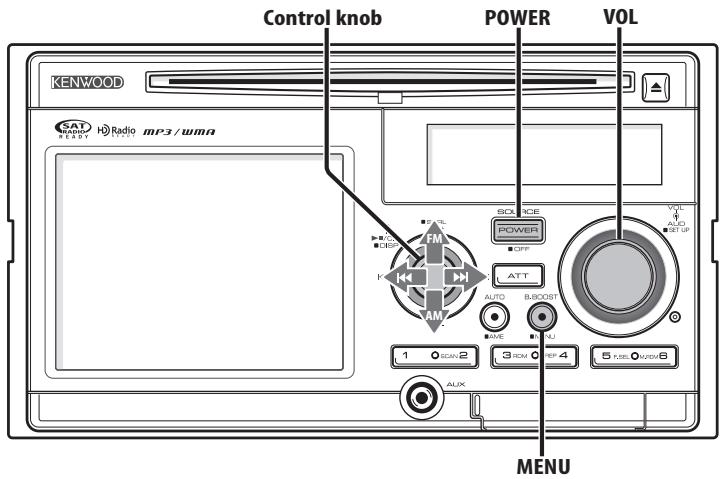

Tuning

Selecting the station.

1 Select tuner source

Press the [POWER] button.

Select the "TUNER" display.

2 Select the band

Push the Control knob towards [FM] or [AM].

Each time you push the knob toward [FM], it switches between the FM1, FM2, and FM3 bands.

3 Tune up or down band

Push the Control knob towards [I_▶] or [▶▶].

• During reception of stereo stations the "ST" indicator is ON.

Tuning Mode

Choose the tuning mode.

Press the [AUTO] button.

Each time you press the button, the Tuning mode alternates between the modes shown in the table below.

Tuning mode	Display	Operation
Auto seek	"AUTO 1"	Automatic search for a station.
Preset station seek	"AUTO 2"	Search in order of the stations in the Preset memory.
Manual	"MANUAL"	Normal manual tuning control.

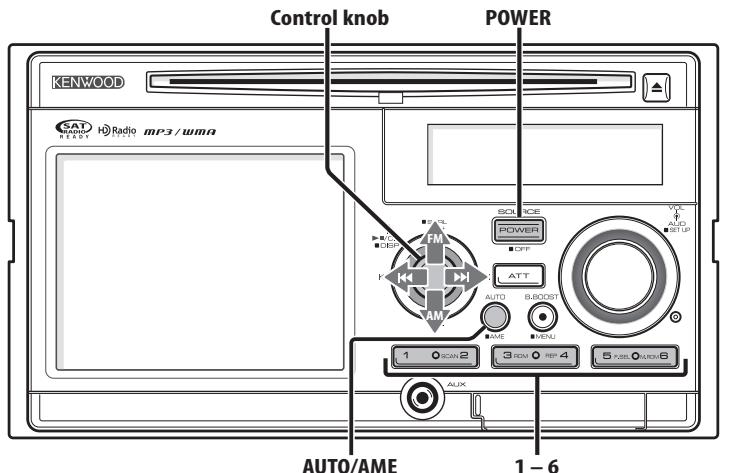

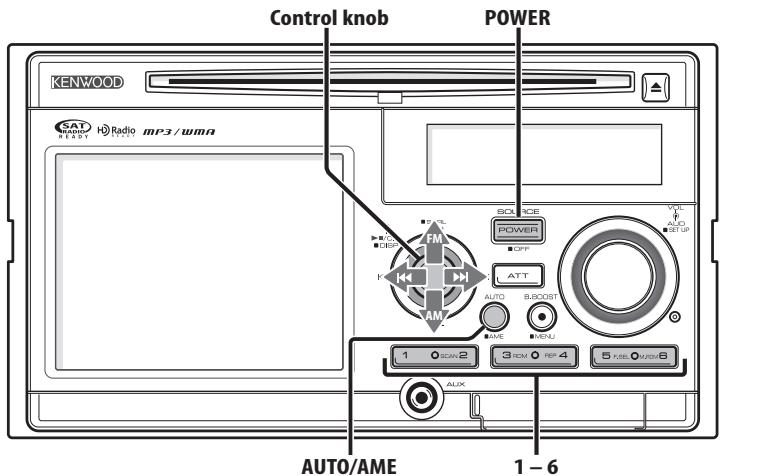

Station Preset Memory

Putting a station in the memory.

1 Select the band

Push the Control knob towards [FM] or [AM].

2 Select the frequency to put in the memory

Push the Control knob towards [1 4] or [3 1] .

3 Put the frequency in the memory

Press the desired [1] — [6] button for at least 2 seconds.

The preset number display blinks 1 time.

On each band, 1 station can be put in the memory on each [1] — [6] button.

Auto Memory Entry

Putting stations with good reception in the memory automatically.

1 Select the band for Auto Memory Entry

Push the Control knob towards [FM] or [AM].

2 Open Auto Memory Entry

Press the [AME] button for at least 2 seconds.

"A-MEMORY" is displayed.

When 6 stations that can be received are put in the memory Auto Memory Entry closes.

Preset Tuning

Recalling the stations in the memory.

1 Select the band

Push the Control knob towards [FM] or [AM].

2 Recall the station

Press the desired [1] — [6] button.

Playing CD & Audio file

When there is no disc inserted

Insert a disc.

• When a disc is inserted, the "IN" indicator is ON.

When a disc is inserted

Press the [POWER] button.

Select the "CD" display.

Pause and play

Press the Control knob.

Each time you press the knob, the audio pauses or plays.

Eject the disc

Press the [▲] button.

• You can eject the disc for 10 minutes after switching off the engine.

Playing External Disc

Playing discs set in the optional accessory disc player connected to this unit.

Press the [POWER] button.

Select the display for the disc player you want.

Display examples:

Display	Disc player
"CD CH"	CD changer
"MD CH"	MD changer

Pause and play

Press the Control knob.

Each time you press the knob, the audio pauses or plays.

Disc 10 is displayed as "0".
- The functions that can be used and the information that can be displayed will differ depending on the external disc players being connected.

Fast Forwarding and Reversing

Fast Forwarding

Hold down toward [ ] with the Control knob.

Release to resume the playback.

Reversing

Hold down toward [1-4] with the Control knob.

Release to resume the playback.

• There is no sound while the Audio file is being searched.
• The accurate track time is not displayed during fast forwarding or reversing of the Audio file.

Track/File Search

Searching for a song on the disc or in the Audio file folder.

Push the Control knob towards [I_←] or [▶▶].

Function of disc changer/ Audio file

Disc Search/Folder Search

Selecting the disc set in the Disc changer or the folder recorded on the Audio file media.

Push the Control knob towards [FM] or [AM].

Track/File/Disc/Folder Repeat

Replaying the song, disc in the Disc changer or Audio file folder you are listening to.

Press the [REP] button.

Each time you press the button, the Repeat Play alternates between the modes shown in the tables below.

In CD & External disc source

Repeat play	Display
Track Repeat	"TRAC REP"
Disc Repeat (In Disc Changer)	"DISC REP"
OFF	"REP OFF"

In Audio file source

Repeat play	Display
File Repeat	"FILE REP"
Folder Repeat	"FOLD REP"
OFF	"REP OFF"

Scan Play

Playing the first part of each song on the disc or Audio file folder you are listening to and searching for the song you want to hear.

1 Start Scan Play

Press the [SCAN] button.

"TRAC SCN"/"FILE SCN"/"SCAN ON" is displayed.

2 Release it when the song you want to listen to is played

Press the [SCAN] button.

Random Play

Play all the songs on the disc or Audio file folder in random order.

Press the [RDM] button.

Each time you press the button, Random Play turns ON or OFF.

When the Random mode is ON, "DISC RDM"/"FOLD RDM"/"RDM ON" is displayed.

• When you push the Control knob toward [ ] , the next random song starts.

Function of disc changer

Magazine Random Play

Play the songs on all the discs in the disc changer in random order.

Press the [M.RDM] button.

Each time you press the button, the Magazine Random Play turns ON or OFF.

When the Magazine Random mode is ON, "MGZN RDM" is displayed.

• When you push the Control knob toward [▶▶], the next random song starts.

Text/Title Scroll

Scrolling the displayed CD text, Audio file text, or MD title.

Push the Control knob toward [FM] for at least 2 seconds.

• When the (page 18) is set to OFF, the display may black out while scrolling.

Function of Audio file

Folder Select

Quickly selecting the folder you want to hear.

1 Enter Folder Select mode Press the [F.SEL] button.

"FLD SEL" is displayed. During Select mode the folder information is displayed as shown below.

Folder name display

Displays the current folder name.

2 Select the folder level

Push the Control knob towards [FM] or [AM].

With the [FM] of the Control knob, you move 1 level down and with the [AM] of the Control knob, 1 level up.

Selecting a folder in the same level

Push the Control knob towards [i_←] or [▶▶].

With the [▶] of the Control knob, you move to the previous folder, and with the [▶▶] of the Control knob, to the next folder.

Returning to the top level

Press the [3] button.

Scrolling the folder name display

Push the Control knob toward [FM] for at least 2 seconds.

3 Decide the folder to play

Press the Control knob.

The Folder Select mode releases, and the Audio file in the folder being displayed plays.

Cancelling the Folder Select mode

Press the [F.SEL] button.

About HD Radio

• When you connect an HD Radio, Tuner features of the unit are disabled and changed to HD Radio tuner features. A portion of the setting methods including the Tuning Mode will change.
• With the HD Radio tuner, you can use the similar functions to , , , and of Tuner features. Refer to Tuner features for how to use the functions.

Tuning

Selecting the station.

1 Select HD Radio source Press the [POWER] button

Select the "HD RADIO" display.

2 Select the HD FM band Push the Control knob toward [FM].

Each time you push the knob to [FM], the band alternates between the HF1, HF2, and HF3 bands.

Select the HD AM band Push the Control knob toward [AM].

3 Tune up or down band Push the Control knob towards [I_▶] or [▶▶].

Menu System

Setting beep sound during operation, etc. functions.

The Menu system basic operation method is explained here. The reference for the Menu items and their setting content is after this operation explanation.

1 Enter Menu mode

Press the [MENU] button for at least 1 second.

"MENU" is displayed.

2 Select the menu item

Push the Control knob towards [FM] or [AM].

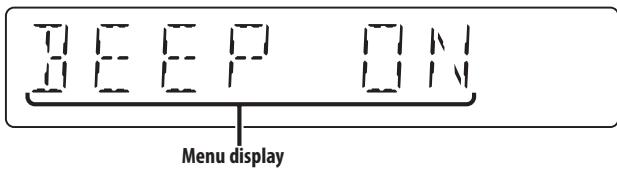

Example: When you want to set the beep sound select the "BEEP" display.

3 Set the menu item

Push the Control knob towards [I_▶] or [▶▶I].

Example: When you select "BEEP", each time you push the knob it alternates between "BEEP ON" or "BEEP OFF". Select 1 of them as the setting.

You can continue by returning to step 2 and setting other items.

4 Exit Menu mode

Press the [MENU] button.

• When other items those applicable to the basic operation method above are displayed, their setting content chart is entered. (Normally the setting listed at the top of the chart is the original setting.)

Also, the explanation for items that are not applicable ( etc.) are entered step by step.

In Standby mode

Touch Sensor Tone

Setting the operation check sound (beep sound) ON/OFF.

Display	Setting
"BEEP ON"	Beep is heard.
"BEEP OFF"	Beep canceled.

In Standby mode

Manual Clock Adjustment

1 Select Clock Adjustment mode

Push the Control knob towards [FM] or [AM].

Select the "CLK ADJ" display.

2 Enter Clock Adjust mode

Press the Control knob for at least 1 second.

The clock display blinks.

3 Adjust the hours

Push the Control knob towards [FM] or [AM].

Adjust the minutes

Push the Control knob towards [I_←] or [▶▶].

4 Exit Clock adjustment mode

Press the [MENU] button.

In Standby mode

SI (System Indicator)

The red indicator blinks when the ignition key of the vehicle is at the OFF position.

Display	Setting
"SI ON"	LED flashes.
"SI OFF"	LED OFF.

Display Illumination Control

This function turns off the display when you perform no operation for 5 seconds. This function is effective when you are driving at night.

Display	Setting
"DISP ON"	Keeps the display on.
"DISP OFF"	Turns off the display when you perform no operation for 5 seconds.

• When the display is off, pressing any key will turn on the display.
• When the display is off, you cannot perform any operation except for the following:

Volume
Attenuator
- Selecting the source
- Turning off the power

• During function control, such as the Menu System, the display stays on.

Dimmer

You can lower the brightness of the display by using the dimmer function.

Display	Setting
"DIM ON"	The display dims.
"DIM OFF"	The display doesn't dim.

In Audio file source

Supreme Setting

When AAC, MP3 or WMA files encoded at a low bit rate (less than 96kbps (fs=32k, 44.1k, 48kHz)) are played, this function restores their high frequency region to approach the sound quality of equivalents of these files encoded at a high bit rate. Processing is optimized for the compression format used (AAC, MP3, or WMA), and adjustment is made for the bit rate used.

Display	Setting
"SPRM ON"	Plays sound using the Supreme function.
"SPRM OFF"	Plays the original sound stored in the audio file.

• The sound effect may be imperceptible depending on the relationship between the audio file format and setting.

In FM reception

CRSC (Clean Reception System Circuit)

Temporarily have reception alternate from stereo to mono to reduce multi-path noise when listening to the FM station.

Display	Setting
"CRSC ON"	The CRSC is ON.
"CRSC OFF"	The CRSC is OFF.

• Strong electrical fields (such as from power lines) may cause unstable sound quality when CRSC is turned ON. In such a situation, turn it OFF.

In HD Radio mode

Receive mode Setting

Sets the receive mode.

1 Select the Receive mode

Push the Control knob towards [FM] or [AM].

Select the "HDR MODE" display.

2 Enter Receive mode

Press the Control knob for at least 1 second.

3 Set the Receive mode

Push the Control knob towards [FM] or [AM].

Each time you push the knob, the Receive mode alternates between the modes shown in the table below.

Receive mode	Display	Operation
Auto mode	"AUTO"	Analog broadcasts and digital broadcasts will be switched automatically. When both are being transmitted, the digital broadcast will have priority.
Digital	"DIGITAL"	Digital broadcasts only.
Analog	"ANALOG"	Analog broadcasts only.

4 Exit Receive mode

Press the [MENU] button.

• Even if the Receive mode is set to "AUTO", when the Ball game mode program (non-delayed broadcast program) is received, the Receive mode will automatically switch to Analog broadcast only.

In Satellite radio source

Electronic Serial Number (ESN) display

Displaying the Electronic Serial Number.

Display

"ESN **********

Electronic Serial Number (ESN)

It is important to retain the unit serial number and the electronic Satellite radio Identification number for service activation and potential service changes.

Auxiliary Input Display Setting

Selecting the display when alternating to Auxiliary input source.

1 Select Auxiliary input source

Press the [POWER] button.

Select the "AUX"/"AUX EXT" display.

2 Enter Menu mode

Press the [MENU] button for at least 1 second.

"MENU" is displayed.

3 Select Auxiliary input display setting mode Push the Control knob towards [FM] or [AM].

Select the "NAME SET" display.

4 Enter Auxiliary input display setting mode Press the Control knob for at least 1 second.

The selected Auxiliary input display is displayed.

5 Select the Auxiliary input display

Push the Control knob towards [1 4] or [3 1] .

Each time you push the knob, the display alternates as listed below.

"AUX"/"AUX EXT"
"DVD"
"PORTABLE"
"GAME"
"VIDEO"
- "TV"

6 Exit Auxiliary input display setting mode Press the [MENU] button.

• When operation stops for 10 seconds, the name at that time is registered, and the Auxiliary input display setting mode closes.
• You can only set the Auxiliary input display when the built-in auxiliary input or the auxiliary input of optional KCA-S220A is used.

Text Scroll

Setting the displayed text scroll.

Display	Setting
"SCL AUTO"	Repeats scroll.
"SCL MANU"	Scrolls when the display changes.

The text scrolled is listed below.

-CD text
- Folder name/ File name/ Song title/ Artist name/ Album name
- MD title
- Text for the Satellite radio source, HD Radio source, including Channel name, etc.

In Standby mode

CD Read Setting

When there is a problem with playing a CD with special format, this setting plays the CD by force.

Display	Setting
"CD READ1"	Play CD and Audio file.
"CD READ2"	Play CD by force.

• Some music CDs may not play even in the "CD READ2" mode.

Some functions of this unit may be disabled by some settings made on this unit.

Cannot display the user of System Q.

What might seem to be a malfunction in your unit may just be the result of slight misoperation or miswiring. Before calling service, first check the following table for possible problems.

Tuner source

? Radio reception is poor.

The car antenna is not extended.
Pull the antenna out all the way.

Disc source

The specified disc does not play, but another one plays instead.

The specified CD is quite dirty.
Clean the CD.
- The disc is loaded in a different slot from that specified.
Eject the disc magazine and check the number for the specified disc.
The disc is severely scratched.
Try another disc instead.

Audio file source

The sound skips when an Audio file is being played.

The media is scratched or dirty.
Clean the media, referring to the CD cleaning of the section on (page 5).
The recording condition is bad.
Record the media again or use another media.

HD Radio source

No sound can be heard, or the volume is low.

The preset broadcast station is not transmitting in the mode that was set with(page 19).
Please set to "AUTO".
In digital AM broadcasting, receive mode switches between stereo and monaural too often.
Receiving condition is bad or unstable. Stereo is chosen when receiving condition is good, and it switches to monaural when the condition becomes bad.
HD Radio tuner is connected to KCA-S220A or other units.
Connect the HD Radio tuner directly to this unit.

The messages shown below display your systems condition.

EJECT: No disc magazine has been loaded in the changer. The disc magazine is not completely loaded.
- No CD in the unit.

NO DISC: No disc has been loaded in the disc magazine.

TOC ERR: No disc has been loaded in the disc magazine.
- The CD is quite dirty. The CD is upside-down. The CD is scratched a lot.

E-05: The disc is unreadable.

BLANK: Nothing has been recorded on the MD.

NO TRACK: No tracks are recorded on the MD, although it has a title.

E-15: Media was played that doesn't have data recorded that the unit can play.

NO PANEL: The faceplate of the slave unit being connected to this unit has been removed.

E-77: The unit is malfunctioning for some reason.

Press the reset button on the unit. If the "E-77" code does not disappear, consult your nearest service center.

E-99: Something is wrong with the disc magazine. Or the unit is malfunctioning for some reason.

Check the disc magazine. And then press the reset button on the unit. If the "E-99" code does not disappear, consult your nearest service center.

HOLD: The protective circuit in the unit activates when the temperature inside the automatic disc changer exceeds 60^ (140^) , stopping all operation.

Cool down the unit by opening the windows or turning on the air conditioner. As the temperature falls below 60^ (140^) , the disc will start playing again.

LOAD: Discs are being exchanged in the Disc changer.

READING: The unit is reading the data on the disc.

IN (Blink): The CD player section is not operating properly.

Reinsert the CD. If the CD cannot be ejected or the display continues to flash even when the CD has been properly reinserted, please switch off the power and consult your nearest service center.

PROTECT: The speaker wire has a short-circuit or touches the chassis of the vehicle, and then the protection function is activated.

Wire or insulate the speaker cable properly and press the reset button. If the "PROTECT" code does not disappear, consult your nearest service center.

NA FILE: An Audio file is played with a format that this unit can't support.

中 --

COPY PRO: A copy-protected file is played.

Specifications subject to change without notice.

FM tuner section

Frequency range (200 kHz space)

: 87.9 MHz - 107.9 MHz

Usable sensitivity (S / N = 30dB)

: 9.3dBf (0.8 μV /75 Ω)

Quieting Sensitivity (S / N = 50dB)

Frequency response (± 3.0dB)

:30Hz-15kHz

Signal to Noise ratio (MONO)

:70dB

Selectivity (± 400kHz)

:≥80dB

Stereo separation (1 kHz)

:40dB

AM tuner section

Frequency range (10 kHz space)

: 530 kHz - 1700 kHz

Usable sensitivity (S / N = 20dB)

:28dBu (25 V)

CD player section

Laser diode

:GaAlAs

Digital filter (D/A)

: 8 Times Over Sampling

D/A Converter

:1Bit

Spindle speed

: 500 - 200 rpm (CLV)

Wow & Flutter

: Below Measurable Limit

Frequency response (± 1 dB)

: 10 Hz - 20 kHz

Total harmonic distortion (1 kHz)

:0.01%

Signal to Noise ratio (1 kHz)

:105dB

Dynamic range

:93dB

MP3decode

: Compliant with MPEG-1/2 Audio Layer-3

WMAdecode

: Compliant with Windows Media Audio

AACdecode

: AAC-LC".m4a" files

Audio section

Maximum output power

:50W×4

Full Bandwidth Power (at less than 1% THD)

:22W×4

Speaker impedance

:4-8Ω

Tone action

Bass: 100Hz± 8 dB

Middle:1kHz±8dB

Treble:10kHz±8dB

Auxiliary input

Frequency response (± 1 dB)

: 20 Hz - 20 kHz

Input Maximum Voltage

: 1200 mV

Input Impedance

: 100 kΩ

General

Operating voltage (11 - 16V allowable)

:14.4V

Current consumption

:10A

Installation Size (W x H x D)

:178x100x155mm

Weight

:1.7 kg

The "AAC" logo is trademark of Dolby Laboratories.

Réglage	Affichage
Bass Boost 1	"BB-L L1"
Bass Boost 2	"BB-L L2"
Bass Boost déactivé	"BB-L OFF"

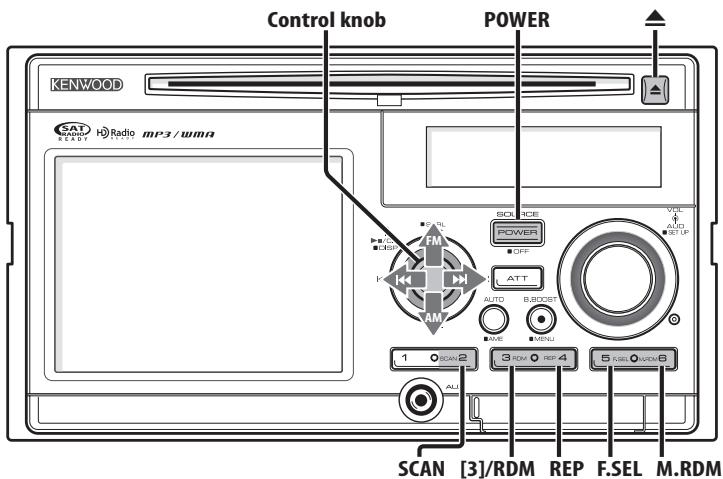

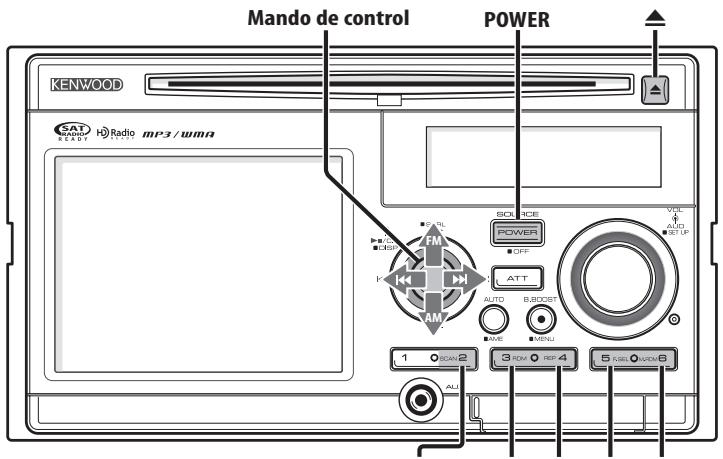

SCAN [3]/RDM REP F.SEL M.RDM

"AUX"/"AUX EXT"
"DVD"
"PORTABLE"
"GAME"
"VIDEO"
- "TV"

Section Disque Compact

Diodes laser

:GaAlAs

The "AAC" logo is trademark of Dolby Laboratories.

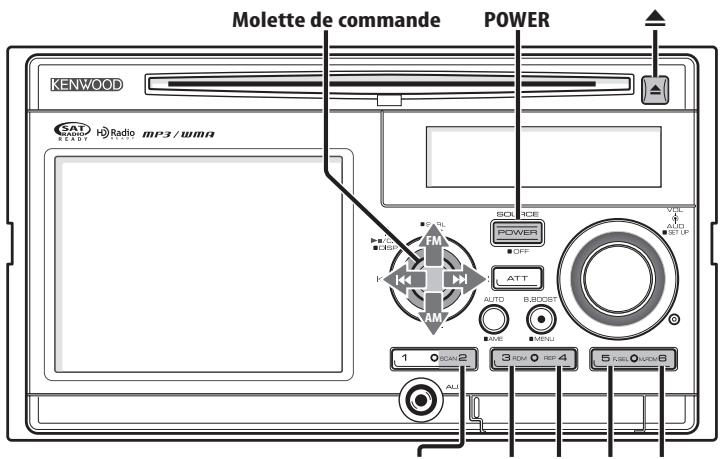

SCAN [3]/RDM REP F.SEL M.RDM

"AUX"/"AUX EXT"
"DVD"
"PORTABLE"
"GAME"
"VIDEO"
"TV"

E-05: The disc is unreadable.
