Brand	Cocraft
Model	LXC QC18
Product Type	Battery Charger
Rated Voltage	230–240 V AC, 50/60 Hz
Power Consumption	80 W
Output Voltage	18 V DC
Output Current	2.8 A
Fuse	3.15 A, slow-blow
Dimensions	15 × 10.5 × 7.5 cm
Compatible Batteries	LXC 18 V lithium-ion: J0D-110H-180, J0D-159A-180, ABP118L4, J0D-110I-180, J0D-159B
Charging Times (4.0 Ah)	75 min to 80%, 100 min to 100%
Charging Indicator	Green steady: mains on; Red steady: 0-79%; Green flashing: 80-99%; Green steady: 100%; Red flashing: faulty battery
Safety Class	Class II (double insulated)
Usage Environment	Indoor only, temperature 5–40 °C for charging
Cleaning	Wipe with dry cloth, vacuum vents, unplug before cleaning
Repairability	Repairs by qualified technicians using genuine spare parts only
Disposal	Recycle at local collection facility, do not dispose with household waste
Article Numbers	18-3629 / 41-1379

Frequently Asked Questions - LXC QC18 Cocraft

What batteries are compatible with the Cocraft LXC QC18 charger?

Only LXC 18 V lithium-ion batteries of the following models: J0D-110H-180, J0D-159A-180, ABP118L4, J0D-110I-180, and J0D-159B. Using other batteries may cause fire or explosion.

How do I charge a battery with this charger?

Plug the charger into a wall socket (the indicator shines green). Slide the battery onto the charger. The indicator turns red while charging 0-80%, then flashes green until full, then shines steady green. Remove the battery when fully charged and unplug the charger.

What do the indicator lights mean?

The indicator shows: Green steady = charger connected to mains; Red steady = battery 0-79% charged; Green flashing = battery 80-99% charged; Green steady = fully charged; Red flashing = faulty battery.

Why is my battery not charging?

Check that the mains lead is plugged in and the socket is energised. The battery may be too warm – let it cool. Ensure the battery is inserted correctly. Clean the contacts if needed (unplug charger first). If the charger or cable is damaged, or the battery is defective, replace them.

Can I leave the battery on the charger after it is fully charged?

It is recommended to remove the battery once fully charged and unplug the charger from the wall socket when not in use to save energy and avoid overheating.

What safety precautions should I take?

Use only with 230-240 V AC, 50/60 Hz. Do not cover ventilation slots. Avoid impacts, extreme temperatures, and moisture. Never open the housing or modify the charger. Keep away from children. If the mains lead is damaged, have it replaced by a qualified electrician.

How do I clean the charger?

Unplug the charger before cleaning. Wipe the housing with a dry cloth and vacuum the ventilation slits to remove dust. Dirt can cause electric shocks.

How long does it take to charge a 4.0 Ah battery?

A 4.0 Ah battery reaches 80% in about 75 minutes and 100% in about 100 minutes. Charging times may vary depending on battery age and condition.

Can I charge non-LXC batteries?

No, only charge the specified LXC 18 V lithium-ion batteries. Using other battery types poses a risk of fire or explosion.

How should I dispose of this charger?

The charger should not be disposed of with household waste. Take it to a local collection facility or contact the place of purchase for environmentally responsible recycling.

USER MANUAL LXC QC18 Cocraft

Read the entire instruction manual carefully and make sure that you fully understand it before you use the equipment. Keep the manual for future reference.

Viktig information:

Original instructions

Bruksanvisning i original

Originalbruksanvisning

Postal 10 - 13 Market Place

Kingston Upon Thames

Surrey

KT1 1JZ

DEUTSCHLAND

Kundeservice Hotline: [phone]

E-Mail: [e-mail]

LXC QC18 Battery Charger

Art.no 18-3629/41-1379 Model FC30-1802800

Please read the entire instruction manual before use and then save it for future reference. We reserve the right for any errors in text or images and any necessary changes made to technical data. In the event of technical problems or other queries, please contact our Customer Services.

Safety

• The product may be used by children aged 8 years and above and by persons with reduced physical, sensory or mental capability or lack of experience and knowledge provided they have been given supervision or instruction concerning use of the product in a safe way and understand the hazards involved.
• Never let children play with the product.
• Cleaning and user maintenance shall not be done by children without adult supervision.
• If the mains lead is damaged in any way it must be replaced by a qualified electrician.
• Unplug the product from the power point once the charging has been completed.
• The product should only be connected to a 230 V AC, 50/60 Hz electrical outlet.
• The product must only be used as described in this instruction manual.
• Do not subject the product to impacts or shocks and do not expose it to extremely hot, cold or dusty environments. Never immerse the product in water or other liquid.
• This product is intended for indoor use only.
• Never try to open the housing or modify the product in any way.
• Only charge LXC 18 V lithium-ion batteries of the models: J0D-110H-180, J0D-159A-180, ABP118L4, J0D-110I-180 and J0D-159B. The voltage of the battery must match the voltage of the charger. If the wrong type of battery is charged there is a risk of fire or explosion.
• Do not cover or block any ventilation openings on the product. Doing so may cause the product to overheat and pose a fire risk.
• Inspect the product, the mains lead and the plug before each use. Do not use the product if it, its mains lead or plug are damaged in any way.
• All repairs must be carried out by qualified service technicians using genuine spare parts. A damaged charger, mains lead or plug will increase the risk of electric shock.

For indoor use only.

Read the entire instruction manual.

Class II product. Double-insulated.

Product description

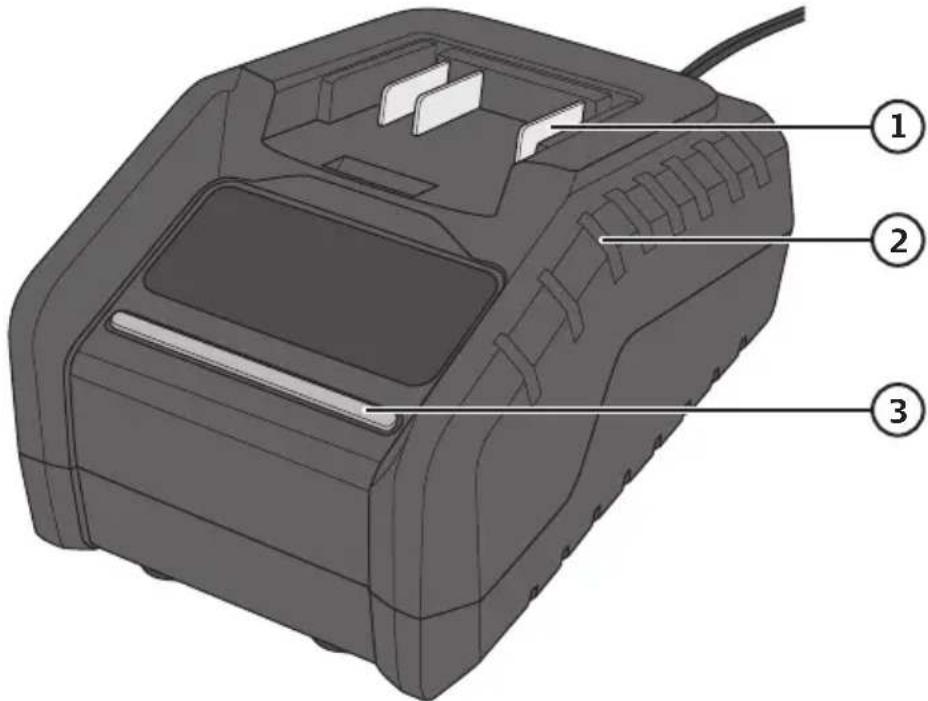

1. Battery connection
2. Ventilation slits
3. Power and charging status indicator

Instructions for use Charging the battery

Temperature range for charging the battery: 5–40 °C.

1. Plug the charger into a wall socket. The indicator will shine green to indicate that the charger is receiving power from the mains.

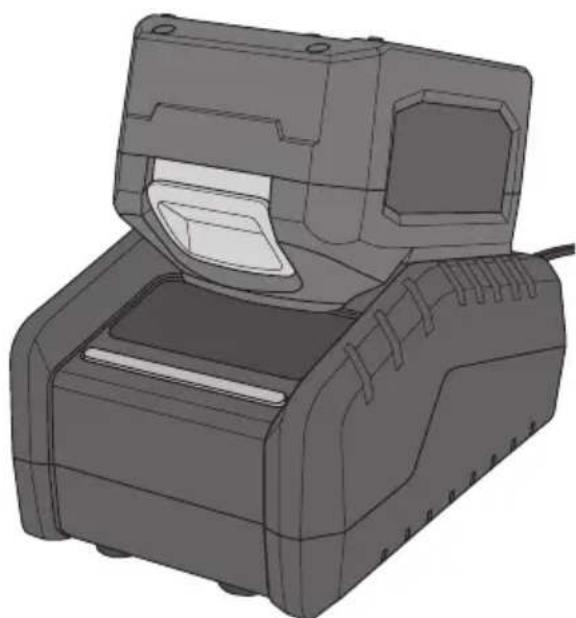

2. Slide the LXC battery onto the charger.
3. The indicator will shine red when the battery is 0–80% charged. When the battery has reached 80% charge, the indicator will flash green until the battery is fully charged, when the indicator will shine a steady green.
4. Remove the battery from the charger when it is fully charged. Unplug the charger from the wall socket when it is not in use.

3D rendered illustration of a handheld electronic device with a lid and control panel (no text or symbols visible)

Important

- If a fully charged battery is connected to a battery charger that is connected to the mains, the indicator will first shine red for a couple of seconds and then change to green.

- If a battery which is too warm, is connected to the battery charger, nothing will happen. The indicator will continue to shine a steady green. When the battery has cooled sufficiently, it will begin charging automatically.

The charger indicates the charging status as follows

Charge indication Red Green
The charger is connected to the mains Off On
Charge level 0–79% On Off
Charge level 80–99% Off Flashes
Charge level 100% Off On
Faulty battery Flashes Off

Care and maintenance

- Unplug the mains lead from the wall socket before cleaning.

- Keep the housing of the charger clean. Wipe the charger clean with a dry cloth and vacuum clean when needed. Dirt can cause electric shocks.

- If the charger is not to be used for an extended period, it should be unplugged and stored in a dry and dust-free location out children's reach.

Troubleshooting guide

The battery does not charge.

Check that the mains lead is properly plugged into a wall socket.Check that the wall socket is energised.The battery is too warm, let it cool.Check that the battery is inserted correctly into the charger.The battery or charger contacts might need to be cleaned.Note:Unplug the charger from the wall socket before cleaning the contacts.The charger or its cable is damaged.The battery is defective and must be replaced.

The battery charge is poor after it has been charged.

The battery is not fully charged. Charge the battery until the indicator (2) shines a steady green.The battery needs replacing.

Responsible disposal

This symbol indicates that this product should not be disposed of with general household waste. This applies throughout the entire EU. In order to prevent any harm to the environment or health hazards caused by incorrect waste disposal, the product must be handed in for recycling so that the material can be disposed of in a responsible manner. When recycling the product, take it to your local collection facility or contact the place of purchase. They will ensure that the product is disposed of in an environmentally sound manner.

Symbol of a trash bin with crossed lines indicating no waste or restriction, and a solid black rectangle below (no text or labels)

Specifications

Rated voltage 230–240 V AC, 50/60 Hz, 80 W

Output voltage 18 V DC

Output current 2.8 A

Fuse 3.15 A, slow-blow

Charging times* 1.5 Ah: 25 min 80%, 40 min 100%

2.0 Ah: 35 min 80%, 50 min 100%

3.0 Ah: 50 min 80%, 75 min 100%

4.0 Ah: 75 min 80%, 100 min 100%

Size 15 × 10.5 × 7.5 cm

*Charging times can vary depending on the age and condition of the batteries.

Batteriladdare LXC QC18

Art.nr 18-3629/41-1379 Modell FC30-1802800

3D rendering of a handheld electronic device with a top panel and internal components (no visible text or symbols)

Viktigt!

Symbol of a trash bin with no text or labels, crossed by diagonal lines and a solid rectangle below (no readable text or symbols)

Specifikationer

Nätanslutning 230–240 V AC, 50/60 Hz, 80 W

Utspänning 18 V DC

2,0 Ah: 35 min 80%, 50 min 100%

3,0 Ah: 50 min 80%, 75 min 100%

4,0 Ah: 75 min 80%, 100 min 100%

Mått 15 × 10,5 × 7,5 cm

3D rendered illustration of a handheld electronic device with a top panel and internal components (no text or symbols visible)

Viktig!

Symbol of a trash bin with no text or labels, crossed by diagonal lines and a solid rectangle below (no readable text or symbols)

Spesifikasjoner

Nettspenning 230–240 V AC, 50/60 Hz, 80 W

Utspenning 18 V DC

2,0 Ah: 35 min 80%, 50 min 100%

3,0 Ah: 50 min 80%, 75 min 100%

4,0 Ah: 75 min 80%, 100 min 100%

Mål 15 × 10,5 × 7,5 cm

3D rendering of a handheld electronic device with lid and screen (no text or symbols visible)

Huom.!

Symbol of a trash bin with no text or labels, crossed by diagonal lines and a solid rectangle below (no readable text or symbols)

Tekniset tiedot

2,0 Ah: 35 min 80%, 50 min 100%

3,0 Ah: 50 min 80%, 75 min 100%

4,0 Ah: 75 min 80%, 100 min 100%

Mitat 15 × 10,5 × 7,5 cm

3D rendering of a handheld electronic device with a lid and screen (no text or symbols visible)

Wichtig

Symbol of a trash bin with no text or labels, crossed by diagonal lines and a solid rectangle below (no readable text or symbols)

Technische Daten

2,0 Ah: 35 min 80%, 50 min 100%

3,0 Ah: 50 min 80%, 75 min 100%

4,0 Ah: 75 min 80%, 100 min 100%

Declaration of Conformity

Declares that this product complies with the requirements of the following directives and standards
