Product Type	Juicer
Brand	Juiceman
Model	Express Jr. JM1000M
Color	White/Stainless Steel
Material	Plastic and Stainless Steel
Power Consumption	500 W
Voltage	120 V / 60 Hz
Motor Speed	12,000 RPM
Cord Length	3.3 ft (1 m)
Juice Container Capacity	500 ml
Pulp Container Capacity	1 L
Feed Chute Width	2 inches (5 cm)
Safety Locking Arm	Yes
Non-slip Feet	Yes
BPA-Free	Yes
Dishwasher Safe Parts	Yes (except motor base)
Weight	5 lbs (2.3 kg)
Dimensions (H x W x D)	12 x 8 x 10 inches (30.5 x 20.3 x 25.4 cm)

Frequently Asked Questions - Express Jr. JM1000M JUICEMAN

How do I assemble the Juiceman Express Jr. JM1000M?

Place the motor base on a flat surface. Attach the pulp container, then the stainless steel filter basket. Lock the cover with the safety arm. Finally, place the juice jug under the spout.

Can I juice whole fruits without cutting them?

No, you should cut fruits and vegetables into small pieces to fit the feed chute. The feed chute width is about 2 inches, so cut items accordingly.

How do I clean the juicer after use?

Unplug the juicer. Disassemble all removable parts. Rinse them immediately under running water. Use the cleaning brush to remove pulp from the filter basket. All parts except the motor base are dishwasher safe.

Why is my juicer vibrating excessively?

Excessive vibration may be due to unbalanced load or improper assembly. Ensure the filter basket is correctly seated and the pulp container is locked. Also, check that the juicer is on a stable, level surface.

What is the maximum running time for continuous use?

Do not run the juicer for more than 2 minutes continuously. Allow it to cool down for at least 2 minutes before resuming to prevent motor overheating.

Can I juice leafy greens like spinach or wheatgrass?

Yes, the Juiceman Express Jr. can handle leafy greens. For best results, roll them into a tight ball and feed slowly. Use the included plunger to push them down the chute.

How do I replace the filter basket or other parts?

Replacement parts are available from Juiceman customer service. The filter basket, cover, and other plastic parts are sold separately. Contact Juiceman for part numbers.

Is the juicer safe to use if the pulp container is overfilled?

No, overfilling the pulp container can cause jamming or leakage. Stop juicing and empty the pulp container when it reaches the max fill line.

What should I do if the motor stops working?

First, check if the safety locking arm is properly engaged. If the motor overheated, wait 10 minutes for it to cool and reset. If it still doesn't work, contact Juiceman support.

Can I juice frozen fruits?

No, the juicer is not designed for frozen fruits. Thaw them first to avoid damaging the motor or blades. Only use fresh or room-temperature produce.

USER MANUAL Express Jr. JM1000M JUICEMAN

Juiceman® Express Jr.

Juice Extractor & Food Processor

Customer Care Line:

USA/Canada

1-800-231-9786

Mexico

01-800 714-2503

Accessories/Parts

(USA / Canada)

Accesorios/Partes

(€€.UU / Canadá)

1-800-738-0245

For online customer service and to register your product, go to

www.prodprotect.com/applica

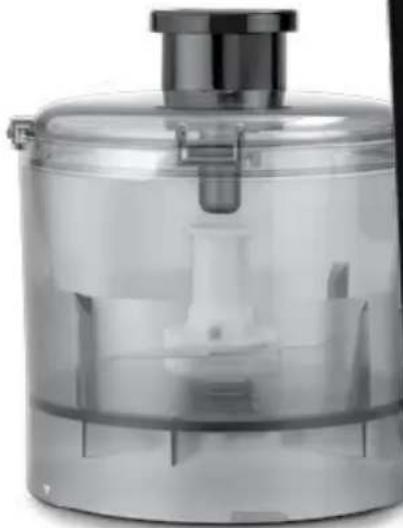

Close-up of a transparent cylindrical device with a central handle and internal components (no visible text or symbols)

MODEL/MODELO

○ JM1000M

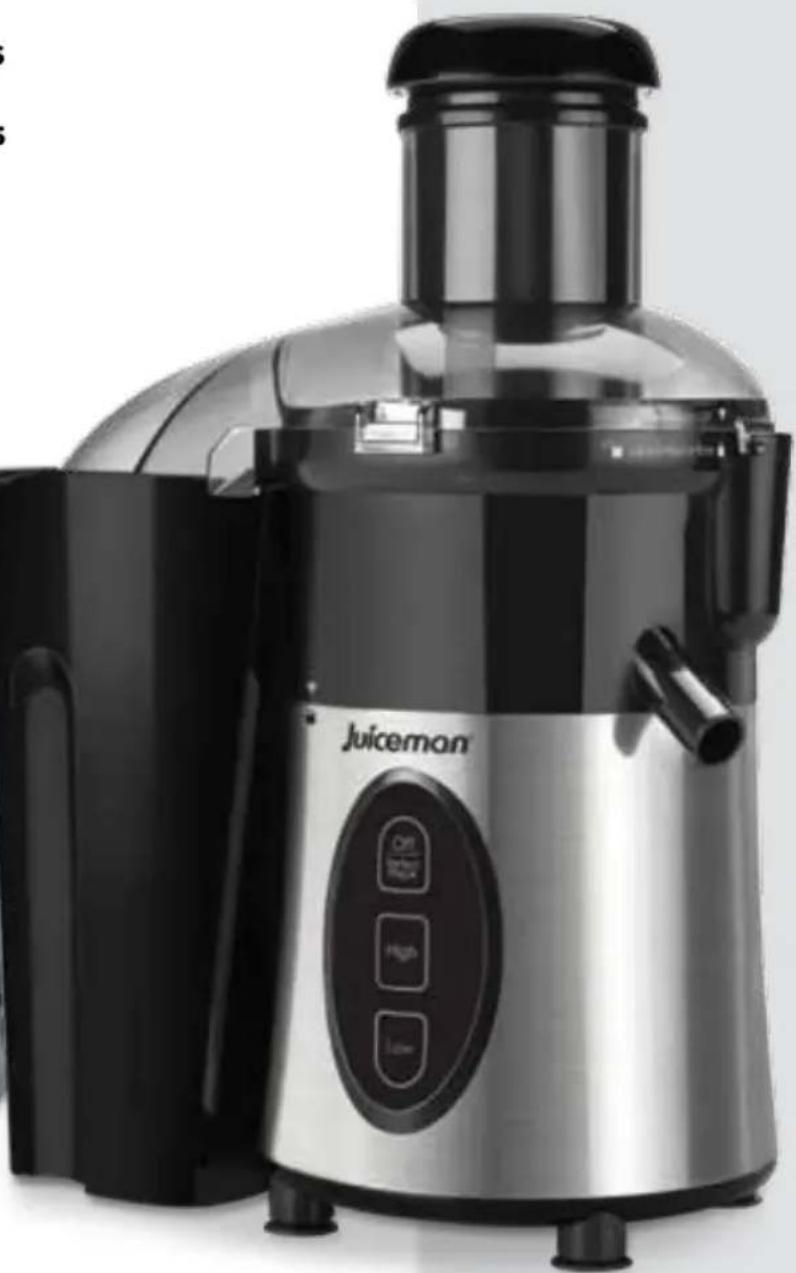

Black and white photo of a juiceman-style juice maker with control buttons (no visible text or symbols on the device body)

Please Read and Save this Use and Care Book

IMPORTANT SAFEGUARDS

When using electrical appliances, basic safety precautions should always be followed including the following:

• Read all instructions.
  To protect against risk of electrical shock do not put cord, plugs or appliance in water or other liquid.
• Close supervision is necessary when any appliance is used by or near children.
  ○ Unplug from outlet when not in use, before putting on or taking off parts, or before cleaning.

○ Avoid contacting moving parts.

Do not operate any appliance with a damaged cord or plug or after the appliance malfunctions, or is dropped or damaged in any manner. Return appliance to the nearest authorized service facility for examination, repair or electrical or mechanical adjustment. Or, call the appropriate toll-free number on the cover of this manual.

The use of attachments not recommended or sold by the manufacturer may cause fire, electric shock or injury.

- Do not use outdoors. - Do not let cord hang over edge of table or counter, or touch hot surfaces.

Always make sure juicer cover is clamped securely in place before motor is turned on. Do not unfasten clamps while juicer is in operation.

☐ Be sure to turn switch to OFF position after each use of your juicer. Make sure the motor stops completely before disassembling.

Do not put your fingers or other objects into the juicer opening while it is in operation. If food becomes lodged in opening, use food pusher or another piece of fruit or vegetable to push it down. When this method is not possible, turn the motor off and disassemble juicer to remove remaining food.

○ Do not use the appliance if the rotating sieve is damaged.

○ Do not operate without the pulp container in place.

Keep hands and utensils away from moving blades or discs while processing food to reduce the risk of severe injury to persons or damage to the food processor. A scraper may be used, but must be used only when the food processor is not running.

- Blades are sharp. Handle carefully.

- Do not place on or near a hot gas or electric burner, or in a heated oven.

To reduce the risk of injury, never place cutting blade or discs on base without first putting bowl properly in place.

○ Be certain cover is securely locked in place before operating appliance.

- Never feed food by hand. Always use food pusher.

○ Do not attempt to defeat the cover interlock mechanism.

SAVE THESE INSTRUCTIONS This product is for household use only.

POLARIZED PLUG (120V Models Only)

This appliance has a polarized plug (one blade is wider than the other). To reduce the risk of electric shock, this plug is intended to fit into a polarized outlet only one way. If the plug does not fit fully into the outlet, reverse the plug. If it still does not fit, contact a qualified electrician. Do not attempt to modify the plug in any way.

TAMPER-RESISTANT SCREW

Warning: This appliance is equipped with a tamper-resistant screw to prevent removal of the outer cover. To reduce the risk of fire or electric shock, do not attempt to remove the outer cover. There are no user-serviceable parts inside. Repair should be done only by authorized service personnel.

ELECTRICAL CORD

a) A short power-supply cord is to be provided to reduce the risk resulting from becoming entangled in or tripping over a longer cord.
b) Extension cords are available and may be used if care is exercised in their use.
c) If an extension cord is used,

1) The marked electrical rating of the extension cord should be at least as great as the electrical rating of the appliance,

2) The longer cord should be arranged so that it will not drape over the countertop or tabletop where it can be pulled on by children or tripped over.

Note: If the power supply cord is damaged, it should be replaced by qualified personnel or in Latin America by an authorized service center.

GETTING TO KNOW YOUR JUICEMAN® EXPRESS JR.

Product may vary slightly from what is illustrated.

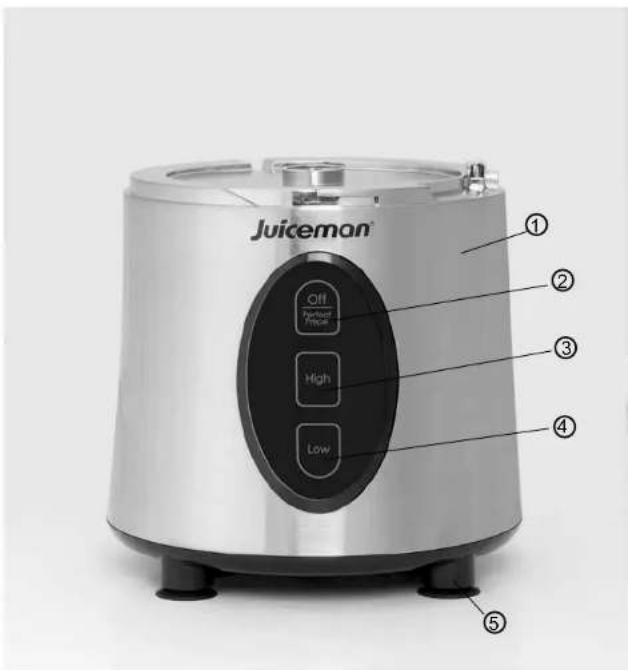

BASE

1. Motor base
2. Off / Perfect Prep™ button
3. High button
4. Low button
5. Skid-resistant feet
6. Spatula/cleaning brush (not shown)

Note: For part assemblies, please refer to the specific section for the attachment you wish to use.

How to Use

This product is for household use only.

GETTING STARTED

• Remove all packing material, and any stickers from the product; remove and save literature.
• Please go to www.prodprotect.com/applica to register your warranty; for additional information about your Juiceman® Express Jr. go to www.juiceman.com.
• Your appliance is partially assembled in the box. Take the appliance apart and wash all removable parts as instructed in CARE AND CLEANING section of this manual. This will remove any traces of dust or residue left from manufacturing and shipping.

Note: The blades are covered by 2 plastic sleeves. Do not discard; instead, save them to store the blade safely and help to retain its sharpness.

Important: Handle the blades very carefully. They are very sharp. We suggest handling the blades by the center post.

- Select a level dry countertop where the appliance is to be used, allowing air space on all sides to provide proper ventilation for the motor.

Important: Do not rinse or immerse motor base in water or any other liquid.

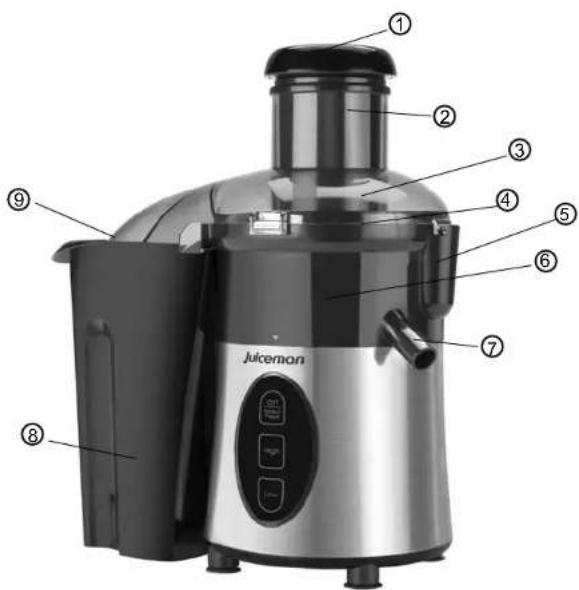

GETTING TO KNOW YOUR JUICE EXTRACTOR

† 1. Food pusher (Part # JM2000S-01)

1. Feed chute

† 3. Juice extractor lid (Part # JM2000S-02)

† 4. Stainless steel mesh filter (not shown) (Part # JM2000S-03)

1. Safety lock latch

† 6. Juice extractor base (Part # JM2000S-15)

1. Juice spout

† 8. Pulp container (Part # JM2000S-04)

1. Pulp spout

Note: † indicates consumer replaceable/removable parts

How to Use

The control buttons are located on the front of the base. Press Low or High to select your desired speed. Refer to the SPEED CHART to help select the right speed for your produce.

Note: The Perfect Prep™ button is not recommended for use with the juice extractor.

Low

Use Low speed for softer produce like berries, citrus fruits, leafy vegetables and soft-skinned produce such as peaches, plums and cucumbers.

High

Use High speed for harder produce like rind-on melons and pineapple, beets and ginger.

Off

The juice extractor will run continuously until the Off button is pressed. The appliance should be stored in Off position and unplugged when not in use.

IMPORTANT: Always press the OFF button before plugging in the appliance.

PURCHASING AND STORING INGREDIENTS

• Always use fresh fully ripened fruits and vegetables.
- When purchasing, consider selecting fruits and vegetables in season for best freshness and flavor.
- Choose fruits that are plump, tender and have bright color. Fruits should be heavy for their size without bruises, cuts or blemishes.
- To ripen fruit, place in a small clean paper bag. Close the bag loosely and let stand at room temperature. (To speed ripening, add a ripe apple or banana to the bag.) Once ripened, store in the refrigerator for a day or two until ready to use.
- Store perishable vegetables in the refrigerator until ready to use.

PREPARING FRUITS AND VEGETABLES

- Wash fruits and vegetables thoroughly just before using in the juice extractor, using a natural bristle brush. We suggest using a biodegradable cleaner, such as Fit® Fruit and Vegetable Wash to help remove pesticide residue.

• If desired, remove the skin. The skin can be left on all produce with the exception of:
  o All citrus fruits, including
• Oranges
• Grapefruit
• Lemons
  • Limes
• Tangerines

Note: The oil in the skin of these fruits tastes bitter and is difficult to digest.

Hint: Although the skin may be left on melons and pineapple, you may choose to remove them to maximize the fruit flavor in the finished drink.

- All pits and large seeds should be removed, including:

o Apricots
o Cherries
o Nectarines
o Mangoes
o Peaches
o Plums
o Melons
- Remove and discard outer leaves of non-organic produce. Peel away any wax coatings.
- Trim any bruised or discolored sections of fruits and vegetables
- The design of the feed chute accommodates larger produce. It will easily accommodate most whole fruits and vegetables, such as apples, beets and carrots. If necessary, cut into large pieces before inserting into feed tube.
- Be sure all parts of the juice extractor are clean and dry. See CLEANING instructions on page 13.

ASSEMBLING THE JUICE EXTRACTOR

Close-up of a hand pressing down on a black beverage container with control buttons (no visible text or symbols)

1. Place the juice extractor base over the motor base with the arrow on the juice extractor base directly above the unlock ☐ symbol on the motor base. Turn the juice extractor base counterclockwise until it locks into position (A). The arrow will now be above the lock ☐ symbol on the motor base.

Close-up of a kitchen appliance with a circular glass lid and side-mounted fan (no visible text or symbols)

1. With both hands, hold the stainless steel mesh filter by the rim and center it over the drive shaft. Lower the filter into the juice extractor base, rotating it clockwise until it drops into place. You will hear it snap when it is engaged [B].

Important: The cutting blades at the bottom of the filter are very sharp. Always handle the filter by the rim.

Note: When properly assembled, the filter will spin freely inside the juice extractor base. This can be checked by spinning the filter by the rim.

Close-up of a hand holding a glass kitchen appliance with arrows indicating rotation (no text or symbols visible)

1. Place the lid on the juice extractor base so that the safety lock tab is to the right of the safety lock latch. Rotate the lid counterclockwise until the bar snaps into the latch (C).

Important: Always press the OFF button to make sure the appliance is off before securing the lid.

Close-up of a kitchen blender with a digital display showing the brand logo (no visible text or symbols on the device itself)

1. Tilt the pulp container slightly and place it directly under the pulp spout. Push the bottom of the pulp container so it rests against the side of the motor base (D).

Hint: To make cleanup more convenient, line the pulp container with a small plastic bag to collect the pulp.

Close-up of a modern electric juice maker with a glass beside it (no visible text or symbols)

1. Place a glass or a measuring cup under the juice spout to collect the juice (E).
2. Place the food pusher into the feed chute. Important: For your protection, this appliance has an interlock system. The juice extractor will not operate unless the lid is properly locked in place.

HOW TO USE JUICE EXTRACTOR

1. Follow the instructions on pages 8 and 9 to assemble the juice extractor.
2. Assemble the prepared fruits and/or vegetables to be used on the counter or in a bowl next to the juice extractor.

Exterior view of a modern office building (no signage)

1. Place a clean glass for your juice under the juice spout (F).
2. Be sure the pulp container is in place.
3. Plug appliance into standard electrical outlet.
4. Turn the power to the Low setting and allow to run 10 seconds before placing any food into the feed chute.
5. To use High, allow the appliance to run 10 seconds on Low, then select High and place the food in the feed chute.

Note: Use the RECOMMENDED SPEEDS guide to help determine your speed setting.

Close-up of a hand holding a black cylindrical object over a dark container, with no visible text or symbols.

1. Use the food pusher as a guide to gently direct the produce through the feed chute. To get the most juice from the fruits and vegetables, do not rush the food through the appliance (G).

Note: When using the appliance, do not allow the pulp container to overfill. This may cause the appliance to stall.

1. To empty the pulp container or the juice glass during use, simply turn the appliance Off. Allow the motor to come to a complete stop and for all juices to finish dripping from the spout before emptying. Be sure to replace pulp container and juice glass before resuming extraction.

2. Unplug the appliance when not in use.

Important: Never place fingers or hands into the feed chute.

FRUITS RECOMMENDED SPEED
Apricots Low
Blueberries Low
Blackberries Low
Cherries Low
Citrus Fruits Low

Grapes Low
Kiwi Low
Mangoes Low
Melons (skin removed)	Low
Peaches	Low
Plums	Low
Raspberries	Low
Strawberries	Low
Apples	High
Cranberries	High
Melons (skin on)	High
Pineapple (skin on)	High
Papaya (skin on)	High
VEGETABLES	RECOMMENDED SPEED
Cucumber	Low
Kale	Low
Parsley	Low
Spinach	Low
Tomatoes	Low
Asparagus	High
Beets	High
Broccoli	High
Cabbage	High
Carrots	High
Celery	High
Fennel High
Ginger	High
Potatoes High
Sweet Potatoes	High

HINTS AND TIPS FOR YOUR JUICE EXTRACTOR

• Do not put food into the juice extractor before turning the appliance on.
• Let the appliance run for at least 10 seconds before placing any food into the feed chute.
• Do not let the pulp container or juice glass overfill while using the machine. Turn the appliance off, wait for the motor to stop running and any juice to stop flowing. Empty the juice glass and/or pulp container. Be sure they are properly replaced before resuming operation of the extractor.
• When processing different fruits and vegetables, process the soft foods on Low speed first; follow with the fruits and vegetables that use the High speed.
• When processing leafy vegetables, such as parsley and herbs, add the herbs between the harder foods.
• For easy clean up, place a plastic bag inside the pulp container before using the appliance.
• When processing small fruits, like grapes, add them in handfuls.
• Beets and pomegranates stain easily; process them last and wash all parts before making another juice drink.
• Do not process bananas, avocados or coconut. They have no juice and will clog the appliance.
• Be sure to remove all pits and large seeds from fruits.
• To make delicious citrus juice, peel the fruit, removing all the white pith. Refrigerate till cold and process the fruit through the extractor for a great drink.
• For maximum nutritional benefits drink your processed juice right away.

Tip for optimum juicing: Avoid excessive build up of pulp on the underside of the lid.

USES FOR THE PULP

Tip: The pulp from the fruits and vegetables is high in nutritional value.

• Use it to add fiber and flavor to muffins and quick breads.
• Use it to thicken soups, casseroles and sauces.
• Use fruit pulp to add nutrition and flavor to desserts, such as, puddings and cakes.
• Be sure to use it the same day you extract the juice.
• Pulp is also food for your garden. Use it for compost.

Care and Cleaning

This product contains no user serviceable parts. Refer service to qualified service personnel.

Important: Always unplug your appliance from the outlet before cleaning. CLEANING

1. Unplug your Juiceman® Express Jr. and disassemble.
2. Using a sponge or damp cloth, clean the base, rubber feet and underside of the motor base. If necessary, you may use a damp toothbrush or cloth to clean juice from the inside of the drive shaft (on top of motor base).
3. All parts – except the base – are dishwasher-safe (top-rack only) or you may wash in warm, soapy water, using any mild liquid dishwashing detergent. Do not use any products containing ammonia or scouring powders, as these can dull, scratch or mar the surface. Use the cleaning brush provided to remove pulp left on any of the removable parts. Do not use metal brushes or pads.
4. To clean the filter, use cleaning brush provided to make sure the tiny holes in the mesh filter are not clogged. This can be accomplished by holding filter under a running faucet while brushing the mesh screen from both the inside and outside of the filter.

Important: Do not immerse the base in water or spray with water. Clean only by wiping with a damp sponge, cloth or paper towel.

Tip: Pulp from pulp container can be used in many different ways: making breads, muffins, cakes, soup stocks, compressed facial packs and garden compost material.

REMOVING TOUGH STAINS

1. Due to powerful staining properties of carotenoids found in many vegetables, particularly carrots, we suggest soaking any stained parts overnight in one of the following solutions:
2. Biodegradable soap in enough warm water to cover juice extractor parts
3. 14 cup bleach added to a sink full of warm water
   • 1 part warm water to 1 part cider vinegar
4. 12 small box of baking soda in enough warm water to cover juicer parts.

Important: Never use ammonia or abrasive cleansers!

1. After soaking overnight, lightly scrub with soft bristle brush and liquid detergent.

STORAGE

Store your appliance in a clean, dry place. Never wrap cord tightly around the appliance. Do not put any stress on cord where it enters the motor base, as this could cause cord to fray and break.

TROUBLESHOOTING FOR THE JUICE EXTRACTOR

PROBLEM POSSIBLE CAUSE SOLUTION
Juice extractor will not start when speed button is depressed.	The juice extractor portion of the appliance may not be assembled correctly.	Check the ASSEMBLY instructions found on pages 8 and 9.
The motor of the juice extractor seems to be struggling.	Pulp container may be full.Pulp may have collected under the lid.The speed selected may not be correct	Turn off the appliance.Empty the pulp container.Do not allow the pulp container to get too full.Turn off and unplug the appliance. Disassemble the appliance and take off the lid. Wash thoroughly and return to appliance following the assembly instructions.Check the RECOMMENDED SPEED guide on pages 10 and 11.
The juice extractor has stopped producing juice.	The filter basket may be blocked.	Turn off and unplug the appliance. Disassemble the appliance and take off the lid. Wash thoroughly and return to appliance following the assembly instructions.
The juice extractor is not producing as much juice as expected.	High fiber fruits and vegetables may be clogging the filter.	Turn off and unplug the appliance. Disassemble the appliance and take off the lid. Wash thoroughly and return to appliance following the assembly instructions.
Appliance stops running.	Motor may be overheating.	Unplug appliance and allow it to cool approximately 5 minutes before continuing use.

NOTES

OVERHEAT PROTECTION SYSTEM

Important: This appliance contains a PTC overheat protection system. When the appliance is being operated for too long or with too much load, the PTC protector will shut down the power of the appliance to protect the unit. If the power shuts down, unplug for 20 minutes and plug in for normal operation.

† 1. Workbowl feed chute cap (Part # JM2000S-11)

1. Workbowl feed chute

† 3. Workbowl lid (Part # JM2000S-12)

1. Safety lock latch

2. Workbowl handle

† 6. 9-cup workbowl (Part # JM2000S-13)

† 7. Flat blade (Part # JM2000S-15)

† 8. S-blade (Part # JM2000S-14)

Note: indicates consumer replaceable/removable parts

How to Use

CONTROL BUTTONS FOR THE WORKBOWL

The control buttons are located on the front of the base. Press Low or High to select a speed.

Off/Perfect Prep™ button

The appliance should be stored in Off position and unplugged when not in use. The Perfect Prep™ function works like a pulse function and is perfect for short and precise tasks. It lets you control the size and uniformity of the foods being chopped.

• The Perfect Prep™ button must be pressed and held for the appliance to operate. When released, the appliance will stop. Do not use the Perfect Prep™ button longer than 2 minutes continuously.
• The motor runs as long as this button is held down. Press the button down and then release; allow the blades to stop running and the food to fall to the bottom of the workbowl before pressing again.
• This function gives better control when chopping, mincing, mixing and blending foods. You can control the size of the foods from coarse to fine.

High/Low Speed Control

• When either speed is selected, the processor will run continuously until the Off button is pressed.
  • These speeds are used for chopping, blending, dressings, sauces and making batters.

IMPORTANT: Always press the OFF button before plugging in the appliance. CUTTING BLADES

The workbowl comes with two blades (see callouts 7 and 8 on page 16):

- The "S" blade can be used for chopping vegetables and fruits, mincing cooked meats, grinding coffee beans and nuts and making cookie and bread crumbs.

• The flat blade can be used for:

o Grinding coffee beans (up to 2 cups- approximately 5 oz)
o Grinding nuts (up to 1 cup- approximately 4 oz)
o Making bread and cookie crumbs (up to 2 cups- approximately 5 oz) ASSEMBLING THE WORKBOWL

1. Place the workbowl on the motor base so the arrow on the workbowl is placed directly over the unlock □ symbol on the motor base.

Close-up of a hand pressing down on a glass water heater with a lid, labeled 'Adolescent' (no other text or symbols visible)

1. Hold handle and rotate workbowl counterclockwise toward the lock symbol until it clicks firmly into place (H).

Note: Be sure to lock the workbowl in place before attaching your desired blade blade and lid.

Close-up of a kitchen blender with a hand placing a small object into the top container (no visible text or symbols)

1. Hold selected blade by center shaft and insert onto center post by pushing straight down (J). Important: The blades are very sharp. Use caution when handling and storing.

Person using a glass container with a lid, no visible text or symbols

1. Place the lid on the workbowl so that the safety lock tab is to the right of the safety lock latch (K). The lock/unlock symbols will be facing you and feed chute will be to the back of the appliance.

Important: For your protection this appliance has an interlock system. The processor will not operate unless the lid is properly locked in place. Important: Always press the OFF button to make sure the appliance is off before securing the lid.

1. Hold feed chute and rotate lid counterclockwise until lid locks into place.

2. Place the cap into the feed chute.

3. The feed chute cap can be removed when adding liquid or additional foods while the appliance is running.

USING THE WORKBOWL

The workbowl is used to coarsely or finely chop, mince, mix and puree foods to a smooth consistency. Use the workbowl to chop fresh and cooked fruits and vegetables, cooked meats, fish and poultry; to make pastry; and to make bread, cookie and cracker crumbs.

1. Follow the directions on above to assemble the workbowl parts of the appliance.
2. Place food in workbowl.
3. Place lid on workbowl and lock into place by rotating lid counterclockwise.
4. Place feed chute cap in place on top of the feed chute.

Caution: Never use your fingers to direct food through the chute.

1. Select Perfect Prep™, Low or High for desired speed.
   Note: Process foods no more than a few seconds at a time. The Perfect Prep™ function produces excellent results and offers greater control.
2. To add food while processor is running remove feed chute cap and insert food through the feed chute. Replace feed chute cap in the feed chute.

Important: Be sure the blade has completely stopped spinning before removing the lid from the workbowl.

1. When finished, press the Off button and allow blades to stop revolving before removing lid. Twist the lid toward the unlock symbol to remove.
2. To unlock workbowl turn it clockwise toward the unlock symbol and lift off motor base.

Note: Remove the workbowl from the appliance before removing the blade to prevent food from leaking through the center opening of the bowl.

1. Carefully remove the blade by the center post and empty workbowl.
2. Unplug appliance when not in use.

HINTS AND TIPS FOR YOUR WORKBOWL

• The processor works very quickly.
- Watch carefully to avoid over-processing foods.
- The Perfect Prep™ button offers the best control and results.
- For best results, use foods that are about the same size.
- It is recommended that food is cut into 12 -inch pieces.
- Do not overload the workbowl.

Do not process more than 2 cups (500 ml) of food in the workbowl at one time.

To chop meat, use no more than 2 cups (approximately 8 oz.) of cooked meat cut into 12 -inch cubes and process using the Perfect Prep™ button in 2 second intervals.

Important: When chopping meat, always make sure it is at room temperature to ensure optimal performance.

• Never walk away from the appliance while it is on.

• To avoid splattering, use a funnel inserted into the feed chute when adding ingredients, such as oil, flour and sugar.

• Once the workbowl lid has been removed from the workbowl place it upside down to hold the chopping blade and keep your counters clean.

• Although plastic parts of the workbowl are dishwasher-safe, you may wish to wash them by hand to retain their clear appearance.
• When making bread crumbs, chopping nuts or grinding coffee beans make sure workbowl is completely dry.
• For grinding coffee beans and nuts, use the flat blade and place up to 2 cups (about 5 oz.) of coffee beans or 1 cup (about 4 oz.) of nuts into the workbowl. Press the High button; allow the appliance to run until the desired grind is achieved.
• When chopping dried fruits, add a little flour to keep the pieces from sticking together.
• Do not use the workbowl to:
  o Grind bones, grains or hard spices
  o Liquefy fruits and vegetables

Care and Cleaning

This product contains no user serviceable parts. Refer service to qualified service personnel.

Important: Always unplug your appliance from the outlet before cleaning.

CLEANING

1. Unplug your Juiceman® Express Jr. and disassemble.
2. Using a sponge or damp cloth, clean the motor base and rubber feet.
   Important: Do not immerse the base in water or spray with water. Clean only by wiping with a damp sponge, cloth or paper towel.
3. All parts – except the motor base – are dishwasher-safe (top-rack only) or you may wash in warm, soapy water, using any mild liquid dishwashing detergent. Do not use any products containing ammonia or scouring powders, as these can dull, scratch or mar the surface. Use the cleaning brush provided to remove pulp left on any of the removable parts. Do not use metal brushes or pads.

REMOVING TOUGH STAINS

1. Due to powerful staining properties of carotenoids found in many vegetables, particularly carrots, we suggest soaking any stained parts overnight in one of the following solutions:

2. Biodegradable soap in enough warm water to cover workbowl parts

3. 14 cup bleach added to a sink full of warm water
   • 1 part warm water to 1 part cider vinegar
4. 12 small box of baking soda in enough warm water to cover workbowl parts.

Important: Never use ammonia or abrasive cleansers!

1. After soaking overnight, lightly scrub with soft bristle brush and liquid detergent.

STORAGE

Store your appliance in a clean, dry place. Never wrap cord tightly around the appliance. Do not put any stress on cord where it enters the motor base, as this could cause cord to fray and break.

TROUBLESHOOTING FOR THE WORKBOWL

PROBLEM POSSIBLE CAUSE SOLUTION
Food is unevenly chopped.	Workbowl is over filled.You may be running the bowl continuously instead of using the Perfect PrepTM function.Food may be cut in random sizes.	Smaller amounts will process more evenly.Use the Perfect PrepTM button in 5 second or less increments.Allow the blades to stop completely before pressing the Perfect PrepTM button again.Cut food in same size pieces before placing in processor.
Appliance stops running.	Motor may be overheating.Pieces of food in the workbowl are too large.	Unplug appliance and allow it to cool approximately 5 minutes before continuing use.Cut food into 12 -inch pieces.

OVERHEAT PROTECTION SYSTEM

Important: This appliance contains a PTC overheat protection system. When the appliance is being operated for too long or with too much load, the PTC protector will shut down the power of the appliance to protect the unit. If the power shuts down, unplug for 20 minutes and plug in for normal operation.

NEED HELP?

For service, repair or any questions regarding your appliance, call the appropriate 800 number on cover of this book. Please DO NOT return the product to the place of purchase. Also, please DO NOT mail product back to manufacturer, nor bring it to a service center. You may also want to consult the website listed on the cover of this manual.

Two-Year Limited Warranty

(Applies only in the United States and Canada)

What does it cover?

- Any defect in material or workmanship provided; however, Applica's liability will not exceed the purchase price of product.

For how long?

- Two years after date of purchase.

What will we do to help you?

- Provide you with a reasonably similar replacement product that is either new or factory refurbished.

How do you get service?

- Save your receipt as proof of date of sale.

- Visit the online service website at www.prodprotect.com/applica, or call toll-free 1-800-231-9786, for general warranty service.

- If you need parts or accessories, please call 1-800-738-0245.

What does your warranty not cover?

• Damage from commercial use

• Damage from misuse, abuse or neglect

- Products that have been modified in any way

- Products used or serviced outside the country of purchase

• Glass parts and other accessory items that are packed with the unit

- Shipping and handling costs associated with the replacement of the unit

- Consequential or incidental damages (Please note, however, that some states do not allow the exclusion or limitation of consequential or incidental damages, so this limitation may not apply to you.)

How does state law relate to this warranty?

- This warranty gives you specific legal rights. You may also have other rights that vary from state to state or province to province.

Fit® is a registered trademark of Health Pro Brands, Inc.

No affiliation, endorsement, sponsorship or any other association between us and such third parties is implied nor should be inferred. Any third-party trademarks appearing on any materials are solely for purposes of source indication and are the intellectual property of their respective trademark holders.

Electrical rating: 120 V\~, 60 Hz, 450 W MAX

Note: Max power rating is obtained with the centrifugal juicer

attachment. The use of other attachments may not reach this wattage

Made in People's Republic of China

Printed in People's Republic of China

BASE

Low (baja)

Close-up of a hand pressing down on a black beverage vessel with control buttons (no visible text or symbols)

Close-up of a black frying pan with a circular arrow indicating rotation, no visible text or symbols

Close-up of a kitchen appliance with glass lid and rotating fan (no visible text or symbols)

Close-up of a hand holding a blender with a black lid, no visible text or symbols

Close-up of a modern electric juice maker with digital display and glass of water (no visible text or symbols)

Close-up of a hand holding a black cylindrical object over a container (no visible text or symbols)

Botón de apagado / pulso (Off / Perfect Prep™)

Close-up of hands operating a transparent kitchen appliance with a lid and handle (no visible text or symbols)

Close-up of a kitchen blender with a hand placing a small object into the top pan (no visible text or symbols)

Close-up of hands operating a kitchen blender with a handle and lid (no visible text or symbols)

[e-mail]

Colombia

PLINARES

Avenida Quito # 88A-09

Bogotá, Colombia

San Jose, Costa Rica

Tel.: [phone]

Ecuador

Col. Centro, Cuauhtemoc,

México, D.F.

Tel. [phone]

Nicaragua

ServiTotal

City Market Nivel Plaza Local 153

Diagonal Hotel Melia,

Caracas.

Tel. [582] 324-0969

www.applicaservice.com

[e-mail]

Col. Chapultepec Morales, Mexico D.F

Deleg. Miguel Hidalgo

CP11570

MEXICO

C.Ü.I.T No. 30-69729892-0

Importado por / Imported by:

APPLICA MANUFACTURING, S. DE R. L. DE C. V.

Presidente Mazarik No111, 1er Piso

Col. Chapultepec Morales, Mexico D.F

Deleg. Miguel Hidalgo

CP 11570

MEXICO
