Brand	Juiceman
Model	JM3000C
Product Type	3-in-1 Juice Extractor (Centrifugal Juicer, Blender, Citrus Press)
Dimensions (approx.)	30 x 25 x 40 cm
Weight (approx.)	4.5 kg
Power	120 V, 60 Hz, 800 W (estimation)
Pulp Container Capacity	750 ml (3 cups)
Blending Vessel Material	BPA-Free Tritan
Main Functions	Centrifugal juice extraction, blending drinks and smoothies, citrus pressing
Included Accessories	Motor base, pulp separator, filter basket, lid, feed chute, push sticks (large and small), pulp container, blending vessel, blade base, travel lid, speed reducer, citrus press pulp container, extraction cone, strainer, cleaning brush
Care and Cleaning	Removable parts are dishwasher safe (top rack) or wash in warm soapy water; wipe motor base with a damp cloth
Safety	Polarized plug (US) or grounded (Canada); automatic shut-off in case of overheating; sharp blades requiring caution
Spare Parts and Repairability	Spare parts available (references listed); appliance contains no user-serviceable parts; contact customer service for repairs
Warranty	2-year limited (US and Canada)
Customer Service (US/Canada)	1-800-231-9786
Parts and Accessories	1-800-738-0245

Frequently Asked Questions - JM3000C JUICEMAN

How to assemble the juicer?

Place the pulp separator on the motor base, insert the filter basket, then the lid. Slide the pulp container under the lid. Make sure each part is properly locked.

Why won't the appliance start?

Check that the juicer is properly assembled and all parts are clean. Ensure the selector is set to ON. If the problem persists, unplug and plug back in after a few minutes.

How to clean the filter basket?

Use the provided cleaning brush under running water to remove residue. Parts are dishwasher safe (top rack). Avoid abrasive cleaners.

What if the motor seems to strain?

Empty the pulp container (max capacity 750 ml) and clean pulp under the lid. Let the appliance cool for 2 minutes if necessary.

Can I put bananas in the juicer?

No, bananas do not contain enough juice and may clog the appliance. Use them in the blender for smoothies.

How to use the citrus press?

Cut citrus fruits in half, place the extraction cone, turn on the appliance, and press the fruit onto the cone. The anti-drip spout controls the flow.

The blending vessel leaks, what to do?

Make sure the blade base is tightly screwed onto the vessel (turn clockwise). Check the full assembly before use.

How to prevent motor overheating?

Do not operate the appliance for more than one minute without a break. Let it cool for 2 minutes after each 1-minute use.

Can I use extension cords?

Yes, with an appropriate gauge extension cord and 3-prong if the appliance is grounded. Place it to avoid tripping hazards.

Where to find spare parts?

Contact parts and accessories service at 1-800-738-0245 or visit www.prodprotect.com/applica.

USER MANUAL JM3000C JUICEMAN

★★★★★ RATE & REVIEW YOUR PRODUCT ÉVALUÉZ VOS PRODUITS ET FAITES VOS COMMENTAIRES À www.juiceman.com

Should you have any questions or concerns with your new product, please call our Customer Service Line at 1-800-231-9786 (US and Canada). Please do not return to the store.

Please Read and Save this Use and Care Book.

IMPORTANT SAFEGUARDS

All Juiceman products are designed with your safety in mind. When using electrical appliances, basic safety precautions should always be adhered to, including the following:

Read all instructions and save for future reference:

• Remove any stickers before using the juicer.
• To protect against risk of electrical shock, do not put cord, plugs or appliance in water or other liquid.
• Fully unwind the power cord before use.
  Always make sure the juicer is properly assembled before plugging in and using.
• Close supervision is necessary when any appliance is used by or near children.
• Unplug from outlet when not in use, before putting on or taking off parts, or before cleaning.
• Avoid contact with moving parts.
• Do not operate any appliance with a damaged cord or plug or after the appliance malfunctions, or is dropped or damaged in any manner. Contact the consumer service number listed in this manual.
• This appliance has important markings on the plug blade. The attachment plug or entire cord set (if plug is molded onto cord) is not suitable for replacement. If damaged, appliance should be replaced.
• The use of attachments not recommended by Juiceman, including canning jars may cause fire, electric shock or injury.
• Do not use outdoors.
• Do not let cord hang over edge of table or counter.
• Do not let cord touch hot surfaces or become knotted.

• Do not operate without the pulp container in place
  Always make sure juicer is assembled properly before turning on.

• Blades are sharp; handle carefully.

• To reduce the risk of injury, never place blending blade base on motor base without blending cup properly attached.
• Be sure to turn switch to OFF position after each use. Make sure the motor stops completely before disassembling.
• Do not leave the appliance unattended when in use.
• Use caution when operating the appliance - do not place hands or fingers near moving or rotating parts.
• Do not put your fingers or other objects into the juicer opening while it is in operation. If food becomes lodged in opening, use food pusher or another piece of fruit or vegetable to push it down. When this method is not possible, turn the motor off, unplug the appliance and disassemble juicer to remove remaining food.
• Do not use the appliance if the rotating sieve is damaged.
• This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
• Do not use this appliance for other than intended use.
• Keep the appliance clean; refer to CARE AND CLEANING section of this manual.
• Do not blend hot liquids.

SAVE THESE INSTRUCTIONS

Safety Features

This product is for household use only.

POLARIZED PLUG (120V MODELS ONLY)

This appliance has a polarized plug (one blade is wider than the other). To reduce the risk of electric shock, this plug is intended to fit into a polarized outlet only one way. If the plug does not fit fully into the outlet, reverse the plug. If it still does not fit, contact a qualified electrician. Do not attempt to modify the plug in any way.

TAMPER-RESISTANT SCREW

Warning: This appliance is equipped with a tamper-resistant screw to prevent removal of the outer cover. To reduce the risk of fire or electric shock, do not attempt to remove the outer cover. There are no user-serviceable parts inside. Repair should be done only by authorized service personnel.

ELECTRICAL CORD

1) A short power-supply cord is provided to reduce the risk resulting from becoming entangled in or tripping over a longer cord.
2) If a long detachable power-supply cord or extension cord is used,

a) The marked electrical rating of the extension cord should be at least as great as the electrical rating of the appliance,
b) If the appliance is of the grounded type, the extension cord should be a grounding-type 3-wire cord, and
c) The longer cord should be arranged so that it will not drape over the countertop or tabletop where it can be pulled on by children or tripped over unintentionally.

Note: If the power cord is damaged, please contact the warranty department listed in these instructions.

Meet 3-IN-1 your total juicer

Juice and blend with the convenience of one appliance!

Press fresh citrus with the citrus juicer; juice a variety of fruits and vegetables with the extractor; and blend creamy smoothies and drinks with the blender! All attachments are powered by one base so you can enjoy delicious beverages in no time.

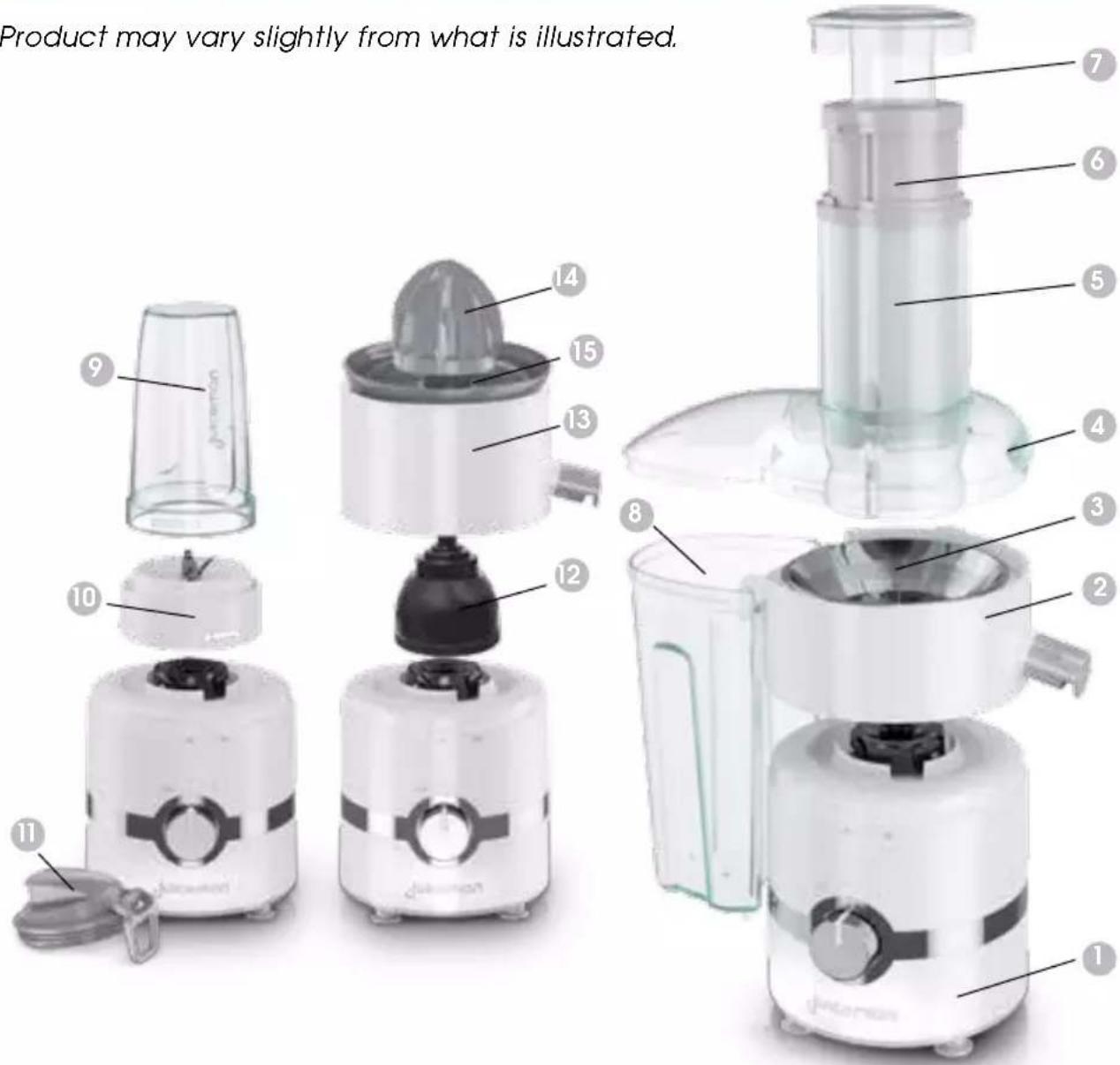

Product may vary slightly from what is illustrated.

1. Motor base
2. Pulp separator (Part #770321)
   3.Filter basket (Part #770300)
3. Lid (Part #770318)
4. Wide mouth feed chute (Part #JM3000-01)
5. Large food pusher (Part #770280)
6. Small food pusher (Part #770278)
7. Pulp container (Part #07345GZ9PZ13)

8. BPA free Tritan™ blending cup (Part # 081364PZ16-S)

9. Blending blade base (Part #770319)

10. Blending cup travel lid (Part #770314)
11. Citrus juicer gear reduction (Part #770320)
12. Citrus juicer pulp container (Part #770323)
13. Citrus Cone (Part #04219MZ185)
14. Citrus juicer strainer (Part #04220MZ185)

PERFECT FOR:

Small and large citrus fruits, a variety of fruits and vegetables, leafy greens, berries, yogurt, bananas and other soft foods, seeds and powders.

HOW TO JUICE

This product is for household use only.

GETTING STARTED

• Remove all packing material, any stickers, and the plastic band around the power plug.
• Go to www.prodprotect.com/applica to register your product and visit www.juiceman.com for more recipes, tips and tricks.
• Wash all removable parts as instructed in CARE AND CLEANING

IMPORTANT: Do not rinse or immerse base in water or any other liquid.

• Place base on a dry, level counter and get ready to juice.

PREPARATION

Juicing is one of the easiest ways for your body to get the nutrients it needs. Follow these tips to ensure the juice you're fueling yourself with is as fresh as it can be!

PURCHASING AND STORING INGREDIENTS

Always use fresh, fully ripened fruits and vegetables.
- Select fruits and vegetables that are in season for freshness and flavor.
- Choose fruits that are plump, tender and have a bright color. Fruits should be heavy for their size without bruises, cuts or blemishes.
- To ripen fruit, place in a small clean paper bag. Close the bag loosely and let stand at room temperatures. To speed ripening, add a ripe apple or banana to the bag. Once ripened, store in the refrigerator for a day or two until ready to use.
- Store perishable vegetables in the refrigerator until ready to use.

PREPARED FRUITS AND VEGETABLES FOR JUICING

Wash fruits and vegetables thoroughly before juicing.

TIP: Use a natural bristle brush and biodegradable cleaner to help remove pesticide residue.

Trim any bruised or discolored sections of fruit and vegetables. Remove and discard outer leaves.

You can juice with the skin on but the skin of citrus fruits can taste bitter so we recommend removing their peel.

Remove pits and large seeds from fruits, including apricots, cherries, nectarines, mangoes, peaches, plums and melons.

Pack leafy greens, parsley, wheat grass and sprouts into small, tight bunches before juicing.

The large feed chute is designed to fit larger produce such as whole apples, beets, and oranges. If necessary, cut into pieces to fit in the feed chute.

Be sure all parts of the juicer are clean and dry. See CARE AND CLEANING section of this manual.

JUICE

EXTRACTOR

ASSEMBLING YOUR JUICE EXTRACTOR

STEP 1: With motor on a flat surface, place pulp separator on motor base, aligning the tabs and turning clockwise to lock in place.

STEP2: Grab filter basket by the outer rim and place into pulp separator, pushing down to lock in place.

NOTE: Use caution when handling filter basket as blades may be sharp.

STEP 3: Place lid on top of pulp separator, aligning tabs and turning clockwise to lock in place.

STEP4: Slide the pulp container under the lid: first place the opening under the lid at an angle and then slide the bottom in towards the base.

STEP 5: Place juice cup or your own container under the anti-drip spout. Open the anti-drip spout by turning counterclockwise and you are ready to juice!

1. Plug in the juicer and prepare your ingredients.
2. Turn the dial clockwise to turn on the juicer.
3. Place your produce in the wide mouth feed chute.
4. Guide the produce towards the filter basket using the appropriate food pusher.

1. When juicing smaller ingredients, we recommend placing ingredients in the large food pusher and guiding the produce with the small pusher.
   a. To separate the large pusher from the small pusher, hold the large pusher in one hand and turn the small pusher counterclockwise.
   b. To assemble the pushers, place the small pusher into the large pusher and turn clockwise.

2. The juice extractor has one speed to ensure smooth and consistent results.

3. When you are finished juicing, turn the dial counterclockwise to (0) OFF.
4. Turn the anti-drip spout clockwise to prevent any spills.
5. Remove the pulp container from the base to repurpose the pulp or clean it out.

NOTE: You may need to empty the pulp container during juicing. Make sure to turn off the juicer before removing the container and washing before beginning to juice again.
10. Enjoy your fresh juice or add additional ingredients to blend!

STEP1: Make sure the juicer is off and unplugged. Remove the easy-grip pulp container from the motor base by sliding the bottom out and pulling away from the underside of lid.

NOTE: Make sure the anti-drip spout is in the closed position.

STEP2: Remove the entire top assembly as one piece (the lid, pulp separator and filter basket) to prevent pulp from falling. When this is done, the filter basket will automatically release within the pulp separator for disassembly.

STEP 3: Take entire top assembly to the sink to disassemble and clean.

STEP 4: Remove food pushers.

STEP5: Remove lid by holding anti-drip spout and turning lid counterclockwise to unlock.

STEP6: Carefully lift filter basket out of pulp separator.

STEP7: Wash all parts as instructed in CARE & CLEANING section

JUICE EXTRACTOR TIPS & TRICKS:

Do not put food into the extractor before turning the appliance on.

Let the appliance run for at least ten seconds before placing any food into the feed chute.

Do not extract bananas, avocados or coconut in the juice extractor — they do not have juice and can clog the juicer.

Juice fresh juice then add to a blender with bananas or other soft foods for a creamy, fresh smoothie!

Be sure to remove all the pits and large seeds from fruits.

For maximum nutritional benefits drink your juice right away.

Avoid excessive buildup of pulp on the underside of the lid.

Remove rinds of melons because they are thick and water down drinks.

Refrigerate washed ripe fruits and vegetables until ready to use.

Use the pulp! The pulp is high in nutritional value for you and your garden. Make sure to use the pulp the same day you extract your juice:

• Add fiber and flavor to baked goods
• Thicken soups, casseroles and sauces
• Add nutrition and flavor to desserts like puddings and cakes
• Use it as a compost for your garden

ASSEMBLING YOUR BLENDER

IMPORTANT: Always make sure juicer is unplugged before starting to assemble.

STEP 1: Place cup on a stable surface with the open side up.

STEP 2: Add ingredients into your blending cup! We recommend adding ingredients in the following order:

1. Ice
2. Veggies
3. Fruits
4. Powders, seed, nuts
5. Liquids

CAUTION: Do NOT fill past max fill line

STEP 3: Holding the cup in one hand, screw the blade base onto the cup, turning clockwise to tighten.

IMPORTANT: make sure the base is screwed on tightly to prevent leaks.

CAUTION: Handle blade base carefully as blades are sharp.

STEP 4: Turn the cup upside down and place it onto the motor base.

STEP 5: Align the tabs and turn the jar clockwise to lock onto base. You will hear it click when it is secure. You are now ready to blend!

USING YOUR BLENDER:

1. Add ingredients into your blending cup!

TIP: The blending cup fits under the juice extractor or citrus juicer anti-drip spout so you can juice directly into the cup, add additional ingredients and blend it for a smooth blended drink in seconds!

TIP: Adding liquid to the juice blend recipes will help get the ingredients moving. Try almond milk, coconut water, or even just plain water.

1. Screw the blending blade base onto the cup by turning clockwise.
   CAUTION: Handle blade base carefully as blades are sharp.
2. Place the blending cup on the base and turn clockwise to secure.
3. Turn the dial to 1 (ON) to begin blending or turn the dial counterclockwise to pulse and chop.
4. When you are done juicing, turn the dial to 0 (OFF) and unplug the juicer.
5. Hold the base and turn the blending cup counterclockwise to unlock.
6. Flip the cup so the blade base is pointing up and unscrew the blade base by turning counterclockwise.
7. Place the blending cup travel lid onto the blending cup and tighten by turning clockwise.
8. You can now enjoy your freshly blended beverage or take it on the go!

DISASSEMBLING YOUR BLENDER

STEP 1: Unplug your juicer

STEP 2: Turn the cup and blade base assembly counterclockwise to unlock and pull up on the cup to remove it from the base

STEP 3: Flip the cup upright. Twist counterclockwise to remove the blade base from the cup. Use the finger tabs located on the interior of the bottom of the blade base to help when twisting.

STEP 4: Wash all parts as instructed in the CARE AND CLEANING section.

Enjoy everything from pure whole juice to rich, creamy blends with your 3-in-1 Total Juicer

Add chia seeds for antioxidants, fiber, and to thicken your drink!

Bump up the protein with protein powders and powdered nut butters

Add a dose of healthy fats and creamy texture with various nut butters and avocados

Juice whole fruits or add a variety of liquids, like coconut water, for electrolytes and hydration

Cocoa powder is a low calorie way to satisfy a chocolate craving

Add a variety of herbs, such as ginger root, for added nutritional benefit

Bananas add a boost of potassium and give your juice a thicker consistency

Unsweetened almond or cashew milk delivers a rich, nutty flavor that pairs well with raw fruits and veggies

Honey, syrup, stevia and agave add a touch of sweetness to your blends - a little goes a long way

ASSEMBLING YOUR CITRUS JUICER

STEP 1: Place the motor base on a flat stable surface. Place the citrus juicer gear reduction on the motor base pressing down firmly to secure.

STEP 2: Place the citrus juicer pulp container over the gear reduction on the motor base and twist clockwise to lock. You will hear a click.

STEP 3: Place strainer on top of gear reduction in the pulp container.

STEP4: Place the dual-purpose juicing cone on top of the strainer, pushing down to secure in place. You are now ready to juice!

USING YOUR CITRUS JUICER:

1. Prep your citrus fruits by cutting them in half.
2. Place blending cup or other container below juicing spout.
3. Turn anti-drip spout counterclockwise to open.
4. Place citrus fruit face down on top of the juicing cone a. The unique design of the citrus cone allows you to juice small and large citrus without switching cone sizes.
5. Turn the dial clockwise to 1 (ON) and press fruit firmly down.
6. When finished juicing, turn the dial counterclockwise to 0 (OFF) and unplug juicer.
7. Turn the anti-drip spout clockwise to close.

TIP: Use the zest of your citrus peel to flavor cocktails and baked goods!

DISASSEMBLING YOUR CITRUS JUICER

STEP1: Make sure juicer is unplugged. Pull up on citrus cone to remove it from the pulp container.

STEP2: Remove strainer.

STEP3: Turn the pulp container counterclockwise to remove it from the motor base.

STEP 4: Lift gear reduction off motor base. Wash as instructed in CARE AND CLEANING.

CITRUS JUICER TIPS & TRICKS:

Before juicing a citrus fruit, roll the fruit under your hands on the countertop, exerting slight pressure to help release the juice.

Drop rind into the disposal in your sink for a quick clean and to freshen any lingering odors.

Add the zest of a lemon, lime or orange to a simple syrup to add a fresh taste to iced or hot teas.

Process 1 cup sugar with the zest of 1 lime or lemon and store in a closed container in your refrigerator. Use to decorate cookies, muffins or doughnuts.

Enjoy your juice as is or add it to smoothies for a fresh and flavorful addition!

Add a 1 / 2 cup of fresh lemon juice to the wash cycle of your washing machine to brighten fading whites instead of bleach.

Clean your cheese grater with the flesh of fresh citrus to remove debris and cleanse item.

Place lemon zest in 200^ F oven until dried and grind with sea salt and pepper to make a delicious lemon pepper seasoning.

CARING FOR YOUR 3-IN-1 TOTAL JUICER

This product contains no user serviceable parts. Refer service to qualified service personnel.

IMPORTANT: Always unplug your juicer from the outlet before cleaning.

CLEANING

1. Disassemble juicer following the instructions for disassembly.
2. Using a sponge or damp cloth, clean the base, feet and underside of the juicer. If necessary, use the cleaning brush or damp cloth to clean juice from inside the motor shaft (on top of motor base).

IMPORTANT: Do not immerse the base in water or spray with water. Clean only by wiping with a damp sponge, cloth or paper towel.

1. All parts - except the base - are dishwasher safe (recommended top rack) or you may wash in warm, soapy water using any mild soap. Do not use any products containing ammonia or scouring powders as they can dull, scratch or mar the surface. Use the cleaning brush to remove the pulp left on any of the removable parts. Do not use metal brushes or pads.
2. To clean the food pusher, twist to unlock and remove the small food pusher from the large food pusher. Clean with other removable parts and once dry, reassemble.
3. To clean the filter basket, use the provided cleaning brush to make sure tiny holes are not clogged. This can be accomplished by holding the filter basket under a running faucet while brushing the mesh screen from both the inside and outside.

REMOVING TOUGH STAINS

After soaking overnight, lightly scrub with soft bristle brush and liquid detergent.

Due to powerful staining properties of carotenoids found in many vegetables, particularly carrots, we suggest soaking any stained parts overnight in one of the following solutions:

• A biodegradable soap in enough warm water to cover juice extractor parts
• Cup bleach added to a sink full of warm water
• 1 part warm water to 1 part cider vinegar
• Small box of baking soda in enough warm water to cover juicer parts.

IMPORTANT: Never use ammonia or abrasive cleaners.

STORAGE

Store your juicer in a clean dry place. Never wrap cord around the appliance.

INGREDIENT HEALTH

Many different foods you can juice are excellent sources of key vitamins and nutrients. In addition to great taste, below is a list of some of the benefits.

FOOD NUTRIENT

Vitamins A and C

Use cucumbers as the base ingredient to green juices - almost 90% water!

Vitamins A, C, and Beta-Carotene

With a sweet and creamy consistency, carrots pair well with citrus fruit and cut the bitterness of leafy greens!

Beta-Carotene, Vitamins C, and Calcium

Remove the stems for a smoother consistency.

Calcium, Vitamins A, C, and K

Celery may aid in digestion due to its high water content.

Vitamins C, A, and Antioxidants

The high content of natural sugar in apples makes them great for sweetening and balancing the flavor of bitter vegetables, but use in moderation!

Antioxidants, Magnesium, Potassium, and Folate

Try a 2-to-1 beets to apple ratio!

Vitamins A, C, E, and Chlorophyll

Wheatgrass goes well with naturally sweet carrot juice, or mixed with a shot or two of fresh citrus juice!

Vitamin C, Folate, and Potassium

Use lemon to enhance the natural flavors of any juice you're making.

For a sweet, spicy flavor to mask bitter tastes of vegetables, use ginger liberally. Ginger may aid in digestive health.

Antioxidants, Folic Acid, Vitamins C and A

May help boost your immune system.

Fiber, Protein, Vitamin A, C, D, Calcium

Add extra protein and a creamy texture to your juice blends!

Vitamin B6, Vitamin C, Potassium

Bananas add a sweet flavor and thicker consistency to your favorite juices.

Fiber, Protein, mono-unsaturated fats

Sprinkle avocado with lemon juice to prevent browning before juicing.

Omega-3 fatty acids, Fiber, lignin

These tiny seeds pack a powerful punch of nutrients.

Protein

Great for post-workout replenishment.

Protein, monounsaturated fats,

Vitamin E, magnesium

Almonds are an excellent source of complete vitamins and minerals.

TROUBLESHOOTING

Overheat protection system: This juicer contains a PTC overheat protection system. When the appliance is being operated for too long or with too much load, the PTC protector will shut down the power of the appliance to protect the unit. If the power shuts down, unplug for 15 minutes and plug back in for normal operation.

PROBLEM POSSIBLE CAUSE SOLUTION

Appliance will not start when speed dial is turned on	The juicer may not be assembled correctly.	Turn the juicer off and unplug. Make sure everything is properly attached and parts are clean and free of food remnants.
The motor of the appliance seems to be struggling	Pulp container may be full.	Turn the appliance off and empty the pulp container. Remember, the pulp container holds about 2L of pulp, do not allow to get too full.
	Pulp may have collected under the cover.	Turn off and unplug. Remove the lid and wash thoroughly. Return lid to appliance.
The juice extractor has stopped producing juice	The anti-drip spout may be closed.	Check to see if the spout is closed or open.
	The integrated pulp container or the stainless steel filter may be blocked.	Turn appliance off and unplug. Disassemble the juicer, wash all parts thoroughly and re-assemble.
The juice extractor is not producing as much juice as expected	High fiber fruits and vegetables may be clogging the stainless steel filter.	Turn off and unplug the juicer. Disassemble, wash all parts and re-assemble.
Appliance stops running	Motor may be overheating.	Unplug appliance and let it cool for approximately 5 minutes before continuing use.
	Juicing time exceeds 2.5 minutes.	Unplug the juicer and remove the juicer cup. Re-assemble. Plug in juicer.
Cup leaks or becomes unscrewed from base	Blade not screwed on cup tight enough.	Unplug the juicer, turn the blade base counterclockwise to tighten. Turn the cup and blade assembly counterclockwise to remove from motor base and lift up.
Juicer does not activate	Blade is not twisted into the motor base	Remove the blade from the cup and re-install. Ensure the cup and blade assembly are properly twisted into the base.

JUICE RECIPES

TANGY TOMATO JUICE

SERVINGS: 1-2 (about 12 oz.)

A lemony tomato flavor, put into place by sweet carrots.

INGREDIENTS:

3 large tomatoes

1 lemon, peeled
2 carrots, scrubbed

Ice cubes, optional

DIRECTIONS:

Using light pressure, juice all ingredients with juice extractor. Stir well and serve over ice, if desired.

CHOCALATE PROTEIN SMOOTHIE

SERVINGS: 1 (about 12 oz.)

Enjoy the ever popular peanut butter chocolate combination with an added boost of protein. Perfect for fueling pre or post workout!

INGREDIENTS:

I cup soy milk
2 oz. (about 1/3 cup) silken tofu, cubed
1 Tbsp. cocoa powder
112 Tbsp. chocolate protein powder
12 Tbsp. peanut butter protein powder (or use powdered peanut butter)

Dash of almond extract

DIRECTIONS:

Combine all ingredients in blending cup. Cover; blend 20 sec. or until smooth.

JUICE RECIPES

BLOOD ORANGE & GRAPEFRUIT

SERVINGS: 2 cups

Juice 3 blood oranges and 2 red grapefruits using the citrus juicer. Combine and serve.

TROPICAL BLEND PROTEIN SHAKE

SERVINGS: 1 (about 8 oz.)

Sweet pineapple and vanilla protein powder offer a tropical treat after a hard workout

INGREDIENTS:

12 cup fresh pineapple chunks
½ ripe banana, sliced
12 cup almond milk
12 cup fresh spinach, loosely packed
1 Tbsp. vanilla protein powder

DIRECTIONS:

Combine all ingredients in blending cup. Cover; blend 20 sec. or until smooth.

WARRANTY & CUSTOMER SERVICE INFORMATION

For support or any questions regarding your appliance, call the appropriate 800 number listed within this section. Please DO NOT return the product to the place of purchase. Also, please DO NOT mail product back to manufacturer, nor bring it to a service center. You may also want to consult our Product Protection Center at www.prodprotect.com/applica .

TWO-YEAR LIMITED WARRANTY

(Appplies only in the United States and Canada)

WHAT DOES MY WARRANTY COVER?

• Your warranty covers any defect in material or workmanship provided; however, the liability of Spectrum Brands Inc. will not exceed the purchase price of product.

HOW LONG IS THE WARRANTY PERIOD?

• Your warranty extends two years from the date of original purchase with proof of purchase.

WHAT SUPPORT DOES MY WARRANTY PROVIDE?

• Your warranty provides you with a reasonably similar replacement product that is either new or factory refurbished.

HOW DO YOU GET SUPPORT?

• Save your receipt as proof of date of sale.
• Visit the online service website at www.prodprotect.com/applica, or call toll-free 1-800-231-9786, for general warranty service.
  If you need parts or accessories, please call 1-800-738-0245.

WHAT DOES MY WARRANTY NOT COVER?

• Damage from commercial use
• Damage from misuse, abuse or neglect
• Products that have been modified in any way
• Products used or serviced outside the country of purchase
  Glass parts and other accessory items that are packed with the unit
• Shipping and handling costs associated with the replacement of the unit
• Consequential or incidental damages (Please note, however, that some states do not allow the exclusion or limitation of consequential or incidental damages, so this limitation may not apply to you.)

HOW DOES STATE LAW AFFECT MY WARRANTY?

• This warranty gives you specific legal rights. You may also have other rights that vary from state to state or province to province.

PROBLÈME CAUSE POSSIBLE SOLUTION

PORTIONS: 1 (500 ml / 2 tasses)

USA/Canada 1-800-231-9786
Accessories/Parts 1-800-738-0245
Register your product at www.prodprotect.com/applica
