Product Type	Freezer
Brand	Fulgor Milano
Model	FBF 290 NF ED

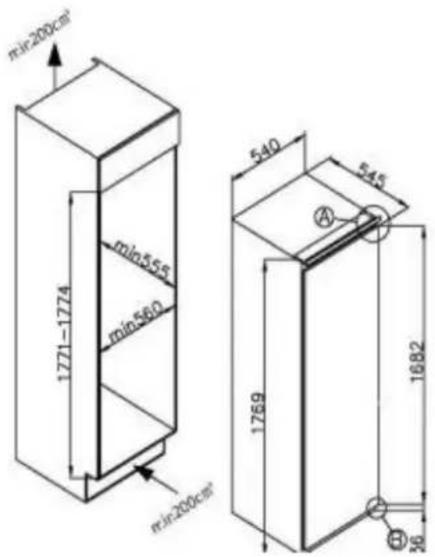

Dimensions (Height x Width x Depth)	1769 x 540 x 545 mm
Power Supply	220-240 VAC / 50 Hz
Climate Class	SN, N, ST, T
Cooling System	No Frost (automatic defrost)
Temperature Control	Touch sensor, settings 1 to 5 + Super Freeze
Super Freeze Function	Yes, activates for 24 hours
Interior Layout	2 top flaps + 5 drawers
Door Reversible	Yes
Built-in Capability	Yes (install into cabinet)
Refrigerant	R600a (flammable, environmentally friendly)
Energy Saving Features	Recommended settings for different seasons
Spare Parts Availability	Thermostats, sensors, PCBs, handles, hinges, trays, baskets (7 years); door gaskets (10 years)
Warranty (EU)	2 years
Noise Level	Not specified (normal operation may produce slight bubbling)
Cleaning	Use bicarbonate of soda and warm water; avoid abrasives
Safety Features	Child safety (8+ years), flammable gas warning, tip-over risk

Frequently Asked Questions - FBF 290 NF ED Fulgor Milano

How long should I wait before plugging in the freezer after installation?

Allow the freezer to stand for at least 4 hours to let the compressor oil settle if transported horizontally.

What do the temperature settings 1 to 6 and the snowflake mean?

Settings 1 to 5 correspond to increasing coldness, with 5 being the coldest normal setting. The snowflake (setting 6) activates Super Freeze for quick freezing, automatically turning off after about 24 hours.

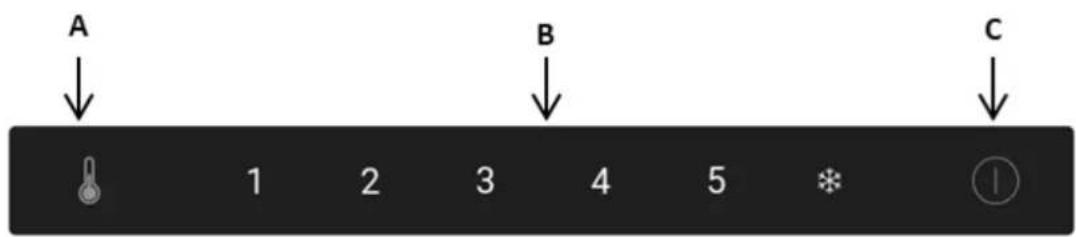

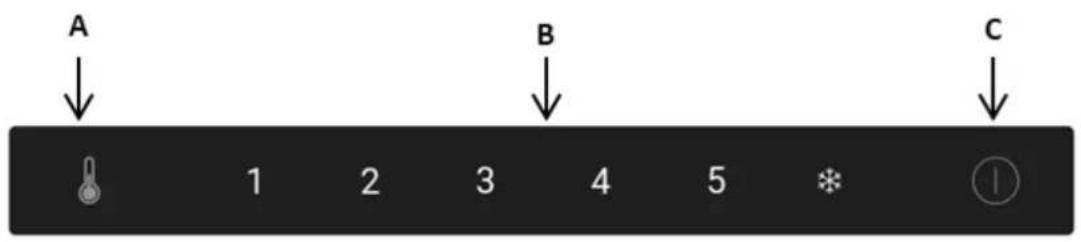

How do I adjust the temperature?

Press the temperature adjustment sensor (A) repeatedly to cycle through settings. The current setting appears on the display (B). For seasonal guidance: settings 1-2 for summer (25-35°C), 3-4 for spring/autumn (15-25°C), and 5 for winter (5-15°C).

Why is there frost or water in the freezer?

The No Frost system prevents heavy ice buildup, but some frost is normal. If you see excessive frost or water, check that the door seals are clean and closing properly. Also ensure the decor door (if fitted) is correctly installed.

Can I reverse the freezer door?

Yes, the door is reversible. Follow the instructions in the manual (section 7) using tools like a screwdriver and spanner. After reversing, you may need to heat the door seal with a hair dryer (at 10 cm distance) to ensure proper sealing.

What is the maximum amount of fresh food I can freeze in 24 hours?

Check the rating plate on your appliance for the maximum freezing capacity. Do not exceed this amount to maintain performance.

How do I clean the freezer?

Unplug the appliance. Use a solution of bicarbonate of soda and lukewarm water for the interior. For drawers, use mild washing-up liquid. Rinse and dry thoroughly. Avoid abrasive cleaners.

What should I do if the freezer is noisy?

Ensure the appliance is level and stable, and not touching the rear wall. Some gurgling from the refrigerant is normal. If noise persists, check for items resting on the appliance.

How long is the warranty?

The minimum warranty is 2 years for EU countries, but it varies by region (e.g., 3 years for Turkey, 1 year for UK). Refer to your purchase documents.

Can I store bottled drinks in the freezer?

No, do not store bottled or canned liquids, especially carbonated drinks, as they can burst when frozen.

USER MANUAL FBF 290 NF ED Fulgor Milano

Simple geometric diagram with two vertical lines inside a larger rectangle (no text or symbols)

FBF 290 NF ED

FBFD 291 NF ED

FRIGORIFERI

FRIDGE

RÉFRIGÉRATEUR

FRIGORÍFICO

FRIGORÍFICO

IT MANUALE UTENTE

EN USER MANUAL

DE MODE D'EMPLOI

ES MANUAL DE USUARIO

PT MANUAL DE USUARIO

INDICE PAGINA

Front view of a vertical refrigerator with multiple shelves and one door open (no text or symbols visible)

Black snowflake icon with six symmetrical arms (no text or symbols)

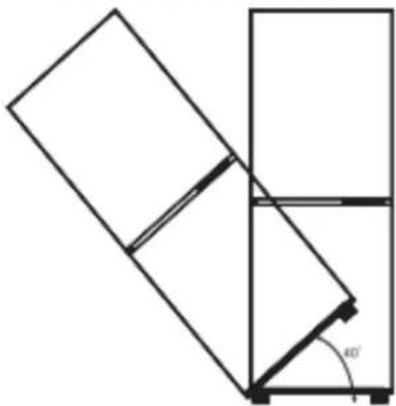

Pure geometric diagram showing two adjacent rectangles with an angle labeled 40°, no text or symbols present.

Technical line drawing of a rectangular enclosure with directional arrows indicating movement or force (no text or symbols)

2

Diagram showing a curved pipe or duct assembly with an arrow indicating direction, no text or symbols present

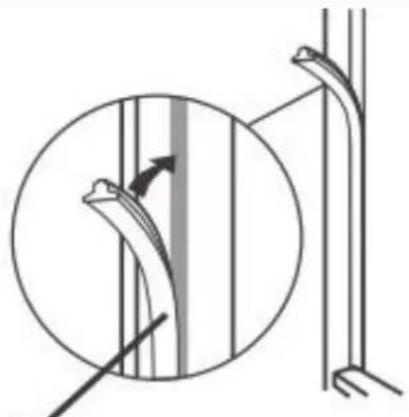

Guarnizione

Fig. 13

Fig. 14

IMPORTANTE

Line drawing of a mechanical device with a flat top and angled handle (no text or symbols)

2

Line drawing of a cabinet with an open door and a curved arrow indicating motion (no text or symbols)

3

Line drawing of a device with arrows indicating motion or force (no text or symbols)

4

Line drawing of a monitor mounted on a stand with directional arrows indicating motion (no text or symbols)

5

Diagram showing two 3D rectangular containers with internal compartments and a cable being inserted into one (no text or symbols)

Simple line drawing of a container with a container moving inside, showing motion arrows (no text or symbols)

Pure technical diagram of a vertical frame with internal structure and directional arrows, no text or symbols present

Simple line drawing of a rectangular device with a handle and internal components, connected to a wavy line (no text or symbols)

6

Scrapping old appliances 5

Conformity 5

Guarantee 5

Energy Saving 5

2 - Before first use 6

3 - Freezer use 7

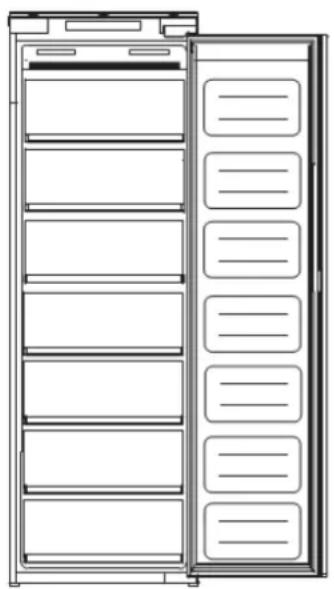

Storage 7

4 - Control panel 8

5 - Care and cleaning 9

Defrosting the freezer 9

Availability of spare parts 9

6 - Troubleshooting 10

Technical assistance 10

7 - Installation 11

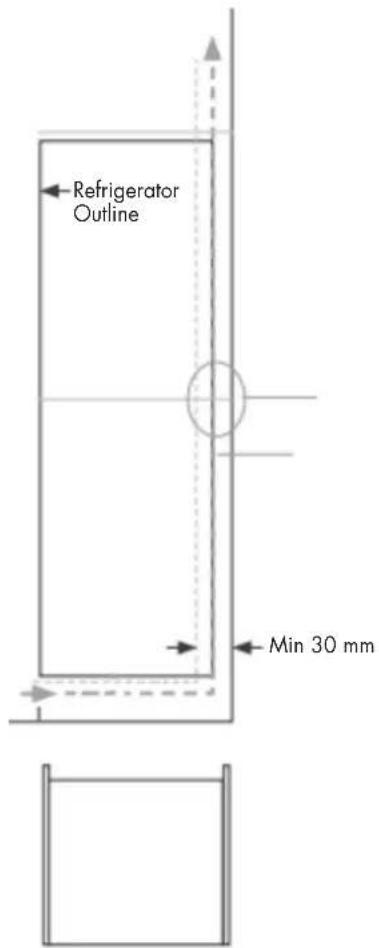

Ventilation 12

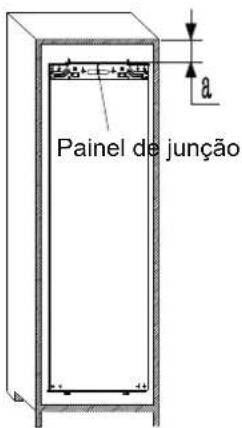

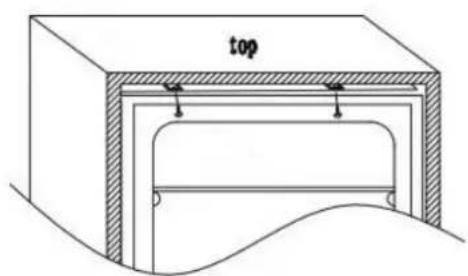

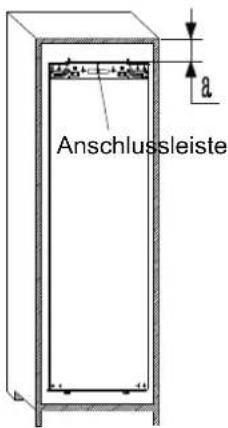

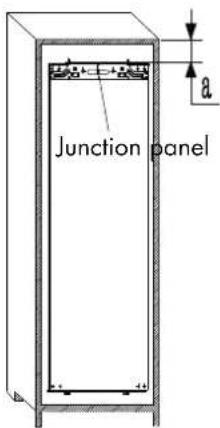

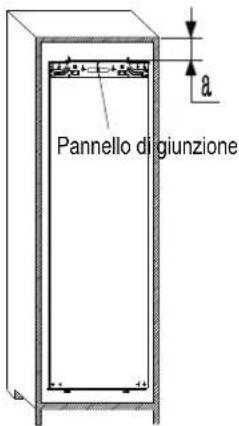

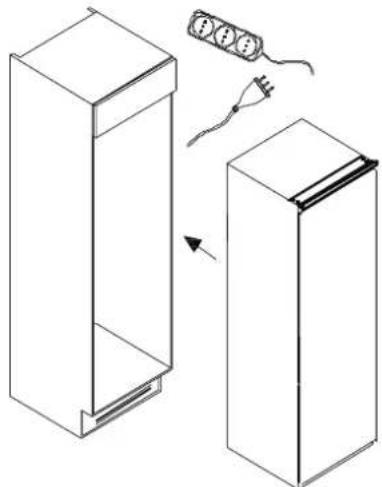

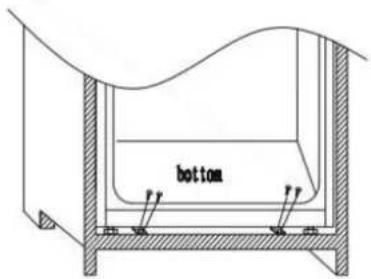

Installation into the cabinet 13

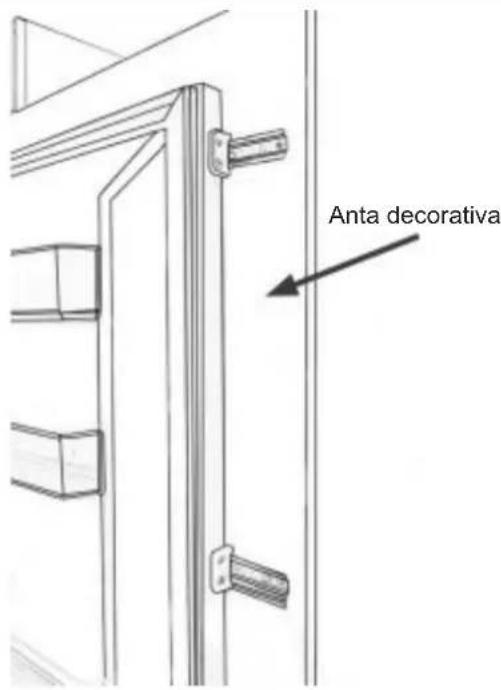

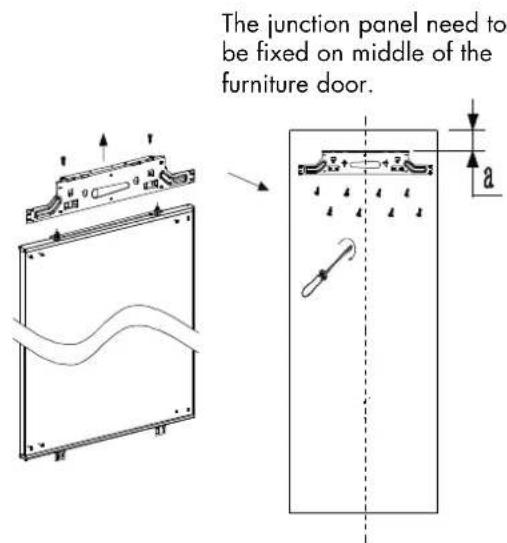

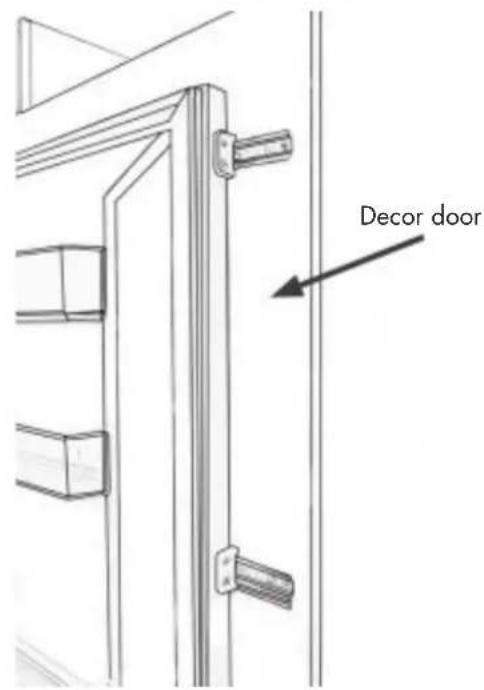

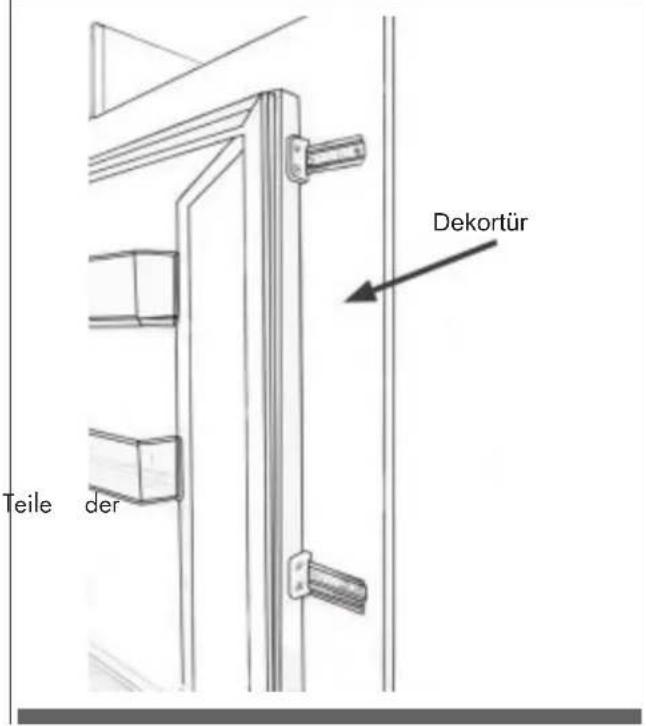

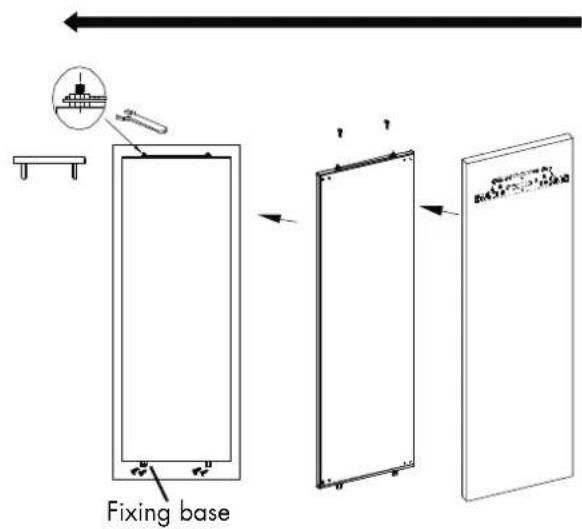

Mounting the fascia door 14

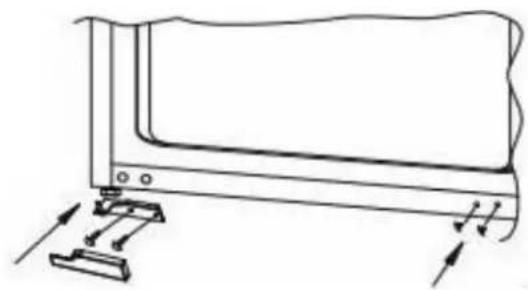

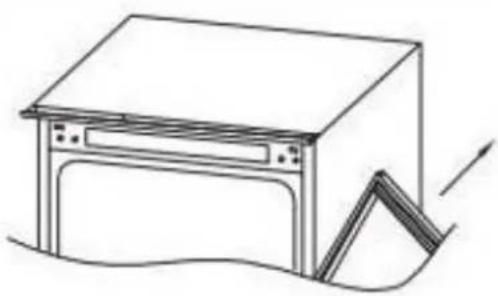

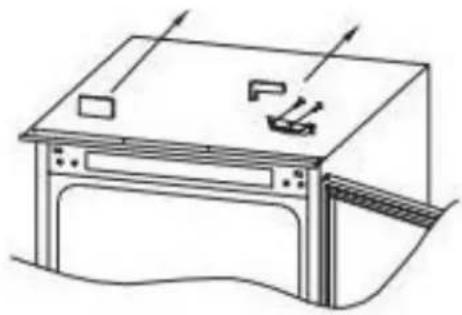

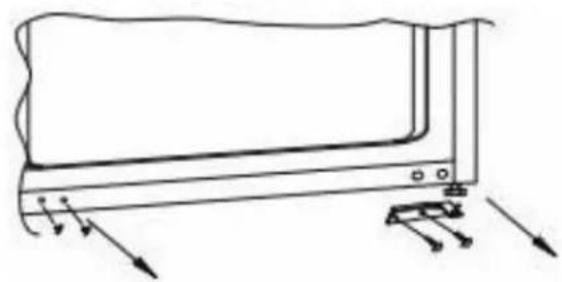

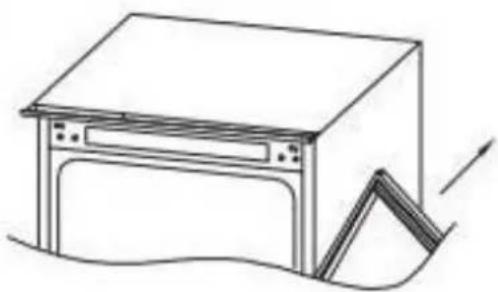

Reversing the appliance door 15

Thank you for purchasing this product.

Before using your refrigerator, please carefully read this instruction manual in order to maximize its performance. Store all documentation for subsequent use or for other owners.

This product is intended solely for household use or similar applications such as:

• the kitchen area for personnel in shops, offices and other working environments
• on farms, by clientele of hotels, motels and other environments of a residential type
• at bed and breakfasts (B&B)
• for catering services and similar applications not for retail sale.

This appliance must be used only for purposes of storage of food, any other use is considered dangerous and the manufacturer will not be responsible for any omissions. Also, it is recommended that you take note of the warranty conditions.

Please read the operating and installation instructions carefully!

They contain important information on how to install, use and maintain the appliance.

The manufacturer is not liable if you fail to comply with the instructions and warnings.

Retain all documents for subsequent use or for the next owner.

• Do not connect the appliance to the electricity supply until all packing and transit protectors have been removed. Keep children away from packaging and its parts. Danger of suffocation from folding cartons and plastic film!
• Leave to stand for at least 4 hours before switching on the product, to allow compressor oil to settle if transported horizontally.
  • Make sure there is no transport damage.
• Do not damage the refrigerant circuit.
• Maintain the ventilation openings in the appliance enclosure or in the built-in structure, free of obstruction.
• Never use water to wash the compressor position, wipe it with a dry cloth thoroughly after cleaning to prevent rust.
• Handle the appliance always with at least two persons because it is heavy.
  • Install and level the appliance in an area suitable for its size and use.
  • Make sure that the electrical information on the rating plate agrees with the power supply.
  • If it does not, contact an electrician.
  • The appliance is operated by a 220-240 VAC/50 Hz power supply.

Abnormal voltage fluctuation may cause the appliance to fail to start, or damage to the temperature control or compressor, or there may be an abnormal noise when operating. In such case, an automatic regulator shall be mounted.

• Only for UK: The appliance's power cable is fitted with 3-cord (grounding) plug that fits a standard 3-cord (grounded) socket. Never cut off or dismount the third pin (grounding). After the appliance is installed, the plug should be accessible.
• Make sure that mains cable is not caught under the appliance during and after carrying/moving the appliance, to avoid the mains cable becoming cut or damaged. If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified person in order to avoid a hazard.
• Do not install the appliance in humid, oily or dusty places, nor expose it to direct sunlight and to water.
• Do not install the appliance near heaters or inflammable materials.
• FOR appliances with a freezer compartment: if there is a power failure do not open the lid. Frozen food should not be affected if the failure lasts for less than the hours indicated on the rating label (Temperature rise time). If the failure is longer, then the food should be checked and eaten immediately or cooked and then refrozen.
• If you find that the lid of the appliance is difficult to open just after you have closed it, don't worry. This is due to the pressure

difference which will equalize and allow the lid to be opened normally after a few minutes.

- Do not store medicines, bacteria or hemical agents in the appliance. This appliance is a household appliance, it is not recommended to store materials that require strict temperatures.

- Do not excessively pull or fold the power cord or touch the plug with wet hands.

- Do not store products which contain flammable propellant (e.g. spray cans) or explosive substances in the appliance. Risk of explosion!

- Do not place unstable articles (heavy objects, containers filled with water) on top of the refrigerator, to ovoid personal injury caused by falling or electric shock caused by contact with water.

- Do not use electrical appliances inside the food storage compartments, unless they are of the type recommended by the manufacturer.

- Do not touch internal cooling elements, especially with wet hands, to avoid cracks or injuries.

- At risk here are children, people who have limited physical, mental or sensory abilities, as well as people who have inadequate knowledge concerning safe operation of the appliance.

- Check that children and vulnerable people have understood the hazards. A person responsible for safety must supervise or instruct children and vulnerable people who are using the appliance. Only children aged 8 years and above

may use the appliance.

• Children should not play with the appliance.

• Children aged from 3 to 8 years are allowed to load and unload this appliance.

• FOR appliances with a freezer compartment: do not store bottled or canned liquids (especially carbonated drinks) in the freezer compartment. Bottles and cans may burst!

• FOR appliances with a freezer compartment: never put frozen food straight from the freezer compartment in your mouth. Risk of lowtemperature burns!

- Keep plastic parts and the door seal free of oil and grease. Otherwise, plastic parts and the door seal will become porous.

- Before performing any operation, unplug the power cord from the power socket.

- Do not use mechanical devices or other means to accelerate the defrosting process, other than those recommended by the manufacturer.

- Do not use pointed or sharp-edged objects such as knives or forks to remove the frost.

- Never use hairdryers, electrical heaters or other such electrical appliances for defrosting.

- It is recommended to keep the plug clean, any excessive dust residues on the plug can be the cause fire.

- Do not try to repair, disassemble or modify the appliance by yourself. In case of repair please contact always our customer service.

• Supervise children while the appliance is being cleaned or maintained.
• Do not clean the cold glass shelves with hot water. Sudden temperature change may cause the glass to break.
• WARNING: The tubes of the refrigeration circuit convey a small quantity of an environmentally friendly but flammable refrigerant (R600a) and insulating gas (cyclopentane). It does not damage the ozone layer and does not increase the greenhouse effect. If refrigerant escapes, it may injure your eyes or ignite.

• If the refrigerant circuit should be damaged:

• Switch off the appliance and pull out the mains plug,

• Keep naked flames and/or ignition sources away from the appliance,
• Thoroughly ventilate the room for several minutes,
• Inform customer service.

WARNING

- Do not damage the plug and/or the power cord; this could cause electrical shocks or fires.

WARNING

• Do not use multiple portable socketoutlets or portable power supplies. We do not recommend the use of extension leads and multi-way adapters.
• Do not attempt to sit or stand on the top of the appliance. You could

injure yourself or damage it. This appliance is not designed for stacking with any other ones.

• The product is designed and built for domestic household use only.
• Only original parts supplied by the manufacturer may be used. The manufacturer guarantees that only these parts satisfy the safety requirements.
• Opening the door for long periods can cause a significant increase of the temperature in the compartments of the appliance.

- Clean regularly surfaces that can come in contact with food and accessible drainage systems.

- Clean water tanks if they have not been used for 48h; flush the water system connected to a water supply if water has not been drawn for 5 days.

- Store raw meat and fish in suitable containers in the refrigerator, so that it is not in contact with or drip onto other food.

- Two-star frozen-food compartments (if they are presented in the appliance) are suitable for storing pre-frozen food, storing or making icecream and making ice cubes.

- One-, two- and three -star compartments, if present in the appliance, are not suitable for the freezing of fresh food.

- If the appliance is left empty for long periods, switch off, detrost, clean, dry and leave the door open to prevent mould developing within the appliance.

• FOR Wine Coolers: this appliance is intended to be used exclusively for the storage of wine
• FOR a free standing appliance:

this refrigerating appliance is not intended to be used as a built-in appliance

• FOR appliances without a 4-star compartment: this refrigerating appliance is not suitable for freezing foodstuffs

Scrapping old appliances

This appliance is marked according to the European directive 2012/19/EU on Waste Electrical and Electronic Equipment (WEEE).

WEEE contains both polluting substances (which can cause negative consequences for the environment) and basic components (which can be re-used). It is important to have WEEE subjected to specific treatments, in order to remove and dispose properly all pollutants, and recover and recycle all materials.

Individuals can play an important role in ensuring that WEEE does not become an environmental issue; it is essential to follow some basic rules:

• WEEE should not be treated as household waste;
• WEEE should be handed over to the relevant collection points managed by the municipality or by registered companies. In many countries, for large WEEE, home collection could be present.

In many countries, when you buy a new appliance, the old one may be returned to the retailer

who has to collect it free of charge on a one-to-one basis, as long as the equipment is of

equivalent type and has the same functions as the supplied equipment.

Conformity

By placing the mark on this product, we are confirming compliance to all relevant European safety, health and environmental requirements which are applicable in legislation for this product.

Guarantee

Minimum guarantee is: 2 years for EU Countries, 3 years for Turkey, 1 year for UK, 1 year for Russia, 3 years for Sweden, 2 years for Serbia, 5 years for Norway, 1 year for Morocco, 6 months for Algeria, Tunisia no legal warranty required.

Energy Saving

For better energy saving we suggest :

• Installing the appliance away from heat sources and not exposed to direct sunlight and in a well ventilated roo.
• Avoid putting hot food into the refrigerator to avoid increasing the internal temperature and therefore causing continuos functionaliting of the compressor.
• Do not excessively stuff foods so as to ensure proper air circulation.
• Defrost the appliance in case there is ice to facilitate the transfer of cold.
• In case of absence of electrical energy, it is advisable to keep the refrigerator door closed.
• Open or keep the doors of the appliance open as little as possible
• Avoid adjusting the setting to temperatures too cold.
• Remove dust present on the rear of the appliance

For further information about the product, please consult https://eprel.ec.europa.eu/ or scan the QR on the energy label supplied with the appliance

You must allow the freezer to settle for at least four hours prior to switching the power on.

It is recommended that you clean the interior of the appliance prior to first use, using a solution of bicarbonate of soda and warm water and then thoroughly drying the interior.

The freezer may have an odor to it at first use. This will disappear as the appliance cools.

Please note:

The appliance will start on temperature setting 3 and work continuously until it comes down to the correct temperature.

If the appliance is switched off, you should allow five minutes before switching it on again to prevent unnecessary damage to the compressor.

Never store inflammable or explosive items and strong corrosive acids or alkalis in the appliance.

This freezer cools your food by making the inside back of the cavity cold. It is normal for frost to build up on this surface; it then dissipates and drains through a small drain at the bottom, where it evaporates harmlessly. The presence of some frosting is not a malfunction of the freezer.

• The freezer compartments are designed to store only frozen food.
• Never put hot or warm foods in the freezer, allow them to cool fully before putting them into the freezer.
• Follow the instructions on the food packaging for storage of frozen food. If no information is provided, foods should not be stored for more than three months after the purchase date.
• Store food in small packages (ideally less than 2.5kg). This reduces the freezing time and improves the quality of the food after thawing.
• Wrap food before putting into the freezer. To stop the wrapping sticking together, ensure it is dry.
• Label the food before freezing with information including type of food and dates of storage and expiry.
• Once food is thawed, it must not be refrozen unless it has been completely cooked. Only defrost as much food as is required to prevent wastage.
• Bottled or canned drinks should not be stored in the freezer compartment as they could explode.
• Check the rating plate to confirm the maximum amount of fresh food that can be frozen within a 24 hour period.

Do not attempt to freeze more than the maximum amount.

Storage

The freezer is for short-mid term food storage. Although low temperatures can be maintained, extended periods of food storage is not recommended.

As the cold air circulates within the freezer, the temperature can vary between the different sections. As such, foods should be stored in different sections according to type and storage term.

The bottom sections are the coldest parts of the freezer.

Fig. 1

Front view of a vertical storage cabinet with multiple shelves and one door open (no text or symbols visible)

The top two sections have raisable flaps that stay open for ease of loading and unloading. The remaining 5 sections are drawers.

The 6th setting on the control panel, represented by the snowflake (Fig. 2), is a super freeze function. This should be used when freezing large quantities of food all at once. Activate this function 2 or 3 hours before introducing the food and do not leave it to run for more than necessary.

Leaving it to run for longer will place unnecessary strain on the cooling system. The function will automatically deactivate after approximately 24 hours.

The most energy-saving configuration requires drawers, food box and shelves to be positioned in the product, please refer to the above pictures.

• It's suggested to set the temperature at -18 C in the freezer compartment.
• For frozen food, refer to the storage time written on the food packaging. This storage time is achieved whenever the setting respects the reference temperatures of the compartment (one-star -6 C, two stars -12 C, three -18 C)

Fig. 2

Black snowflake icon with six symmetrical arms (no text or symbols)

Fig. 3

A. Freezer temperature adjustment sensor

This button is used to adjust the temperature within the freezer. Press this sensor once to activate adjustment, and then as many times as necessary until the desired level is selected. The settings range from 1 to 6 with 1 being the warmest and super freeze being the coldest.

Please note: Where possible, avoid having the temperature setting on 5 or super freeze (snowflake) all of the time. This will help to alleviate strain on the compressor and system.

B. Freezer temperature setting display

This display will illuminate the current temperature setting. Adjusting the temperature will cycle through this display.

Please note: You do not use numbers 1 to 5 or the snowflake to change the temperature. Instead, use the freezer temperature adjustment sensor (A).

Position Conditions

1-2 Summer or ambient temperature between 25-35 °C

3-4 Spring, autumn or ambient temperature between 15-25 °C

5 Winter, or ambient temperature between 5-15 °C

Super freezing Quick freeze

C. Power button

Press the sensor once to rose up the function, and then press for 3 seconds to switch the appliance on or off.

This product has power-off or power failure memory function.

Always disconnect the appliance from the power supply before any cleaning or maintenance.

The drawer sections should be cleaned using a solution of bicarbonate of soda and lukewarm water.

Do not use abrasive products or detergents. After washing, rinse and dry thoroughly.

Clean the compartments separately by hand with a mild solution of washing up liquid and water.

Do not use abrasive cleaners or detergents.

If the appliance is not to be used for prolonged periods of time, unplug and clean the appliance.

The doors should be left slightly ajar to prevent the formation of mildew and unpleasant odors.

Defrosting the freezer

The freezer has a no frost system which is designed to prevent the heavy build up of ice. Under normal use, there should be no need to regularly defrost the freezer system.

Please note: If you are regularly finding a heavy build up of ice, or pools of water, in the freezer section then it is likely that the door is not sealing properly. This could be due to a defective door seal or an incorrectly fitted, or overly heavy, decor door. For more information see the troubleshooting section on ice.

Please note: If you are regularly finding pools of water in the freezer, frost build-ups, or you notice that the compressor is always running, then it is likely that the door is not sealing properly. This could be due to a defective door seal or an incorrectly fitted, or overly heavy, decor door. For more information see the troubleshooting section on ice on page 12.

Availability of spare parts

• Thermostats, temperature sensors, printed circuit boards and light sources are available for a minimum period of seven years after placing the last unit of the model on the market.
• Door handles, door hinges, trays and baskets for a minimum period of seven years and door gaskets for a minimum period of 10 year, after placing the last unit of the model on the market.

EN 6 - Troubleshooting

If you have any problems with your appliance, you should check the troubleshooting prior to calling Montpellier Customer Care.

If the appliance is not working, check:

• That there is power to the appliance.
- The house fuses are intact and the fuse in the plug has not blown.
• The freezer has not been turned off
- The plug socket is functioning fine. To check this, plug another electrical appliance in to see if the socket is faulty.

If the appliance is working, but not very well, check:

• The appliance is not overloaded.
• The thermostat is set to an appropriate temperature.
• The doors are closing properly.
- The cooling system at the rear of the appliance is clean and free of dust, and not touching the rear wall.
• There is enough ventilation at the side and rear walls.
- This can be due to the decor door(s) not being properly fitted, causing the freezer door to not close properly thus letting warm air in. If you are at all unsure, ask your fitter to check the decor doors.

If the appliance is noisy, check:

• The appliance is level and stable.
- The side and rear walls are clear, and there is nothing resting on the appliance.
- Note: The cooling gas in the system may make a slight bubbling or gurgling noise, even when the compressor is not running.

If the appliance is beeping, check:

• That the door is closed.

If there's water in the base of the freezer, check:

• Check that there is some resistance when opening the door of the appliance. If it opens at the slightest touch it may mean that the door seal needs to be replaced.
• Check the door seal for any kinks, debris or damage. If you notice any, and are unable to resolve the issue yourself, contact Customer Care so that the seal can be replaced.
• This can be due to the decor door(s) not being properly fitted. If you are at all unsure, ask your fitter to check the decor doors.

If excessive ice has formed in the freezer:

• It is normal for some ice to form in the freezer. This does not constitute a fault with the appliance.
• Check that there is some resistance when opening the door of the appliance. If it opens at the slightest touch it may mean that the door seal needs to be replaced.
• Check the door seal for any kinks, debris or damage. If you notice any, and are unable to resolve
• the issue yourself, contact Customer Care so that the seal can be replaced.
• This can be due to the decor door(s) not being properly fitted. If you are at all unsure, ask your fitter to check the decor doors.

This appliance must never be installed close to heat sources, e.g. heating elements or cookers, nor in damp places.

Seek the help of another individual, or two, when installing this appliance. This appliance may have sharp edges. Wear adequate PPE for the task and environment.

• To ensure the appliance is level, you should use the height adjustable feet at the front of the appliance.
• The cooling system at the rear of the appliance must not touch the rear wall. The greater the gap, the better.
• The appliance must be installed with adequate ventilation. Ensure that there is clearance above the appliance to allow air to escape and that there is space between the rear of the appliance and the wall.

Fig. 5

Install the appliance at a location where the ambient temperature corresponds to the climate class indicated on the rating plate of the appliance:

• Extended temperate (SN): 'this refrigerating appliance intended to be used at ambient temperatures ranging from 10 °C to 32 °C'
• Temperate (N): 'this refrigerating appliance is intended to be used at ambient temperatures ranging from 16 °C to 32 °C'
• Subtropical (ST): 'this refrigerating appliance is intended to be used at ambient temperatures ranging from 16 °C to 38 °C'
• Tropical (T): 'this refrigerating appliance is intended to be used at ambient temperatures ranging from 16 °C to 43 °C'

Fig. 6
DO NOT TILT BEYOND 40°

Pure geometric diagram showing two adjacent rectangles with an angle labeled 40°, no text or symbols present.

Ventilation

The main consideration when installing any refrigeration unit into a fitted kitchen is ventilation. The heat removed from the cooling compartment needs to be dissipated into the atmosphere.

Incorrect ventilation can lead to premature compressor failure, excessive power consumption, total system failure and may invalidate the warranty provided with the appliance. For products intended to be installed into a tall housing unit, the following requirements need to be met:

Fig. 7

An air intake should be provided somewhere in the cabinet run to allow free air in. In this example, a * plinth vent in shown underneath the refrigerator.

A cutout should be made in the * plinth below the fridge/freezer and this finished neatly using the air vent grille.

Alternatively, a thin section on the * plinth can be removed to allow air into the unit (recommended 600mm x 10mm).

Plan view of rear ventilation gap

The top of the cabinet needs to be vented into the room.

Recommended size of vent opening: 500x30mm

If the furniture does not allow free air into the room then a plinth vent, or other means of ventilation needs to be provided to ensure a natural flow of air.

There should be space at the rear of the cabinet to allow cool air to be drawn over the condenser.

Recommended: 500x35

*Please note a plinth vent/grill is not included with the appliance. This is given as a guide to aid installation. Your installer will be able to determine if you would be required to buy a plinth vent/grill for your type of installation or not.

The open channel at the rear is clearly shown. For the correct operation of the appliance it is important that the top of the housing unit is not blocked off. A channel depth of 40-50mm is normal with most units.

A ventilation hole is required in the plinth of the unit; this allows air To be drawn over the compressor & heat exchange. The required air flow can be achieved by removal of a thin section of plinth (recommended 600mm x 10mm minimum).

As a rule, the more air that can get in and out, the better and more efficient the operation of the product.

Installation into the cabinet

With the help of another individual, or two, move the appliance into the cabinet. There are two metal plates at the base of the appliance. Fit the supplied white spacers (Fig. 8) to these plates, as per Fig. 9.

Fig. 8

1

Insert the appliance into the column placing it on the opposite site of the hinges, and make sure 3-5mm distance gap.

2

After ensuring the match between appliance door and column door, fix the plastic covers from accessories bag.

3

Screw the appliance lower part.

4

Fit the seal to the appliance, cut off the excessive part if necessary. Fit the bottom parts with plastic covers.

Technical line drawing of a rectangular enclosure with internal components and directional arrows indicating movement (no text or symbols)

Ensure that the lips of the spacers are level with the lip of the cabinet base.

Mounting the fascia door

• Ensure that there is a gap of 3 to 4mm between the non-hinged side and the cabinet wall.
• Locate the slider in the bracket and fix the slider to the fascia door 20 to 22mm from the edge of the fascia as shown in figure 11, ensuring that the slider is positioned centrally and horizontally within the bracket. Tighten securely by hand.
• Fill the gap on the non-hinged side with the gasket/seal strip provided, as shown in Fig. 12.
• The finished look for the door sliders should be similar to those shown in Fig. 14, which shows 2 sliders in place.
• Ensure the appliance door opens, closes and seals properly.

Once complete, and if you are happy with the fit of the appliance in the cabinet, bend and snap the parts of the white spacers marked 'S' as shown by the dotted outline in fig. 13. Leave the rest of the spacer cover in place over the metal plates.

Fig. 11

Fig. 12

Diagram showing a curved pipe or duct being inserted into a circular opening, with an arrow indicating direction (no text or symbols present)

Gasket

Fig. 13

Fig 14

IMPORTANT

After completing the installation, check that the appliance is secured within the unit and that the door(s) close and open properly. If there is no resistance from the door seals when opening the doors, then it is probable that the appliance and/or decor doors are not fitted properly.

Reversing the appliance door

We recommend you seek the help of another individual to support the doors whilst performing this operation. Always wear adequate PPE (Personal Protective Equipment) for the task at hand. Prepare a surface with a soft, clean towel or similar where you can place the door during these steps.

1

Remove the right upper hinge cover and hinge by screwdriver.

Line drawing of a mechanical device with no visible text or symbols

2

Remove the door.

Line drawing of a cabinet with an open door and a curved arrow indicating motion (no text or symbols)

3

Remove the right bottom hinge and left plastic plugs, and refit them onto the opposite side.

Line drawing of a device with arrows indicating motion or force (no text or symbols)

4

Assembly the right upper hinge to the left bottom and fit the cover.

Line drawing of a computer monitor with scroll wheel and base mount (no text or symbols)

5

Sit the door on the bottom hinge and assembly the bottom hinge to the top, make sure 1-2-3 are very close.

Ensuring the door seals correctly:

It is normal for the seal to be compressed after the door has been reversed. With the door closed, use a hair dryer to expand the seal and fill the gap between the door and the body of the appliance. Take care not to use the hair dryer too close to the appliance, which could damage the seal. A distance of approximately 10cm should be adequate. When completed, allow the seal and door to cool before touching them. Once done, the seal should remain in position.

Tools & parts
	Spacer for hinge A
	Spacer for hinge B
	Hinge cover
	Cross head screw3.9x12, T203.9x16, T20
	Spanner
	Left cover forcontrol panel-spacer
	Right cover forcontrol panel-spacer
	Decoration stripe

1

Push the appliance into the wooden furniture, the appliance should be better approach furniture left side.

Diagram showing two rectangular containers with internal compartments and a separate electrical plug, no text or symbols present

PS: The appliance must be plugged in before installation

2

Adjust the position of appliance, screw product top and bottom part on the furniture.

PS: Please remove the tail after fixing the bottom part cover.

Upper hinge cover

3

Fix the hinge on furniture by screw, attached the decoration stripe on the product left side.

Simple line drawing of a container with a moving object inside, no text or symbols present

PS: Fix the hinge on furniture with spacer.

Diagram of a two-tiered storage unit with vertical and horizontal arrows indicating internal structure (no text or symbols)

4

Measure the dimension of A and B.

Disassemble the junction panel before measuring.

4

Simple line drawing of a rectangular device with a handle and internal components, connected to a wavy line (no text or symbols)

5

Fix the junction panel on furniture door.

6

Fix the appliance door on furniture door.

Index SEITE

1 - Sicherheitsinformationen 2

Front view of a vertical storage cabinet with multiple shelves and one door open (no text or symbols visible)

Black snowflake icon with six symmetrical arms (no text or symbols)

Abb. 3

Pure geometric diagram showing two tilted rectangular panels with an angle labeled 40°, no text or symbols present.

Belüftung

Technical line drawing of a rectangular enclosure with directional arrows indicating movement or force (no text or symbols)

2

Diagram showing a curved pipe or duct assembly with an arrow indicating direction, no text or symbols present

Dichtung

Abb. 13

Abb. 14

Line drawing of a mechanical device with no visible text or symbols

2

Line drawing of a kitchen appliance with a door and angled arm (no text or symbols)

3

Line drawing of a device with arrows indicating motion or force (no text or symbols)

4

Line drawing of a computer monitor with scroll wheel and base mount (no text or symbols)

5

Diagram showing two 3D rectangular blocks with internal structures and a cable being inserted, no text or symbols present.

Simple line drawing of a container with a moving object and motion arrows, no text or symbols present.

Technical line drawing of a two-tiered storage cabinet with vertical guide and horizontal arrows indicating dimensions (no text or symbols)

4

Simple line drawing of a rectangular device with a curved internal line and a top bracket (no text or symbols)

6

The Ground Truth image displays a single, solid horizontal line. According to Rule 2 (UNDERSCORE & LINE RULES), this is a stylistic or background line, not a placeholder underscore. Therefore, the OCR result must ignore it and output nothing or only meaningful text. The provided OCR content is "____", which consists of four underscores. This is an incorrect interpretation of the line as a placeholder, violating the rule that stylistic lines must be ignored. The OCR has hallucinated underscores where none should exist based on the GT's visual context. Hence, the OCR result is inconsistent with the Ground Truth.

Front view of a vertical refrigerator with multiple shelves and one door open (no text or symbols visible)

Black snowflake icon with six symmetrical arms (no text or symbols)

Fig. 3

Pure geometric diagram showing two planes intersecting a horizontal structure with an angle labeled 45° (no text or symbols beyond basic geometry)

Ventilación

Technical line drawing of a rectangular enclosure with directional arrows indicating movement or force (no text or symbols)

2

Line drawing of a mechanical device with no visible text or symbols

2

Saque la puerta.

Line drawing of a cabinet with an open door and a curved arrow indicating motion (no text or symbols)

3

Line drawing of a monitor with base, showing mounting points and directional arrows (no text or symbols)

4

Line drawing of a monitor with a scroll and two hanging objects, no text or symbols present

5

Diagram showing two rectangular containers with internal compartments and a separate electrical plug, no text or symbols present

Simple line drawing of a container with a moving object inside, no text or symbols present

Pure technical diagram of a vertical frame with internal structure and directional arrows, no text or symbols present

4

Simple line drawing of a rectangular device with a handle and internal components, connected to a wavy line (no text or symbols)

5

Front view of a vertical storage cabinet with multiple shelves and one door open (no text or symbols visible)

Black snowflake icon with six symmetrical arms (no text or symbols)

Fig. 3

A. Sensor de ajuste da temperatura do congelador

Pure geometric diagram showing two adjacent rectangles with an angle labeled 40°, no text or symbols present.

Ventilação

Technical line drawing of a rectangular enclosure with directional arrows indicating movement or force (no text or symbols)

2

Line drawing of a mechanical device with no visible text or symbols

2

Remova a porta.

Simple line drawing of a cabinet or storage unit with an arrow indicating motion (no text or symbols)

3

Line drawing of a device with arrows indicating motion or force (no text or symbols)

4

Line drawing of a computer monitor with scroll and base components, no text or symbols present

5

Diagram showing two rectangular storage units with internal compartments and a connected electrical plug (no text or symbols)

Simple line drawing of a container with a moving object inside, no text or symbols present

Pure technical diagram of a vertical frame with internal structure and directional arrows, no text or symbols present

4

Simple line drawing of a rectangular device with a handle and internal components, connected to a wavy line (no text or symbols)
