COV8TB - Oven Cellini - Free user manual and instructions

Product Type	Oven
Brand	Cellini
Model	COV8TB
Dimensions (H x W x D)	595 x 595 x 550 mm
Net Weight	Approximately 32 kg
Power Supply	230 V ~ 50 Hz
Maximum Power Consumption	2.9 kW
Energy Efficiency Class	A+
Capacity	68 liters
Number of Functions	8 (including conventional, grill, fan assisted, etc.)
Temperature Range	50°C to 250°C
Control Type	Electronic touch and rotary knobs
Display	LED digital display
Interior Light	Yes
Cooling Fan	Yes
Self-Cleaning	Catalytic lining on back panel
Door Type	Triple-glazed cool touch door
Safety Features	Child lock, auto shut-off, overheating protection
Accessories Included	2 oven shelves, 1 baking tray, rotisserie kit
Spare Parts Availability	Available from authorized service centers
Repairability Index	8.5/10

Frequently Asked Questions - COV8TB Cellini

How do I clean the oven?

Use a damp cloth and mild detergent for the exterior. For the interior, use the self-cleaning function or wipe with a soft sponge. Avoid abrasive cleaners.

What should I do if the oven does not heat up?

Check the power supply, ensure the oven is properly plugged in, and that the timer is set. If the issue persists, contact customer support.

Can I use aluminium foil in the oven?

Yes, but avoid covering the bottom and ensure it does not touch the heating elements to prevent fire risk.

How do I set the timer?

Press the timer button, use the +/- knob to set the desired time, and press start. The oven will switch off automatically when the timer ends.

What is the maximum temperature?

The maximum temperature is 250°C. Do not exceed this for safety reasons.

How do I activate the child lock?

Press and hold the lock button for 3 seconds until a key symbol appears on the display. Repeat to deactivate.

Why is the oven making noise during operation?

Normal sounds include the cooling fan and the timer ticking. If you hear unusual noises, check for loose accessories or contact service.

How do I replace the oven light bulb?

Disconnect the power, remove the glass cover, replace with a 25W/300°C bulb, and reassemble.

Can I use the grill function with the door closed?

No, for grill function, the door should be slightly ajar to prevent overheating. Refer to the manual for specific instructions.

What spare parts are available?

Common spare parts include shelves, baking trays, door gaskets, and heating elements. Order through authorized dealers.

USER MANUAL COV8TB Cellini

Model No. 型號: COV8TB

700W

Before using your product for first time, please read this instruction manual.

1. When using this electric oven, basic precautions should always be followed, included the followings:
2. Read all instructions.
3. Do not touch hot surface, use handles and knobs.
4. Close supervision is necessary when any appliance is used by or near children.
5. To protect against electric shock, do not immerse cord, plug or any parts of the oven in water or other liquids.
6. Do not let cord hang over edge of table or counter, or touch hot surface.
7. Do not operate appliances with damaged cord or plug or after the appliance malfunctions, or have been damaged in any manner. Return the appliance to the nearest authorized service center of examination, repair, or adjustment.
8. Do not use mismatched accessory, it may cause hazard or injury.
9. Do not place on or near a hot gas or electric burner, or in a heated oven or in a microwave oven.
10. When operating the oven keep at least 4 inches of space on all sides of the oven to allow for adequate air circulation.
11. Unplug from outlet when not in use and before cleaning. Allow to cool before putting on or taking off parts, and before cleaning.
12. To disconnect, turn the time control to OFF, then remove the plug. Always hold the plug, but never pull the cord.
13. Extreme cautions must be used when moving an appliance containing hot oil or other hot liquid.
14. Do not use metal to touch any part of oven when operating.
15. Be extreme cautions when remove the tray or disposing of hot grease or other hot liquid.
16. Do not clean with metal scouring pads pieces can break off the pad and touch electric parts, creating a risk of electric shock.
17. Never leave the appliances unattended while broiling or toasting.
18. Oversized foods and metal utensils must not be inserted in the oven as they may create a fire or risk of electric shock.
19. A fire may cause if oven is covered or touching inflammable material, including curtains draperies, walls and like, when on operation, Do not store any item on the oven during operation.
20. Extreme caution should be exercised when using containers constructed of anything other than metal or glass.
21. Do not place any of the following materials on the oven: cardboard, plastic, paper or anything similar.
22. Do not store any materials, other than recommended accessories in the oven.
23. Always wear protective, insulated oven gloves when inserting or removing any items from the hot oven.
24. This appliance is for household use only, do not use outdoor.
25. Do not use appliance for other than intended use.
26. This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.
27. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervised.
28. If the supply cord is damaged, it must be replaced by the After-sales Service Center or a similarly qualified person in order to avoid a hazard.

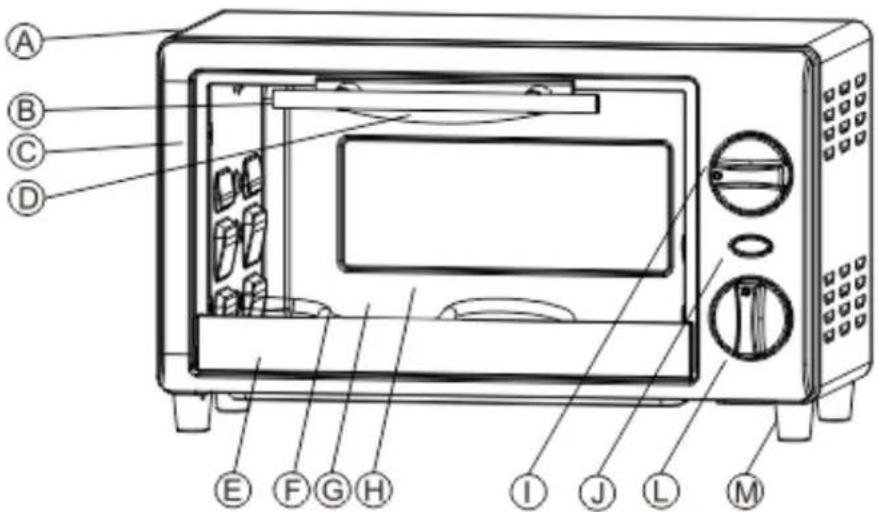

PARTS OF APPLIANCE

Technical line drawing of two components: a square frame with labeled N and K, and a grid-patterned plate (no text or symbols beyond labels)

A. Housing

B. Door handle

C. Front plate

D. Upper door clip

E. Lower door clip

F. 'S' Shape heating element

G. Glass door

H. Back board

I. Temperature control knob

J. Power indicator light

K. Wire rack

L. Timer knob

M. Foot

N. Bake tray

Before using your oven for the first time Be sure to

1. Make sure that the oven is unplugged and the TIMER switch is on the OFF position.
2. Remove all rack and pans and wash them in hot sudsv water or in the dishwasher.
3. Thoroughly dry all accessories and re-assemble in oven. Plug the powder cord into socket and you are ready to use your new oven.
4. After re-assembling your oven, we recommend that you run in at the max temperature for approximately 15 minutes to eliminate any dirty oil on its surface.
5. The oven may emit smoke with first time use under normal operating conditions and will soon disappear after 5 minute.

HOW TO USE YOUR OVEN FOR BAKING AND GRILLING

1. Put the power plug in the socket

Hand inserting a plug into an electrical socket (no text or symbols visible)

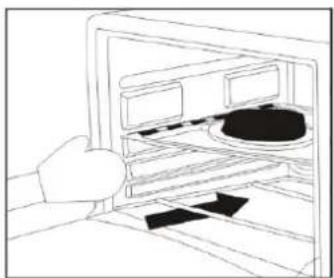

1. Put the food into oven

Line drawing of a kitchen appliance with a hand holding a mitten and a bowl on the door (no text or symbols)

1. Take out the food when the process finished

Line drawing of a hand placing a tray with a lid, next to an open refrigerator (no text or symbols)

2.Pre-heat the oven with approximate 15 minutes

Line drawing of a hand operating a kitchen fan with a rotary knob (no text or symbols)

1. Set the temperature and time

6.Unplug the power

Hand inserting a plug into an electrical socket (no text or symbols visible)

CLEANING

1. It is important that you clean the appliance after each use to prevent an accumulation of grease and avoid unpleasant odors.
2. The appliance must be cool down and unplug from outlet before cleaning.
3. Do not immerse appliance in water or wash it under waterspout.
4. Removable wire rack and bake tray can be washed, as normal kitchen ware.
5. Clean outer surface of appliance with damp cloth.
6. Do not use abrasive cleaner or sharp utensils to clean the oven, as scratching may weaker it and cause shattering,
7. Let all parts and surfaces dry thoroughly prior to plugging oven in the socket.

SPECIFICATION

Model No.: COV8TB

Power: 700 W

Voltage: 220V\~50Hz

Capacity: 8L

Product dimension: 350(W) x 206(H) x 230(D) mm

安全注意事項

Hand inserting a plug into an electrical socket (no text or symbols visible)

3. 放入食物開始烘烤

Line drawing of a kitchen appliance with a hand holding a mitten and a bowl on the door (no text or symbols)

5. 結束烘烤，取出食物

Line drawing of a hand placing a tray with a lid on an open appliance (no text or symbols)

2. 焗爐預熱約 15 分鐘

Line drawing of a hand operating a kitchen microwave oven with a rotary knob (no text or symbols)

4. 設置好時間和溫度

6. 拔下插頭

Hand inserting a plug into an electrical socket (no text or symbols visible)

清潔及維護保養
