Product Type	Wine Cellar / Wine Cooler
Brand	Bomann
Model	KSG 7285
Dimensions (H x W x D)	84.5 x 54.0 x 54.8 cm
Net Weight	Approx. 31.0 kg
Power Supply	220-240 V~ / 50 Hz
Rated Power	110 W
Rated Current	0.5 A
Climate Class	N (16°C to 32°C ambient temperature)
Refrigerant	Isobutane (R600a), flammable
Temperature Control	Rotary knob, settings 1 (warmest) to 7 (coldest), Off at 0
Lighting	Interior LED light (replaceable by authorized specialist only)
Shelves	4 grid shelves, adjustable height; also includes 1 bottle holder
Door Lock	Yes, with 2 keys (child safety lock)
Capacity / Loading	Designed for cooling and storing drinks; bottles can be stored horizontally
Installation Clearances	Back: 50-70 mm; sides and top: min. 100 mm
Defrosting	Manual defrost; disconnect power and let ice melt; do not use mechanical tools
Cleaning	Use warm water and mild detergent; avoid abrasive cleaners or steam
Noise Level	Typical operation sounds: compressor hum, refrigerant flow, clicking from thermostat
Safety Features	Keep ventilation clear; do not damage refrigerant circuit; no electrical devices inside
Accessories Included	4 grid shelves, 1 bottle holder, 2 keys for door lock
Use	Household and similar (e.g., staff kitchens, hotels); not for built-in or outdoor use
Disposal	Do not dispose in household waste; use collection points for electrical equipment

Frequently Asked Questions - KSG 7285 BOMANN

How long should I wait before plugging in the wine cellar after transport?

After transport, let the appliance stand upright for approx. four hours before connecting to power. This prevents malfunction of the cooling system.

What temperature settings are available?

The temperature control has settings from 1 (warmest) to 7 (coldest), plus an Off position (0). During initial startup, set to 7 until desired temperature is reached, then adjust to a medium setting.

How do I clean the wine cellar?

Always disconnect power first. Clean interior and exterior with warm water and mild detergent or a damp microfiber cloth. Do not use steam cleaners, abrasive or acidic products. Dry thoroughly before restarting.

How do I defrost the appliance?

Defrost regularly for efficiency. Disconnect power, remove contents, and let ice melt naturally. Wipe away condensate and dry interior. Never use metal objects or mechanical tools to remove ice.

What should I do if the wine cellar is making unusual noises?

Normal sounds include compressor humming, refrigerant liquid sounds, and clicking from the thermostat. If loud or disturbing, ensure the appliance is level and shelves are secure. See 'Operating noise' section in manual.

Can I change the interior light bulb myself?

No. The LED light is not user-serviceable. Do NOT remove the cover. If defective, contact an authorized specialist for replacement.

What is the door lock for and how do I use it?

The lock acts as a child safety lock. Use the supplied keys to lock the door. Keep keys in a safe place away from children.

What are the required clearances for installation?

Leave a gap of 50-70 mm at the back and at least 100 mm on sides and top for proper ventilation. Ensure the door can open freely.

What type of refrigerant is used and is it flammable?

The refrigerant is Isobutane (R600a), a flammable natural gas. Avoid damaging the cooling circuit. If damaged, ventilate the room and call a technician.

How do I dispose of the wine cellar when it's no longer usable?

Do not throw it in household waste. Use official collection points for electrical equipment. Remove or disable any locks before disposal.

USER MANUAL KSG 7285 BOMANN

Interior view of a modern stainless steel oven with visible grating and metal grilles (no text or symbols on the appliance itself)

Special safety Information for this Unit......Page 14

Transport and Packaging......Page 15

Appliance Equipment......Page 16

Installation......Page 16

Startup / Operation......Page 17

Cleaning and Maintenance......Page 18

Troubleshooting......Page 19

Technical Data......Page 19

Thank you for choosing our product. We hope you will enjoy using the appliance.

Symbols in these Instructions for Use

Important information for your safety is specially marked. It is essential to comply with these instructions to avoid accidents and prevent damage.

WARNING:

This warns you of dangers to your health and indicates possible injury risks.

CAUTION:

This refers to possible hazards to the machine or other objects.

NOTE: This highlights tips and information.

General Notes

Read the operating instructions very carefully before putting the appliance into operation and keep the instructions including the warranty and the receipt. If you give this device to other people, also pass on the operating instructions.

NOTE:

• Due to constant product modifications, your device may differ slightly from these operating instructions; Functions and methods of use remain unchanged.
• The illustrations in these operating instructions may differ from the original device.
• The appliance is designed exclusively for private use and for the envisaged purpose. This appliance is not fit for commercial use.
• The appliance is only to be used as described in the user manual. Do not use the appliance for any

other purpose. Any other use is not intended and can result in damages or personal injuries.

• This appliance is not intended to be used as a built-in appliance.
• Do not use it outdoors. Keep it away from sources of heat, direct sunlight and humidity.
• When not in use, for cleaning, user maintenance works or with disruption, switch off the appliance and disconnect the plug (pull the plug itself, not the lead) or turn off the fuse.
• The appliance and if possible the mains lead have to be checked regularly for signs of damage. If damage is found the appliance must not be used.
• For safety reasons, alterations or modifications of the appliance are prohibited.
• To ensure your children's safety, please keep all packaging (plastic bags, boxes, polystyrene etc.) out of their reach.

WARNING:

Do not allow small children to play with the foil. There is a danger of suffocation!

Special safety Information for this Unit

- This unit is intended to be used in household and similar applications such as

• staff kitchen areas in shops, offices and other working environments;
• farm houses and by clients in hotels, motels and other residential type environments;
• bed and breakfast type environments;
• catering and similar non-retail applications.

WARNING:

• Keep ventilation openings, in the appliance enclosure or in the built-in structure, clear of obstruction.
• Do not use mechanical devices or other means to accelerate the defrosting process (if necessary), except those described in this manual (depending on the model included the scope of delivery).
• Do not damage the refrigerant circuit.
• Do not operate any electrical devices inside the appliance.
• Do not store explosive substances such as aerosol containers with flammable propellant in the appliance.

- This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.

• Children shall not play with the appliance.

• Cleaning and user maintenance shall not be made by children unless they are older 8 years and supervised.
• NOTE: Children aged from 3 to 8 years are allowed to load and unload refrigerating appliances.
• When positioning the appliance, ensure the supply cord is not trapped or damaged.
• Do not locate multiple portable socket-outlets or portable power supplies at the rear of the appliance.
• Do not try to repair the appliance on your own. Always contact an authorized technician. To avoid the exposure to danger, always have faulty cable be replaced only by the manufacturer, by our customer service or by qualified person and with a cable of the same type.
• Use the provided collection points of electrical equipment for the disposal of the appliance.

Coolant

WARNING: Risk of fire / flammable

materials

The coolant circuit of this unit contains the refrigerant Isobutane (R600a), a natural gas that is flammable and of high environmental compatibility. Make sure no parts of the coolant circuit get damaged during transport and installation of the appliance.

If the coolant circuit is damaged:

• avoid any open flames or ignition source,
• disconnect the plug,
• thoroughly air the room in which the appliance is installed and
• contact an authorized technician.

Transport and Packaging

Transport the appliance

Transport the appliance, if possible, in vertical position. Otherwise, it is absolutely necessary to allow the appliance standing upright for a few hours before installation "Prior to first use". Protect the appliance during transport against weather influences.

Unpacking the appliance

• Remove the appliance from its packaging.
• Remove all packaging material, such as foils, filler and cardboard packaging.
• To prevent hazards, check the appliance for any transport damage.
• In case of damage, do not put the appliance into operation. Contact your distributor.

i NOTE:

Production residue or dust may have collected on the appliance. We recommend cleaning the appliance according to chapter "Cleaning and Maintenance".

Appliance Equipment

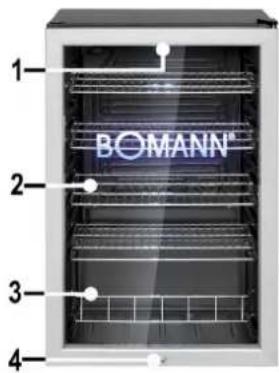

Appliance overview

1 Temperature control / Interior light / On/off switch for lighting
2 Grid shelves
3 Bottle holder
4 Door lock

Delivery scope

4x Grid shelf, 1x bottle holder, 2x key for door lock

Installation

Conditions for the installation location

- Good ventilation is required around the appliance to dissipate the heat properly and to guarantee efficient cooling operation at low power consumption. Enough clearance is necessary.

• Gap to the back approx. 50 \~ 70 mm, to the side walls and above the device each approx. min. 100 mm;
• Place the appliance so that the appliance door can open without being impeded.

- Only install at a location with an ambient temperature suitable for the climate class of the appliance. The climate class can be found under "Technical Data" and on the rating label located in the interior or on the appliance rear.

• Place the appliance on a steady and safe surface. If the appliance is not horizontally leveled, adjust the feet accordingly.

• Avoid the installation:

• near heaters, next to a stove, direct sunlight or any other heat sources;

• at locations with high humidity (e.g. outdoors, bathroom), as metal parts would be susceptible to corrosion under such circumstances;
• near volatile or flammable materials (e.g. gas, fuel, alcohol, paint, etc.), in rooms which may have poor air circulation (e.g. garages).
• Do not expose the appliance any weather.

Electrical connection

WARNING:

• The installation to the mains supply must conform to the local standards and regulations.
• Improper connection may cause to an electric shock!
• Do not modify the appliance plug. If the plug does not fit properly to the outlet, let install a proper outlet by an authorized specialist.

• The accessibility of the power plug must be ensured to disconnect the appliance from the power supply in case of emergency.

• Make sure that the voltage supply matches the specifications on the rating label before connecting.

• Connect the mains cable to a properly installed and earthed wall outlet.
• If the plug after installation is not accessible, a corresponding disconnect device must be available to meet the relevant safety regulations.

Startup / Operation

Prior to first use

CAUTION:

After transport, the appliance should be left standing upright for approx. four hours before connecting to the power supply. Nonobservance could lead to malfunction of the cooling system and causes an appliance breakdown.

Clean the appliance interior including all accessory parts. Consider the instructions which we provide in the chapter "Cleaning and Maintenance".

Starting the appliance

• Connect the appliance to the power supply.
• Operate the temperature control. See also the section "Settings".

Settings

Setting [0] means that the appliance is in the off state. Turn the temperature control clockwise, starting from this setting; the appliance will turn on automatically.

The power levels [1 - 7] regulates the different values of the internal temperature.

Setting 0: Off state

Setting 1: Lowest setting (warmest inside temp.)

Setting 7: Highest setting (coldest inside temp.)

Note that the temperature will change depending on the ambient temperature, frequency of door opening and the appliance loading.

During initial operation, turn the temperature control to the highest setting first, until the appliance has reached the desired operating temperature. Afterwards it is recommended to turn the control back to a medium setting; correcting the temperature at a later point would then be easier.

i NOTE:

A permanently high power level increases energy consumption.

Lighting

The interior light as well as the glass door logo can be switched on or off via the on/off switch.

Tip! The darker the location, the better the color rendering of the blue illuminated door logo.

Storing

The appliance is exclusively suitable for cooling and storing drinks.

Several storage levels for inserting the grid shelves, allows individual storage. Depending on requirements, the shelves can be (partially and depending on model) adjusted in height or removed to optimize the storage space.

i NOTE:

For the most efficient use of energy, place all shelves in their original position.

Capacity / loading:

Store large bottles horizontally, with the opening facing forward on the grid shelves.

Door lock

The appliance has a child safety lock by the lockable door. If necessary, lock the door and keep the keys in a safe place, which is inaccessible to children.

Operating noise

Type of sound	Cause
Mumbling	Compressor during its operation
Liquid sounds	Circulation of the refrigerant
Click sounds	The temperature control turns the compressor on or off
Disturbing noises	Vibration of the shelves or cooling coils

Switching off

To switch off the appliance turn the temperature control to the off state.

If the appliance is out of use for long periods:

• Remove the appliance content.
• Disconnect the appliance from the power supply.
• Defrost (model dependent) and clean the device thoroughly (see "Cleaning and Maintenance").
• Leave open the appliance door to avoid formation of mold and unpleased odor.

Tips for Energy saving

• Disconnect the appliance from the power supply, if it isn't in use.
• Do not install the appliance near stoves, heaters or other heat sources. In case of higher ambient temperatures, the compressor will run more frequently and longer.
• Ensure enough ventilation at the bottom and rear side. Never block ventilation openings.
• Place all shelves, racks or drawers (depending on the model) in their original position.
• Adjust the temperature not colder than necessary.

• Allow warm food to cool before placing it in the appliance.

• Open the unit door only as necessary.
  • Defrost the unit regularly (model dependent).

• Switch on the lighting only if necessary.
• The seal of the appliance door must be completely intact, so that the door closes properly.

Cleaning and Maintenance

WARNING:

• Always disconnect the appliance from the power supply before cleaning and user maintenance.
• Do not use steam cleaners for cleaning the appliance; moisture could enter electrical components. Risk of electric shock! Hot steam could damage the plastic parts.
• The unit must be dry before restarting operation.

△ CAUTION:

• Do not use a wire brush or other sharp, abrasive items.
• Do not use any acidic or abrasive detergents.
• Do not damage the refrigerant circuit.

Cleaning the appliance including interior

• Clean the appliance interior, the exterior surfaces, the accessories and the door seal regularly with warm water and mild detergent; or with a clean, damp microfiber cloth without cleaning agent.
• Remove for that the appliance content and storage at a cool location.
• Clean the thaw water discharge channel / opening carefully e.g. with a pipe cleaner.
• After everything was thoroughly dried, you can restart the operation.

Defrosting

CAUTION:

Never use metal objects (e.g. knives) for removing ice from the vaporizer. The vaporizer could be damaged.

To achieve better cooling and to save energy, defrost the device regularly.

• To start the defrosting process, disconnect the unit from the power supply.
• Remove the loading and keep at a cool location.
• When the ice has melted, wipe the condensate away and dry the appliance interior.

Changing the bulb

CAUTION:

Do NOT remove the cover of the interior light. The LED light may be replaced / repaired in case of failure / defect only by an authorized specialist.

Troubleshooting

Before you contact an authorized specialist

Problem	Cause / Action
Unit is not working properly or at all	Check the power supply / temperature setting / ambient temperature.Unblock the ventilation openings, install the appliance freely.
Loading is too warm	Check the temperature setting / ambient temperature. Open the door only as long as necessary.
Loud noise during operation	Check the appliance position.See the section “Operating noise”.
Water on the unit bottom	Check the temperature setting / water discharge channel or opening.
Light does not work	Check the power supply.See “Changing the bulb”.

i NOTE:

If a problem persists after following the steps above, contact your trader or an authorized technician.

Technical Data

Climate class N: this appliance is intended to be used at ambient temperature ranging from 16°C to 32°C.

Electrical connection....

Power voltage: 220-240 V\~ / 50 Hz

Rated power: 110 W

Rated current: 0.5 A

Dimension H x W x D / Weight......

Appliance size: 84.5 x 54.0 x 54.8 cm

Net weight: ....approx. 31.0 kg

For more information about the product, scan the QR code on the supplied energy label and/or visit the official website of the product data bank:

https://eprel.ec.europa.eu

The right to make technical and design modifications during continuous product development remains reserved.

This appliance has been tested according to all relevant current CE guidelines, such as electromagnetic compatibility and low voltage directives, and has been constructed in accordance with the latest safety regulations.

Disposal

Meaning of the "Dustbin" Symbol

Protect our environment; do not dispose of electrical equipment in the domestic waste.

Please return any electrical equipment that you will no longer use to the collection points provided for their disposal.

This helps avoid the potential effects of incorrect disposal on the environment and human health.

This will contribute to the recycling and other forms of reutilization of electrical and electronic equipment.

Information concerning where these can be disposed of can be obtained from your local authority. Your dealer and contractual partner is also obliged to take back the old appliance free of charge.

WARNING:

Remove or disable any existing snap and bolt locks, if you take the unit out of operation or dispose it.

BOMANN®

C. Bomann GmbH

www.bomann-germany.de

Made in P.R.C.
