KSG 7286 - Wine cellar BOMANN - Free user manual and instructions

Product Type	Wine Cellar
Brand	Bomann
Model	KSG 7286
Bottle Capacity	12 bottles
Temperature Range	5°C - 18°C
Cooling Type	Compressor
Energy Efficiency Class	F
Annual Energy Consumption	100 kWh
Noise Level	39 dB(A)
Dimensions (W x D x H)	43 cm x 47 cm x 51 cm
Weight	12.5 kg
Voltage / Frequency	220-240 V / 50 Hz
Shelves Material	Chrome
Number of Shelves	3
Door Reversibility	Yes
Defrost Method	Manual
Interior Light	Yes, LED
Thermostat Control	Mechanical
Security Lock	No
Compressor Warranty	5 years
Cleaning Instructions	Wipe with damp cloth; do not use abrasive cleaners

Frequently Asked Questions - KSG 7286 BOMANN

What is the optimal temperature for storing red wine?

The optimal temperature for red wine storage is between 12°C and 18°C. The KSG 7286 can be adjusted within this range.

How many bottles can the KSG 7286 hold?

The Bomann KSG 7286 wine cellar can hold up to 12 standard 750 ml bottles.

Does the wine cellar have a built-in lock?

No, the KSG 7286 does not have a lock. It is designed for household use, not for commercial security.

How do I clean the wine cellar?

Clean the interior with a soft damp cloth and mild detergent. Avoid abrasive cleaners. The shelves can be removed for easy cleaning.

Can I reverse the door opening direction?

Yes, the door of the KSG 7286 is reversible. You can change the hinge side following the instructions in the manual.

What is the noise level of the unit?

The noise level is approximately 39 dB(A), which is quiet enough for a living room or bedroom.

Does the wine cellar have an interior light?

Yes, it has an LED interior light that can be turned on or off for viewing your wine collection.

How long is the compressor warranty?

The compressor has a separate warranty of 5 years. For other parts, the standard warranty applies as per local regulations.

What should I do if the wine cellar is not cooling properly?

Check that the temperature setting is correct, the door is properly closed, and there is adequate ventilation. If the problem persists, contact Bomann support.

Is the KSG 7286 energy-efficient?

The unit is rated energy class F with an annual consumption of about 100 kWh, which is typical for small wine cellars.

USER MANUAL KSG 7286 BOMANN

Interior view of a BOMANN appliance cabinet showing internal circuitry and ventilation grilles (no text or symbols visible)

General notes page 15

Special safety information for this unit ...... page 16

Transport and packaging ...... page 17

Appliance equipment page 18

Installation ...... page 18

Startup / Operation ...... page 19

Cleaning and maintenance ...... page 21

Troubleshooting page 23

Technical data page 23

Disposal page 23

Einleitung

Illustration of a hand holding a flatboard with a curved arrow indicating rotation (no text or symbols)

Simple line drawing of a roof awning with wavy roof lines and a black arrow pointing to the awning edge (no text or symbols)

Website: https://bomann.sparepartservice.shop/

Mail: [e-mail]

Tel: 0800 / 96 36 800

Thank you for choosing our product. We hope you will enjoy using the appliance.

Symbols in these instructions for use

Important information for your safety is specially marked. It is essential to comply with these instructions to avoid accidents and prevent damage.

WARNING:

This warns you of dangers to your health and indicates possible injury risks.

CAUTION:

This refers to possible hazards to the machine or other objects.

NOTE: This highlights tips and information.

General notes

Read the operating instructions very carefully before putting the appliance into operation and keep the instructions including the warranty and the receipt. If you give this appliance to other people, also pass on the operating instructions.

i NOTE:

• Due to constant product modifications, your appliance may differ slightly from these operating instructions; functions and methods of use remain unchanged.
• The illustrations in these operating instructions are for illustrative purposes only and may differ from the original appliance.

- The appliance is designed exclusively for private use and for the envisaged purpose. This appliance is not fit for commercial use.

- The appliance is only to be used as described in the user manual. Do not use the appliance for any

other purpose. Any other use is not intended and can result in damages or personal injuries.

• This appliance is not intended to be used as a built-in appliance.
• Do not use it outdoors. Keep it away from sources of heat, direct sunlight and humidity.
• When not in use, for cleaning, user maintenance works or with disruption, switch off the appliance and disconnect the plug (pull the plug itself, not the lead) or turn off the fuse.
• The appliance and if possible the mains lead have to be checked regularly for signs of damage. If damage is found the appliance must not be used.
• For safety reasons, alterations or modifications of the appliance are prohibited.
• To ensure your children's safety, please keep all packaging (plastic bags, boxes, polystyrene etc.) out of their reach.

WARNING:

Do not allow small children to play with the foil. There is a danger of suffocation!

Special safety information for this unit

- This unit is intended to be used in household and similar applications such as

• staff kitchen areas in shops, offices and other working environments;
• farm houses and by clients in hotels, motels and other residential type environments;
• bed and breakfast type environments;
• catering and similar non-retail applications.

WARNING:

• Keep ventilation openings, in the appliance enclosure or in the built-in structure, clear of obstruction.
• When positioning the appliance, ensure the supply cord is not trapped or damaged.
• Do not locate multiple portable socket-outlets or portable power supplies at the rear of the appliance.
• Do not use mechanical devices or other means to accelerate the defrosting process, other than those recommended by the manufacturer.
• Do not damage the refrigerant circuit.
• Do not use electrical appliances inside the food storage compartments of the appliance, unless they are of the type recommended by the manufacturer.
• Do not store explosive substances such as aerosol containers with flammable propellant in the appliance.
• This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or

lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.

• Children shall not play with the appliance.
- Cleaning and user maintenance shall not be made by children unless they are older 8 years and supervised.
- NOTE: Children aged from 3 to 8 years are allowed to load and unload refrigerating appliances.
- Do not repair the appliance by yourself, always consult an authorized specialist. If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard. In case of damage, the appliance must not be used!
- Use the provided collection points of electrical equipment for the disposal of the appliance.

Coolant

WARNING: Risk of fire / flammable

materials

The coolant circuit of this unit contains the refrigerant Isobutane (R600a), a natural gas that is flammable and of high environmental compatibility. Make sure no parts of the coolant circuit get damaged during transport and installation of the appliance.

If the coolant circuit is damaged:

• avoid any open flames or ignition source,
• disconnect the plug,
• thoroughly air the room in which the appliance is installed and
• contact an authorized technician.

Transport and packaging

Transport the appliance

Transport the appliance, if possible, in vertical position. Otherwise, it is absolutely necessary to allow the appliance standing upright for a few hours before installation "Prior to first use". Protect the appliance during transport against weather influences.

Unpacking the appliance

• Remove the appliance from its packaging.
• Remove all packaging material, such as foils, filler and cardboard packaging.
  Dispose of packaging materials that are no longer required in accordance with the locally applicable regulations.
• To prevent hazards, check the appliance for any transport damage.

- In case of damage, do not put the appliance into operation. Contact your distributor.

i NOTE:

Production residue or dust may have collected on the appliance. We recommend cleaning the appliance according to chapter "Cleaning and maintenance".

Appliance equipment

Appliance overview

Back view Front view

1 Temperature control
2 On/off switch

interior light

3 Grid shelf
4 Feet

Delivery scope

1x grid shelf

Installation

Conditions for the installation location

- Good ventilation is required around the appliance to dissipate the heat properly and to guarantee efficient cooling operation at low power consumption. Enough clearance is necessary.

• Gap to the back approx. 50 \~ 70 mm, to the side walls and above the appliance each approx. min. 100 mm;
• Place the appliance so that the appliance door can open without being impeded.

- Only install at a location with an ambient temperature suitable for the climate class of the appliance.

The climate class can be found under "Technical data" and on the rating label located in the interior or on the appliance rear.

• Place the appliance on a steady and safe surface. If the appliance is not horizontally leveled, adjust the feet accordingly.

• Avoid the installation:

• near heaters, next to a stove, direct sunlight or any other heat sources;

• at locations with high humidity (e.g. outdoors, bathroom), as metal parts would be susceptible to corrosion under such circumstances;
• near volatile or flammable materials (e.g. gas, fuel, alcohol, paint, etc.), in rooms which may have poor air circulation (e.g. garages).
• Do not expose the appliance any weather.

Leveling the appliance

Slight unevenness in the floor can be leveled out using the front feet.

Check whether the appliance is leveled horizontally. If the appliance is not in balance, the feet must be adjusted.

Electrical connection

WARNING:

• The installation to the mains supply must conform to the local standards and regulations.
• Improper connection may cause to an electric shock!
• Do not modify the appliance plug. If the plug does not fit properly to the outlet, let install a proper outlet by an authorized specialist.
• The accessibility of the power plug must be ensured to disconnect the appliance from the power supply in case of emergency.

• Make sure that the voltage supply matches the specifications on the rating label before connecting.

• Connect the mains cable to a properly installed and earthed wall outlet.

• If the plug after installation is not accessible, a corresponding disconnect device must be available to meet the relevant safety regulations.

Reversing the door opening

If required, the door opening can be moved from the right (supplied condition) to the left side.

WARNING:

When replacing the door stop, the appliance must be disconnected from the power supply first.

IOTE:

• Ask another person to assist.
• You possibly need: screw wrench, Phillips screw-driver as well as a thin-blade screwdriver.

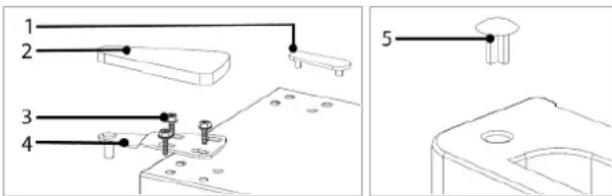

• Remove the plastic rivet (1) and hinge cover (2).
• Loosen the screws (3) and remove the door hinge (4). Lift the unit door from the door hinge (6).
• Displace the dummy plug (5) of the appliance door. Place the appliance door safely aside.
• Tilt the unit slightly backwards and block it in this position.
• Disassemble the lower door hinge (6) incl. foot by loosening the screws (7). Unscrew the separate foot (8).

• Displace and fasten the door hinge (6) incl. foot with the screws (7) accordingly. Screw in the separate foot (8).

• Return the unit to the upright position. Place the appliance door on the hinge pin and fix it in the intended position.

• Displace and fasten the upper door hinge (4) with the screws (3) accordingly.
• Put the plastic rivet (1) in the exposed hole and replace the hinge cover (2).

Check that the door is aligned vertically and horizontally to ensure proper opening and closing of the door.

Startup / Operation

Intended use

The appliance is intended for private/household use. It is exclusively suitable for cooling and storing drinks.

This cooling unit is not suitable for freezing food!

Prior to first use

CAUTION:

After transport, the appliance should be left standing upright for four hours before connecting to the power supply. Nonobservance could lead to malfunction of the cooling system and causes an appliance breakdown.

Clean the appliance interior including all accessory parts. Consider the instructions which we provide in the chapter "Cleaning and maintenance".

Starting the appliance

• Connect the appliance to the power supply.
• Set the operating conditions. See also the following sections.

Settings

The power levels [1-5] regulate the different values of the internal temperature.

Power level
1, 2	lowest level, warmest internal temperature
3	medium level, recommended operating temperature
4, 5*	highest level, coldest internal temperature

*Beware of high setting because the maximum level may already mean "freezing point".

Basically, the temperature changes depending on the ambient temperature (place of installation), the frequency of opening the door and the equipment.

For initial operation, first set the lowest possible internal temperature (= highest power level) until the appliance has reached the desired operating temperature. It is recommended to reset to a medium power level afterwards, then you can easily make any temperature correction. A high power level also increases energy consumption.

The recommended cooling temperature for optimized storage is approx. 12 degrees.

Interior light

The indoor light is switched on or off via the on/off switch at the appliance back.

Equipment

Note that the equipment varies depending on the appliance type.

The various shelves or drawers can be height-adjusted (partially and model-dependent) or removed for individual storage. Practical also for cleaning purposes.

i NOTE:

For the most efficient use of energy, place all shelves/drawers in their original positions.

Removing / inserting the shelves

- To remove, open the unit door completely, lift the shelf, if necessary, slant slightly and pull it out to the front.

Illustration of hands holding a tablet with a curved arrow indicating rotation (no text or symbols)

Simple line drawing of a stylized roof awning with wavy lines and a black triangular opening (no text or symbols)

- Safely reinsert the shelf at the desired height and push it in until the stop is reached.

Storing

Several storage levels for inserting the grid shelf, allows individual storage.

Loading examples:

Store large bottles horizontally, with the opening facing forward on the grid shelf.

Operating noise

Type of sound	Cause
Mumbling	Compressor during its operation
Liquid sounds	Circulation of the refrigerant
Click sounds	The temperature control turns the compressor on or off
Disturbing noises	Vibration of the shelves or cooling coils

Switching off

To switch off the appliance, disconnect the appliance from the power supply.

If the appliance is out of use for long periods:

• Remove the appliance content.
• Defrost (model dependent) and clean the appliance thoroughly (see "Cleaning and maintenance").
• Leave open the appliance door to avoid formation of mold and unpleased odors.

Tips for energy saving

• Disconnect the appliance from the power supply if it isn't in use.
• Do not install the appliance near stoves, heaters or other heat sources. In case of higher ambient temperatures, the compressor will run more frequently and longer.
• Ensure enough ventilation at the bottom and rear side. Never block ventilation openings.
• Place all shelves, racks or drawers (depending on model) in their original position.
• Adjust the temperature not colder than necessary.
• Allow warm food to cool before placing it in the appliance.
• Open the appliance door only as necessary.
• Defrost the unit regularly (model dependent).
• Switch on the lighting only if necessary.
• The seal of the appliance door must be completely intact, so that the door closes properly.

Cleaning and maintenance

WARNING:

• Always disconnect the appliance from the power supply before cleaning and user maintenance.
• Do not use steam cleaners for cleaning the appliance; moisture could enter electrical components. Risk of electric shock! Hot steam could damage the plastic parts.
• The unit must be dry before restarting operation.

CAUTION:

• Do not use a wire brush or other sharp, abrasive items.
• Do not use any acidic or abrasive detergents.
• Do not damage the refrigerant circuit.

Cleaning the appliance including interior

To keep dirt and germs at bay, clean the appliance regularly!

• First clear out the contents of the appliance and store it in a cool place. Remove all moving parts such as shelves or drawers.
• Clean the interior of the appliance, the exterior surfaces and the accessories with lukewarm water and a mild cleaning agent; or with a clean, damp microfiber cloth without cleaning agent.
• Clean the thaw water discharge channel / opening carefully e.g. with a pipe cleaner.
• After everything has dried thoroughly, you can put the appliance back into operation.
• Depending on the model: At least once a year, wipe off the dust that has accumulated on the rear wall of the unit and on the condenser (metal grille). Use a soft brush or a vacuum cleaner for this purpose.

Cleaning / replacing the door seal

Regularly check the seal for dirt, damage and air tightness!

Checking the seal for air tightness

- Clamp a thin piece of paper at various points for testing. The paper must be equally difficult to pull through at all points.

Cleaning the gasket

• Clean the gasket with clear water only!
• CAUTION, grease and oil makes the seal porous and brittle. Wipe up grease or oil immediately with a damp, clean cloth.

Replacing the seal

• Remove the contents of the appliance and, if necessary, defrost the unit. Pay attention to how the old gasket is attached. Most gaskets are only plugged in.
• Remove the worn gasket rubber by removing it from the groove. Carefully clean the appliance door and the groove below the rubber and remove any adhesive residue.
• Attach the new rubber. If necessary, heat the rubber seal with a hair dryer or hot water and shape it by hand. Start pressing the gasket in one corner and then press it around the door into the groove provided for this purpose.
• Continue to check the seal regularly for dirt and damage!

Defrosting

CAUTION:

Never use metal objects (e.g. knives) to remove ice from the evaporator. Otherwise, it can be damaged.

To achieve better cooling and to save energy, defrost the appliance regularly:

- To initiate the defrosting process, disconnect the appliance from the power supply.

• Remove the contents of the appliance and store everything covered in a cool place.
• Once the ice has melted, wipe up the condensation and dry the inside of the appliance.
• Then you can put the appliance back into operation by connecting it to the power supply and adjusting the temperature control.

Changing the light

△ CAUTION:

Do NOT remove the cover of the light. The LED light may be replaced / repaired in case of failure / defect only by an authorized specialist.

Replacing the door hinge

If the appliance door starts to stutter, crack or jam when you open it, it is probably due to a worn or damaged hinge.

It is recommended to replace all door hinges at the same time, otherwise the next repair will soon be beckoning.

• Remove the contents of the appliance and the movable interior parts.
• Tilt the appliance backwards and block it in this position to prevent the door from sliding out.

• Loosen the hinge cover, as described under “Reversing the door opening” and disassemble the upper door hinge.
• Turn out the stand and disassemble the lower door hinge.
• The respective hinge assembly is carried out in reverse order.
• Open and close the appliance door for a test run, readjust the hinges if necessary. In any case, make sure that the door fits tightly and accurately.

Troubleshooting

Before you contact an authorized specialist

Problem / Cause / Action

Appliance is not working properly or at all

• Check the power supply / temperature setting / ambient temperature.
• Unblock the ventilation openings, install the appliance freely.

Loading is too warm

• Check the temperature setting / ambient temperature.
• The appliance door is not closed properly, check the door seal.

Loud noise during operation

• Check that the appliance is level.
• See "Operating noise".

Water on the appliance bottom

• Check the temperature setting / water discharge channel or opening.

Light does not work

• Check the power supply.
• See "Changing the light".

i NOTE:

If a problem persists after following the steps above, contact your trader or an authorized technician.

Technical data

Climate class N: this appliance is intended to be used at ambient temperature ranging from 16°C to 32°C.

Electrical connection....

Power voltage: 220-240 V\~ / 50 Hz

Rated power: 85 W

Rated current: 0.5 A

Dimension H x W x D / Weight......

Appliance size: 51.0 x 43.0 x 47.5 cm

Net weight: ....approx. 18.1 kg

For more information about the product, scan the QR code on the supplied energy label and/or visit the official website of the product data bank:

https://eprel.ec.europa.eu

The right to make technical and design modifications during continuous product development remains reserved.

This appliance has been tested according to all relevant current CE guidelines, such as electromagnetic compatibility and low voltage directives, and has been constructed in accordance with the latest safety regulations.

Disposal

Meaning of the "Dustbin" symbol

This symbol indicates that this product must not be disposed of with household waste in accordance with the Waste Electrical and Electronic Equipment Directive (2012/19/EU) and national legislation.

Improper handling of waste electrical and electronic equipment can have negative effects on the environment and human health due to potentially hazardous substances that are often contained in waste electrical and electronic equipment.

Consumers are legally obliged to dispose of electrical and electronic appliances separately from unsorted municipal waste at the end of their service life. By disposing of this product properly, you are also contributing to the effective utilization of natural resources.

Information on collection points for old appliances can be obtained from your local authority, the public waste disposal authority, an authorized body for the disposal of old electrical and electronic appliances or your waste collection service.

This product must be returned to a designated collection point. This can be done, for example, by returning it when purchasing a similar product or by handling it in at an authorized collection point for the recycling of old electrical and electronic equipment. The return of old appliances is free of charge. Your dealer and contractual partner is also obliged to take back the old appliance free of charge.

Before disposing of the product, remove all batteries and rechargeable batteries as well as all lamps that can be removed without destroying them.

Please note that you are responsible for deleting personal data from the product to be disposed of.

WARNING:

Remove or destroy any existing latches and bolt locks when you take the appliance out of operation or dispose of it.

BOMANN®

C. Bomann GmbH

www.bomann-germany.de

Made in P.R.C.
