Product Type	Wine Cellar
Brand	Bomann
Model	KSG 7289
Dimensions (H x W x D)	143.0 x 55.0 x 58.0 cm
Net Weight	Approx. 46.0 kg
Power Supply	220-240 V~, 50 Hz
Rated Power	150 W
Rated Current	0.5 A
Climate Class	0, 1, 2, 3, 4, 6 (ambient ≤ 25°C, humidity ≤ 60%)
Capacity	5 grid shelves, max. 35 kg per shelf
Temperature Control	Adjustable from MIN (warmest) to MAX (coldest)
Recommended Storage Temperature	Approx. 5°C
Interior Light	Yes, with on/off switch
Door Reversible	Yes (right to left)
Adjustable Feet	Yes (front feet for leveling)
Castors	Yes (series-dependent)
Refrigerant	Isobutane (R600a), flammable
Intended Use	Commercial (storage, presentation, sale of chilled beverages)
Energy Efficiency Class (Light Source)	G (LED max. 10 W)
Cleaning	Regular interior cleaning with mild detergent; avoid steam cleaners
Defrosting	Manual; use only manufacturer-recommended methods

Frequently Asked Questions - KSG 7289 BOMANN

How do I set the temperature on the Bomann KSG 7289 wine cellar?

Turn the temperature control dial to the desired power level: MIN (warmest), NORMAL (optimal), or MAX (coldest). For initial use, set to MAX until the desired temperature is reached, then adjust to NORMAL. The recommended storage temperature is approximately 5°C.

Can I reverse the door opening direction?

Yes, the door can be reversed from right to left. Disconnect the power first. Remove the hinge cover and upper hinge, lift the door off, then transfer the lower hinge to the opposite side. Reattach the door and upper hinge. You will need a screwdriver and Phillips screwdriver.

What should I do if the appliance does not cool properly?

Check that the power supply is connected and the temperature setting is appropriate. Ensure the ventilation openings are not blocked and the appliance has sufficient clearance (at least 100 mm on sides and top, 50-70 mm at back). Also verify the door seal is intact and closing properly.

How do I clean the wine cellar?

First, disconnect the appliance from the power supply. Remove all contents and shelves. Clean the interior and exterior with lukewarm water and a mild detergent, or a damp microfiber cloth. Do not use steam cleaners or abrasive products. Dry thoroughly before restarting.

Is the Bomann KSG 7289 suitable for home use?

No, this appliance is designed exclusively for commercial use (storage, presentation, and sale of chilled beverages). It is not intended for private use or for freezing food.

How do I defrost the wine cellar?

Defrost the unit regularly to prevent excessive ice buildup. Use a lower power level if ice forms quickly. Never use metal objects to remove ice; this may damage the evaporator. Water drains through a channel into a drip tray on the compressor. Keep the drainage opening clean.

What does the interior light not work?

First, check the power supply. If the light still does not work, the LED bulb may be defective. The lamp cover is secured with screws; remove it with a screwdriver and replace the bulb (max. 10 W, 220-240 V). For safety, disconnect the power before replacing. If unsure, contact an authorized specialist.

How much weight can each shelf hold?

Each grid shelf has a maximum load capacity of 35 kg. Distribute bottles evenly to avoid overloading.

What does the 'MIN' and 'MAX' settings mean?

The power levels adjust the internal temperature. MIN is the lowest (warmest) setting, MAX is the highest (coldest) setting. Be careful with MAX as it may cause freezing. The normal operating temperature is around 5°C.

What should I do if the appliance is damaged during transport?

Inspect the appliance for damage immediately after unpacking. If any damage is found, do not connect it to the power supply. Contact your distributor for assistance. Keep all packaging materials for inspection.

USER MANUAL KSG 7289 BOMANN

Front view of a white refrigerator with empty shelves (no visible text or labels)

General notes page 15

Special safety information for this unit ...... page 16

Transport and packaging ...... page 17

Appliance equipment page 17

Installation page 18

Startup / Operation ...... page 19

Cleaning and maintenance ...... page 21

Troubleshooting page 22

Technical data page 23

Disposal page 23

Einleitung

Two identical electrical cabinets with no visible text or symbols, each containing a circular symbol and an arrow indicating direction (no text or labels present)

Gerät auspacken

Line drawing of an open refrigerator with a mesh tray and ventilation slots (no text or symbols)

Diagram showing a device being processed into a tray with a screwdriver (no text or symbols present)

Simple line drawing of a mechanical or architectural component with three arrows indicating upward motion (no text or symbols)

Diagram of a mechanical assembly with bolts and directional arrows indicating motion (no text or symbols)

Thank you for choosing our product. We hope you will enjoy using the appliance.

Symbols in these instructions for use

Important information for your safety is specially marked. It is essential to comply with these instructions to avoid accidents and prevent damage.

WARNING:

This warns you of dangers to your health and indicates possible injury risks.

CAUTION:

This refers to possible hazards to the machine or other objects.

NOTE: This highlights tips and information.

General notes

Read the operating instructions very carefully before putting the appliance into operation and keep the instructions including the warranty and the receipt. If you give this appliance to other people, also pass on the operating instructions.

NOTE:

• Due to constant product modifications, your appliance may differ slightly from these operating instructions; Functions and methods of use remain unchanged.
• The illustrations in these operating instructions are for illustrative purposes only and may differ from the original appliance.

- The appliance is designed exclusively for commercial use and for the envisaged purpose. This appliance is not fit for private use.

- The appliance is only to be used as described in the user manual. Do not use the appliance for any

other purpose. Any other use is not intended and can result in damages or personal injuries.

• This appliance is not intended to be used as a built-in appliance.
• Do not use it outdoors. Keep it away from sources of heat, direct sunlight and humidity.
• When not in use, for cleaning, user maintenance works or with disruption, switch off the appliance and disconnect the plug (pull the plug itself, not the lead) or turn off the fuse.
• The appliance and if possible the mains lead have to be checked regularly for signs of damage. If damage is found the appliance must not be used.
• For safety reasons, alterations or modifications of the appliance are prohibited.
• To ensure your children's safety, please keep all packaging (plastic bags, boxes, polystyrene etc.) out of their reach.

WARNING:

Do not allow small children to play with the foil. There is a danger of suffocation!

Special safety information for this unit

- This appliance is intended for commercial use only.

WARNING:

• Keep ventilation openings, in the appliance enclosure or in the built-in structure, clear of obstruction.
• When positioning the appliance, ensure the supply cord is not trapped or damaged.
• Do not locate multiple portable socket-outlets or portable power supplies at the rear of the appliance.
• Do not use mechanical devices or other means to accelerate the defrosting process, other than those recommended by the manufacturer.
• Do not damage the refrigerant circuit.
• Do not use electrical appliances inside the food storage compartments of the appliance, unless they are of the type recommended by the manufacturer.
• Do not store explosive substances such as aerosol containers with flammable propellant in the appliance.

- Do not repair the appliance by yourself, always consult an authorized specialist. If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard. In case of damage, the appliance must not be used! - Use the provided collection points of electrical equipment for the disposal of the appliance.

Coolant

WARNING: Risk of fire / flammable

materials

The coolant circuit of this unit contains the refrigerant Isobutane (R600a), a natural gas that is flammable and of high environmental compatibility. Make sure no parts of the coolant circuit get damaged during transport and installation of the appliance.

If the coolant circuit is damaged:

• avoid any open flames or ignition source,
• disconnect the plug,
• thoroughly air the room in which the appliance is installed and
• contact an authorized technician.

Transport and packaging

Transport the appliance

Transport the appliance, if possible, in vertical position. Otherwise, it is absolutely necessary to allow the appliance standing upright for a few hours before installation "Prior to first use". Protect the appliance during transport against weather influences.

NOTE: Castors are series-dependent!

If the appliance has castors, it makes it easier for you to transport or install the appliance. Tilt the appliance slightly backwards and move it carefully.

CAUTION:

Use the castors only for forward or backward movement, otherwise the floor and castors could be damaged.

Two identical electrical cabinets with circular and cross symbols, shown side by side with lightning arrows (no text or labels)

Unpacking the appliance

• Remove the appliance from its packaging.
• Remove all packaging material, such as foils, filler and cardboard packaging.
  Dispose of packaging materials that are no longer required in accordance with the locally applicable regulations.
• To prevent hazards, check the appliance for any transport damage.
• In case of damage, do not put the appliance into operation. Contact your distributor.

NOTE:

Production residue or dust may have collected on the appliance. We recommend cleaning the appliance according to chapter "Cleaning and maintenance".

Appliance equipment

Appliance overview

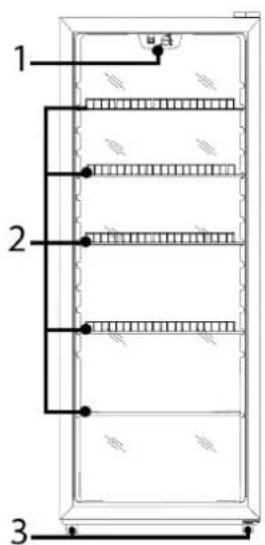

1 Temperature control / interior light + on/off switch for the light
2 Grid shelves (max. loading 35 kg/shelf)
3 Feet

Delivery scope

5x grid shelf

Installation

Conditions for the installation location

- Good ventilation is required around the appliance to dissipate the heat properly and to guarantee efficient cooling operation at low power consumption. Enough clearance is necessary.

• Gap to the back approx. 50 \~ 70 mm, to the side walls and above the appliance each approx. min. 100 mm;

• Place the appliance so that the appliance door can open without being impeded.

• Only install at a location with an ambient temperature suitable for the climate class of the appliance. The climate class can be found under "Technical data" and on the rating label located in the interior or on the appliance rear.

• Place the appliance on a steady and safe surface. If the appliance is not horizontally leveled, adjust the feet accordingly.
• Avoid the installation:

- near heaters, next to a stove, direct sunlight or any other heat sources;

- at locations with high humidity (e. g. outdoors, bathroom), as metal parts would be susceptible to corrosion under such circumstances;

- near volatile or flammable materials (e. g. gas, fuel, alcohol, paint, etc.), in rooms which may have poor air circulation (e. g. garages).

- Do not expose the appliance any weather.

Leveling the appliance

Slight unevenness in the floor can be leveled out using the front feet.

Check whether the appliance is leveled horizontally. If the appliance is not in balance, the feet must be adjusted.

Electrical connection

WARNING:

• The installation to the mains supply must conform to the local standards and regulations.
• Improper connection may cause to an electric shock!
• Do not modify the appliance plug. If the plug does not fit properly to the outlet, let install a proper outlet by an authorized specialist.
• The accessibility of the power plug must be ensured to disconnect the appliance from the power supply in case of emergency.

- Make sure that the voltage supply matches the specifications on the rating label before connecting.

- Connect the mains cable to a properly installed and earthed wall outlet.

- If the plug after installation is not accessible, a corresponding disconnect device must be available to meet the relevant safety regulations.

Reversing the door opening

If required, the door opening can be moved from the right (supplied condition) to the left side.

WARNING:

When replacing the door stop, the appliance must be disconnected from the power supply first.

i NOTE:

• Ask another person to assist.
• You possibly need: screw wrench, Phillips screw-driver as well as a thin-blade screwdriver.
• Keep the parts to be replaced for another possible door stop change.

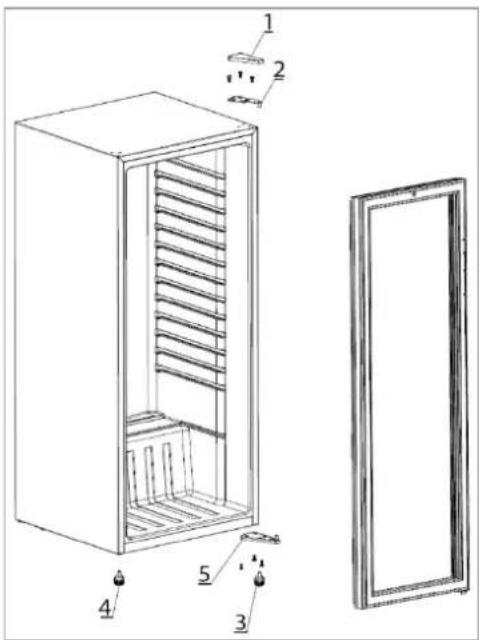

• Remove the door hinge cover (1) and dismount the underlying door hinge (2). Lift out the appliance door and set the door safely aside.
• Tilt the appliance slightly backwards and block it in this position. Unscrew the feet (3) + (4) and dismount the lower door hinge (5).
• Transfer and attach the lower door hinge (5) to the opposite side of the appliance. Screw in the feet (4) + (3) accordingly.
• Place the appliance back in the upright position. Put on the appliance door and fix it in the intended position.
• Transfer and attach the upper door hinge (2) to the opposite side of the appliance and put on the hinge cover (1) again.

Check that the door is optimally aligned both vertically and horizontally to ensure a smooth opening and closing of the door.

Startup / Operation

Intended use

The appliance is intended for commercial use and for the purpose intended for it. It is suitable for storage, presentation and sale of chilled beverages.

This cooling unit is not suitable for freezing food!

Prior to first use

CAUTION:

After transport, the appliance should be left standing upright for four hours before connecting to the power supply. Nonobservance could lead to malfunction of the cooling system and causes an appliance breakdown.

Clean the appliance interior including all accessory parts. Consider the instructions which we provide in the chapter "Cleaning and maintenance".

Starting the appliance

• Connect the appliance to the power supply.
• Set the operating conditions. See also the following sections.

Settings

The power levels [MIN - MAX] control the different values of the internal temperature.

Power level
MIN	lowest level, warmest internal temperature
NORMAL	medium level, optimal operating temperature
MAX*	highest level, coldest internal temperature

*Beware of high setting because the maximum level may already mean "freezing point".

Basically, the temperature changes depending on the ambient temperature (place of installation), the frequency of opening the door and the equipment.

For initial operation, first set the lowest possible internal temperature (= highest power level) until the appliance has reached the desired operating temperature. It is recommended to reset to a medium power level afterwards, then you can easily make any temperature correction.

The recommended cooling temperature for optimized storage is approx. 5°C.

Interior light

The light is switched on or off via the on/off switch.

Equipment

Note that the equipment varies depending on the appliance type.

The various shelves can be height-adjusted (partially and model-dependent) or removed for individual storage. Practical also for cleaning purposes.

i NOTE:

For the most efficient use of energy, place all shelves in their original positions.

Removing / inserting the shelves

- To remove, open the unit door completely, lift the shelf, if necessary, slant slightly and pull it out to the front.

Line drawing of an oven with a rack inside, showing internal compartments and a small box on the right (no text or symbols)

- Safely reinsert the shelf at the desired height and push it in until the stop is reached.

Storing

Several storage levels for inserting the grid shelves, allows individual storage.

Observe the maximum loading of 35 kg per shelf.

Store large bottles horizontally, with the opening facing forward on the grid shelves.

Operating noise

Type of sound	Cause
Mumbling	Compressor during its operation
Liquid sounds	Circulation of the refrigerant
Click sounds	The temperature control turns the compressor on or off
Disturbing noises	Vibration of the shelves or cooling coils

Switching off

To switch off the appliance disconnect it from the power supply.

If the appliance is out of use for long periods:

• Remove the appliance content.
• Defrost (model dependent) and clean the appliance thoroughly (see "Cleaning and maintenance").
• Leave open the appliance door to avoid formation of mold and unpleased odors.

Tips for energy saving

• Disconnect the appliance from the power supply if it isn't in use.
• Do not install the appliance near stoves, heaters or other heat sources. In case of higher ambient temperatures, the compressor will run more frequently and longer.
• Ensure enough ventilation at the bottom and rear side. Never block ventilation openings.
• Place all shelves, racks or drawers (depending on model) in their original position.
• Adjust the temperature not colder than necessary.
• Allow warm food to cool before placing it in the appliance.
• Open the appliance door only as necessary.
• Defrost the unit regularly (model dependent).
• Switch on the lighting only if necessary.
• The seal of the appliance door must be completely intact, so that the door closes properly.

Cleaning and maintenance

WARNING:

• Always disconnect the appliance from the power supply before cleaning and user maintenance.
• Do not use steam cleaners for cleaning the appliance; moisture could enter electrical components. Risk of electric shock! Hot steam could damage the plastic parts.
• The unit must be dry before restarting operation.

CAUTION:

• Do not use a wire brush or other sharp, abrasive items.
• Do not use any acidic or abrasive detergents.
• Do not damage the refrigerant circuit.

Cleaning the appliance including interior

To keep dirt and germs at bay, clean the appliance regularly!

• First clear out the contents of the appliance and store it in a cool place. Remove all moving parts such as shelves or drawers.
• Clean the interior of the appliance, the exterior surfaces and the accessories with lukewarm water and a mild cleaning agent; or with a clean, damp microfiber cloth without cleaning agent.
• Clean the thaw water discharge channel / opening carefully e. g. with a pipe cleaner.
• After everything has dried thoroughly, you can put the appliance back into operation.
• At least once a year, wipe off the dust that has accumulated on the rear panel of the appliance and on the condenser coil (model dependent) → failure to do so will reduce the efficiency of the unit. Use a soft brush or a vacuum cleaner for cleaning.

Cleaning / replacing the door seal

Regularly check the seal for dirt, damage and air tightness!

Checking the seal for air tightness

• Clamp a thin piece of paper at various points for testing. The paper must be equally difficult to pull through at all points.

Cleaning the gasket

• Clean the gasket with clear water only!
• CAUTION, grease and oil makes the seal porous and brittle. Wipe up grease or oil immediately with a damp, clean cloth.

Replacing the seal

• Remove the contents of the appliance and, if necessary, defrost the unit. Pay attention to how the old gasket is attached. Most gaskets are only plugged in.
• Remove the worn gasket rubber by removing it from the groove. Carefully clean the appliance door and the groove below the rubber and remove any adhesive residue.
• Attach the new rubber. If necessary, heat the rubber seal with a hair dryer or hot water and shape it by hand. Start pressing the gasket in one corner and then press it around the door into the groove provided for this purpose.
• Continue to check the seal regularly for dirt and damage!

Defrosting

CAUTION:

Never use metal objects (e. g. knives) to remove ice from the evaporator. Otherwise, it can be damaged.

During defrosting water drops drains off at the back of the cooling chamber. The thaw water running through a channel, is collected in a drip tray located on the compressor, where it will evaporate. Make sure the water discharge opening does not get clogged. A light formation of ice on the interior back during operation is normal.

A permanently high power level can lead to increased ice formation → set a lower power level and wipe the interior dry.

Changing the light

CAUTION:

Do NOT remove the cover of the light. The LED light may be replaced / repaired in case of failure / defect only by an authorized specialist.

Notes for the authorized specialist!

Lamp data: LED max. 10 W, 220\~240 V

This product contains a light source of energy efficiency class G.

Diagram showing a device being inserted into a tray, with a screwdriver inserted (no text or symbols present)

• Disconnect the appliance from the power supply!
• Loosen the lamp cover with a screwdriver and remove it downwards.
• Replace the defective lamp.
• Insert and fasten the lamp cover properly.

Replacing the door hinge

If the appliance door starts to stutter, crack or jam when you open it, it is probably due to a worn or damaged hinge.

It is recommended to replace all door hinges at the same time, otherwise the next repair will soon be beckoning.

• Remove the contents of the appliance and the movable interior parts.
• Tilt the appliance backwards and block it in this position to prevent the door from sliding out.

Simple line drawing of a treadmill with arrows indicating motion direction (no text or symbols)

Diagram of a mechanical device with screw holes and directional arrows indicating motion (no text or symbols)

• Loosen the hinge cover as described under "Reversing the door opening" and disassemble the upper door hinge.
• Turn out the stand and disassemble the lower door hinge.
• The respective hinge assembly is carried out in reverse order.
• Open and close the appliance door for a test run, readjust the hinges if necessary. In any case, make sure that the door fits tightly and accurately.

Troubleshooting

Before you contact an authorized specialist

Problem / Cause / Action

Appliance is not working properly or at all

- Check the power supply / temperature setting / ambient temperature.

- Unblock the ventilation openings, install the appliance freely.

Loading is too warm

- Check the temperature setting / ambient temperature.

- The appliance door is not closed properly, check the door seal.

Loud noise during operation

- Check that the appliance is level.

- See "Operating noise".

Water on the appliance bottom

- Check the temperature setting / water discharge channel or opening.

Light does not work

- Check the power supply.

- See "Changing the light".

i NOTE:

If a problem persists after following the steps above, contact your trader or an authorized technician.

Technical data

Climate class*: 0, 1, 2, 3, 4, 6

This appliance is intended for safe operation at an ambient temperature of ≤ 25^ (not less than 10^ ) and a humidity of 60%.

*32°C+/-2°C for appliances of climate class 0, 1, 2, 3, 4, 6 or 8; 43°C+/-2°C for appliances of climate class 5 or 7

Electrical connection....

Power voltage: 220-240 V\~ / 50 Hz

Rated power: 150 W

Rated current: 0,5 A

Dimension H x W x D / Weight....

Appliance size: 143,0 x 55,0 x 58,0 cm

Net weight: ....approx. 46,0 kg

For more information about the product, scan the QR code on the supplied energy label and/or visit the official website of the product data bank:

https://eprel.ec.europa.eu

The right to make technical and design modifications during continuous product development remains reserved.

This appliance has been tested according to all relevant current CE guidelines, such as electromagnetic compatibility and low voltage directives, and has been constructed in accordance with the latest safety regulations.

Disposal

Meaning of the "Dustbin" symbol

Protect our environment; do not dispose of electrical equipment in the domestic waste.

Please return any electrical equipment that you will no longer use to the collection points provided for their disposal.

This helps avoid the potential effects of incorrect disposal on the environment and human health.

This will contribute to the recycling and other forms of reutilization of electrical and electronic equipment.

Information concerning where these can be disposed of can be obtained from your local authority. Your dealer and contractual partner is also obliged to take back the old appliance free of charge.

WARNING:

Remove or disable any existing snap and bolt locks if you take the appliance out of operation or dispose it.

BOMANN®

C. Bomann GmbH

Heinrich-Horten-Str. 17, D-47906 Kempen

www.bomann-germany.de

Made in P.R.C.
