Product Type	Over-ear wired headphones
Model	EPB-160
Brand	Lenco
Driver Diameter	40 mm
Impedance	32 ohms
Frequency Response	20 Hz - 20 kHz
Sensitivity	105 dB ± 3 dB
Connection	3.5 mm gold-plated jack
Cable Length	1.2 m
Weight	250 g
Dimensions (W x H x D)	200 x 180 x 80 mm
Foldable Design	Yes (for easy storage)
Volume Control	In-line remote (slide type)
Microphone	Built-in microphone on remote
Ear Cushions	Replaceable leatherette
Cleaning	Wipe with a soft, damp cloth; do not use solvents
Hearing Safety	Listen at moderate volumes to prevent hearing damage
Spare Parts Availability	Replacement ear cushions available
Certifications	CE, RoHS
Package Contents	Headphones, audio cable, user manual
Warranty	2 years (depending on region)

Frequently Asked Questions - EPB-160 LENCO

how to connect the lenco epb-160 headphones to a device?

the sound is only coming from one side, what should i do?

can i use the epb-160 for phone calls?

how to adjust the volume on the headphones?

are the ear cushions replaceable?

can i fold the headphones for travel?

what is the proper way to clean the headphones?

the microphone is not working, what can i try?

what is the impedance of the epb-160?

does the product come with a warranty?

USER MANUAL EPB-160 LENCO

Black outdoor earbuds with black bands and earphones, isolated on white background (no text or symbols)

EPB-160 is similar to EPB-030 with the power bank charging carrying case

KEEP THESE INSTRUCTIONS IN MIND:

1. Do not use this device near water.

2. Clean only with a slightly damp cloth.

3. Keep the device away from heat sources such as radiators, heaters, stoves, candles and other heat-generating products or naked flame.

4. To clean the device, use a soft dry cloth. Do not use solvents or petrol based fluids. To remove severe stains, you may use a damp cloth with dilute detergent.

5. If the unit works with battery, Battery shall not be exposed to excessive heat such as sunshine, fire or the like.

6. Attention should be drawn to the environmental aspects of battery disposal.

7. Refer all servicing to qualified service personnel. Servicing is required when the apparatus has been damaged in any way, such as the power supply cord or the plug, when liquid has been spilled or objects have fallen into the apparatus, when the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped.

8. Prolonged exposure to loud sounds from personal music players may lead to temporary or permanent hearing loss.

INSTALLATION

- Unpack all parts and remove protective material.

- *Do not connect the unit to the mains before checking the mains voltage and before all other connections have been made.

- You can download the complete manual on our website www.lenco.com

Mix and match for a perfect fit and audio performance

S	M	L		H:24MM	H:22.5MM
				L	S

Line drawing of a ear with a black Bluetooth headset (no text or symbols)

1. Charging

Charge the earphone 2-3 hours before first use with the included Micro USB cable. The indication LED will change from red to blue when it is fully charged.

2. Pairing

Long press (3 sec) “☐” the button to turn on the earphone. The LED indication will change from flashing blue to flashing red blue alternately, the earphone is ready to be paired with your Bluetooth device

Bluetooth	Specification	V5.0
	Supported Profile	A2DP, AVRCP, HFP, HSP
	Connection Distance	In 10 meters (open area)
Built-In Battery	Lithium 3.7V, 100mAh, charging time 1.5 hours
	Playing Time: up to 9 Hours
Power Source	Micro USB Port
	PC's USB port Power or DC 5V, 500mA
Audio	Output Power	3Mw (RMS)
	Frequency Response	20Hz to 20,000Hz
Operating Temperature	0 to 40°C

Quick guide Lenco PBC-10

Download the full instruction manual on www.lenco.com

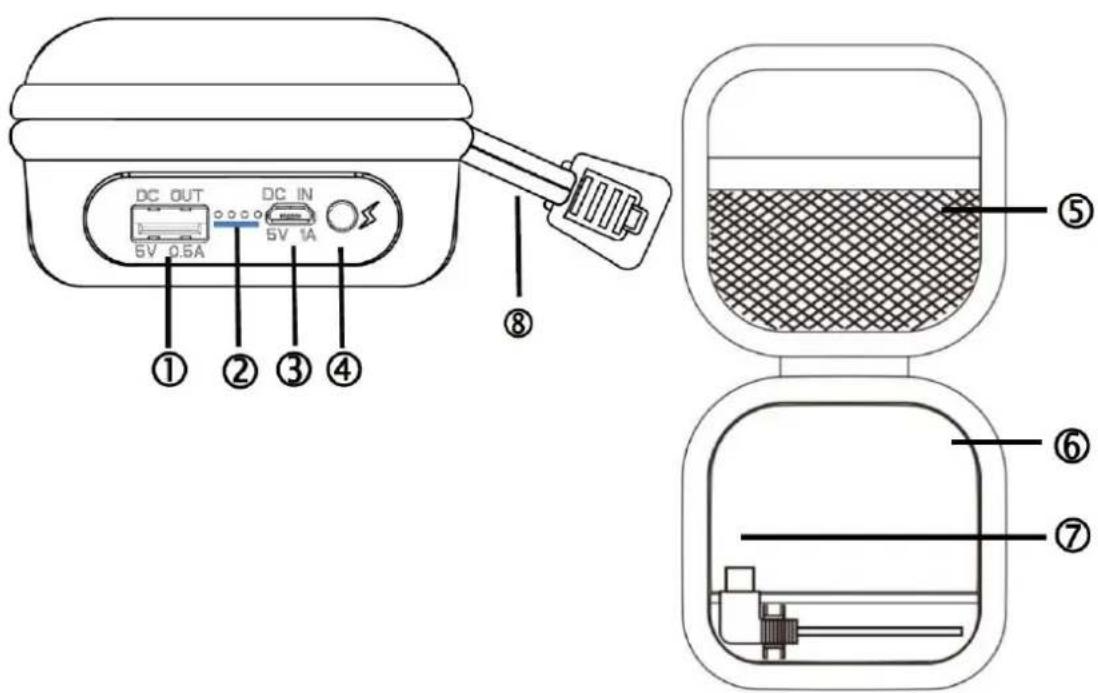

A. Product Layout

(1) USB-A port (Output 2,5V 0.5A)
(2) Battery status LEDs
(3) Micro USB port (Input)
(4) Battery Check Button
(5) Storage Mesh Bag
(6) Storage Space
(7) Micro-USB cable (output 1, 5V 0.2A)
(8) Hand Strap

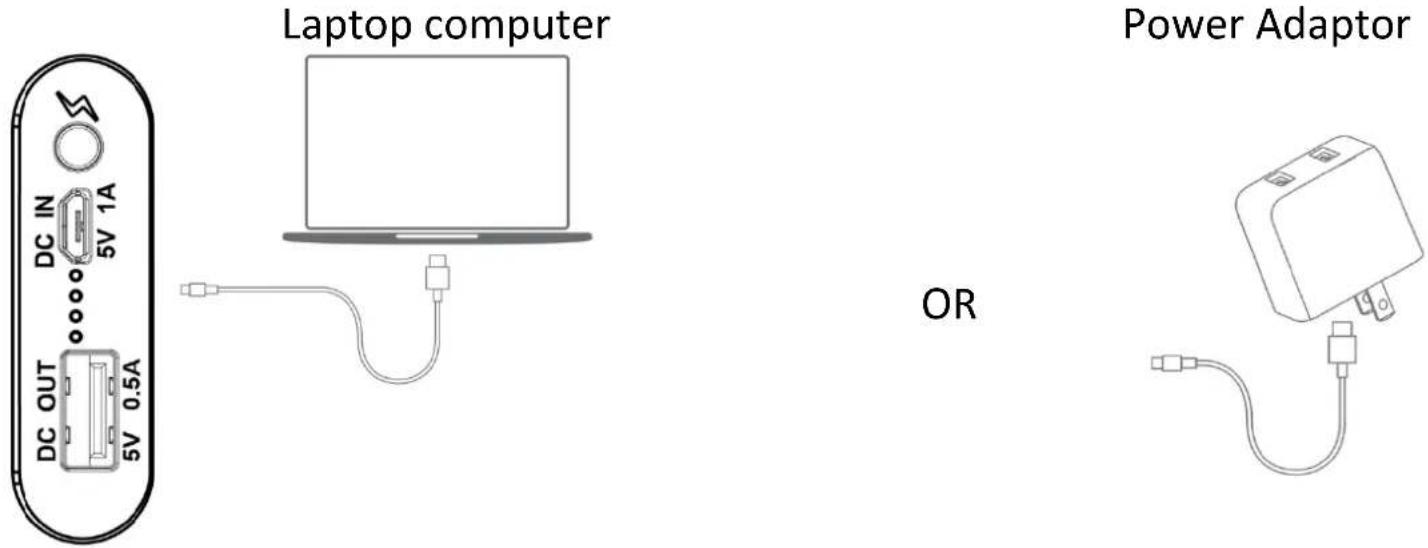

B. Charge the PBC-10

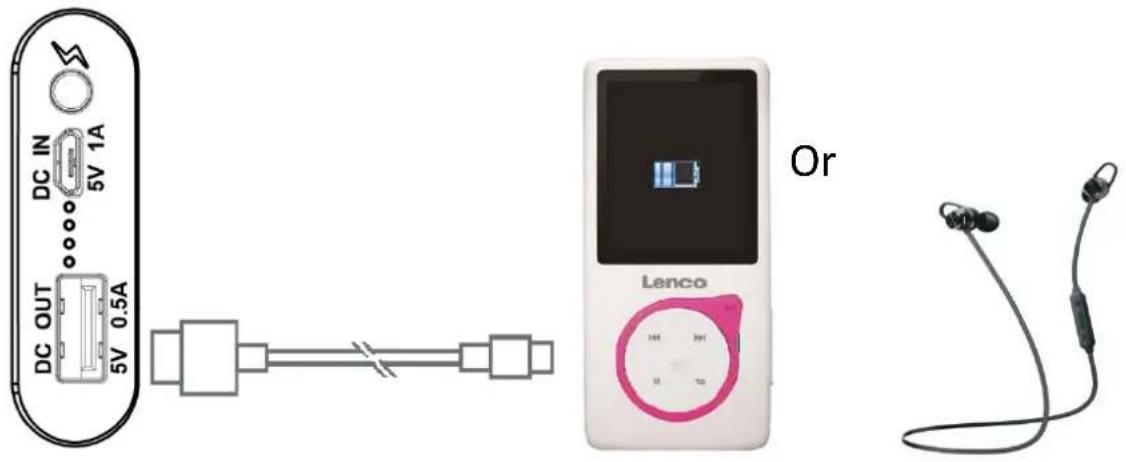

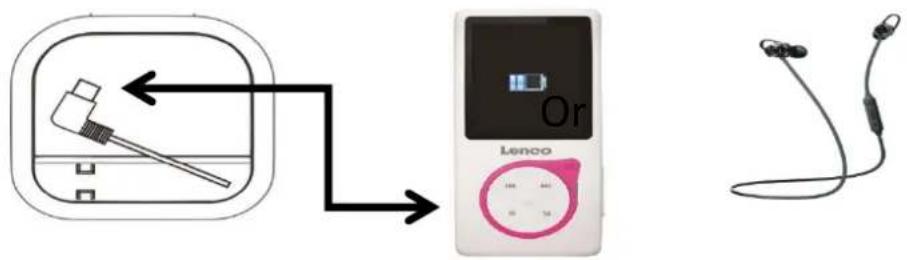

C. Charging your device

1. USB-A port (Output 2: 5V 0.5A)

1. Micro USB-cable, installed inside the PBC-10 (Output 1: 5V 0.2A)

Guarantee

Lenco offers service and warranty in accordance to European law, which means that in case of repairs (both during and after the warranty period) you should contact your local dealer.

Important note: It is not possible to send products that need repairs to Lenco directly.

Important note: If this unit is opened or accessed by a non-official service center in any way, the warranty expires.

This device is not suitable for professional use. In case of professional use, all warranty obligations of the manufacturer will be voided.

Disclaimer

Updates to Firmware and/or hardware components are made regularly. Therefore some of the instruction, specifications and pictures in this documentation may differ slightly from your particular situation. All items described in this guide for illustration purposes only and may not apply to particular situation. No legal right or entitlements may be obtained from the description made in this manual.

Disposal of the Old Device

Symbol of a trash bin crossed out by two diagonal lines, with no text or labels present.

This symbol indicates that the relevant electrical product or battery should not be disposed of as general household waste in Europe. To ensure the correct waste treatment of the product and battery, please dispose them in accordance to any applicable local laws of requirement for disposal of electrical equipment or batteries. In so doing, you will help to conserve natural resources and improve standards of environmental protection in treatment and disposal of electrical waste (Waste Electrical and Electronic Equipment Directive).

CE Marking

Hereby, Lenco Benelux B.V., Thermiekstraat 1a, 6361 HB Nuth, The Netherlands, declares that this product is in compliance with the essential EU directive requirements.

The declaration of conformity may be consulted via [e-mail]

Service

For more information and helpdesk support, please visit www.lenco.com Lenco Benelux BV, Thermiekstraat 1a, 6361 HB, The Netherlands.
