| Brand | Hifonics |
| Model | Brutus BRX62 |
| Product Type | Car Audio Speaker |
| Series | Brutus Series |
| Speaker Size | 6.5 inches (165 mm) |
| Speaker Type | 2-Way Coaxial |
| Impedance | 4 Ohms |
| Power Handling (RMS) | 60 Watts |
| Power Handling (Peak) | 120 Watts |
| Sensitivity | 90 dB |
| Frequency Response | 60 Hz - 20 kHz |
| Mounting Depth | 2.0 inches (51 mm) |
| Installation | Designed for door or rear deck installation |
| Polarity | Observe correct polarity (+/-) for all connections |
| Safety | Never connect speakers to electrical ground or vehicle body |
| Maintenance | Handle components with care; avoid damage |
| Spare Parts | Contact manufacturer or authorized dealer for spare parts |
| Repairability | Refer to qualified service personnel for repairs |
| Manual | Free PDF manual available for download |
| Manufacturer | Audio Design GmbH, Germany |
Frequently Asked Questions - Brutus BRX62 Hifonics
User questions about Brutus BRX62 Hifonics
0 question about this device. Answer the ones you know or ask your own.
Ask a new question about this device
Download the instructions for your Loudspeaker in PDF format for free! Find your manual Brutus BRX62 - Hifonics and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. Brutus BRX62 by Hifonics.
USER MANUAL Brutus BRX62 Hifonics
BRX52
BRX62
BRX5.2C
BRX6.2C
EINBAUHINWEISE
The first step of installing a speaker system is thorough planning. Choose a suitable location for your speaker components carefully. Follow these suggestions to ensure proper imaging and maximum performance:
- Choose a location that offers the least amount of obstruction between the components and your ears. Pay also attention to the position of the seats, headrests and other constructional systems in the interior space of the car.
- Try to mount the speakers on the same arrangement. They should be installed at the same height and directly across from each other. Do not mount one speaker higher, lower, further forward or further backward from the opposite speaker.
- The tweeter should always be installed as close as possible to the midbass speaker.
- Always take a look behind the chosen mounting locations to ensure that there is proper clearance for the rearside of the speakers and avoid obstructions such as window tracks, wire harnesses, gas tank etc.
- Maximum performance is achieved when the speaker is securely mounted to a door panel or rear speaker deck. There should be no gaps between the speaker basket and the mounting surface
- Please handle the components with care, otherwise they will get damaged.
- Please pay attention to the correct polarity (+ or -) for all terminals and connections.
- Never connect the speakers to the electrical ground or with the body of the vehicle.
INTERCONNECTION BRX5.2C, BRX6.2C
IMPORTANT:
Please pay attention to the correct polarity (+ or -)
for all terminals and connections.

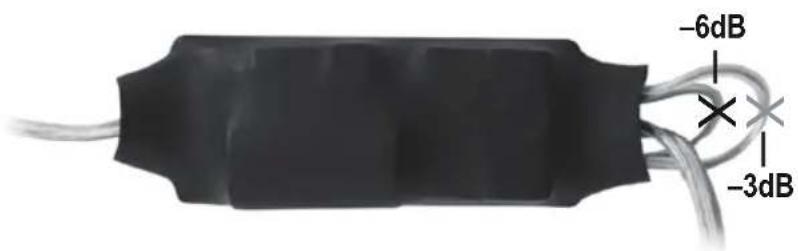

TWEETER ATTENUATION BRX5.2C, BRX6.2C
Optional:
Cut the transparent cable loop on the tweeter crossover for a tweeter attenuation of -3dB. If you want a tweeter attenuation of -6dB, you also have to cut through the red cable loop.
INTERCONNECTION BRX42, BRX52, BRX62
IMPORTANT:
Please pay attention to the correct polarity (+ or -) for all terminals and connections.
HIFONICS
Brutus
SERIES
Audio Design GmbH
Am Breilingsweg 3 · D-76709 Kronau/Germany
Tel. +49 7253 - 9465-0 · Fax +49 7253 - 946510
www.audiodesign.de · www.hifonics.de
© Audio Design GmbH, All Rights Reserved
