Brand	Hifonics
Model	HCC69CX
Product Type	Car Audio Speaker
Speaker Type	Coaxial (Full-Range)
Size	6 x 9 inches (oval)
Overall Dimensions (W x H)	7.08 x 10.39 inches (180 x 264 mm)
Mounting Depth	3.11 inches (79 mm)
Cutout Dimensions (W x H)	5.94 x 6.66 inches (151 x 169 mm)
Impedance	4 ohms (typical)
Power Handling (RMS)	60 Watts (estimated)
Power Handling (Peak)	180 Watts (estimated)
Sensitivity	90 dB (estimated)
Frequency Response	40 Hz - 20 kHz (estimated)
Cone Material	Polypropylene (common)
Surround Material	Rubber (estimated)
Tweeter Type	Silk or Mylar dome (estimated)
Grille Included	Yes (mesh grille)
Installation	Quick Start Installation Guide included
Warranty	1 year from date of purchase
Mounting Hardware	Screws and wire connectors (typical)
Country of Design	USA

Frequently Asked Questions - HCC69CX Hifonics

What size is the Hifonics HCC69CX speaker?

The HCC69CX is a 6x9 inch oval speaker with overall dimensions of 7.08 x 10.39 inches (180 x 264 mm).

What is the impedance of this speaker?

The impedance is a standard 4 ohms, typical for car audio speakers.

How much power can the HCC69CX handle?

Estimated power handling is 60 Watts RMS and 180 Watts peak. For precise specs, visit hifonics.com.

What is the mounting depth required?

The mounting depth is 3.11 inches (79 mm). Ensure your vehicle door or panel can accommodate this depth.

Is this a coaxial or component speaker?

The HCC69CX is a coaxial (full-range) speaker with a built-in tweeter, making installation straightforward.

Does the speaker come with a grille?

Yes, it includes a mesh grille for protection and a clean appearance.

What tools are needed for installation?

Basic tools like screwdrivers, panel removal tools, and a drill (if needed) are required. A professional installer is recommended for complex installations.

What is the warranty period?

The HCC69CX is covered by a one-year warranty against defects in material and workmanship from the date of purchase.

Can I install this speaker in a custom location?

Yes, but custom installations may require professional assistance to ensure proper fit and clearance. Follow the manual's guidelines.

Where can I find detailed specifications?

Visit the official website at hifonics.com or refer to the manufacturer's manual for full specifications and system setup.

USER MANUAL HCC69CX Hifonics

Congratulations on your choice of a Hifonics speaker. This "Quick Start Installation" guide is meant to help you "hook up" and play music. For more detailed information on system setting, speaker and subwoofer configuration, and full specifications by model, visit the website at Hifonics.com

CAUTION

Always consider consulting a professional audio installer before installing new speakers. Many car manufacturers locate speakers behind interior panels that require special tools to remove those panels to access the speakers. Some panels will be screwed in, some will use plastic fasteners, many will have both. Be careful and take your time. If you are using the speaker wire supplied with your new speakers make sure that you run the speaker wires through the factory boot. Do not let speaker wire make contact with metal edges of doors or other access holes.

Speaker Dimensions

	A B C	D E F
HCC35CX	N/A 1.53	29mm 2.12"	44mm 2.75"70mm	3.11"75mm	3.42"87mm
HCC4CX	N/A 1.85	47mm 2.44"	26mm 2.99"76mm	3.48"88mm	4.01"102mm
HCC46CX	N/A 1.73	44mm 2.28"	58mm 2.99"76mm		3.46" 5.58"98 x 142mm	3.85" 6.02"98 x 155mm
HCC525CX	6.26"159mm	2.2"156mm	2.6"167mm	3.38"96mm 4.52"	15mm 5.11"	30mm
HCC5768CX	N/A 2.28	56mm 2.67"	98mm 3.38"86mm		5" 7.12"127 x 161mm	5.47" 7.51"139 x 191mm
HCC65CX5	7.13"161mm	1.88"486mm	2.59"66mm	3.38"96mm 5.51"	140mm 6.49"	165mm
HCC65CX	7.13"161mm	2.2"156mm	2.5"70mm	3.38"96mm 5.55"	41mm 6.57"	67mm
HCC65C	7.13"161mm	2.2"156mm	2.6"63mm	3.38"96mm 5.55"	41mm 6.57"	67mm
HCC69CX	7.08" 10.39190 x 264mm	3.11"79mm	3.54"90mm	4.33"110mm	5.94" 6.66"151 x 220mm	6.49" 9.21"65 x 234mm

Before you start

It's a good idea to confirm that you have purchased the correct size speakers to fit your vehicle. If you have any reservations about being able to complete the installation yourself, we recommend contacting a professional. The removal of interior panels can be tricky and may require special tools. Be careful as you go.

Factory Speaker Removal

A Access and remove factory door speakers Most modern vehicles have speakers that are mounted directly to the structure of the door. Access is achieved by the removal of the door panel. Some vehicles may only require the removal of a small panel around the speaker itself.

B Access and removal of rear factory speakers

Most rear speakers are accessed from within the trunk. Some may require the removal of the rear package tray. Hatchbacks and SUV's will usually require the removal of a slide panel.

Line drawing of a car rear view showing the dashboard and side compartments (no text or symbols)

C Fit and Wiring

Once the factory speakers are removed, check the fit and determine if there is enough depth clearance for the new speaker. A good way to do this is to roll the window down and back up while holding the speaker in place. If you decide to run wires, make sure to use factory harness boots and grommets where ever possible.

Line drawing of a car interior showing door, wheels, and dashboard (no text or symbols)

Coax installation

A Factory location behind door panel

Once you are sure the speaker fills and has adequate clearance, connect the positive and negative wires to the proper terminals. Securely screw the speaker into place. Replace door panel.

Diagram showing a car interior with steering wheel and dashboard, no text or symbols present

B Factory location behind small panel

Once you are sure the speaker file and has adequate clearance, connect the positive and negative wires to the proper terminals. Securely screw the speaker into place. Replace speaker cover panel.

C Custom location

Some vehicles may not have a door speaker location. While it is possible to install the speakers in this situation, it is more difficult. Consider using a professional for custom installations.

D Rear factory locations

Mount the speakers in same way that the factory speaker was mounted. Attach the positive and negative wires to the proper terminals. Make sure any wires are secured properly.

Line drawing of a car seatbelt with a knob and handle (no text or symbols)

Component installation

Factory location

behind door panel

Vehicles that have premium sound systems will often have separate tweeters in a dash or door location. Try to use this location for mounting the component tweeter if possible.

Custom location

If there is not a suitable factory location for woofer or tweeter to be mounted, custom mounting may be necessary. Before making any permanent changes to your vehicle make sure there is adequate mounting depth.

Tweeter mounting

There are two primary ways the twoster can be mounted. Surface and Flush mounting. The flush mount configuration is shown here

Crossover wiring

The crossover is necessary for the proper operation of the component speaker system. Secure the crossover to a surface that is free of interference from window mechanisms and excessive moisture.

Visit Hifonics.com

The information contained within this document is intended to offer some basic guidelines for a few of the most common installations. More complex audio systems should be installed by a competent professional. Additional installation information available at www.maxxsonics.com

WARRANTY

Maxxosvics, LLC warrants this product, to the original consumer purchaser, to be free from defects in material and workmanship for a period of one (1) year front the date of purchase. Maxxosvics, LLC will sit at its discretion, repair or replace defective products during the warranty period. Components that prove to be defective in materials and workmanship under proper installation and use must be returned to the original authorized Maxxosvics. LLC, retailer from where it was purchased. A photocopy of the original receipt must company the following: "A taxable tax on sale of allahob and right and responsibility." Maxxosvics, LLC. This warranty is limited to defective parts and specifically excludes any incidental or consequential damages connected therewith. To view the full warranty, please visit the website.

Hifonics products are designed and engineered in the USA by

MAXXSONICS

HIECC Sodors DSG (1) - rev

HIFONICS

Quick Start Installation Guide

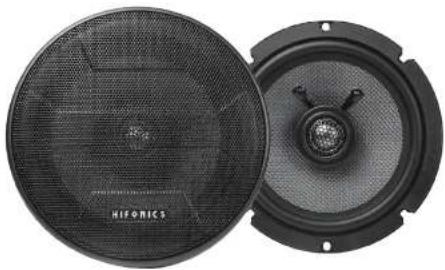

Two black Nifronics speakers with mesh cover, shown from front and side views (no text or symbols on the speaker surfaces)

HCC35CX HCC5768CX

HCC4CX HCC65CXS

HCC46CX HCC65C

HCC525CX HCC65CX

HCC69CX

Congratulations on your choice of a Hifonics amplifier. This "Quick Start Installation" guide is meant to help you "hook up" and play music. For more detailed information, on system setting, speaker and, subwoofer configuration and full specifications by model visit the website, http://hifonics.com/manuals.html
