WK280S - Kitchen scale Eldom - Free user manual and instructions

Product Type	Kitchen Scale
Brand	Eldom
Model	WK280S
Weighing Capacity	5 kg (11 lbs)
Resolution	1 g
Accuracy	±15 g
Measurement Units	grams (g), milliliters (ml), fluid ounces (fl oz), pounds:ounces (lb:oz)
Functions	Weight, Milk Volume, Water Volume
Tare/Zero Function	Yes
Auto Shut-Off	After 2 minutes of inactivity
Display Type	LCD
Power Source	1 x CR2032 battery (included)
Platform Material	Glass
Housing Material	Plastic
Overload Protection	Yes, shows 'Err'
Low Battery Indicator	Yes, shows 'Lo'
Cleaning Instructions	Wipe with soft damp cloth; do not immerse
Safety Warnings	For domestic use only; keep away from children under 8; not to be used by children without supervision
Storage	Keep in dry and dark place; do not press with other objects while storing
Repairs	Only by authorized service center
Environmental Disposal	Recyclable; dispose at appropriate collection point
Included Accessories	1 x CR2032 battery (pre-installed with insulating sheet)

Frequently Asked Questions - WK280S Eldom

How do I turn on the scale?

Press and release the [ON/OFF] button to turn on the scale. Wait until the LCD shows all information before placing the load.

How do I change the measurement unit?

Press the [MODE] button to cycle between weight (g), milk volume (ml), and water volume (ml). The selected mode will be indicated on the LCD.

How do I use the tare function?

Place the first load on the scale and note the weight. Press the [ZERO] button to reset the display to '0g'. The 'TARE' icon will appear. You can then add another load and the display will show only the weight of the new load.

How do I measure milk or water volume?

After turning on the scale, press the [MODE] button to select milk volume or water volume mode. Place the container on the scale, press [ZERO] to tare if needed, then pour the liquid. The display will show the volume in milliliters.

How should I clean the scale?

Do not immerse the scale in water. Clean it with a soft, damp cloth without detergents, then wipe dry.

What battery does the scale use?

The scale uses one CR2032 lithium battery, which is included. Remove the insulating sheet before first use.

Why does the display show 'Lo'?

The 'Lo' indicator means the battery is low. Replace the battery with a new CR2032 battery.

Why does the display show 'Err'?

The 'Err' indicator means the scale is overloaded. Remove the load immediately to avoid damage.

How does the auto shut-off feature work?

The scale automatically shuts off after 2 minutes if the display shows '0' or the same weight reading. To maximize battery life, press [ON/OFF] to turn it off manually after use.

Is the scale accurate for small amounts?

The scale has a resolution of 1g and an accuracy of ±15g. For best accuracy, use the scale on a hard, flat surface and allow it to stabilize before reading.

USER MANUAL WK280S Eldom

Green and silver digital kitchen scale with a digital display showing U-shaped design (no text or symbols on the main body)

WSKAZANIA BEZPIECZEŃSTWA

POMIAR WAGI

POMIAR OBJETOŚCI MLEKA

POMIAR OBJETOŚCI WODY

FUNKCJA „ZERO“ LUB „TAROWANIE“

- The device can be used by children aged 8 and older and by persons with limited physical, sensory or mental capabilities, or persons without sufficient experience and knowledge only under supervision or if previously instructed on the safe use of the appliance and the possible risks. Children shall not play with the appliance. Cleaning and maintenance that are the responsibility of the user shall not be carried out by children without supervision. Protect the appliance and the power cord against children under 8 years old.

• For home use only
• Keep the scale in dark and dry place
• While storing do not press with other objects
• The precision of the scales measurements depends on the way of its maintenance
• Repairs can be made only by authorized service center. All modifications or use of parts other than original is forbidden and may have adverse effects on the operational safety of the appliance

TECHNICAL DETAILS

• weight capacity 5kg
• resolution 1g
• accuracy of measurement: ± 15g
• power: CR2032 battery

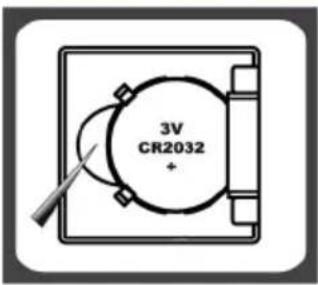

BATTERY

CR2032 lithium baterry (included). Remove isolation sheet before use.

1. Open the battery case cover at the bottom of scale.
2. Take out the used battery
3. Install new battery by putting one side of the battery bebeath the battery baffle and then pressing down the other side.

Used batteries should be thrown away the containers specially designed for this purpose.

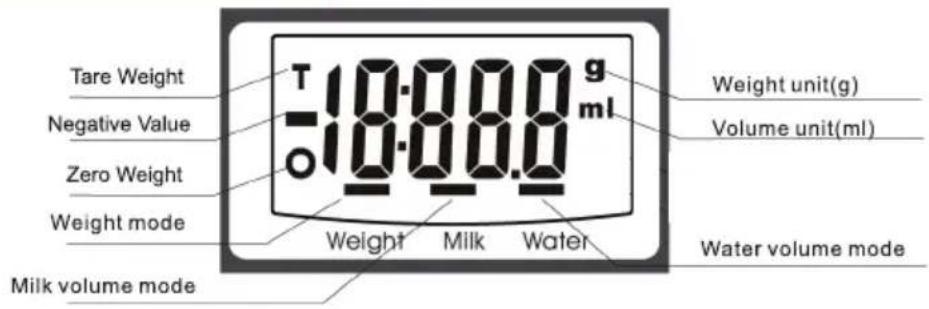

LCD

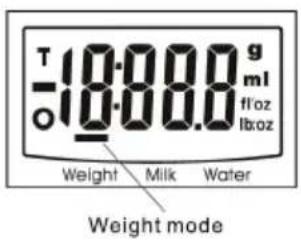

WEIGHING MODE

1. Please put the scale on a hard and flat surface.
2. Place bowl (if used) on the scale before turning on the unit.
3. Press and release [ON/OFF] button to turn on the unit.
4. Wait until LCD shows all information.
5. Load weighing object on to start weighing, LCD will show the weight reading

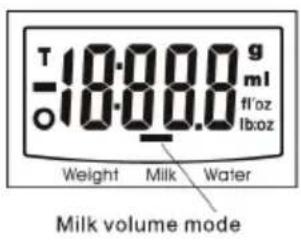

6. If the weighing object is water or milk, pres [MODE] button to choose volume and view the volume of weighing object.

"ZERO" OR "TARE" FUNCTION

To weigh different loads consecutively without removing loads from the scale. Put first Load on the scale, get weight reading. Press [ZERO] button to reset the LCD reading to "0" before adding next load. You can repeat this operation.

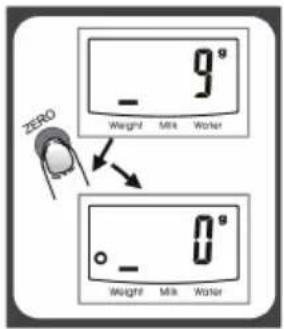

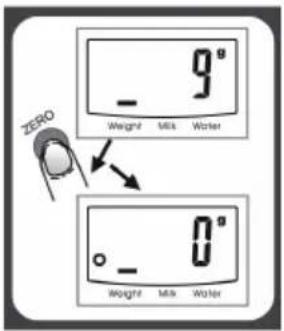

1. "ZERO" function When total sum of all loads on scale ≤ 4% of scale's max weight capacity (4% = 200g when capacity is 5 kg).

LCD will show "____" lub "0g" each time [ZERO] button is pressed.

“____” means not stable, please wait for a moment.

"0g" and meanwhile an icon "o" on lower left corner of LCD mean "ZERO" function is active. Max weight capacity remains unchanged.

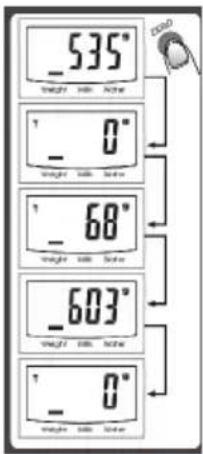

1. When total sum of all loads on scale > 4% of scale's max weight capacity. (4% = 200g when capacity is 5 kg).

LCD will show "____" lub "0g" each time [ZERO] button is pressed.

" " means not stable, please wait for a moment.

"0g" and meanwhile an icon "TARE" on lower left corner of LCD mean

"TARE" function is active.

Max weight capacity is reduced by total weight of all loads.

By pressing [ZERO] you can see the total weight of all loads on the scale. If you want to weight more loads, just press [ZERO] to reset LCD reading to "0" again.

AUTO SHUT OFF

Auto shut-off occurs if display shows '0' or shows the same weight reading for 2 minutes. To maximize battery life, always press ON/OFF again to turn off the scale after using.

- when display shows „0“ press [ON/OFF] to turn off the scale.

- when display shows weihgt reading, press [ON/OFF] for 3 seconds to turn off the scale.

WARNING INDICATORS

1. Replace new battery

2. Scale overload. Remove item to avoid damage.

CLEANING

1. DO NOT immerse the scale in water.

2. Clean with soft moist cloth without detergents, wipe dry

ENVIRONMENTAL PROTECTION

- the appliance is made of materials which can be recycled,

- it should be handed over to the applicable collection point for the recycling of electrical and electronic equipment

BEZPEČNOSTNÍ DOPORUČENÍ

OBSLUHA

MĚŘENÍ HMOTNOSTI

MĚŘENÍ OBJEMU MLÉKA

MĚŘENÍ OBJEMU VODY

FUNKCE „ZERO” NEBO „TÁROVÁNÍ“

Gewichtmessung

Milchvolumenmessung

To weigh different loads consecutively without removing loads from the scale. Put first Load on the scale, get weight reading. Press [ZERO] button to reset the LCD reading to "0" before adding next load. You can repeat this operation.

1. Функция "ОБНУЛЕНИЯ"

2. Функция "ТАРА"

MERANIE OBJEMU MLIEKA

MERANIE OBJEMU VODY

FUNKCIA "NULA" ALEBO "TAROVANIA"

SÚLY

MEDICION DE PESO
