Product Type	Masticating Juicer
Brand	Eldom
Model	Perfect Juicer PJ650C
Power	150 W
Voltage	230 V ~ 50 Hz
Maximum Continuous Operation	25 minutes
Required Break After Continuous Operation	10 minutes
Housing Material	Plastic
Filter Material	Stainless steel (interchangeable filters: fine mesh, large mesh, for frozen fruit)
Speed Control	Single speed with reverse function (R position)
Safety Features	Microswitch (only operates when properly assembled), overload reverse, non-slip feet (assumed)
Feeding Tube	Round, with pusher included
Spouts	Juice spout with cap (8a) and pulp spout
Included Accessories	Pusher, lid, extracting bolt, filter base, three filters, pulp container, juice jug, cleaning brush, tofu set
Cleaning	Detachable parts dishwasher safe (top tray); motor unit wipe with damp cloth only
Warranty	Household use only; commercial use voids warranty
Country of Origin	Poland (Eldom Sp. z o.o.)

Frequently Asked Questions - Perfect Juicer PJ650C Eldom

How do I assemble the juicer correctly?

Ensure the cap (8a) on the bottom of the collector is pushed in. Place the juice collector into the main body and turn right. Set the filter base, filter, and extracting bolt in the collector. Place containers under the spouts, put the lid on and turn right, then slide the pusher into the feeding tube. The appliance will only function when all parts are properly assembled (microswitch unlocked).

What should I do if the extracting bolt gets blocked?

Set the control knob to the 'R' (reverse) position for 3–5 seconds. Repeat two to three times. If still blocked, turn off, disassemble, remove the blocking element, and clean before reassembling.

Can I juice frozen fruits?

Yes, but only with the special filter for frozen fruit (filter no. 3) mounted. Do not process ice or frozen fruits without this filter, as it may damage the appliance.

How long can I operate the juicer continuously?

Maximum continuous operation is 25 minutes. For heavy loads, do not exceed 40 seconds at a time, then allow the appliance to cool down sufficiently. After 25 minutes, a break of at least 10 minutes is required before next use.

What is the difference between the three filters?

Filter A (fine mesh) produces watery juice; filter B (large mesh) produces dense juice; filter C is for frozen fruit. Use the appropriate filter for your desired juice consistency and ingredient type.

How should I clean the juicer?

Immediately after use, unplug the appliance. Disassemble all detachable parts (pusher, lid, collector, filter, bolt) and clean them with a brush in warm soapy water, then rinse. Plastic parts can be placed on the top rack of the dishwasher (away from heating element). Wipe the motor unit with a damp cloth only; never immerse in water.

Can I juice hard fruits like sugar cane or very starchy vegetables?

No, the juicer is not suitable for very hard or starchy produce such as sugar cane. Thick peels (e.g., oranges, pineapples, raw beetroots) should be removed before juicing.

Is the juicer dishwasher safe?

Yes, the detachable plastic parts (except the motor unit) can be washed on the top rack of a dishwasher. Ensure they are placed away from the heating element to avoid damage.

What is the tofu set included for?

The tofu set is an accessory for making tofu. Specific recipes and advice are available online. The set likely includes a mold or press for tofu preparation, separate from juicing functions.

Why does the appliance not start?

The microswitch prevents operation if parts are not correctly assembled. Ensure the juice collector, lid, and other components are properly locked in place. Also check that the cap (8a) is inserted. If still not working, verify power supply and control knob position.

USER MANUAL Perfect Juicer PJ650C Eldom

Red square juicer with black handle and white interior, no visible text or symbols on the device itself.

Eldom Sp. z o.o.

Line drawing of a kitchen appliance with a cylindrical tool inserted, labeled '8a' (no text or symbols on the device itself)

Please acquaint precisely with whole of this instruction before using the blender for the first time.

1. The power cable must be plugged in the socket with parameters the same as those given in that instruction manual.

2. Do not immerse the cable or the appliance in water.

3. Only intended for household use.

4. Do not use the appliance outdoors.

5. Before switching the appliance on, make sure that all of its elements are appropriately assembled.

6. Do not leave your device without supervision.

7. Always unplug the appliance after operation.

8. The device can be used by children aged 8 and older and by persons with limited physical, sensory or mental capabilities, or persons without sufficient experience and knowledge only under supervision or if previously instructed on the safe use of the appliance and the possible risks. Children shall not play with the appliance. Cleaning and maintenance that are the responsibility of the user shall not be carried out by children without supervision. Protect the appliance and the power cord against children under 8 years old.

9. Do not touch the appliance with wet hands.

10. Always pull the plug of the socket before cleaning.

11. Do not use the juicer when the filter is damaged.

12. Do not exceed the maximum time of continuous operation of the appliance.

13. Do not move during use.

14. Never reach into the feeding tube with your fingers or an object while the appliance is running. Only the pusher is to be used for this purpose.

15. Do not operate the juicer for more than 40 seconds at a time when juicing heavy loads and let it cool down sufficiently afterwards.

16. Never use the appliance if the supply cord is damaged. If found dama ged in any way, consult the producer's authorized service centre. The list of service centres is to be found in the appendix and on www.eldom.eu.

17. The appliance can be used only with the originally included accessories.
18. Refer servicing to an authorized service centre. Modifying the appliance or using spare parts or elements other than the original ones is forbidden and can expose the user to hazard.

EN

OPERATING INSTRUCTION PERFECT JUICER PJ650B/PJ650C/PJ650S

eldom

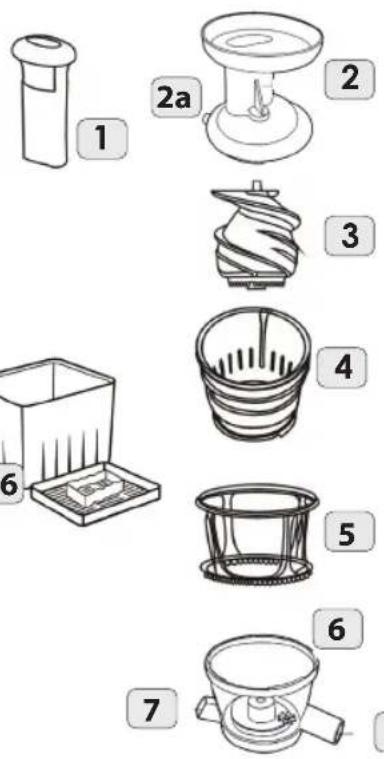

GENERAL DESCRIPTION

1. Pusher
2. Lid
   2a. Bridge
3. Extracting bolt
4. Filter
5. Bottom of the filter
6. Juicer collector
7. Pulp spout
8. Juice spout
   8a. Cap

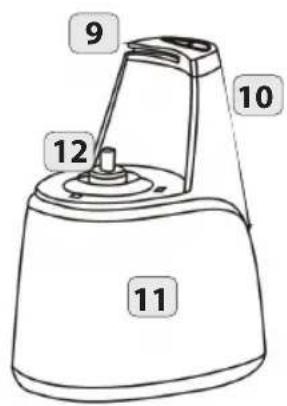

9. Microswitch
10. Control knob (On, Off, R)
11. Main body
12. Drive spindle
13. Pulp container
14. Juice jug
15. Brush for cleaning
    16.Tofu set

TECHNICAL DATA

• power: 150W
• mains voltage: 230V \~ 50Hz
• maximum time of continuous operation: 25 minutes
• break before continuation of operation: 10 minute

Line drawings of three different toothbrush designs with numbered labels (13, 14, 15), no text or symbols present.

PERFECT JUICER is designed for processing most of fruits and vegetables in a more efficient way than traditional juicer. Apart from standard components, it is also included a tofu set, advices and recipes can be found on-line.

Before using the appliance

• Read these instructions for use carefully before using the appliance
• make sure that none of elements are demaged
• wash all detachable parts,
• assemble the appliance

rys.1

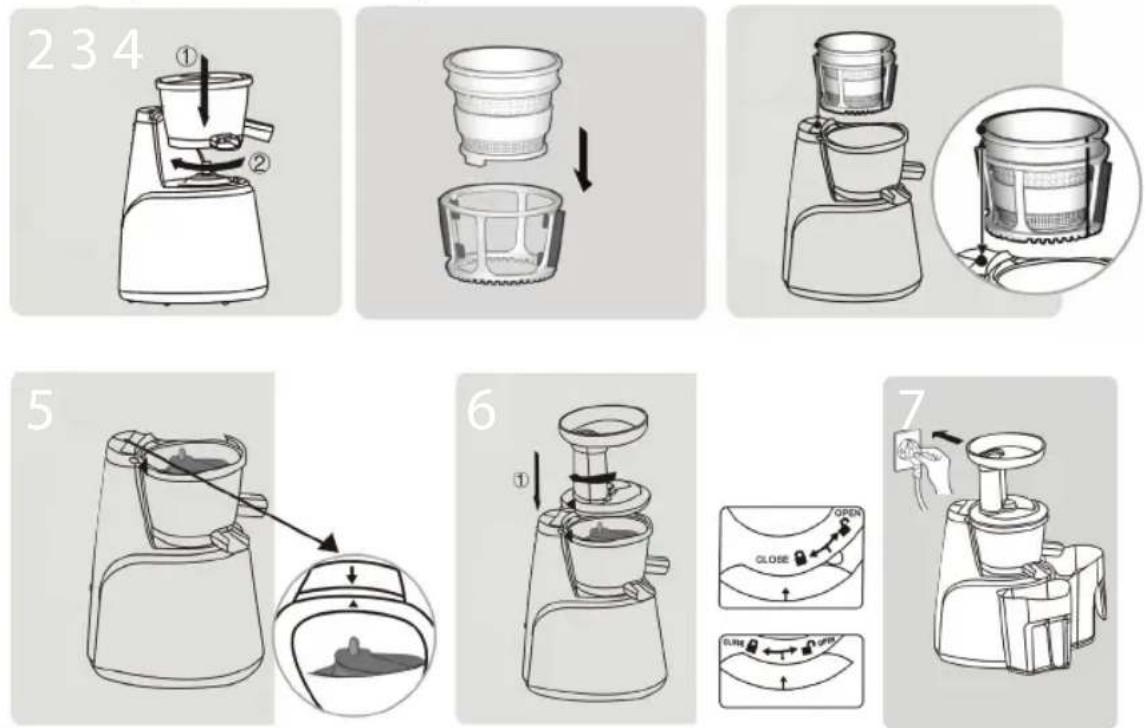

MONTAGE

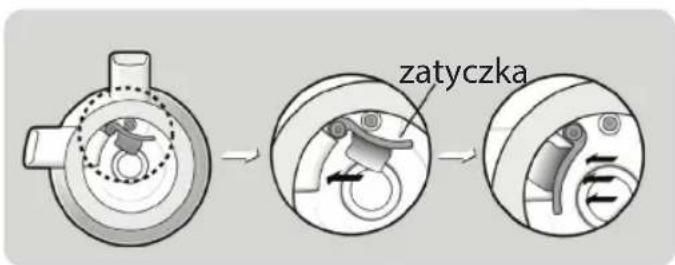

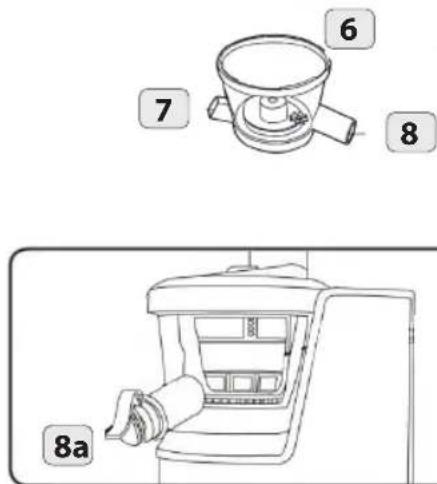

• ensure that the cup (8a) on the bottom of the collector 6 is pushed in (drawing 1)
• Place the juice collector (6) into main body (11) and turn right (pic. 2).

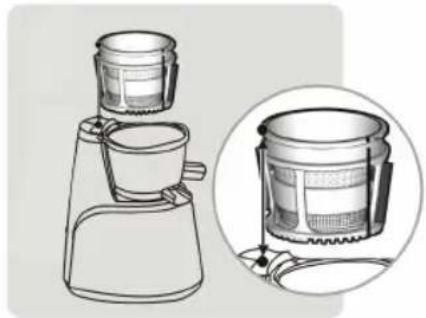

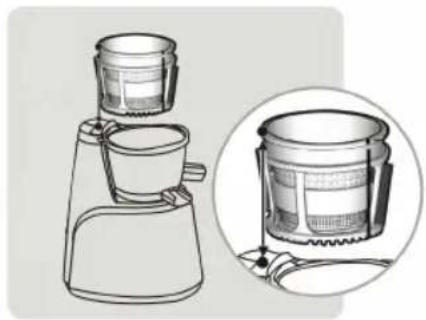

• In juicer collector (6) set: filter base (5), filter (4) (pic. 3) and extracting bolt(3) (pic. 4),

• set the containers (13,14) under the spouts (7,8)

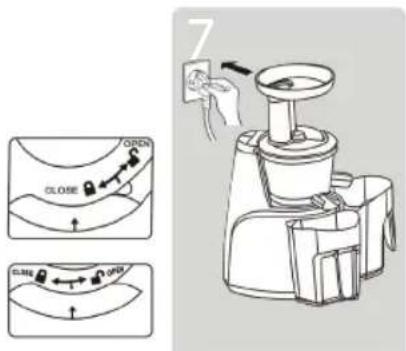

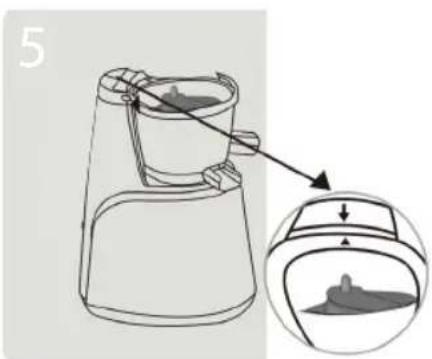

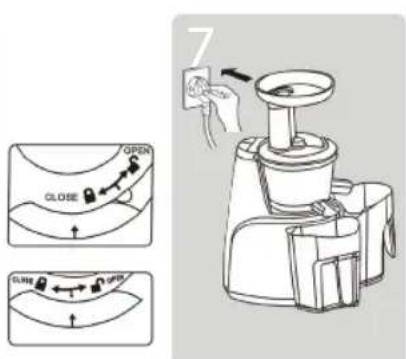

  -on the juicer collector (6) put the lid (2) according with the indicators. and turn it right (pic. 6)

• Slide the pusher into the feeding tube in the lid (2)

USING THE APPLIANCE

The appliance will only function if all parts have been properly assembled and only than the microswitch will be unlocked.

• always operate the product on a flat, stable surface
• put the plug in the wall socket
• slice products into pieces which fit into the feeding tube that is in the lid (2). Do not cut products into too small pieces.
• make sure the juice jug (14) has been placed under the juice spout (8).
• make sure that pulp container (13) has been placed under the pulp spout (7)
• switch the appliance on by turning the control knob (12) to the position „ON“

- put prepared fruits/vegetables in the feeding tube and gently press them down towards the rotating bolt by means of the pusher. Do not exert too much pressure on the pusher, as that could affect the quality of the end result or even blocked the appliance. Never insert your fingers or an object into the feeding tube.

- The juice will flow directly in the juice jug (14), and the pulp will be collected in the pulp container (13).

- If the Extracting bolt is locked, you need to set the switch (10) to "R" for 3 to 5 seconds. Repeat the process two to three times, then turn off, and disassemble items of PERFECT JUICER (see CLEANING section) to remove the blocking element.

- After you have processed all ingredients and the juice flow has stopped, switch the appliance off and wait until the filter has stopped rotating

- Make sure you observe the maximum time of continuous operation of the appliance. Exceeding the time limit and failing to provide appropriate breaks during the operation of the appliance may cause irreparable damage to the engine.

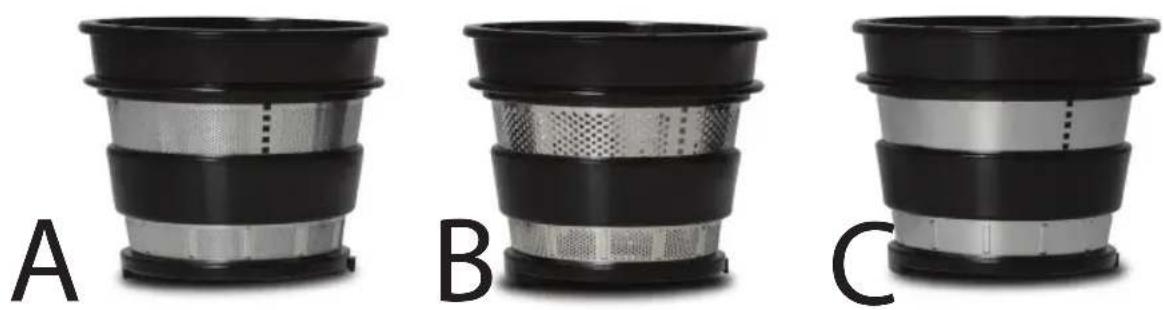

A-Iter with small meshes, watery juice
B- Iter with big meshes, dense juice
C- for frozen fruit

Three black-and-white cylindrical containers labeled A, B, and C, each with different internal patterns (no text or symbols on the containers themselves)

TIPS

• Clean fruits and vegetables, before juicing
• Use fresh fruit and vegetables, as they contain more juice.
• Thick peels, e.g. those of oranges, pineapples and uncooked beetroots need to be removed.
• products should be sliced into pieces which fit into the feeding tube that is in the lid (2). Do not cut the food into too small pieces.

- do not process the ice or frozen fruits

- If juicing herbs or leafy vegetables, wrap them together to form a bundle before placing in the juicer or combine them with other ingredients

- Apple juice turns brown very quickly. You can slow down this process by adding a few drops of lemon juice.

- frozen fruit may be processed only with filter no 3 mounted on

- fruit with small seeds (e.g. chokeberry, raspberry, blackcurrant) must be processed in small batches only y, about 0,5 kg. Before putting the next batch, turn the device off and remove the components for cleaning (see CLEANING).

- The juicer is not suitable for juicing very hard and starchy fruits or vegetables such as sugar cane

- When juicing fruit and vegetables of different consistency it may help to juice first soft products, and than hard.

CLEANING

When device is not used or before cleaning, disconnect it from the network.

The appliance is easier to clean if you do so immediately after use.

Do not use abrasive cleaning agents, scourers, acetone, alcohol etc. to clean the appliance.

Place the detachable plastic parts on the top tray of the dishwasher. Make sure they are placed well away from the heating element.

Switch the appliance off, remove the plug from the wall socket. Next disassemble the appliance in the following order:

• Remove the pushe (1)
• unlock (turn to the left) and remove the lid (2),
• unlock (turn to the left) and remove the juice collector (6) together with the base filter (5), filter (4) and extracting bolt (3) and disassemble the appliance.
  -Clean these parts with a cleaning brush in warm water with some washing-up liquid and rinse them under the tap.
  -Clean the motor unit with a damp cloth

Never immerse the motor unit in water nor rinse it under the tap.

WARRANTY

• only intended for household use,
• it cannot be used for commercial purposes
• the warranty loses validity in case of inappropriate use

ENVIRONMENTAL PROTECTION

• the device is made of materials that can be reused or recycled
• it should be handed to the special collection point, that deals with collection and recycling of electronic and electric devices,
