Product Type	Electric Meat Grinder
Brand	Maestro
Model	MR852
Rated Power	300 W
Max Locked Power	1000 W
Supply Voltage	220-240 V ~
Frequency	50 Hz
Protection Class	Class II
IP Rating	IPX0
Motor Protection	Automatic thermal cut-off in case of overheating
Housing Material	Stainless steel and plastic
Cutting Plates Included	Fine, medium, coarse
Attachments Included	Meat grinder, sausage maker, kebbe maker, shredder, slow juicer
Max Continuous Operation (mincing)	5 minutes
Recommended Cooling Time	10 minutes before reusing
Max Continuous Operation (noodle)	3 minutes
Meat Preparation	Cut into strips 10 cm long, 2 cm thick; remove bones, gristle, sinews
Feed Tube	Includes food pusher
Safety Features	Do not touch moving parts; always unplug before cleaning; automatic shut-off
Cleaning Method	Hand wash only; motor unit with damp cloth; never immerse in water
Dishwasher Safe Parts	No
Intended Use	Household only
Storage	Cool, dry place, out of reach of children

Frequently Asked Questions - MR852 Maestro

Can I grind frozen meat with the Maestro MR852?

No, you should never use frozen meat. Cut the meat into strips (10 cm long, 2 cm thick) and remove bones, gristle, and sinews before grinding.

How long can I use the meat grinder continuously?

Do not use the appliance for more than 5 minutes consecutively for mincing. For noodle attachment, limit to 3 minutes. Allow the appliance to cool for at least 10 minutes before reusing.

What should I do if the appliance gets jammed?

If the appliance is locked, press the Reversal button (REV) to free the meat. If necessary, pass a slice of bread through the cutter housing to remove leftover meat.

Can I wash the parts in the dishwasher?

No, do not wash any parts in the dishwasher. Clean all parts that come into contact with food immediately after use in hot soapy water, rinse, and dry thoroughly. The motor unit should only be wiped with a damp cloth.

How do I assemble the meat grinder?

Insert the snake (worm shaft) into the head tube, then place the cutting blade (blade facing forward) and the desired cutting plate onto the shaft. Screw the fixing ring tight (not over-tightened). Attach the head to the motor body by pressing the fasten button and rotating clockwise.

Can I use attachments from other brands?

No, never use accessories or parts from other manufacturers. Doing so will void the guarantee and may cause damage or injury.

What is the purpose of the slow juicer attachment?

The slow juicer attachment is used for extracting juice from fruits and vegetables. It includes a filter trap, plastic cover, and juice tray; see the manual for assembly instructions (Picture 6).

How do I make sausages with the MR852?

First mince the meat. Then attach the sausage horn and separator. Soak sausage skins in lukewarm water for 10 minutes, slide onto the horn, and feed the minced meat through the appliance (Picture 4).

Is the Maestro MR852 suitable for commercial use?

No, this appliance is intended for household use only. Do not use it for commercial purposes.

What should I do if the power cord is damaged?

If the supply cord is damaged, the entire appliance should be returned to an authorized service engineer for repair. Do not use the appliance if the cord or plug is damaged.

USER MANUAL MR852 Maestro

EN

DE

RL

RO

RU

UA

Owners manual. Electric Meat Grinder

White Mastro® stainless steel kitchen tool with a funnel and mesh chamber (no visible text or symbols on the device body)

Model/Модель: MR852

091

Certificated in Ukraine

Dear customer, we thank you for purchase of goods

Functionality, design and conformity to the quality standards guarantee to you reliability and convenience in use of this device. Please read and comply with these original instructions prior to the initial operation of your appliance and store them for later use of subsequent owners.

The Meat Grinder is intended only for the preparation of beverages in living (home) conditions.

Under condition of observance of user regulations and a specialpurpose designation, a parts of appliance do not contain unhealthy substances.

Technical specifications

Model: MR-852

Electrical supply:

Electrical supply:

Alternating current- AC;

Rated voltage 220-240V;

Rated frequency 50Hz;

Max locked power : 1000 W

Rated power: 300 W

Protective class II;

Protection class IPX0

This appliance is equipped with a thermostat system. This system will automatically cut off the power supply to the appliance in case of overheating.

Description of the appliance

Picture1| page 2

1. ON/OFF switch
2. Body
3. Fasten button
4. Tube inlet
5. Food pusher
6. Hopper plate
7. Head Tube
8. Snake

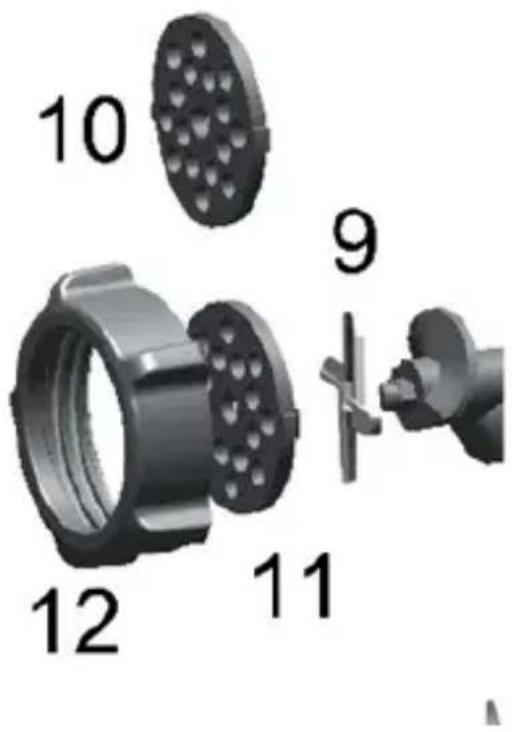

9. Cutting blade
10. Cutting plate (fine)
11. Cutting plate (medium)
12. Fixing ring
13. Sausage
14. Kebbe
15. Shredder attachment
16. Slow juicer

Safety instructions When using your appliance, basic safety precautions should always be followed, including the following:

• DO NOT leave the appliance unnecessarily plugged in. Disconnect the plug from the mains when the appliance is not being used.
• Always turn off the switch (time controller) and take electrical connector out of socket before cleaning and storage.
• DO NOT use the power cord or the appliance in order to pull the plug out of the socket.
• Only plug the appliance into an outlet with an earthed (ground) contact.
• In the interest of safety, regular periodic close checks should be carried out on the supply cord to ensure no damage is evident.

Should there be any signs that the cord is damaged in the slightest degree, the entire appliance should be returned be authorized service engineer.

-If your device was brought from cold to warm room, do not switch it on within 2 hours to prevent damage due to condensation on internal parts

• This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
• Do not operate the appliance if damaged, after an appliance malfunctions or it has been damaged in any manner, return to at authorized service engineer for repair.
• DO NOT let children or untrained persons use the appliance without supervision.
• Keep the power cord away from the hot and sharp surfaces. The power cord should not touch the top part and the back wall of the oven during its operation.
• Do not let the cord hang over the edge of a table or counter or touch hot surfaces.
• Не бросайте прибор.
• DO NOT leave the appliance exposed to the weather (rain, sun, etc.).

Actions in extreme situations:

• If a device tumbled into water, immediately, unplug the device, not touching to the device or water.
• In case of appearance from appliance of smoke, sparkling, strong smell of a burn isolation, immediately stop use the device, unplug the device, appeal to the nearest service center.

ATTENTION!

• Never use your finger or an objection to push ingredients down the feed tube while the appliance is running. Only the pusher is to be used for this purpose.
• Do not touch moving parts during the operation
• Always disconnect appliance before cleaning, assembling, disassembling, loading and unloading products. Perform assembly and disassembly only after full stop of moving parts.

Do not use the appliance if the mains cord, the plug or other parts are damaged

In case of failure to observe the rules a danger of serious damages may arise!

Never use any accessories of parts from other manufacture. Your guarantee will become invalid if such accessories or parts have been used.

-THIS APPLIANCE IS FOR HOUSEHOLD USE ONLY. DO NOT USE THE APPLIANCE FOR ANYTHING OTHER THAN INTENDED USE.

Do not use it for commercial purpose.

Preparation for work

• Remove all wrap materials and stickers
• Make sure that all the parts of appliance don't have damages.
• Thoroughly clean the parts that will come into contact with food before you use the appliance for the first time.

We advise you to lubricate the cutter unit and the grinding discs with some vegetable oil.

- Switch the appliance off before detaching and install any accessory.

Wait until moving parts have stopped running before you remove the parts of the appliance.

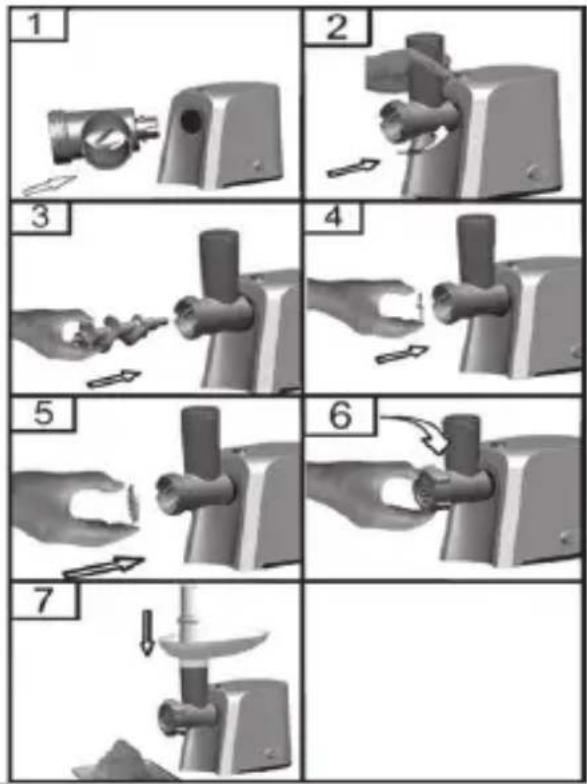

ASSEMBLING

EN

• Press the fasten button, hold the head and insert it into the inlet (when inserting please pay attention the head must be slanted as per arrow indicated on the top, see fig.2.1, then move the head anticlockwise so that the head being fastened tightly .(fig.2.2)
• Place the snake into the head, long end first, and turn to feed the screw slightly until it is set into the motor housing (fig. 2.3)
• Place the cutting blade onto the snake shaft with the blade facing the front as illustrated (fig.2.4). If it is not fitted properly, meat will not be grinded.
• Place the desired cutting plate next to the cutting blade, fitting protrusions in the slot (fig.2.5)
• Support or press the center of the cutting plate with one finger then screw the fixing ring tight with another hand (fig.2.6). Do not over tighten.
• Place the hopper plate on the head and fix it into position. (fig.2.7)
• Locate the unit on a firm place.
• The air passage at the bottom and the side of the motor housing should be kept free and not blocked.

Picture 2

Mincers are fed with sinewless, boneless and fatless beef that has been cut into pieces approximately 20 mm x 20 mm x 60 mm. Pushers are pressed with a force of 5N against the meat. Do not use the appliance for more than 5 minutes consecutively. Leave the appliance to cool for 10 minutes before using again.

Mincer

• Insert the worm shaft into the cutter housing, the plastic end first.
• Place the cutter unit onto the worm shaft. (The cutting edges should be at the front)

Place the medium grinding disc or coarse grinding disc (depending on the consistency you prefer) onto the worm shaft. (Make sure the notch of the grinding disc fit onto the projections of the mincer head.) Turn the screw ring in the direction of the arrow on the cutter housing until it is properly fastened.

- Attach the cutter housing to the motor unit.

Cut the meat into 10cm-long, 2cm-thick strips. Remove bones, pieces of gristle and sinews as much as possible. (Never use frozen meat!)

Put the meat in the tray. Use the pusher to gently push the meat into the cutter hosing. (For steak tartare, mince the meat with the medium grinding disc twice.)

If the appliance is locked, please press Reversal button(REV). The meat locked in cutter housing is untrodden, so the appliance can renew its usual condition.

Meat left behind in the cutter housing may be removed from the inside of the appliance by passing a slice of bread through the cutter housing.

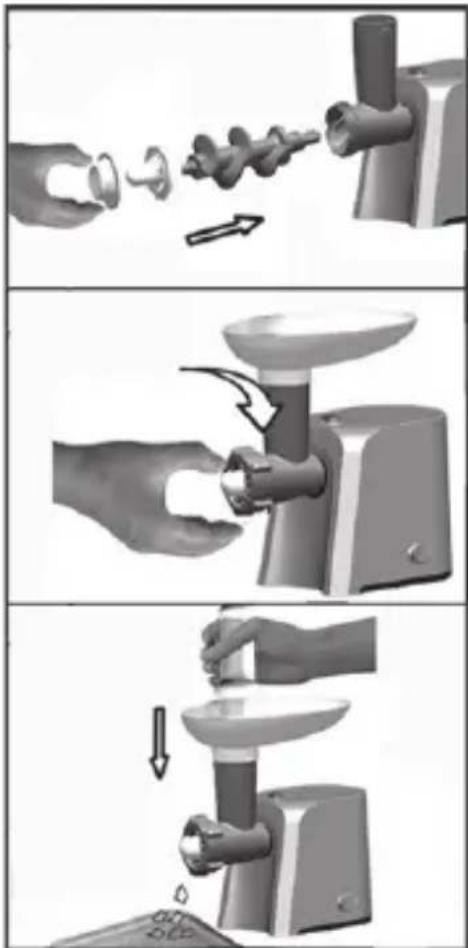

Making kebbe

Insert the worm shaft into the cutter housing, the plastic end first. (fig.3)

Place the cone in the cutter housing.

EN

Place the former on the cutter housing and screw the ring on the cutter housing.

Place the tray on the upright part of the cutter housing.

Now the appliance is ready for making kebbe.

Feed the prepared kebbe mixture through the kebbe maker. Cut the continuous hollow cylinder into the desired lengths and user as required.

Kebbe is a traditional Middle Eastern dish made primarily of lamp and bulgur wheat which are minced together to form a paste the mixture is extruded through the kebbe maker and cut into short lengths . The tubes can then be stuffed with a minced meat mixture, the ends pinched together and then deep fried.

Picture 3

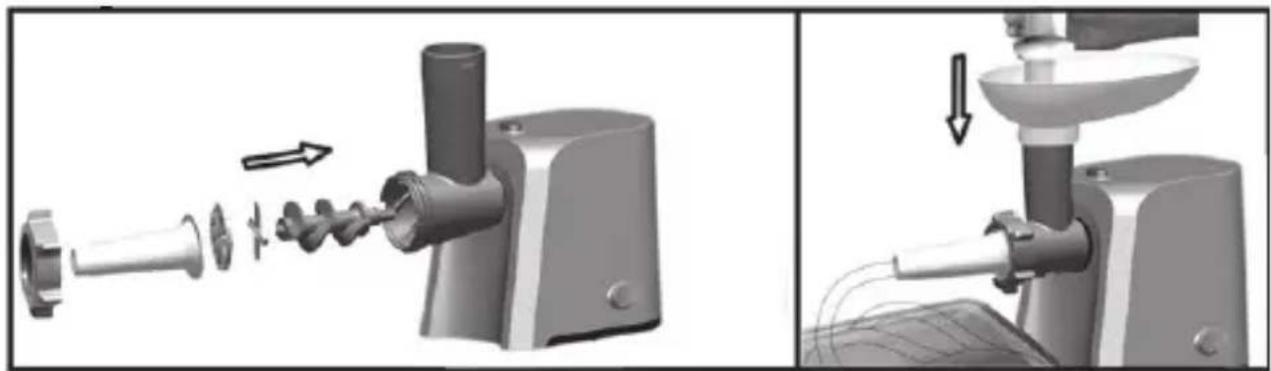

Making sausages

• Mince the meat Insert the worm shaft into the cutter housing, the plastic end first.
• Place the separator in the cutter housing.
• Place the sausage horn on the cutter housing and screw the ring on the cutter housing.
• (Make sure the notches of the separator fit onto the projections of the mincer head.)
• Attach the cutter housing to the motor unit.
• Place the tray on the upright part of the cutter housing.
• Now the appliance is ready for making sausages.
• Put the ingredients in the tray. Use the pusher to gently push the meat into the cutter housing.
• Put the sausage skin in lukewarm water for 10 minutes. Then slide the wet skin onto the sausage horn. Push the (seasoned) minced meat into the cutter housing. If the skin gets stuck onto the sausage horn, wet it with some water. (fig.4)

Two-step illustration of a manual kitchen tool, showing internal components and motion direction (no text or symbols)

Picture 4

Making noodle

• Operation time shall NOT exceed 3 minutes.
• use cutting plate 10 or 11 .
• fill the tray with flour continuously.

Picture 5

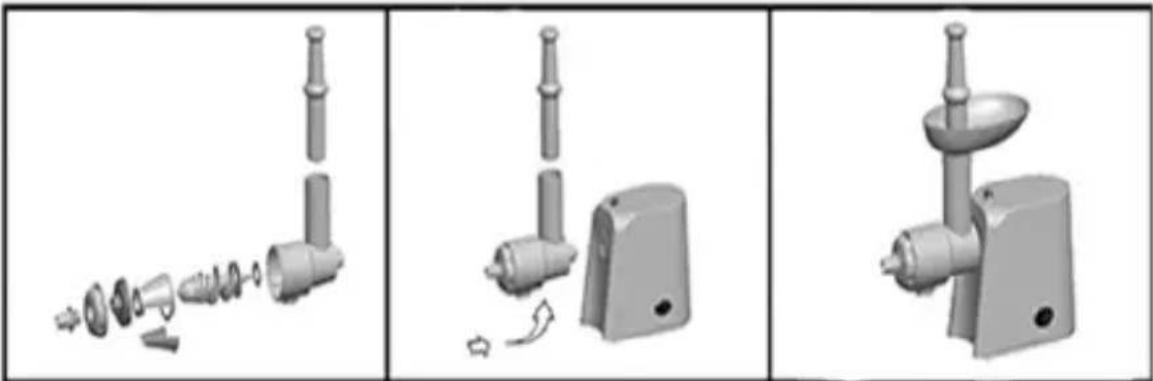

Slow juicer

Place the plastic snake into the head tube, long end first, and turn to feed the snake slightly until it is set into the motor housing.

Place the filter traps into the tube around to the plastic snake.

Place the plastic cover locking ring into the head tube.

Put the filter tip to the plastic cover and fix it.

Move the whole head tube clockwise so that it being fastened tightly.

Put the plastic juice tray on the top of head tube and make it on the suitable position.

Put the juice cup right near the filter tip, and a cup for tomato sediment.

Now the appliance is ready for juicing. (fig.6)

Three technical illustrations of a hairdryer tool, showing exploded and assembled views (no text or symbols)

Picture 6

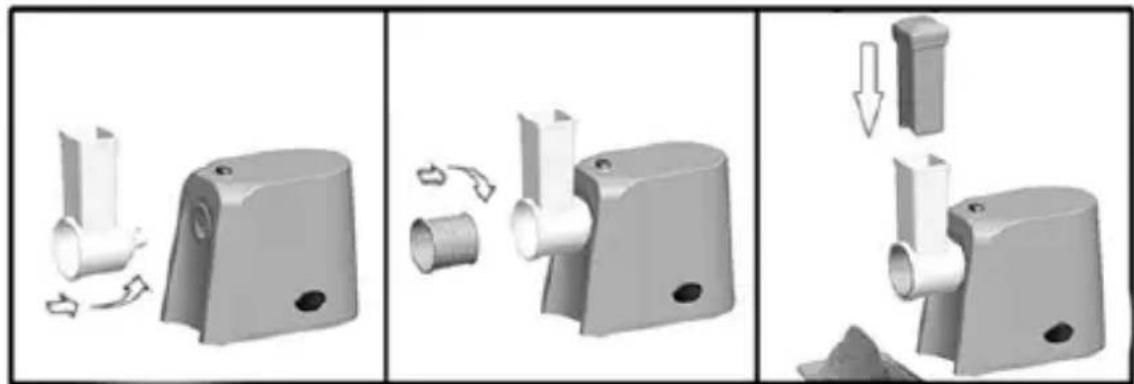

Shredder

- Press the fasten button, hold the plastic cutter housing and insert it into the tube inlet (when inserting please pay attention the plastic cutter housing must be slanted as per arrow indicated), then move the plastic cutter housing anticlockwise until it is fastened tightly, and release the fasten button.

- Place the shredder drum into the plastic cutter housing, then move the shredder clockwise so that it being properly fastened.

- Place the pusher on the upright part of the plastic cutter housing, and use the pusher to gently push the vegetable into the plastic cutter housing.

- Now the appliance is ready for cutting. (fig.7)

Three-step diagram showing a mechanical component being rotated, then tilted, with arrows indicating motion (no text or symbols)

Picture 7

ATTENTION!

- Before you clean the appliance, switch the appliance off and remove the plug from the socket

- Never immerse the motor unit in the water or any other liquid, nor rinse it under the tap. Use only a moist cloth to clean the motor unit.

- Never immerse the appliance or part of it in water.

- Do not use any strong or abrasive solvent, sponge or cream cleaner. Do not put in the dishwasher.

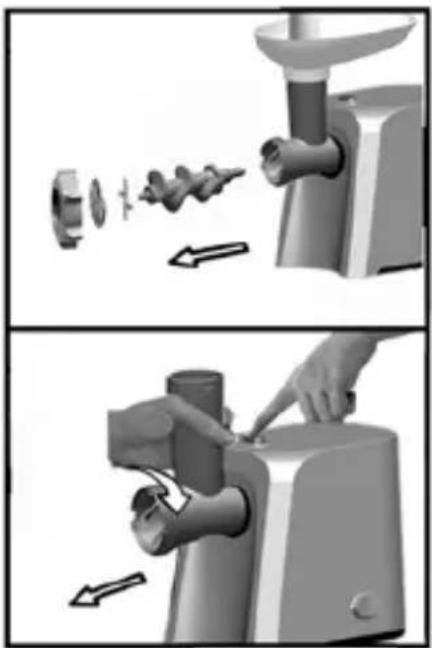

Press the release button and turn the whole cutter housing in the direction of the arrow. (fig.6) Remove the pusher and the tray.

Unscrew the screw ring and remove all parts of the cutter housing. Do not clean the parts in the dishwasher!

Wash all parts that have come into contact with meat in hot soapy water. Clean them immediately after use.

Rinse them with clear hot water and dry them immediately.

We advise you to lubricate the cutter unit and the grinding discs with some vegetable oil.

Two-step illustration showing a hand using a food grater to press or adjust the product, with no visible text or symbols.

Storage

• Switch off the appliance and let it completely cool before storage.
• Wipe and dry the appliance before storage.
• Store the appliance in a cool, dry and clean place beyond the access of children and people with limited physical and mental abilities

Environmental protection

Old appliances contain valuable materials that can be recycled.

Please arrange for the proper recycling of old appliances.

Please dispose your old appliances using appropriate collection systems.

Subject to technical modifications!

Funktionalität,

Max locked power : 1000 W

Rated power: 300 W;

Abbildung 2

Three-step illustration showing a hand using a tool to press or adjust a mechanical component, with no visible text or symbols.

Abbildung 3

Mechanical assembly diagram showing a motor and gear mechanism with no visible text or symbols

Abbildung 4

Three-panel illustration showing a hairdryer with exploded view, a mechanical component, and a final motor (no text or symbols)

Abbildung 6

Three-step diagram showing a mechanical component being processed, with arrows indicating motion and assembly (no text or symbols)

Abbildung 7

Two-step illustration of a hand using a manual electric shaver to adjust the product (no text or symbols present)

Lagerung

Max locked power : 1000 W

Rated power: 300 W;

Rysunek 2

Rysunek 3

Gotowanie kiełbasy

Mechanical assembly diagram showing a motor with gears and a screwdriver, before and after disassembly (no text or symbols)

Rysunek 4

Three-panel illustration showing a hairdryer with exploded view, a mechanical component, and a final assembled device (no text or symbols)

Rysunek 6

Three-step diagram showing a mechanical component being processed, with arrows indicating motion and a downward arrow highlighting the process (no text or symbols present)

Rysunek 7

Two-step illustration showing a hand using a sewing machine to adjust the product (no text or symbols present)

Rysunek 8

Przechowywanie

Current electric alternativ;

Frecventa nominala: 50 Hz;

Max locked power : 1000 W

Rated power: 300 W

Figura 2

Three-step illustration showing a hand using a manual tool to press or adjust a mechanical component, with no visible text or symbols.

Figura 3

Mechanical assembly diagram showing a motor with rotating shaft and connecting pipe, before and after disassembly (no text or symbols)

Figura 4

Three-panel illustration showing a hairbrush, its open lid, and its side view with a mounted brush (no text or symbols)

Figura 6

Three-step diagram showing a mechanical component being processed, with arrows indicating motion and a downward arrow highlighting the process (no text or symbols present)

Figura 7

Two-step illustration showing a hand using a manual kitchen tool to adjust the product (no text or symbols present)

Figura 8

Păstrarea

Рисунок 2

Three-step illustration showing a hand using a manual tool to process food preparation (no text or symbols present)

Рисунок 3

Mechanical assembly diagram showing a motor with gears and shafts, before and after disassembly (no text or symbols)

Рисунок 4

Рисунок 5

Three-step illustration of a hairdryer tool, showing exploded view and assembled assembly (no text or symbols)

Рисунок 6

Three-step diagram showing a mechanical component being processed, with arrows indicating motion and a downward arrow highlighting the process (no text or symbols present)

Рисунок 7

ВНИМАНИЕ!

Two-step illustration showing a hand using a sewing machine to adjust the product (no text or symbols present)

Рисунок 8

Хранение

Малюнок 2

Three-step illustration showing a hand turning a small bowl into a kitchen tool, with arrows indicating the process (no text or symbols present)

Малюнок 3

Приготування ковбас

Mechanical assembly diagram showing a motor with internal components and a close-up view of the motor's handle (no text or symbols present)

Малюнок 4

Малюнок 5

Three-step illustration of a hairdryer tool, showing disassembly, assembly, and cleaning (no text or symbols)

Малюнок 6

Three-step diagram showing a mechanical component being processed, with arrows indicating motion and a downward arrow highlighting the process (no text or symbols present)

Малюнок 7

Чищення та догляд

УВАГА!

Two-step illustration of a hand using a sewing machine to adjust mechanical parts (no text or symbols present)

Малюнок 8

Зберігання

Made in P.R.C. for Maestro
