Product Type	Electric Meat Grinder
Model	MR-851
Brand	Maestro
Rated Voltage	220-240 V AC
Rated Frequency	50 Hz
Max Locked Power	1500 W
Rated Power	500 W
Protection Class	Class II
Ingress Protection	IPX0
Functions	Mincing, Sausage Making, Kebbe Making, Tomato Juice Extraction (with attachment)
Cutting Plates	Fine, Medium (included)
Safety Features	Thermostat auto cut-off, reversal button (REV)
Material	Stainless steel body, plastic housing
Cleaning	Hand wash only; do not immerse motor unit; not dishwasher safe
Maximum Continuous Operation	5 minutes, then cool for 10 minutes
Dimensions (approx.)	30 x 15 x 30 cm (L x W x H)
Weight (approx.)	4 kg
Power Cord Length	~1.5 m (estimated)
Country of Origin	China (P.R.C.)
Intended Use	Household only

Frequently Asked Questions - MR851 Maestro

Can I use the meat grinder for bones?

No, do not use bones, gristle, or sinews. Only use boneless, sinewless meat cut into small strips.

How long can I use the grinder continuously?

Do not use for more than 5 minutes consecutively. Let it cool for 10 minutes before using again.

What should I do if the appliance gets stuck?

Press the reversal button (REV) to untangle the meat. If it remains locked, unplug and disassemble.

How do I clean the meat grinder?

Unplug the device. Wash all detachable parts in hot soapy water immediately after use. Do not immerse the motor unit or use dishwasher.

Can I grind frozen meat?

No, never use frozen meat. Cut fresh meat into strips of 10 cm length and 2 cm thickness.

How do I assemble the grinder for mincing?

Insert the worm shaft, then the cutting blade (blade forward), then the desired cutting plate, and secure with the fixing ring.

How do I make sausages using this grinder?

Remove the cutting blade and plate, insert the separator and sausage horn, then attach the tray. Push seasoned minced meat through and slide sausage skin onto the horn.

What is the kebbe attachment for?

The kebbe cone and former allow you to extrude a hollow cylinder of minced meat mixture for making traditional Middle Eastern kebbe.

Why does the appliance stop during operation?

The thermostat system may activate due to overheating. Unplug and let it cool for at least 10 minutes before restarting.

Can I use accessories from other brands?

No, using non-original accessories will void the guarantee. Only use Maestro-approved parts.

USER MANUAL MR851 Maestro

Owners manual. Electric Meat Grinder

White Maestro® stainless steel kitchen tool (no visible text or symbols on body)

091

Certificated in Ukraine

Pictures/ Paveikslai/ Rysunki/ Figuri/ Рисунки/ Малюнки

EN Description of the appliance....4
DE Gerät....11
PL Konstrukcja urządzenia....19
RO Structura produsului....27
RU Устройство прибора....34
UA Склад приладу....42

Dear customer, we thank you for purchase of goods!

Functionality, design and conformity to the quality standards guarantee to you reliability and convenience in use of this device.

Please read and comply with these original instructions prior to the initial operation of your appliance and store them for later use of subsequent owners.

The Meat Grinder is intended only for the preparation of beverages in living (home) conditions. Under condition of observance of user regulations and a special purpose designation, a parts of appliance do not contain unhealthy substances.

TECHNICAL SPECIFICATIONS

Model: MR-851

Electrical supply:

Alternating current- AC;

Rated voltage 220-240V;

Max locked power: 220-240 V, \~50 Hz, 1500W;

Rated power: 220-240 V, \~50 Hz, 500W;

Protective class II

Protection class IPX0

This appliance is equipped with a thermostat system. This system will automatically cut off the power supply to the appliance in case of overheating

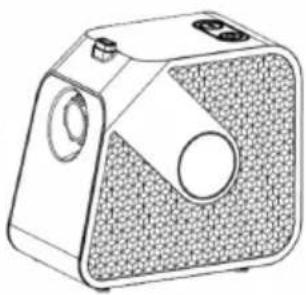

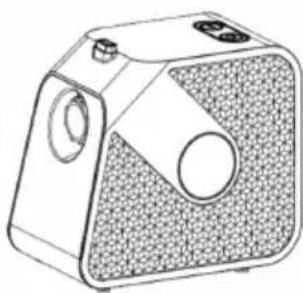

Description of the appliance

Picture1| page 2

1. ON/OFF switch	9. Cutting blade
2. Body	10. Cutting plate (fine)
3. Fasten button	11. Cutting plate (medium)
4. Tube inlet	12. Fixing ring
5. Food pusher	13. Sausage
6. Hopper plate	14. Kebbe
7. Head Tube	15. Attachment for tomato juice
8. Snake

Safety instructions

When using your appliance, basic safety precautions should always be followed, including the following:

• DO NOT leave the appliance unnecessarily plugged in. Disconnect the plug from the mains when the appliance is not being used.
• Always turn off the switch (time controller) and take electrical connector out of socket before cleaning and storage.
• DO NOT use the power cord or the appliance in order to pull the plug out of the socket.
• Only plug the appliance into an outlet with an earthed (ground) contact.
• In the interest of safety, regular periodic close checks should be carried out on the supply cord to ensure no damage is evident.
  Should there be any signs that the cord is damaged in the slightest degree, the entire appliance should be returned be authorized service engineer.
  -If your device was brought from cold to warm room, do not switch it on within 2 hours to prevent damage due to condensation on internal parts
• This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
• Do not operate the appliance if damaged, after an appliance malfunctions or it has been damaged in any manner, return to at authorized service engineer for repair.
• DO NOT let children or untrained persons use the appliance without supervision.
• Keep the power cord away from the hot and sharp surfaces. The power cord should not touch the top

part and the back wall of the oven during its operation.

• Do not let the cord hang over the edge of a table or counter or touch hot surfaces.
• Не бросайте прибор.
• DO NOT leave the appliance exposed to the weather (rain, sun, etc.).

Actions in extreme situations:

• If a device tumbled into water, immediately, unplug the device, not touching to the device or water.
• In case of appearance from appliance of smoke, sparkling, strong smell of a burn isolation, immediately stop use the device, unplug the device, appeal to the nearest service center.

ATTENTION!

• Never use your finger or an objection to push ingredients down the feed tube while the appliance is running. Only the pusher is to be used for this purpose.
• Do not touch moving parts during the operation
• Always disconnect appliance before cleaning, assembling,

disassembling, loading and unloading products. Perform assembly and disassembly only after full stop of moving

parts.

Do not use the appliance if the mains cord, the plug or other parts are damaged

In case of failure to observe the rules a danger of serious damages may arise!

Never use any accessories of parts from other manufacture. Your guarantee will become invalid if such accessories or parts have been used.

-THIS APPLIANCE IS FOR HOUSEHOLD USE ONLY. DO NOT USE THE APPLIANCE FOR ANYTHING OTHER THAN INTENDED USE.

Do not use it for commercial purpose.

Preparation for work

- Remove all wrap materials and stickers

- Make sure that all the parts of appliance don't have damages.

- Thoroughly clean the parts that will come into contact with food before you use the appliance for the first time.

We advise you to lubricate the cutter unit and the grinding discs with some vegetable oil.

- Switch the appliance off before detaching and install any accessory.

Wait until moving parts have stopped running before you remove the parts of the appliance.

ASSEMBLING

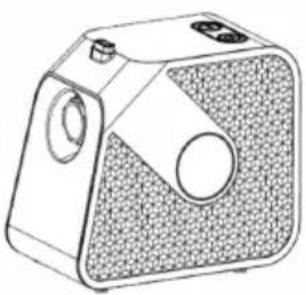

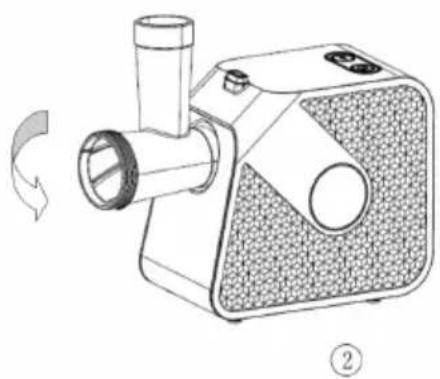

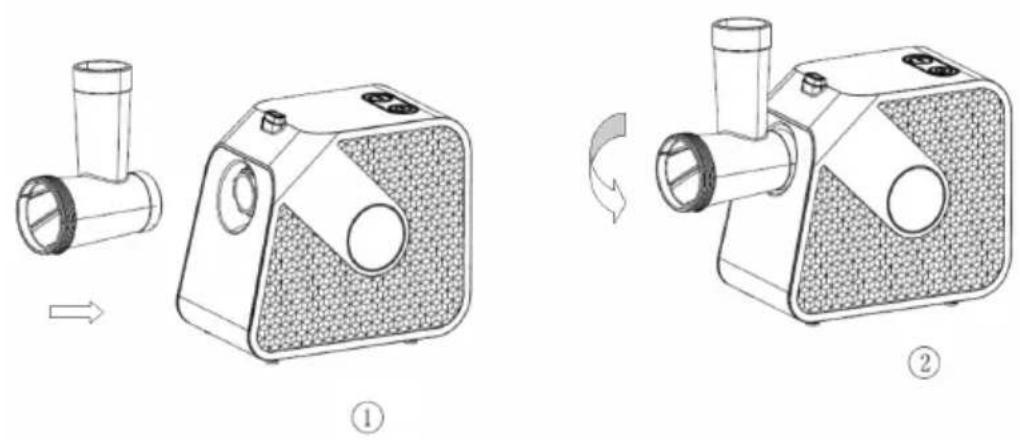

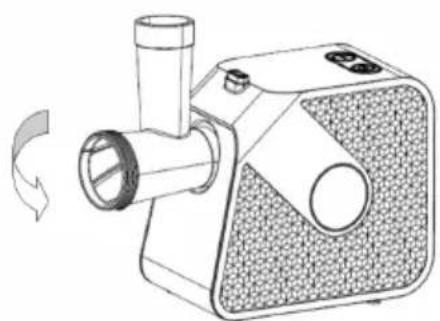

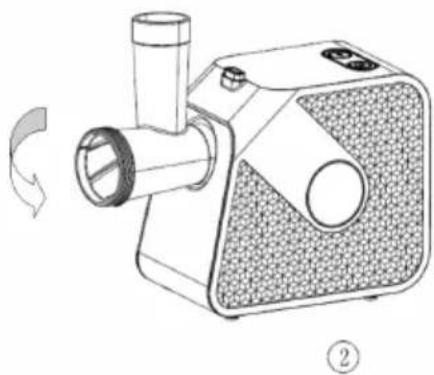

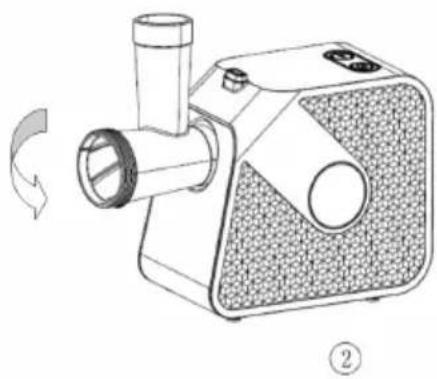

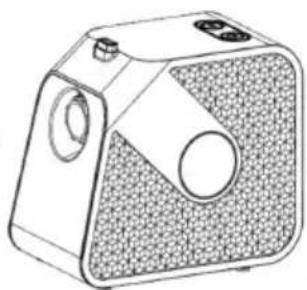

- Press the fasten button hold the head and insert it into the inlet (when inserting please pay attention the head must be slanted as per arrow indicated on the top, see fig.2.1, then move the head anticlockwise so that the head being fastened tightly (fig.2.2)

fig.2.2

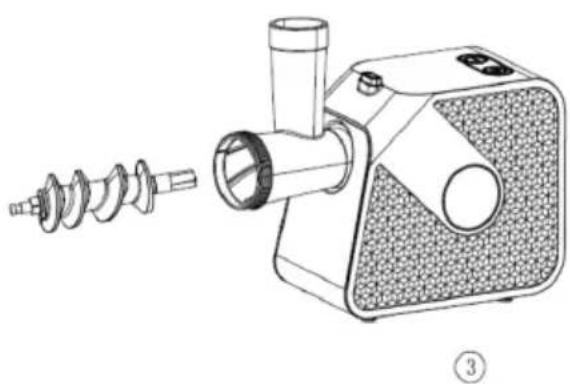

• Place the snake into the head, long end first, and turn to feed the screw slightly until it is set into the motor housing (fig. 2.3)

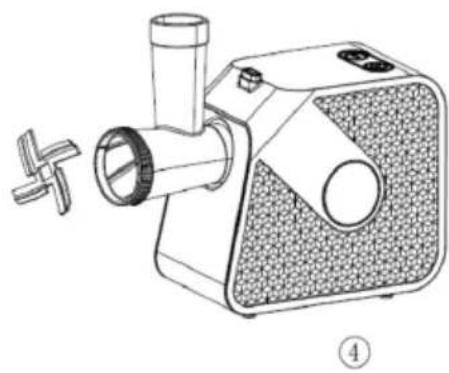

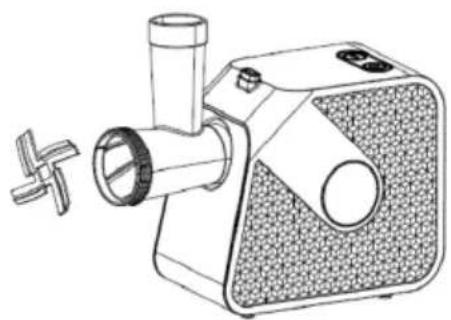

• Place the cutting blade onto the snake shaft with the blade facing the front as illustrated (fig.2.4). If it is not fitted properly, meat will not be grinded.

fig.2.3 fig.2.4

Line drawing of a mechanical device with a handle and spout, labeled with number 4 (no text or symbols on the device itself)

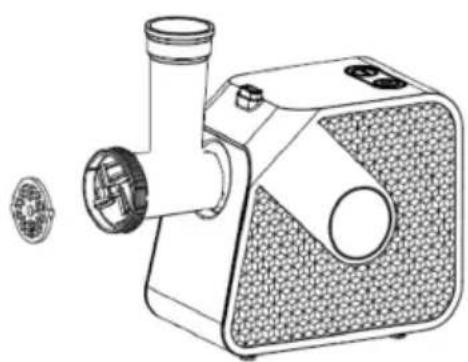

• Place the desired cutting plate next to the cutting blade, fitting protrusions in the slot (fig.2.5)

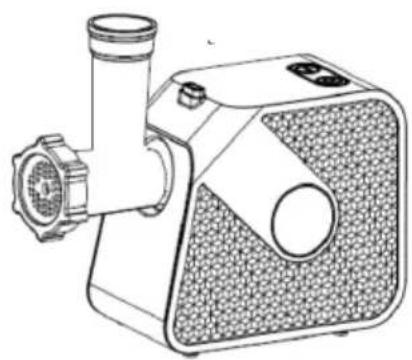

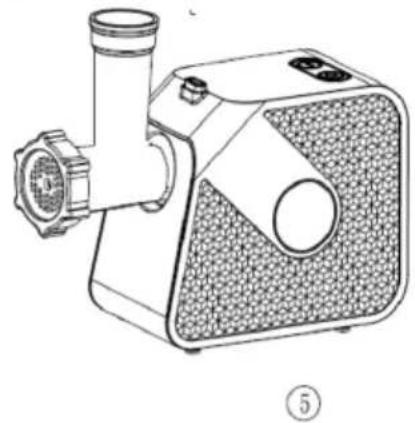

• Support or press the center of the cutting plate with one finger then screw the fixing ring tight with another hand (fig.2.6). Do not over tighten.

fig.2.5 fig.2.6

Line drawing of a vintage manual pump with two ports and a close-up of its side panel (no text or symbols)

⑤

Line drawing of a mechanical device with a flanged handle and textured body (no text or symbols)

⑤

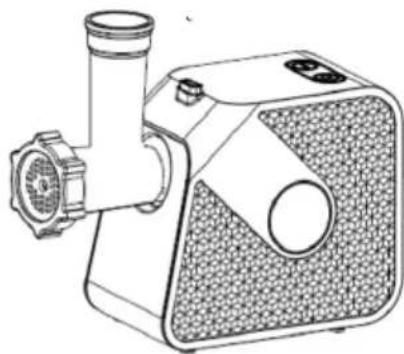

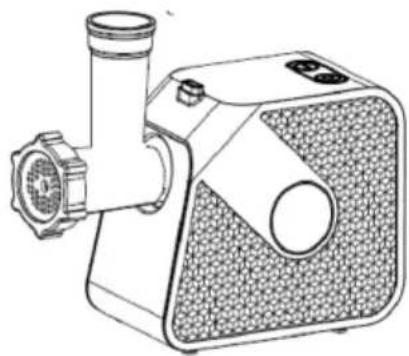

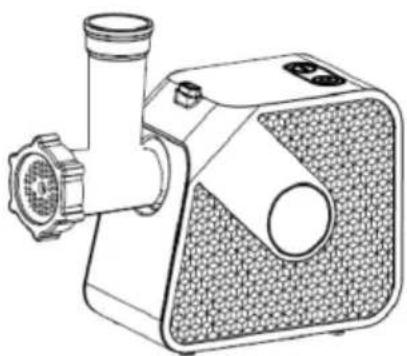

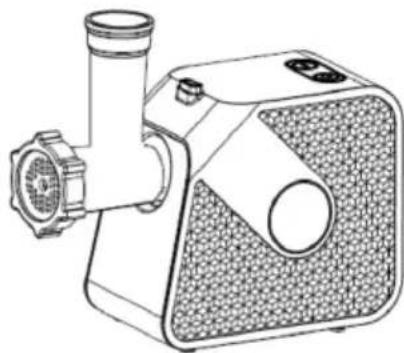

• Place the hopper plate on the head and fix it into position.
• Locate the unit on a firm place.
• The air passage at the bottom and the side of the motor housing should be kept free and not blocked.

Mincers are fed with sinewless, boneless and fatless beef that has been cut into pieces approximately 20 mm x 20 mm x 60 mm. Pushers are pressed with a force of 5N against the meat. Do not use the appliance for more than 5 minutes consecutively. Leave the appliance to cool for 10 minutes before using again.

Mincer

• Insert the worm shaft into the cutter housing, the plastic end first.
• Place the cutter unit onto the worm shaft. (The cutting edges should be at the front)
  Place the medium grinding disc or coarse grinding disc (depending on the consistency you prefer) onto the worm shaft. (Make sure the notch of the grinding disc fit onto the projections of the mincer head.)
  Turn the screw ring in the direction of the arrow on the cutter housing until it is properly fastened.

- Attach the cutter housing to the motor unit.

Cut the meat into 10cm-long, 2cm-thick strips. Remove bones, pieces of gristle and sinews as much as possible. (Never use frozen meat!)

Put the meat in the tray. Use the pusher to gently push the meat into the cutter hosing. (For steak tartare, mince the meat with the medium grinding disc twice.)

If the appliance is locked, please press Reversal button(REV). The meat locked in cutter housing is untrodden, so the appliance can renew its usual condition.

Meat left behind in the cutter housing may be removed from the inside of the appliance by passing a slice of bread through the cutter housing.

Making kebbe

Insert the worm shaft into the cutter housing, the plastic end first.

Place the cone in the cutter housing.

Place the former on the cutter housing and screw the ring on the cutter housing.

Place the tray on the upright part of the cutter housing.

Now the appliance is ready for making kebbe.

Feed the prepared kebbe mixture through the kebbe maker. Cut the continuous hollow cylinder into the desired lengths and user as required.

Kebbe is a traditional Middle Eastern dish made primarily of lamp and bulgur wheat which are minced together to form a paste the mixture is extruded through the kebbe maker and cut into short lengths.

The tubes can then be stuffed with a minced meat mixture, the ends pinched together and then deep fried.

Making sausages

- Mince the meat Insert the worm shaft into the cutter housing, the plastic end first.

- Place the separator in the cutter housing.

- Place the sausage horn on the cutter housing and screw the ring on the cutter housing.

- (Make sure the notches of the separator fit onto the projections of the mincer head.)

- Attach the cutter housing to the motor unit.

- Place the tray on the upright part of the cutter housing.

- Now the appliance is ready for making sausages.

- Put the ingredients in the tray. Use the pusher to gently push the meat into the cutter housing.

- Put the sausage skin in lukewarm water for 10 minutes. Then slide the wet skin onto the sausage horn. Push the (seasoned) minced meat into the cutter housing. If the skin gets stuck onto the sausage horn, wet it with some water. (fig.3)

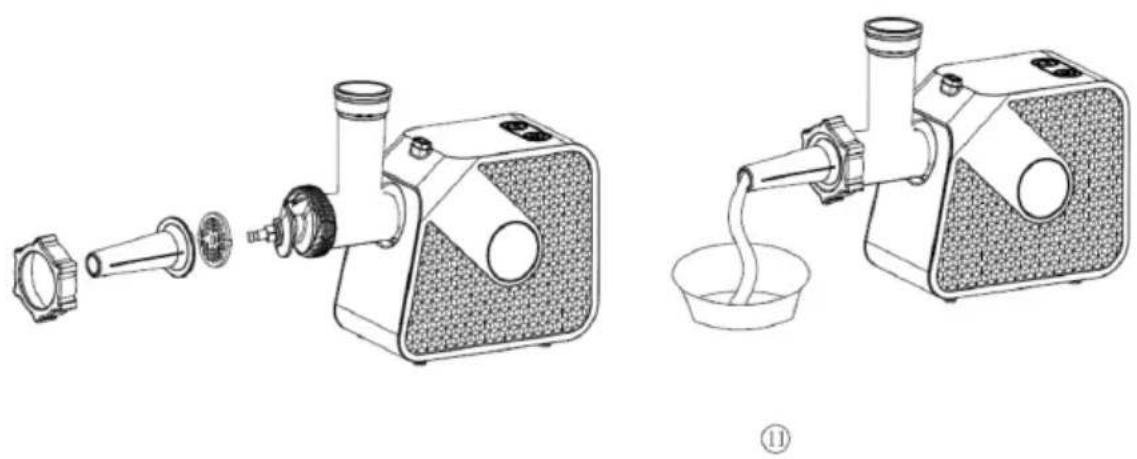

fig.3

Technical line drawings of two types of manual kitchen machines, one with a funnel and one with a bucket pouring liquid (no text or labels)

CLEANING AND MAINTENANCE

ATTENTION!

• Before you clean the appliance, switch the appliance off and remove the plug from the socket
• Never immerse the motor unit in the water or any other liquid, nor rinse it under the tap. Use only a moist cloth to clean the motor unit.
• Never immerse the appliance or part of it in water.
• Do not use any strong or abrasive solvent, sponge or cream cleaner. Do not put in the dishwasher.

Press the release button and turn the whole cutter housing in the direction of the arrow. Remove the pusher and the tray.

Unscrew the screw ring and remove all parts of the cutter housing. Do not clean the parts in the dishwasher!

Wash all parts that have come into contact with meat in hot soapy water. Clean them immediately after use. Rinse them with clear hot water and dry them immediately.

We advise you to lubricate the cutter unit and the grinding discs with some vegetable oil.

Storage

• Switch off the appliance and let it completely cool before storage.
• Wipe and dry the appliance before storage.
• Store the appliance in a cool, dry and clean place beyond the access of children and people with limited physical and mental abilities

Environmental protection

Old appliances contain valuable materials that can be recycled.

Please arrange for the proper recycling of old appliances. Please dispose your old appliances using appropriate collection systems.

Subject to technical modifications!
