Ultimate SU760 - SSD ADATA - Free user manual and instructions

Product Type	Solid State Drive (SSD)
Form Factor	2.5 inch
Interface	SATA III 6Gb/s (backward compatible with SATA II)
Capacity	Up to 1TB (model dependent)
Sequential Read Speed	Up to 560 MB/s
Sequential Write Speed	Up to 520 MB/s
Dimensions (L x W x H)	100.2 x 69.85 x 7 mm
Weight	Approximately 60 g
Operating Temperature	0°C to 70°C
Storage Temperature	-40°C to 85°C
Power Consumption (Active)	2.5 W max
Power Consumption (Idle)	0.5 W
MTBF	2,000,000 hours
Warranty	3 years limited
Shock Resistance	1500G / 0.5 ms
Vibration Resistance	20G (20-2000 Hz)
Supported Operating Systems	Windows, macOS, Linux
Compliance	CE, FCC, RoHS

Frequently Asked Questions - Ultimate SU760 ADATA

What tools do I need to install the ADATA Ultimate SU760 SSD in a desktop PC?

You will need a standard Phillips screwdriver (3.5mm) and the SSD itself. Ensure you have a free 2.5-inch bay and a SATA data cable (usually included with the motherboard).

How do I back up my data before installing the new SSD?

Use an external HDD or cloud storage to copy important files. You can also use cloning software to migrate your entire system to the new SSD.

Can I install the ADATA Ultimate SU760 in a laptop?

Yes, it fits most laptops with a 2.5-inch SATA bay. Check your laptop's manual for drive bay location and removal procedure.

What is the difference between SATA III and SATA II?

SATA III (6Gb/s) is backward compatible with SATA II (3Gb/s). The SSD will work at SATA II speeds if connected to an older port, but performance will be limited.

Does the ADATA Ultimate SU760 require any special drivers?

No, most modern operating systems have native SATA drivers. Simply connect the SSD and initialize it using Disk Management (Windows) or Disk Utility (macOS).

How can I optimize the performance of my new SSD?

Enable TRIM in your operating system, update firmware, and avoid filling the drive beyond 90% capacity. Also, ensure your motherboard BIOS is set to AHCI mode.

What is the lifespan of the ADATA Ultimate SU760?

The SSD has a MTBF of 2 million hours and a typical endurance of 1.5 DWPD (Drive Writes Per Day) for the capacity. Lifespan varies based on usage.

Can I use this SSD with a SATA I (1.5Gb/s) port?

Yes, it is backward compatible with SATA I, but speeds will be limited to the port's maximum (150 MB/s). For best performance, use a SATA III port.

What should I do if my computer does not recognize the SSD after installation?

Check that the SATA and power cables are firmly connected. Enter BIOS to see if the drive is detected. If not, try a different SATA port or cable.

Is it necessary to format the new SSD before use?

If the SSD is brand new, you must initialize and format it. In Windows, open Disk Management, right-click the disk, and create a new simple volume with NTFS format.

USER MANUAL Ultimate SU760 ADATA

Colorful hummingbird logo with wings spread against blue background (no text or symbols)

ADATA®

INDEX

INSTALLING AN 2.5" SATA SSD ON A DESKTOP PC

Chinese traditional 03

Chinese simple 07

English 11

German 15

Japanese 19

Korean 23

Portuguese 27

Russian 31

Romanian 35

Spanish 39

INSTALLING AN 2.5" SATA SSD ON A LAPTOP PC

Chinese traditional 43

Chinese simple 47

English 51

German 55

Japanese 59

Korean 63

Portuguese 67

Russian 71

Romanian 75

Spanish 79

如何在桌機安裝

2.5吋 SATA固態硬碟

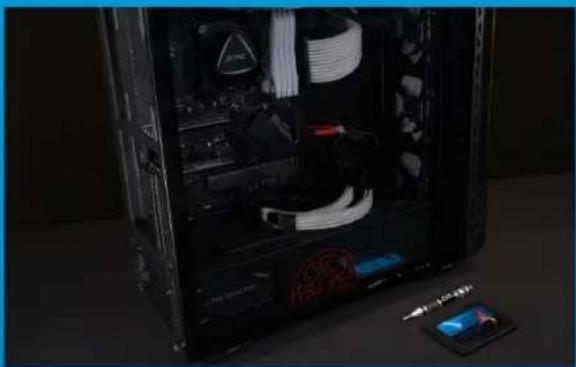

更換前準備步驟

Interior view of a computer tower case with visible internal components and a small electronic device on the right (no text or symbols)

1. 準備工具

3. 請確實關機

Hand inserting a black rack into a server rack with multiple drive bays (no visible text or labels)

Hand placing a hard disk into a black server rack with visible internal components and a digital display (no text or symbols)

1. 將主機機殼卸下

Interior view of a computer motherboard showing exposed circuit boards, cables, and connectors (no visible text or symbols)

Close-up of hands installing a red cable on a laptop chassis with visible wiring and components (no text or symbols)

3. 取下支架與排線

Close-up of hands installing a blue SBJ900 memory card into a computer motherboard (no visible text or symbols on the chip or background)

Close-up of a hand inserting a CPU into a black server rack, with visible internal components and a small electronic device nearby (no text or symbols)

5. 重新裝上機殼

Hand pointing at a black server rack with ventilation grilles and connectors (no visible text or symbols)

更换前准备步骤

Interior view of a computer tower case with visible internal components and a small electronic device on the right (no text or symbols)

1. 准备工具

Hand inserting a rack into a server rack with visible socket and ventilation slots (no text or symbols)

Hand placing a hard disk into a black server rack with visible internal components and a digital display (no text or symbols)

1. 将电脑侧板卸下

Interior view of a computer motherboard showing exposed circuit boards, cables, and connectors (no visible text or symbols)

Close-up of hands installing a CD-ROM drive into an electronic device (no visible text or symbols)

3. 取下支架与扁平电缆

Close-up of hands installing a blue SBJ300 memory card into a computer motherboard (no visible text or symbols on the chip or background)

Close-up of a hand inserting a CPU into a black server rack, with visible internal components and a small electronic device nearby (no text or symbols)

5. 重新装上机箱侧板

Hand pointing at a black server rack with ventilation grilles and connectors (no visible text or symbols)

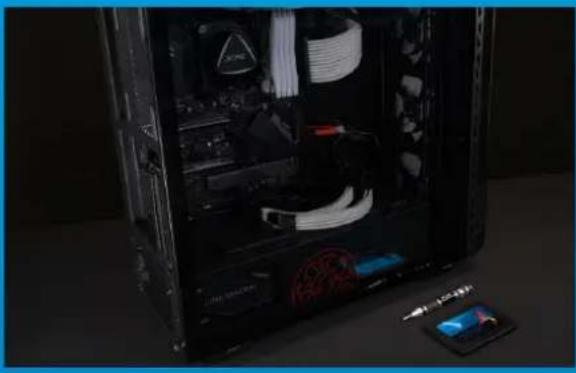

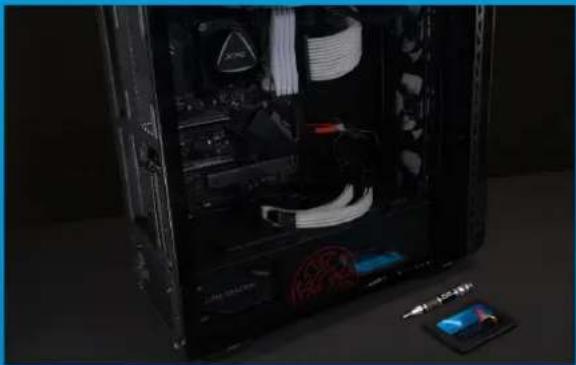

BEFORE INSTALLATION

Interior view of a computer tower case with visible internal components and a close-up of a monitor displaying blue LED (no text or symbols)

1. GATHER THE THINGS YOU'LL NEED

PC, Phillips screwdriver, and ADATA 2.5" SATA SSD

*Please use a standard Phillips screwdriver (3.5mm) for disassembling the case.

Make sure to backup the important data on your PC to an external device, such as an external HDD, before starting installation.

After backing up your data, power off your PC to avoid data loss or damage to other components during installation.

Hand placing a socket into a server rack with multiple drive bays (no visible text or labels)

4. SWITCH OFF THE POWER SWITCH AND UNPLUG POWER CORD

This action is necessary to discharge residual power that can damage your PC and its components.

INSTALLATION

Hand placing a hard disk into a black server rack with visible internal components and a digital display (no text or symbols)

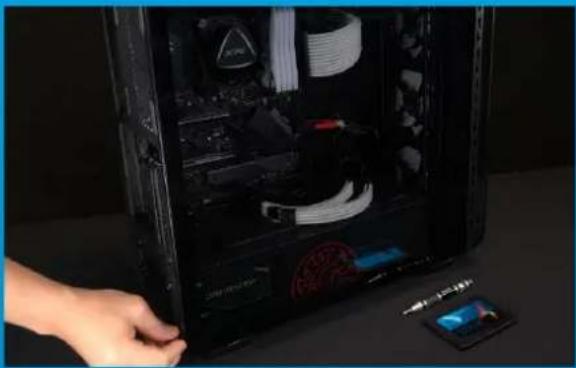

1. REMOVE THE PC CASE

Use the standard Philips screwdriver to remove the screws and then remove the PC case

Interior view of a computer motherboard showing exposed circuit boards, cables, and connectors (no visible text or symbols)

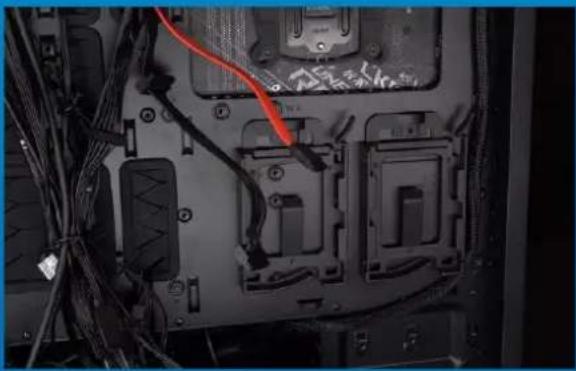

2. CONFIRM THE POSITION OF THE 2.5" SLOT AND REMOVE THE BRACKET

*Please check the side of the motherboard to find the unused 2.5" bracket

Close-up of hands installing a red cable on an electronic device with cables and connectors (no visible text or symbols)

3. REMOVE THE BRACKET AND CABLE

*Each PC has different ways to fix drives. There may be drawers or brackets to place the solid state hard drives. The way to remove them will involve pulling out the bracket or support frame.

**When removing the stand, please check the screws on the top or side carefully, these screws may be fixed on it.

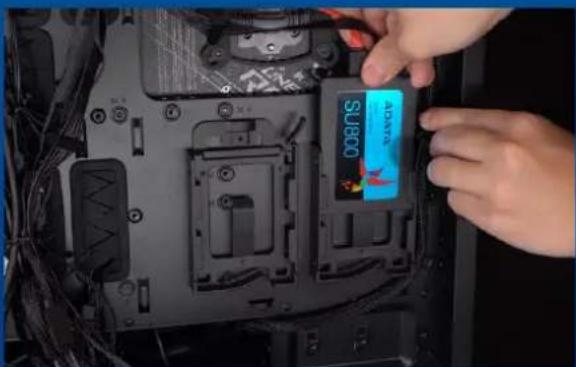

4. CONNECT CABLES AND ATTACH BRACKET TO THE NEW 2.5" SATA SSD. PUT THE BRACKET IN THE SLOT TO FIX DRIVES

There is a row of pins on the cable as well as on the SSD. Align to the correct orientation and place the bracket back into the slot.

*The slot has a foolproof design. Please insert the SSD in the direction corresponding to the pins on the solid state drive and the slot.. Do not insert it forcibly to avoid damage to the product.

Close-up of a hand inserting a CPU into a black server rack, with visible internal components and a small electronic device nearby (no text or symbols)

5. RESEMBLE THE CASE

*Do not overtighten the screws as it may damage the screws ad back plate

Hand pointing at a black server rack with ventilation grilles and connectors (no visible text or symbols)

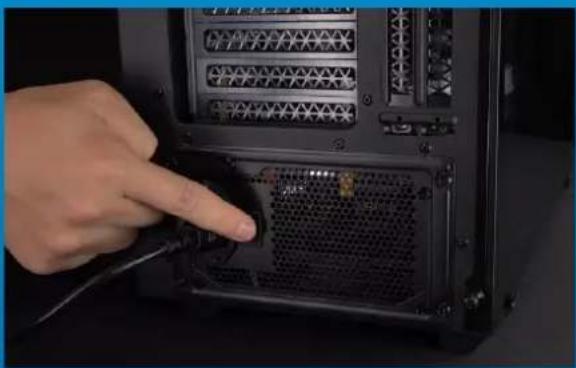

6. PLUG IN THE POWER CORD AND POWER ON THE PC TO COMPLETE INSTALLATION

EINE 2,5-ZOLL-SATA-SSD AN EINEM DESKTOP-PC INSTALLIEREN

VOR DER INSTALLATION

Interior view of a computer tower case with visible internal components and a close-up of a monitor displaying blue LED (no text or symbols)

1. ALLES NÖTIGE ZUSAMMENTRAGEN

2. IHRE DATEN SICHERN

3. IHREN PC ABSCHALTEN

Hand inserting a drive into a server rack with multiple drive bays (no visible text or labels)

Hand placing a hard disk into a black server rack with visible internal components and a digital display (no text or symbols)

1. PC-GEHÄUSE ENTFERNEN

Interior view of a computer motherboard showing exposed circuit boards, cables, and connectors (no visible text or symbols)

Close-up of hands installing a CD-ROM drive into an electronic device (no visible text or symbols)

Close-up of hands installing a blue SBJ900 memory card into a computer motherboard (no visible text or symbols on the chip or background)

Close-up of a hand inserting a CPU into a black server rack, with visible internal components and a small electronic device nearby (no text or symbols)

Hand pointing at a black server rack with ventilation grilles and connectors (no visible text or symbols)

Interior view of a computer tower case with visible internal components and a small electronic device on the right (no text or symbols)

1. 準 備するもの

Hand placing a socket into a server rack with multiple drive bays (no visible text or labels)

Hand placing a hard disk into a black server rack with visible internal components and a digital display (no text or symbols)

1. パソコン本 体のケースを取り外す

Interior view of a computer motherboard showing exposed circuit boards, cables, and connectors (no visible text or symbols)

Close-up of hands installing a red cable and a black plastic device on a laptop chassis (no visible text or symbols)

3. ブラケットとケーブルを取り外す

Close-up of hands installing a blue SBJ300 card into a computer motherboard (no visible text or symbols on the chip or background)

Close-up of a hand inserting a CPU into a black server rack, with visible internal components and a small electronic device nearby (no text or symbols)

5. ケースを元の位置に取り付ける

Hand pointing at a black server rack with ventilation grilles and connectors (no visible text or symbols)

설치하기 전에

Interior view of a computer tower case with visible internal components and a small display panel (no text or symbols)

1. 필요한 도구 준비

Hand placing a socket into a black rack-mounted server unit (no visible text or labels)

Close-up of a hand inserting a CPU into a black server rack, with visible internal components and a small electronic device nearby (no text or symbols)

5. 케이스 재조립

Hand pointing at a black server rack with ventilation grilles and connectors (no visible text or symbols)

ANTES DA INSTALAÇÃO

Interior view of a computer tower case with visible internal components and a close-up of a monitor displaying blue LED (no text or symbols)

1. REÚNA AS COISAS QUE VOCÊ PRECISA

3. DESLIGUE SEU PC

Hand inserting a drive into a server rack with multiple drive bays (no visible text or labels)

Hand placing a hard disk into a black server rack with visible internal components and a digital display (no text or symbols)

1. REMOVA O GABINETE DO PC

Interior view of a computer motherboard showing exposed circuit boards, cables, and connectors (no visible text or symbols)

Close-up of hands installing a red cable on an electronic device with cables and connectors (no visible text or symbols)

3. REMOVA O SUPORTE E O CABO

Close-up of hands installing a device into a computer motherboard with a blue SUGBO card (no visible text or symbols on the device itself)

4. CONECTE OS CABOS E PRENDA O SUPORTE AO NOVO SSD SATA DE 2,5". COLOQUE O SUPORTE NO SLOT PARA FIXAR AS UNIDADES

Close-up of a hand inserting a CPU into a black server rack, with visible internal components and a small electronic device nearby (no text or symbols)

Hand pointing at a black server rack with ventilation grilles and connectors (no visible text or symbols)

Interior view of a computer tower case with visible internal components and a close-up of a monitor displaying blue LED (no text or symbols)

Hand placing a socket into a server rack with multiple drive bays (no visible text or labels)

Hand placing a hard disk into a black server rack with visible internal components and a digital display (no text or symbols)

Interior view of a computer motherboard showing exposed circuit boards, cables, and connectors (no visible text or symbols)

Close-up of hands installing a red cable and a black plastic device on a laptop chassis (no visible text or symbols)

3. СНИМИТЕ КРОНШТЕЙН И ОТСОЕДИНИТЕ КАБЕЛЬ

Close-up of hands installing a blue SBJ300 card into a computer motherboard (no visible text or symbols on the chip or background)

4. ПРИСОЕДИНИТЕ КАБЕЛИ И ПРИКРЕПИТЕ КРОНШТЕЙН К НОВОМУ ТВЕРДОТЕЛЬНОМУ НАКОПИТЕЛЮ 2,5 ДЮЙМА SATA. ВСТАВЬТЕ КРОНШТЕЙН В СЛОТ, ЧТОБЫ ЗАКРЕПИТЬ НАКОПИТЕЛИ

Close-up of a hand inserting a CPU into a black server rack, with visible internal components and a small electronic device nearby (no text or symbols)

Hand pointing at a black server rack with ventilation grilles and connectors (no visible text or symbols)

ÎNAINTE DE INSTALARE

Interior view of a computer tower case with visible internal components and a small electronic device on the right (no text or symbols)

1. ADUNATI LUCRURILE DE CARE VETI AVEA NEVOIE

2. FACETI O COPIE DE REZERVĂ A DATELOR

3. OPRITI PC-UL

Hand placing a socket into a rack-mounted server rack (no visible text or labels)

4. DECONECTATI ALIMENTAREA CU ENERGIE ŞI CABLUL DE ALIMENTARE

Hand placing a hard disk into a black server rack with visible internal components and a monitor on the right (no text or symbols)

1. SCOATEȚI CARCASA PC-ULUI

Interior view of a computer motherboard showing cable and connectors (no visible text or symbols)

2. CONFIRMAȚI POZIȚIA FANTEI 2,5" ȘI SCOATEȚI CONSOLA

Close-up of hands installing a red cable and a black GPU chip on a laptop chassis (no visible text or symbols)

3. SCOATEȚI SUPORTUL ȘI CABLUL

Close-up of hands installing a blue S1800 memory card into a computer motherboard (no visible text or symbols on the chip or background)

4. CONECTATI CABLURILE SI ATAŞATI SUPORTUL LA NOUL SSD SATA 2,5" PUNETI SUPORTUL IN FANTĂ PENTRU A FIXA UNITĂ TILE.

Close-up of a hand inserting a device into a black server room with visible internal components (no text or symbols)

5. REASAMBLATI CARCASA

Hand pointing at a black server rack with a mesh vent, no visible text or symbols

6. CONECTATI CABLUL DE ALIMENTARE ȘI PORNITI PC-UL PENTRU A FINALIZA INSTALAREA

INSTALAR UNA UNIDAD DE ESTADO SÓLIDO SATA DE 2,5" EN UN EQUIPO DE SOBREMESA

Interior view of a computer tower case with visible internal components and a small display panel (no text or symbols)

1. REUNIR LOS ELEMENTOS QUE SE NECESITARÁN

Hand placing a socket into a black rack-mounted server unit (no visible text or labels)

Hand placing a hard disk into a black server rack with visible internal components and a digital display (no text or symbols)

1. QUITAR LA CARCASA DEL EQUIPO

Interior view of a computer motherboard showing exposed circuit boards, cables, and connectors (no visible text or symbols)

Close-up of hands installing a red cable on an electronic device with cables and connectors (no visible text or symbols)

Close-up of hands installing a device into a computer motherboard with a blue SUGBO card (no visible text or symbols on the device itself)

Close-up of a hand inserting a CPU into a black server rack, with visible internal components and a small electronic device nearby (no text or symbols)

5. VOLVER A MONTAR LA CARCASA

Hand pointing at a black server rack with ventilation grilles and connectors (no visible text or symbols)

更換前準備步驟

Top-down view of a silver HP laptop with a small electronic device and cable on the side (no visible text or symbols)

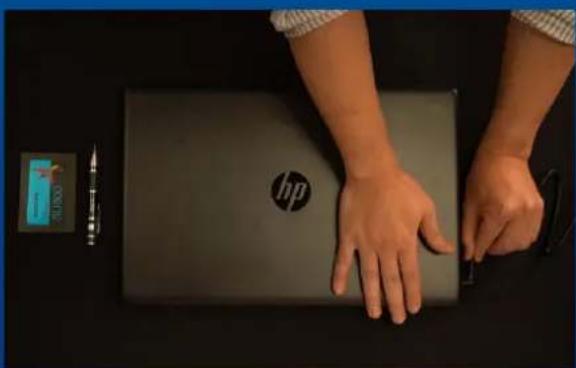

1. 準備工具

2. 備份資料

Top-down view of hands operating a HP laptop on a dark surface, with a small electronic device and pen nearby (no visible text or symbols)

4. 將電源線及電池拔除

Close-up of hands holding a small object on a black laptop cover (no visible text or symbols)

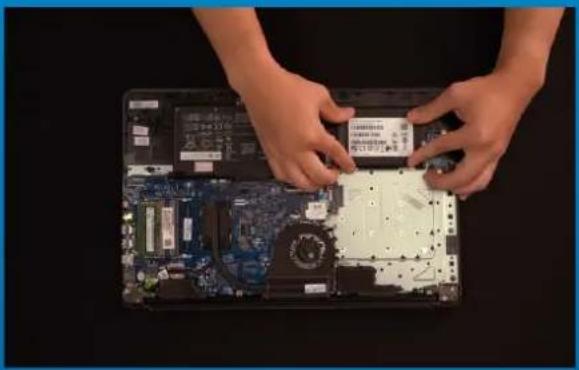

1. 將主機背板卸下

Person assembling a laptop with visible circuit board and drive components (no text or symbols)

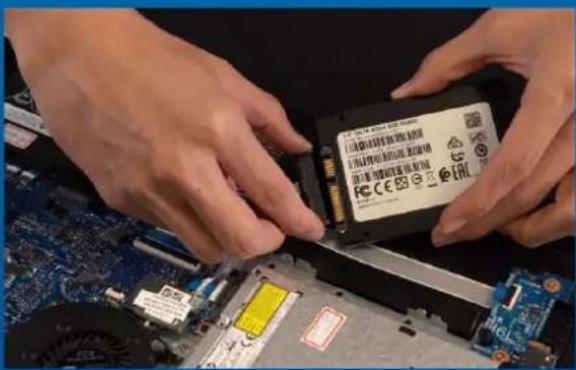

2. 取下支架與排線

Two hands holding a black electronic device casing against a dark background (no text or symbols visible)

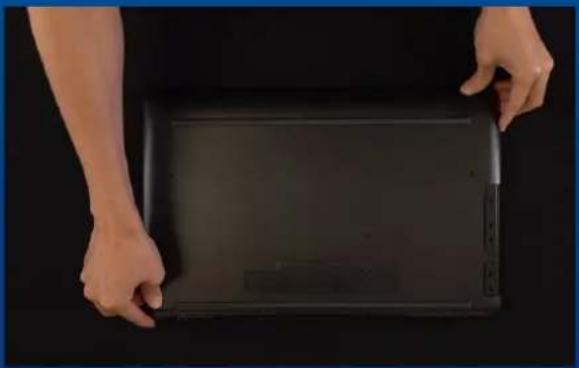

4. 重新蓋上背板

Top-down view of hands operating a HP laptop on a dark surface, with a small monitor displaying a logo nearby (no visible text or symbols on the device)

更换前准备步骤

Top-down view of a silver HP laptop with a small electronic device and cable on the side (no visible text or symbols)

1. 准备工具

2. 备份数据

Top-down view of hands operating a HP laptop on a dark surface, with a small electronic device and pen nearby (no visible text or symbols)

4. 将电源线及电池拔除

Close-up of hands holding a small object on a black laptop cover (no visible text or symbols)

1. 将电脑背板卸下

Person assembling a laptop with visible circuit board and drive components (no text or symbols)

2. 取下支架与扁平电缆

Close-up of hands installing a hard drive into a motherboard, no visible text or symbols on the device itself.

Two hands holding a black rectangular electronic device against a dark background (no text or symbols visible)

4. 重新盖上背板

再以螺丝起子固定M.2固态硬盘。

Top-down view of hands operating a HP laptop on a dark surface, with a small monitor displaying a logo nearby (no visible text or symbols on the device)

BEFORE INSTALLATION

Top-down view of a silver HP laptop with a small electronic device and cable on the side (no visible text or symbols)

1. GATHER THE THINGS YOU'LL NEED

PC, Phillips screwdriver, and ADATA 2.5" SATA SSD

*Please use a standard Phillips screwdriver (3.5mm) for disassembling the case.

Make sure to backup the important data on your PC to an external device, such as an external HDD, before starting installation.

After backing up your data, power off your PC to avoid data loss or damage to other components during installation.

Top-down view of hands operating a HP laptop on a dark surface, with a small electronic device and pen nearby (no visible text or symbols)

4. UNPLUG POWER CORD AND BATTERY

This action is necessary to discharge residual power that can damage your PC and its components.

*The battery removal step applies only to laptops when it's possible to remove the battery. To see how to remove the battery, refer to your user manual.

INSTALLATION

Close-up of hands holding a small object on a black laptop cover (no visible text or symbols)

1. REMOVE YOUR PC'S BACK PLATE

Use your standard Phillips screwdriver to loosen the screws and then remove the back plate.

*If you are unsure how to do this, refer to your user manual

Person assembling a laptop with visible circuit board and drive components (no text or symbols)

2. REMOVE THE MOUNTING BRACKET AND CABLES

*The bracket is used to secure the solid state drive, because the slot is not exactly the same size as the solid state drive.

Close-up of hands installing a CD-ROM drive into a motherboard (no visible text or symbols)

3. CONNECT CABLES AND ATTACH BRACKET TO THE NEW 2.5" SSD.

There is a row of pins on the cable as well as on the SSD. Align to the correct orientation and place the bracket back into the slot.

*The slot has a foolproof design. Please insert the SSD in the direction corresponding to the pins on the solid state drive and the slot. Do not insert it forcibly to avoid damage to the product.

Two hands holding a black electronic device with a small display panel, against a dark background (no text or symbols visible)

4. SECURE THE BACK PLATE INTO PLACE

*Do not overtighten the screws as it may cause damage

Top-down view of hands holding a HP laptop with a small screen showing a logo (no visible text or symbols on the device)

5. PLUG IN THE POWER CORD AND POWER ON THE PC TO COMPLETE INSTALLATION

EINE 2,5-ZOLL-SATA-SSD AN EINEM LAPTOP-PC INSTALLIEREN

VOR DER INSTALLATION

Top-down view of a silver HP laptop with a small electronic device and cable on the side (no visible text or symbols)

1. ALLES NÖTIGE ZUSAMMENTRAGEN

2. IHRE DATEN SICHERN

Top-down view of hands operating a HP laptop on a dark surface, with a small electronic device and pen nearby (no visible text or symbols)

4. NETZKABEL UND AKKU TRENNEN

Close-up of hands holding a small object on a black laptop cover (no visible text or symbols)

Person assembling a laptop with visible circuit board and drive components (no text or symbols)

Close-up of hands installing a hard drive into a motherboard, no visible text or symbols on the device itself.

Two hands holding a black electronic device casing against a dark background (no text or symbols visible)

4. RÜCKPLATTE WIEDER EINSETZEN

Top-down view of hands operating a HP laptop on a dark surface, with a small monitor displaying a logo nearby (no visible text or symbols on the device)

交換前の準備

Top-down view of a silver HP laptop with a small electronic device and cable on the side (no visible text or symbols)

1. 準 備するもの

2. データの バックアップ

Top-down view of hands operating a HP laptop on a dark surface, with a small electronic device and pen nearby (no visible text or symbols)

Close-up of hands holding a small object on a black laptop cover (no visible text or symbols)

1. パソコンのバックパネルを取り外す

Person assembling a laptop with visible circuit board and drive components (no text or symbols)

2. ブラケットとケーブルを取り外す

Close-up of hands installing a hard drive into a motherboard, no visible text or symbols on the device itself.

Two hands holding a black rectangular electronic device against a dark background (no text or symbols visible)

Top-down view of hands operating a HP laptop on a dark surface, with a small monitor displaying a logo nearby (no visible text or symbols on the device)

설치하기 전에

Top-down view of a silver HP laptop with a small electronic device and cable on the side (no visible text or symbols)

1. 필요한 도구 준비

2. 데이터 백업

Top-down view of hands operating a HP laptop on a dark surface, with a small electronic device and pen nearby (no visible text or symbols)

4. 전원 코드와 배터리 분리

Close-up of hands holding a small object on a black laptop cover (no visible text or symbols)

1. PC 뒤판 제거

Person assembling a laptop with visible circuit board and drive components (no text or symbols)

2.마운팅 브래킷과 케이블 제거

Close-up of hands installing a hard drive into a motherboard, no visible text or symbols on the device itself.

Two hands holding a black rectangular electronic device against a dark background (no text or symbols visible)

4. 뒤판 제자리에 고정

Top-down view of hands operating a HP laptop on a dark surface, with a small screen showing a logo and pen nearby (no readable text or symbols)

ANTES DA INSTALAÇÃO

Top-down view of a silver HP laptop with a small electronic device and cable on the side (no visible text or symbols)

1. REÚNA AS COISAS QUE VOCÊ PRECISA

2. FAÇA BACKUP DE SEUS DADOS

Top-down view of hands operating a HP laptop on a dark surface, with a small electronic device and pen nearby (no visible text or symbols)

Close-up of hands holding a small object on a black laptop cover (no visible text or symbols)

1. REMOVA A PLACA TRASEIRA DO SEU PC

Person assembling a laptop with visible circuit board and drive components (no text or symbols)

2. REMOVA O SUPORTE DE MONTAGEM E OS CABOS

3. CONECTE OS CABOS E PRENDA O SUPORTE AO NOVO SSD DE 2,5".

Two hands holding a black electronic device casing against a dark background (no text or symbols visible)

4. PRENDA A PLACA TRASEIRA NO LUGAR

Top-down view of hands holding a HP laptop with a small screen displaying a logo (no visible text or symbols on the device)

Top-down view of a silver HP laptop with a small electronic device and cable on the side (no visible text or symbols)

2. ЗАРЕЗЕРВИРУЙТЕ ДАННЫЕ

Top-down view of hands operating a HP laptop on a dark surface, with a small electronic device and pen nearby (no visible text or symbols)

Close-up of hands holding a small object on a black laptop cover (no visible text or symbols)

1. СНИМИТЕ ЗАДНЮЮ ПЛАСТИНУ ПК

Person assembling a laptop with visible circuit board and drive components (no text or symbols)

3. ПРИСОЕДИНИТЕ КАБЕЛИ И ПРИКРЕПИТЕ КРОНШТЕЙН К НОВОМУ ТВЕРДОТЕЛЬНОМУ НАКОПИТЕЛЮ 2,5 ДЮЙМА.

Two hands holding a black rectangular electronic device against a dark background (no text or symbols visible)

4. ЗАКРЕПИТЕ ЗАДНЮЮ ПЛАСТИНУ НА МЕСТЕ

Top-down view of hands operating a HP laptop on a dark surface, with a small monitor displaying a logo nearby (no visible text or symbols on the device)

ÎNAINTE DE INSTALARE

Top-down view of a HP laptop with a small electronic device and cable on the surface (no visible text or symbols)

1. ADUNATI LUCRURILE DE CARE VETI AVEA NEVOIE

2. FACETI O COPIE DE REZERVĂ A DATELOR

3. OPRITI PC-UL

Top-down view of hands operating a HP laptop on a dark surface, with a small electronic device and pen nearby (no visible text or symbols)

4. DECONECTATI CABLUL DE ALIMENTARE ȘI BATERIA

Close-up of hands holding a small object on a black electronic device casing (no visible text or symbols)

1. SCOATEȚI PLACA DIN SPATE A PC-ULUI

Person assembling a laptop with visible circuit board and battery cover (no text or symbols)

2. SCOATEȚI SUPORTUL DE MONTARE ȘI CABLURILE

Close-up of hands installing a hard drive into a computer motherboard (no visible text or symbols)

3. CONECTATI CABLURILE ŞI ATAŞATI SUPORTUL LA NOUL SSD SATA 2,5".

Close-up of hands holding a black rectangular electronic device against a dark background (no text or symbols visible)

4. FIXAREA PLĂCII DIN SPATE ÎN POZITIE

Top-down view of hands operating a HP laptop on a dark surface, with a small monitor and pen nearby (no visible text or symbols)

5. CONECTATI CABLUL DE ALIMENTARE ȘI PORNITI PC-UL PENTRU A FINALIZA INSTALAREA

INSTALAR UNA UNIDAD DE ESTADO SÓLIDO SATA DE 2,5" EN UN EQUIPO DE SOBREMESA

Interior view of a computer tower case with visible internal components and a close-up of a monitor displaying blue LED (no text or symbols)

1. REUNIR LOS ELEMENTOS QUE SE NECESITARÁN

Hand placing a socket into a server rack with multiple drive bays (no visible text or labels)

Hand placing a hard disk into a black server rack with visible internal components and a digital display (no text or symbols)

1. QUITAR LA CARCASA DEL EQUIPO

Interior view of a computer motherboard showing exposed circuit boards, cables, and connectors (no visible text or symbols)

Close-up of hands installing a red cable on an electronic device with cables and connectors (no visible text or symbols)

Close-up of a hand inserting a CPU into a black server rack, with visible internal components and a small electronic device nearby (no text or symbols)

5. VOLVER A MONTAR LA CARCASA

Hand pointing at a black server rack with ventilation grilles and connectors (no visible text or symbols)
