USER MANUAL 44-4412 Clas Ohlson

Black and silver air fryer with digital display showing temperature, time, and control buttons (no text or symbols on main body)

Air Fryer

Art.no 44-4412 Model DF7005F-GS

Please read the entire instruction manual before using the product and then save it for future reference. We reserve the right for any errors in text or images and any necessary changes made to technical data. In the event of technical problems or other queries, please contact our Customer Services (see address details on the back).

Safety

• The product may be used by children of 8 years and older and by persons with reduced physical, sensory or mental capability or lack of experience and knowledge provided they have been given supervision or instruction concerning use of the product in a safe way and understand the hazards involved.
• Never let children play with the product.
• Cleaning and user maintenance shall not be made by children unless they are older then 8 and supervised.
• Keep the product and its mains lead out of reach of children under the age of 8.
• If the mains lead is damaged in any way it must be replaced by a qualified electrician.
• Never immerse the product or the mains lead in water or other liquid.
• Warning: The product will get hot during use. Even surfaces that do not function as heating components can reach high temperatures. Since some people are more sensitive to temperature than others, the product should be handled with great CAUTION. Only insulated handles or gripping surfaces should be touched and heatproof gloves or mitts should be worn. Any surface that is not an insulated handle or gripping surface should be allowed to cool before it is touched.
• The product must always be unplugged before it is cleaned and when it is not in use. The product must be allowed to cool before it is taken apart or assembled.

• The use of accessories which are not recommended by the manufacturer or retailer may present a risk of personal injury.

• The product is intended for indoor use only.

• Never let the mains lead hang over the edge of a table or counter. Neither must the mains lead ever come into contact with hot surfaces.
• Never place the product onto or next to a hot stove. Neither must it ever be placed into a hot oven.
• The product must not be used in any other manner than as described in this instruction manual.
• The product must never be used with a timer or other equipment which turns it on automatically.
• Never subject the product to impacts or shocks and do not expose it to extremely hot, cold or dusty environments.
• All items of food should be placed into the basket to ensure that they do not come into contact with the heating element.
• Never cover the air inlet and/or outlet.
• Never fill the pan with oil or other liquid.
• Never touch the inside of the product while it is in use.
• Every accessible surface of the product can become hot during use.

⚠ Warning:

• The product should only be connected to a 230 V AC, 50 Hz electrical outlet.
• Never use the product if it is in any way damaged or not working properly or if the mains lead or plug is damaged. Do not use the product if you have dropped it onto the floor or into water or other liquid.
• Never use the product if your hands are moist or wet.
• Make sure that the product is completely dry before using it.
• Never place the product next to a wall or close to other products. Leave a space of at least 10 cm behind, above and on all sides of the product.

• Never place anything on top of the product. Never leave the product unattended while it is switched on.

• When in use, hot steam will be emitted from the air outlet, keep your hands and face a safe distance away from the steam and the air outlet.

• Be careful to avoid being scalded by escaping steam when removing the pan from the product.
• Unplug the product immediately should it begin to emit black smoke. Wait until the smoke has dissipated and the product has cooled before removing the pan.
• The product should be placed on a firm, level surface capable of supporting its weight.
• The product is only intended for normal domestic use and only in the manner described in this instruction manual. It is not intended for use in environments such as staff canteens, offices, hotels and hostels.
• The product needs to cool for at least 30 minutes before it can be handled safely for cleaning, etc.
• The pan and basket will be very hot after use and should only be placed on a heatproof surface.

CAUTION: Hot surface!

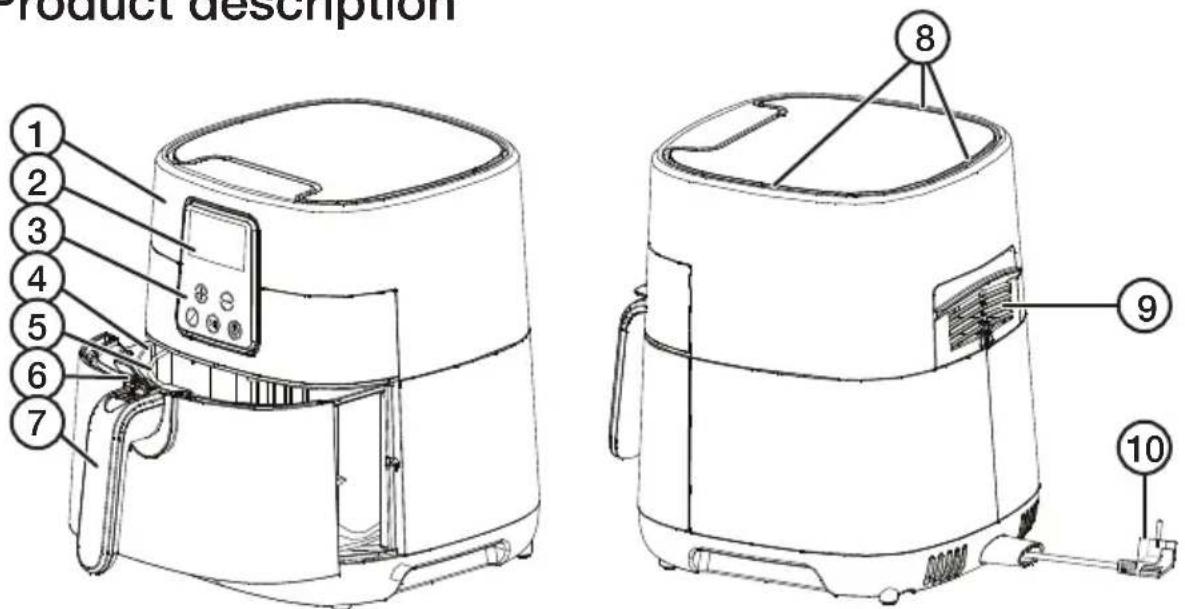

Product description

1. Housing
2. Power indicator light, illuminates when the air fryer is connected to the power supply.
3. Control panel
4. Pan
5. Basket
6. Basket release catch
7. Handle
8. Air inlet
9. Air outlet
10. Mains lead

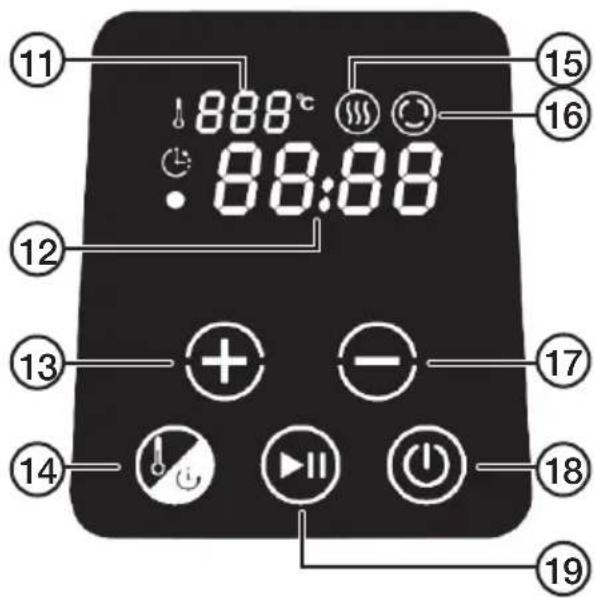

Control panel

1. Temperature display
2. Time display
3. [ + ] Timer and temperature setting button
4. [√] Button to toggle between temperature and timer setting
5. Heating element power indicator light
6. Fan motor power indicator light
7. [-] Timer and temperature setting button
8. [⏻] On/Off button
9. [▶II] Button to start/pause cooking

Settings

1. Connect the mains lead to an earthed wall socket.
2. Press [⏻] to switch the air fryer on. The default factory settings are 180 °C for the temperature and 15 minutes for the timer.
3. If you wish to change the cooking temperature, press [√]. The temperature display will flash. Press or hold in [ + ] or [ - ] to change the temperature.
4. If you wish to change the timer setting, press [9]. The time display will flash. Press or hold in [+] or [-] to change the cooking time.
5. Press [▶II] to start the cooking process.
6. Press [▶II] once again to stop cooking before the set cooking time has elapsed.

i

• When the [▶II] button has been pressed while cooking is in progress, the cooking process will be interrupted and the temperature and timer settings can be changed.
• Pressing the on/off button [ ⏻ will switch the air fryer off (into standby mode). To completely disconnect the product from the power it needs to be unplugged or switched off at the wall socket using a two-pole switch.

Before initial use

• Remove all packaging.
• Wash the pan and basket thoroughly before use. Use only mild cleaning agents, never solvents or corrosive chemicals.
• Rinse the pan and basket thoroughly and make sure that they are completely dry before use.

Instructions for use

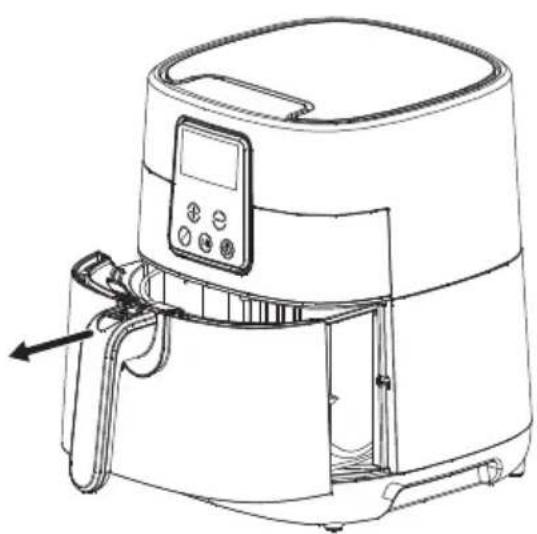

Line drawing of a modern air fryer with control panel and side arm (no text or symbols)

1. Remove the pan from the air fryer.
2. Place the food into the basket. Never fill the basket to a level above the MAX mark.

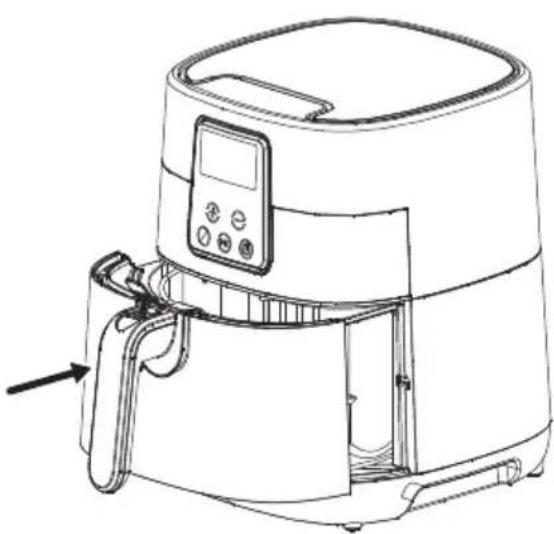

Line drawing of a standard air fryer with control panel and handle (no text or symbols)

1. Place the basket into the pan and push it down until it clicks into place. Slide the pan with the basket inside into the air fryer, making sure that it is inserted all the way. Never use the pan without the basket.

2. Switch the air fryer on and set the cooking time and temperature (refer to the Control panel-Settings section).

3. Small items of food might need to be shaken a little halfway through their cooking time. To do this, carefully extract the pan – the air fryer will switch off and the timer will pause – shake the pan carefully before sliding it back into the air fryer. Once the pan has been reinserted, the air fryer will automatically switch back on and the timer will resume its countdown.

① Handy tip: Setting the timer to half the cooking time will help you to remember to shake the pan. Once the pan has been shaken and returned to the air fryer, the remaining cooking time can be set.

1. When the set cooking time has elapsed, the air fryer will emit an audible signal. Remove the pan and place it onto a heatproof surface.

Caution: The pan will be very hot. Make sure that the surface that you place the pan on is heatproof and that there is little probability of somebody coming into contact with the pan and burning themselves or knocking it over.

1. Check that the food has been cooked. If the food is not ready, slide the pan back into the air fryer and set the timer for a few more minutes.

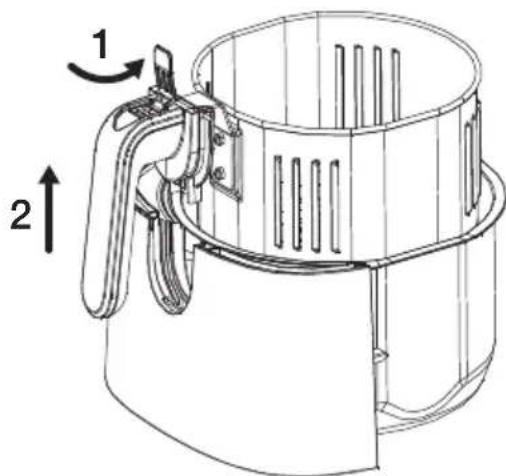

2. If the food is properly cooked, lift the cover over the basket release catch, press the catch and carefully lift the basket out of the pan. The pan might contain oil or fat released from the food during cooking. Be careful, this oil or fat will be hot.

Caution: Never touch the pan straight after use. It can become very hot. Only ever lift the pan using the handle.

i Helpful tips

• Small sized items of food generally require a shorter cooking time than larger items.
• A larger amount of food will require only a slightly longer cooking time.
• A smaller amount of food will require only a slightly shorter cooking time.
• Small items of food should be shaken halfway through their cooking time to ensure that they are fried evenly.
• Brushing chips or french fries with a little oil will make them crispier. The potatoes should be cooked within minutes of having been coated with oil.
• Avoid cooking very fatty foods such as sausages.

This table shows examples of foodstuffs and cooking times. Bear in mind that weight, time and temperatures are approximate and can vary. Add another three minutes to the cooking time if the air fryer is cold when you start to use it.

	Weight (g)	Approx. cooking time (min)	Temperature (°C)	Shaking required
Potatoes
Thin, frozen french fries	max 700 18	-25 200 Yes
Thick frozen chips	max 700 20	-25 200 Yes
Potato gratin 500 20–25 200 Yes
Meat/chicken
Roasting joint 100–500 10–20 180 No
Pork chops 100–500 10–20 180 No
Hamburgers 100–500 10–20 180 No
Chicken thighs 100–500 25–30 180 No
Chicken breast 100–500 15–20 180 No
Other frozen food
Frozen spring rolls	100–400 8–	10 200 Yes
Frozen chicken nuggets	100–500 10–	-15 200 Yes
Frozen fish fingers	100–400 6–	10 200 No

Care and maintenance

• Switch off the air fryer and unplug it from the wall socket. Let the air fryer cool completely.
• Clean the exterior of the air fryer using a lightly moistened cloth. Use only mild cleaning agents, never solvents or corrosive chemicals.
• Wash the pan and basket with warm water and washing-up liquid. Rinse thoroughly. Only use a soft washing-up brush or sponge. Never use metal implements to clean the basket or the pan, they can damage the coating.
• Wipe the space in the air fryer for the pan using a moist cloth and carefully brush the heating element.
• Whenever the air fryer is not to be used for a long time it should be switched off, unplugged and stored in a dry, dust-free environment out of children's reach.

Troubleshooting guide

The air fryer won't switch on.	Is the mains lead undamaged and properly plugged into a wall socket?Is the wall socket energised?Is the timer set correctly?
The food is not cooked but the time has elapsed.	The temperature is too low.The cooking time is too short.The basket contains too much food.
The food is cooked unevenly.	Some items of food might need to be shaken a little halfway through their cooking time.
The food is not crisp after cooking.	Make sure to use the right type of food. Food for frying in oil is not suitable for an air fryer.Try coating the food with a little oil before cooking.
Steam is emitted during cooking.	Fatty foods can release fat into the pan. Steam is formed and the pan becomes hotter than normal. This will not damage the air fryer or negatively affect the food.The pan contains fat from previous use. Make sure to clean the pan properly between uses.
Raw chips cook unevenly.	Raw chips should be rinsed to remove starch before cooking.Have you used an unsuitable type of potato?
French fries not crispy after cooking.	Try coating them with a little oil before cooking.Cut them into thinner batons.

Responsible disposal

This symbol indicates that the product should not be disposed of with general household waste. This applies throughout the entire EU. In order to prevent any harm to the environment or health hazards caused by incorrect waste disposal, the product must be handed in for recycling so that the material can be disposed of in a responsible manner. When recycling the product, take it to your local collection facility or contact the place of purchase. They will ensure that the product is disposed of in an environmentally sound manner.

Symbol of a trash bin with crossed lines indicating no waste or restriction, and a solid black rectangle below (no text or labels)

Specifications

Rated voltage 220–240 V AC, 50–60 Hz

Power 1300 W

Capacity 3 L

Adjustable Cooking temperature 80–200 °C

Timer 1–60 min

Size (w × h × d) 32 × 28 × 37 cm

Weight 4.7 kg

Varmluftsfritös

Art.nr 44-4412 Modell DF7005F-GS

Line drawing of a modern air fryer with control panel and side arm (no text or symbols)

Line drawing of a modern air fryer with control panel and side arm (no text or symbols)

i Tips!

Symbol of a trash bin crossed out by two crossed lines, with no text or labels present.

Specifikationer

Nätanslutning 220–240 V AC, 50–60 Hz

Effekt 1300 W

Kapacitet 31

Justerbar tillagningstemperatur 80–200 °C

Timer 1–60 min

Mått (b × h × d) 32 × 28 × 37cm

Vikt 4,7 kg

Luftfrityrkoker

Art. nr. 44-4412 Modell DF7005F-GS

Line drawing of a modern air fryer with control panel and side arm (no text or symbols)

Line drawing of a modern air fryer with control panel and side arm (no text or symbols)

i Tips!

Symbol of a trash bin crossed with no text or numbers, representing waste sorting or disposal (no text present)

Spesifikasjoner

Strømtilkobling 220–240 V AC, 50–60 Hz

Effekt 1300 W

Kapasitet 3 liter

Justerbar temperatur 80–200 °C

Timer 1–60 min

Mål (b × d × h): 32 × 28 × 37 cm

Vekt 4,7 kg

Line drawing of a standard air fryer with control panel and side arm (no text or symbols)

Line drawing of a modern air fryer with control panel and side arm (no text or symbols)

i Vinkki!

Symbol of a trash bin crossed with no visible text or labels

Tekniset tiedot

Line drawing of a standard air fryer with control panel and side arm (no text or symbols)

Line drawing of a modern air fryer with control panel and side arm (no text or symbols)

Symbol of a trash bin crossed with no visible text or labels

Technische Daten

Stromanschluss 220–240 V AC, 50–60 Hz
