DF5410 - Deep fryer Clas Ohlson - Free user manual and instructions

Product Type	Deep Fryer
Brand	Clas Ohlson
Model	DF5410
Dimensions (H x W x D)	250 mm x 400 mm x 240 mm
Power Consumption	1645–1960 W
Mains Supply	220–240 V AC, 50 Hz
Oil Capacity	3.5 litres
Basket Capacity	1 litre
Temperature Range	Up to 190 °C
Control Type	Dial knob with temperature settings
Indicator Lights	Red (power), Green (heating)
Viewing Window	Yes, with anti-fog coating
Filter	Yes, integrated in lid
Safety Features	Safety cut-off switch, reset button
Overheat Protection	Yes (via safety cut-off)
Cool-Touch Handles	Yes, housing and basket handles
Dishwasher Safe Parts	Oil basin and frying basket
Recommended Oils	Vegetable, corn, or olive oil
Weight	Approximately 4.5 kg
Certification	CE compliant

Frequently Asked Questions - DF5410 Clas Ohlson

What should I do if the fryer stops heating?

The safety cut-off switch may have tripped. Unplug the fryer, let it cool, lift the control panel, and press the reset button with a pointed object. Reassemble and try again.

Why is steam escaping from under the lid?

The lid may not be properly closed. Ensure the lid is securely shut before use.

Why is oil spilling over?

The oil level may exceed the maximum (3.5 litres) or the basket may contain too much food. Reduce oil or food quantity according to the frying guide.

Why is the fried food not crispy?

Possible causes: food is not dry enough, oil temperature is too low, or the basket is overfilled. Pat food dry, increase temperature, and reduce portion size.

Can I clean the control panel in water?

No, never immerse the control panel, mains lead, or plug in water. Wipe the exterior with a slightly damp cloth.

What type of oil should I use?

Use vegetable, corn, or olive oil. Avoid oils with short shelf lives like sunflower oil. Do not mix different types.

How often should I change the oil?

Change the oil after 8–10 uses or when it smells rancid or becomes dark. You can filter and reuse it once or twice.

Is the frying basket dishwasher safe?

Yes, the frying basket and oil basin are dishwasher safe. The lid should be washed by hand with warm water and detergent.

Can I leave the fryer unattended?

No, never leave the fryer unattended during use. Always monitor it.

What is the maximum oil capacity?

The maximum oil capacity is 3.5 litres. Do not exceed this level.

USER MANUAL DF5410 Clas Ohlson

Line drawing of a kitchen grater with handle and side panel (no text or symbols)

Art.no

18-4523

34-1662

Model

DF5410-UK

DF5410

Ver. 20130521

clas ohlson

Deep Fryer

Art.no 18-4523 Model DF5410-UK

34-1662

DF5410

Please read the entire instruction manual before using the product and then save it for future reference. We reserve the right for any errors in text or images and any necessary changes made to technical data. If you have any questions regarding technical problems please contact our Customer Services.

Safety

• This product must not be used by anyone (including children) suffering from physical or mental impairment. This product should not be used by anyone without sufficient experience or knowledge if they have not been instructed in its use by someone who will take responsibility for their safety.
• The product must not be used by children. Ensure that the product and its mains lead are kept out of children's reach.
  • Never let children play with the product.
• Never leave the product unattended during use. Never attempt to put out an oil fire with water. Unplug out the power lead and smother the fire using a fire blanket or wet towel.
• Ensure that the product is used with the correct voltage. Refer to the product's rating plate.
  • This appliance must only be used with an earthed wall socket.
• Always unplug the product from the wall socket before cleaning it or when it is not to be used for a long time.
• Do not open the housing. Certain components inside the casing carry dangerous electrical current. Contact with these components could result in electric shock.
• Do not use the product if the mains lead or its plug is damaged. Do not use the product if you have dropped it on the floor, left it outdoors or dropped it into water.
• Do not pull or carry the product by its mains lead. Do not use the lead as a handle and do not let it fasten in door jambs. Do not pull the lead around sharp corners or edges.
• The product becomes very hot during use. Be careful not to touch any hot parts with your bare hands. Never touch parts of the product other than the handle.
• The mains lead must be changed if damaged. This is to prevent the risk of electric shock or fire and should only be carried out by the manufacturer, qualified service facility or qualified technician.
• Make sure that all parts are correctly assembled and that the product is switched off before it is connected to the power supply.
• Make sure that the lead does not come in contact with hot surfaces such as cooker hobs.
  • This product is only intended to be used and stored indoors.

• Be careful when moving the fryer when it contains hot oil.
  • Never overfill the frying basket.

• Make sure that the food to be fried is a dry as possible. Water will cause hot oil to splatter.
  • Never turn the fryer on without oil in the basin.
  • Only use the provided accessories.
  • Never use the product for anything other than its intended use.

• Never use the product together with a timer switch, multi-socket extension lead or similar device.
  • This product is designed for use in domestic or similar environments.

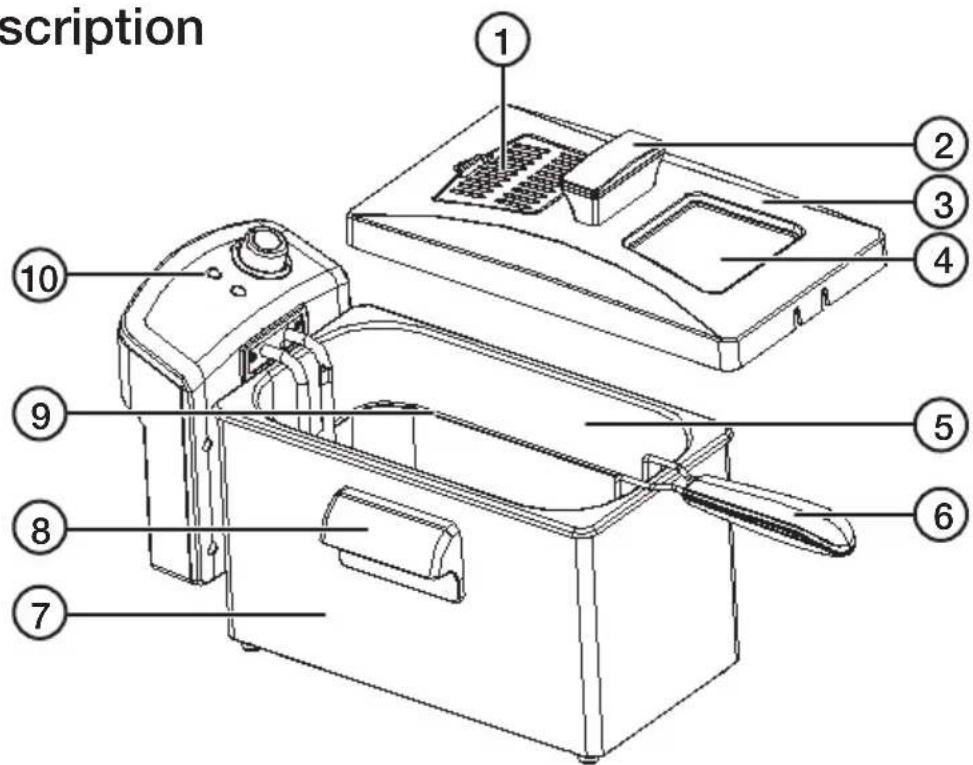

Product description

1. Filter
2. Handle
3. Lid
4. Viewing window
5. Oil basin
6. Frying basket handle
7. Housing
8. Housing handle
9. Frying basket

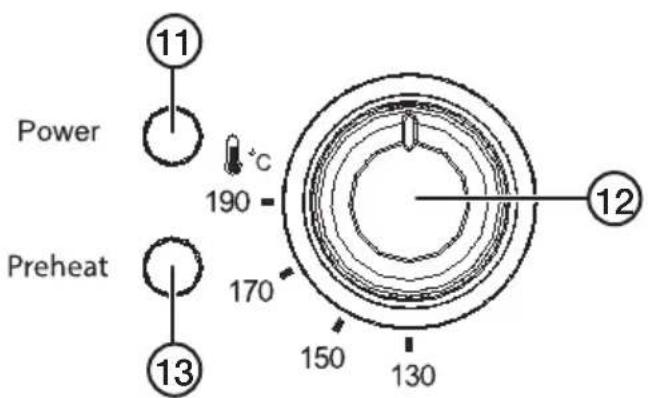

10. Control panel
11. Power indicator light
12. Temperature control knob
13. Temperature indicator light

Before initial use

1. Wash the frying basket and basin before using them for the first time.
2. Take off the lid and remove the frying basket from the oil basin. Treat it with care. Do not subject it to knocks or blows.
3. Wash the basket and oil basin in warm water and washing-up liquid.
4. Dry everything thoroughly.

NOTE: Never plug the fryer in or switch it on without oil in it. Make sure that the control panel is correctly fitted. There is a safety cut-off switch in the control panel which must be pressed in in order for the heating element to become hot.

Assembly

1. Place the oil basin into the housing.
2. Fit the control panel onto the holder.

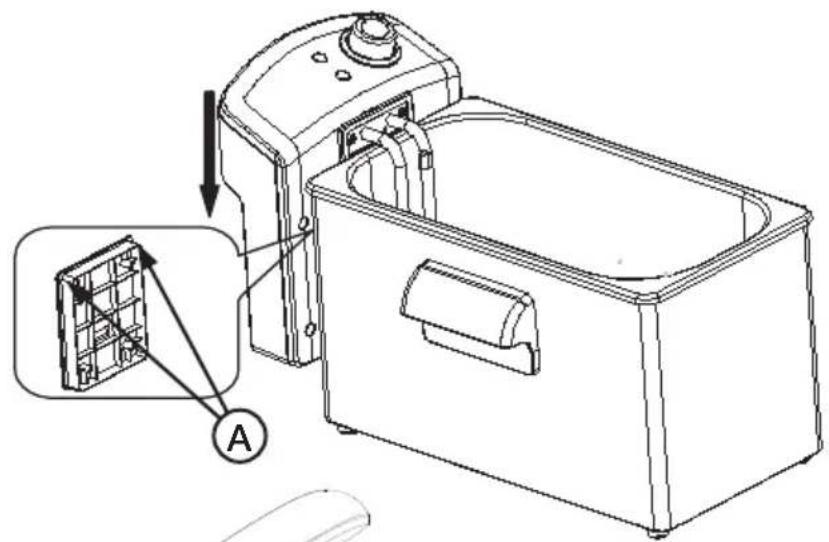

3. Slide the control panel assembly down into the tracks (A) on the housing. Push the control panel down as far as it will go.

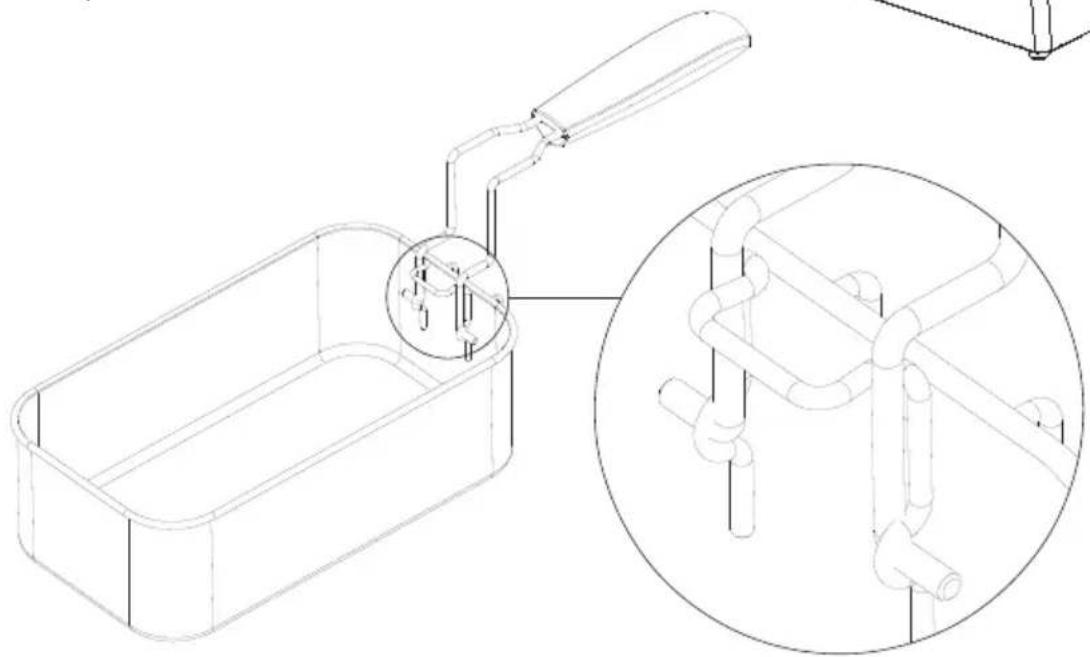

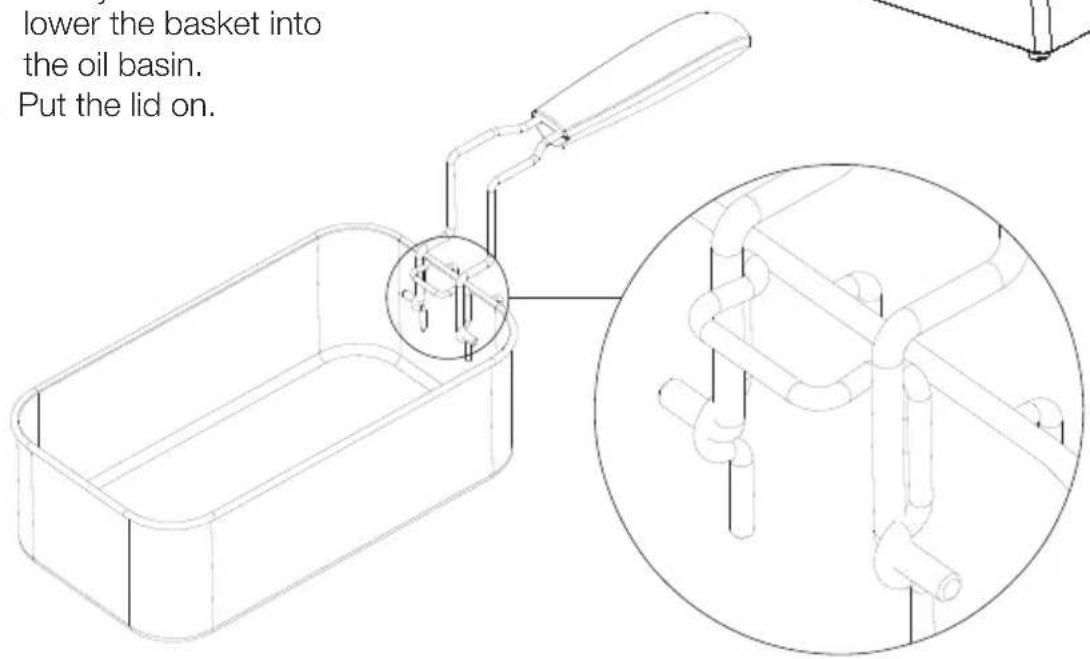

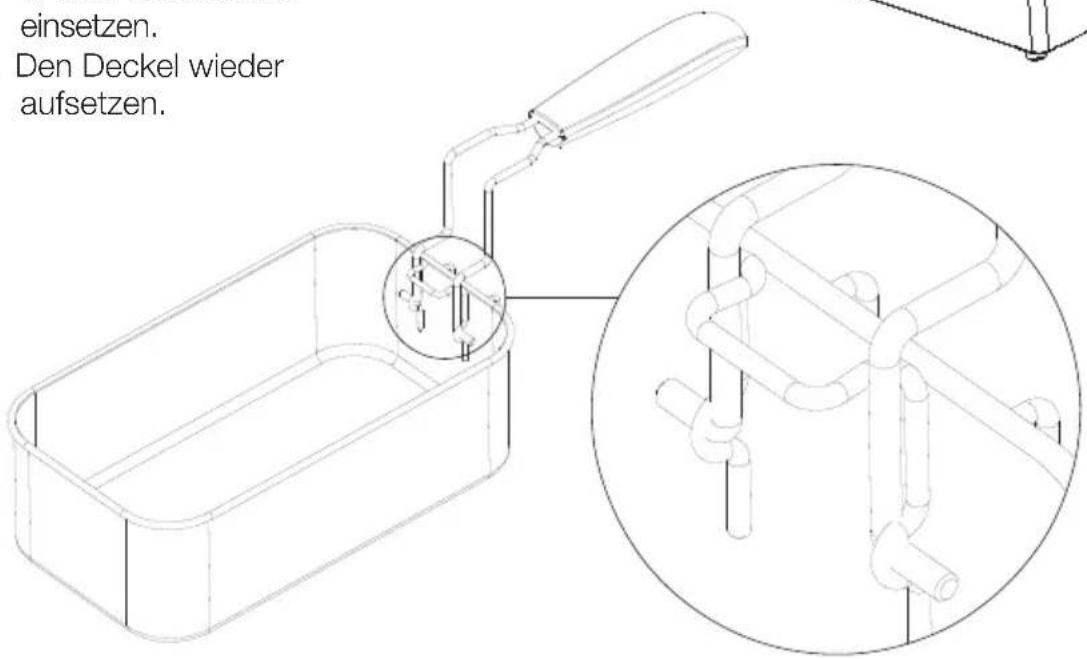

4. Attach the handle onto the fryer basket and lower the basket into the oil basin.
5. Put the lid on.

Operating instructions

1. Make sure that the temperature control knob is in turned down to zero.
2. Remove the lid.
3. Fill the oil basin with appropriate oil, max 3.5 litres. Adjust the level according to what you plan to fry.
4. Smear a little oil onto the viewing window to prevent it from fogging up during frying.
5. Refit the lid.
6. Connect the plug to a wall socket. The red power indicator light should be on.
7. Turn the temperature control knob to the desired temperature. The green indicator light is lit during warm-up and turns off once the set temperature has been reached. It takes about 15–20 minutes for the oil to reach operating temperature.
8. Remove the lid.
9. Lower the frying basket containing dry food into the oil basin.
10. Refit the lid.
11. Once the food has been fried, turn the temperature down to zero and unplug the fryer.
12. Carefully remove the lid. Watch out for hot steam created during frying. There is a risk of scalding.
13. Lift up the frying basket by the handle and hook it over the side of the housing. Let the oil drain into the oil basin.
14. Do not move the fryer until the oil has cooled completely.
15. Change the oil after 8–10 uses or when necessary.

Frying tips

• Start by frying at the lowest frying temperature.
• When you fry batches of similar food the oil may cool slightly. Between batches you should wait 3–5 minutes until the fryer regains frying temperature. The green indicator light turns off once the fryer is ready to use.
• Food which has been precooked requires higher temperatures but a shorter frying time compared to food that is raw.
  • Never fill the frying basket to more than half-full.
  • Never mix different types of oils.
• Use vegetable, corn or olive oil for frying. We do not recommend using oil with short shelf life such as sunflower oil.

Frying guide

Ingredients Temperature (°C) Weight (grams) Frying time (min.)
Fish fillets 150 250 5-6
Battered fish 150 400 6-8
Fish balls 150 400 6-8
Mushrooms 140 300 6-8
Chicken fillets 180 500 7-10
Steak 170 400 4-10
Sliced meat 170 400 7-10
French fries 190 550 8-10
Prawns 130 250 3-5
Onion rings	140 150 3-4

Care and maintenance

The frying basket and oil basin are dishwasher safe. NOTE: Never immerse the control panel, mains lead or plug in water or other liquids.

1. Unplug the fryer from the power point and make sure that the oil has cooled (1–2 hours after use) before cleaning the fryer.
2. Remove the basket from the oil basin.
3. Empty the frying oil into an appropriate container.
4. Wash the lid in warm water and washing-up liquid.
5. The exterior of the fryer can be cleaned using a slightly moistened cloth. Never use a washing-up brush or chemical cleaning agents.
6. The frying oil may be filtered and reused but should probably be changed after every 8–10 uses or before if necessary.

Filtering the oil

1. Remove the basket and the heating element from the basin and empty the cooled oil into a suitable container.
2. Filter the oil through e.g. a coffee filter.

Diagram showing a hand pouring liquid into a bottle, with no visible text or symbols

Illustration of hands pouring liquid from a bottle into a bowl (no text or symbols)

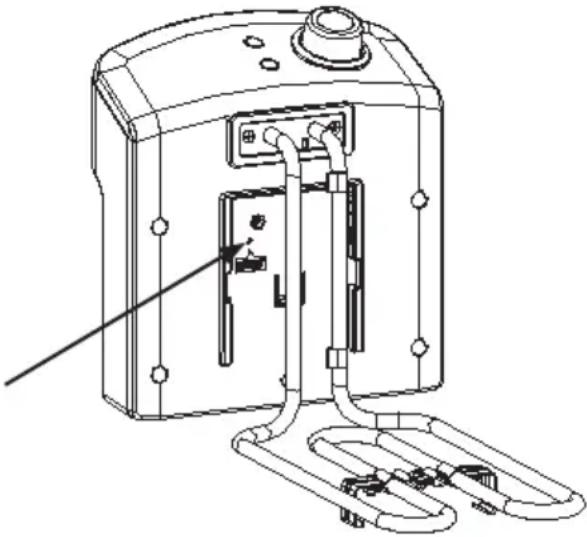

The reset feature

If for some reason the fryer stops heating, the reason may be that the safety cut-off switch has tripped.

To reset the switch:

1. Unplug the mains lead from the wall socket.
2. Let fryer and the oil cool down.
3. Lift up the control panel and reset the safety cut-off switch by pressing it in using a pointed object.
4. Refit the parts in the reverse order.

Reset switch

Technical line drawing of a device interior showing internal components and wiring (no text or symbols)

Troubleshooting guide

Problem Cause Solutions
Steam is escaping from under the lid.	The lid is not shut properly.	Ensure that the lid is properly closed.
Oil is spilling over.	The oil level exceeds the max. level.The basket contains too much food.	Reduce the amount of oil. Refer to the Frying guide.
Fried food is not crispy on the outside.	The food in the basket is not dry enough.The oil temperature is too low.The basket contains too much food.	Wipe any ice off the food or let it drain thoroughly before frying.Increase the temperature (see Frying guide).

Disposal

This product should be disposed of in accordance with local regulations. If you are unsure how to proceed, contact your local authority.

Specifications

Mains supply 220–240 V AC, 50 Hz

Power 1645–1960 W

Oil capacity 3.5 litres

Basket capacity 1 litre

Size 400 x 240 x 250 mm

Fritös

Art.nr 18-4523

34-1662

Modell

DF5410-UK

DF5410

Technical line drawing of a mechanical component with an inset showing its cross-section view (no text or symbols)

Användning

Illustration of a hand using a tool to compress a bottle onto a glass bottle (no text or symbols)

Illustration of a hand pouring liquid into a bowl (no text or symbols)

Återställning

Technical line drawing of a mechanical component with an inset showing its cross-section view (no text or symbols)

Bruk

Illustration of a hand using a tool to compress a bottle into a glass bottle (no text or symbols)

Illustration of a hand pouring liquid into a bowl (no text or symbols)

Tilbakestilling

Technical line drawing of a mechanical component with an inset close-up showing internal pipes and tubing (no text or symbols)

Käyttö

Simple line drawing of a bottle being heated by a funnel, no text or symbols present

Illustration of hands pouring liquid from a container into a bowl (no text or symbols)

Technical line drawing of a device interior with internal components and wiring (no text or symbols)

Vianhakutaulukko

Diagram showing a hand holding a tool above a bottle with a pointed tip, illustrating a process (no text or symbols present)

Illustration of hands pouring liquid from a bottle into a bowl (no text or symbols)

Zurücksetzen

Technical line drawing of a mechanical device with internal components and wiring (no text or symbols)

Fehlersuche
