DF-60 - Deep fryer Clas Ohlson - Free user manual and instructions

Product Type	Electric Deep Fryer
Brand	Clas Ohlson
Model	DF-60
Power Supply	220–240 V, 50/60 Hz
Power Consumption	2000 W
Oil Capacity	3 L
Basket Capacity	2.4 L
Dimensions (H × W × D)	24 × 40 × 23 cm
Weight	2.3 kg
Temperature Control	Adjustable knob
Indicators	Power (red), Temperature (green)
Safety Features	Safety cut-off, reset button, cool-touch handle
Lid	With removable filter
Frying Basket	Removable, with handle
Material	Stainless steel housing
Dishwasher Safe Parts	Basket and oil basin
Cord Storage	Built-in
Usage	Indoor domestic use only
Recommended Oils	Vegetable, corn, or olive oil
Oil Change Interval	Every 8–10 uses

Frequently Asked Questions - DF-60 Clas Ohlson

What type of oil can I use in the DF-60 deep fryer?

Use vegetable, corn, or olive oil. Avoid oils with short shelf life like sunflower oil. Do not mix different oils.

How much oil should I put in the fryer?

Fill with a maximum of 3 litres. Adjust the level based on what you are frying, but never exceed the max line.

Why is the green indicator light not turning off?

The green light turns off once the set temperature is reached. If it stays on, the oil may not have reached temperature yet. Warm-up takes about 15–20 minutes.

How do I clean the deep fryer?

Unplug and let cool. The basket and oil basin are dishwasher safe. Wipe the exterior with a damp cloth. Never immerse the control panel or cord in water.

The fryer stopped heating. How do I reset it?

Unplug the fryer and let it cool. Lift the control panel and press the safety cut-off switch using a pointed object until it clicks. Reassemble and try again.

Can I fry frozen food directly?

Make sure the food is as dry as possible to avoid oil splatter. Frozen food should be thawed and patted dry before frying.

What is the maximum amount of food I can fry at once?

Do not fill the basket more than half-full. Refer to the frying guide in the manual for specific weights (e.g., French fries 550g).

How often should I change the oil?

Change the oil after 8–10 uses or when it becomes dark or smells rancid. You can filter the oil with a coffee filter to reuse.

Is the deep fryer safe to leave unattended?

No, never leave the fryer unattended during use. It can become very hot and poses a fire hazard. Always unplug after use.

What should I do if the oil catches fire?

Never use water. Unplug the fryer and smother the fire with a fire blanket or wet towel. Do not try to move the fryer.

USER MANUAL DF-60 Clas Ohlson

Exterior view of a stainless steel two-wet French griddle with a mesh basket (no text or symbols visible)

Art.no

18-4703

44-1959

Model

DF-60

DF-60

Ver. 20160119

clas ohlson

Deep Fryer

Art.no 18-4703 Model DF-60

44-1959 DF-60

Please read the entire instruction manual before using the product and then save it for future reference. We reserve the right for any errors in text or images and any necessary changes made to technical data. In the event of technical problems or other queries, please contact our Customer Services (see address details on the back).

Safety

• The product must not be used by children under the age of 8 years. The product may be used by children aged 8 or over under adult supervision. The product may be used by persons with reduced physical, sensory or mental capabilities or persons with a lack of experience or knowledge which could jeopardize their safety, provided they have been instructed in the safe operation of the product and understand the hazards involved.
• Keep the product and its mains lead out of reach of children under the age of 8.
• Cleaning and user maintenance shall not be made by children without supervision.
• If the mains lead has been damaged it must be replaced by a qualified electrician.
• The product must never be used with a timer or other equipment which turns it on automatically.
• The product is intended for indoor use only.
• The product should be placed on a firm, level surface with the handle positioned in such a way as to minimise the risk of hot oil spills.
• Never immerse the product in water or other liquid.
• The product is only intended for normal domestic use as described in this instruction manual and in similar environments such as canteens, offices, and hotels.

- The housing of the product can become very hot during use.

- Never leave the product unattended during use.

- Never attempt to put out an oil fire with water. Unplug the mains lead and smother the fire using a fire blanket or wet towel.

- Ensure that the product is used with the correct voltage. Refer to the rating plate on the product.

- The product should only be connected to a 220–240 V, 50/60 Hz mains outlet protected by a 30 mA (RCD).

- Always unplug the product from the wall outlet before cleaning it or when it is not to be used for a long time.

- Do not open the housing. Certain unshielded components inside the housing carry dangerous voltages. Contact with these components could result in electric shock.

- Never use the product if it is in any way damaged or not working properly or if the mains lead or plug is damaged. Do not use the product if you have dropped it on the floor or into water or other liquid.

- Do not pull or carry the product by its mains lead. Do not use the lead as a handle and make sure that it is not crushed. Do not pull the lead around sharp corners or edges.

- The product becomes very hot during use. Be careful not to touch any hot parts with your bare hands. Never touch parts of the product other than the handle.

- Never use the product if your hands are moist or wet.

- Never use the product if it is wet.

- Make sure that the parts of the product are correctly assembled and that the product is switched off before connecting it to the power supply.

- Make sure that the mains lead does not come in contact with hot surfaces such as cooker hobs.

- Never move the product while it contains hot oil.

• Never overfill the frying basket.
• Never use the product without oil in the container.
• Only use the included accessories.
• Never add water to the oil. Make sure that the food to be fried is a dry as possible.
• Never attempt to repair or modify the product in any way. All repairs must be carried out by qualified service technicians using genuine spare parts.

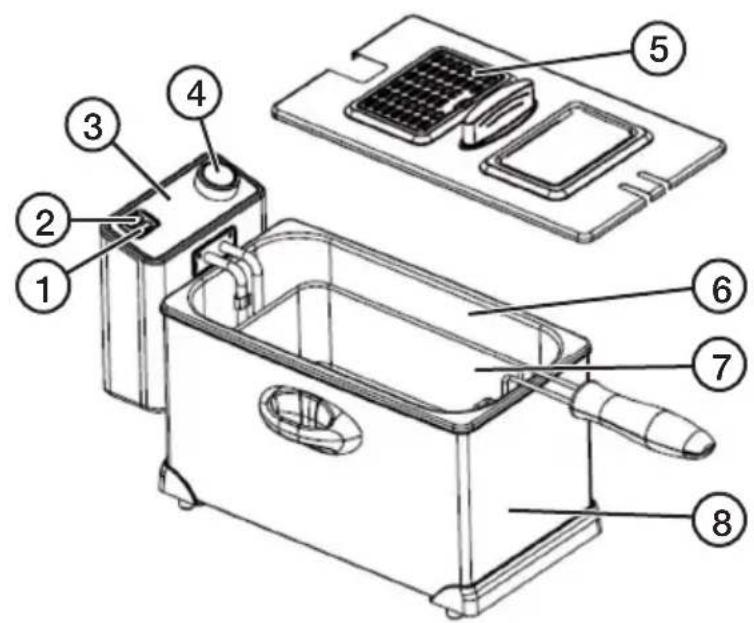

Product description

1. WORKING, temperature indicator (green)
2. POWER, power indicator (red)
3. Control panel
4. Temperature control knob
5. Lid with filter
6. Oil container
7. Frying basket
8. Housing
9. Reset button
10. Safety cut-off

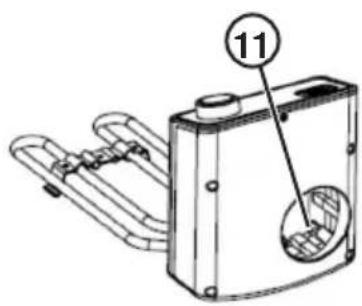

11. Mains lead storage

Before initial use

Wash the frying basket and basin before using them for the first time.

1. Take off the lid and remove the frying basket from the oil basin. Treat it with care. Do not subject it to knocks or blows.
2. Wash the basket and oil basin in warm water and washing-up liquid.
3. Dry everything thoroughly.

Note: Never plug the fryer in or switch it on without oil in it. Make sure that the control panel is correctly fitted. There is a safety cut-off switch in the control panel which must be pressed in in order for the heating element to become hot.

Assembly

1. Place the oil container (6) inside the housing (8).

Technical line drawing of a mechanical component with no visible text or symbols

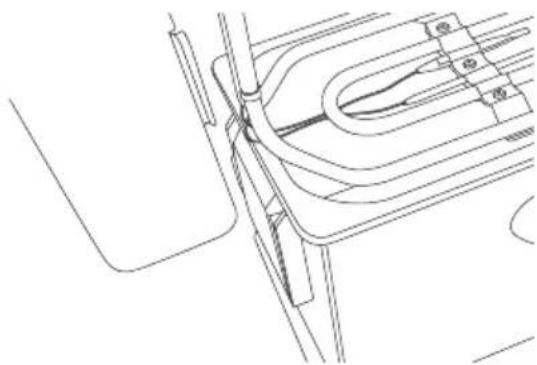

1. Slide the control panel assembly down into holder on the housing.

2. Then pull the handle backwards so that it locks into place.

Line drawing of a bicycle basket with mesh pattern (no text or symbols)

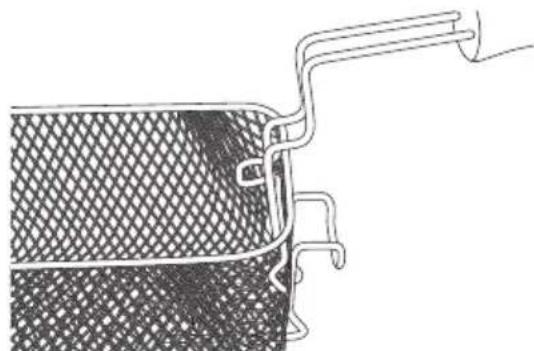

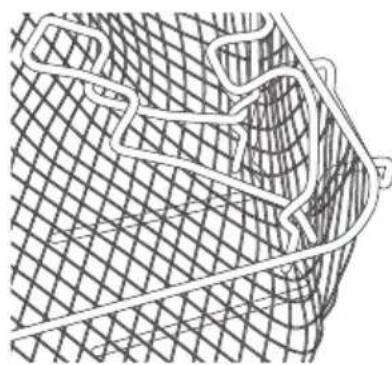

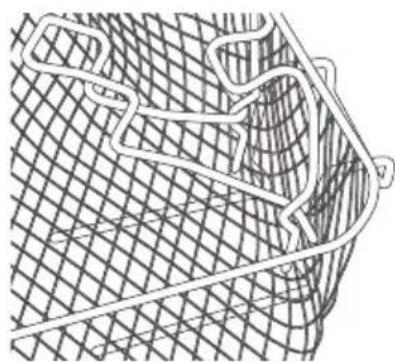

1. Attach the handle onto the frying basket. First hook the handle on.

Line drawing of a mesh-wrapped container with attached tubing (no text or symbols)

Operating instructions

Warning: Hot oil and fat can cause serious burns, take care. Always switch the fryer off and unplug it after use.

1. Make sure that the temperature control knob is in turned down to zero.
2. Remove the lid.
3. Fill the oil basin with appropriate oil, max 3 litres. Adjust the level according to what you plan to fry.

4. Smear a little oil onto the viewing window to prevent it from fogging up during frying.

5. Refit the lid.

6. Connect the plug to a wall socket. The red power indicator light should be on.
7. Turn the temperature control knob to the desired temperature. The green indicator light is lit during warm-up and turns off once the set temperature has been reached. It takes about 15–20 minutes for the oil to reach operating temperature.
8. Remove the lid.
9. Lower the frying basket containing dry food into the oil basin.
10. Refit the lid.
11. Once the food has been fried, turn the temperature down to zero and unplug the fryer.
12. Carefully remove the lid. Watch out for hot steam created during frying. There is a risk of scalding.
13. Lift up the frying basket by the handle and hook it over the side of the housing. Let the oil drain into the oil basin.
14. Do not move the fryer until the oil has cooled completely.
15. Change the oil after 8–10 uses or when necessary.

Frying tips

• Start by frying at the lowest frying temperature.
• When you fry batches of similar food the oil may cool slightly. Between batches you should wait 3–5 minutes until the fryer regains frying temperature. The green indicator light turns off once the fryer is ready to use.
• Food which has been precooked requires higher temperatures but a shorter frying time compared to food that is raw.
• Never fill the frying basket to more than half-full.
• Never mix different types of oils.
• Use vegetable, corn or olive oil for frying. We do not recommend using oil with short shelf life such as sunflower oil.

Frying guide

Ingredients Temperature (°C) Weight (grams) Frying time (min.)
Fish fillets 150 250 5–6
Battered fish 150 400 6–8
Fish balls 150 400 6–8
Mushrooms 140 300 6–8
Chicken fillets 180 500 7–10
Steak	170 400 4–10
Sliced meat	170 400 7–10
French fries	190 550 8–10
Prawns	130 250 3–5
Onion rings	140 150 3–4

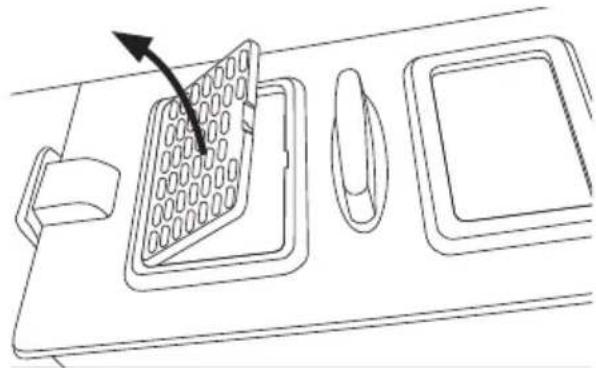

Care and maintenance

The frying basket and oil basin are dishwasher safe. Note: Never immerse the control panel, mains lead or plug in water or other liquids.

1. Unplug the fryer from the power point and make sure that the oil has cooled (1–2 hours after use) before cleaning the fryer.
2. Remove the basket from the oil basin.
3. Empty the frying oil into an appropriate container.
4. Wash the lid in warm water and washing-up liquid.

5. The exterior of the fryer can be cleaned using a slightly moistened cloth. Never use a washing-up brush or chemical cleaning agents.

6. The frying oil may be filtered and reused but should probably be changed after every 8–10 uses or before if necessary. Open the filter cover on the top of the lid and check the filter. If it needs to be washed, remove the filter and wash it in warm soapy water.

Line drawing of a kitchen appliance with a grater and side compartments (no text or symbols)

Filtering the oil

1. Remove the basket and the heating element from the basin and empty the cooled oil into a suitable container.

2. Filter the oil through e.g. a coffee filter.

Illustration of a hand using a tool to compress a bottle onto a glass (no text or symbols present)

Illustration of hands pouring liquid into a bowl (no text or symbols)

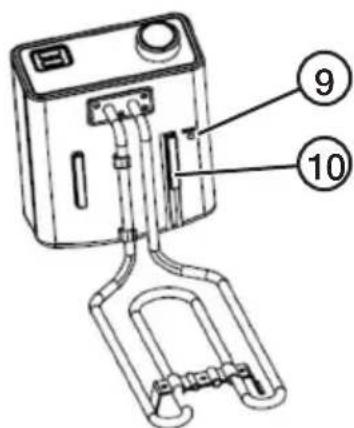

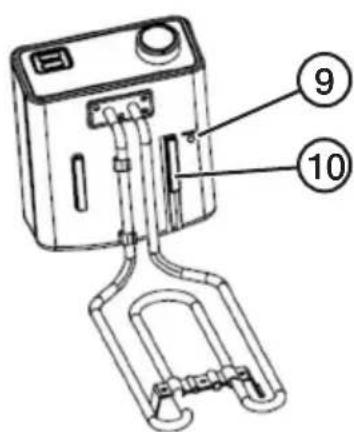

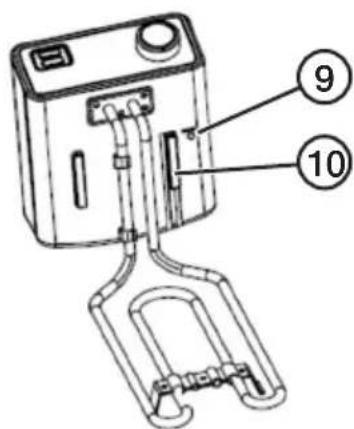

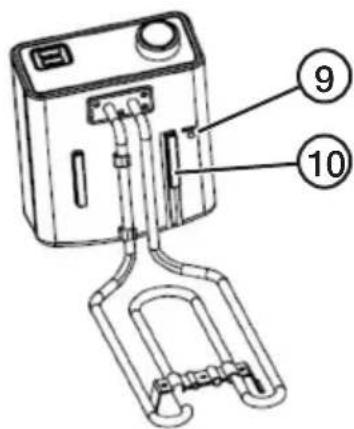

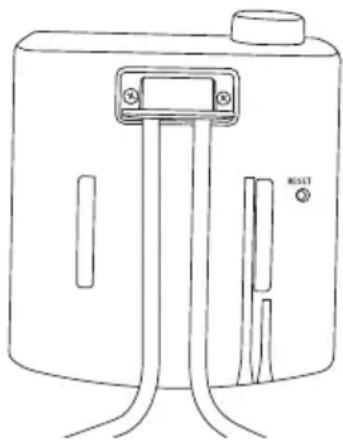

The reset feature

If for some reason the fryer stops heating, the reason may be that the safety cut-off switch has tripped.

To reset the switch:

1. Unplug the mains lead from the wall socket.
2. Let fryer and the oil cool down.
3. Lift up the control panel and reset the safety cut-off switch by pressing it in using a pointed object.
4. Refit the parts in the reverse order.

Line drawing of a device with labeled ports and cables (no text or symbols)

Troubleshooting guide

Problem Cause
Steam is escaping from under the lid.	The lid is not shut properly.
Oil is spilling over. • The oil level exceeds the max. level.The basket contains too much food.
Fried food is not crispy on the outside.	The food in the basket is not dry enough.The oil temperature is too low.The basket contains too much food.

Responsible disposal

This symbol indicates that this product should not be disposed of with general household waste. This applies throughout the entire EU. In order to prevent any harm to the environment or health hazards caused by incorrect waste disposal, the product must be handed in for recycling so that the material can be disposed of in a responsible manner. When recycling your product, take it to your local collection facility or contact the place of purchase. They will ensure that the product is disposed of in an environmentally sound manner.

Symbol of a trash bin crossed with no text or labels, accompanied by a black rectangular block below (no readable text or symbols)

Specifications

Power supply 220–240 V, 50/60 Hz

Power 2000 W

Oil capacity 3 l

Basket capacity 2.4 |

Size 40 × 23 × 24 cm

Weight 2.3 kg
