Product Type	Oscillating Multi-Tool
Model	PRO Edition MC300-T
Brand	Cocraft
Power Source	Corded Electric
Voltage	230 V ~ 50 Hz
Power Consumption	250 W
No-Load Speed	10,000 – 20,000 OPM
Oscillation Angle	3.2° (left/right)
Dimensions (L x W x H)	30 x 8 x 12 cm
Weight	1.5 kg
Main Functions	Sanding, cutting, scraping, grinding, sawing
Accessories Included	Sanding pad, scraping blade, segment saw blade, 3 sanding sheets
Speed Control	Variable speed dial
Tool-free Blade Change	Yes, with quick-release lever
Soft Grip Handle	Ergonomic soft grip for comfort
Dust Extraction	Compatible with external vacuum
Safety Features	Double insulation, lock-on switch, safety guard
Maintenance	Clean with dry cloth; check carbon brushes periodically
Spare Parts Availability	Carbon brushes, sanding pads, blades available separately
Repairability	User-replaceable brushes; professional service recommended for complex repairs

Frequently Asked Questions - PRO Edition MC300-T Cocraft

How do I change the accessory on the Cocraft PRO Edition MC300-T?

First, ensure the tool is unplugged. Press the spindle lock button to hold the shaft, then use the quick-release lever to open the clamp. Insert the new accessory and release the lever. Make sure it is securely locked before use.

What is the maximum speed of this multi-tool?

The no-load speed ranges from 10,000 to 20,000 oscillations per minute (OPM). Adjust the speed using the dial on the tool to match the material and application.

Can I use this tool for sanding?

Yes, the MC300-T comes with a sanding pad and sanding sheets. It is ideal for sanding wood, metal, and plastic surfaces. Use low to medium speed for sanding.

Is the tool suitable for cutting metal?

Yes, with the appropriate blade (e.g., segment saw blade or metal cutting blade). Use high speed for cutting metal and apply light pressure. Always wear safety goggles.

How do I maintain the Cocraft multi-tool?

Keep the tool clean and dry. Check carbon brushes every 50 hours of use and replace if worn. Lubricate moving parts occasionally. Store in a dry place.

What safety precautions should I take?

Always wear eye protection, use ear protection for prolonged use, keep hands away from moving parts, and ensure the tool is switched off before changing accessories. Use a dust mask when sanding or cutting.

Does the tool have a dust extraction feature?

Yes, the MC300-T is compatible with an external vacuum cleaner. Connect the vacuum hose to the dust extraction port on the tool for a cleaner workspace.

Where can I buy spare parts?

Spare parts such as carbon brushes, sanding pads, and blades are available at Cocraft dealers or online. Check the user manual for part numbers and recommended accessories.

What is the warranty period?

The Cocraft PRO Edition MC300-T typically comes with a 2-year warranty covering manufacturing defects. Keep your receipt and register the product for warranty service.

Can I use this tool for scraping old paint?

Yes, the scraping blade accessory is designed for removing paint, adhesive, and other materials. Use a low speed to avoid damaging the surface. Wear a dust mask if sanding afterwards.

USER MANUAL PRO Edition MC300-T Cocraft

Read the entire instruction manual carefully and make sure that you fully understand it before you use the equipment. Keep the manual for future reference.

Viktig information:

Exterior view of a Cocraft PROEDITION electric tool against a dark textured background (no visible text or symbols on the device itself)

Art.no Model

40-9926

PMF300S.1

Ver. 20170131

Original instructions

Bruksanvisning i original

Originalbruksanvisning

Please read the entire instruction manual before using the product and then save it for future reference. We reserve the right for any errors in text or images and any necessary changes made to technical data. In the event of technical problems or other queries, please contact our Customer Services (see address details on the back).

Safety

General safety instructions for power tools

Warning! Read all the instructions. Failure to adhere to the following instructions may lead to electric shocks, fires and/or serious injury. The term “power tools” in the warning text below refers to your handheld mains operated or battery operated tool.

SAVE THESE INSTRUCTIONS.

1) Work area

a) Keep the work area clean and well illuminated. Cluttered and poorly lit areas invite accidents.
b) Do not use power tools in explosive environments, e.g. near to flammable liquids, gases or dust. Power tools generate sparks that can easily ignite dust or fumes.
c) Keep children and other bystanders away from the area where you are using the power tool. Distractions can cause you to lose your concentration and control.

2) Electrical safety

a) The power tool's plug must fit correctly into the wall socket. Never modify the plug in any way. Never use an adaptor together with earthed power tools. Unmodified plugs and suitable wall sockets minimize the risk of electric shocks.
b) Avoid physical contact with earthed objects such as pipes, radiators, ovens and refrigerators. There is an increased risk of receiving an electrical shock if your body is earthed.
c) Do not expose the power tool to rain or other wet conditions. If water gets inside it increases the risk of electric shock.
d) Do not abuse the mains lead. Never use the lead to carry the tool or pull the plug from a wall socket. Keep the lead away from heat, oil, sharp edges and moving parts. Damaged or tangled leads increase the risk of electric shock.
e) When using power tools outdoors, use an extension lead that is suitable for this purpose. The use of an extension lead designed for outdoor use decreases the risk of electric shocks.
f) If the use of the power tool in a wet environment is unavoidable, a wall socket equipped with a residual current device (RCD) should be used. Using an RCD significantly reduces the chances of you receiving an electric shock.

3) Personal safety

a) Pay attention to what you are doing and use common sense when using power tools. Never use power tools if you are tired or under the influence of drugs, alcohol or medication. One moment of inattention while using a power tool may result in a serious injury.

b) Wear protective clothing. Always wear safety glasses. Using protective clothing such as dust masks, non-slip safety shoes, helmets and ear defenders decreases the risk of injury.

c) Avoid accidental starts. Make sure that the power switch is set to OFF before plugging the power tool into a wall socket, fitting the battery or picking up/carrying the power tool. Carrying a power tool with your finger on the power switch/trigger or connecting the power tool to a wall socket when the power switch is set to ON is inviting an accident.

d) Remove all service tools/keys before switching on the power tool. A service tool left on any moving part of the power tool may result in injury.

e) Do not overreach. Make sure you stand steady and well balanced at all times. This ensures better control over the power tool in unexpected situations.

f) Wear suitable clothing. Do not wear loose-fitting clothing or jewellery. Keep hair, clothes and gloves away from moving parts. Loose-fitting clothes, jewellery or long hair could become caught in moving parts.

g) If equipment for dust extraction or collecting is available make sure it is connected and used properly. Using technical aids may decrease dust related hazards.

4) Use and maintenance of the power tool

a) Do not force the power tool. Use a power tool suitable for the work you are about to perform. The proper power tool will perform the task better and safer if used at the correct feed rate.

b) Never use the power tool if the power switch does not switch the tool on and off properly. All power tools that cannot be controlled by the power switch are dangerous and must be repaired.

c) Unplug the lead from the wall socket or remove the battery before making any adjustments, changing accessories or storing the power tool. These precautions reduce the risk of the power tool starting unexpectedly.

d) Store power tools that are not being used out of children's reach. Do not allow people who are unfamiliar with the tool or its functions to operate the tool. Power tools can be dangerous if they fall into the hands of inexperienced users.

e) Maintaining power tools. Check for any incorrect settings, parts that catch, broken parts or anything else which may cause the power tool to malfunction. If something is damaged it must be repaired before use. Many accidents are caused by poorly maintained power tools.

f) Keep cutting tools sharp and clean. Properly maintained cutting tools with sharp blades are less likely to jam and are easier to control.
g) Use the power tool, and any accessories in accordance with these instructions, take into consideration the working conditions and the work that is to be performed. Using the power tool for a purpose other than that for which it is intended could result in a dangerous situation.

5) Service

a) Repairs and service should only be performed by qualified tradesmen, and only with original spare parts. This guarantees that the safety of the power tool is maintained.

Specific safety warnings for multi-tools

• This electric hand tool is intended for sawing, sanding, polishing and cutting. Read all safety warnings, instructions, illustrations, and specifications provided with this tool. Neglecting to follow all of the instructions listed below can result in electric shock, fire and/or serious injury.
• Do not use accessories which are not intended to be used with this tool and which are not recommended by the manufacturer. Even if the accessory can be attached to your power tool, there is no guarantee that it can be used safely.
• Wear personal protective equipment. Depending on how you use the machine; use a visor/face protection or safety glasses. If necessary use a mask, ear protection, gloves, and apron/work clothing to protect you from small shards of metal or splinters from the work object. The eye protection you use must be able to protect against flying debris produced in different working positions. The breathing protection should be able to filter any particles produced by the work. Prolonged exposure to high levels of noise can result in hearing damage.
• Keep children at a safe distance from the work area. Everyone who visits the place of work must wear personal protective equipment. Debris from the workpiece or from a damaged accessory can fly off and injure people outside of the immediate work area.
• Only hold the power tool by its insulated gripping surfaces when working in situations where the tool could cut through hidden cables or its own mains lead. Tools which come in contact with a live cable can electrify metal parts of the power tool and subject the user to an electric shock.
• Regularly clean the motor's ventilation ports. The motor's fan pulls in dust, which gets inside the outer casing and a build up of this collected metal dust can lead to electrical dangers.
• Do not use the power tool near flammable material. Sparks can easily ignite flammable material.
• Do not use accessories, which require liquid coolants. The use of water or other liquid coolants can result in electric shock or electrocution.

Specific safety instructions for sanding

• Extra caution should be taken when sanding lead paint, wood, metal or other materials which produce toxic dust. Make sure any bystanders in the work area are well protected.
• Remember that dust caused by sanding can be very flammable when mixed with air.

Safety instructions specific for cutting

- Hold power tool by its insulated gripping surfaces when performing an operation in where the cutting accessory may contact hidden wiring or its own cord could cut through hidden cables or its own cord. Cutting accessory contacting a “live” wire may make exposed metal parts of the power tool “live” and could give the operator an electric shock.

• Always wear a dust mask.

Vibration

• The measurement of the vibration emission level declared in this instruction manual has been carried out in accordance with a standardised test method described in EN 60745 and can be used for comparing one power tool with another.
• The measurement method may also be used for a preliminary assessment of vibration exposure.
• The declared vibration emission level applies when the power tool is used in accordance with this instruction manual. If however, the power tool is used for other purposes and with other accessories or has not been properly maintained, the vibration emission level could increase significantly over the total working period.
• For an exact assessment of the vibration exposure, the times when the tool is switched off or running idle should also be taken into account. This significantly reduces the vibration exposure over the total working period. Decide upon safety measures to protect the operator from the effects of vibration during all types of use.

Product safety symbols

Read the entire instruction manual.

Always use ear defenders, respiratory protection and safety glasses or a visor.

Product description

1. LED work light
2. Quick-release lever
3. [I/0] On/off switch
4. Speed selector
5. Ventilation ports (one on each side)
6. Accessories retainer with bolt
7. Segment saw blade HSS
8. Bi-metallic plunge cutter blade
9. Delta sanding plate

Supplied accessories

Diagram of a car wheel with a central hub and radiating blades (no text or symbols)

Segment saw blade HSS

Oscillating saw blade for cutting-off/parting-off. This tool is ideal for sawing in those hard-to-reach places such as in corners when laying floors or skirting boards.

Pure technical diagram of a triangular shield with internal cutouts and radial lines (no text or symbols)

Delta sanding plate

Perfect for sanding those hard-to-reach places, such as corners. Changing the grade of sandpaper used allows you to sand wood, stone, paint and so forth.

Gray-scale illustration of a mechanical component with a triangular cutout (no text or symbols)

Plunge-cutter saw blade

Ideal for deep incisions in wood, e.g. cutting holes for fitting air vents. Can also be used for sawing in confined spaces. This saw blade can even saw through nails.

Extra accessories

The Cocraft range includes several other accessories compatible with this multi-tool, amongst others:

• Metal cutting blade
- Saw blades and sanding pads for cement, wall tiles and plastic.
- Various sandpaper types.

Operating instructions

Fitting and changing accessories

Note: Always pull the plug out of the wall socket before mounting and changing accessories.

Mechanical component diagram showing a rotating arm and base with directional arrows (no text or symbols)

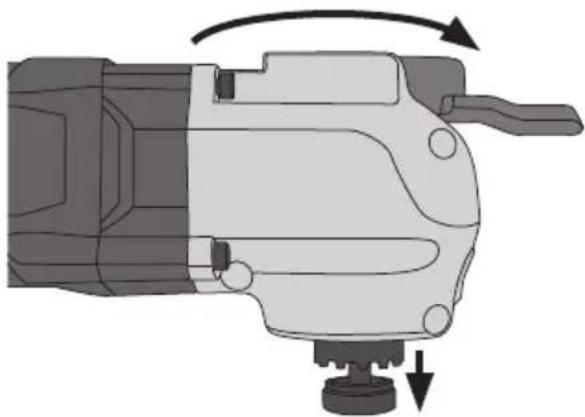

1. Flip the quick-release lever to its fully extended open position and pull the accessories bolt out enough to give the accessory clearance to slot into place.

Technical line drawing of a mechanical component with no visible text or symbols

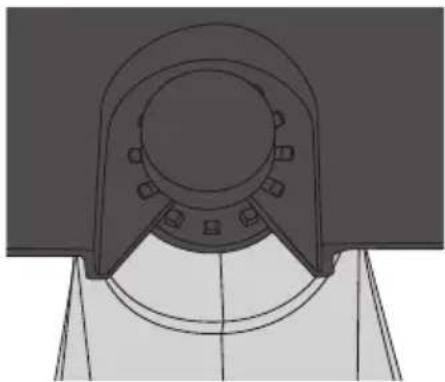

1. Fit the accessory onto the accessories retainer, making sure that the accessory's holes are securely fastened onto the retainer's fastening pins.

Mechanical component diagram showing a rotating arm mechanism (no text or symbols)

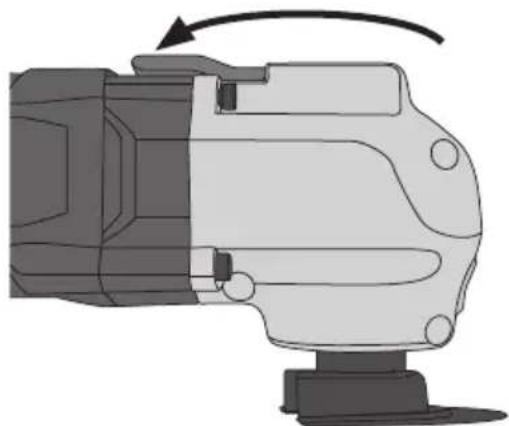

1. Press the accessory flush onto the retainer and flip the quick-release lever back to its locked and closed position.

Technical illustration of a mechanical power tool with a base mount (no text or symbols)

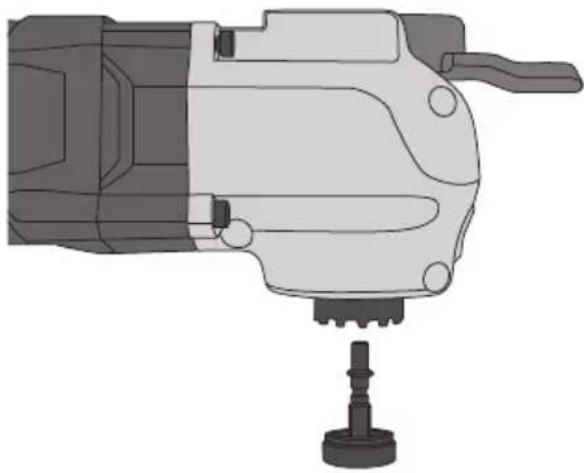

1. Remove the accessories bolt completely for accessories that do not have an open end and cannot be slotted onto the retainer.

2. Mount the accessory as described above, refit the bolt and flip the quick-release lever back into the locked position. Note: The bolt has a square end that must line up with the retainer's bolt slot in order for the bolt to fasten securely and correctly.

Changing sanding sheets

The sanding sheets are attached with hook and loop fasteners. Remove the old sanding sheet, brush off the hook and loop fabric on the sanding pad if necessary, and then attach the new sanding sheet.

Turn on the multi-tool

1. Make sure that the power switch (3) is set to 0 (off) before plugging the multi-tool's mains lead into a wall socket.
2. Start the multi-tool by sliding the power switch to the I position (on).

Select the required speed

The speed can be adjusted during use using the speed selector (4). The speed selected should be appropriate for the type of work being carried out and the type of material being worked on. Experiment until you find the best speed setting. The multi-tool is equipped with constant electronics which allows it to keep to the set speed setting even under load.

Cutting and sawing

Caution should be observed when using the saw blades. Check the working area so that you are prepared for any nails, screws or anything else which could cause you to lose control over the multi-tool. If you are cutting wall tiles, bear in mind that the saw blade will be subjected to hard wear during prolonged use.

Sanding

• Always use undamaged sandpaper and change it often. This will not only give you better results but also prolong the life of your multi-tool.
• Do not use excessive force when sanding, apply a constant, light pressure.
  Applying too much pressure will not speed up the sanding process; it will merely wear out the sandpaper and the multi-tool more quickly.
• When sanding wood, do not use sanding sheets which have previously been used for metal.

Care and maintenance

• If the mains lead is damaged it must only be replaced by a qualified electrician.
• Keep the motor ventilation openings (5) free from contaminants.
• Clean the multi-tool using a damp cloth. Use only mild cleaning agents, never solvents or corrosive chemicals.
• If the mains lead is damaged it should only be replaced by a qualified electrician.
• If the multi-tool is not to be used for an extended period, it should be unplugged and stored in a dry and dust-free location out of reach of children.

Troubleshooting guide

The multi-tool will not start.	Make sure the mains lead is undamaged and securely connected to the wall socket.Check that the wall socket is live.
The motor runs slowly.	Worn/damaged accessory. Replace the accessory with a new one.Speed set too low for the task. Increase the speed setting.
The machine vibrates or emits abnormal noises.	Check that the accessory is fitted correctly and that the multi-tool is undamaged.

Responsible disposal

This symbol indicates that this product should not be disposed of with general household waste. This applies throughout the entire EU. In order to prevent any harm to the environment or health hazards caused by incorrect waste disposal, the product must be handed in for recycling so that the material can be disposed of in a responsible manner. When recycling your product, take it to your local collection facility or contact the place of purchase. They will ensure that the product is disposed of in an environmentally sound manner.

Symbol of a trash bin crossed with no visible text or labels

Specifications

Rated voltage 230–240 V AC, 50 Hz

No-load speed 11 000–20 000 rpm

Oscillation angle 3.2°

Power output 300 W

Noise level LpA 83 dB(A), K: 3 dB

LwA 94 dB(A), K: 3 dB

Always wear ear protectors/defenders for

noise levels exceeding 80 dB(A)

Vibration a _h 3.45 m/s ^2 , K: 1.5 m/s ^2

Weight 1.5 kg

Multiverktyg

Icon of a person reading a book inside a black circle (no text or symbols)

Diagram of a car wheel with concentric arches and a central hub (no text or symbols)

Pure technical diagram of a triangular shield with internal cutouts and central hole (no text or symbols)

Slipsula

Gray-scale illustration of a mechanical component with a symmetrical cutout (no text or symbols)

Instickssågblad

Mechanical component diagram showing a rotating arm and base mount (no text or symbols)

Technical line drawing of a mechanical component with mounting holes and a circular base (no text or symbols)

Mechanical component diagram showing a rotating arm mechanism (no text or symbols)

Technical illustration of a mechanical power tool with a base mount (no text or symbols)

Symbol of a trash bin crossed with no visible text or labels

Specifikationer

Nätanslutning 230–240 V AC, 50 Hz

Varvtal 11 000–20 000/min

Rörelse 3,2°

Effekt 300 W

Ljud LpA 83 dB(A), K: 3 dB

LwA 94 dB(A), K: 3 dB

Diagram of a car wheel with a central hub and radiating blades (no text or symbols)

Sirkelformet sagblad HSS

Pure technical diagram of a triangular shield with internal cutouts and radial lines (no text or symbols)

Slipesåle

Gray mechanical component with a symmetrical cutout and evenly spaced holes (no text or symbols)

Innstikksagblad

Mechanical component diagram showing a rotating arm and base with directional arrows (no text or symbols)

Technical line drawing of a mechanical component with no visible text or symbols

Mechanical component diagram showing a rotating arm mechanism (no text or symbols)

Technical illustration of a mechanical power tool with a base mount (no text or symbols)

Symbol of a trash bin crossed with no visible text or labels

Spesifikasjoner

Nettspenning 230–240 V AC, 50 Hz

Turtall 11 000–20 000/min

Bevegelse 3,2°

Effekt 300 W

Lyd LpA 83 dB(A), K: 3 dB

LwA 94 dB(A), K: 3 dB

Icon of a person reading a book inside a circle (no text or symbols)

Diagram of a car tire cross-section showing tooth arrangement (no text or labels)

Pure technical diagram of a triangular mechanical component with central hole and symmetrical cutouts (no text or symbols)

Hiontapohja

Gray-scale illustration of a mechanical component with a central slot and symmetrical cutouts (no text or symbols)

Pistosahanterä

Mechanical component diagram showing a rotating arm and base with directional arrows (no text or symbols)

Technical diagram of a mechanical component with mounting holes and a central circular feature (no text or symbols)

Mechanical component diagram showing a rotating arm mechanism (no text or symbols)

Technical illustration of a mechanical power tool with a base mount (no text or symbols)

Symbol of a trash bin crossed with no text or numbers, representing waste sorting or disposal (no text present)

Tekniset tiedot

Diagram of a car tire with a central spout and flutes (no text or symbols)

Pure technical diagram of a triangular shield with internal cutouts and radial lines (no text or symbols)

Schleifplatte

Gray-scale illustration of a mechanical component with a symmetrical cutout (no text or symbols)

Tauchsägeblatt

Mechanical component diagram showing a rotating shaft and base with directional arrows indicating motion (no text or symbols)

Technical line drawing of a mechanical component with mounting holes and a circular base (no text or symbols)

Mechanical component diagram showing a rotating arm mechanism (no text or symbols)

Technical illustration of a mechanical power tool with a base mount (no text or symbols)

Symbol of a trash bin crossed with no visible text or labels

Technische Daten

Declaration of Conformity

Declares that this product complies with the requirements of the following directives and standards

Machinery Directive 2006/42/EC

EN 60745-1:2009

+A11:2010

EN 60745-2-4:2009

+A11:2011

EMC Directive 2014/30/EU

EN 55014-1:2006

+A1:2009+A2:2011

EN 55014-2:1997

+A1:2001+A2:2008+2015

EN 61000-3-2:2006

+A1:2009+A2:2009

EN 61000-3-3:2013

Henrik Alfredsson

Manager Technique & Quality

Insjön, Sweden, 2017-01-31

CLAS OHLSON AB, SE-793 85 INSJÖN, SWEDEN

Sverige

Postal 10 - 13 Market Place

Kingston Upon Thames

Surrey

KT1 1JZ

Deutschland

Kundenservice Hotline: [phone]

E-Mail: [e-mail]

Homepage

www.clasohlson.de
