Product Type	Electric Food Grater
Model	SGR 150 D1
Brand	SilverCrest
Power Supply	220-240V~, 50/60Hz
Power Consumption	150W
Short Operating Time	2 minutes
Safety Class	II
Dimensions (W x H x D)	Approx. 13.6 x 29.2 x 28 cm
Weight	Approx. 1600g
Operating Temperature	5°C to 35°C
Operating Humidity	Max. 85% rel. humidity
Storage Temperature	-10°C to +50°C
Cylinders Included	5 color-coded: fine cutting (yellow), rough cutting (green), fine shredding (orange), rough shredding (red), grating (blue)
Accessories	Pusher, storage compartment with cover, feed chute
Dishwasher Safe Parts	Cylinders, storage compartment, cover, feed chute, pusher
Housing Cleaning	Wipe with damp cloth; do not immerse
Safety Features	Start button must be held; automatic shut-off when released
Warranty	3 years
Intended Use	Private household use for cutting, grating, shredding vegetables and other suitable foods
Certifications	CE, UKCA, EC 1935/2004 food contact

Frequently Asked Questions - IAN 070022 SILVERCREST

How long can I continuously operate the food grater?

The short operating time is 2 minutes. After that, let the motor cool down before using again.

Can I wash the cylinders in the dishwasher?

Yes, all cylinders (4,5,6,7,10), storage compartment, cover, feed chute, and pusher are dishwasher safe. Alternatively, wash with warm water and mild detergent.

How do I change the cylinder?

First, unplug the device. Remove the feed chute by rotating it clockwise until the arrow points to the open lock. Then detach the cylinder from the feed chute by gripping the edge and pressing. Insert a new cylinder into the feed chute, align the arrow with the open lock, then rotate anticlockwise to the closed lock.

What should I do if the device stops working?

Check that the mains plug is inserted properly and the socket is working. If it still doesn't work, contact the Service Team.

Can I grate hard cheese or nuts?

Yes, use the grating cylinder (blue) for hard cheese (e.g., Parmesan) and nuts like almonds. See the table in the manual for specific food recommendations.

Is it safe to use with children?

No, the device must not be used by children. Keep it and the cable away from children. Use only with adult supervision if persons with reduced abilities are involved.

Can I process meat or ice cubes?

No, do not attempt to chop fibrous foods like meat or crush very hard foods like ice cubes or nuts with shells. This could damage the device.

How do I clean the main unit?

Always unplug before cleaning. Wipe the housing with a damp cloth; use mild detergent if needed. Never immerse in water or hold under running water.

What if the cylinder gets stuck?

First, unplug the device. Rotate the feed chute clockwise to remove it, then detach the cylinder as described. If it's stuck, check if food is blocking it. Do not force it.

How should I store the grater when not in use?

Clean all parts, store cylinders in the storage compartment, wind the cable into the cable duct, and keep in a dry, clean location within -10°C to +50°C.

USER MANUAL IAN 070022 SILVERCREST

White and black electric shaver machine with open lid and tray, no visible text or symbols on the device itself.

ELECTRIC GRATER SGR 150 D1

TARGA GMBH

Coesenweg 40 59494 Som

GERMANY

Last Information Update - Ha/ria nánaíos empiuves:

Operating instructions and safety instructions

CB CX

English....2

Ελληνικά 21

Deutsch 41

Table of contents

1. Intended use.... 3
2. Supplied items.... 3
3. Technical data .... 4
   3.1. Short operating time....4
4. Safety instructions.... 4
5. Copyright 10
6. Description of the controls 10
7. Prior to use.... 10
   7.1. Inserting/removing cylinder.... 10
   7.2. Mains cable/mains cable duct 11
8. First use 12
   8.1. Cylinders.... 12
   8.2. Operating steps.... 13
   8.3. Cleaning 14
   8.4. Storage 15
9. Troubleshooting 15
10. Environmental and disposal information.... 15
11. Conformity information 17
12. Recipe suggestions.... 17
13. Warranty and servicing advice.... 19

Congratulations!

By purchasing the SilverCrest electric food grater SGR 150 D1, hereinafter referred to as food grater, you have opted for a high-quality product.

The operating instructions are an integral part of this product. They contain important information relating to safety, use and disposal. Read all operating and safety instructions thoroughly before using the product. Use the product only as described and for the specified range of applications. Include all documents when passing on the product to someone else.

1. Intended use

This food grater is a household device that is used for cutting, grating or shredding various types of vegetables and other suitable foods. The device should not be used outdoors or in tropical climates. Its use in a company or for commercial purposes is excluded. Use the food grater only for private use in living areas as any other use is not as intended. This food grater meets all relevant norms and standards in conjunction with CE conformity. In the event of any modification to the food grater that was not approved by the manufacturer, compliance with these standards is no longer guaranteed. The manufacturer does not accept any liability for any resulting damage or faults in such cases. Only use accessories supplied by the manufacturer.

Please observe the regulations and laws in the country of use.

2. Supplied items

• SilverCrest food grater SGR 150 D1

- 5 cylinders

• These operating instructions

These operating instructions have a fold-out cover. The SilverCrest food grater SGR 150 D1 and all accessories and controls are illustrated with a numbering system on the inside of the cover. You can leave this cover page folded out while reading further sections of these operating instructions. Thus you always keep a reference to the relevant accessory/control in sight. The numbers indicate the following:

1 Electric food grater
2 Start button
3 Storage compartment cover
4 Rough cutting cylinder (green)
5 Fine cutting cylinder (yellow)
6 Grating cylinder (blue)
7 Rough shredding cylinder (red)
8 Storage compartment
9 Motor shaft

10 Fine shredding cylinder (orange)

11 Feed chute

12 Pusher

3. Technical data

Designation SilverCrest SGR 150 D1
Power supply	220-240V~ (AC voltage), 50/60Hz
Power consumption 150W
Short operating time 2 minutes
Safety class	II
Dimensions (W x H x D) approx. 13,6 x 29,2 x 28cm
Weight approx. 1,600g
Operating temperature 5°C to 35°C
Operating air humidity 85% rel. air humidity
Permissible storage conditions -10°C	to +50°C, max. 85% rel. air humidity

The technical data and design may be changed without notification.

3.1. Short operating time

The short operating time indicates how long the electric food grater (1) can be operated without the motor overheating and becoming damaged. The short operating time for the electric food grater (1) is 2 minutes. After this time, the electric food grater (1) must remain switched off until the motor has cooled down.

4. Safety instructions

Before using the electric food grater (1) for the first time, always read the following instructions and pay attention to all warnings, even if you are familiar with handling electric devices. Store these operating instructions in a safe place for future reference. If you sell the food grater (1) or pass it on, always include these instructions.

WARNING! This symbol indicates important information for safe operation of the electric food grater (1) and the safety of the user.

This symbol indicates other important information on the topic.

WARNING! This symbol indicates possible health risks up to a risk of fatal injury and/or material damage due to an electrical shock.

This symbol identifies products that were tested in terms of their physical and chemical composition and were found to be safe from a health perspective for contact with food in accordance with the requirements of Regulation EC No. 1935/2004.

Personal safety

• This device must not be used by children.
• The device and its power cable must be kept away from children.
• Devices can be used by persons with reduced physical, sensory or mental abilities or lack of experience or knowledge provided they are supervised or have been instructed on the safe use of the device and understand the resulting risks.
• Children must not play with the device. Small parts can be fatal if swallowed.
• Always keep plastic packaging out of reach also as it poses a suffocation risk.

Mains cable

- Always handle the mains cable by the mains plug and do not pull on the cable itself.

- Never place furniture or other heavy objects on the mains cable and take care that the cable is not kinked, especially near the mains plug.

- Do not connect the mains cable over hot or sharp points and edges to prevent damage.

- Do not use adapter plugs or extension cables that do not comply with applicable safety standards, and do not make any alterations to the mains cable!

- If the mains cable is damaged, it must be replaced by the manufacturer or its customer service representative or a similarly qualified person to prevent any safety hazards.

- Never tie a knot in the mains cable and do not tie cables together.

- Ensure that the mains cable is placed so that no one can trip over it and it does not cause an obstruction. There is a risk of injury.

Cleaning / maintenance

- Servicing is necessary if the electric food grater (1) has been damaged or if liquids or objects have penetrated the housing, if it has been exposed to rain or moisture or if it does not work correctly or has been dropped.

- If smoke is produced, or there are any unusual sounds or odours, disconnect the mains cable of the electric food grater (1) from the socket immediately. In such cases, the electric food grater (1) should not be used until it has been inspected by authorised service personnel.

- Only have the device repaired by qualified personnel. Never open the housing of the electric food grater (1).

• Always remove the mains plug from the socket before cleaning the electric food grater (1). Never immerse the electric food grater (1) in water or hold it under running water when cleaning it.
• Be careful when using and cleaning the cylinders (4, 5, 6, 7, 10). The blades are very sharp! There is a risk of injury.

Operation

• The electric food grater (1) must be disconnected from the mains power supply before assembling, dismantling or cleaning it.
• When operating the device, use the supplied accessories only, particularly the pusher (12) and cylinders (4, 5, 6, 7, 10). There is a risk of injury.
• Be careful when operating the device that no long hair, ties or wide clothes are near the rotating parts of the electric food grater (1) as they may get caught in them. There is a risk of injury.
• Never touch the rotating cylinders (4, 5, 6, 7, 10). There is a risk of injury.
• Remove the mains plug from the socket each time you want to change the cylinder (4, 5, 6, 7, 10). Always wait until the cylinder stops rotating. There is a risk of injury.
• Never use your bare hands to push food into the feed chute (11)! Always use the supplied pusher (12). There is a risk of injury.

• No action is required by the user to set the product to 50 or 60 Hz. The product automatically adjusts to 50 and to 60 Hz.

• Never operate the electric food grater (1) without a cylinder (4, 5, 6, 7, 10). Never attempt to chop up fibrous foods such as meat or crush very hard foods such as ice cubes or nuts with shells. The electric food grater (1) could be damaged.

• Always remove the mains plug from the socket after using the electric food grater (1) or when it is unattended!

Operating environment

This food grater (1) is suitable for operation only in dry indoor locations.

• Always place the electric food grater (1) on a level, firm surface and do not place any objects on it.
• The electric food grater (1) is not designed for use in environments with a high temperature or humidity (e.g. bathrooms), and must be kept free from dust. Operating temperatures and operating air humidity: 5°C to 35°C, max. 85% rel. air humidity.

Ensure that:

• no direct heat sources (e.g. heating) can affect the electric food grater (1);
• no direct sunlight or bright artificial light reaches the electric food grater (1);
• contact with sprayed and dripping water and corrosive liquids is prevented and the device is never operated near water; in particular it should never be immersed. Never place any objects filled with liquids, for example, vases or drinks, on or near the electric food grater (1);
• no fire sources (e.g. burning candles) are placed on or near the electric food grater (1);

- no foreign objects penetrate the device; - the electric food grater (1) is not subjected to any extreme temperature fluctuations, as this could result in condensation and electrical short circuits. If the device was subjected to extreme temperature fluctuations, however, wait (approx. 2 hours) until it has reached ambient temperature before use;

- the electric food grater (1) is never subjected to excessive shocks and vibrations.

Storage when not in use

- If you will not be using the electric food grater (1) for a prolonged period, disconnect the device from the mains power supply.

Ensure that the storage temperature remains between -10^ and +50^ . The humidity should not exceed 85% rel. air humidity.

5. Copyright

All information contained in these instructions is subject to copyright and is provided for information purposes only. It is only permitted to copy or duplicate data and information with the express and written consent of the author. This also includes commercial use of the content and data. The text and illustrations are based on the state of the art at the time of printing. Subject to change without notice.

6. Description of the controls

For safety reasons, the Start button (2) must be pressed and held to operate the electric food grater (1). As soon as you release the Start button (2), the electric food grater (1) switches itself off.

7. Prior to use

Remove the electric food grater SGR 150 D1 and all accessories from the packaging and check that all items have been included. Remove all protective foil. We recommend that you clean all accessories again prior to their initial use.

7.1. Inserting/removing cylinder

Now, select one of the 5 enclosed cylinders (4, 5, 6, 7, 10) as required and push it as far as possible into the feed chute (11). For the range of application of the individual cylinders (4, 5, 6, 7, 10), please refer to the diagram in the "Cylinders" section on page 12. Then attach the feed chute (11) with the inserted cylinder (4, 5, 6, 7, 10) to the motor shaft (9). To facilitate this attachment, an arrow (◀) is indicated at the back of the feed chute (11). On the housing of the food grater (1), an open lock 🔒 is indicated on the right next to the motor shaft (9) and a closed lock 🔒 is indicated above it. Proceed as follows:

• Attach the feed chute (11) with the inserted cylinder (4, 5, 6, 7, 10) to the motor shaft (9) so that the arrow (◀) on the feed chute (11) points towards the open lock 🔒 on the housing of the food grater (1).
• Then rotate the feed chute (11) anticlockwise until the arrow (◀) points to the closed lock 🔒 on the housing of the food grater (1).

If the feed chute cannot be used correctly, check whether the cylinder (4, 5, 6, 7, 10) was pushed into it as far as possible.

Store the remaining cylinders (4, 5, 6, 7, 10) in the storage compartment (8) and close it with the storage compartment cover (3). Then attach the storage compartment (8) to the electric food grater (1).

To remove the cylinder, first remove the feed chute (11) from the food grater (1).

- Then rotate the feed chute (11) clockwise until the arrow (◀) points to the open lock 🔒 on the housing of the food grater (1).

You can then remove the cylinder (4, 5, 6, 7, 10) from the feed chute (11).

Proceed as follows:

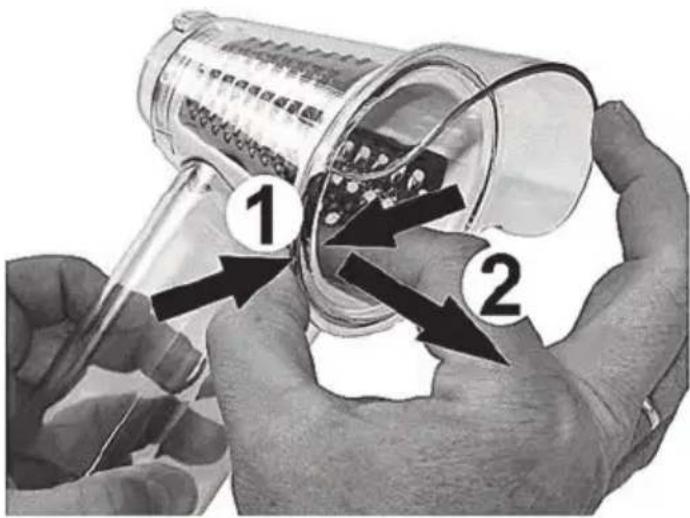

First, remove the pusher (12) from the feed chute (11). Then hold the feed chute (11) with one hand.

1. Use your thumb and index finger of your other hand to grip the edge of the inserted cylinder (4, 5, 6, 7, 10) and feed chute (11) and press them together as shown in the illustration.

2. You can detach the cylinder (4, 5, 6, 7, 10) easily in this manner and then remove it from the feed chute (11).

Be careful when removing the cylinders (4, 5, 6, 7, 10). The blades are very sharp! There is a risk of injury.

Please note that you cannot insert or remove the cylinder (4, 5, 6, 7, 10) while the feed chute (11) is attached to the food grater (1).

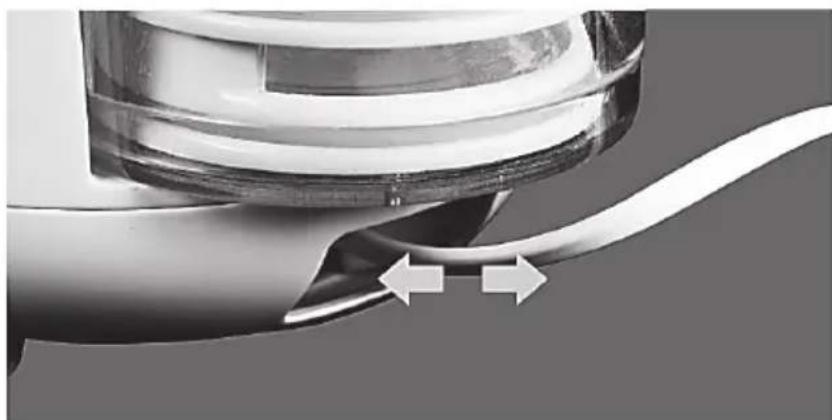

7.2. Mains cable/mains cable duct

Now, pull the integrated mains cable as required from the mains cable duct and insert the mains plug into a socket that is always easily accessible. You can store the mains cable again in the mains cable duct after use.

Close-up of a mechanical component with a curved wire and two directional arrows indicating motion (no text or symbols)

The electric food grater (1) is now ready to use.

Be careful when using and cleaning the cylinders (4, 5, 6, 7, 10). The blades are very sharp! There is a risk of injury.

8. First use

8.1. Cylinders

We supply 5 different cylinders (4, 5, 6, 7, 10). To aid visual differentiation, these 5 cylinders (4, 5, 6, 7, 10) are colour-coded.

For the range of applications of the various cylinders, you can refer to the following diagram:

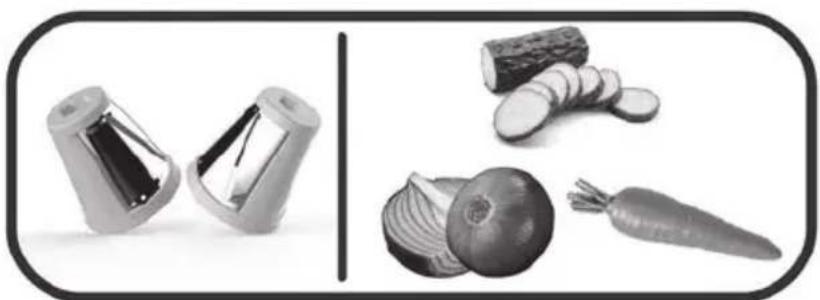

Fine cutting cylinder (yellow)

Rough cutting cylinder (green)

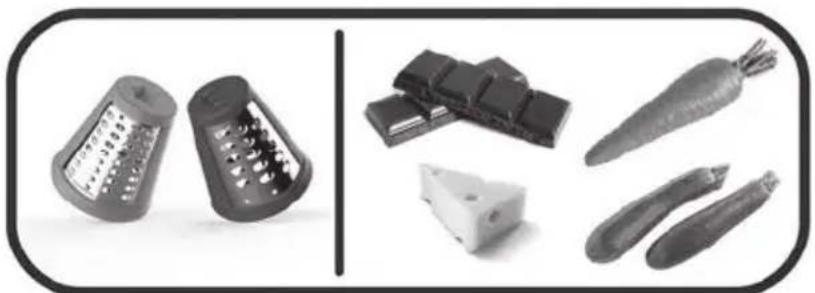

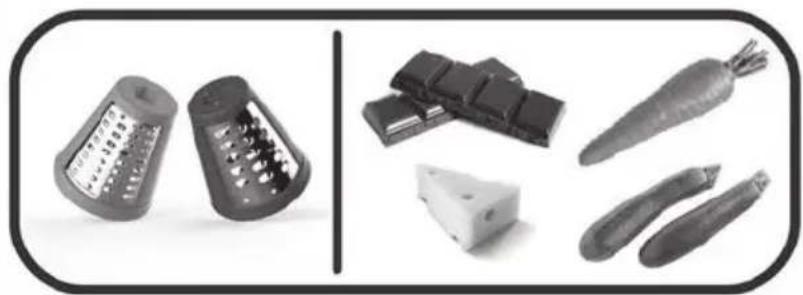

Fine shredding cylinder (orange)

Rough shredding cylinder (red)

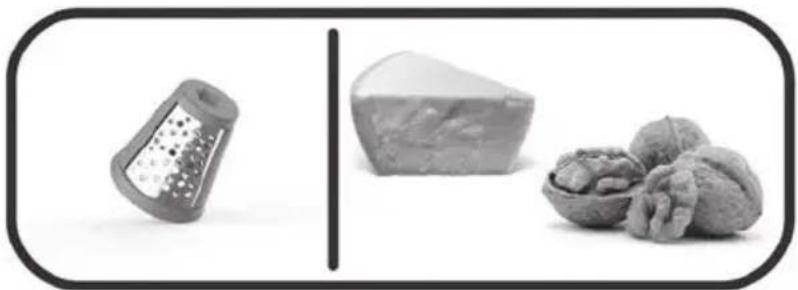

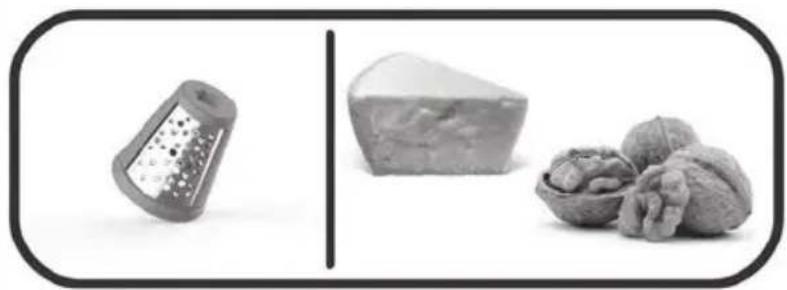

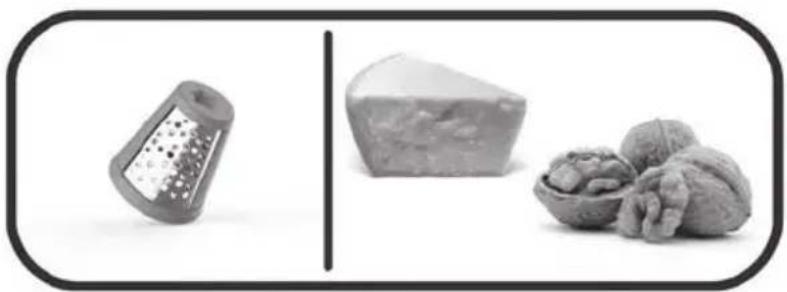

Grating cylinder (blue)

Black-and-white image showing two kitchen utensils and three whole vegetables: sliced radish, whole onion, and carrot (no text or symbols)

Two sets of kitchen utensils: one with a grater and one with sliced carrots (no text or symbols visible)

Black-and-white image showing a grater, a slice of cheese, and walnuts (no text or symbols)

The following table should assist you in selecting the appropriate cylinder for selected foods:

Food	Fine cutting cylinder (yellow) 5	Rough cutting cylinder (green) 4	Fine shredding cylinder (orange) 10	Rough shredding cylinder (red) 7	Grating cylinder (blue) 6
Apple	■ ■
Cucumber	■ ■
Hard cheese	■ ■ ■ ■
Hazelnuts, almonds					■
Potatoes	■ ■			■
Kohlrabi	■ ■			■
Coconut meat			■		■
Carrots	■ ■ ■ ■
Pepper	■ ■			■
Parmesan					■
Radishes	■ ■			■
Beetroot	■ ■
Red or white cabbage	■ ■
Chocolate			■ ■ ■
Dry bread					■
Courgette	■ ■ ■ ■
Onions, shallots	■ ■

8.2. Operating steps

• Prepare the food to be processed so that it can be inserted easily in the feed chute (11).
- Place a suitable bowl under the opening of the cylinder to collect the processed food.
- Now insert the prepared food in the feed chute (11).
- Press the Start button (2) and keep it pressed. The cylinder (4, 5, 6, 7 or 10) in use then rotates.

To prevent blocking of the cylinder (4, 5, 6, 7, 10) in use, the pusher (12) should be pressed only when the Start button (2) is pressed and the cylinder (4, 5, 6, 7, 10) rotates.

- The food in the feed chute can be inserted into the cylinder using the pusher (12). When the feed chute (11) is empty, you can insert more food if necessary.

The processed food falls forwards from the opening of the cylinder to the bowl placed previously under the device.

• After all prepared foods have been processed, release the Start button (2).

If you want to process larger quantities of food, always observe the short operating time of 2 minutes to avoid damaging the electric food grater (1).

- Remove the mains plug from the socket.

8.3. Cleaning

WARNING! Always remove the mains plug from the socket before cleaning. Never immerse the electric food grater (1) in water and never clean it under running water. There is a risk of an electric shock!

WARNING! Be careful when using and cleaning the cylinders (4, 5, 6, 7, 10). The blades are very sharp. There is a risk of injury!

Do not use any aggressive, abrasive or chemical cleaning agents. The surface of the electric food grater (1) and the accessories could be damaged irreparably.

- Remove the mains cable from the socket.

- Remove the 5 cylinders (4, 5, 6, 7, 10) from the storage compartment (8).

- Detach the storage compartment (8) from the electric food grater (1).

- Remove the pusher (12) from the feed chute (11).

- Detach the feed chute (11) from the motor shaft (9).

- Clean the electric food grater (1) with a damp cloth. You can apply a mild detergent to the cloth to remove stubborn dirt. Ensure that you remove all remaining detergent with a wet cloth.

- The 5 cylinders (4, 5, 6, 7, 10), the storage compartment (8), the storage compartment cover (3), the feed chute (11), and the pusher (12) are suitable for cleaning in a dishwasher. Alternatively, you can clean these parts with warm water and a mild detergent. After washing, rinse the parts with clear water. Make sure that all parts are completely dry the next time you use them.

- You can now reattach the cleaned parts to the electric food grater (1) and store cleaned cylinders (4, 5, 6, 7, 10) in the storage compartment (8).

Please note that some foods, for example, carrots or red cabbage, contain natural dyes. The plastic parts of the food grater (1) and the accessories may be discoloured by these dyes. These discolourations do not constitute defects.

8.4. Storage

If you will not be using the electric food grater (1) for a prolonged period, store it in a dry and clean location.

• Clean the electric food grater (1) and all accessories as described in the last section.
• Store the 5 cylinders (4, 5, 6, 7, 10) in the storage compartment (8).
• Insert the mains cable so far into the mains cable duct that only the mains plug can be seen.

9. Troubleshooting

The electric food grater (1) is not working.

• The mains plug is not inserted in the socket. Insert the mains plug into a mains socket.
• The socket is defective. Try plugging the device into another socket which you know is definitely working.
  • The electric food grater (1) is defective. Contact the Service Team.

One of the cylinders (4, 5, 6, 7, 10) cannot be detached.

Always detach the entire feed chute (11) to insert or remove a cylinder (4, 5, 6, 7, 10). Also note the following image for this purpose on page 11.

10. Environmental and disposal information

		Devices marked with this symbol are subject to the European Union Directive 2012/19/EU. Electrical and electronic devices may not be put in the household waste, but must be disposed of via designated public disposal centres. By properly disposing of the old device, you can avoid environmental damage and hazards to health. Further information regarding proper disposal of the old device can be obtained from your local authority or the shop where you purchased the device.Contact your local waste management company for more information.
		Think about environmental protection. Used batteries do not belong in normal domestic waste. You must dispose of them at a collection point for old batteries. Please note that you should only dispose of batteries in collection containers for old batteries when they are fully discharged. If the batteries are not completely dead, you need to take precautionary measures before disposal to prevent short circuits.
		Make sure that the packaging is disposed of in an environmentally friendly manner. Cardboard packaging can be put out for waste-paper collection or taken to public collection points for recycling. The plastic packaging used for your device will be collected by your local waste management company and disposed of in an environmentally friendly manner.
ES/PT
		Relevant for France only:The product can be recycled, is subject to an extended producer responsibility and is collected separately.
		Please pay attention to the labels on packaging materials when you separate waste; these are marked with abbreviations (a) and numbers (b) that mean the following:1-7: Plastics/20-22: Paper and cardboard/80-98: Composite materials.
Symbol	Material	This product contains the following packaging components
	Polyethylene terephthalate	-
	High-density polyethylene	-
	Polyvinyl chloride -
	Low-density polyethylene	Plastic bags to protect the product and the accessories
	Polypropylene	-
	Polystyrene	-
	Other plastics -
	Corrugated cardboard	Sales packagingInside box
	Other cardboard —
	Paper Silk paper inside the sales packaging
	Paper/Cardboard/Plastics	—
	Paper/Cardboard/Plastics/Aluminium	—

11. Conformity information

The product complies with the requirements of the applicable European and national directives. Evidence of conformity has been provided. The manufacturer has the relevant declarations and documentation.

The product complies with the requirements of the applicable national directives of the Republic of Serbia.

This product fulfils the requirements specified in the applicable national policies for the United Kingdom.

The complete EU Declaration of Conformity is available for download from this link: https://www.targa.gmbh/downloads/conformity/384106_2107.pdf

12. Recipe suggestions

White or red cabbage salad

◆ 1500g white or red cabbage
1 pepper
◆ 125g sugar
125ml oil
125ml vinegar
◆ 1 tablespoon salt
◆ 1 pinch pepper

Cut the cabbage with the rough cutting cylinder (4).

Chop the pepper with the rough shredding cylinder (7).

Mix the oil, vinegar, sugar, salt and pepper and heat this

marinade slightly. Pour the lukewarm marinade over the

cabbage and let it marinate for several hours. Mix the

salad well and season it to your taste with salt and

pepper. Enjoy your meal!

Wild garlic and almond pesto

◆ 60g almonds
◆ 60g parmesan
✿ 1 bunch wild garlic (approx. 100g)
◆ 120ml extra virgin olive oil
✿ Salt, pepper to taste

Grate almonds and parmesan with the grating cylinder (6). Mix the almonds, parmesan, olive oil, salt and pepper. Finally, remove the wild garlic from its stalks, chop it finely and stir it into the mixture, and again season to taste with salt and pepper. Enjoy your meal!

Courgette salad

✿ 3-4 small courgettes (approx. 800g)
◆ 1 cucumber
◆ 1 jar salad cream (or yoghurt)
Tabasco to taste
◆ Pepper, salt, paprika
Garlic to taste
◆ 1 bunch chives
◆ 1 small tin sweet corn

Cut or shred the courgettes and cucumber with the rough cutting cylinder (4) or the rough shredding cylinder (7). Finely chop or cut the chives. Mix the courgettes, cucumber, sweet corn, chives and salad cream. Season the salad with salt and pepper. Add a few splashes of Tabasco to give it more flavour. Add some more garlic if desired. Finally, decorate the salad by sprinkling paprika over it before serving. Enjoy your meal!

Potato fritters (4 portions)

◆ 10 large potatoes
◆ 4 large onions
◆ 2 tablespoons flour
◆ 4 large eggs
Salt and pepper
Apple compote
Oil for frying

Prepare the potatoes with the rough shredding cylinder (7) and the onions with the fine cutting cylinder (5). Stir the beaten eggs and flour into the mixture. Season with salt and pepper to taste. Heat the oil in a pan and pour dollops of mashed potato, roughly 10cm wide and not too thick, into the pan. Fry the potato fritters on both sides until golden brown. Serve the potato fritters with apple compote. Enjoy your meal!

Cherry and cream quark with grated chocolate (6 portions)

◆ 500g quark
◆ 2 cups cream (400ml)
◆ 2 bars chocolate, chilled (milk or dark chocolate)
◆ 1 jar morello cherries (pitted)
Sugar

Grate the chilled chocolate with the rough shredding cylinder (7). Whip the cream and add sugar to taste. Stir the quark and fold in the cream, grated chocolate and cherries. Enjoy your meal!

13. Warranty and servicing advice

Warranty of TARGA GmbH

Dear Customer,

This device is sold with three years warranty from the date of purchase. In the event of product defects, you have legal rights towards the seller. These statutory rights are not restricted by our warranty as described below.

Warranty conditions

The warranty period commences upon the date of purchase. Please keep the original receipt in a safe place as it is required as proof of purchase. If any material or manufacturing faults occur within three years of purchase of this product, we will repair or replace the product free of charge as we deem appropriate.

Warranty period and legal warranty rights

The warranty period is not extended in the event of a warranty claim. This also applies to replaced and repaired parts. Any damage or defects discovered upon purchase must be reported immediately when the product has been unpacked. Any repairs required after the warranty period will be subject to charge.

Scope of warranty

The device was carefully manufactured in compliance with stringent quality guidelines and subjected to thorough testing before it left the works. The warranty applies to material and manufacturing faults. This warranty does not cover product components which are subject to normal wear and which can therefore be regarded as wearing parts, or damage to fragile components such as switches, rechargeable batteries or components made of glass. This warranty is void if the product is damaged, incorrectly used or serviced. To ensure correct use of the product, always comply fully with all instructions contained in the user manual. The warnings and recommendations in the user manual regarding correct and incorrect use and handling of the product must always be observed and complied with. The product is solely designed for private use and is not suitable for commercial applications. The warranty is rendered void in the event of incorrect handling and misuse, if it is subjected to force, and also if any person other than our authorised service technicians interfere with the device. No new warranty period commences if the product is repaired or replaced.

Submitting warranty claims

To ensure speedy handling of your complaint, please note the following:

Before using your product for the first time, please read the enclosed documentation carefully. Should any problems arise which cannot be solved in this way, please call our hotline.
- Always have your receipt, the product article number as well as the serial number (if available) to hand as proof of purchase.
- If it is not possible to solve the problem on the phone, our hotline support staff will initiate further servicing procedures depending on the fault.

Service

Phone: [phone]

E-Mail: [e-mail]

Phone: [phone]

E-Mail: [e-mail]

Phone: [phone]

E-Mail: [e-mail]

Phone: [phone]

E-Mail: [e-mail]

IAN: 384106_2107

Manufacturer

Please note that the following address is not a service address. First contact the service point stated above.

TARGA

GmbH

Coesterweg 45

59494 Soest

GERMANY

Close-up of a mechanical component with a curved wire and two directional arrows indicating motion (no text or symbols)

Two grayscale images showing vegetable containers and whole vegetables: one with a cylindrical container, the other with sliced root and whole onion (no text or symbols)

Two side-by-side images showing kitchen grates and various vegetables: one with cutouts, one with sliced pieces, one with cheese, and one with cucumbers (no text or symbols visible)

Black-and-white image showing a grater, cheese, and walnuts (no text or symbols)

Close-up of a mechanical component with a curved wire and two directional arrows indicating motion (no text or symbols)

Two grayscale images showing vegetables: one with a cylindrical container and another with sliced radish and whole onion (no text or symbols)

Black-and-white product image showing two grater cutlery and several whole foods including carrots, cheese, and cucumbers (no text or labels visible)

Black-and-white image showing a grater, a slice of cheese, and a whole walnut (no text or symbols)
