Product Type	Steam Iron
Brand	Grunkel
Model	PL-28ANODICED Steam
Power Consumption	2200 W
Voltage	220-240 V
Frequency	50/60 Hz
Water Tank Capacity	300 ml
Continuous Steam Output	30 g/min
Steam Burst	120 g/min
Soleplate Material	Anodized aluminum
Cord Length	2.0 m
Weight	1.2 kg
Dimensions (LxWxH)	30 x 12 x 16 cm
Spray Function	Yes
Vertical Steam	Yes
Dry Ironing	Yes
Self-Cleaning	Yes
Anti-Calc System	Yes
Auto Shut-Off	Yes (after 30 sec horizontal, 8 min vertical)
Water Level Indicator	Yes
Power Cord Storage	360° swivel cord
Cleaning	Use self-clean function; wipe soleplate with damp cloth

Frequently Asked Questions - PL-28ANODICED Steam Grunkel

How do I fill the water tank?

Open the water inlet cover, tilt the iron and use the included measuring cup to fill with tap water up to the MAX mark. Do not exceed MAX. Close the cover securely.

How to use the steam burst function?

Press the steam burst button firmly. It delivers a powerful jet of steam to remove stubborn creases. Wait a few seconds between bursts to allow the iron to reheat.

Can I use tap water?

Yes, but if you have hard water, mix with demineralized water 50:50 to reduce scale buildup. Always use fresh water; avoid distilled water alone as it may affect steam production.

How do I activate vertical steam?

Hold the iron vertically, press the steam burst button. Keep the iron at least 15 cm away from delicate fabrics. Use for hanging garments, curtains, or upholstery.

What does the self-clean function do?

It flushes out mineral deposits from the steam chamber. Fill tank, set temperature to max, unplug, hold iron over sink, press self-clean button. Steam and water will flush out impurities.

How to clean the soleplate?

Wait for the iron to cool completely. Wipe with a damp cloth and mild detergent if needed. Do not use abrasive cleaners or metal scouring pads as they damage the anodized coating.

What is auto shut-off?

The iron switches off automatically if left unattended: after 30 seconds horizontally on its soleplate, or after 8 minutes vertically on its heel. Simply move the iron to reset.

Why is my iron not producing steam?

Check water level; tank may be empty. Ensure temperature dial is set to at least 2 dots (steam range). If previously used with calcified water, perform self-clean cycle to unclog vents.

How to store the iron after use?

Unplug and let cool completely. Empty water tank by opening cap and pouring out. Wind cord around heel rest. Store upright on its heel in a dry place.

What is the warranty period?

Grunkel offers a 2-year warranty on manufacturing defects. Keep your proof of purchase. For issues, contact Grunkel customer service or your retailer.

USER MANUAL PL-28ANODICED Steam Grunkel

Black and red iron iron with a brand mark 'Grunkel' on the base, no visible text or symbols on the device itself.

A couple smiling while looking at a document together, with cardboard boxes in the background (no visible text or symbols)

Modern flat-screen TV displaying a snowy person in action against a snowy mountain backdrop (no text or symbols visible)

Modern kitchen blender with black handle and silver casing against purple background (no text or symbols)

White microwave oven with control knobs against an orange background (no text or symbols visible)

White electric heater with mesh insulation and control panel, displayed against a solid brown background (no text or symbols visible)

Black rectangular oven with open lid and control knobs against orange background (no visible text or symbols)

3D rendering of a gray vacuum cleaner with orange internal components, set against a solid teal background (no text or symbols visible)

White portable toaster with a black button on the front panel, set against a solid purple background (no text or symbols visible)

White and green juiceizer with a green handle, placed on a purple background (no text or symbols visible)

Metallic coffee maker with black handle against a solid yellow background (no text or symbols visible)

Black outdoor fan with visible blades and a black stand against a blue background (no text or symbols)

White digital kitchen scale with a digital display showing 650, set against a solid pink background (no text or symbols on the scale itself)

Blue and white steam iron with a mesh handle, shown against a solid green background (no text or symbols visible)

White kitchen grater with black handle and side slots, set against a solid purple background (no text or symbols visible)

DESCUBRE TODO LO QUE PODEMOS HACER POR TI EN

www.grunkel.com

GRACIAS POR ESCOGER ESTE PRODUCTO GRUNKEL

This instruction manual is an accurate reproduction of the specifications, operation and look of the product you have just bought, except for typographical, print or translation errors. The specifications, operation and features of this product are subject to change without further notice.

• Please, read carefully the entire instruction manual before using it.
• Pay special attention to the safety indications.
• Keep this instruction manual. If you hand over this appliance to another person, these instructions must be also be transferred.
• Keep also the guarantee card, purchase ticket or invoice. If possible, keep the original box with all the accessories included for future inquiries.

General safety instructions

Before using the appliance ensure that the main voltage corresponds to the voltage displayed on the rating label. Always plug the appliance into a suitable electrical outlet.

In order to avoid electrical shock risk, please do not inmerse the power cord nor the appliance into water or any other kind of liquid. Check the cleaning instructions.

Do not use unauthorized accessories. This will result in cancellation of the guarantee and could cause accidents.

Do not keep the power cording hanging from the table or the shelf. Keep it away from hot sources. Do not allow sharp or blunt objects to touch it. Do not operate the appliance if the power cord or the plug are damaged, or if you notice unusual operation of the appliance.

Do not leave the appliance operating without supervision. Always switch off the appliance and unplug it. Pull the plug, not the power cord.

If any repair is needed, or if the power cord must be replaced, please ask a aqualified professional or contact the Official Technical Support.

CAUTION: To ensure children's safety, keep away packaging material such as plastic bags, carton boxes, etc.

Always watch the appliance when using it near children Never leave the appliance without supervision.

CAUTION: The appliance reaches very high temperatures while it is operating. Be extremely careful during its use. Avoid all contact with the hot parts of the appliance.

Only use the appliance for domestic purposes and in the way indicated in these instructions.

This appliance is not supposed to be operated by any external timer or remote control system.

Never use forks or sharp objects to clean the appliance. This could cause several damage and may cause an accident.

Do not immerse the appliance in water. Do not handle the appliance with wet hands.

Before cleaning the appliance, check that it is unplugged and that is has cooled down completely.

If you require a copy of the instruction manual, please contact the Official Technical Support.

Do not use the appliance in an improper way. It could cause severe injuries. In the event that the appliance has been misused by the costumer, the guarantee will be cancelled.

Do not use the appliance outdoors.

Once you have finished using the appliance, move the knob to the OFF mark, put the appliance in vertical position and wait until it has cooled down completely.

Empty the water tank completely when finished using the apliance.

It is always recommended to empty the water tank to protect the appliance against accumulated lime deposits that could damage the tank or ducts. CAUTION: Water in the tank can still be hot.

It is recommended to use distilled or demineralized water. Tap water may cause mineral deposits to be accumulated inside the appliance and therefore blocking its output holes.

Use the included water cup to fill the tank. Do not allow the water level to pass the MAX mark.

Long-range hot steam is released when pressing the steam burst button. Keep a safe distance when using it to avoid accidental burns.

grunkel

Do not use the appliance in wet or humid environments such as bathrooms.

Do not leave the appliance unattended when it is operating.

The water tank must be filled only if the appliance is shut off and unplugged.

Do not allow the power cord to come into contact with the soleplate.

Do not iron excessively dry fabrics.

Do not aim the appliance towards people when it is still hot.

Do not overfill the water tank. Do not add dyes or similar products to the water tank.

Always place the appliance in correct position and on a flat stable surface.

Never use the appliance on clothes that are being worn.

Do not use the appliance on zippers, broochs, rivets, rings or any other similar metallic elements. Friction with these elements may scratch the soleplate surface and proper functioning of the appliance may be affected.

WARNING: In case of improper use, injuries and loss of guarantee may occur.

Children must be supervised so they do not play with the appliance.

Keep the appliance and its cord out of reach of children under 8 years old.

This appliance is intended for occasional use during trips or temporary stays. It is not suitable for regular domestic use.

This appliance should only be used in domestic environments. It can be used for commercial purposes in some cases:

- Shops, offices or similar working environments.

- Agricultural work environments.

- By customers in hotels, hostels or bed-and-breakfast establishments.

WARNING: This appliance is intended for domestic purposes exclusively. Do not use for industrial applications.

CAUTION!

CHILDREN UNDER 8 YEARS OLD SHOULD NOT USE NOR CLEAN THIS APPLIANCE WITHOUT THE SUPERVISION OF AN ADULT. NEITHER CAN BE USED NOR CLEAN BY PEOPLE WITH REDUCED PHYSICAL, MENTAL OR SENSORIAL CAPABILITIES, WITHOUT EXPERIENCE OR KNOWLEDGE CONCERNING THE USE OF THE APPLIANCE, OR WITHOUT HAVING RECEIVED PROPER TRAINING UNDER DIRECT SUPERVISION FROM AN EXPERIENCED PERSON RESPONSIBLE FOR THEIR SAFETY.

CAUTION

Hot surface

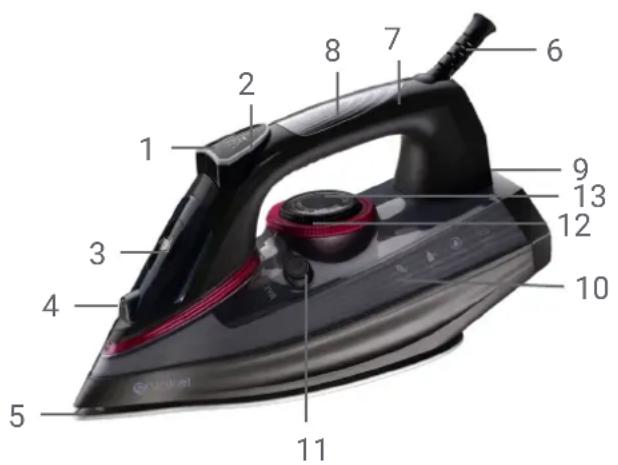

Part identification

Num.	Description
1	Steam burst button
2	Spray button
3	Water tank cover
4	Nozzle
5	Soleplate
6	Cord protector
7	Top cover
8	Handle
9	Back cover
10	Water tank
11	Autocleaning button
12	Temperature control knob
13	Steam control knob

Before using for the first time

Remove all protective films that could be sticked to the soleplate or the appliance's body.

Clean the soleplate with a soft dry cloth.

Unwind the power cord.

Fill the water tank as described in the corresponding section this manual.

grunkel

Plug the appliante in a suitable electrical outlet.

Turn the temperature control knob up to the MAX position: the light indicator will turn on to indicate that the soleplate is heating up. Once the light indicator goes off, the soleplate has reached the required temperature.

Turn the steam control knob up to the ON position. The steam will start emitting from the soleplate.

During its first use, use an old towel or cloth. Do not try to iron on a clean laundry directly, as the holes in the soleplate may contain certain residues that will be removed during this initial process.

Once the water tank is empty, the appliance will stop emitting steam and will be ready for regular use.

NOTE: It is normal that certain amount of smoke is released during this first usage. This situation is normal and will disappear with regular use of the appliance.

How to fill the water tank

The appliance must be unplugged and completely cooled down.

Ensure the control knobs are turned to the MIN and OFF position. Open the water filling lid.

Put the appliance in vertical position and tilt it 45^ .

Using the included measure cup, pour the water in the tank through the filling hole until it reaches the MAX level.

Close the filling hole lid and clean any rest of water that could have been spilled accidentally on the appliance's body.

NOTE: To expand the appliance's lifespan and improve its performance, it is recommended to use distilled or demineralized water.

Ironing guidelines

Sort the clothes you are going to iron according to the type of fabric. This will reduce the frequency of temperature adjusting for each type of fabric.

Start ironing the fabrics that require lower temperature and progressively follow with the clothes that require higher temperatures. The soleplate takes more time to heat up than it takes to cool down.

grunkel

If you are not sure what type of fabric the clothes are made of, carry out a brief ironing test on the back side of the clothes. Start ironing at the lowest temperature and keep raising it until you reach the most suitable adjustment.

Wait at least 3 minutes before ironing delicate clothes. The temperature adjustment requires a certain amount of time to reach the selected temperature, regardless of whether you are lowering or increasing the temperature.

Use an ironing cloth to avoid leaving ironing marks on delicate fabrics such as silk, wool or velvet.

You may need to press the spray button several times before you can use the steam burst function.

Avoid direct contact with metallic, sharp or hard objects to keep the soleplate free from scratches.

Type of fabric	Icon on the label	Temperature adjustment
NylonSilk	●
Wool	●●
Cotton	●●●
Linen

CAUTION: The symbol indicates that the clothes must not be ironed.

Spray function

Press the spray function to spray water on the clothes as many times as you require. This function can be used at any time without interfering with other functions of the appliance.

NOTE: Ensure there is always water in the tank when using this function. During this first use, you may need to press the spray button several times until the appliance effectively sprays the water.

Dry ironing function

This function allows to iron the clothes without emitting steam.

Plug the appliance in a suitable electrical outlet.

Turn the steam control knob up top the OFF position.

Turn the temperature control knob up to the position suggested in the clothes' label.

The light indicator will turn on to indicate that the soleplate is heating up.

When the selected temperature is reached, the light indicator will go off. The appliance is ready for use.

Once you have finished using the appliance, turn the temperature control knob up to the OFF position.

Unplug the appliance from the electrical outlet. Allow it to cool down completely.

Follow the cleaning and maintenance guidelines described within this manual.

Steam ironing

This function can only be used when ironing at high temperatures (at least from the mid position up to the MAX position in the temperature control knob).

Fill the water tank following the instructions described within this manual.

Plug the appliance in a suitable electrical outlet.

Turn the temperature control knob up to the MAX position.

The light indicator will turn on to indicate that the appliance is heating up.

When the appliance has reached the required temperature, the indicator will go off. The appliance is ready for use.

La During the ironing, the light indicator will go on and off in cycles. This indicates the thermostat is operating to keep the required temperature.

CAUTION: It is not possible to iron synthetic, nylon, silk or synthetic silk fabrics, since this could cause serious damage to the clothes.

grunkel

Once you have finished using the appliance, turn the temperature control knob up to the OFF position.

Unplug the appliance from the electrical outlet and allow it to cool down completely, then follow the cleaning and maintenance guidelines described in this manual.

NOTE: This appliance has a built-in anti-drip system. If the appliance is used during a long period of time, the soleplate temperature may decrease. The anti-drip system prevents the water to leak from the soleplate during that time.

Steam burst

This function is suitable for heavy fabrics and pronounced wrinkles. By pressing the steam button an strong steam burst will be released from the soleplate. This function is available when the soleplate has reached the maximum temperature. To obtain the best results, allow a 5-second interval between each steam burst. Do not press and hold the button form more than 3 seconds to prevent water leaks from the soleplate. Allow at least 1 minute before pressing the steam button again. Deep wrinkles should be removed after a 3 steam burst treatment.

Steam burst in vertical position

The steam burst can also be released while holding the appliance in vertical position. This function is useful to remove deep wrinkles in hanging clothes, curtains or other hanging fabrics.

NOTE: It may be required to press the steam button several times to start using this function. While applying the steam burst function, do not iron if the light indicator goes off, and resume only if the light indicator goes off again.

CAUTION: Do no apply steam directly on clothes or fabrics that are being worn. The steam temperature is very high and could cause burns and severe damage.

Autocleaning

This function removes residues and minerals accumulated in the steam compartment. The appliance is better maintained if this function is used at least every two weeks. You can use this function more frequently depending on the hardness of the water in your area.

1. Ensure the appliance is unplugged from the electrical outlet and that is has cooled down completely.
2. Turn the steam control knob up to the OFF position.

grunkel

1. Fill the water tank as described in this manual.
2. Place the appliance in vertical position on an stable, flat surface.
3. Plug the appliance in a suitable electrical outlet.
4. Turn the temperature control knob up to the MAX position.
5. The light indicator will turn on to indicate the appliance is heating up.
6. When the required temperature is reached, the light indicator will go off.

7. Turn the temperature control knob down to the OFF position.

8. Unplug the appliance from the electrical outlet.

9. Hold the appliance in horizontal position over a sink.

10. Press and hold the autocleaning button while gently shaking the appliance.

11. The holes in the soleplate will start emitting steam and boiling water, removing the debris, lime, mineralas or scales accumulated in the steam compartment during previous use.

12. Release the autocleaning button once the water tank is empty.

13. Repeat this process if there is too much residues accumulated in the appliance.

14. Once the autocleaning process has finished, plug the appliance in a suitable electrical outlet and turn the temperature control knob up to the MAX position. This way the appliance will heat up and the soleplate will dry.

15. Turn the temperature control knob down to the off position and unplug the appliance from the electrical outlet once the required temperature has been reached.

16. Slide the appliance over an old cloth or fabric to remove any rest of water that could have accumulated on the soleplate.

17. Allow the appliance to cool down completely before storing it.

Auto switch off

While the appliance is in idle state, it will automatically switch off to save energy. If it is not being used, the appliance will switch off in 8 minutes in vertical position and in 30 seconds in horizontal position. Before it switches off, the red light indicator in the rear part of the appliance will turn on and will remain this way while the appliance is idle.

Cleaning and maintenance

The appliance still remains hot after use. Allow it to cool down completely before handling it for cleaning or storage.

The appliance must be unplugged from the electrical outlet before cleaning.

Never immerse the appliance into water or any other liquid. Do not put it under a water stream. Do not put the appliance into the dishwasher.

Do not use aggressive cleaner products. Do not use metallic brushes or sharp tools to clean the appliance.

When the ironing is finished, place the iron in vertical position and ensure that the sole-plate has no water stains that could accumulate and block the steam holes.

It is not mandatory to void the water tank after each ironing. However, it is recommended to carry our this action in order to avoid minerals to accumulate in the water deposit, ducts and holes of the appliance that may affect its proper functioning.

Keep the soleplate clean always. You can use a woollen cloth moistened with a vinegar and water solution. The appliance's body can be cleaned with a slightly moistened soft cloth.

2800W \~50/60HZ

Product disposal

Regulation regarding waste from electronic appliances according to RAEE 2002/96/EC. This symbol means the appliance can not be treated as regular domestic waste; it must be returned to the distributor, handed over the corresponding electronic product collection point or delivered to the collection point empowered for such purpose, so its components are recycled and not mixed within domestic waste.

You can also contact your local waste collection service, so it can be collected and treated accordingly following the environment protection instructions, or to receive proper information about the steps to follow for the correct disposal of the appliance.

The correct disposal of an appliance implies avoiding negative consequences for both environment and health. A proper disposal allows to save a significant amount of energy and resources. As a reminder of the necessity of disposing the appliances separately, the product displays the symbol of a crossed out garbage bin.
